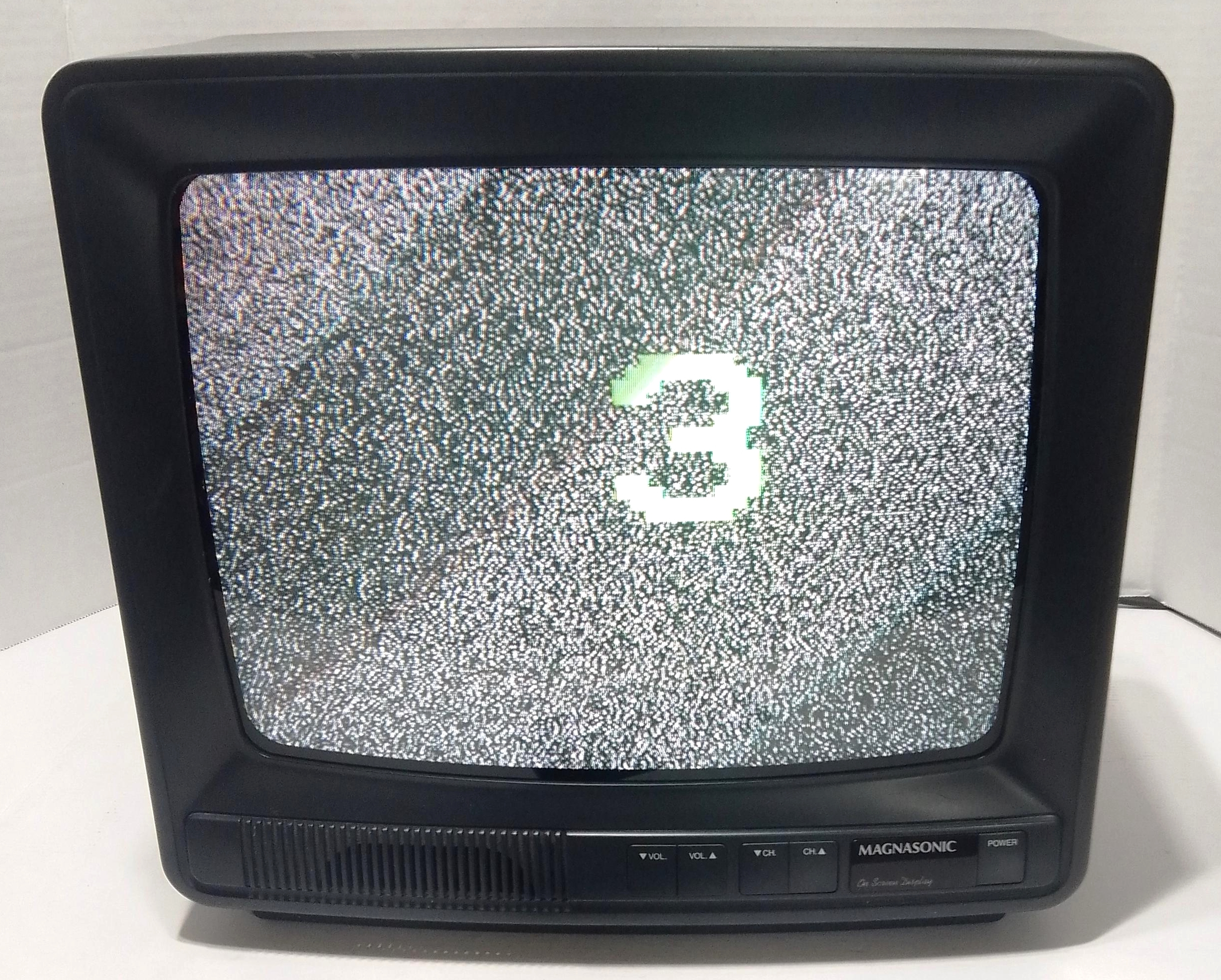

Magnasonic GCT 6012
SegaSaturn94, Trixter192, M
January 29, 2025, 8:14 am
August 4, 2025, 4:12 am
January 29, 2025, 8:14 am
August 4, 2025, 4:12 am
Summary

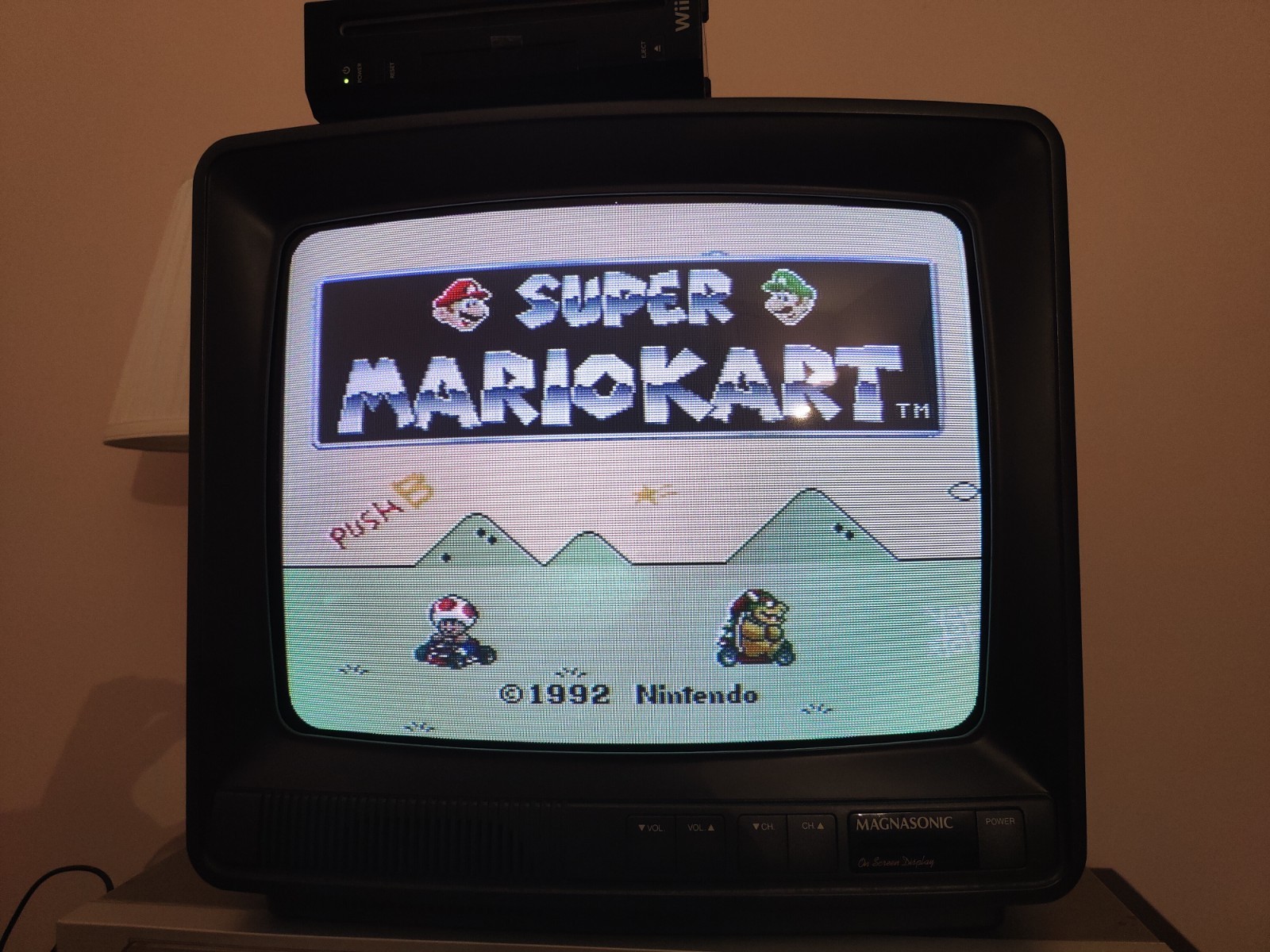

Basic 13" CRT from 90s. Only has RF from factory but easily moddable to accept s-video and composite.
Manuals
Notes
Same TV as Emerson TC1369 (same pcb and tube, different branding).

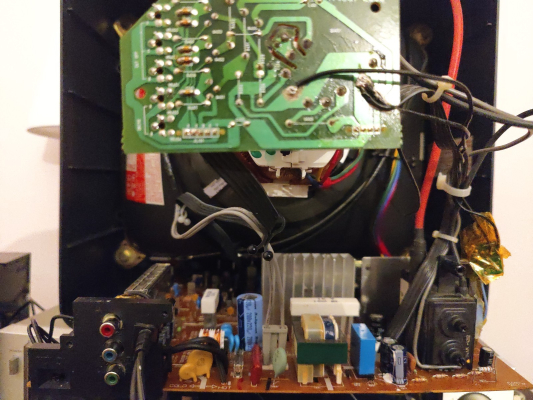

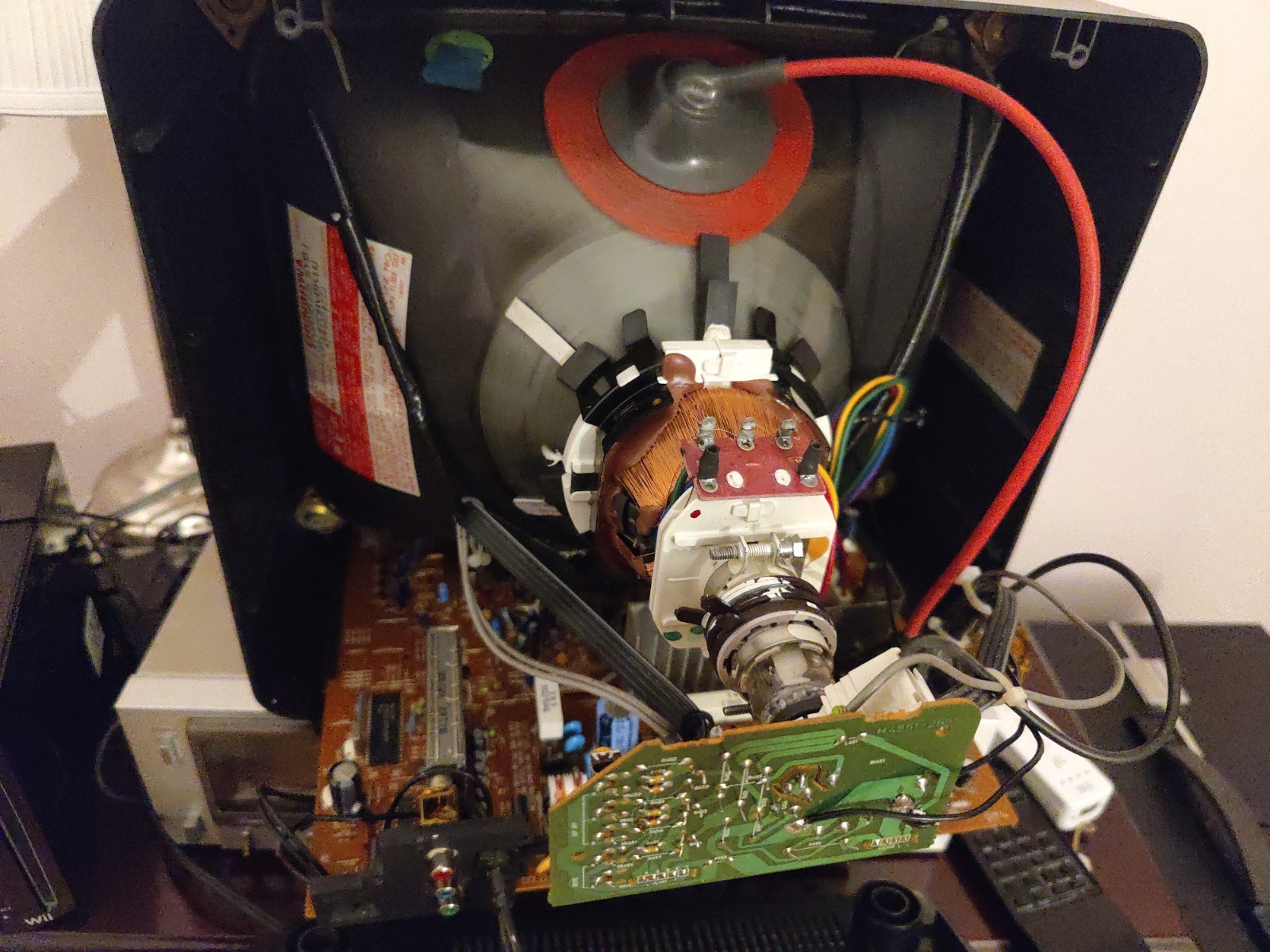

Can't be RGB modded since OSD only uses 2 colors (R and G, missing B). Composite mod is easy, pin 43 is TV video signal input, lift C303 and feed composite signal to it. Pin 53 is the TV audio signal input, again lift C212 and wire it to audio signal input. Can't find the external video input switch pin though, pin 40 and 6 on TA8680BN are external video and audio inputs.

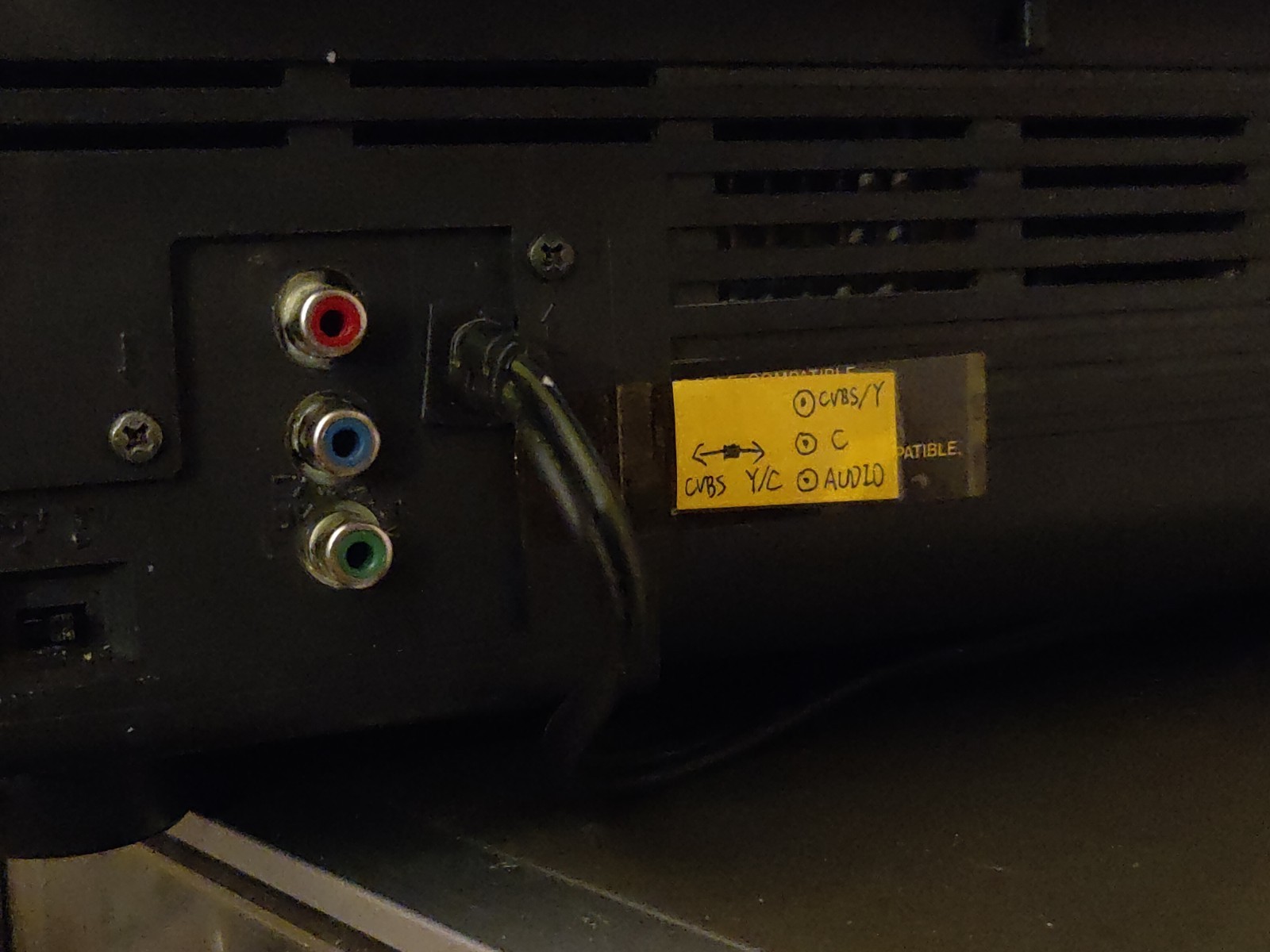

To perform the s-video mod, lift C306 and feed chroma signal to it. Pin 31 on TA8680bBN is chroma input. Don't forget to add 75 ohm termination resistors.

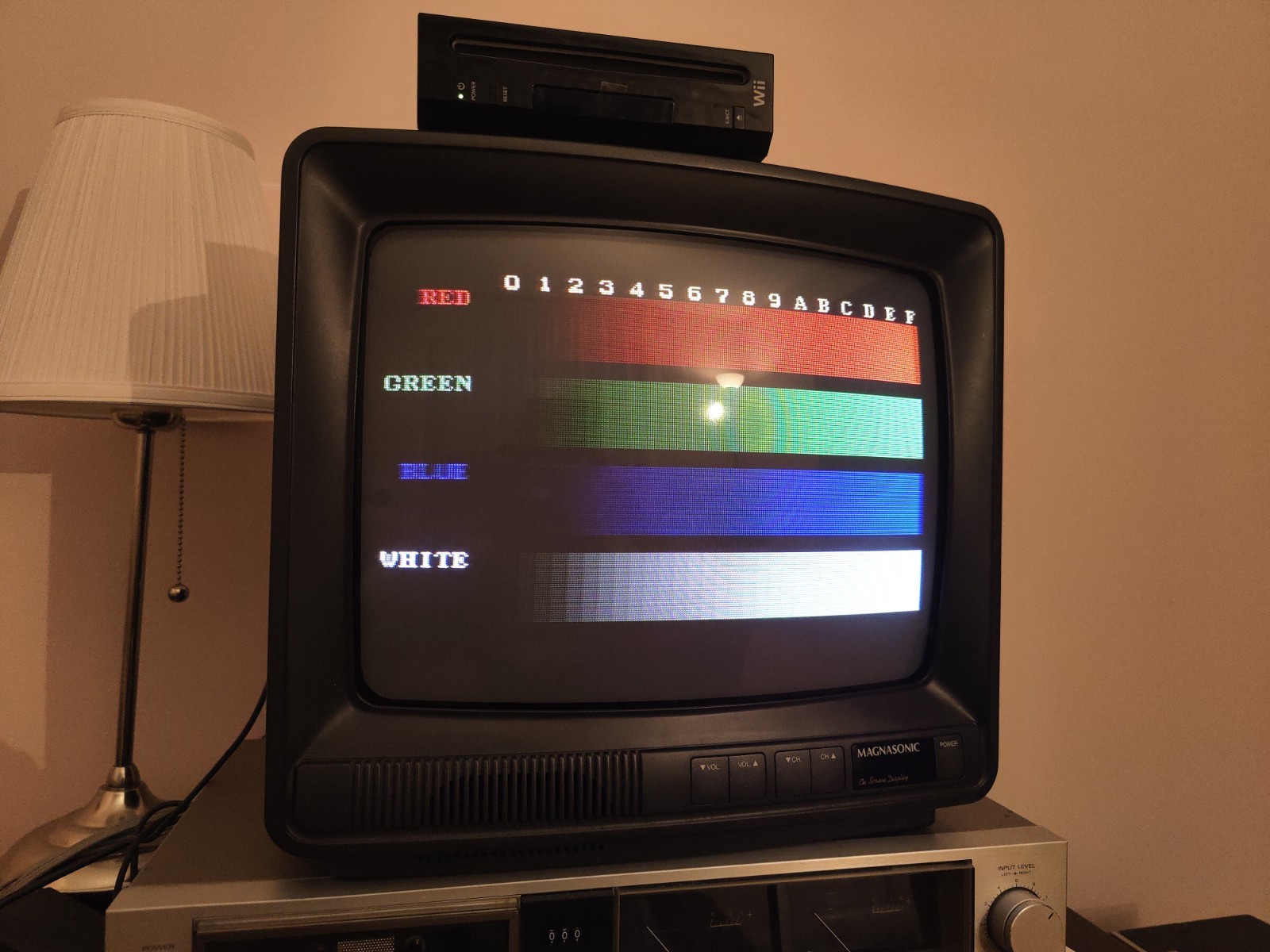

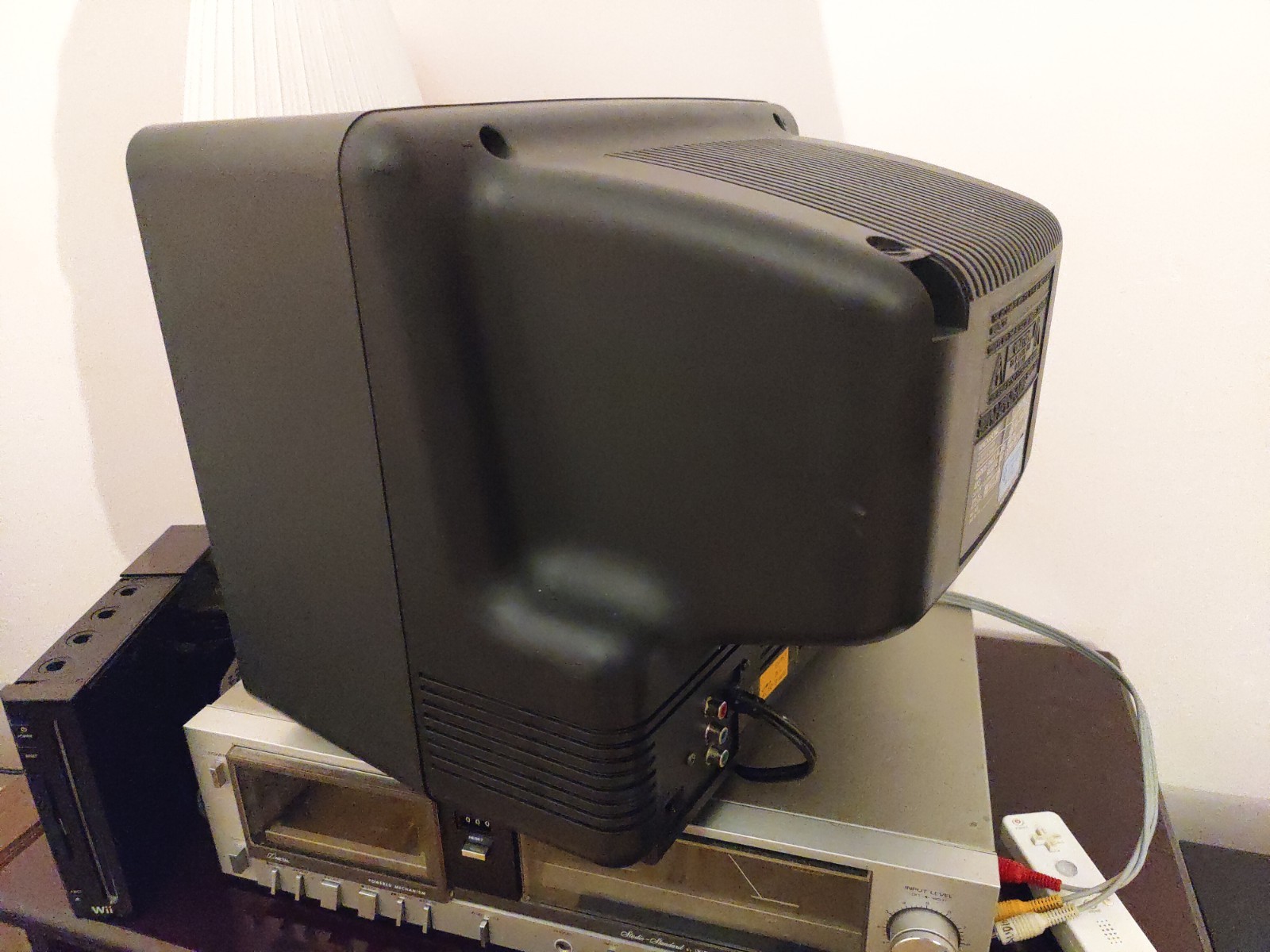

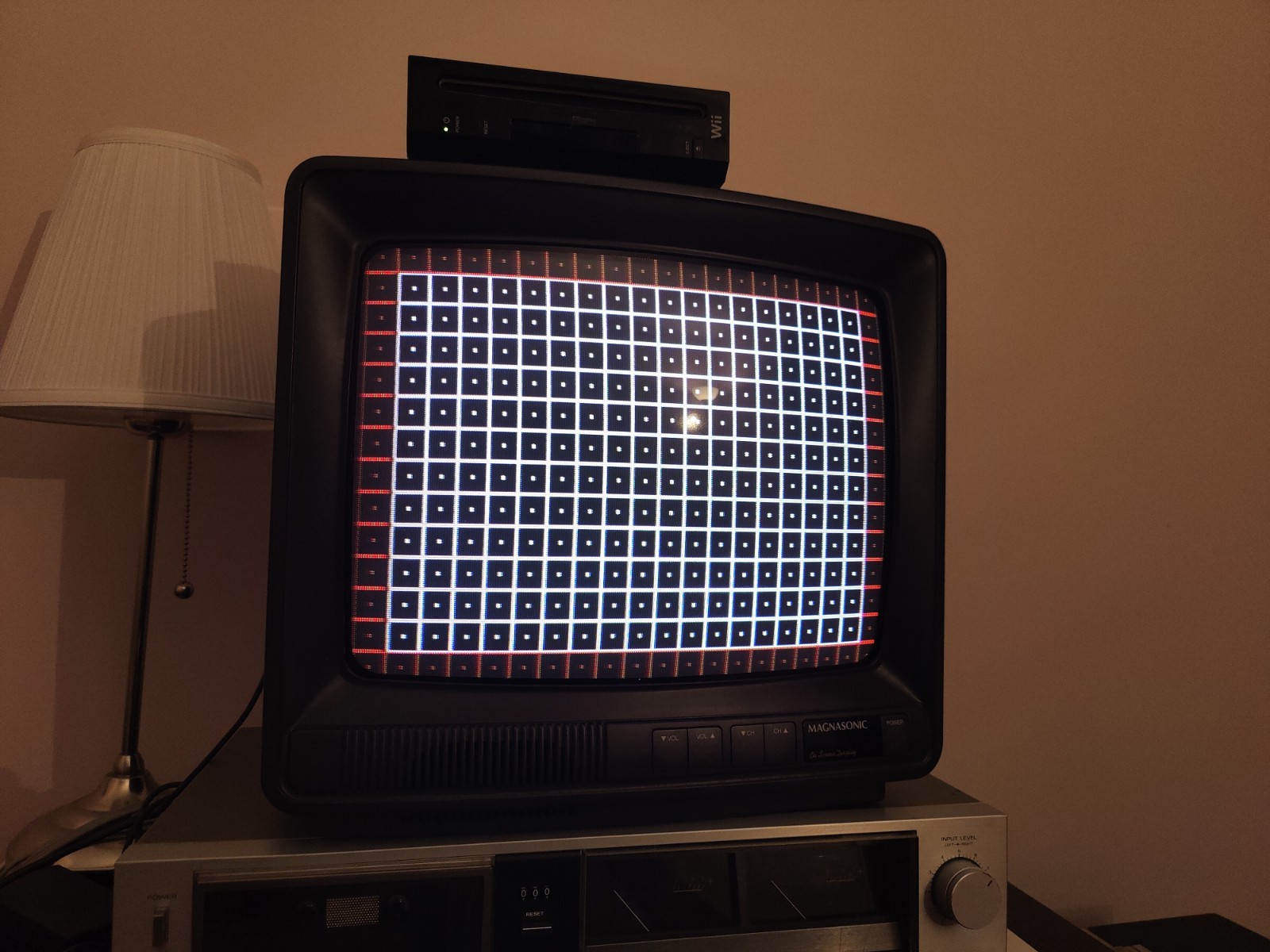

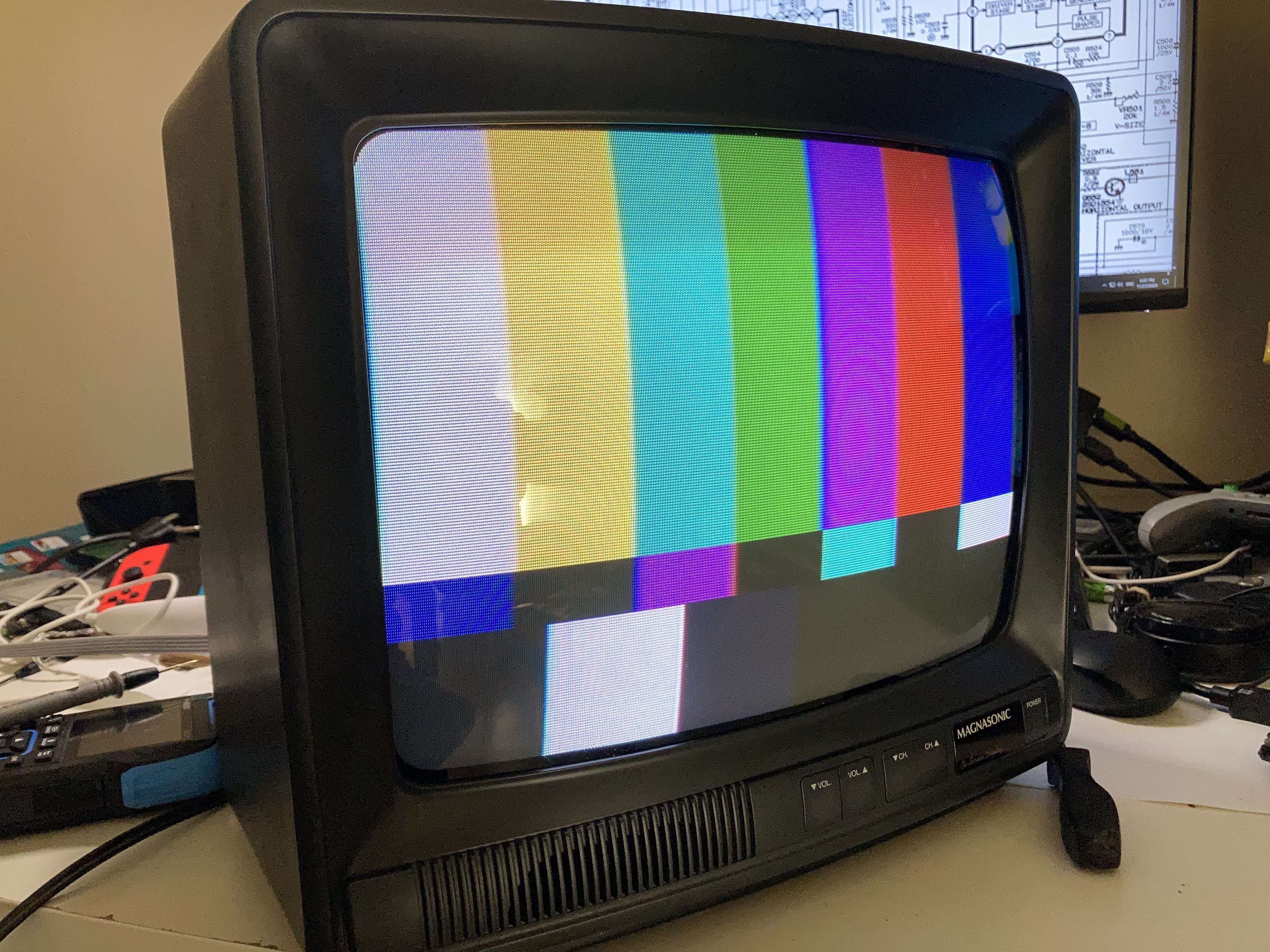

Gallery























Specifications | |
---|---|
Brand: | Magnasonic |
Manufacturer: | Orion |
Model: | GCT 6012 |
Series: | GCT |
Viewable Size: | 13" |
Inputs: | RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, OSD Customer Controls |
Jungle: | TA8680BN, Toshiba |
Focus Type: | Single |
Tube: | Chunghwa , 370KSB22 |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Speakers: | Mono |

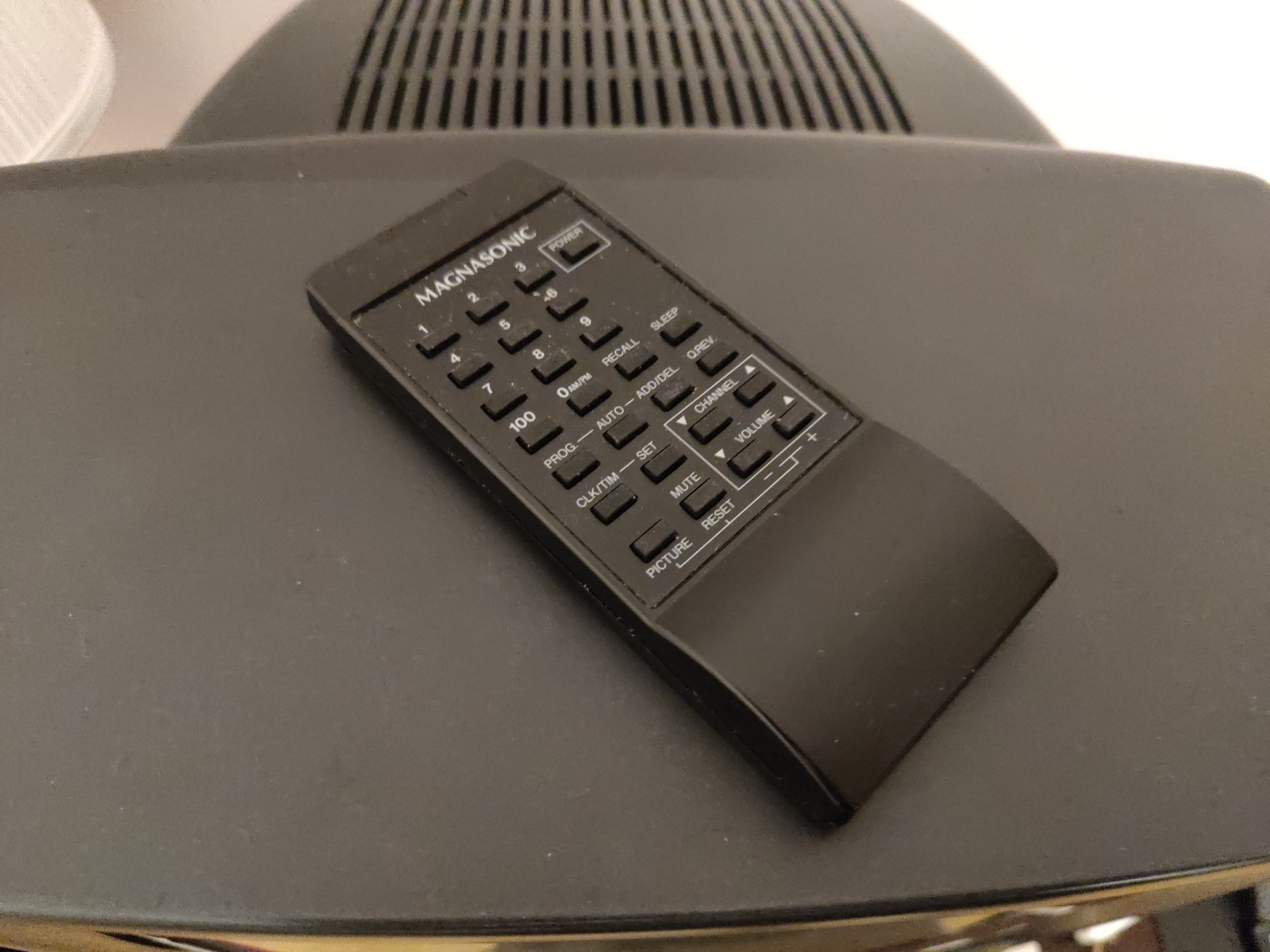

Remote: | 6142-08519 |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1993 |
Country of Manufacture: | Malaysia |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Mods: | S-Video, Composite |
Tag: | Needs Owners Manual, Needs Service Manual, Needs Yoke Info, Community Submission |
