Magnavox 20MT133S
Matt Ross
September 3, 2024, 8:26 pm
November 15, 2024, 7:32 pm
September 3, 2024, 8:26 pm
November 15, 2024, 7:32 pm
Summary
Basic 20" CRT TV, made by Philips and sold under the Magnavox brand. Includes mono A/V and RF inputs. Superficially similar to the 20MT1331/17.
Literature
Notes
This TV shares a similar design to the 20MT1331/17. Is uses the same case and has the same specifications and feature set. However, it is internally very different. Unlike the 1-chip Philips jungle used in the L03.2U chassis, the J8 chassis uses a separate micon/jungle design with a Mitsubishi/Renesas chip. While some TVs using this chipset can be RGB modded, this chassis is configured for digital RGB for the onscreen display and cannot be modified.

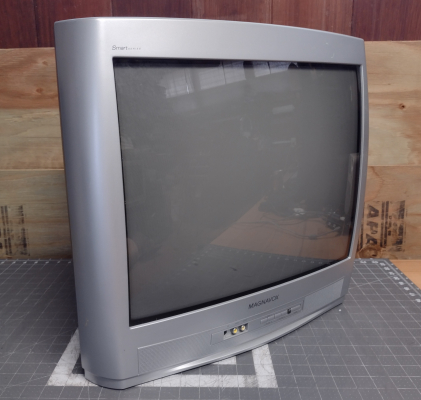

Gallery
Specifications | |
---|---|
Brand: | Magnavox |
Manufacturer: | Philips |
Model: | 20MT133S |
Series: | MT |
Viewable Size: | 20" |
Inputs: | Composite, RF |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Tube: | LG.Philips , A51QAE320X |
Deflection: | 90° |
Mask: | Slot |
Tint: | Dark |
Yoke: | 6150Z-1024F |
Speakers: | Mono |
Chassis: | J8 |
Application: | Consumer |
Launched: | 2004 |
Country of Manufacture: | China |
Degaussing: | Automatic on Power-on |
