Summary

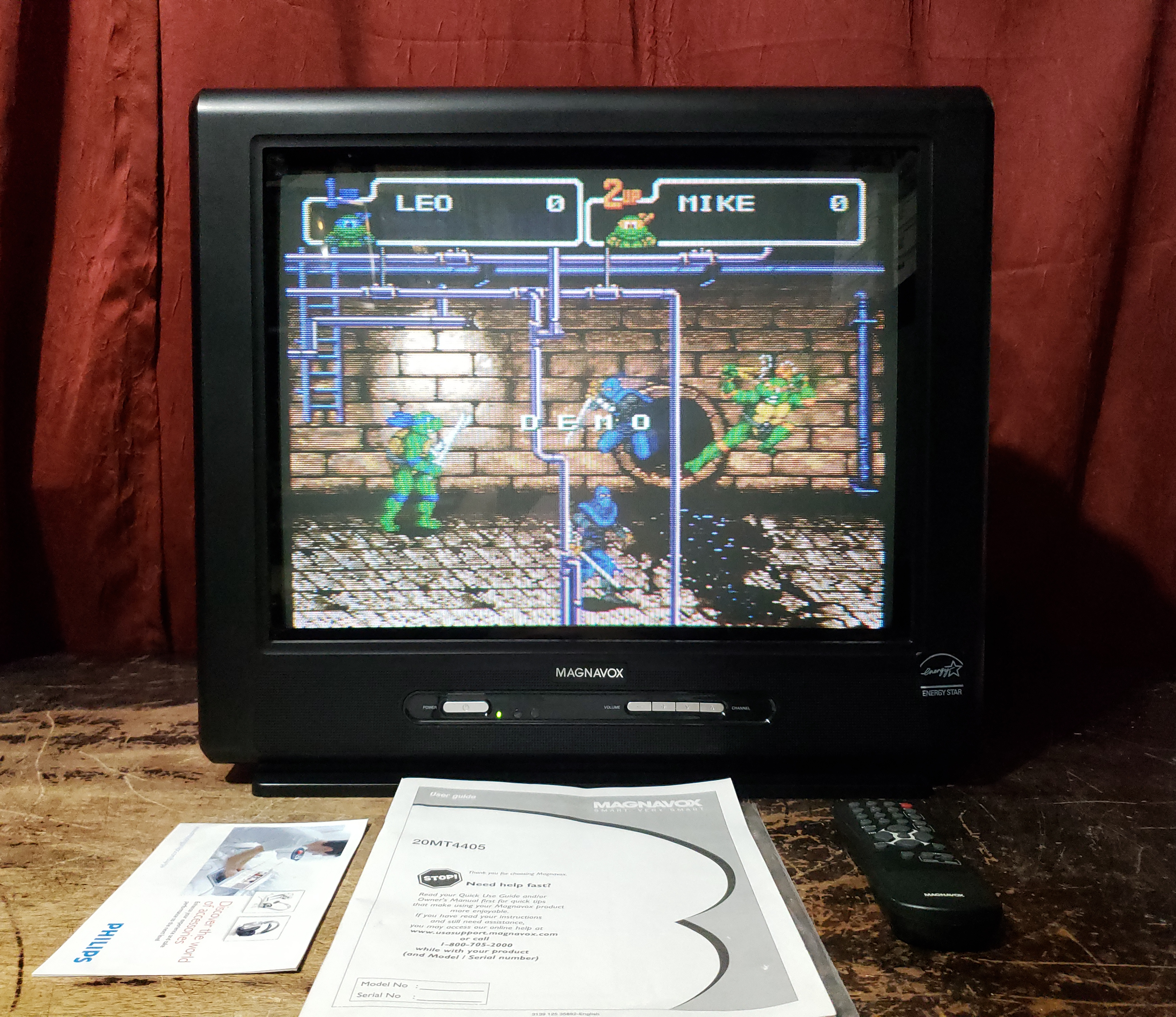

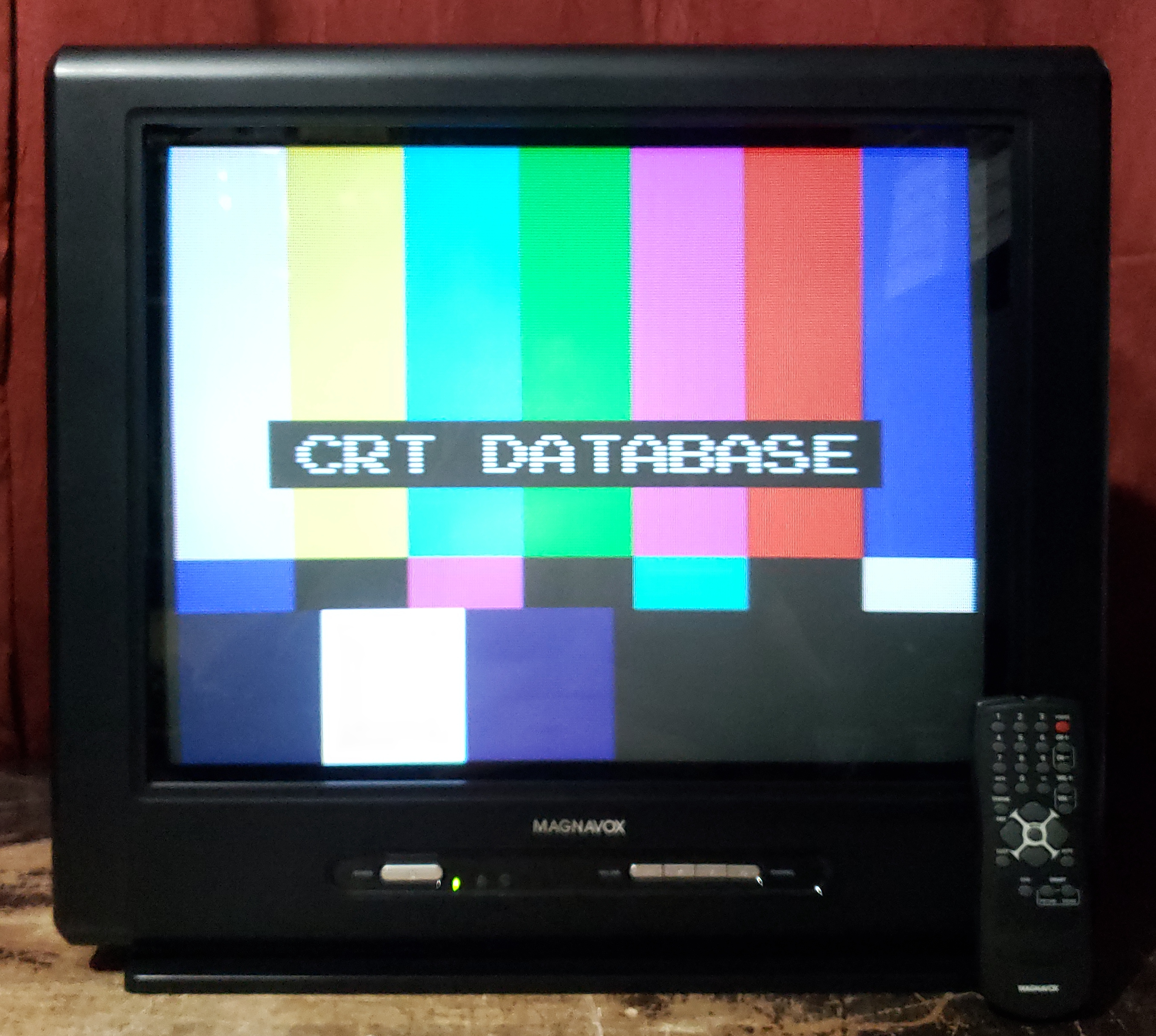

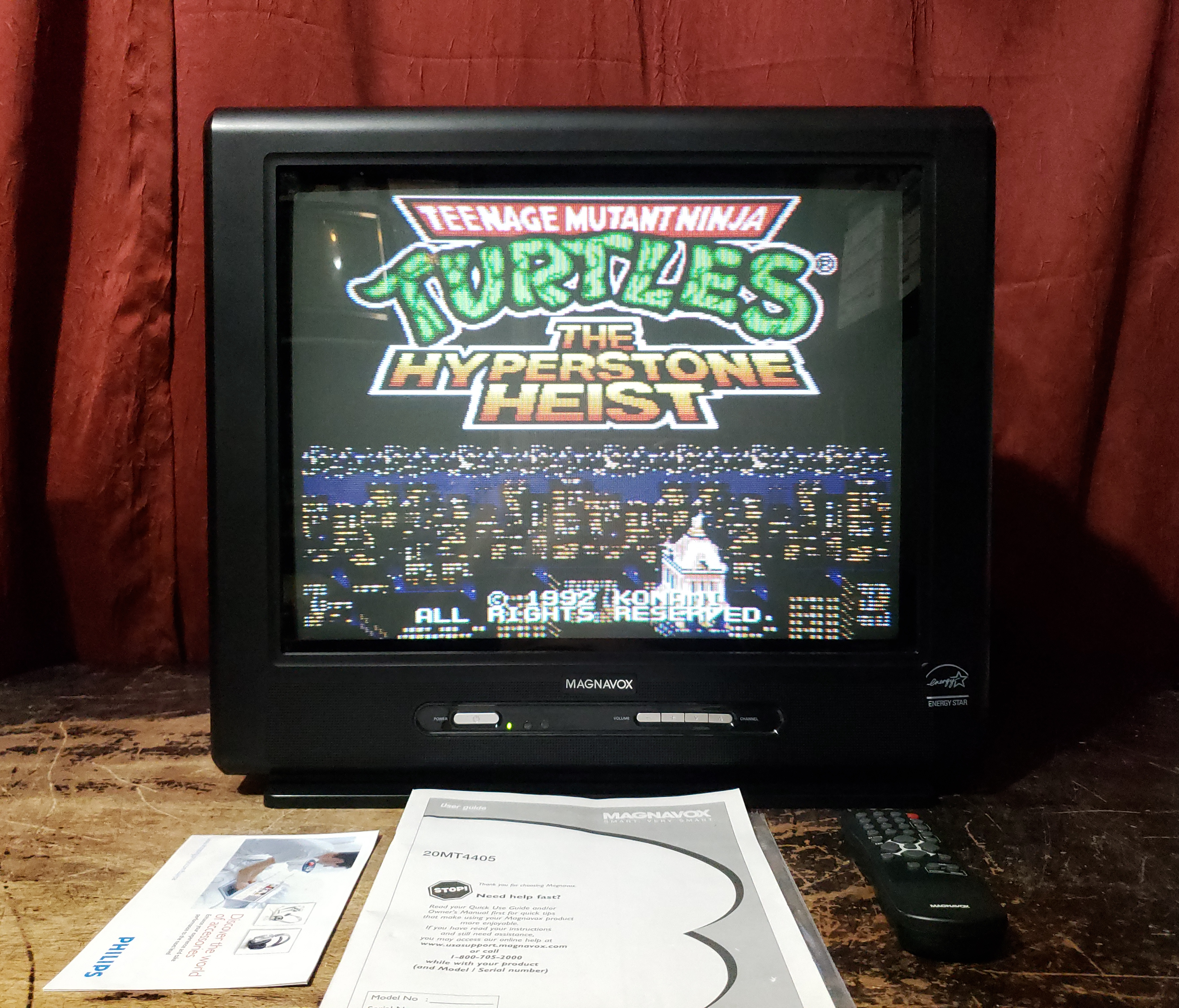

20" Magnavox CRT from 2006, made by TCL in China. Has a full set of inputs.
Manuals
Notes

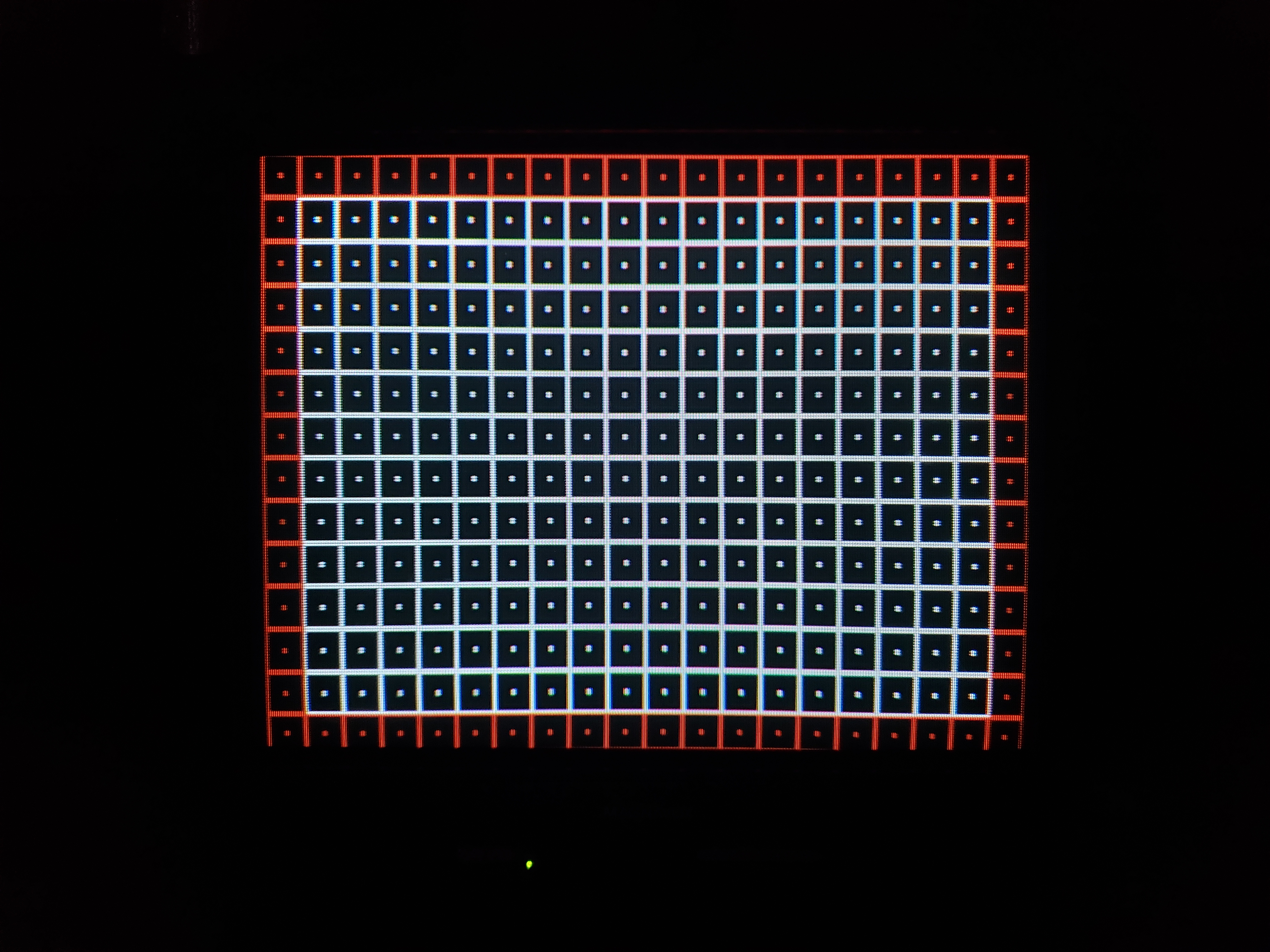

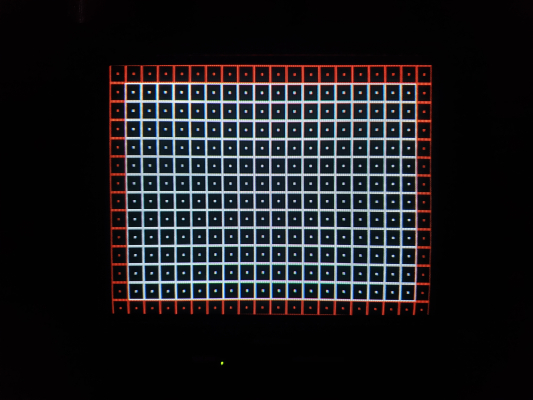

Basically a black version of the Philips 20PT6245/37, as they both share the exact same chassis. Has excellent picture quality, as always. 50hz support, but only in color over component. Has a great comb filter, might I add.

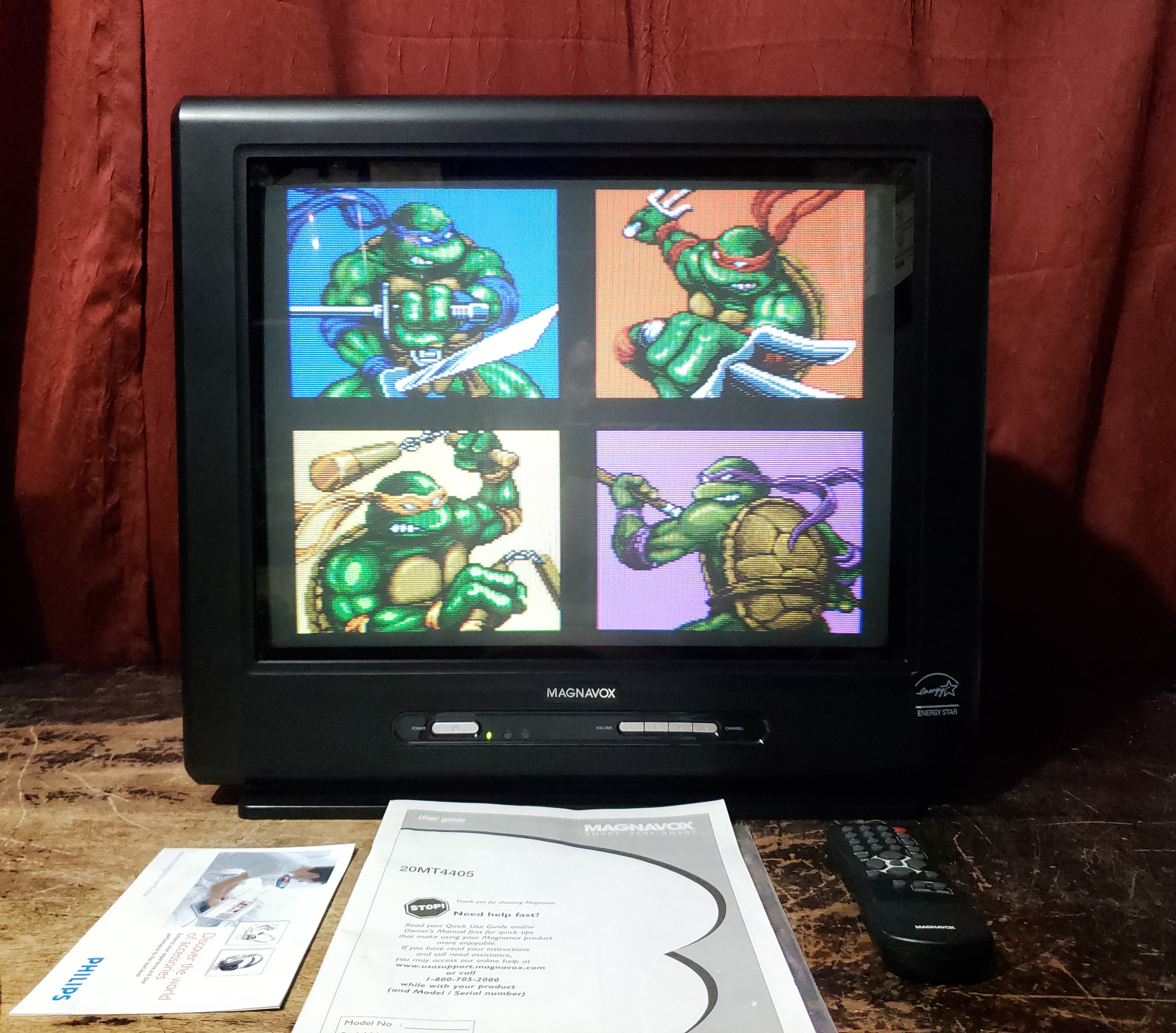

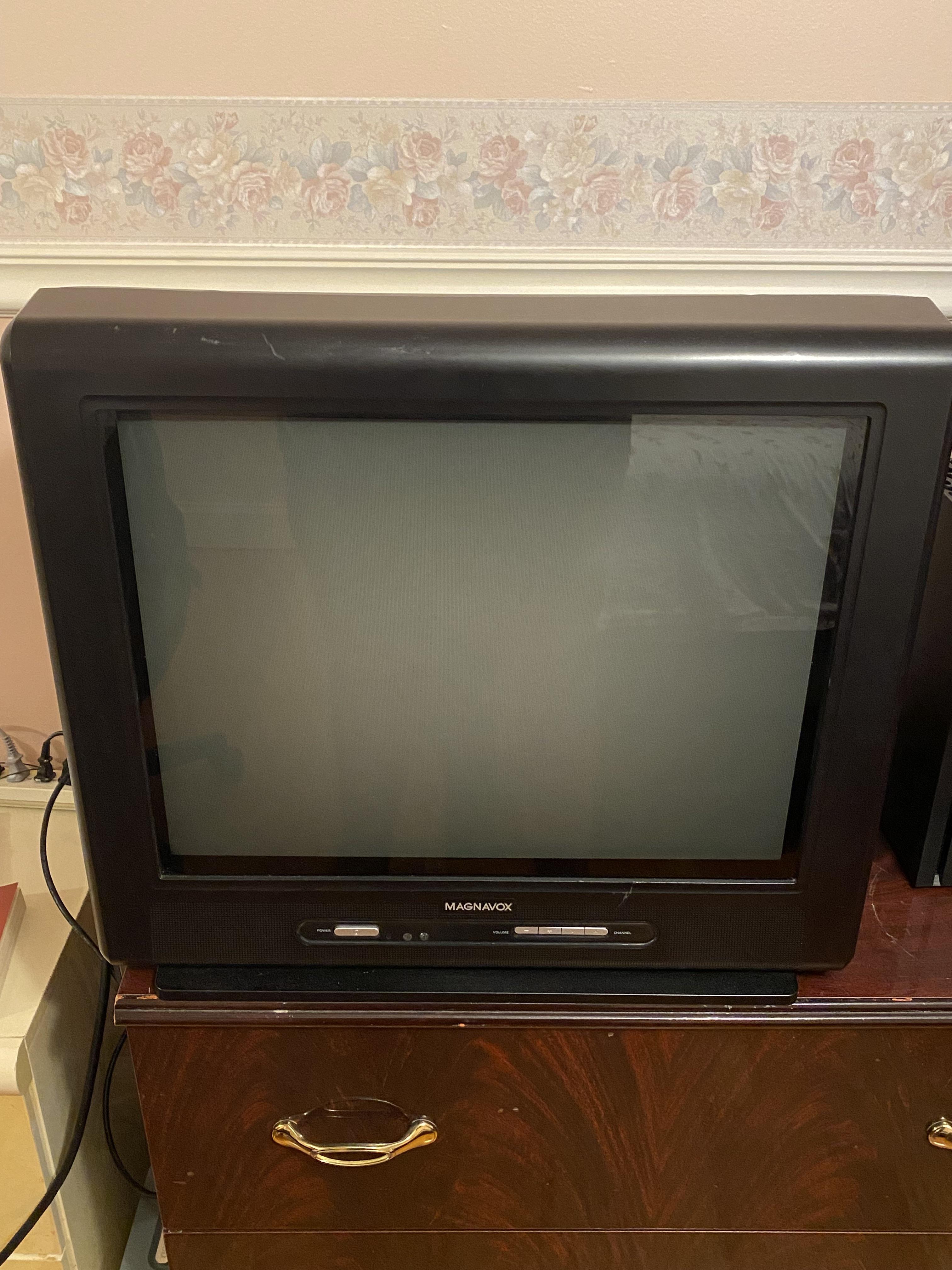

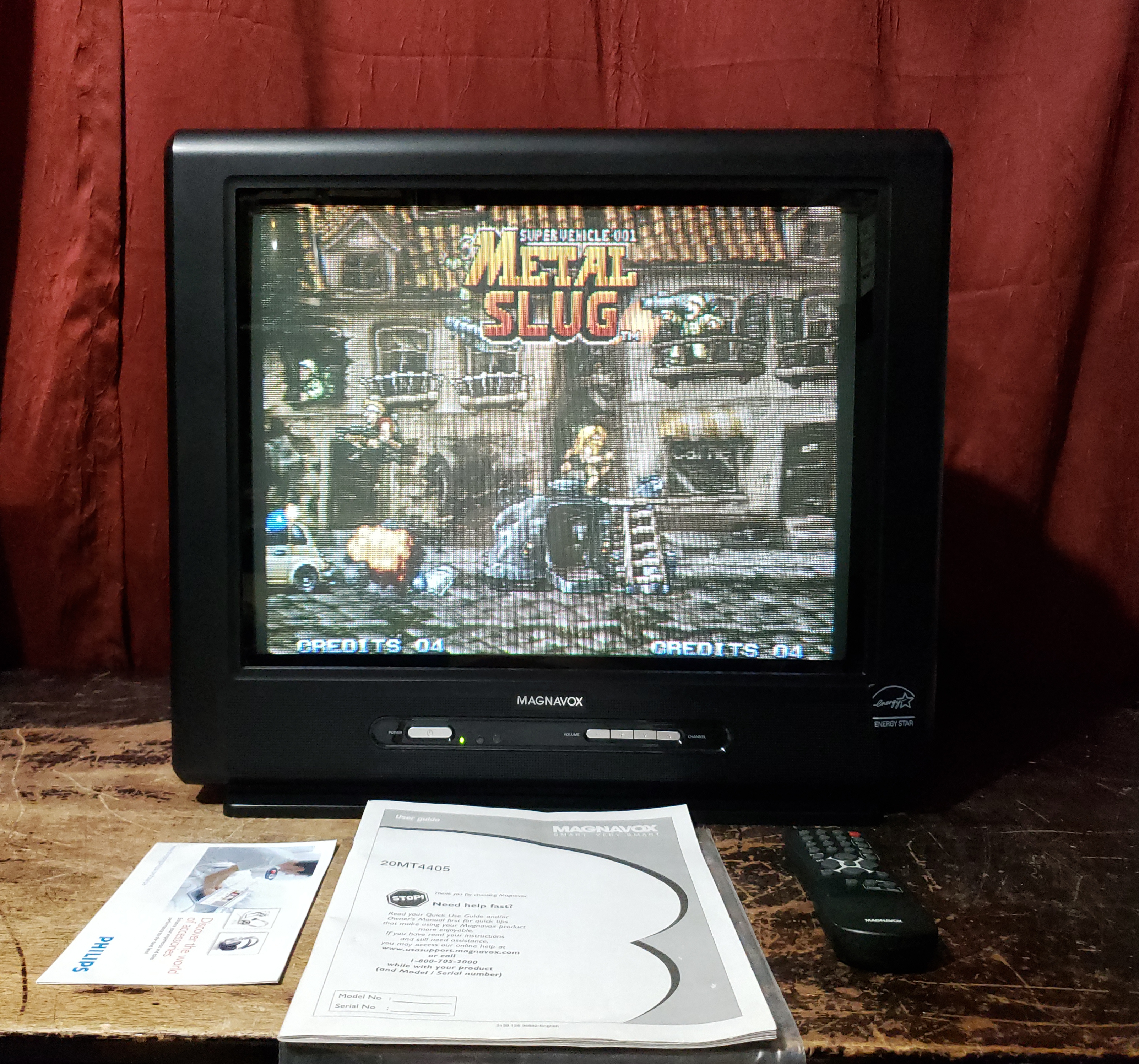

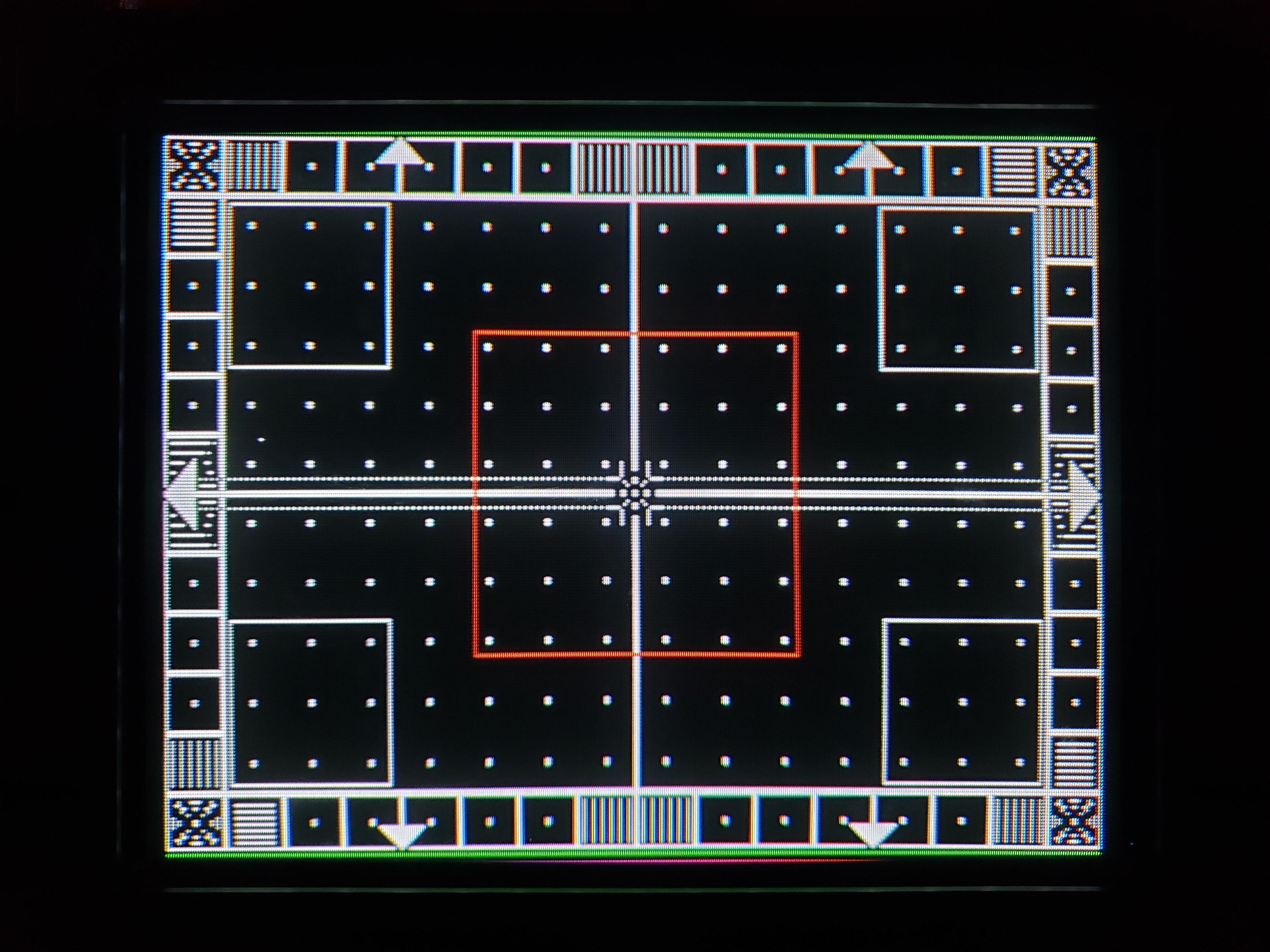

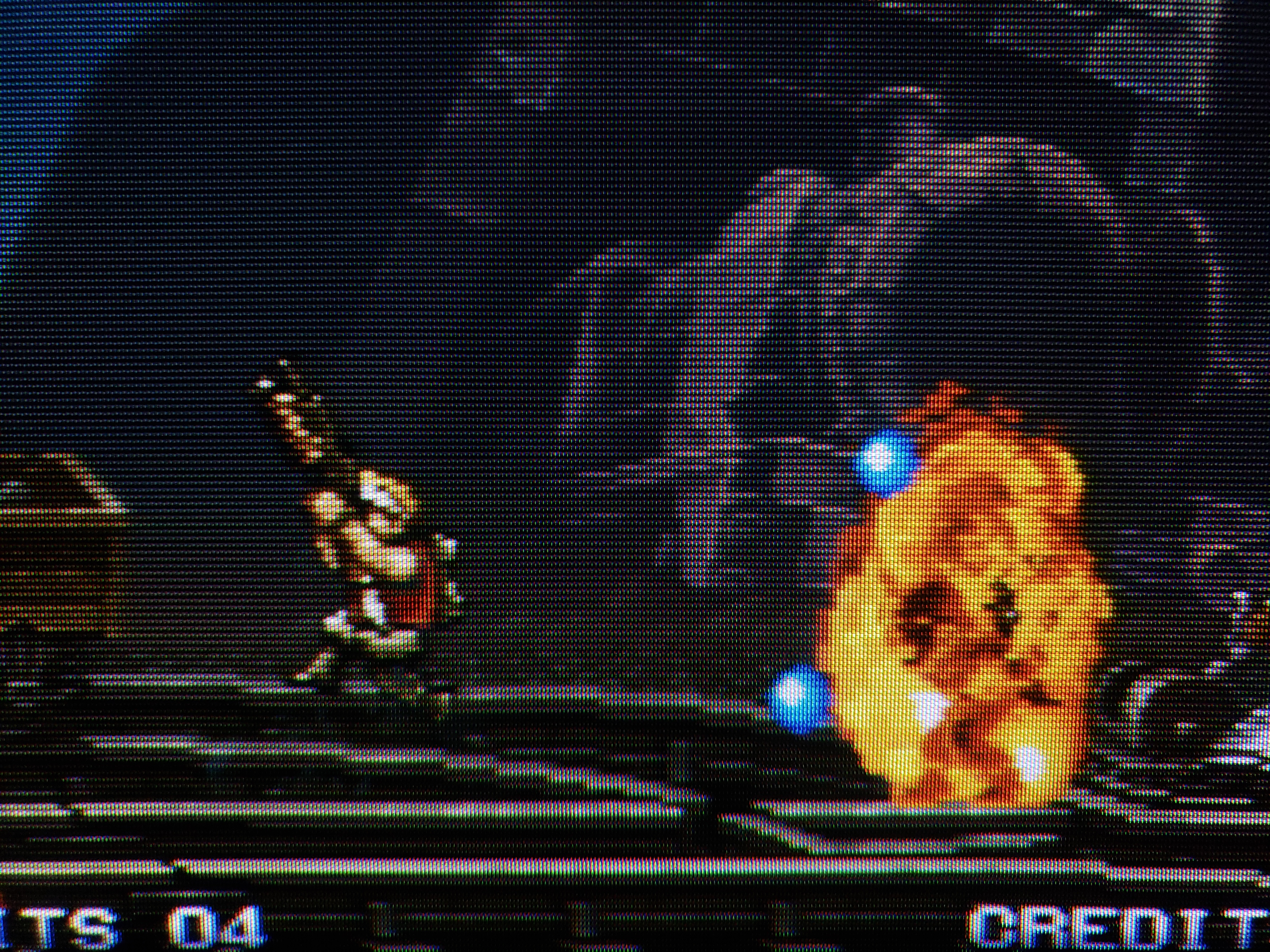

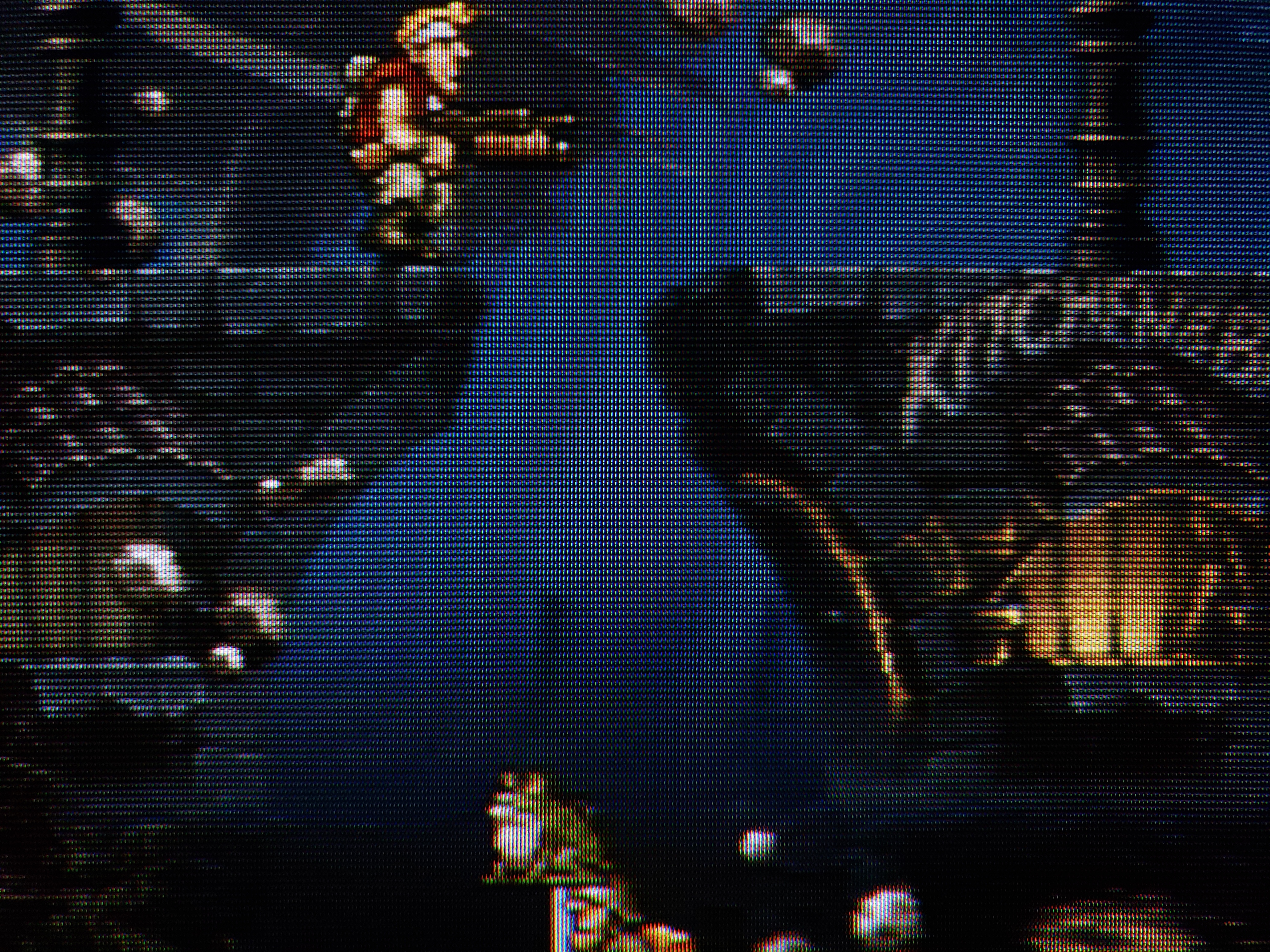

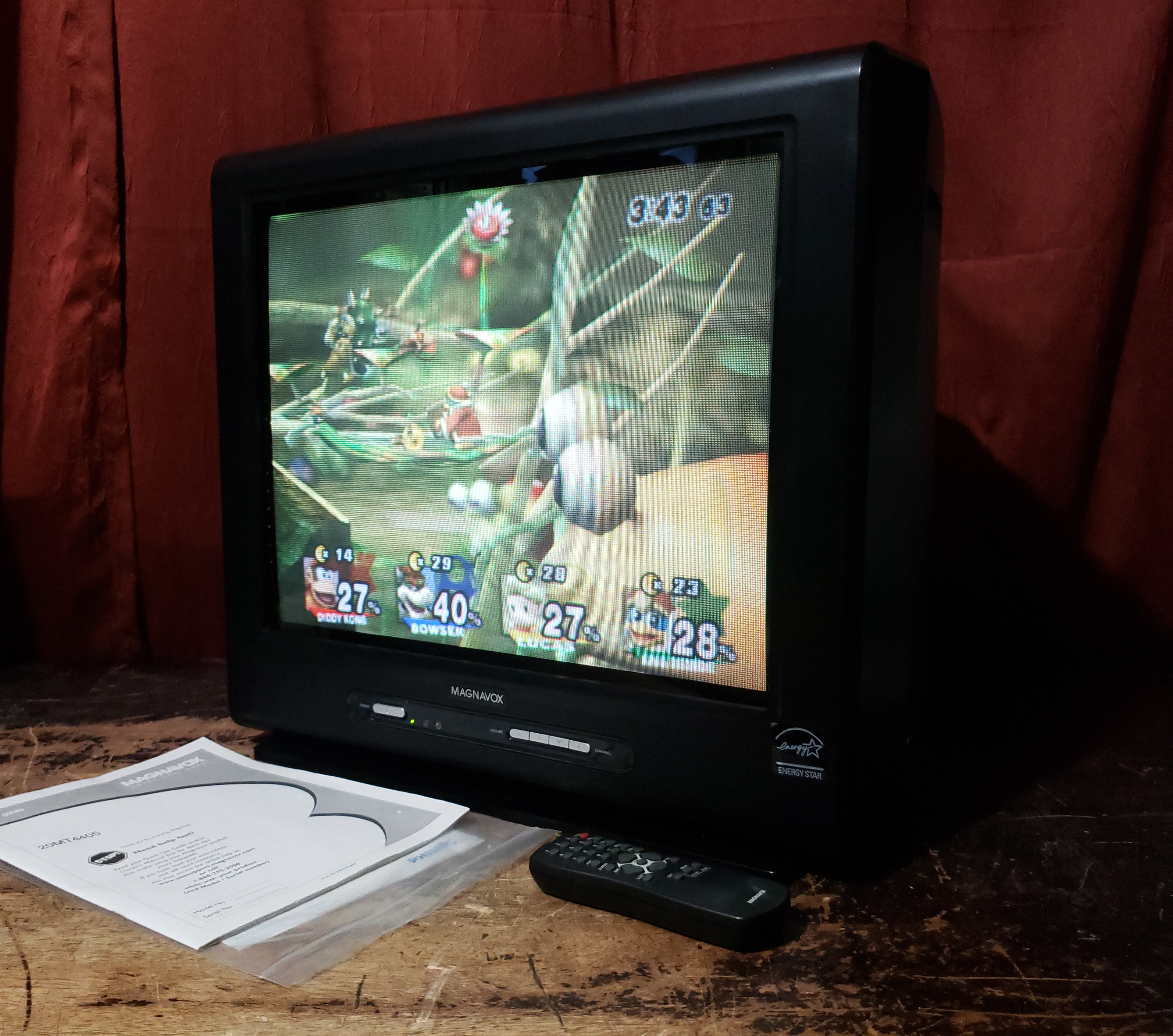

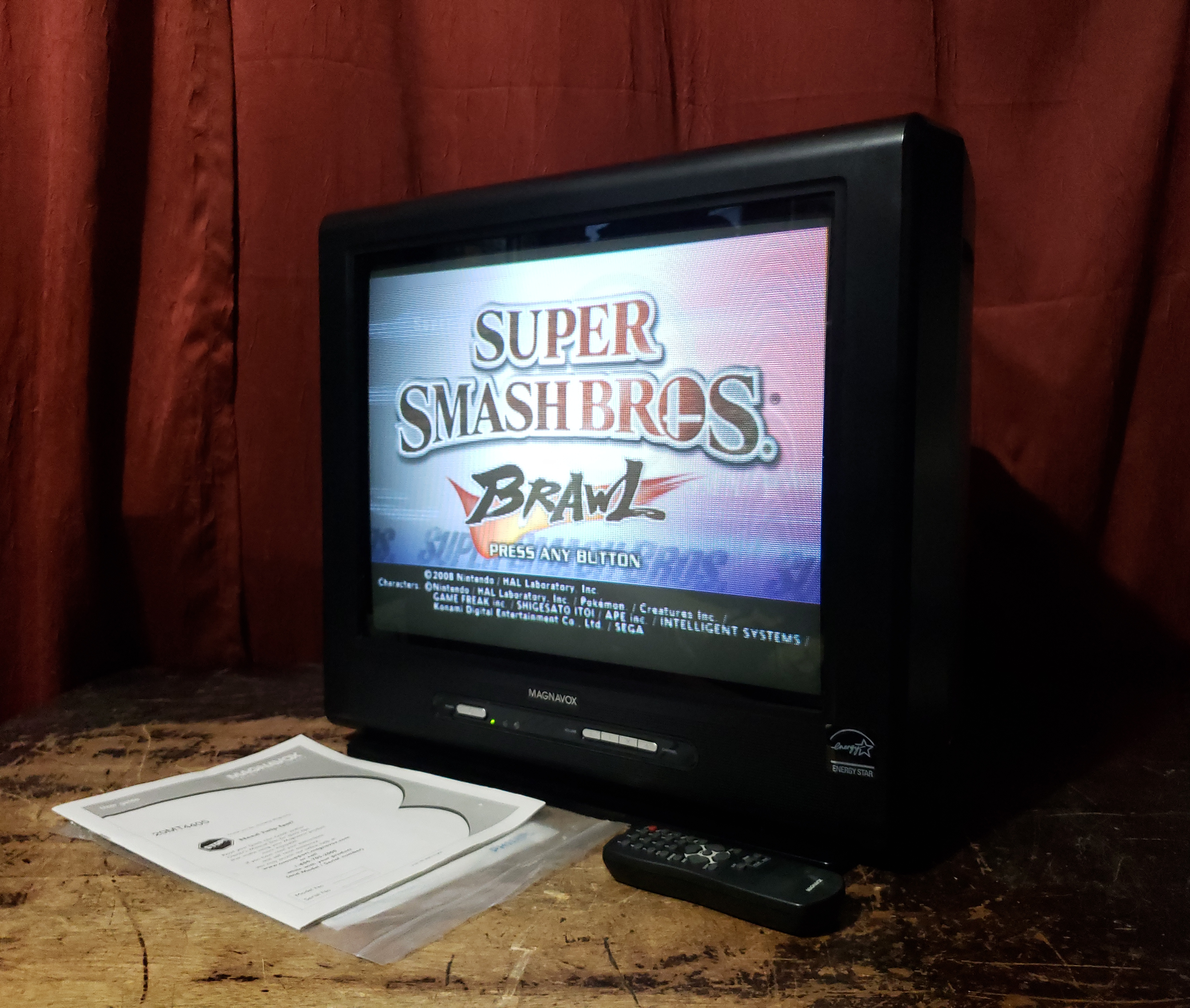

Gallery
| Specifications | |
|---|---|
| Brand: | Magnavox |
| Manufacturer: | TCL |
| Model: | 20MT4405/17 |
| Series: | MT |
| Viewable Size: | 20" |
| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Jungle IC: | Philips, TDA9377PS |
| Focus Type: | Single |
| Tube: | LG.Philips , A51ERF135X82 , A51ERF135X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke Horz. Inductance: | 2.261 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 25.71 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 2.89 ohm |
| Yoke Vert. Resistance: | 13.00 ohm |
| Speakers: | Stereo |
| Chassis: | L03.1U AA |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2006 |
| Country of Manufacture: | China |
| Degaussing: | Automatic on Power-on |
