Magnavox BG5320 WA01

SegaSaturn94
July 15, 2026, 2:45 pm
July 15, 2026, 7:02 pm

Summary

12" Black-and-white portable TV by Magnavox, launched in 1977. Has RF input with mono sound, as well as an earphone jack. Originally manufactured by Hitachi in Taiwan.

(Special thanks to John Olthoff for the pics!)

Manuals

Notes

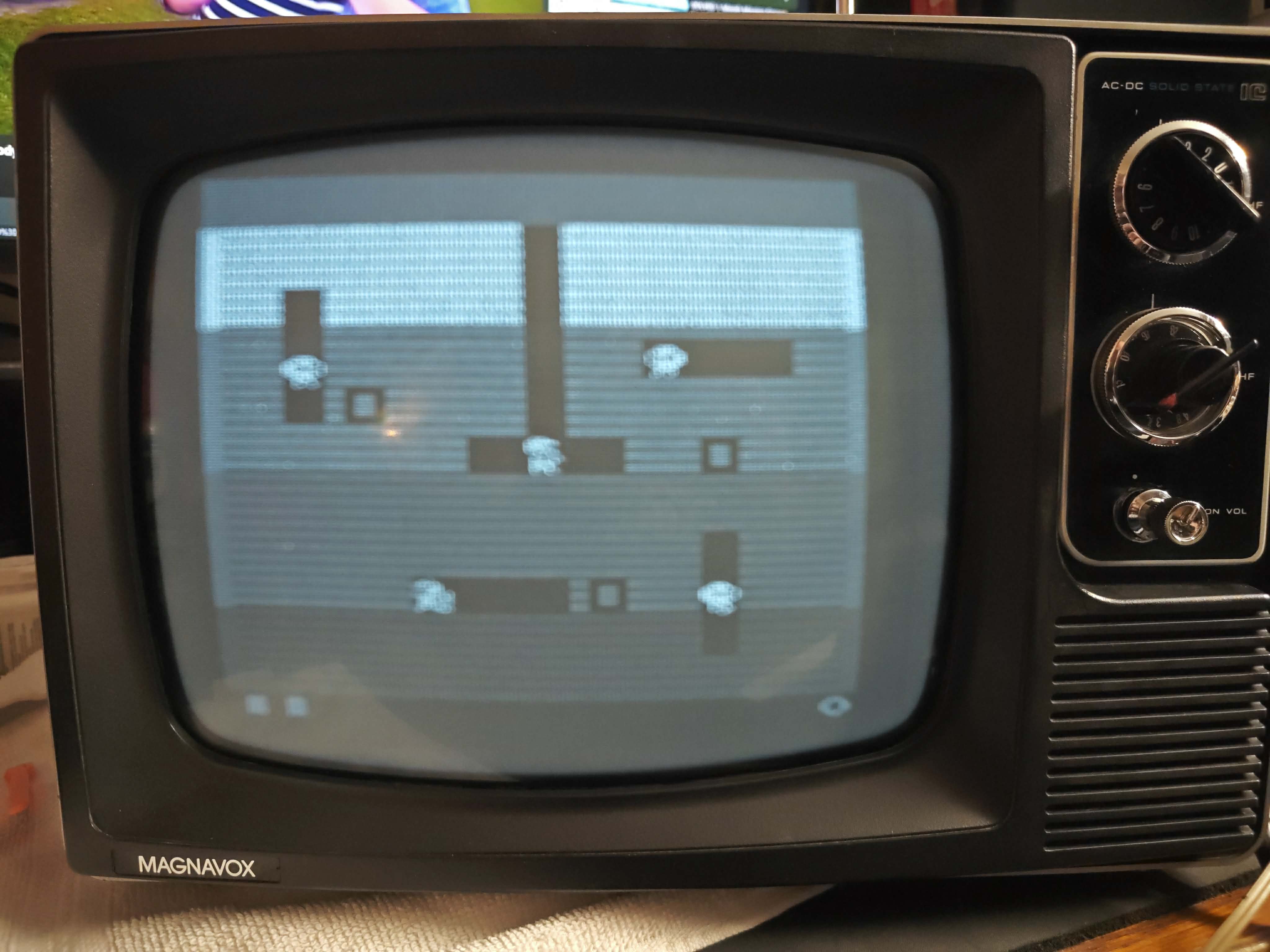

The featured set has a very weak tube.

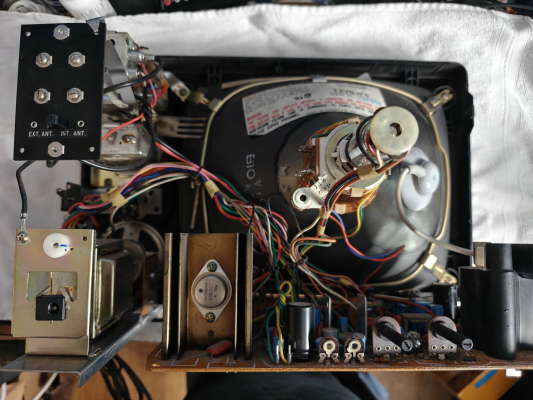

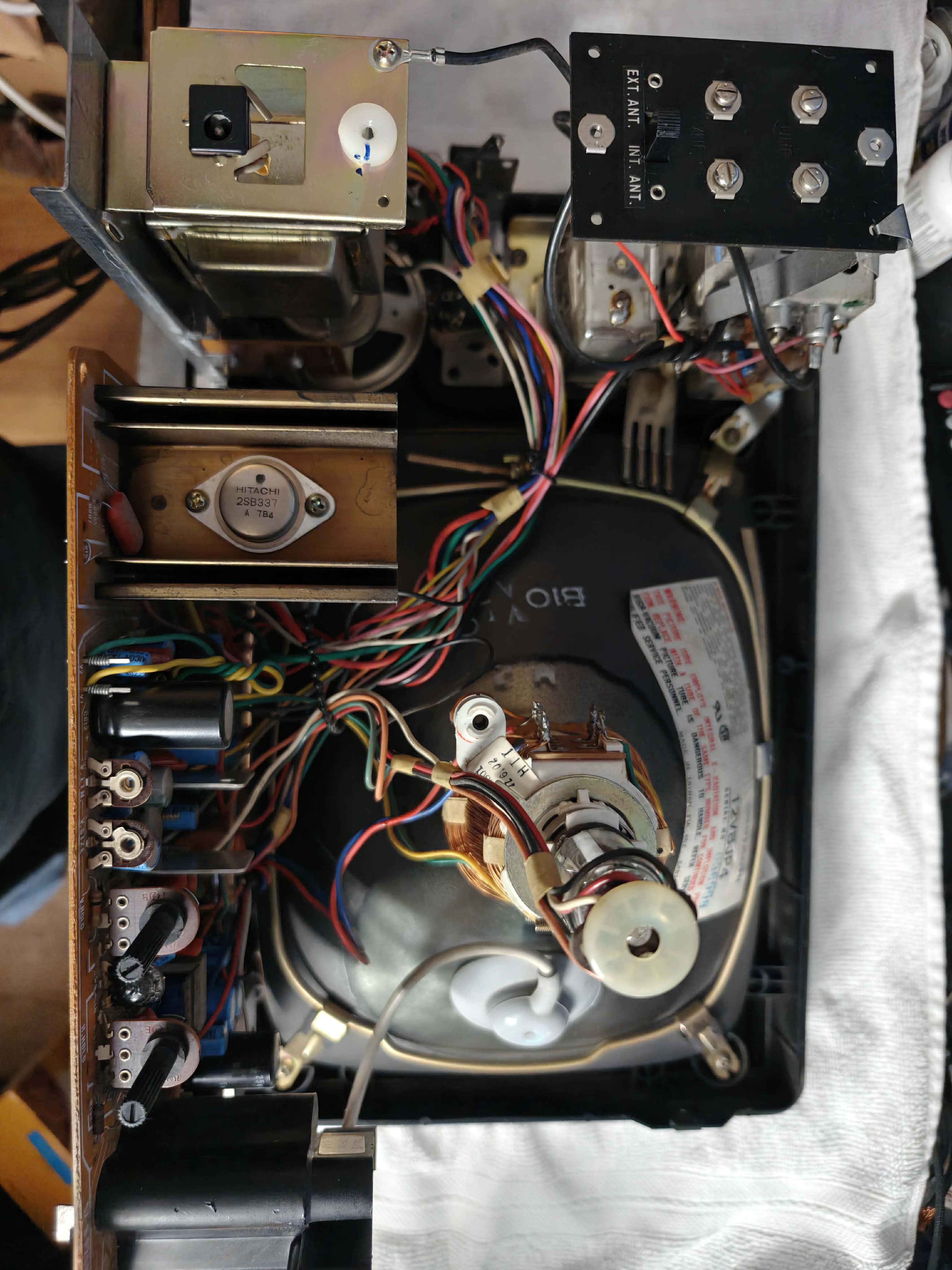

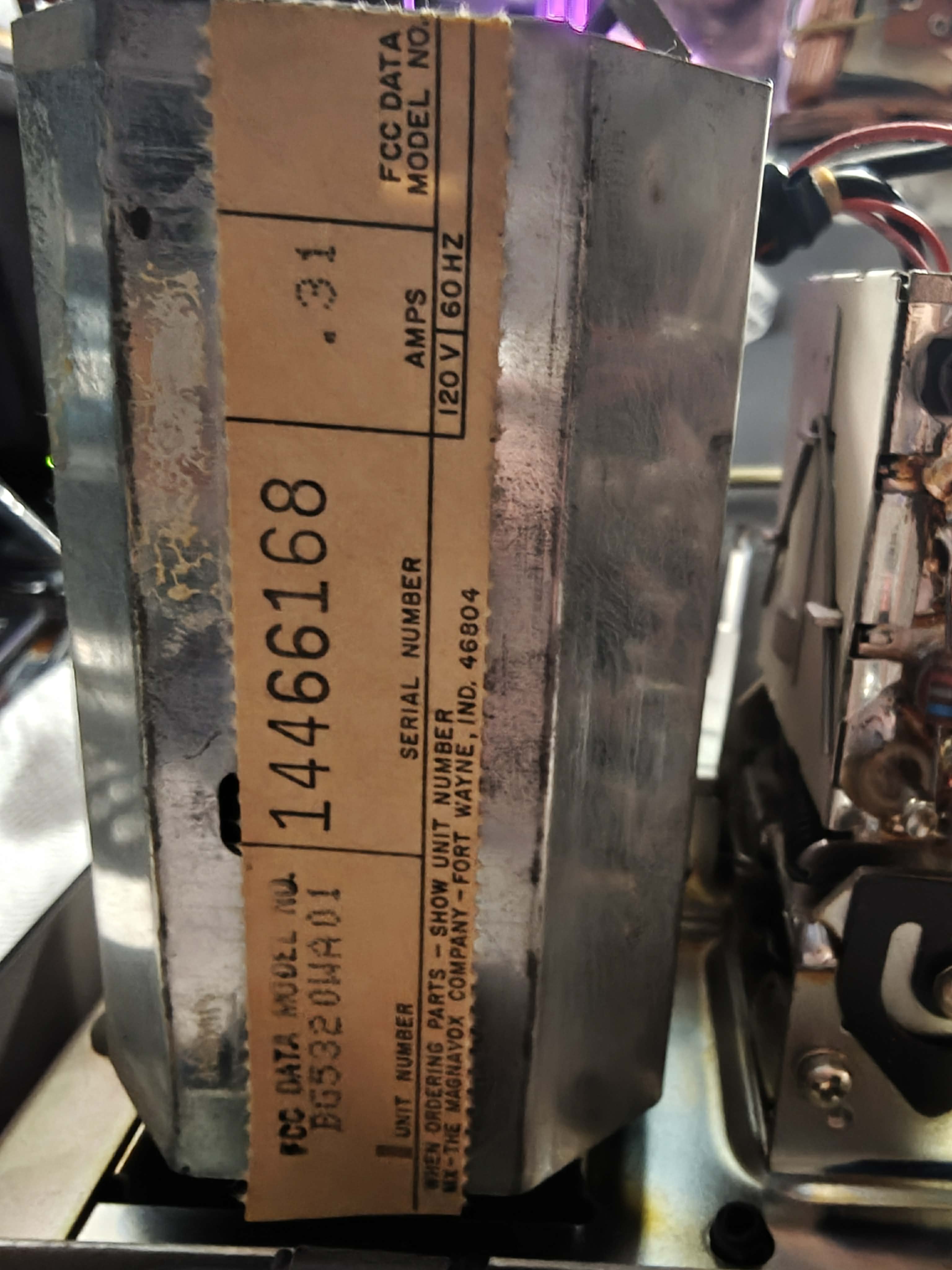

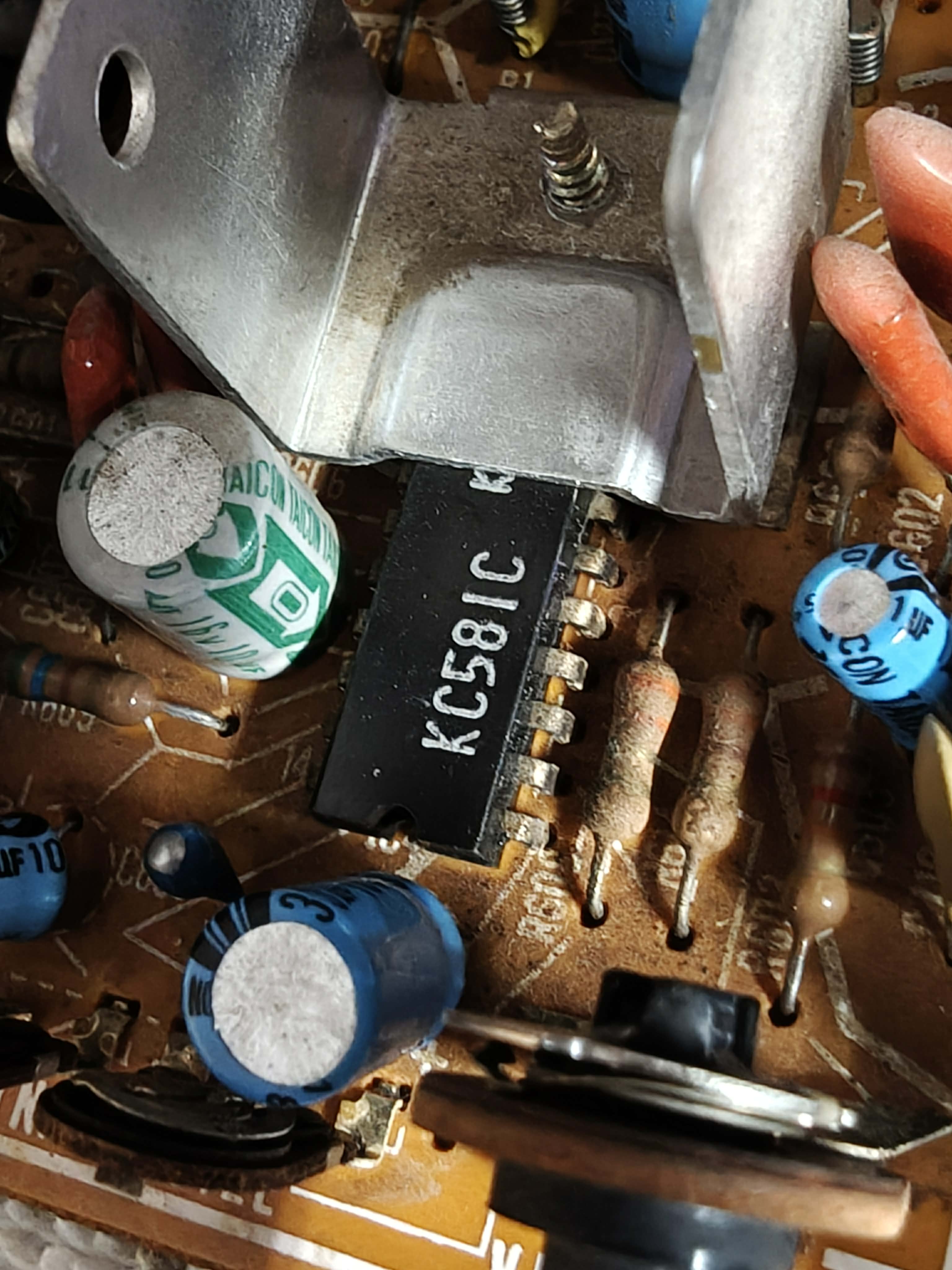

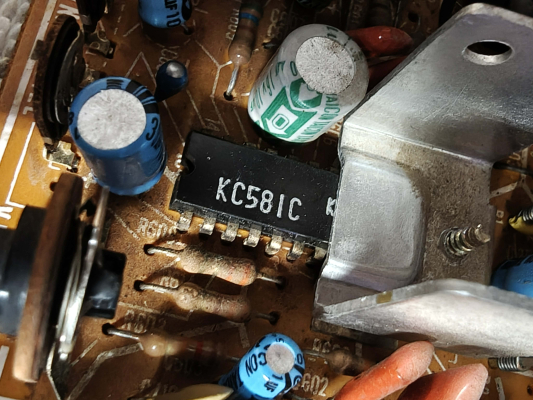

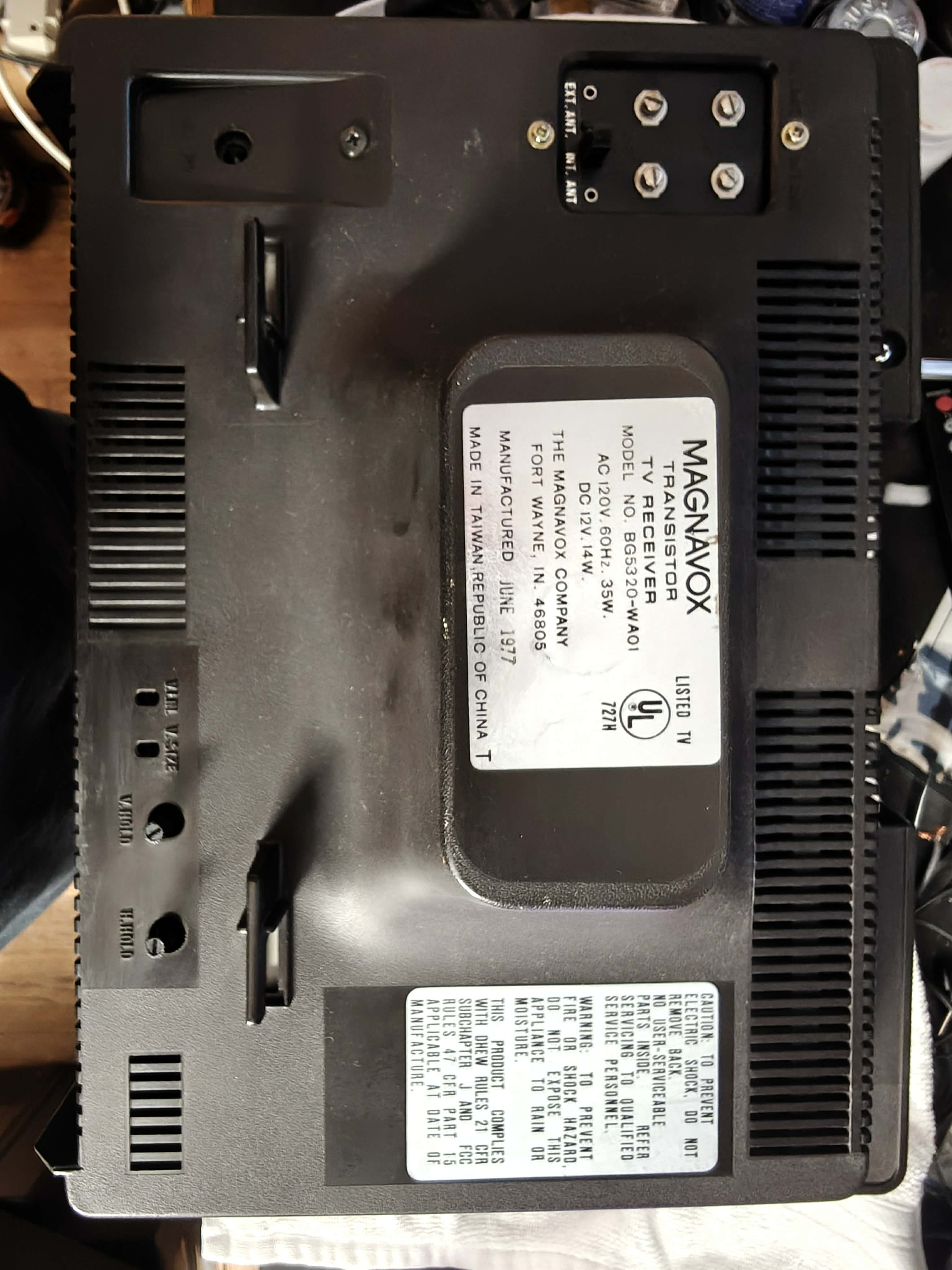

Gallery

Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01 Magnavox BG5320 WA01
Specifications
Brand: Magnavox
Manufacturer: Hitachi
Model: BG5320 WA01
Series: BG
Viewable Size: 12"
Input Signals: RF
Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC
Aspect: 4:3

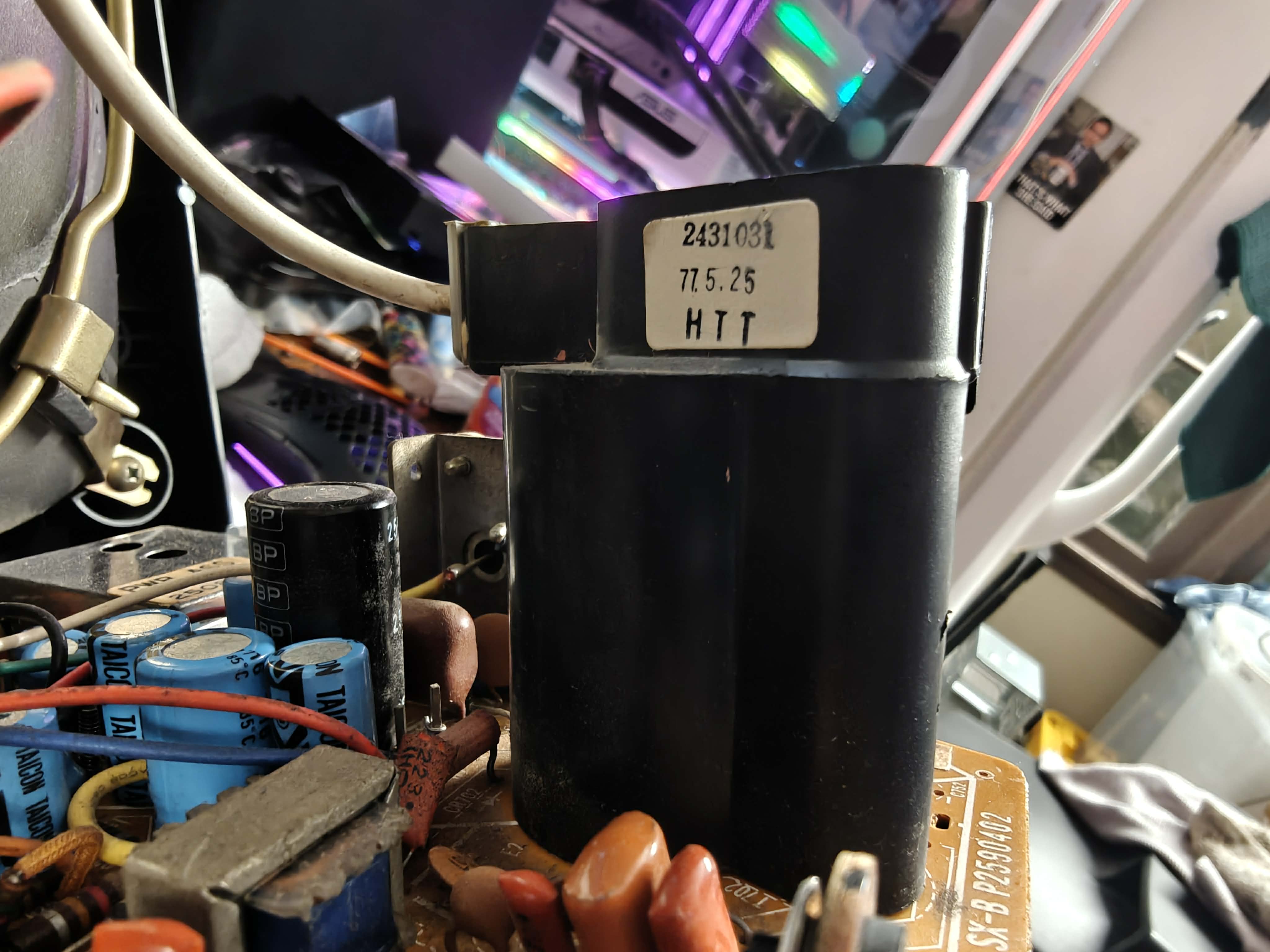

Flyback: 2431031
Focus Type: Single

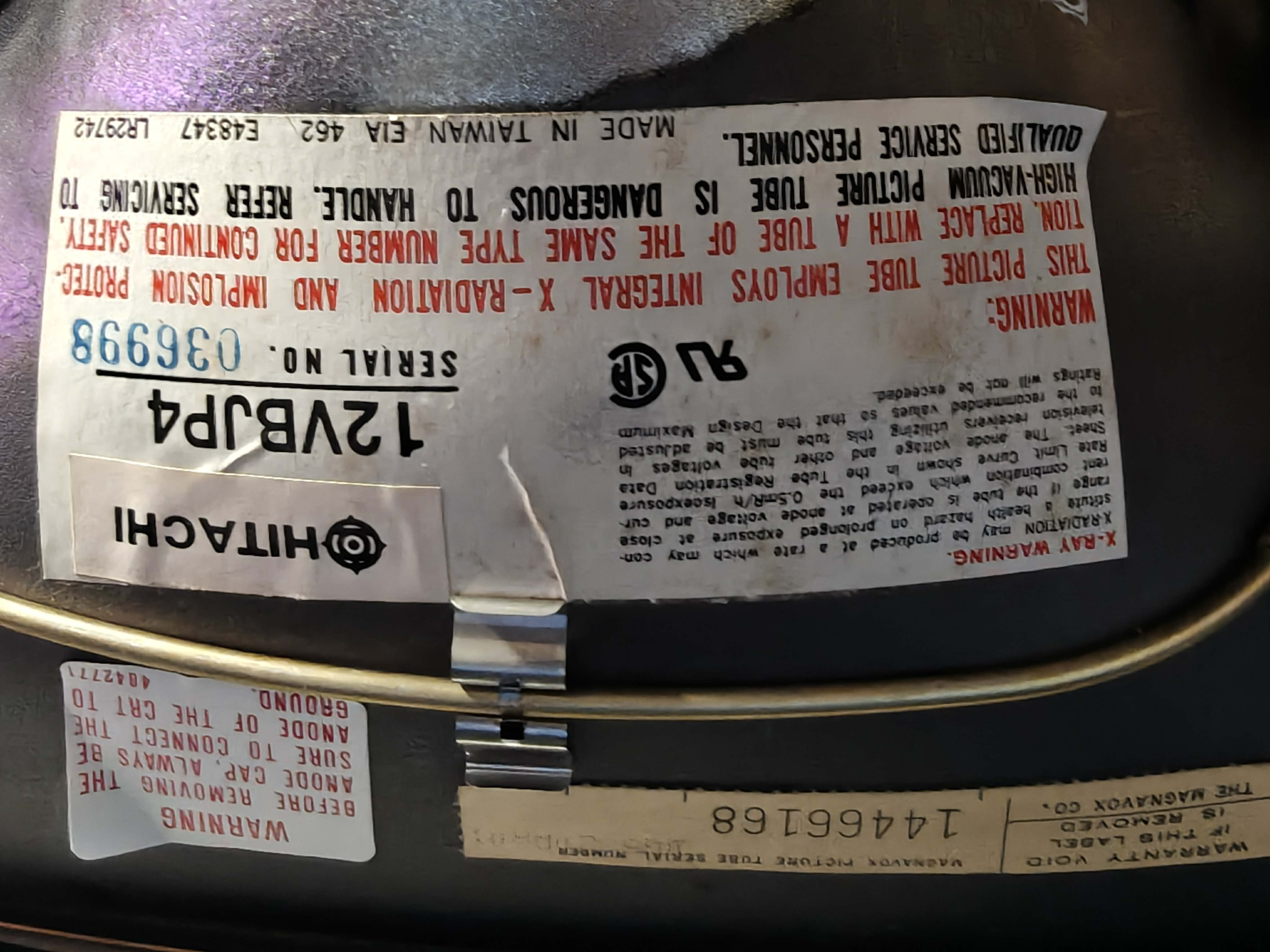

Tube: Hitachi , 12VBJP4
Mask: Monochrome Tube (no mask)
Tint: Dark
Removable Glare Film: No

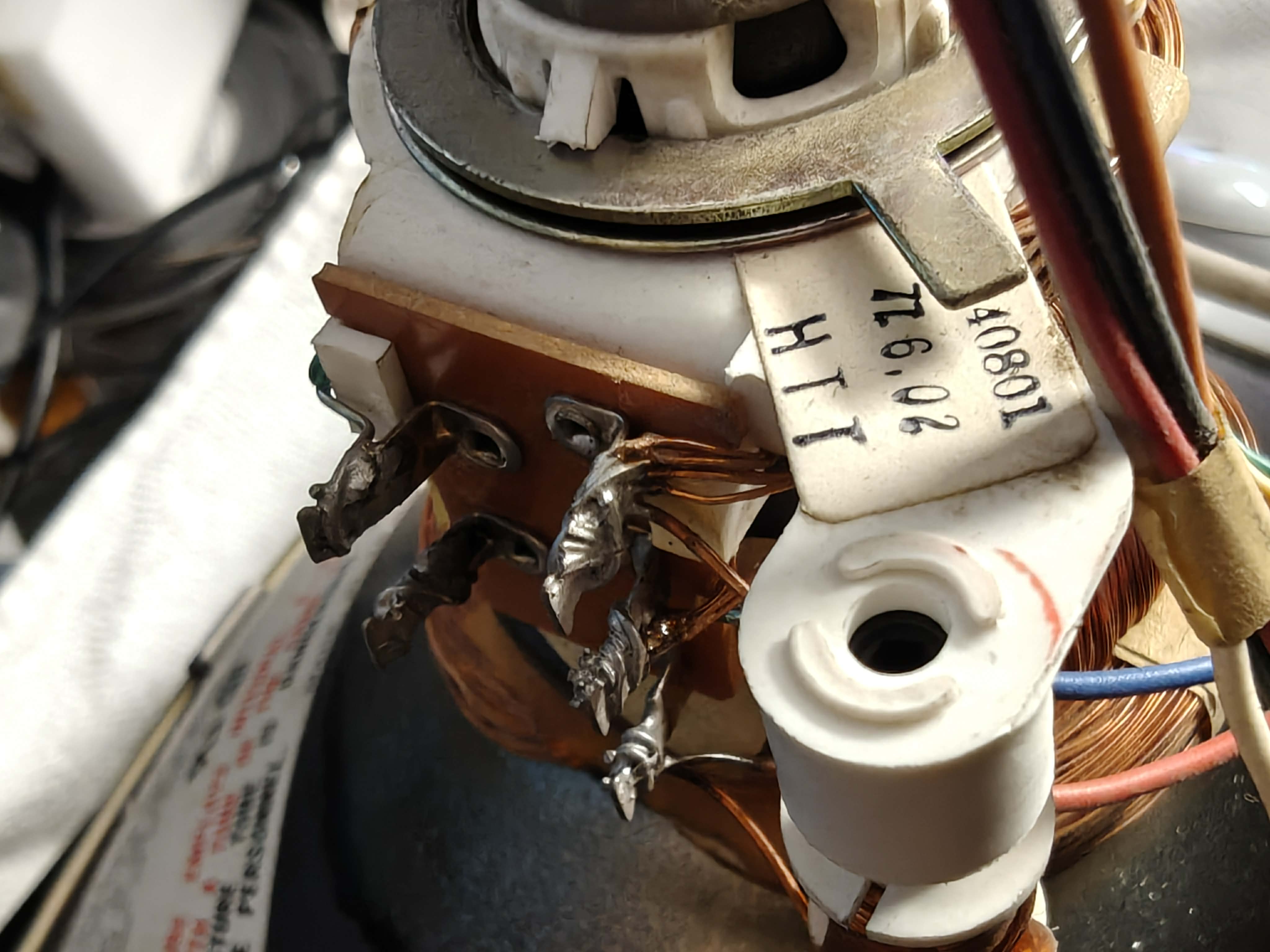

Yoke: 40801
Speakers: Mono
Cabinet Material: Plastic, Simulated Woodgrain
Launched: 1977
MSRP: 139 USD
Country of Manufacture: Taiwan
Market: North America
Power Standard: 120v, 12VDC
Mounting: Table Surface (Standard), Carrying Handle
Degaussing: Automatic on Power-on
Tag: Needs Owners Manual, Needs Service Manual, Needs Measurements
