Summary
A powerful little performer with Magnavox's reliable MX 100 chassis. You'll enjoy the convenience of the built-in one knob electronic tuning system. Perfect size for any room in your home.
Manuals
None available at this time.
Repair Notes

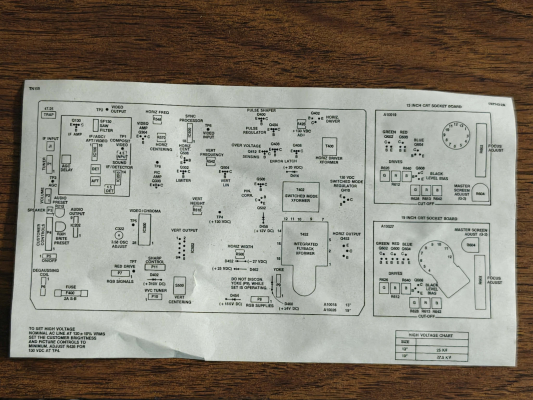

Buzzy sound can be mitigated by performing a sound IF alignment (L205 & L207).
Gallery
| Specifications | |
|---|---|
| Brand: | Magnavox |
| Manufacturer: | North American Philips |
| Model: | CDP102E03 |
| Series: | CDP |
| Viewable Size: | 13" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Horz. Output Transistor: | BU508A, NTE2300 |
| Vertical Output IC: | TDA3651AQ |
| Jungle IC: | NEC, 303-1 |
| Comb Filtering: | Notch |
| Focus Type: | Single |

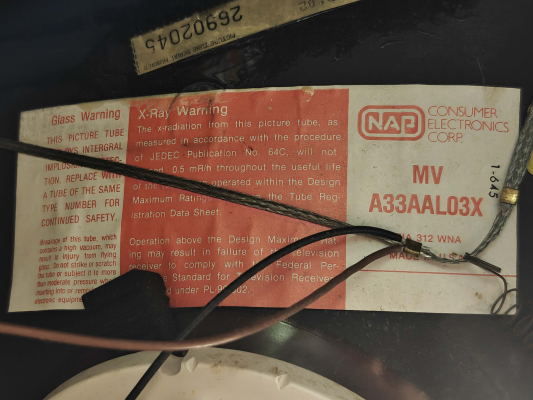

| Tube: | Philips , A33AAL02X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | D0198XHA, 361905-1 |
| Yoke Horz. Resistance: | 2.8 ohm |
| Yoke Vert. Resistance: | 13.8 ohm |
| Speakers: | Mono |
| Chassis: | MX 100, 13C302 |
| Application: | Consumer |
| Cabinet Material: | Plastic, Simulated Woodgrain |
| Launched: | 1983 |
| MSRP: | 349 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), Carrying Handle |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Repair Log |
