Magnavox HD1920 C122
Eli Krause
September 18, 2024, 11:51 am
October 26, 2024, 8:41 pm
September 18, 2024, 11:51 am
October 26, 2024, 8:41 pm
Summary
Budget RF-only model with a hot chassis, hence not very conducive to video mods. To dismiss the channel indicator on the screen first press "Display" then "Status".
This CRT is confirmed to be a hot chassis.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Gallery
Specifications | |
---|---|
Brand: | Magnavox |
Manufacturer: | North American Philips |
Model: | HD1920 C122 |
Series: | HD |
Viewable Size: | 19" |
Inputs: | RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, OSD Customer Controls |

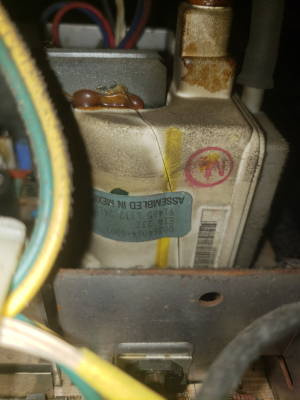

Flyback: | 00364064-0001 |
Tube: | Philips , A48AFN22X |
Deflection: | 90° |
Mask: | Slot |
Yoke Horz. Resistance: | 5.8 ohm |
Yoke Vert. Resistance: | 14.8 ohm |
Speakers: | Mono |
Chassis: | 19S401 |
Application: | Consumer |
Launched: | 1991 |
Country of Manufacture: | Mexico |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual |
