Magnavox MC092DMG01
Eli Krause
September 20, 2026, 10:46 am
September 30, 2026, 3:38 pm
September 20, 2026, 10:46 am
September 30, 2026, 3:38 pm
Summary

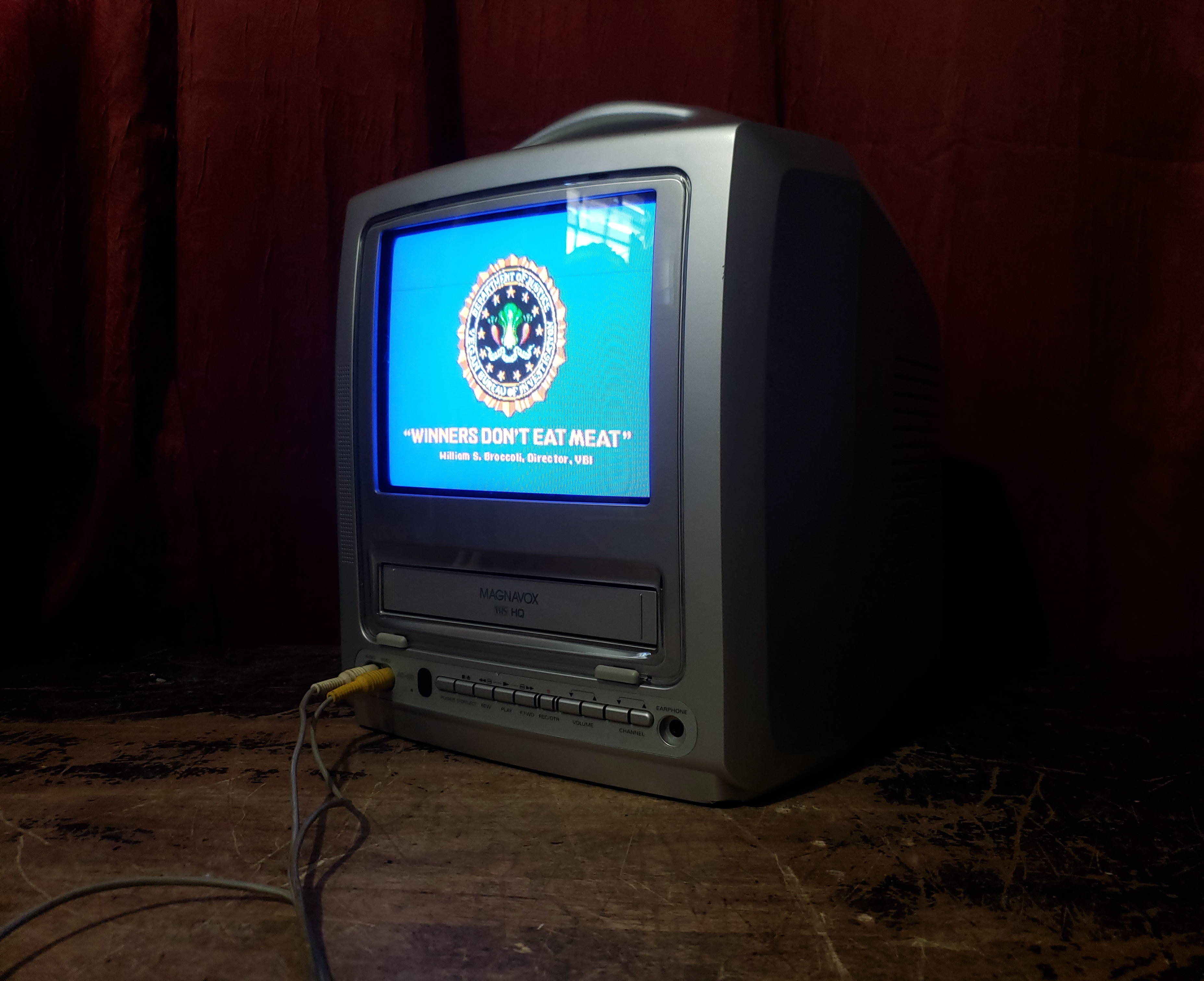

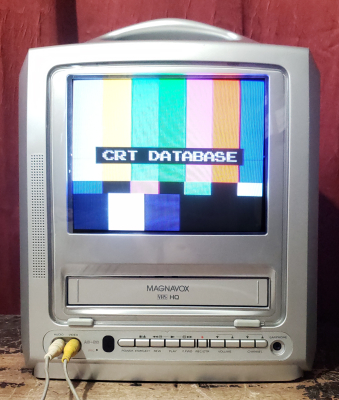

9" TV/VCR combo. Manufactured by Funai and sold under the Emerson brand. Has composite and RF inputs. TV can run on 12VDC.
Manuals
- Owner's Manual for similar model
- Service Manual for similar model
Gallery
| Specifications | |
|---|---|
| Brand: | Magnavox |
| Manufacturer: | Funai |
| Model: | MC092DMG01 |
| Series: | TV/VCR Combo |
| Viewable Size: | 9" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Comb Filtering: | Notch |

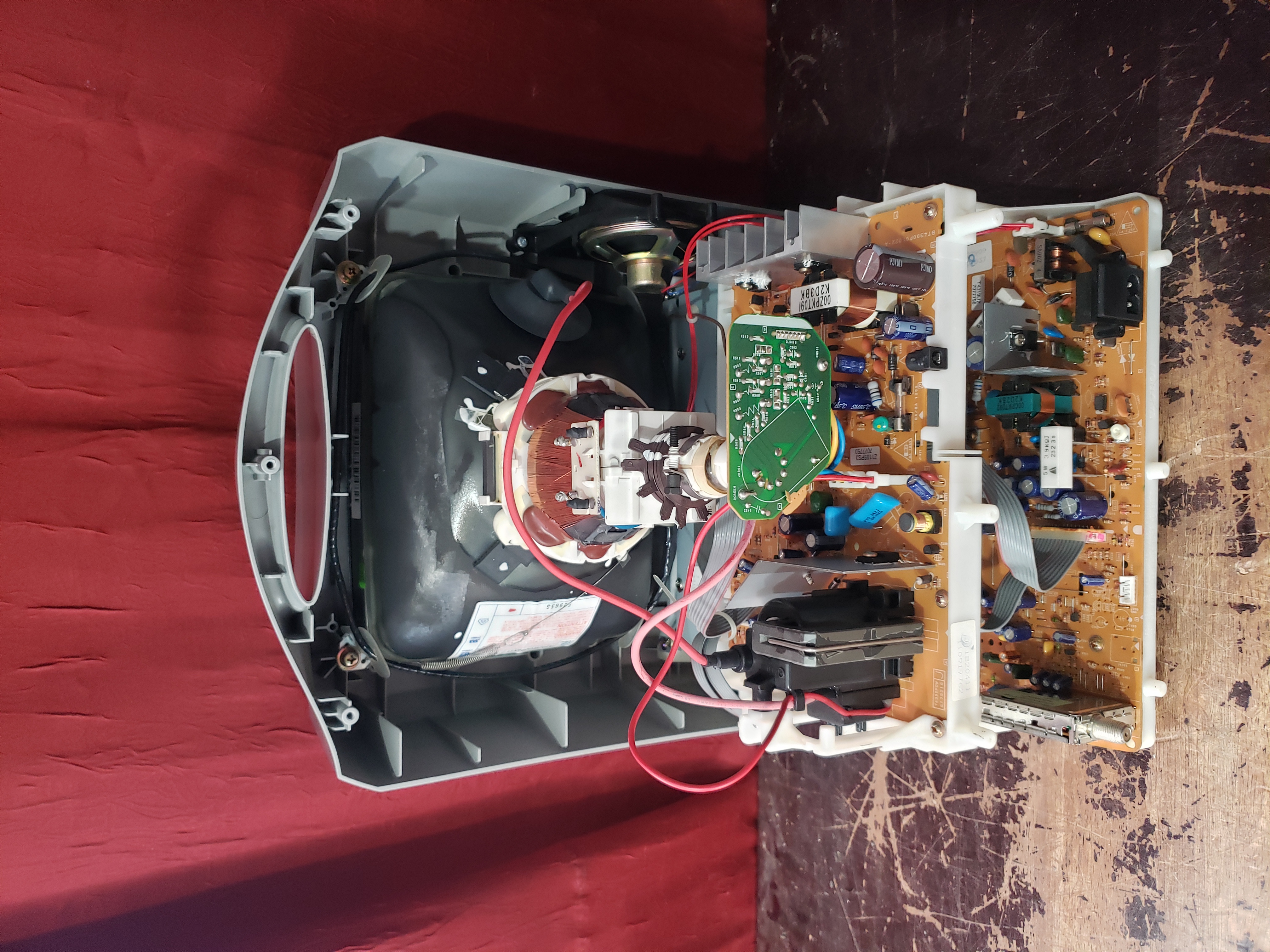

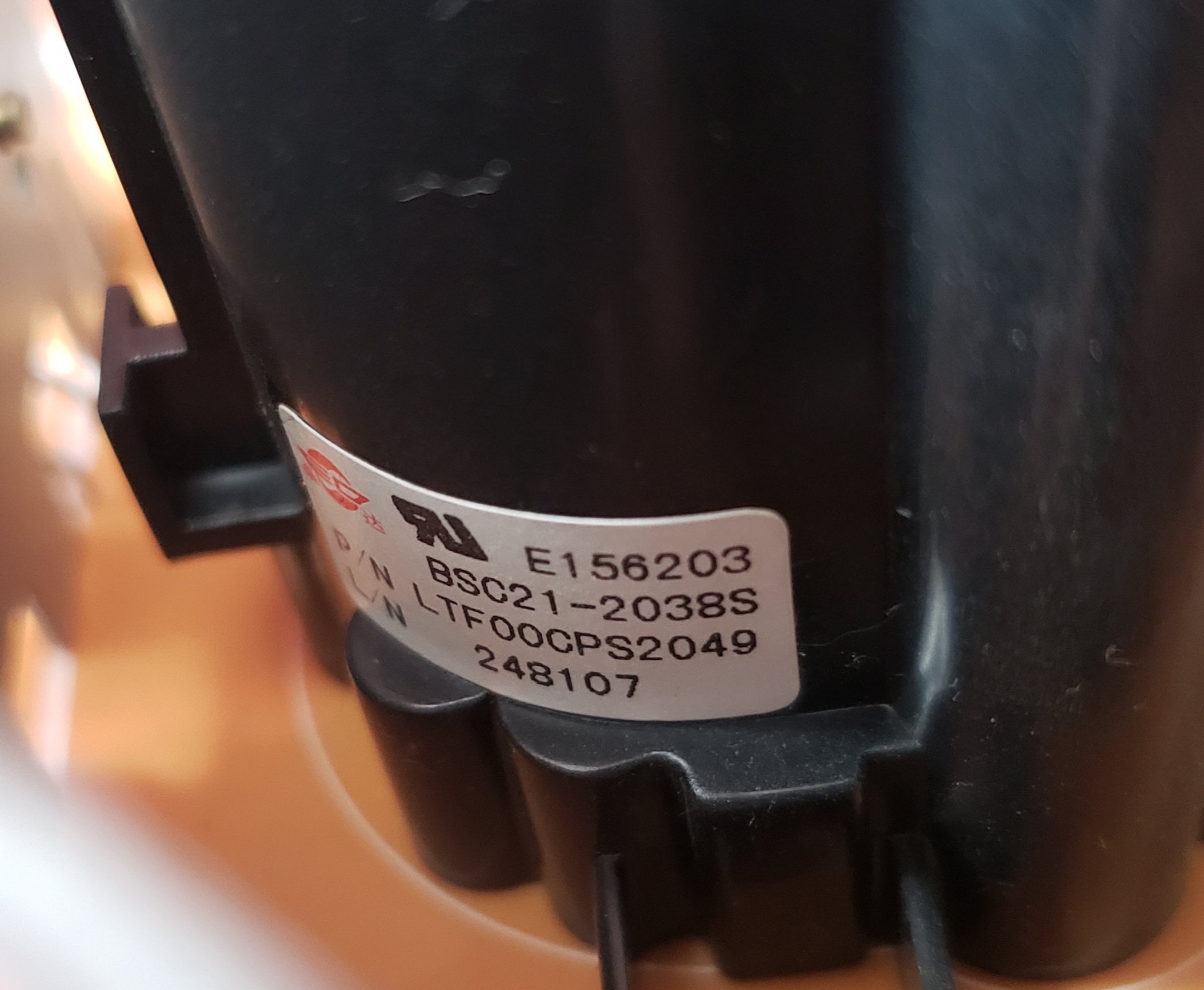

| Flyback: | LTF00CPS2049 |
| Focus Type: | Single |

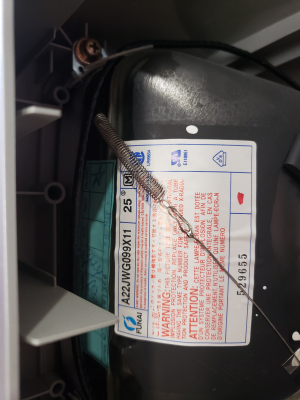

| Tube: | A22JWG099X , A22JWG099X11 , Panasonic |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

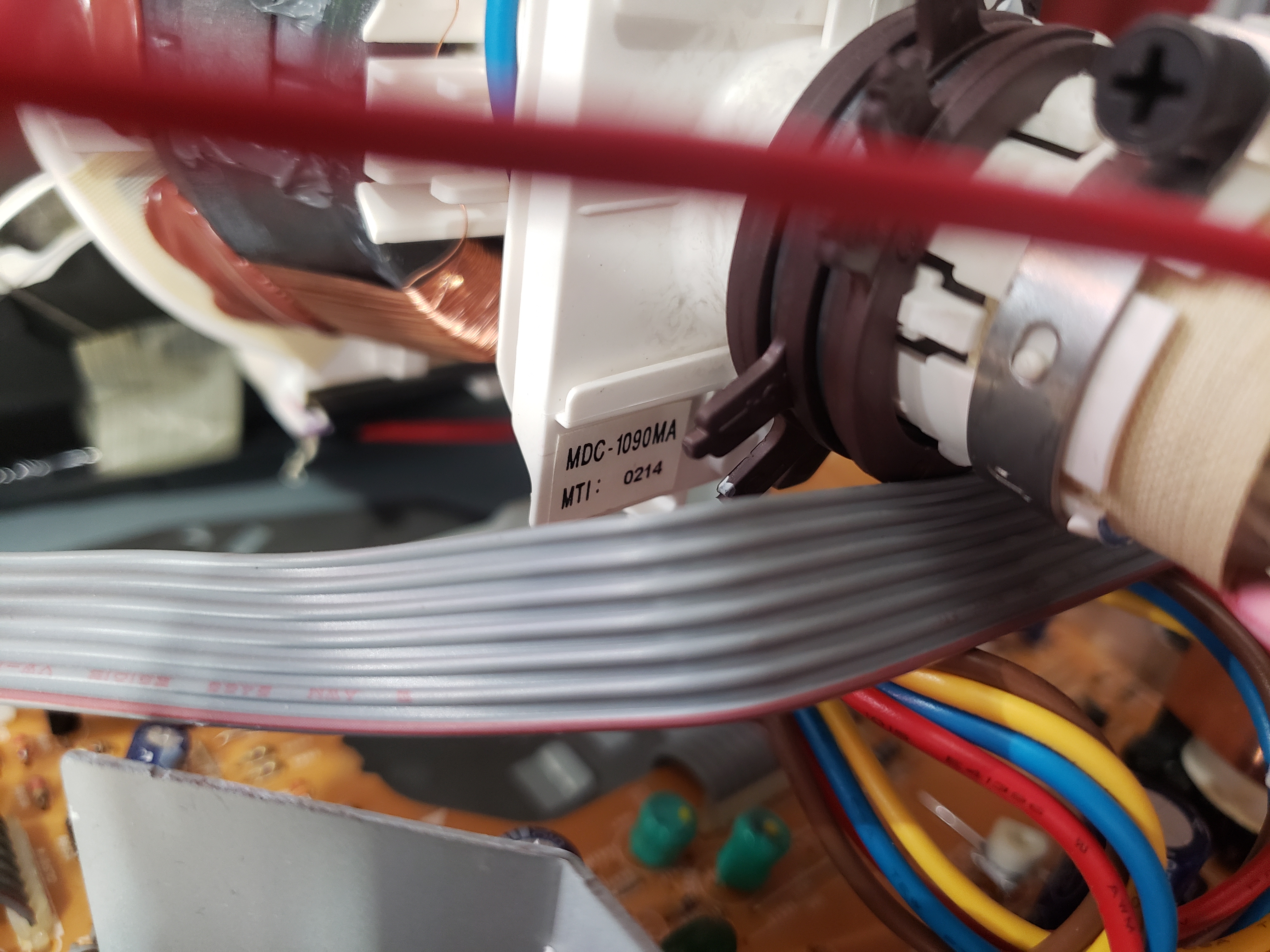

| Yoke: | MDC-1090MA |
| Yoke Horz. Inductance: | 5.164 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 24.79 mH (@ 100 Hz) |
| Speakers: | Mono |

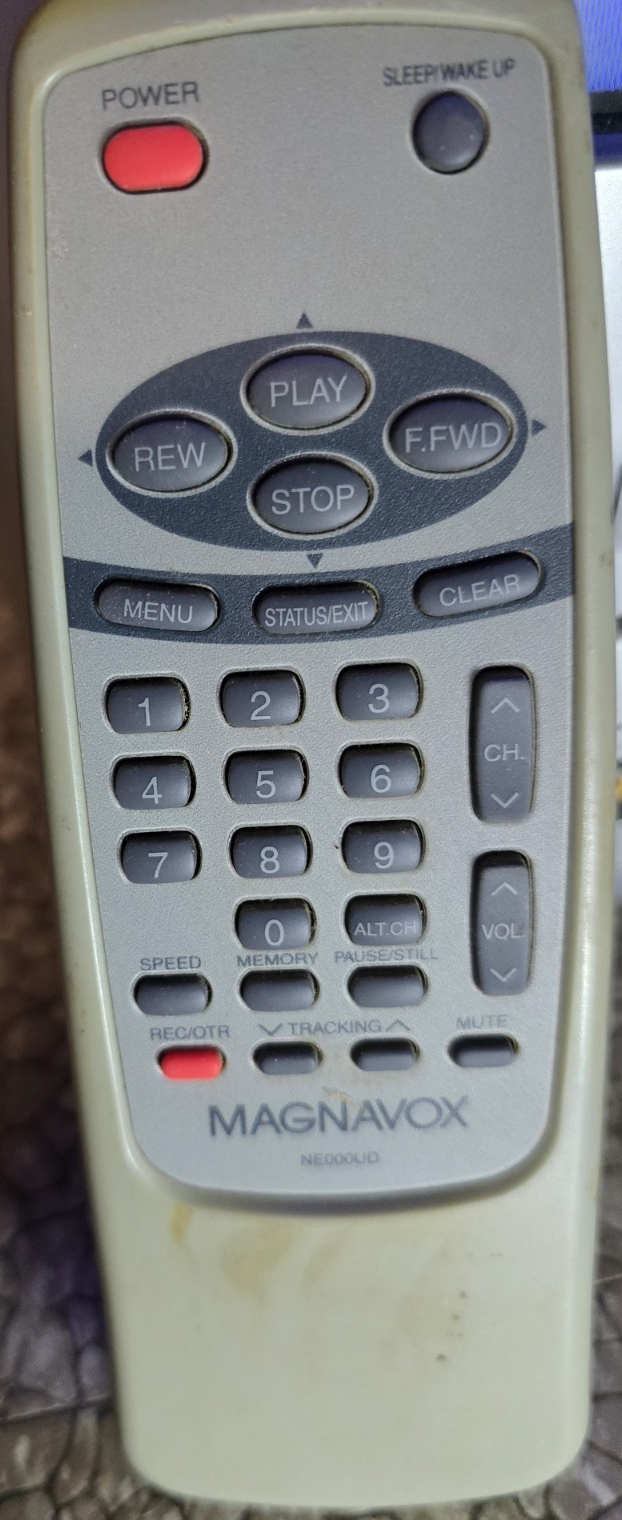

| Remote: | NE000UD |
| Application: | Consumer |

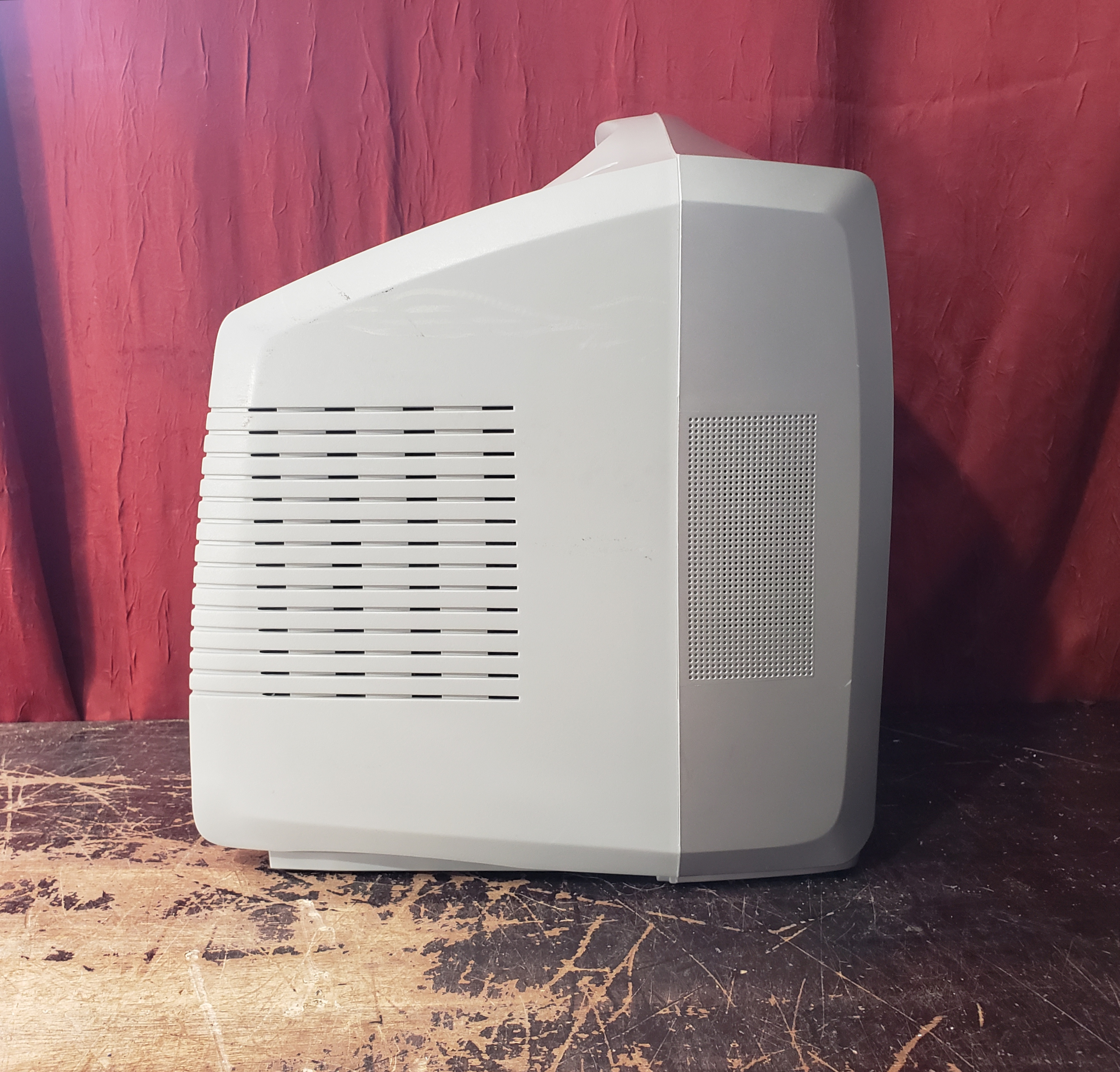

| Cabinet Material: | Plastic |
| Launched: | 2002 |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v, 13.2VDC |

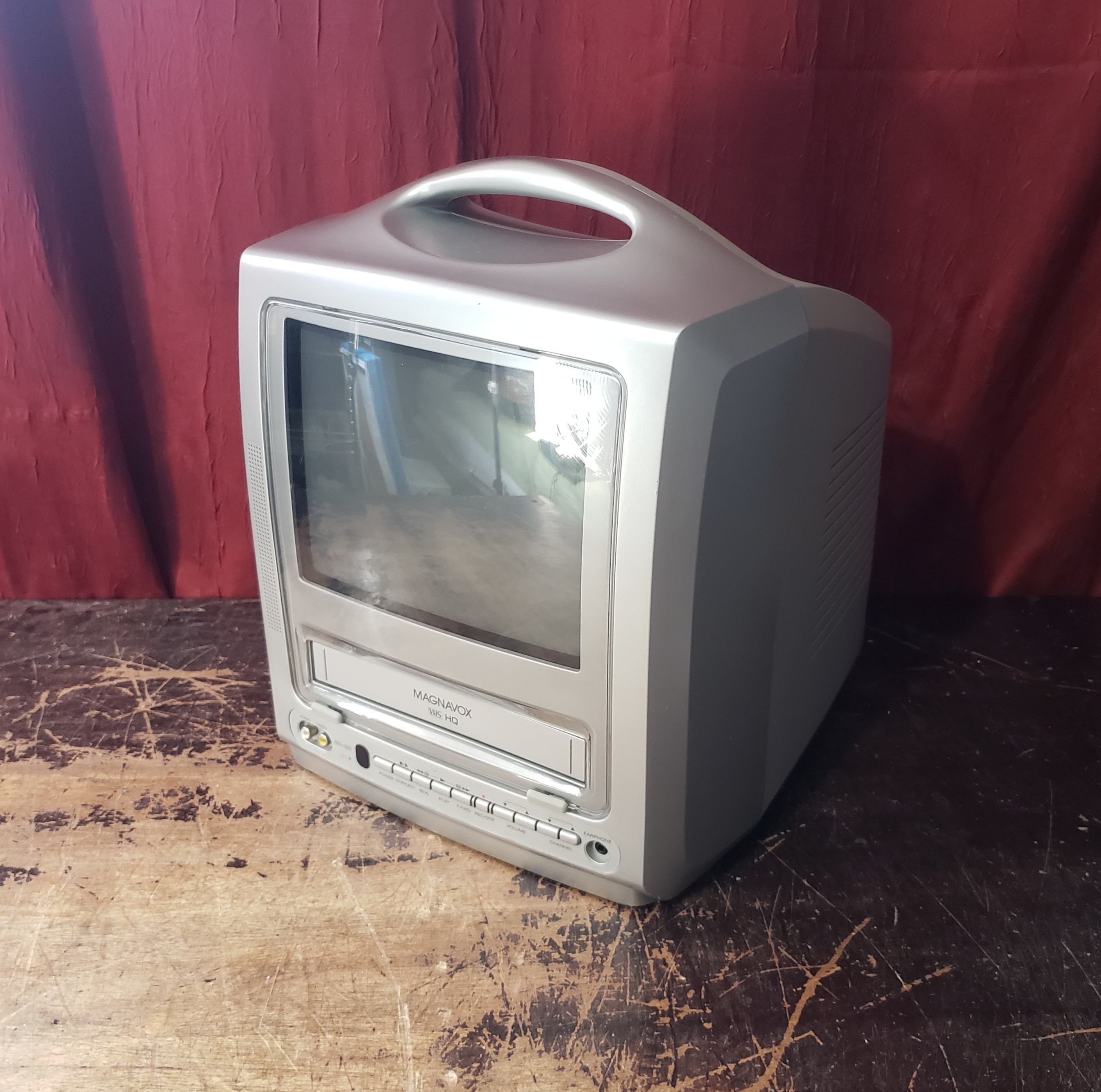

| Mounting: | Table Surface (Standard), Carrying Handle |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs IC Info, Portable, Needs Measurements |
