Summary

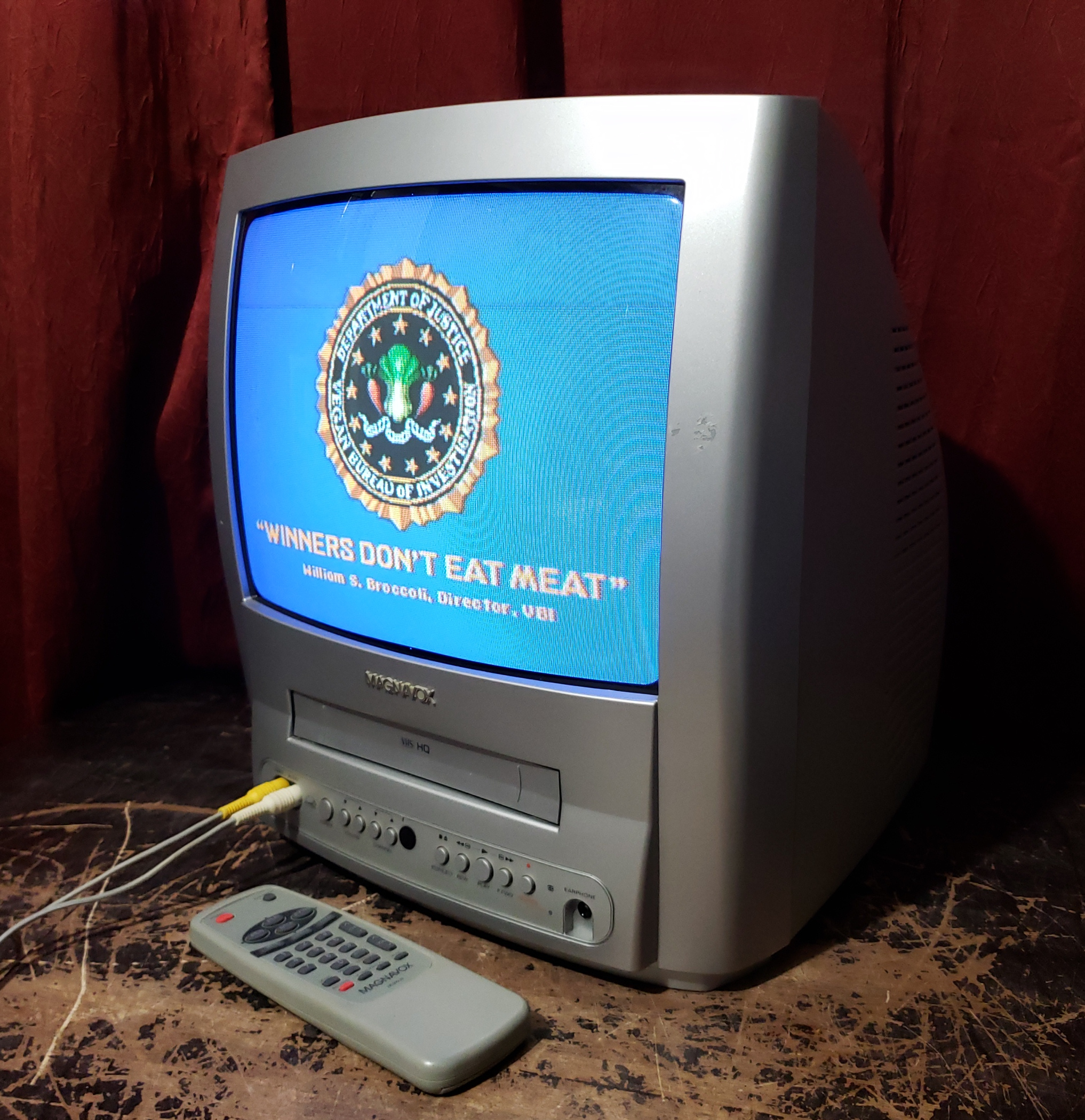

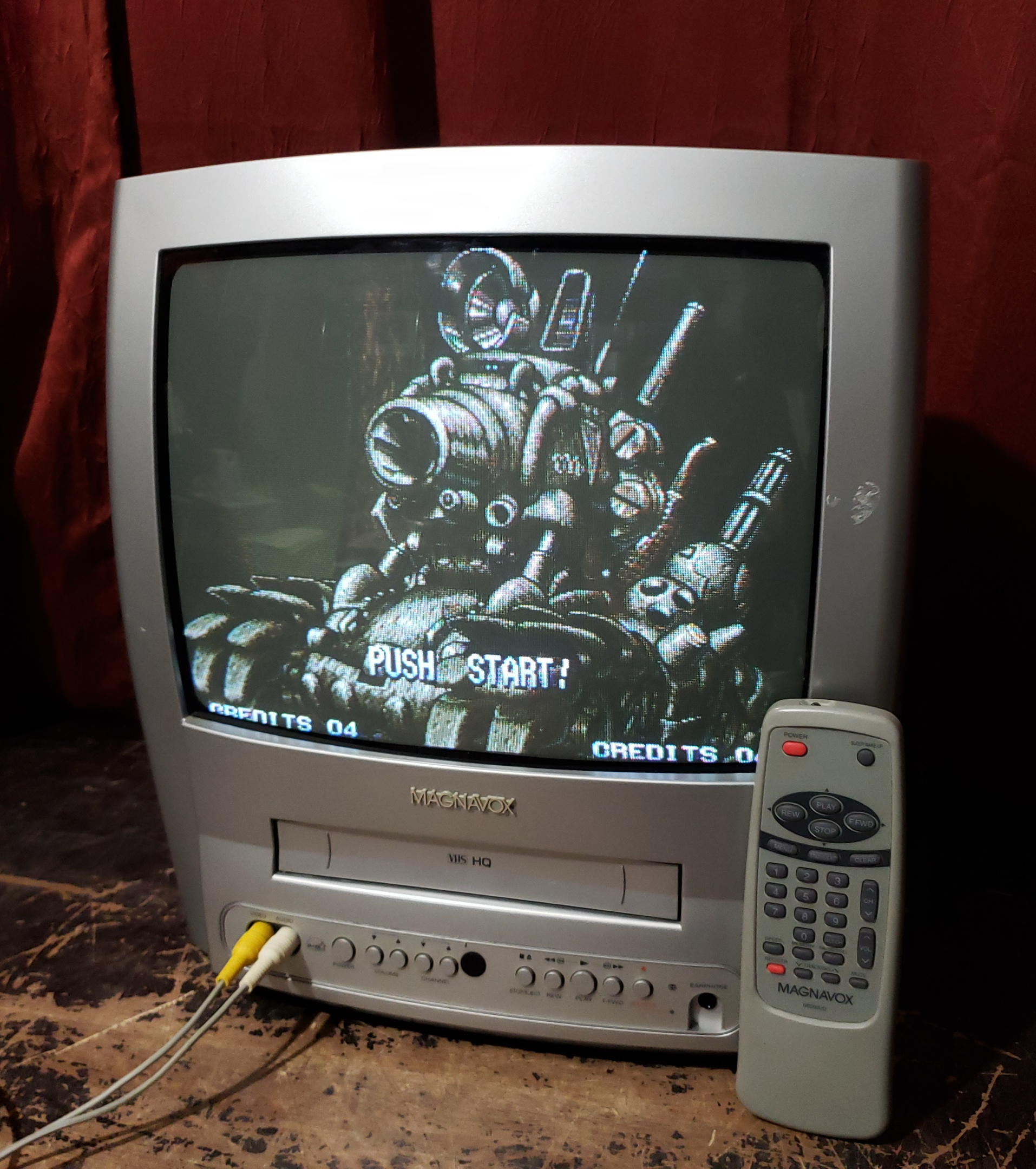

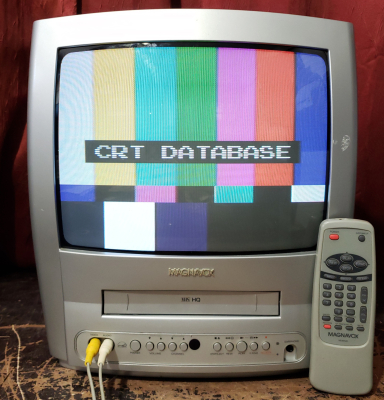

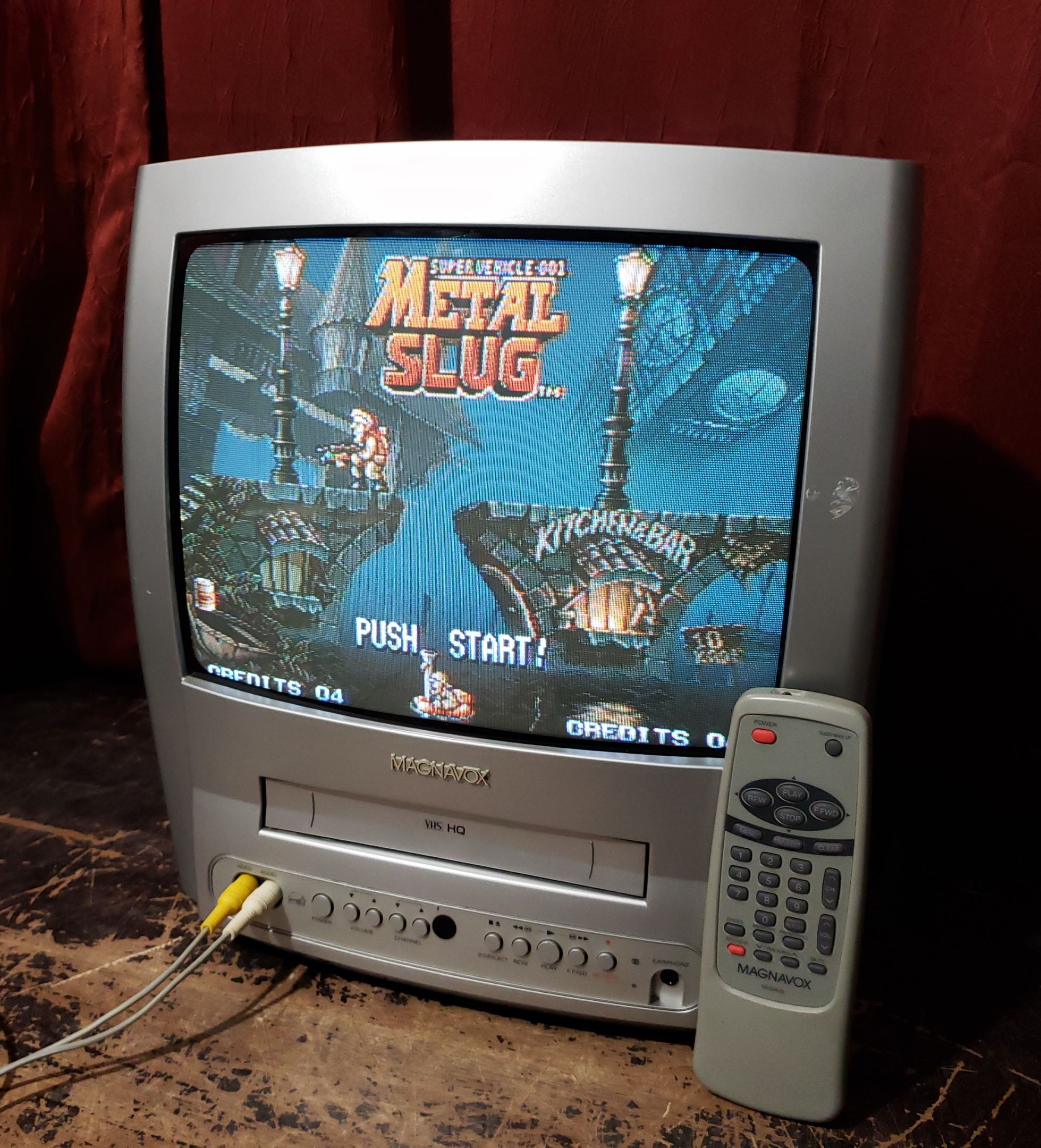

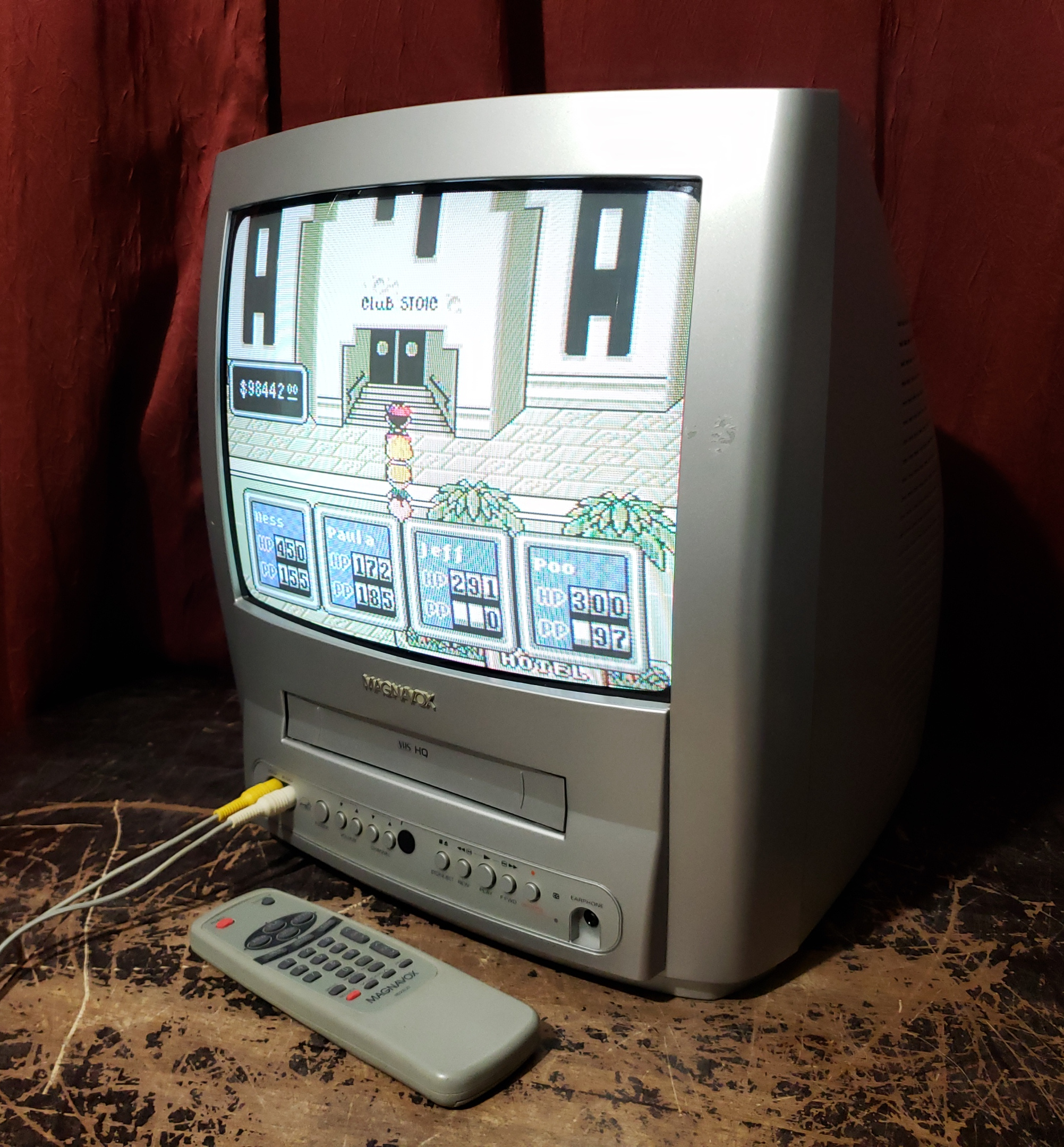

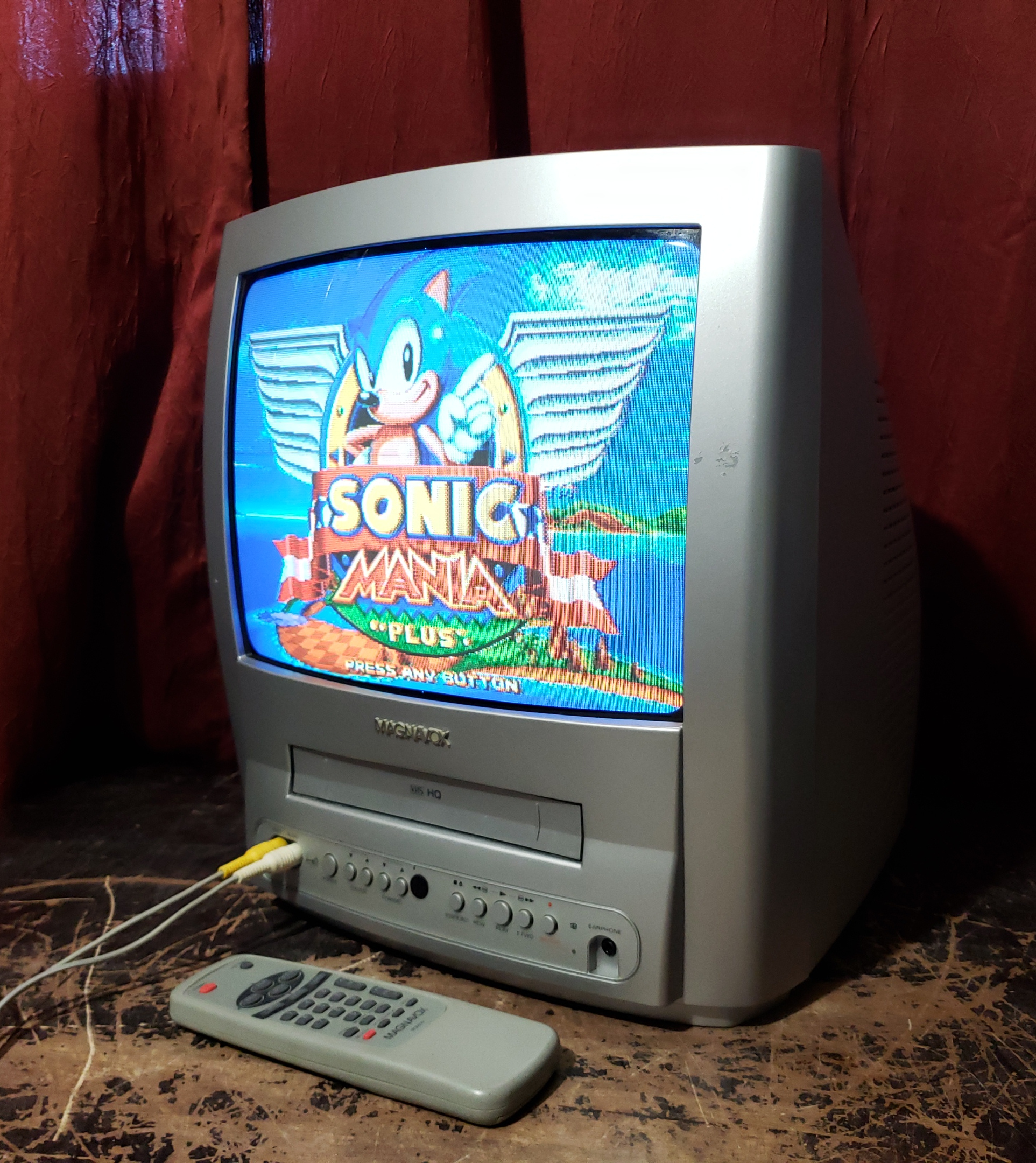

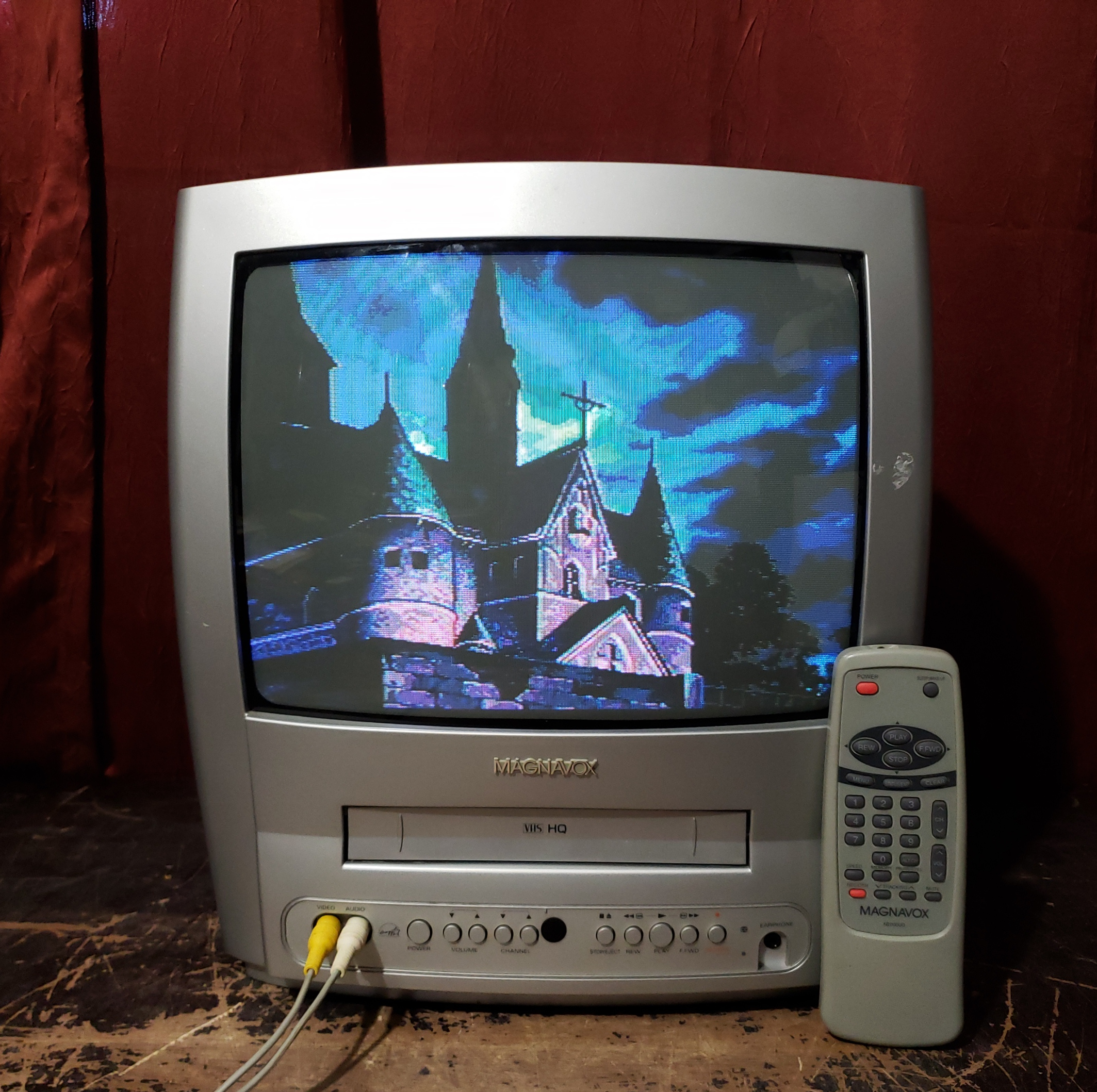

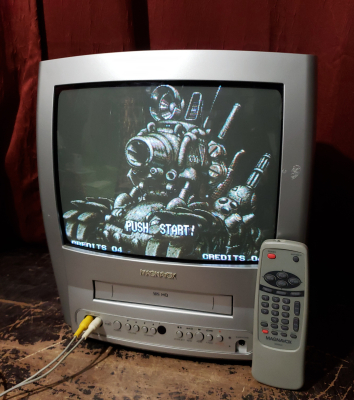

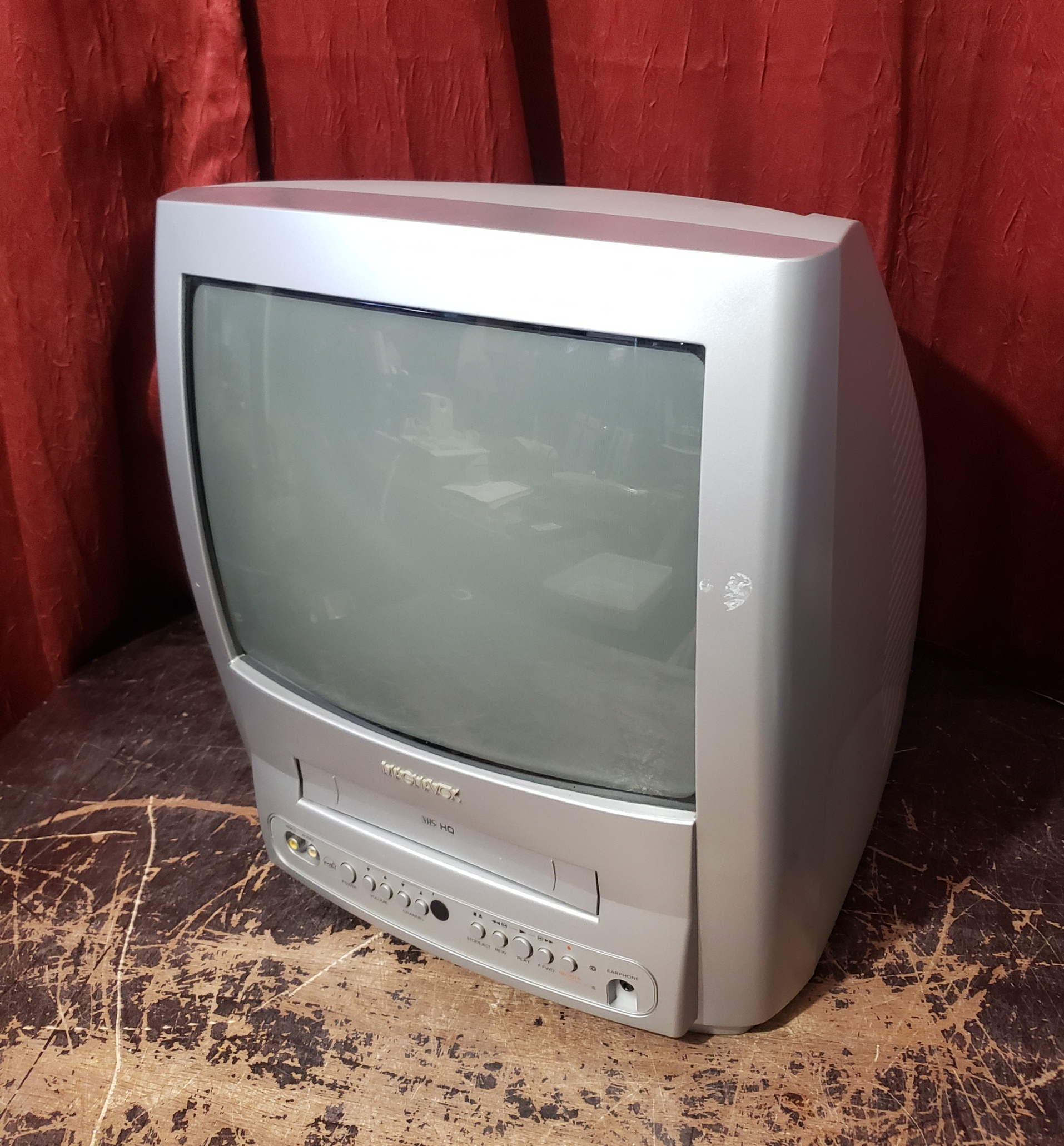

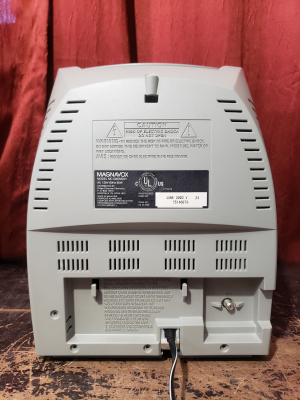

13" TV/VCR combo unit, manufactured by Funai and sold under the Magnavox brand. Features a single mono AV port on the front, and an RF coaxial input on the back.
Manuals
Notes
The VCR is internally connected to the jungle chip using composite video. This jungle chip does have a separate chroma input on pin 28, but being able to switch to it would require changes in the jungle's software settings. OSD appears to be digital.
Repair Notes

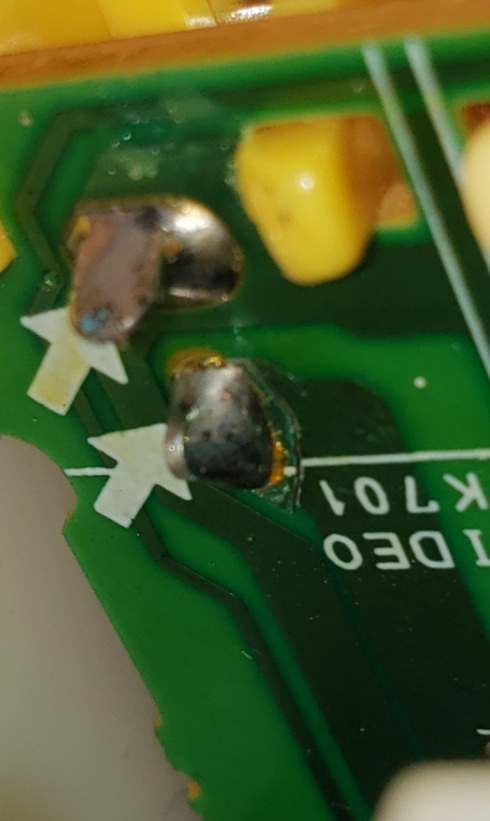

Unit pictured had video that would drop out or not be detected on the front AV jack due to a broken trace where the composite jack was soldered to the PCB.

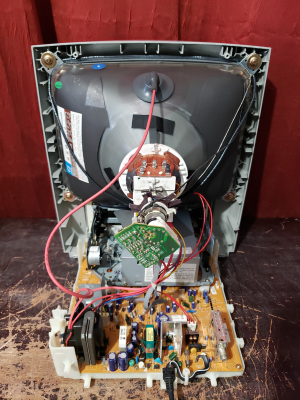

Gallery
| Specifications | |
|---|---|
| Brand: | Magnavox |
| Manufacturer: | Funai |
| Model: | MC132DMG01 |
| Series: | TV/VCR Combo |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | M61275FP |
| Comb Filtering: | None |

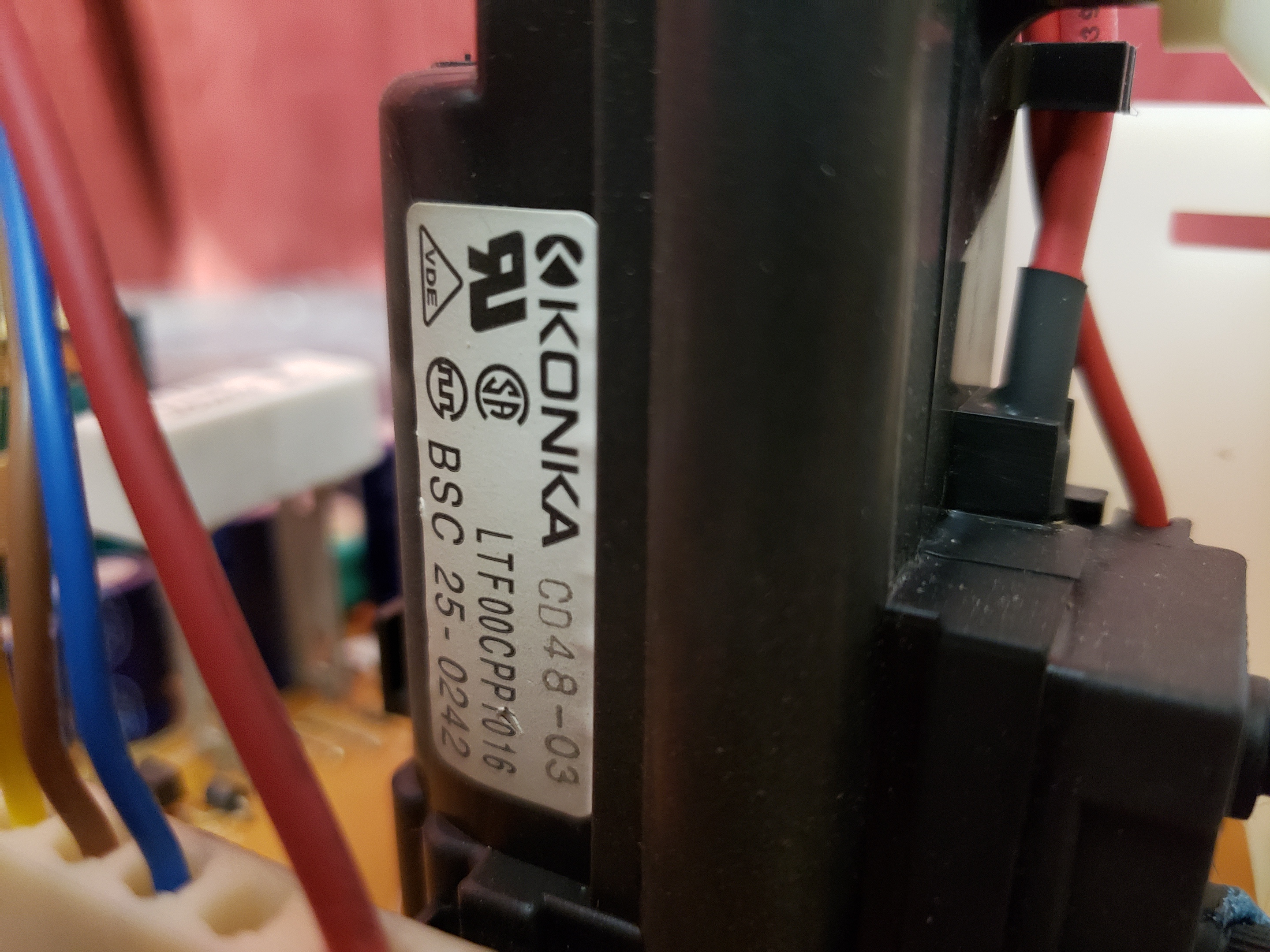

| Flyback: | LTF00CPP1016 |
| Focus Type: | Single |

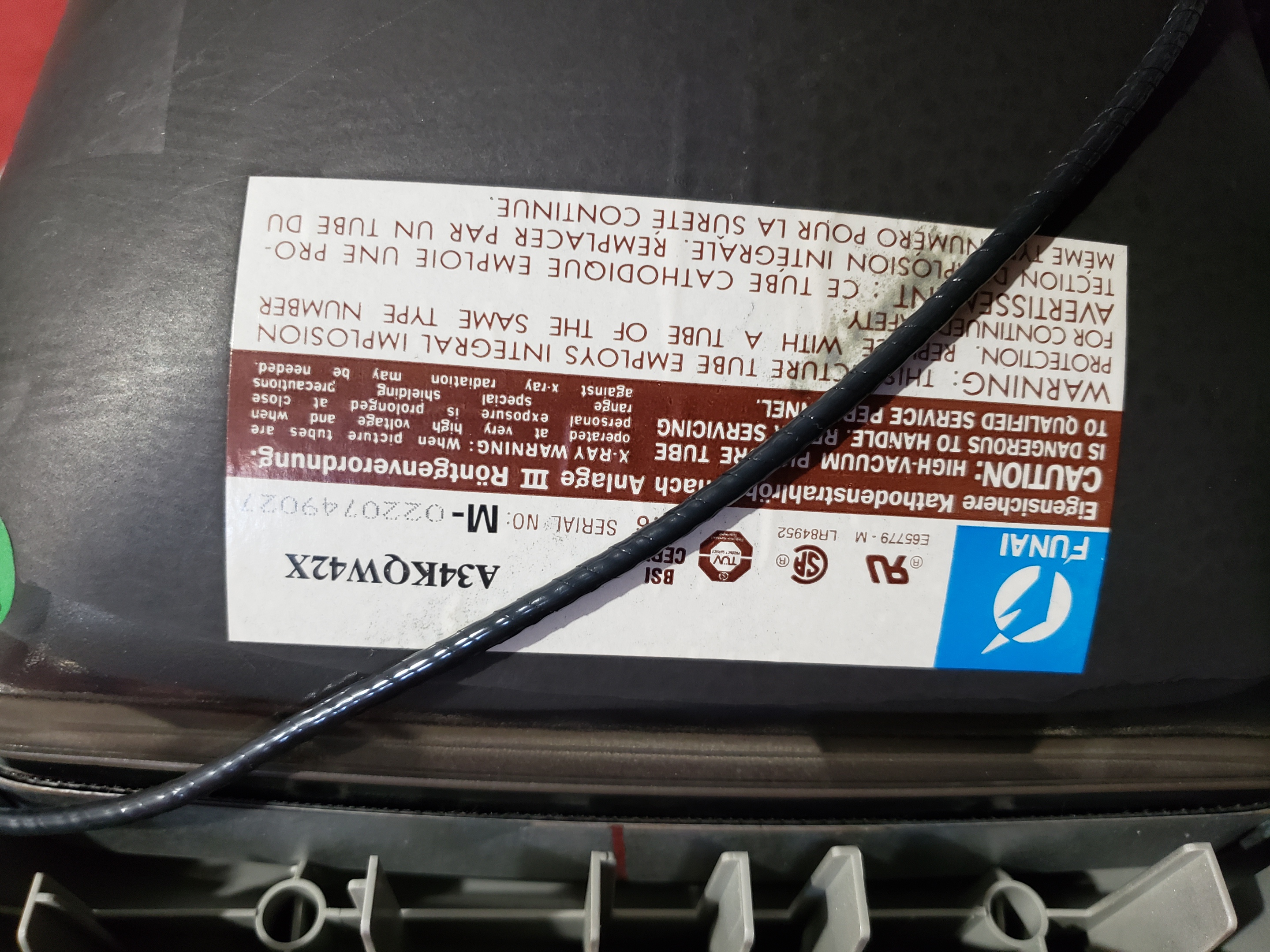

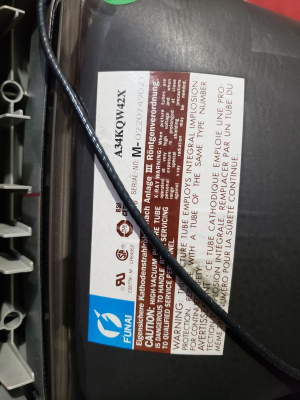

| Tube: | A34KQW42X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

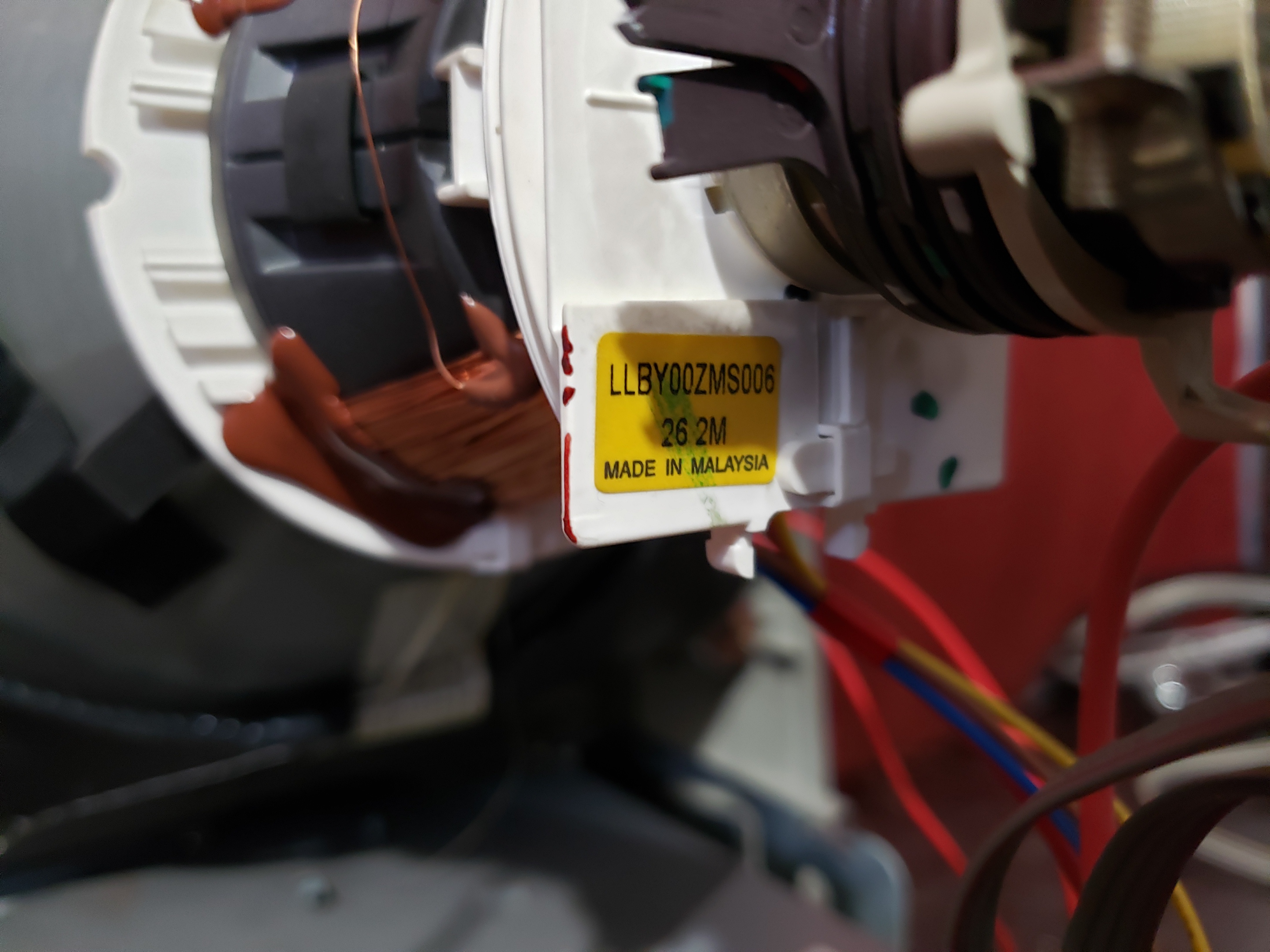

| Yoke: | LLBY00ZMS006 |
| Yoke Horz. Inductance: | 2.743 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 30.47 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 4.0 ohm |
| Yoke Vert. Resistance: | 15.60 ohm, 15.6 ohm |
| Speakers: | Mono |
| Remote: | NE000UD |
| Weight: | 24.3 lbs (11 kg) |
| Dimensions (W/H/D): |
386 x 400 x 377 mm
(15.2 x 15.7 x 14.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Repair Log |
