Summary

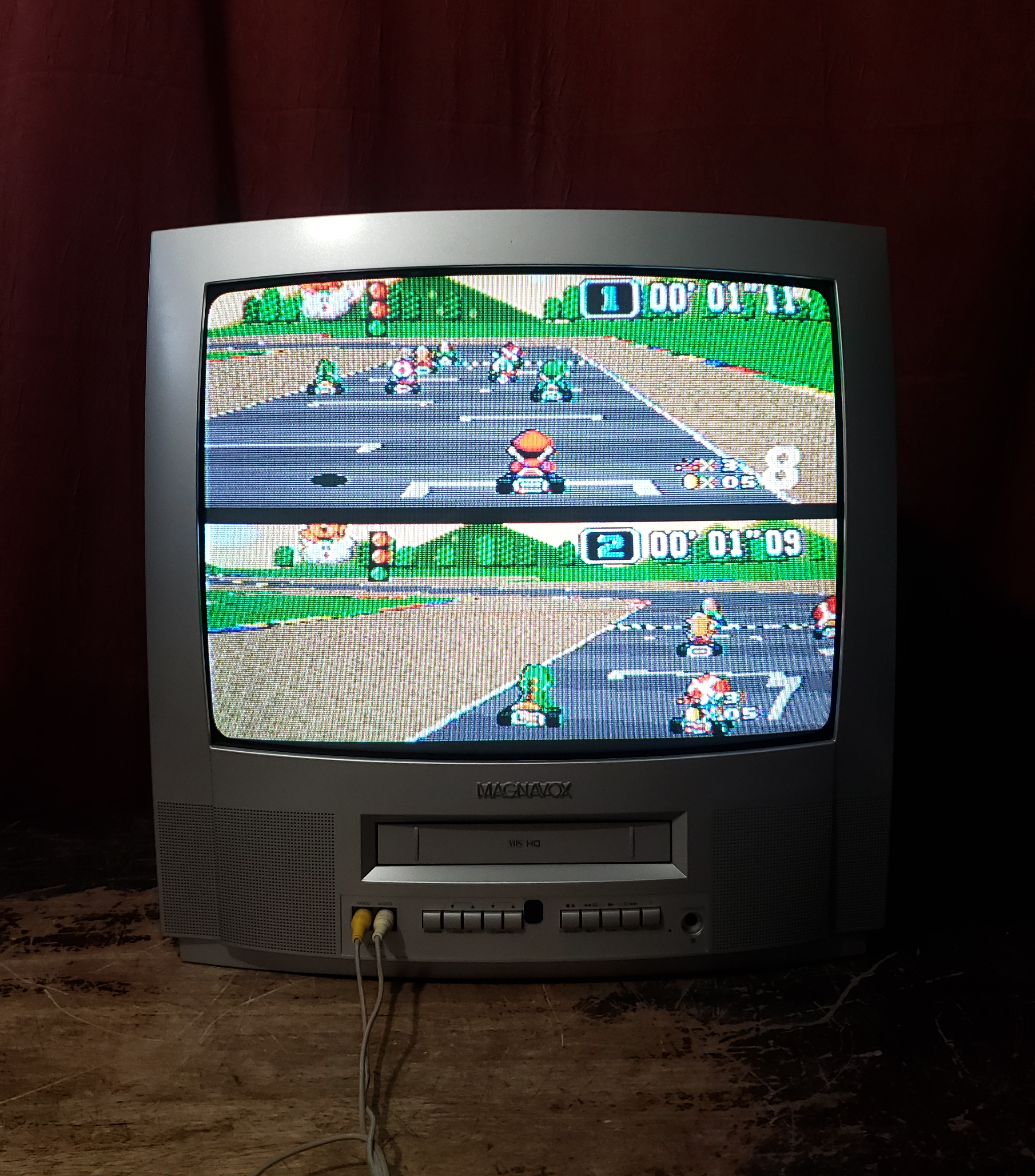

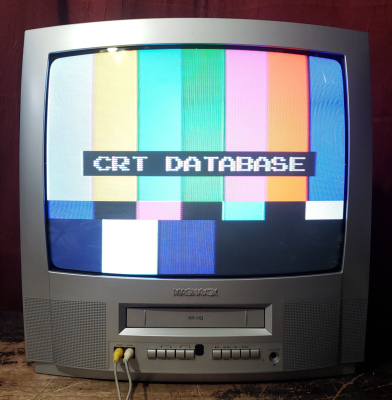

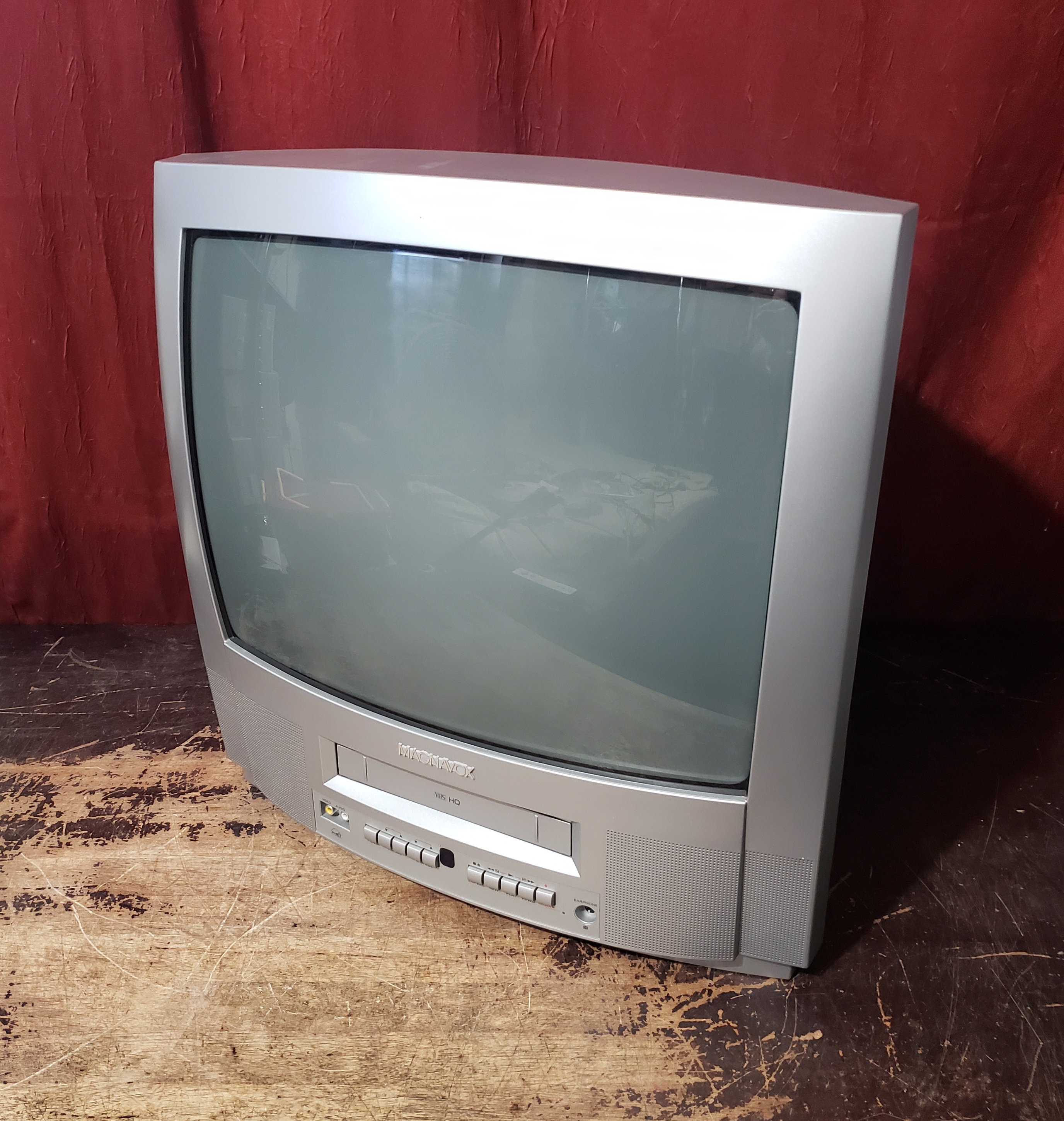

19" TV/VCR combo unit, manufactured by Funai and sold under the Magnavox brand. Features a single mono AV port on the front, and an RF coaxial input on the back.
Manuals
Repair Notes
- Would not play tapes. Fixed by cleaning the mode switch with contact cleaner.
Notes
Press the CHANNEL up button and the VOLUME down button at the same time to display the menu.

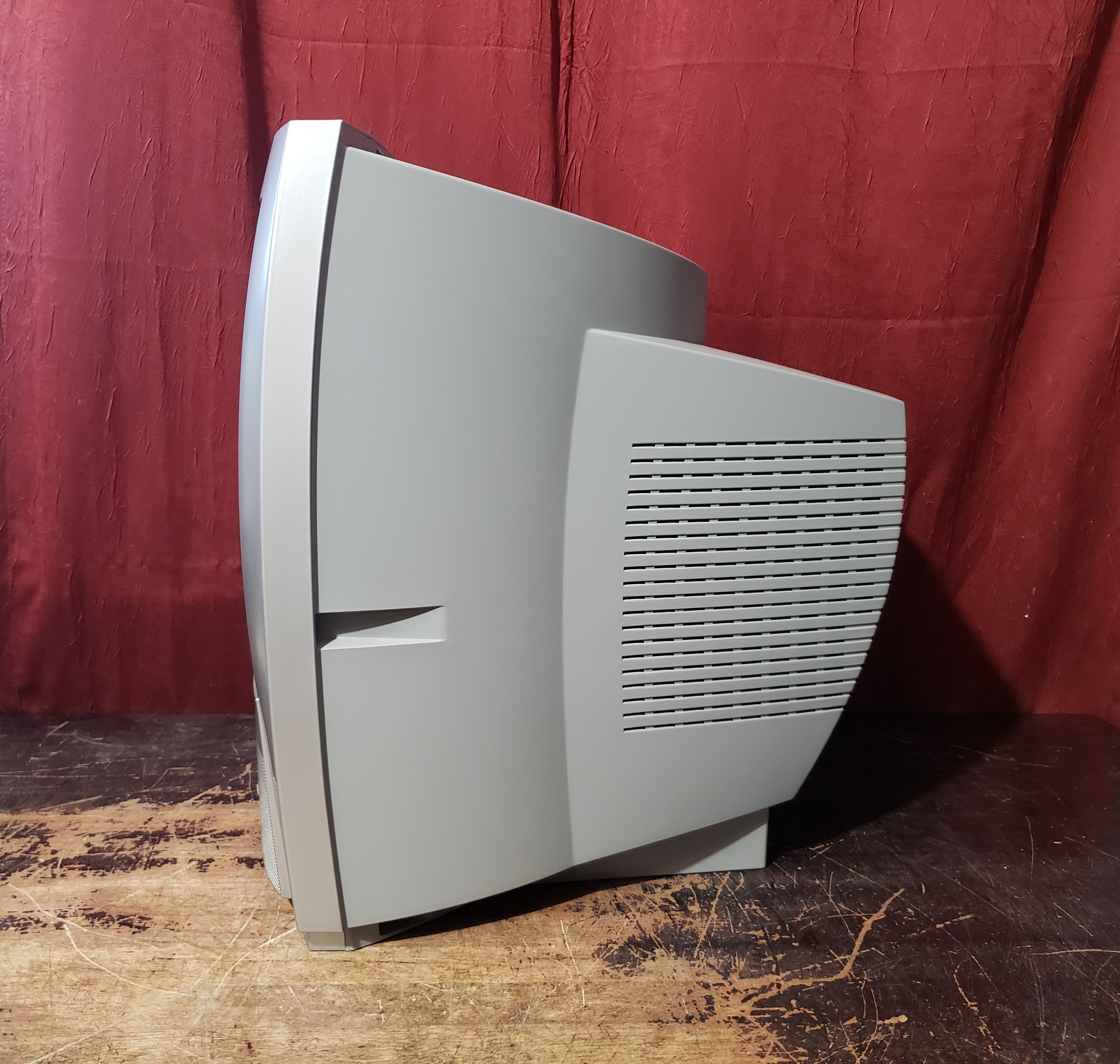

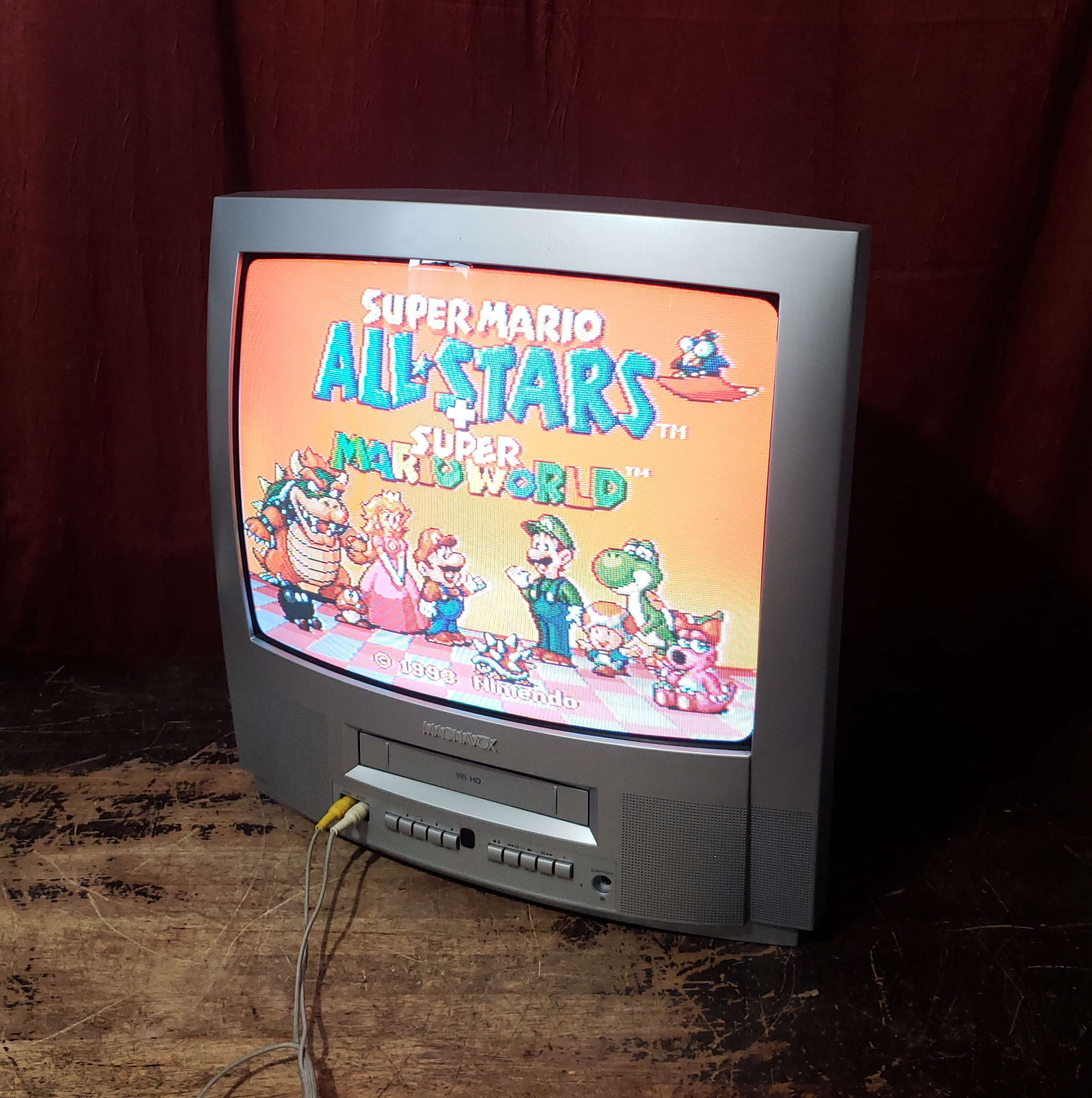

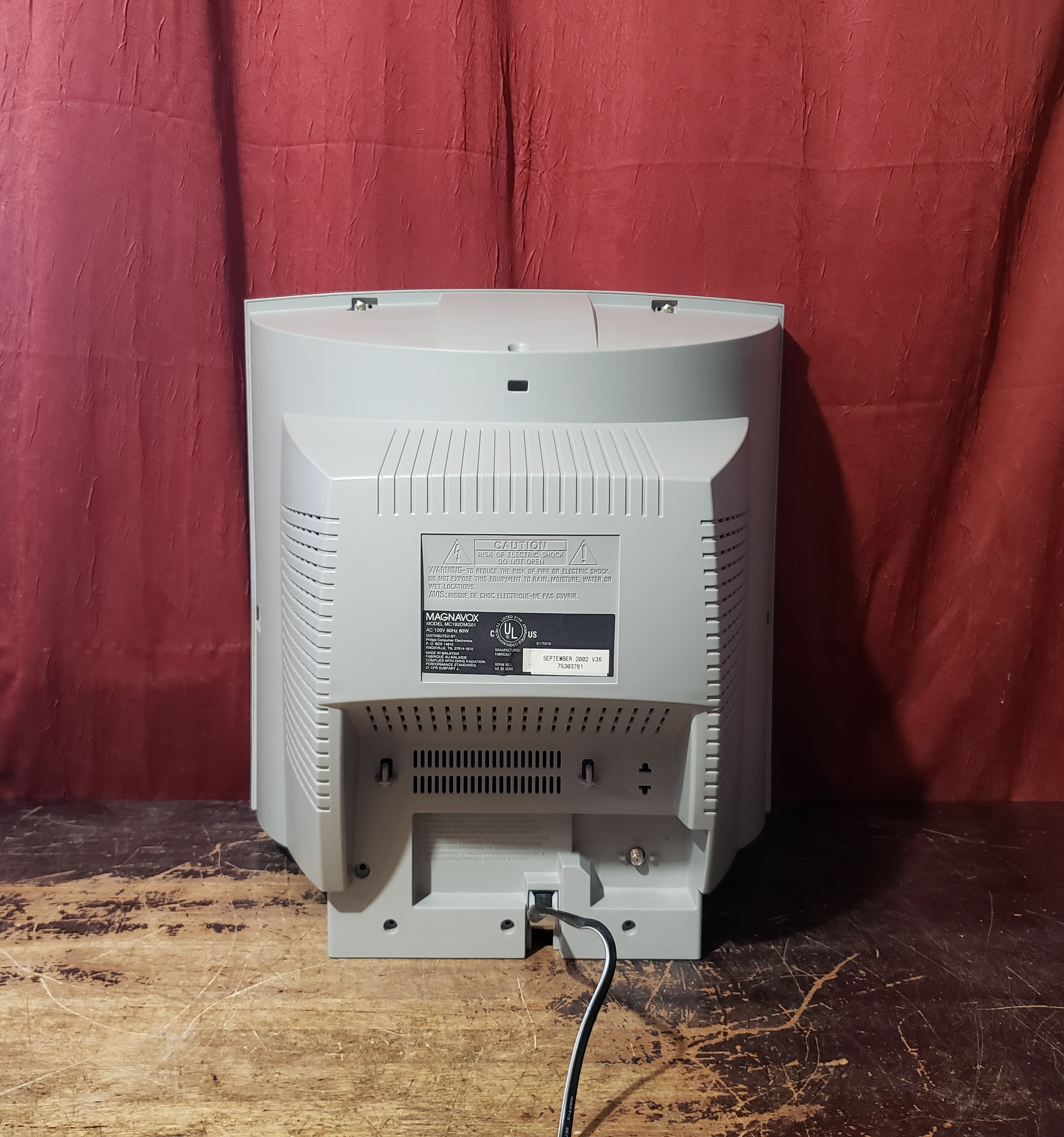

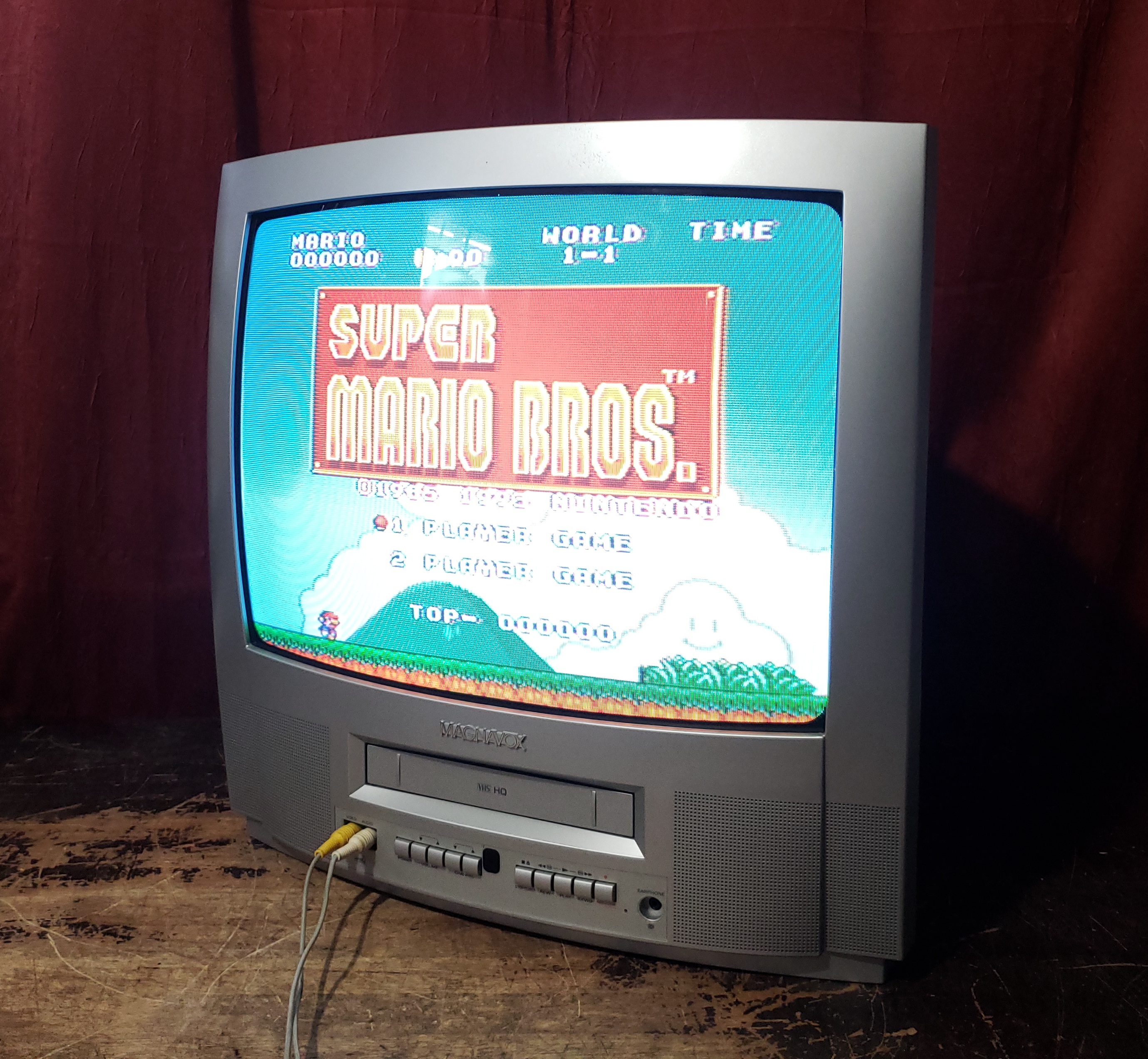

Gallery
| Specifications | |
|---|---|
| Brand: | Magnavox |

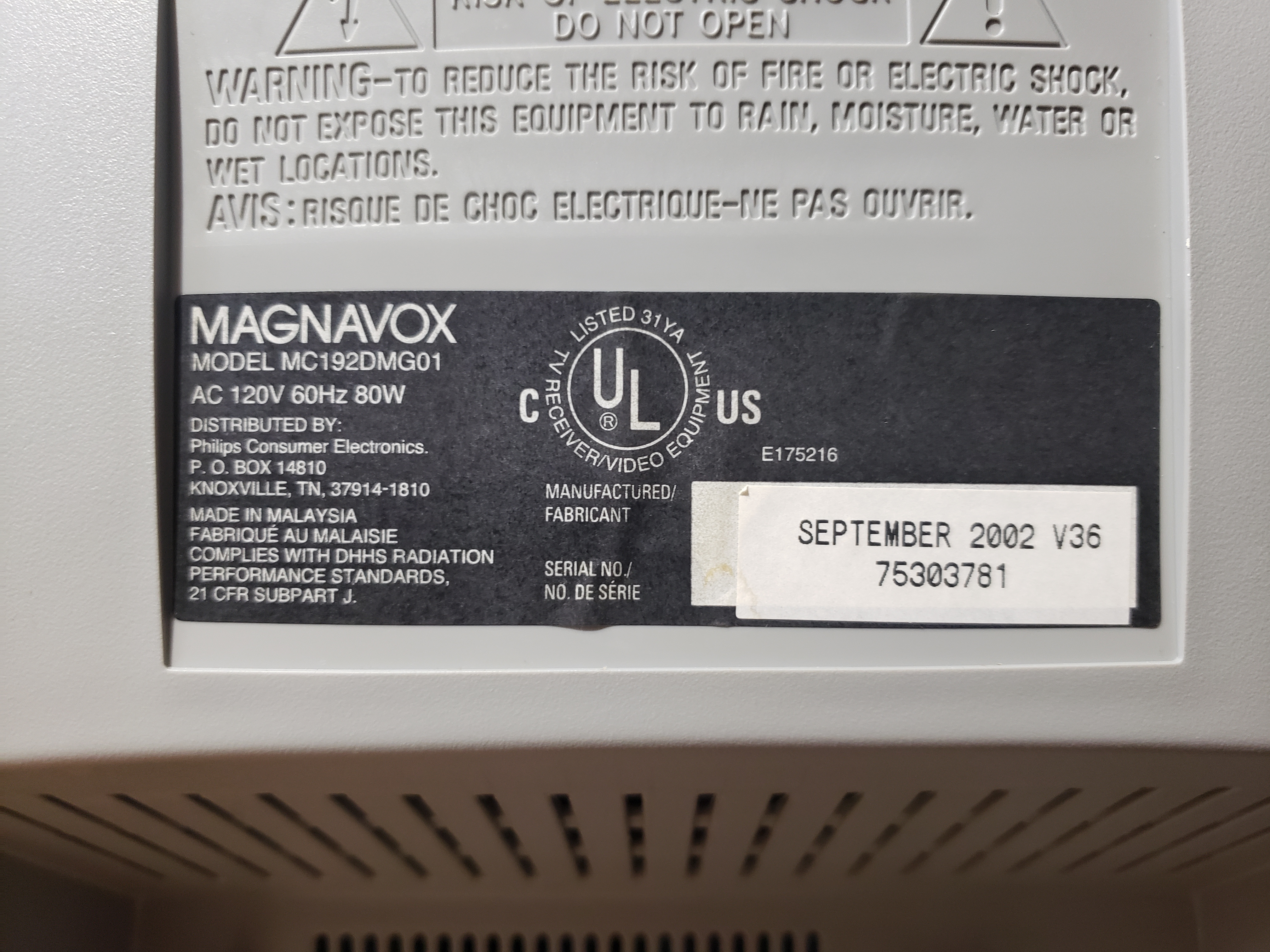

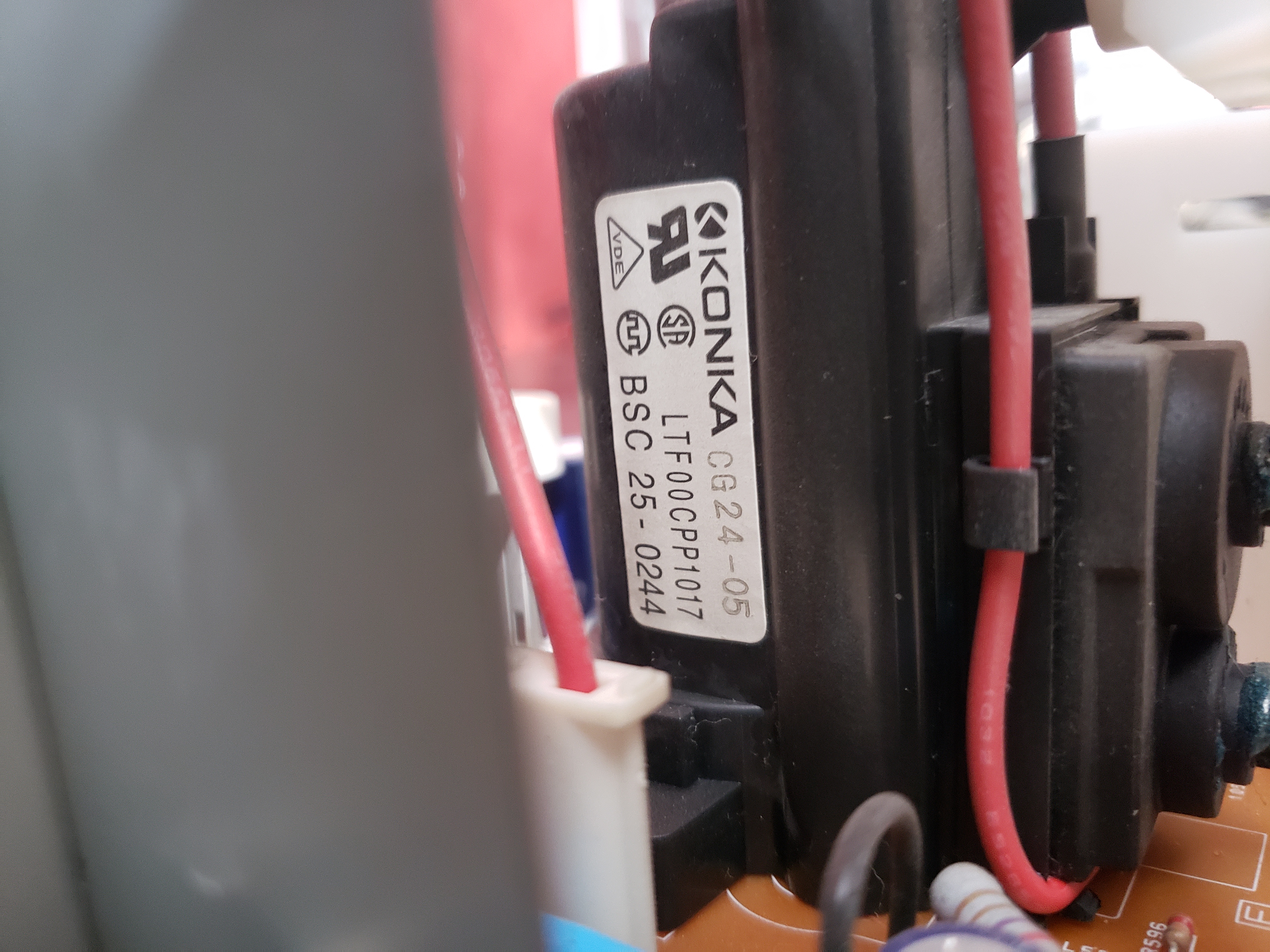

| Manufacturer: | Funai |
| Model: | MC132DMG01 |
| Series: | TV/VCR Combo |
| Viewable Size: | 19" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | M61275FP |
| Comb Filtering: | Notch |
| Flyback: | LTF00CPP1017, BSC25-0244, Konka |
| Focus Type: | Single |

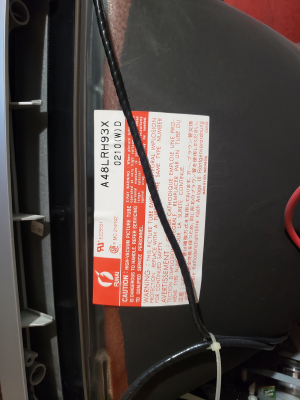

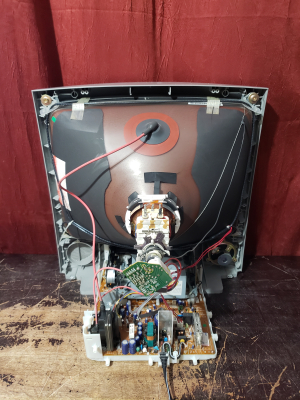

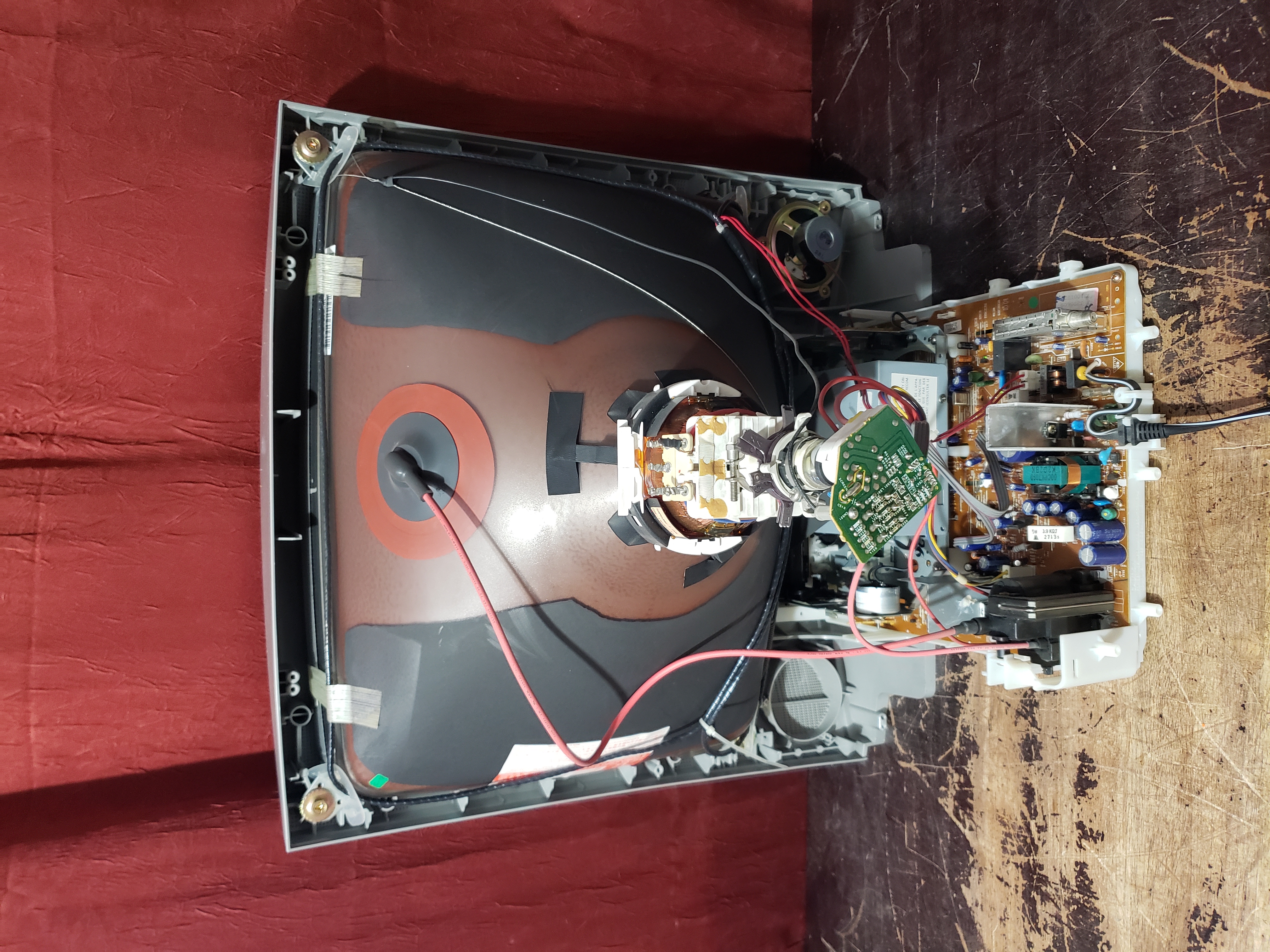

| Tube: | A48LRH93X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

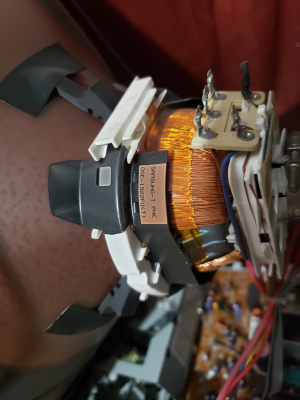

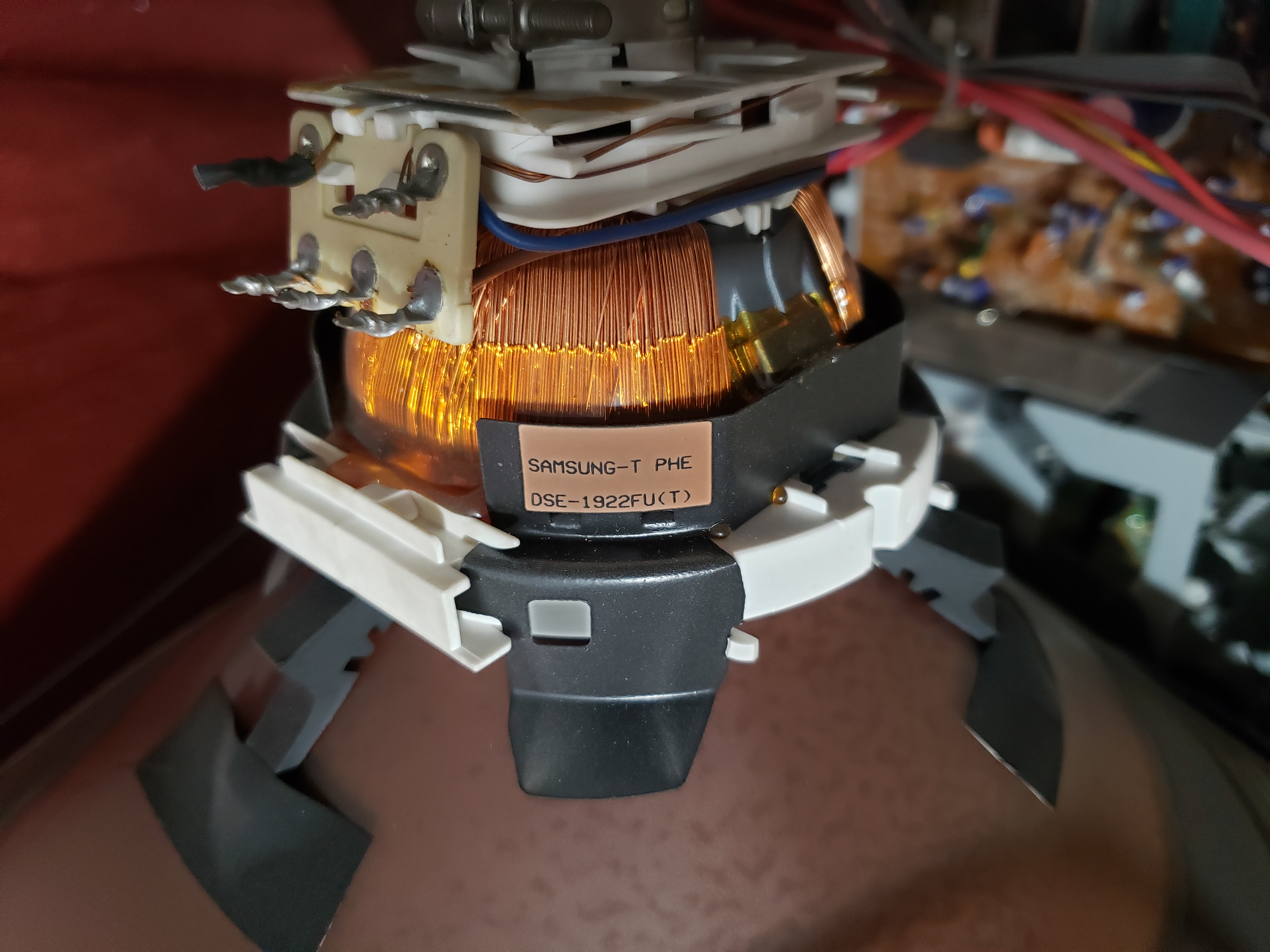

| Yoke: | DSE-1922FU |
| Yoke Horz. Inductance: | 2.140 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 28.39 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.64 ohm |
| Yoke Vert. Resistance: | 14.93 ohm |
| Speakers: | Mono |
| Remote: | NE000UD |
| Weight: | 44.1 lbs (20 kg) |
| Dimensions (W/H/D): |
494 x 500 x 465 mm
(19.4 x 19.7 x 18.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Repair Log, Needs IC Info |
