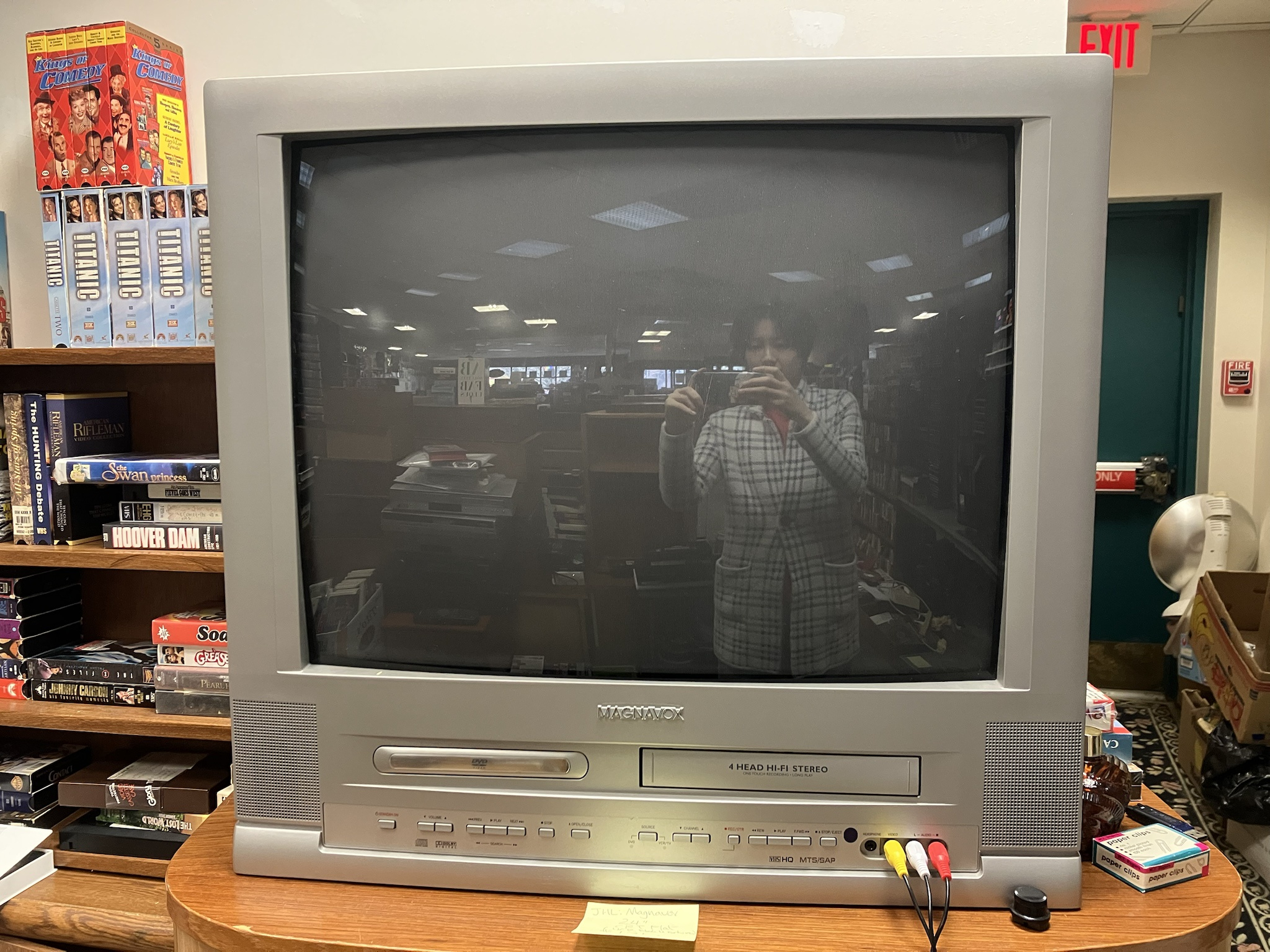

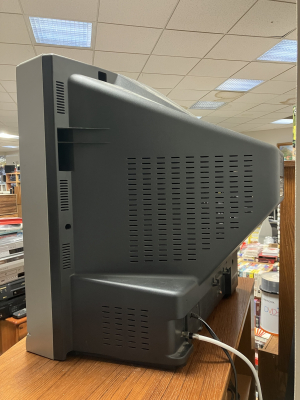

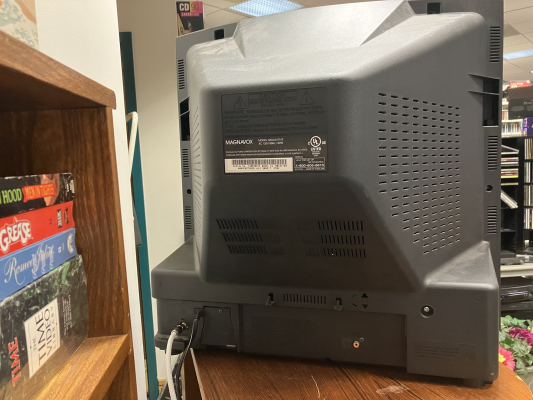

Gallery
| Specifications | |
|---|---|
| Brand: | Magnavox |
| Manufacturer: | Funai |
| Model: | MWC24T5B |
| Series: | TV/VCR/DVD Combo |
| Viewable Size: | 24" |
| Inputs: | Composite, RF |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SC5978 |
| Vertical Output IC: | LA78041-E |
| Jungle IC: | M61275FP-TF3H |
| Comb Filtering: | LA71205M-MPB-E |
| Flyback: | F0501-2167-G |
| Focus Type: | Single |
| Tube: | A59KYL220X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 150Z-1030X |
| Speakers: | 1.0W x 2 |
| Remote: | NE206UD |
| Weight: | 61.7 lbs (28 kg) |
| Dimensions (W/H/D): |
612 x 576 x 482 mm
(24.1 x 22.6 x 18.9") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2006 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Yoke Info, Community Submission, Needs Pictures |
