Magnavox MX3296 B101
SegaSaturn94
October 13, 2024, 12:57 pm
July 8, 2025, 2:52 pm
October 13, 2024, 12:57 pm
July 8, 2025, 2:52 pm
Summary
32" Magnavox CRT with s-video, higher-quality speakers and sound options. Manufactured by North American Philips Corporation in 1996.
(Special thanks to Brett V. for the pics!)
Manuals
(None at this time)
Notes

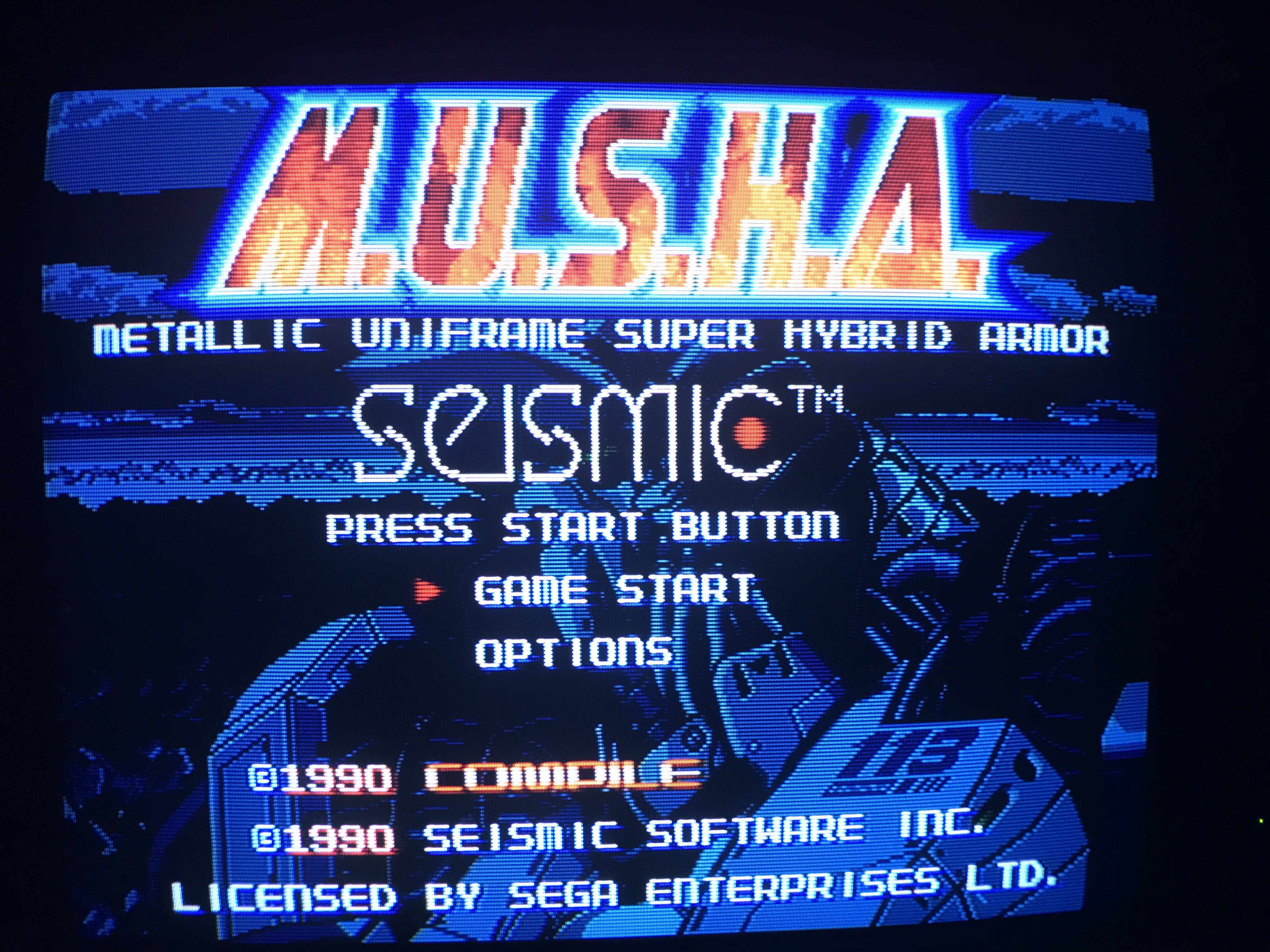

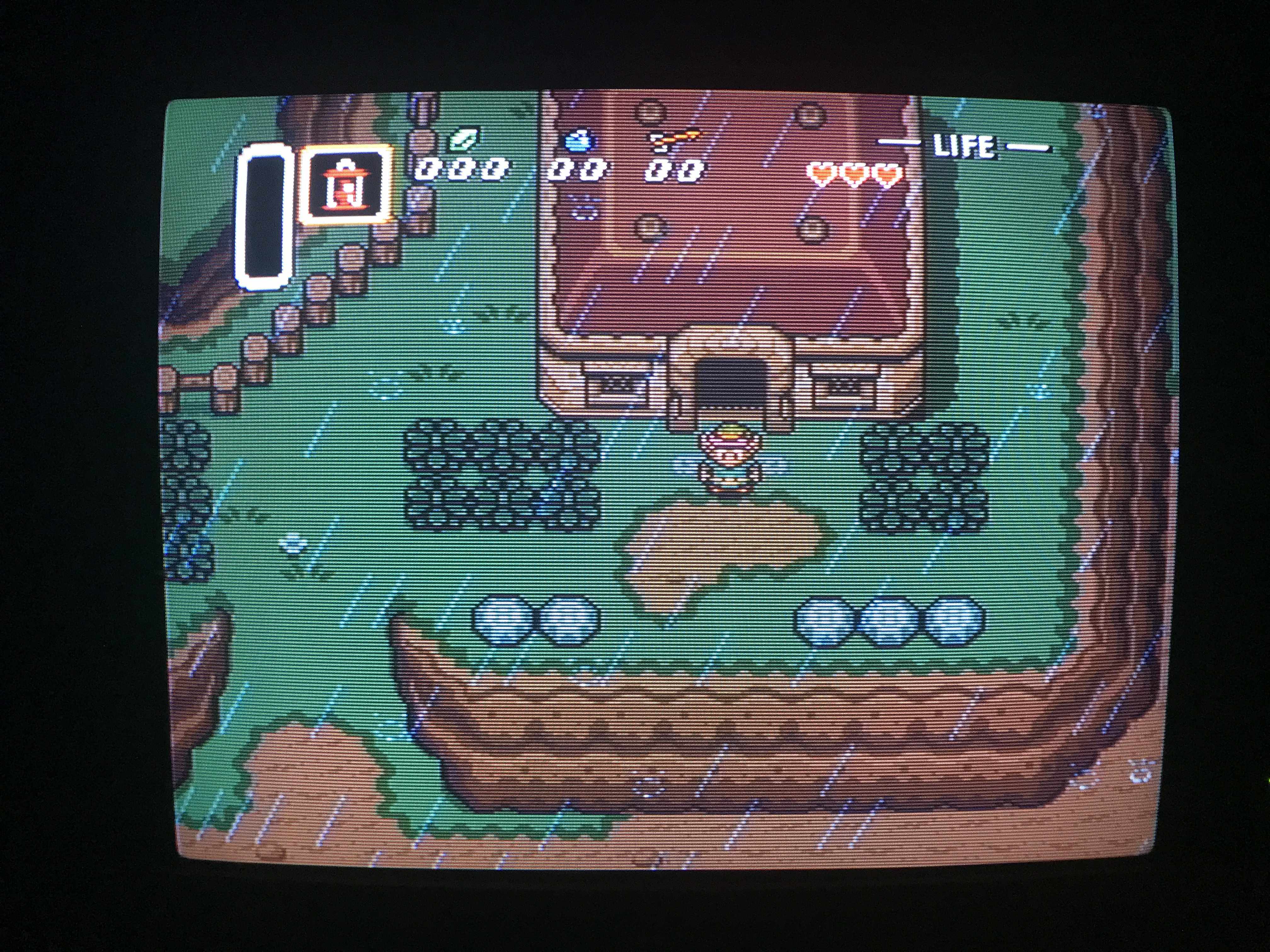

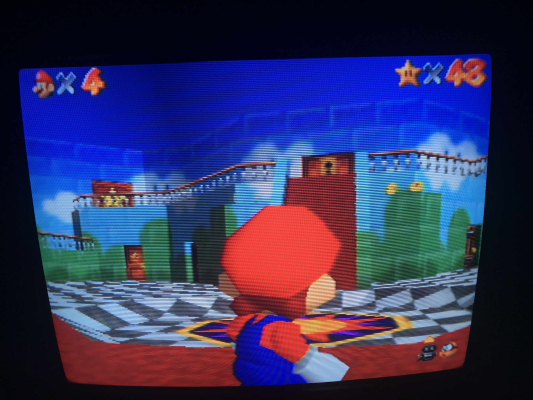

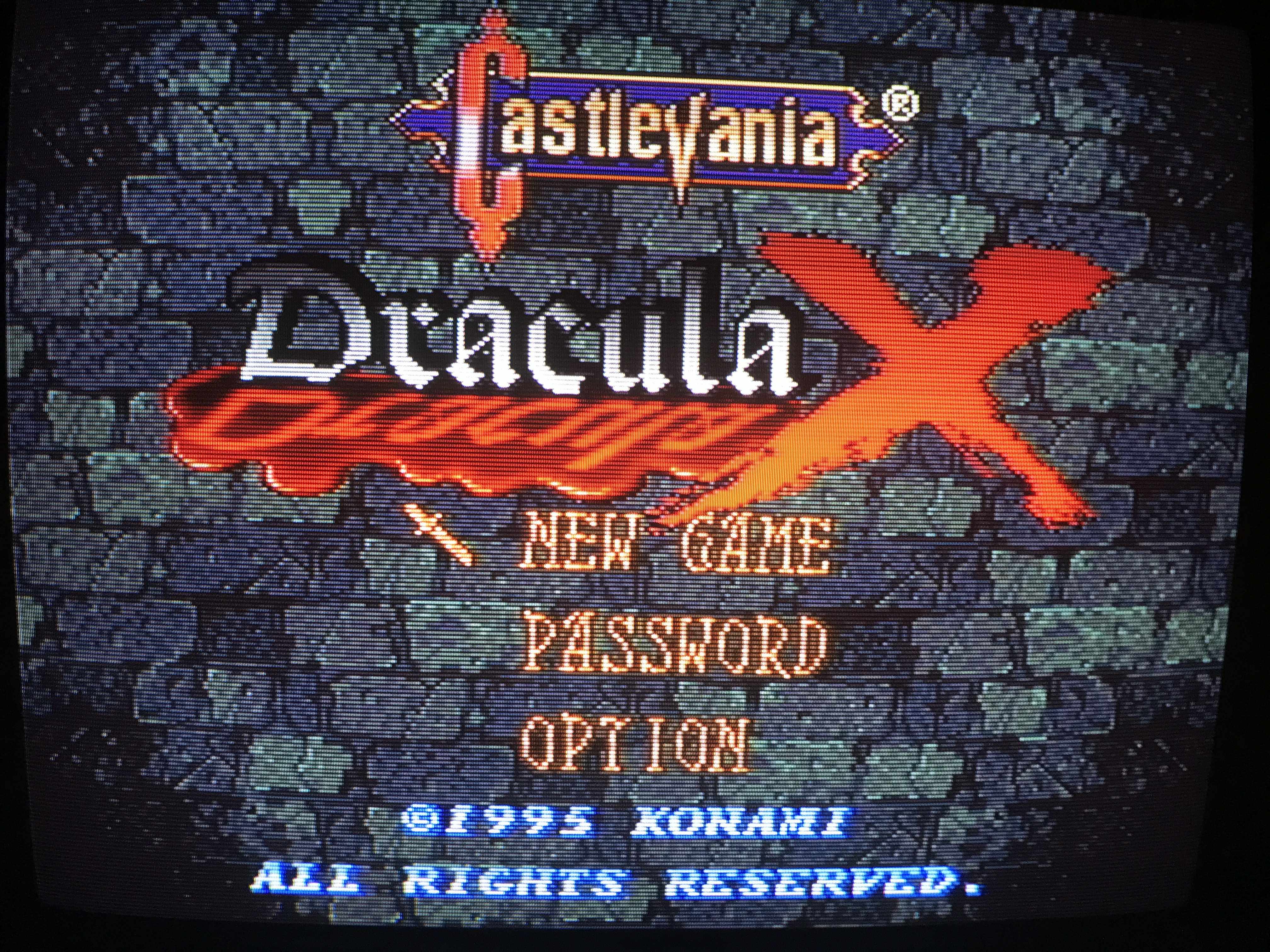

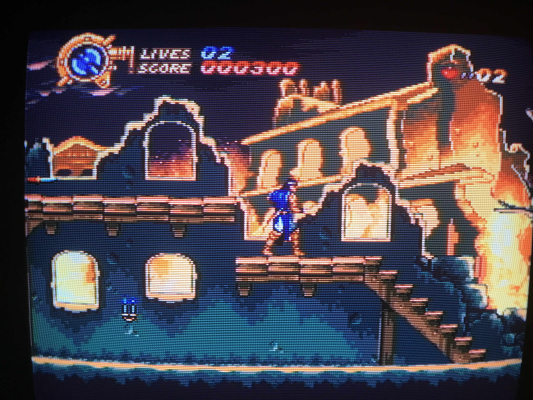

S-video quality is fairly clean. Composite, however, looks pretty rough. Lots of dot crawl, so not much in the way of filtering.
Tube is a common model made by Philips in the USA. From what I can observe, the dot pitch on these tubes is slightly finer than other manufacturers of the time. Looks fantastic!

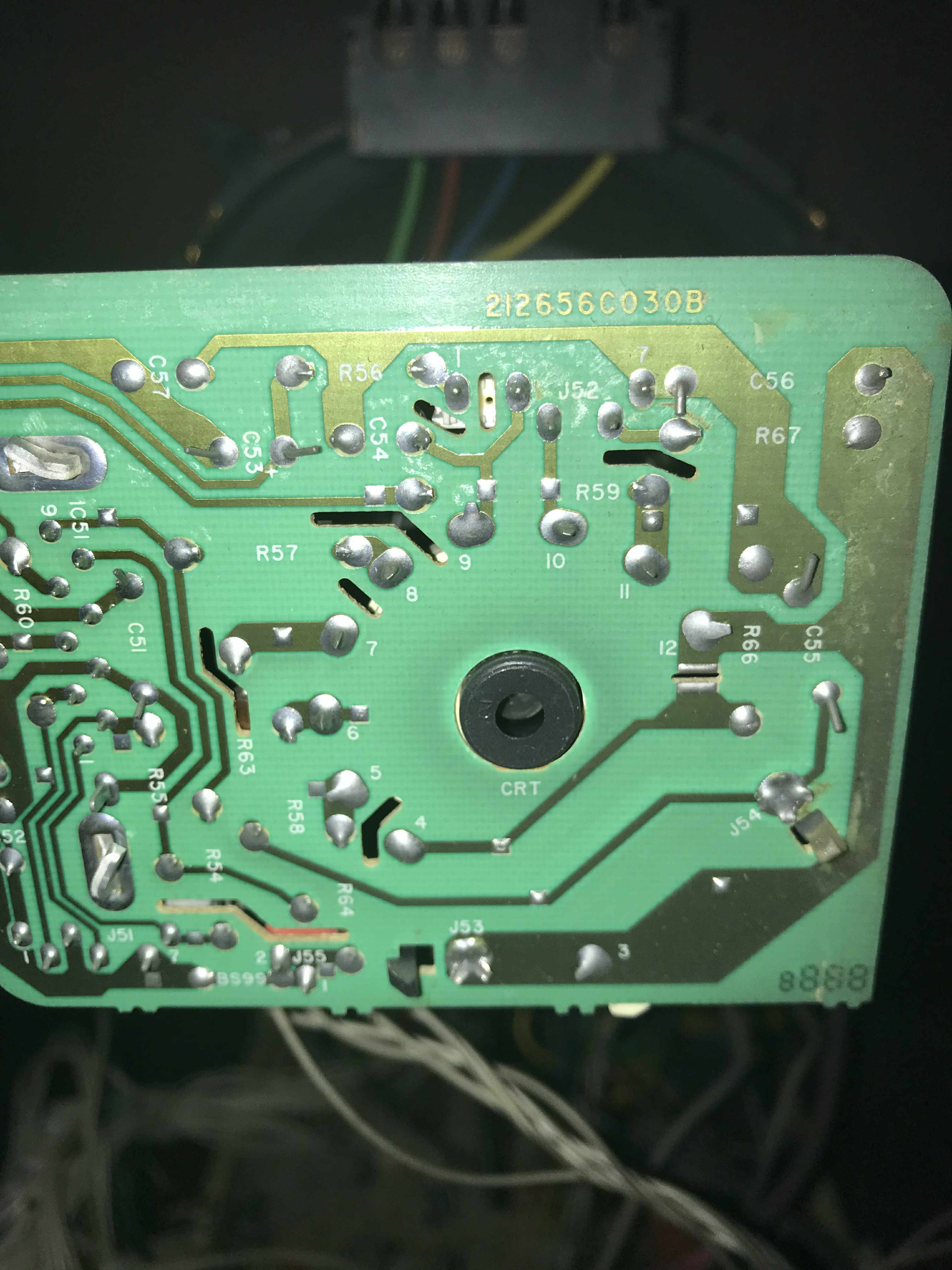

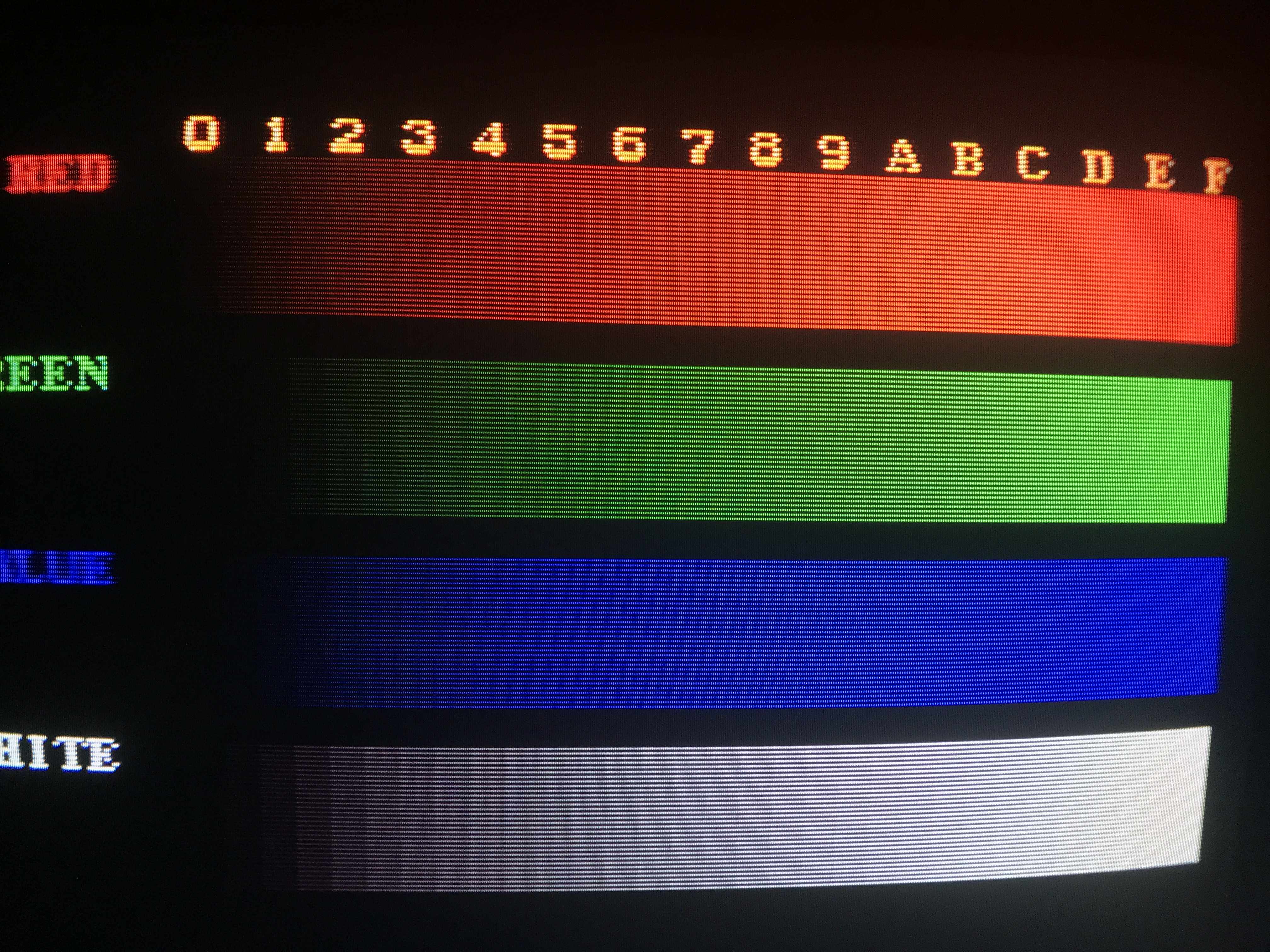

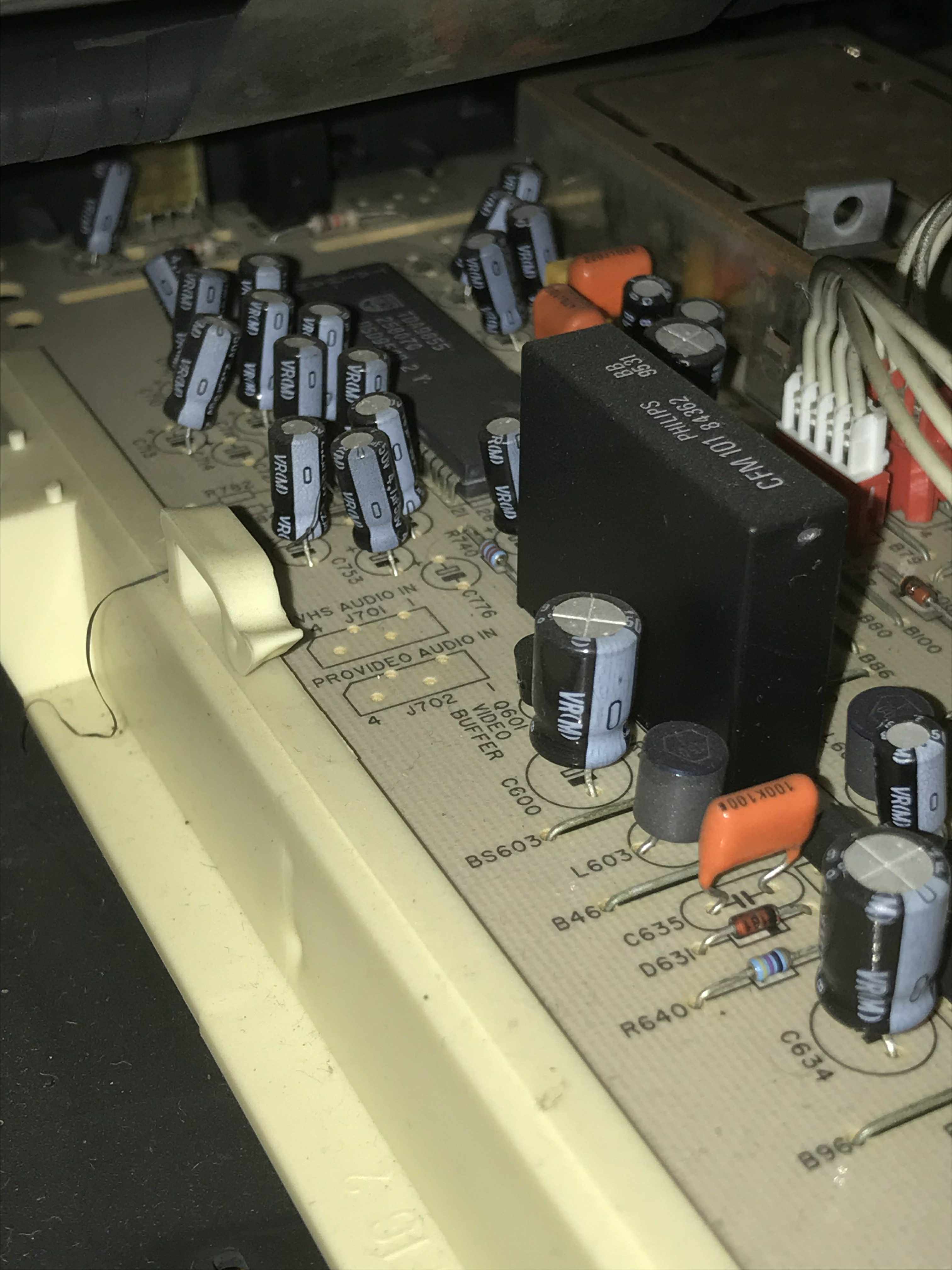

By default, the image is rather warm. The edge of the main board has POTs to adjust the RGB levels. It lacks red drive, however.

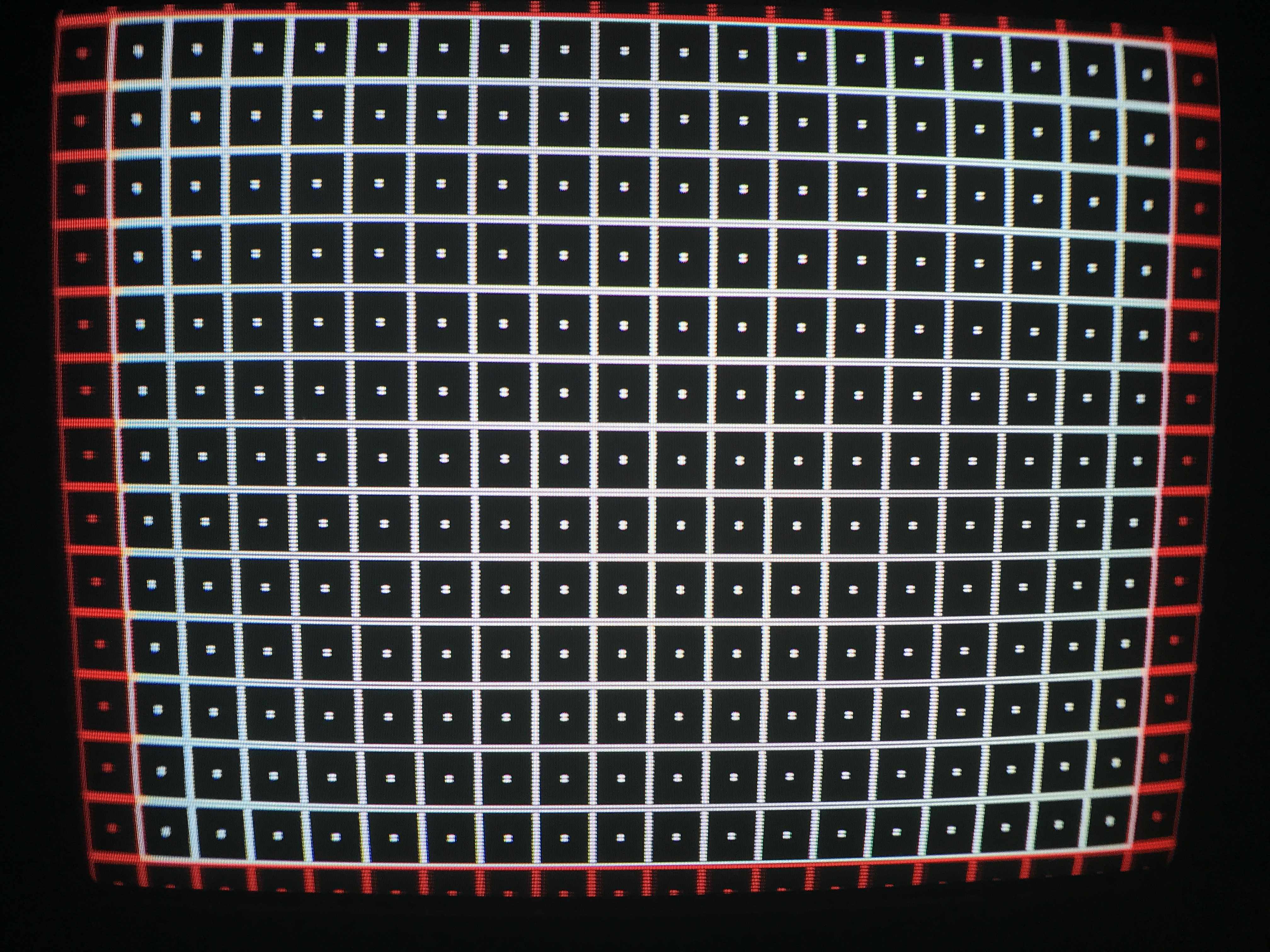

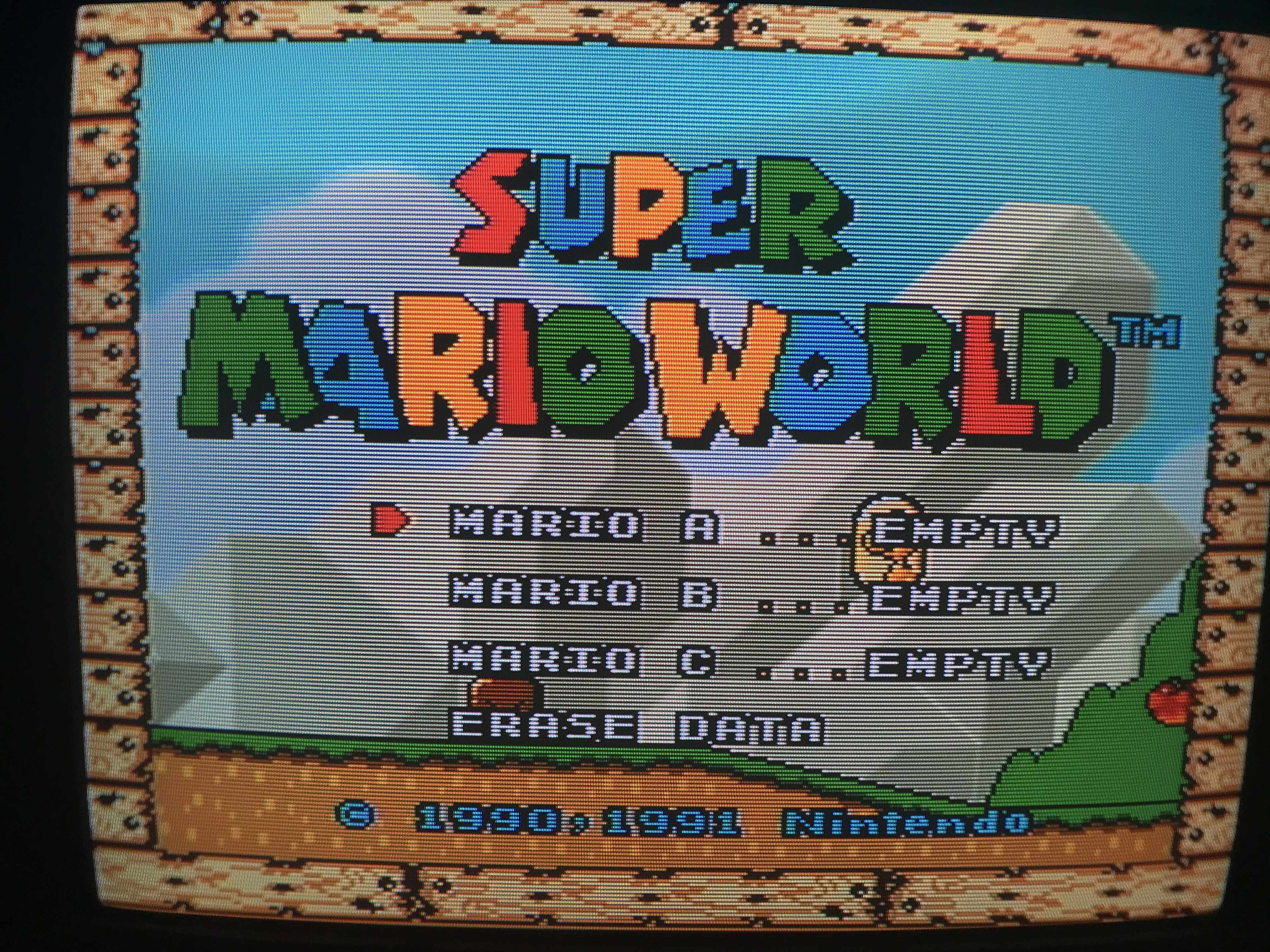

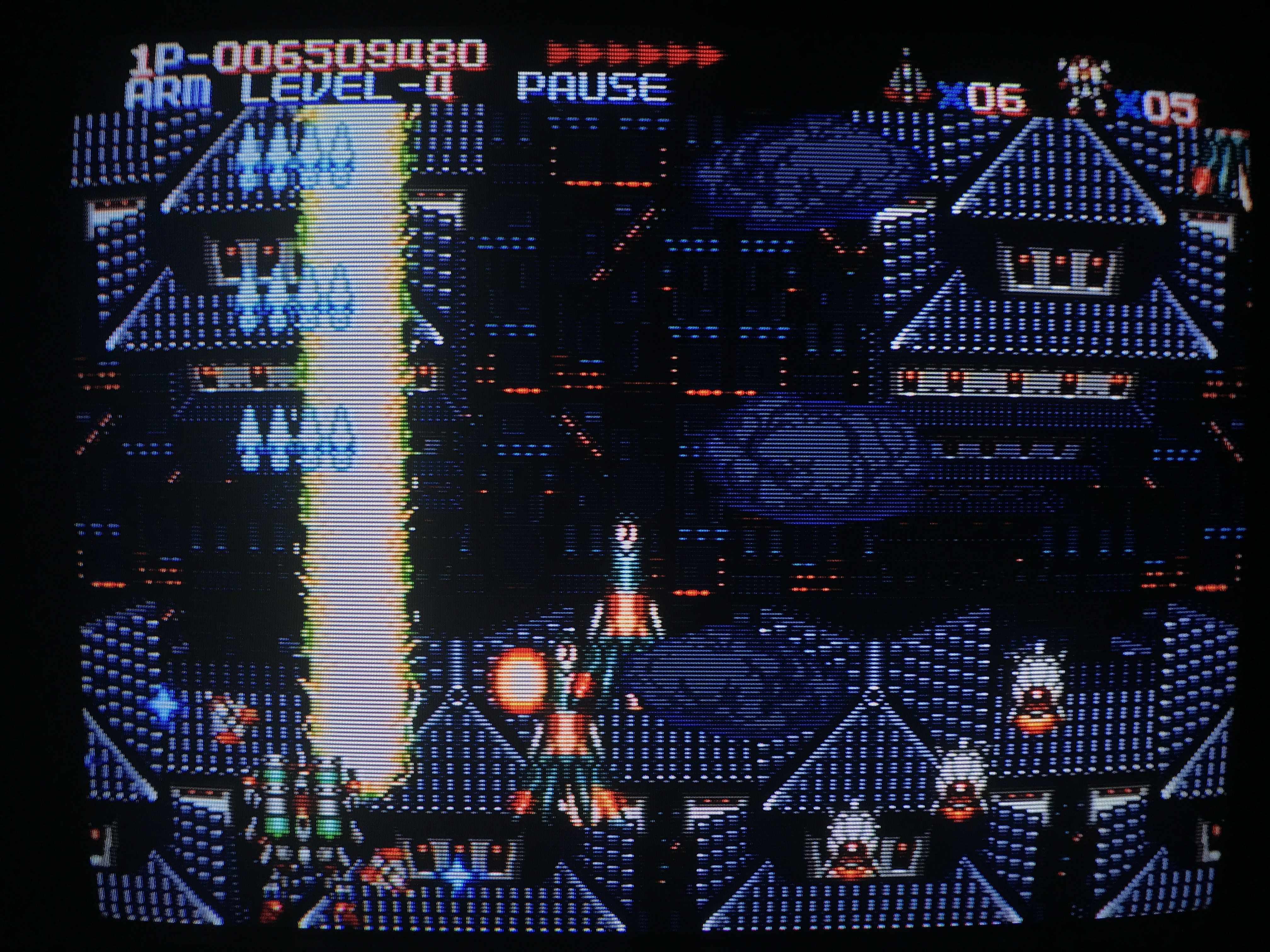

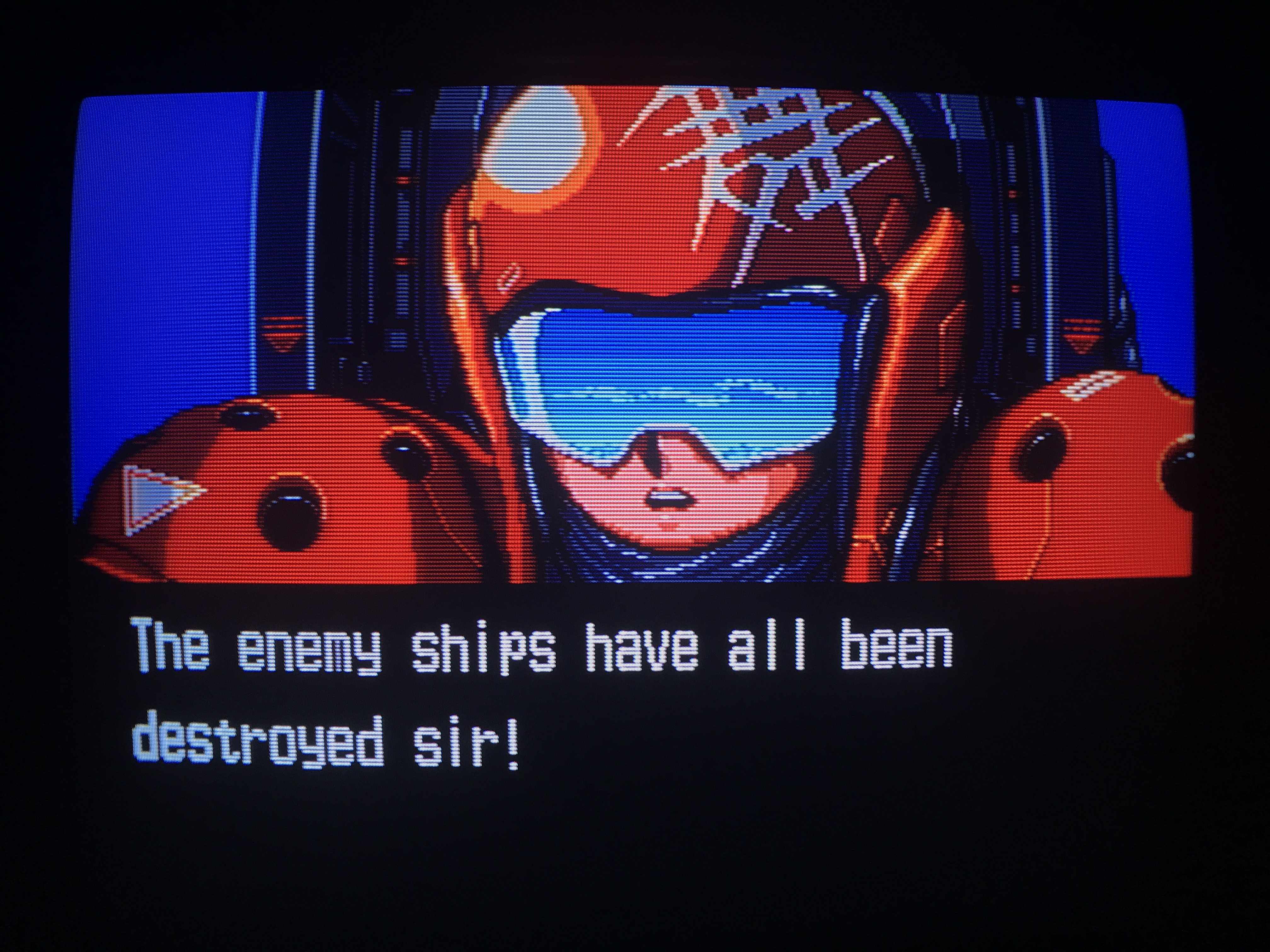

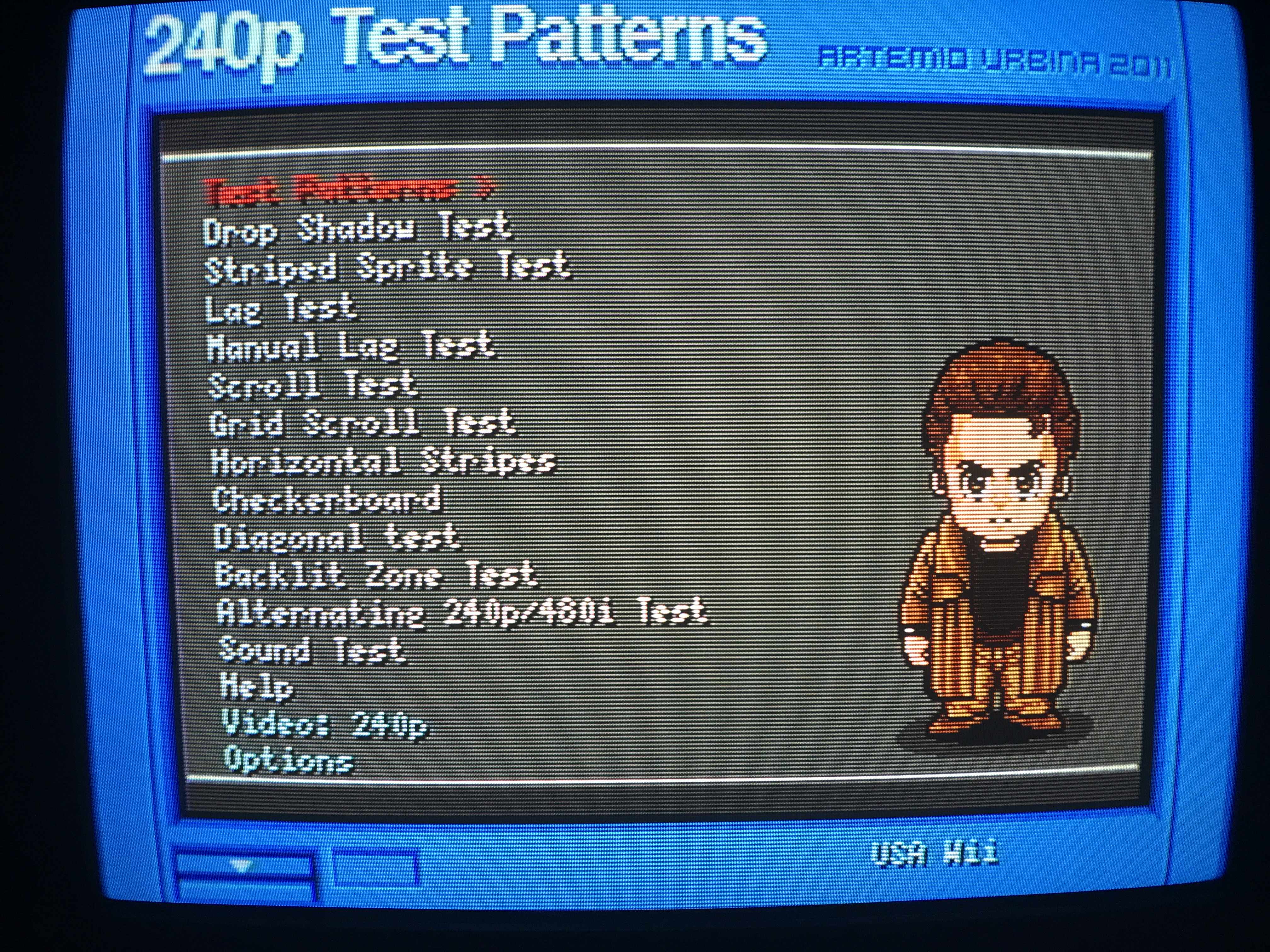

Gallery











































Specifications | |
---|---|
Brand: | Magnavox |
Manufacturer: | Philips |
Model: | MX3296 B101 |
Series: | MX |
Viewable Size: | 32" |
Inputs: | Composite, S-Video, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, OSD Customer Controls |
Focus Type: | Single |

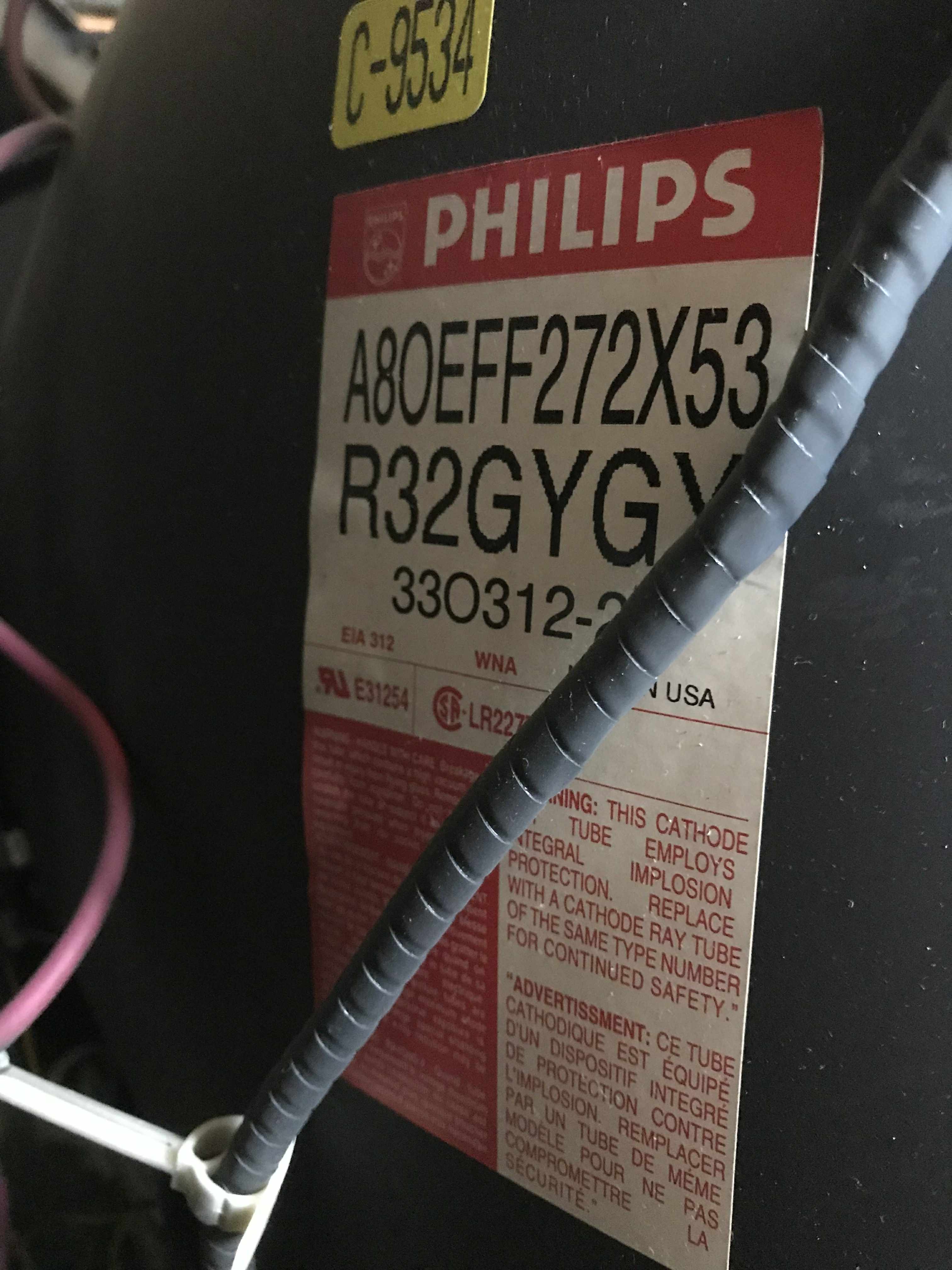

Tube: | Philips , A80EFF272X , A80EFF272X56 |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |

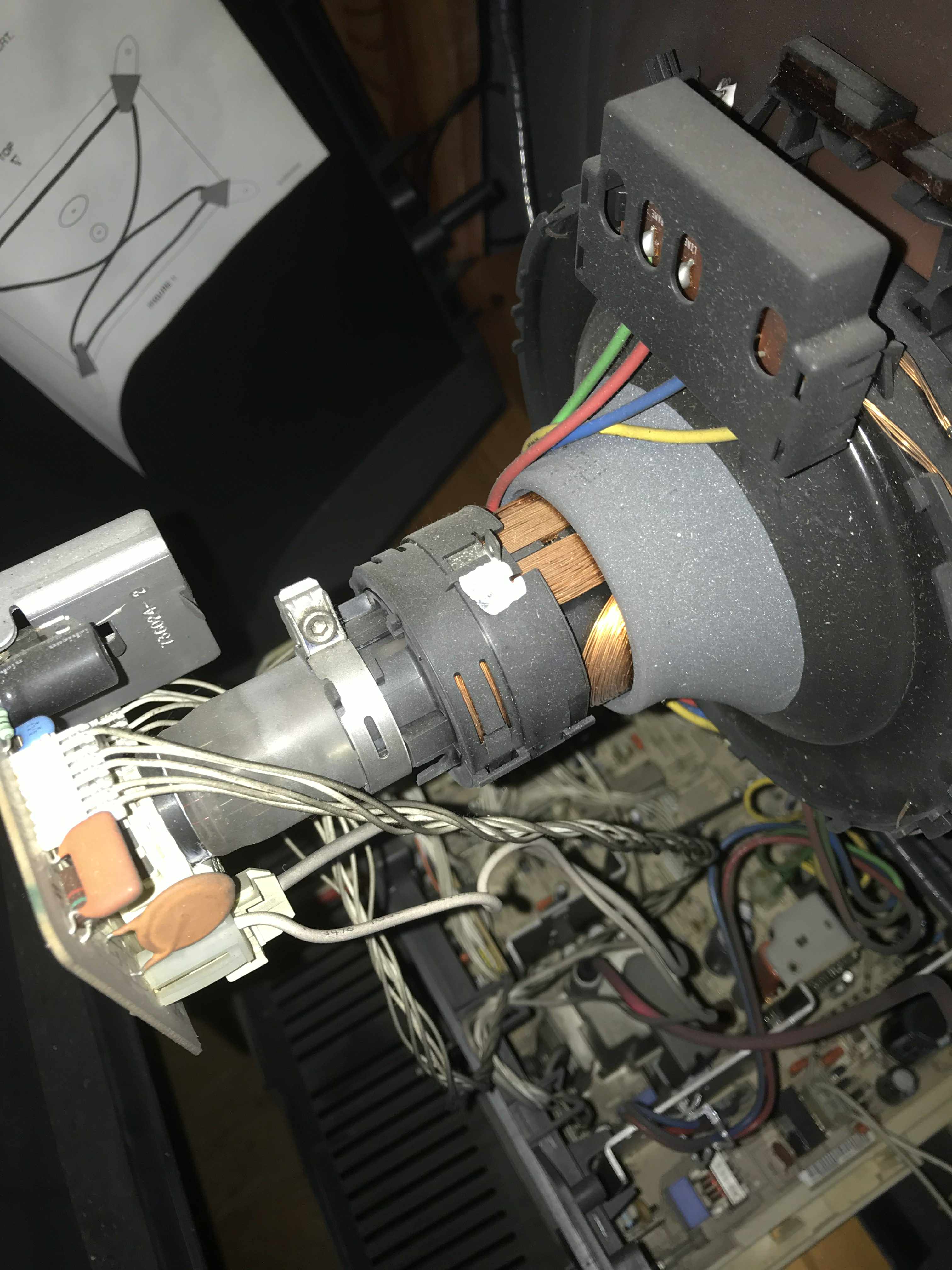

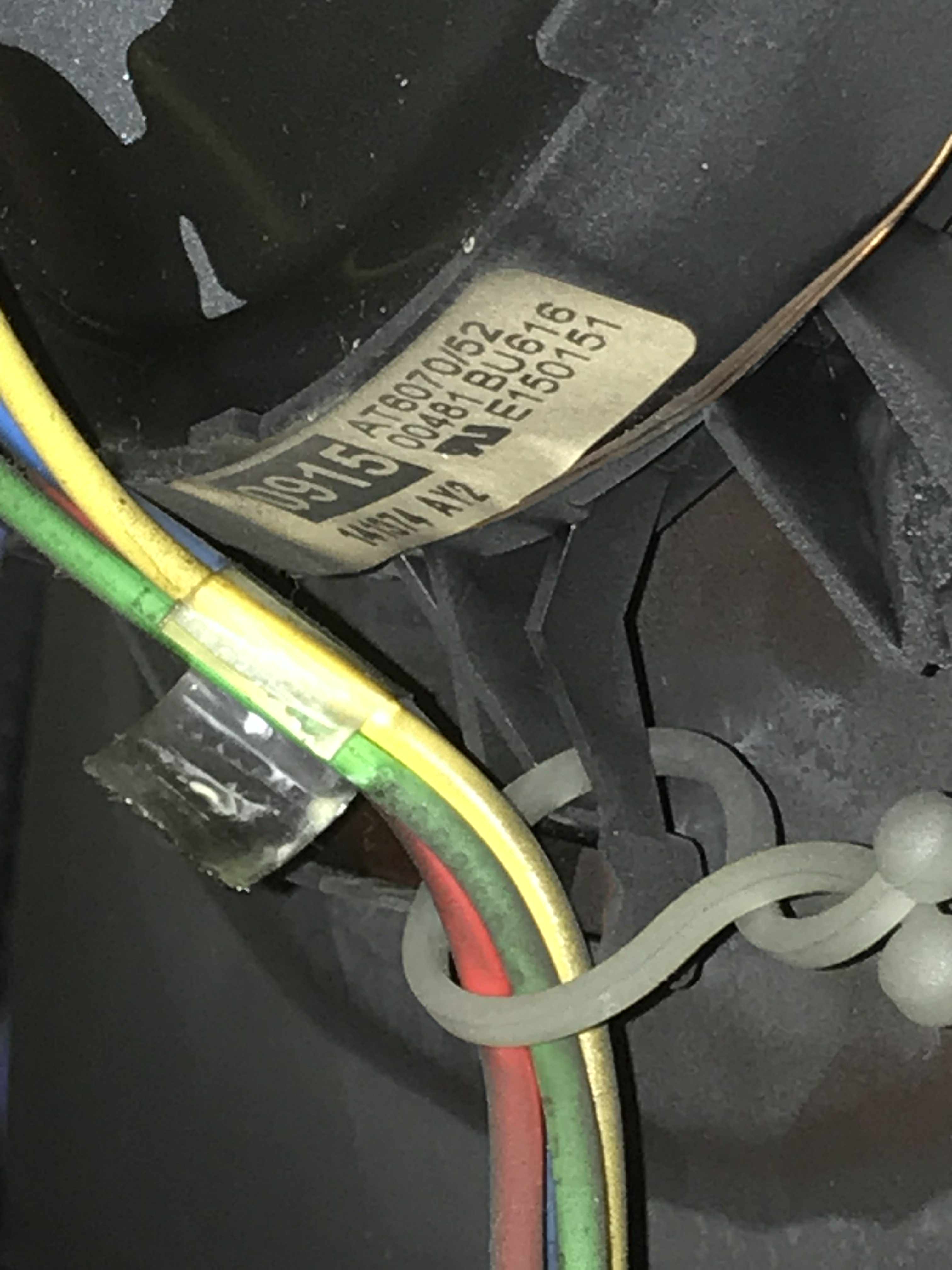

Yoke: | AT8070/52, 00481BU616 |

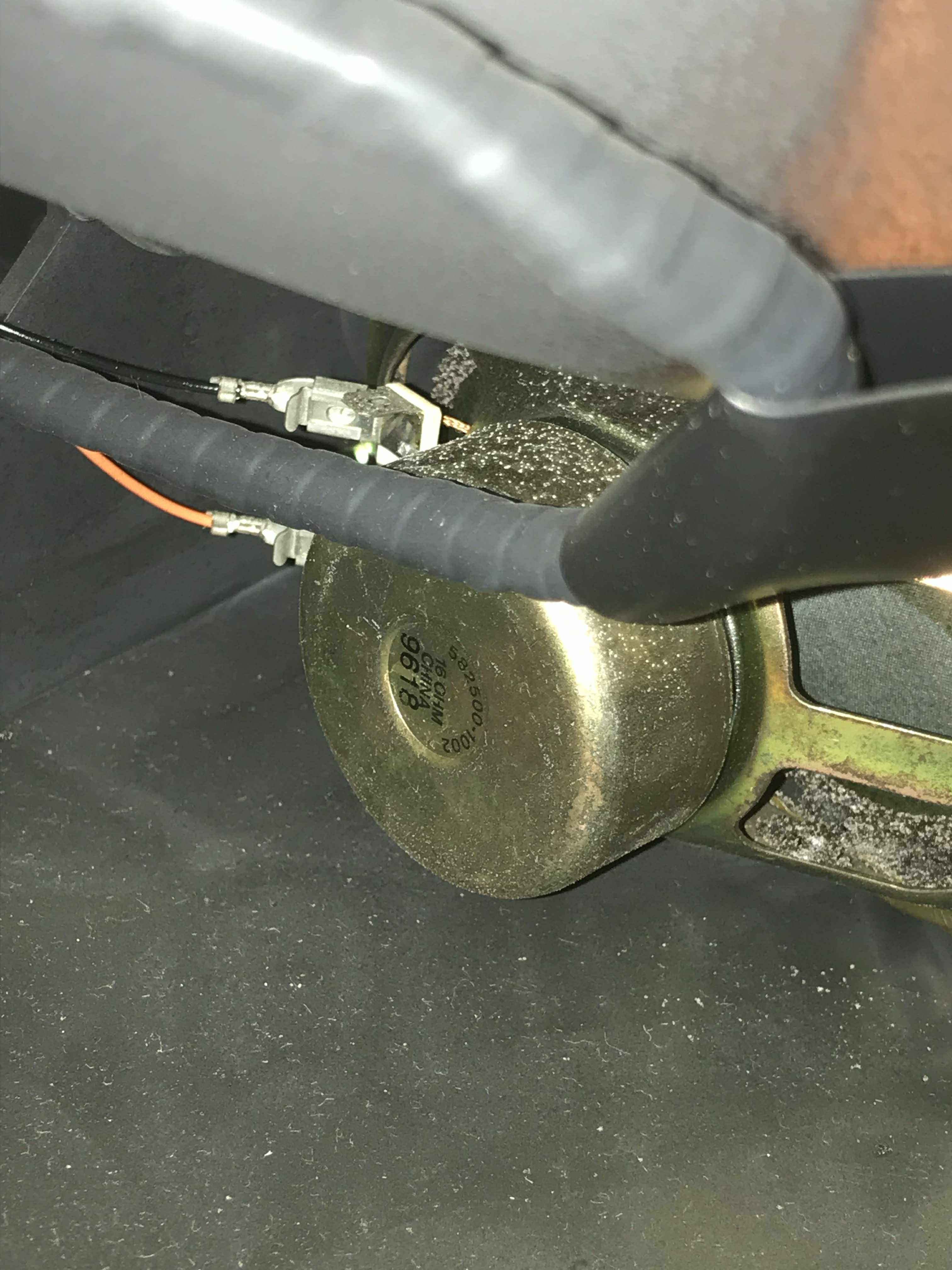

Speakers: | Stereo, 12.5W x 2 |

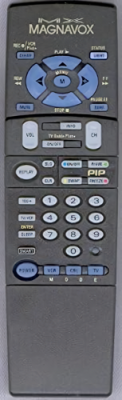

Remote: | X176GD |
Chassis: | 32W503-00AA |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1996 |
MSRP: | 899 USD |
Country of Manufacture: | USA |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual |
