Summary

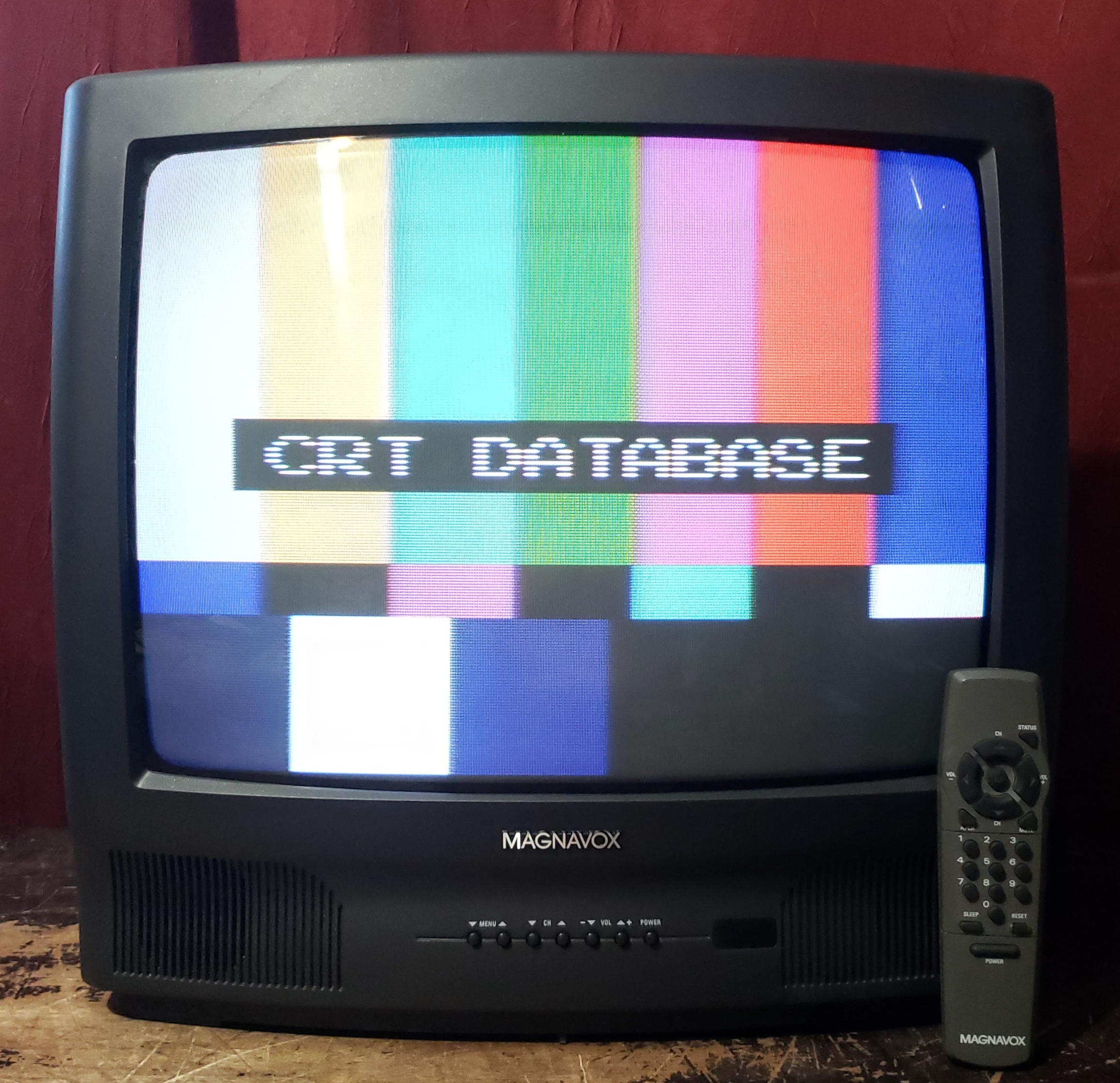

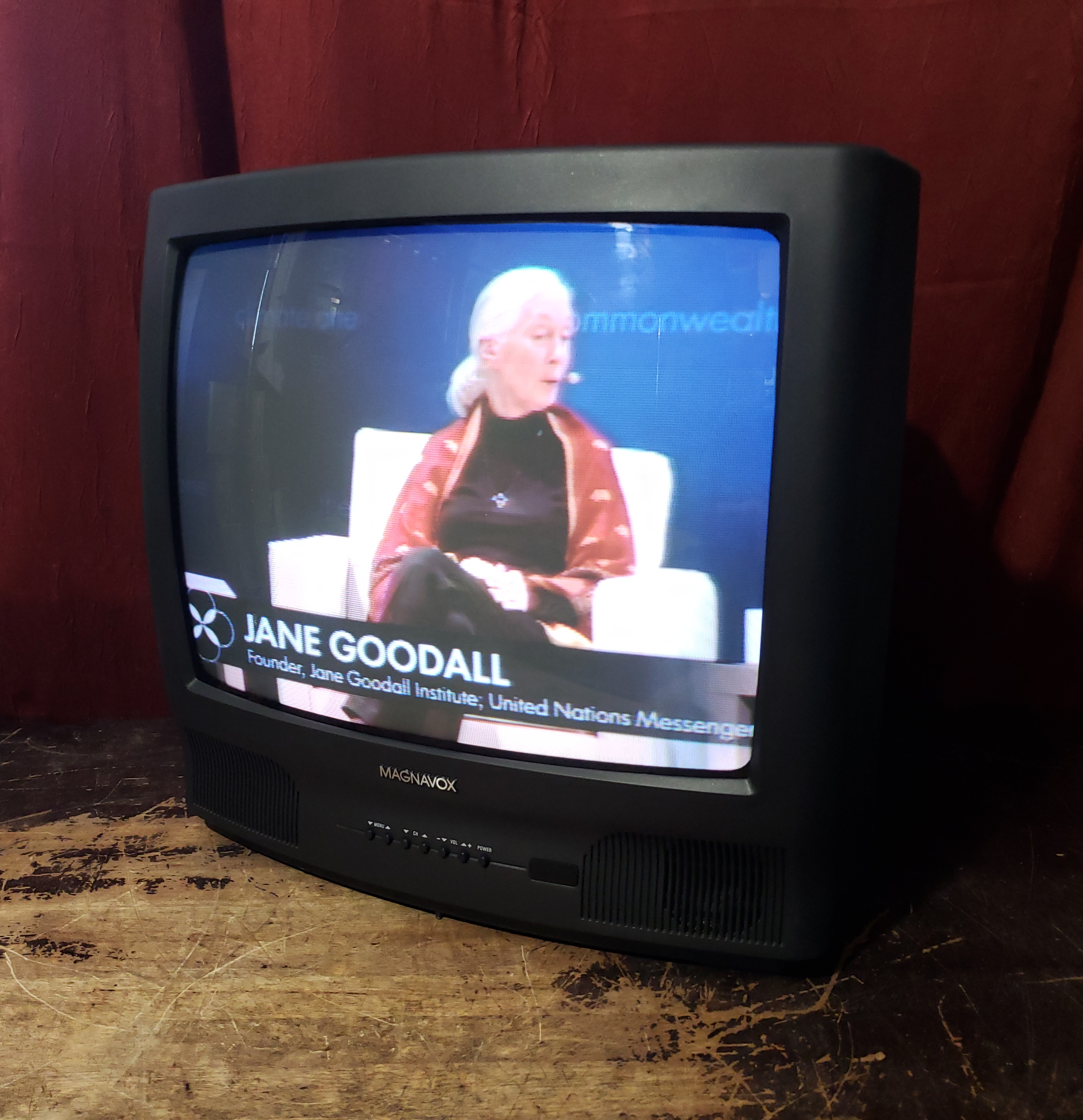

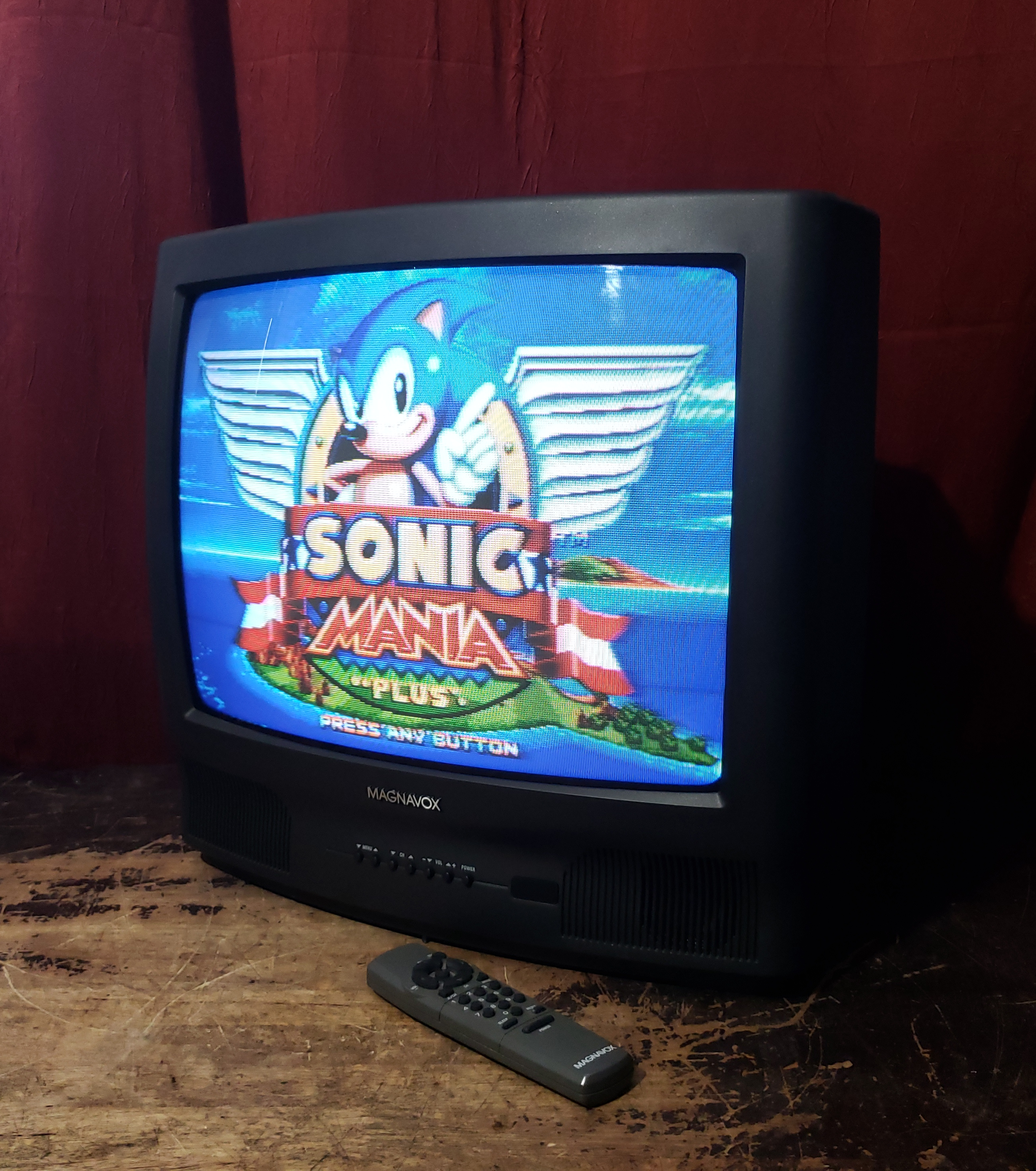

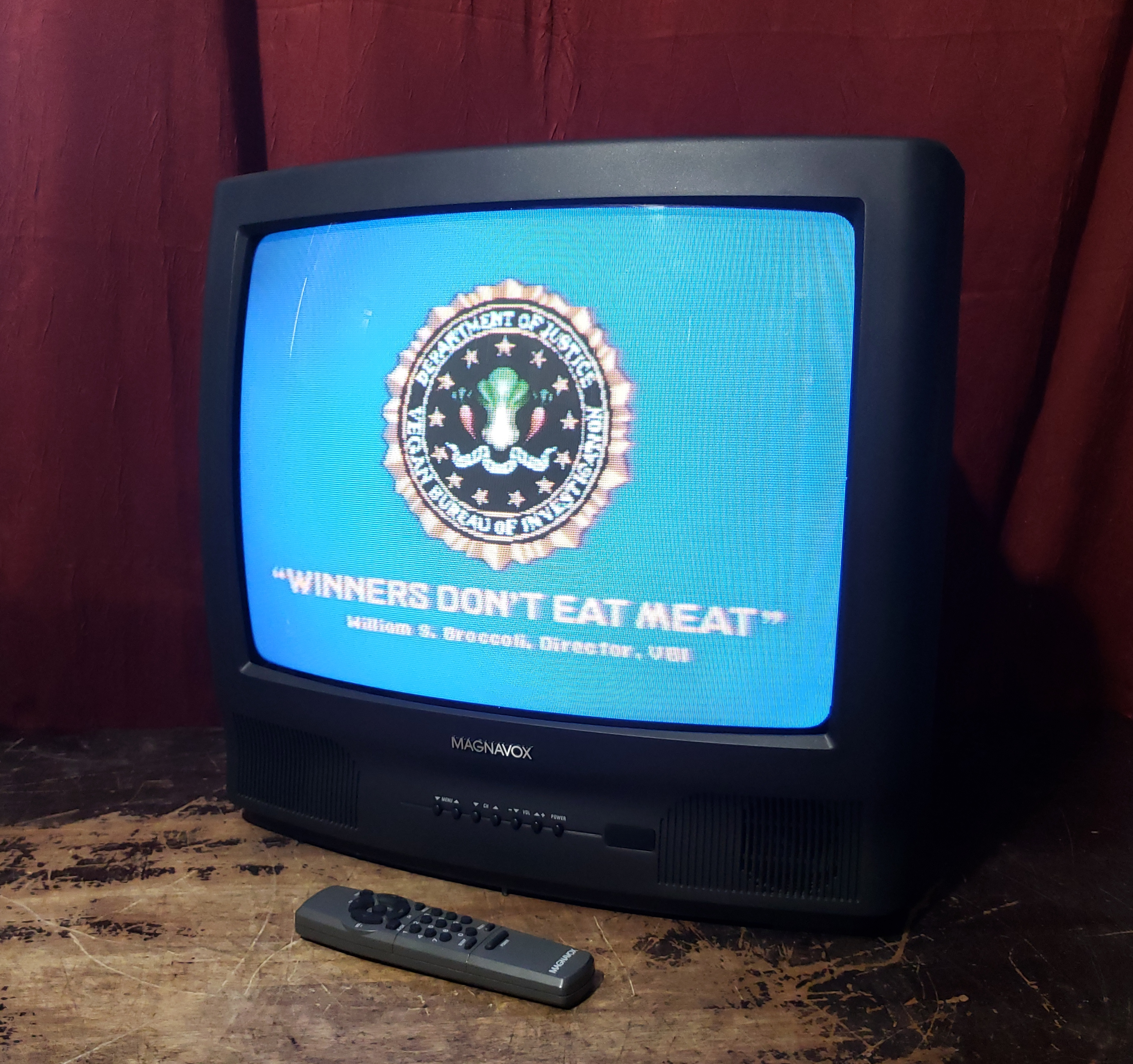

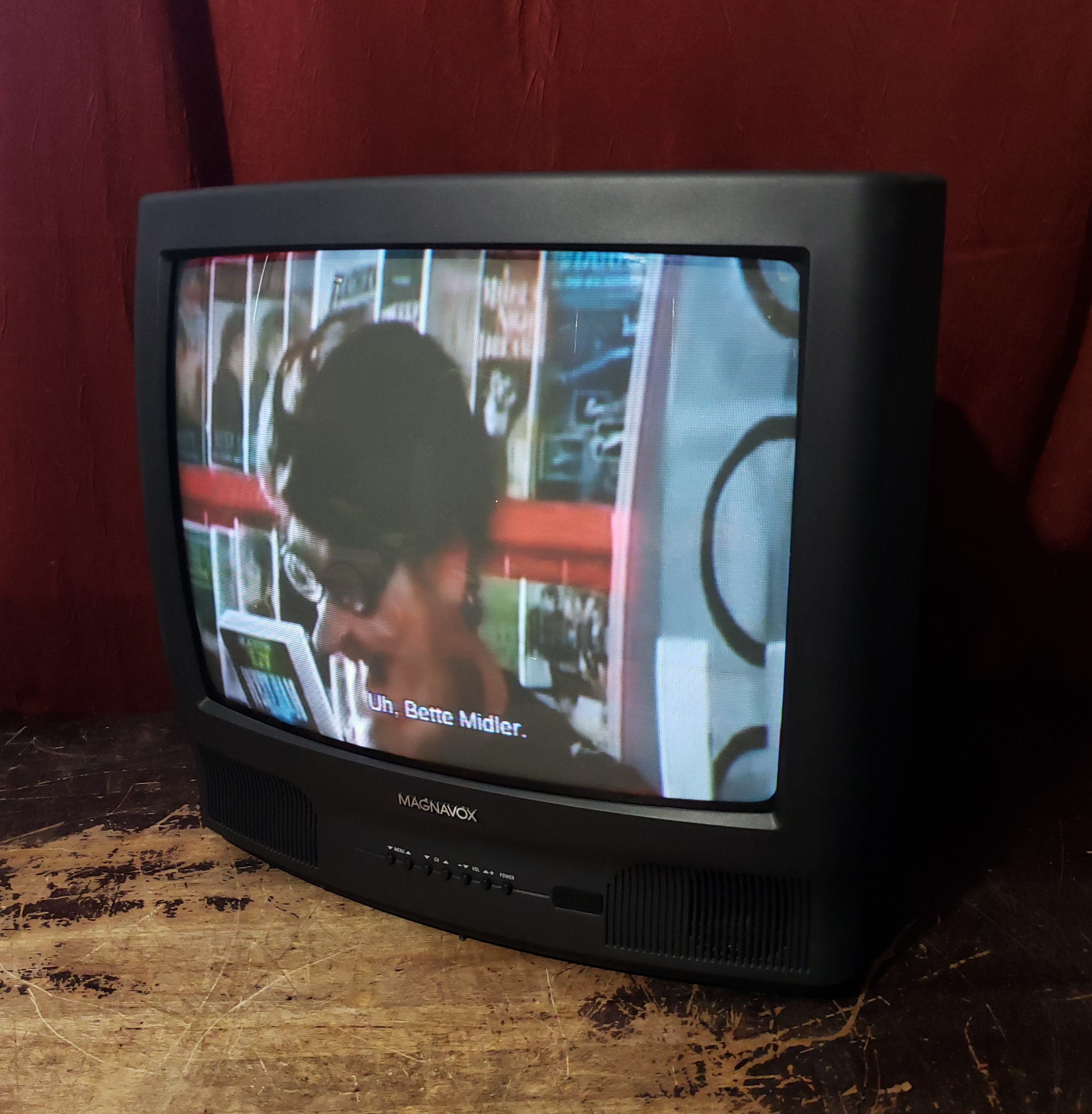

19" Remote Control Color TV from Magnavox. Smart Sound & Picture.
Manuals
- Owner's Manual

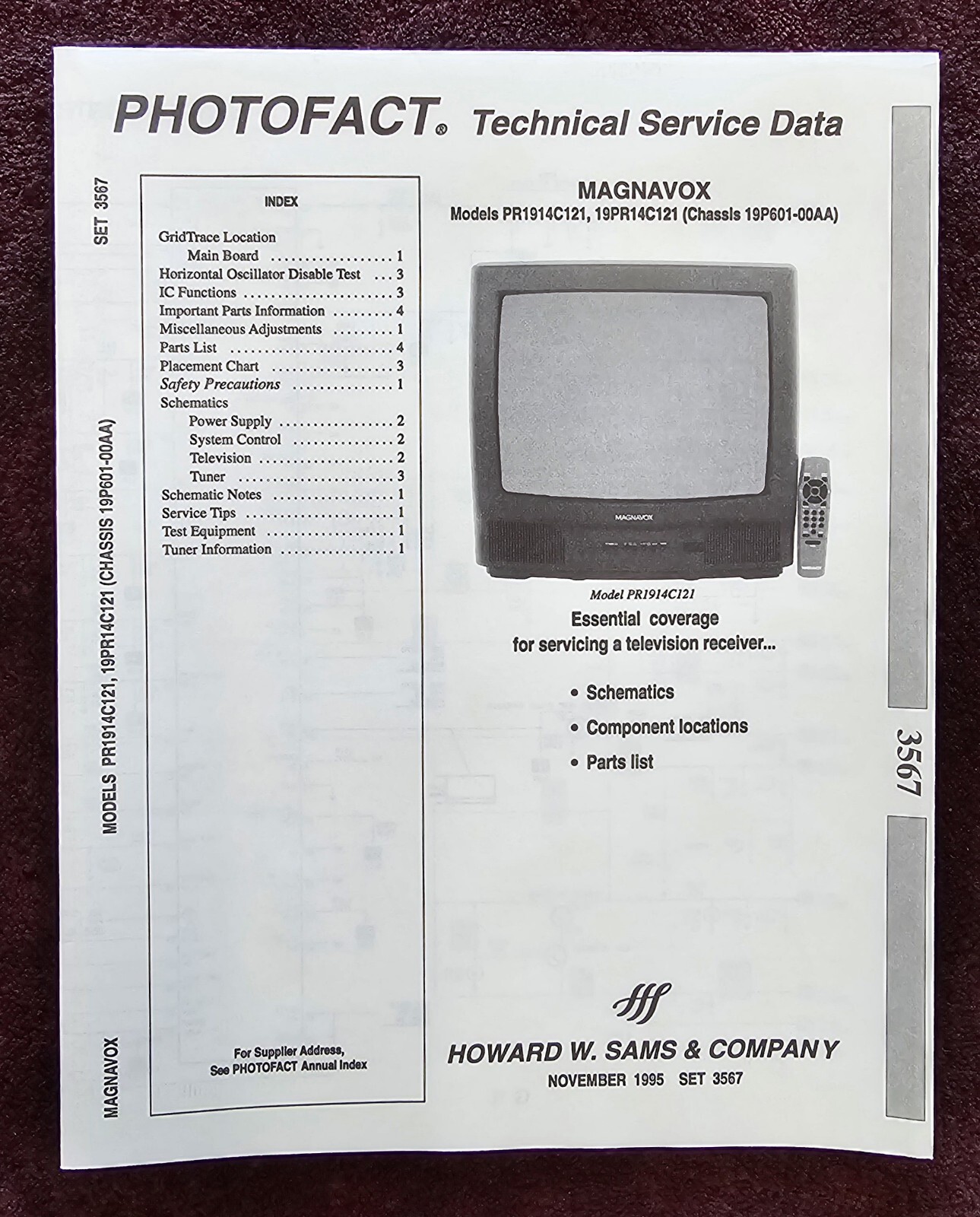

- The closest service documentation available appears to be the Sam's Photofact for the PR1914 C121
Media & Promo Materials
- Afermarket 3D printable remote battery cover
This CRT is confirmed to be a hot chassis.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Gallery
| Specifications | |
|---|---|
| Brand: | Magnavox |
| Manufacturer: | Philips |

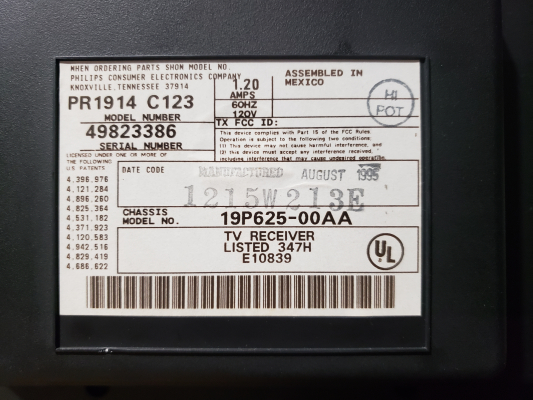

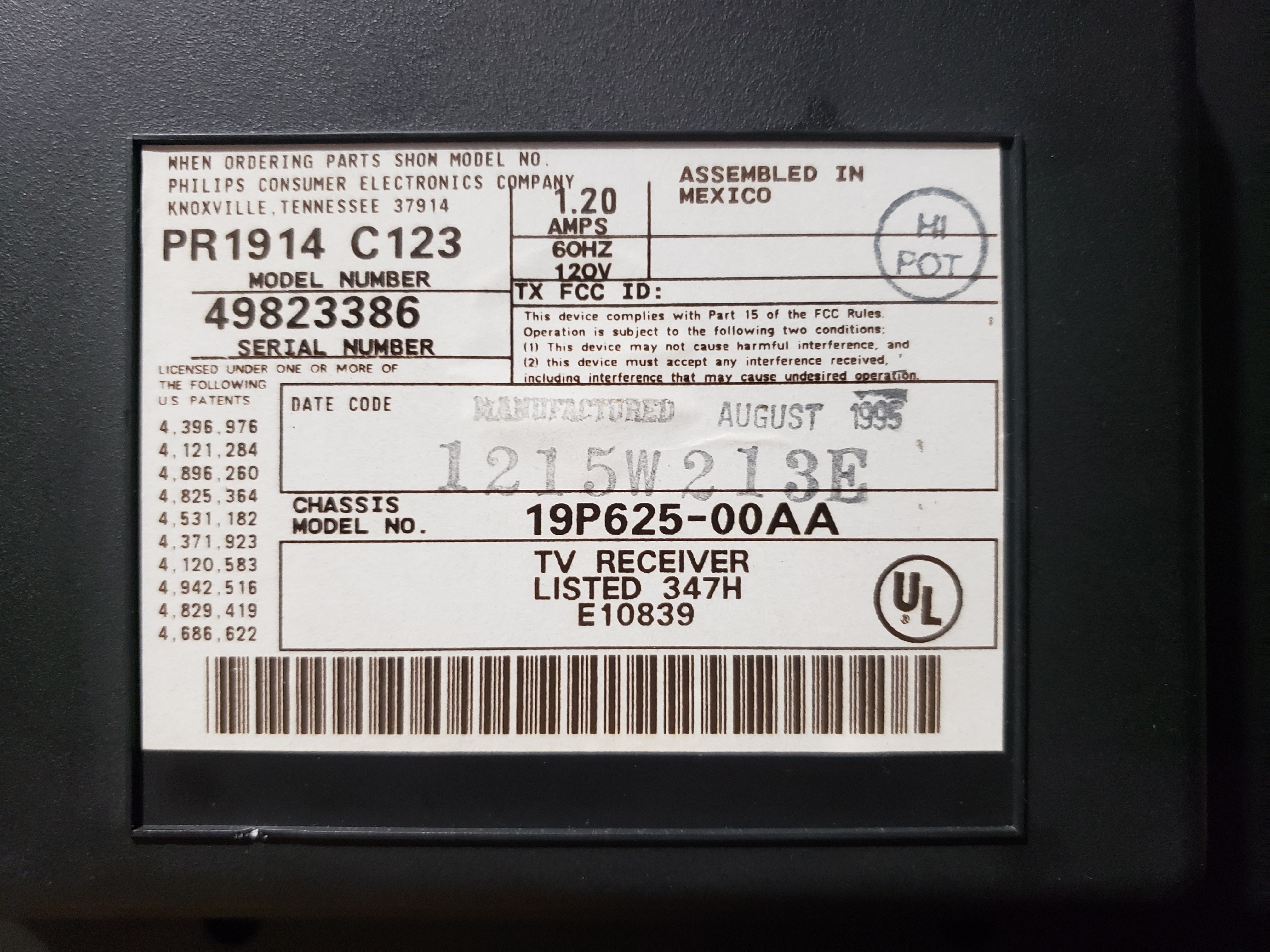

| Model: | PR1914 C123 |
| Series: | PR |
| Viewable Size: | 19" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Comb Filtering: | None |

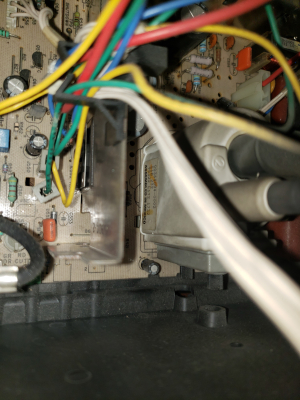

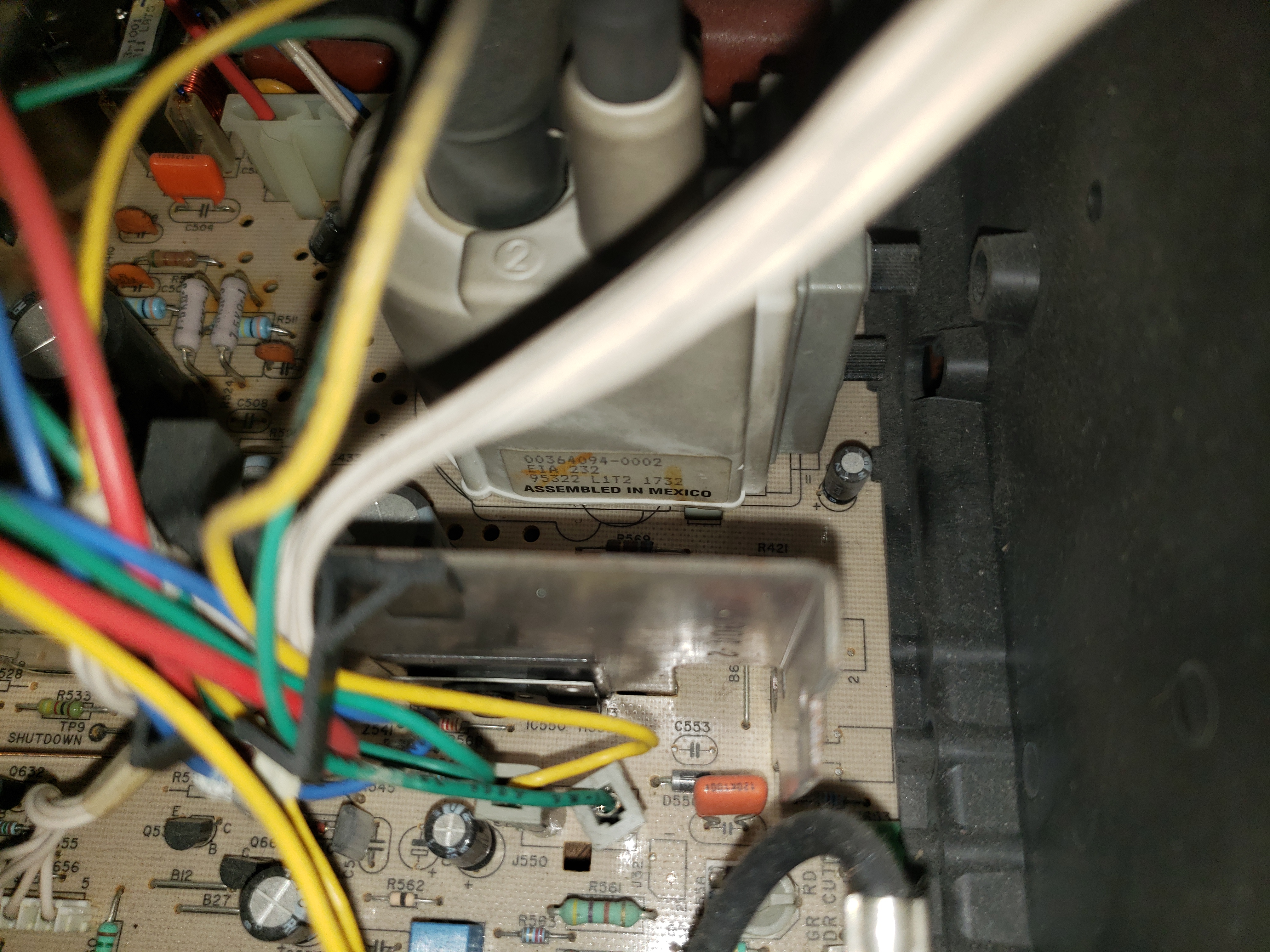

| Flyback: | 00364094-0002, Philips |

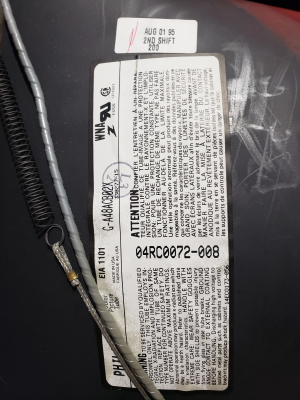

| Tube: | Zenith , A48ACB02X , G-A48ACB02X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | .81 mm |
| Tint: | Dark |

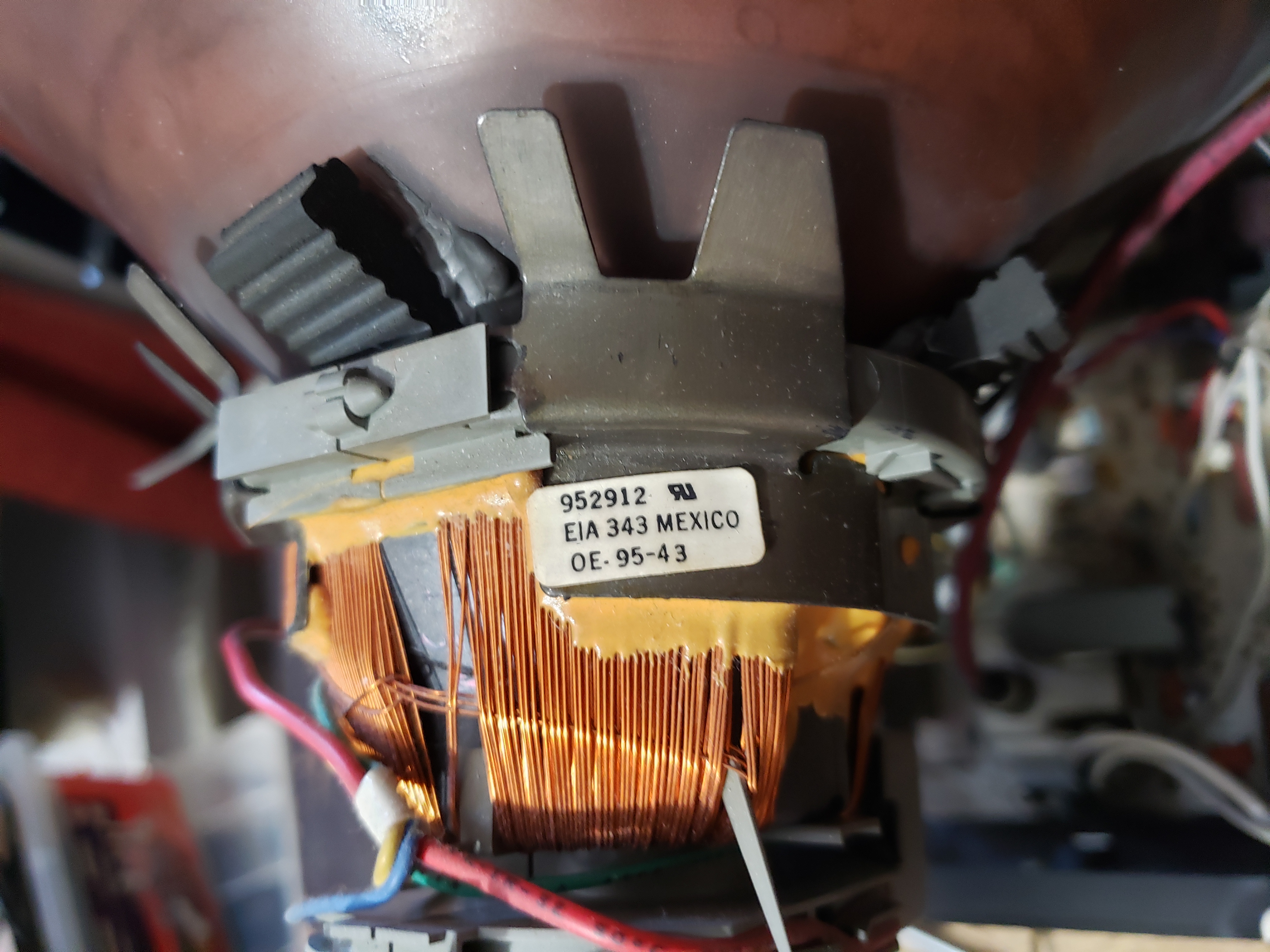

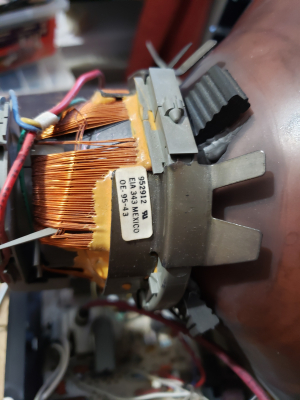

| Yoke: | OE-95-43, Zenith |
| Yoke Horz. Inductance: | 2.664 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 20.79 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.71 ohm |
| Yoke Vert. Resistance: | 9.44 ohm |
| Speakers: | Mono |

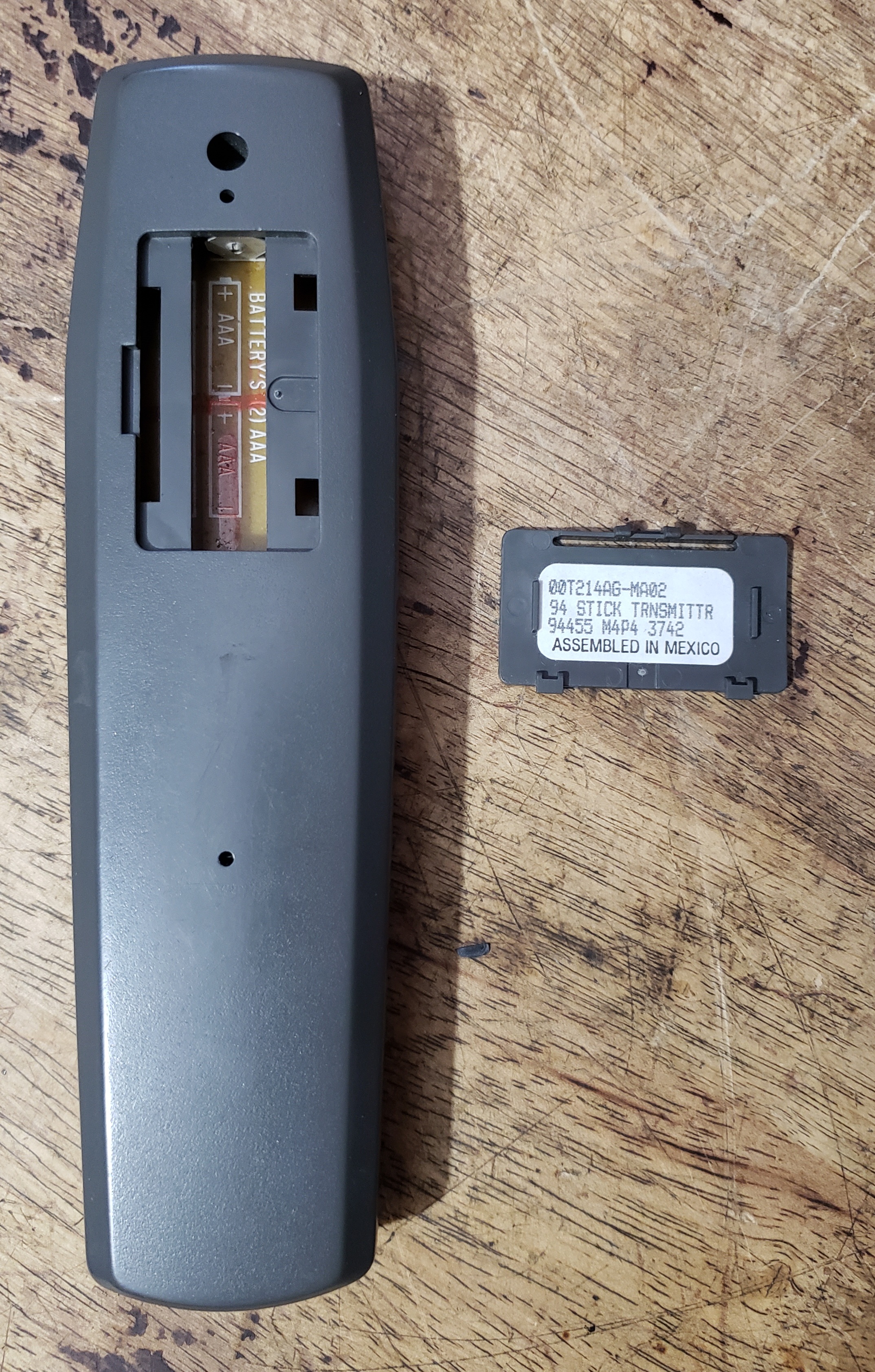

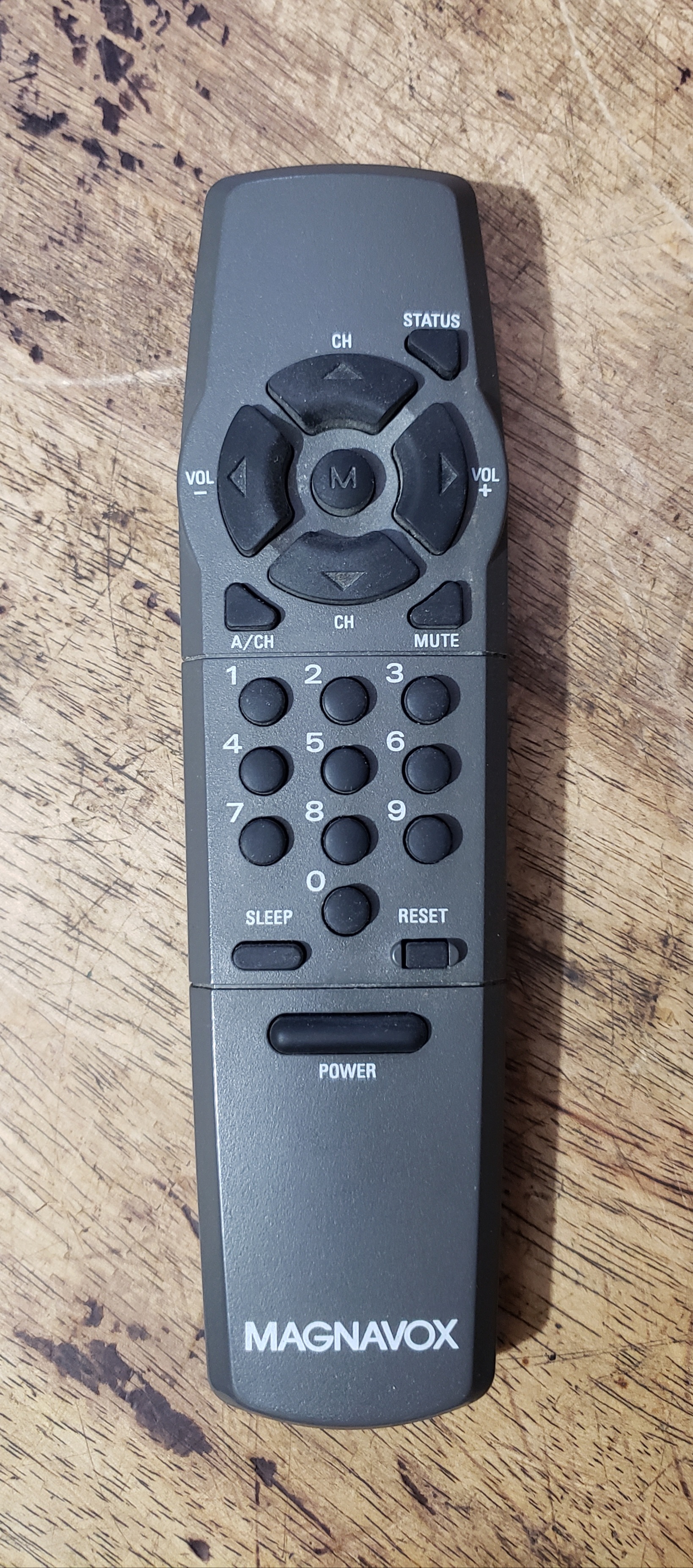

| Remote: | 00T214AG-MA02 |
| Chassis: | 19P625-00AA |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1995 |
| MSRP: | 299 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs IC Info |
