Summary

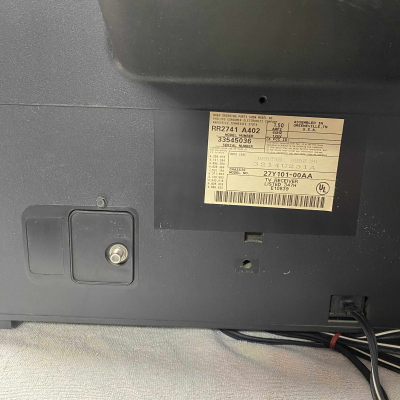

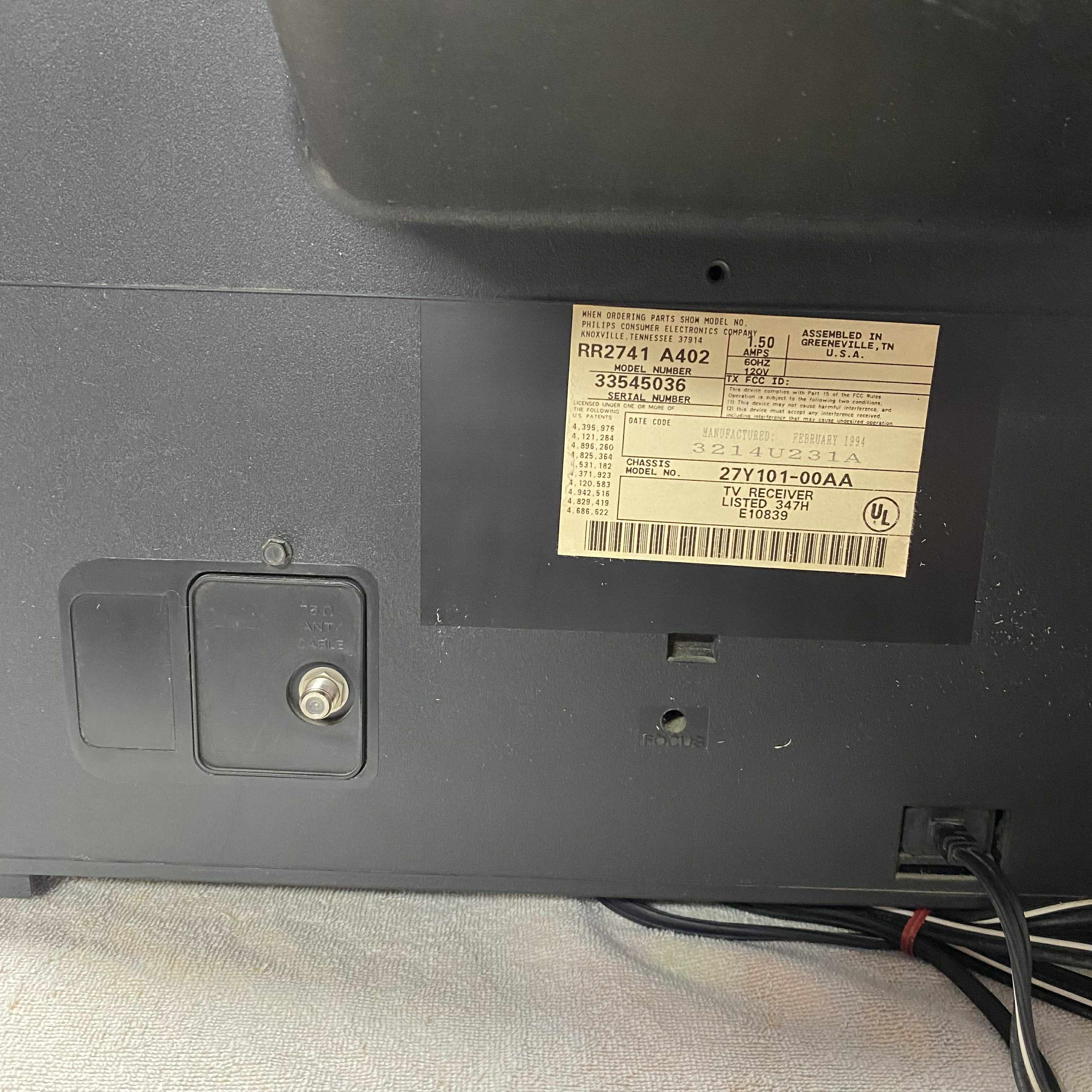

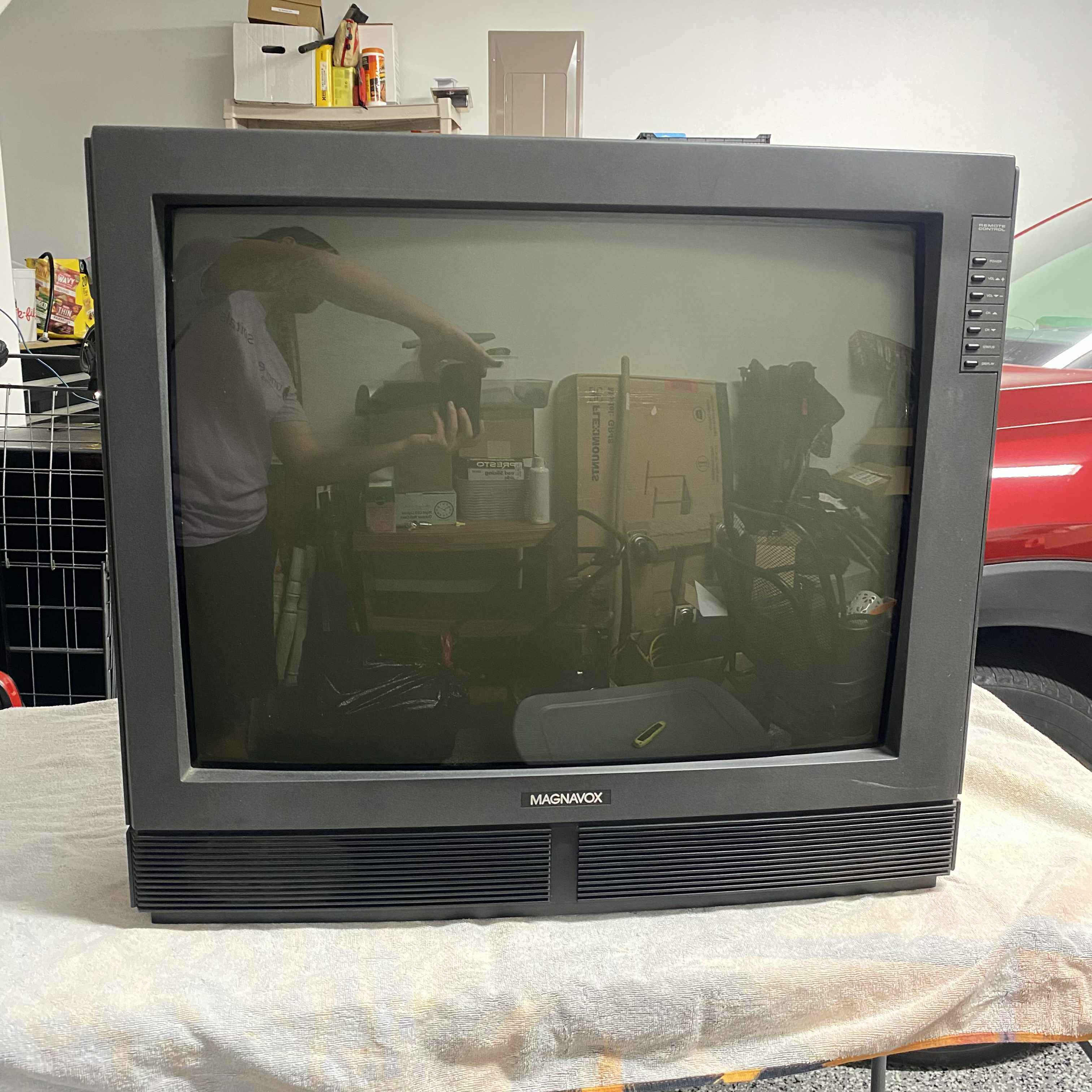

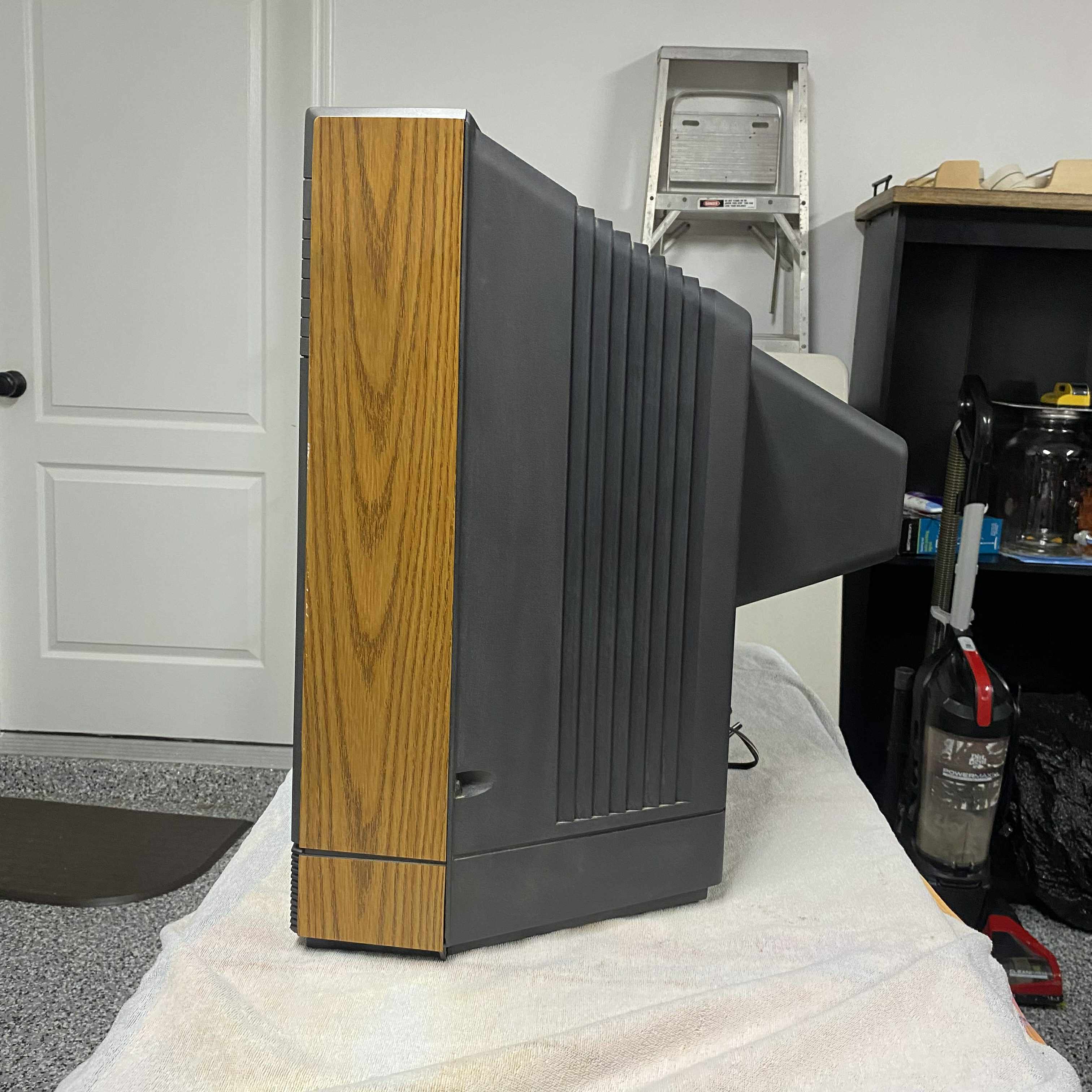

Basic 27" set by Magnavox, featuring only an RF input. Originally manufactured by Philips at their Knoxville plant in 1993.
(Special thanks to Kyle Mazabob for the pics!)
Manuals
(None at this time)
Notes

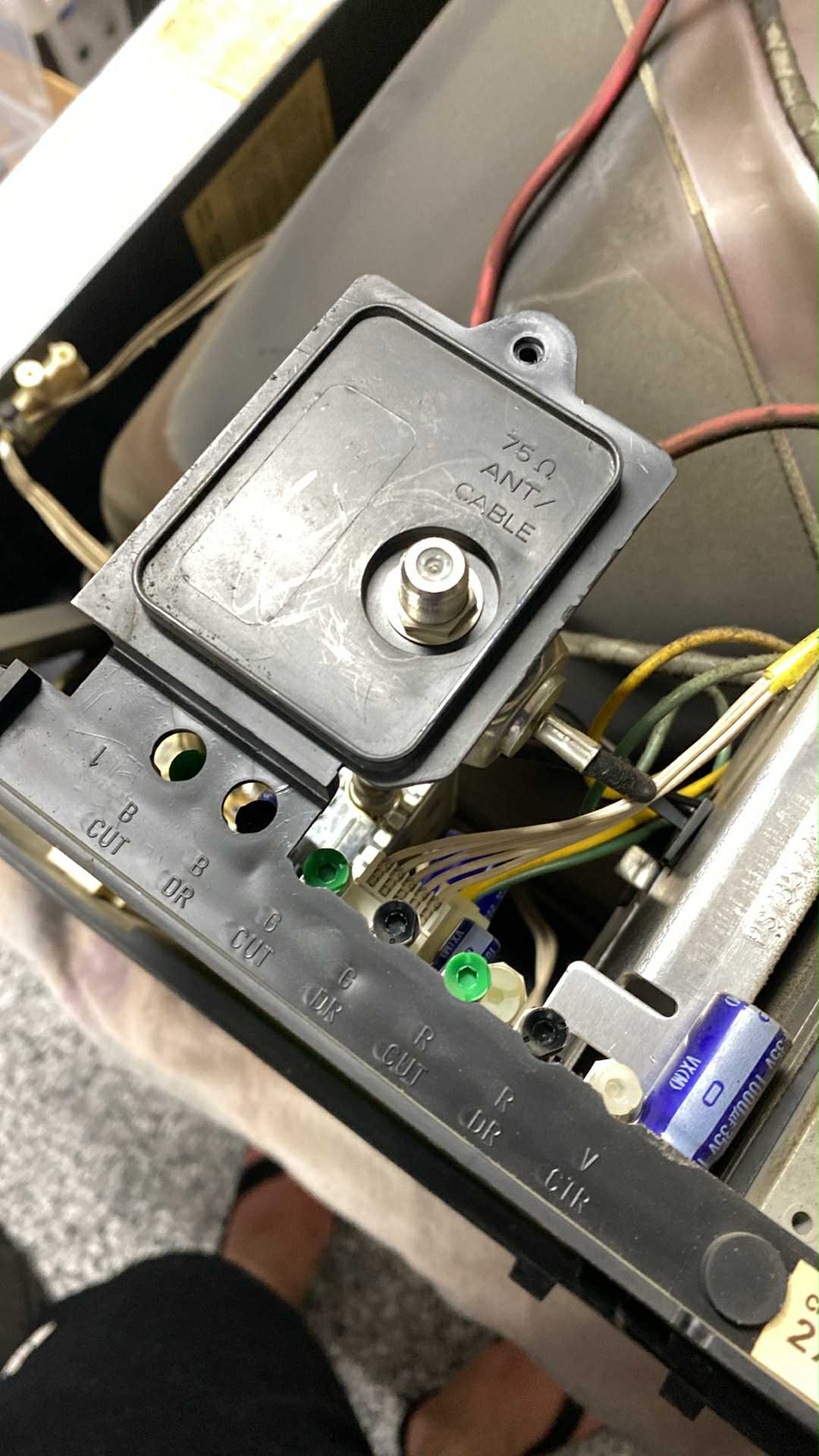

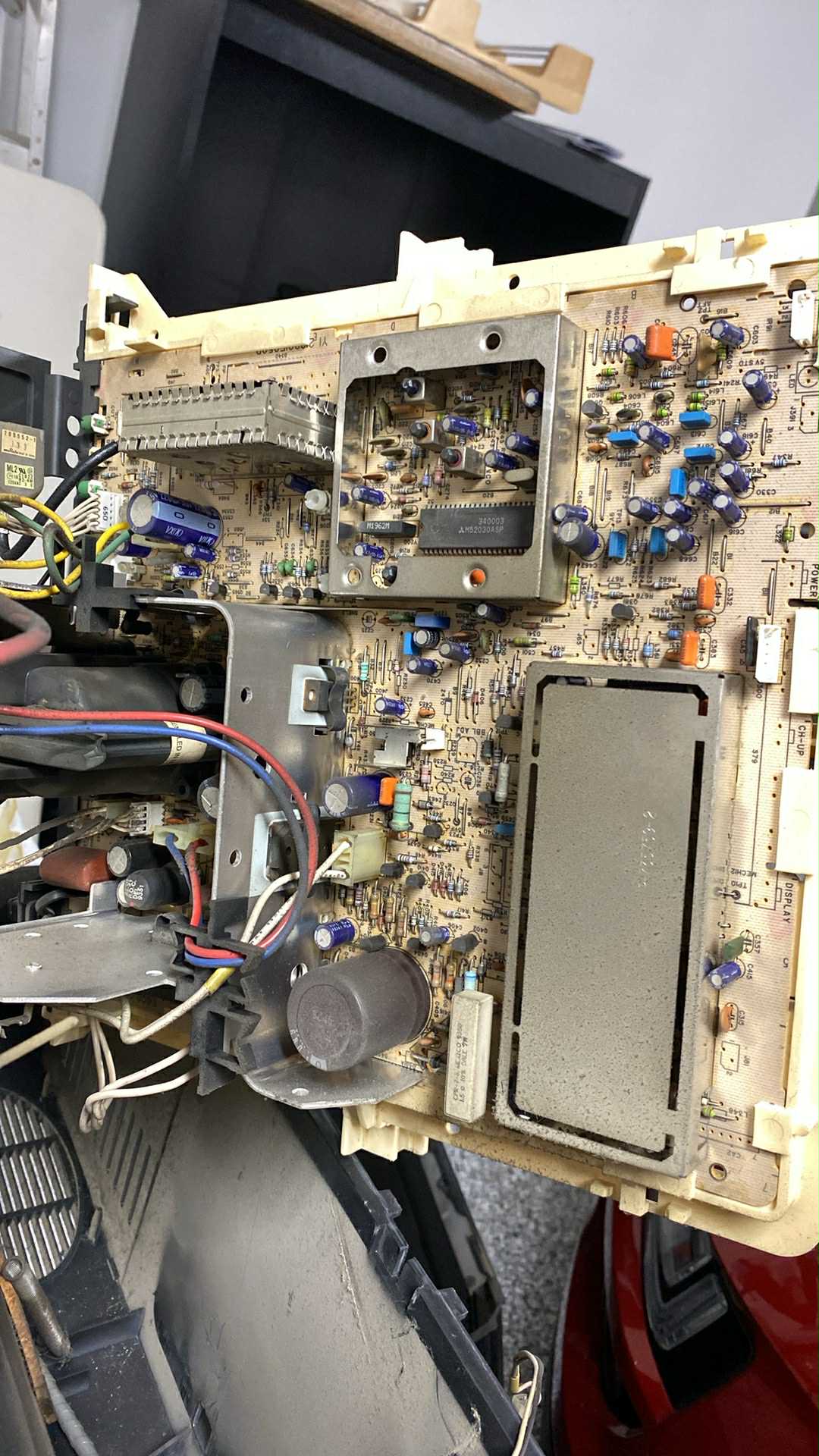

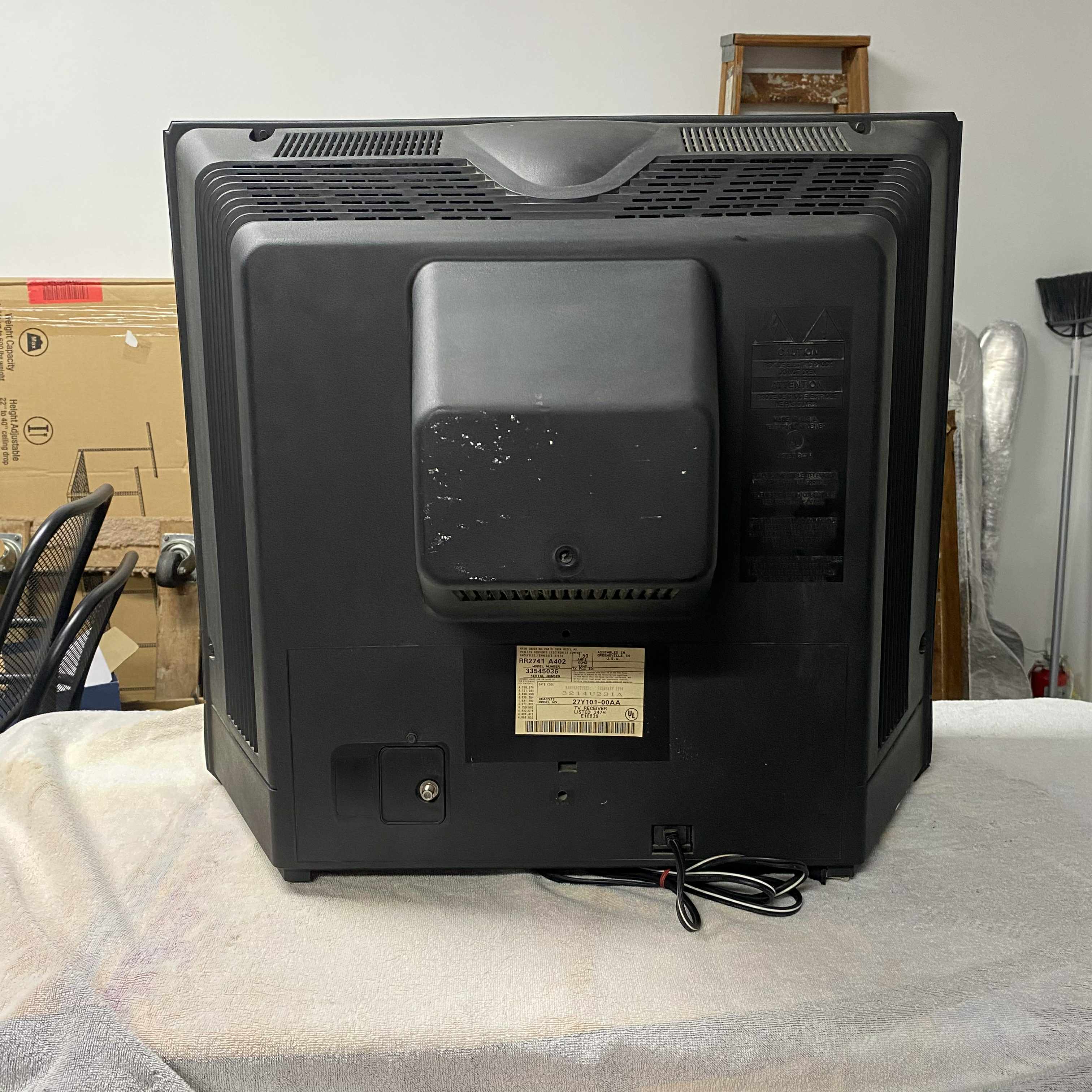

When the back piece is removed, you can access POTs on the end of the main board to adjust white balance and vertical position.
Gallery
| Specifications | |
|---|---|
| Brand: | Magnavox |
| Manufacturer: | Philips |

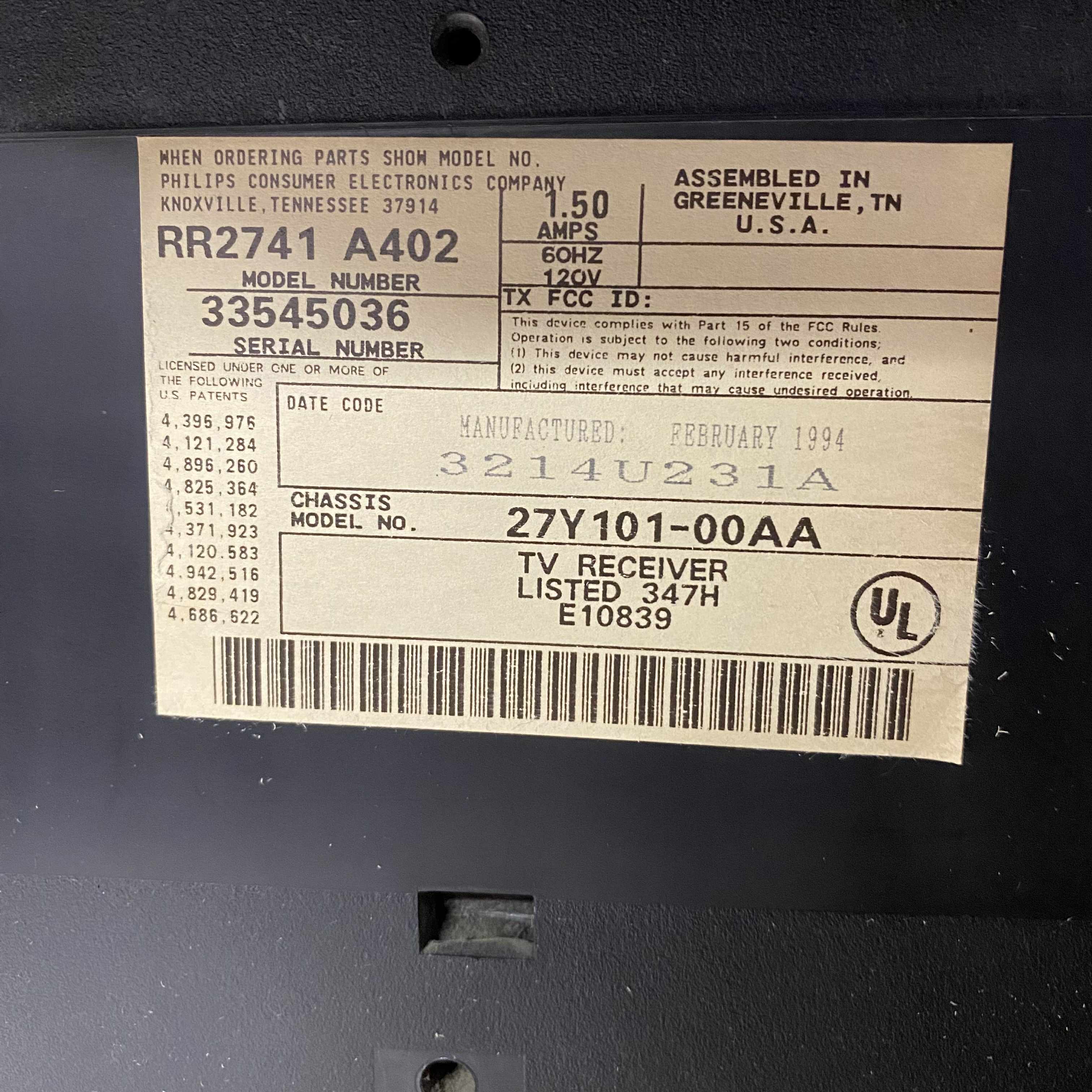

| Model: | RR2741 A402 |
| Series: | RR |
| Viewable Size: | 27" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |

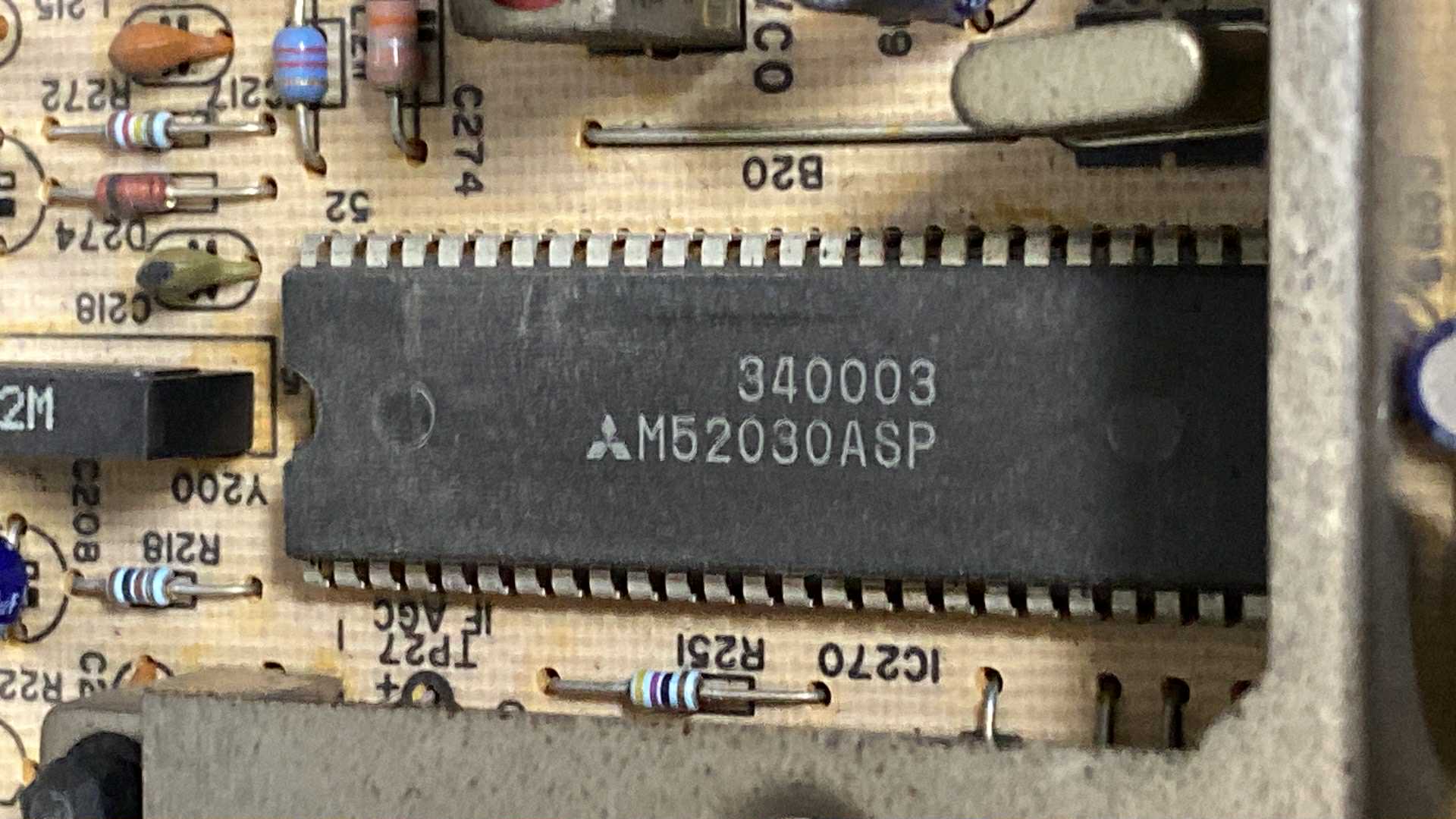

| Jungle IC: | Mitsubishi, M52030ASP, M52030 |

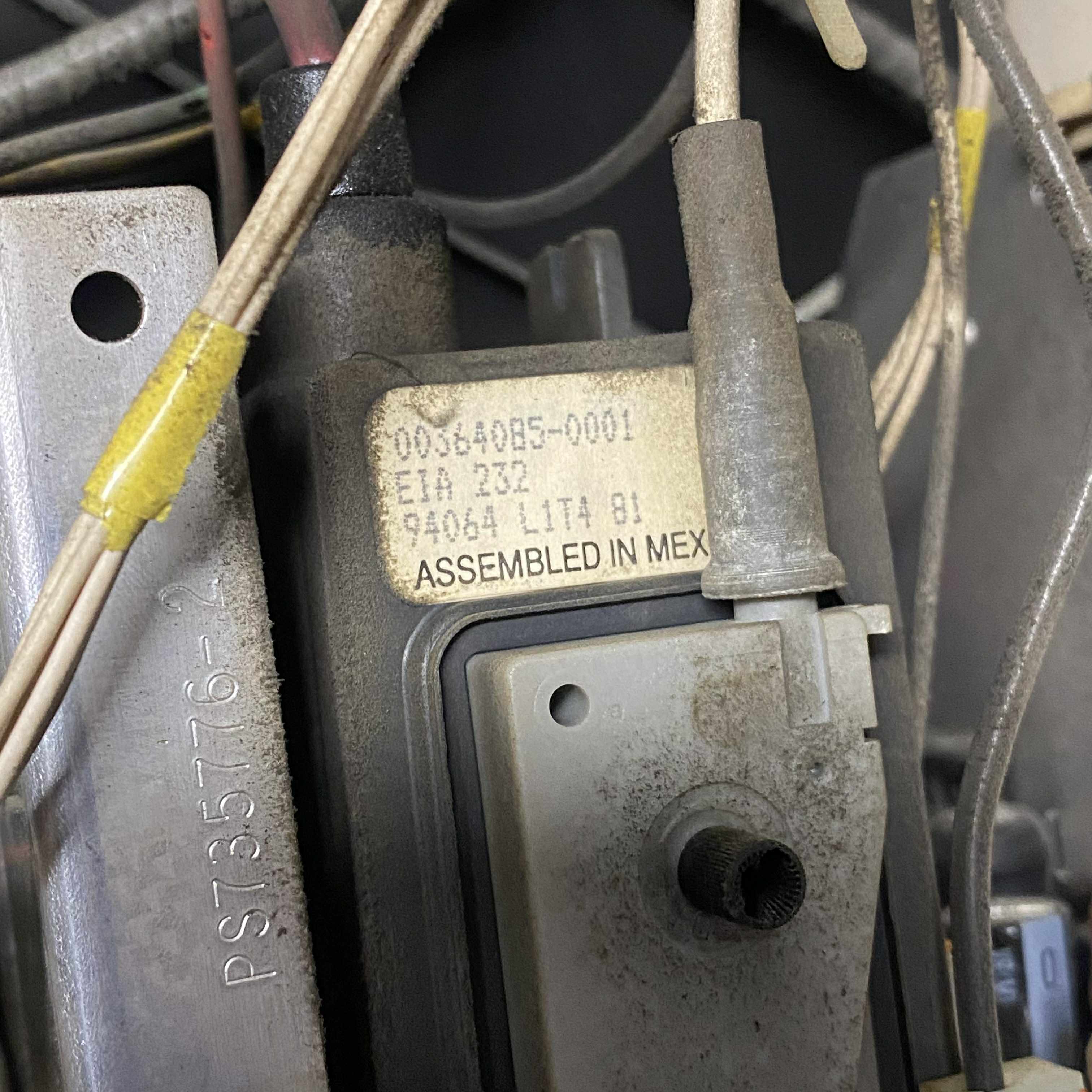

| Flyback: | 00364085-0001 |
| Focus Type: | Single |

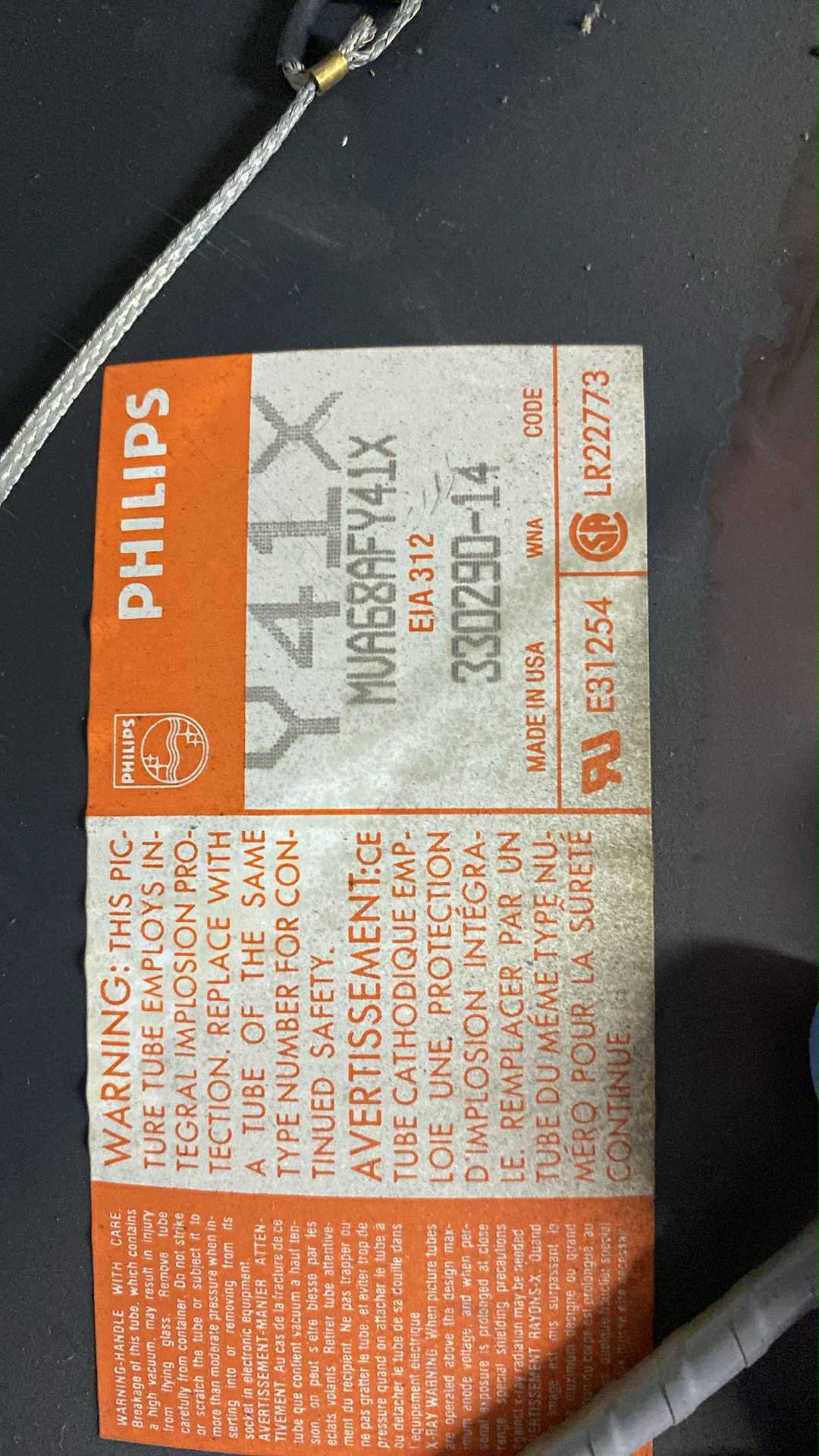

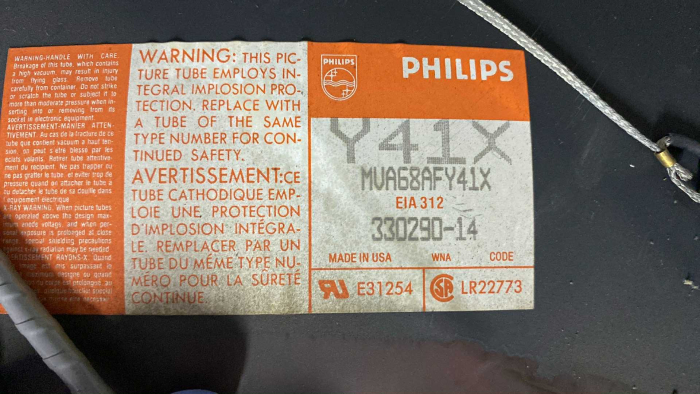

| Tube: | Philips , A68AFY41X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

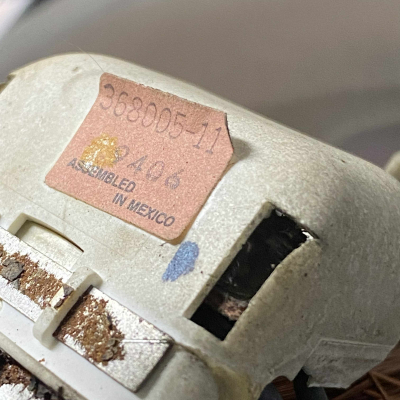

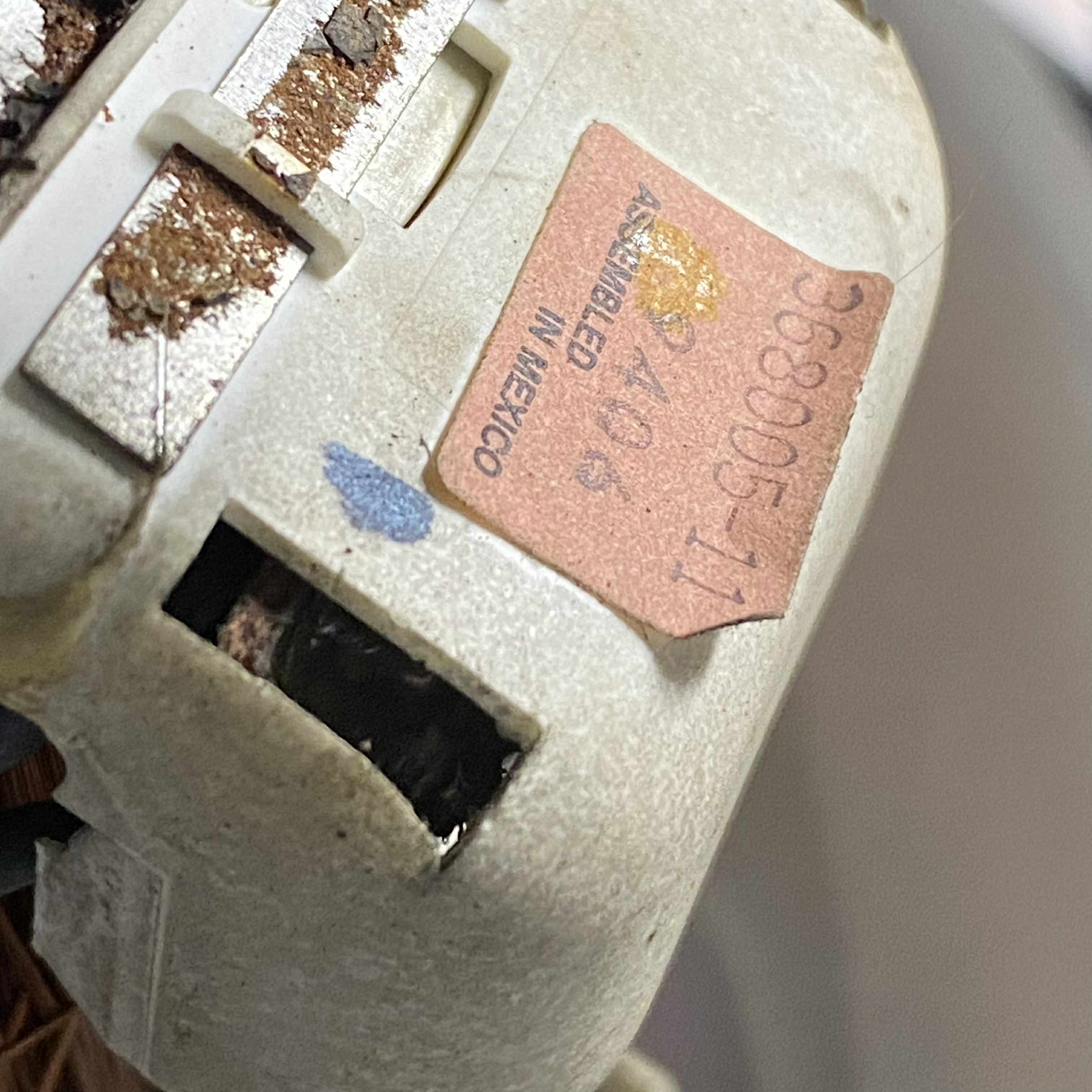

| Yoke: | 368005-11 |

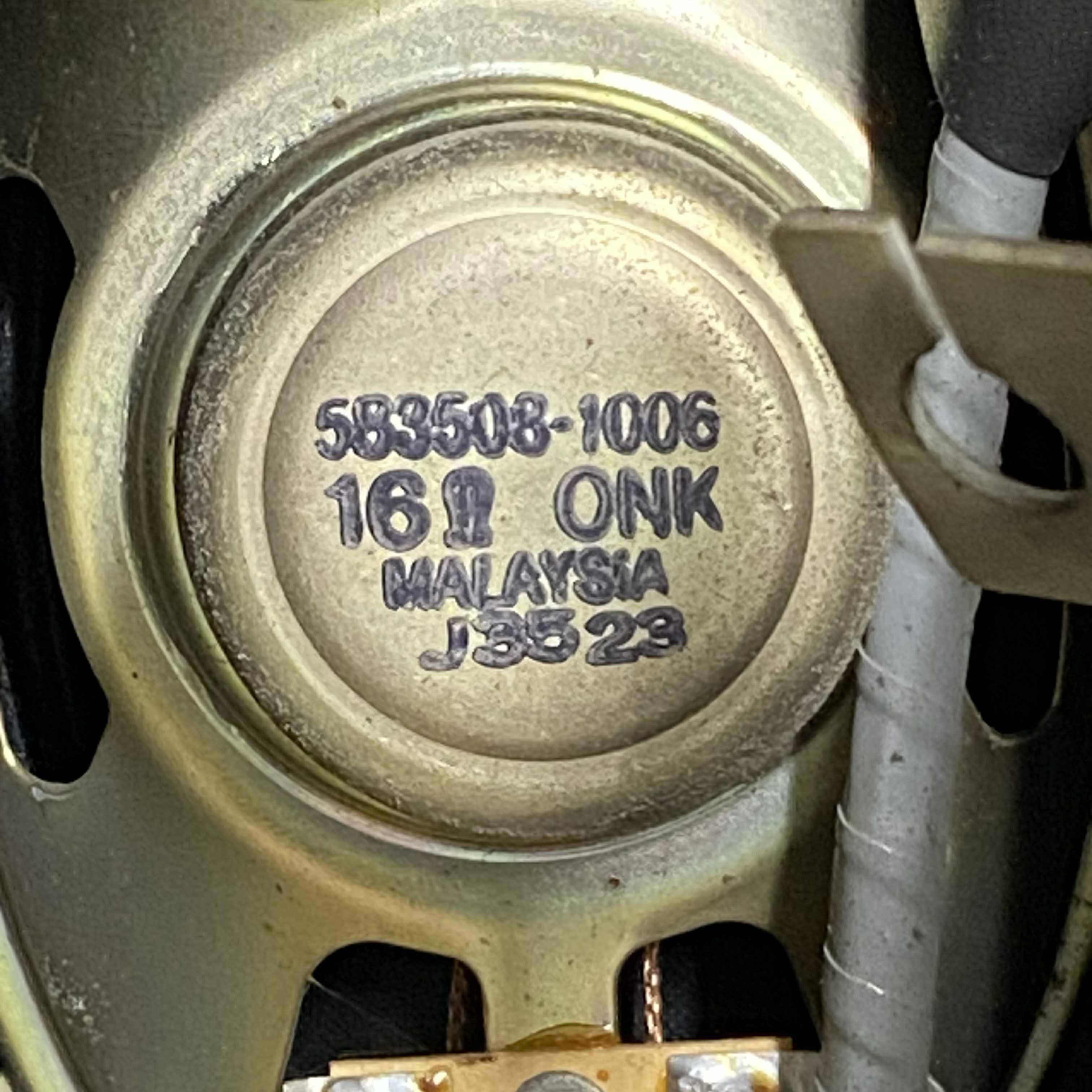

| Speakers: | Stereo |
| Remote: | 00T214AGMA02 |
| Chassis: | 27Y101-00AA, Y1 |
| Application: | Consumer |
| Cabinet Material: | Plastic, Simulated Woodgrain |
| Launched: | 1993 |
| MSRP: | 429 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
