Summary

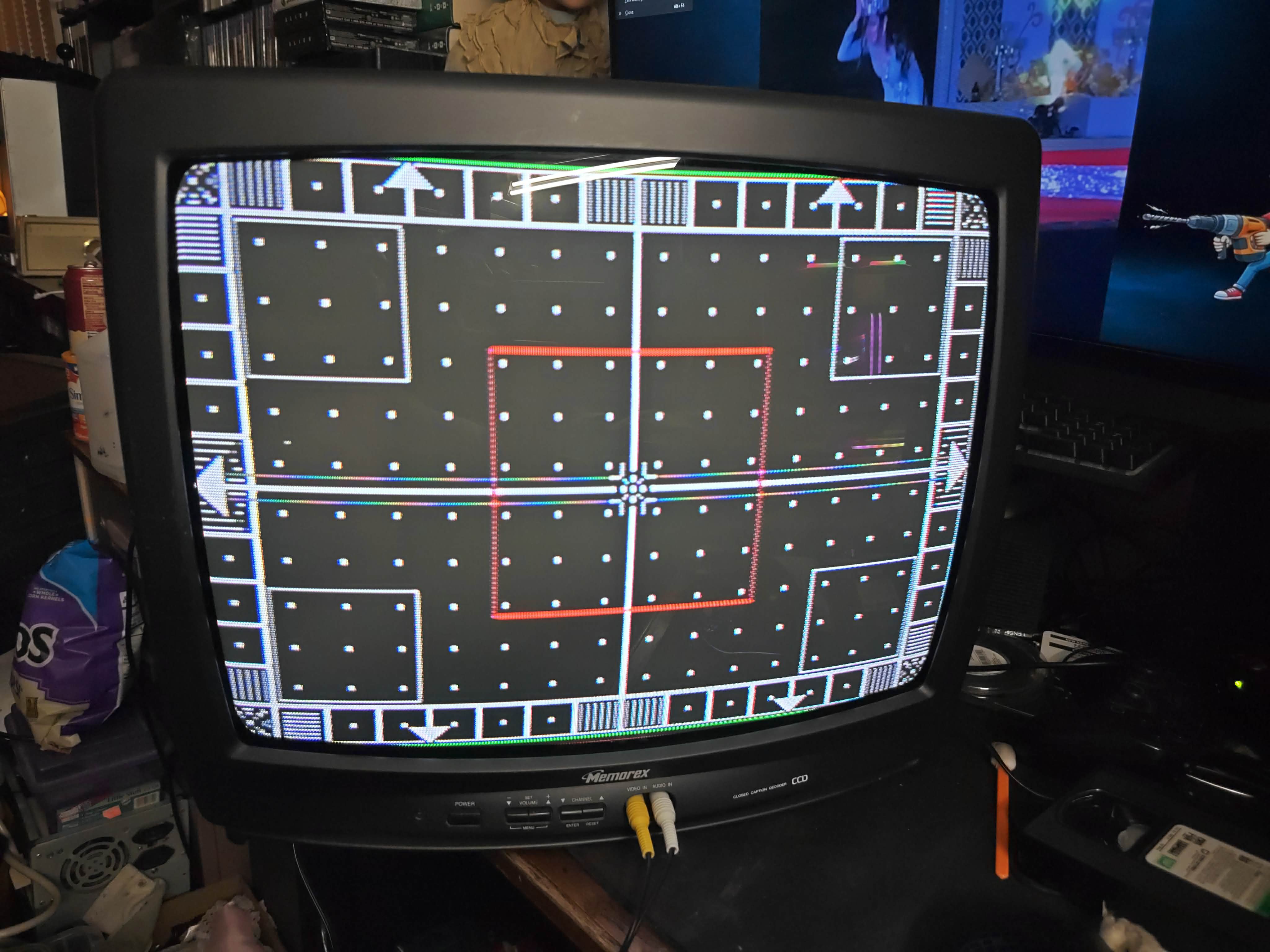

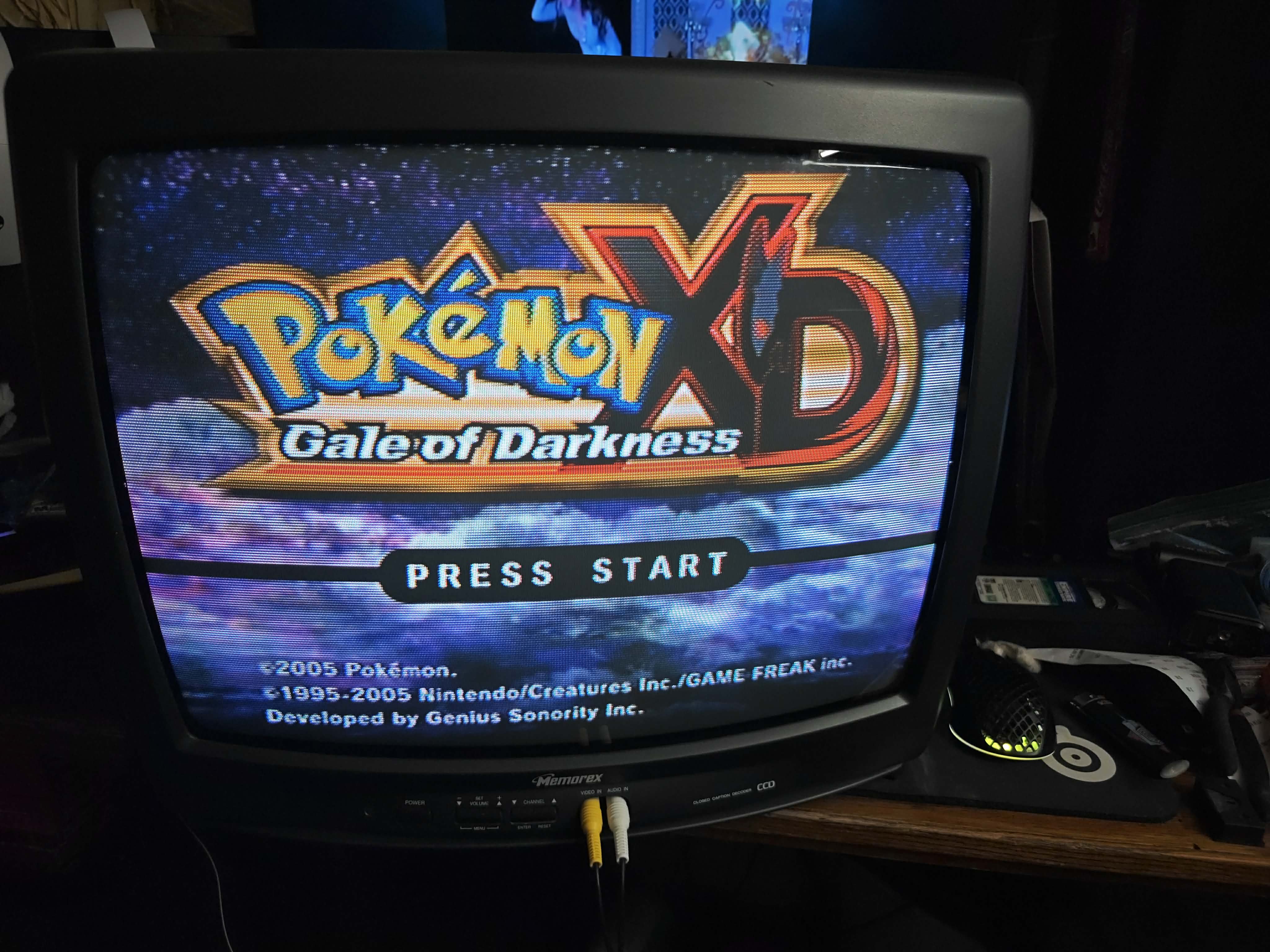

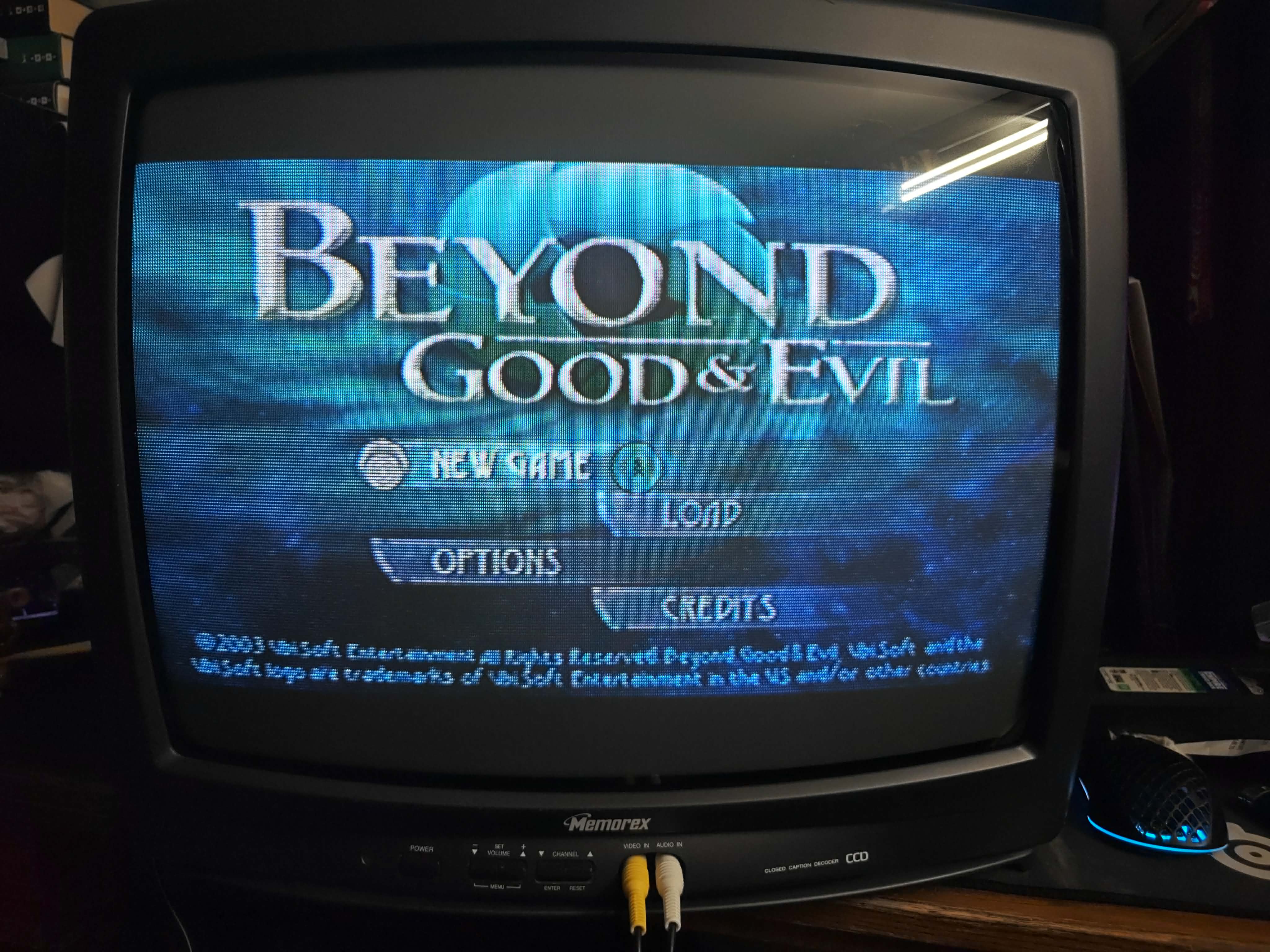

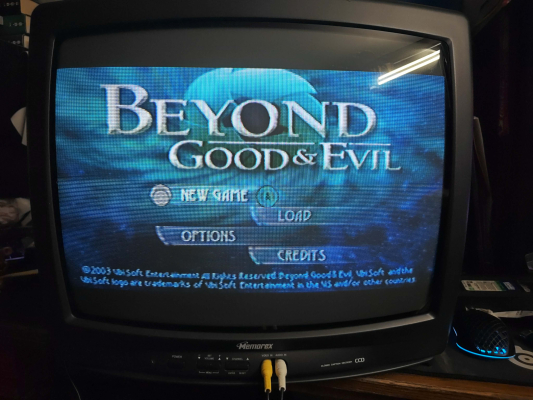

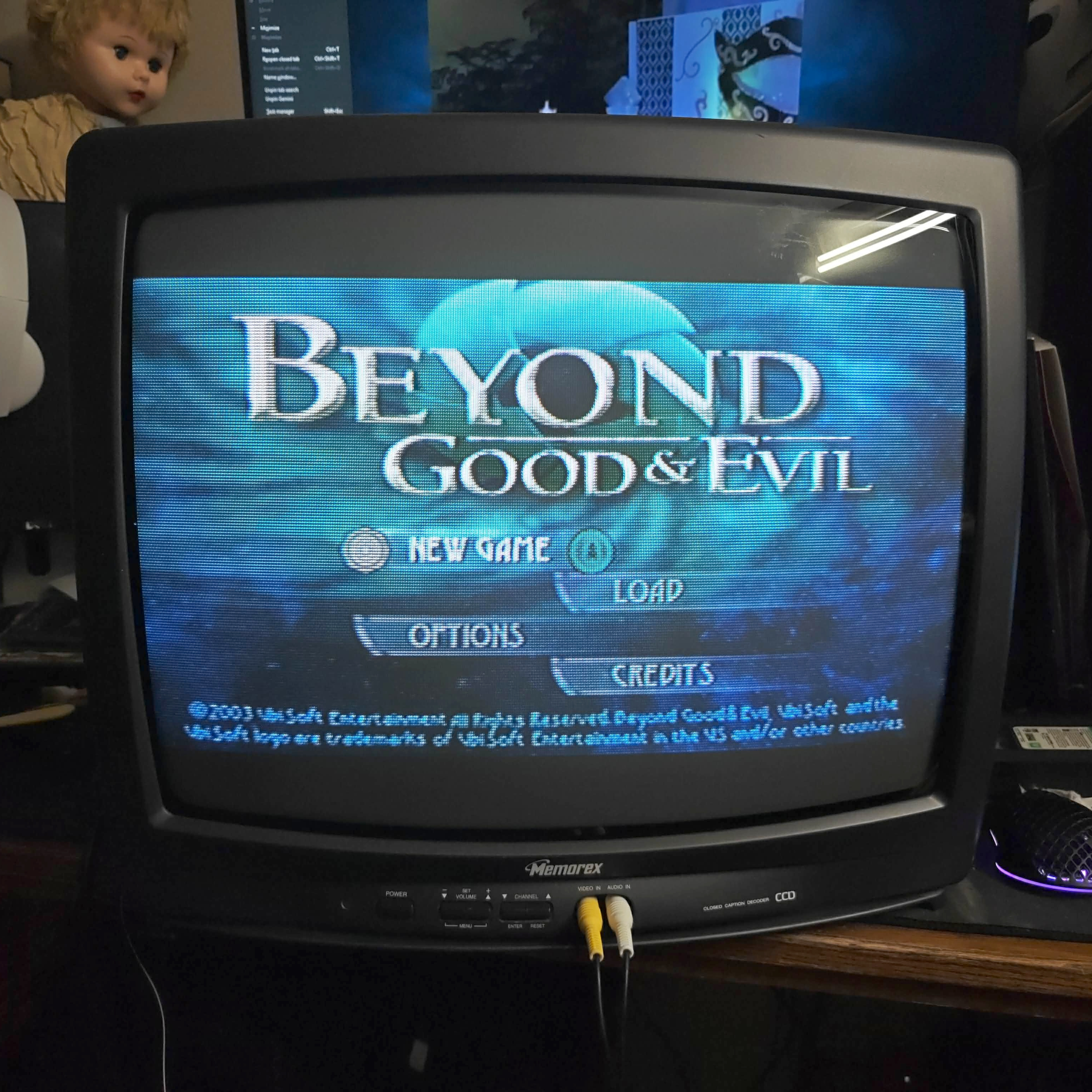

19" color TV from Memorex, launched in 2001. Has RF and composite inputs with mono sound. Originally manufactured by Orion in Thailand.
(Special thanks to Josh Olthoff for the pics!)
Manuals
Notes

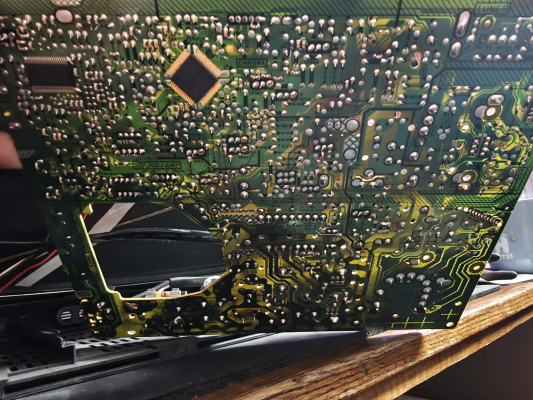

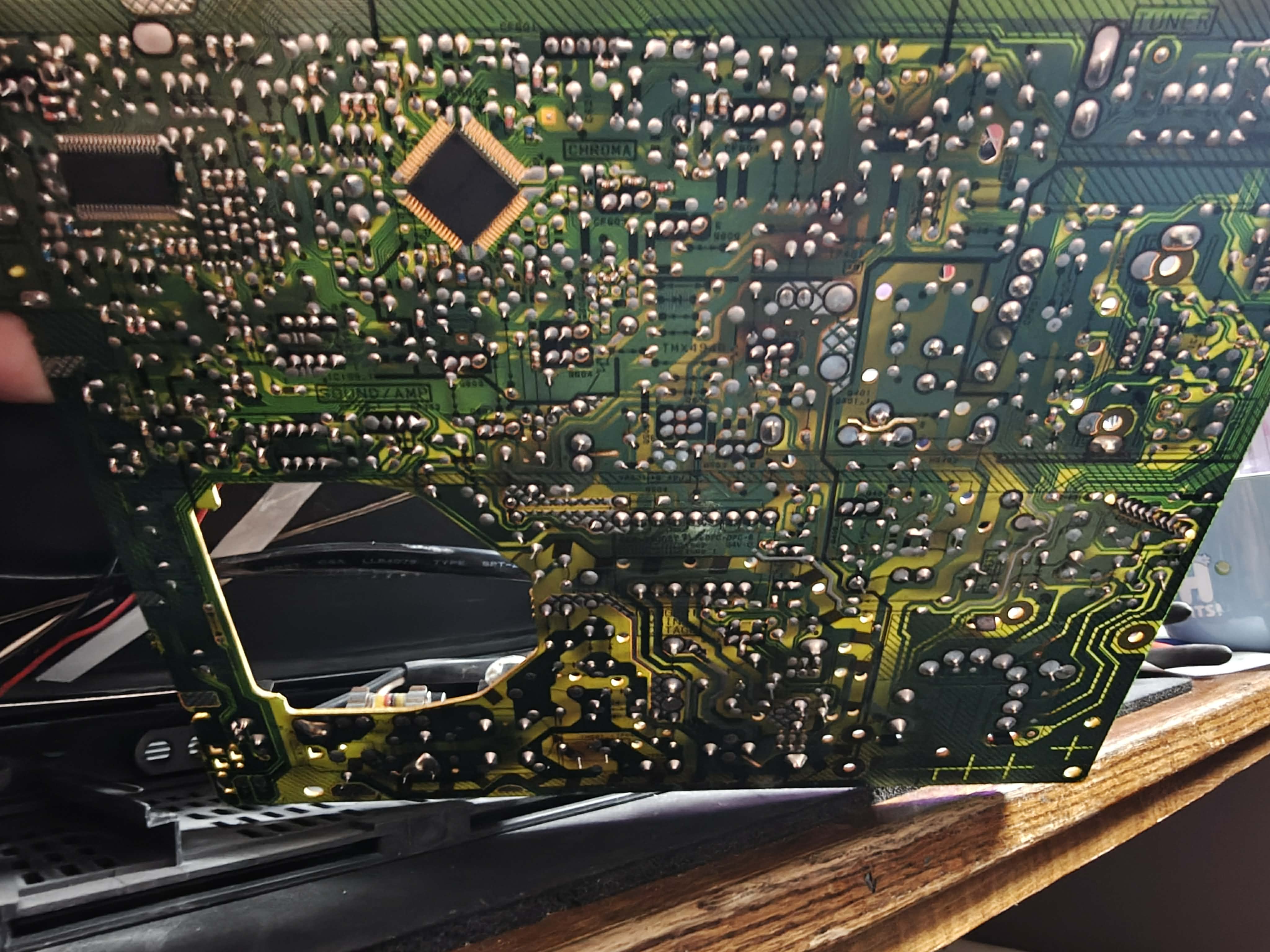

The previous year's model from 2000, model MT1192, uses a Toshiba TA1268N jungle chip. This model, however, uses a Mitsubishi/Renesas jungle chip.

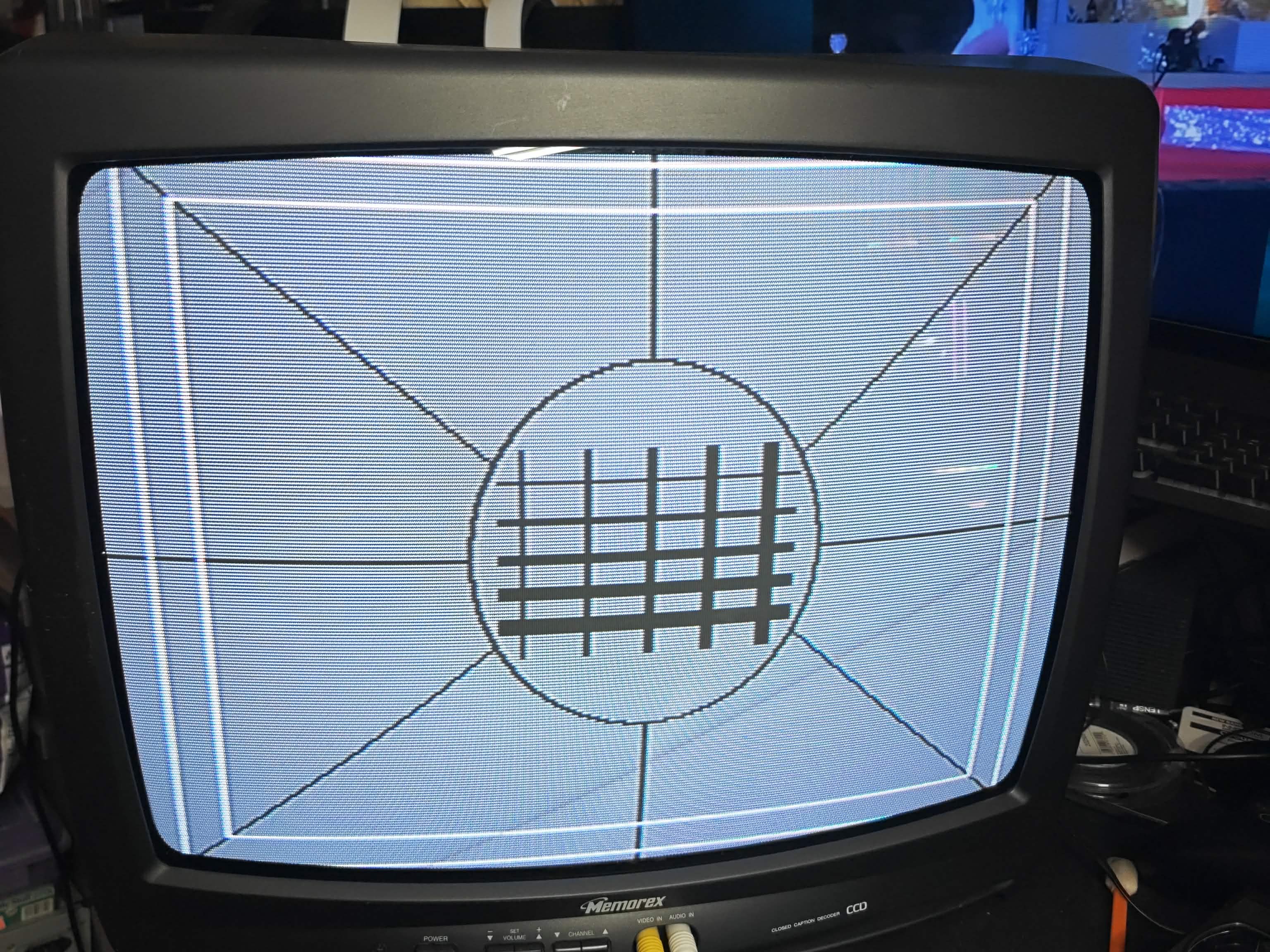

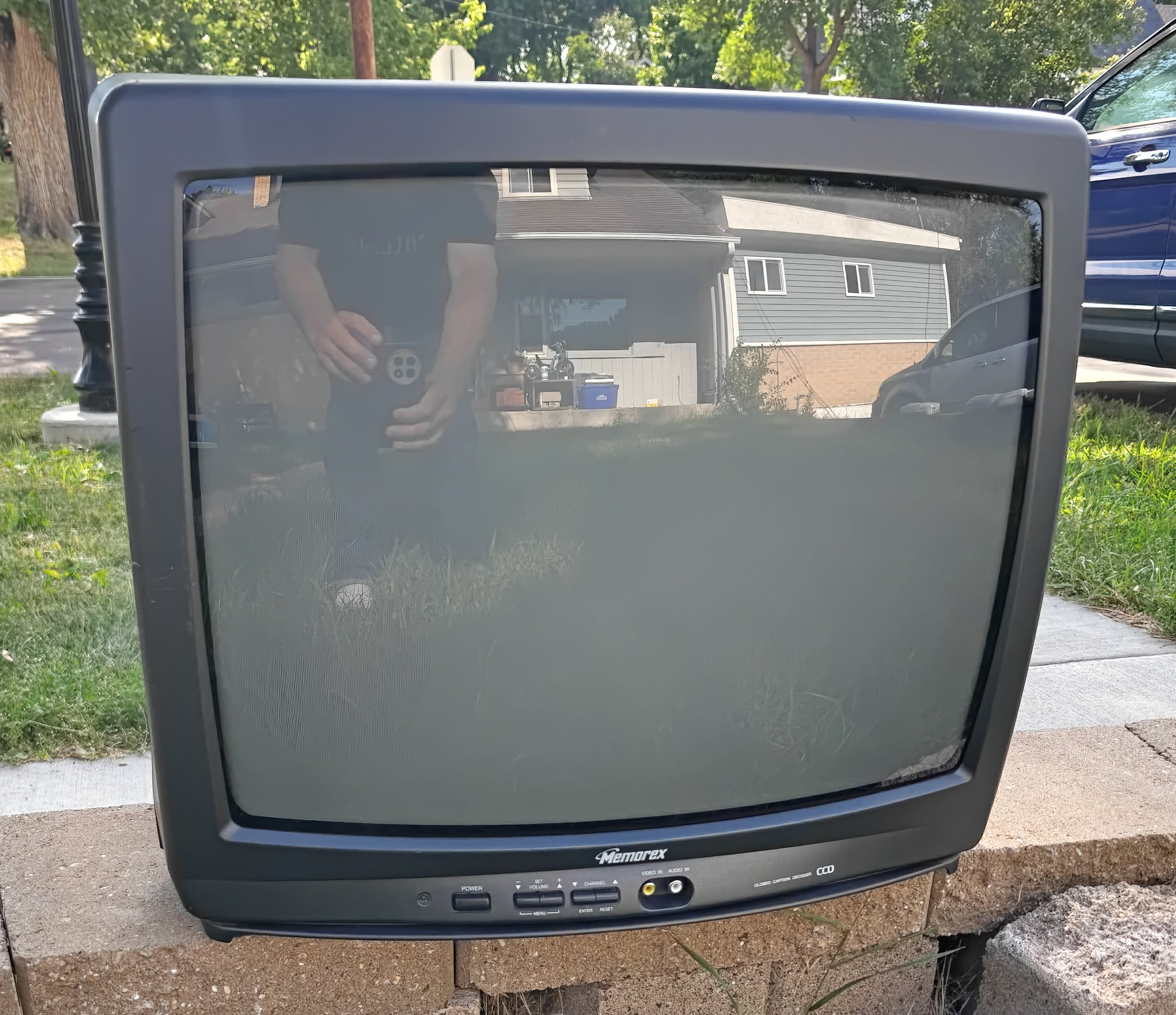

Gallery
| Specifications | |
|---|---|
| Brand: | Memorex |
| Manufacturer: | Orion |

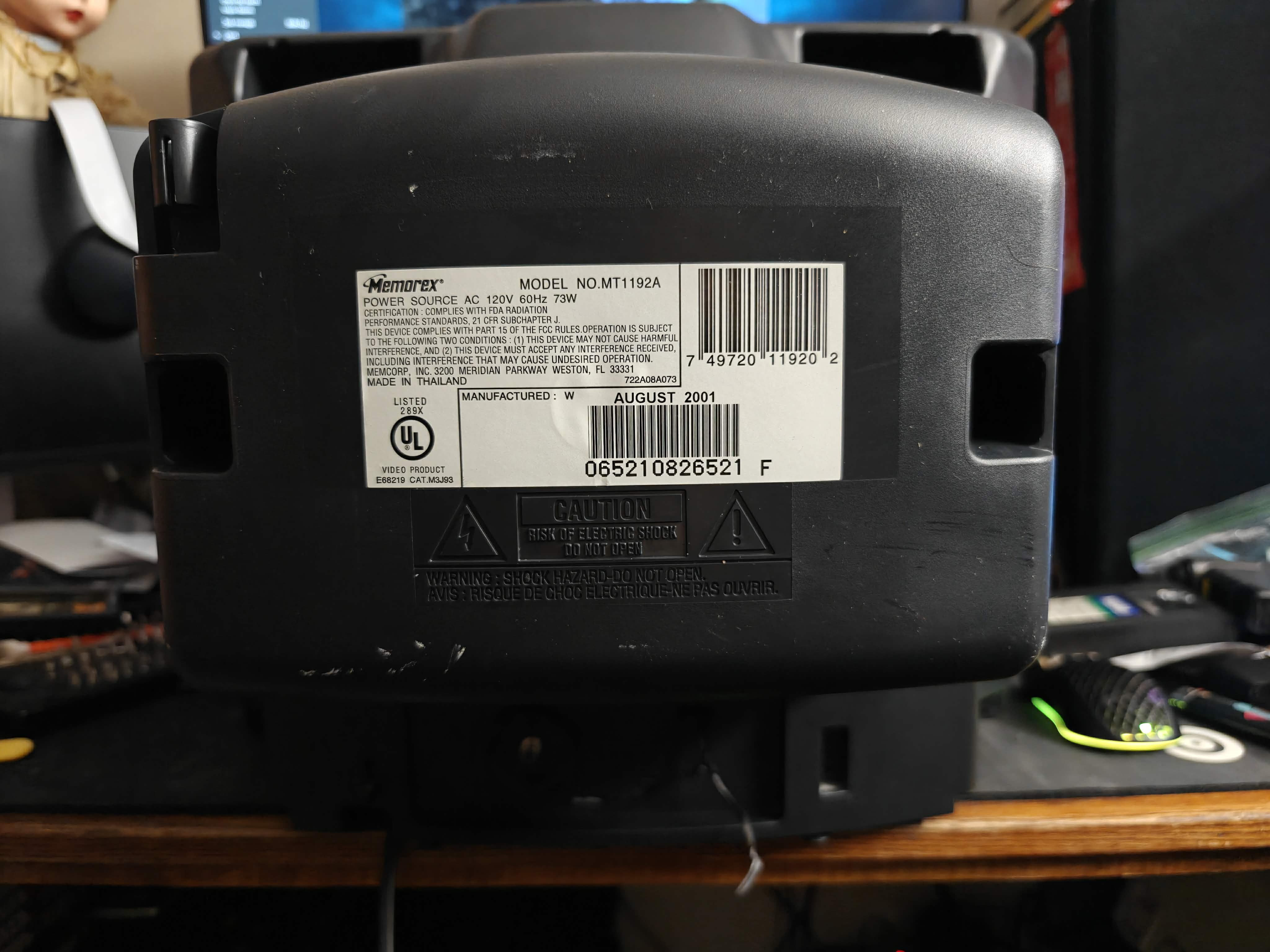

| Model: | MT1192A |
| Series: | MT |
| Viewable Size: | 19" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

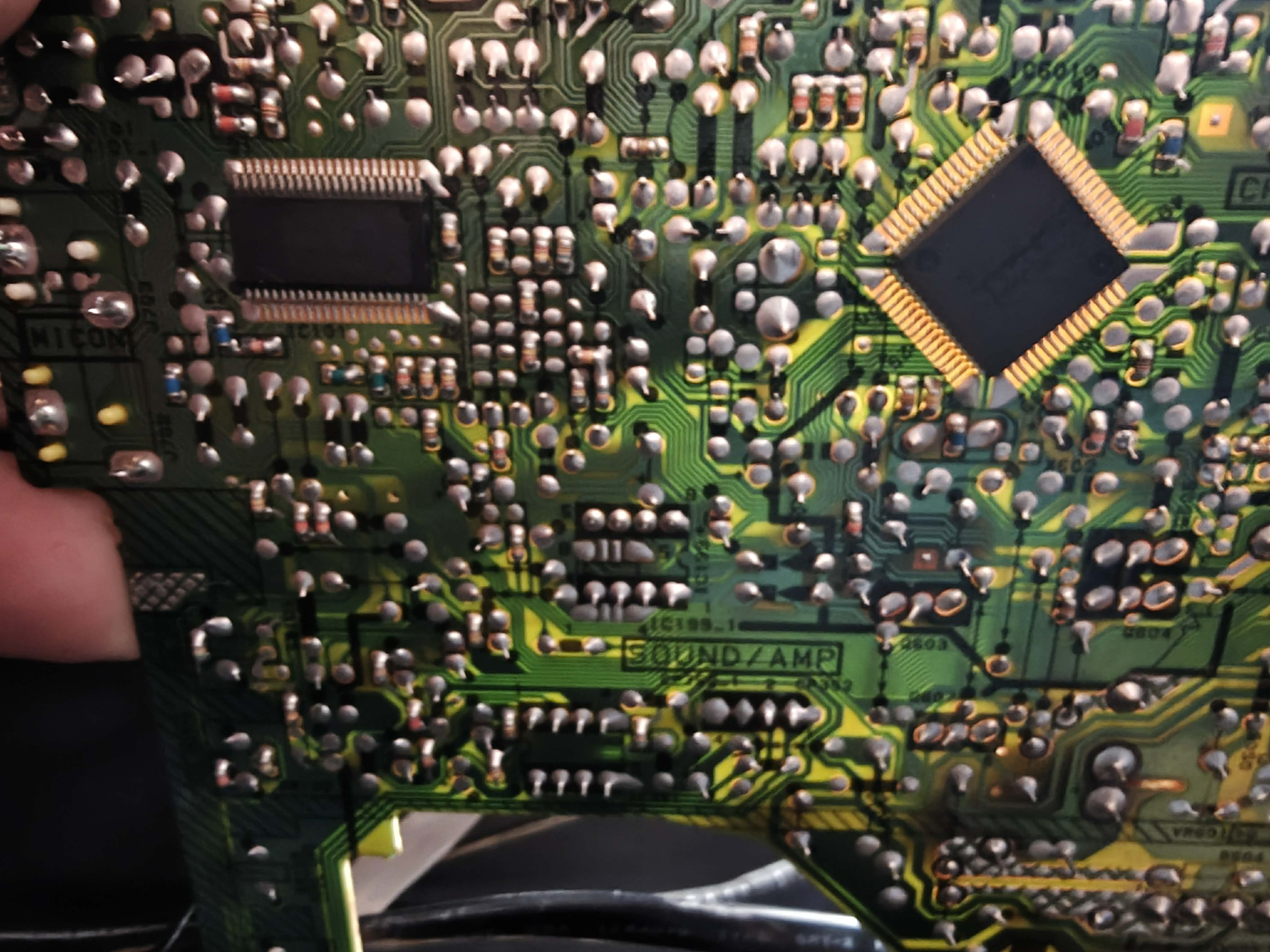

| Jungle IC: | Renesas, Mitsubishi, M61206FP |

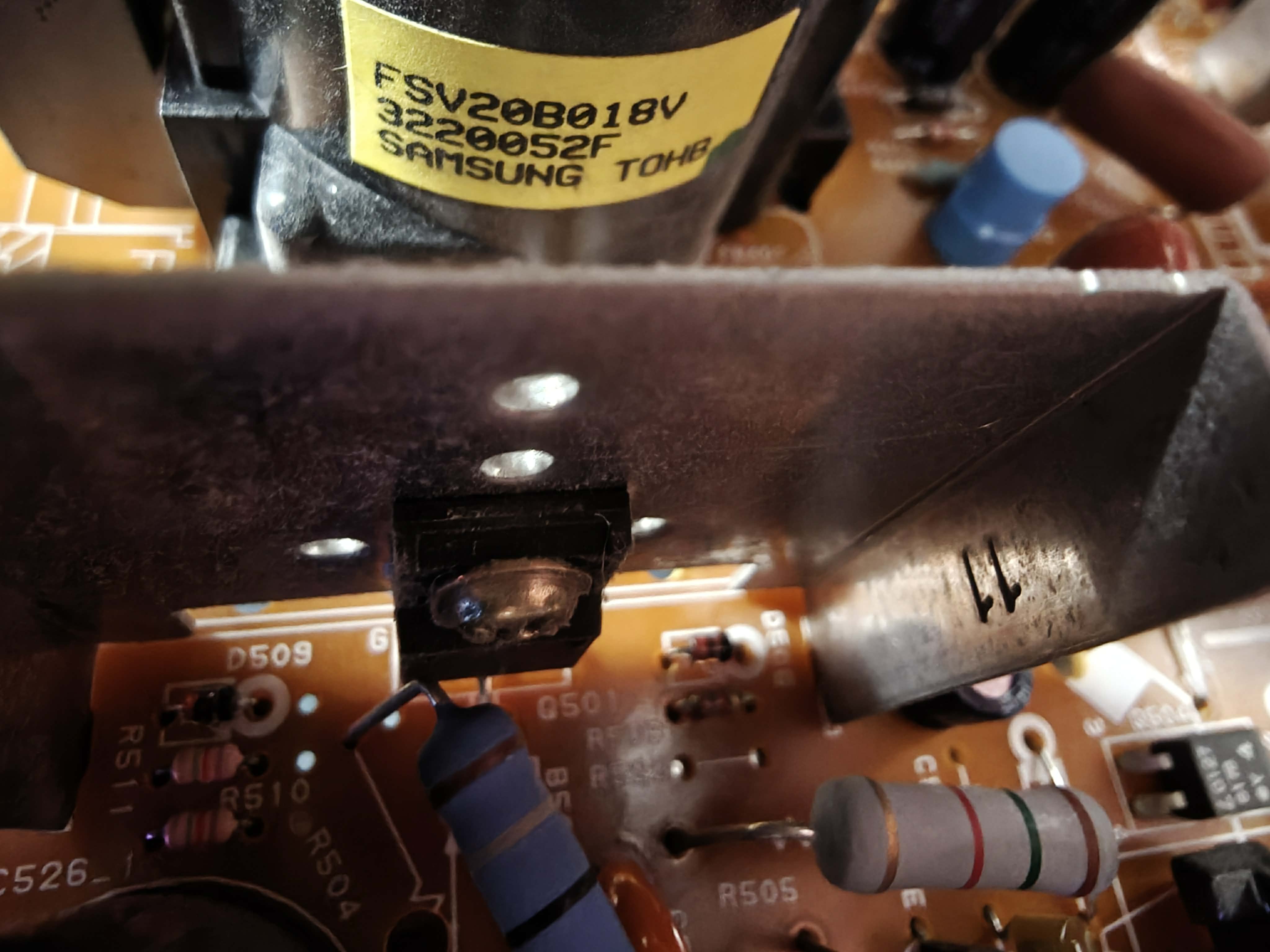

| Flyback: | FSV20B018V |

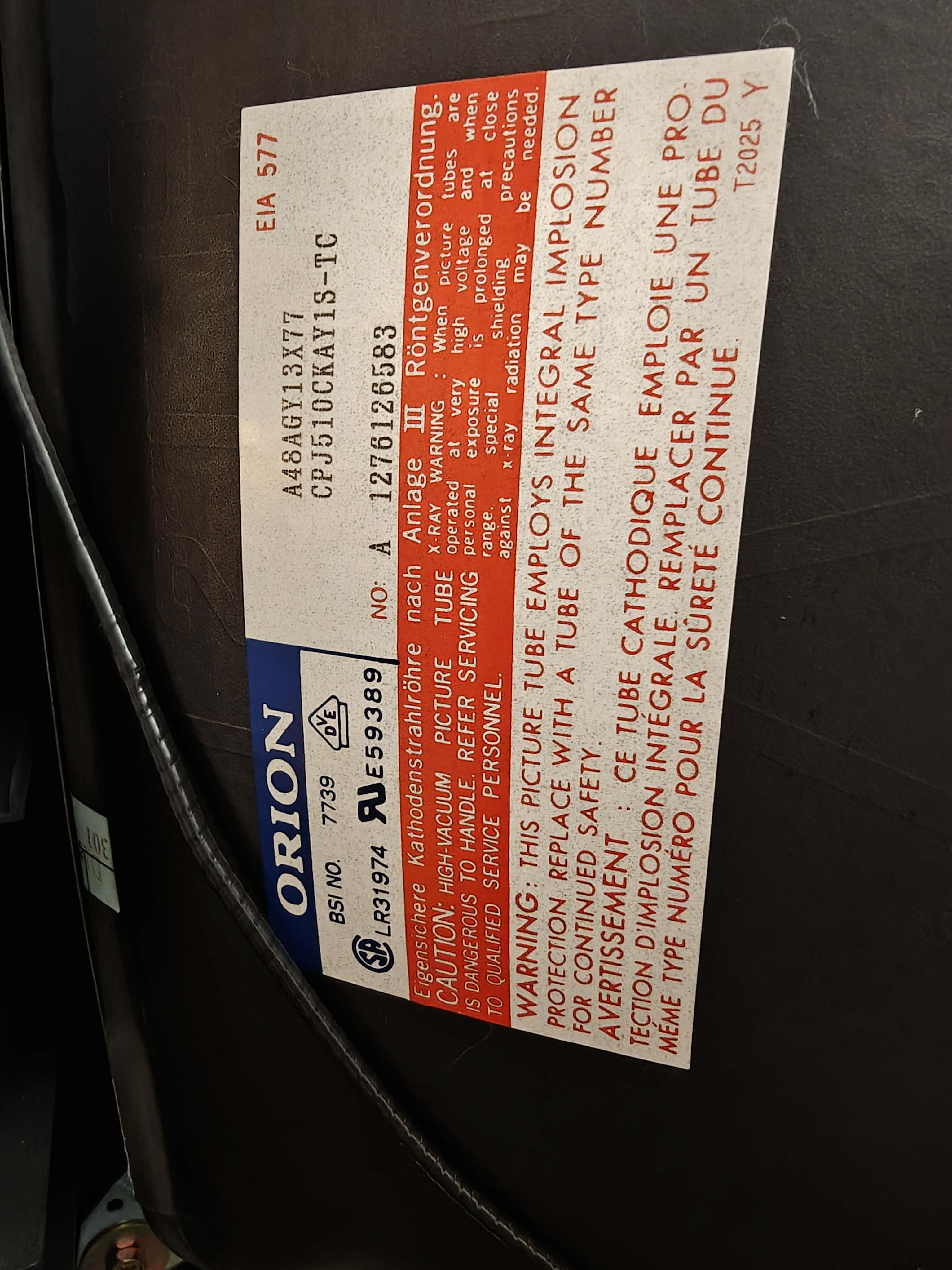

| Tube: | Chunghwa , A48AGY13X , A48AGY13X77 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

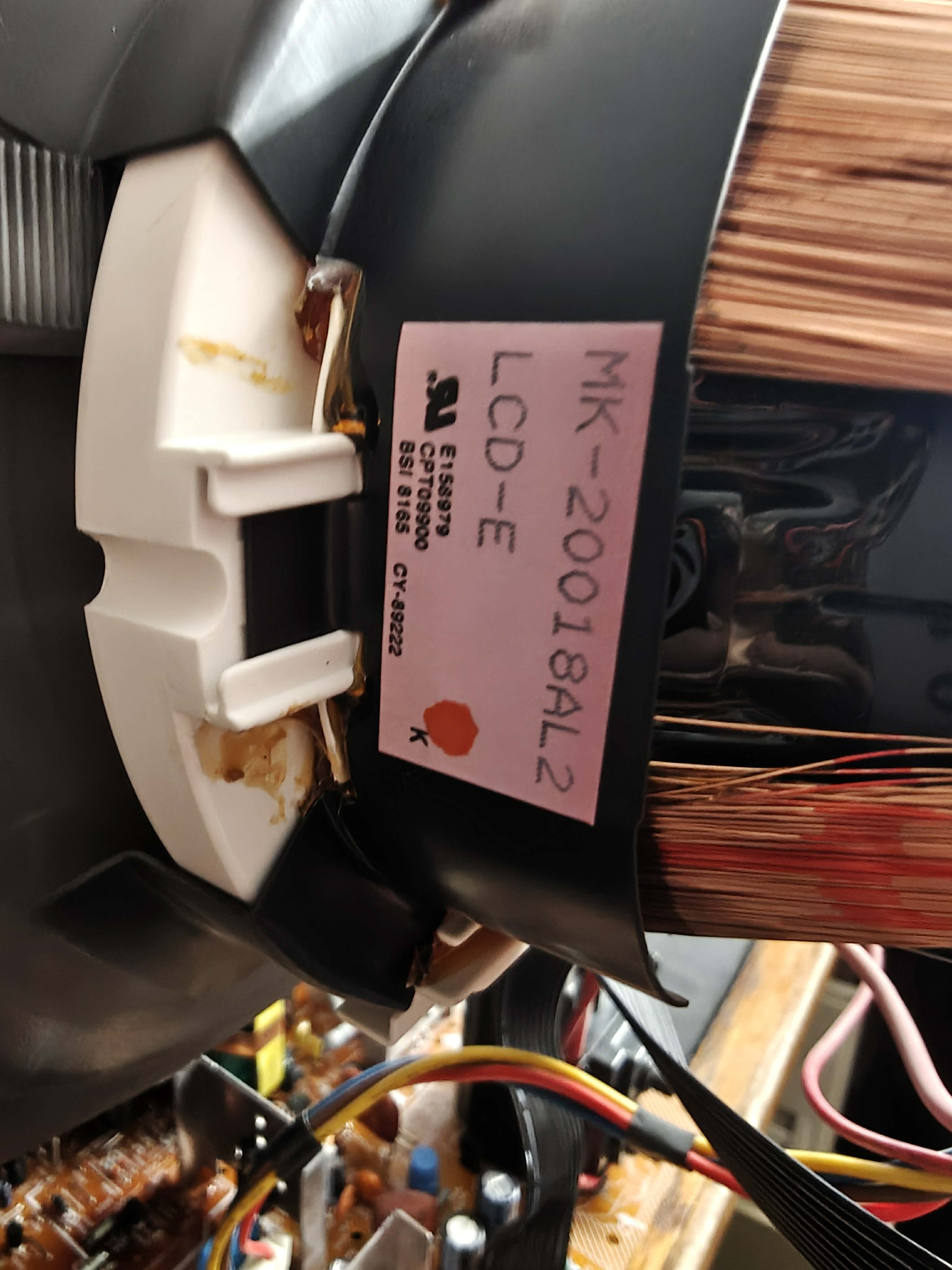

| Yoke: | MK-20018AL2 |
| Speakers: | Mono, Earphone, 1.5W |

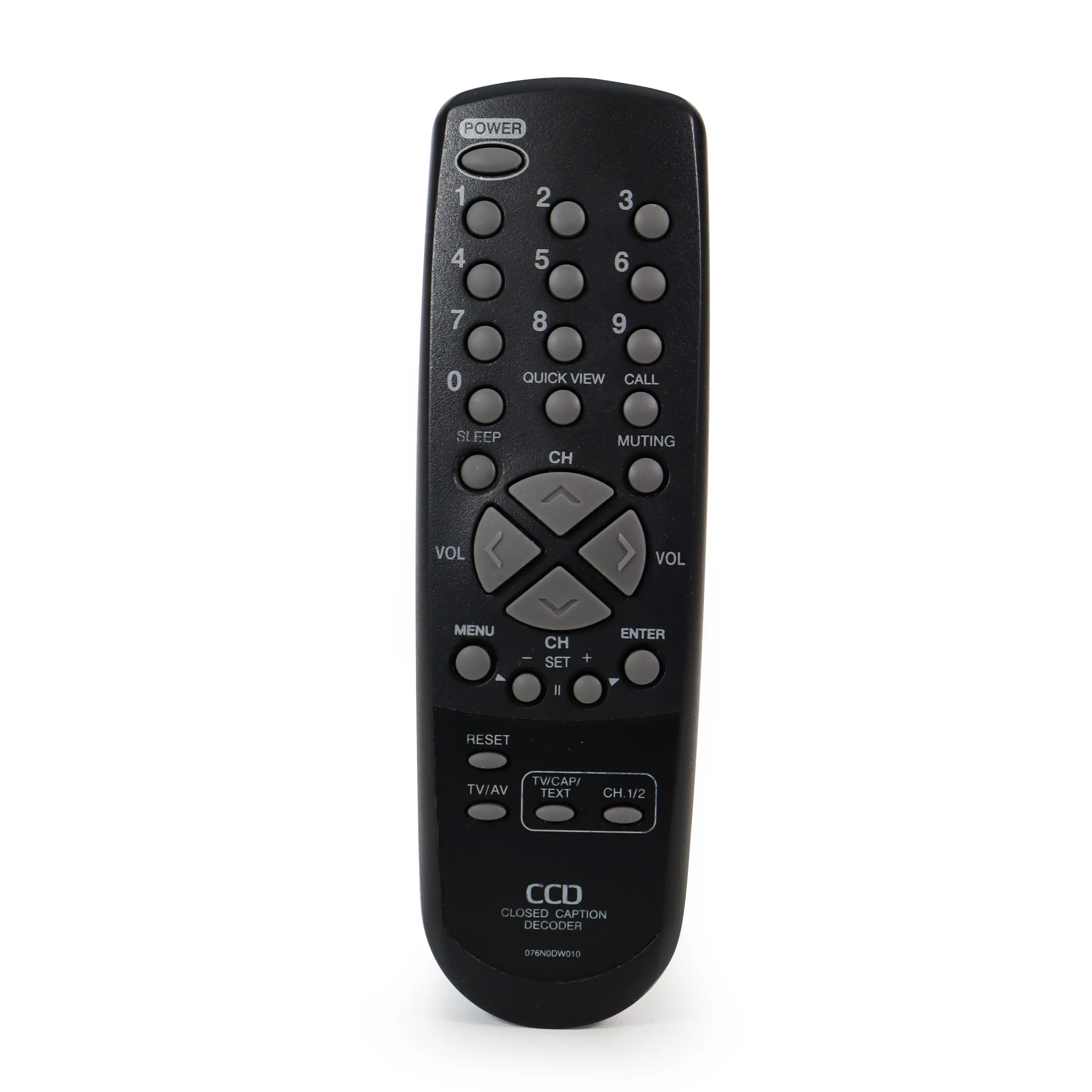

| Remote: | 076N0DW010 |
| Chassis: | M3J93 |
| Weight: | 38.6 lbs (17.5 kg) |
| Dimensions (W/H/D): |
487 x 416 x 465 mm
(19.1 x 16.3 x 18.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| MSRP: | 129 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
