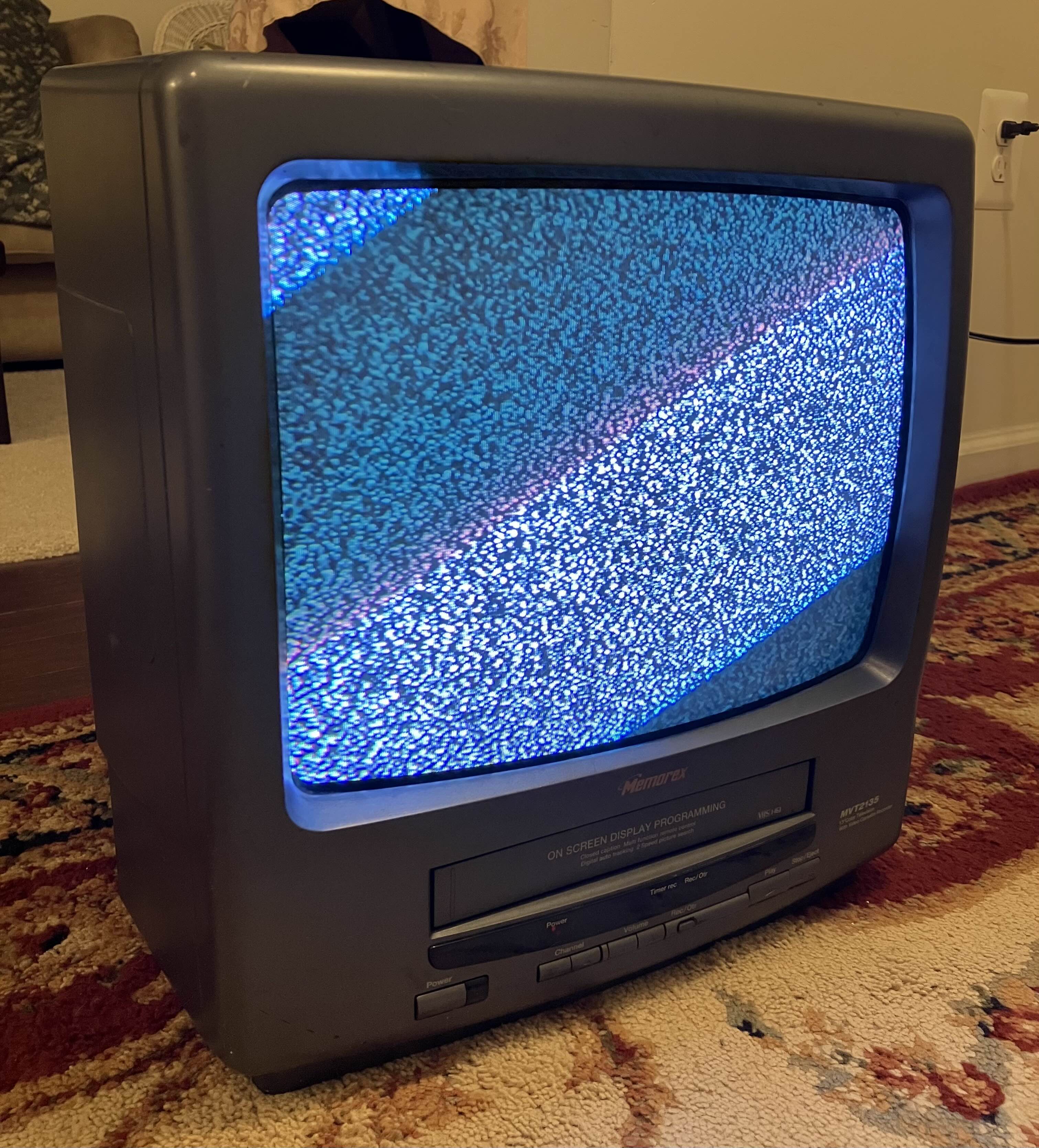

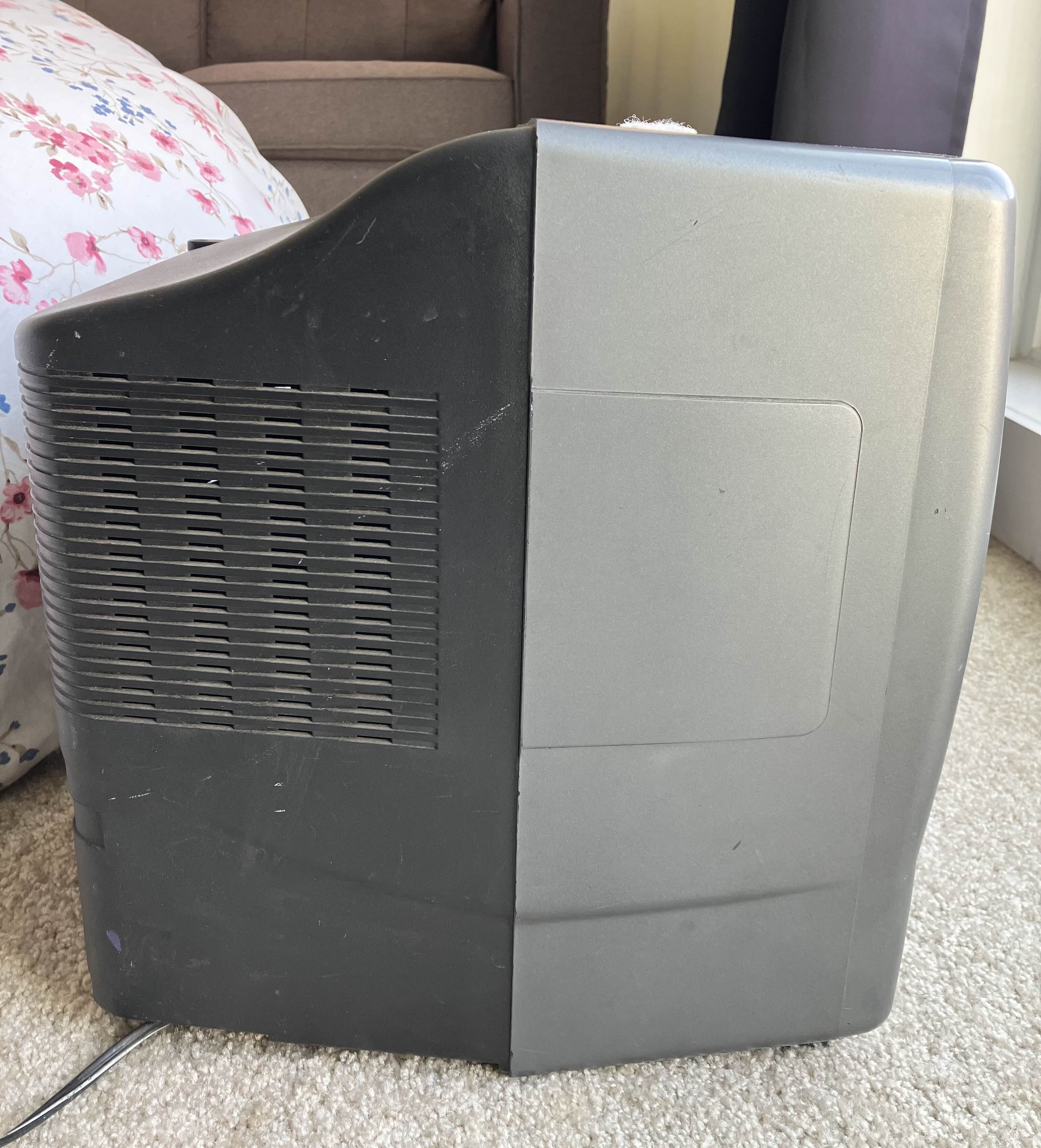

Gallery
| Specifications | |
|---|---|
| Brand: | Memorex |
| Manufacturer: | Orion |
| Model: | MVT2135 |
| Series: | TV/VCR Combo |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Menu for picture adjustment (OSD), On-Screen Display |
| Horz. Output Transistor: | 2SD2627LS-CBC11 |
| Vertical Output IC: | AN5522 |
| Jungle IC: | M61206FP |
| Flyback: | 3213015R |
| Focus Type: | Single |
| Tube: | A34JXV70X53N45 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | 1.5W |
| Remote: | 076R0BH01A |
| Weight: | 24.3 lbs (11 kg) |
| Dimensions (W/H/D): |
362 x 382 x 370 mm
(14.2 x 15 x 14.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Community Submission |
