Mitsubishi AM-2752A

Summary

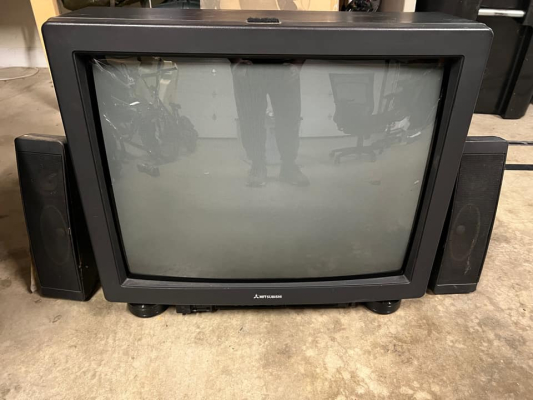

Also known as the Mitsubishi MegaView 29. 27" presentation monitor by Mitsubishi, originally manufactured in Japan, part of their MegaView line. Supports 240p/480i all the way up to 600p.

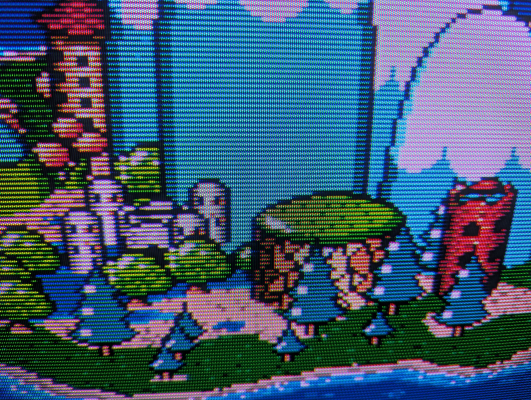

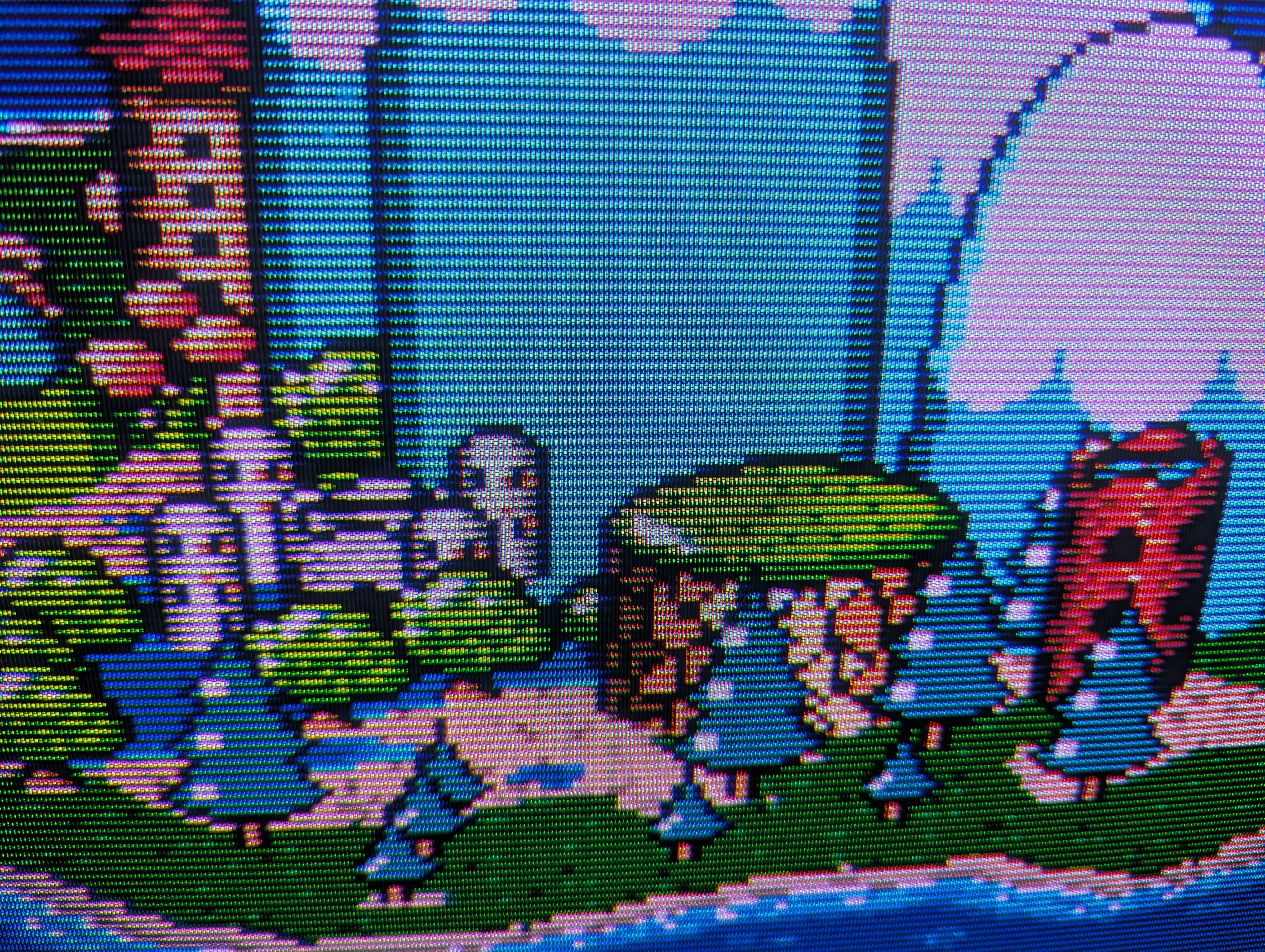

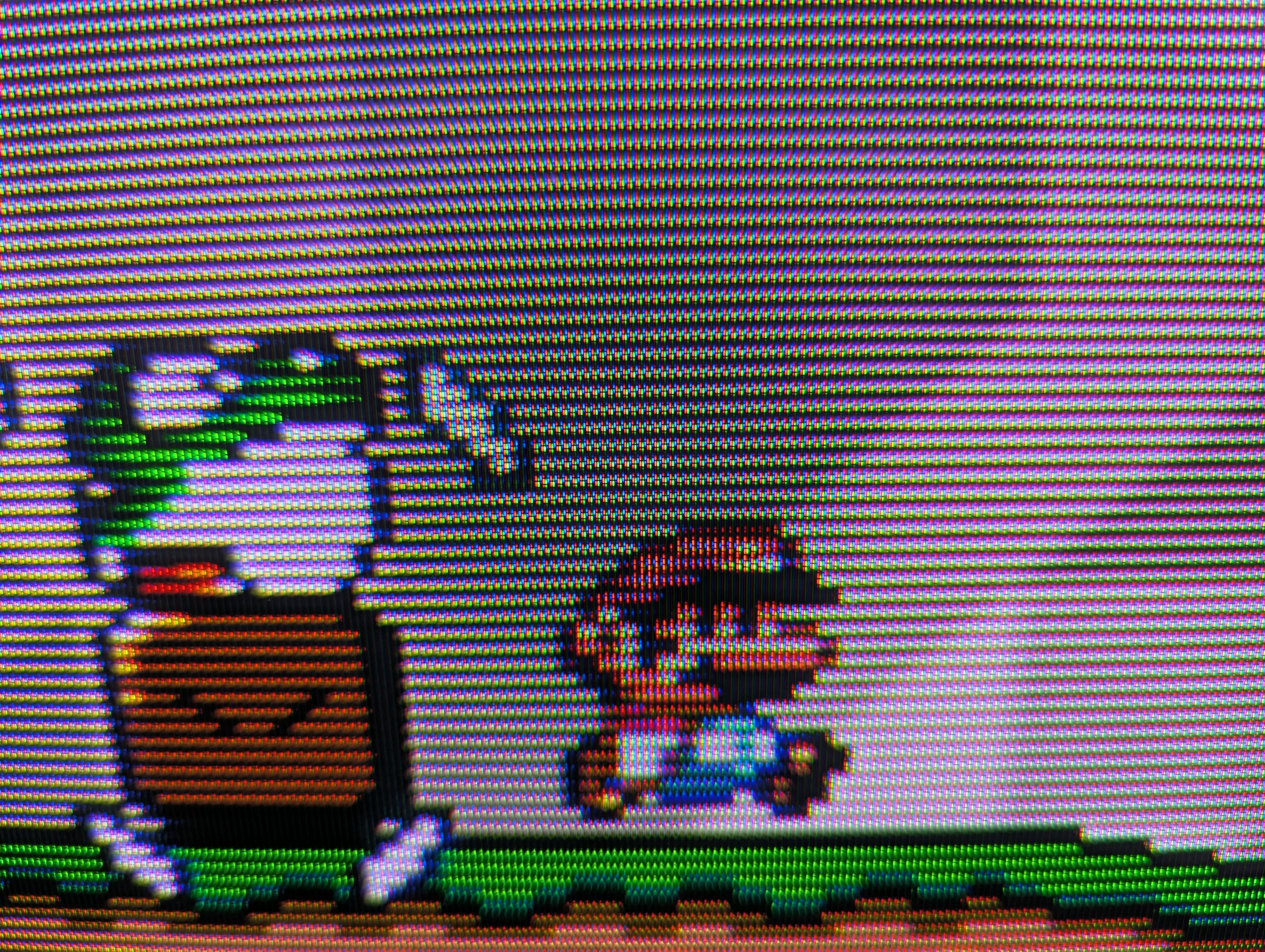

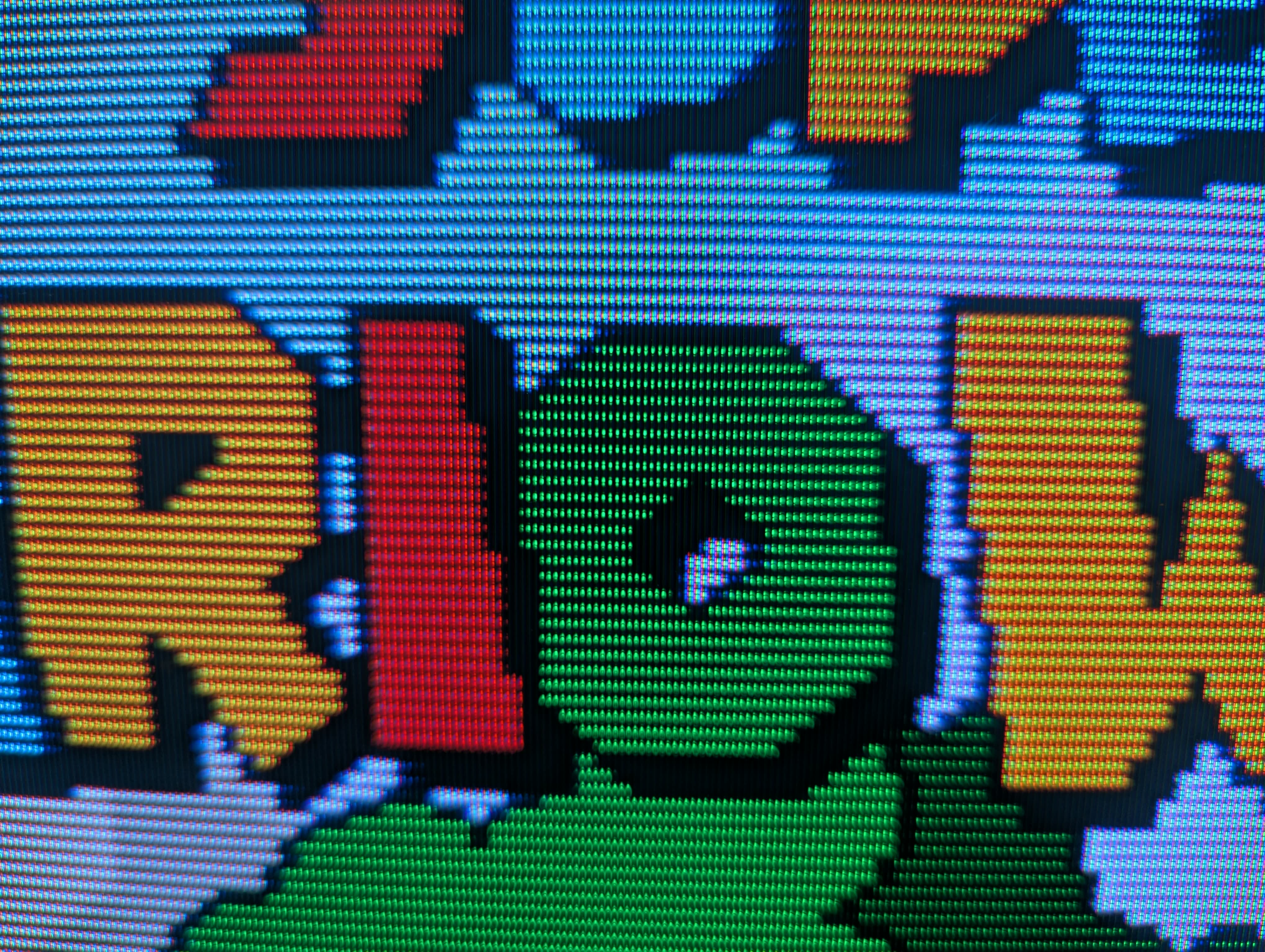

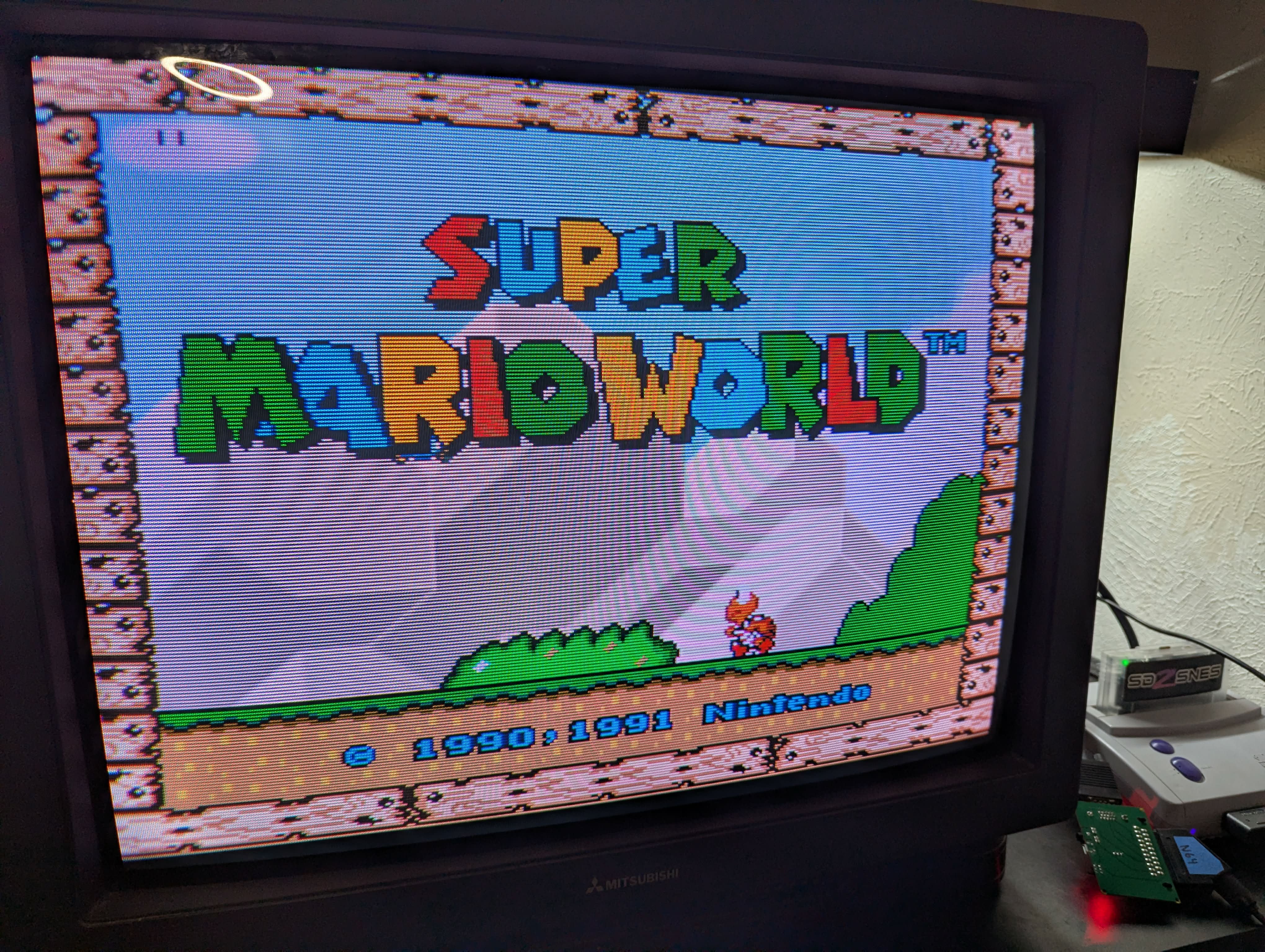

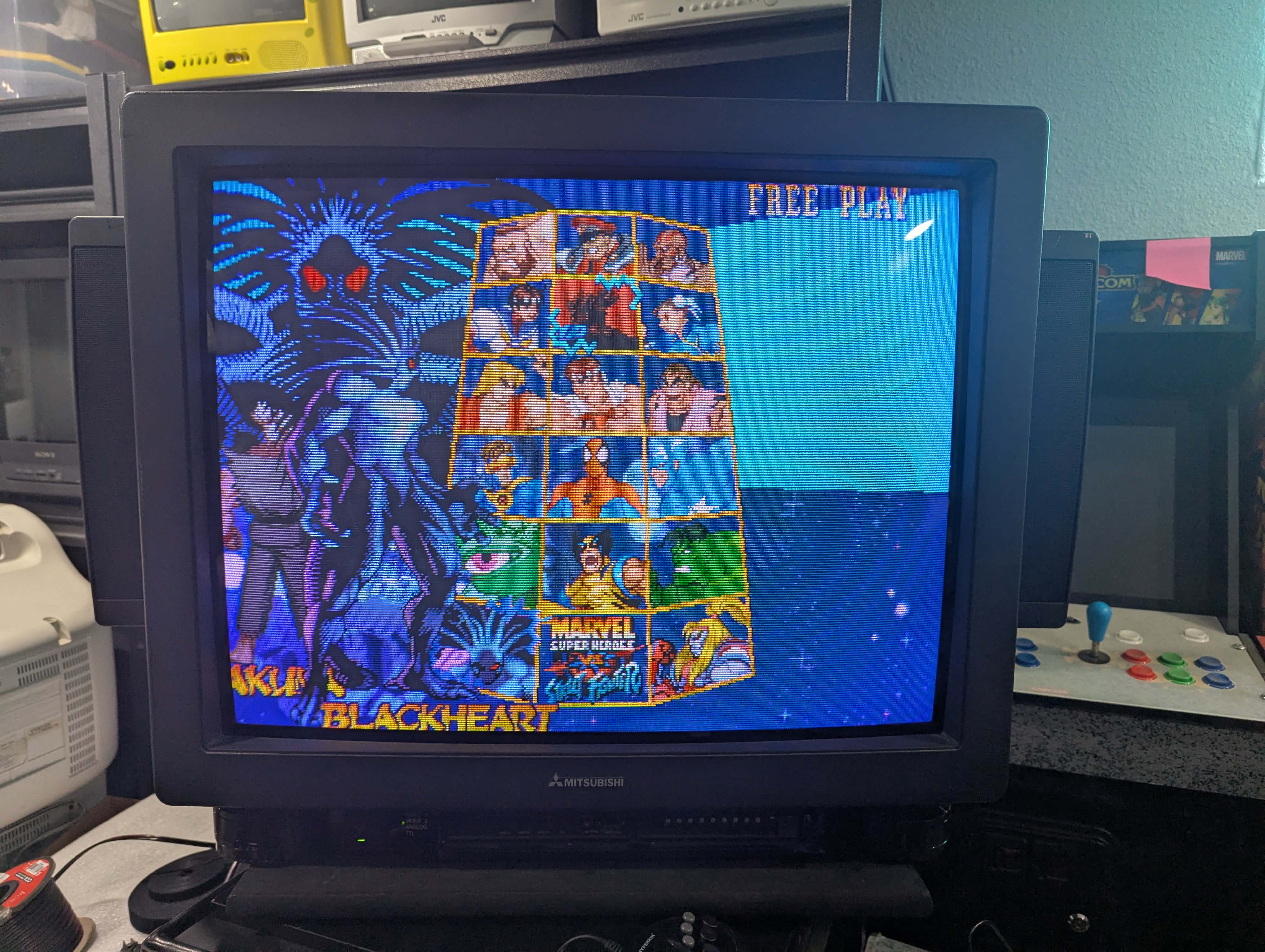

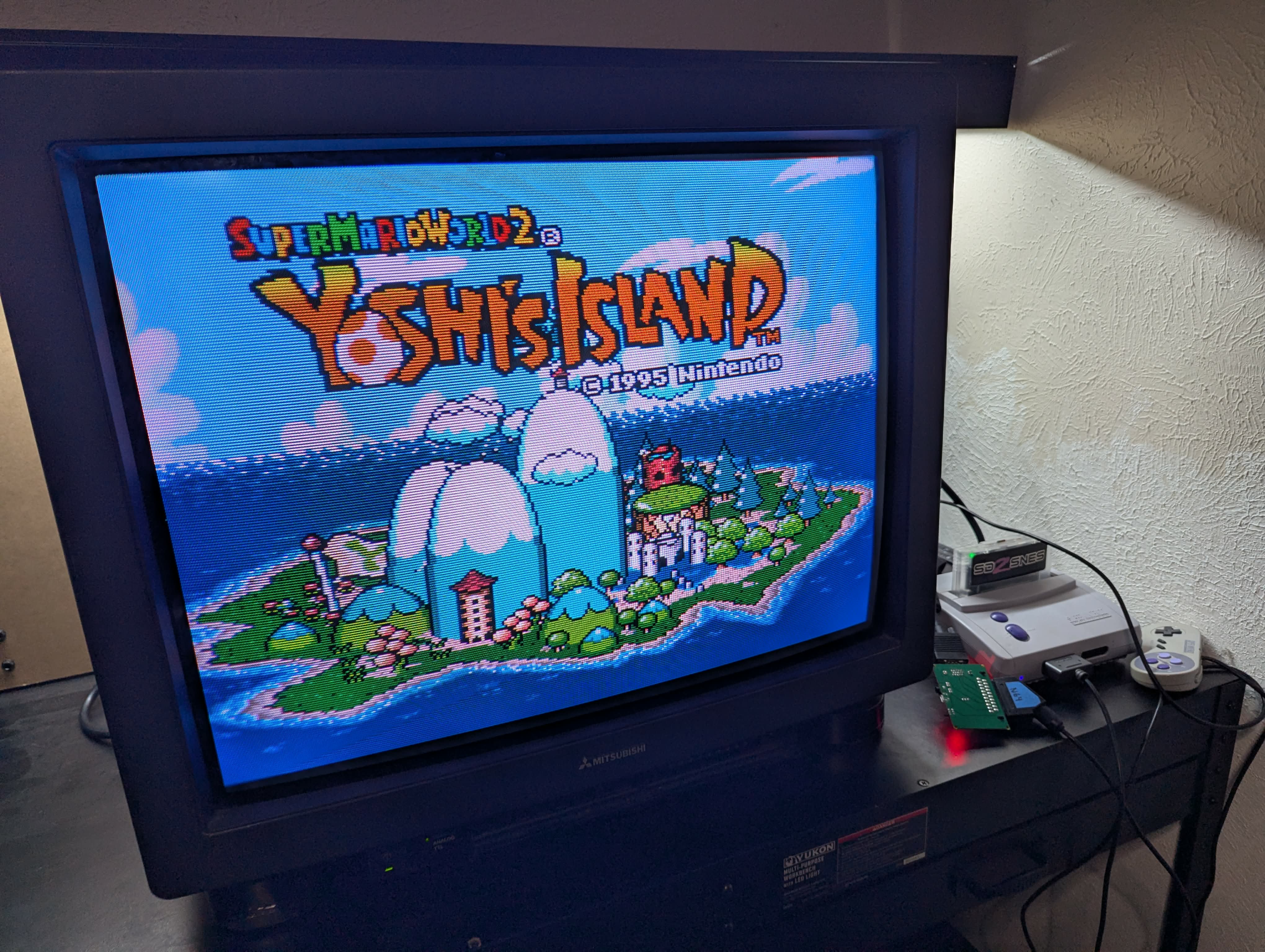

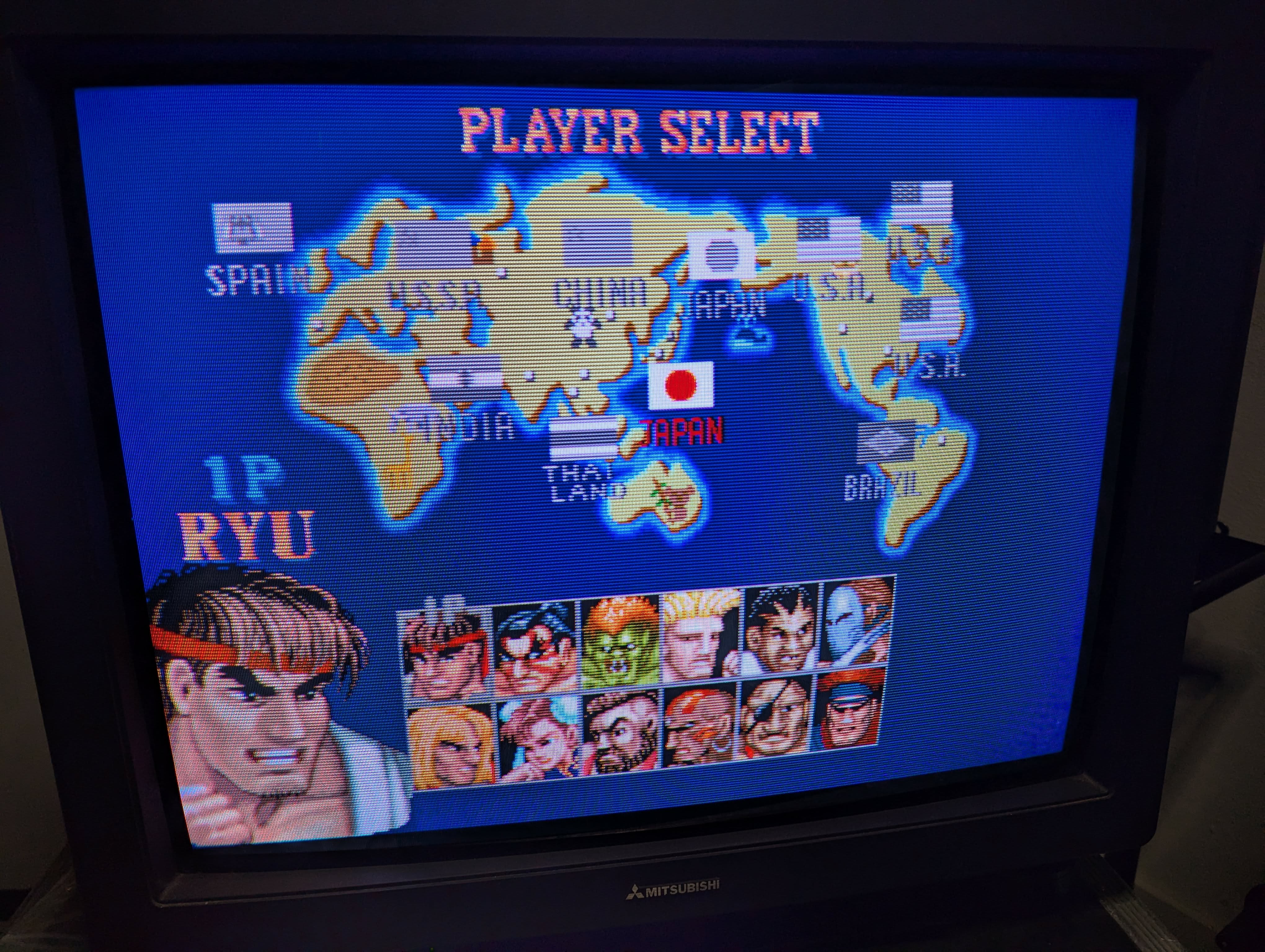

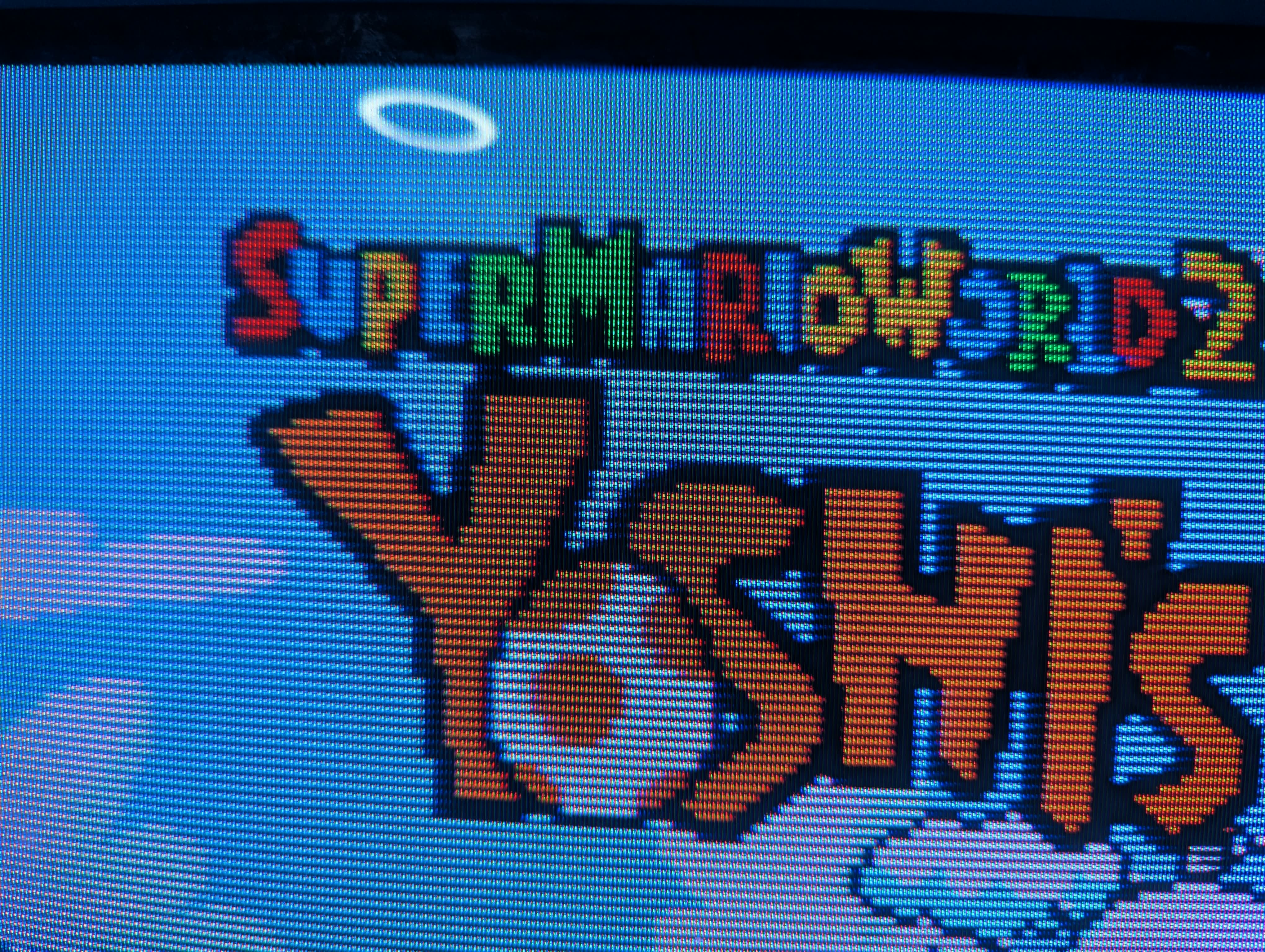

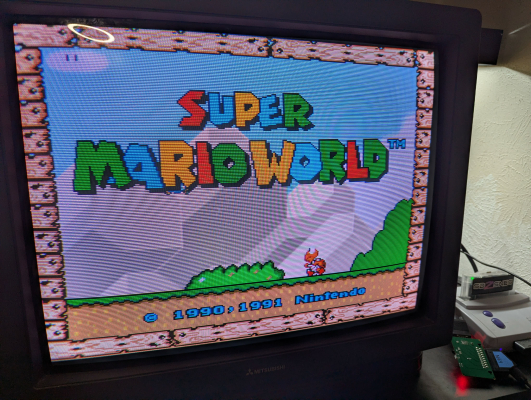

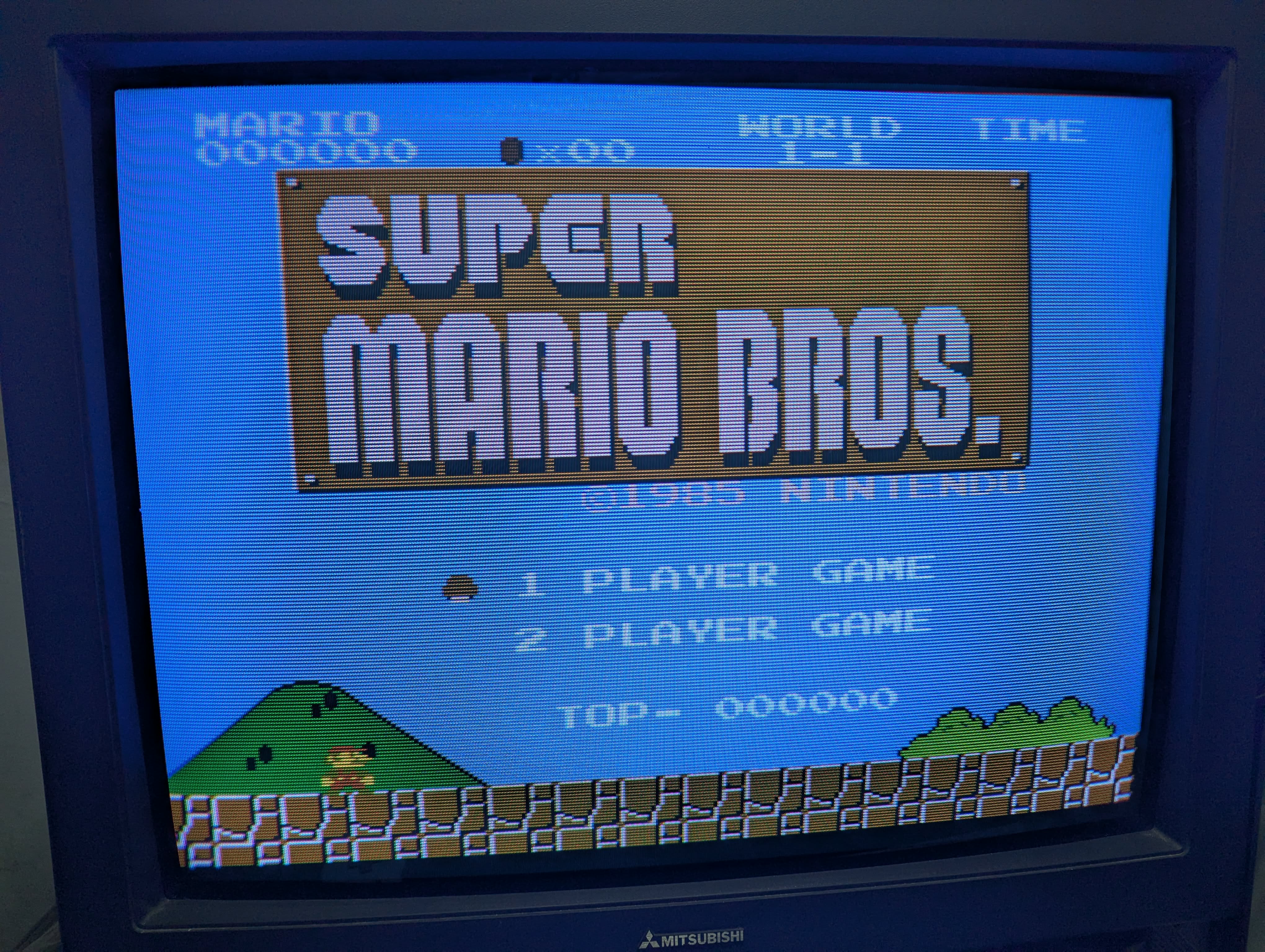

(Special thanks to Jason Lusk for the gameplay pics!)

Manuals

Gallery

Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A Mitsubishi AM-2752A
Specifications
Brand: Mitsubishi
Manufacturer: Mitsubishi
Model: AM-2752A
Series: AM
Viewable Size: 27"

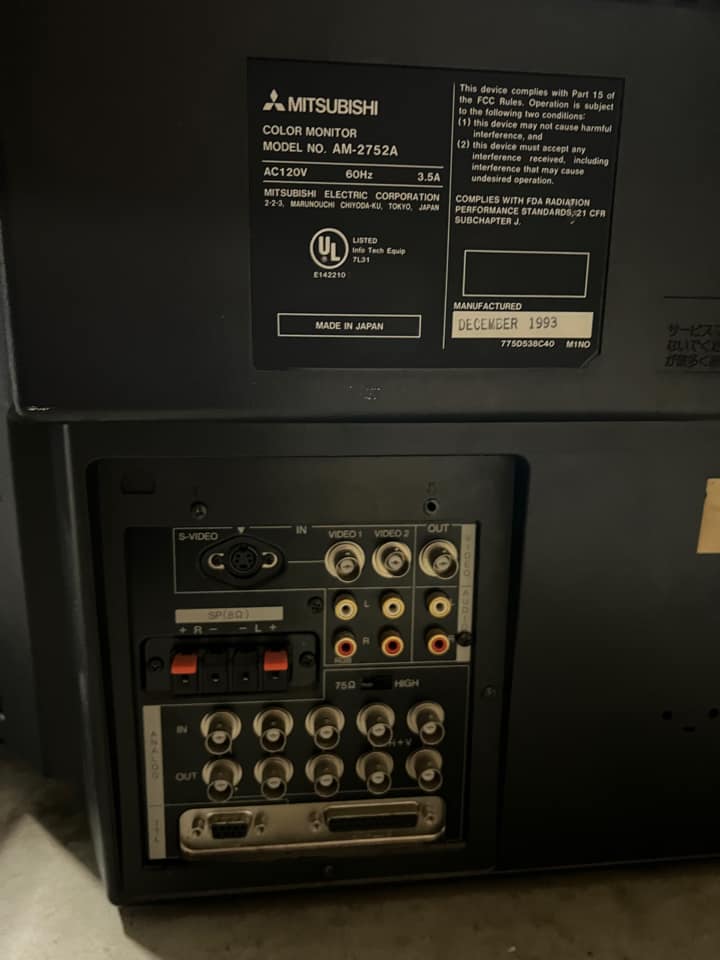

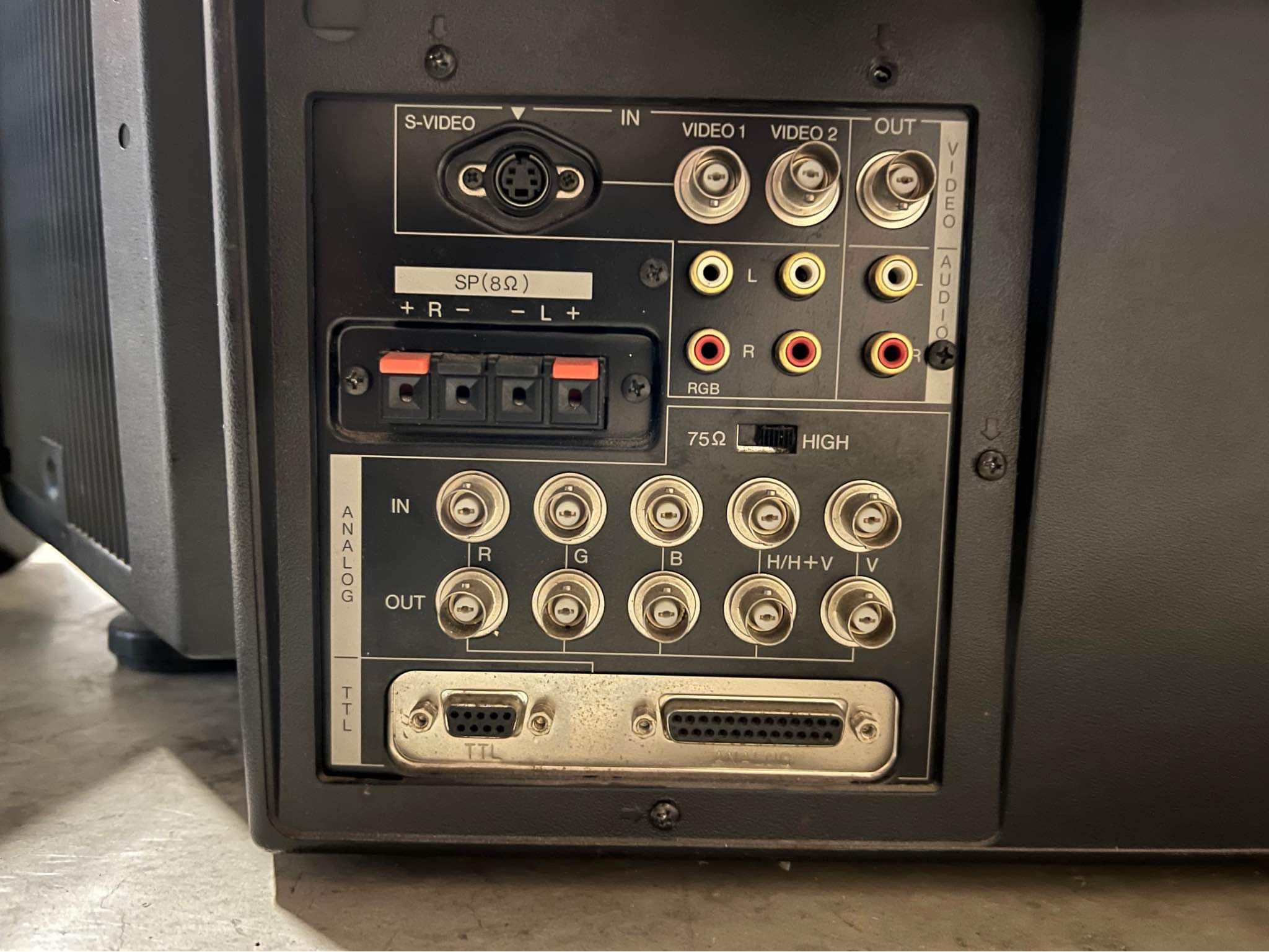

Input Signals: Composite, S-Video, Digital RGB, Analog RGB
Sync: HV Sync
Native Resolutions: SVGA, 240p, 480i, 1080i, 288p, 576i, 480p, 576p, EGA, Medium Res.
Horizontal Scan Range: 15 kHz, 39 kHz
Vertical Scan Range: 100 Hz, 45 Hz
Formats: NTSC
Aspect: 4:3
Adjustments: Internal Potentiometers

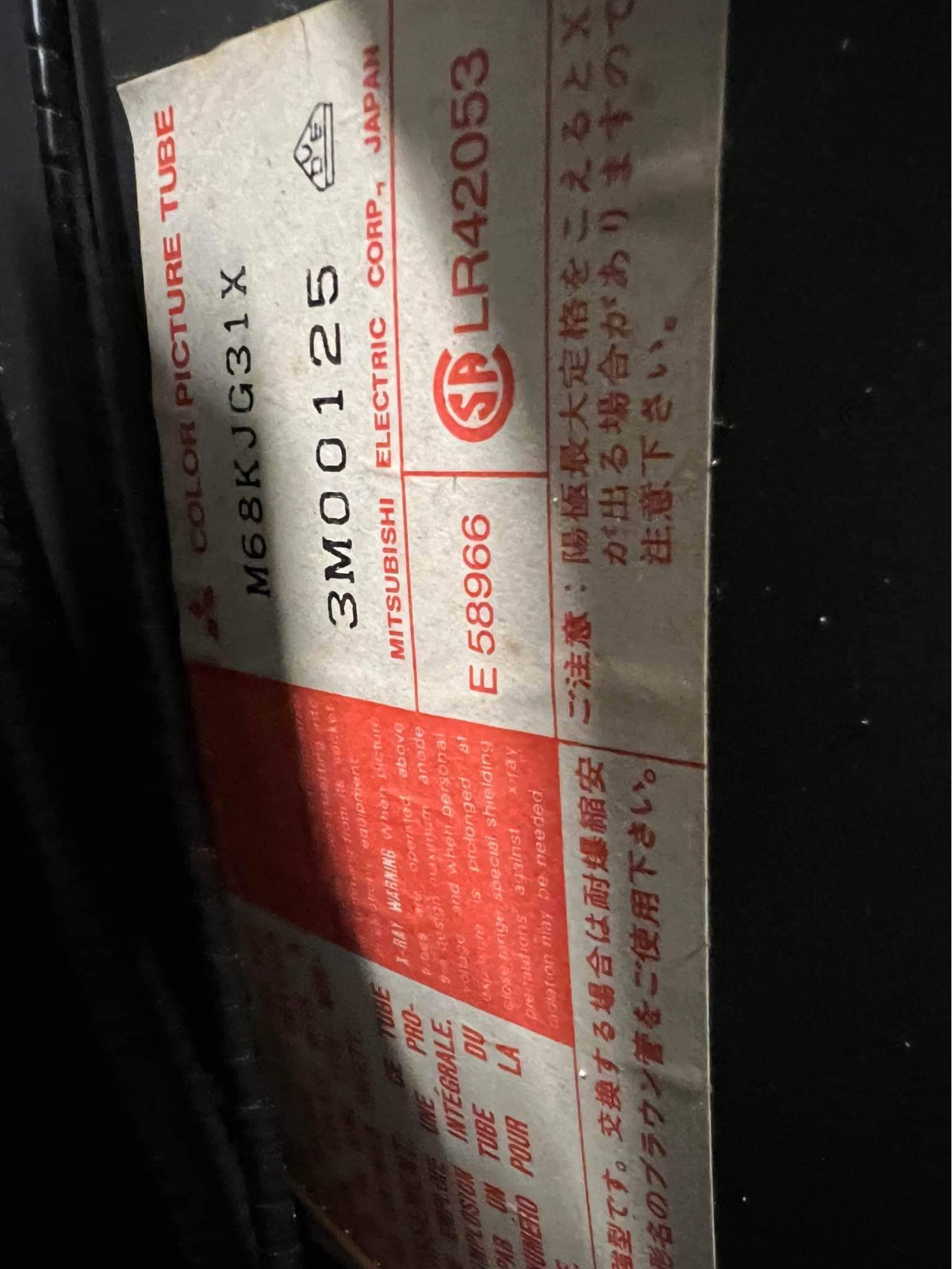

Tube: Mitsubishi , M68KJG31X
Heater Voltage: 6.3v
Deflection: 110°
Mask: Slot
Pitch: 0.9 mm, .76 mm, 0.76 mm
Tint: Dark

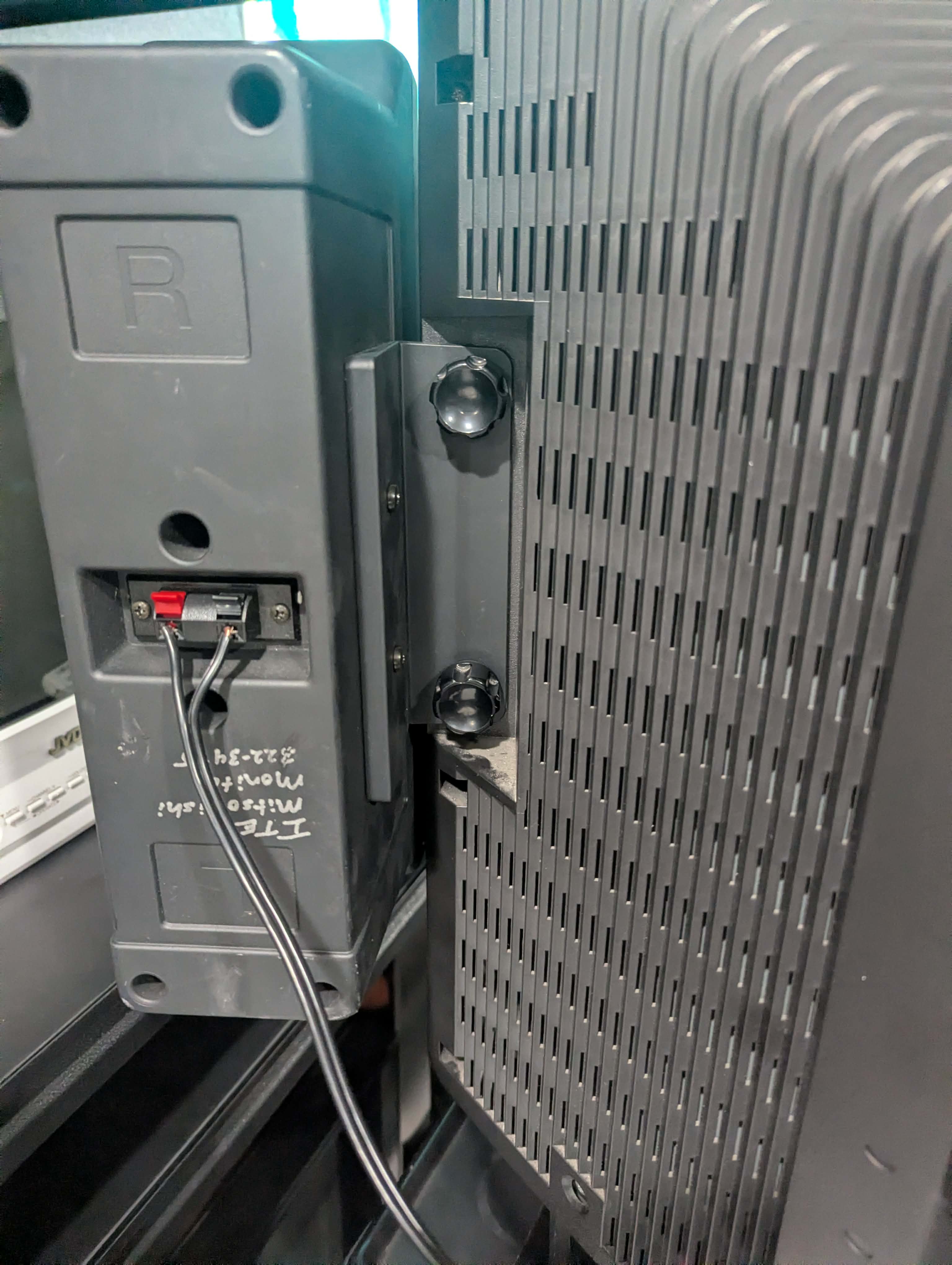

Speakers: Stereo, Optional Side Mount
Weight: 116 lbs (52.6 kg)
Dimensions (W/H/D): 671 x 587 x 480 mm
(26.4 x 23.1 x 18.9")
Application: Professional
Cabinet Material: Plastic
MSRP: 3700 USD
Country of Manufacture: Japan
Market: North America
Power Standard: 120v
Tag: Needs Owners Manual, Needs Service Manual, Needs Yoke Info, Needs Tube Info, Needs Pictures
