Summary

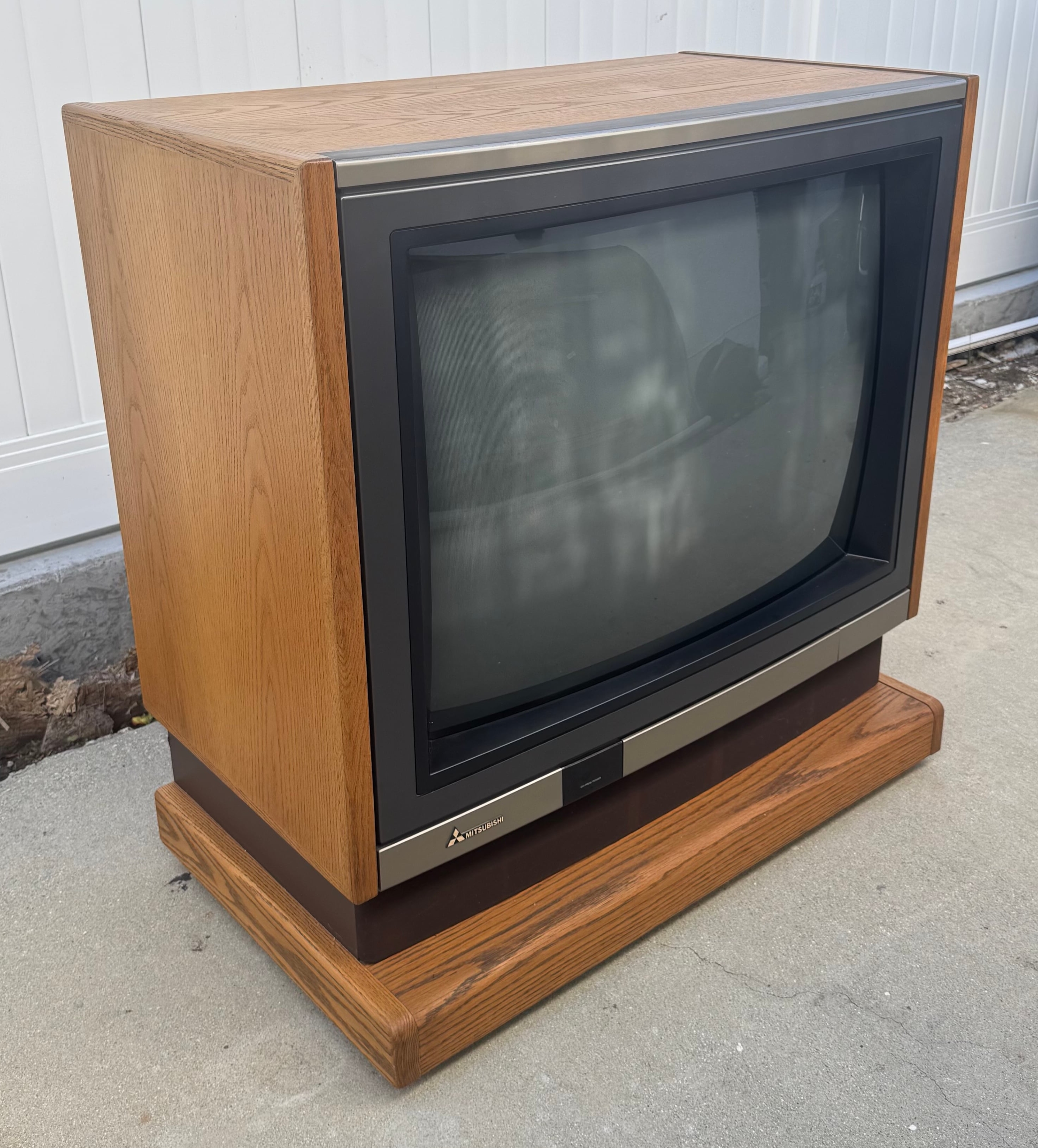

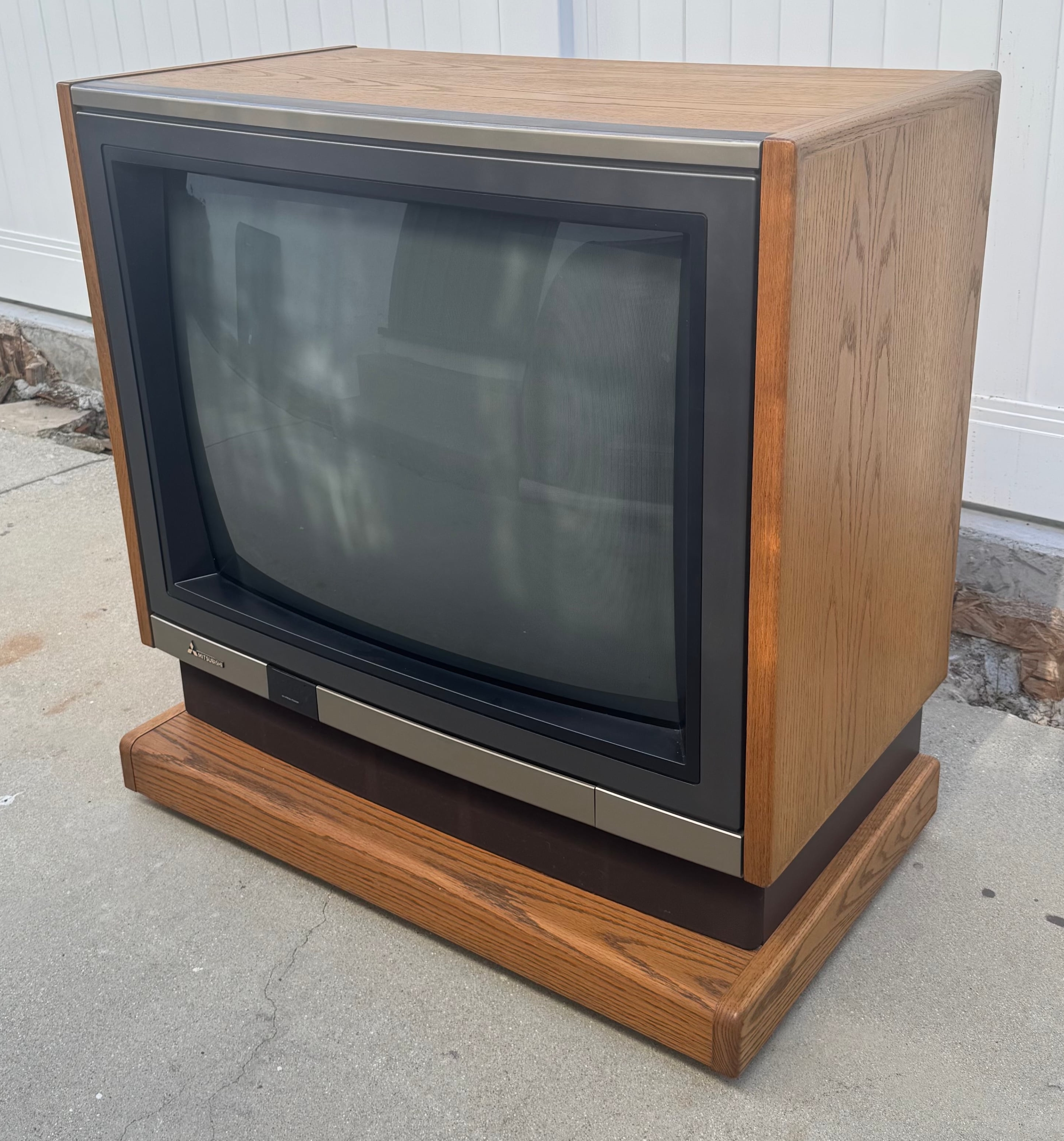

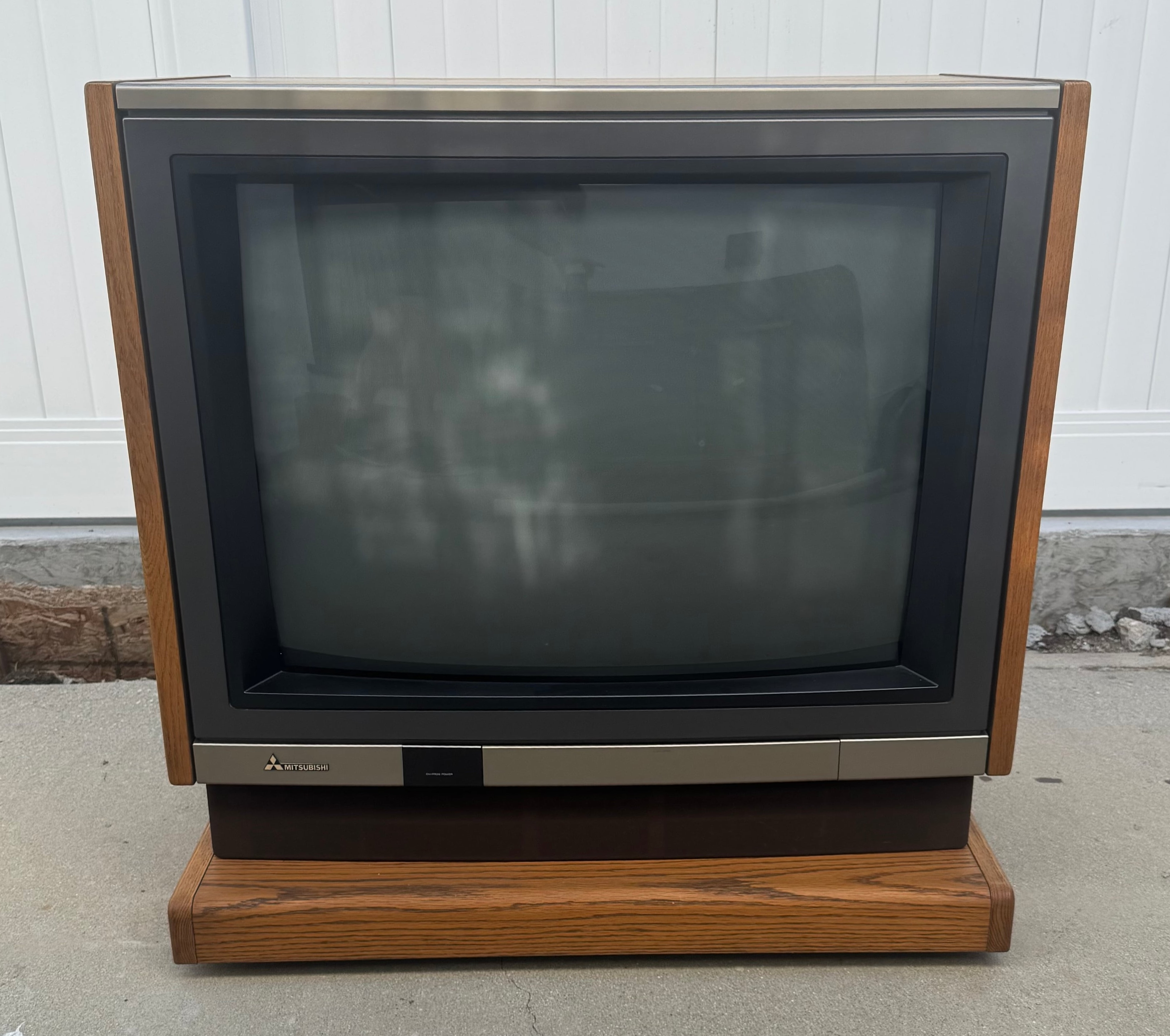

High-end 35" console TV by Mitsubishi, originally manufactured in Japan in 1987. Has RF, composite, and s-video inputs with stereo sound. This model by Mitsubishi is one of their very first with s-video.
(Special thanks to Houston Berry for the pics!)
Manuals
(None at this time.)
Media & Promo Materials
Gallery
| Specifications | |
|---|---|
| Brand: | Mitsubishi |
| Manufacturer: | Mitsubishi |

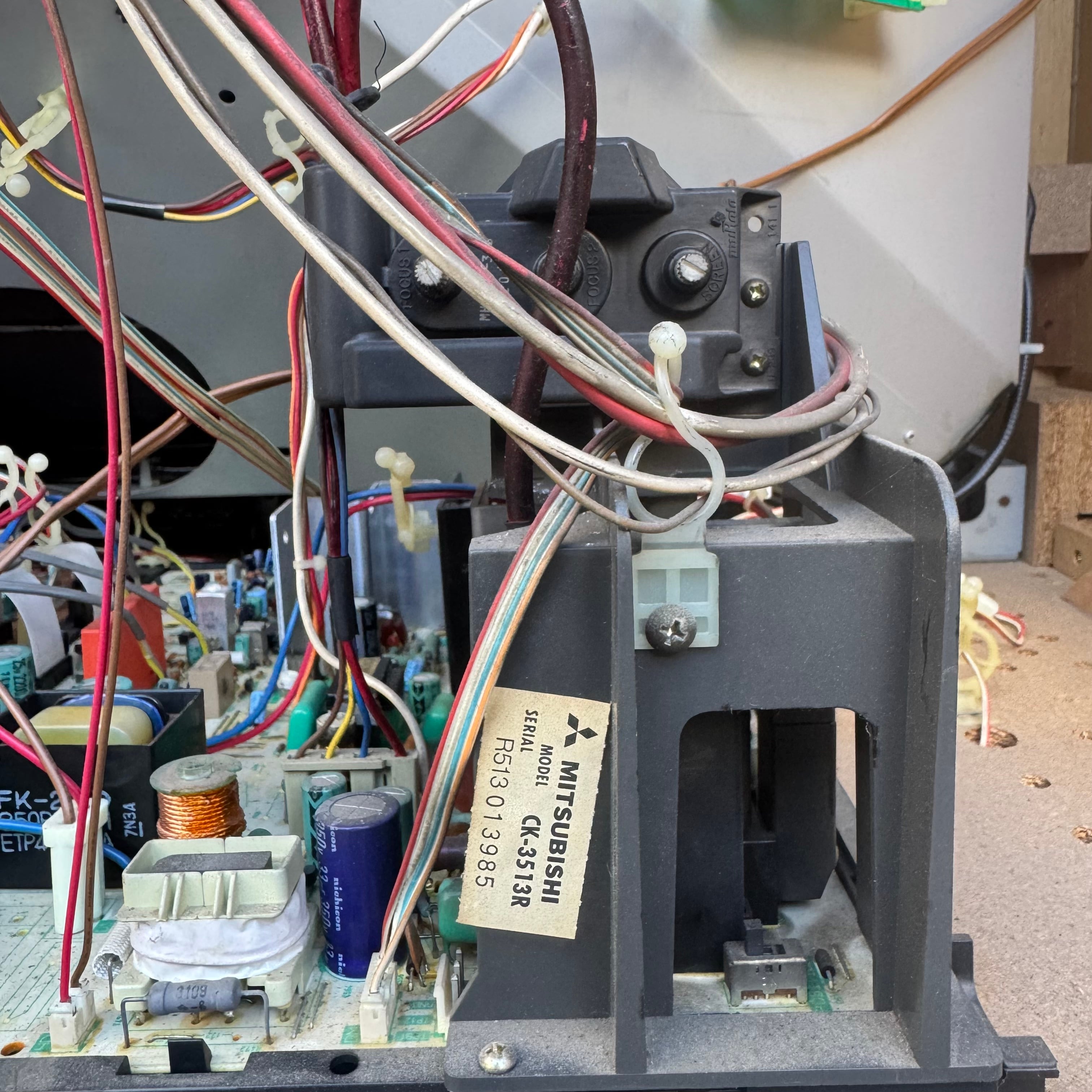

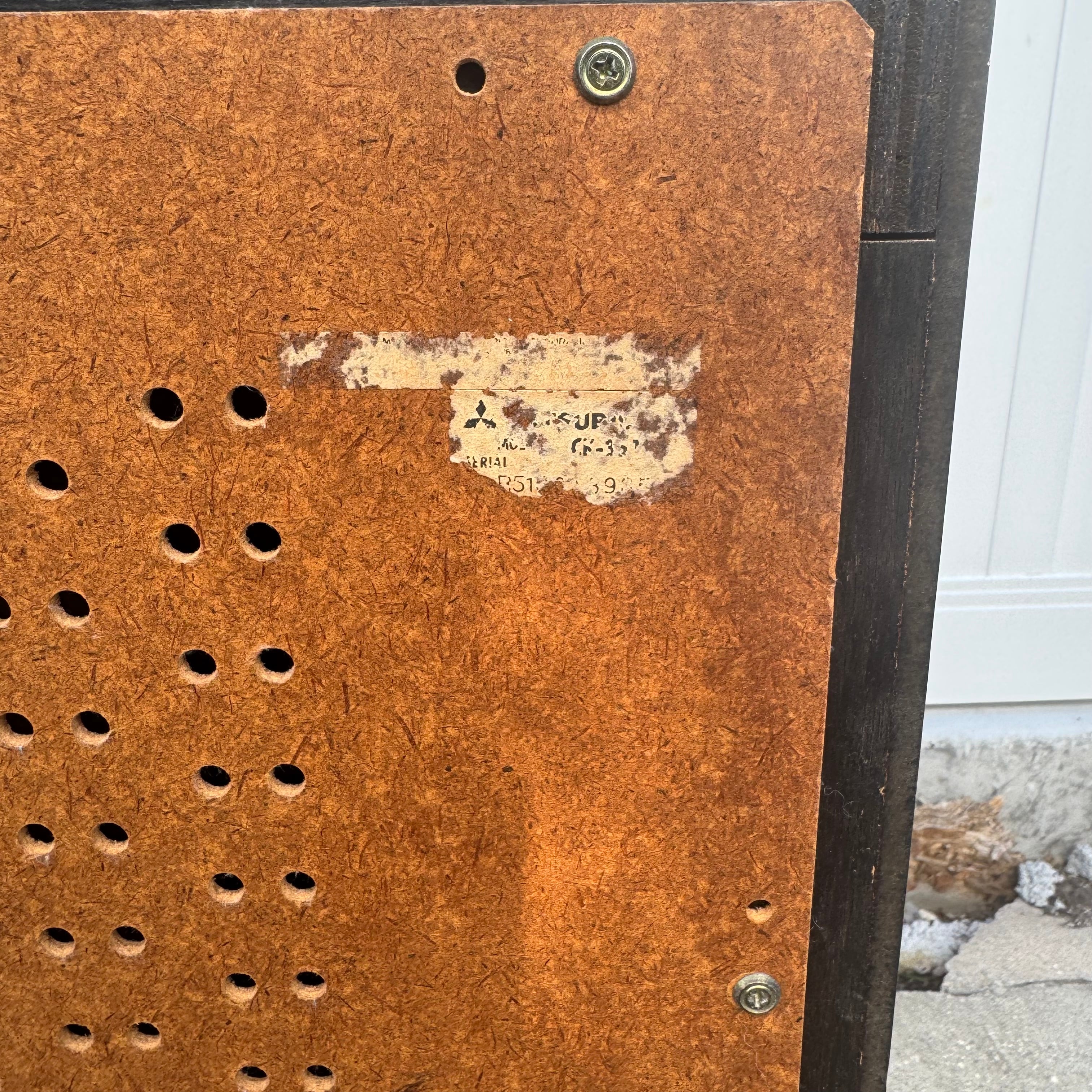

| Model: | CK-3513R |
| Series: | Diamond Vision II |
| Viewable Size: | 35" |

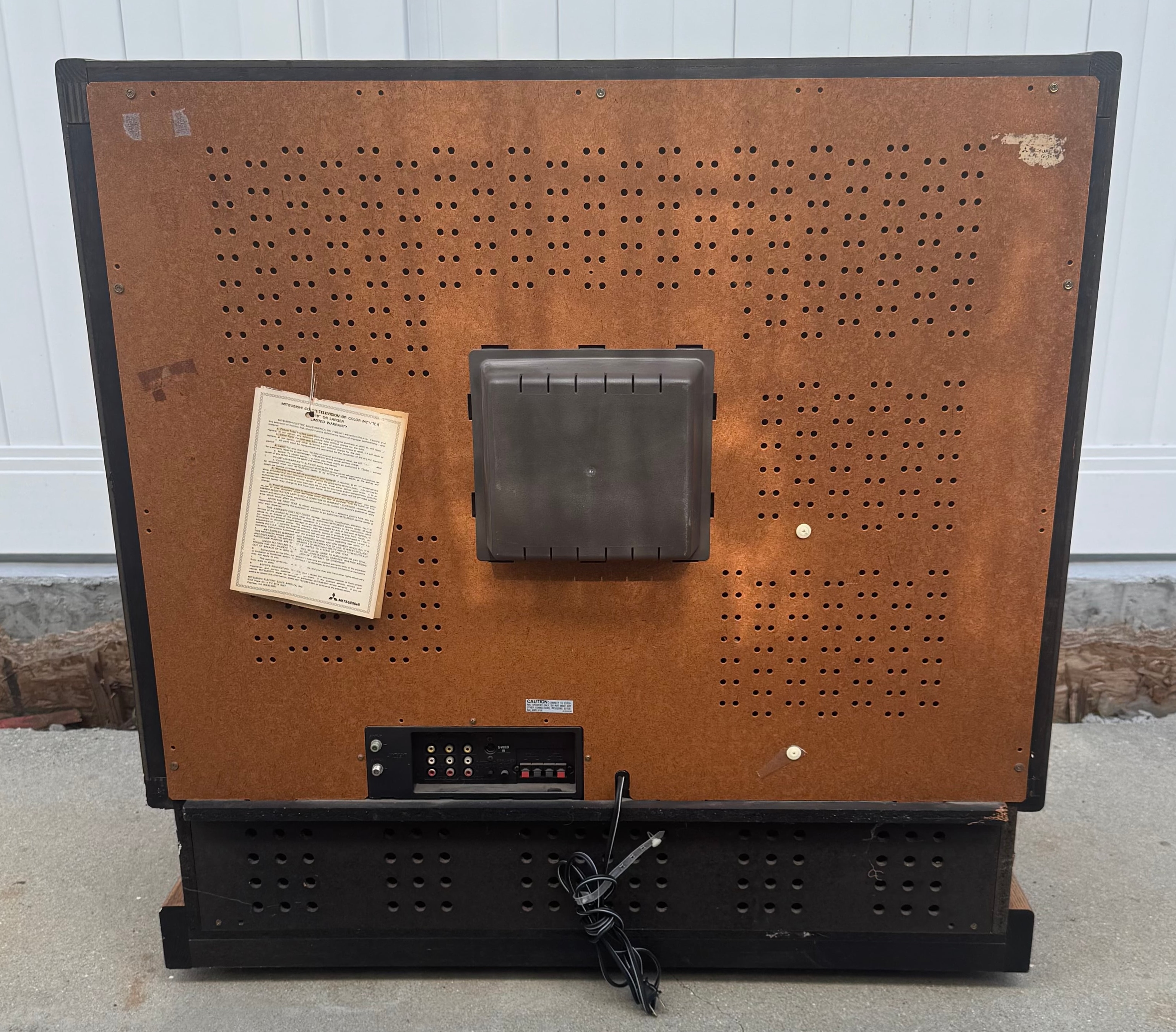

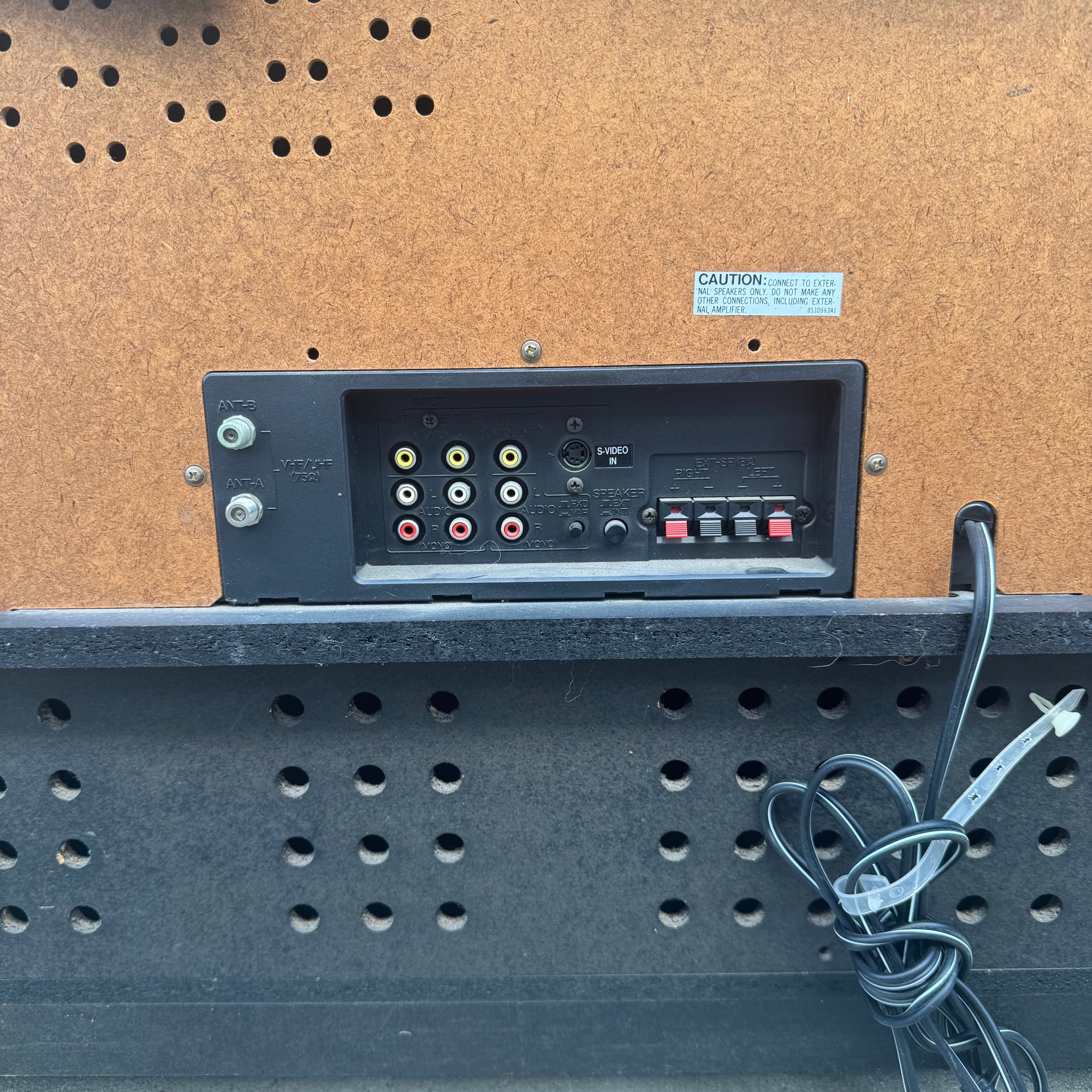

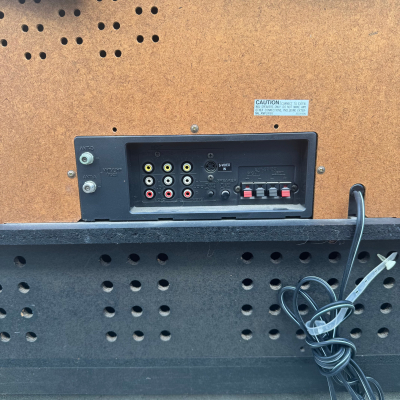

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

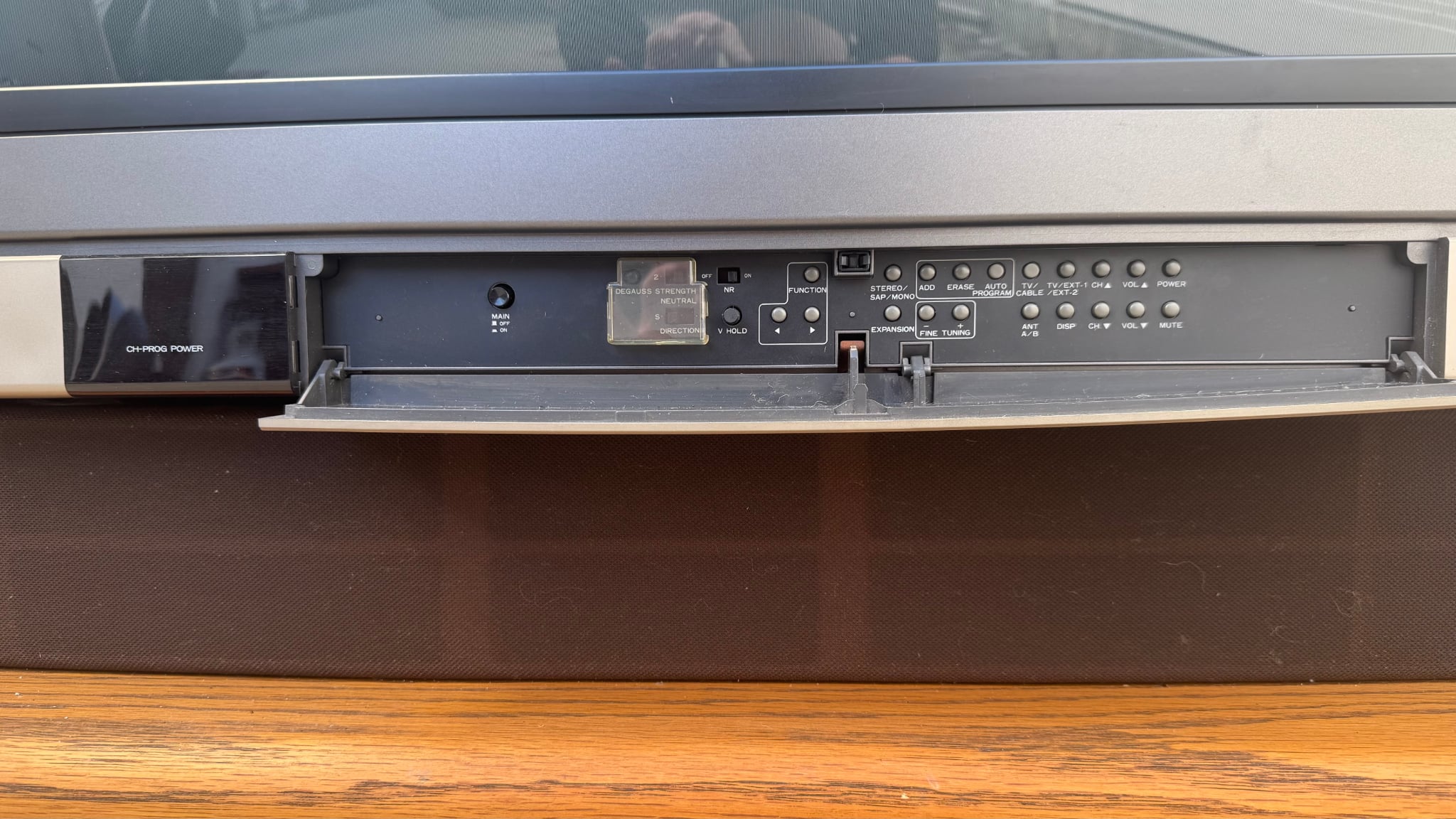

| Adjustments: | Internal Potentiometers, OSD Customer Controls |

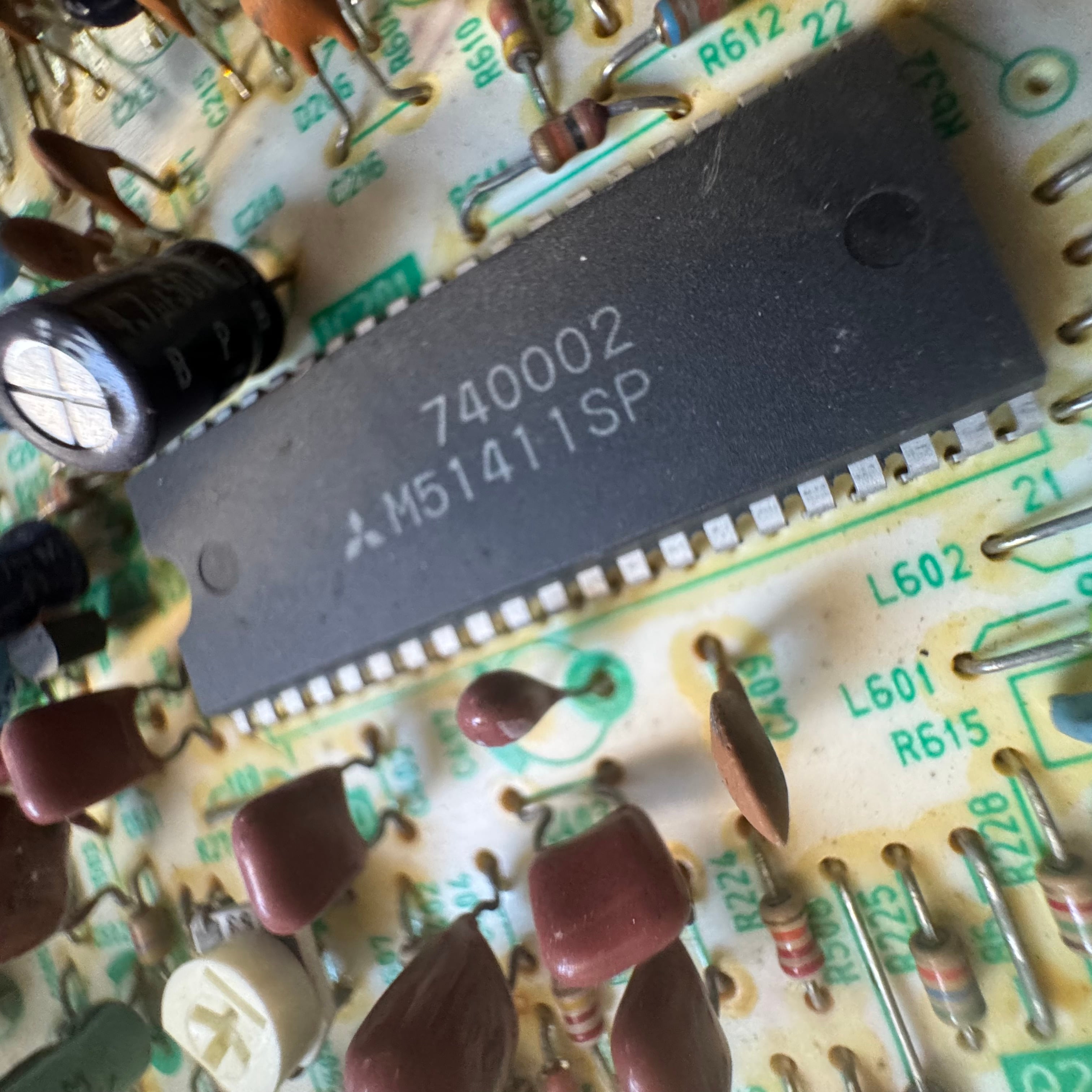

| Jungle IC: | Mitsubishi, M51411SP, M51411 |

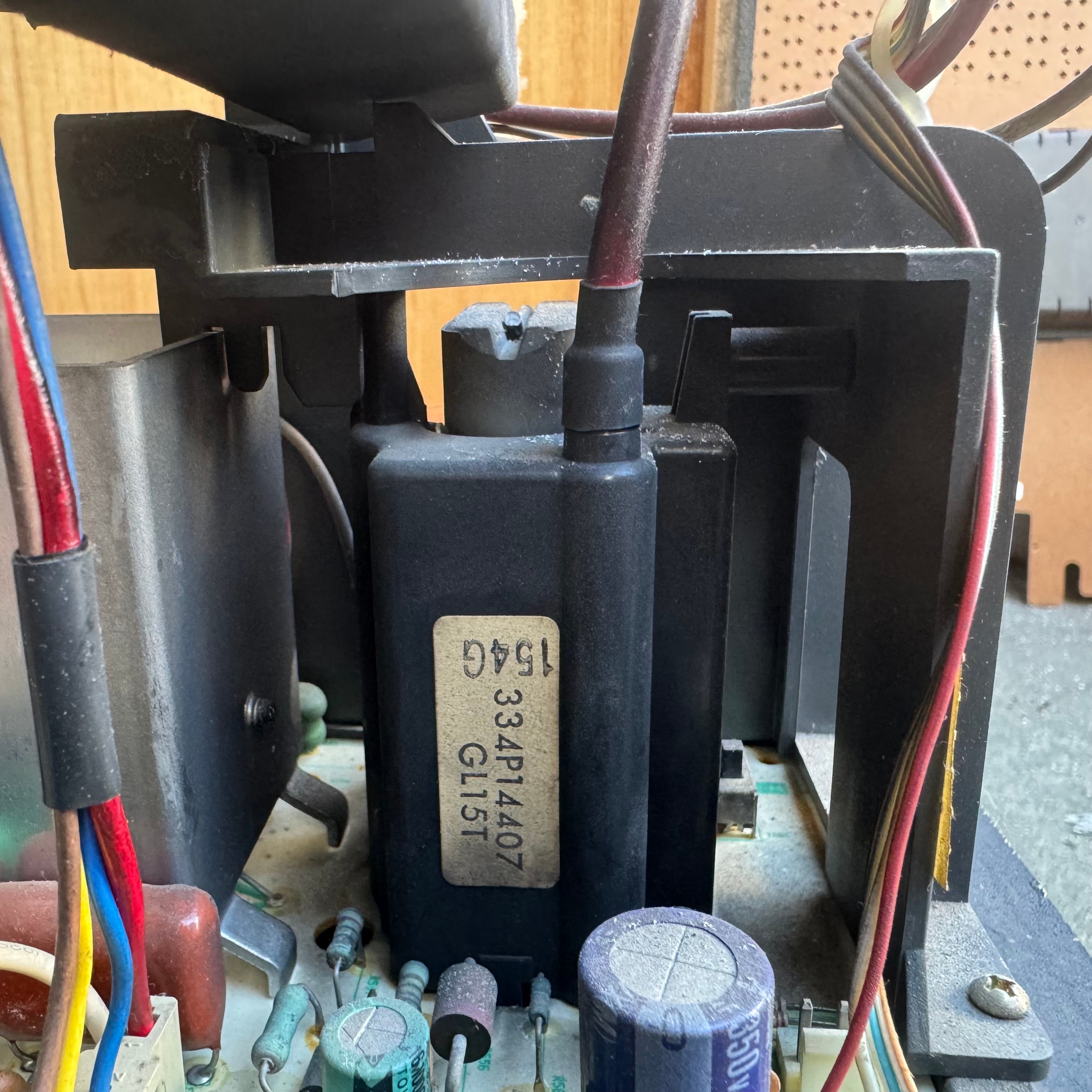

| Flyback: | 334P14407, GL15T |
| Focus Type: | Dual |

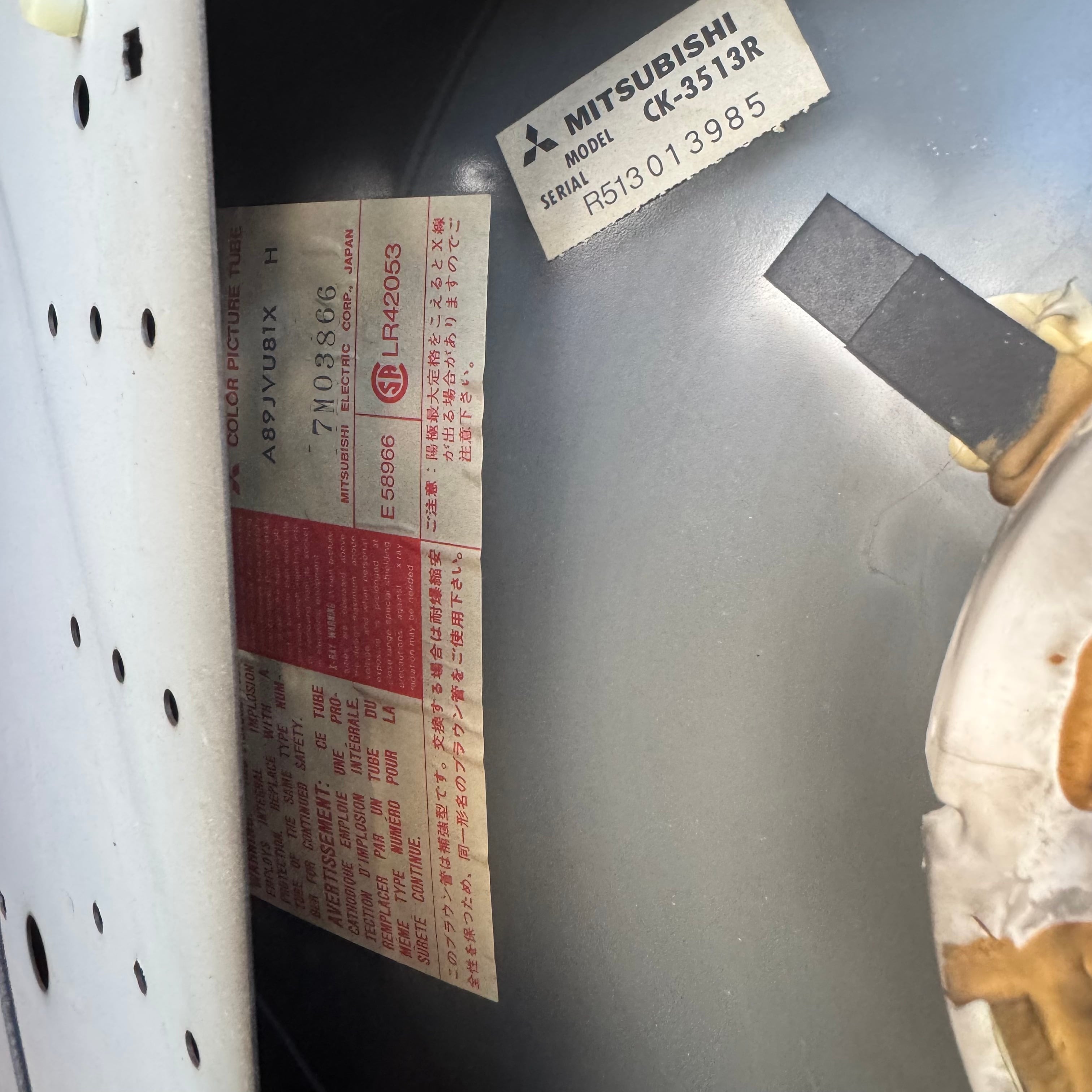

| Tube: | Mitsubishi , A89JVU81X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

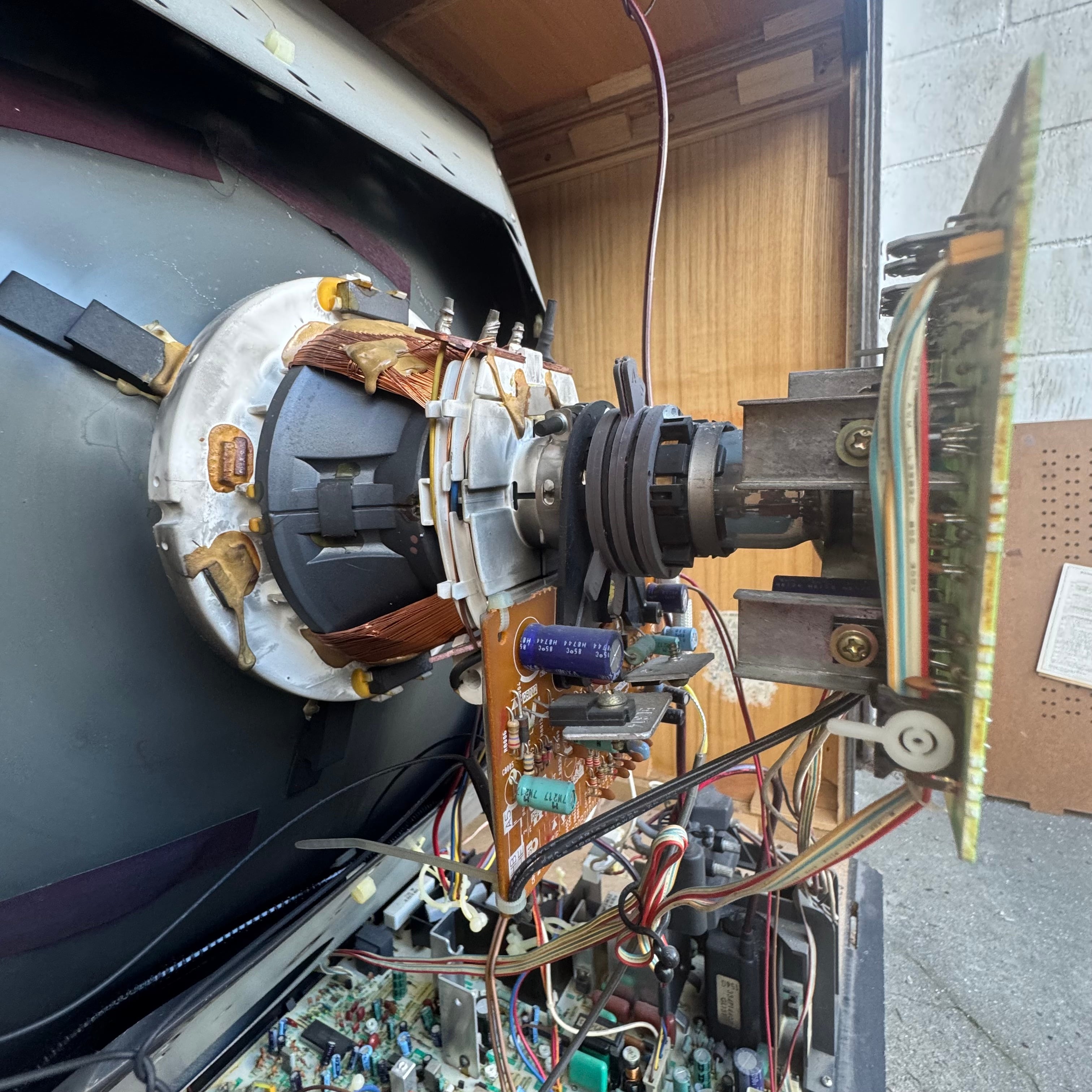

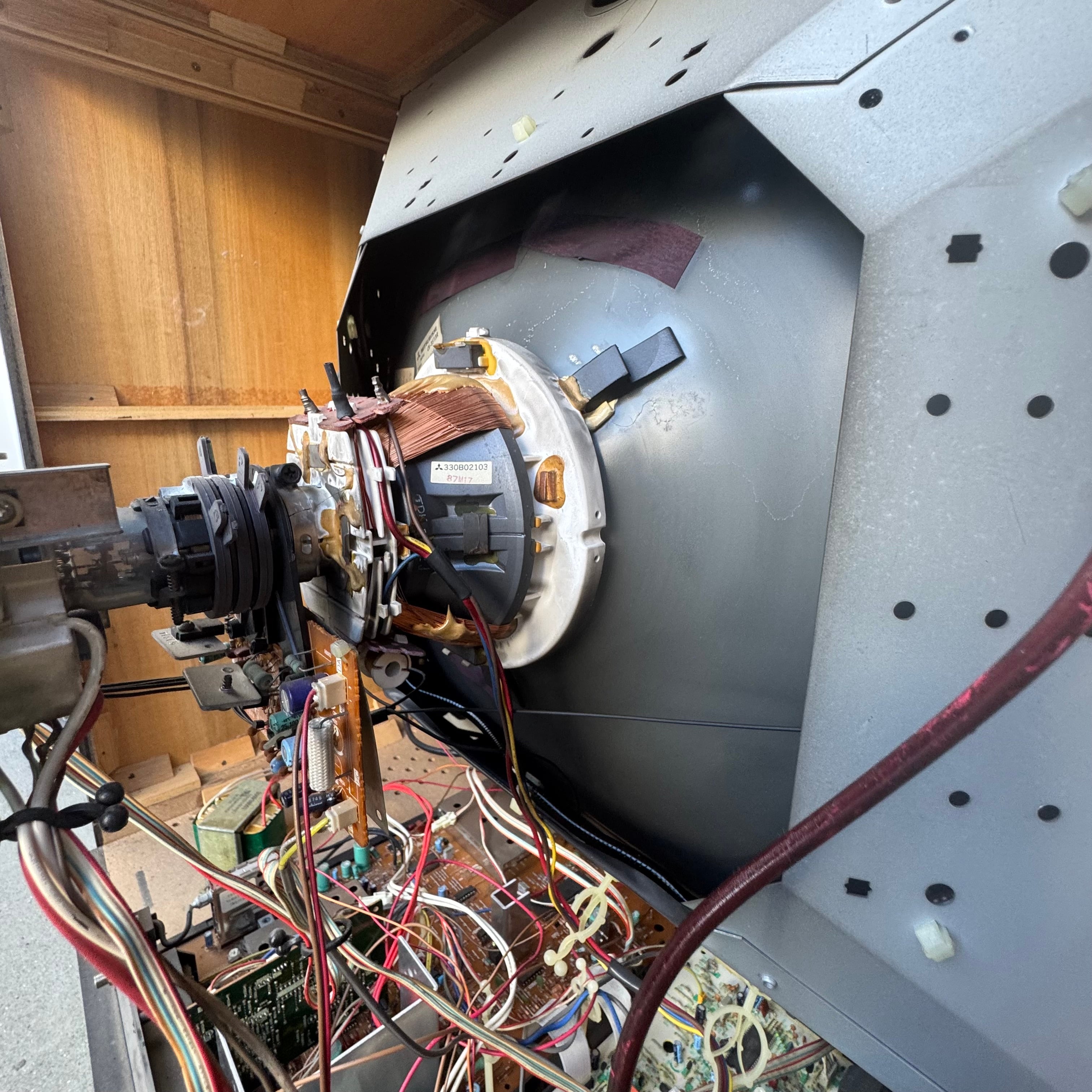

| Yoke: | Mitsubishi, 330B02103 |

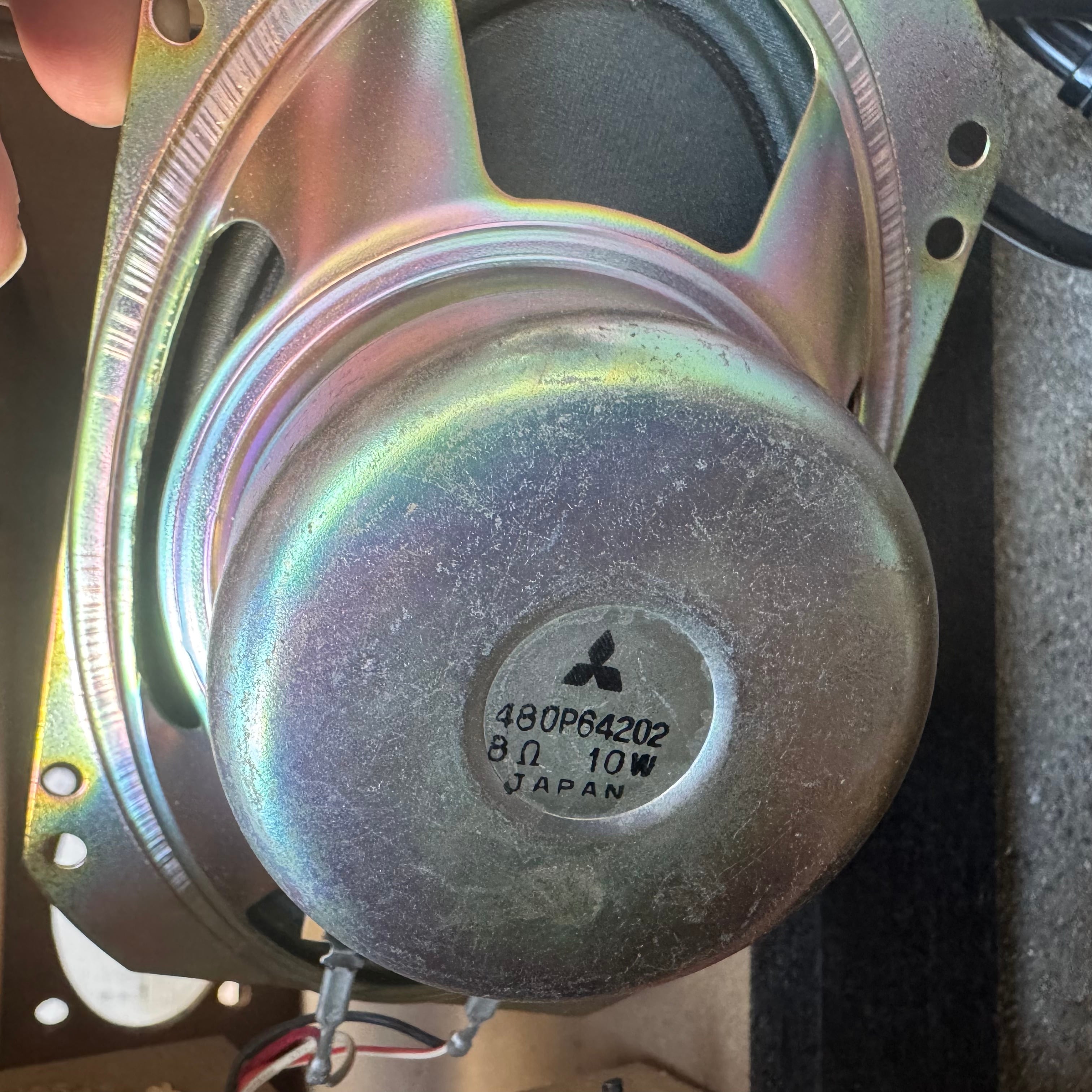

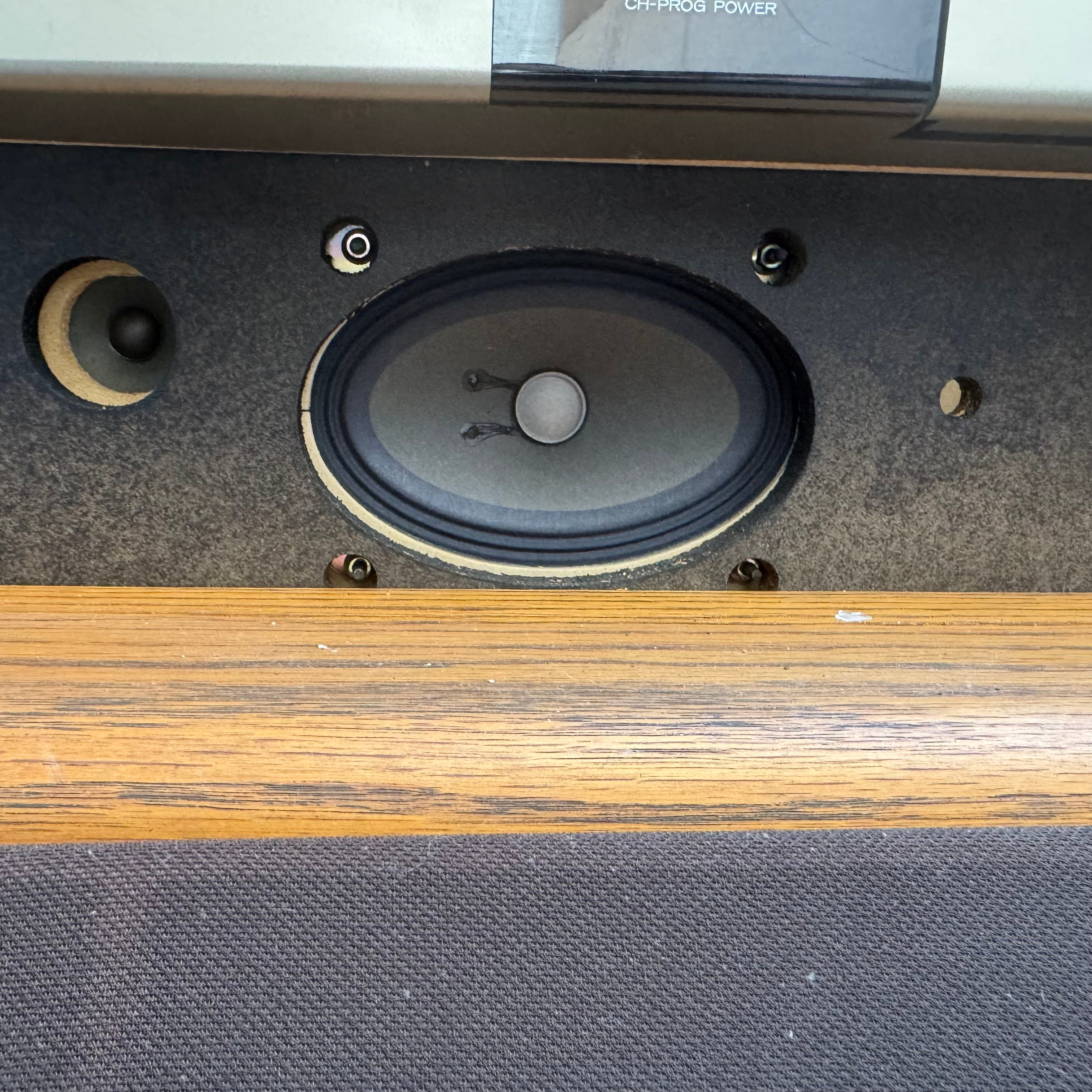

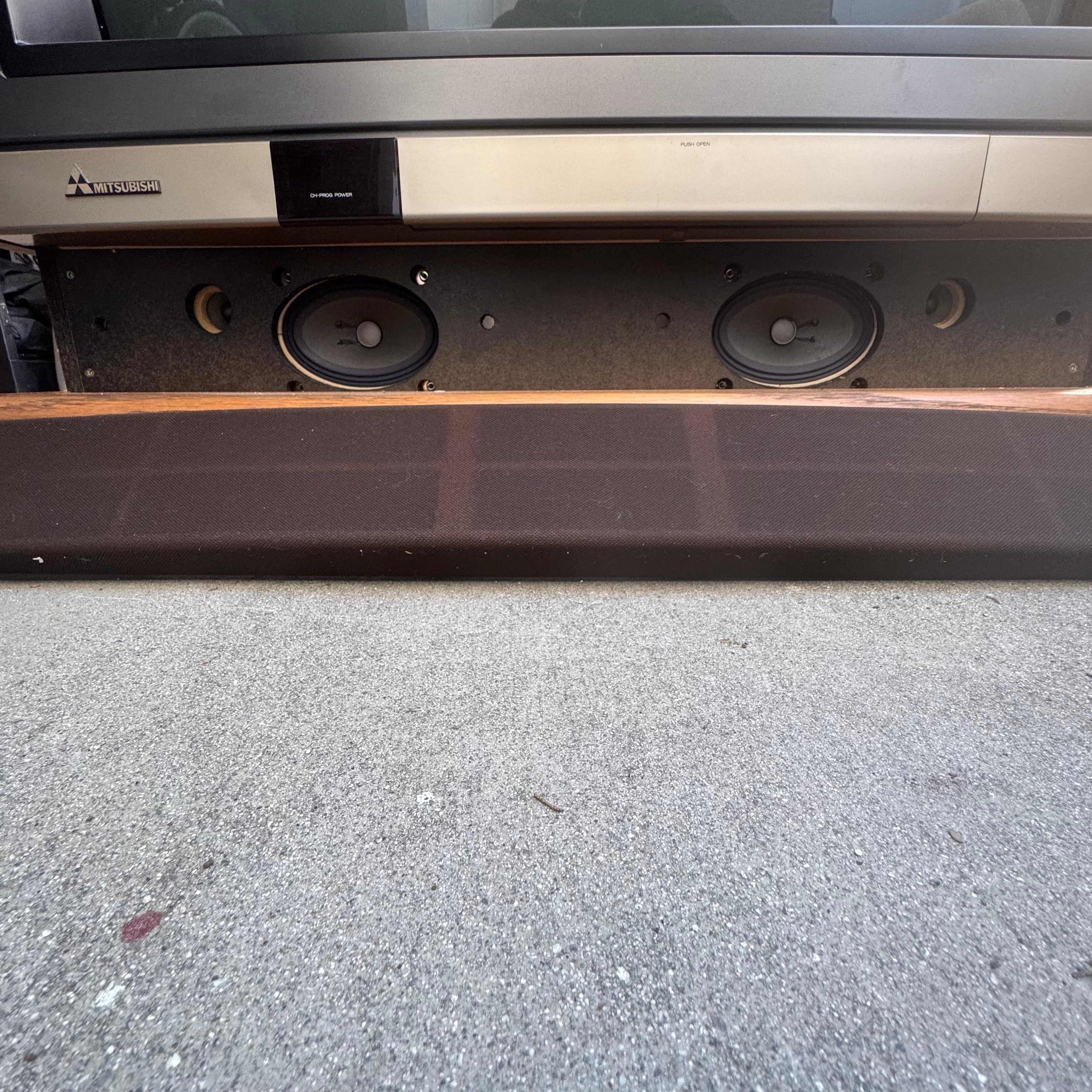

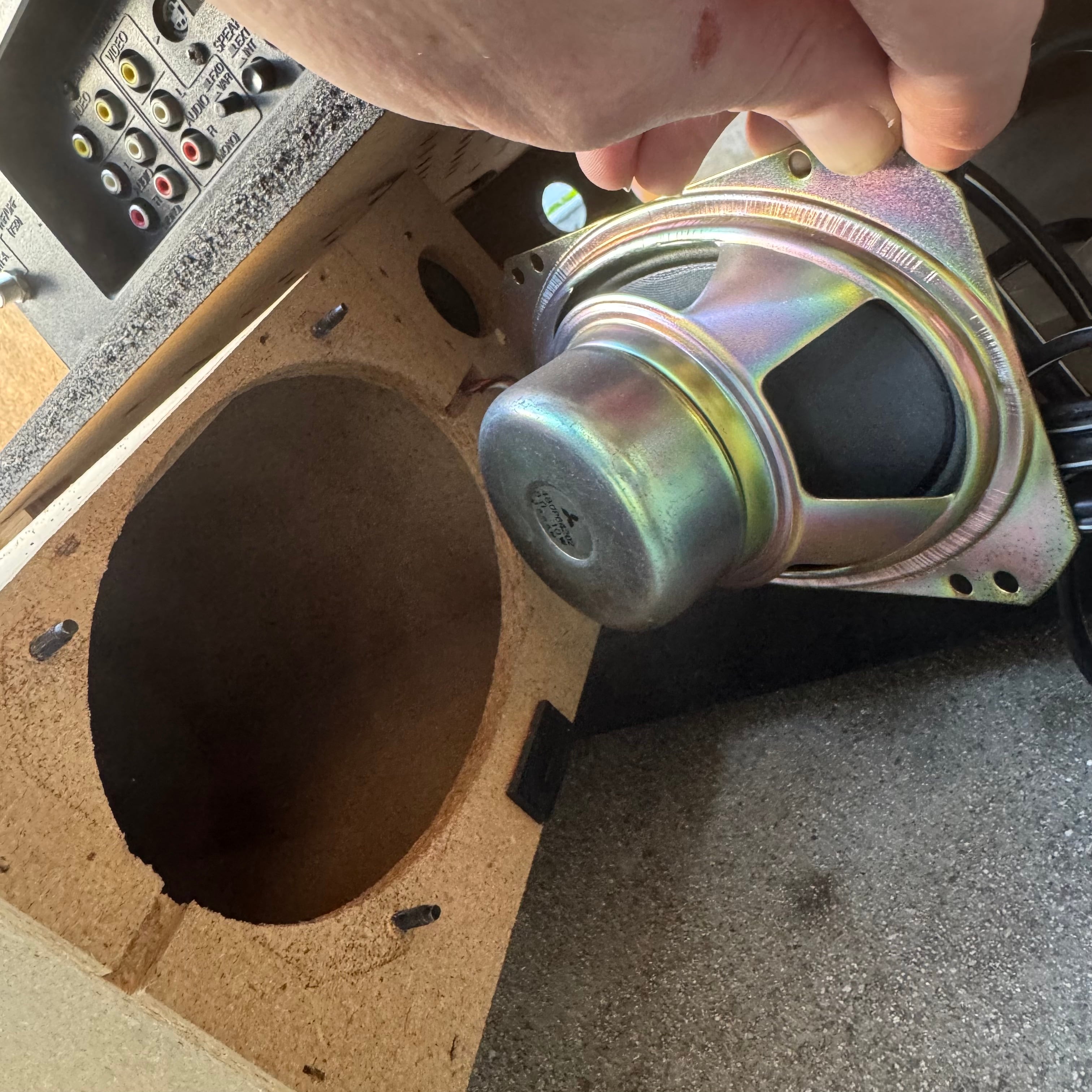

| Speakers: | Stereo, 10W x 2 |

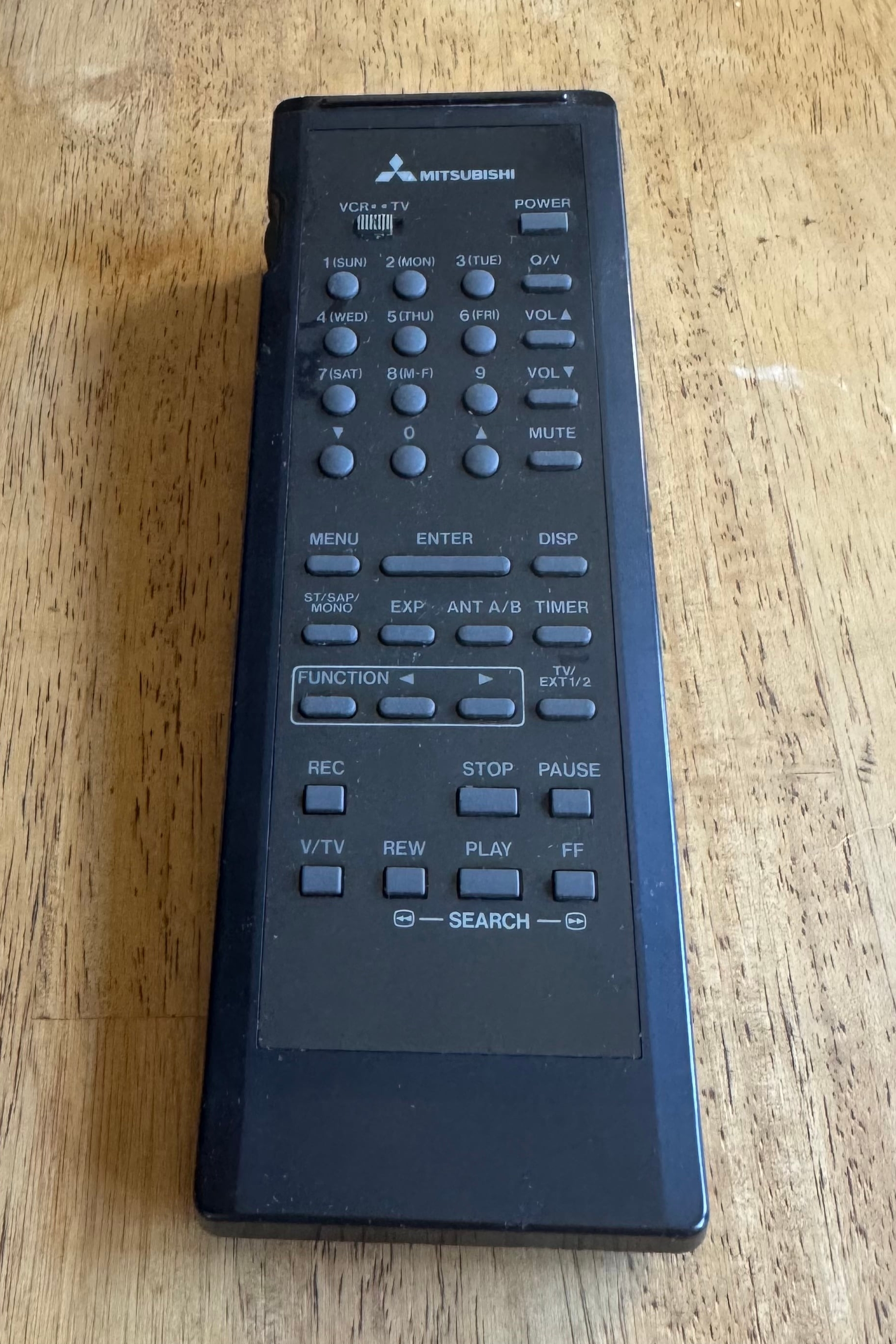

| Remote: | 939P190A3 |

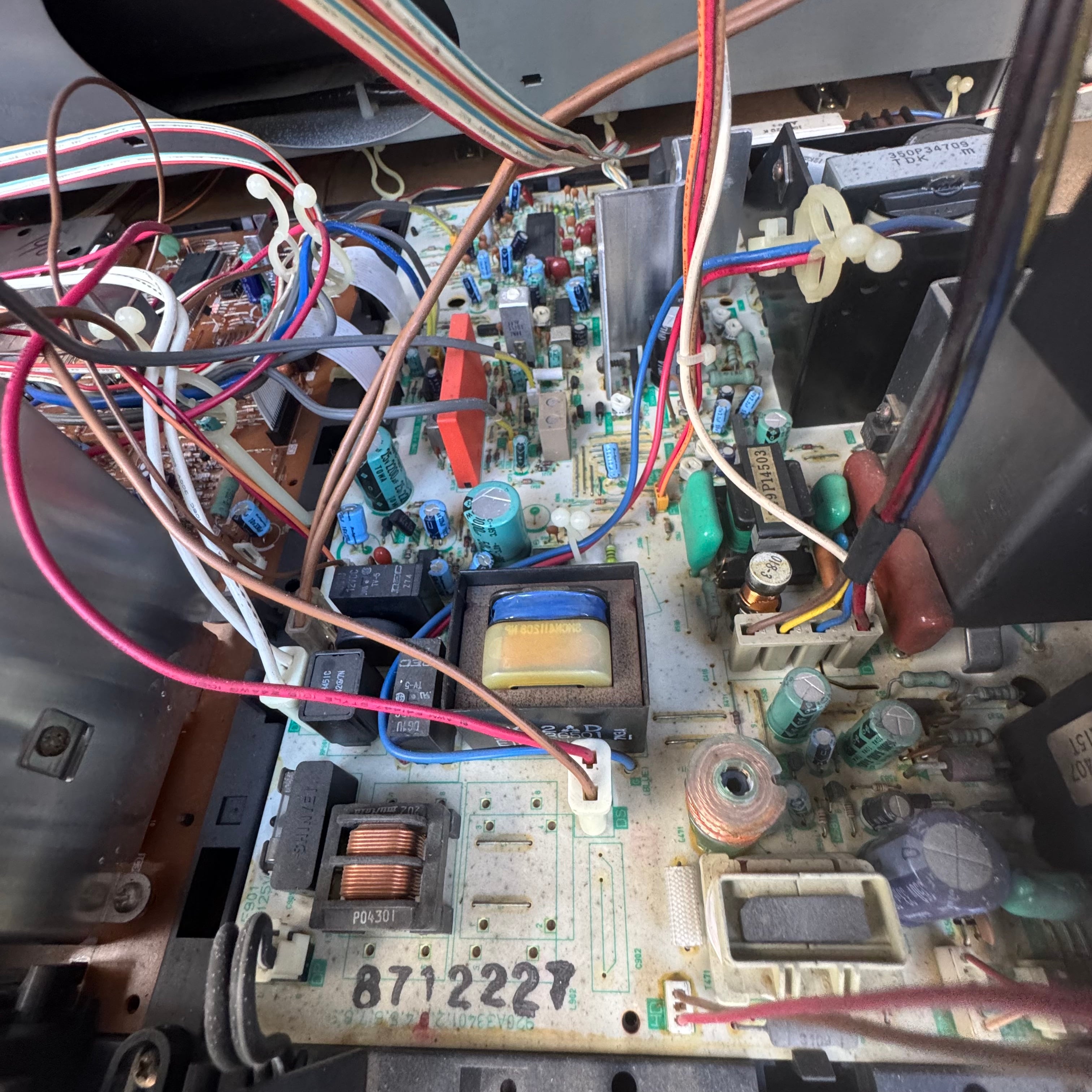

| Chassis: | SA-3 |
| Application: | Consumer |
| Cabinet Material: | Wood |
| Launched: | 1987 |
| MSRP: | 3299 USD |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Floor |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
