Mitsubishi CS-1798
Eli Krause
May 16, 2025, 10:02 pm
May 20, 2025, 12:23 pm
May 16, 2025, 10:02 pm
May 20, 2025, 12:23 pm
Summary

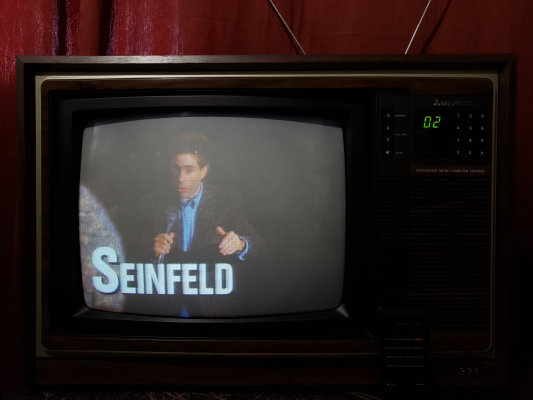

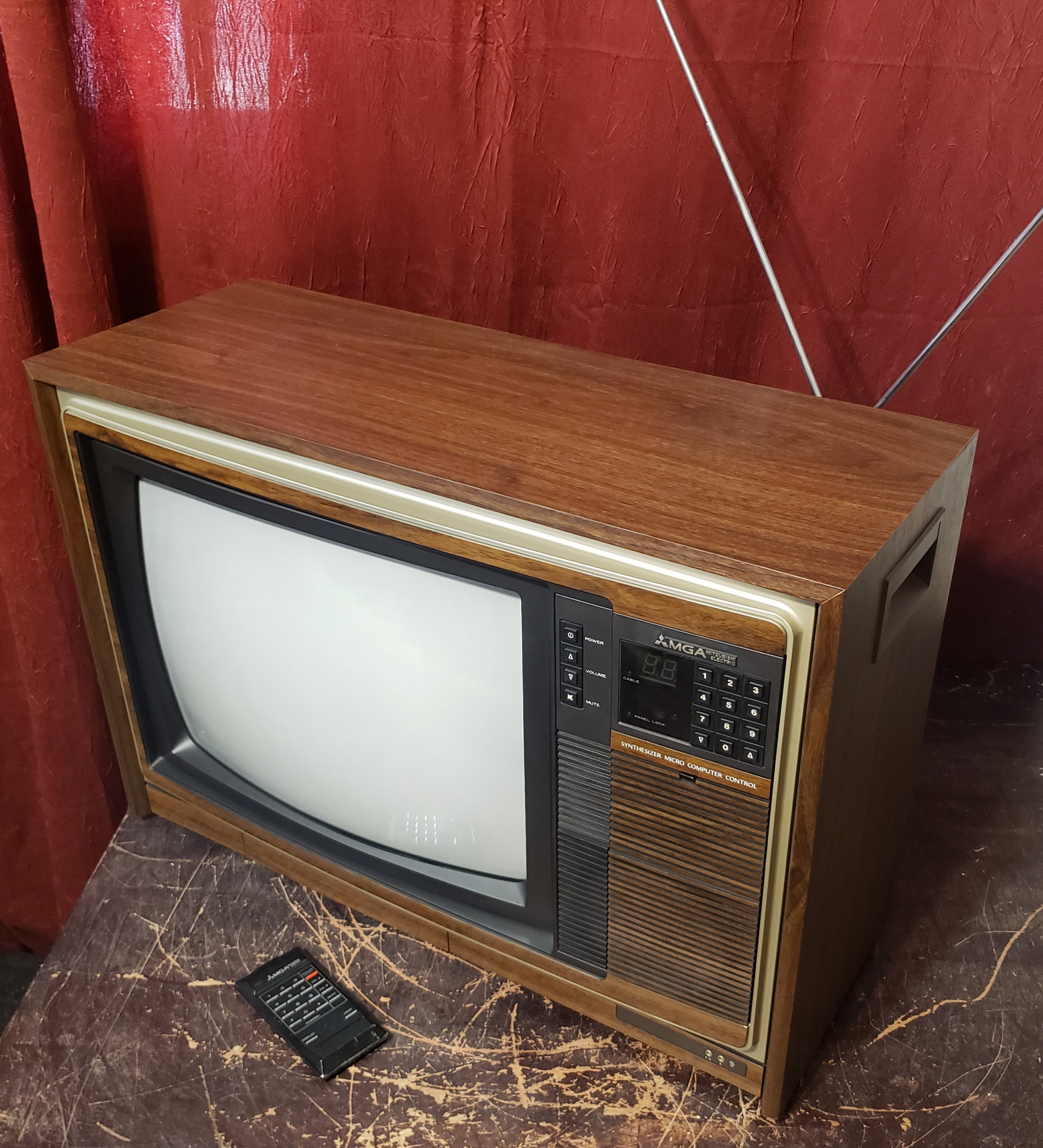

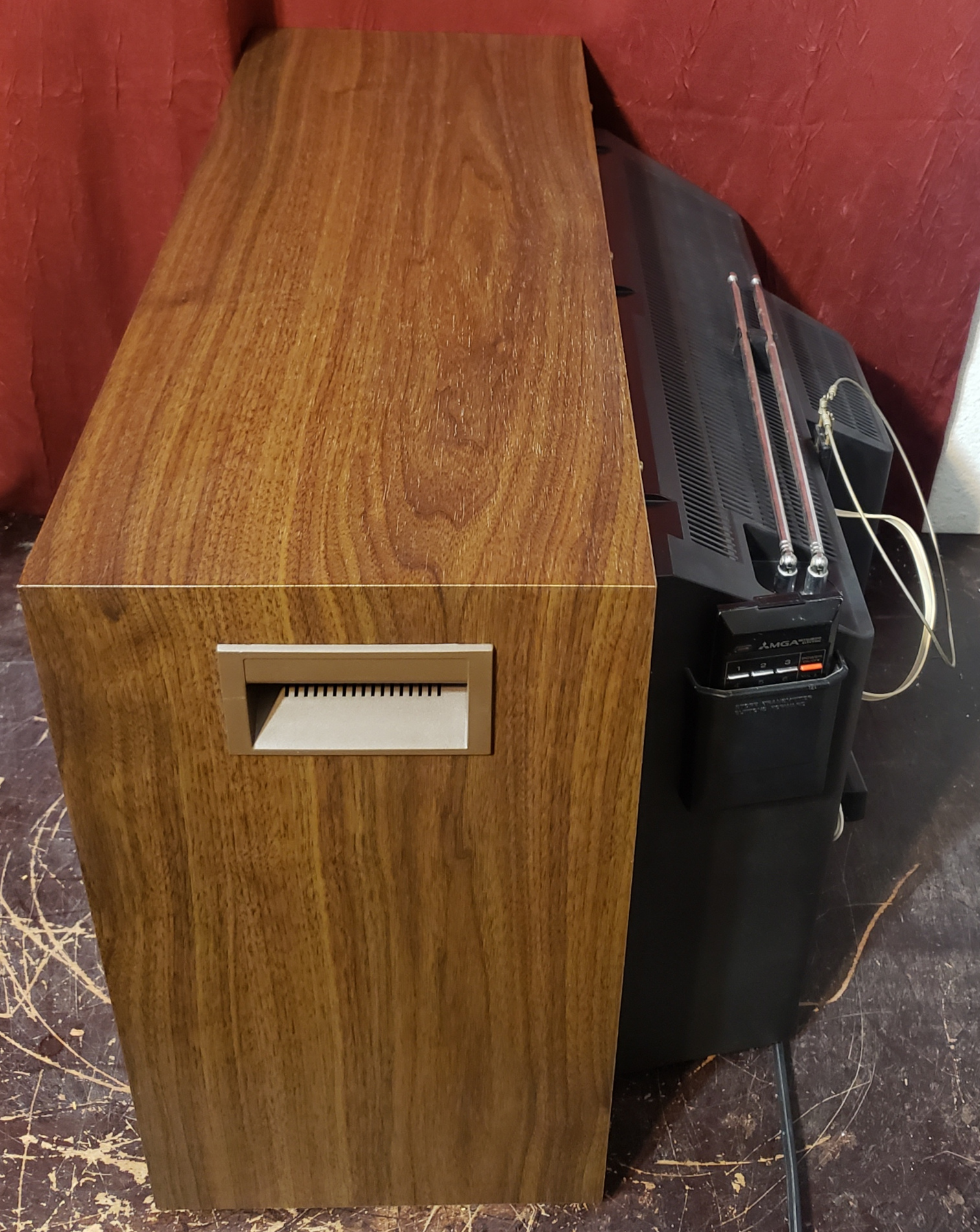

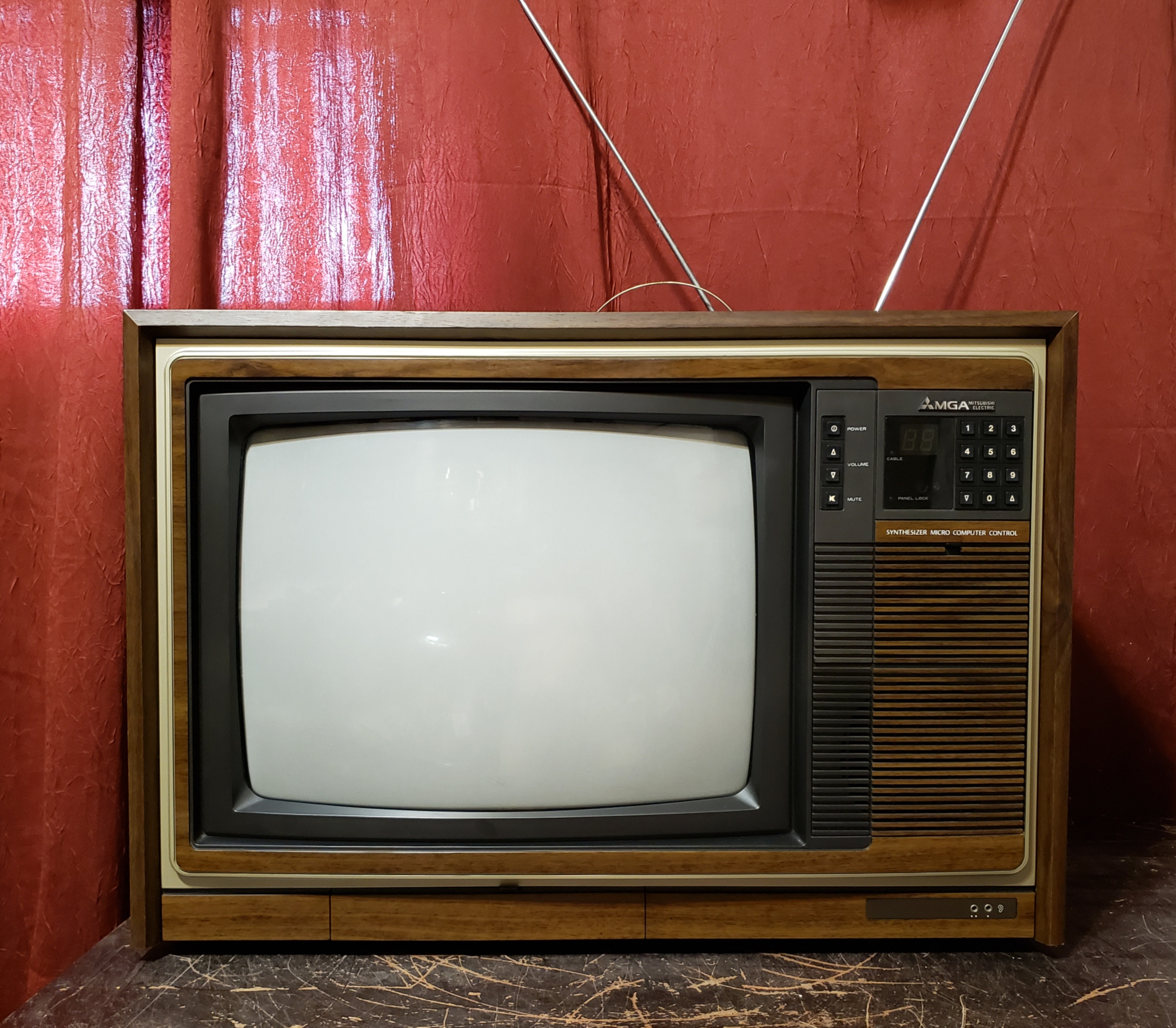

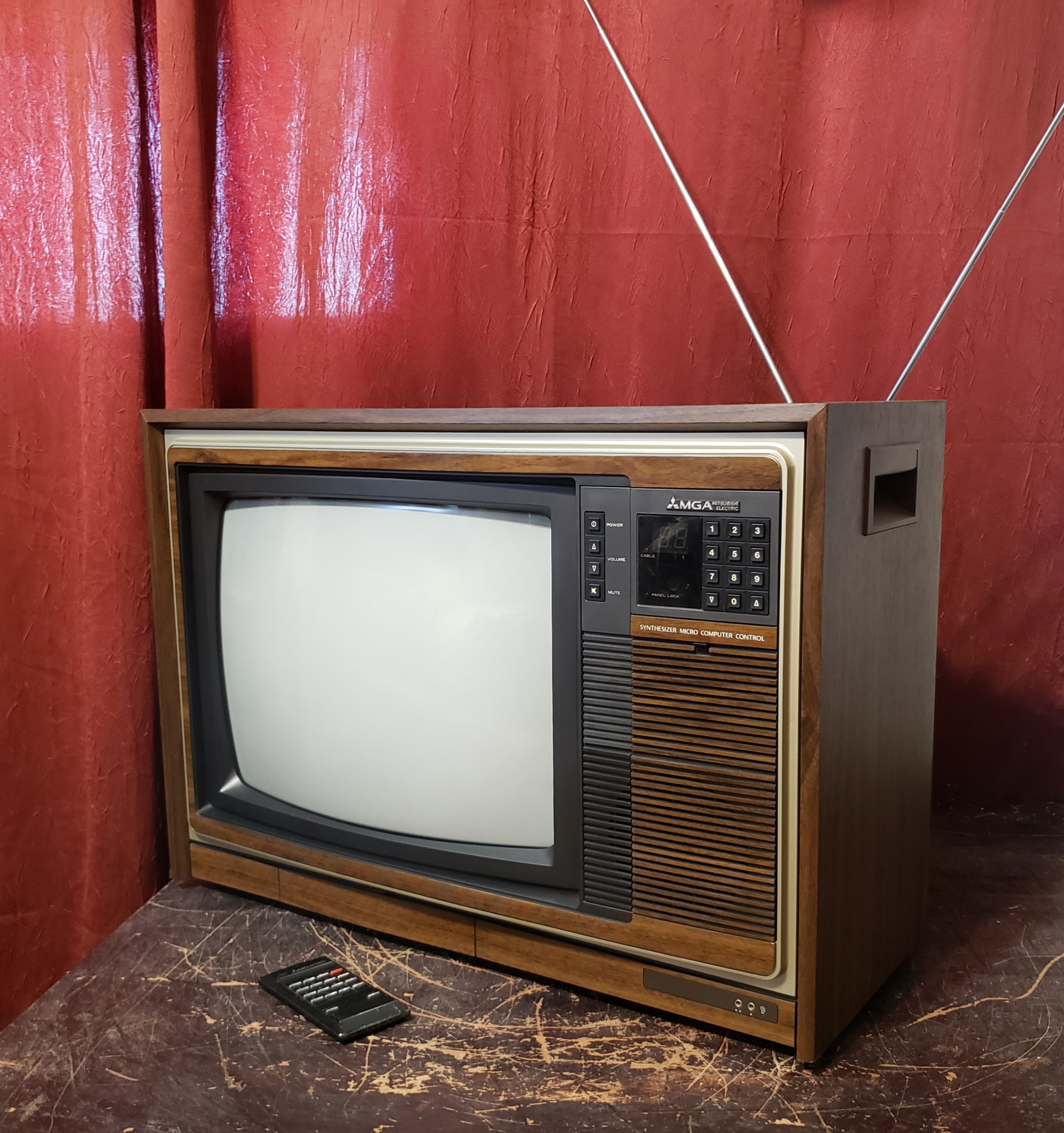

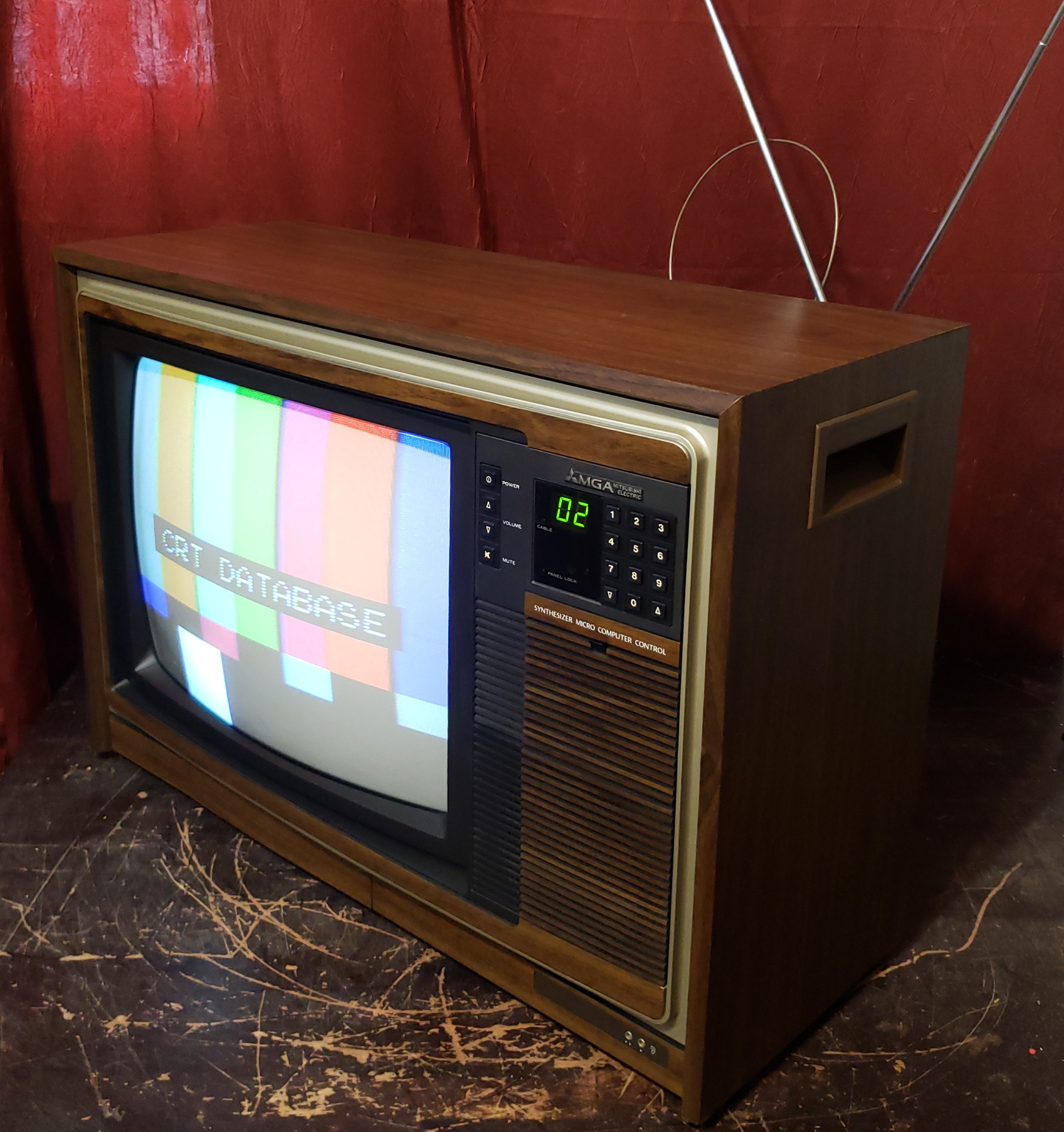

CS-1798 features wireless infrared remote control, quartz synthesized digital tuning (never adjust fine tuning again) in wood cabinet with carrying handles.

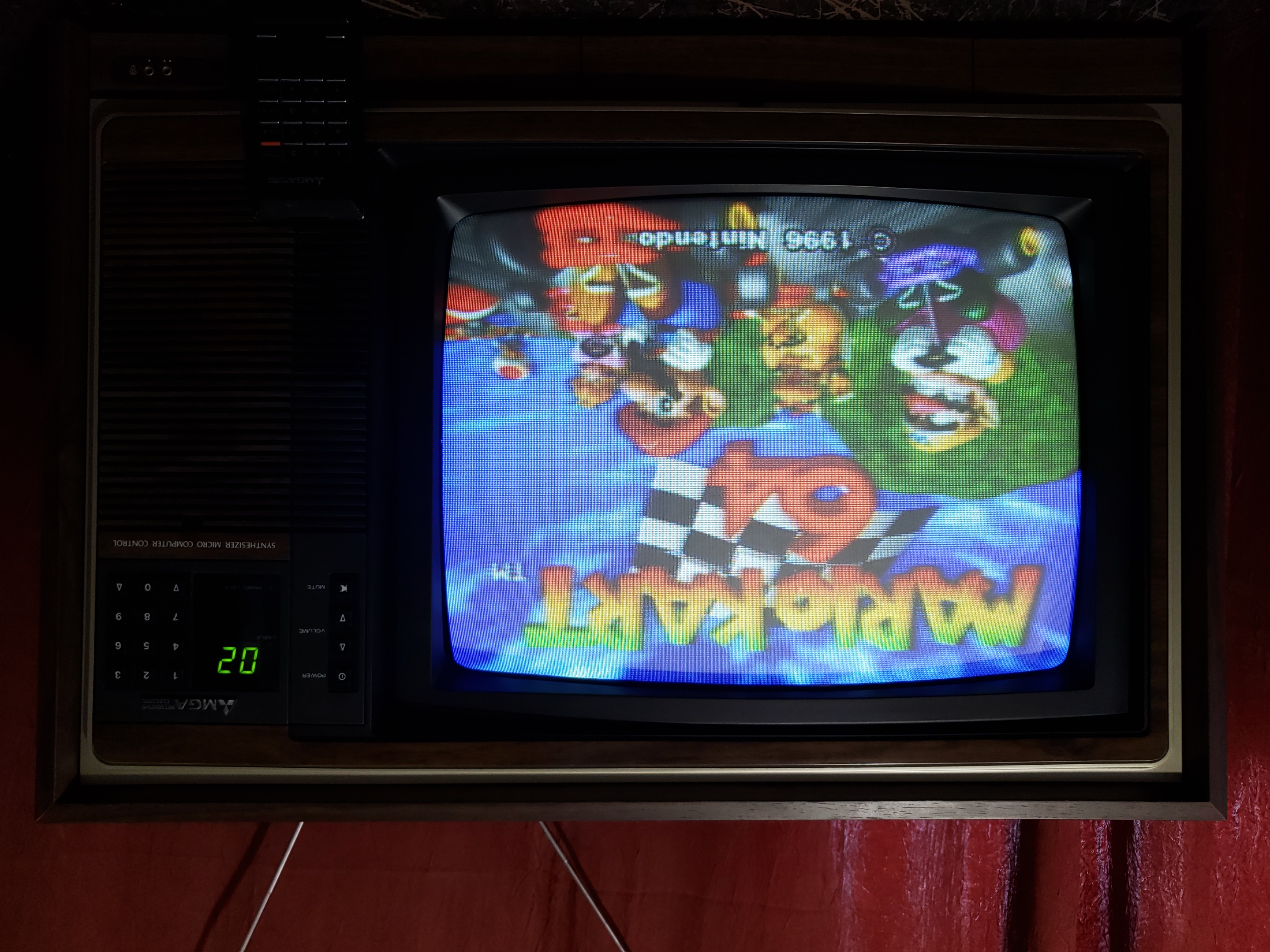

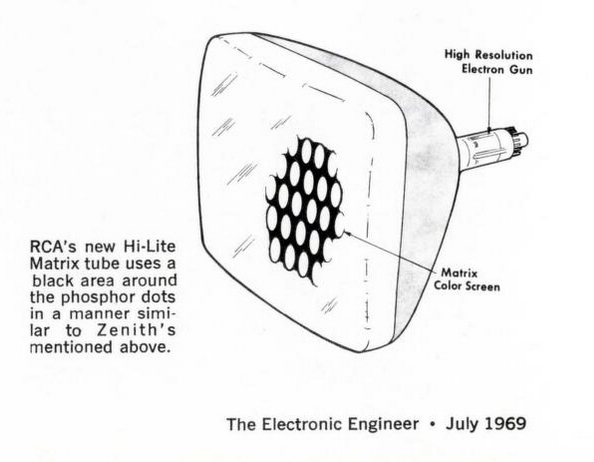

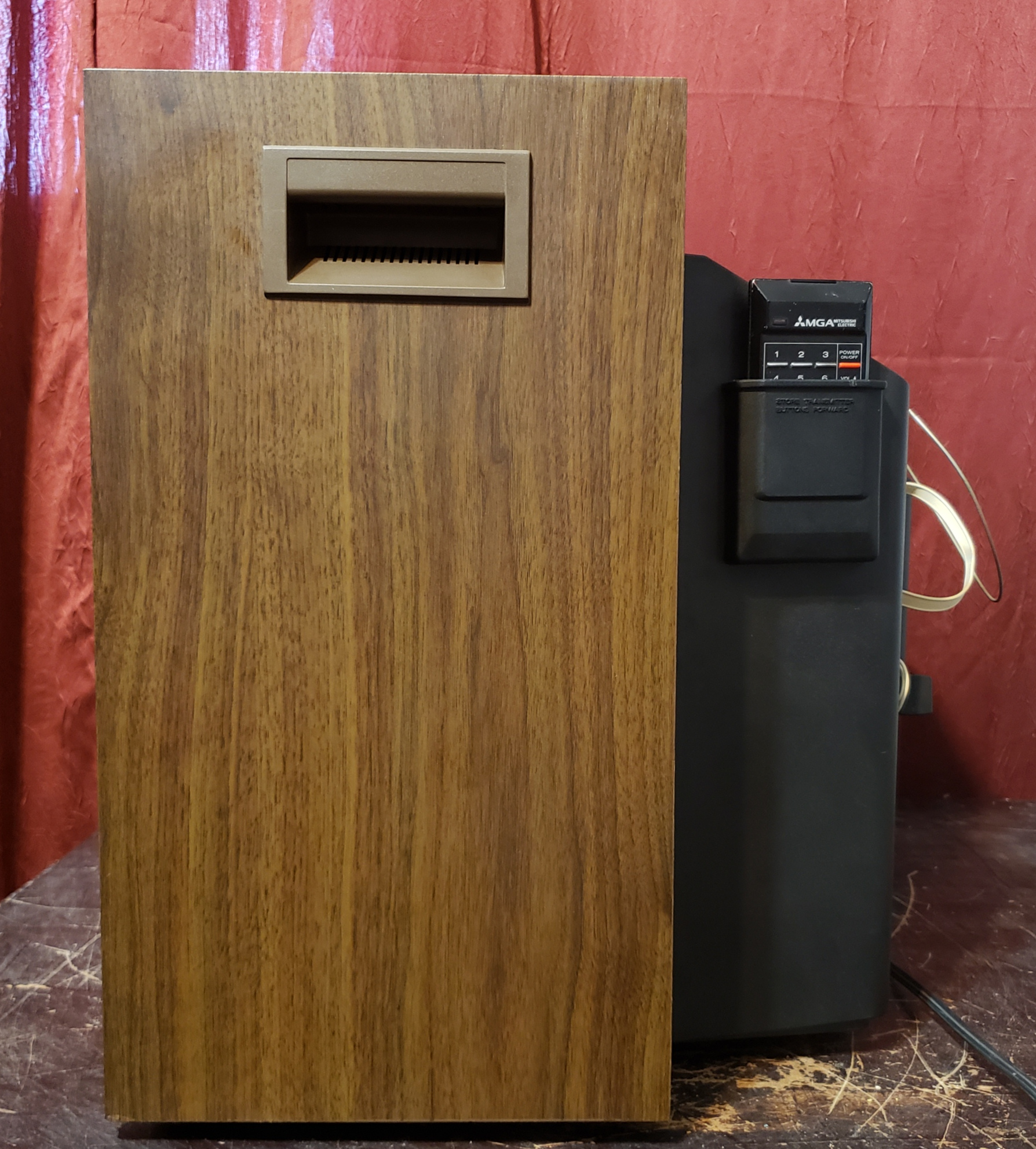

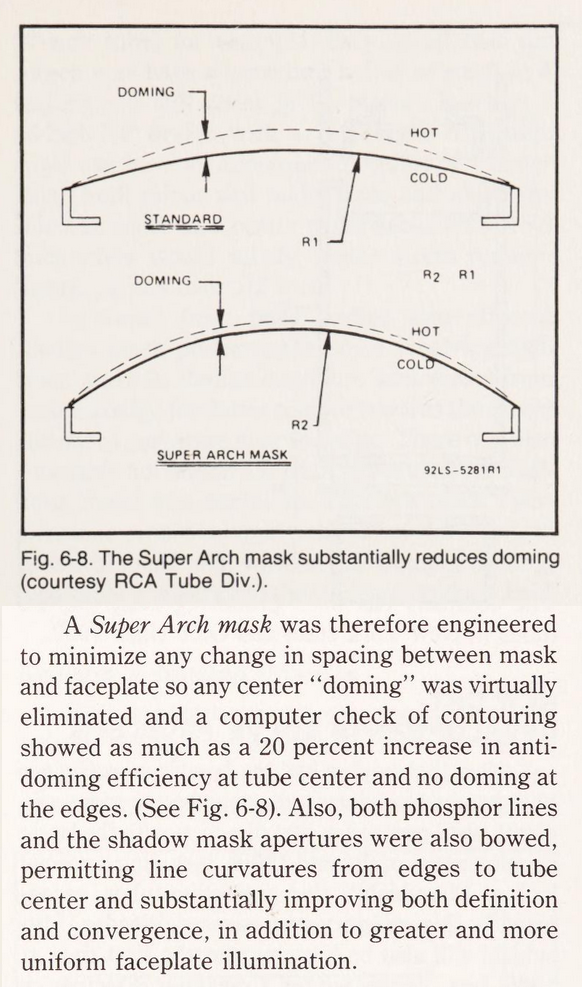

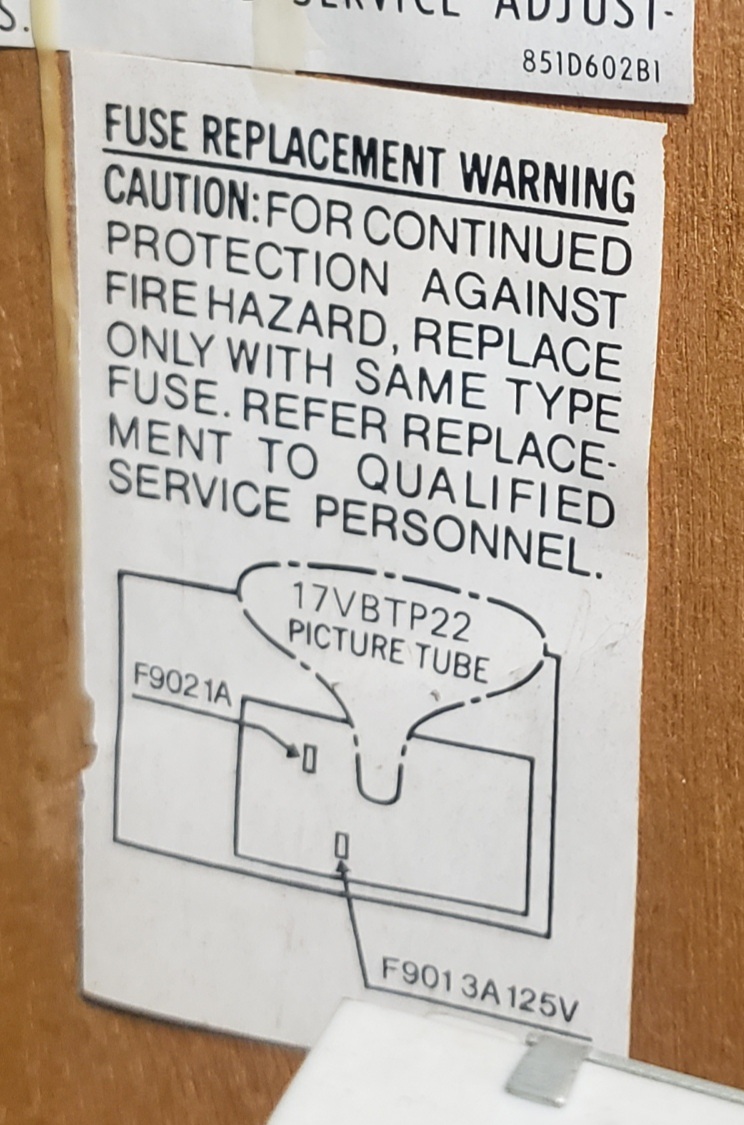

Picture tube utilizes a Super Arch Mask which minimizes doming (uneven thermal expansion), phosphor lines curved at the sides matching the contour of the tube (to eliminate ragged edges), and a Hi-Lite Matrix (black matrix) for increased contrast.
Manuals
None freely available at this time.
Notes

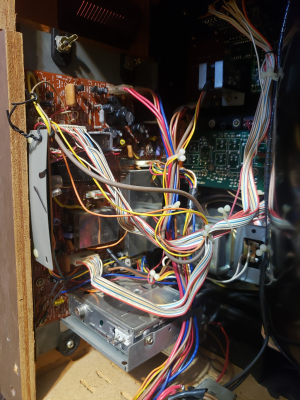

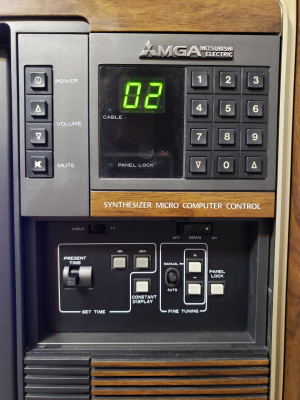

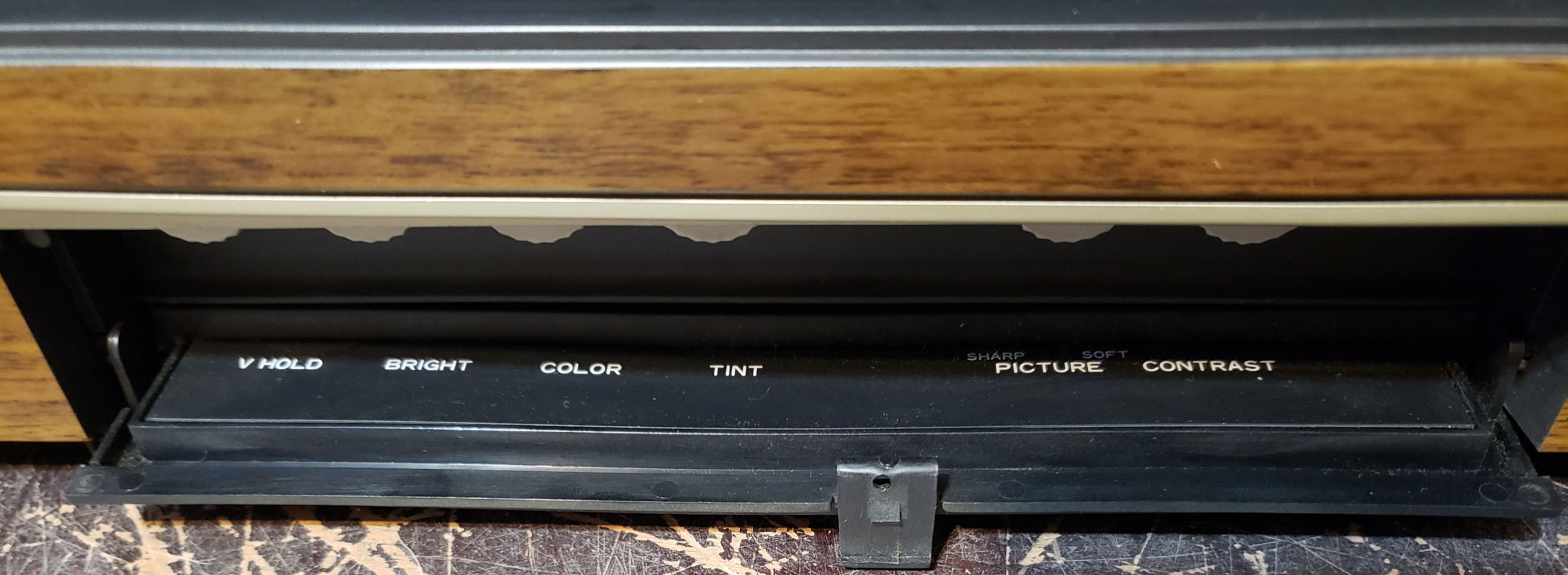

If the set keeps scanning for channels on its own, switch the fine tuning from Auto to Manual underneath the panel below the LED channel indicator.

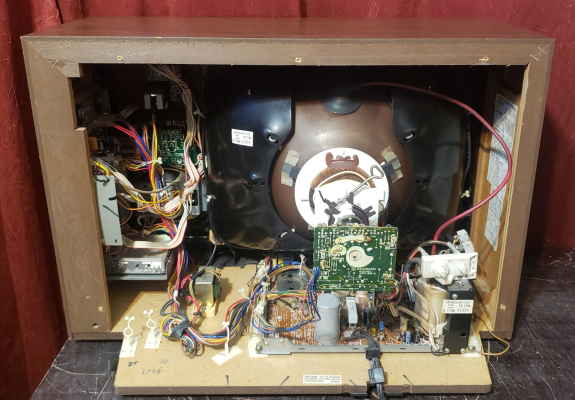

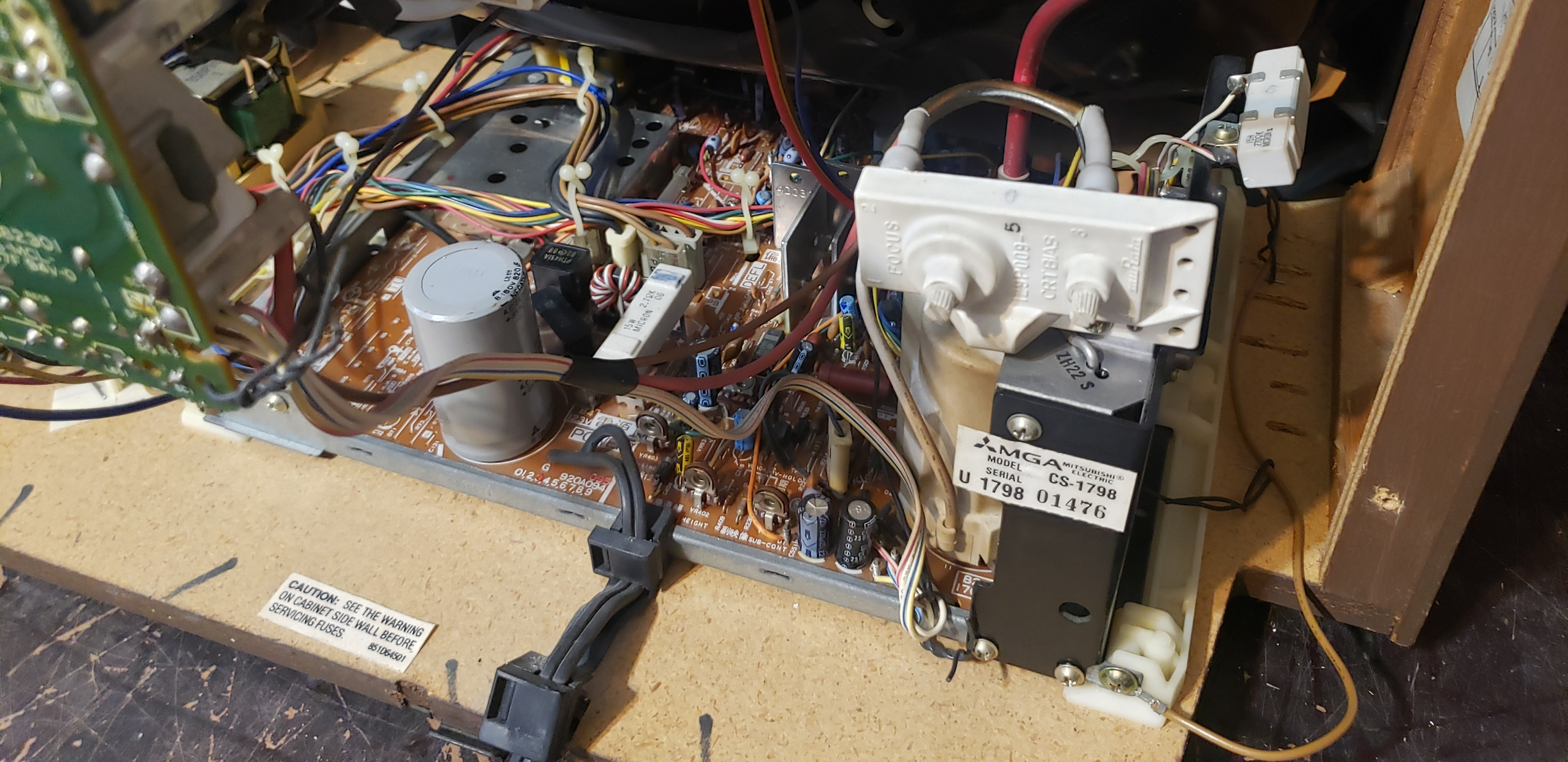

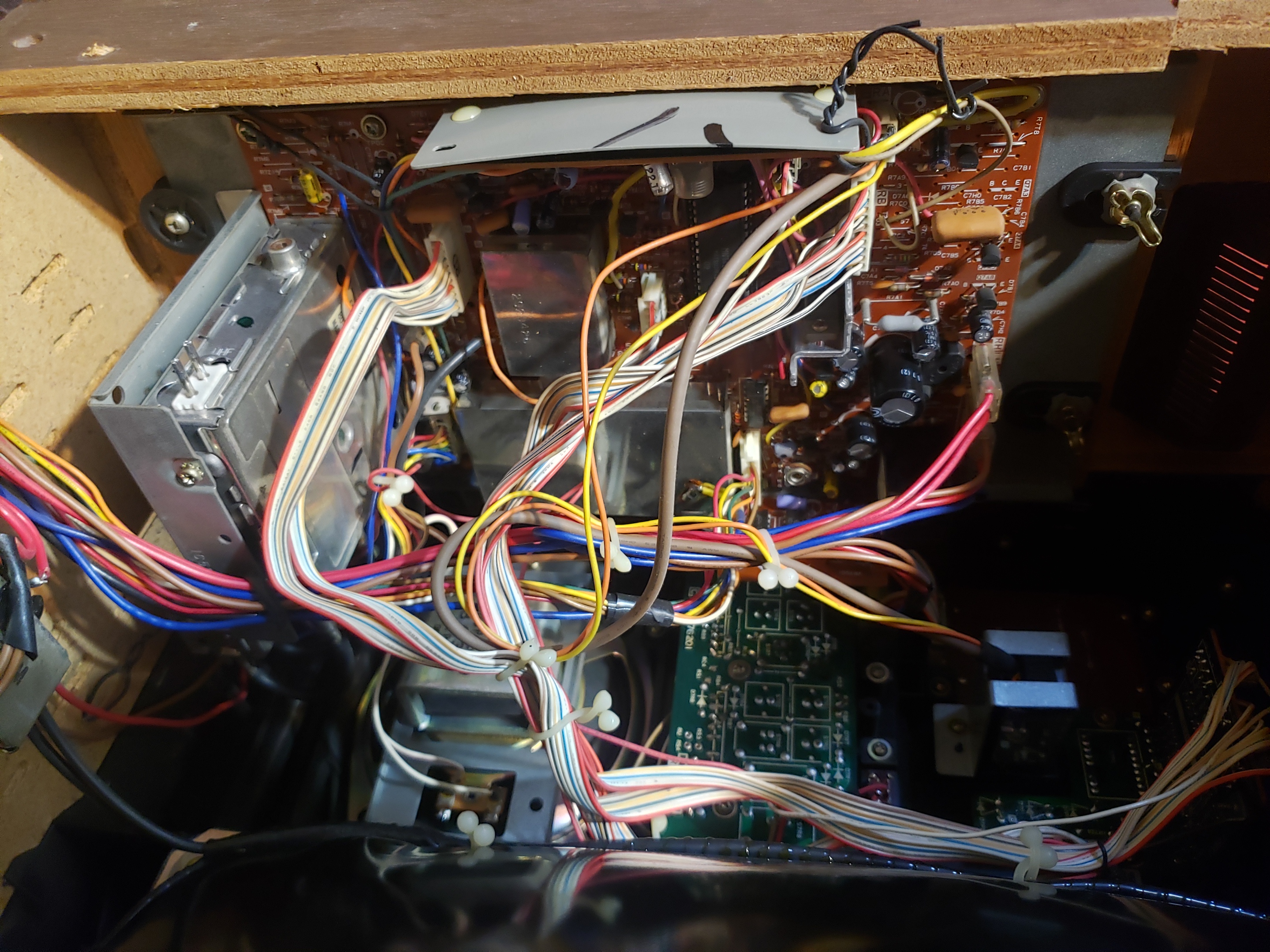

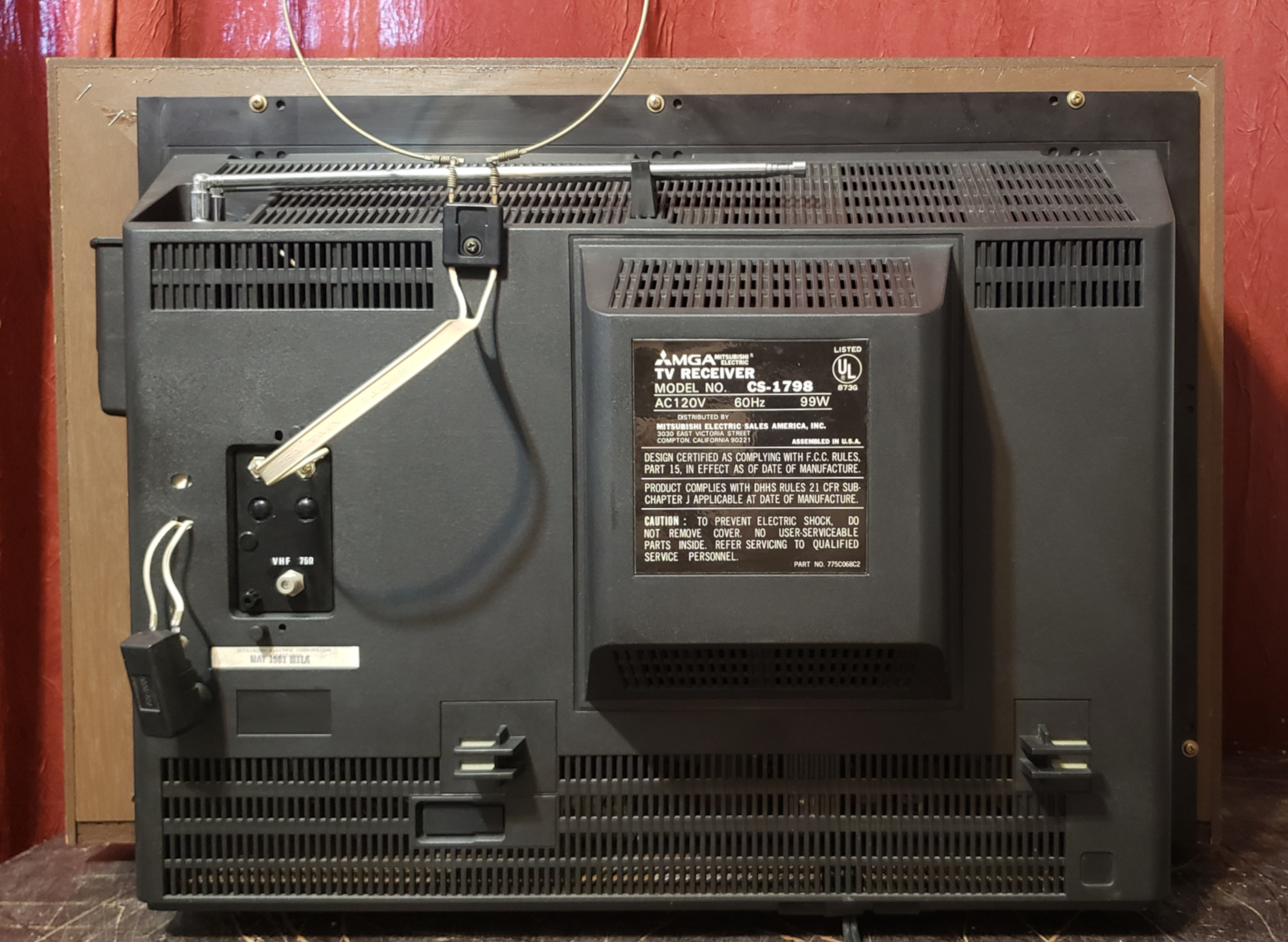

There is an internal potentiometer for vertical size.

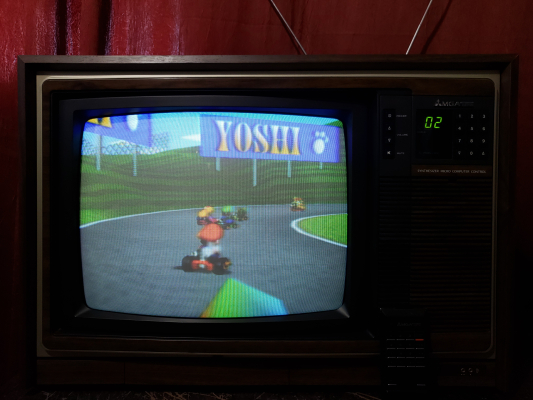

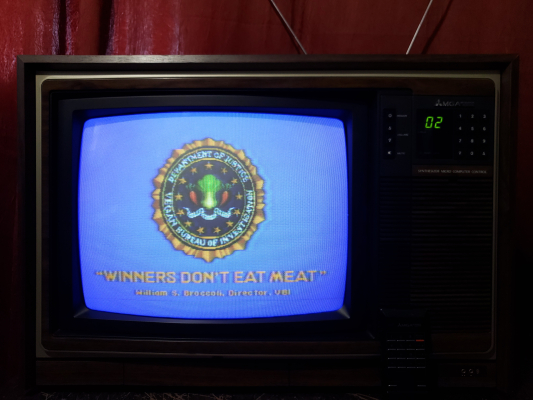

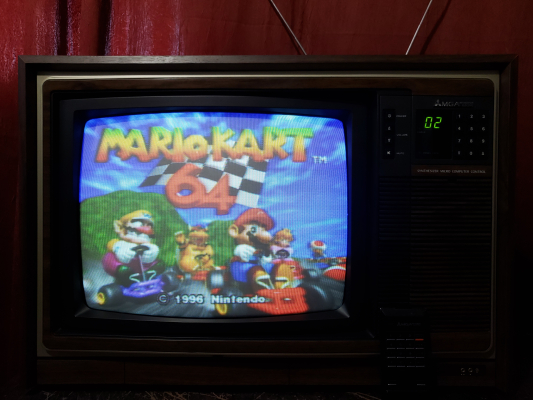

Gallery





















Specifications | |
---|---|
Brand: | Mitsubishi |
Manufacturer: | Mitsubishi |
Model: | CS-1798 |
Series: | CS |
Viewable Size: | 17" |
Inputs: | RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers |
Jungle: | Mitsubishi, M51411SP |
Comb Filtering: | None |
Focus Type: | Single |
Tube: | Black Matrix , 17VBPT22 , Hi-Lite Matrix |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot, Super Arch
![]() |
Pitch: | .76 mm |
Tint: | Light |
Yoke: | 330P04806 |
Yoke Horz. Resistance: | 2.4 ohm |
Yoke Vert. Resistance: | 53.5 ohm |
Speakers: | Mono |
Chassis: | MU-3 |
Weight: | 53 lbs (24 kg) |
Application: | Consumer |
Cabinet Material: | Simulated Woodgrain, Wood |
Launched: | 1981 |
MSRP: | 660 USD |
Country of Manufacture: | USA |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Portable |
