Summary

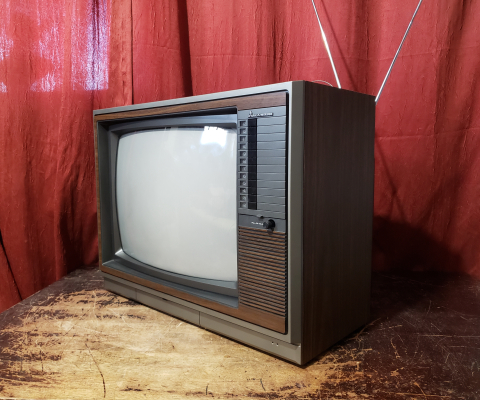

Mitsubishi 19" diagonal color tv with 12-position soft-touch express electronic tuning, automatic picture control for beautiful reception every time you watch. Backlit channel indicator. Auto. Picture Latitude Circuit for optimum picture quality. Walnut-grain vinyl-clad wood veneer cabinet.

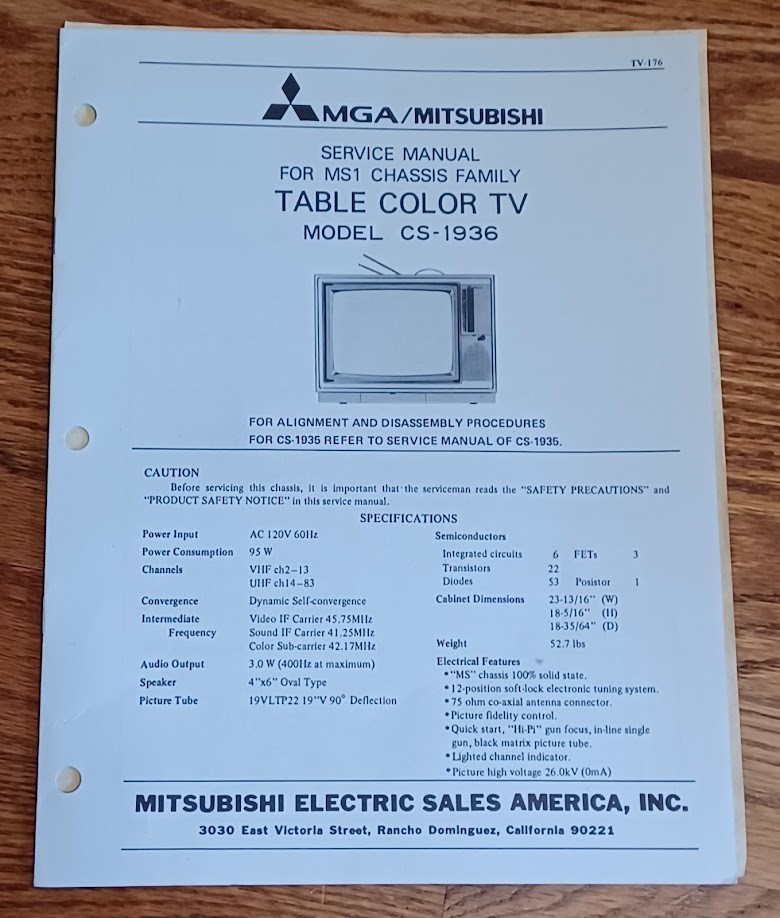

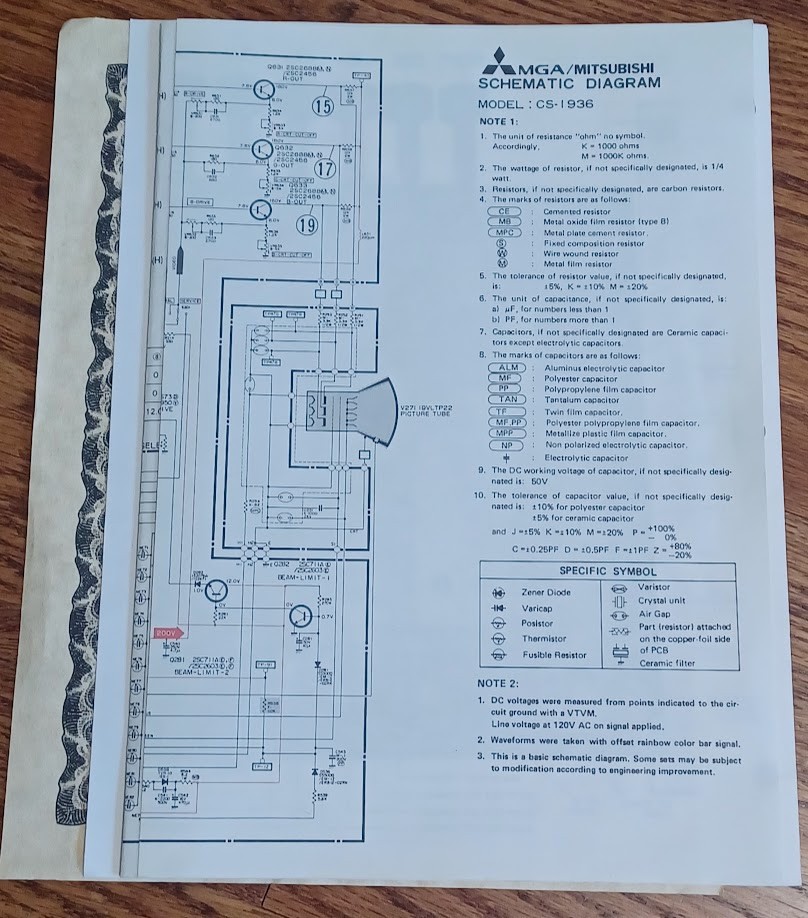

Manuals
Repair Notes

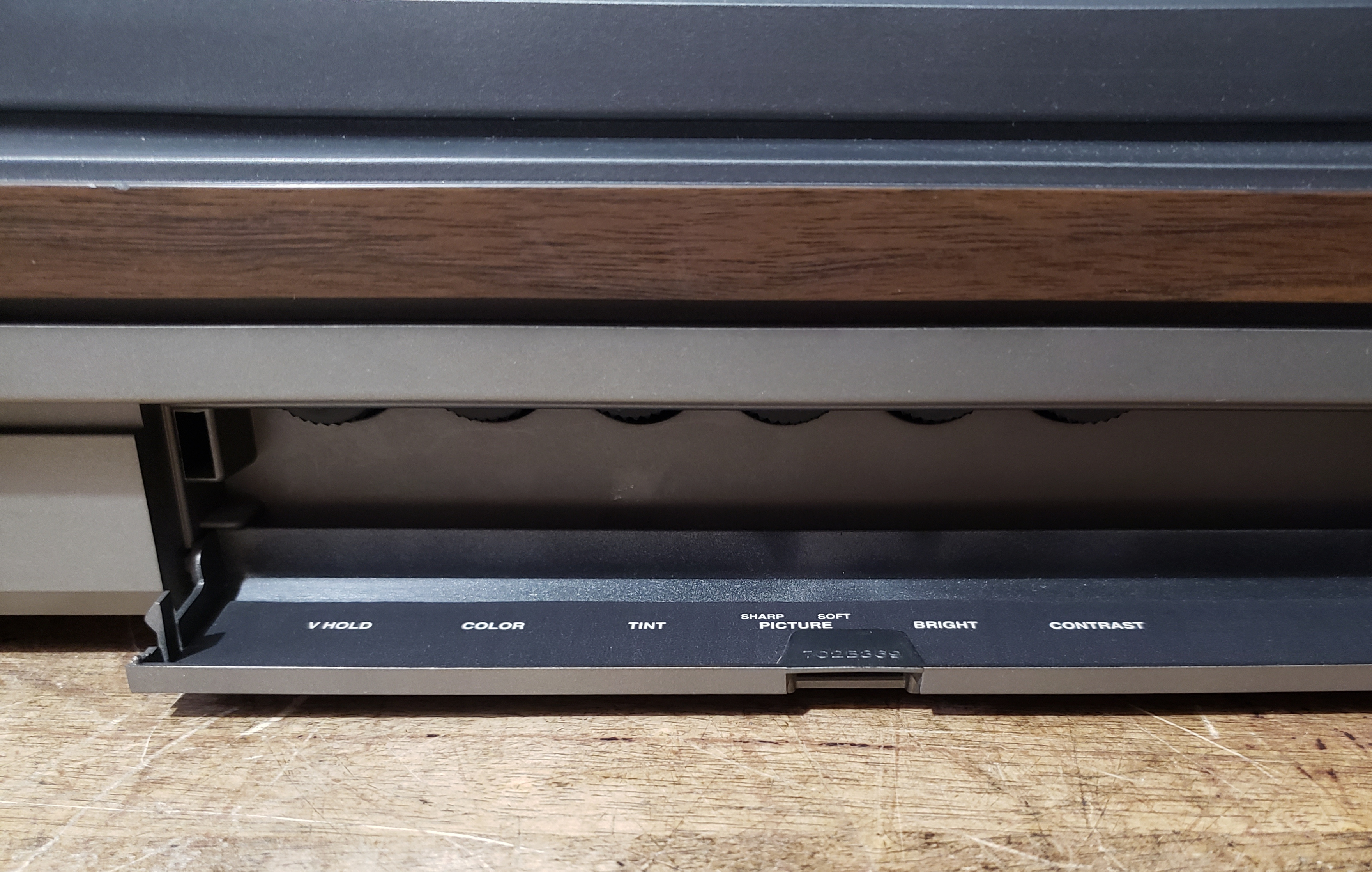

- Adjusting the Brightness knob would result in the brightness temporarily fluctuating for a number of seconds, going really high on its own at first and then re-stabilizing. Cause undetermined.
Notes

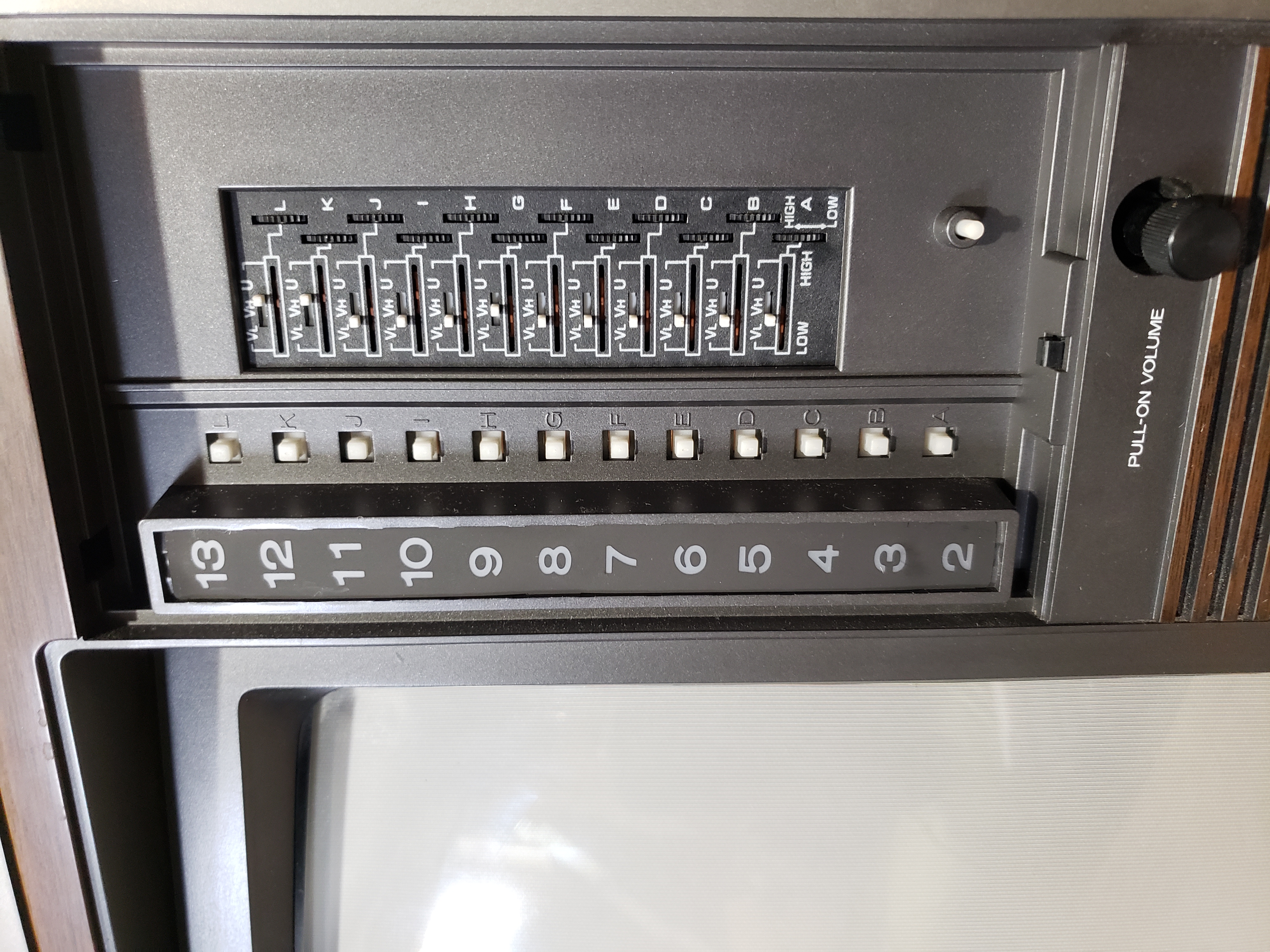

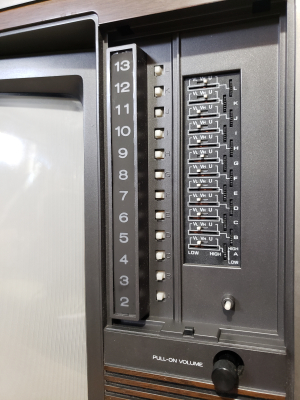

On the back of the channel indicator cover is a slider that enables or disables AFT when that cover is put in place.

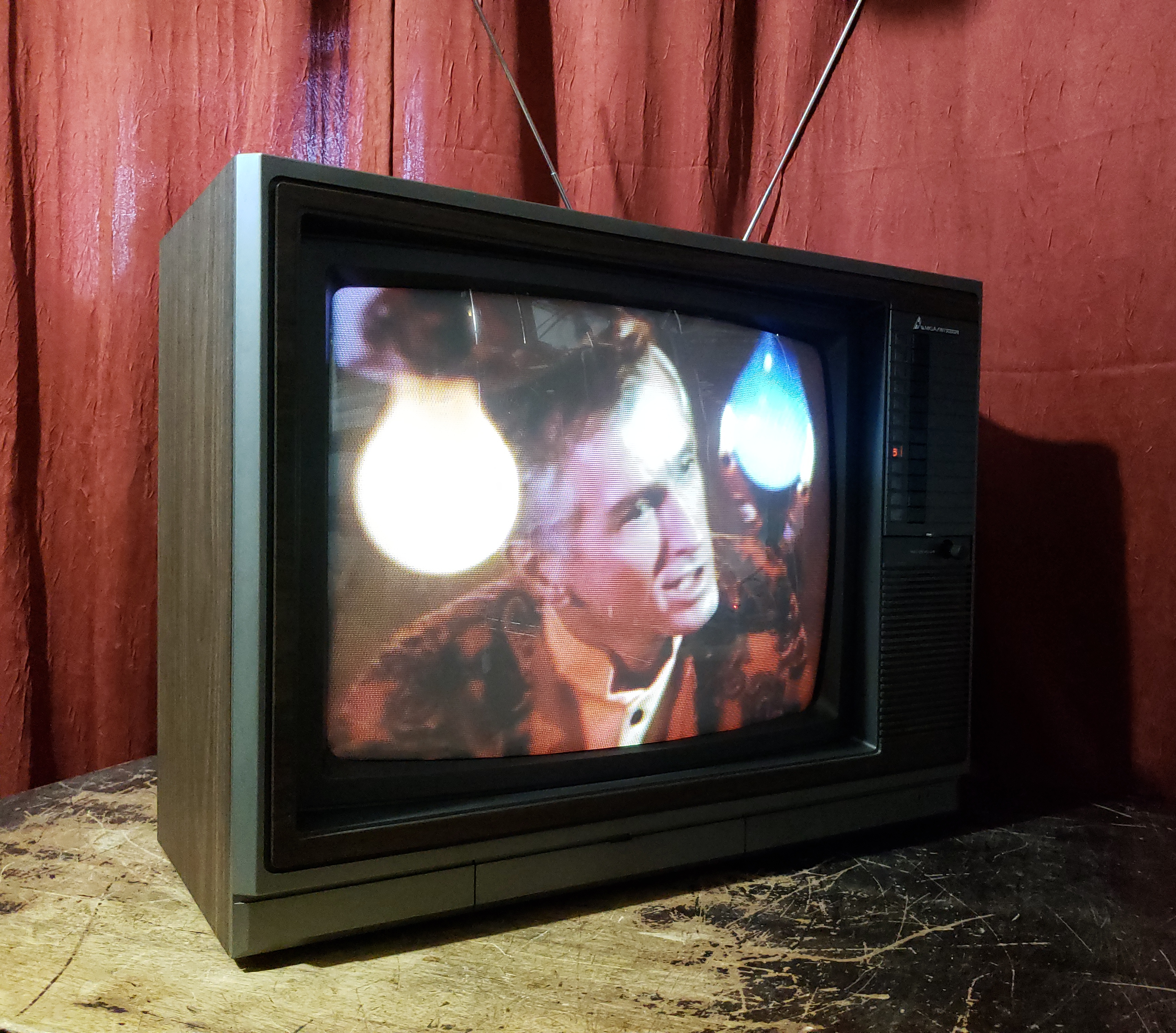

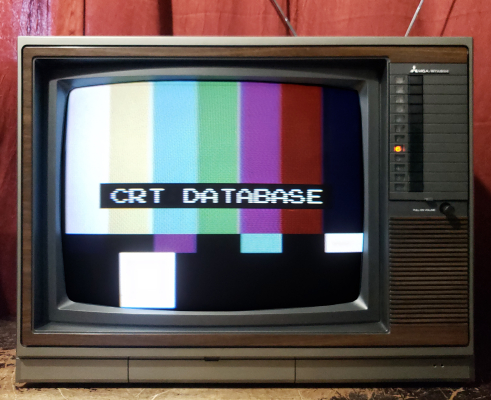

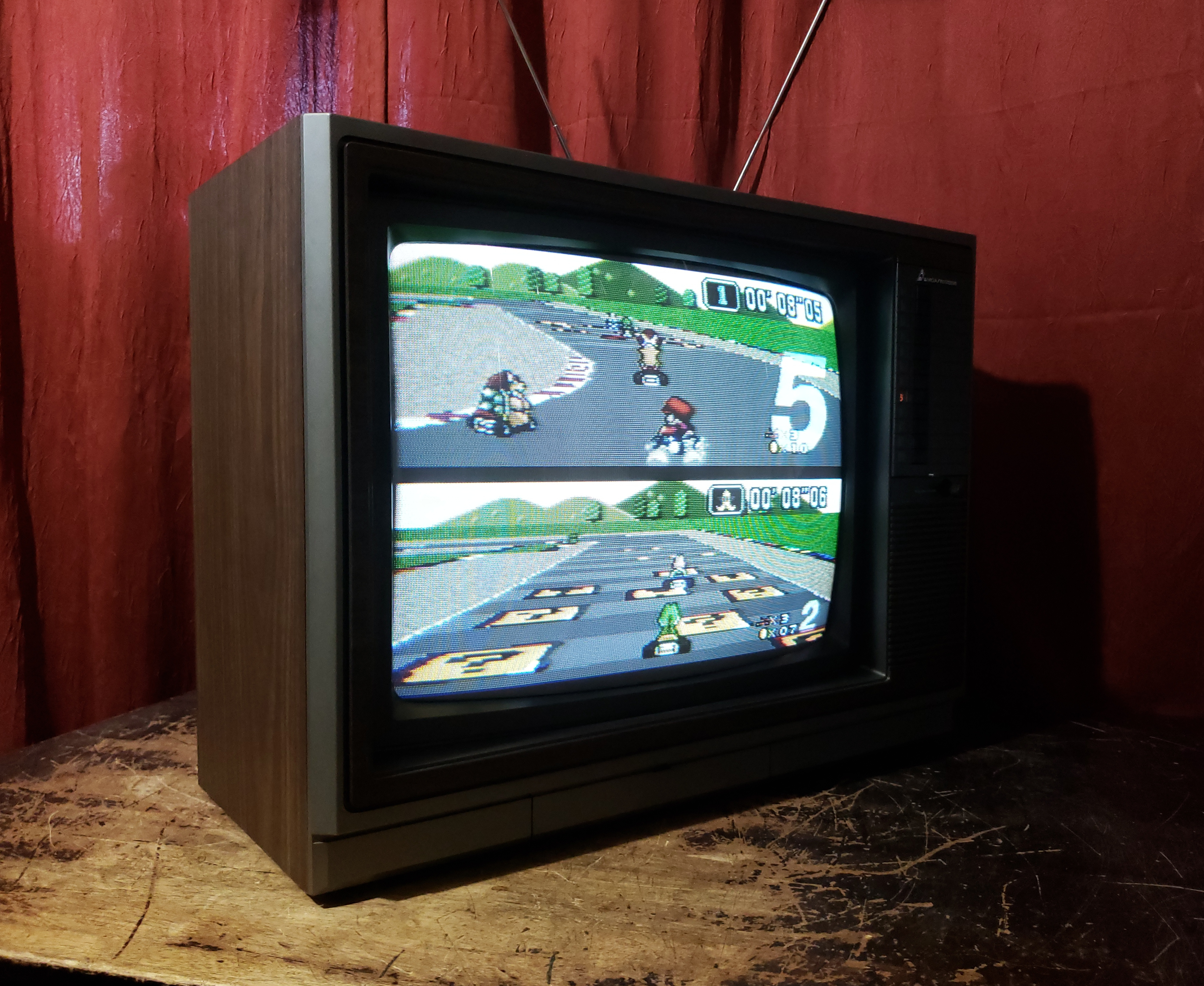

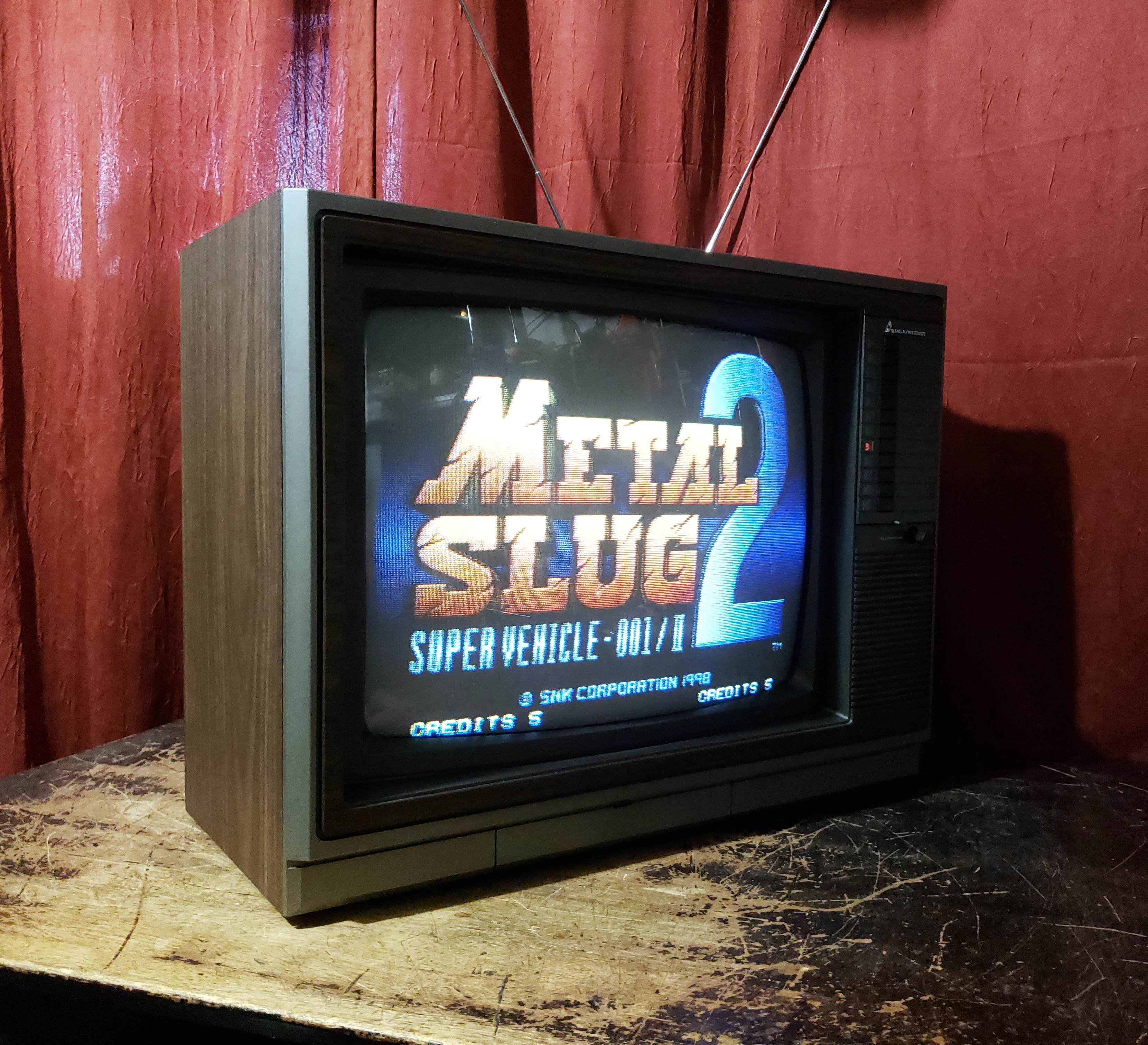

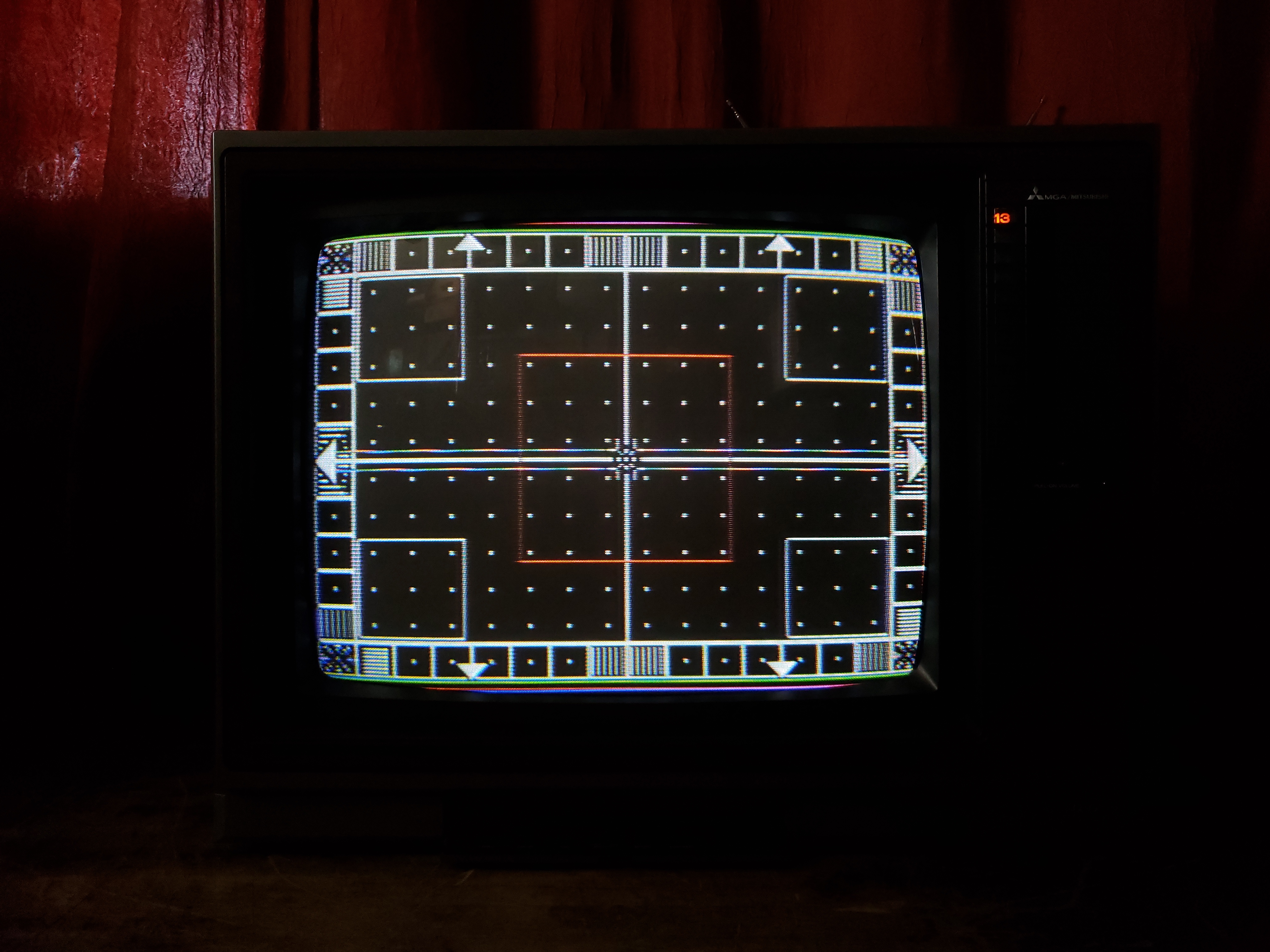

Gallery
.jpg "Click to view image in new tab")
| Specifications | |
|---|---|
| Brand: | Mitsubishi |
| Manufacturer: | Mitsubishi |
| Model: | CS-1936 |
| Series: | CS |
| Viewable Size: | 19" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Comb Filtering: | Notch |
| Tube: | 19VLTP22 , Black Matrix |
| Deflection: | 90° |
| Mask: |
Slot
|
| Speakers: | Mono, 3W |
| Chassis: | MS-1 |
| Weight: | 52.7 lbs (23.9 kg) |
| Dimensions (W/H/D): |
584 x 457 x 457 mm
(23 x 18 x 18") |
| Application: | Consumer |
| Cabinet Material: | Wood, Simulated Woodgrain |
| Launched: | 1983 |
| MSRP: | 480 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Yoke Info, Needs IC Info |
