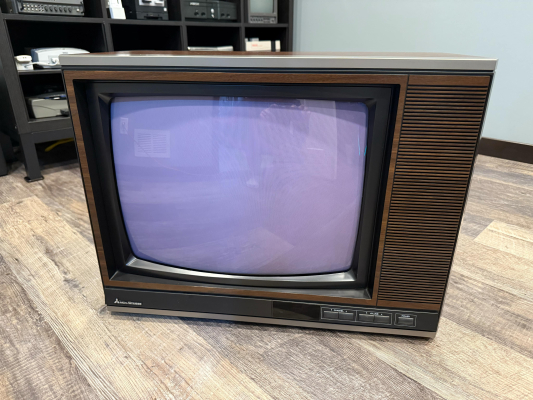

Mitsubishi CS-1942R
SegaSaturn94
March 29, 2025, 10:02 pm
September 22, 2025, 4:30 am
March 29, 2025, 10:02 pm
September 22, 2025, 4:30 am
Gallery



















Specifications | |
---|---|
Brand: | Mitsubishi |
Manufacturer: | Mitsubishi |
Model: | CS-1942R |
Series: | Diamond Vision |
Viewable Size: | 19" |
Inputs: | RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers |
Jungle: | Mitsubishi, M51411SP |
Flyback: | 334P12503, DOK8638 |
Focus Type: | Single |
Tube: | Mitsubishi , A48JEX03X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Diamond Vision |
Removable Glare Film: | No |
Yoke: | 330P008101 |
Yoke Horz. Inductance: | 2.312 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 118.3 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 2.7 ohm |
Yoke Vert. Resistance: | 55.9 ohm |
Speakers: | Mono, 3W |
Remote: | 939P15301 |
Chassis: | RS-3 |
Application: | Consumer |
Cabinet Material: | Wood, Simulated Woodgrain |
Launched: | 1985 |
MSRP: | 499 USD |
Country of Manufacture: | Singapore |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
