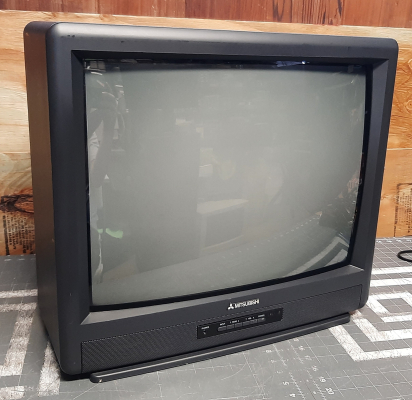

Gallery
| Specifications | |
|---|---|
| Brand: | Mitsubishi |
| Manufacturer: | Mitsubishi |
| Model: | CS-20201 |
| Series: | CS |
| Viewable Size: | 20" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Vertical Output IC: | AN5515 |
| Jungle IC: | XRA7306S |
| Flyback: | 334921001 |
| Tube: | Mitsubishi , A51KQQ11X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 33OP15204 |
| Yoke Horz. Inductance: | 2.494 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 23.85 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 4.558 ohm |
| Yoke Vert. Resistance: | 10.78 ohm |
| Speakers: | Stereo |
| Chassis: | XL2 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1993 |
| Country of Manufacture: | Canada |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Measurements, Needs Pictures |
