Summary
Midrange 20" Mitsubishi consumer television set from 1986. Has RF and composite video input with stereo sound. Originally manufactured in the USA.
(Special thanks to Brett Viker for the pics!)
Manuals
Notes
This set uses a "Diamond Vision" tube made of certain light-absorbing chemicals that are mixed directly into the glass itself. This gives the tube a bluish-violet appearance. This particular set uses the RCA tube, made in the USA. Mitsubishi also made their own Diamond Vision tubes in Japan.

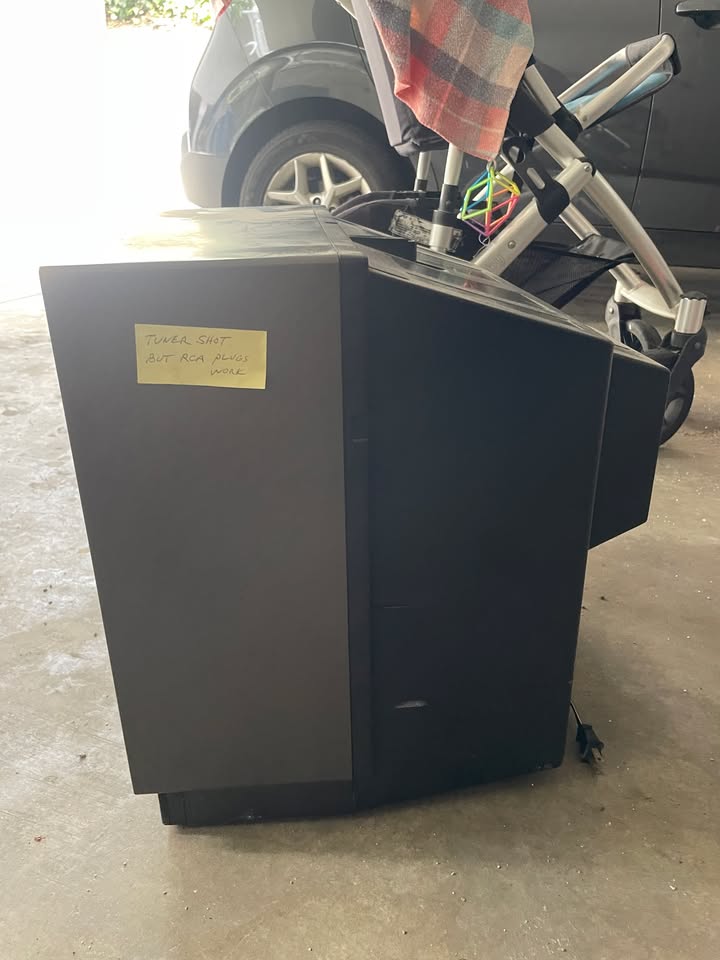

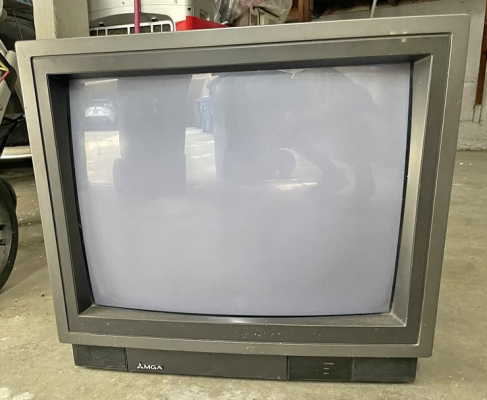

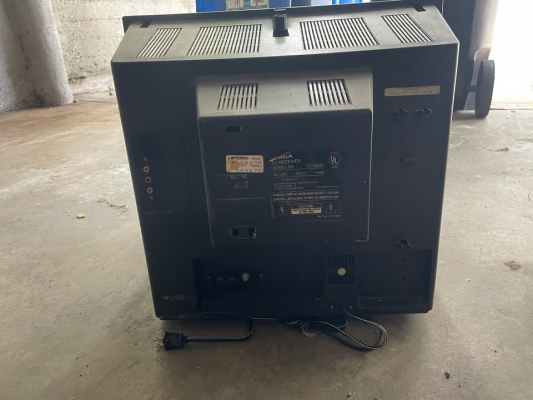

Gallery
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
| Specifications | |
|---|---|
| Brand: | Mitsubishi |
| Manufacturer: | Mitsubishi |
| Model: | CS-2063R |
| Series: | Diamond Vision |
| Viewable Size: | 20" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Focus Type: | Single |
| Tube: | RCA , A51ACG50X |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|
| Tint: | Diamond Vision |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Chassis: | RS-8 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1986 |
| MSRP: | 599 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Tag: | Needs Owners Manual, Needs Service Manual |
