Summary

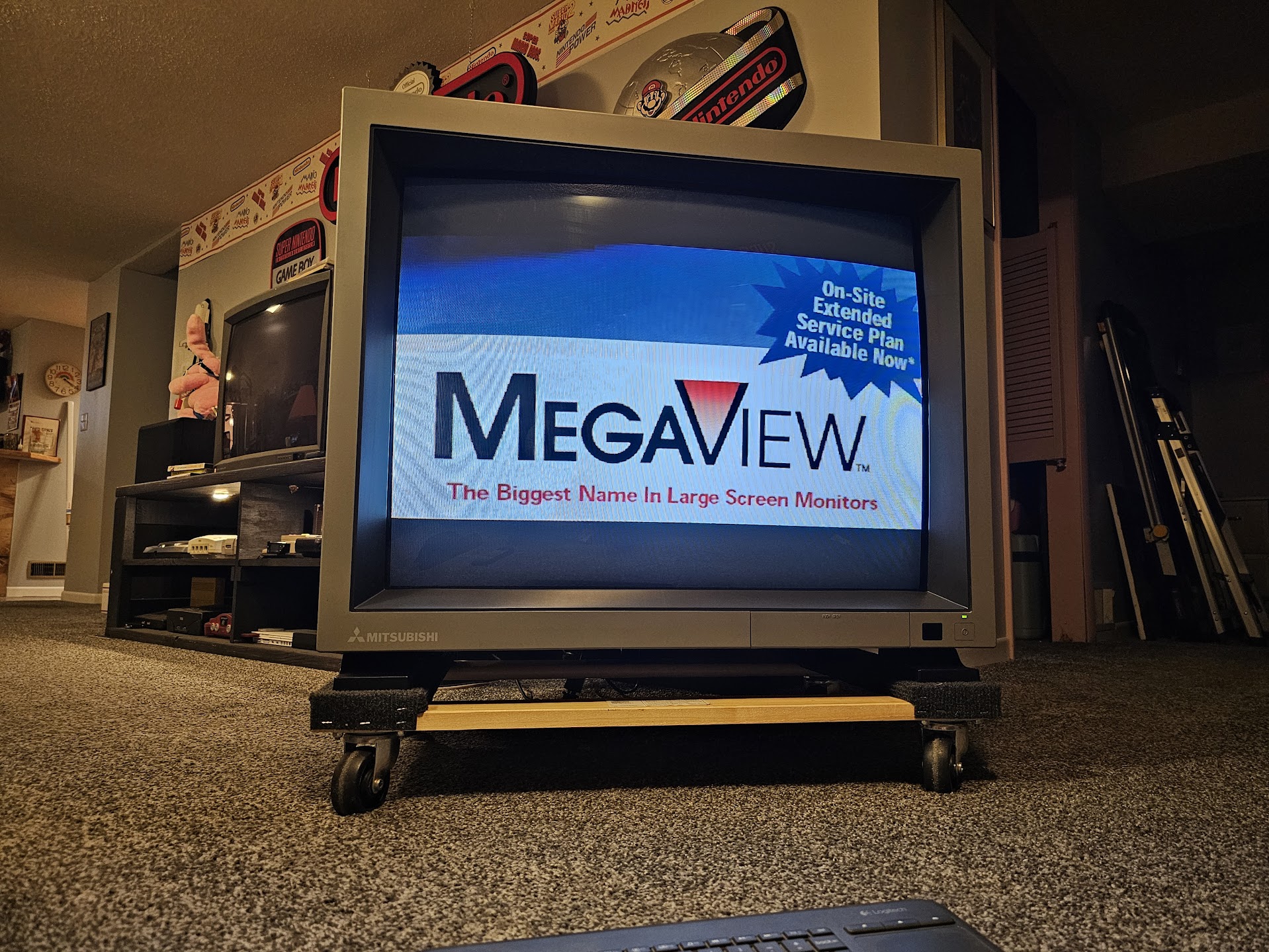

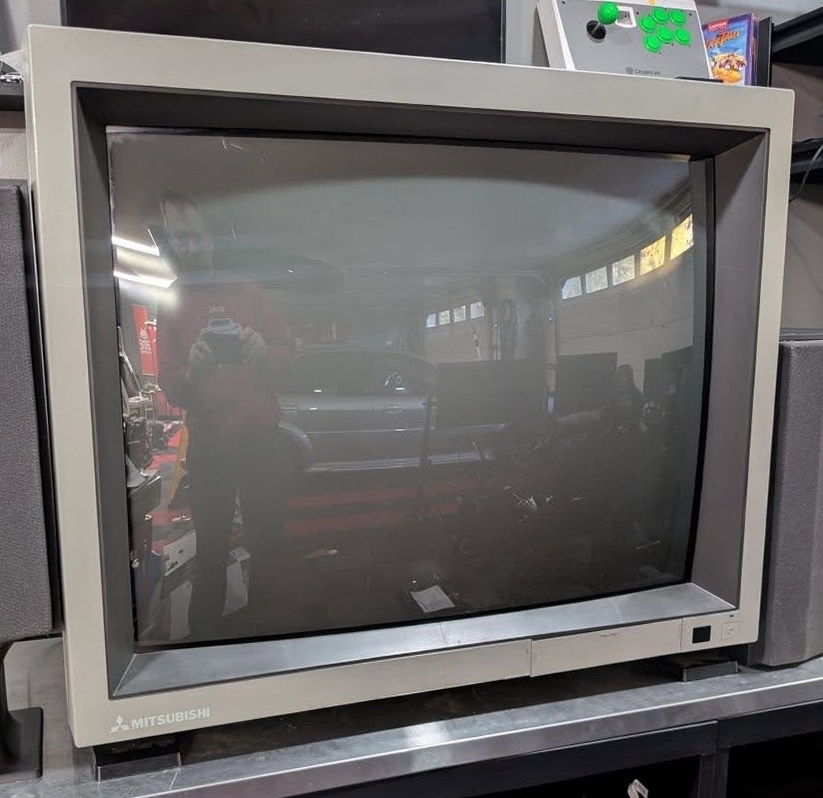

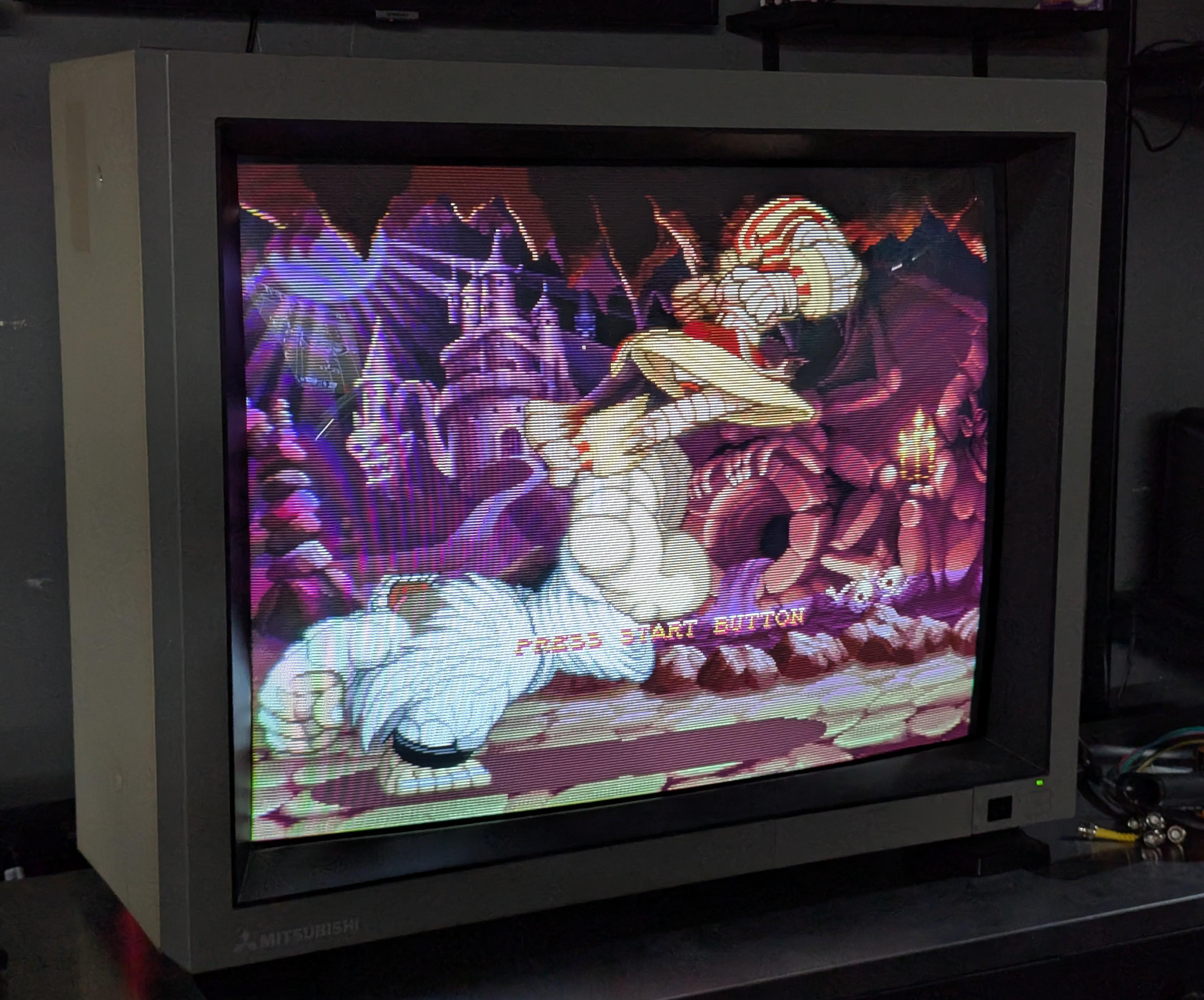

Also known as the Mitsubishi MegaView 33. Ultra high-end 31" presentation monitor by Mitsubishi, originally manufactured in Japan from 1989 until 1994. Supports 240p/480i all the way up to 600p.
Manuals
Notes

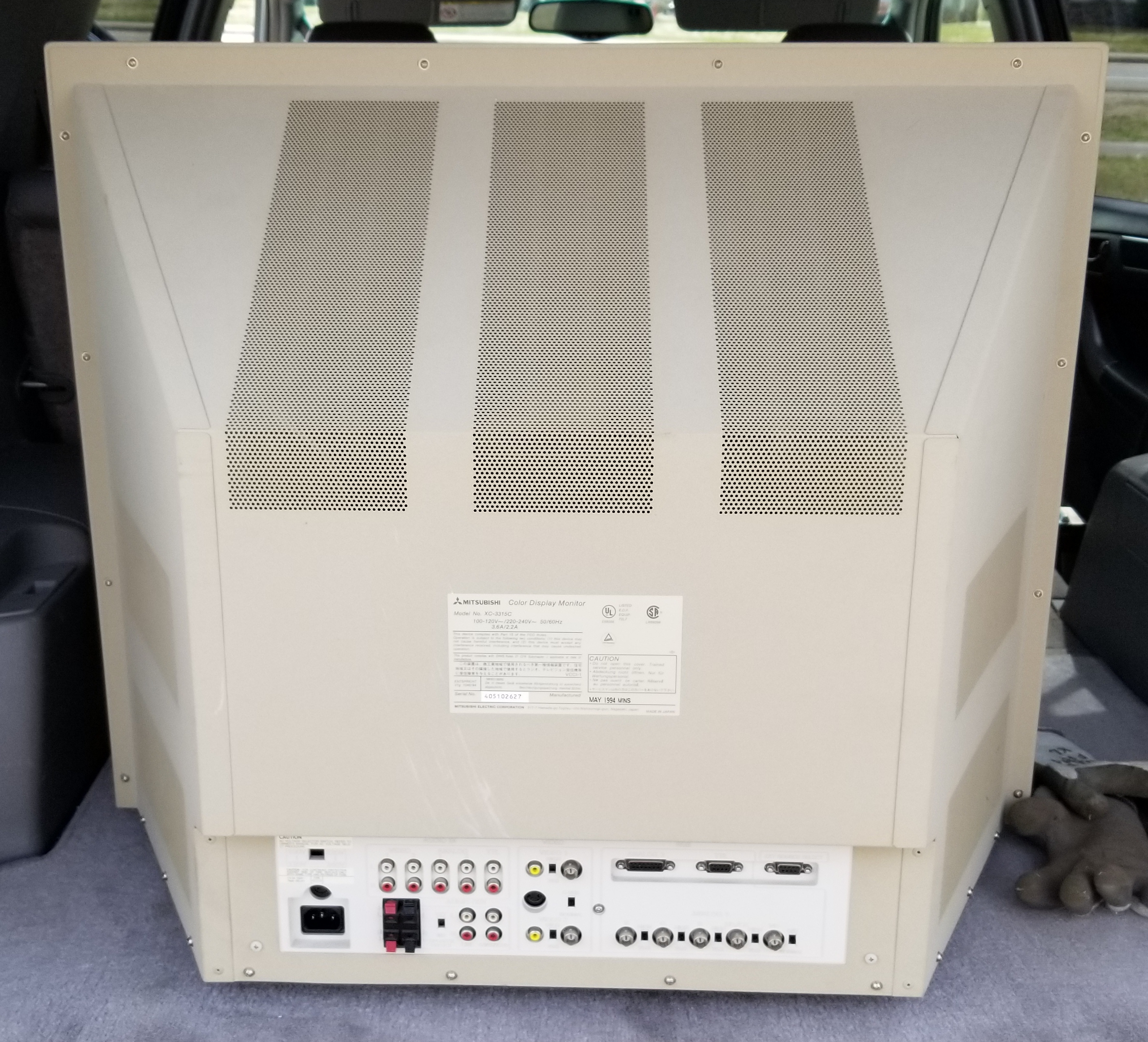

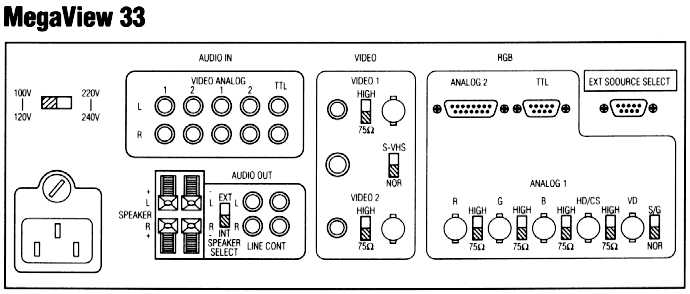

Voltage is selectable on the back of the monitor. Stereo audio outputs are rated for 2W 8ohm.

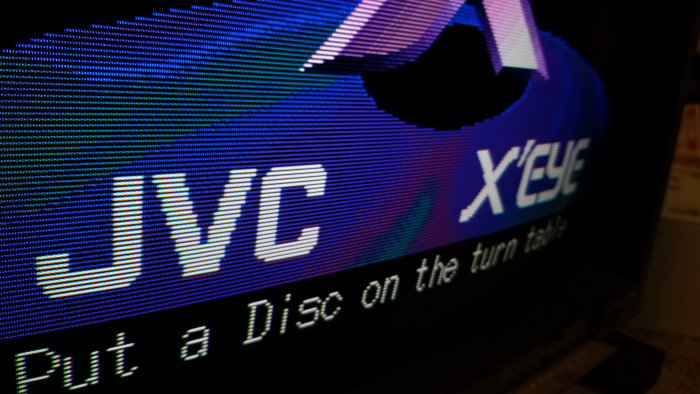

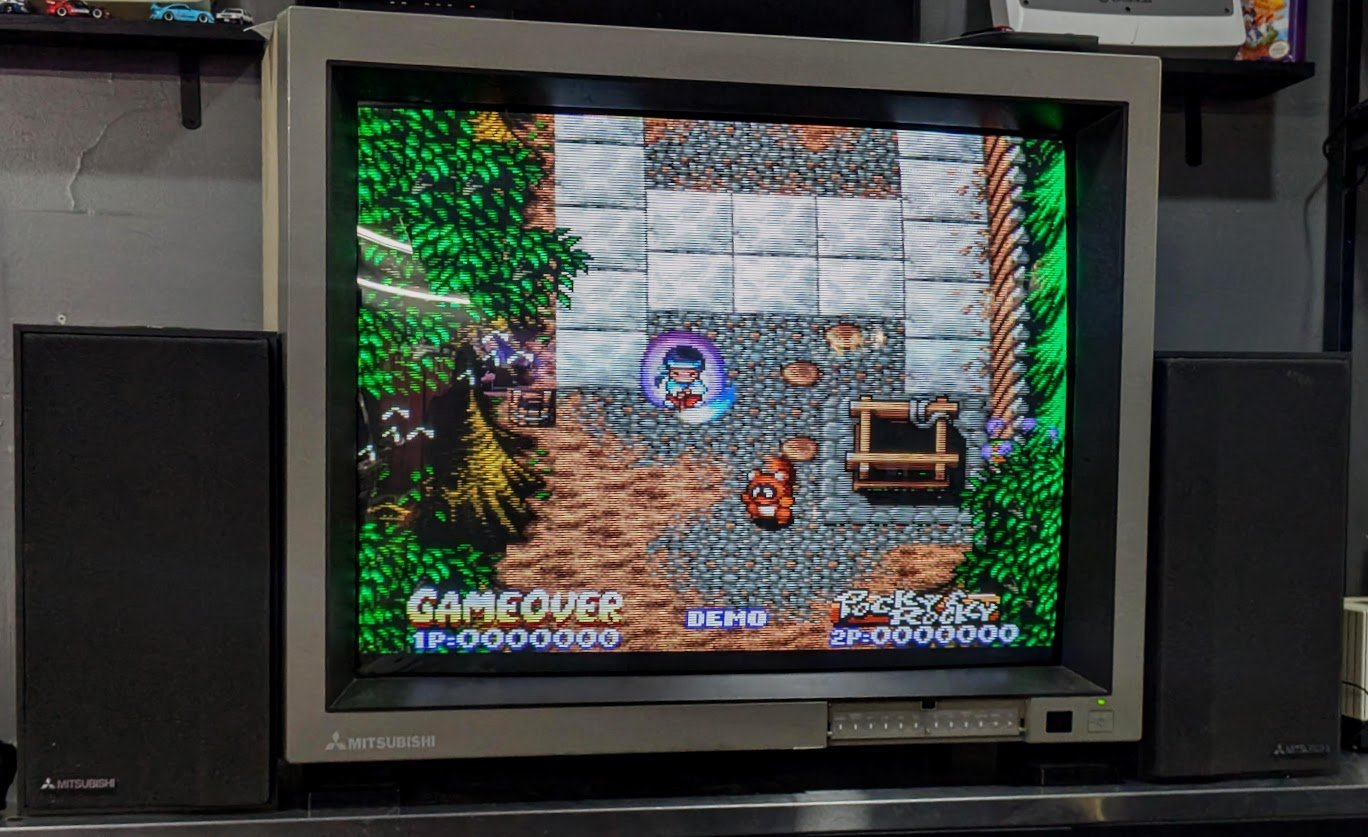

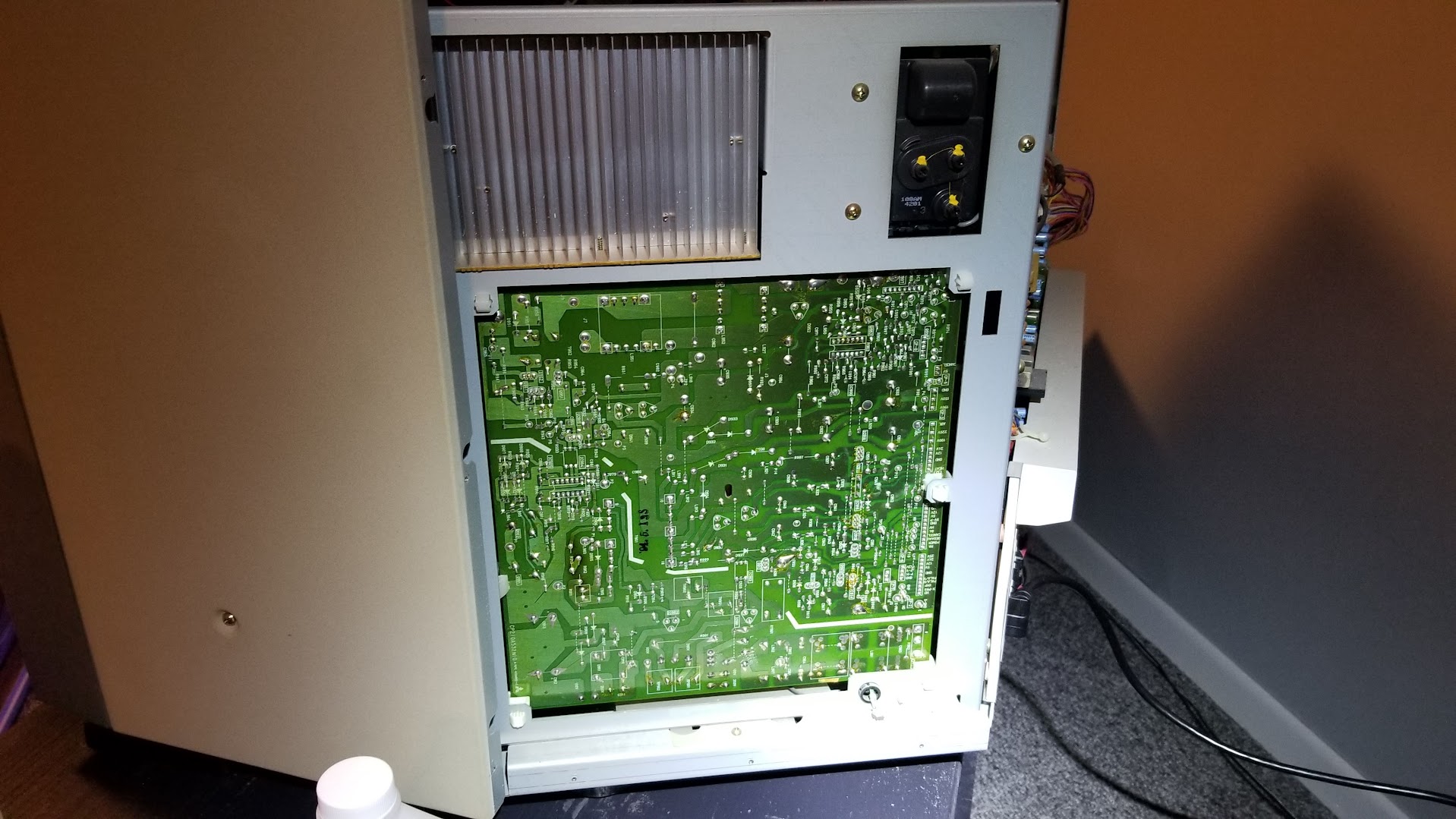

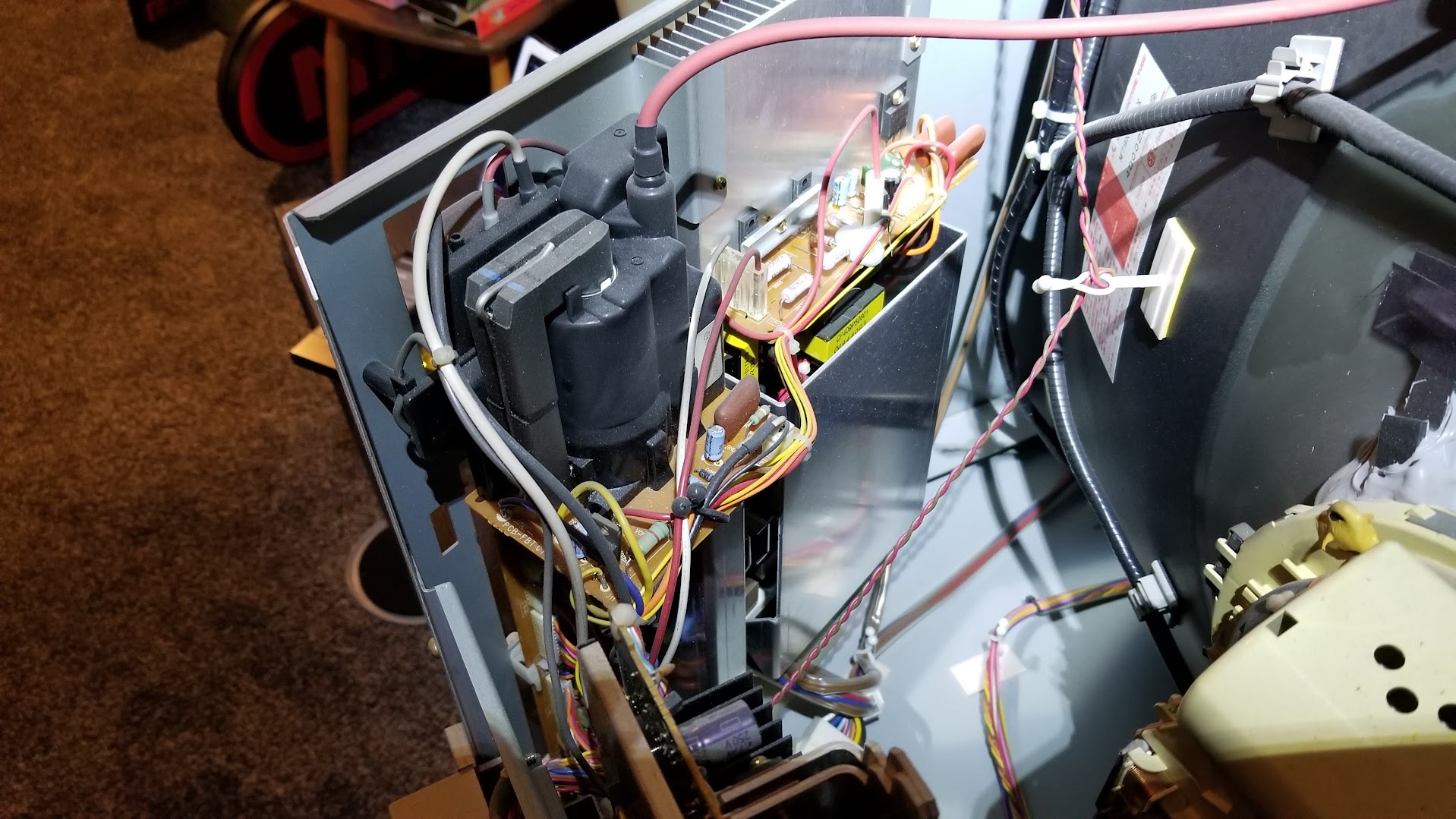

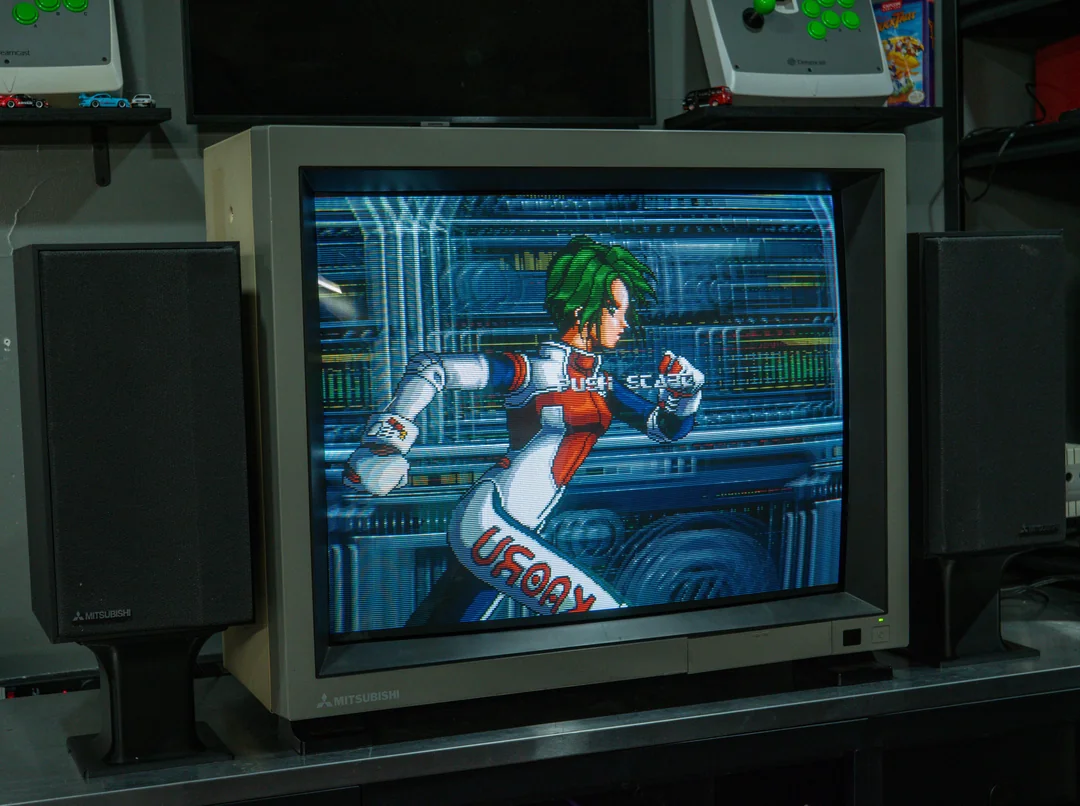

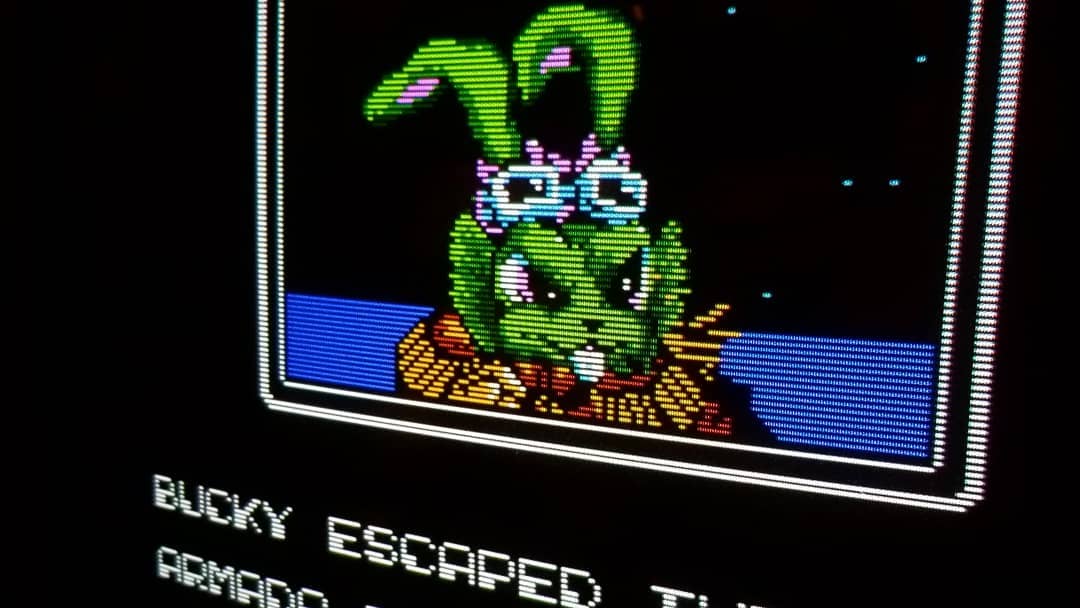

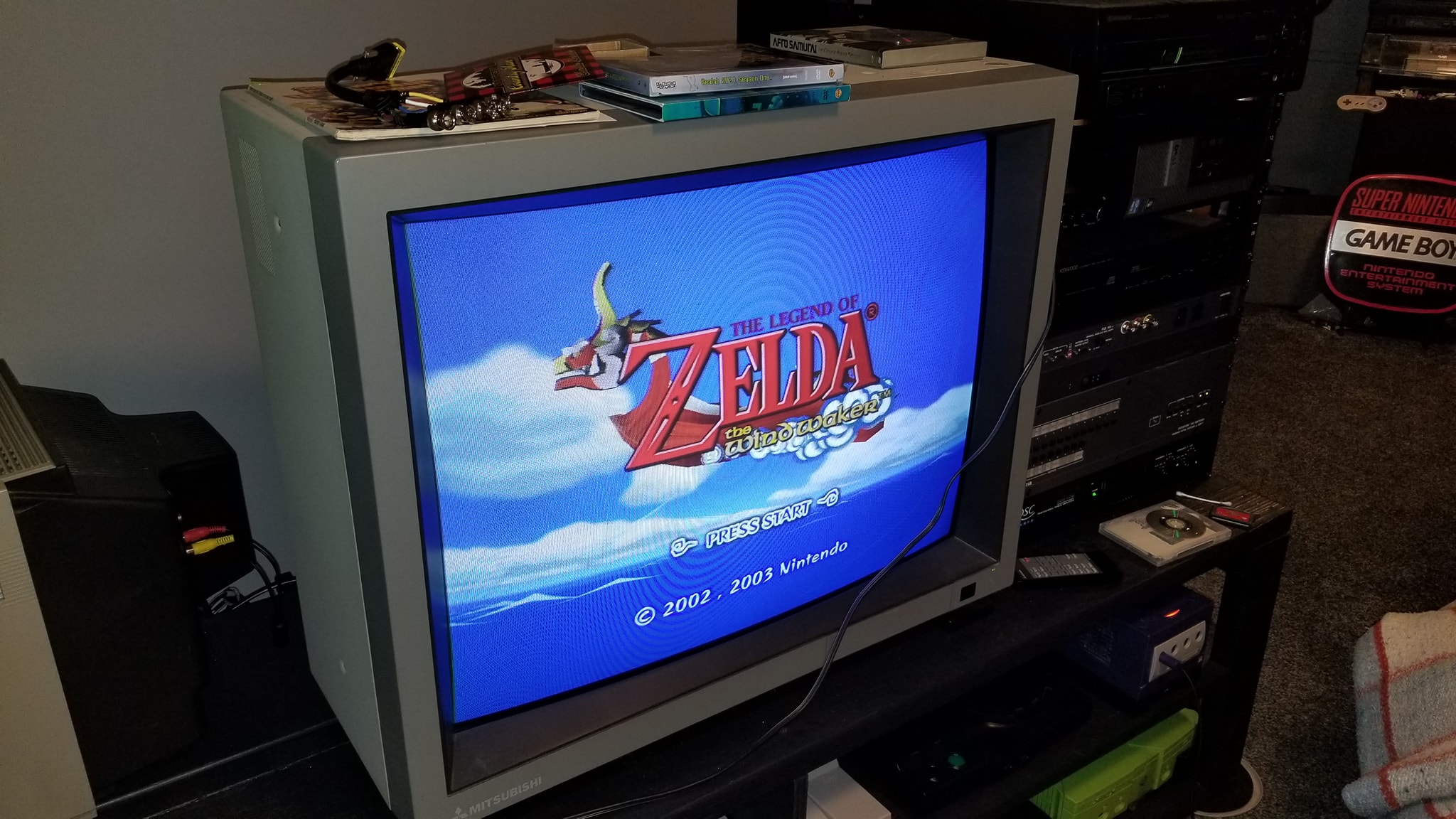

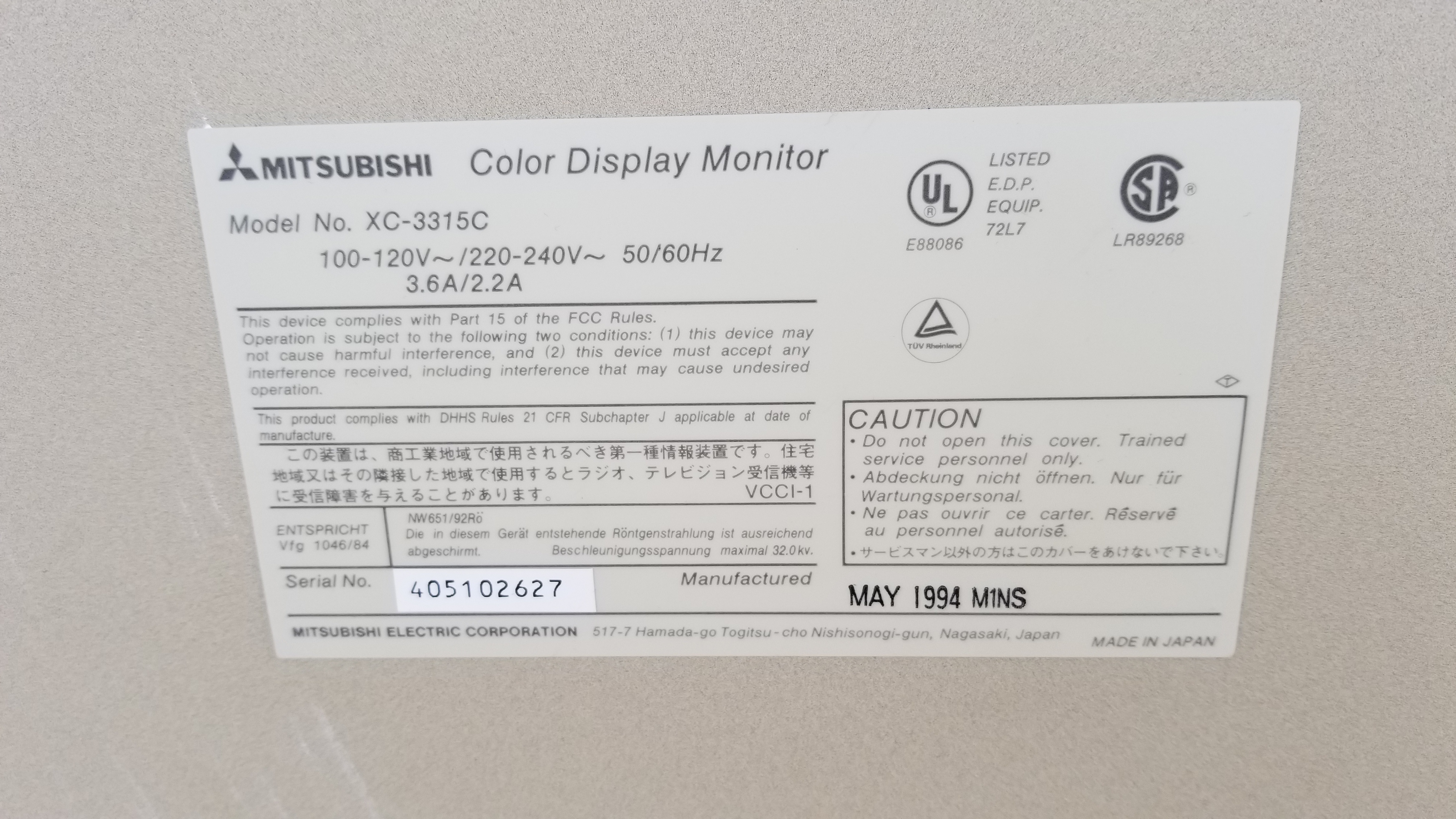

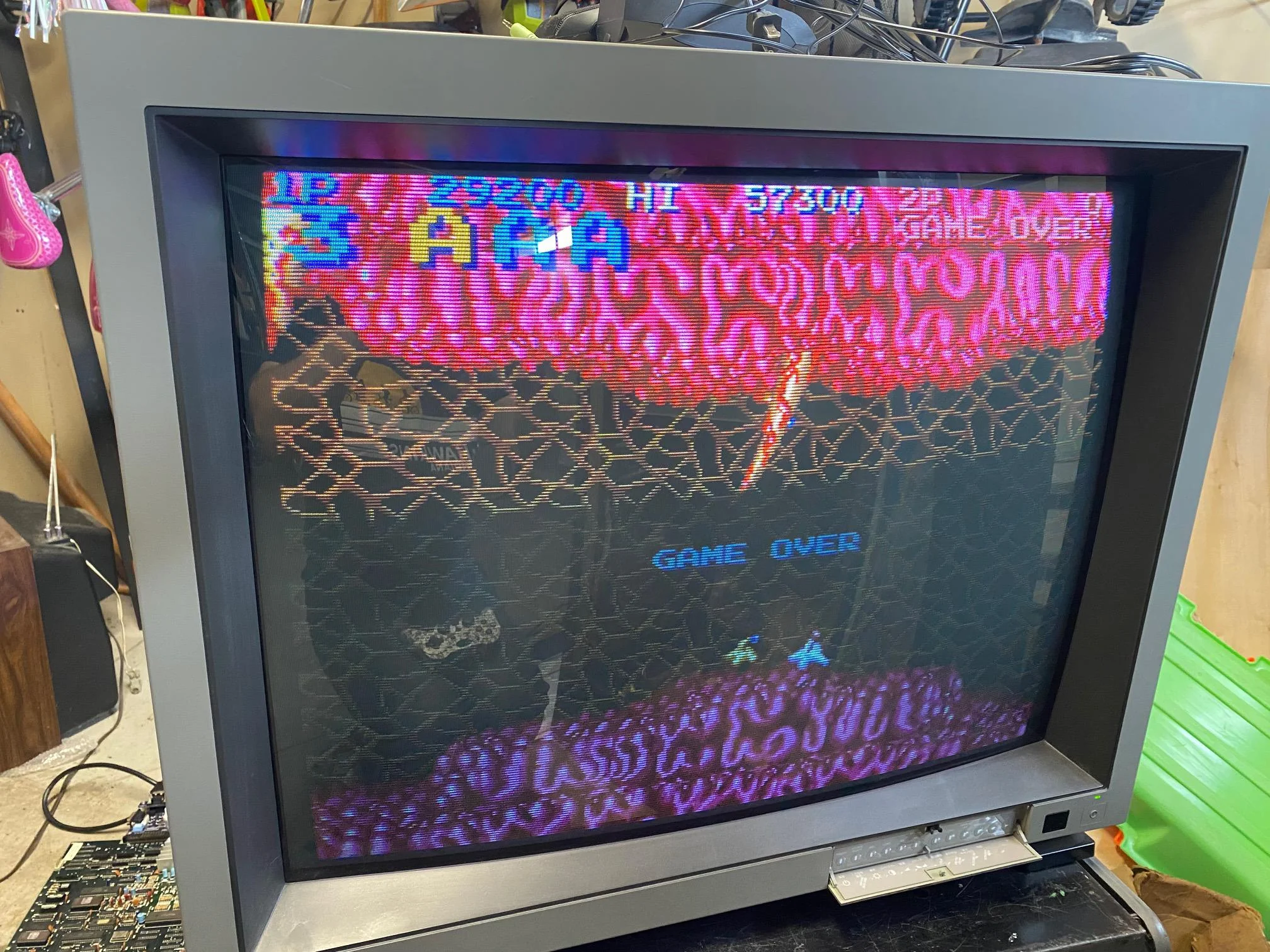

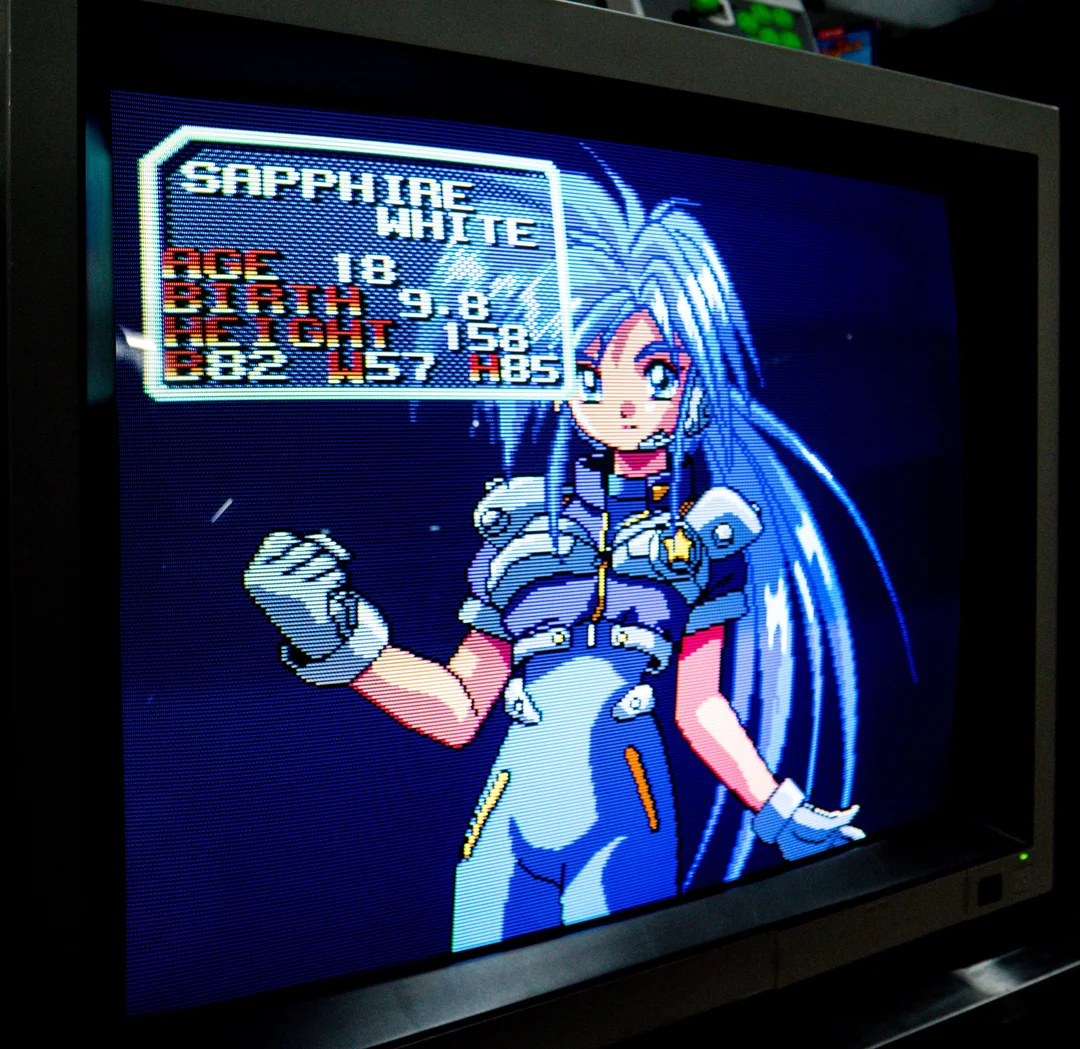

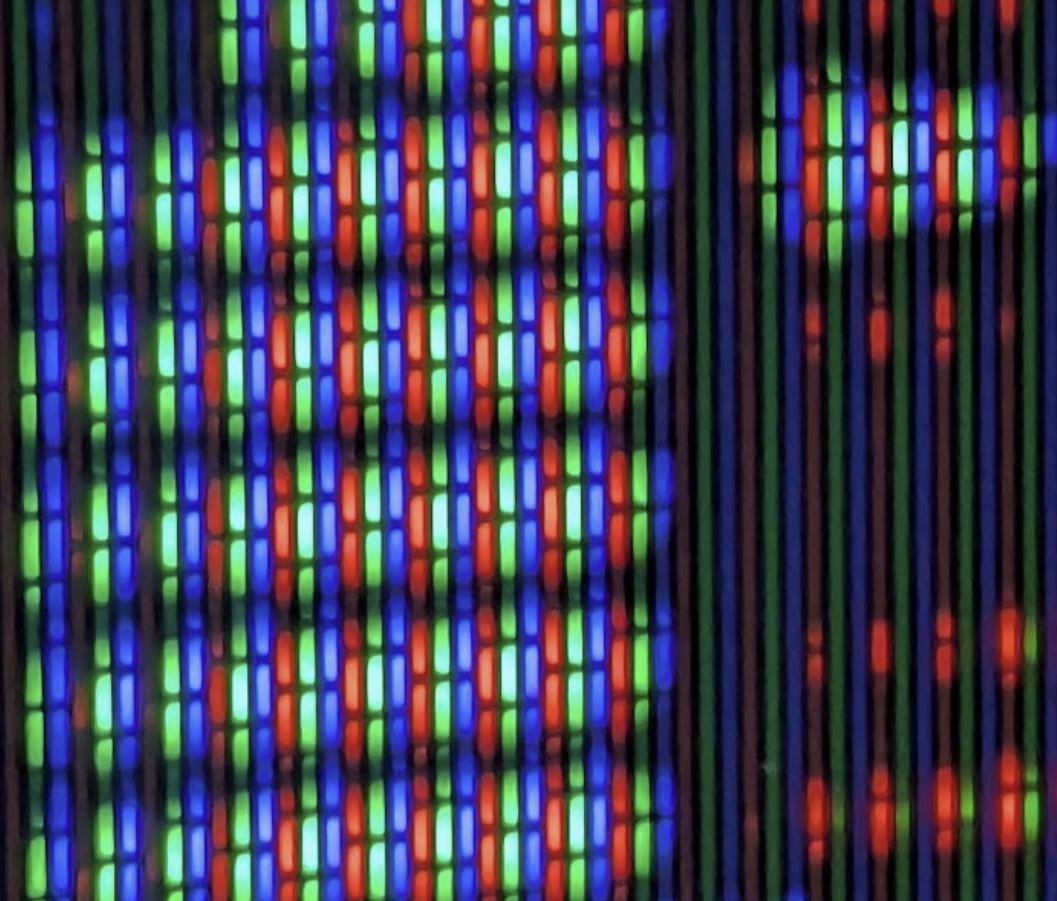

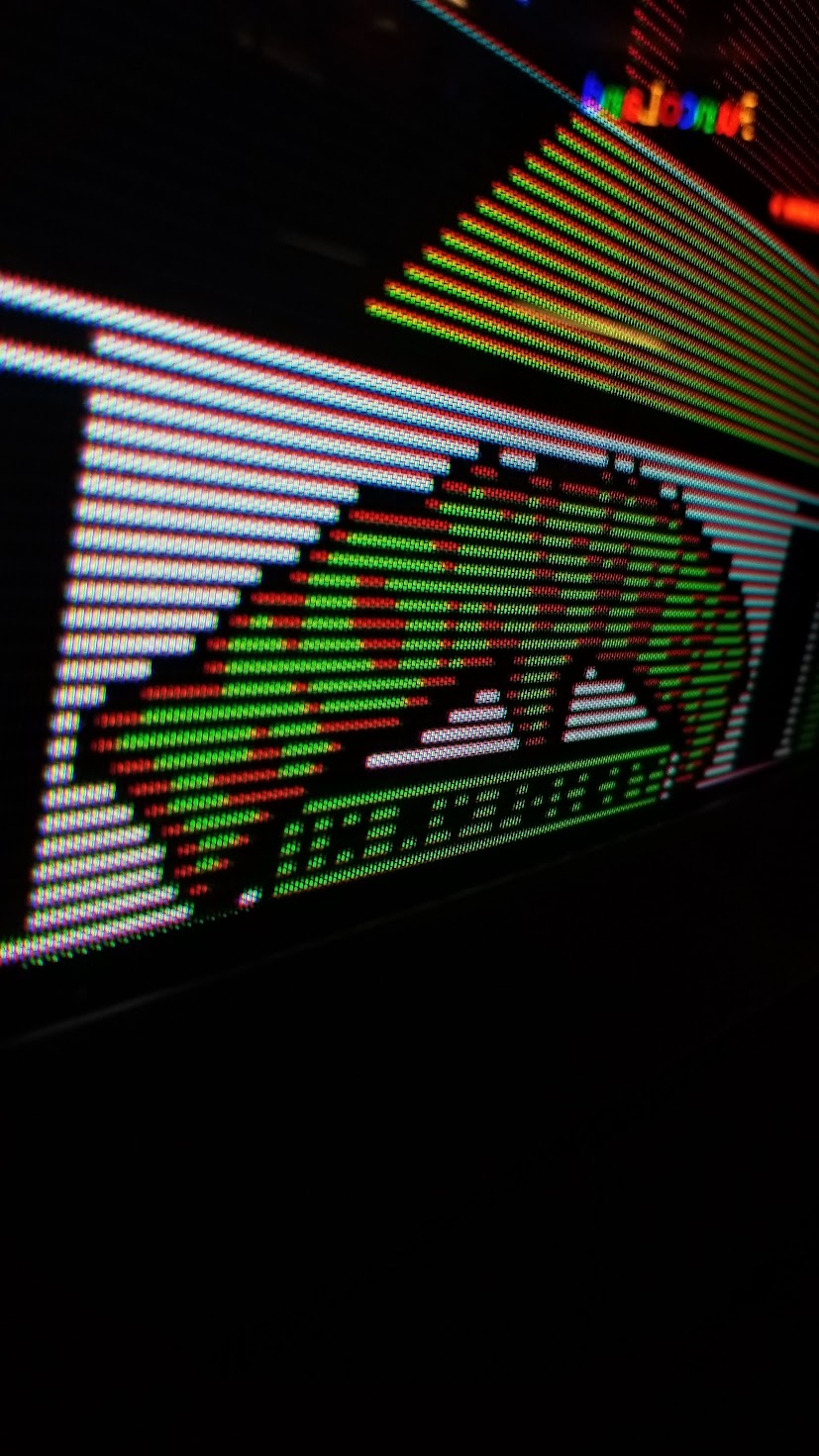

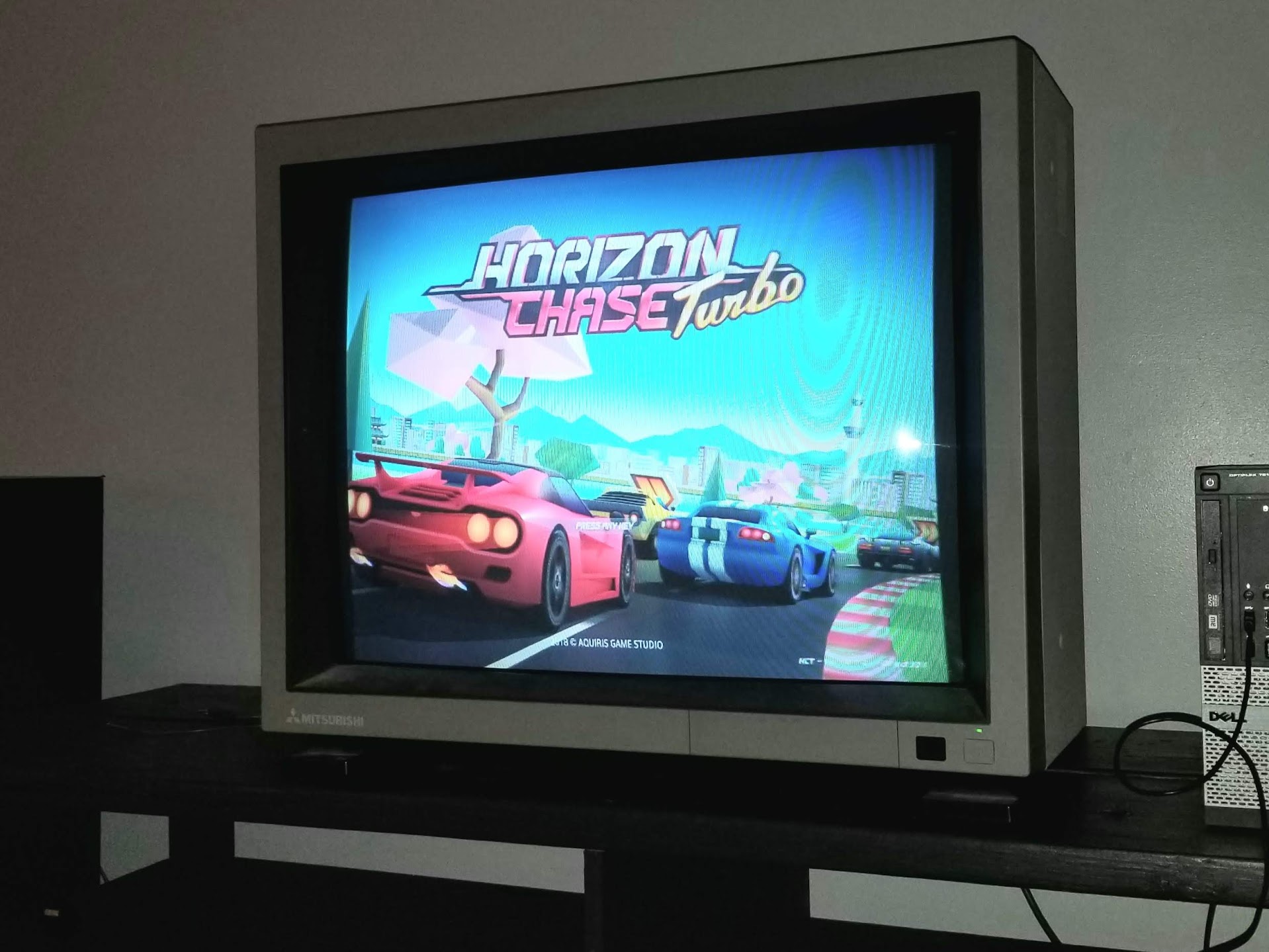

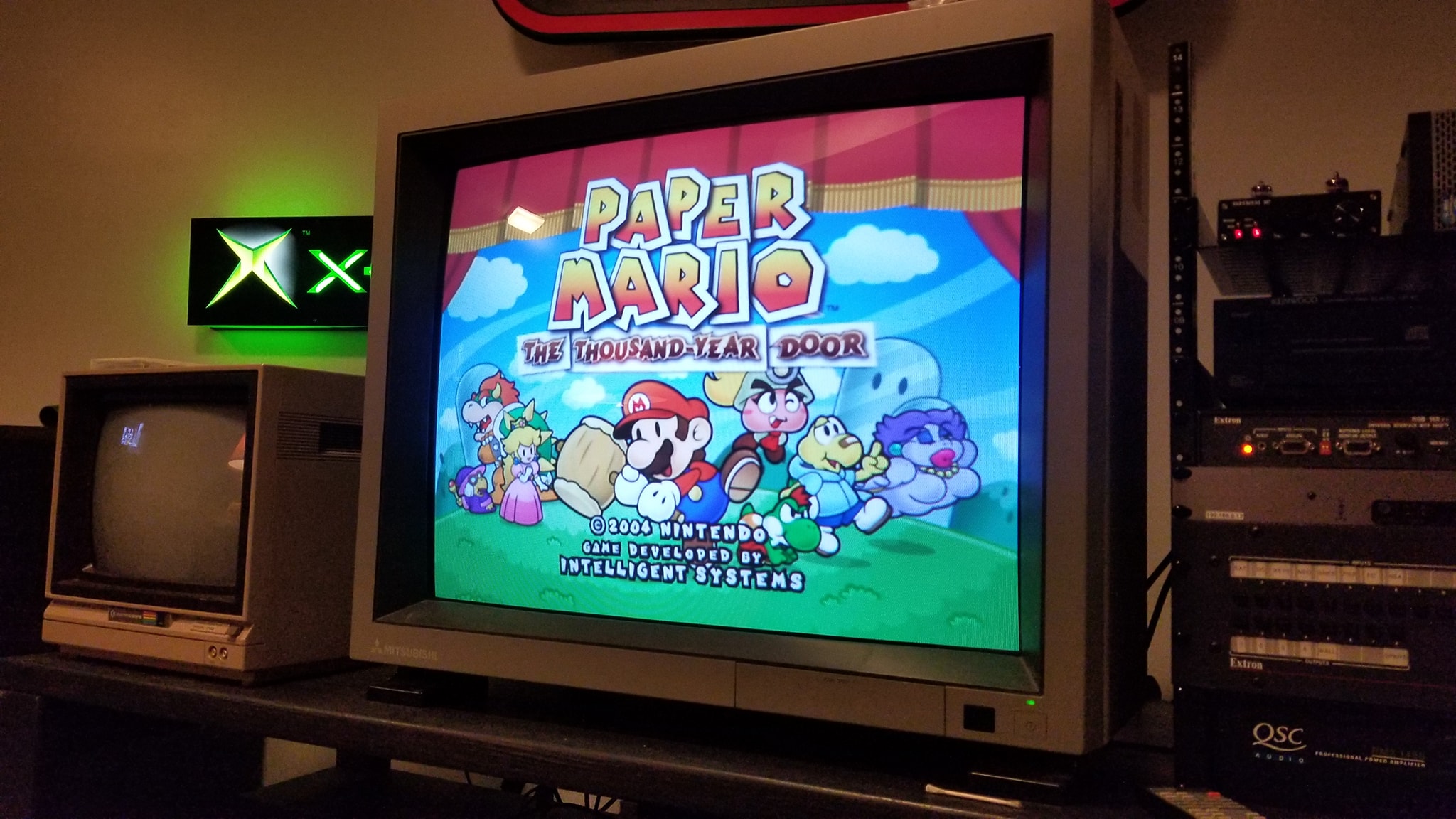

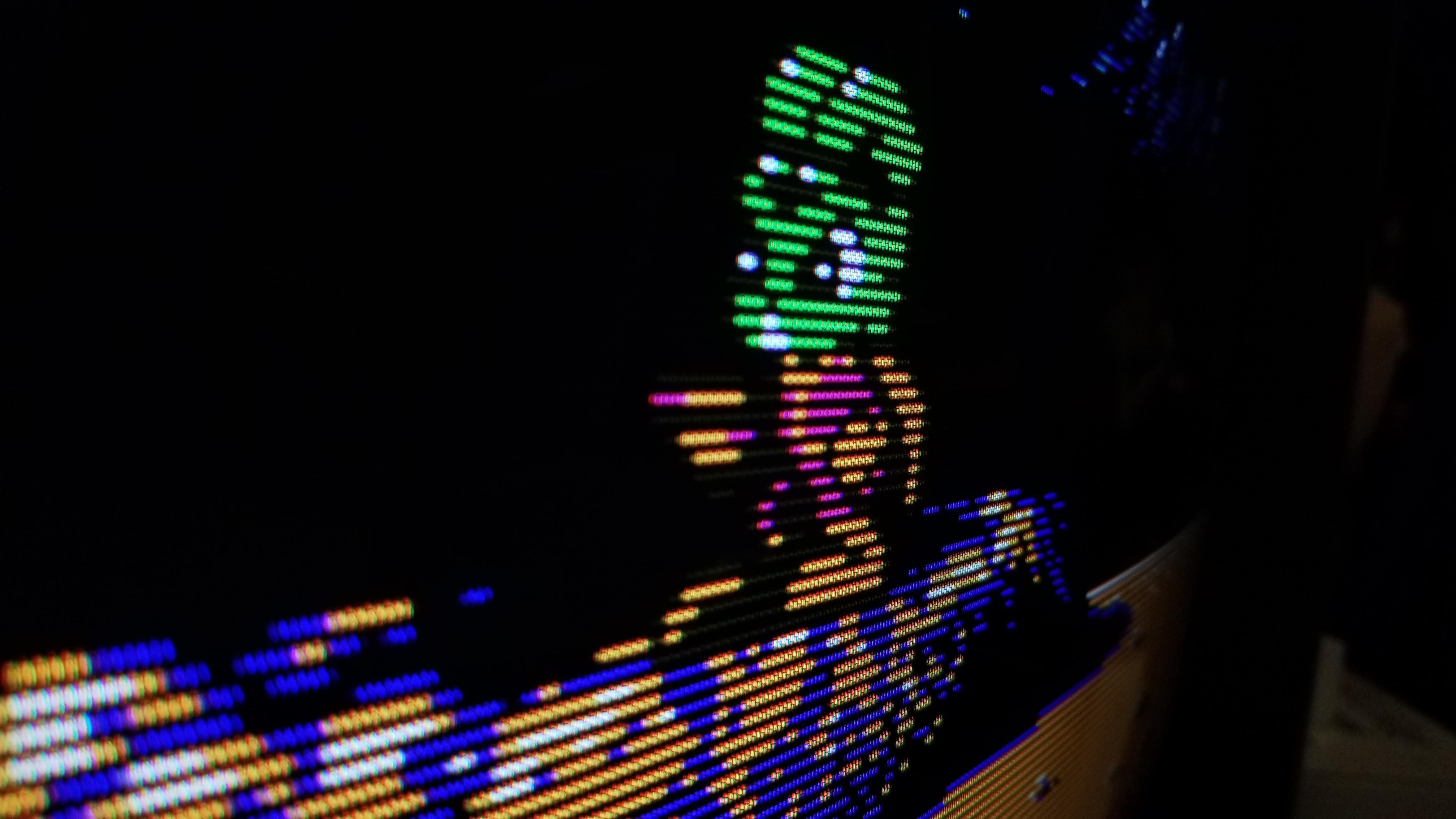

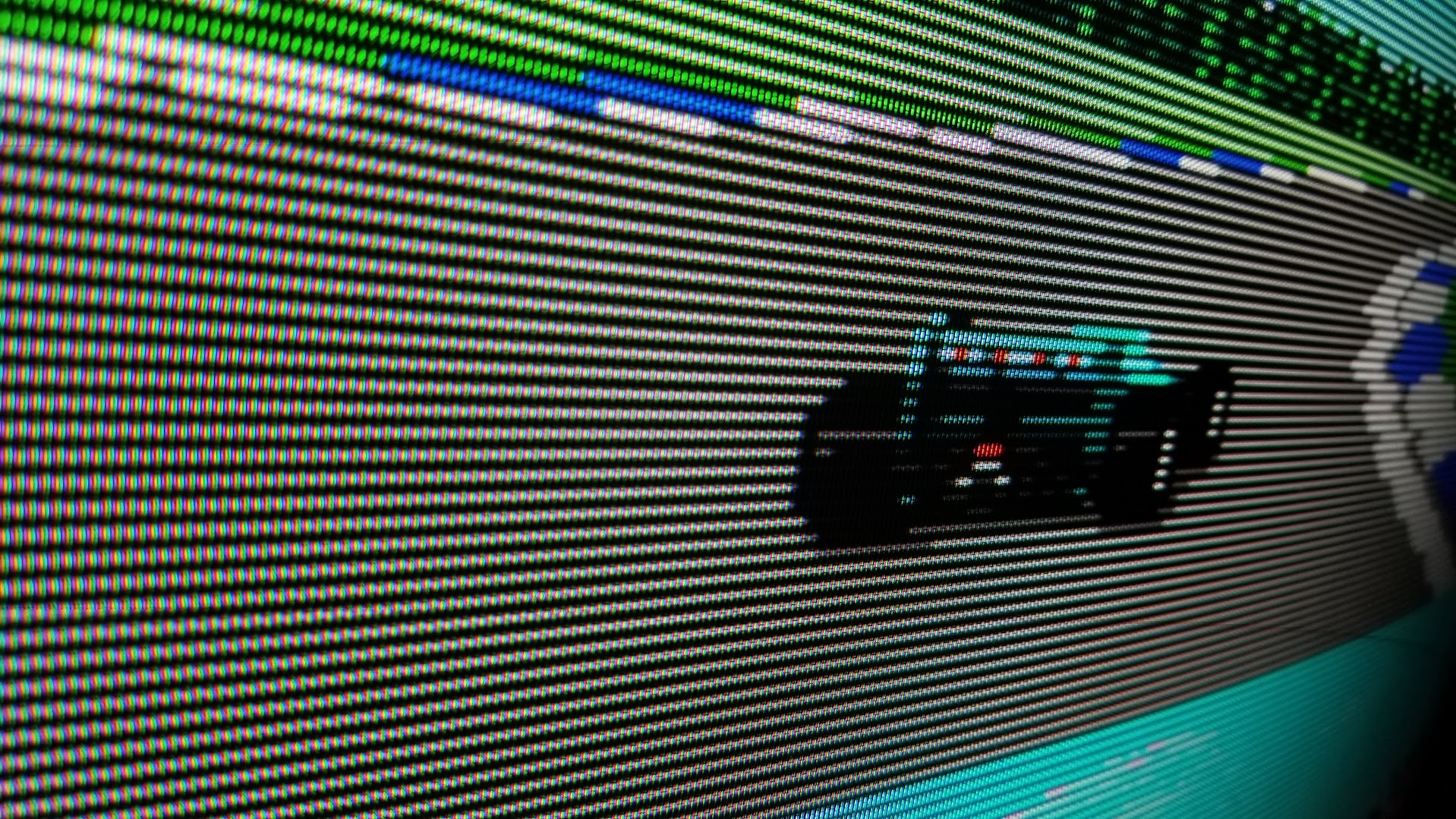

Gallery
| Specifications | |
|---|---|
| Brand: | Mitsubishi |
| Manufacturer: | Mitsubishi |
| Model: | XC-3315C |
| Series: | XC |
| Viewable Size: | 31" |

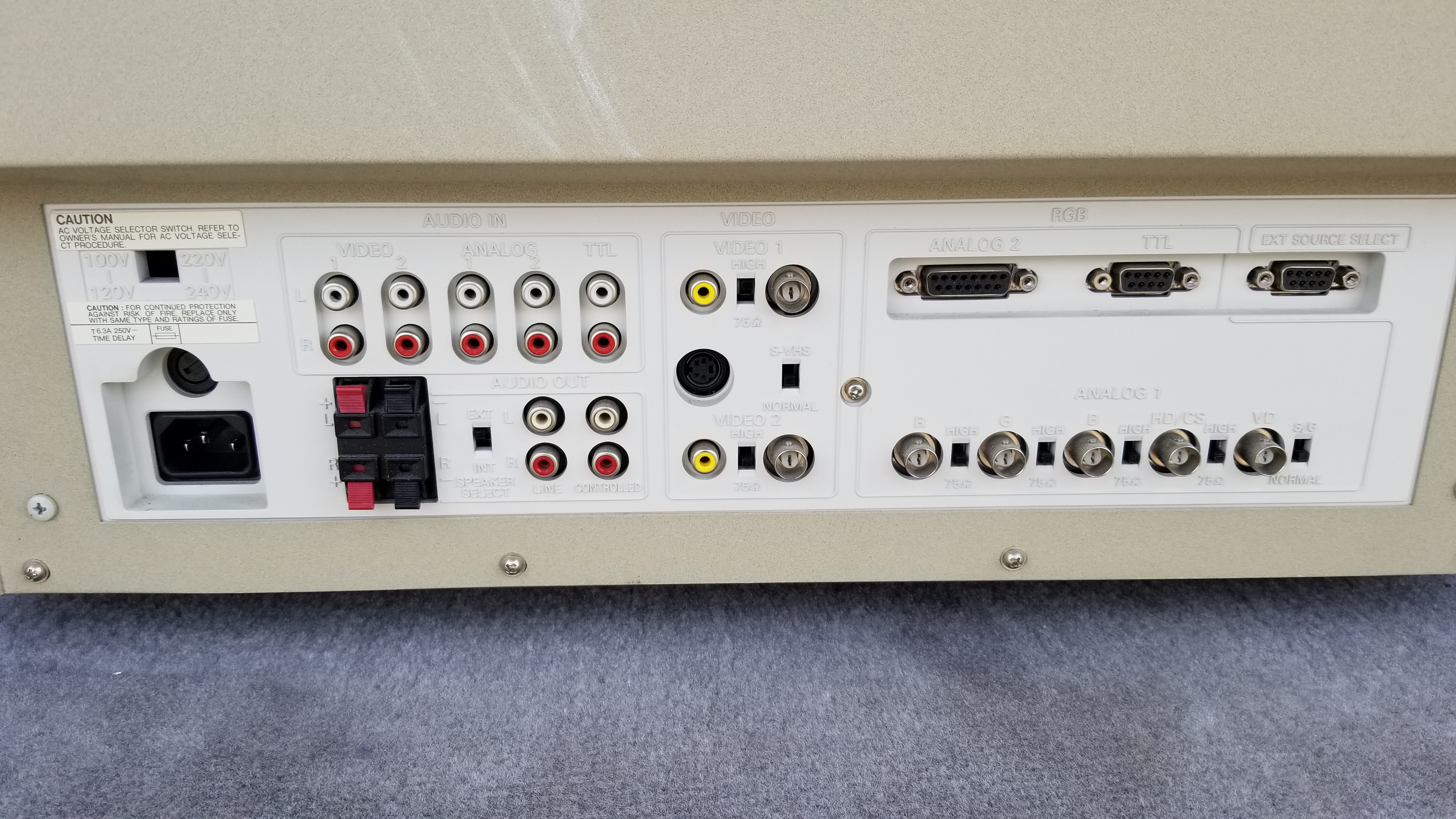

| Inputs: | VGA, Composite, S-Video, RGBHV, BNC, TTL RGB |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, 240p, 480i, 1080i, 480p, 576p, EGA, Medium Res., 576i, 288p |
| Horizontal Scan Range: | 15 kHz, 36 kHz |
| Vertical Scan Range: | 120 Hz, 40 Hz |
| Formats: | NTSC, PAL, SECAM, M-NTSC |
| Aspect: | 4:3 |
| Jungle IC: | Toshiba, TA8659AN |
| Focus Type: | Dual |
| Tube: | Mitsubishi , M79KKZ11X |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|
| Pitch: | .83 mm, 1 mm, 0.83 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 1.6W x 2 |

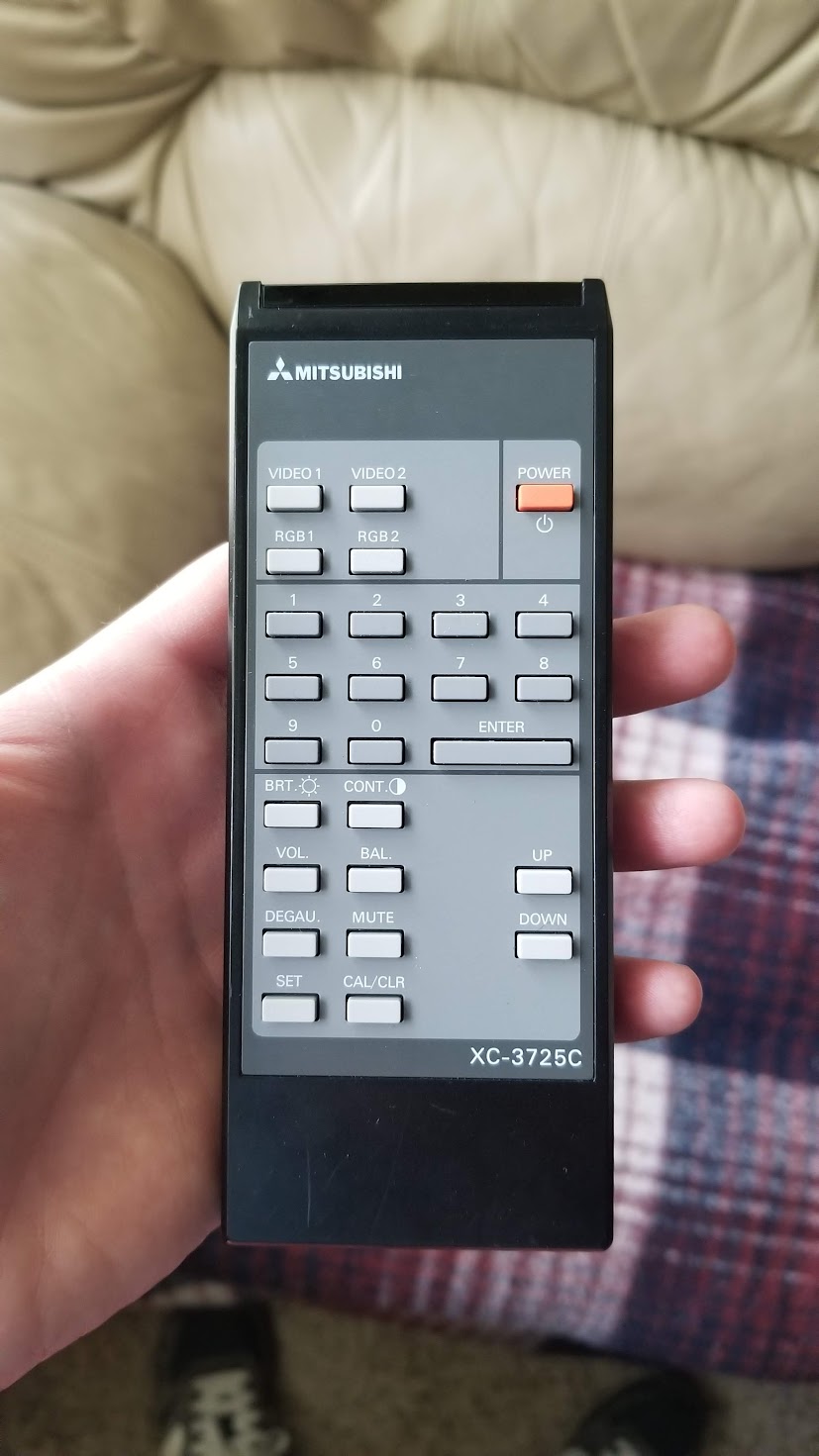

| Remote: | XC-3725C |
| Weight: | 175 lbs (79.4 kg) |
| Dimensions (W/H/D): |
775 x 660 x 597 mm
(30.5 x 25.9 x 23.5") |
| Application: | Professional |
| Cabinet Material: | Metal |
| Launched: | 1989 |
| Country of Manufacture: | Japan |
| Market: | Worldwide |
| Power Standard: | Universal |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Manual |
| Tag: | Needs Owners Manual |
