Summary
Ultra high-end 35" presentation monitor by Mitsubishi, originally manufactured in Japan from 1989 until 1994. Supports 240p/480i all the way up to 600p.

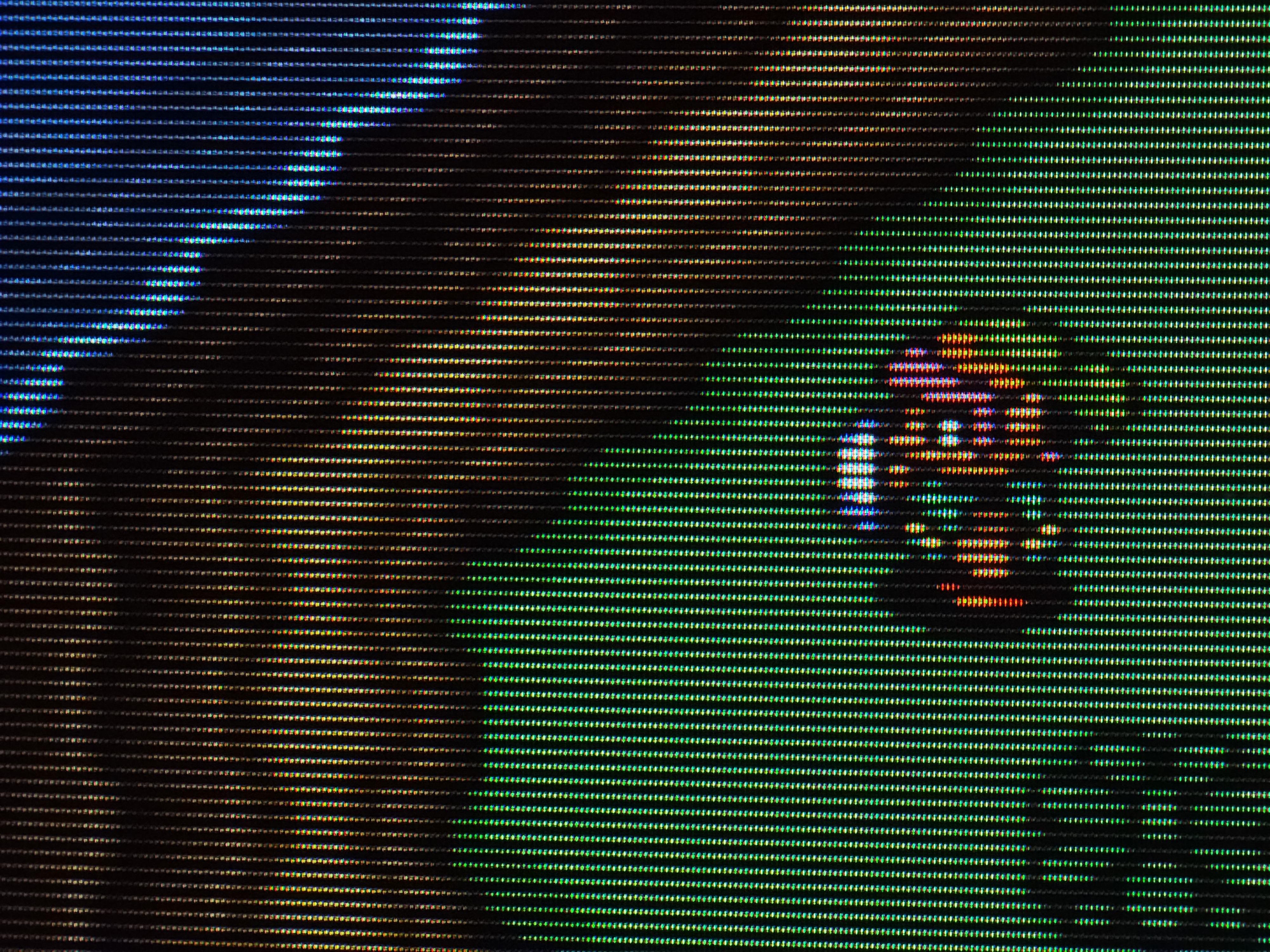

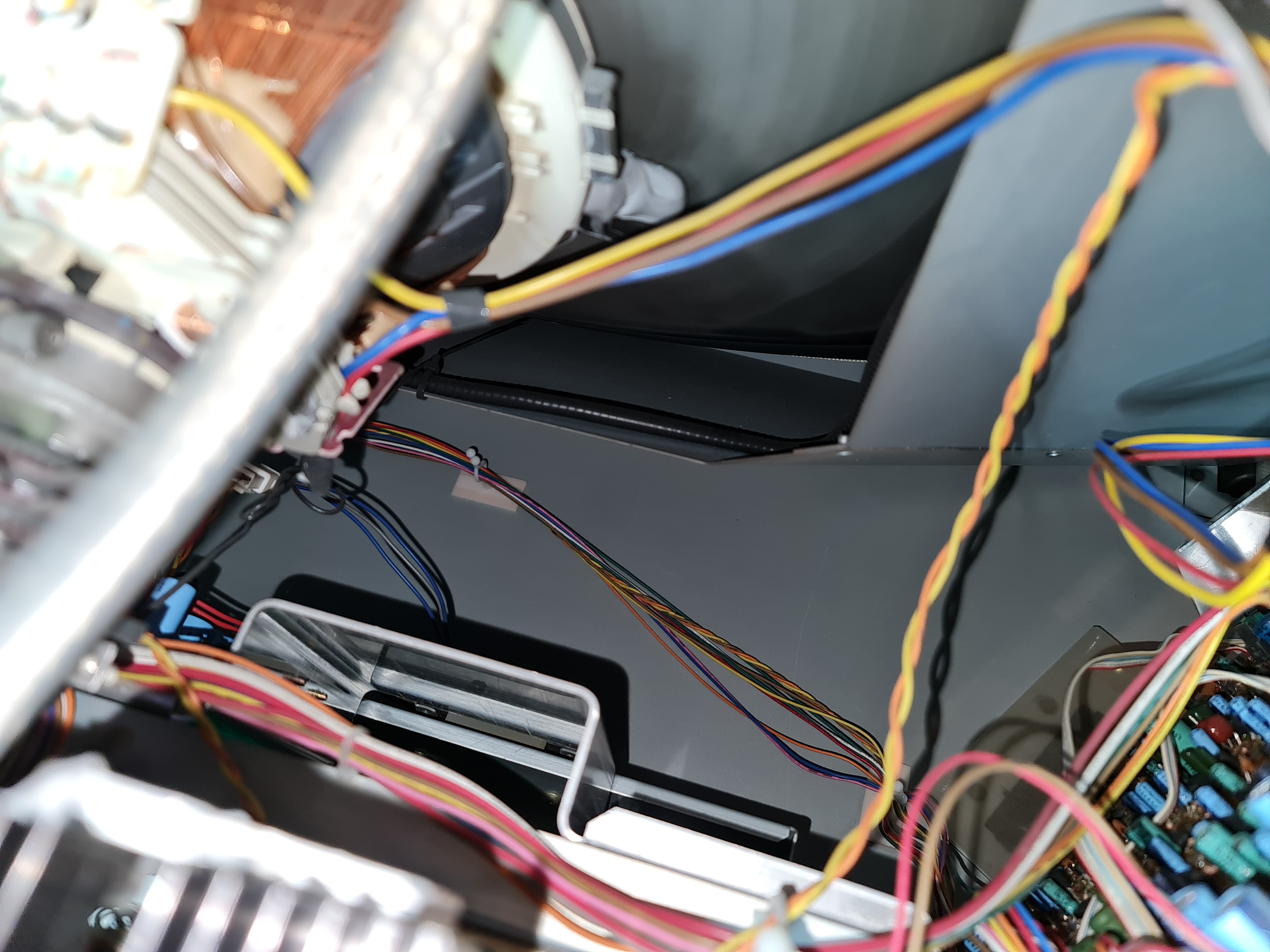

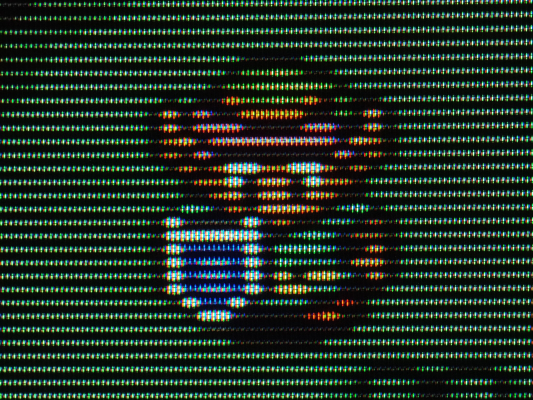

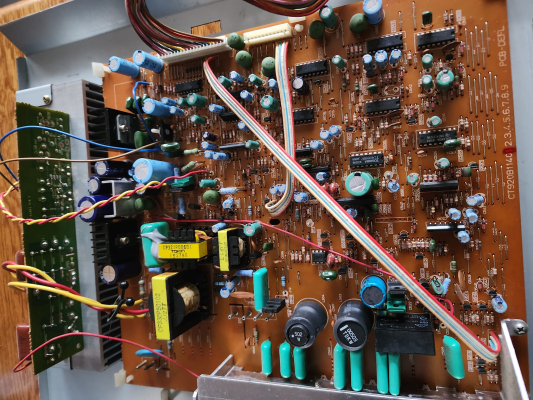

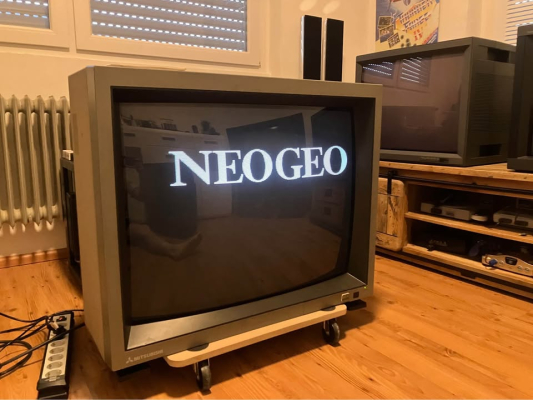

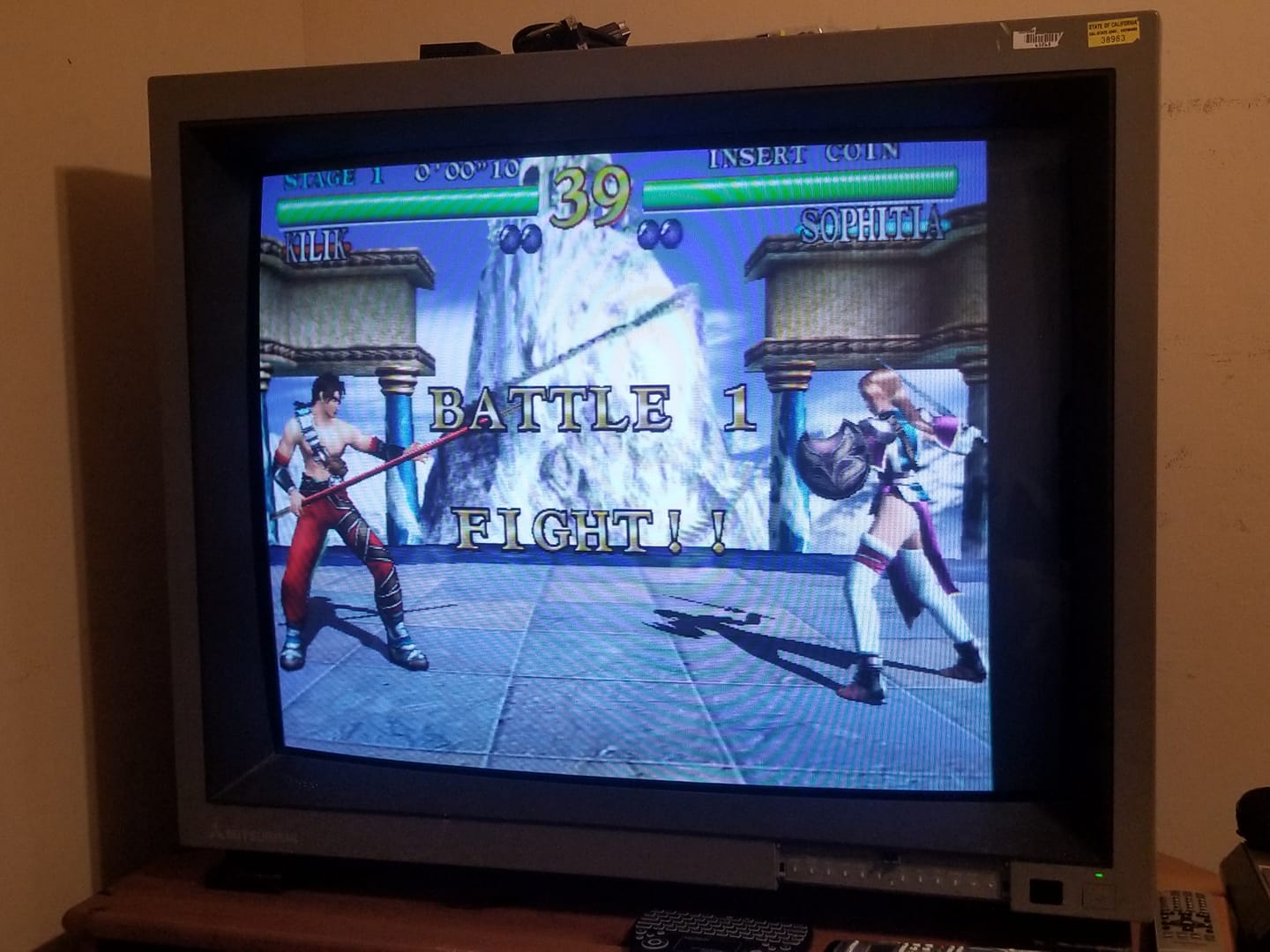

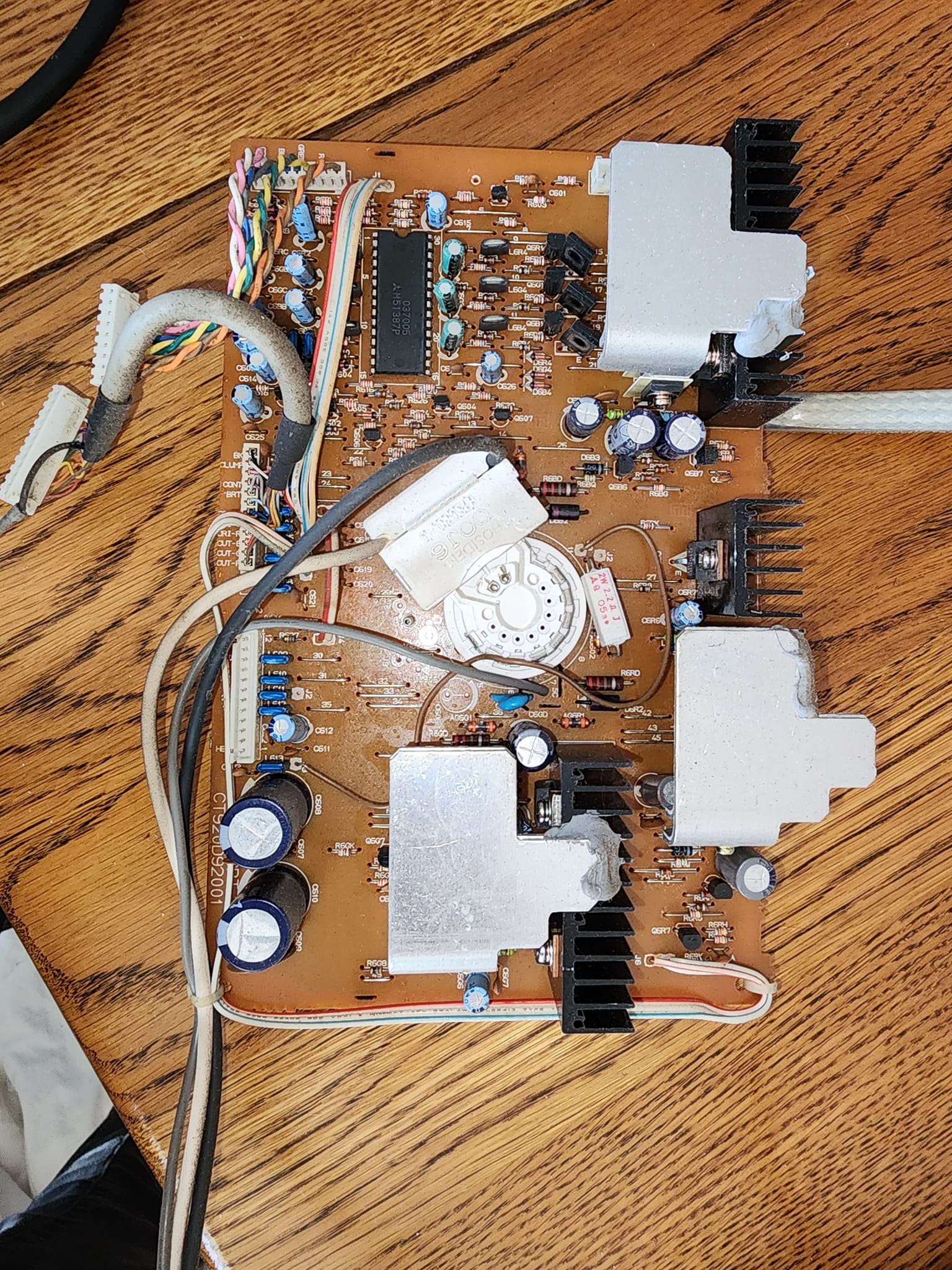

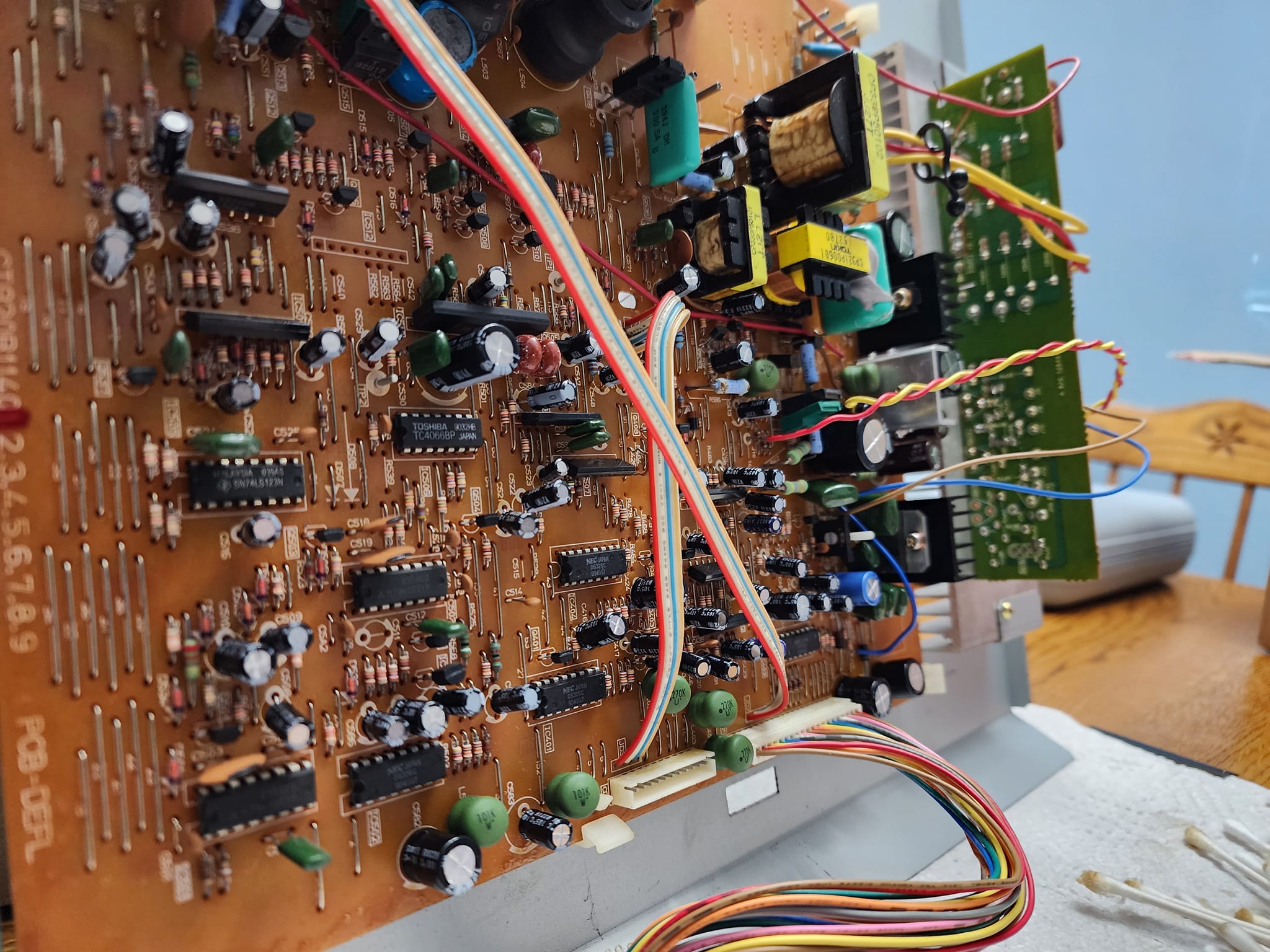

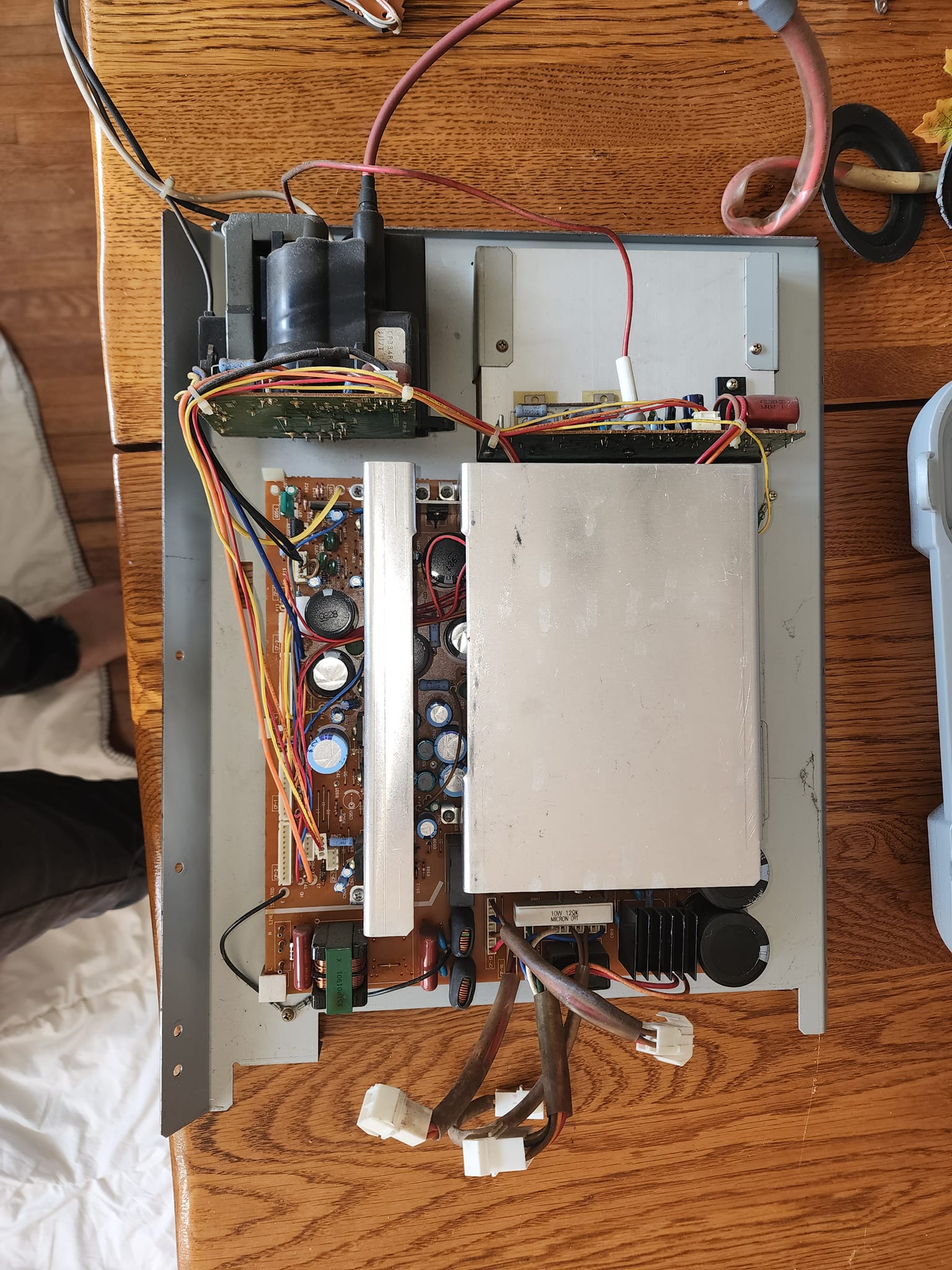

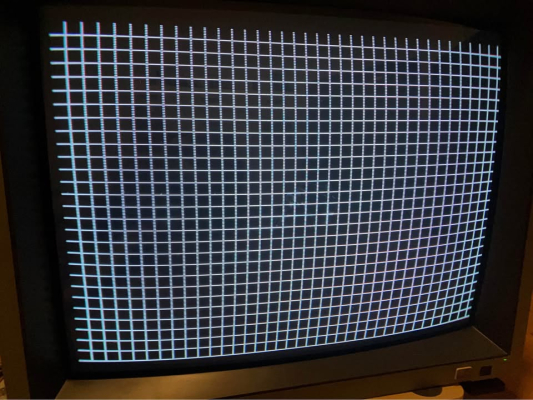

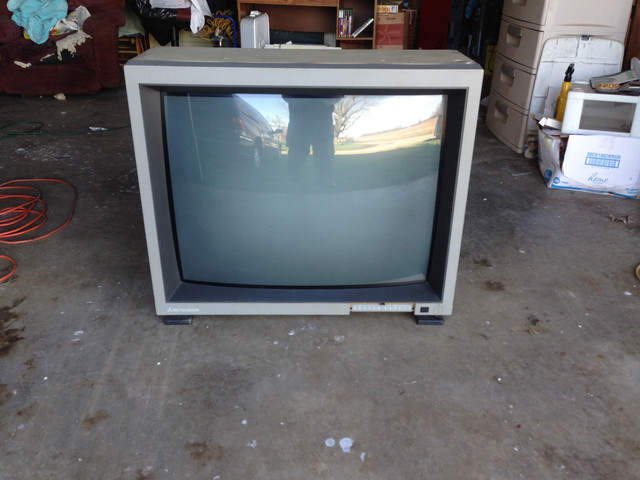

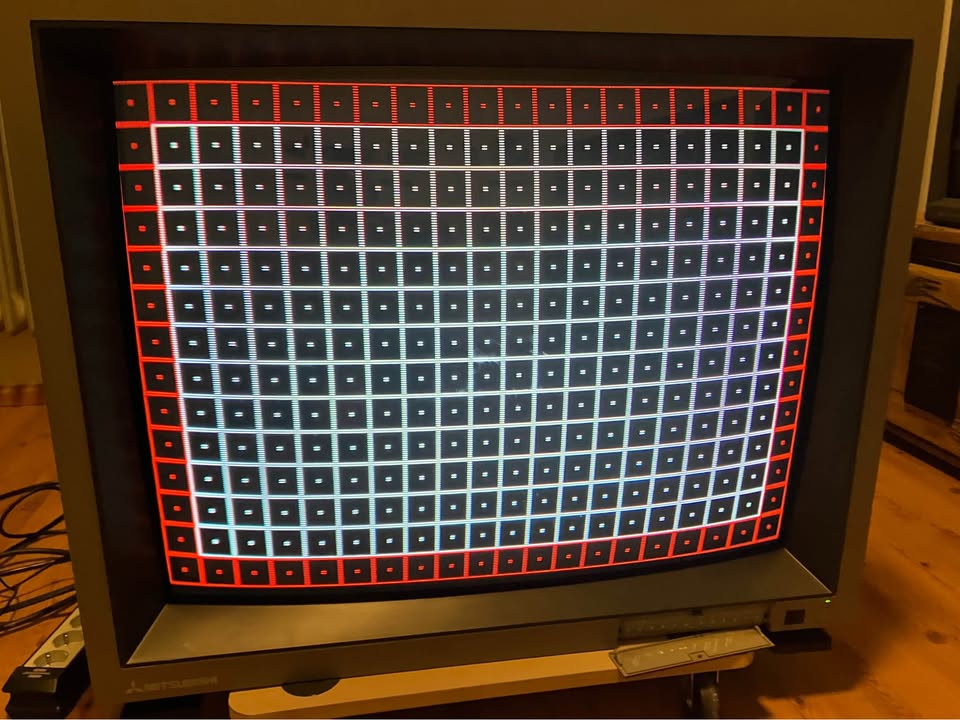

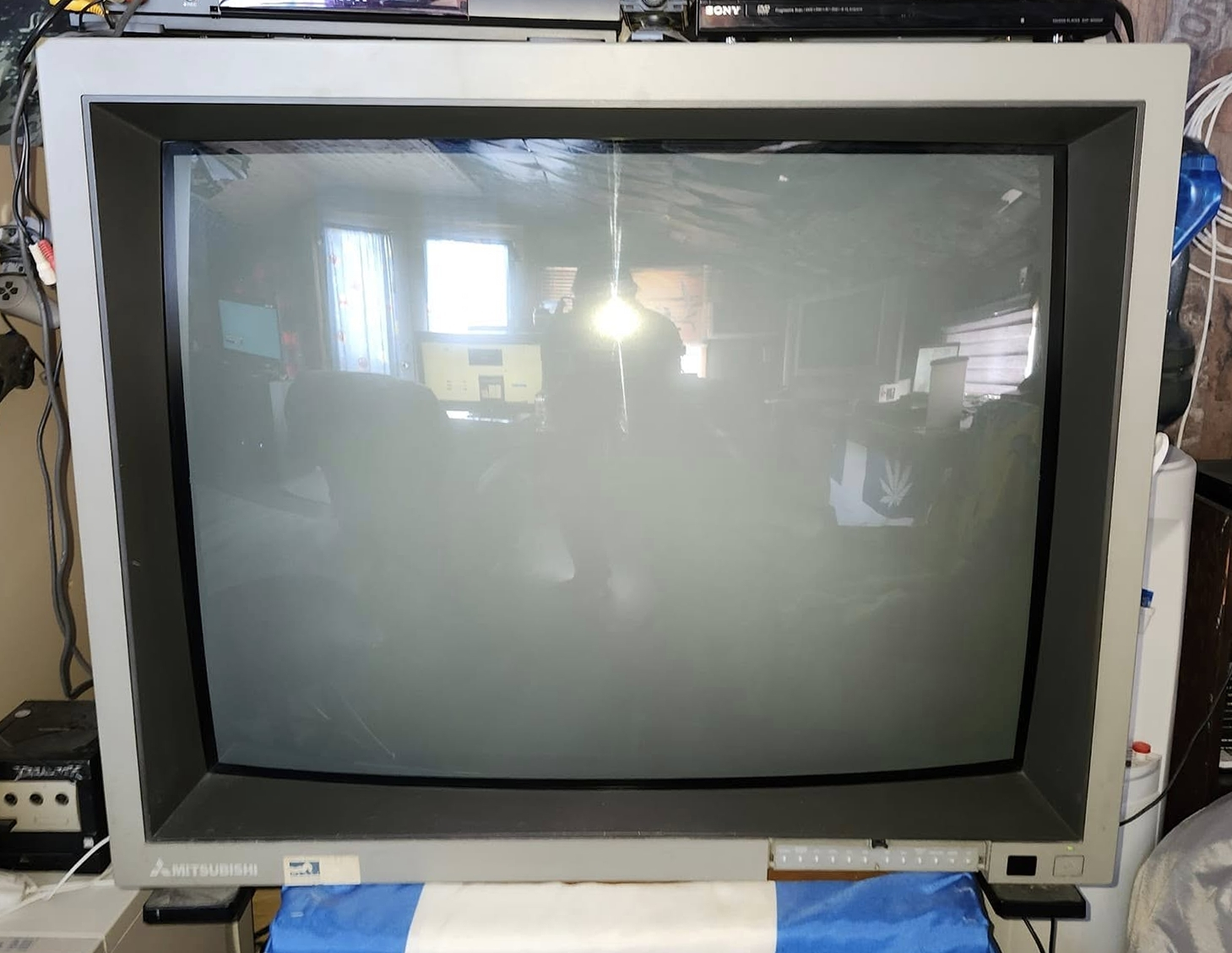

(Special thanks to Parrish Gillette and Andor Vogel for the pics! Also, a hge thanks to u/westygw for finding and digitizing the service manual!)
Manuals
According to u/westygw:
"I looked for [the service manual] a long time. Eventually I started cold calling defunct old rental shops. Found a guy in New Zealand who had it. The monitor was long gone but he was kind enough to find it in storage and crudely digitize it, for me."
Notes

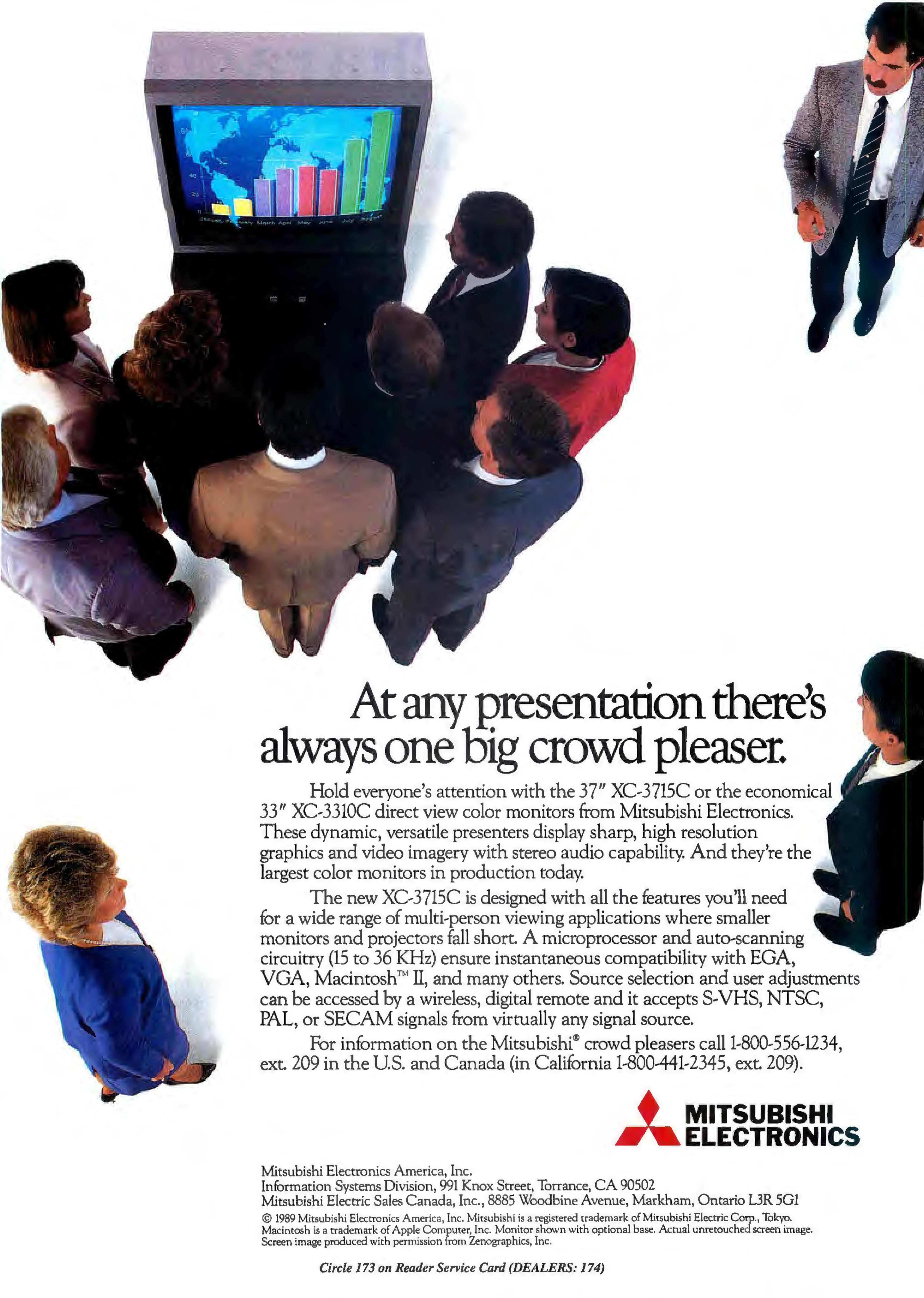

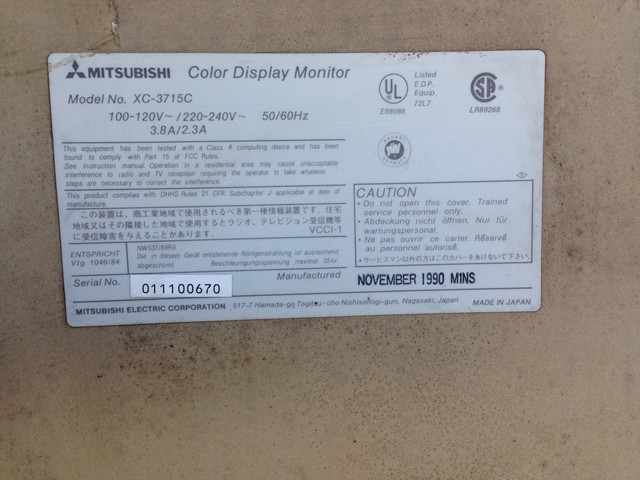

Voltage is selectable on the back of the monitor. Stereo audio outputs are rated for 2W 8ohm.

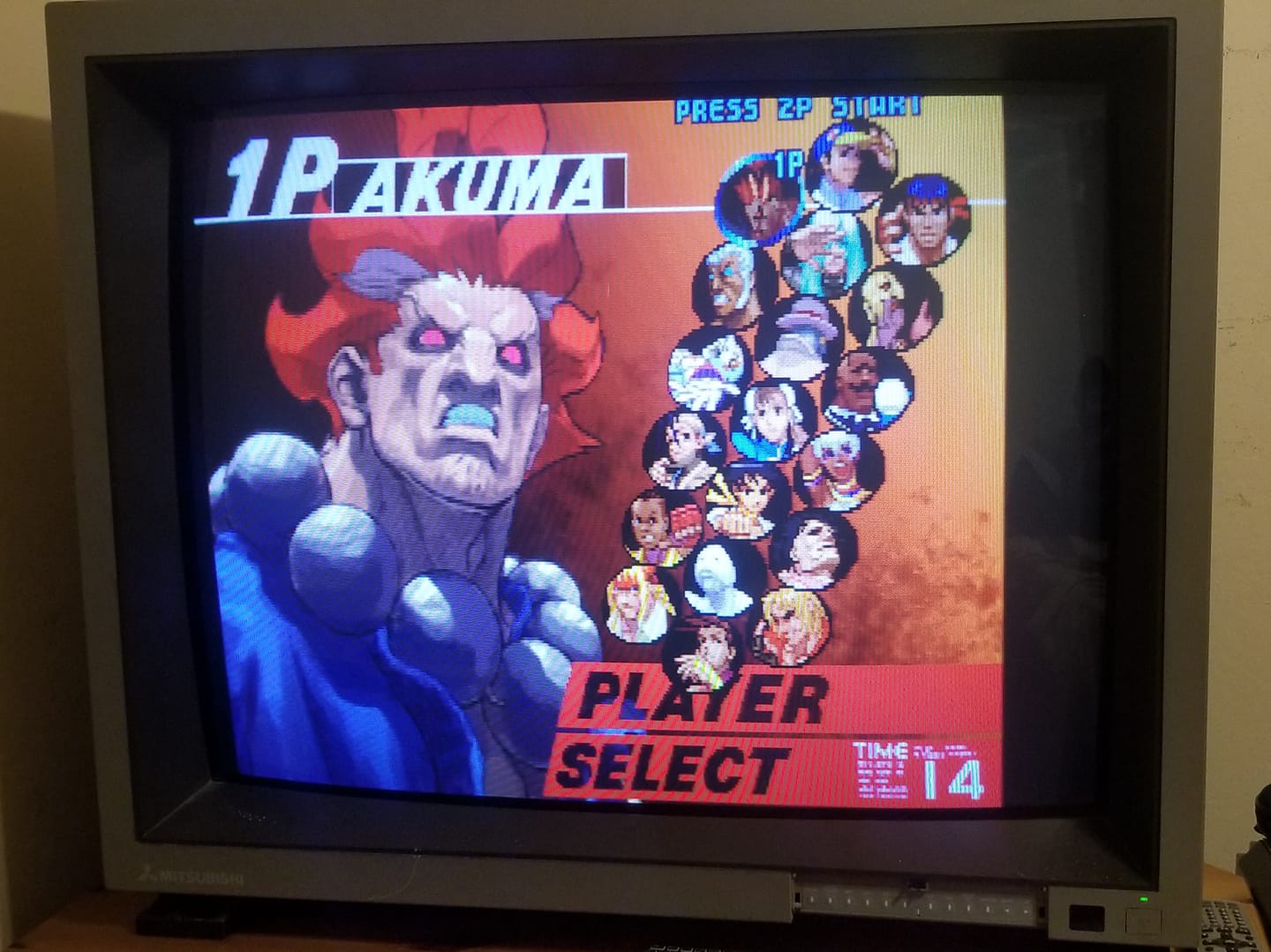

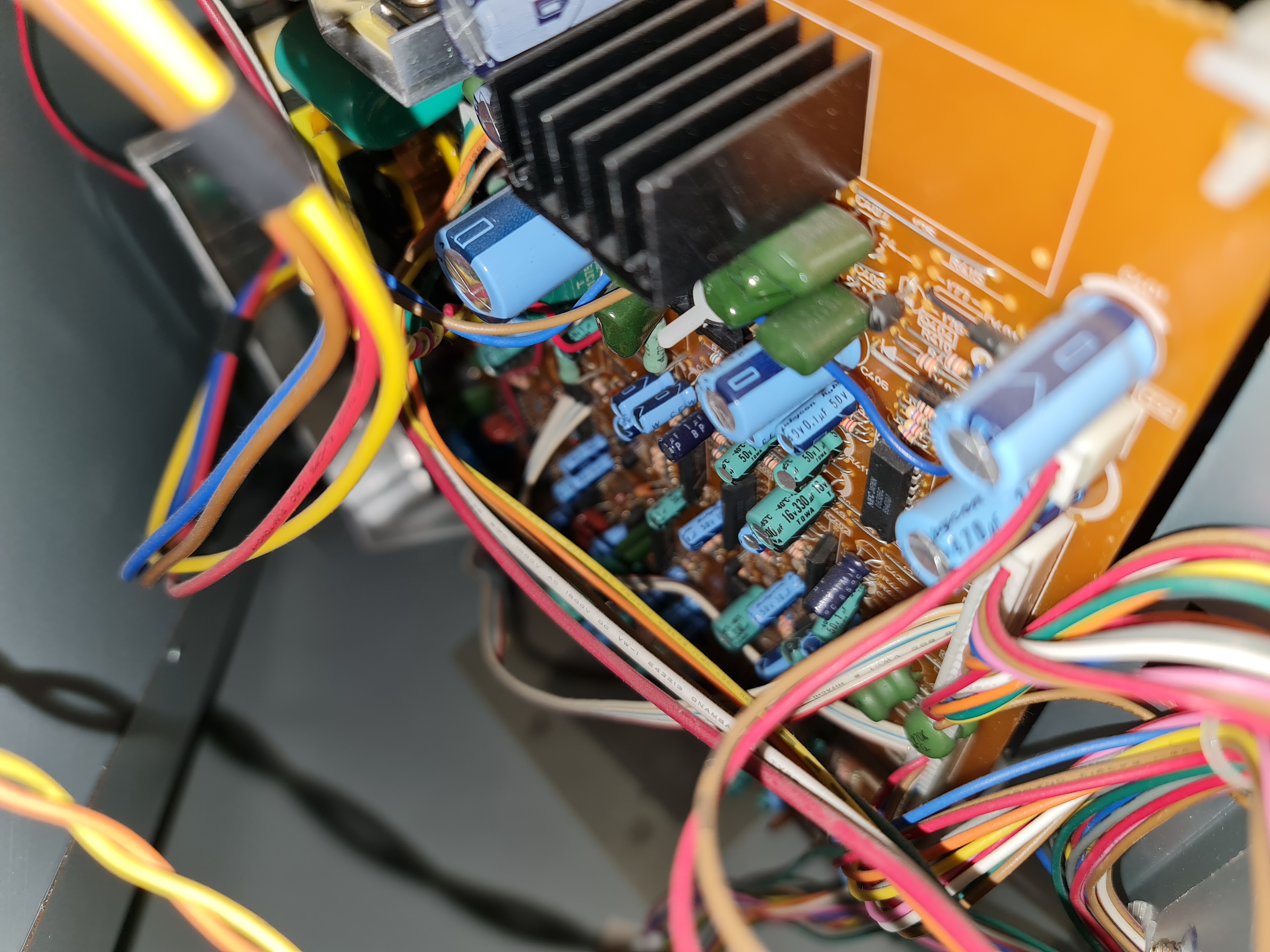

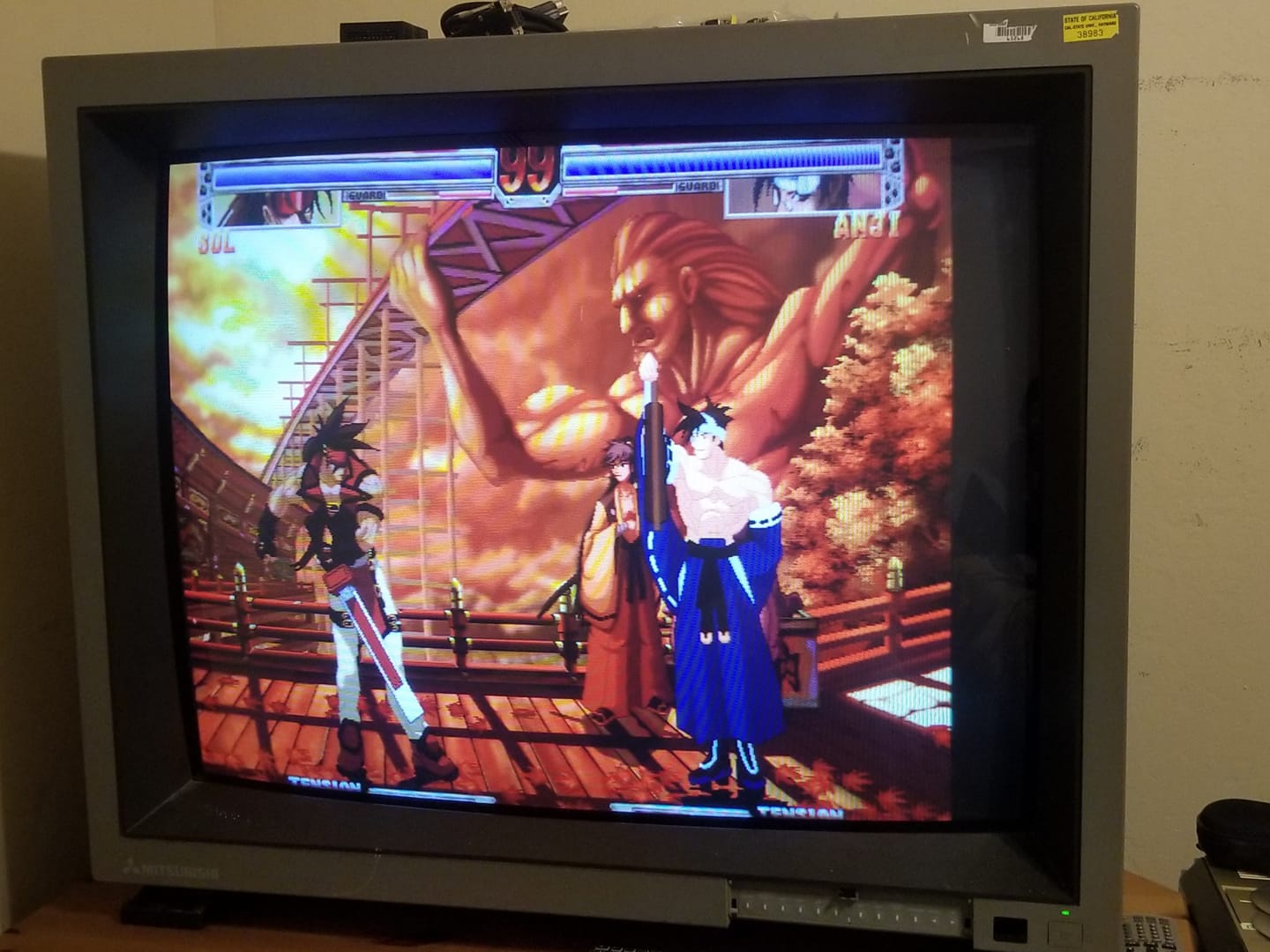

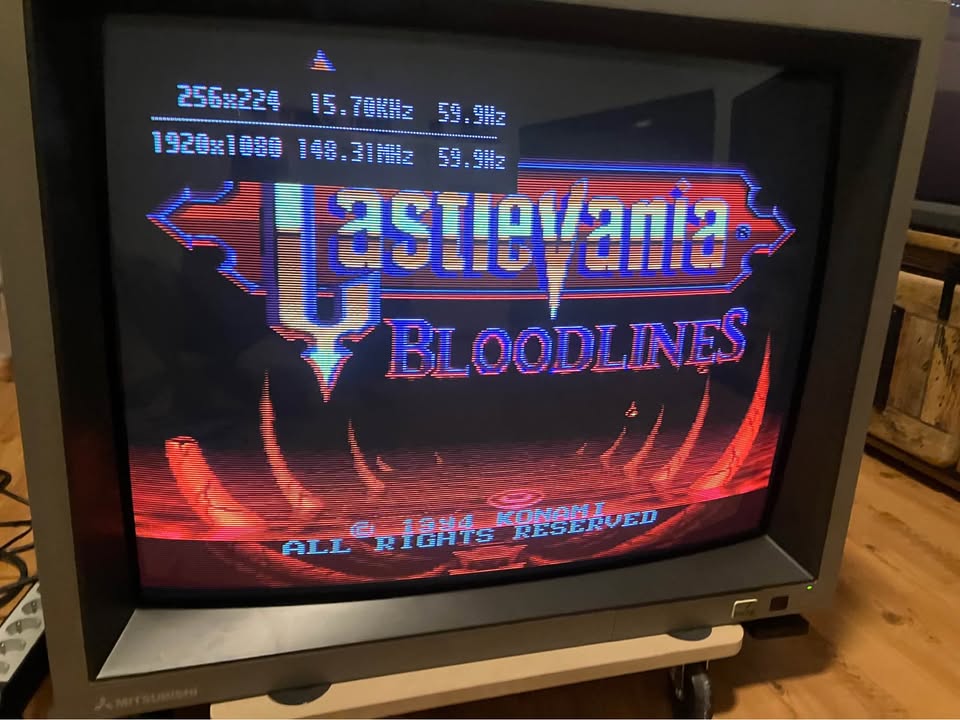

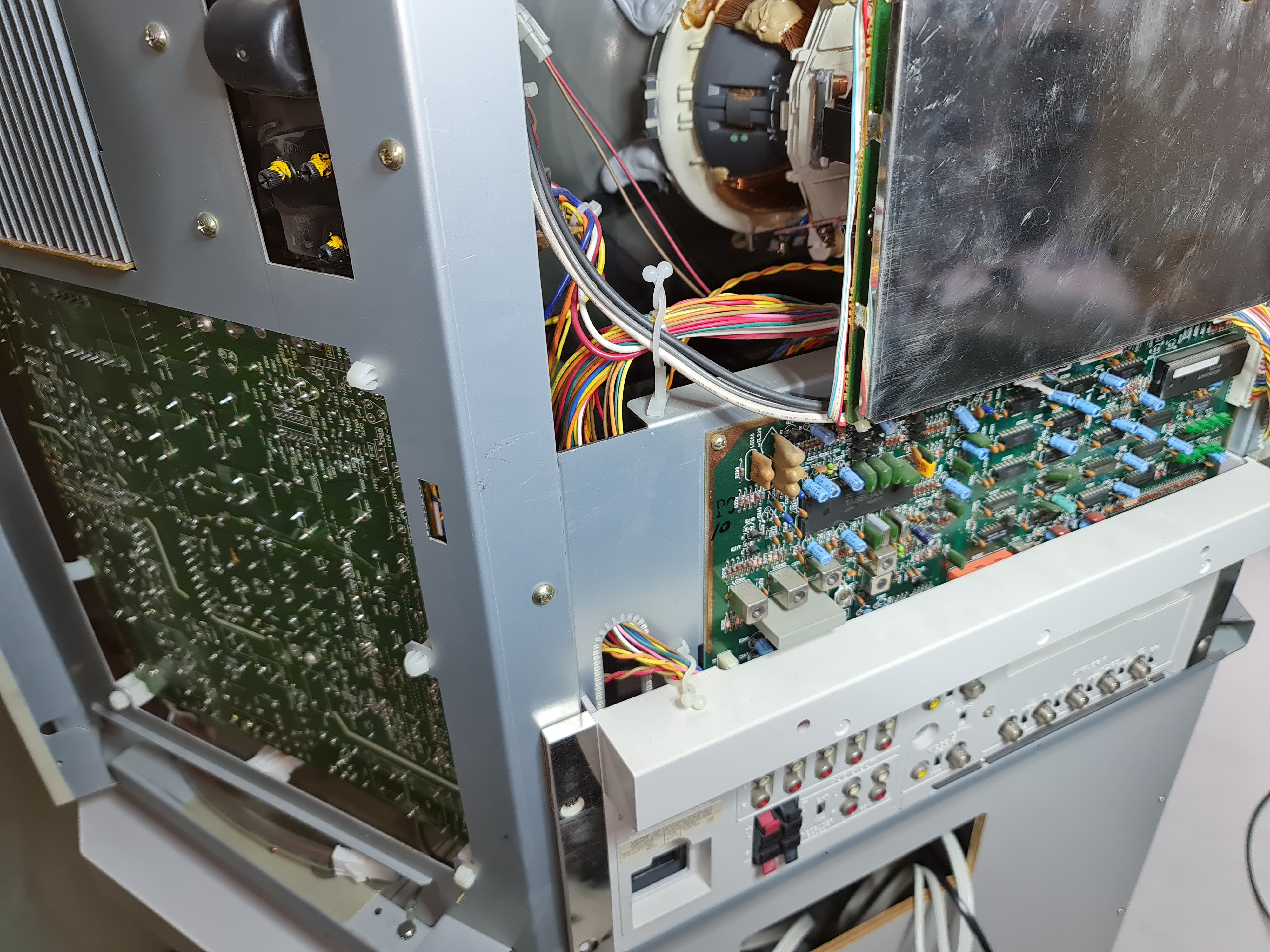

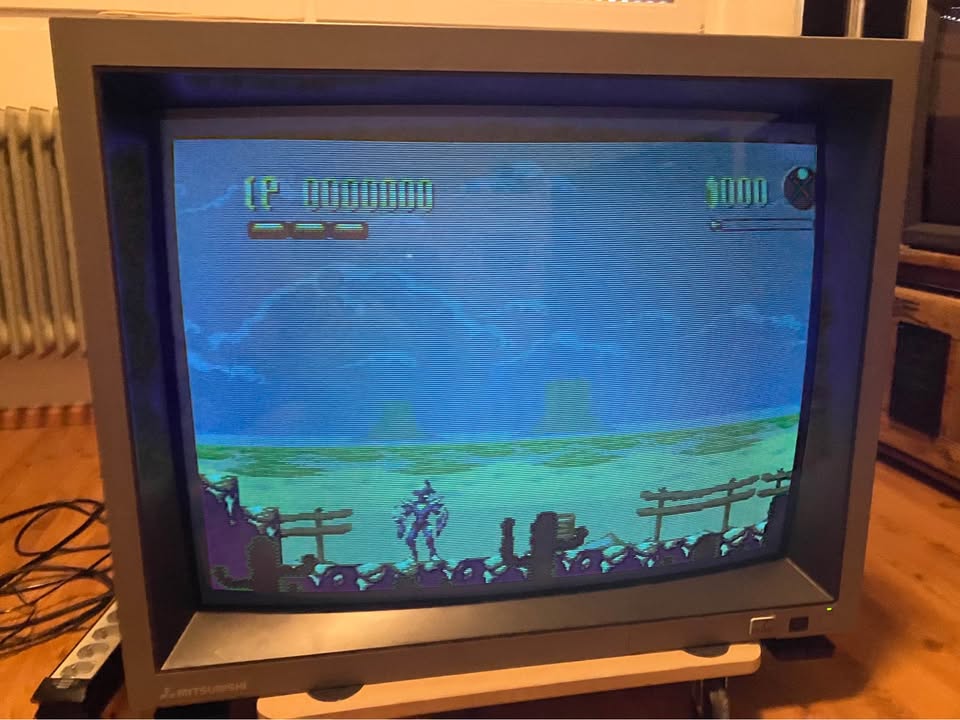

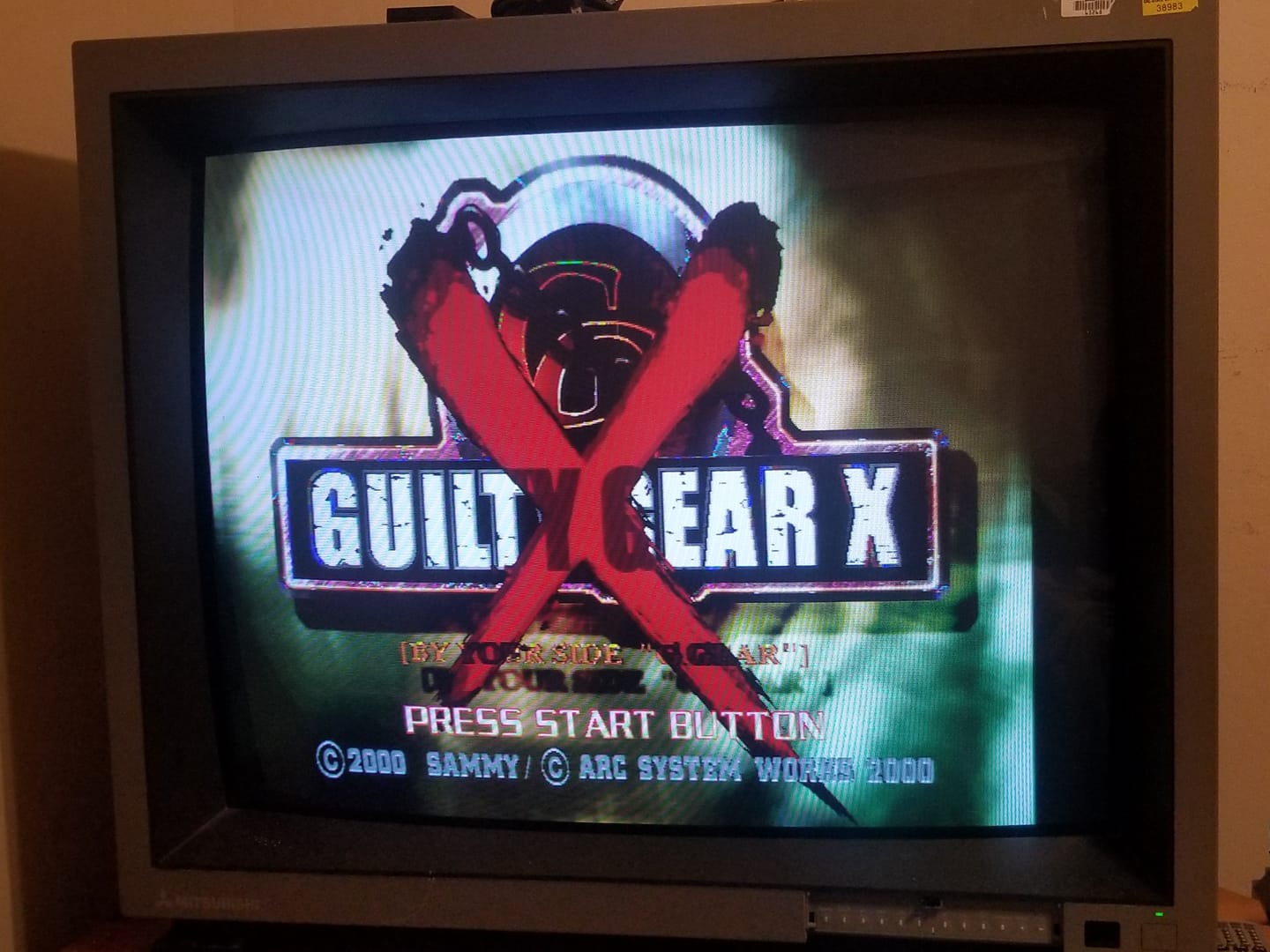

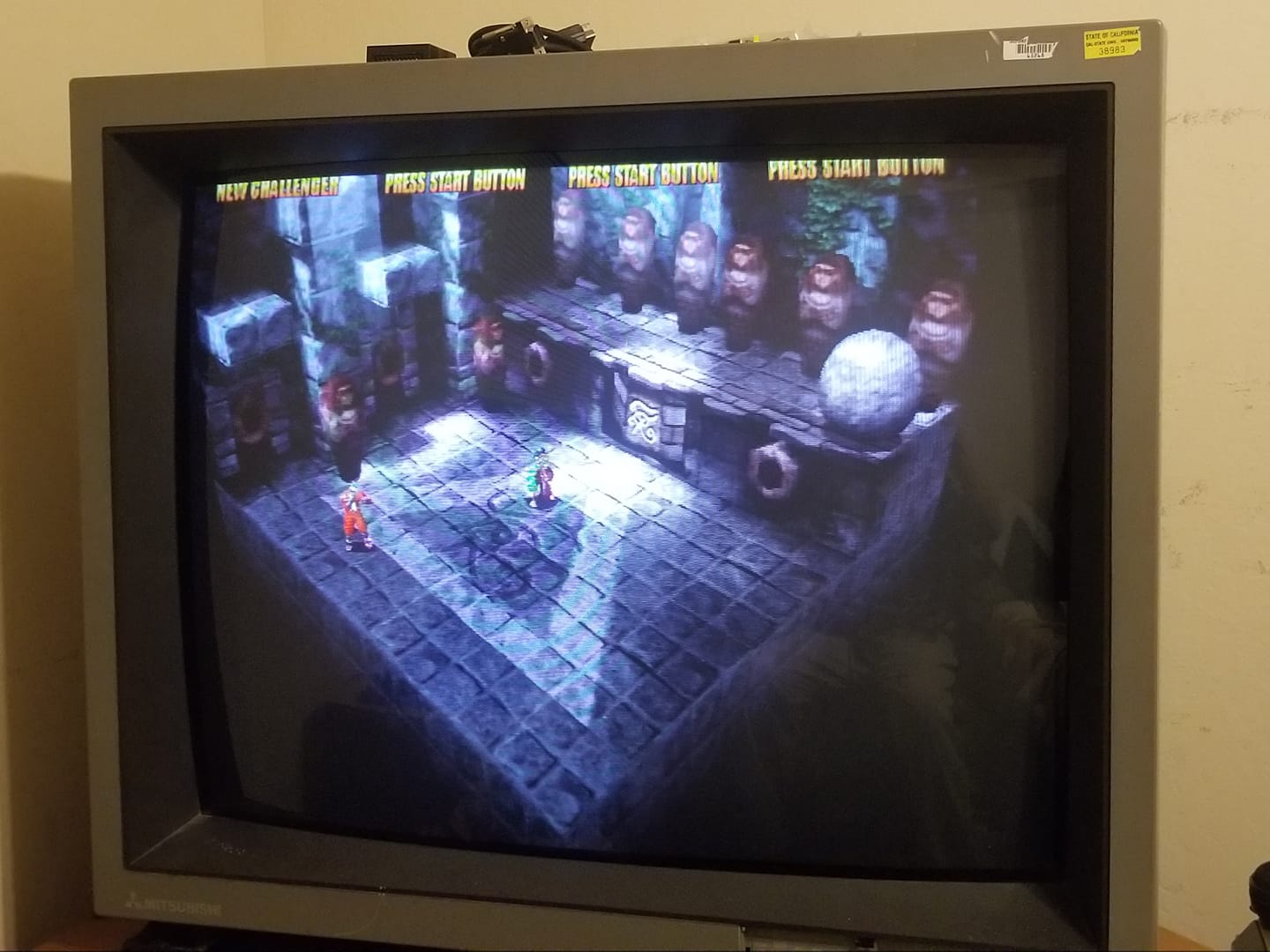

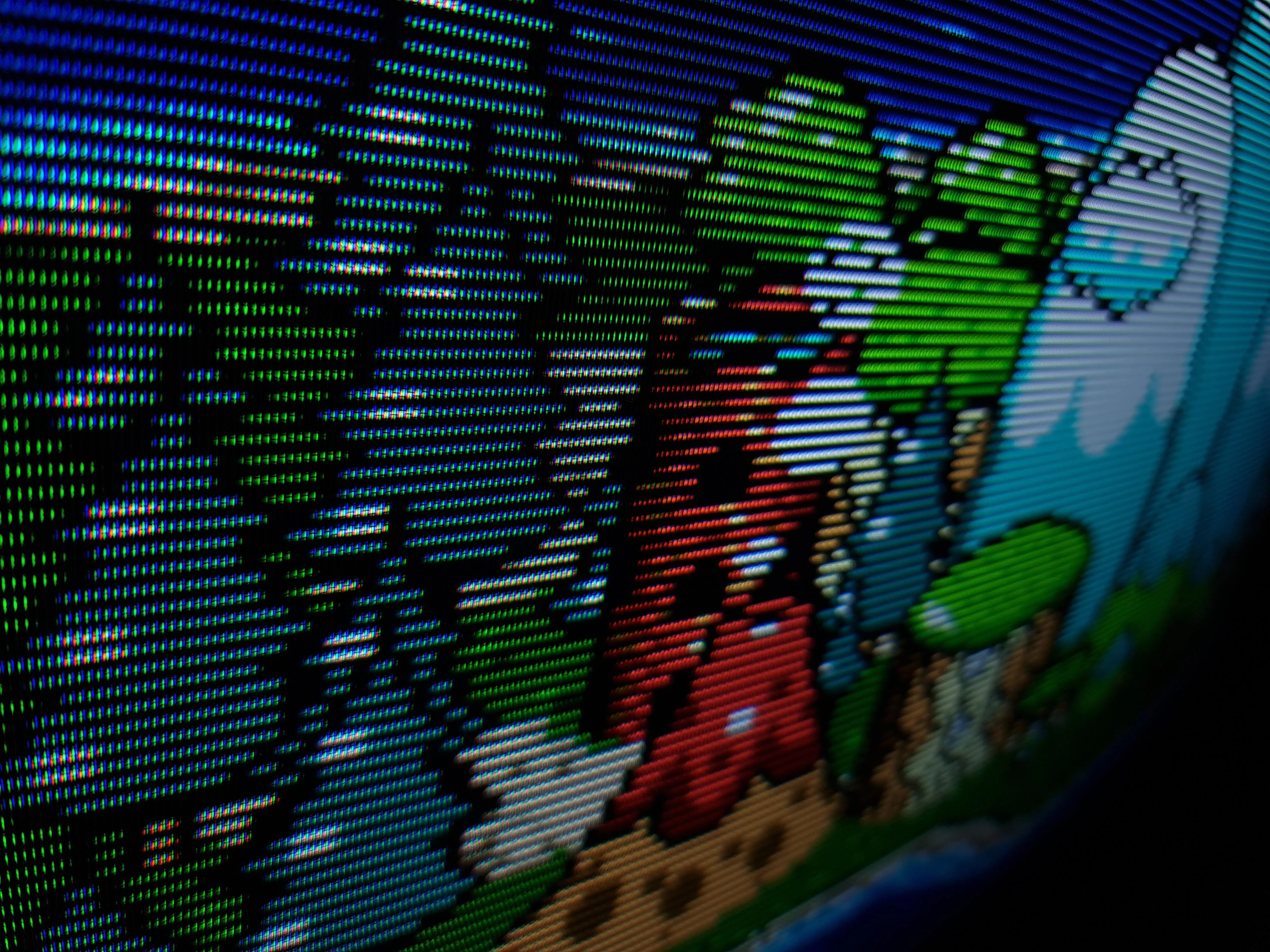

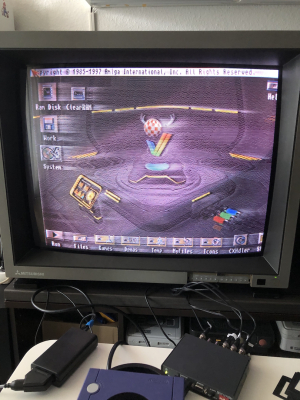

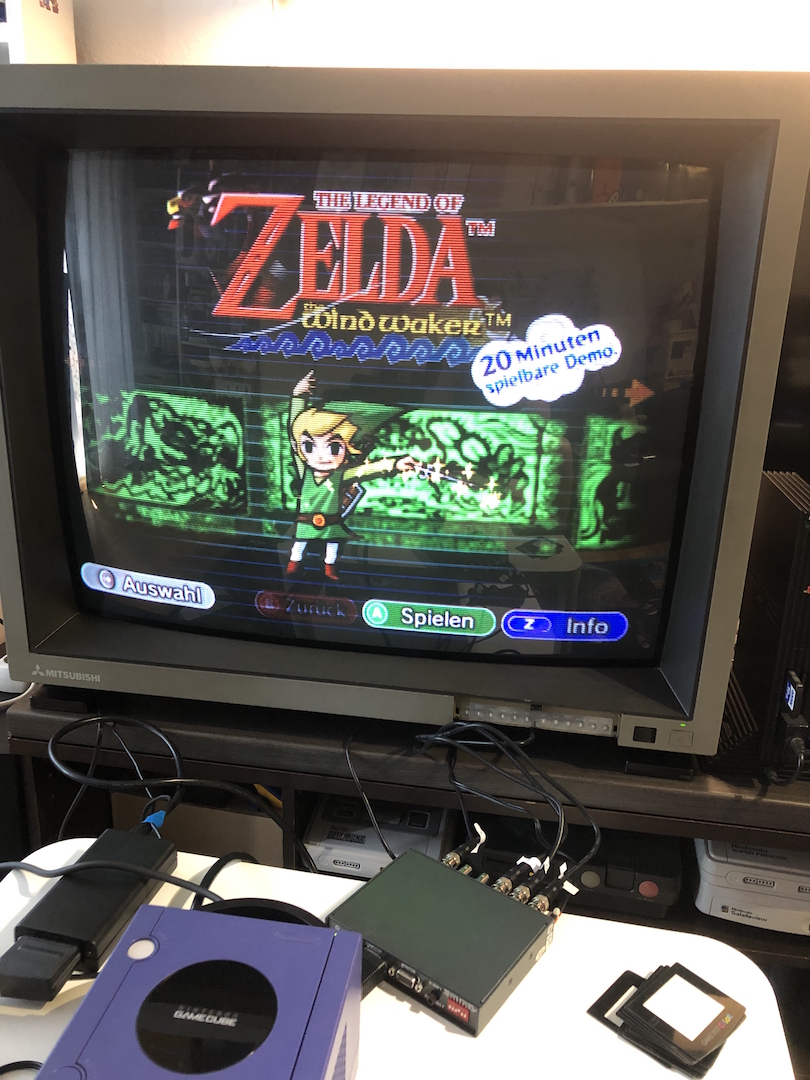

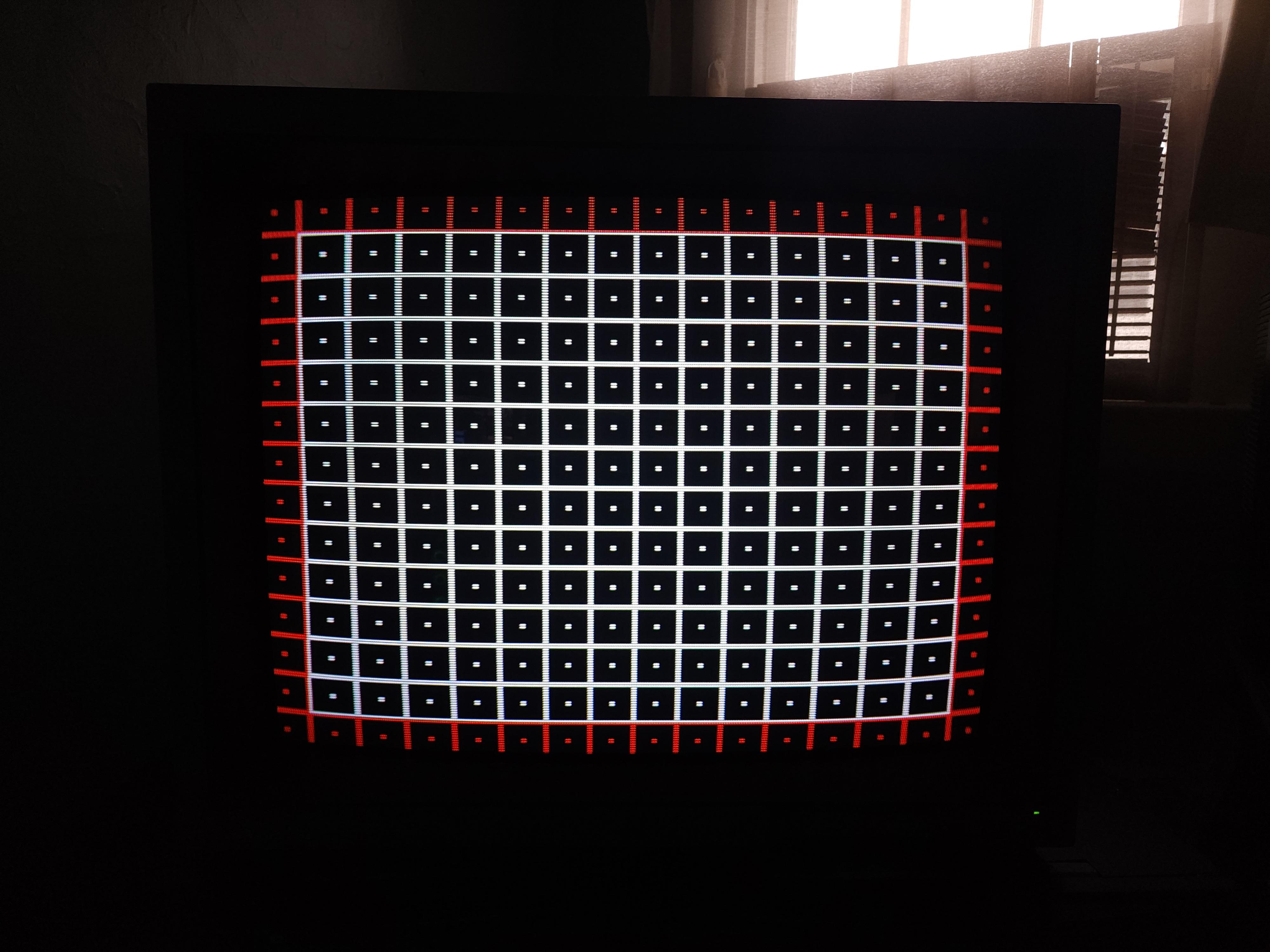

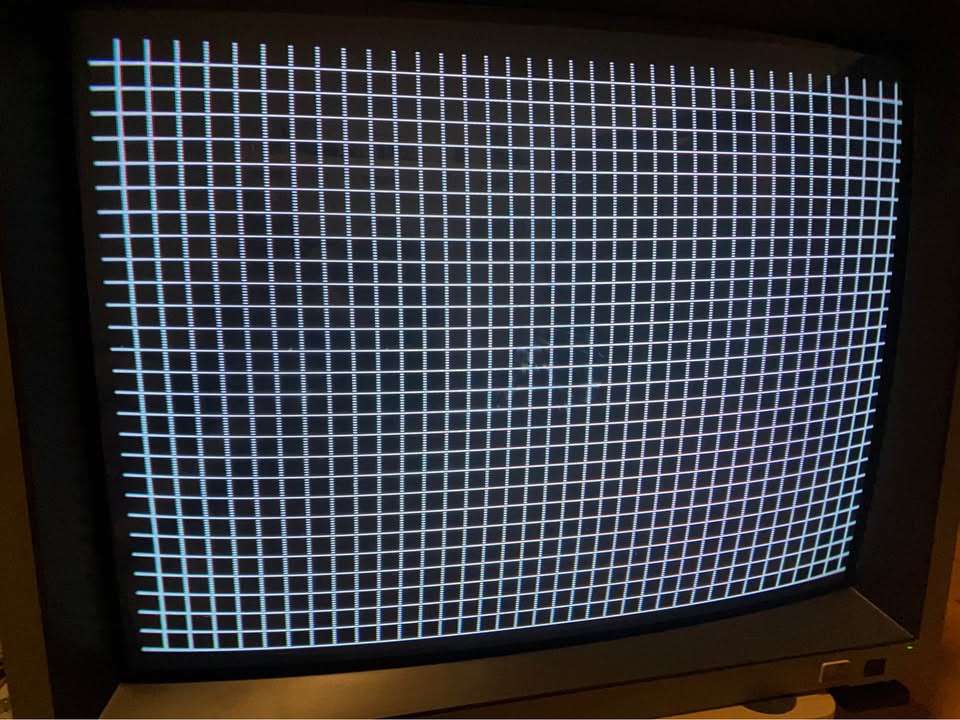

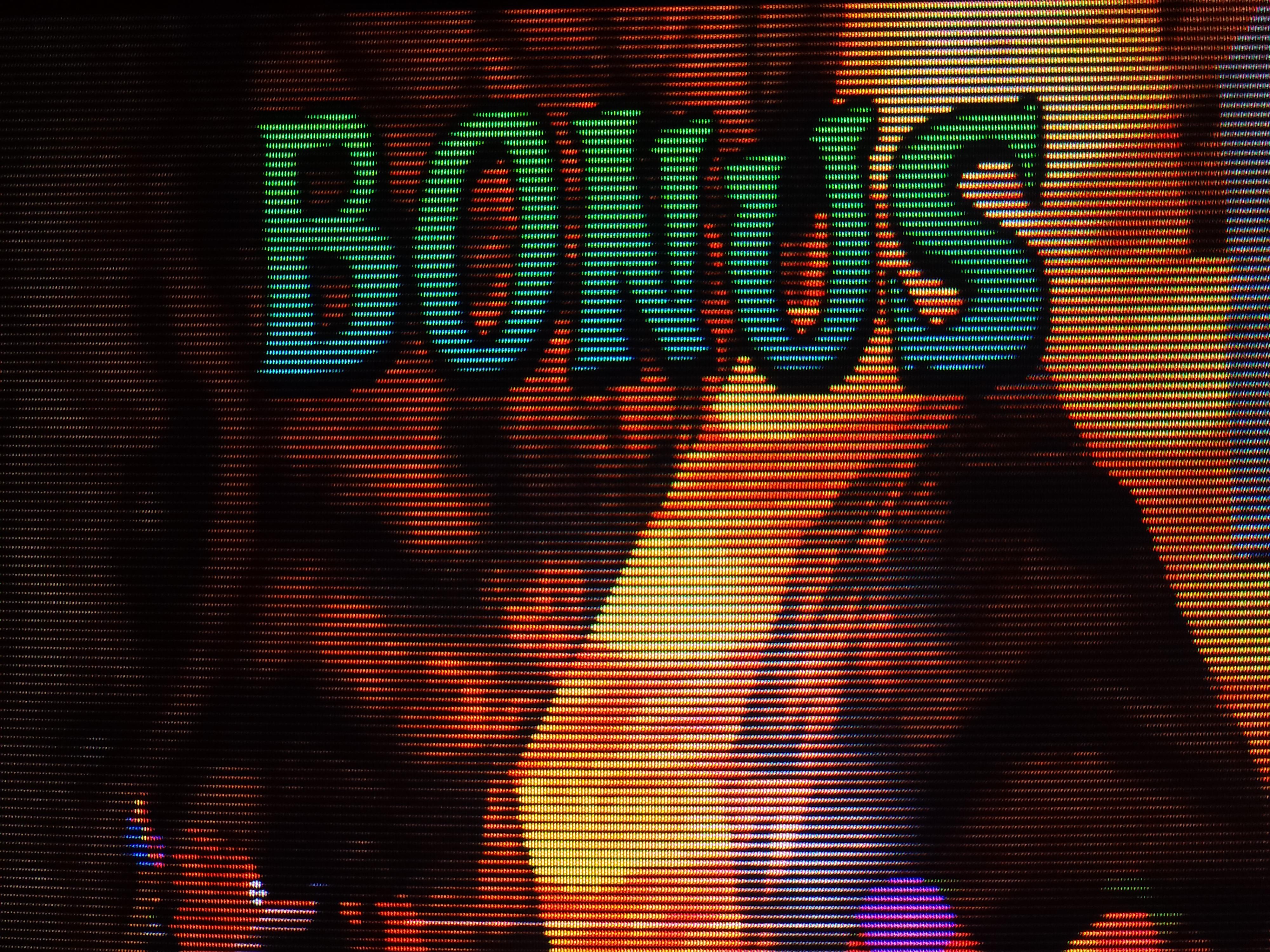

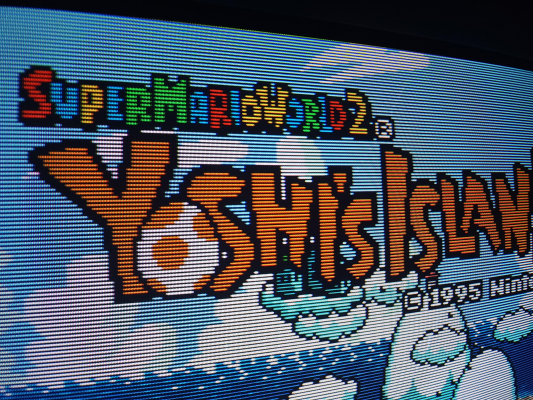

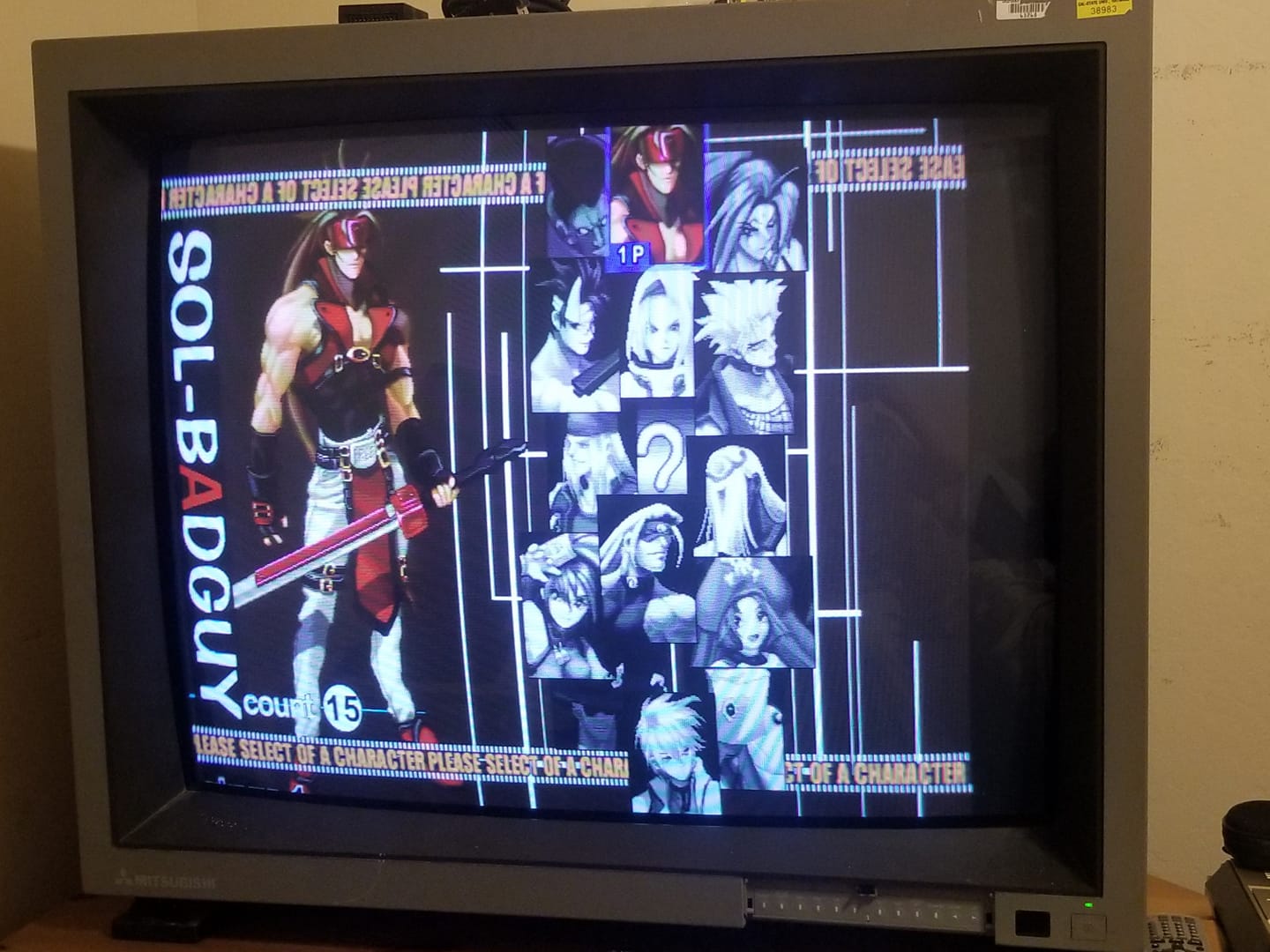

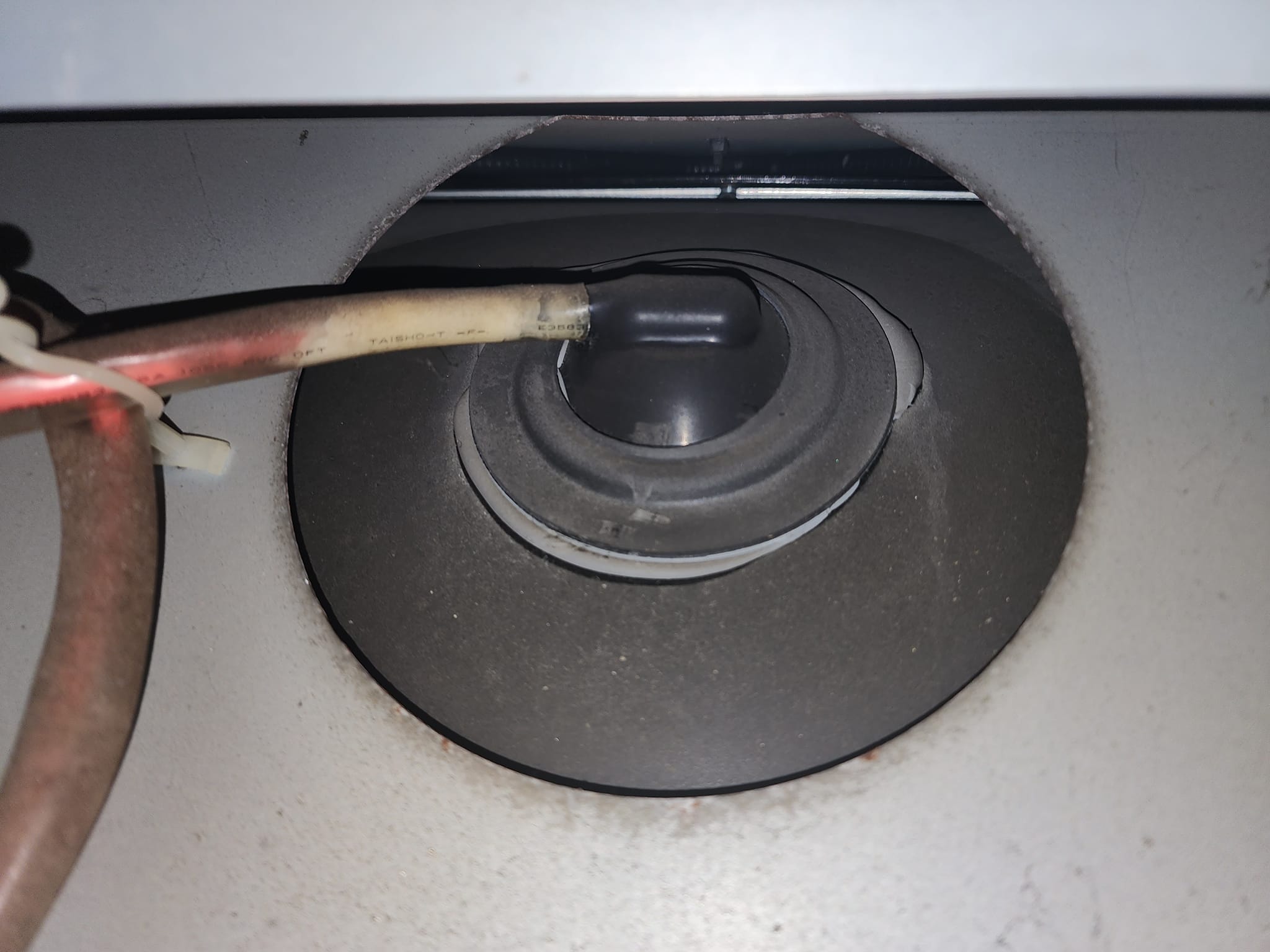

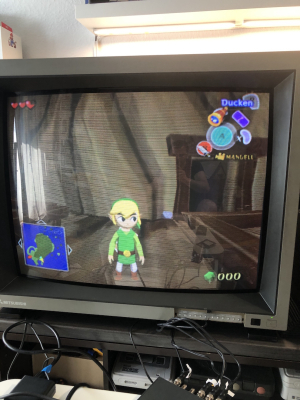

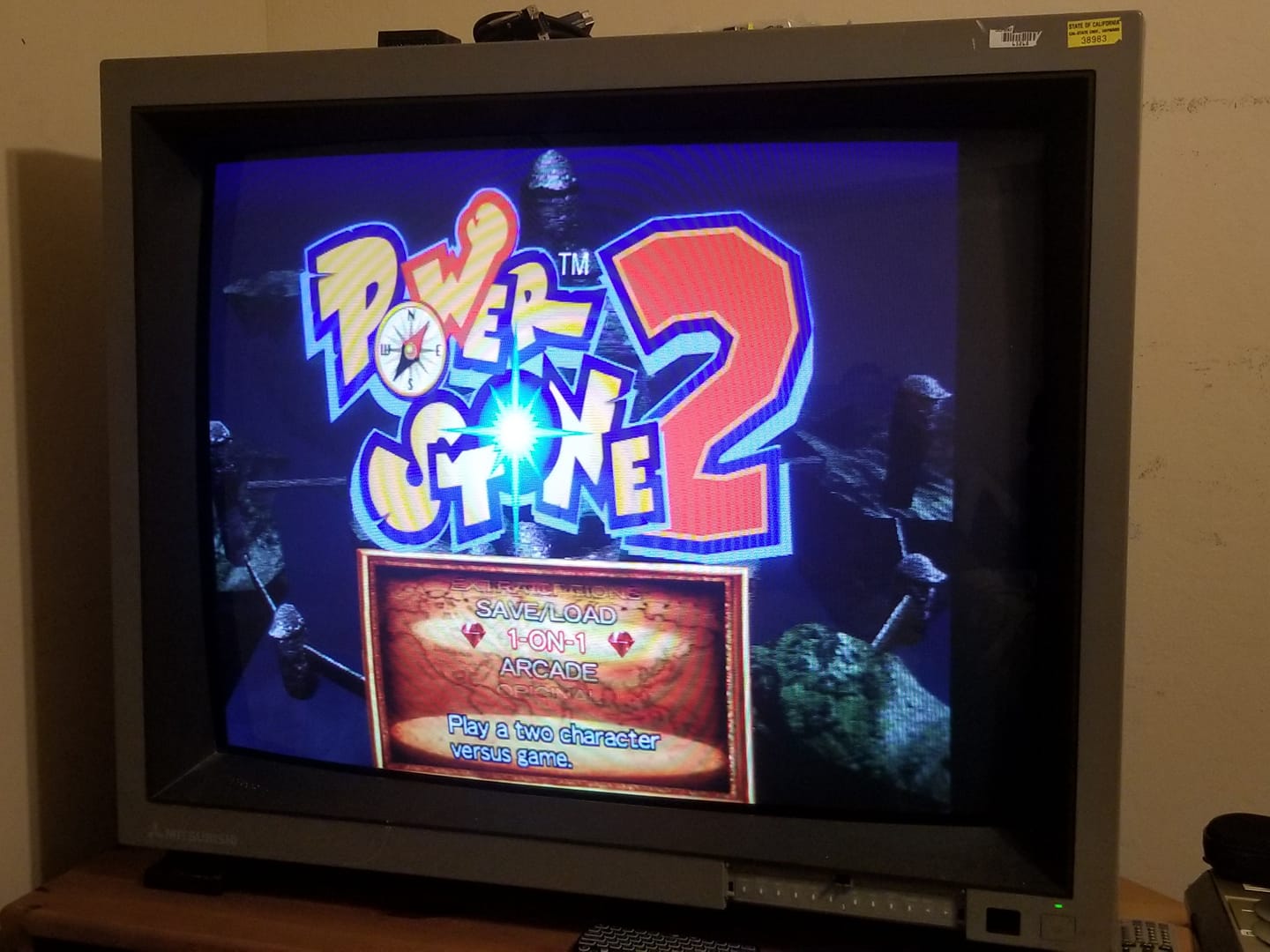

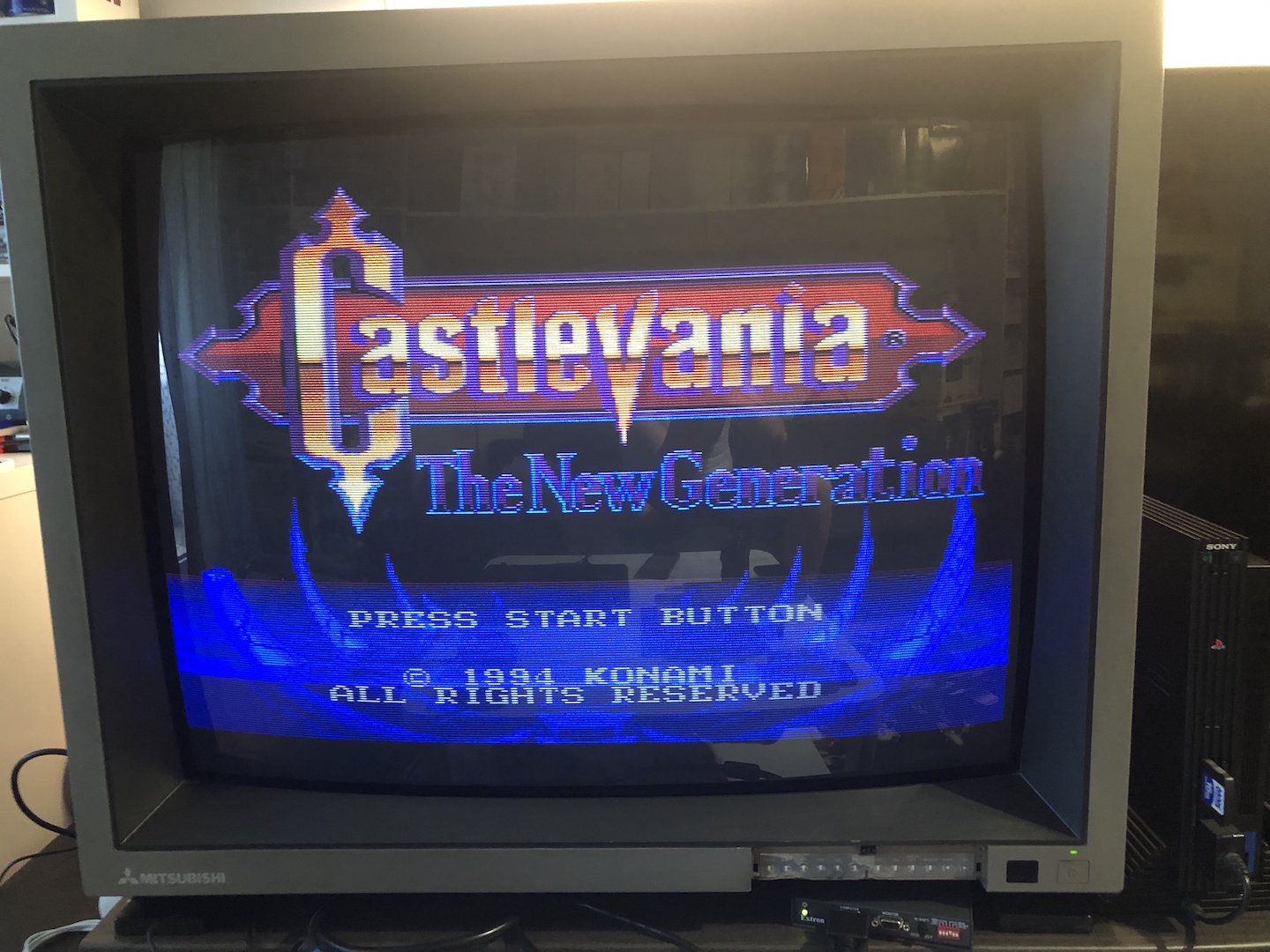

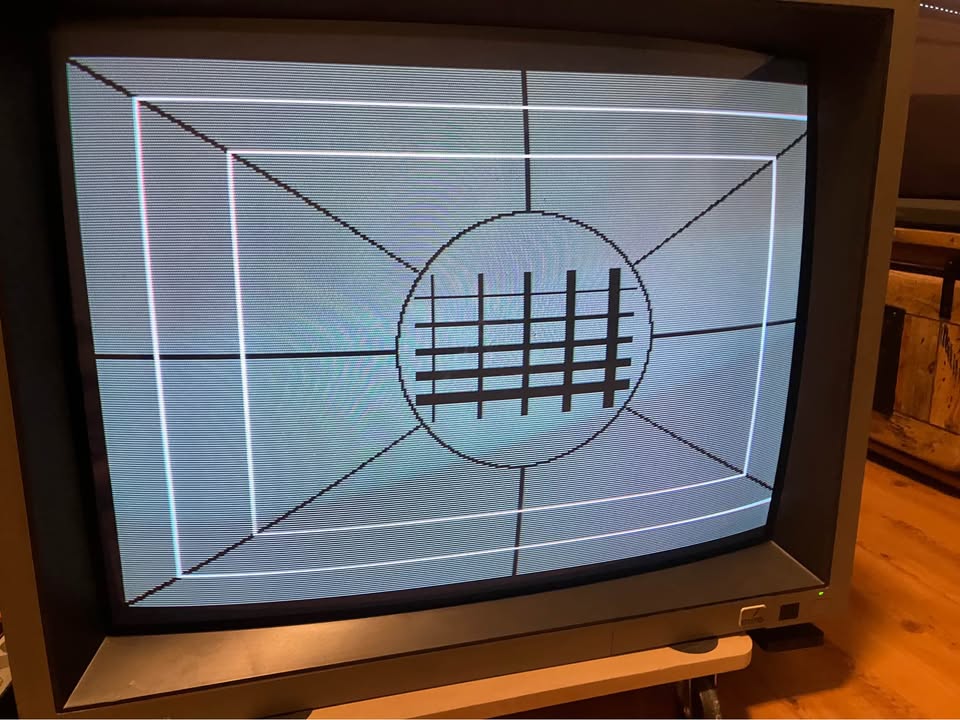

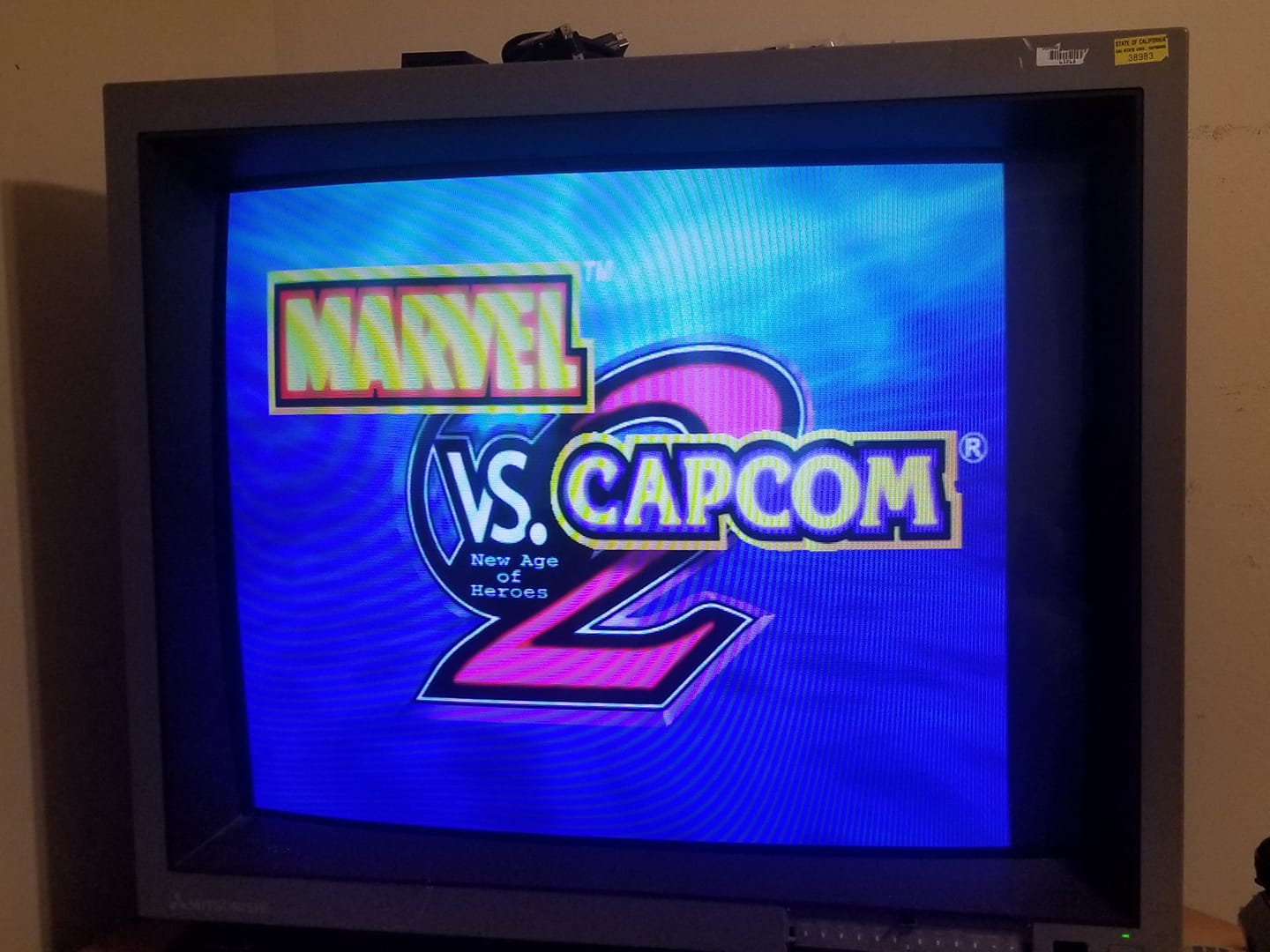

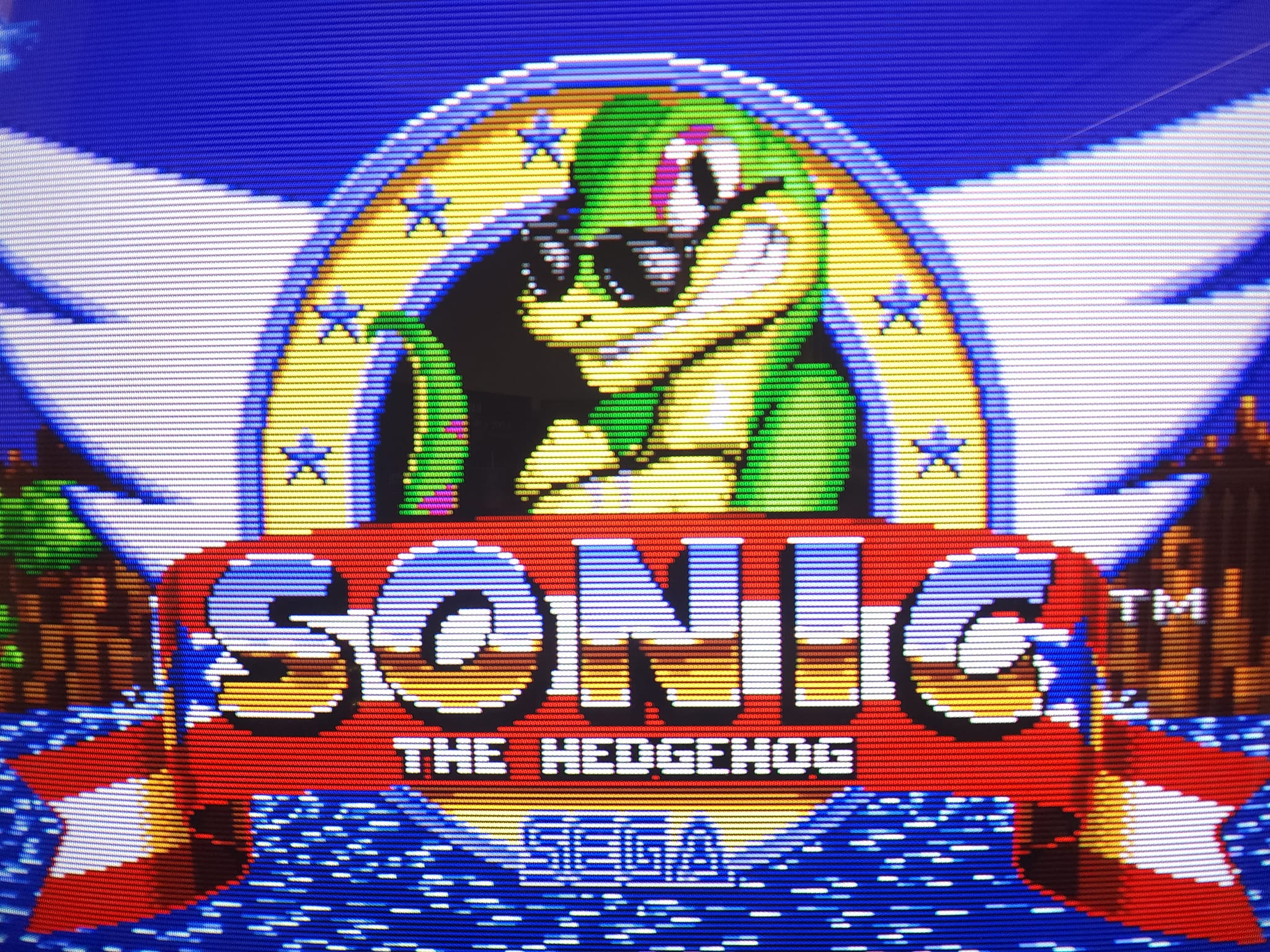

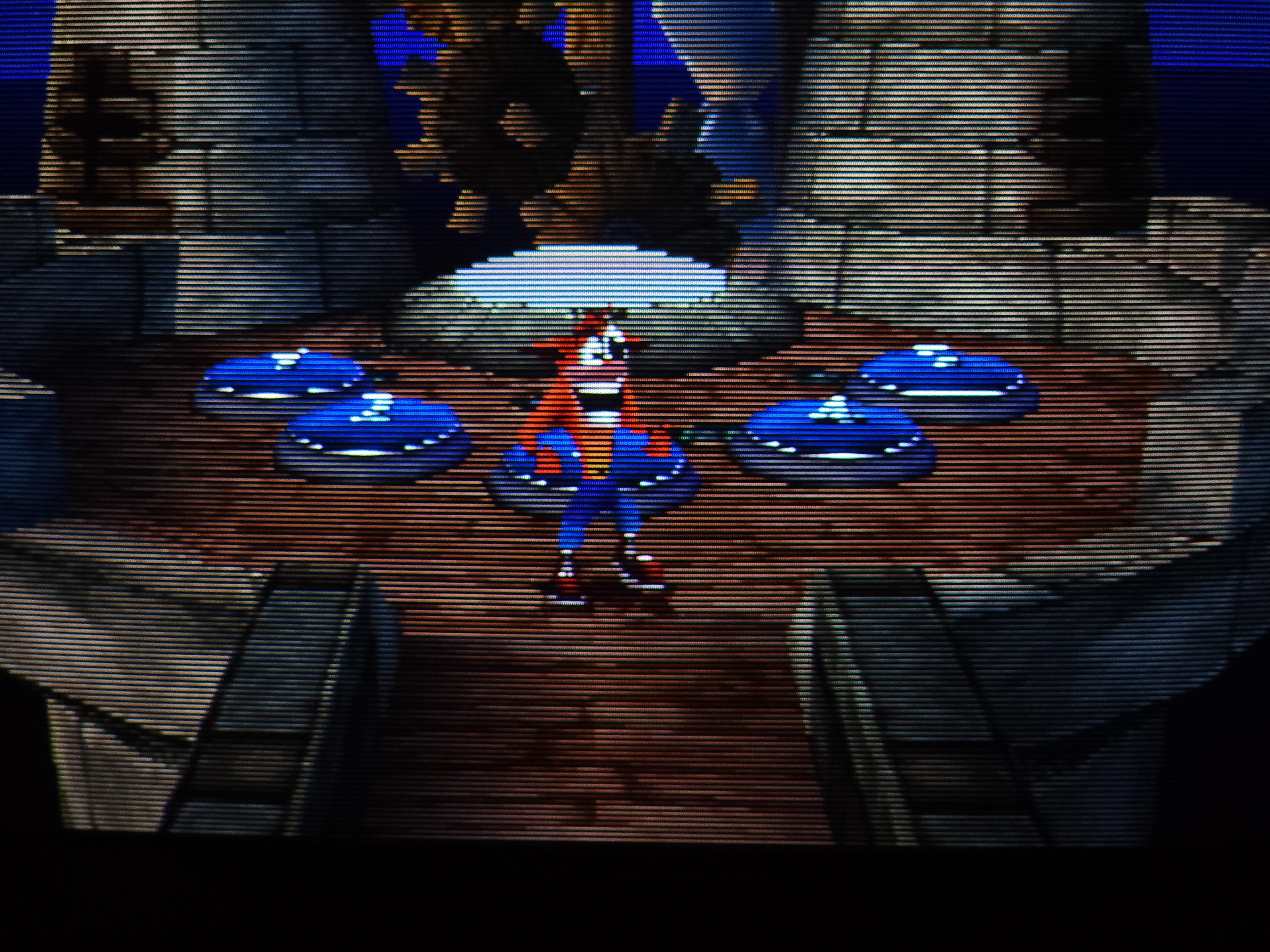

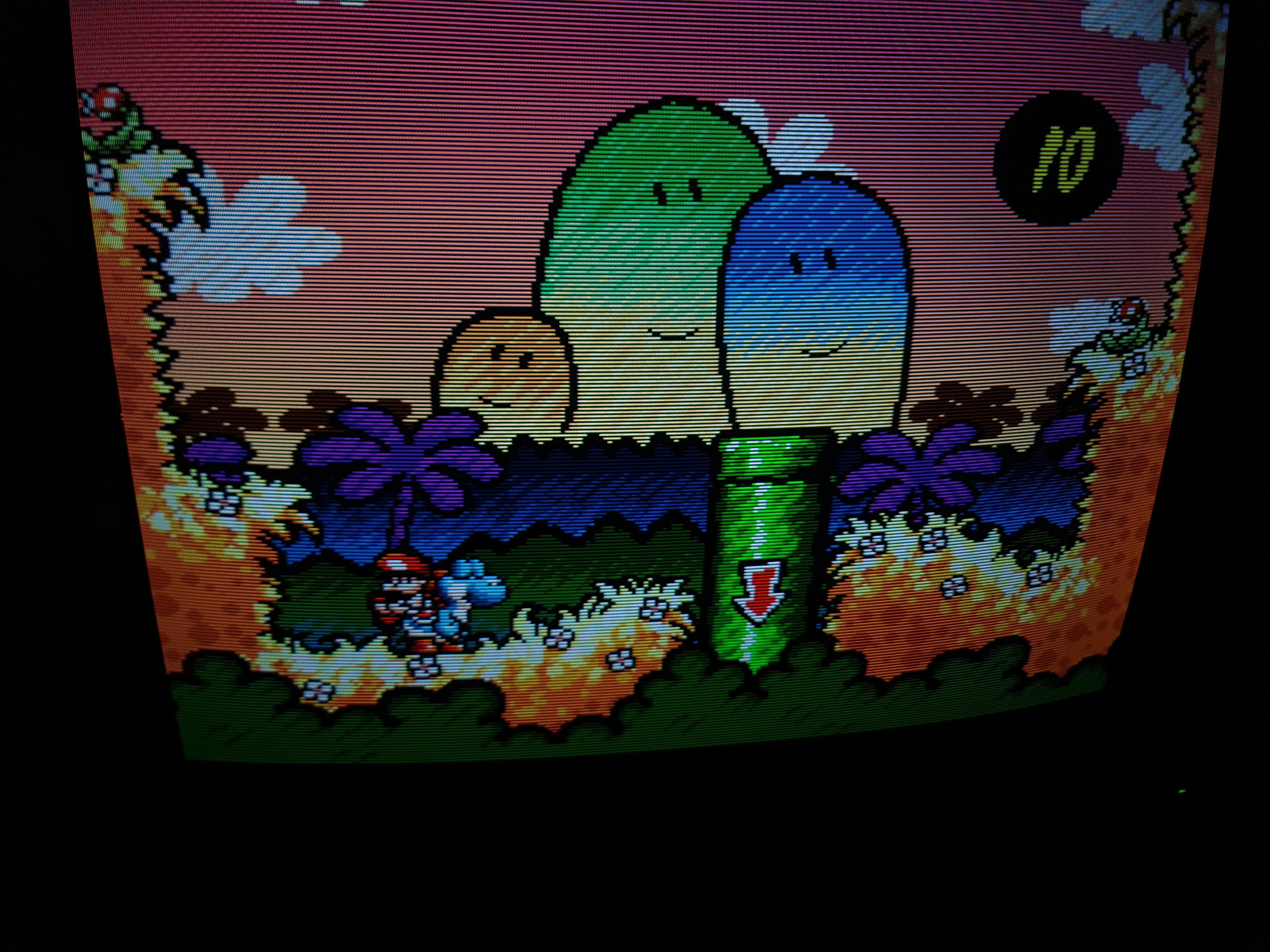

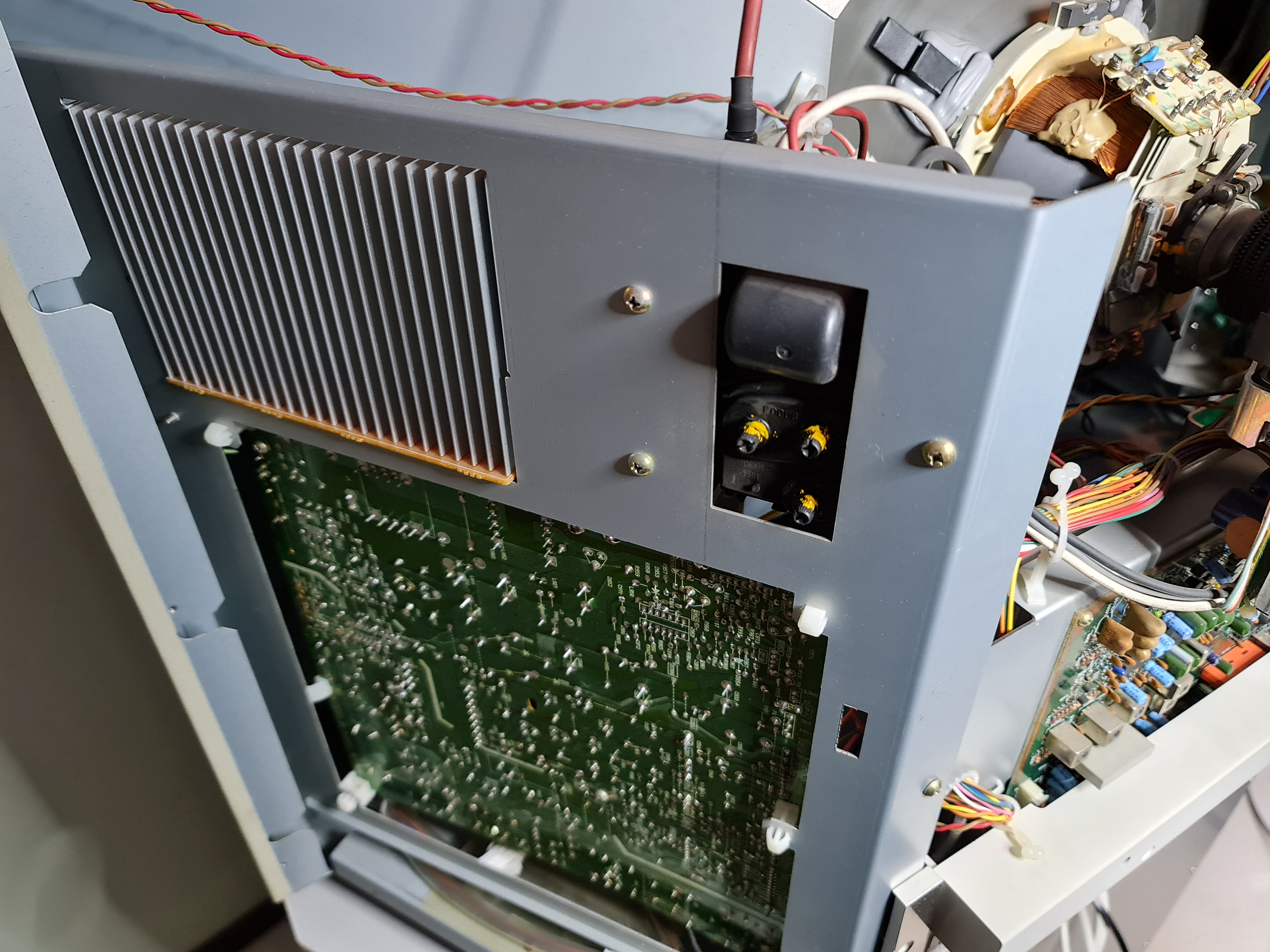

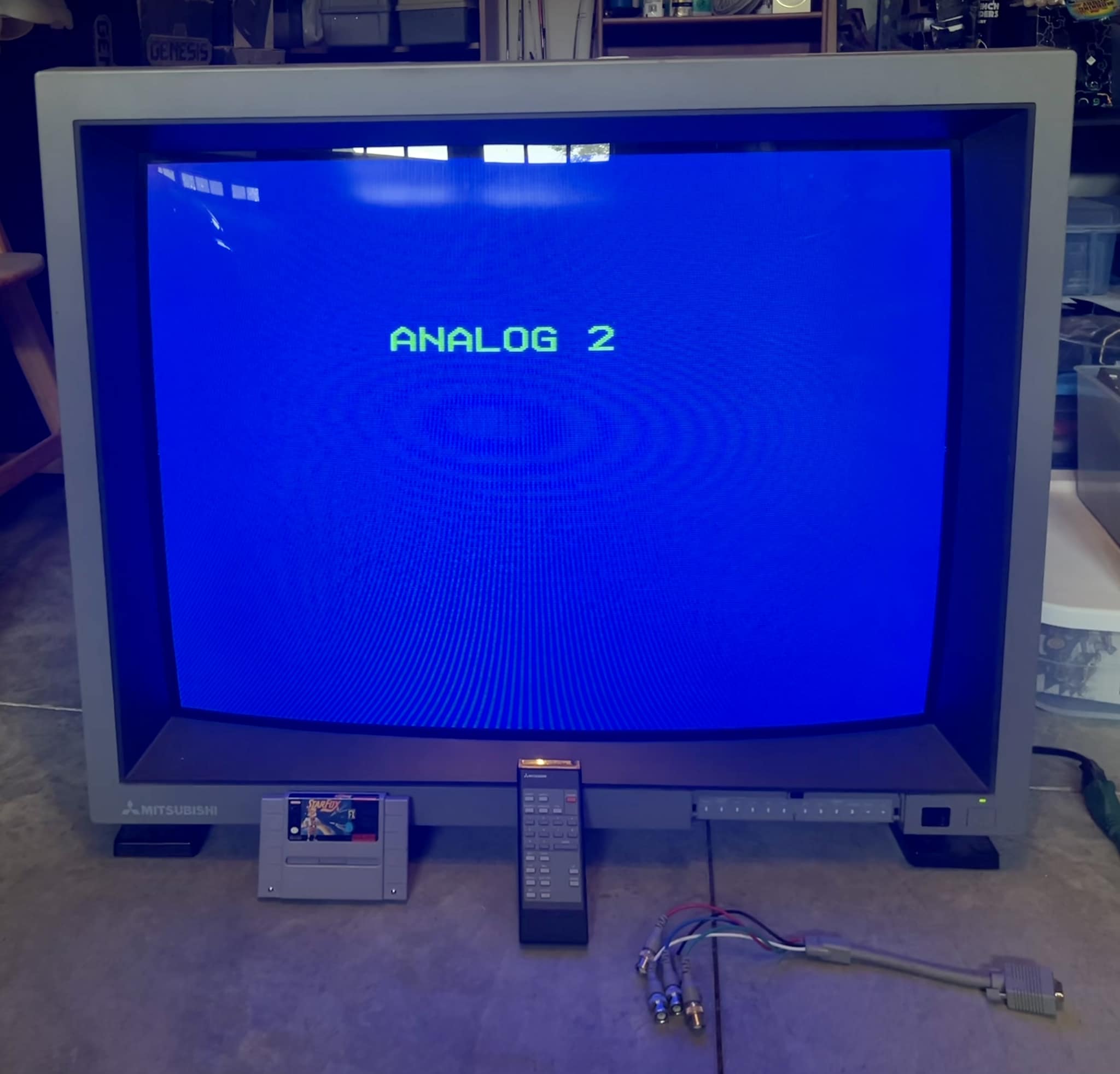

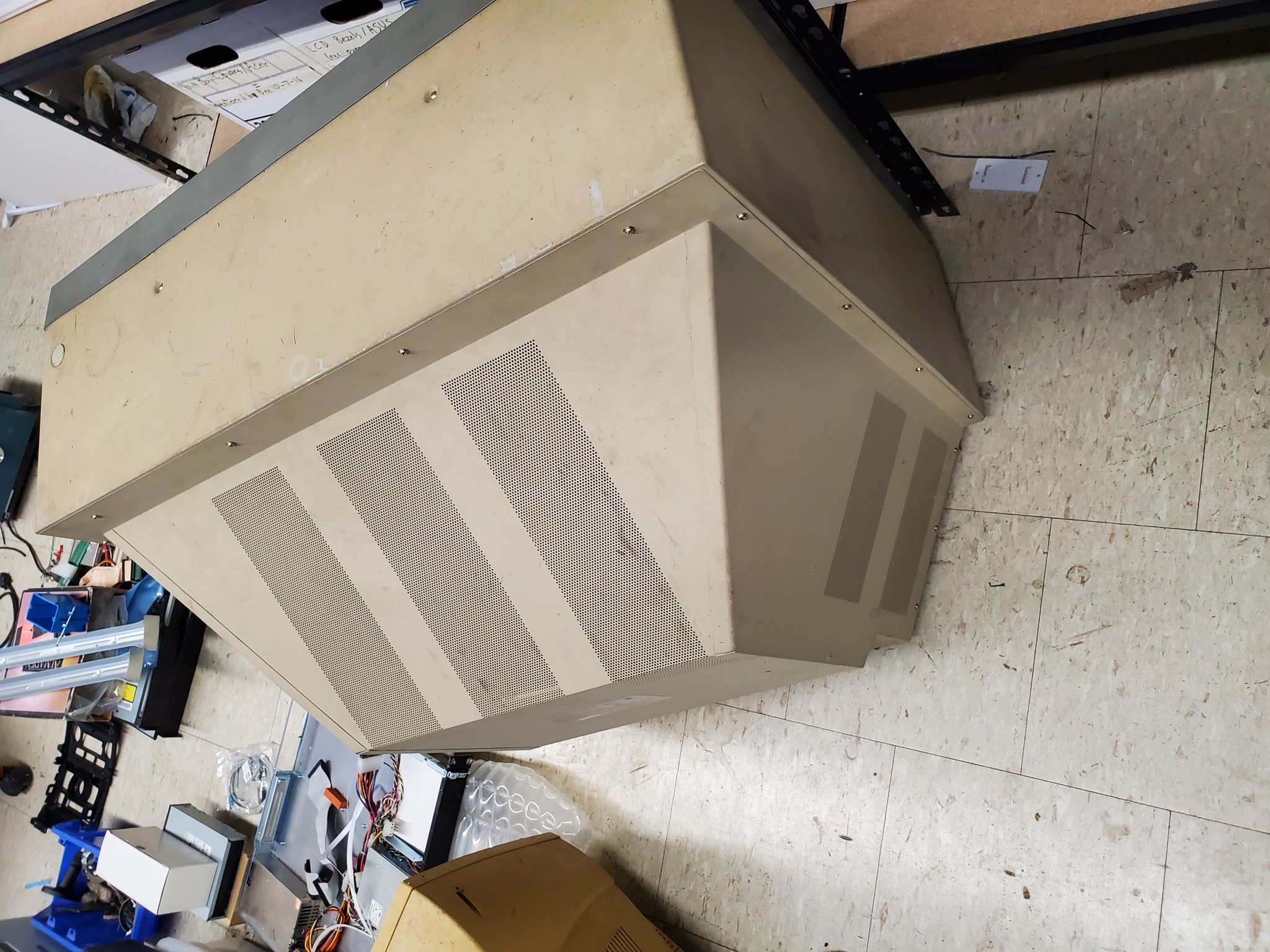

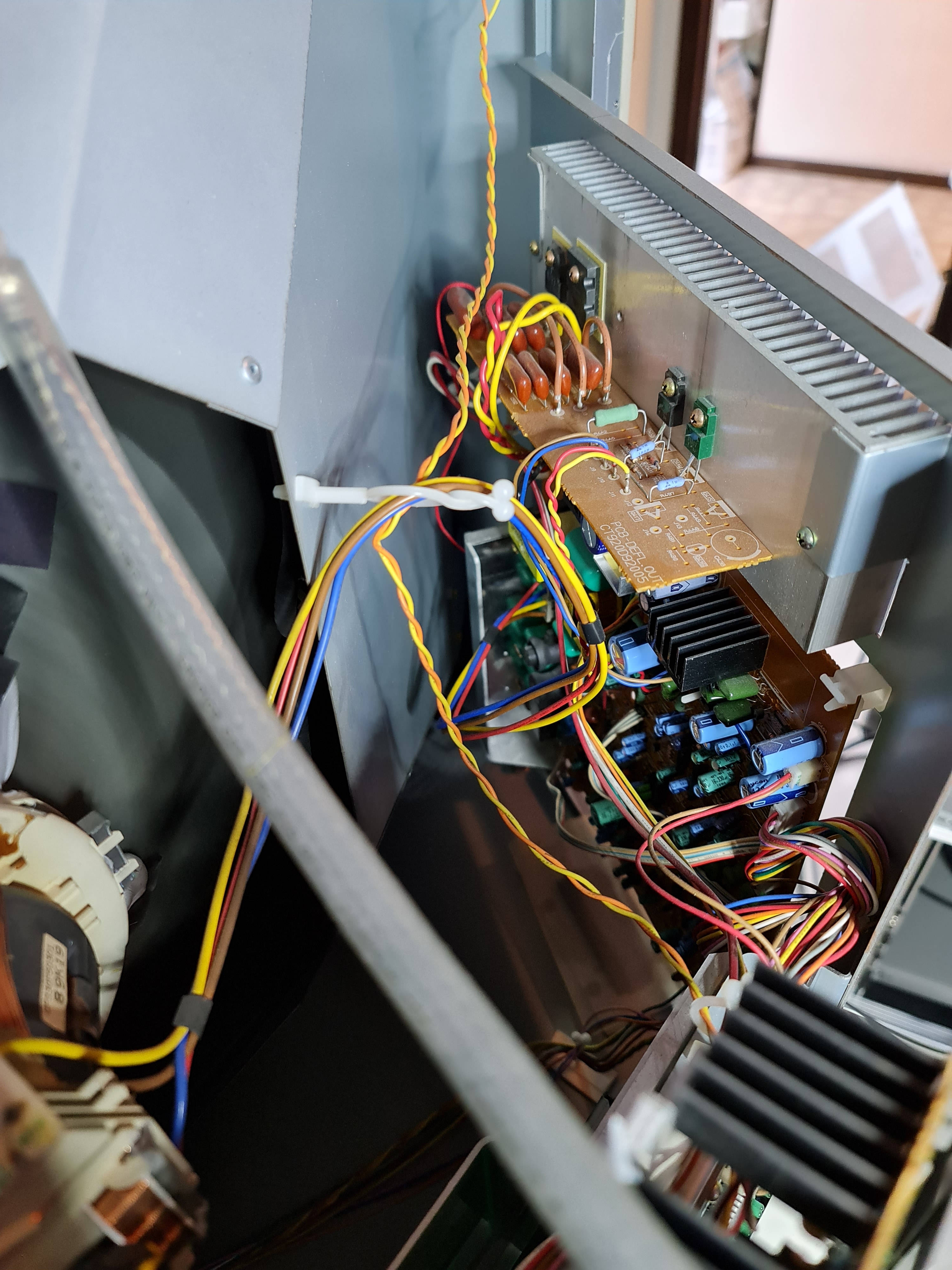

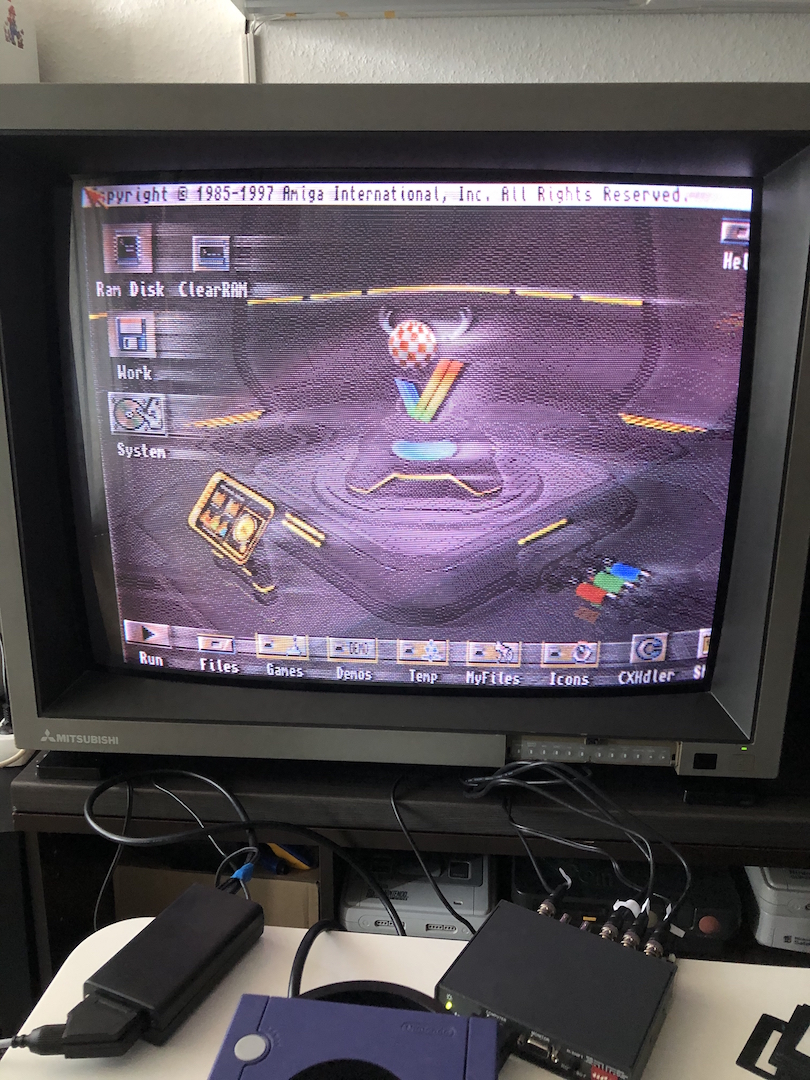

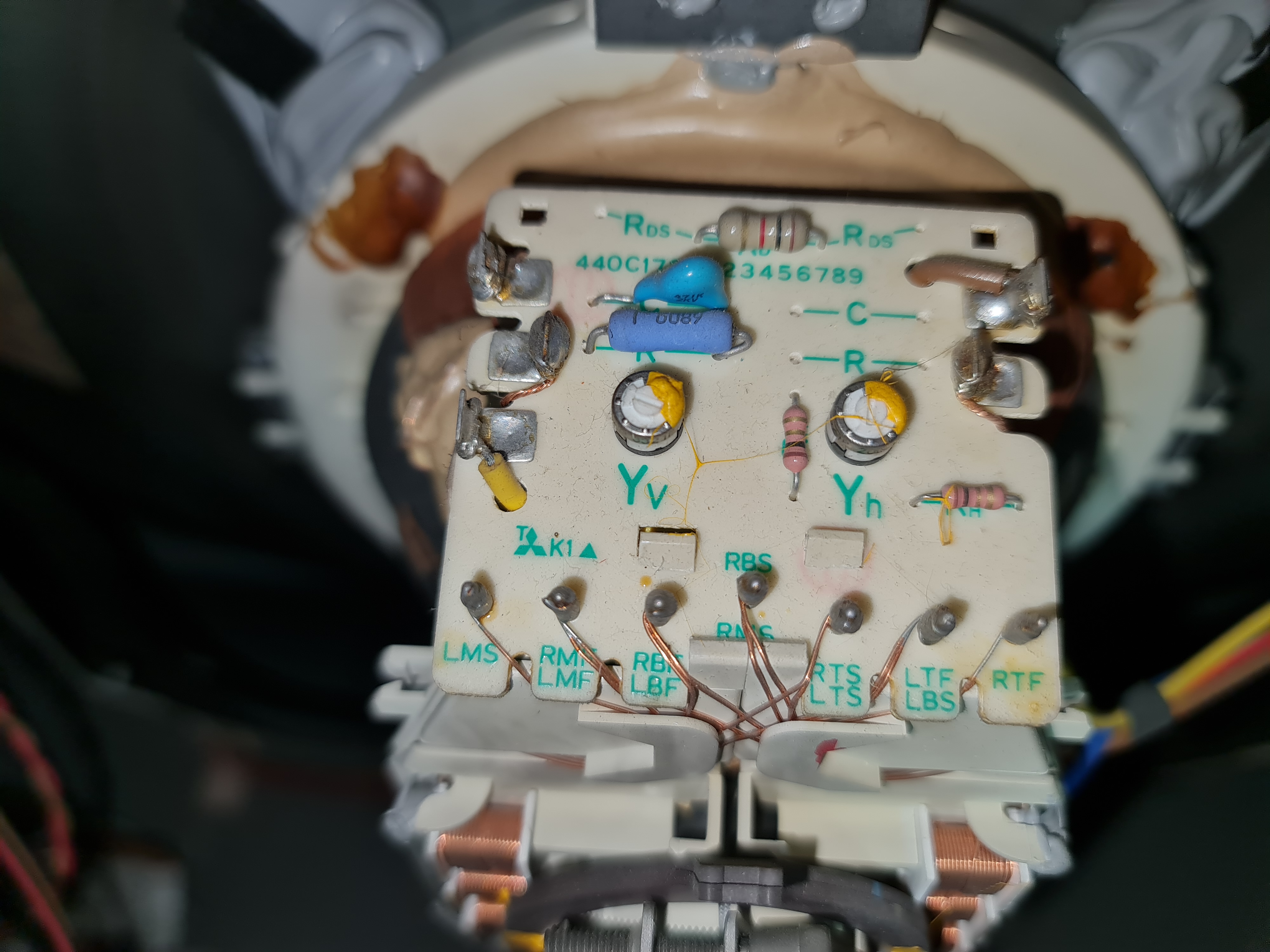

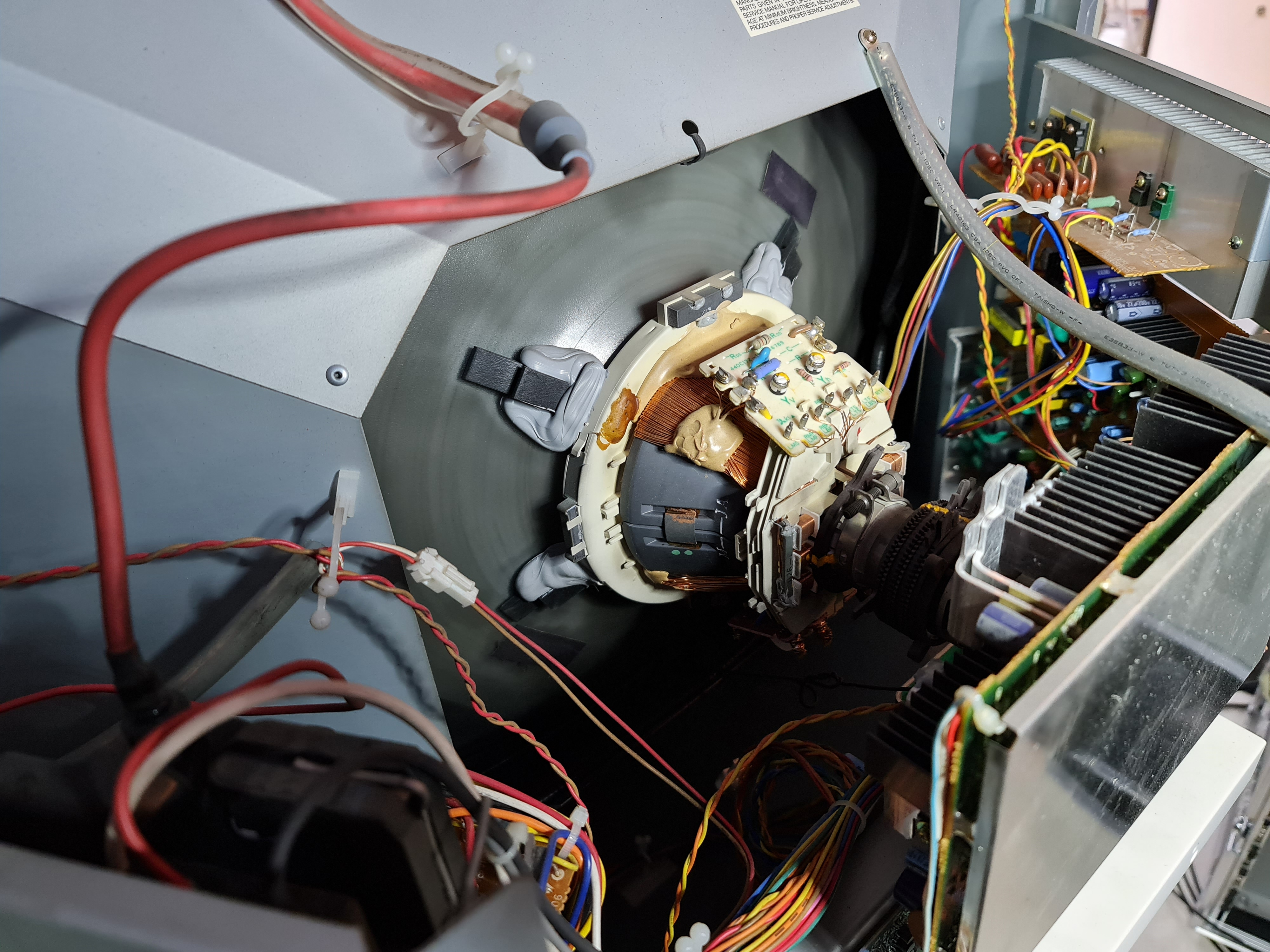

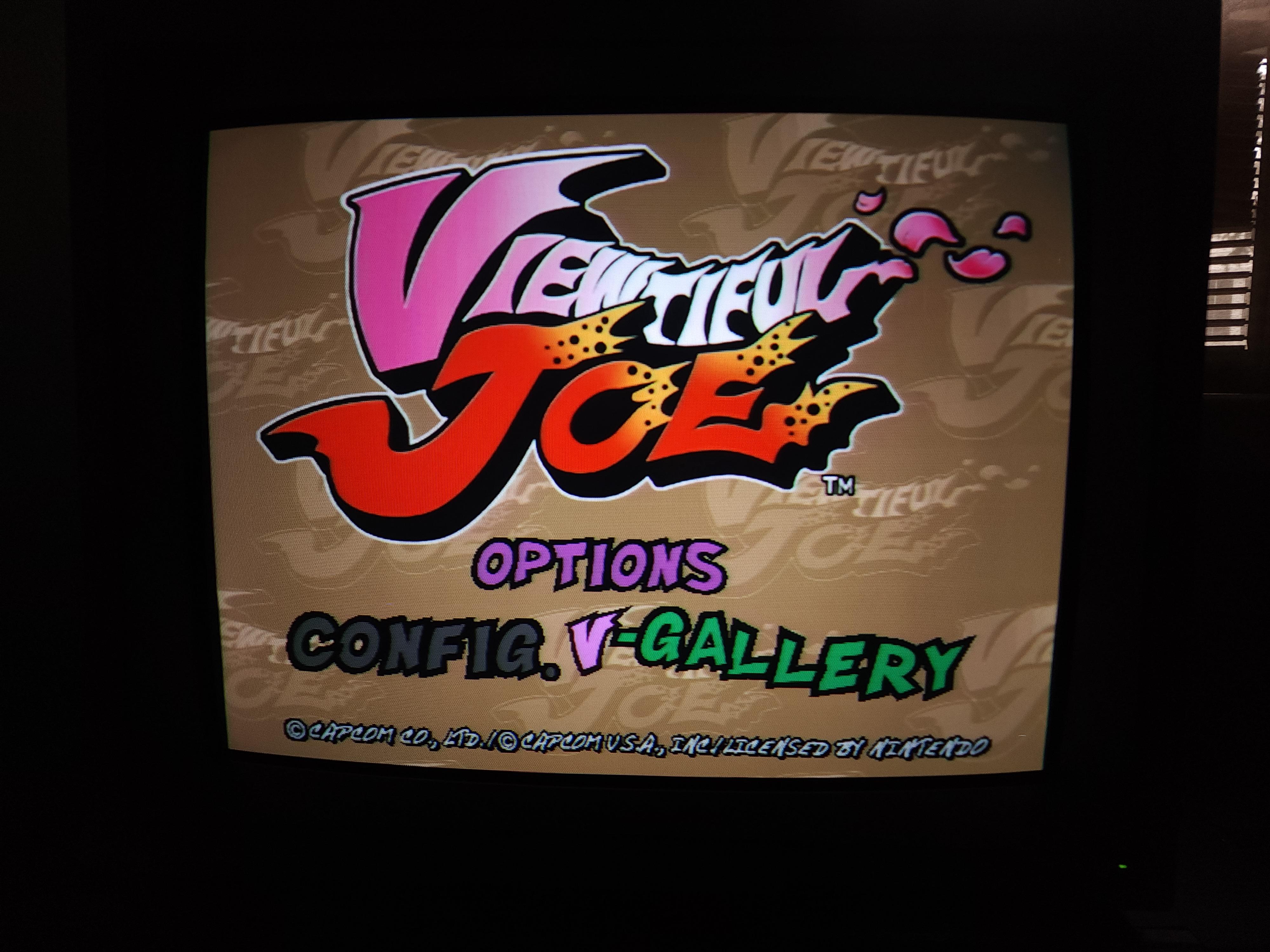

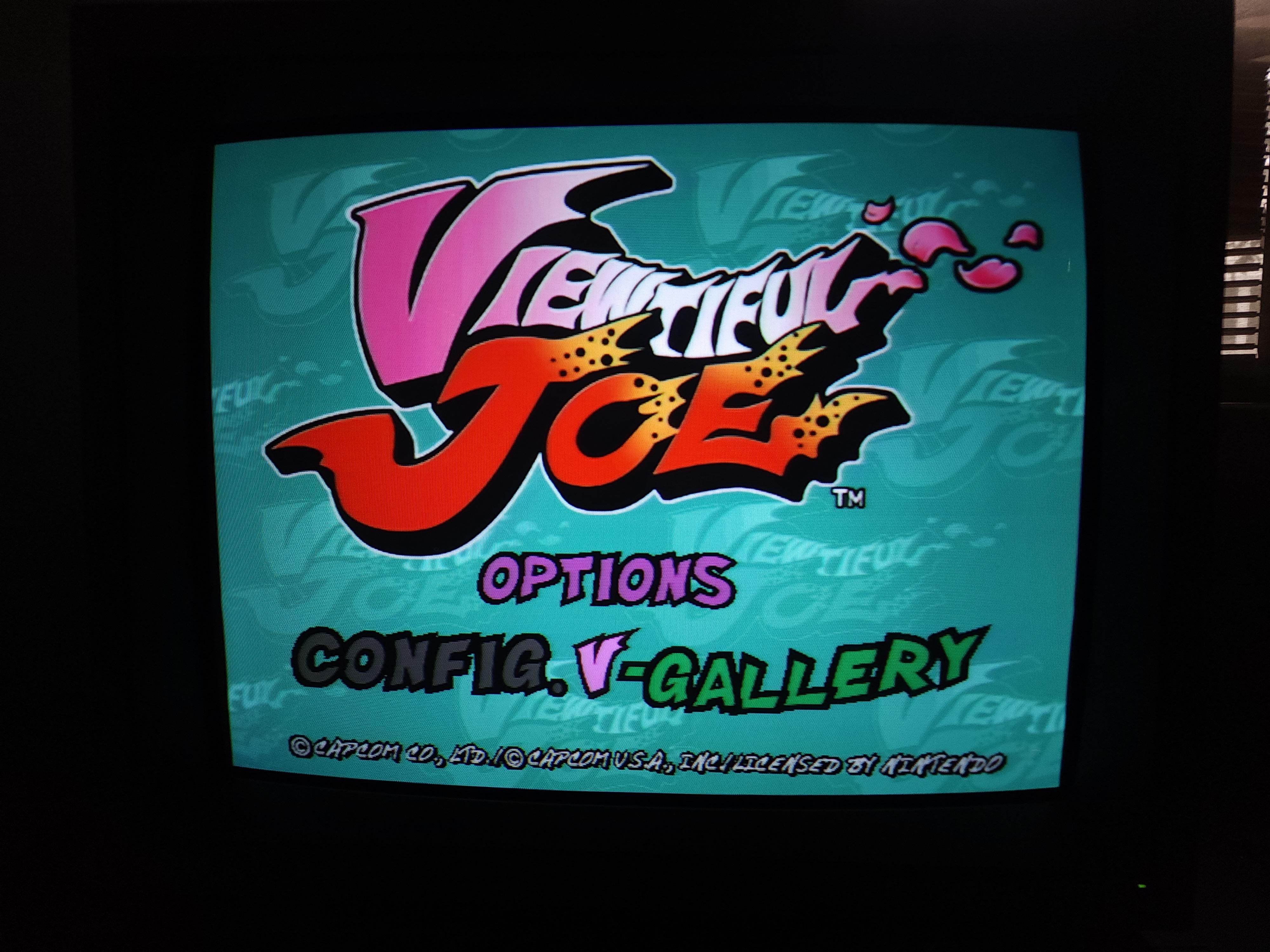

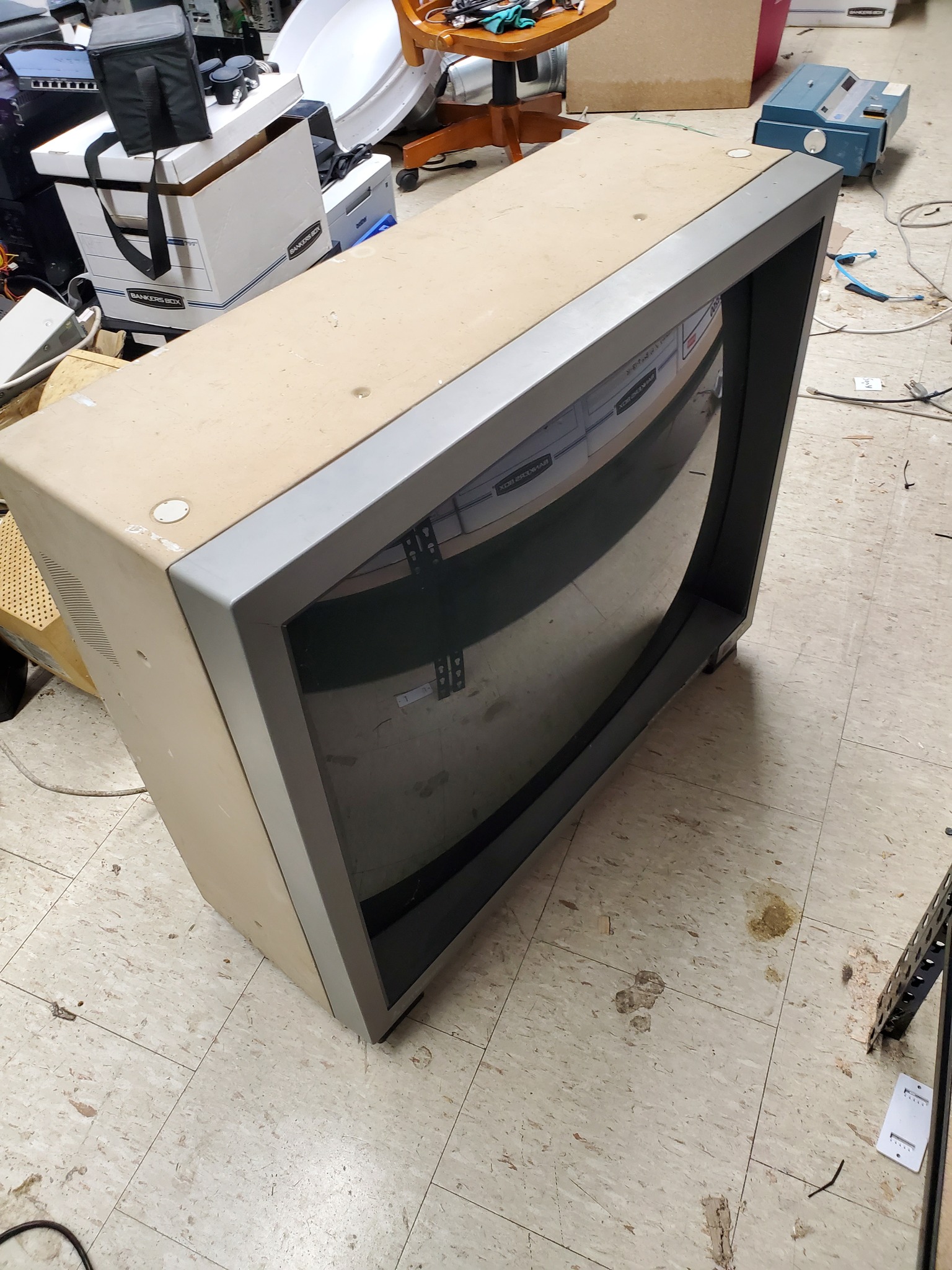

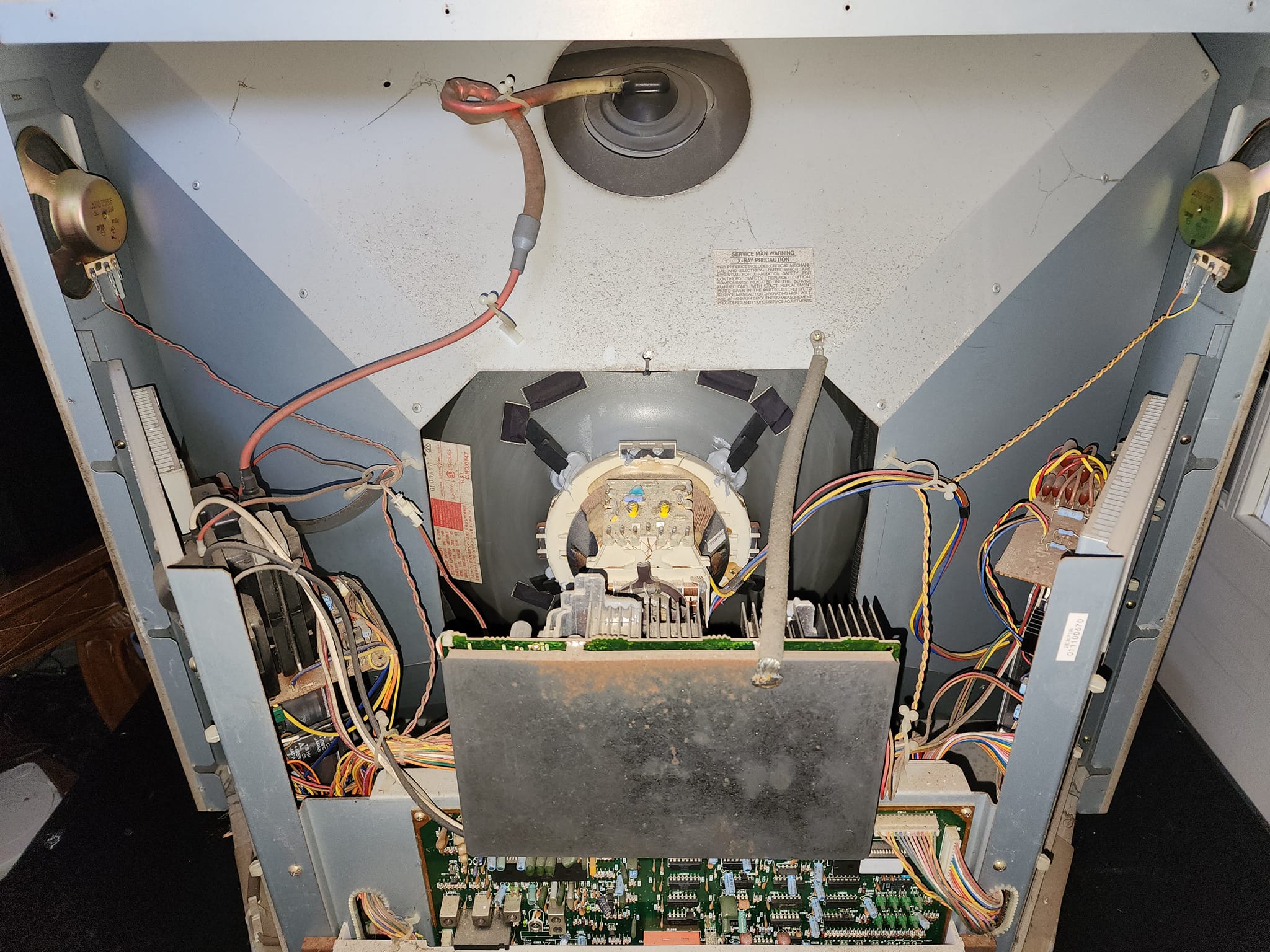

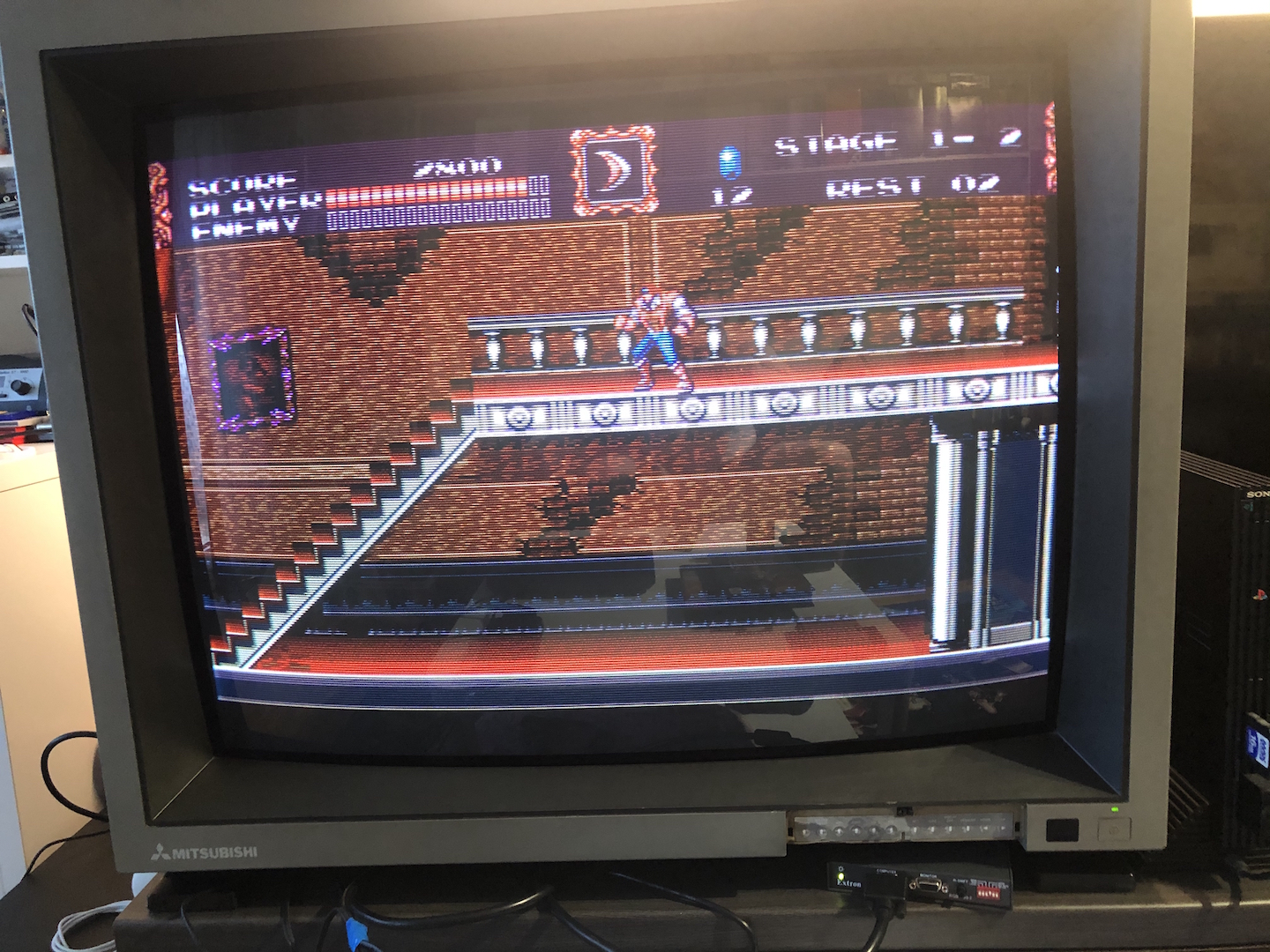

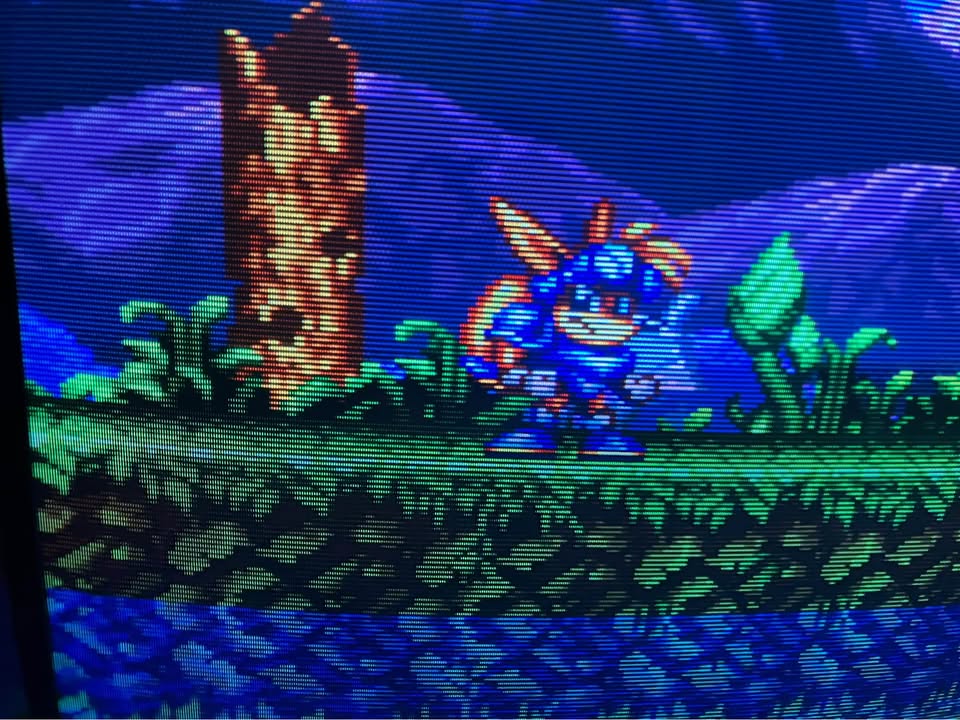

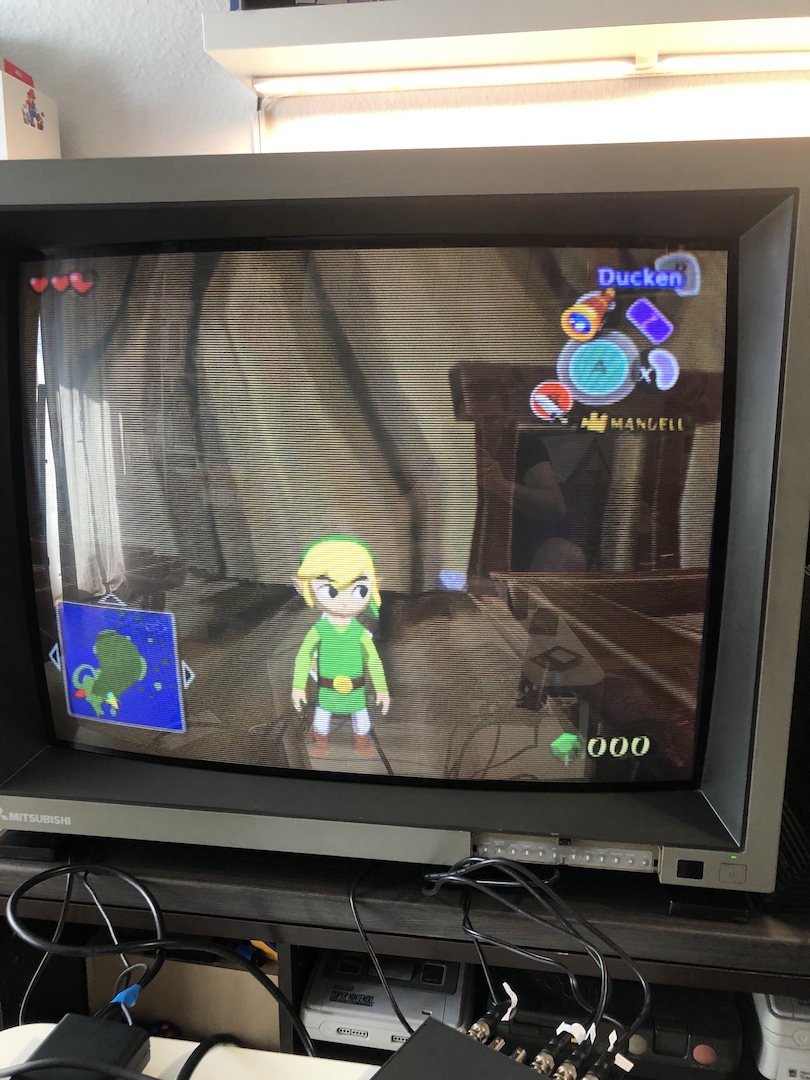

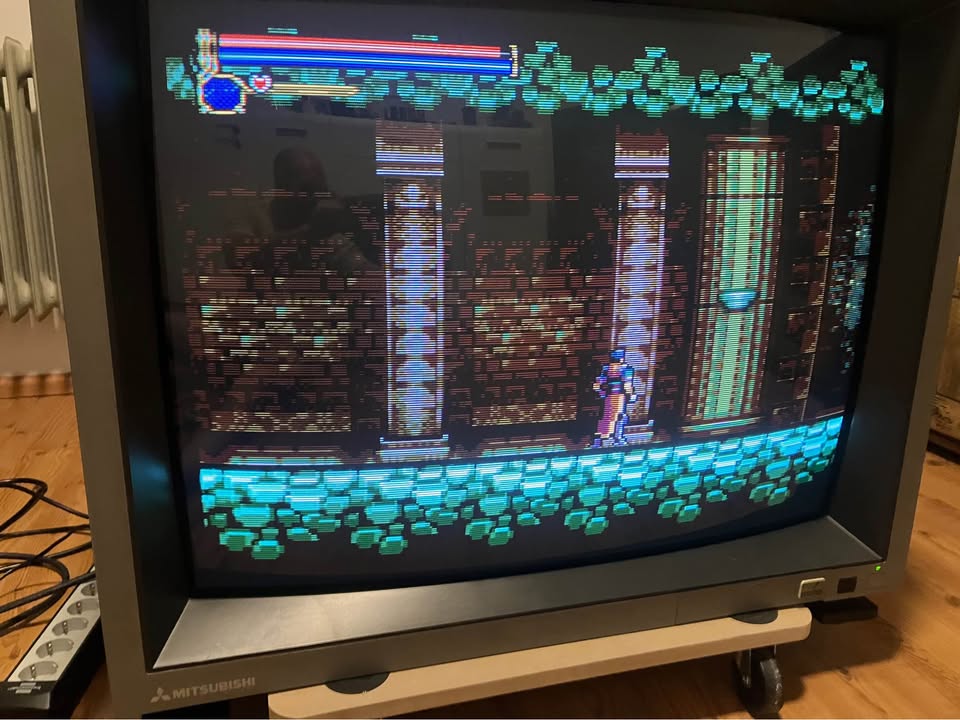

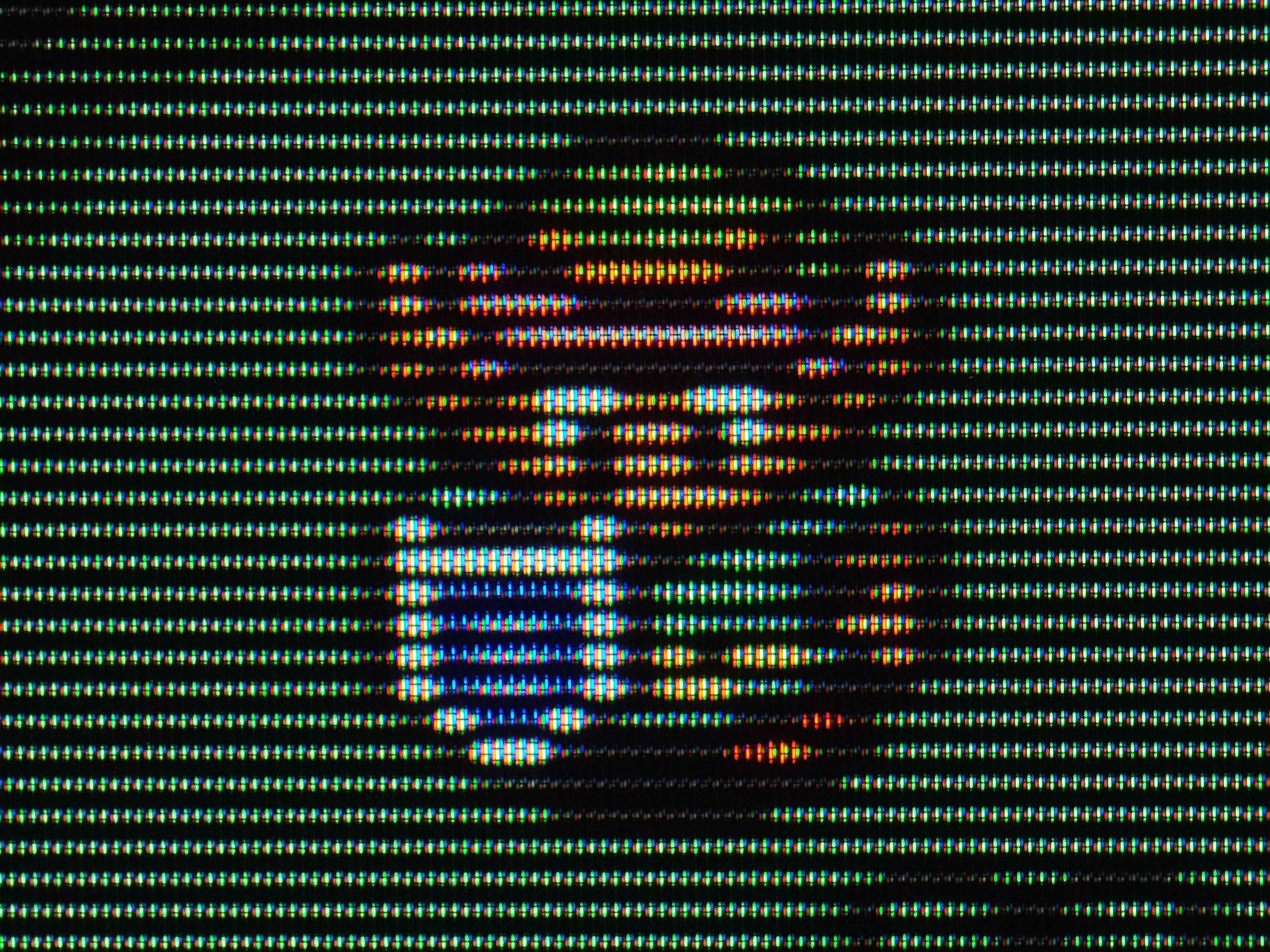

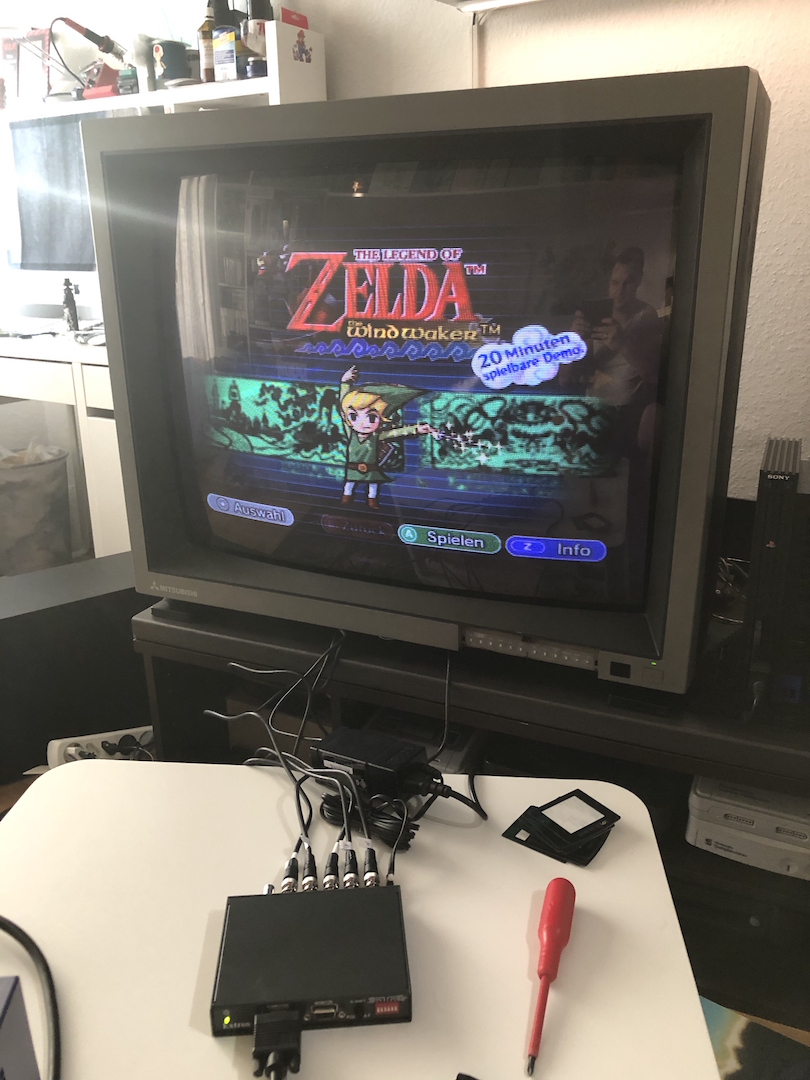

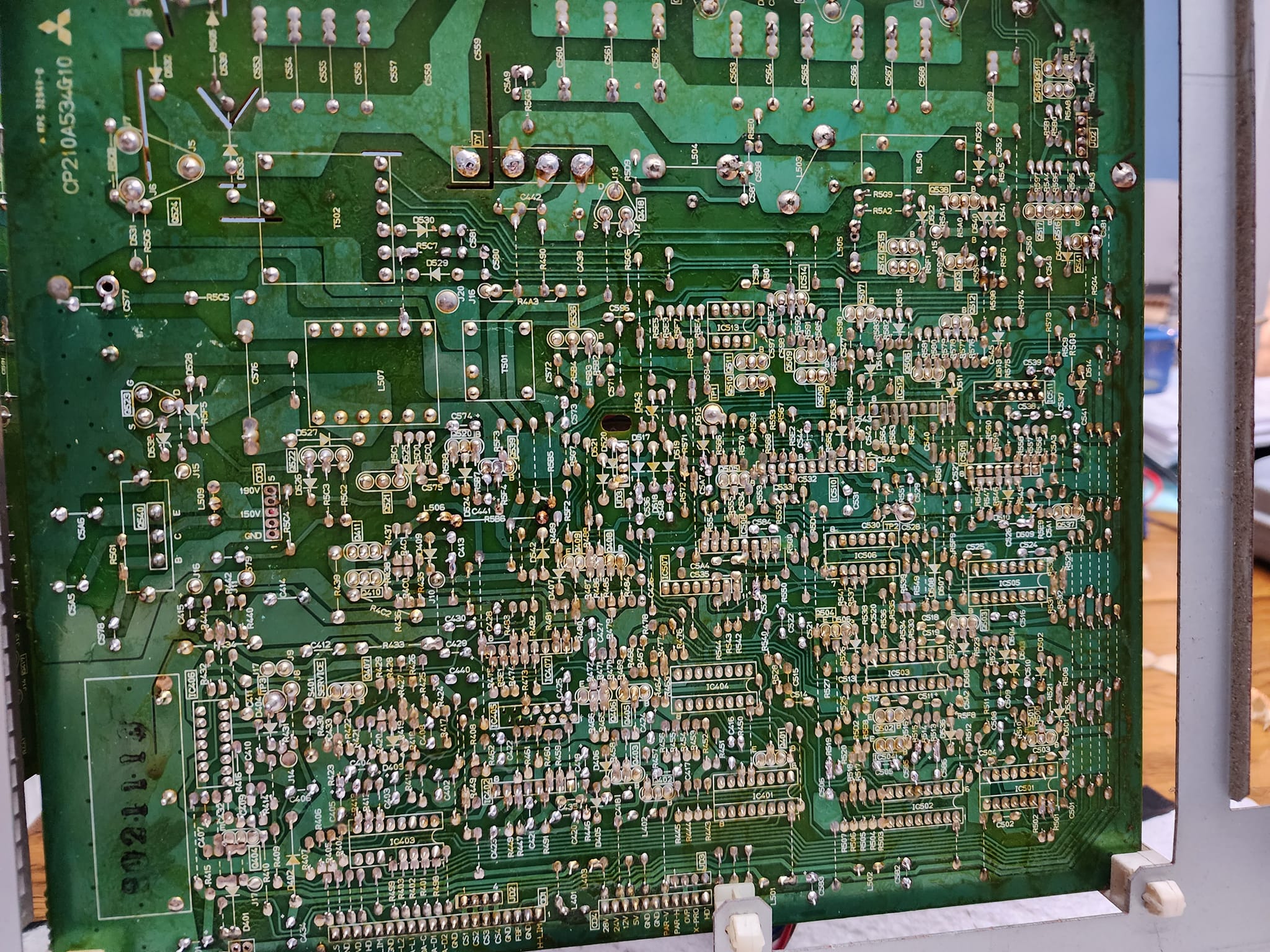

Gallery
| Specifications | |
|---|---|
| Brand: | Mitsubishi |
| Manufacturer: | Mitsubishi |
| Model: | XC-3715C |
| Series: | XC |
| Viewable Size: | 35" |

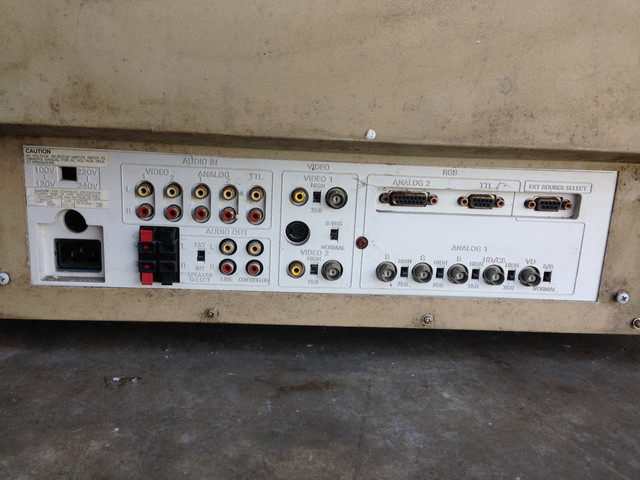

| Inputs: | VGA, Composite, S-Video, RGB, RGBHV, BNC, TTL RGB |
| Sync: | HV Sync |
| Native Resolutions: | VGA, SVGA, 240p, 480i, 480p, 600p, EGA |
| Horizontal Scan Range: | 15 kHz, 36 kHz |
| Vertical Scan Range: | 120 Hz, 40 Hz |
| Formats: | NTSC, PAL, SECAM, M-NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |

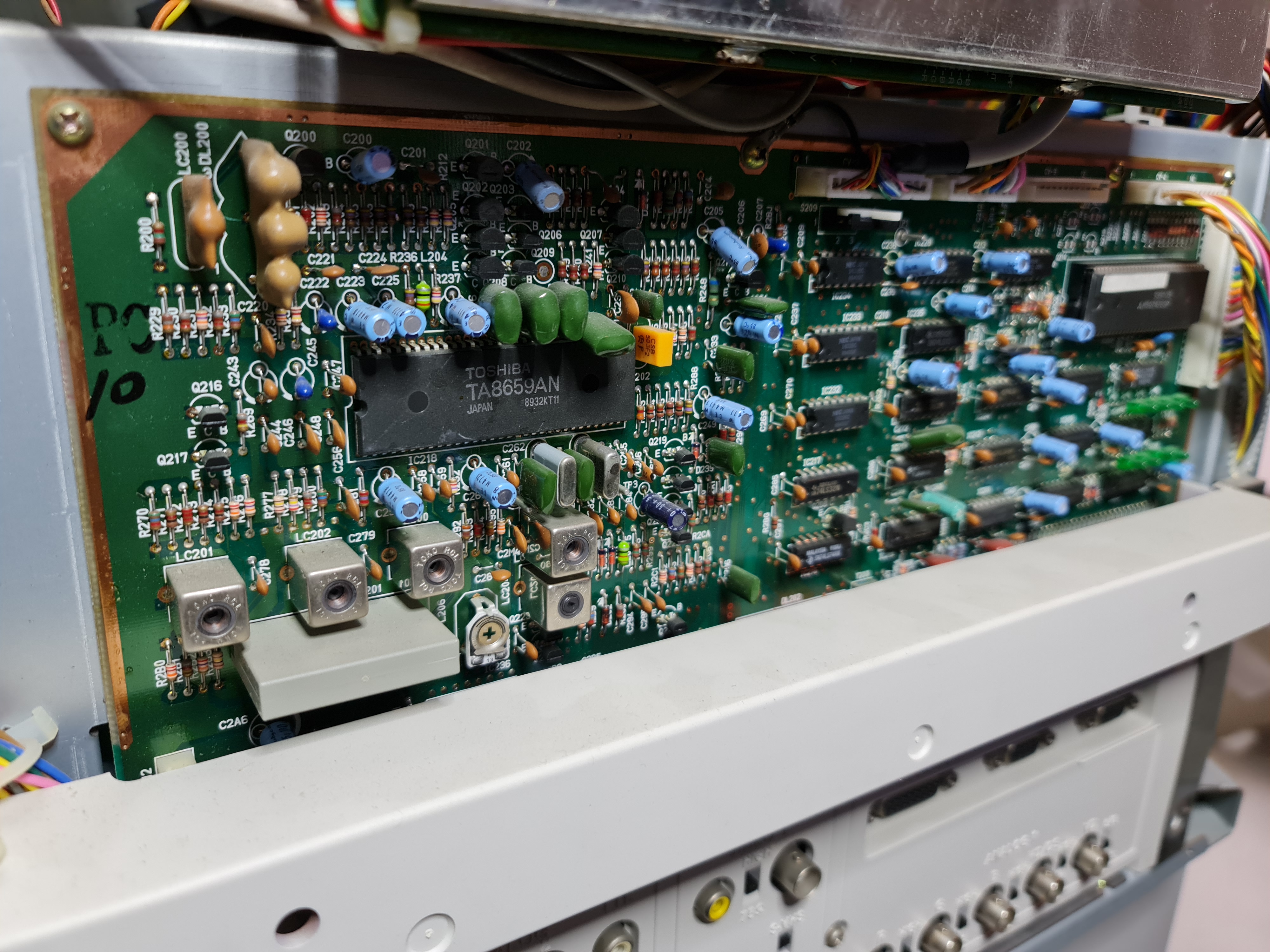

| Jungle: | Toshiba, TA8659AN |

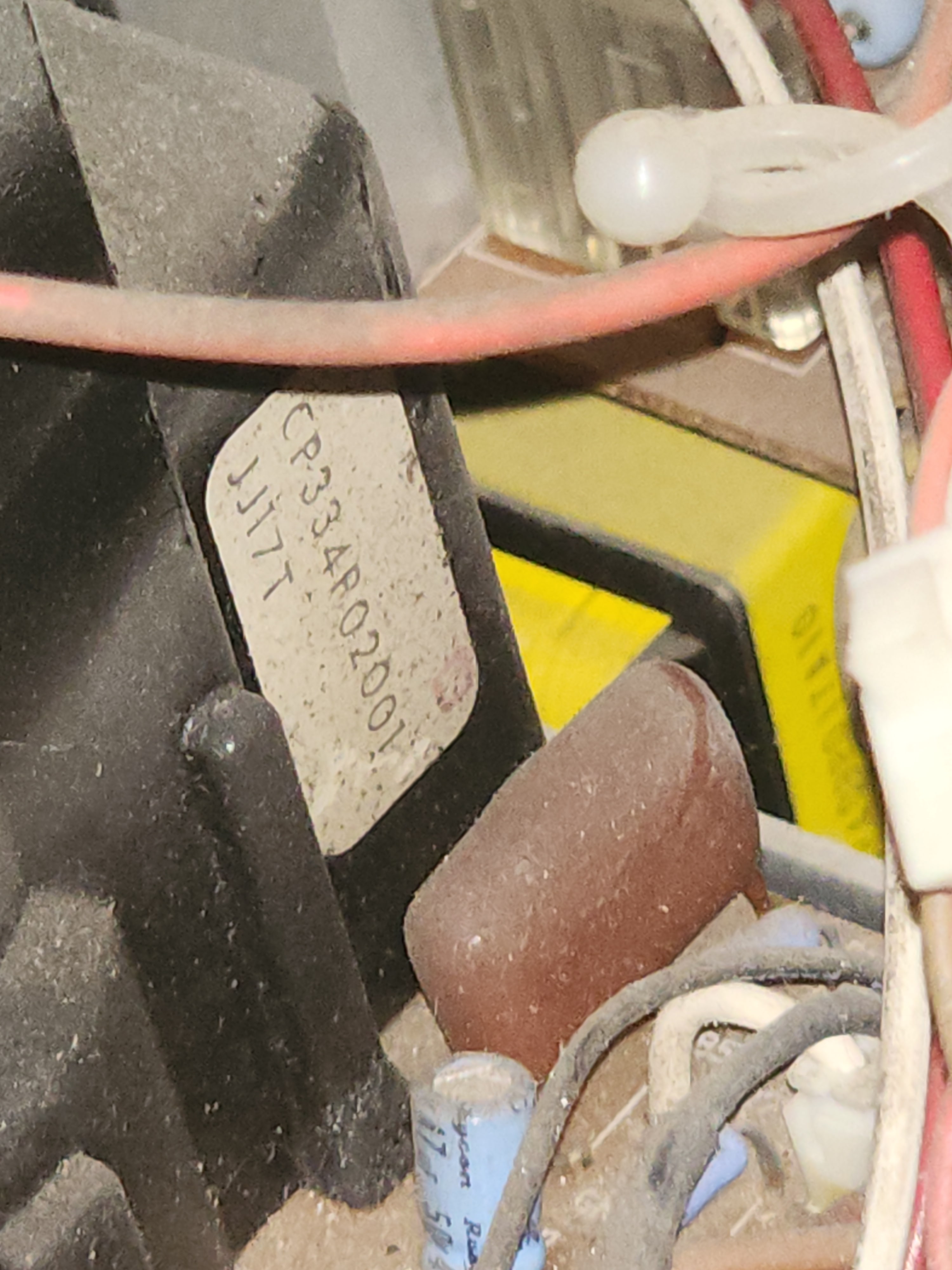

| Flyback: | CP334P02001 |
| Focus Type: | Dual |

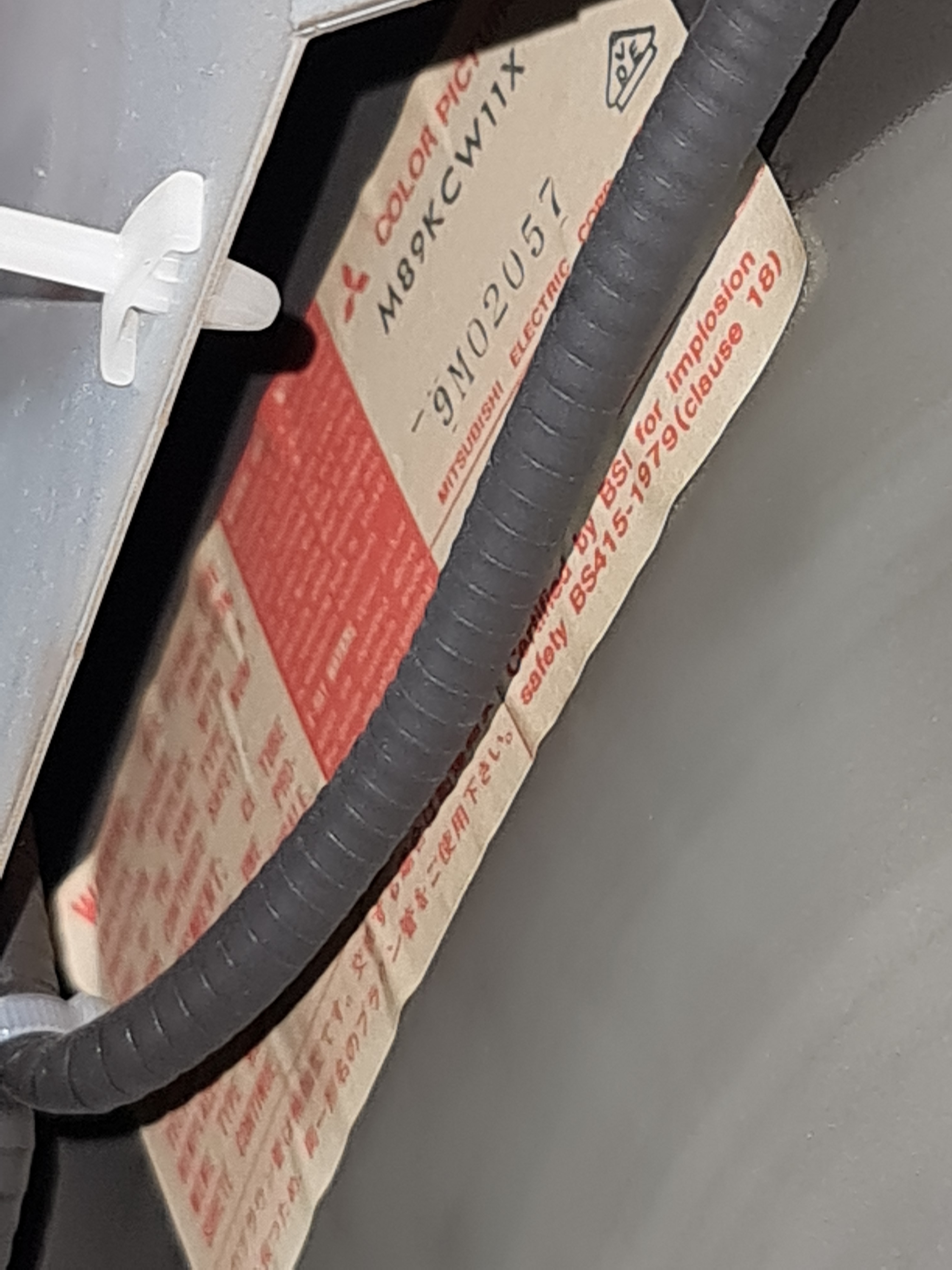

| Tube: | Mitsubishi , M89KCW11X |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|
| Pitch: | 1.1 mm, .85 mm |
| Tint: | Dark |
| Removable Glare Film: | No |

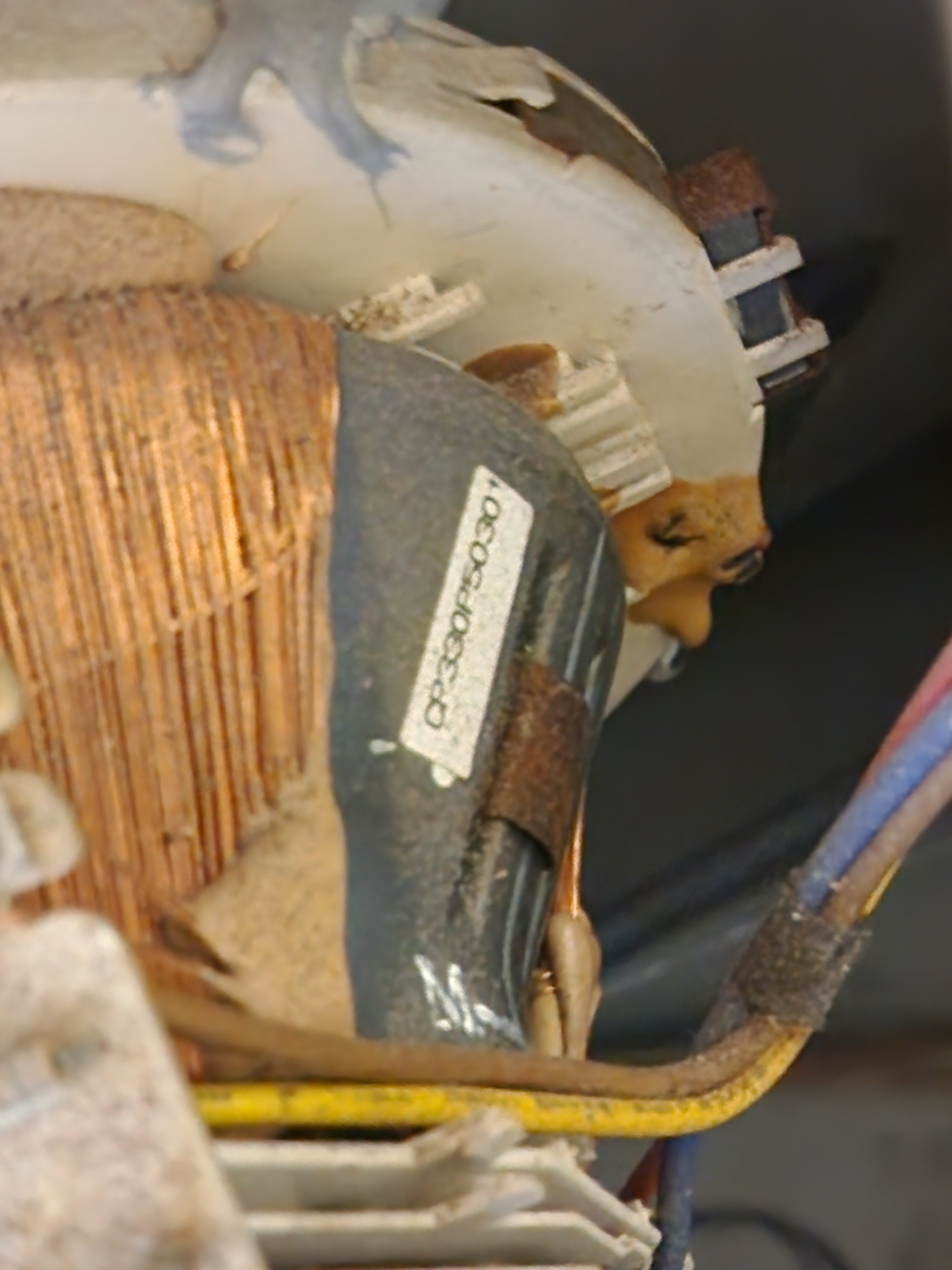

| Yoke: | CP330P50301 |
| Speakers: | Stereo, 1.6W x 2 |
| Remote: | XC-3725C |
| Weight: | 220 lbs (99.8 kg) |
| Dimensions (W/H/D): |
865 x 742 x 585 mm
(34 x 29.2 x 23") |
| Application: | Professional |
| Cabinet Material: | Metal |
| Launched: | 1989 |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | Universal |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Manual |
| Tag: | Needs Owners Manual |
