Summary

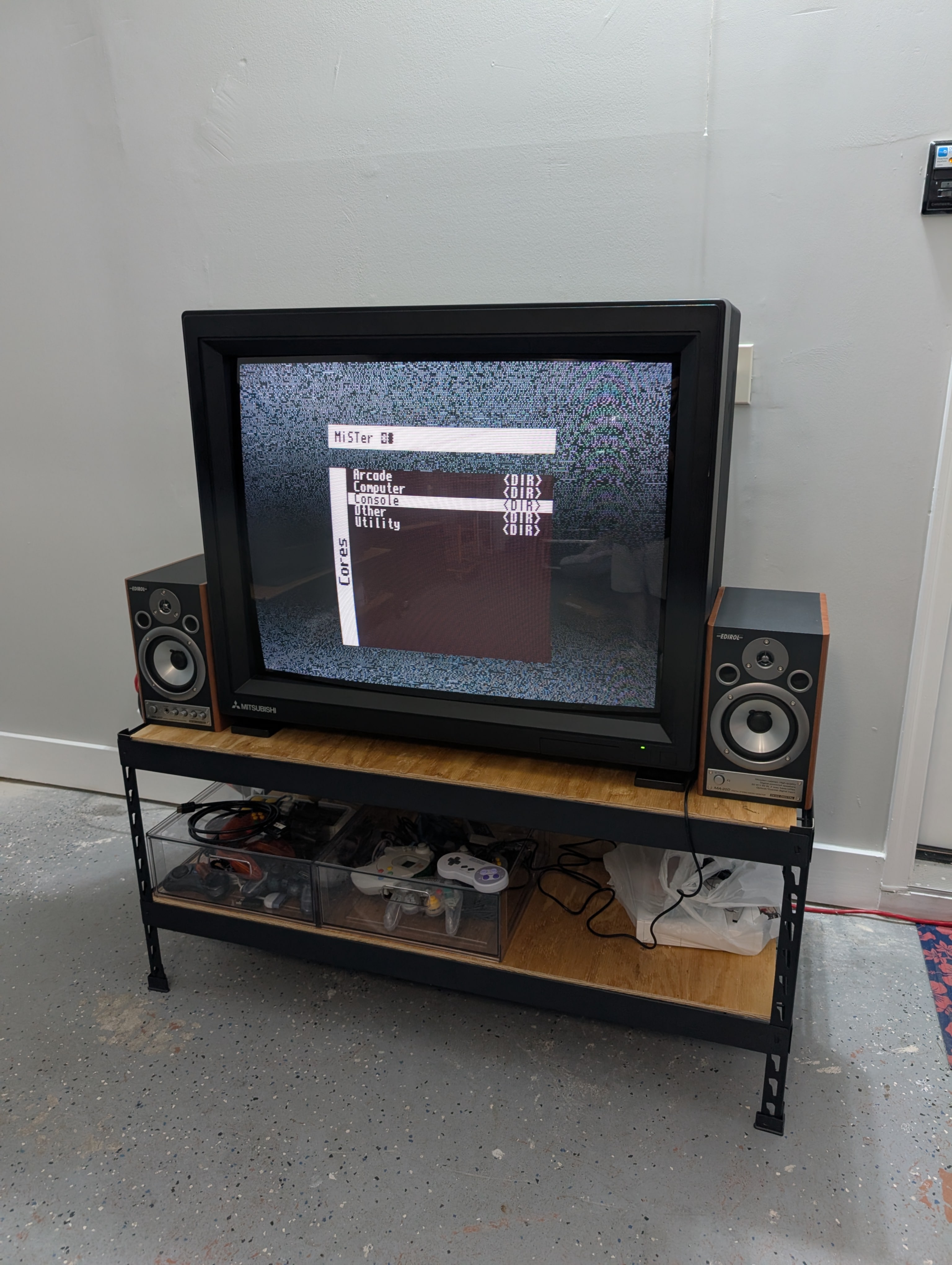

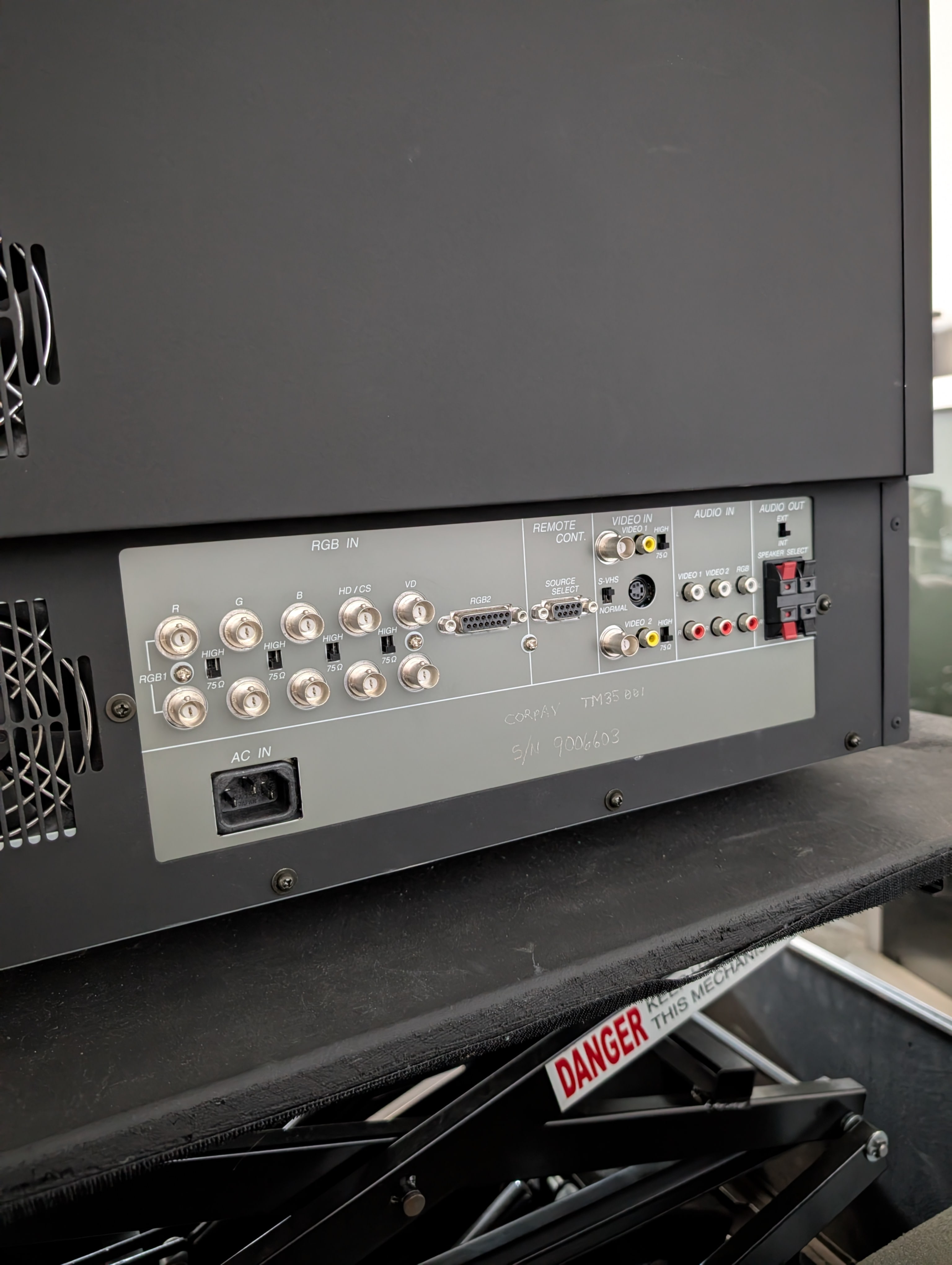

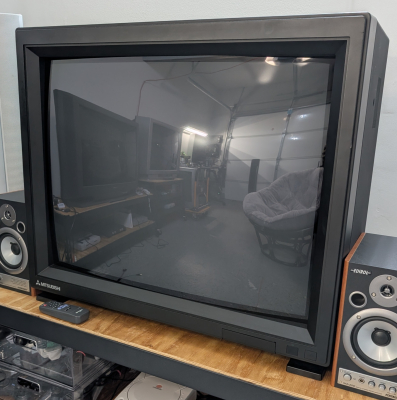

Also known as the MegaViewâ„¢ Pro 37, this is an ultra high-end 35" presentation monitor by Mitsubishi. Has composite, s-video, RGBHV and DA-15 inputs. Originally manufactured in Japan from 1995 until 2000.
(Special thanks to Michael Lopez for the pics!)
Manuals
Notes

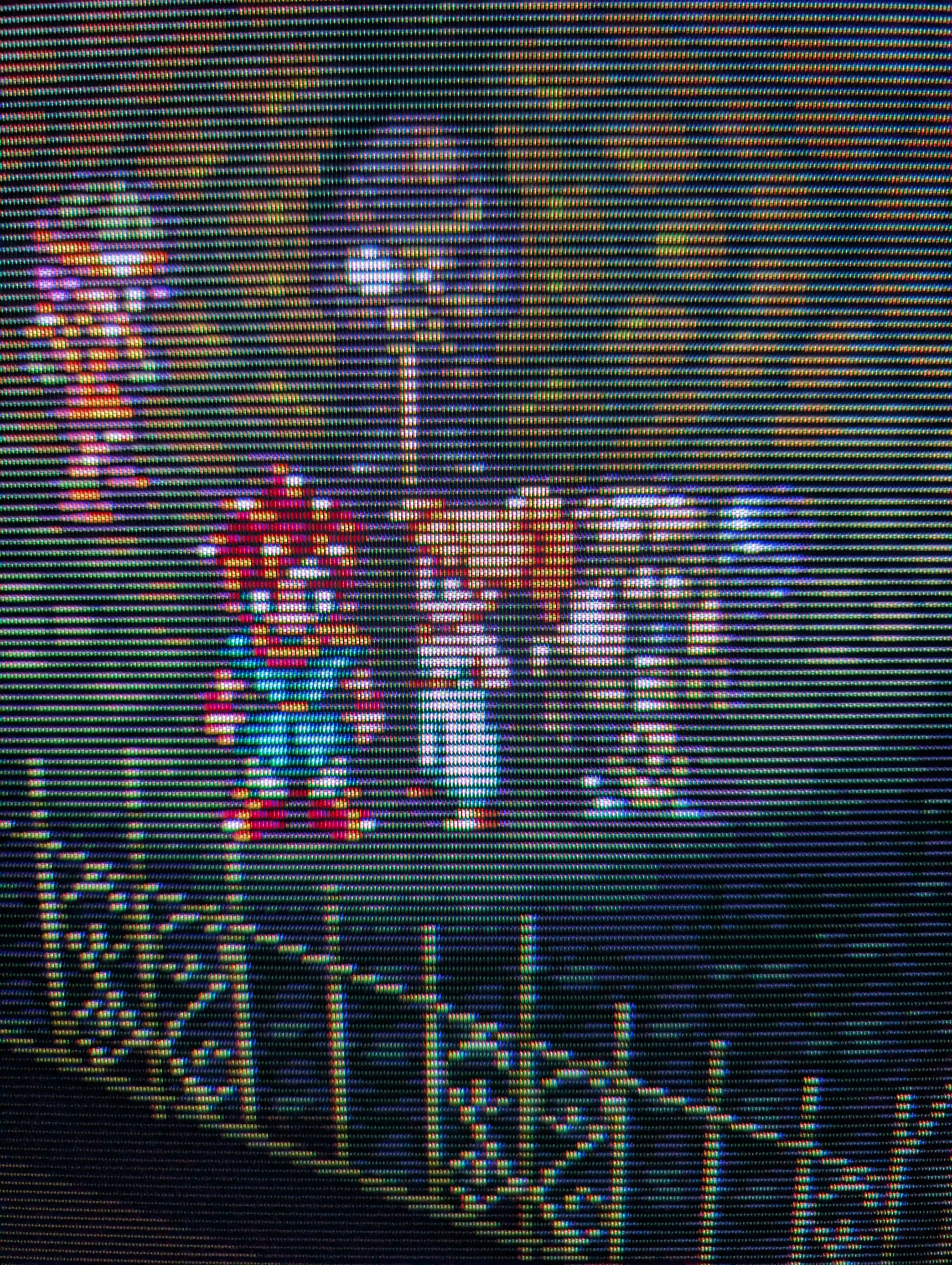

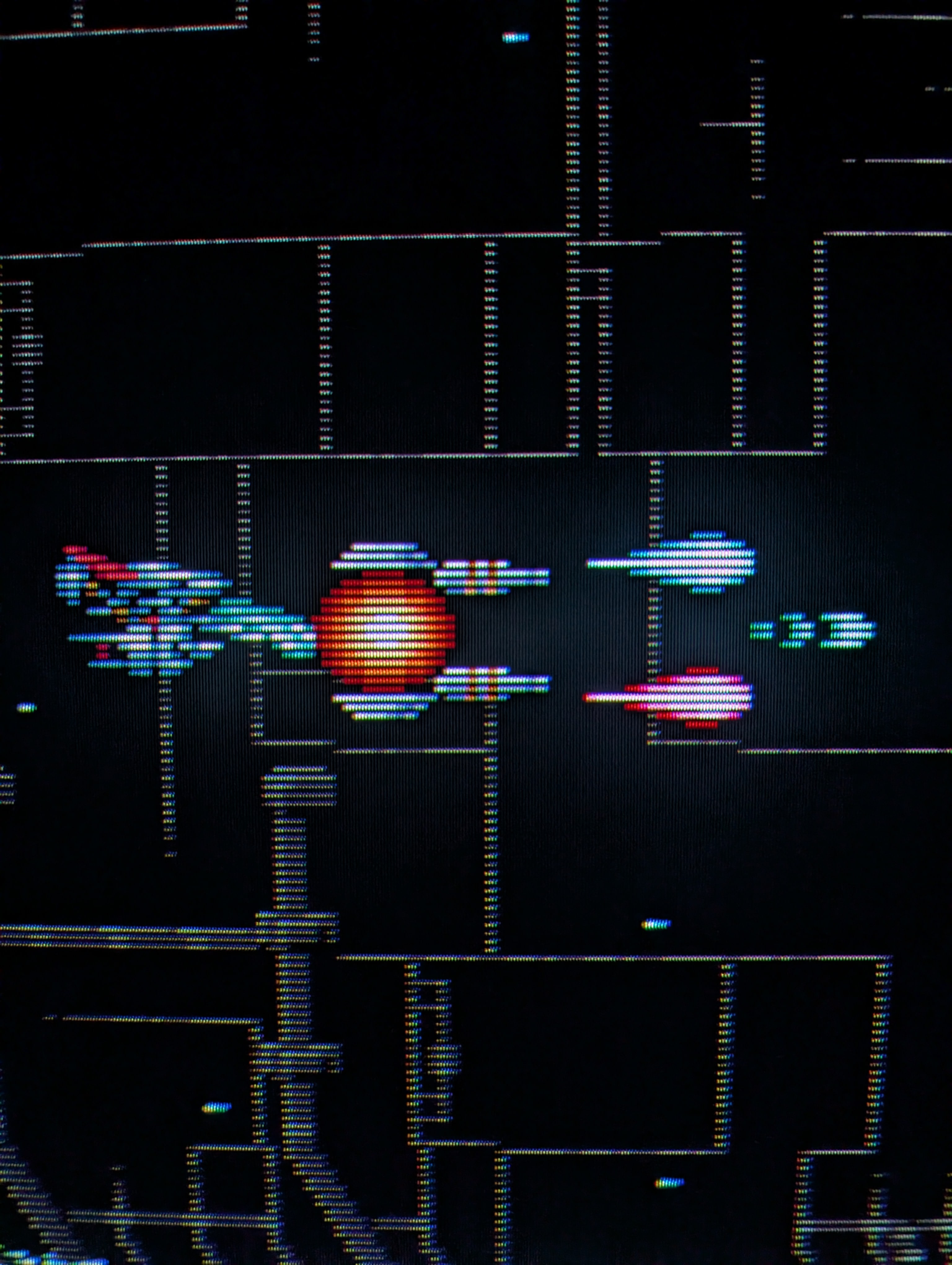

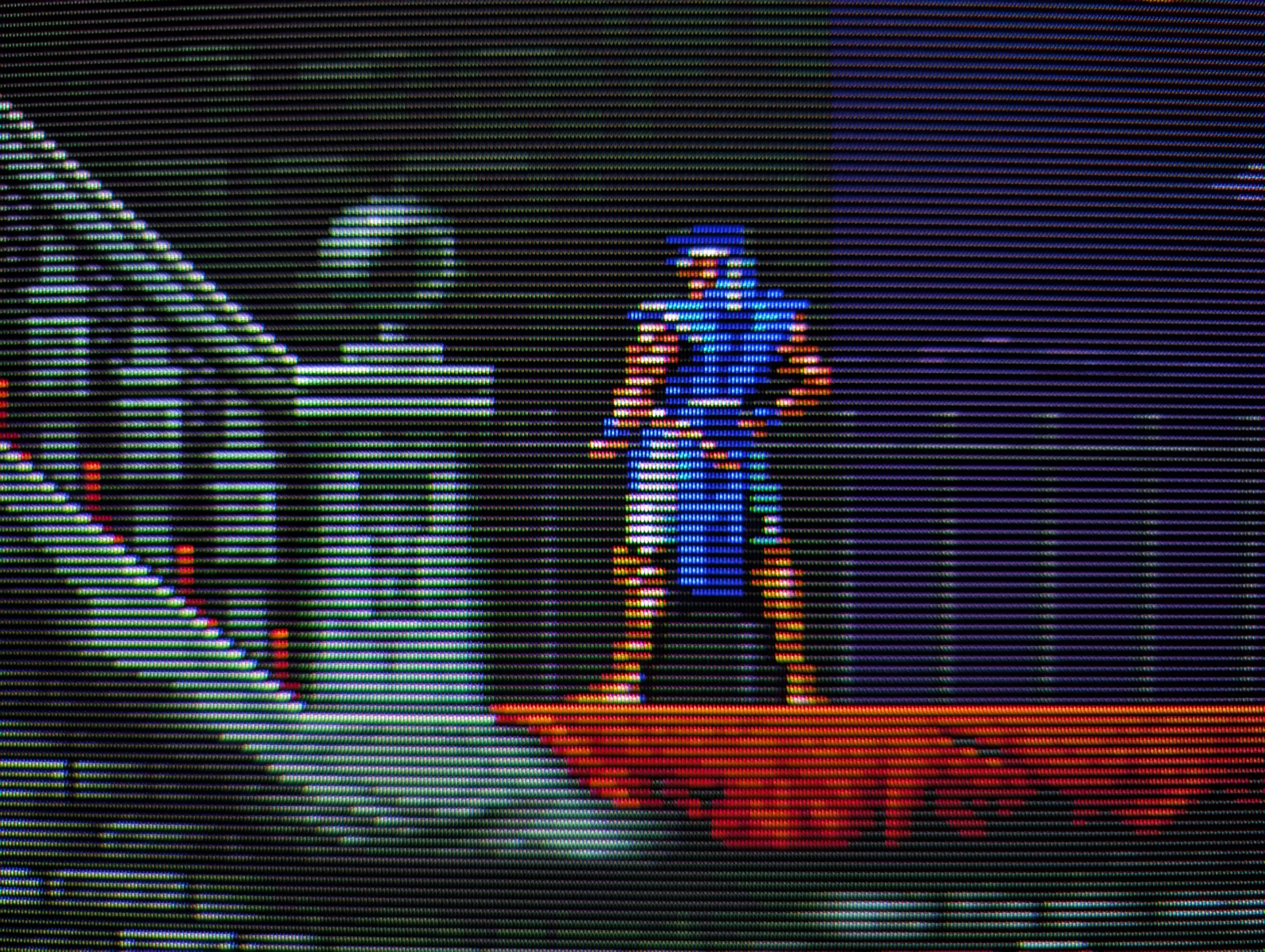

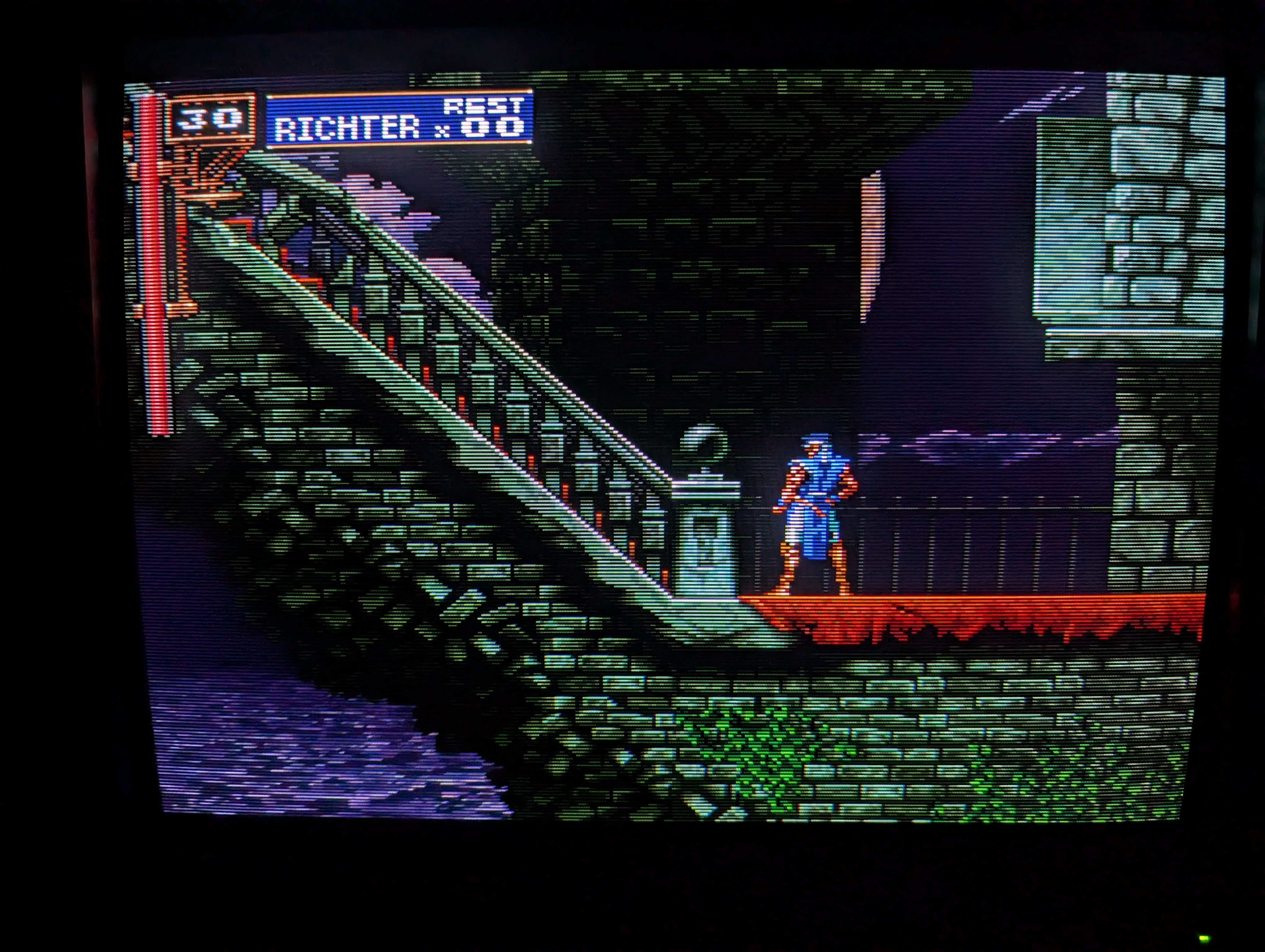

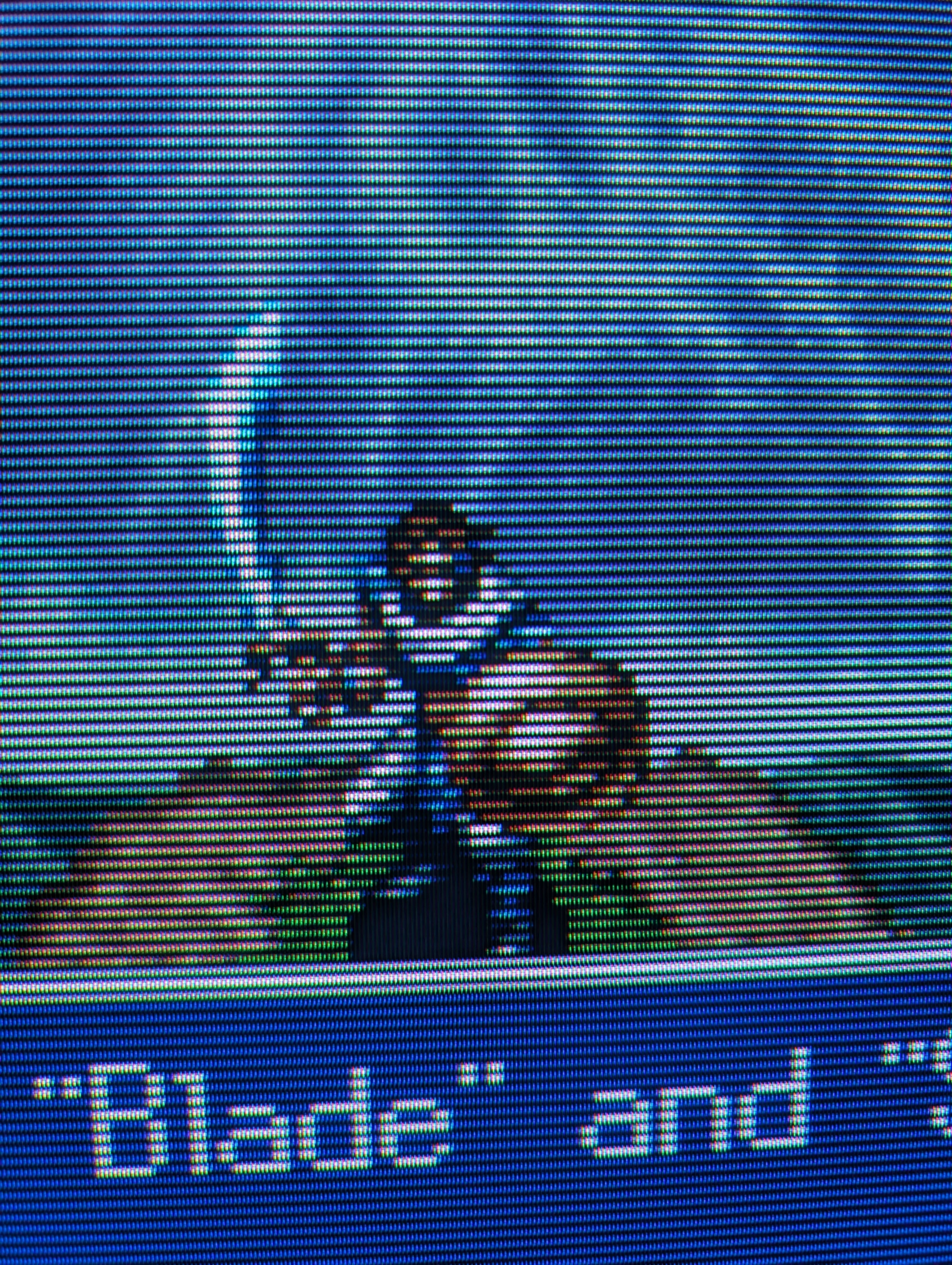

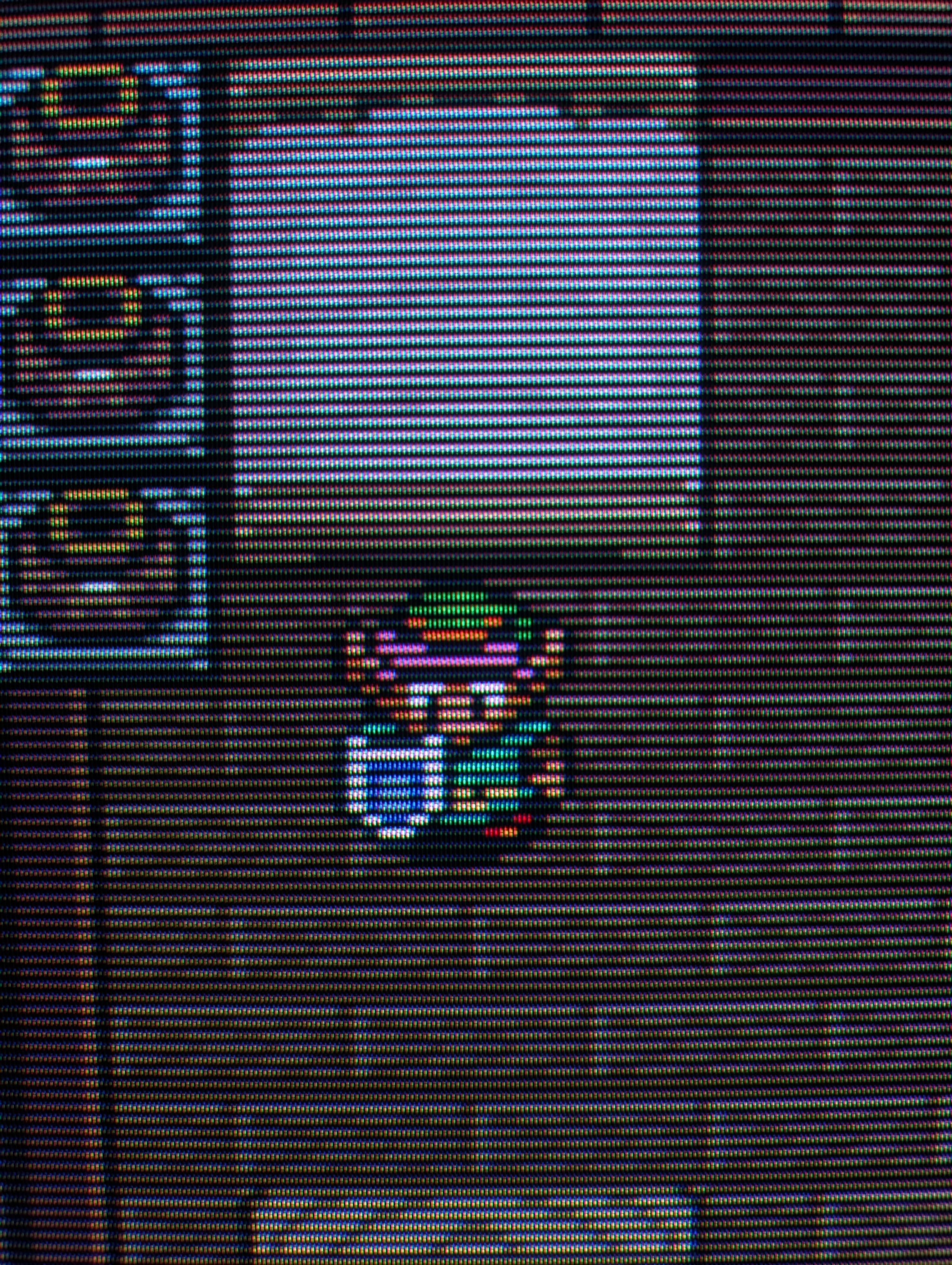

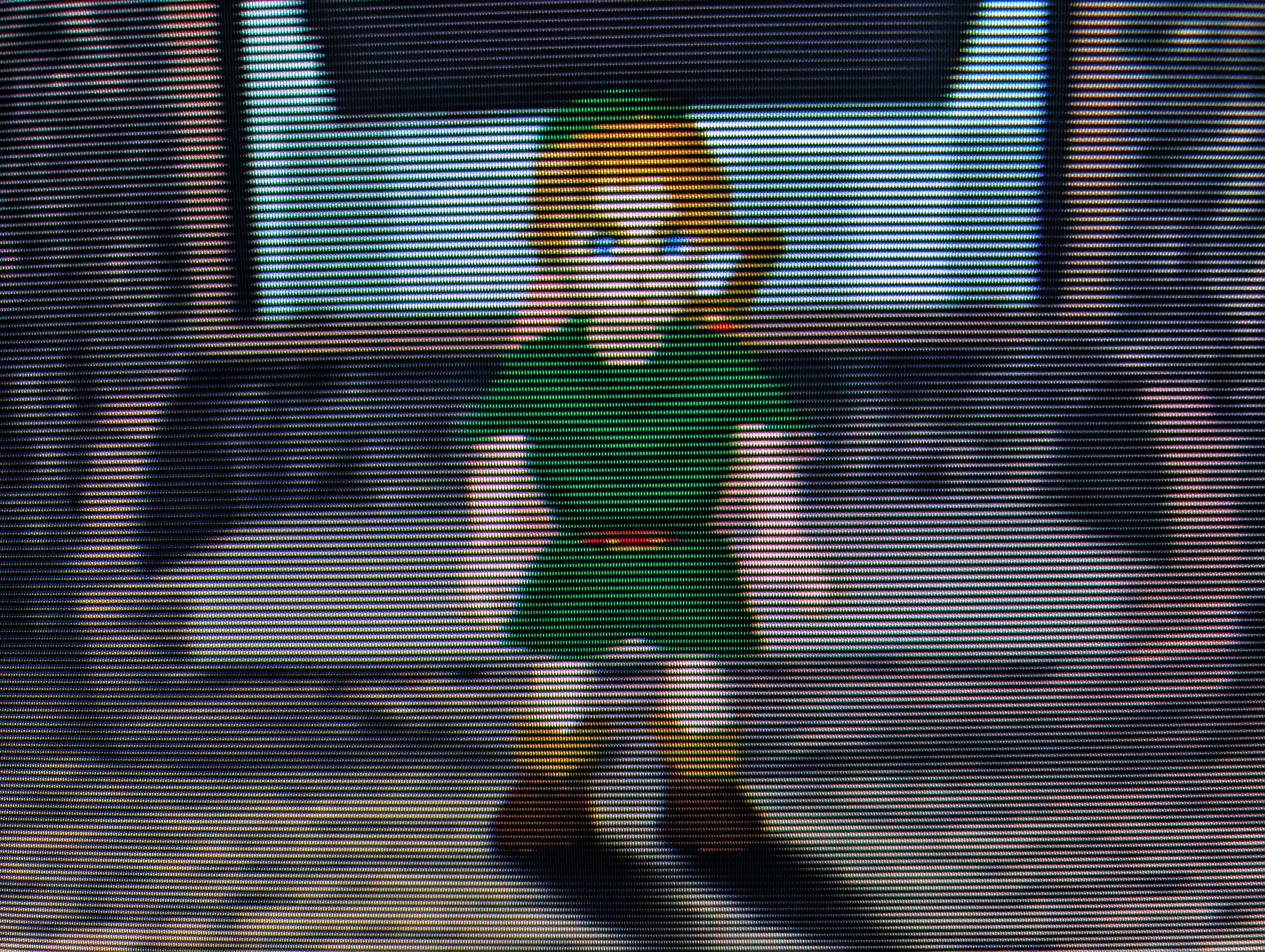

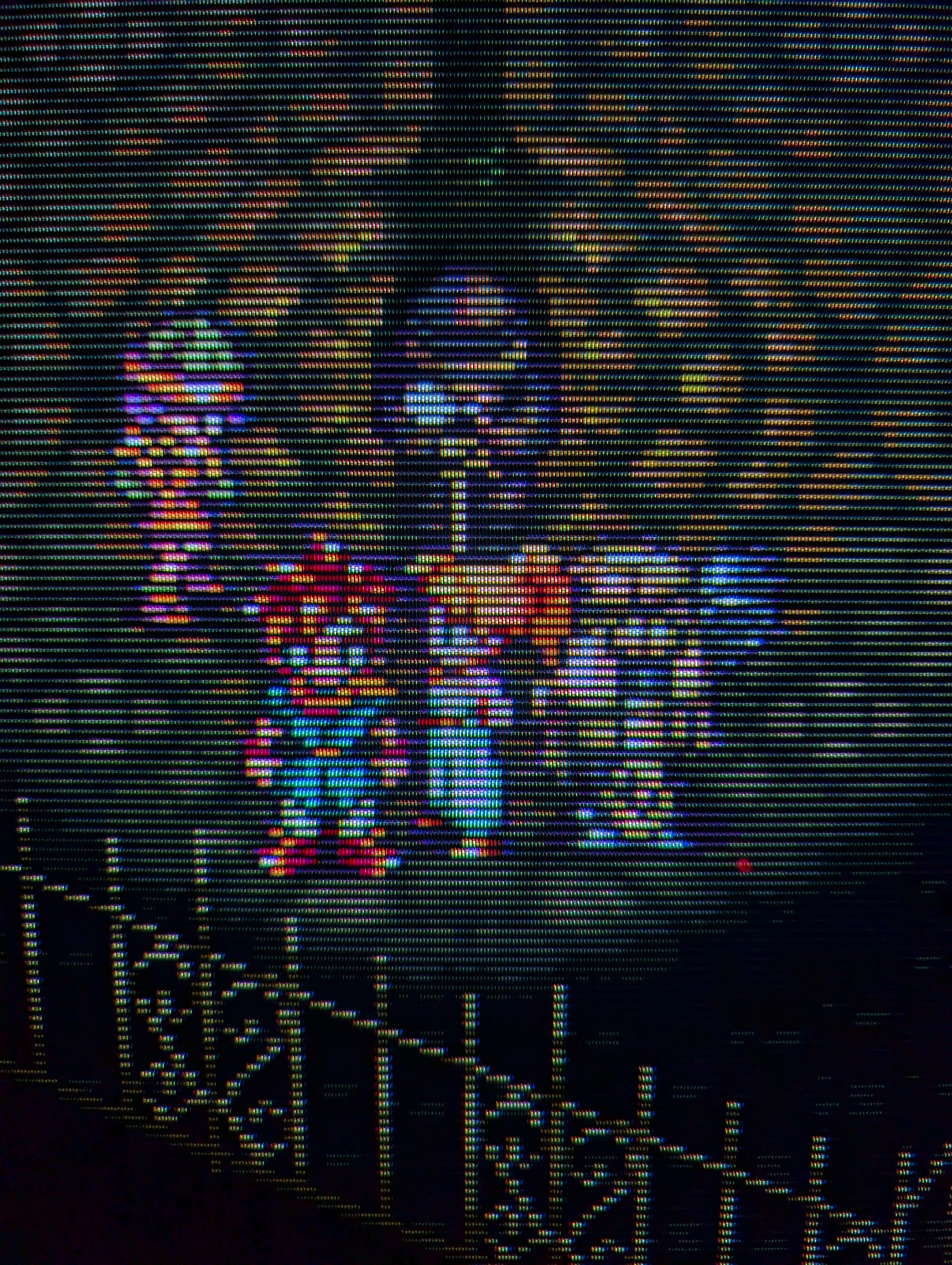

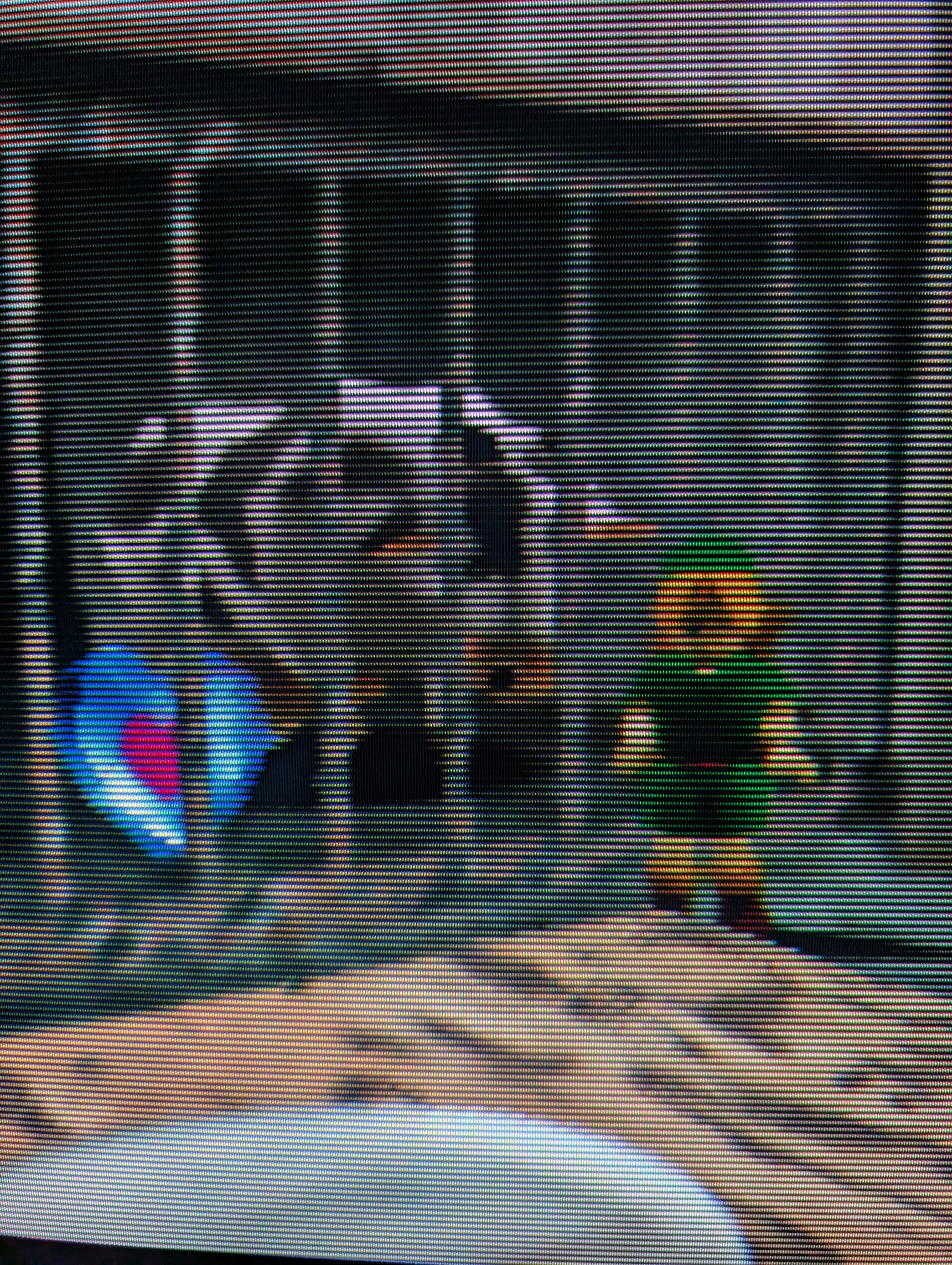

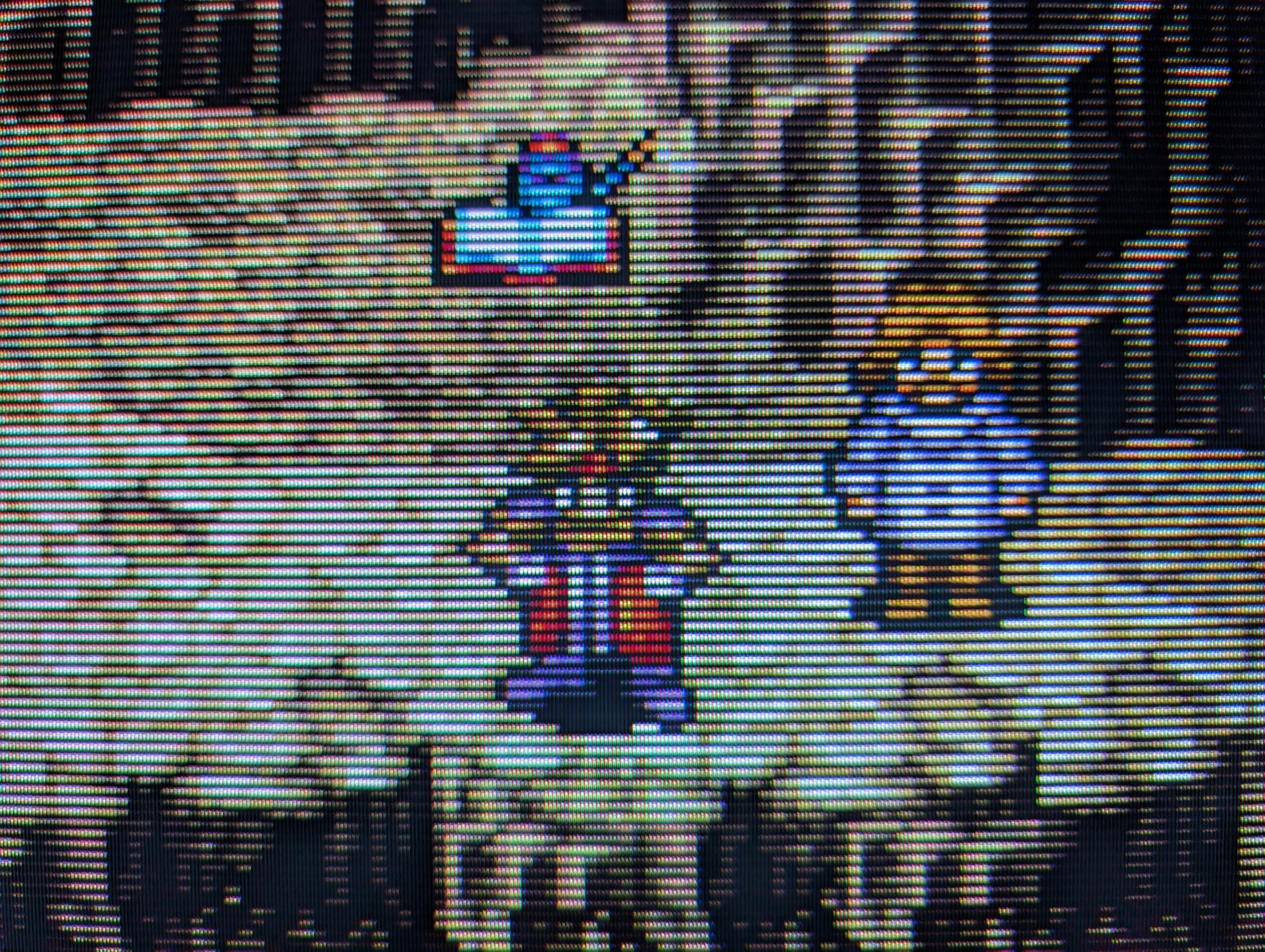

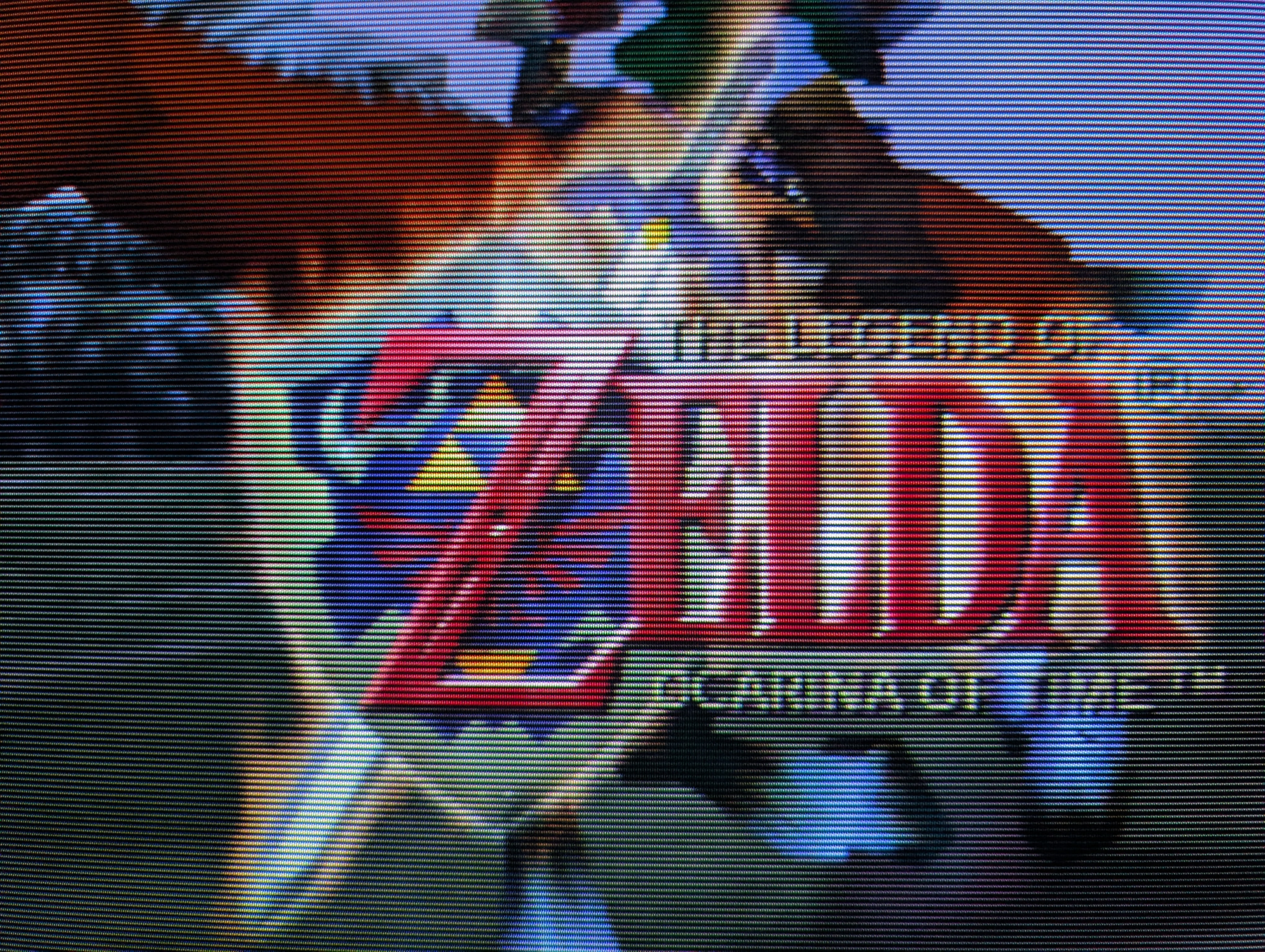

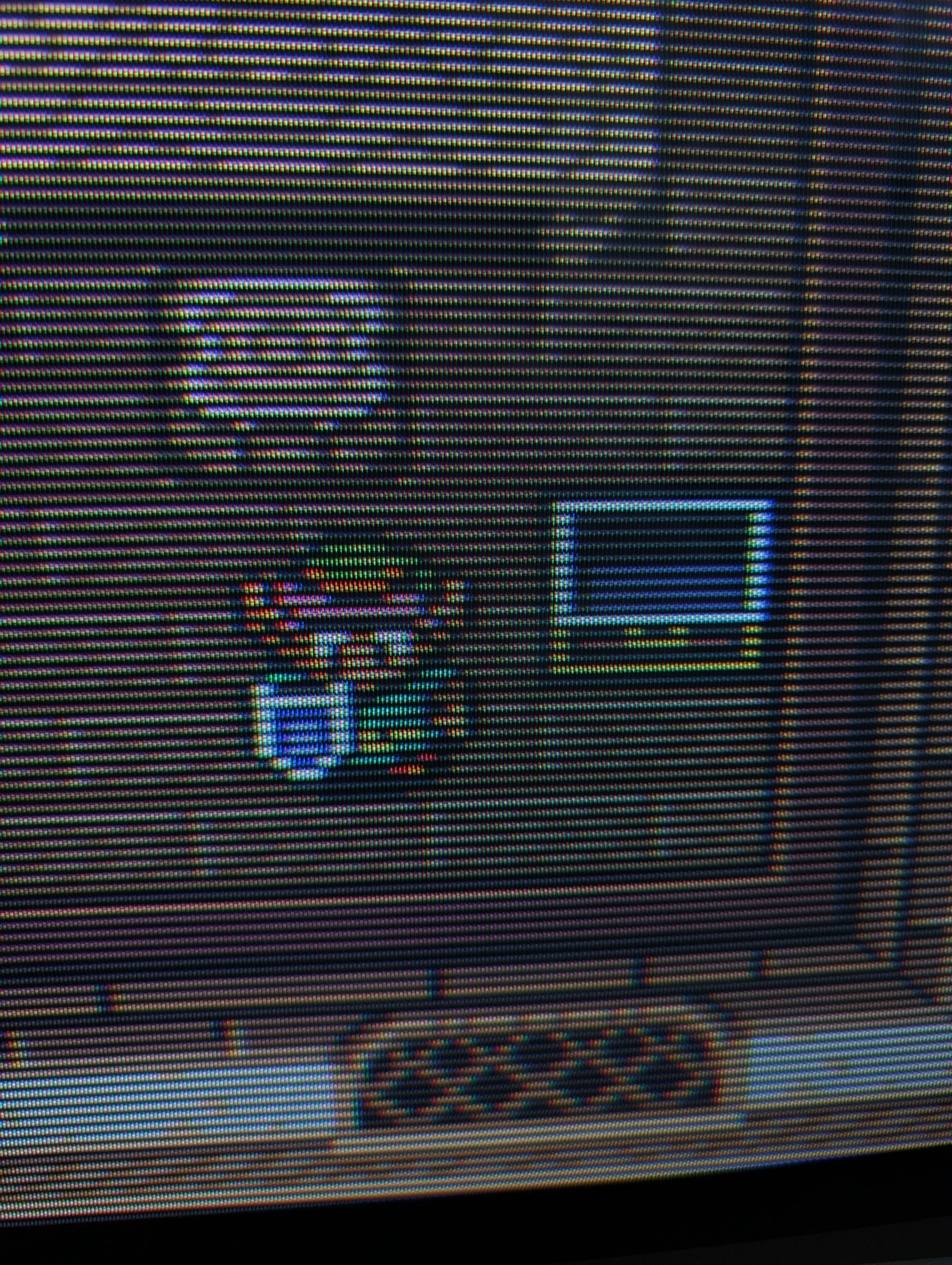

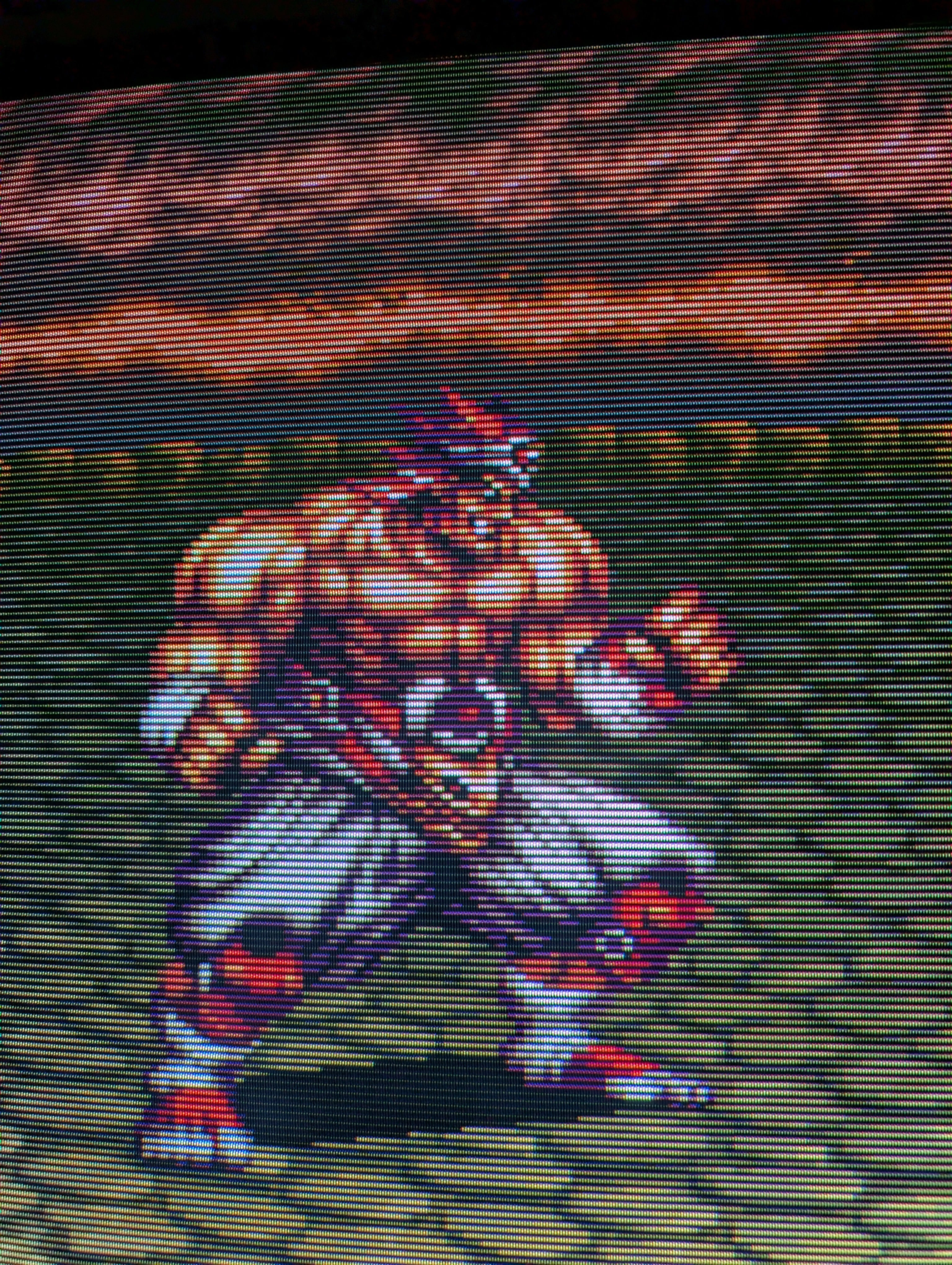

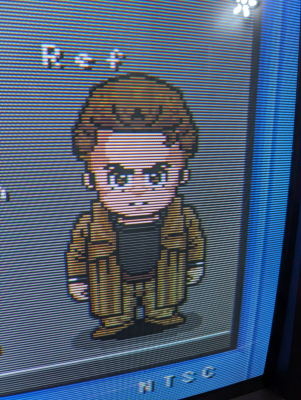

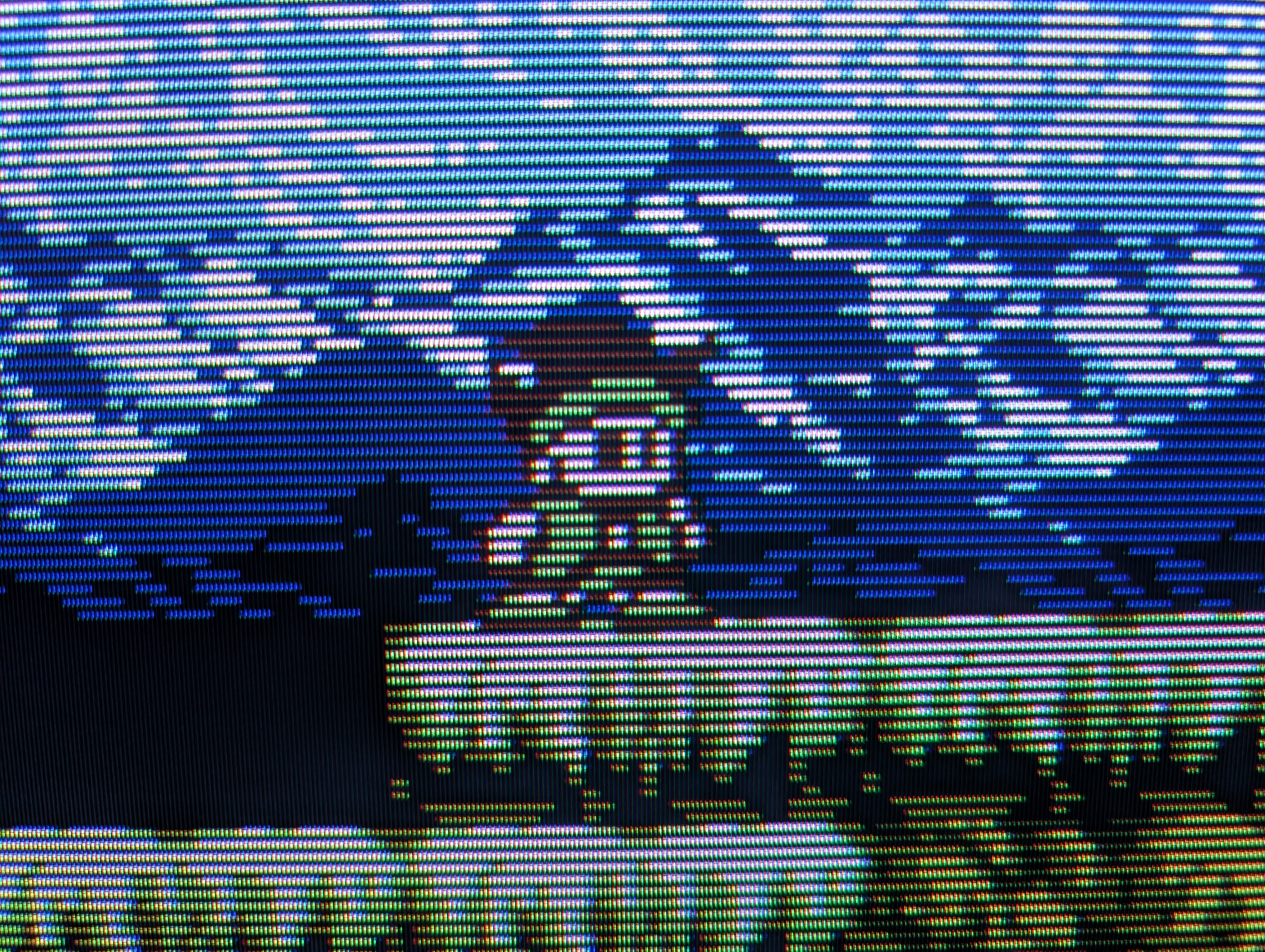

Additional gameplay photos HERE

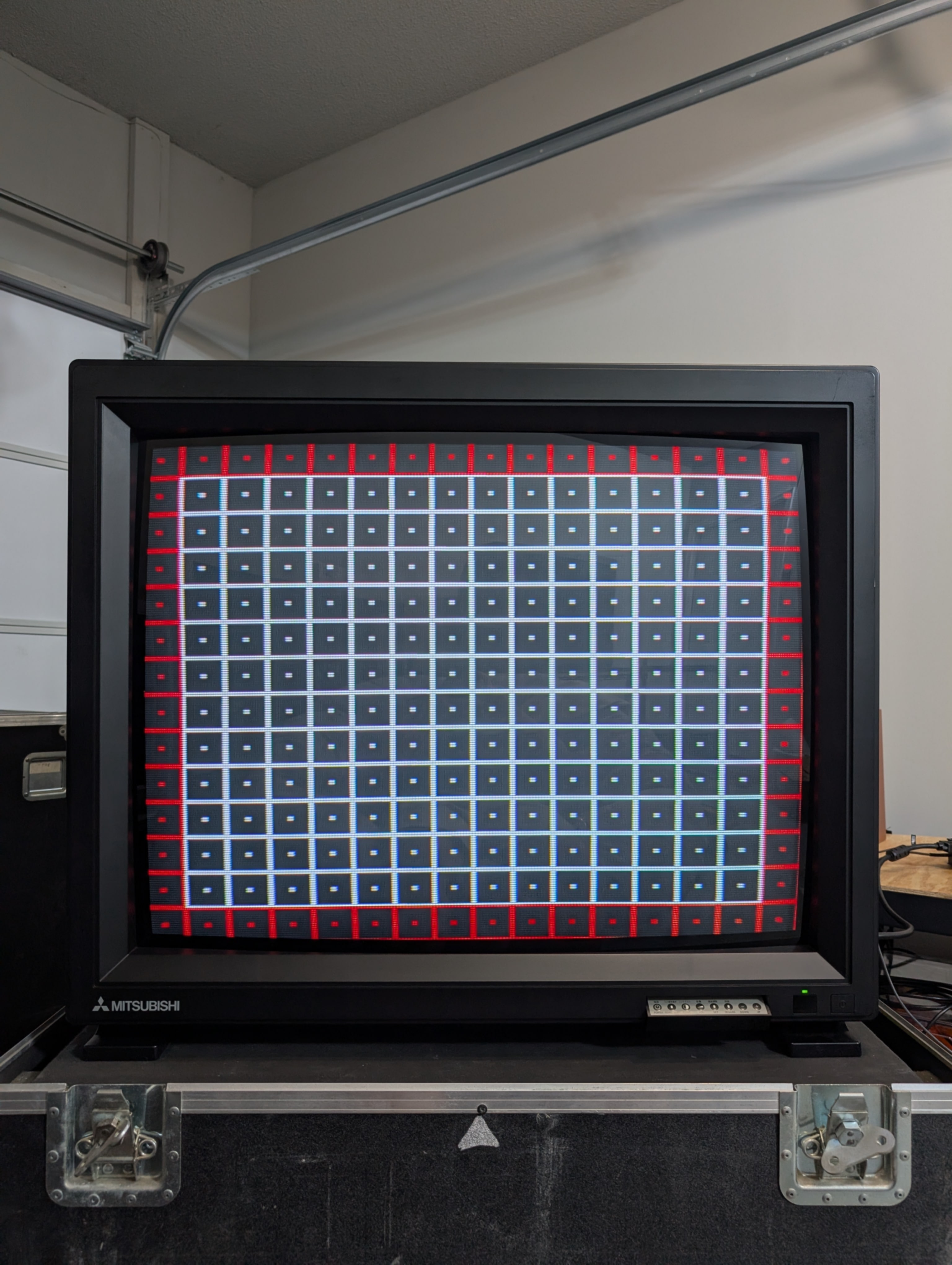

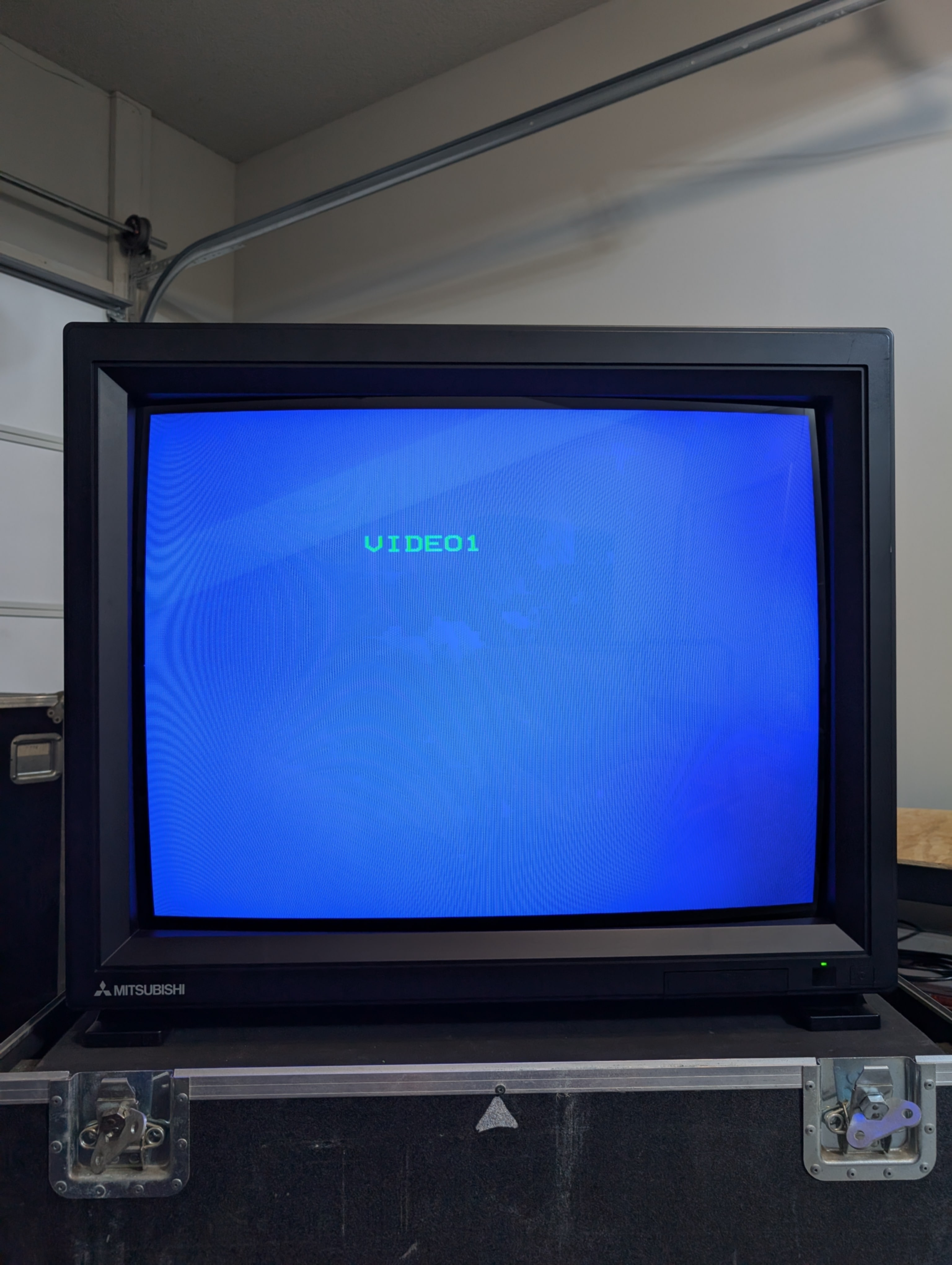

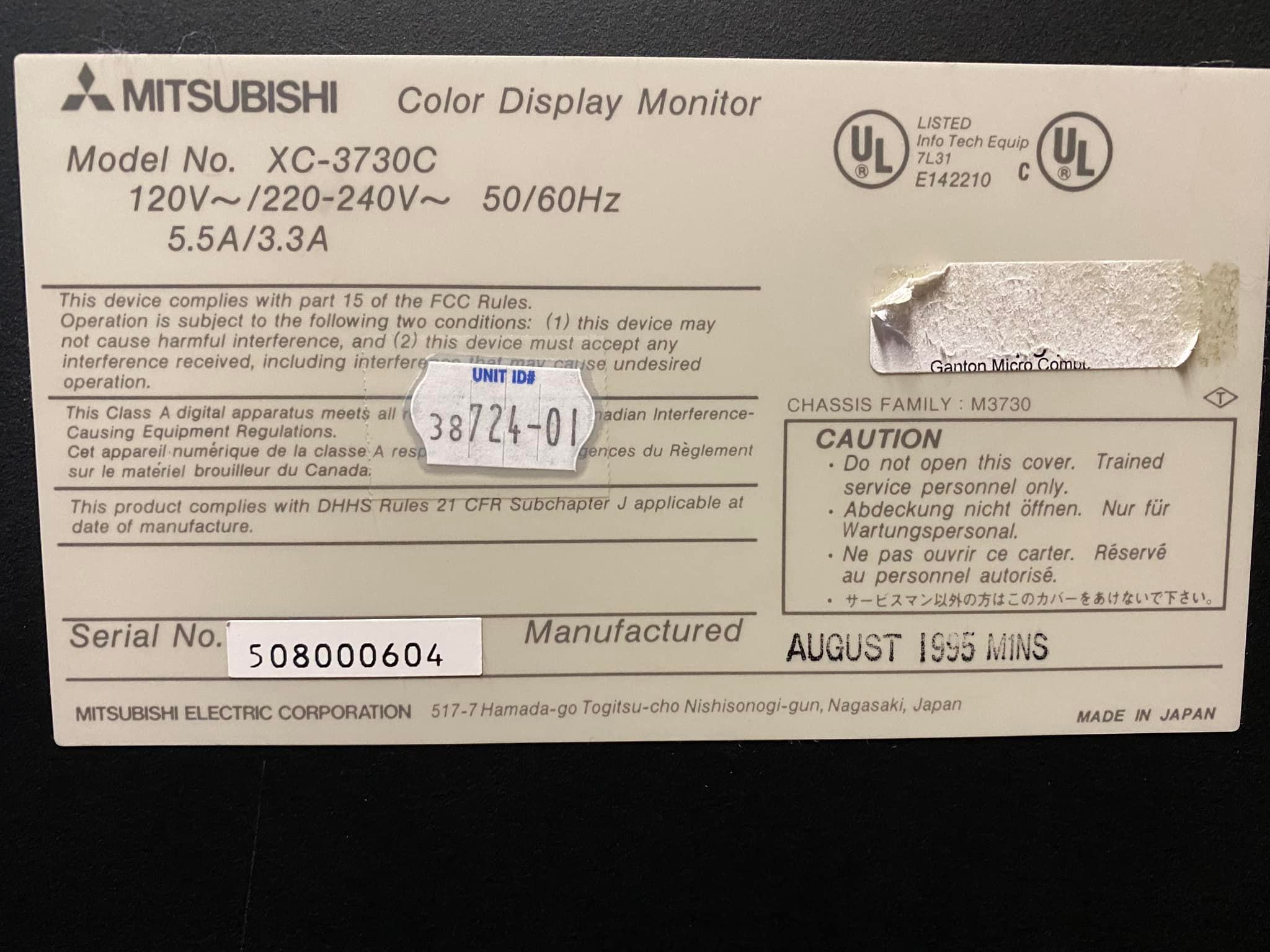

Gallery
| Specifications | |
|---|---|
| Brand: | Mitsubishi |
| Manufacturer: | Mitsubishi |
| Model: | XC-3730C |
| Series: | XC |
| Viewable Size: | 37" |
| Inputs: | VGA, Composite, S-Video, RGB |
| Sync: | HV Sync, CSYNC, Sync on Green |
| Native Resolutions: | SVGA, XGA, SXGA, 240p, 480i, 1080i, 288p, 576i, 720p, 480p, 576p, Medium Res. |
| Linecount: | 700 TVL |
| Horizontal Scan Range: | 15 kHz, 85 kHz |
| Vertical Scan Range: | 120 Hz, 40 Hz |
| Formats: | NTSC, PAL, SECAM, M-NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Focus Type: | Dual |

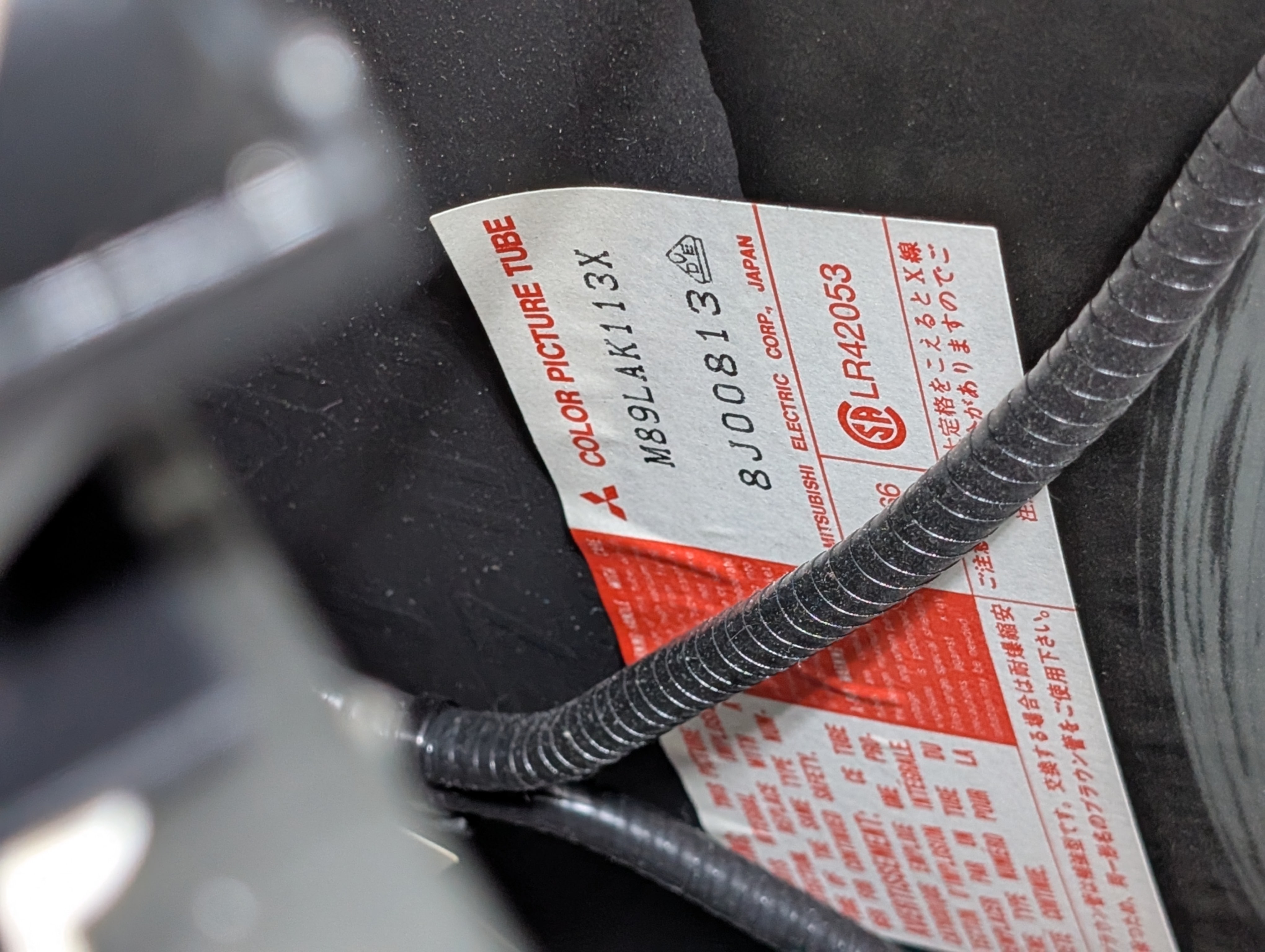

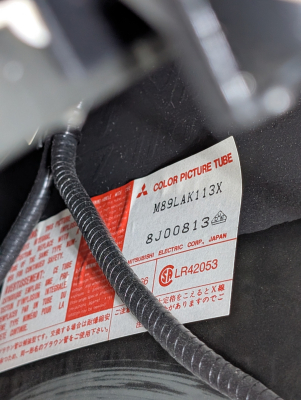

| Tube: | Mitsubishi , M89LAK113X |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|
| Pitch: | .85 mm, 1.05 mm, 0.85 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | CP330P50901 |

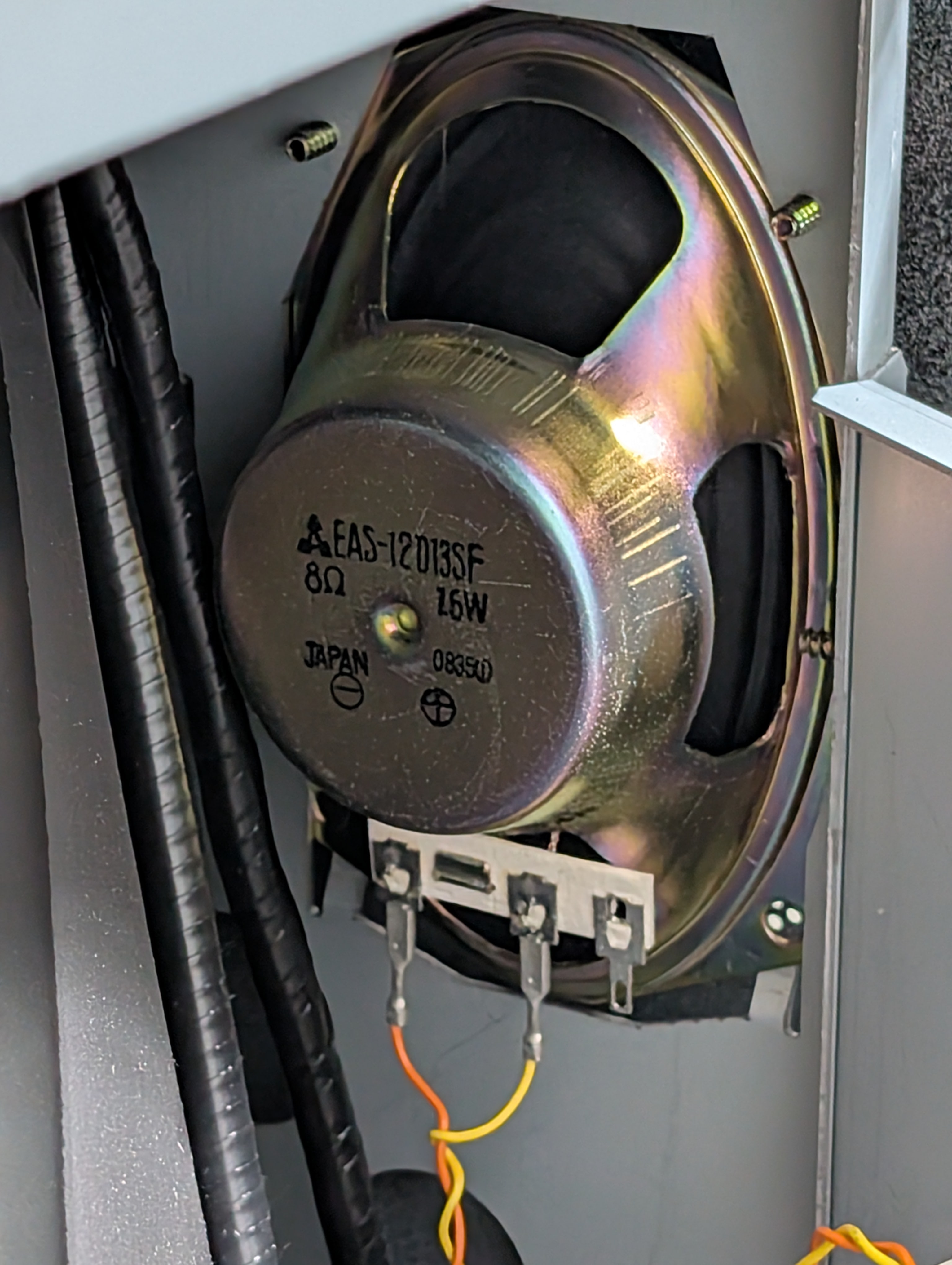

| Speakers: | Stereo, Amplifier, Optional Side Mount, 16W x 2 |

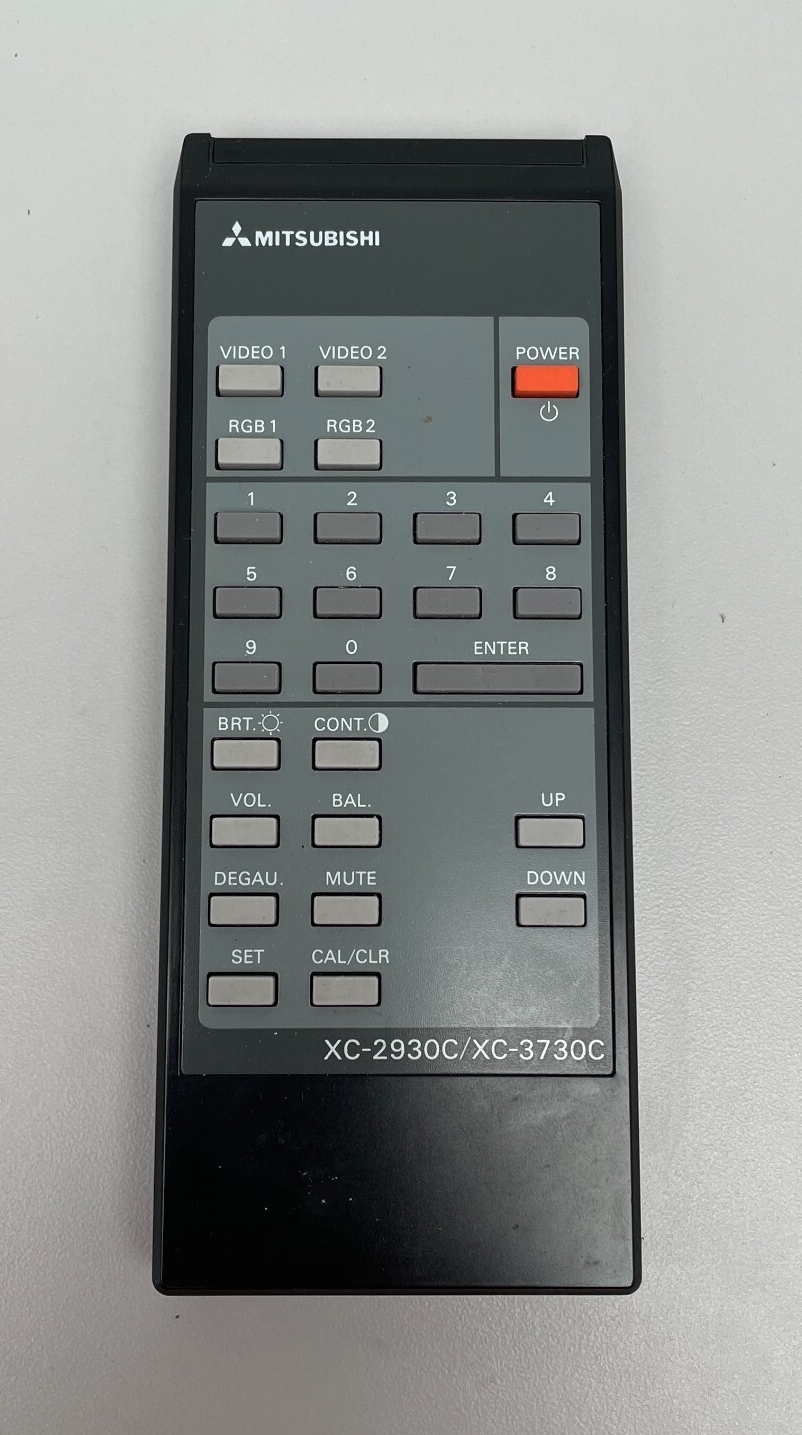

| Remote: | Yes, RS-232C |
| Weight: | 217 lbs (98.4 kg) |
| Dimensions (W/H/D): |
865 x 740 x 576 mm
(34 x 29.1 x 22.6") |
| Application: | Professional |
| Cabinet Material: | Plastic |
| Launched: | 1995 |
| Country of Manufacture: | Japan |
| Market: | Worldwide |
| Power Standard: | 120v, 240v, 220v |

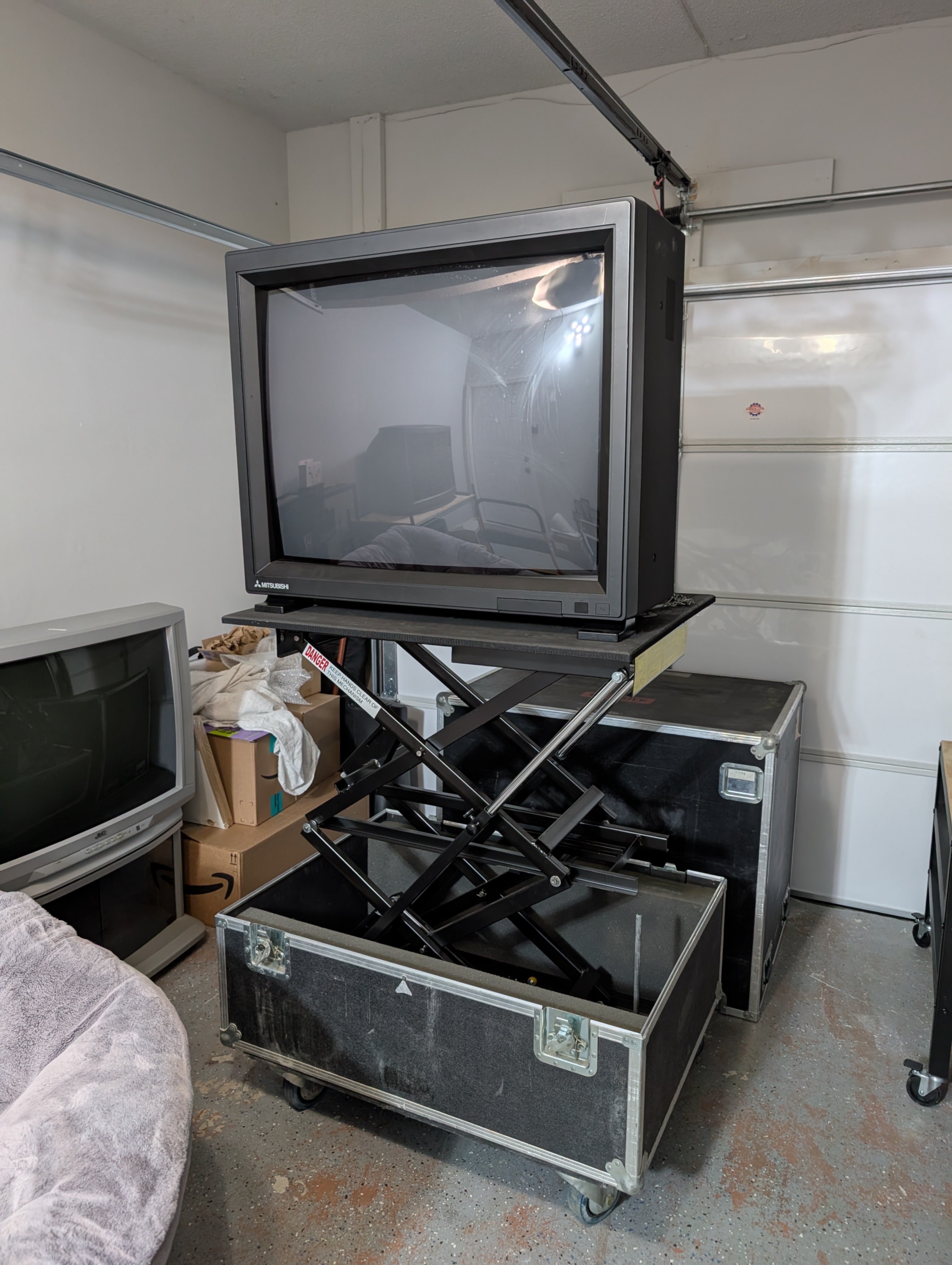

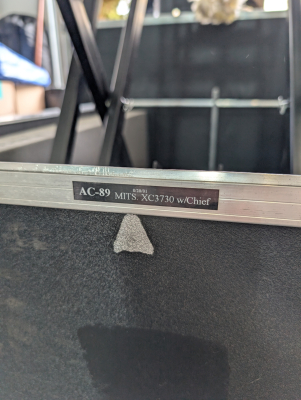

| Mounting: | Table Surface (Standard), Road Case, AC-89 |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Hall of Fame |
