Summary

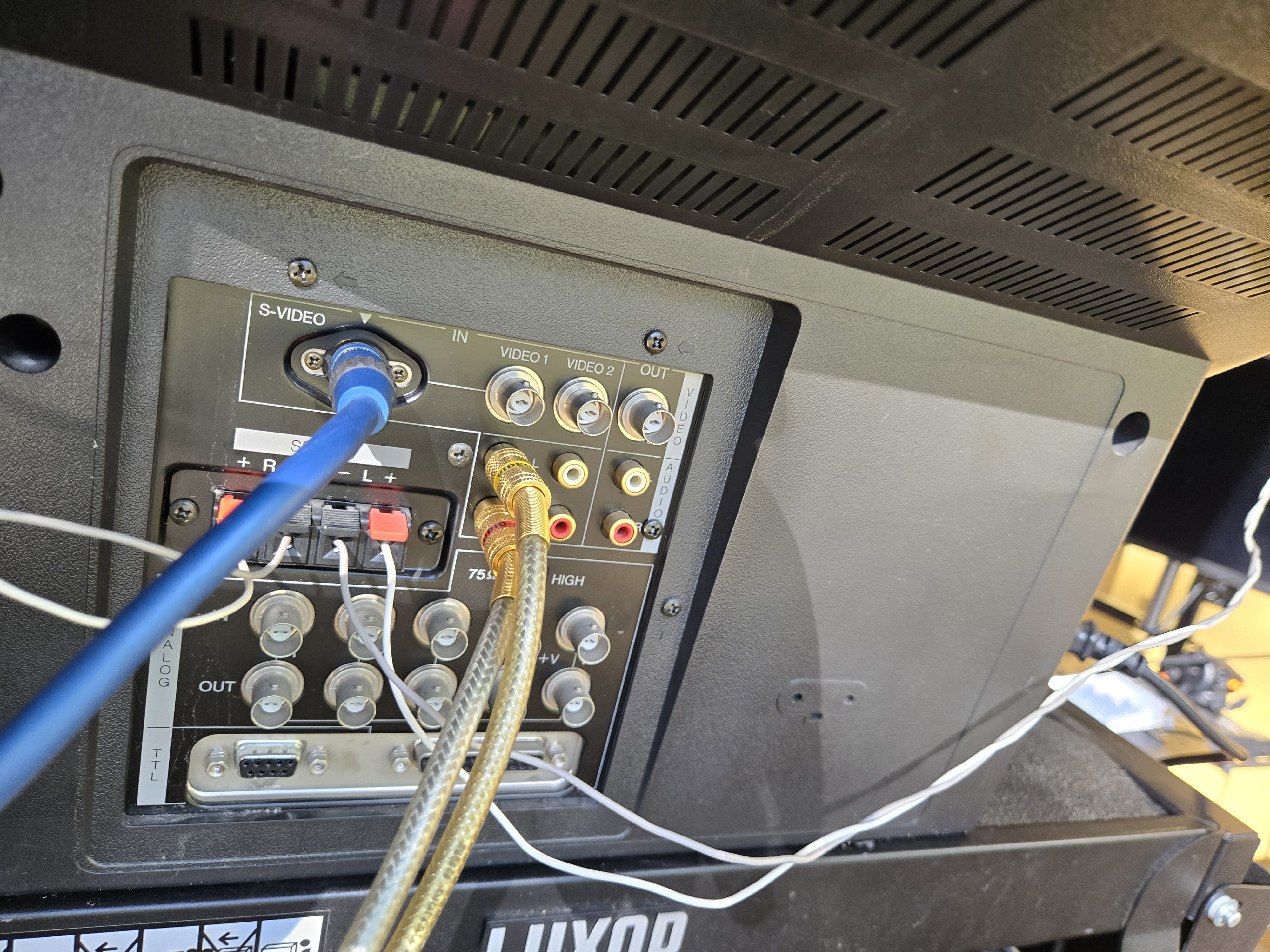

A very high-end 31" multisync presentation monitor by Mitsubishi, made in Japan in 1991. This monitor appears to be more specifically designed for the North American market, as the power supply is 120V. While not quite as high-end as the other graphics monitors, it is still quite capable nonetheless. Supports composite, s-video, analog RGB (DB-25) and digital RGB (DE-9).
(Special thanks to Paul Saarinen for the pics!)
Manuals
(None at this time.)

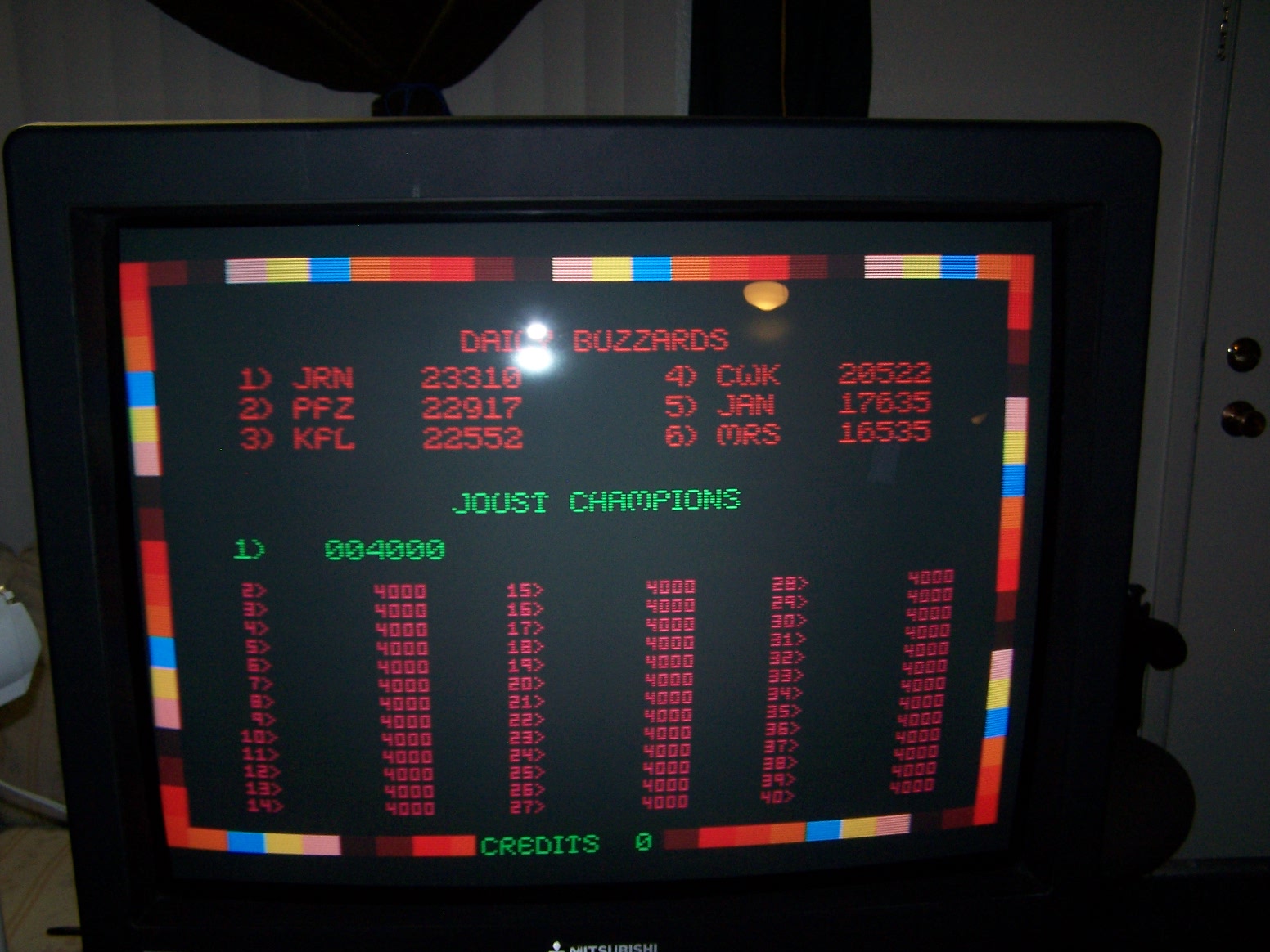

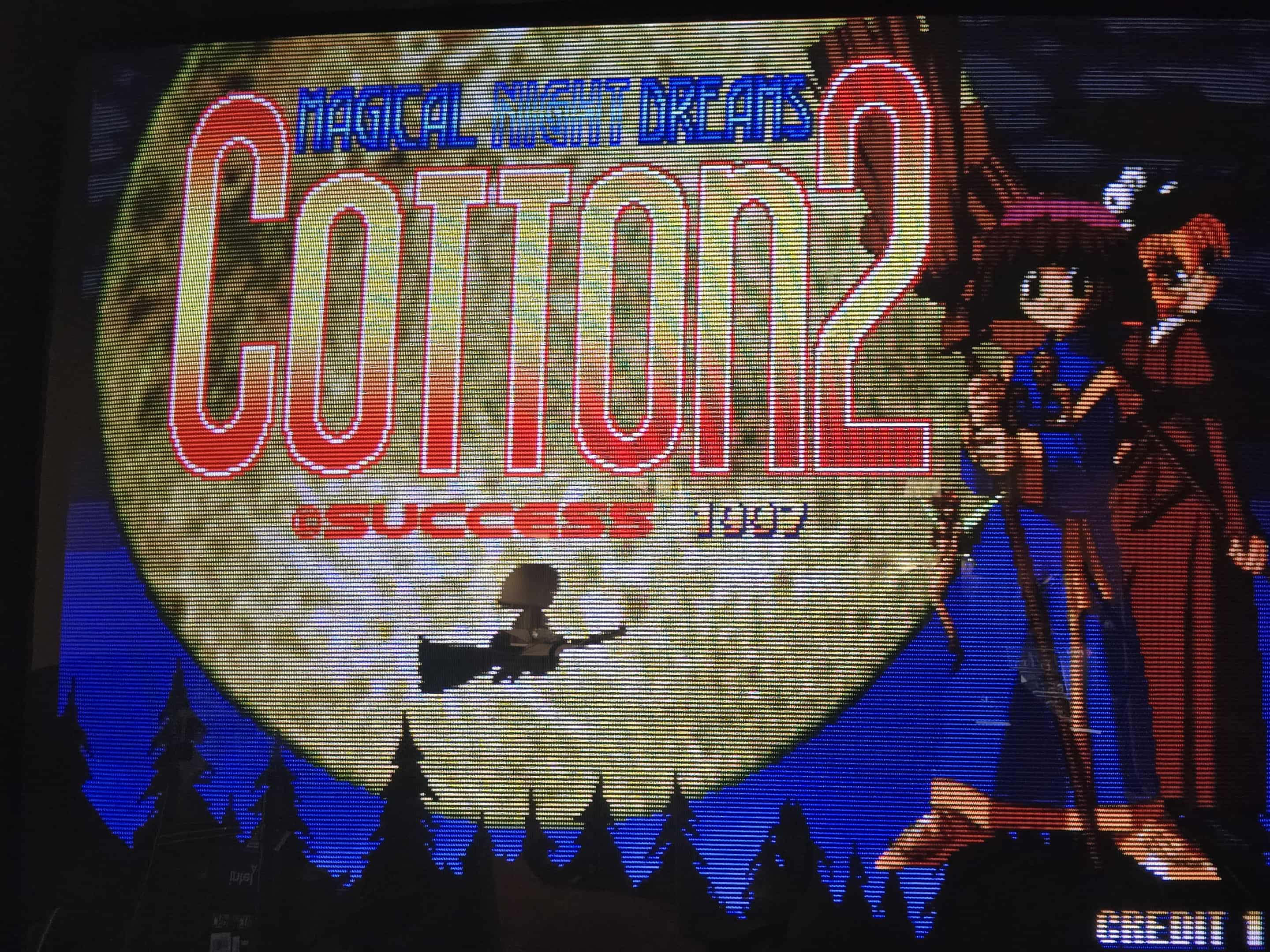

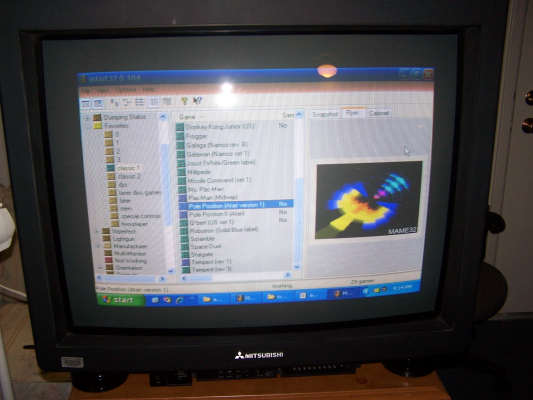

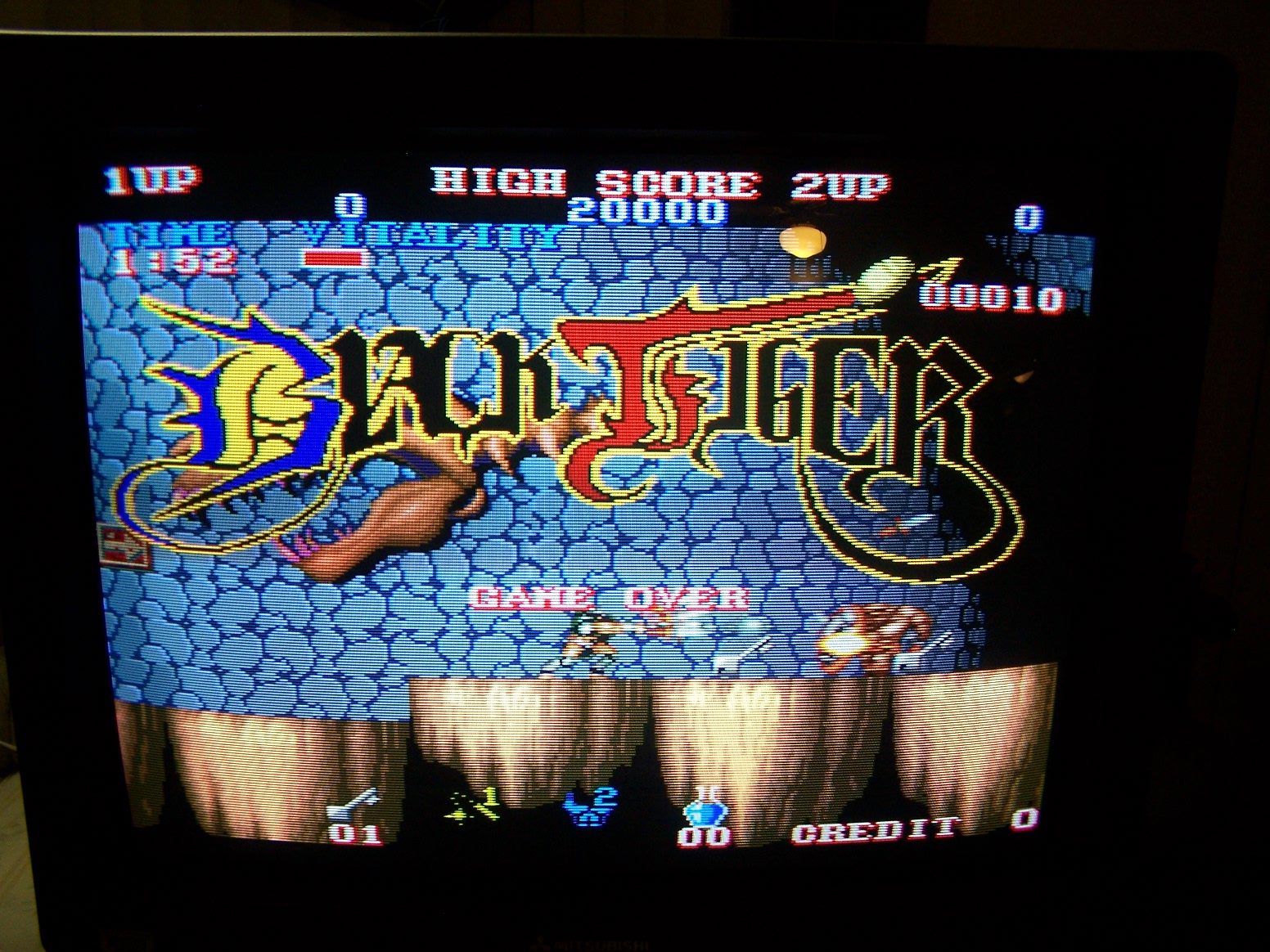

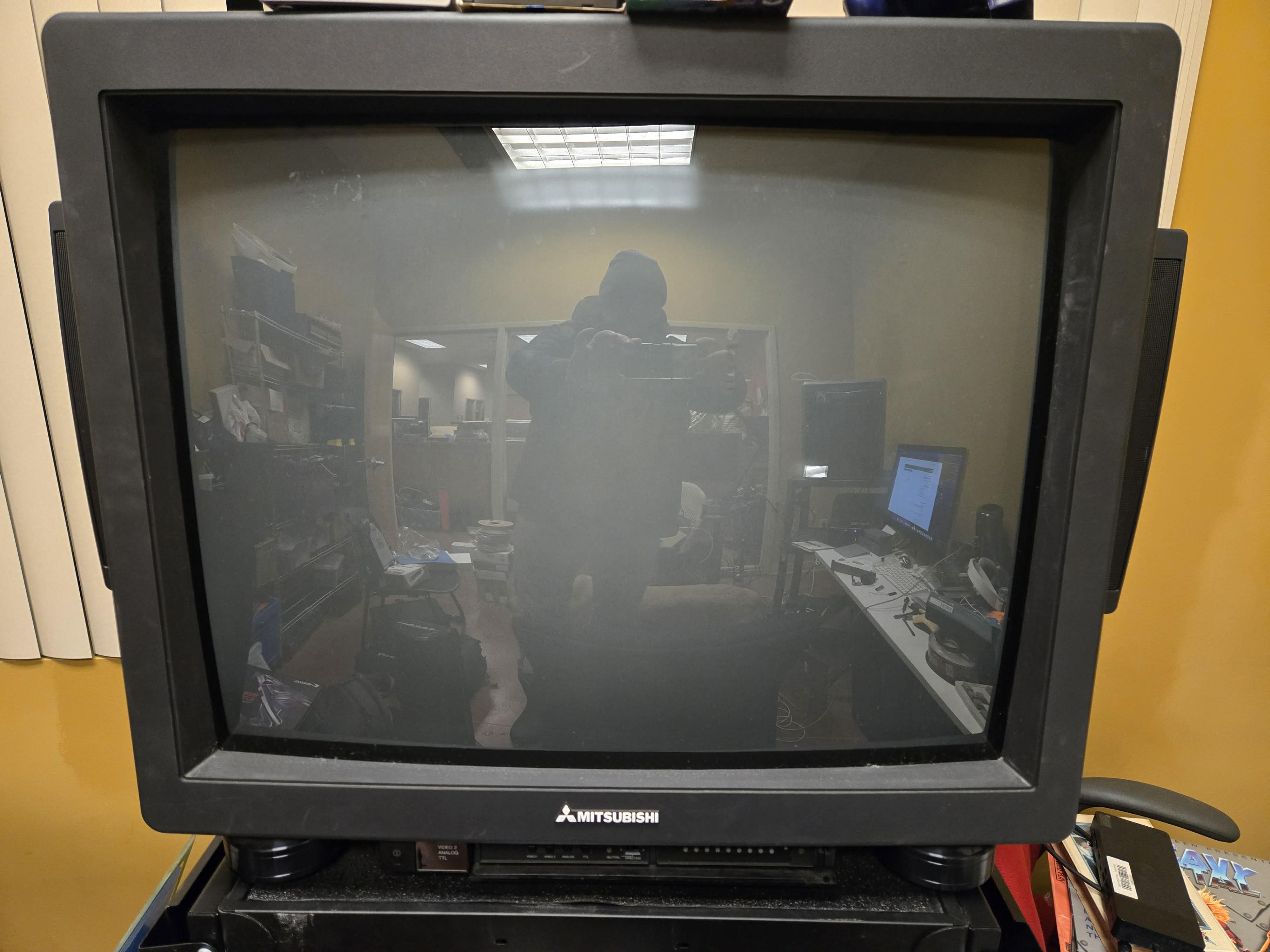

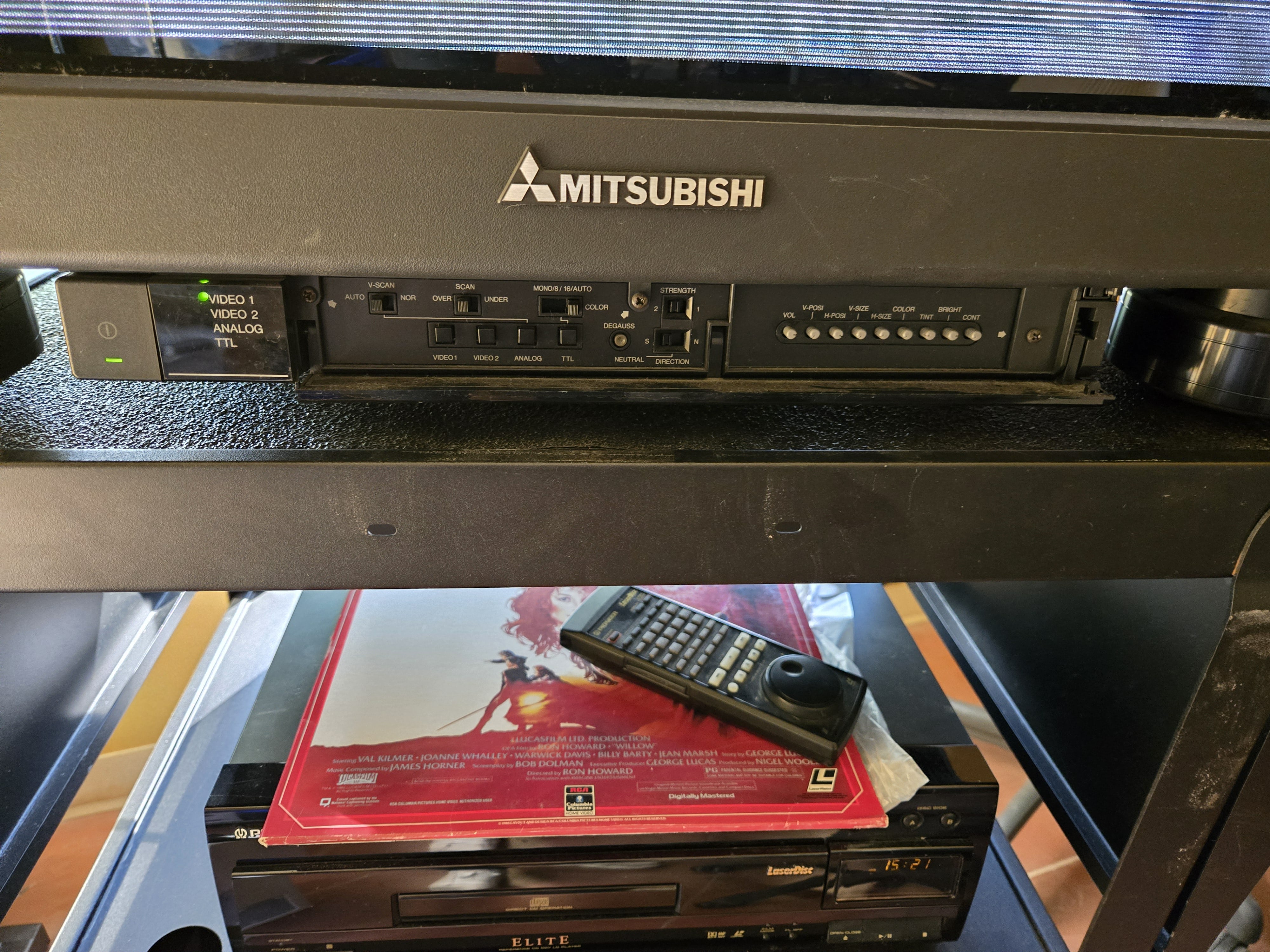

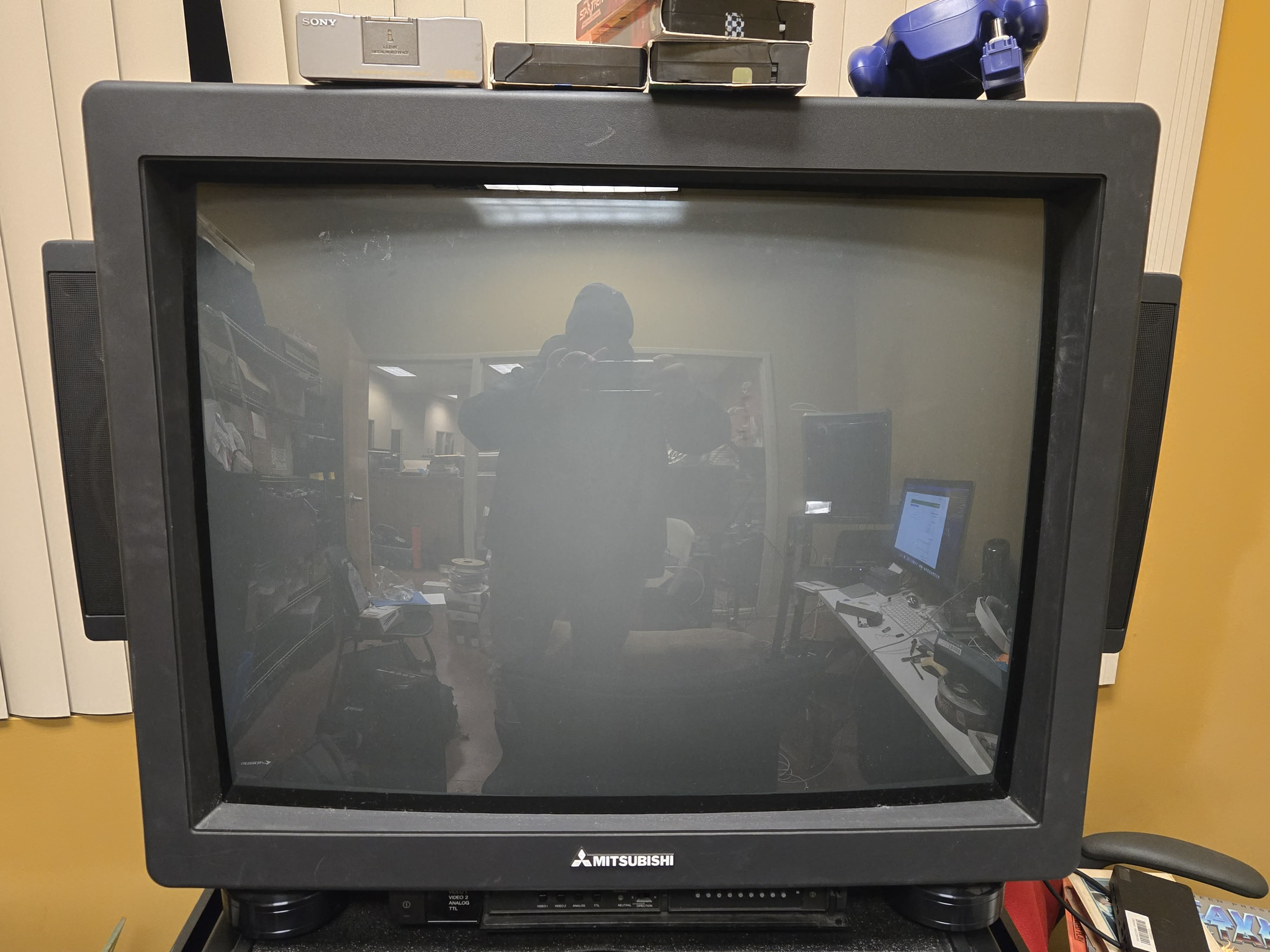

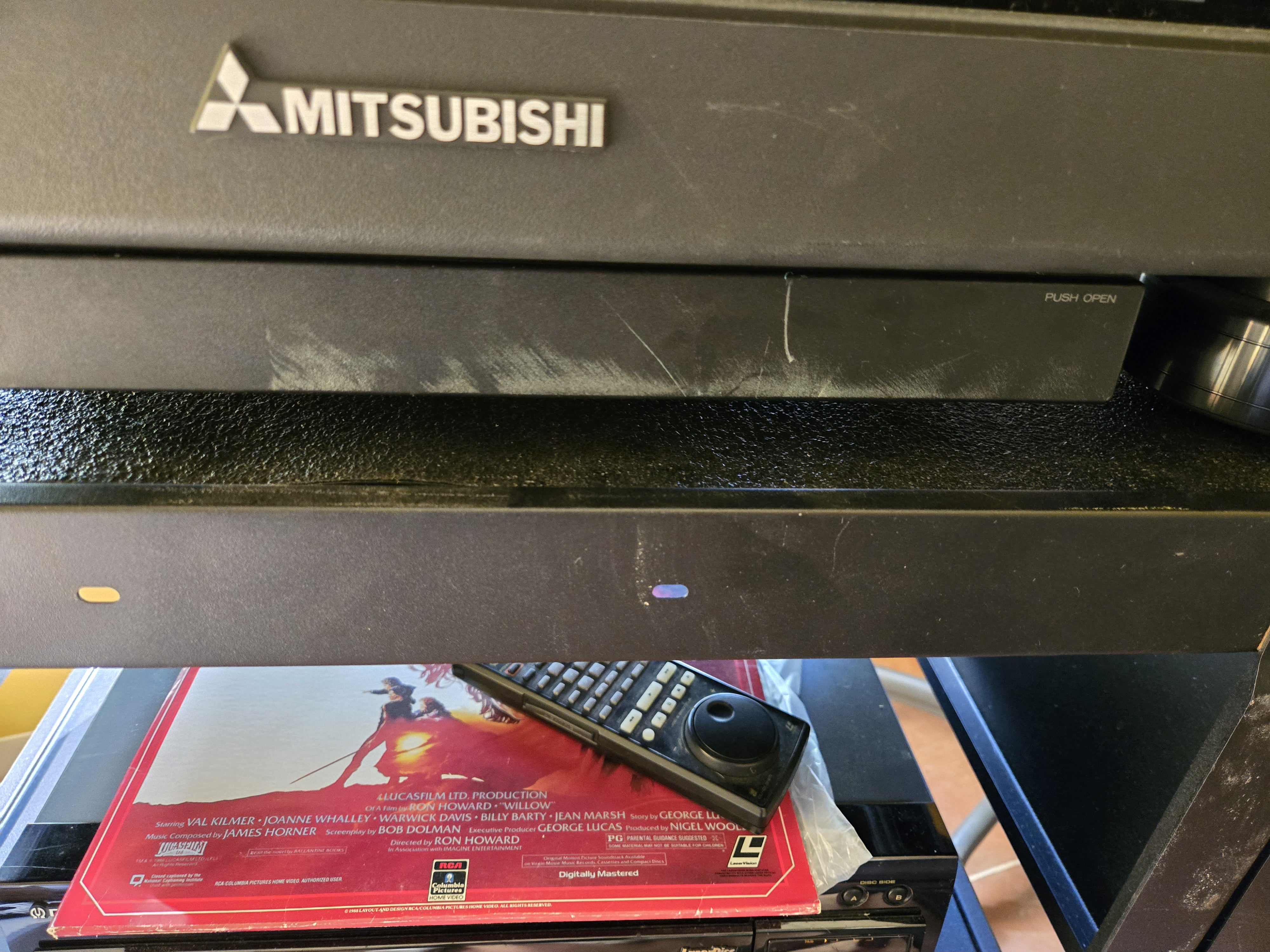

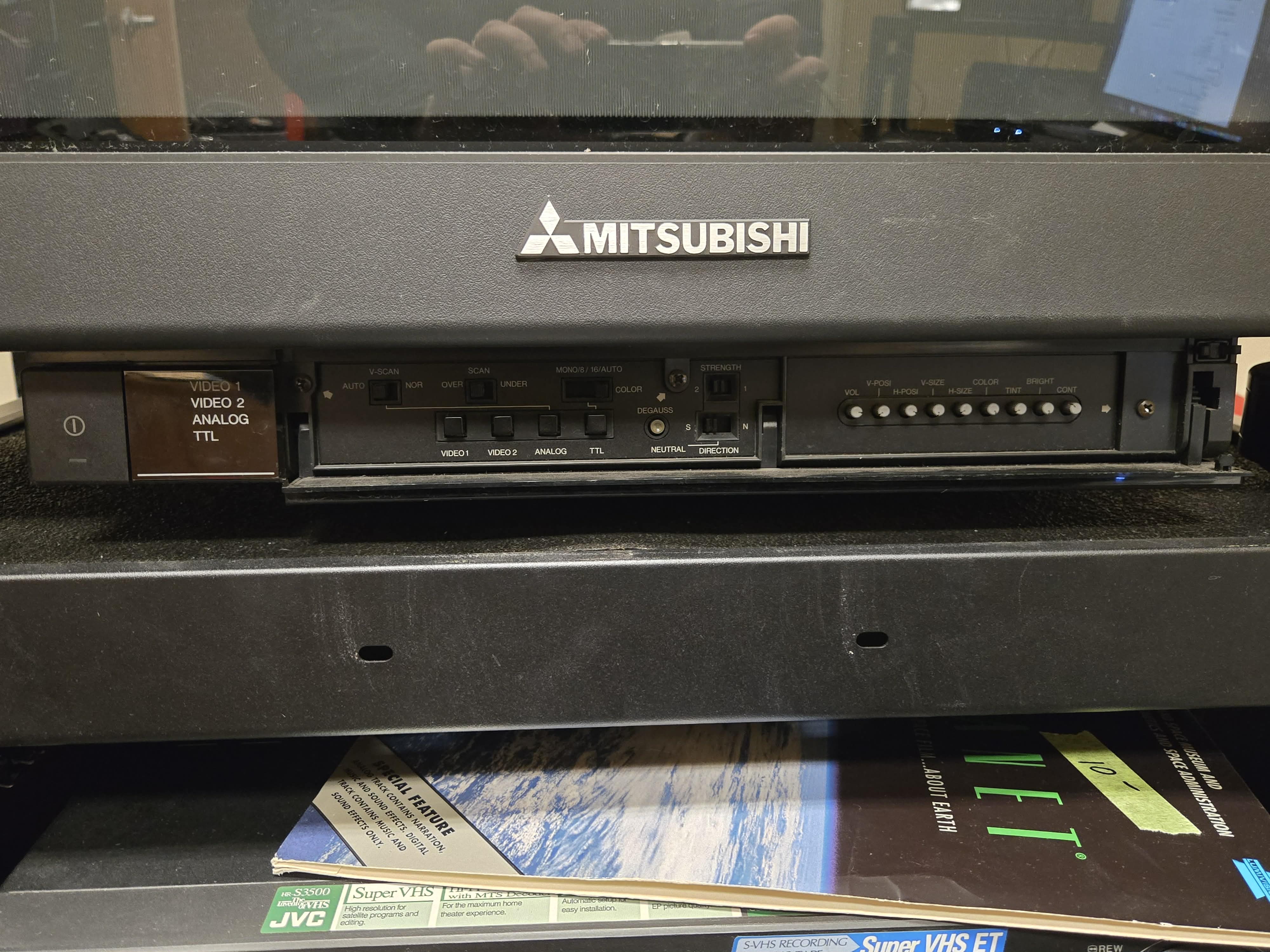

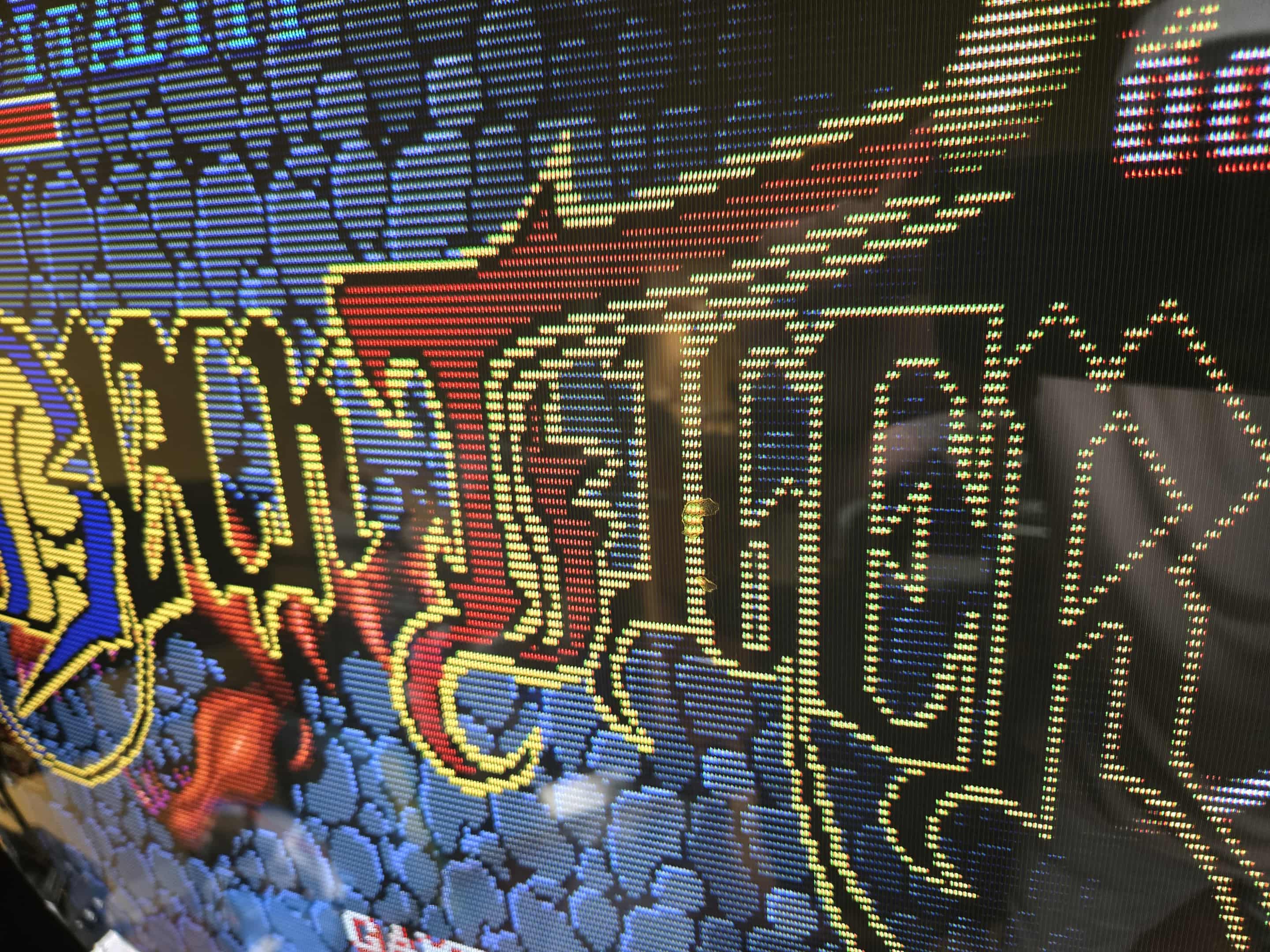

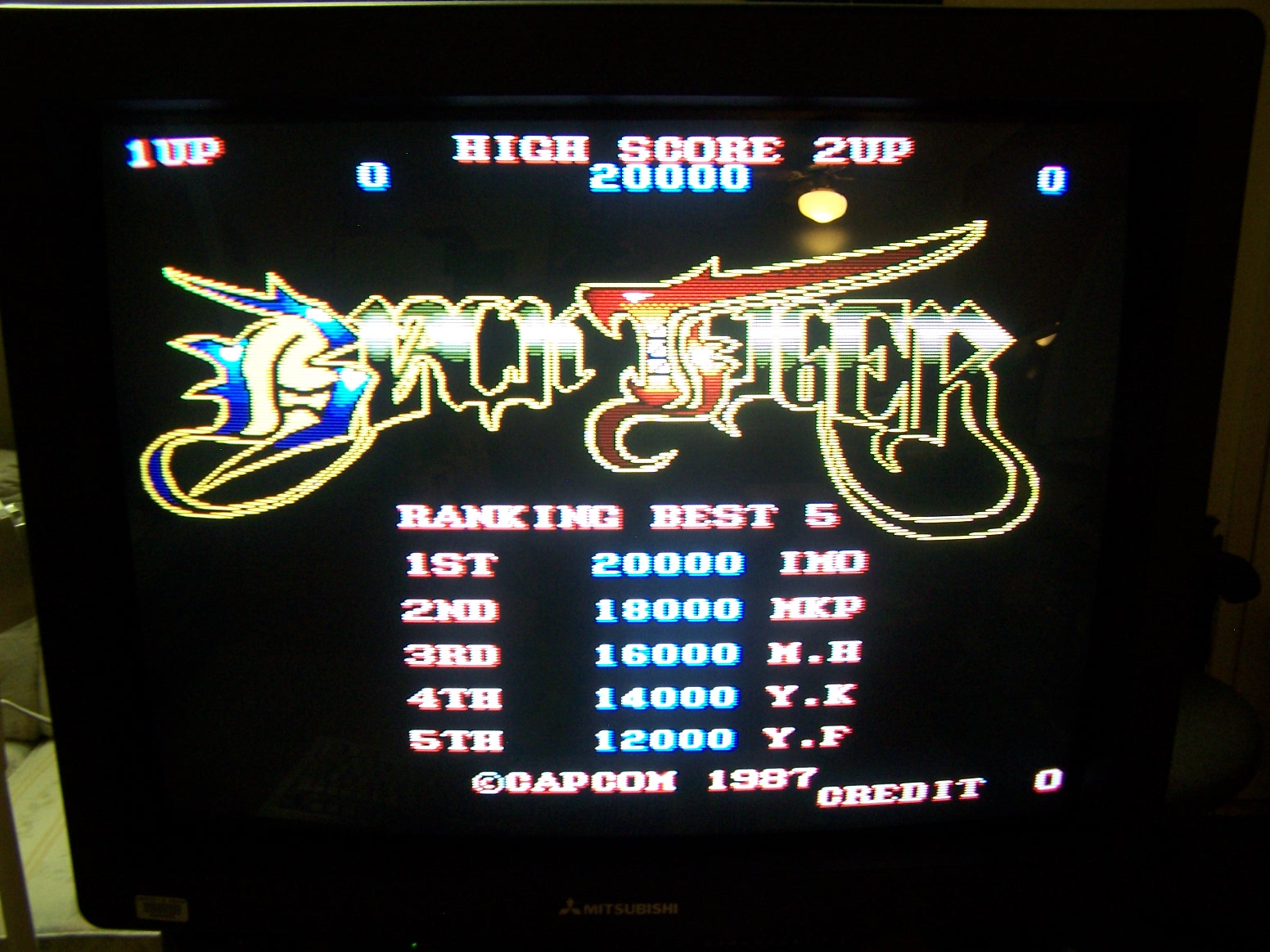

Gallery














Specifications | |
---|---|
Brand: | Mitsubishi |
Manufacturer: | Mitsubishi |
Model: | AM-3151A |
Series: | AM |
Viewable Size: | 31" |
Inputs: | VGA, Composite, S-Video, RGBHV, Digital RGB |
Native Resolutions: | VGA, SVGA, XGA, 240p, 480i, 1080i, 288p, 576i, 480p, 576p, EGA, Medium Res. |
Horizontal Scan Range: | 15 kHz, 36 kHz |
Vertical Scan Range: | 90 Hz, 45 Hz |
Formats: | NTSC, PAL, SECAM, M-NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, OSD Customer Controls |
Focus Type: | Dual |
Tube: | Mitsubishi |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Pitch: | .83 mm, 0.83 mm |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Stereo |
Application: | Professional |
Cabinet Material: | Plastic |
Launched: | 1991 |

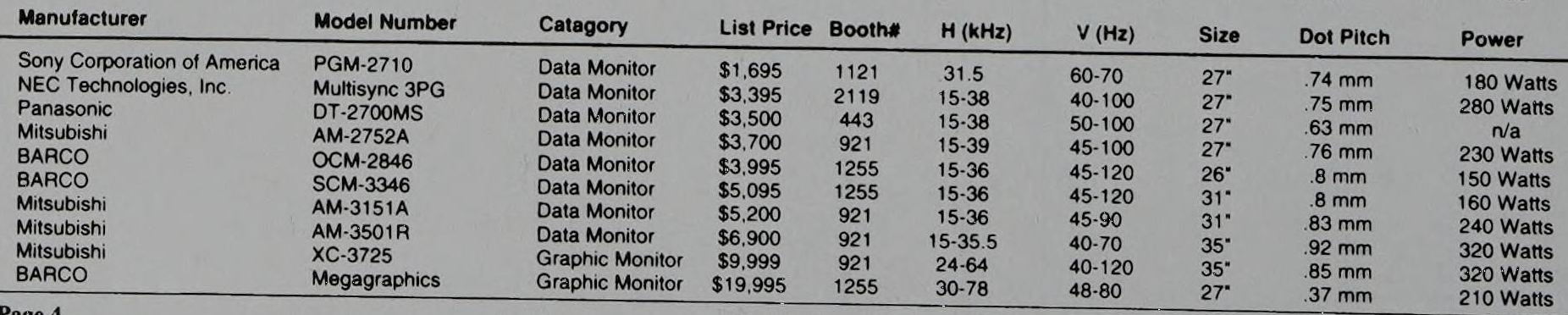

MSRP: | 5200 USD |
Country of Manufacture: | USA |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on, Manual |
Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
