Summary

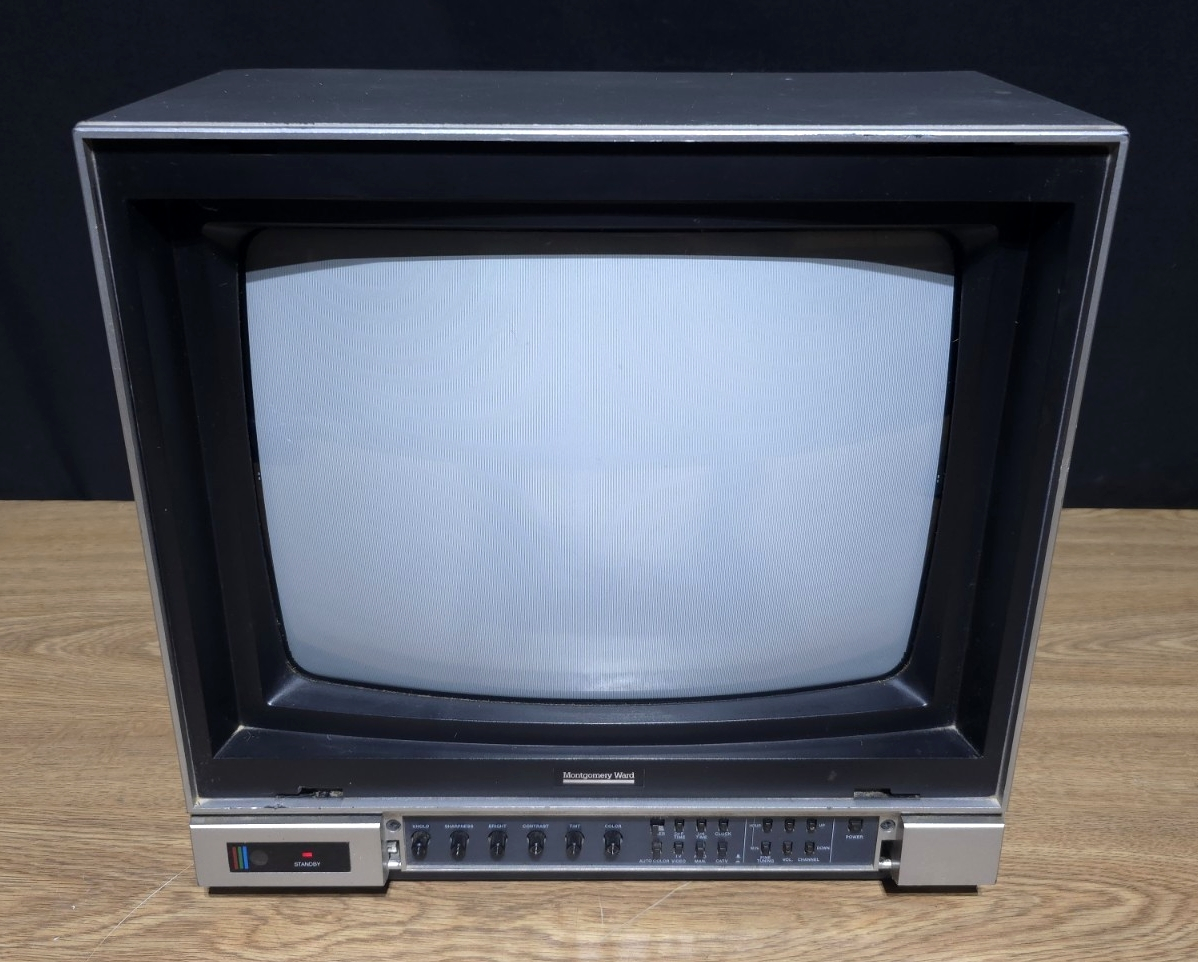

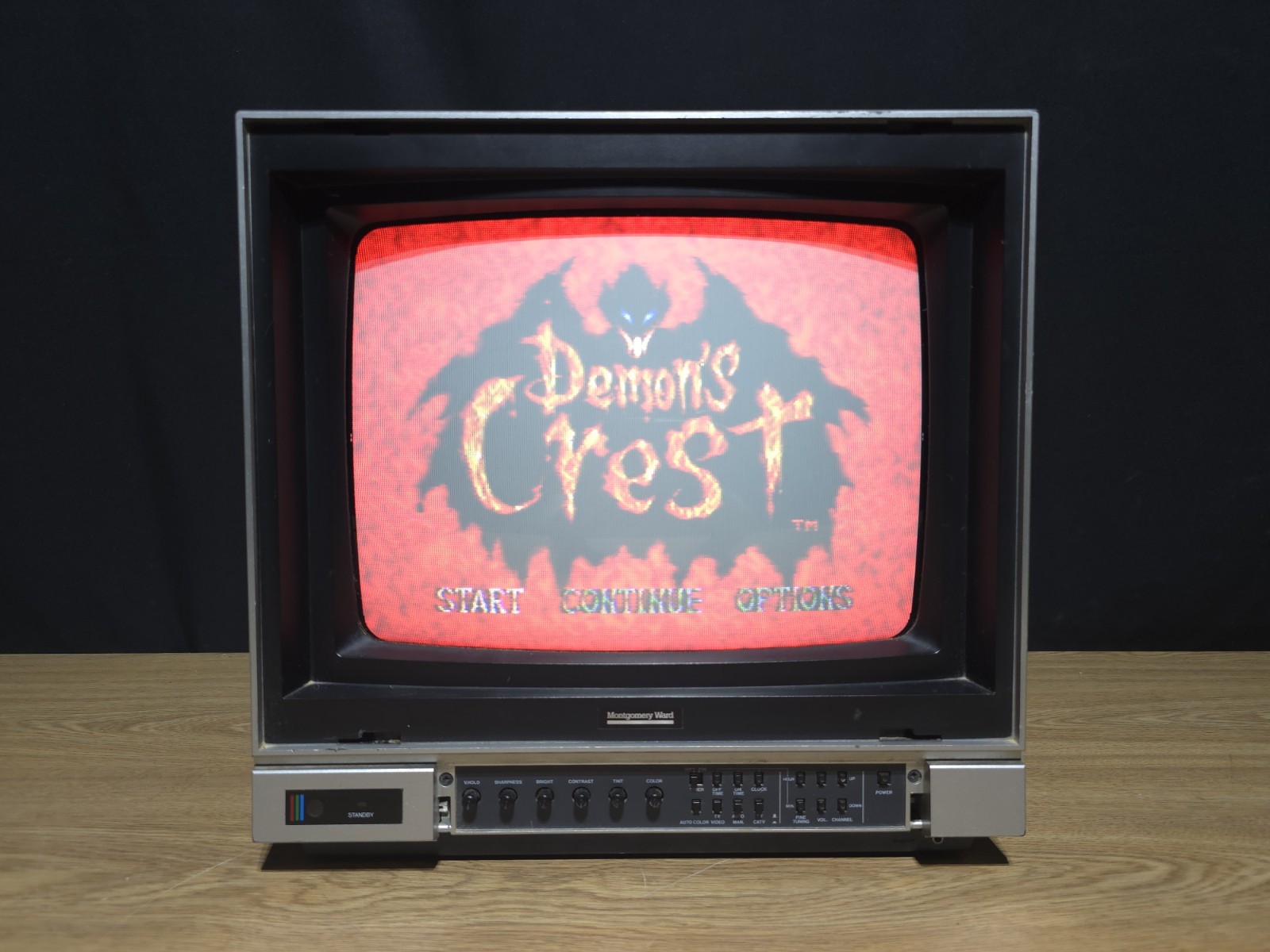

13" color TV by Montgomery Ward, sold at their department stores in 1984. Has RF and composite video input/outputs with mono sound. Originally manufactured by Orion in Taiwan.
(Special thanks to Cody Johnson for the pics!)
Manuals
No documentation is available online at this time.
Notes

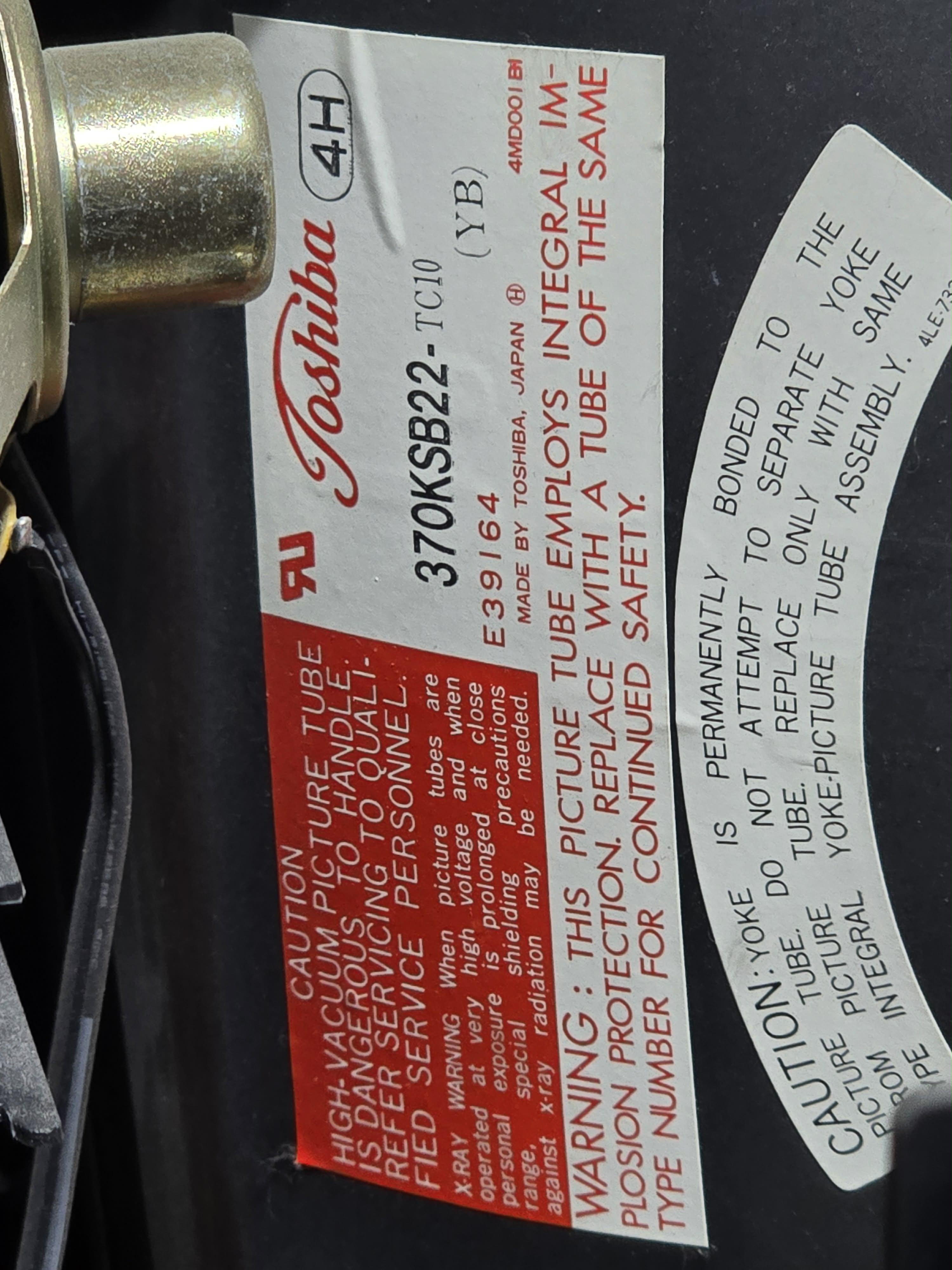

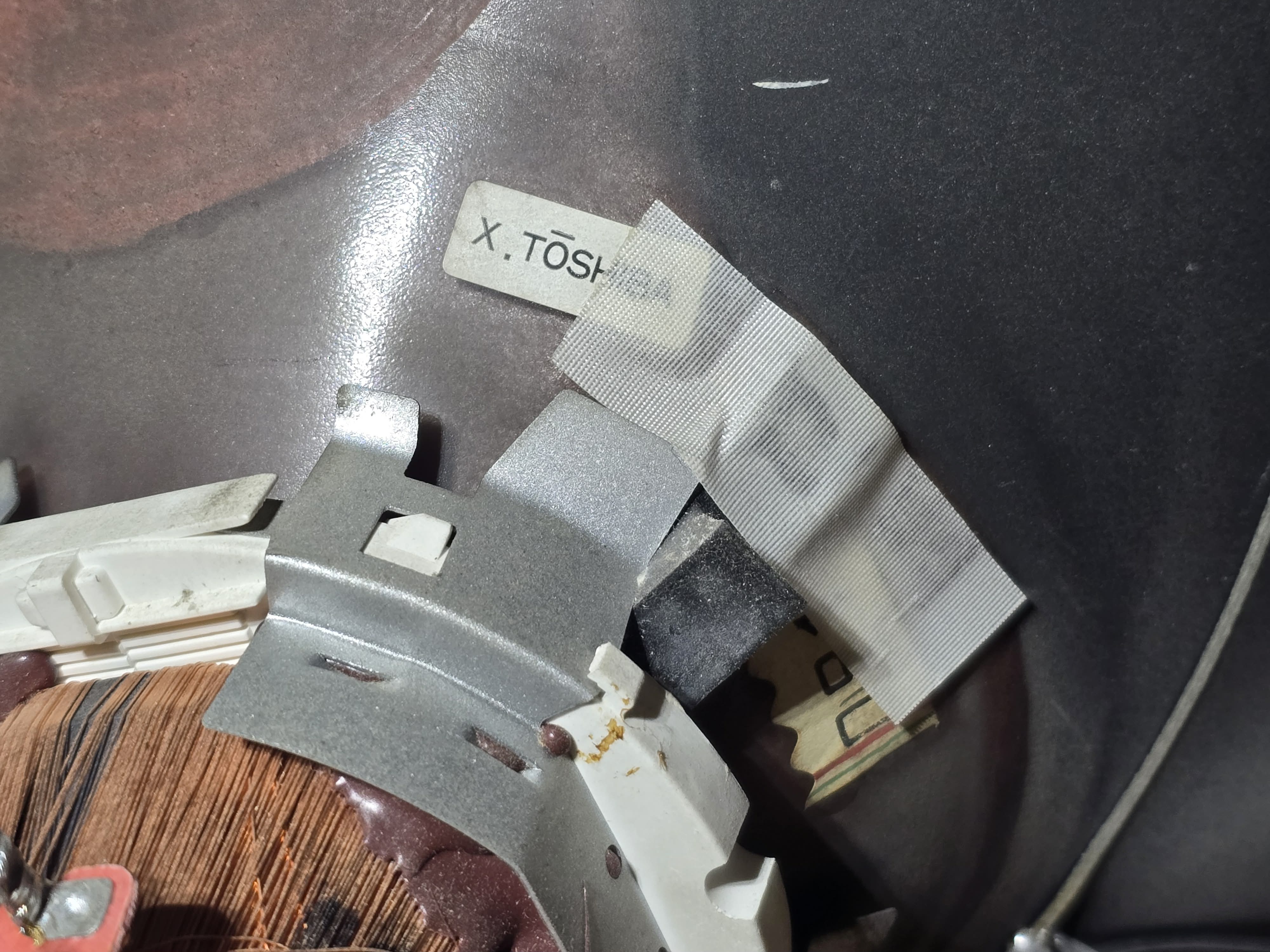

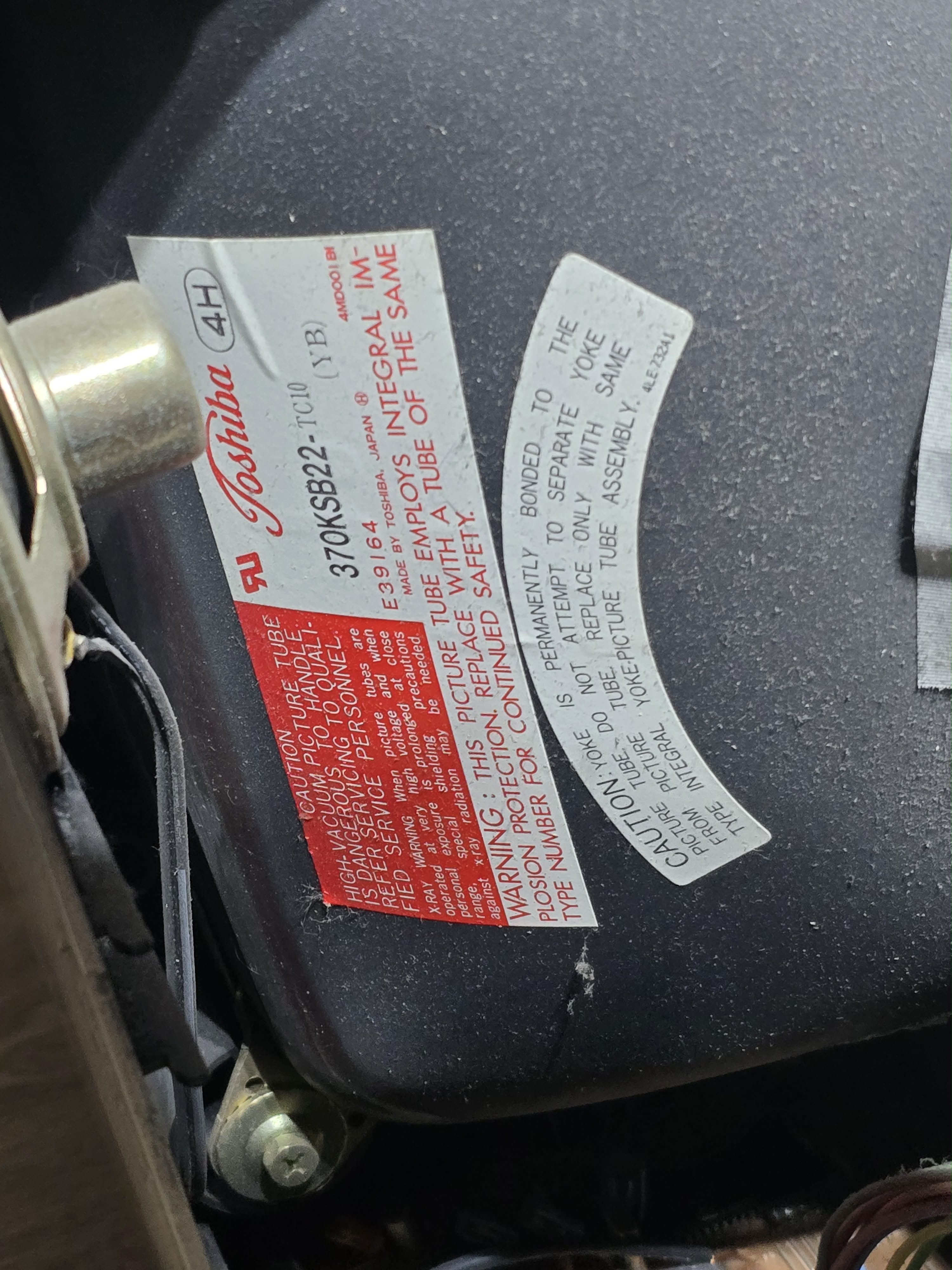

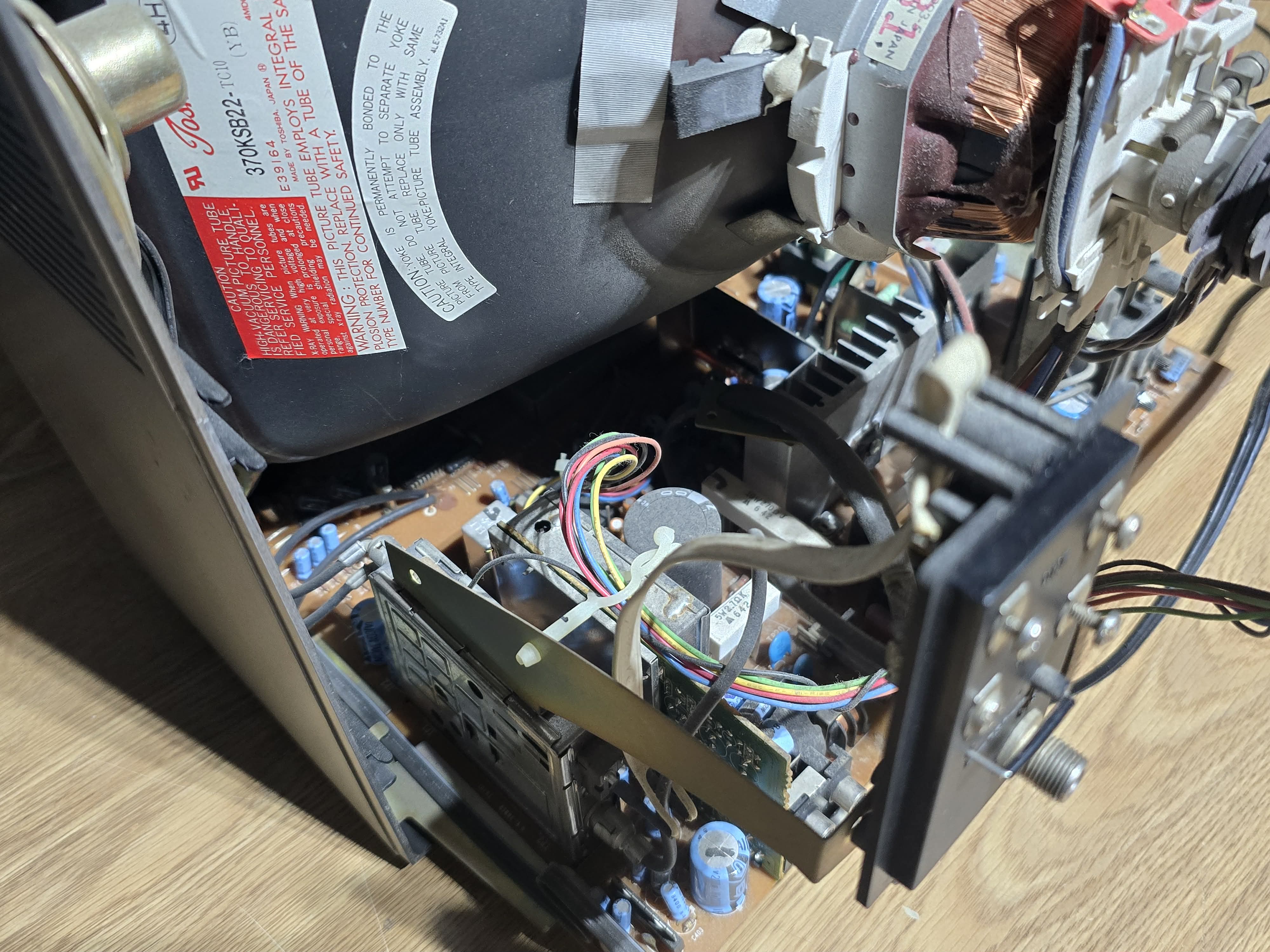

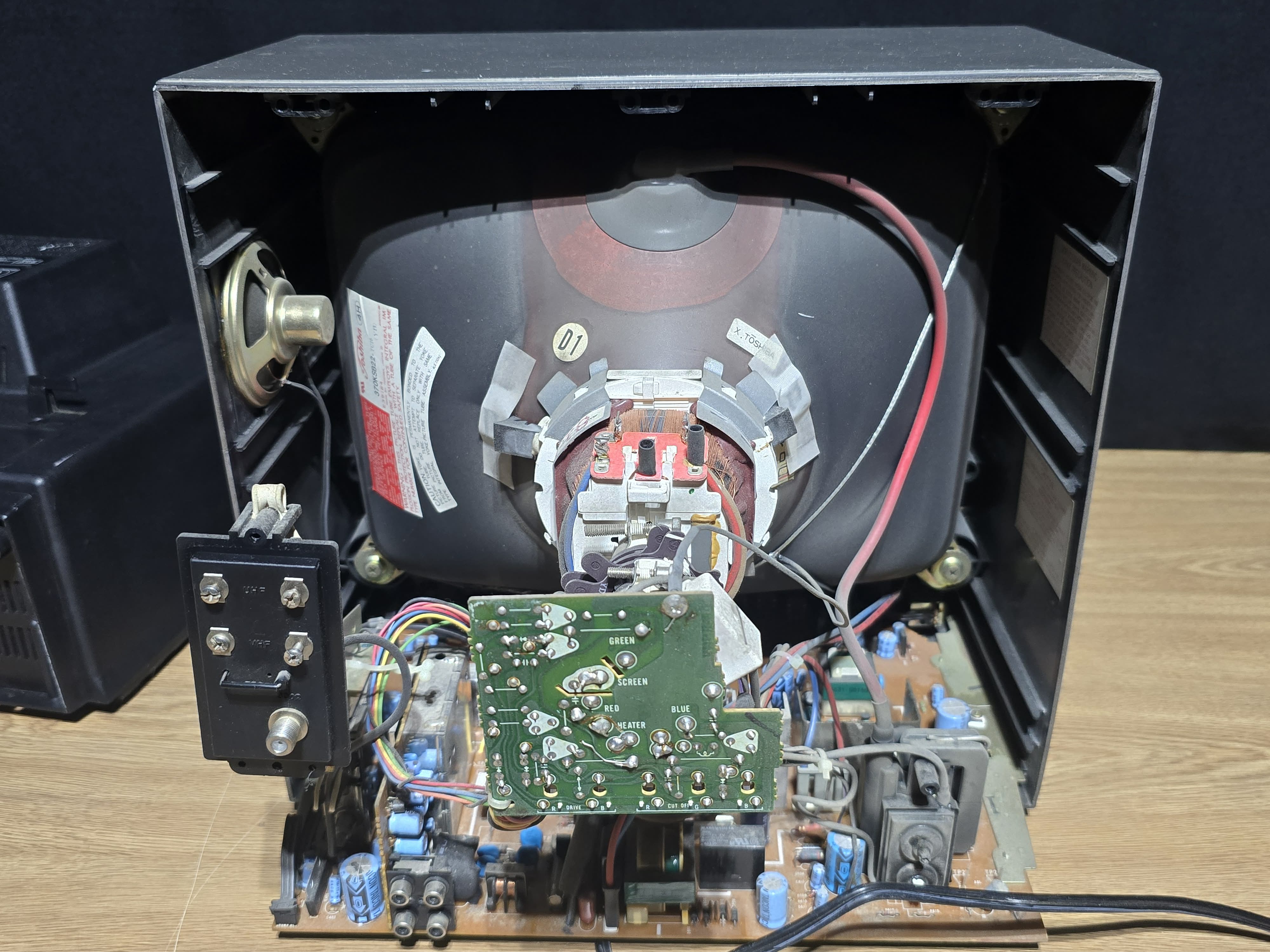

Yoke is bonded.

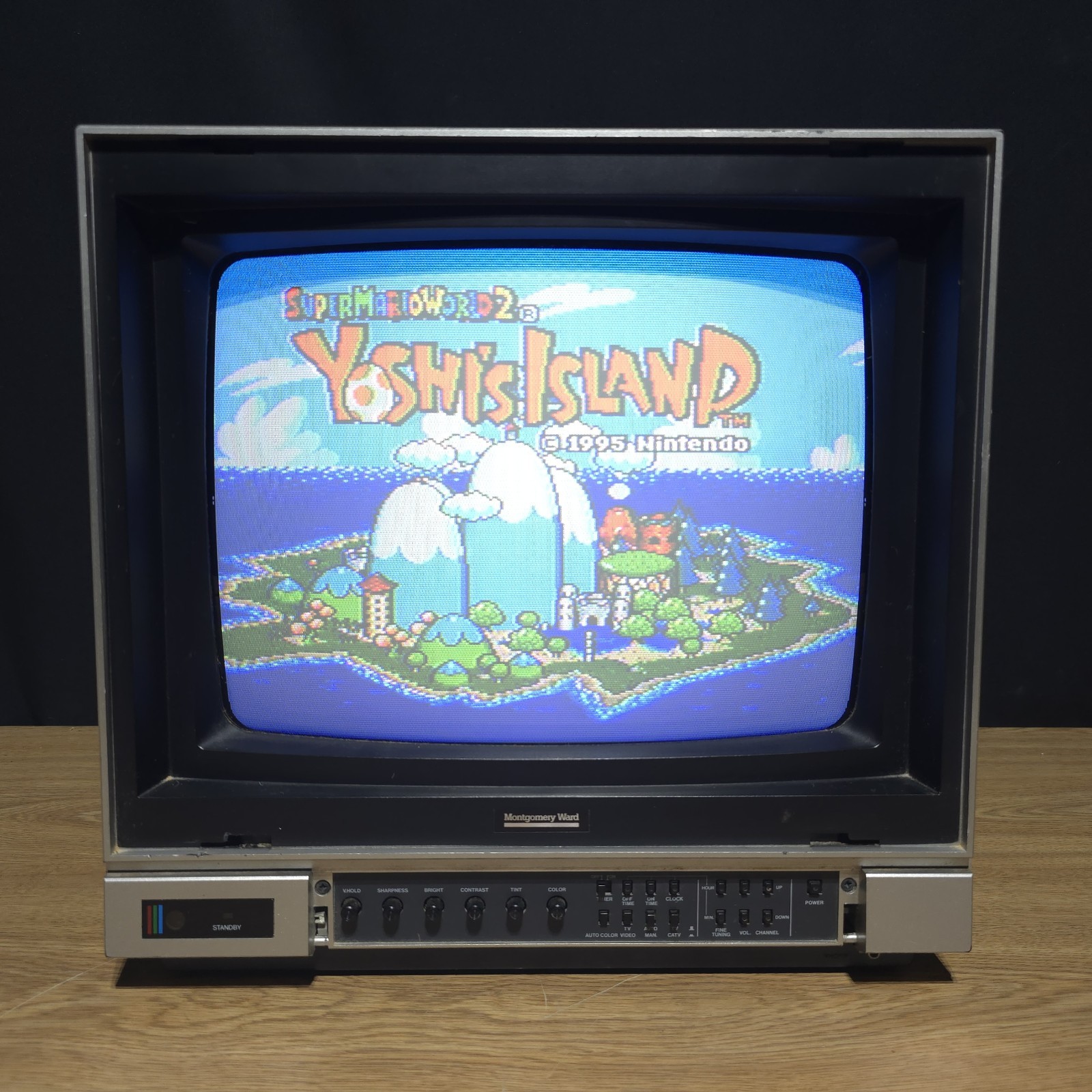

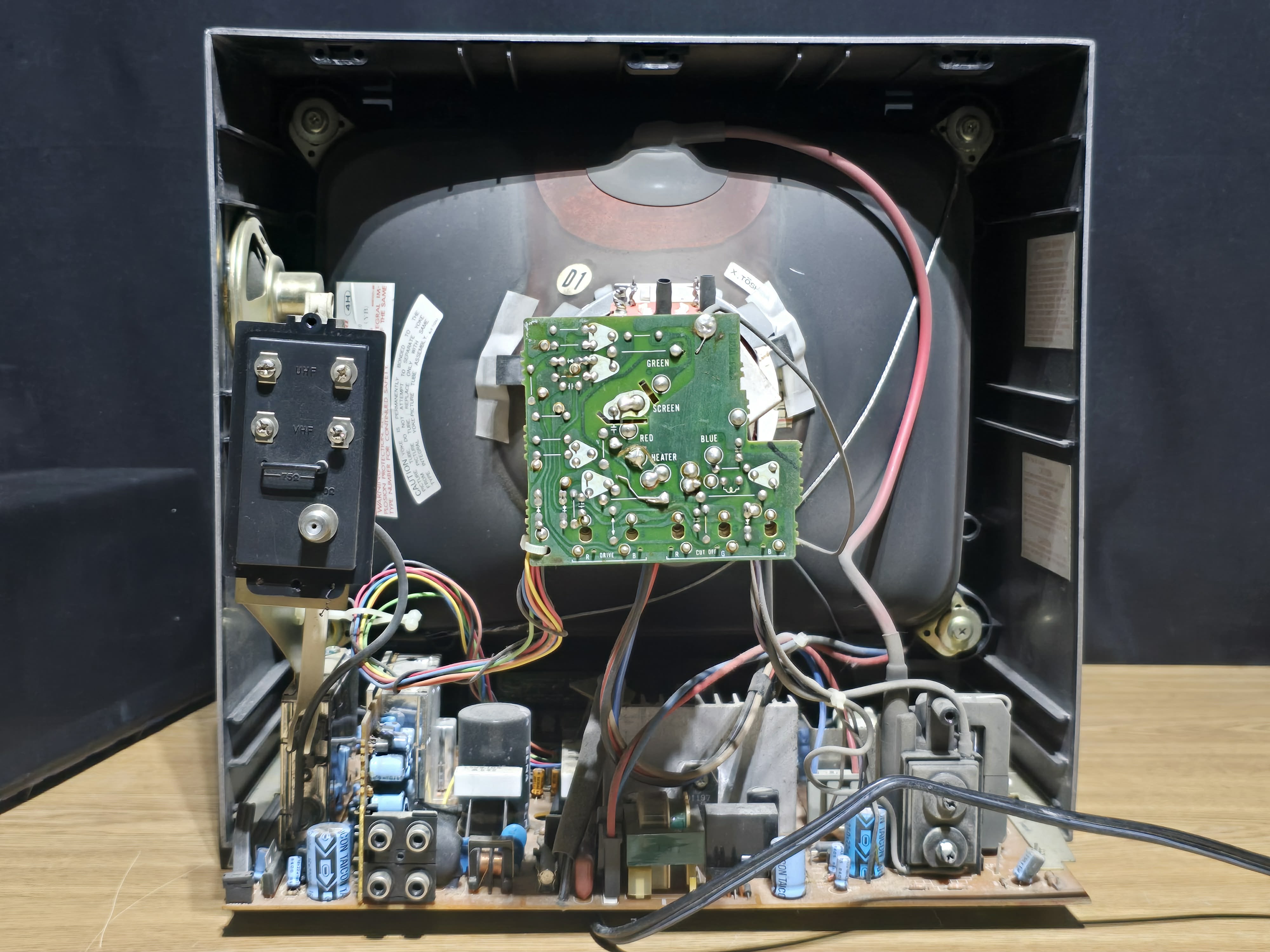

Gallery

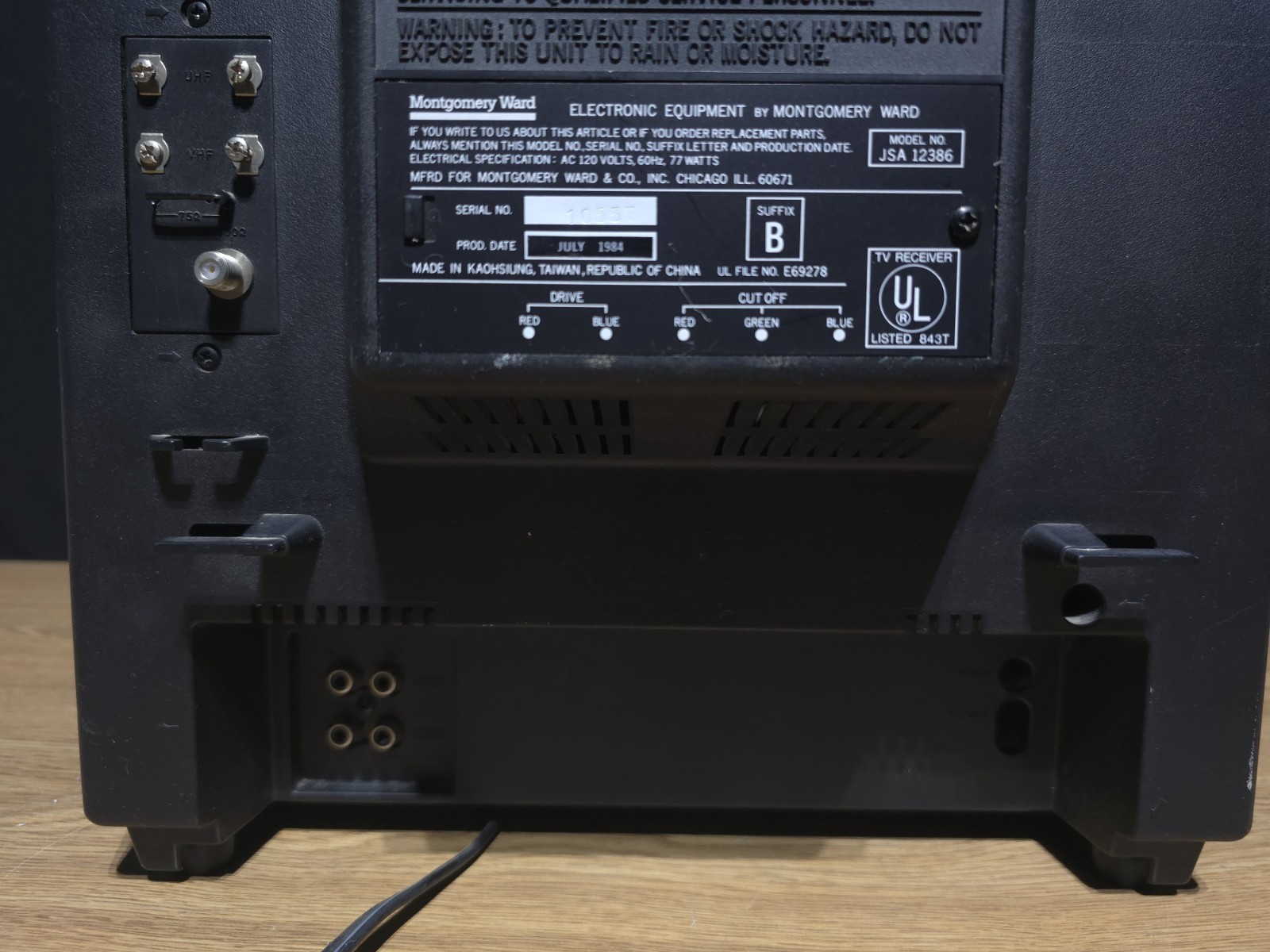

| Specifications | |
|---|---|
| Brand: | Montgomery Ward |
| Manufacturer: | Orion (Japan) |
| Model: | JSA 12386 |
| Series: | JSA |
| Viewable Size: | 13" |

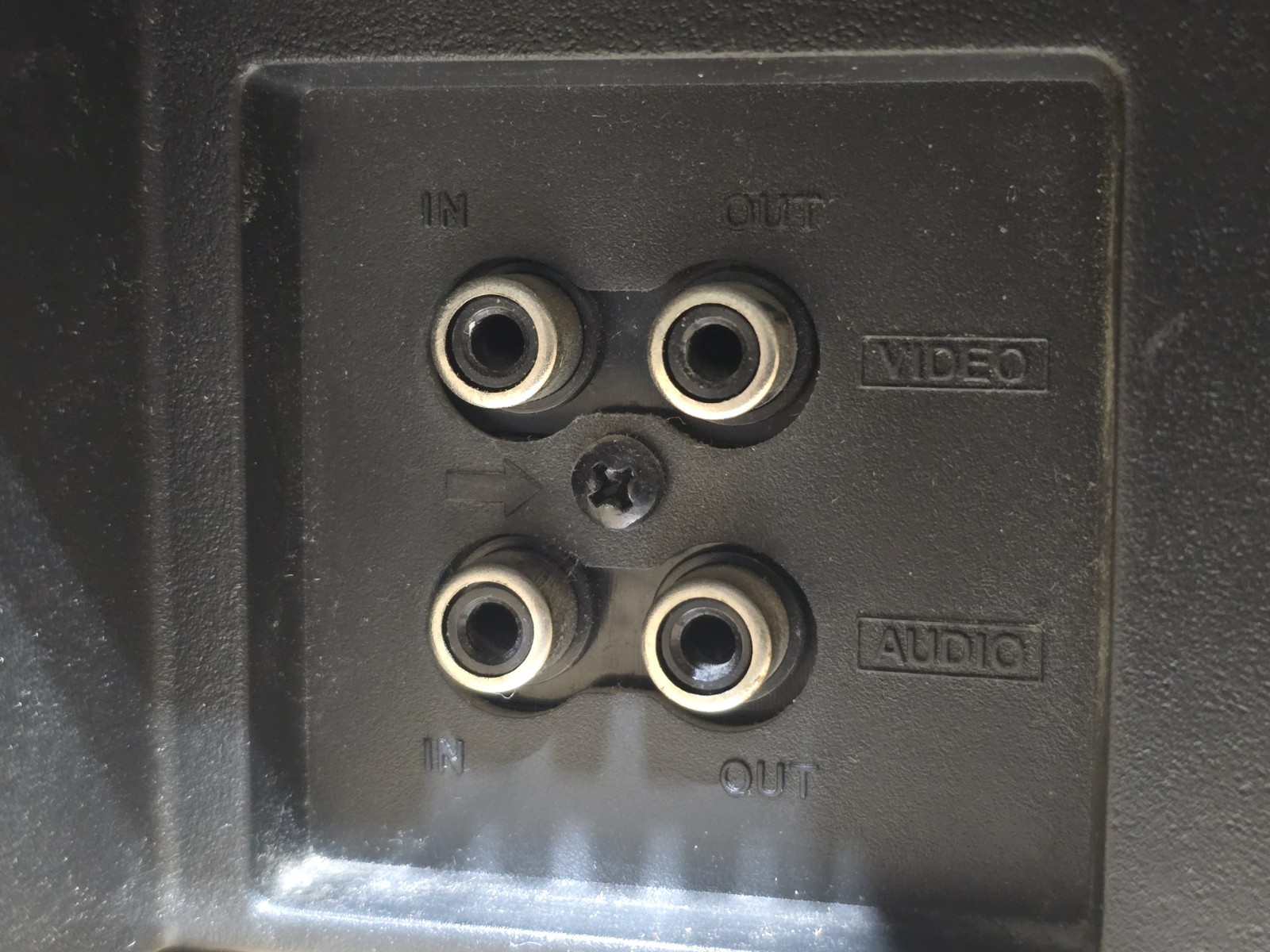

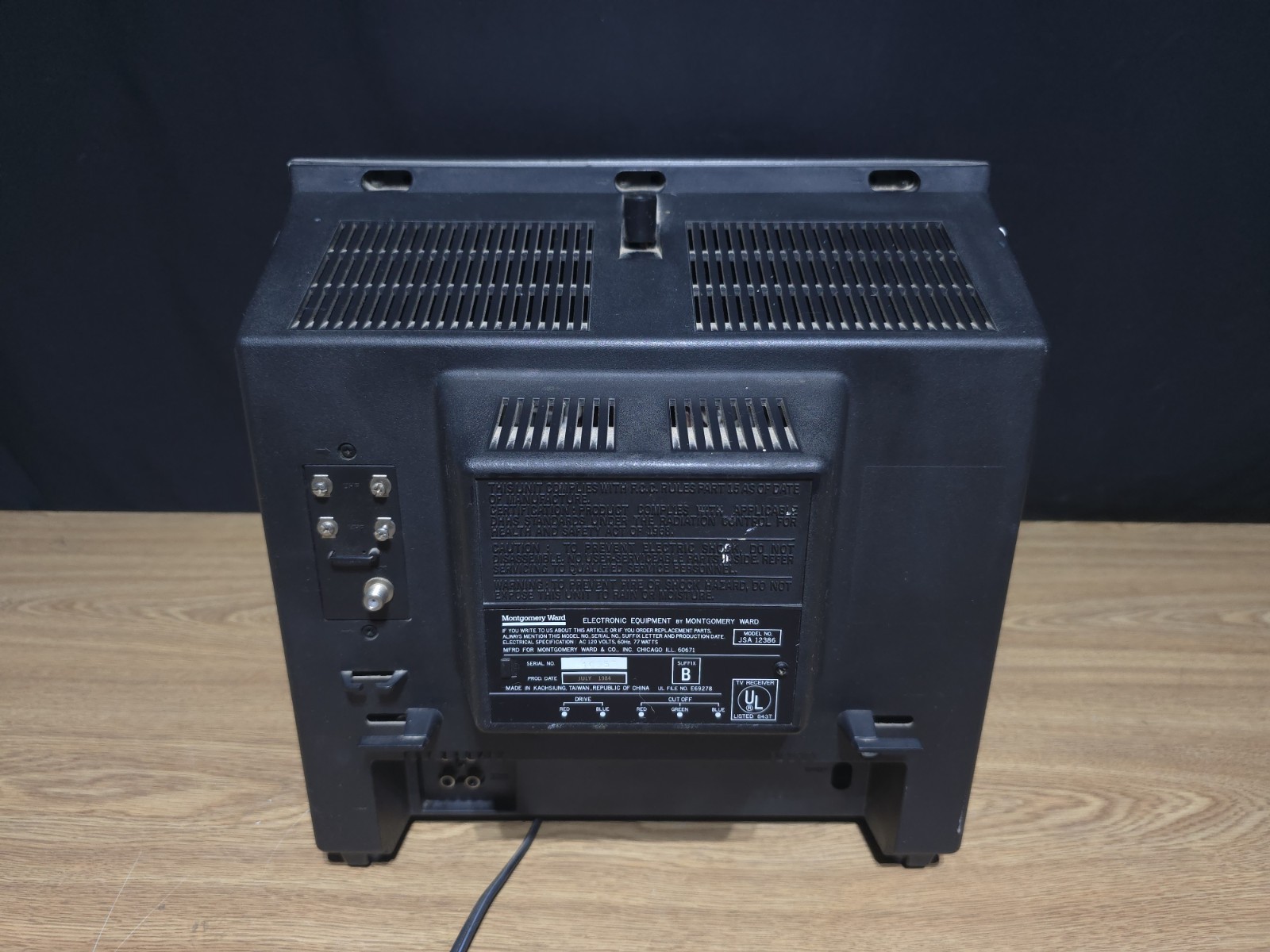

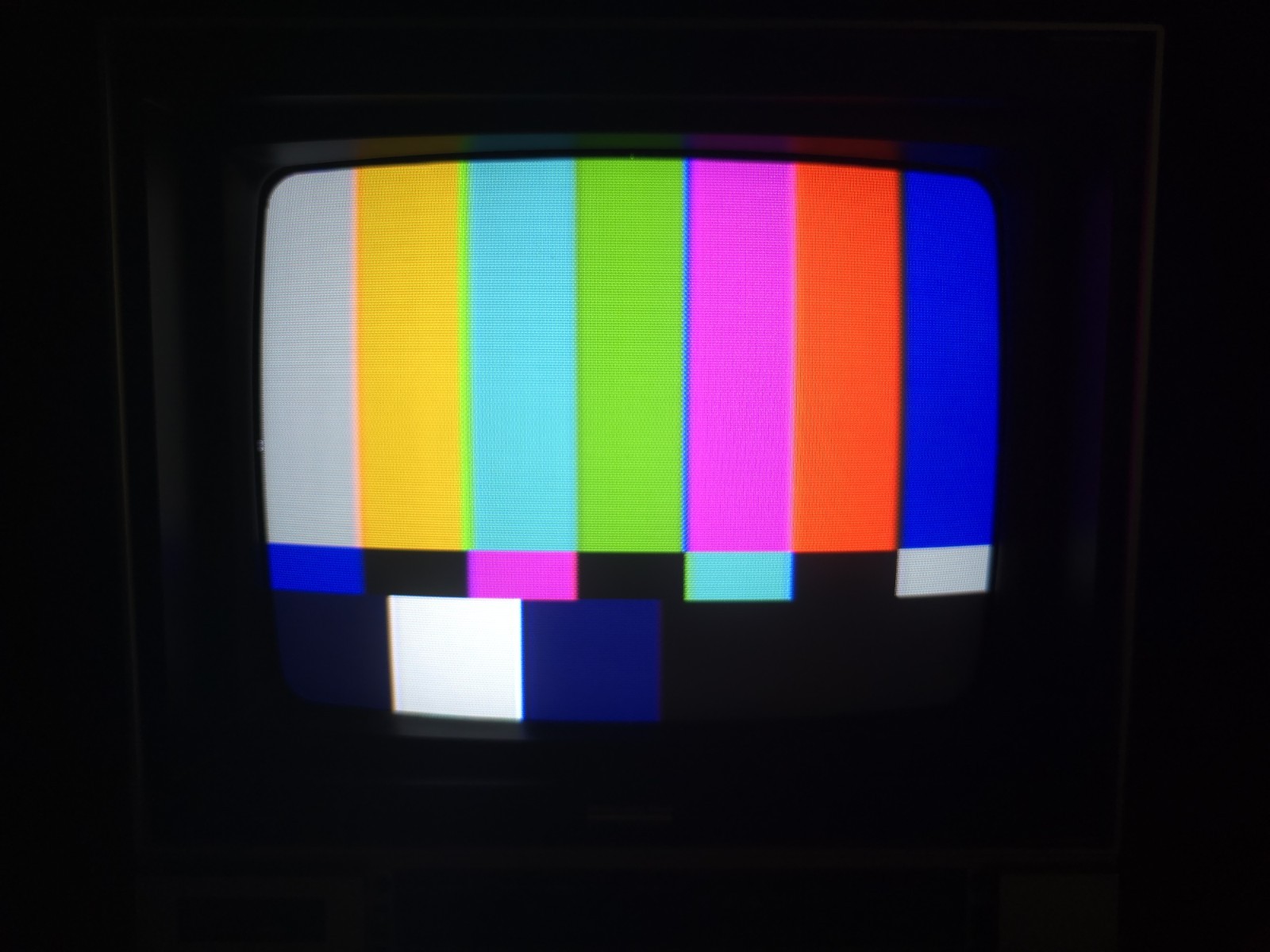

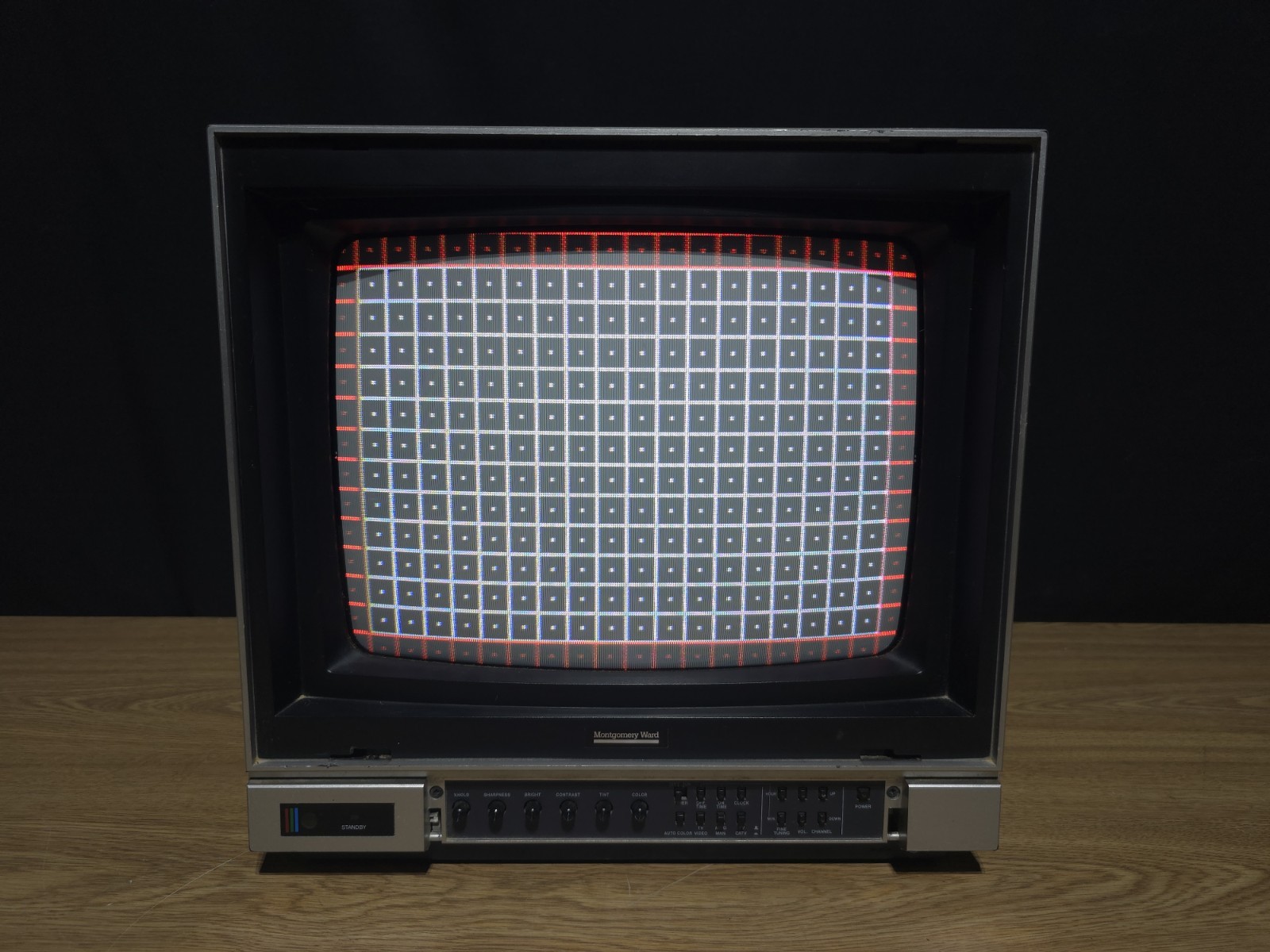

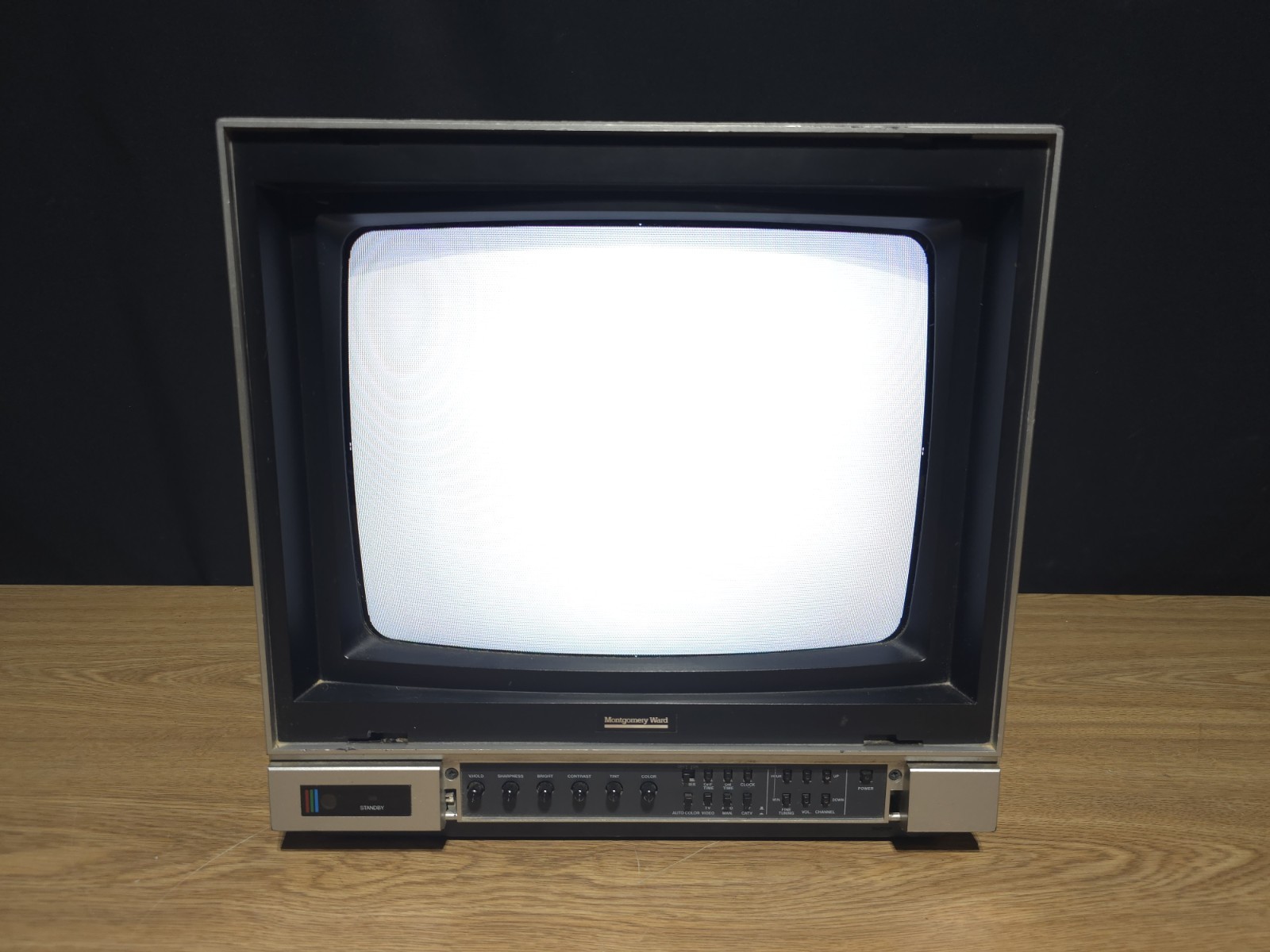

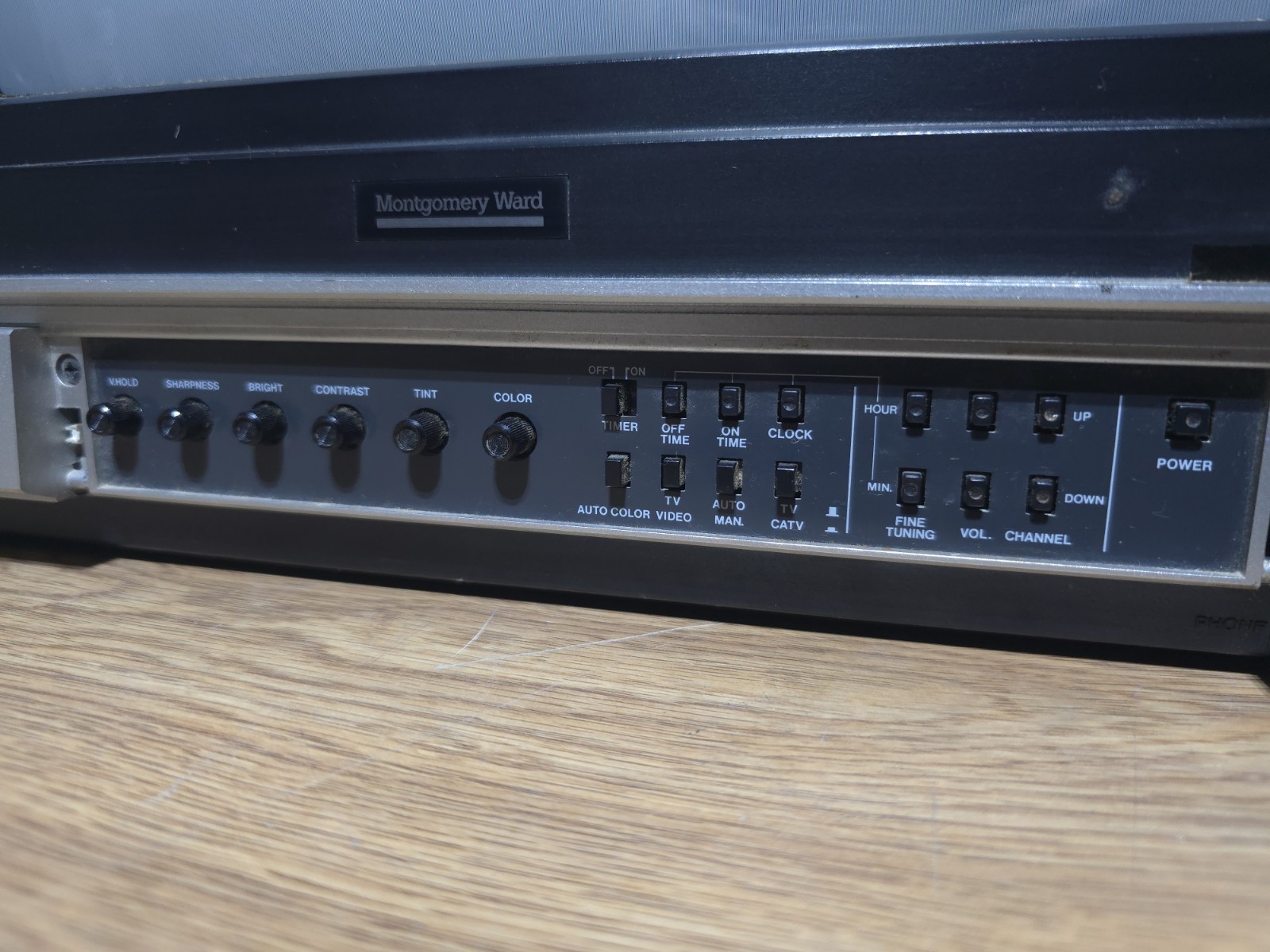

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |

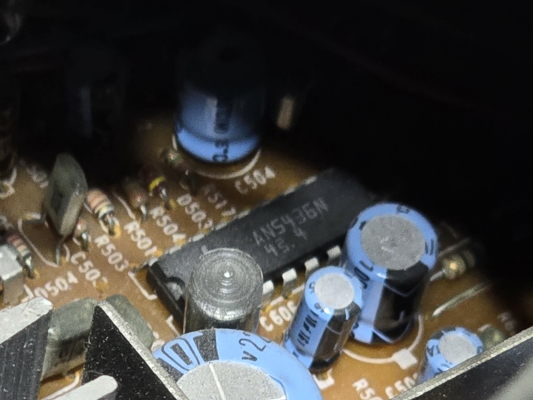

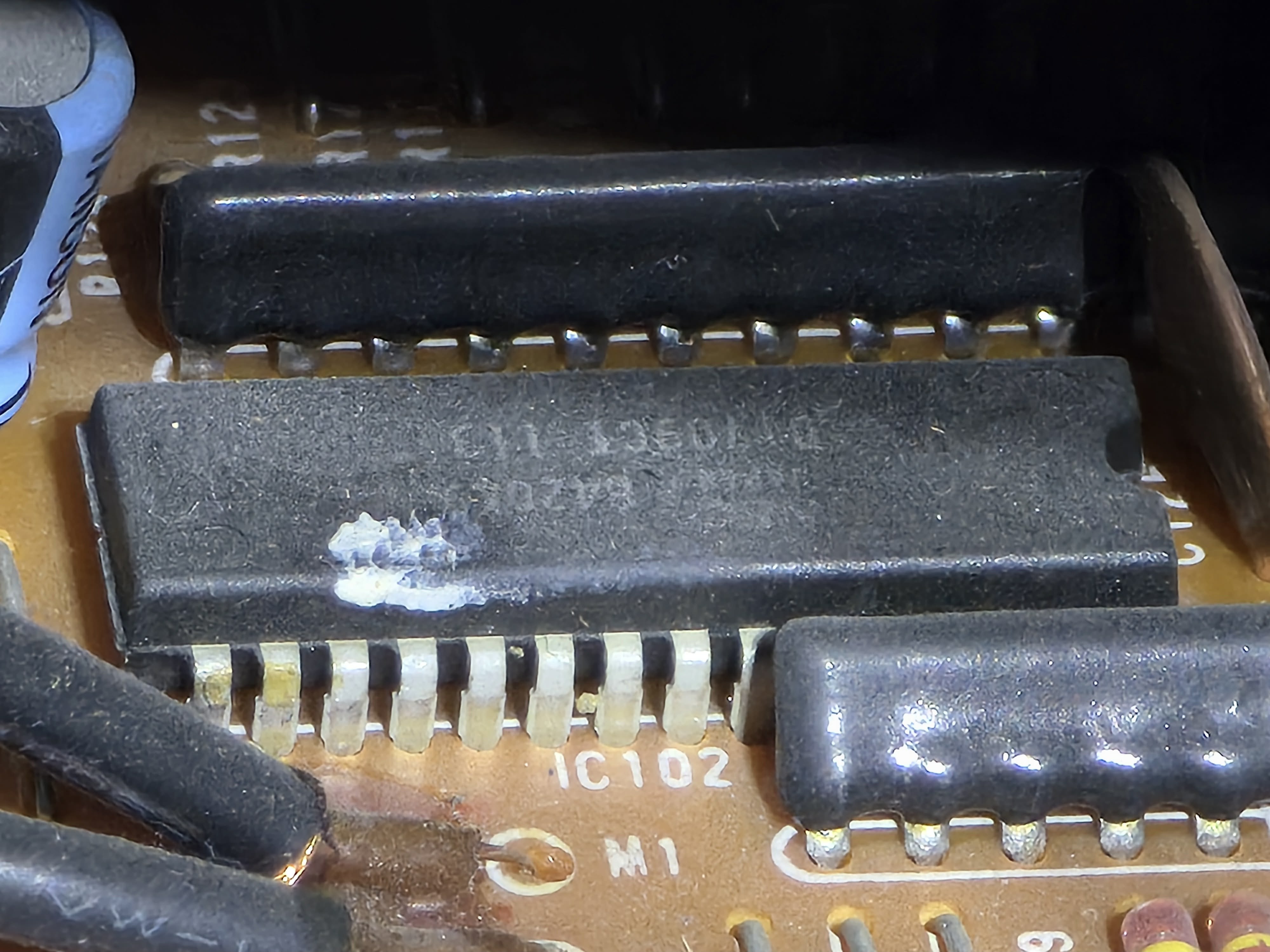

| Vertical Output IC: | Panasonic, AN5436N |

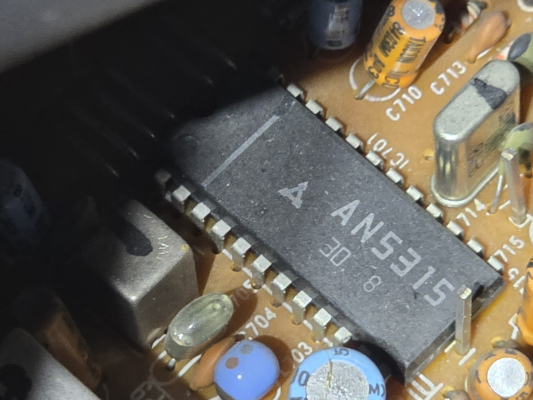

| Jungle IC: | Panasonic, AN5315 |

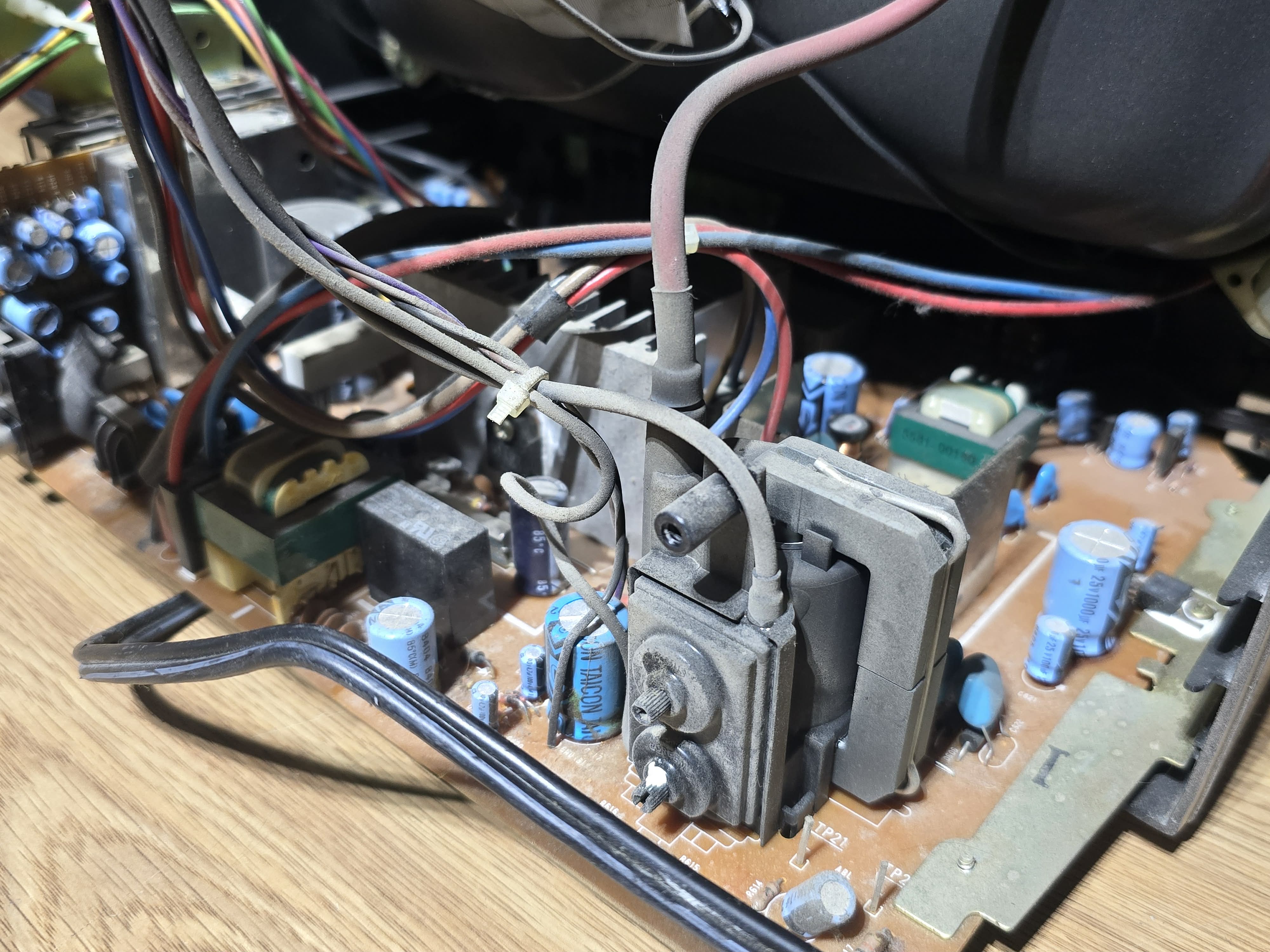

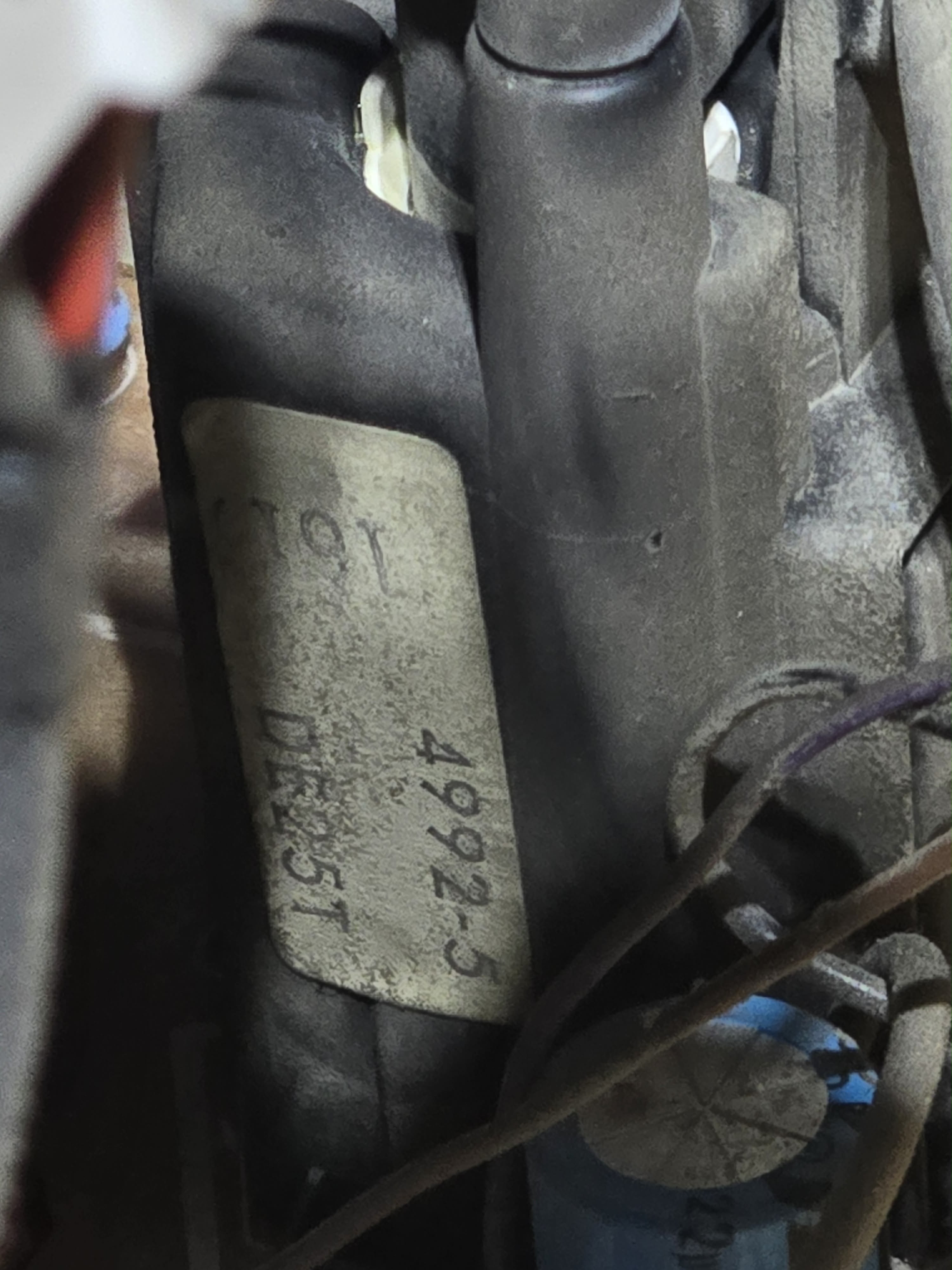

| Flyback: | 4992-5, DE25T |
| Focus Type: | Single |

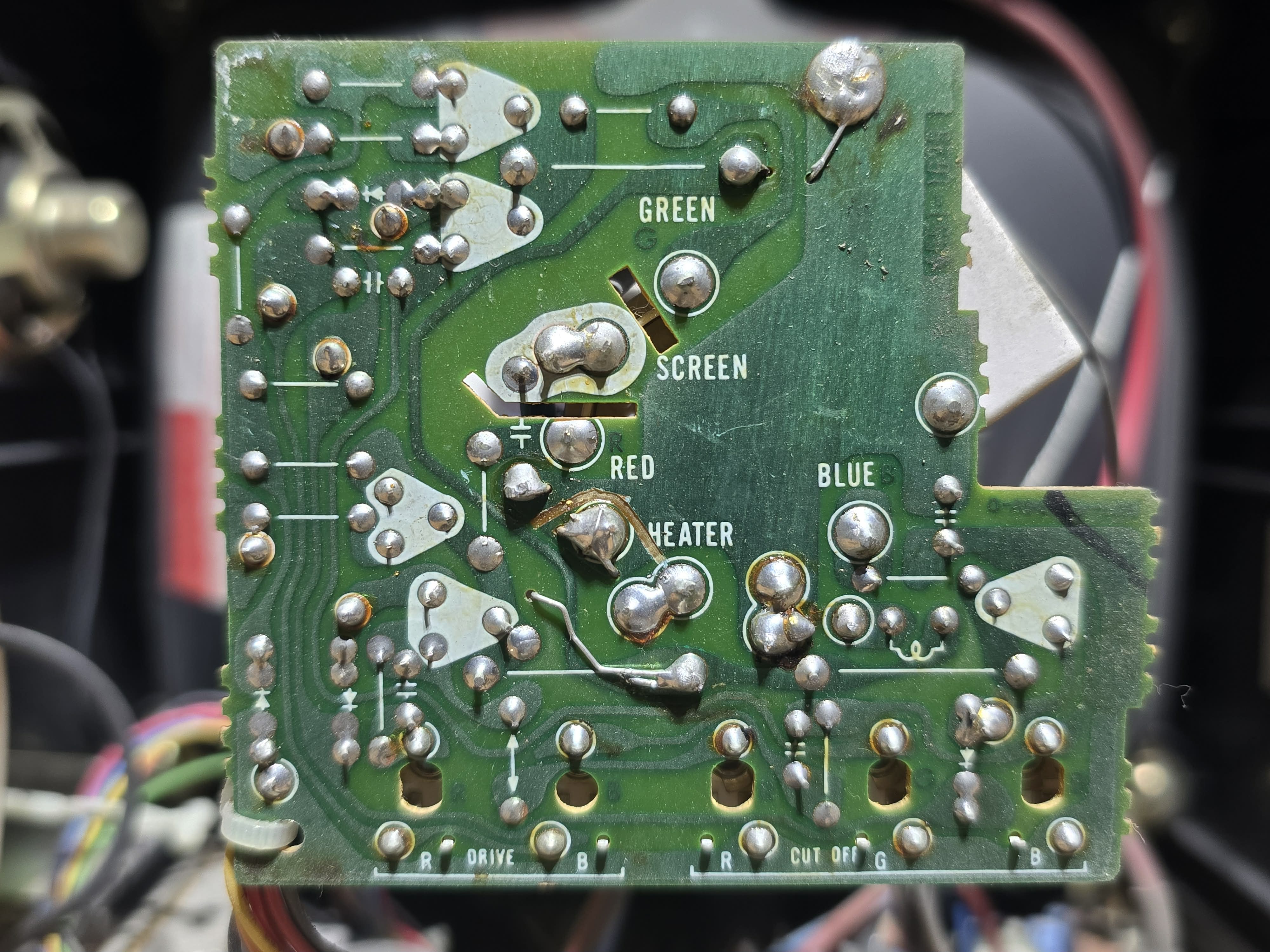

| Tube: | Toshiba , 370KSB22 , Blackstripe , 370KSB22-TC10 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Light, Detachable Sunshade |
| Removable Glare Film: | No |

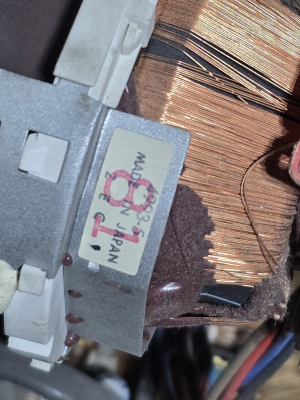

| Yoke: | 4993-5 |

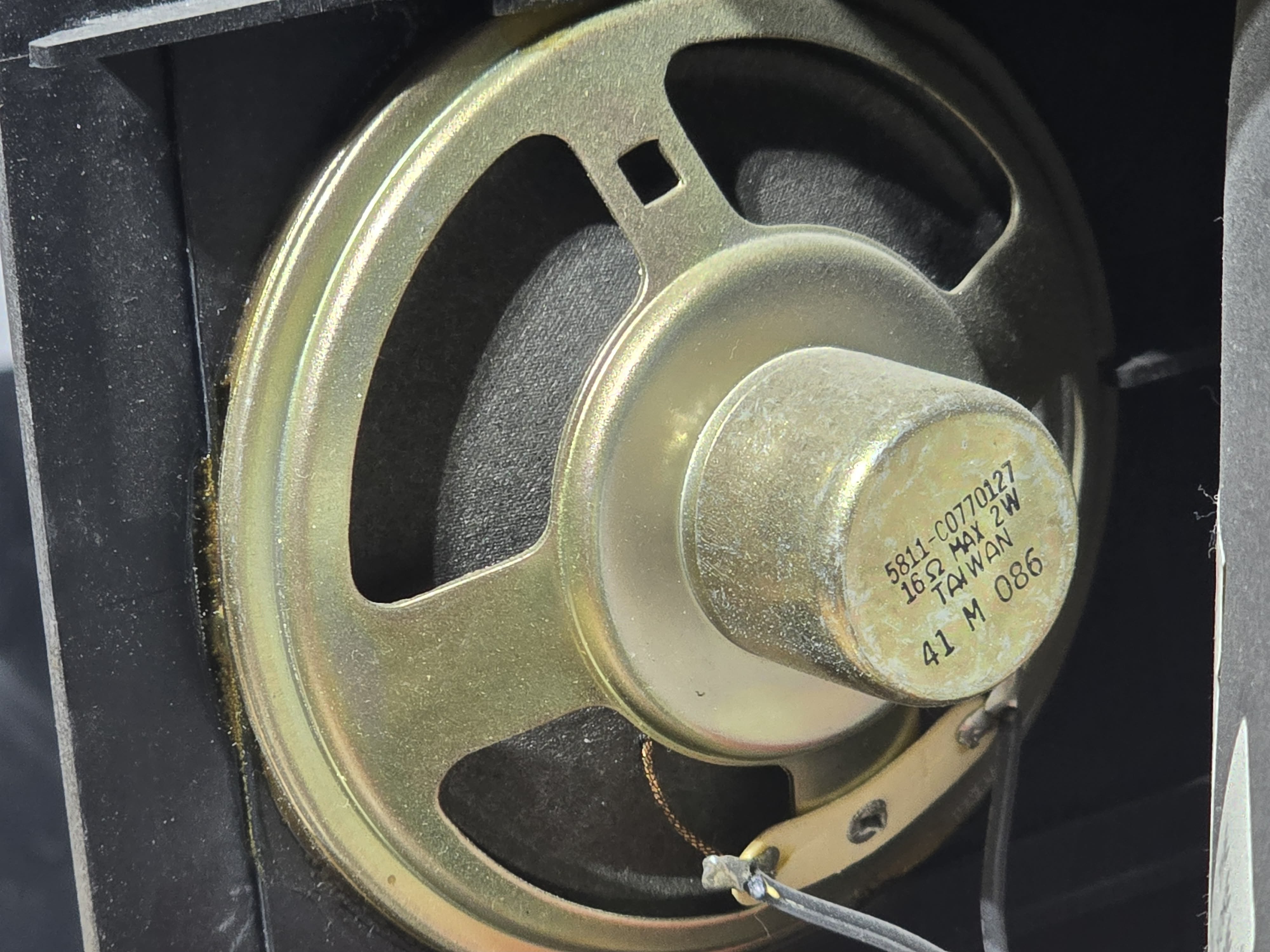

| Speakers: | Mono, 2W |

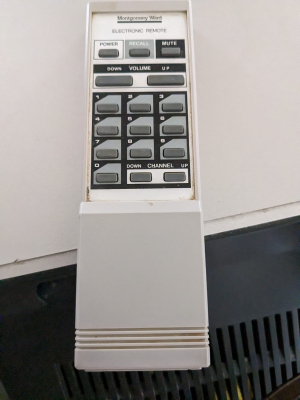

| Remote: | 6142001B |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1984 |
| Country of Manufacture: | Taiwan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
