Summary

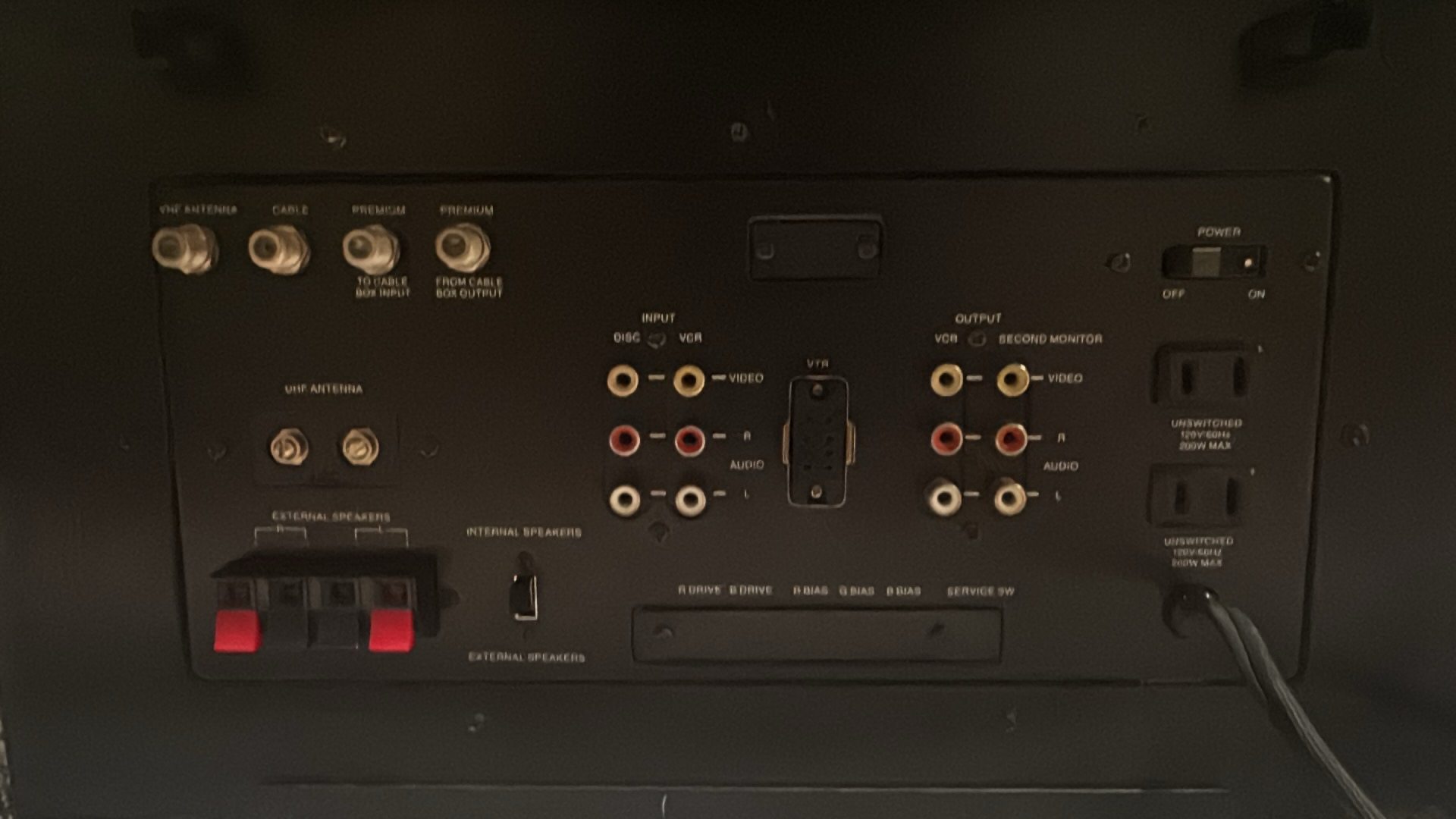

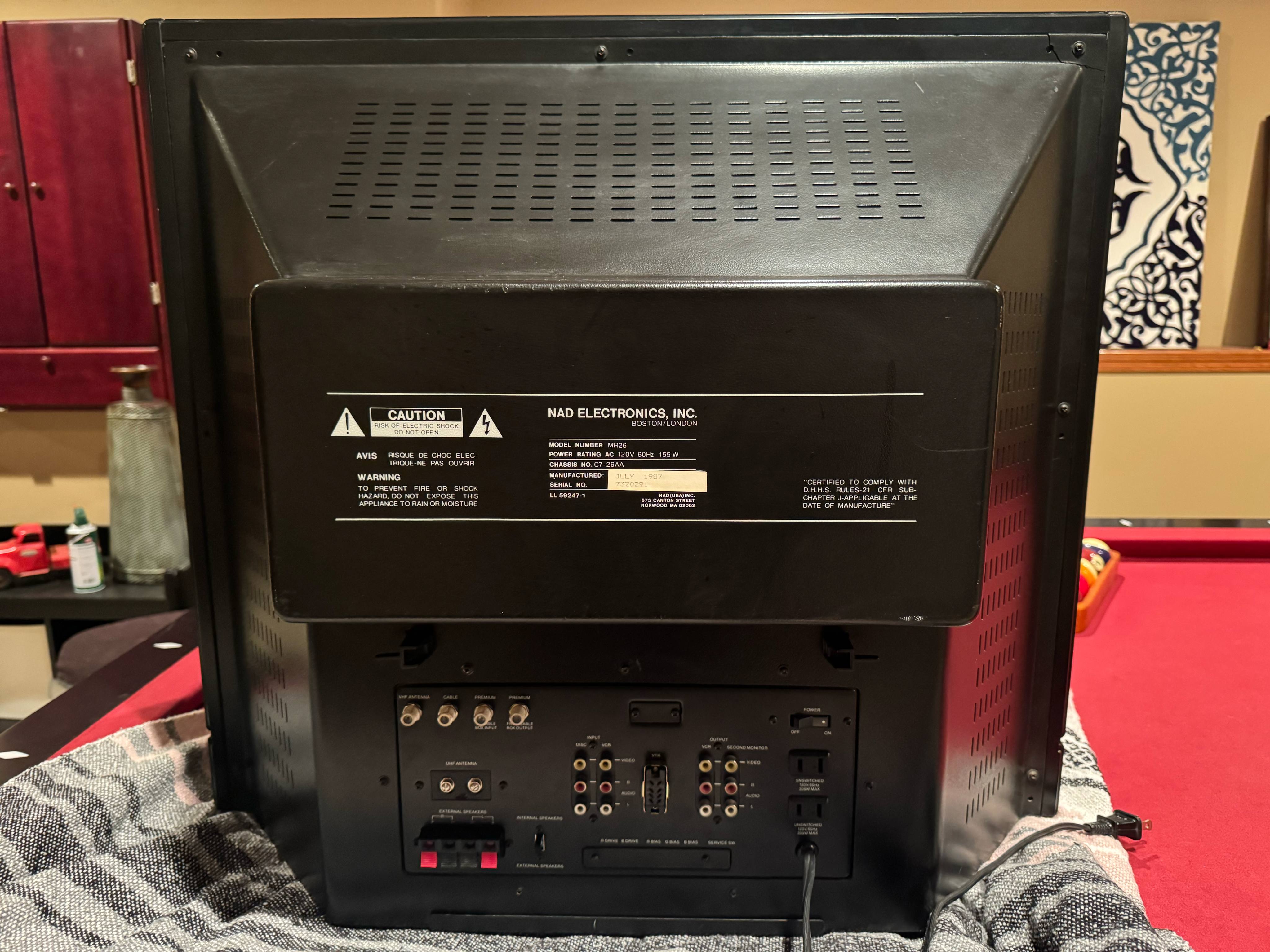

Higher-end 26" CRT by NAD, introduced in early 1986. Has RF, composite and VTR input as well as stereo audio output. Originally manufactured by NEC for NAD in the USA.
(Special thanks to Norman Mejia for the pics!)
Manuals
(None at this time.)
Notes

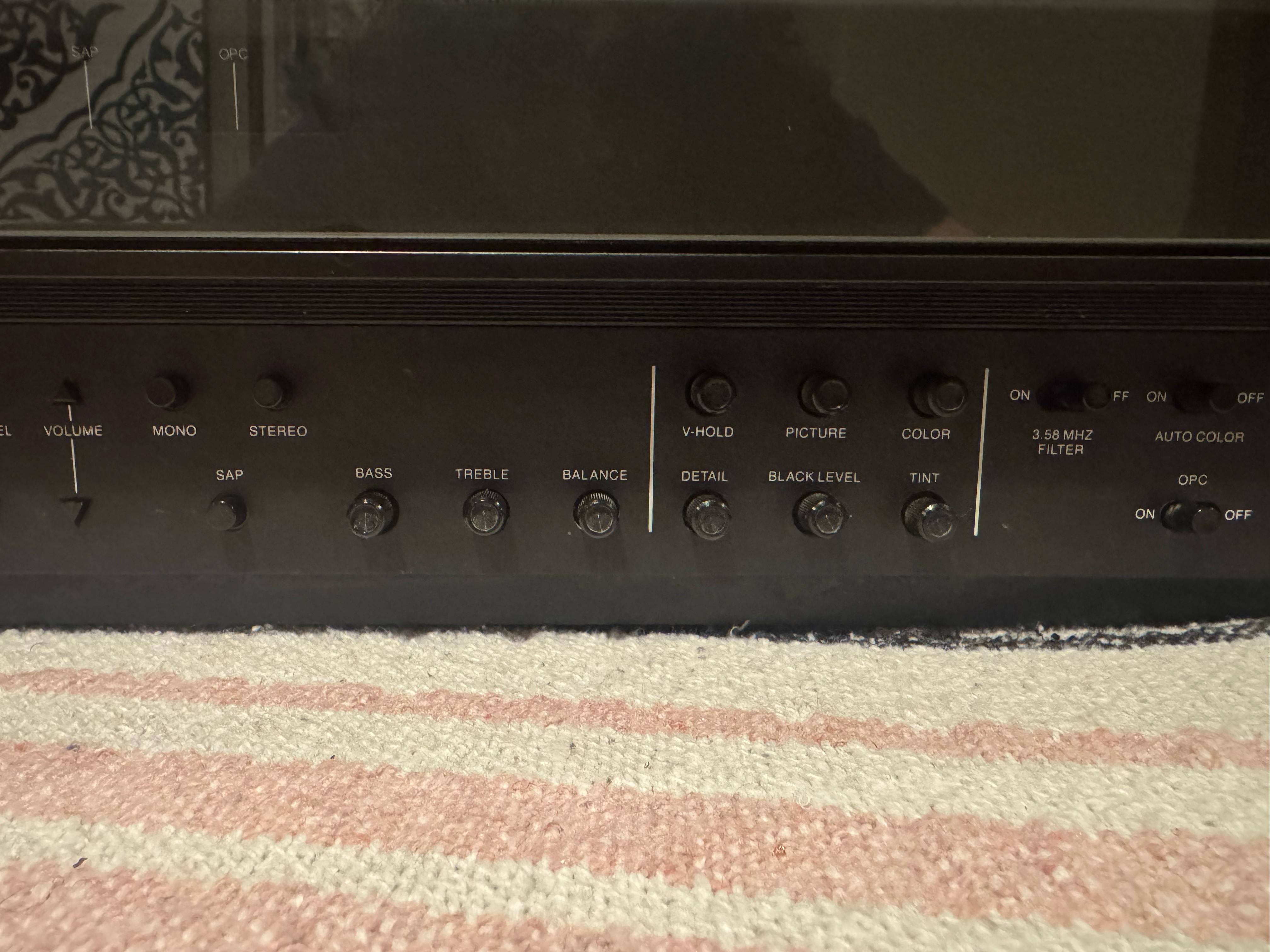

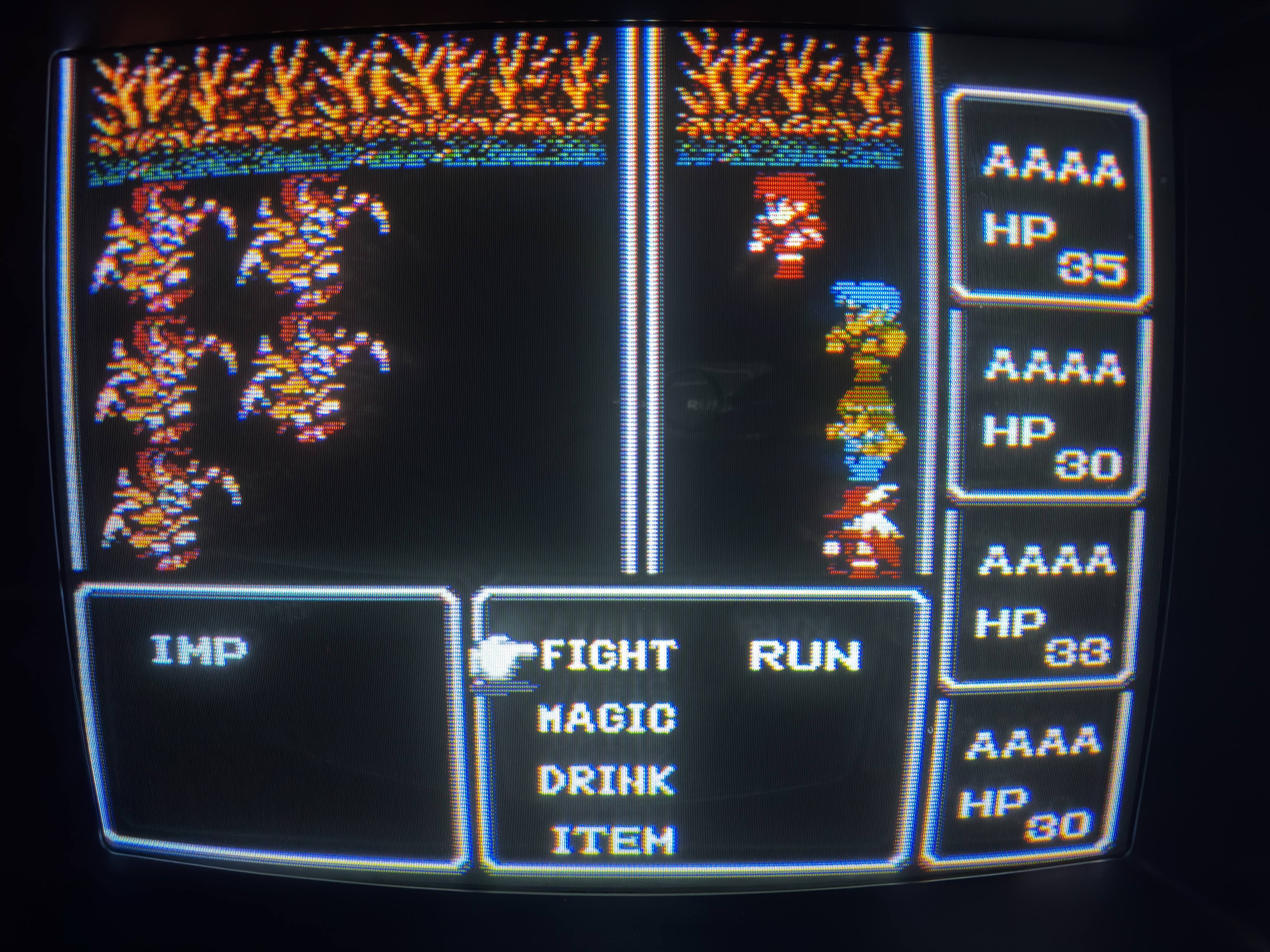

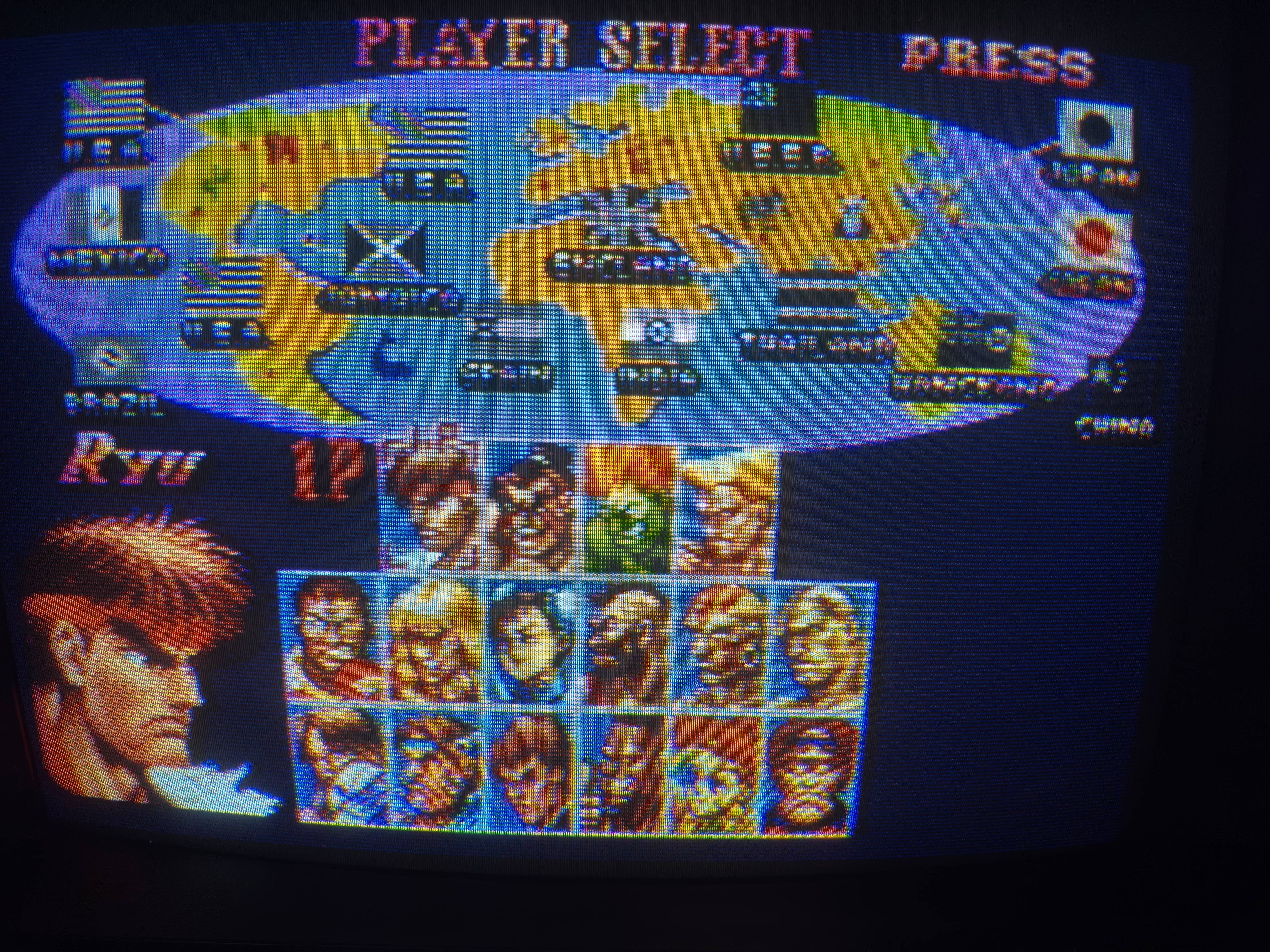

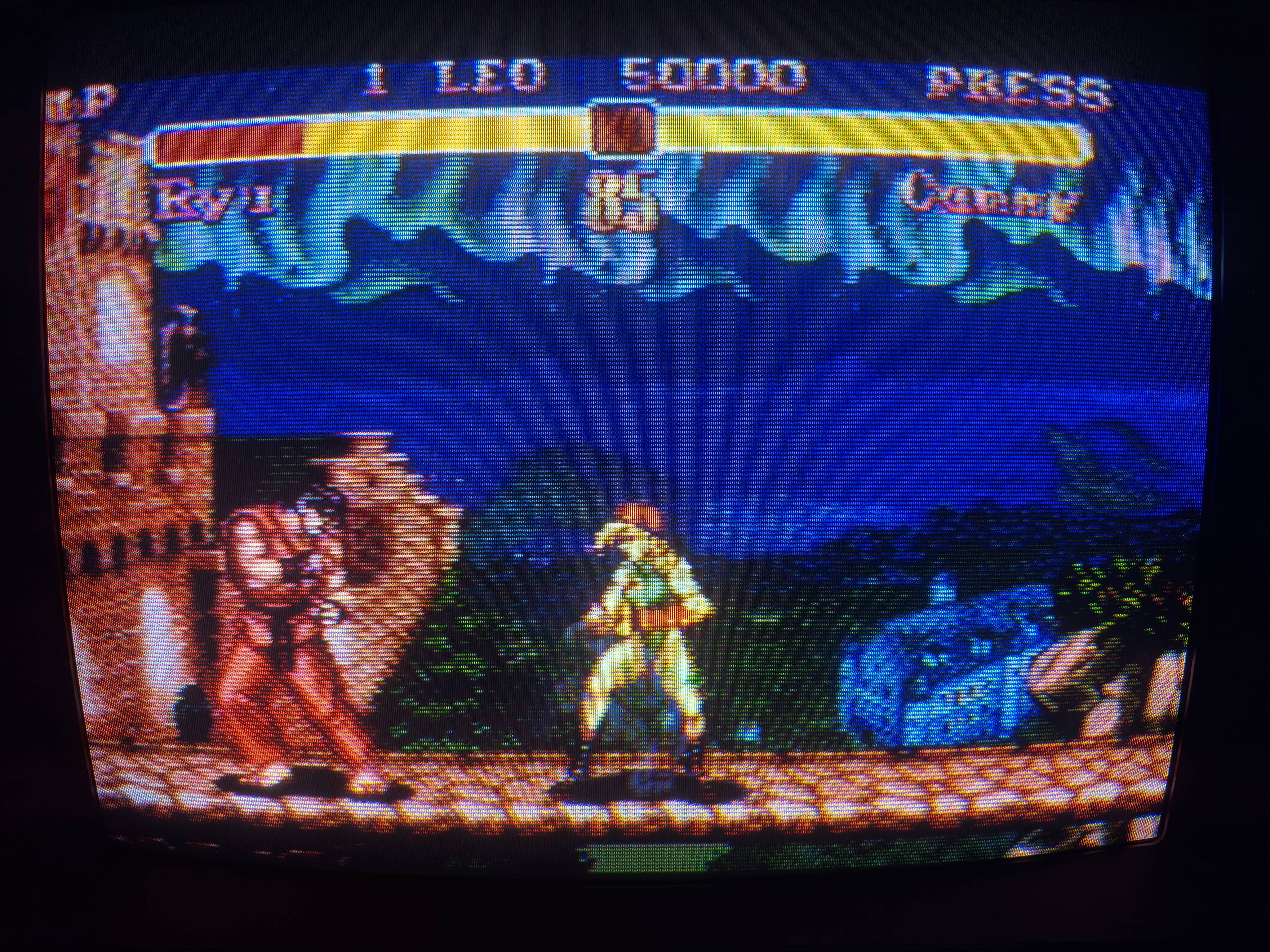

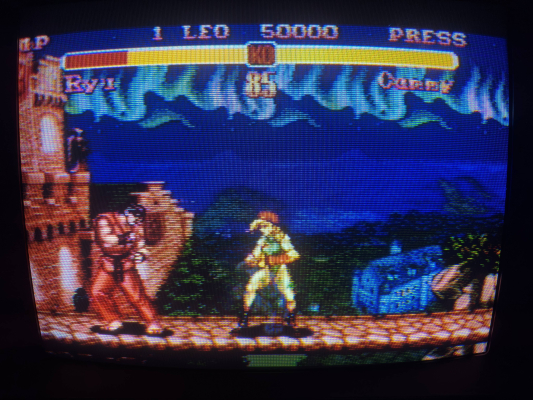

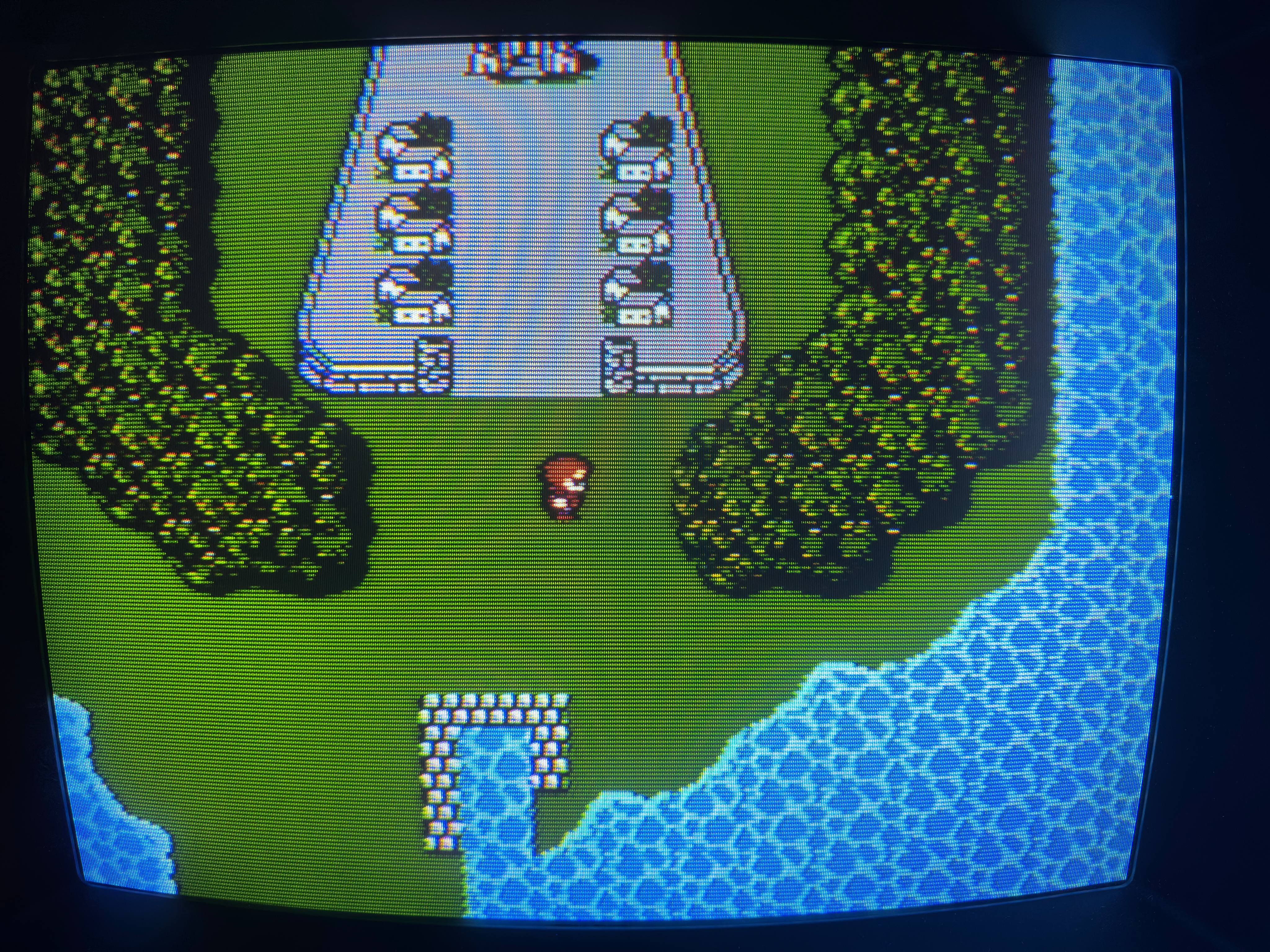

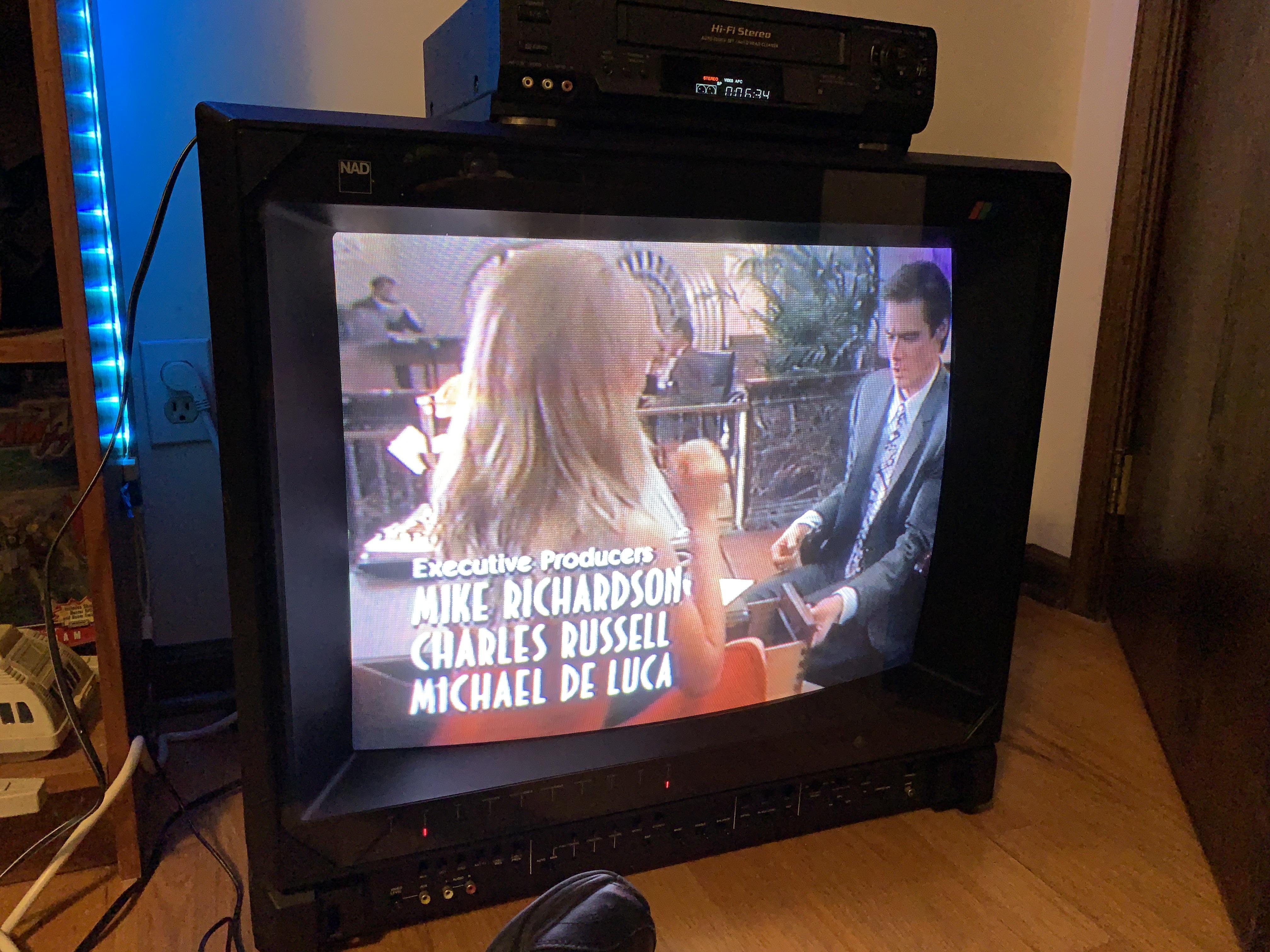

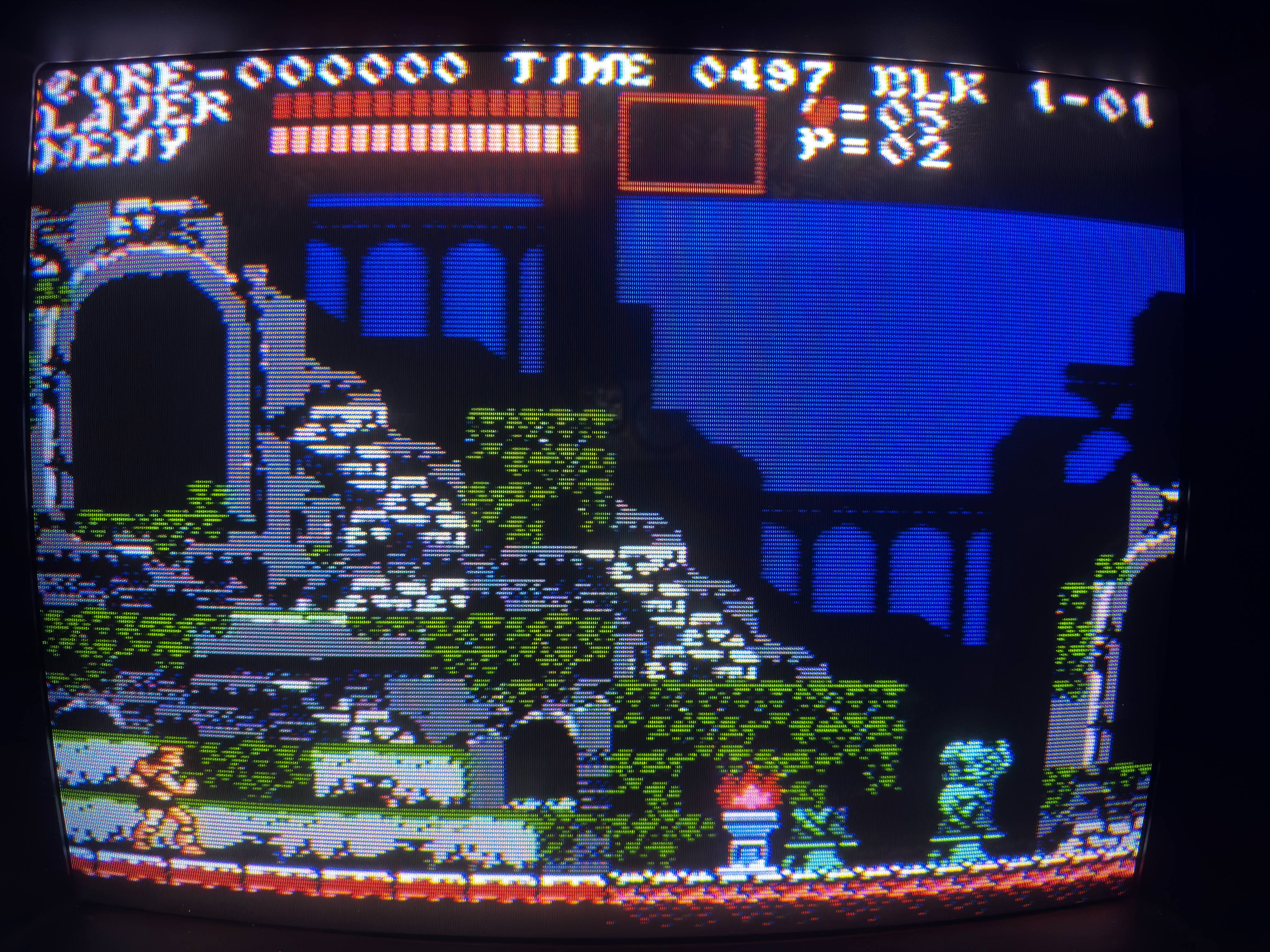

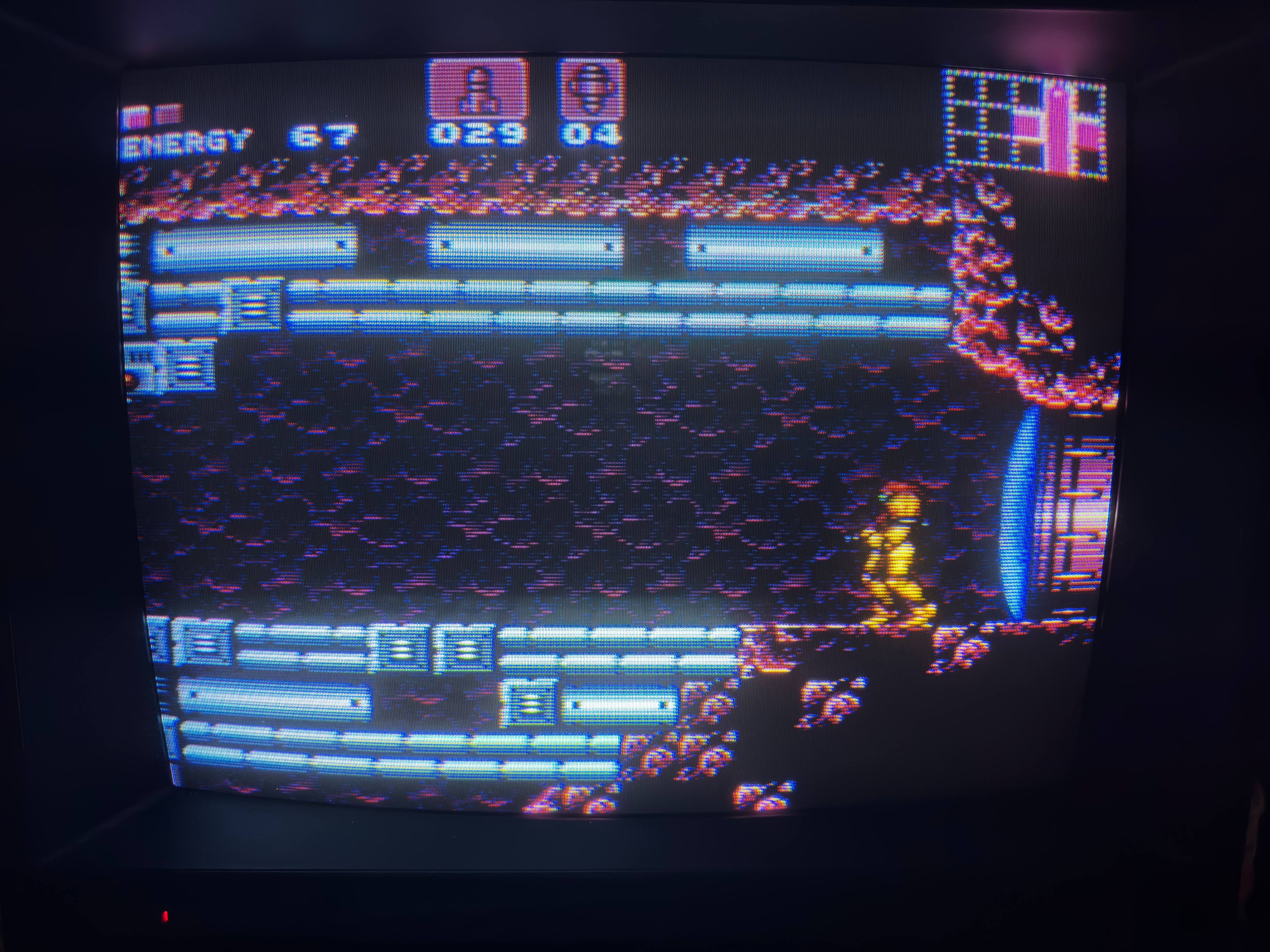

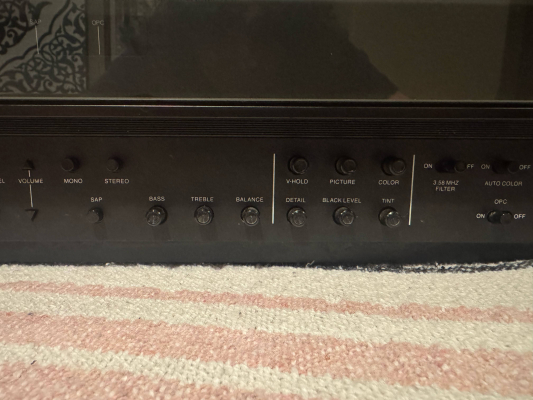

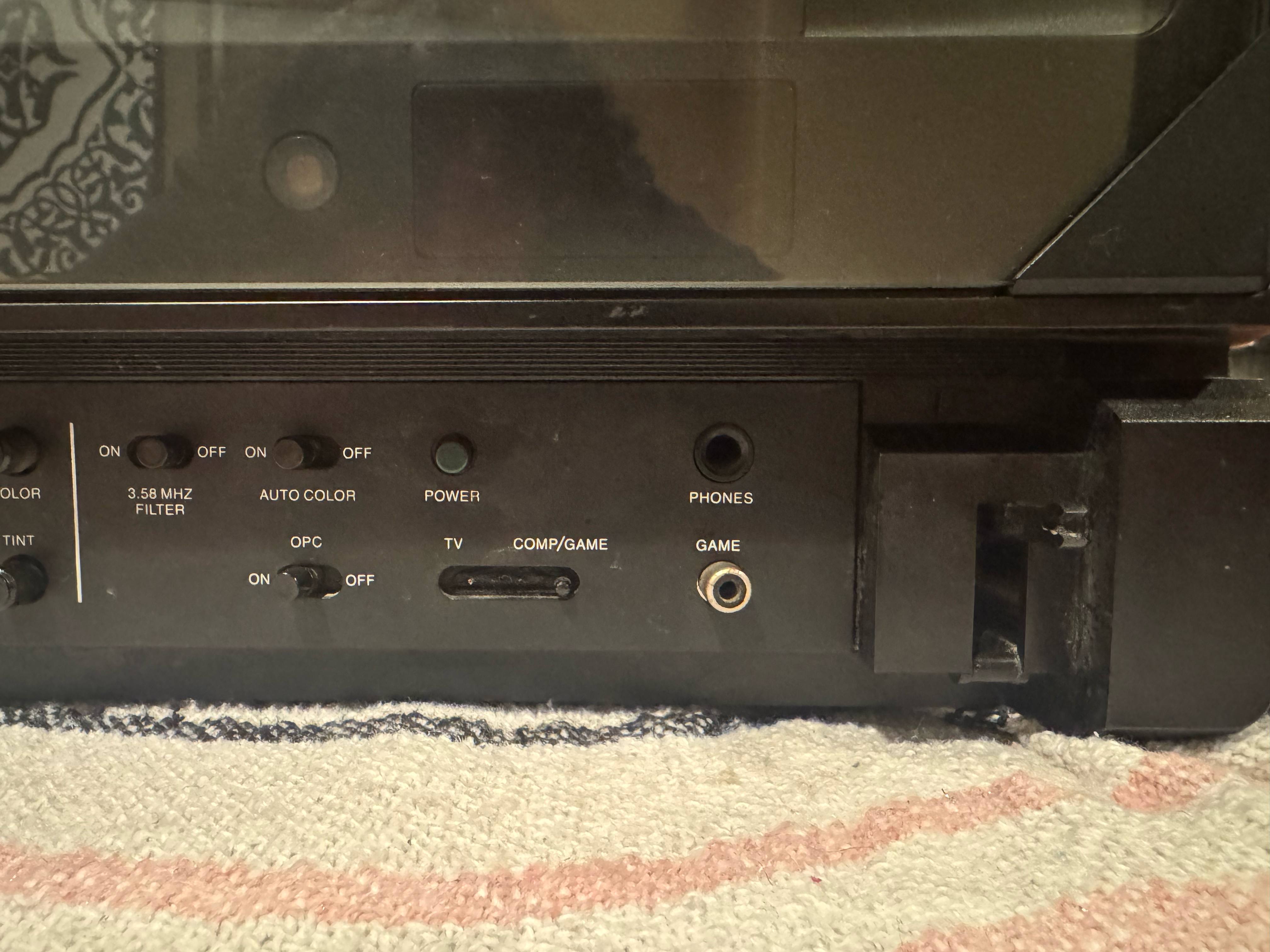

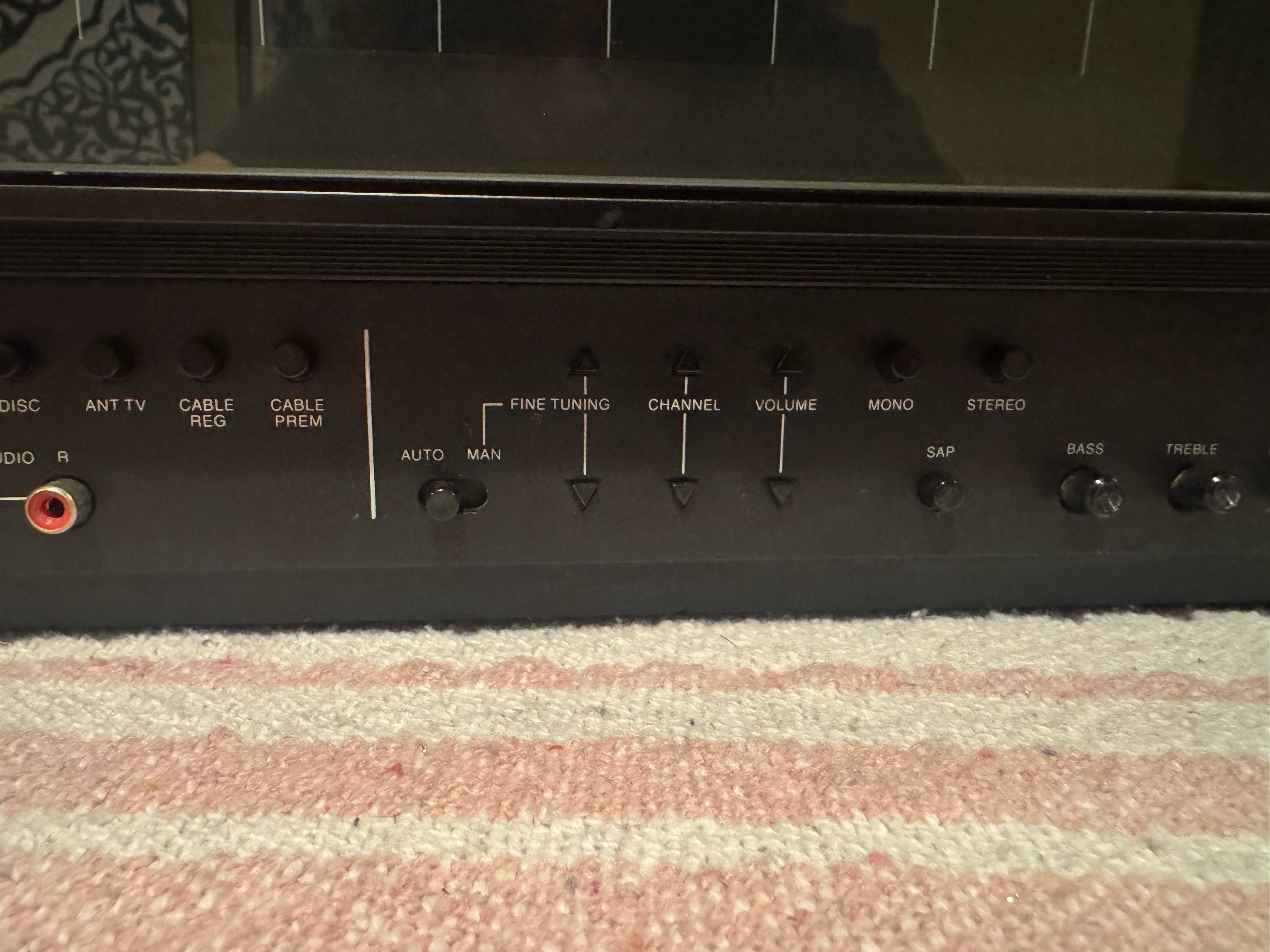

This set has all kinds of cool features. A nifty feature you can toggle is a 3.58Mhz notch filter on the front of the set to clean up composite video. (The provided gameplay pics have this filter engaged.)

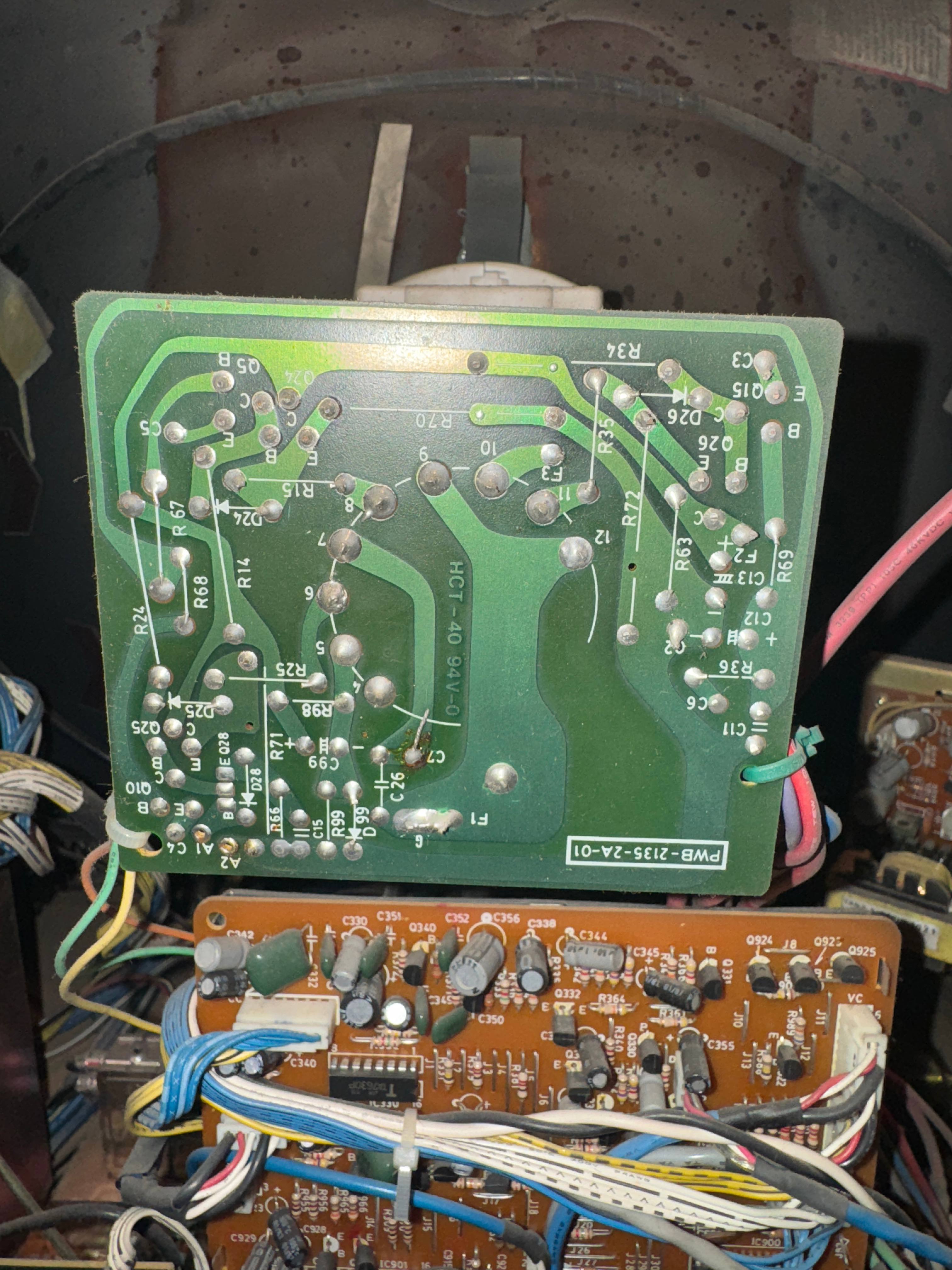

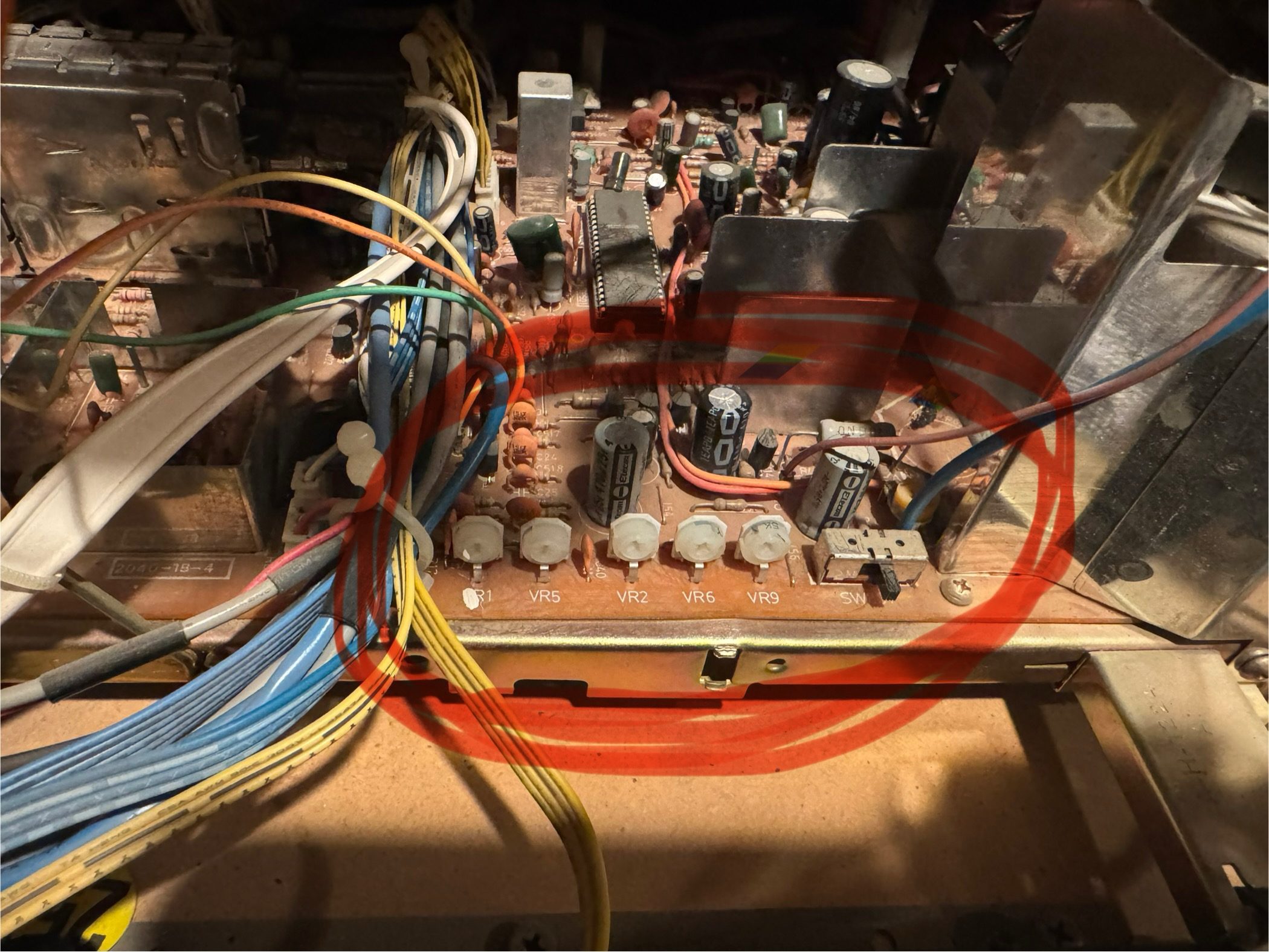

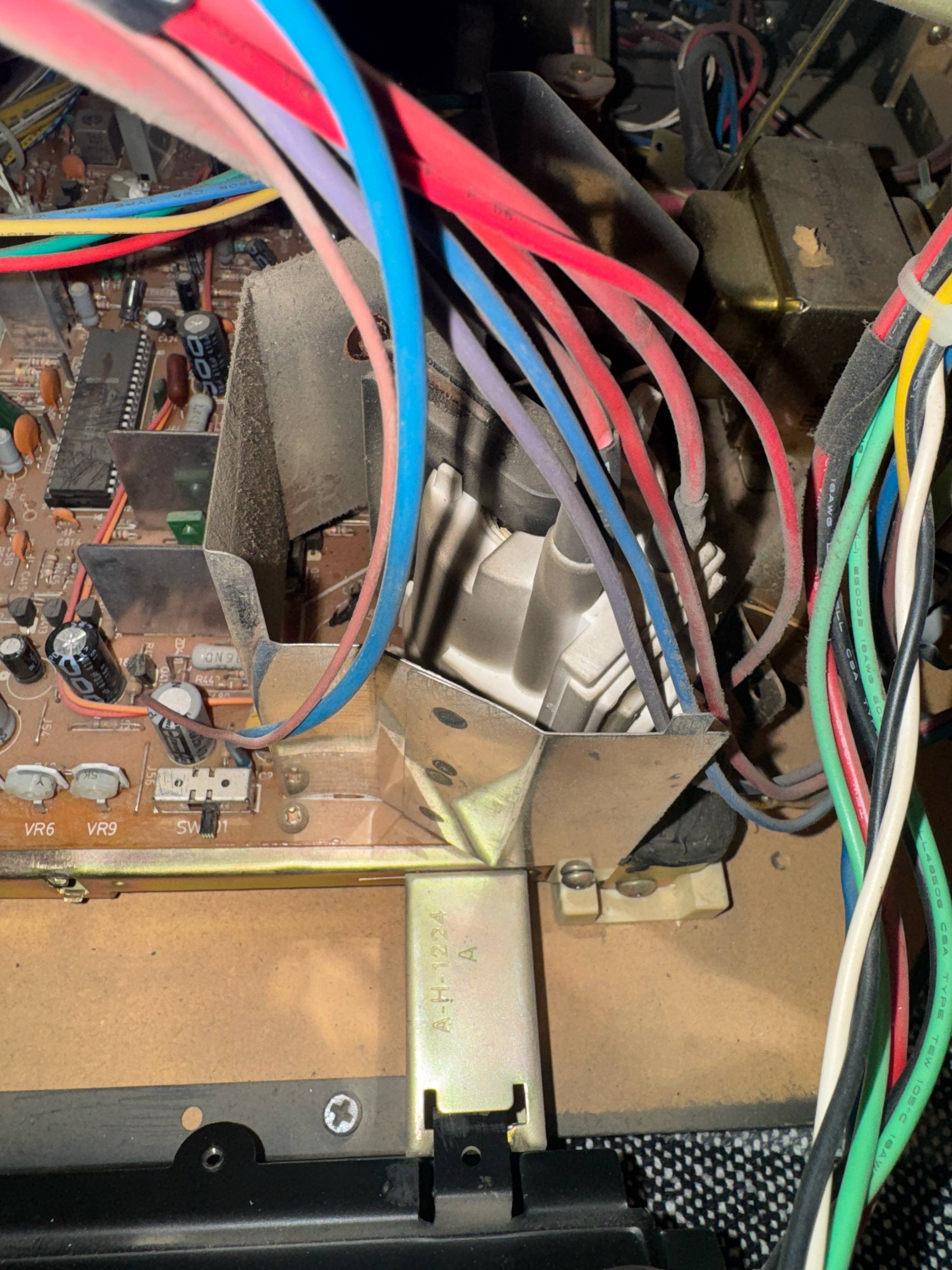

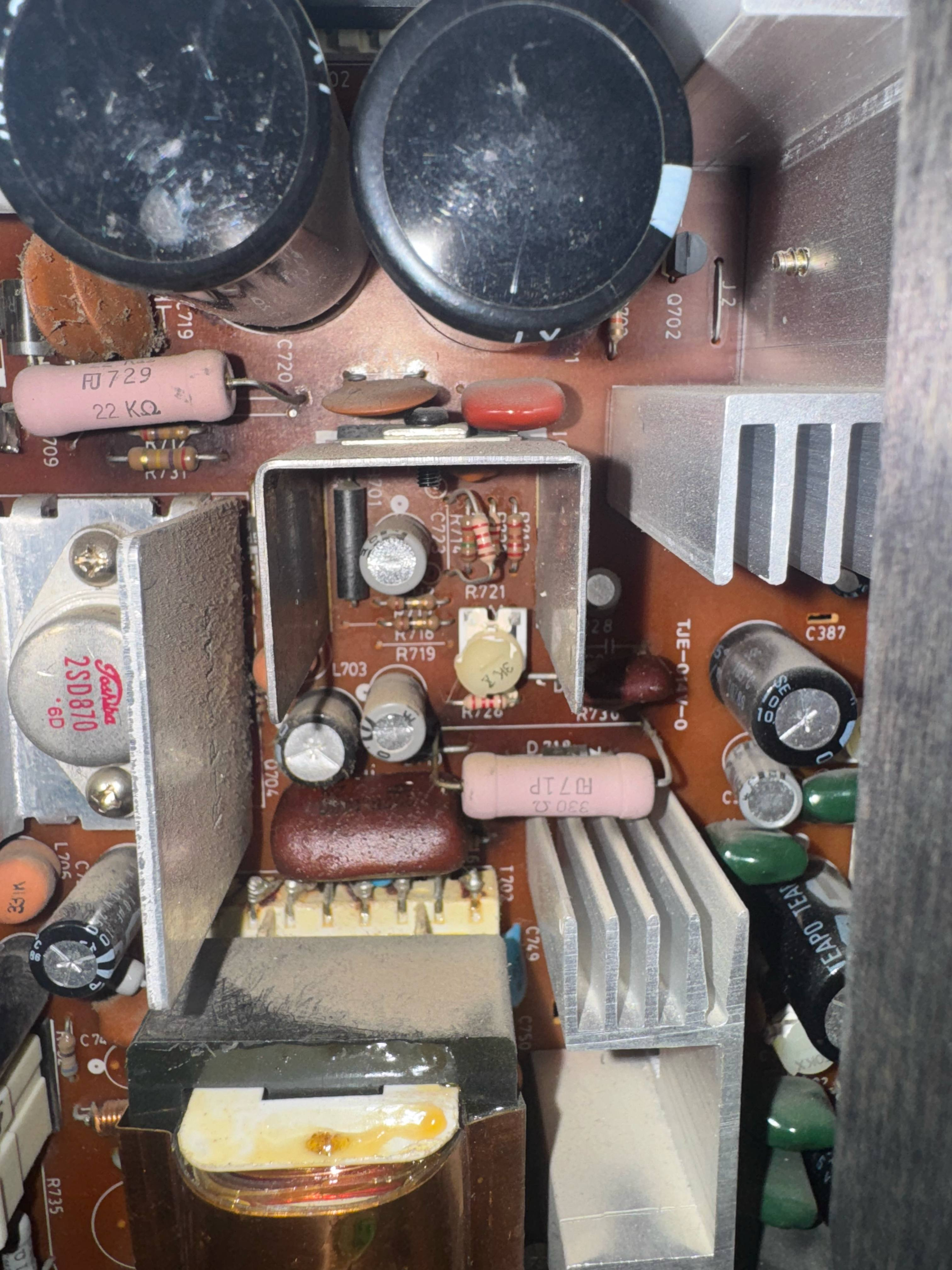

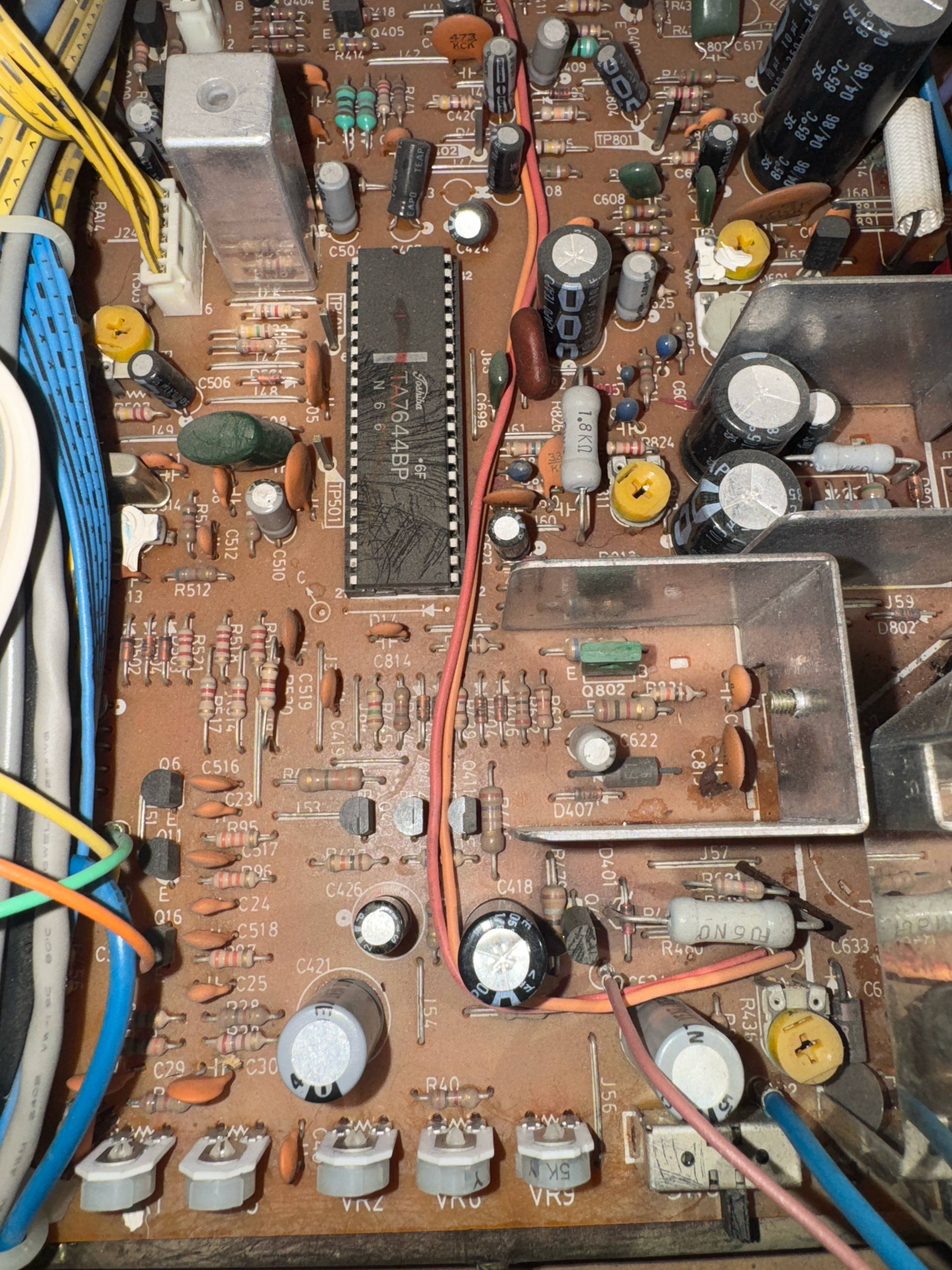

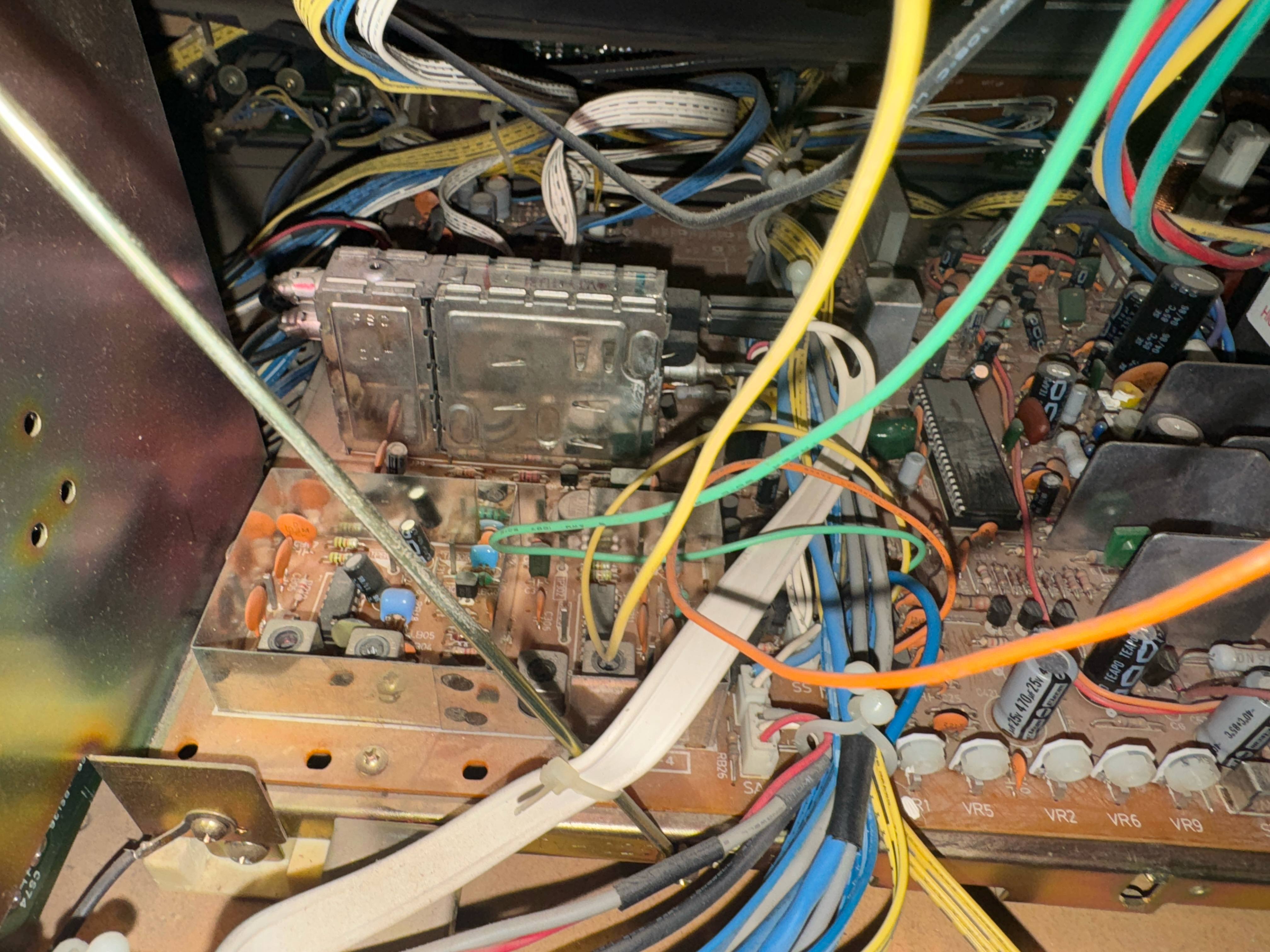

The potentiometer on the deflection board can adjust the horizontal postition:
Gallery
| Specifications | |
|---|---|
| Brand: | NAD Electronics |
| Manufacturer: | NEC |
| Model: | MR26 |
| Series: | MR |
| Viewable Size: | 26" |

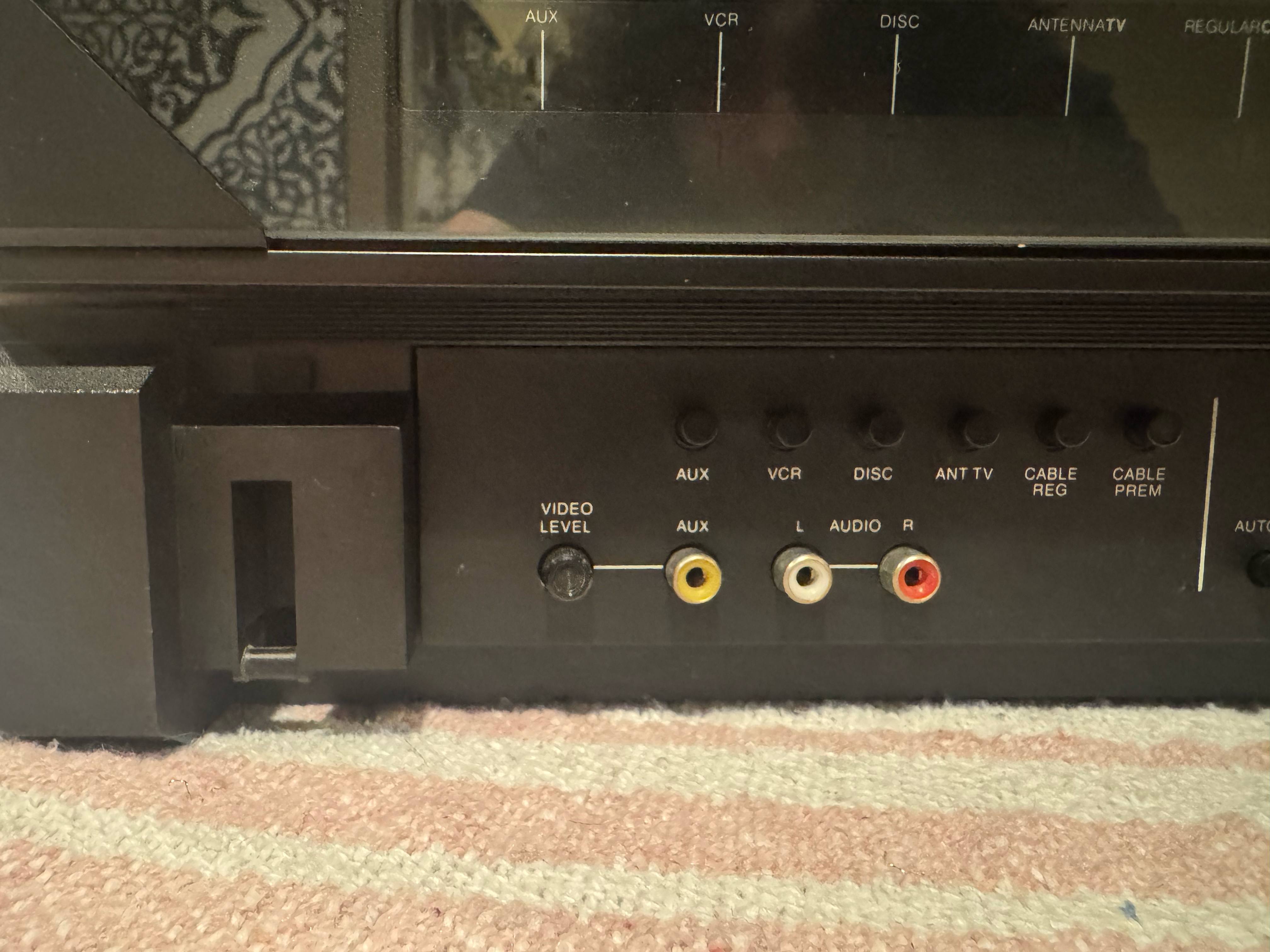

| Inputs: | Composite, RF, VTR |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |
| Jungle: | Toshiba, TA7644BP, TA7644 |
| Focus Type: | Single |

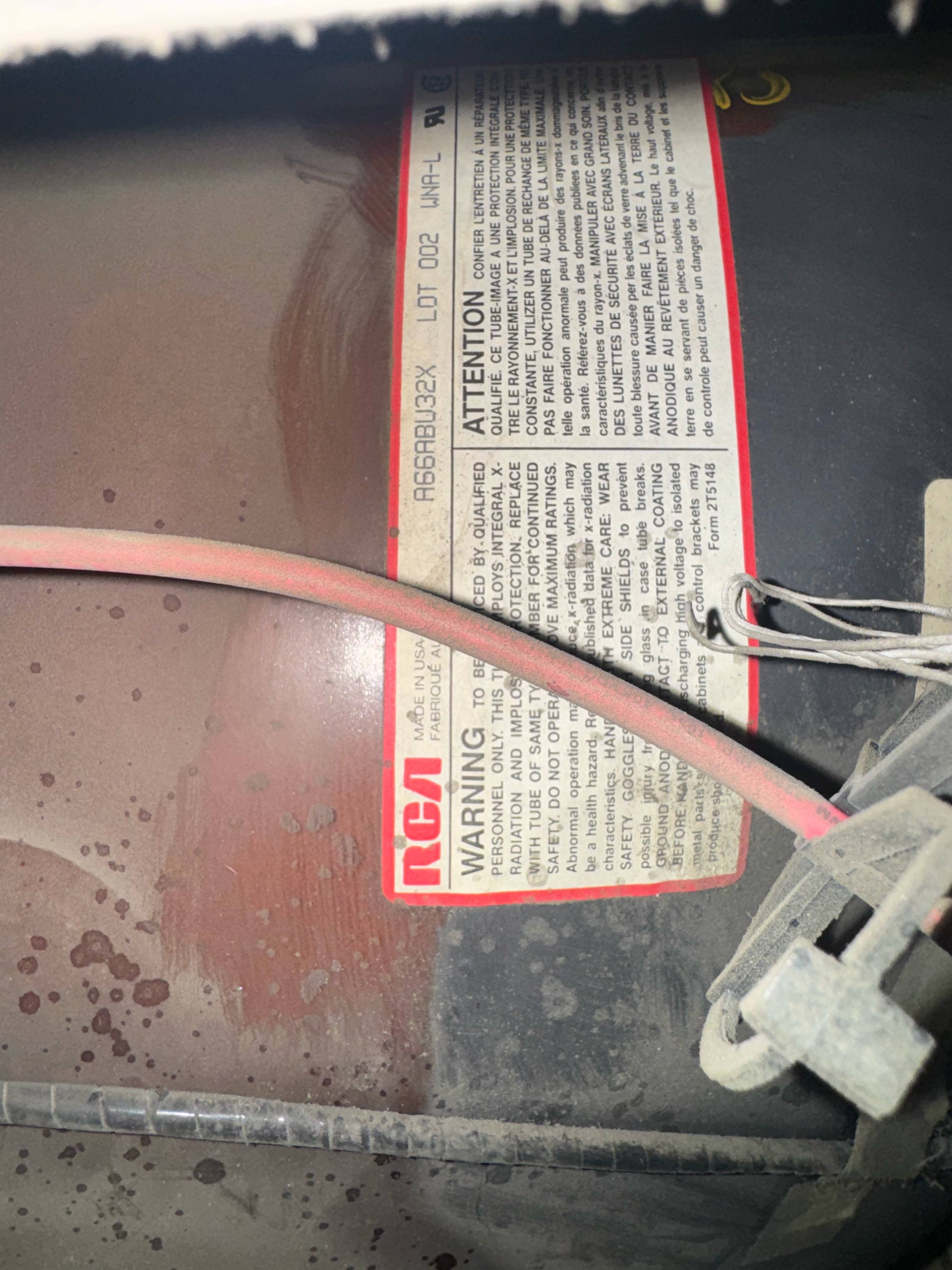

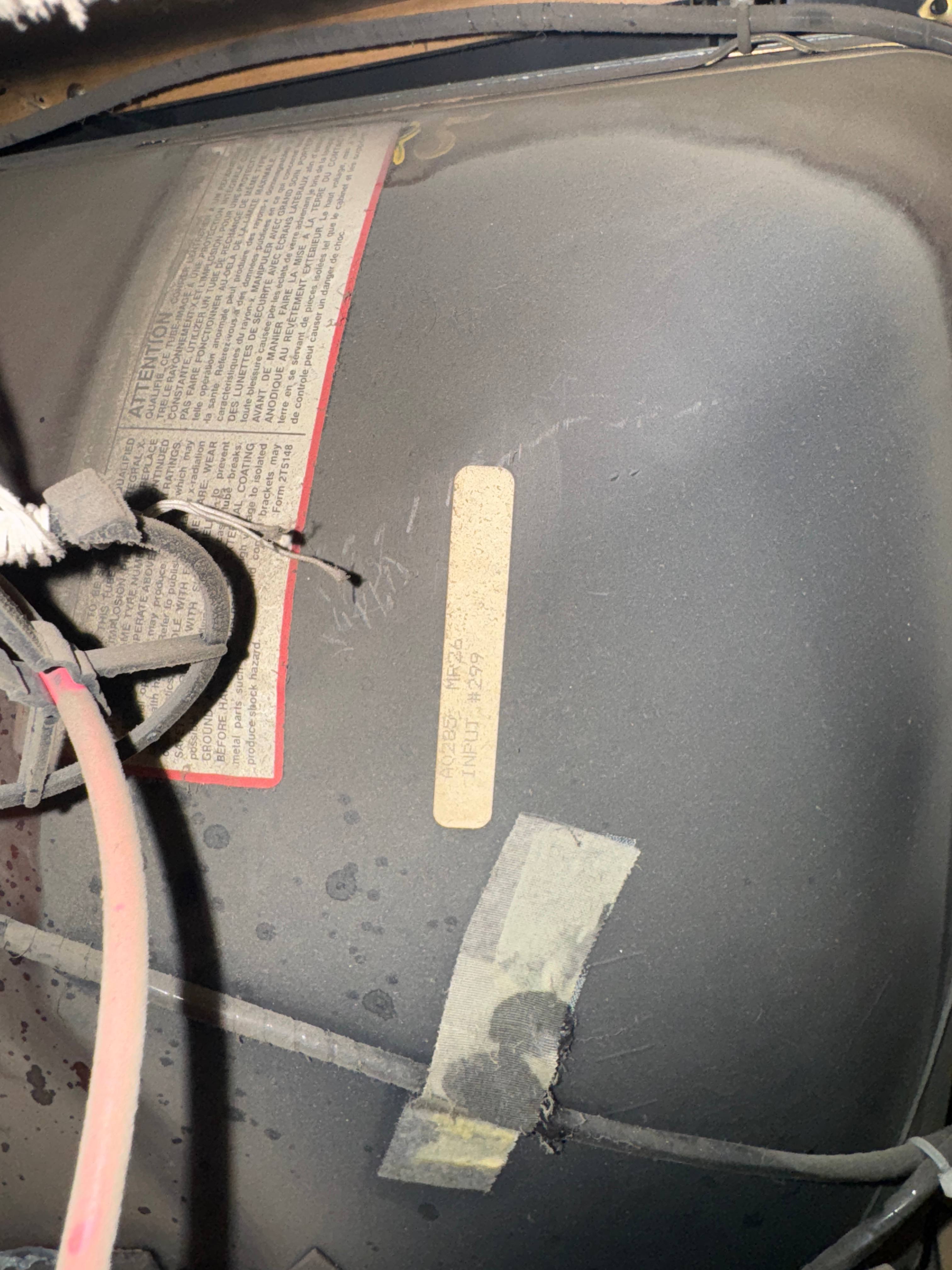

| Tube: | RCA , A66ABU32X |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|
| Pitch: | 0.82 mm |
| Tint: | Light, Detachable Sunshade |
| Removable Glare Film: | No |

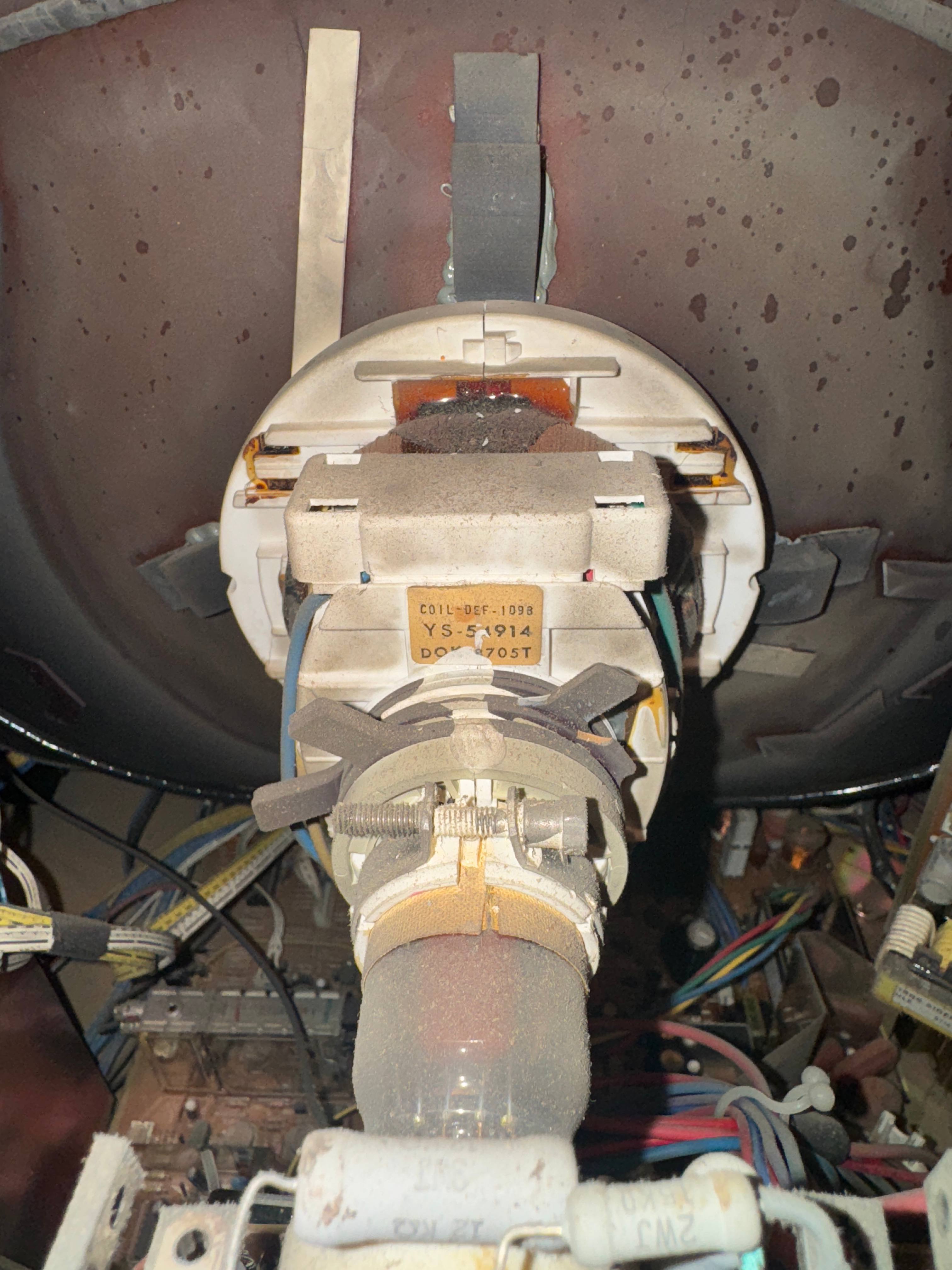

| Yoke: | YS-54914 |

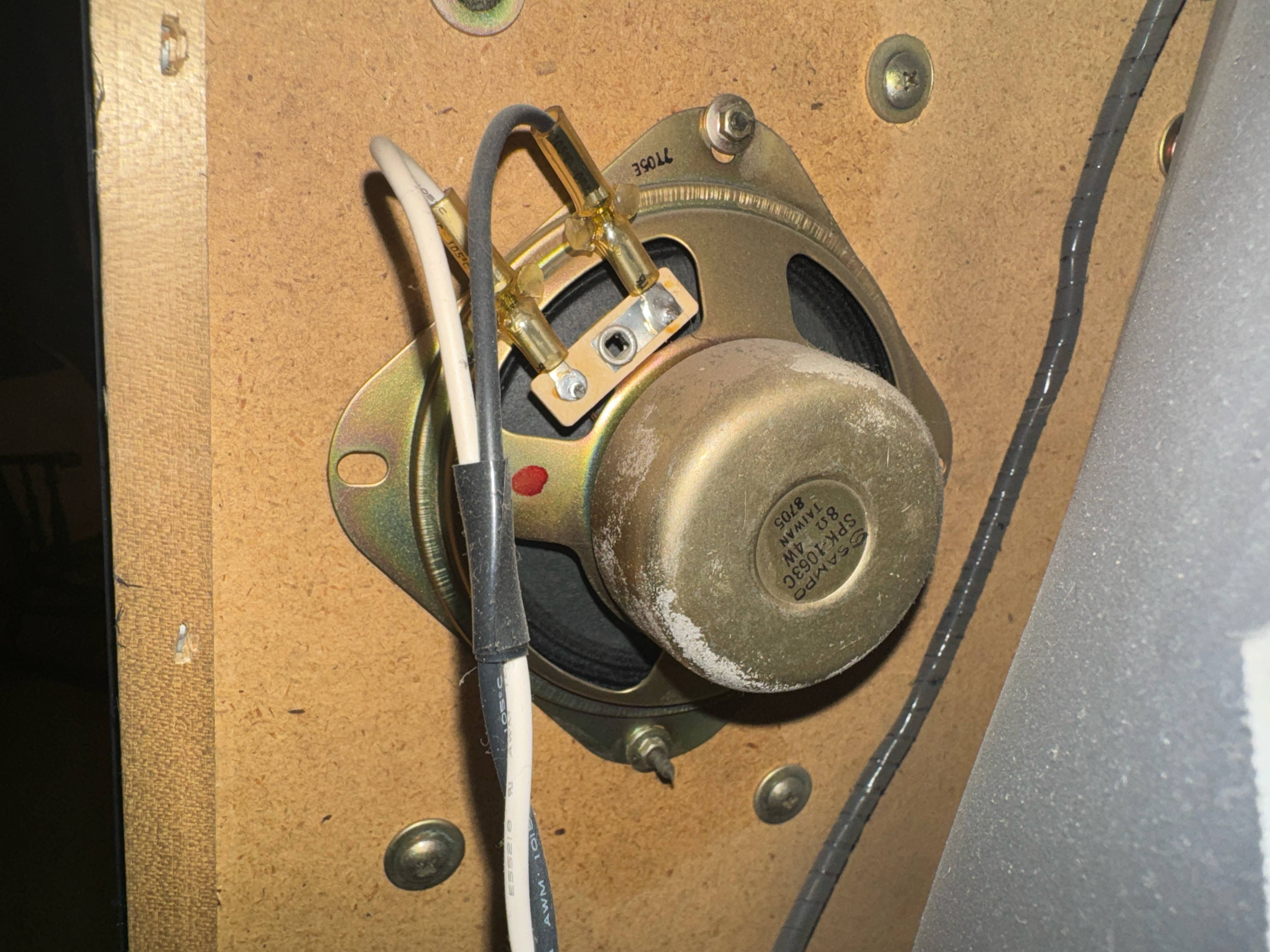

| Speakers: | Stereo, 4W x 2 |

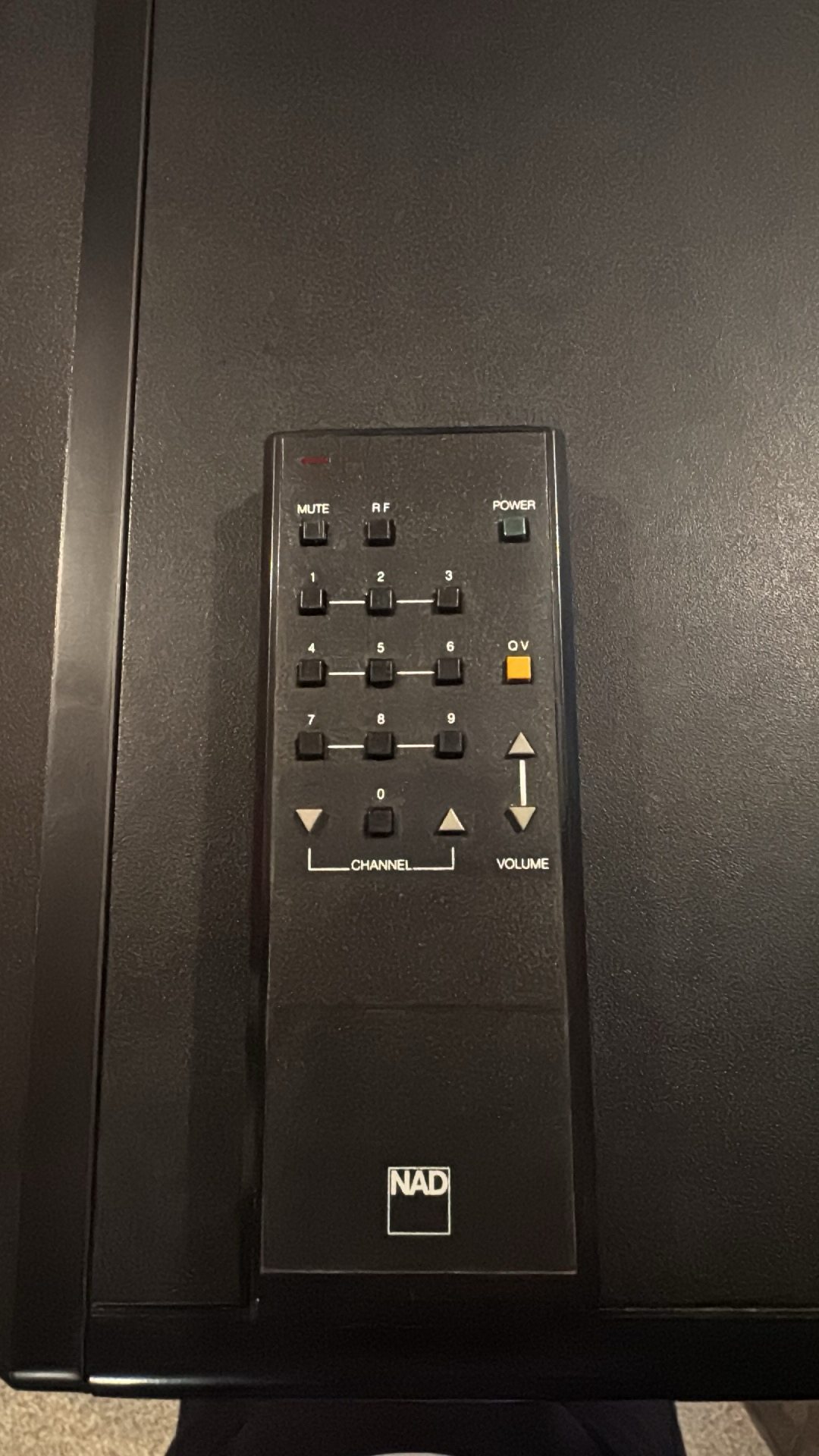

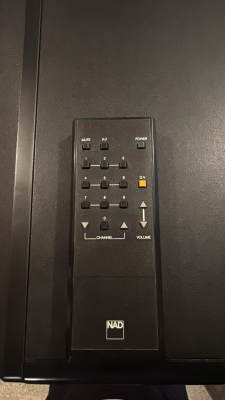

| Remote: | RC-46N |
| Chassis: | C7-26AA |
| Application: | Consumer |
| Cabinet Material: | Wood |
| Launched: | 1986 |
| MSRP: | 1248 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
