Summary

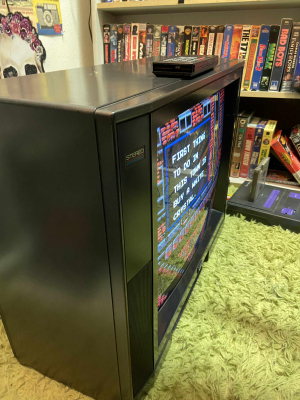

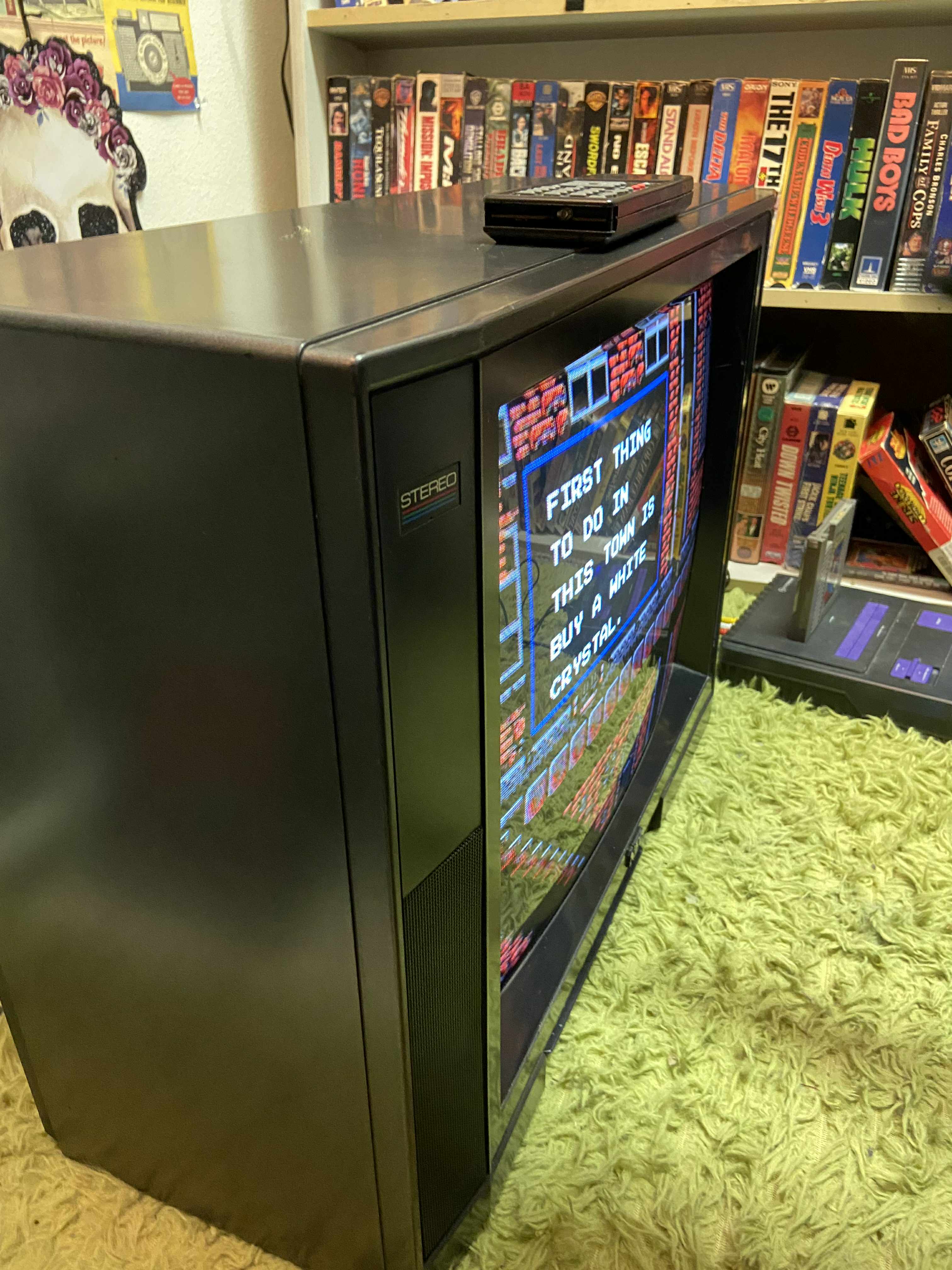

20" CRT by NEC, made in the USA in 1987. Has RF and composite inputs with stereo sound.
(Special thanks to Brandon Casey for the pics!)
Manuals
No documentation is available online at this time.
Notes

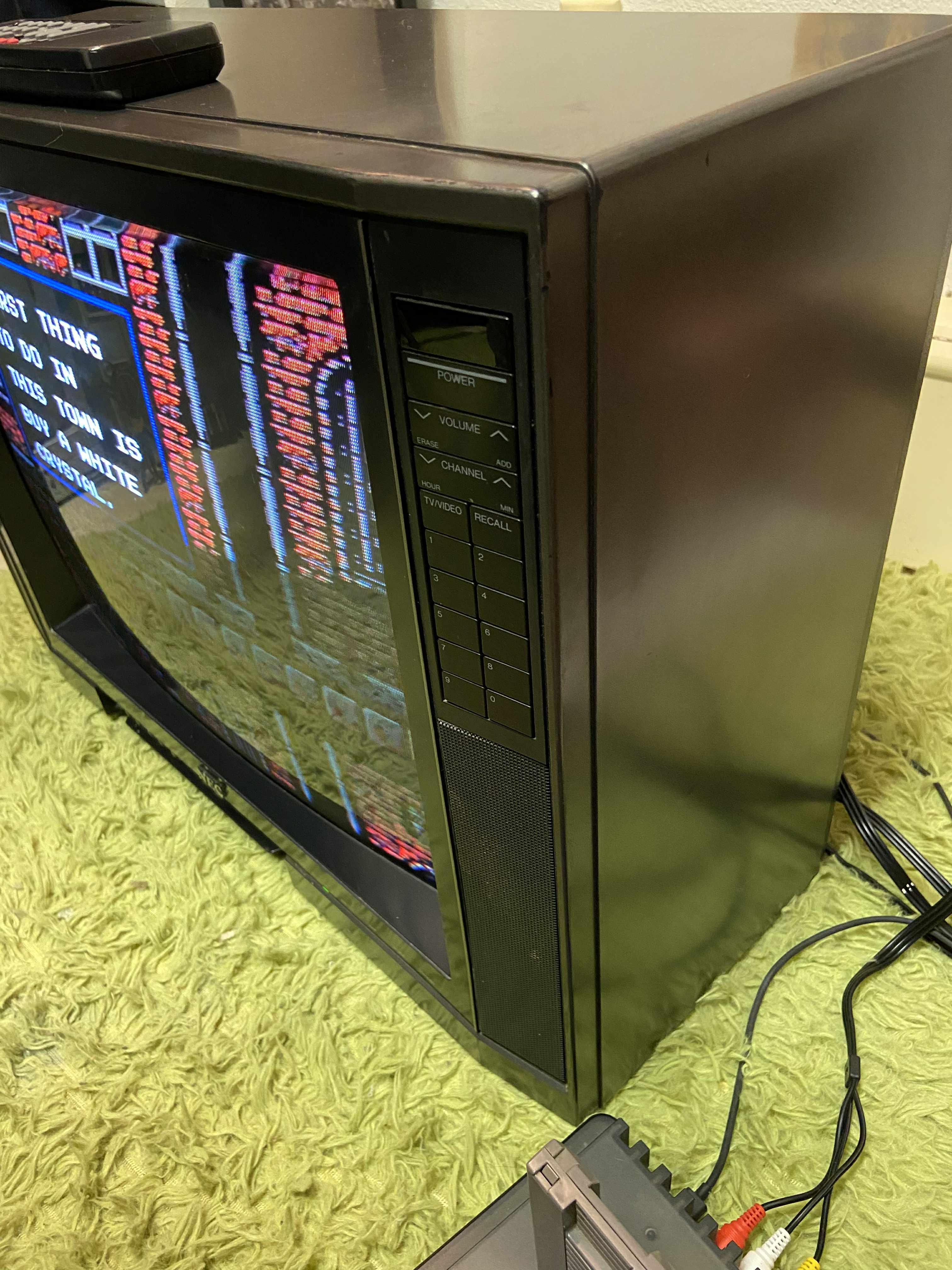

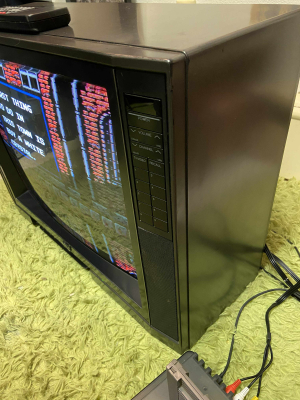

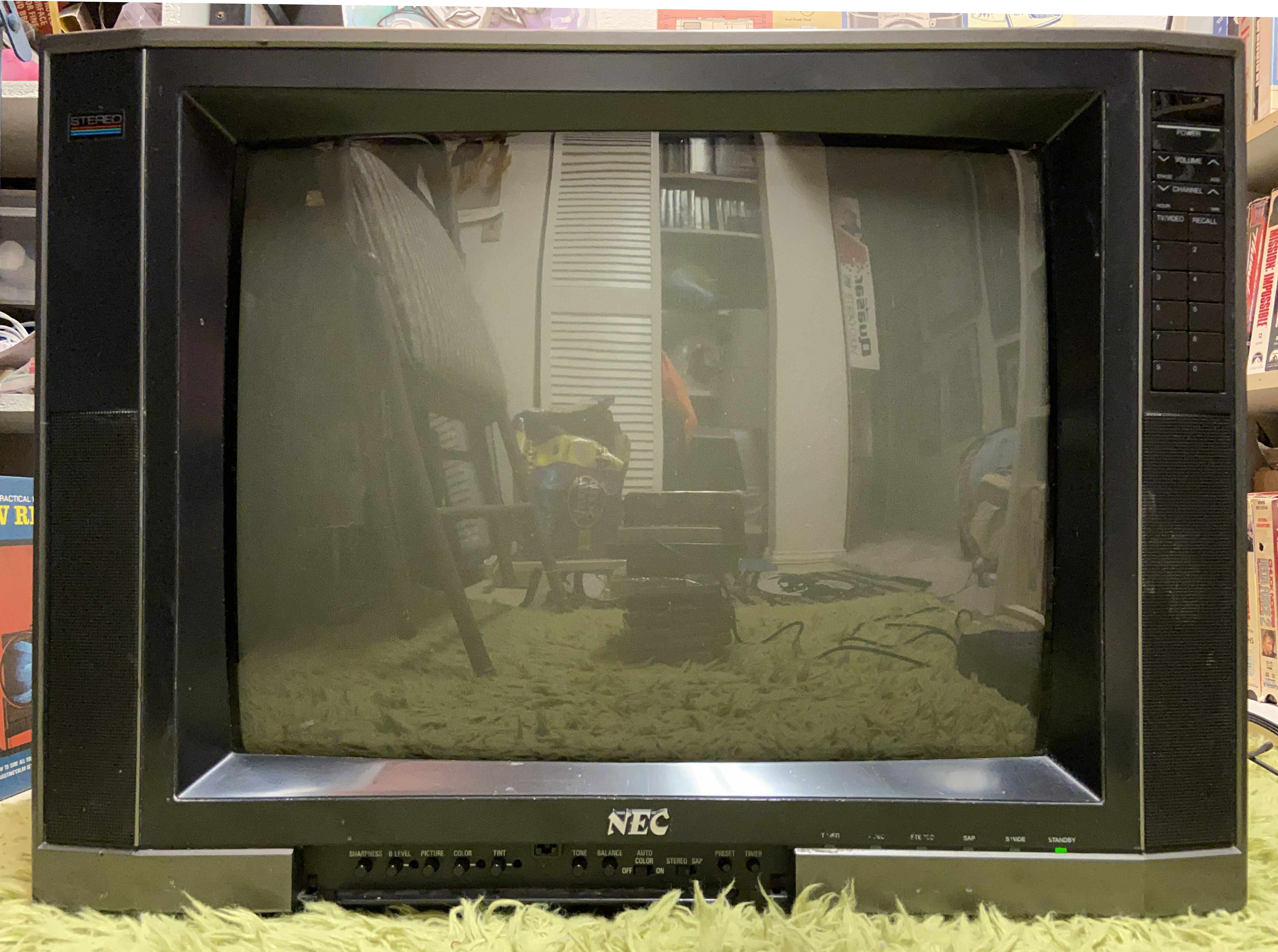

This set appears to use the exact same case as the CT-2060, but it differs as it has green LEDs as opposed to red. The stripe on the power button is also a different color.

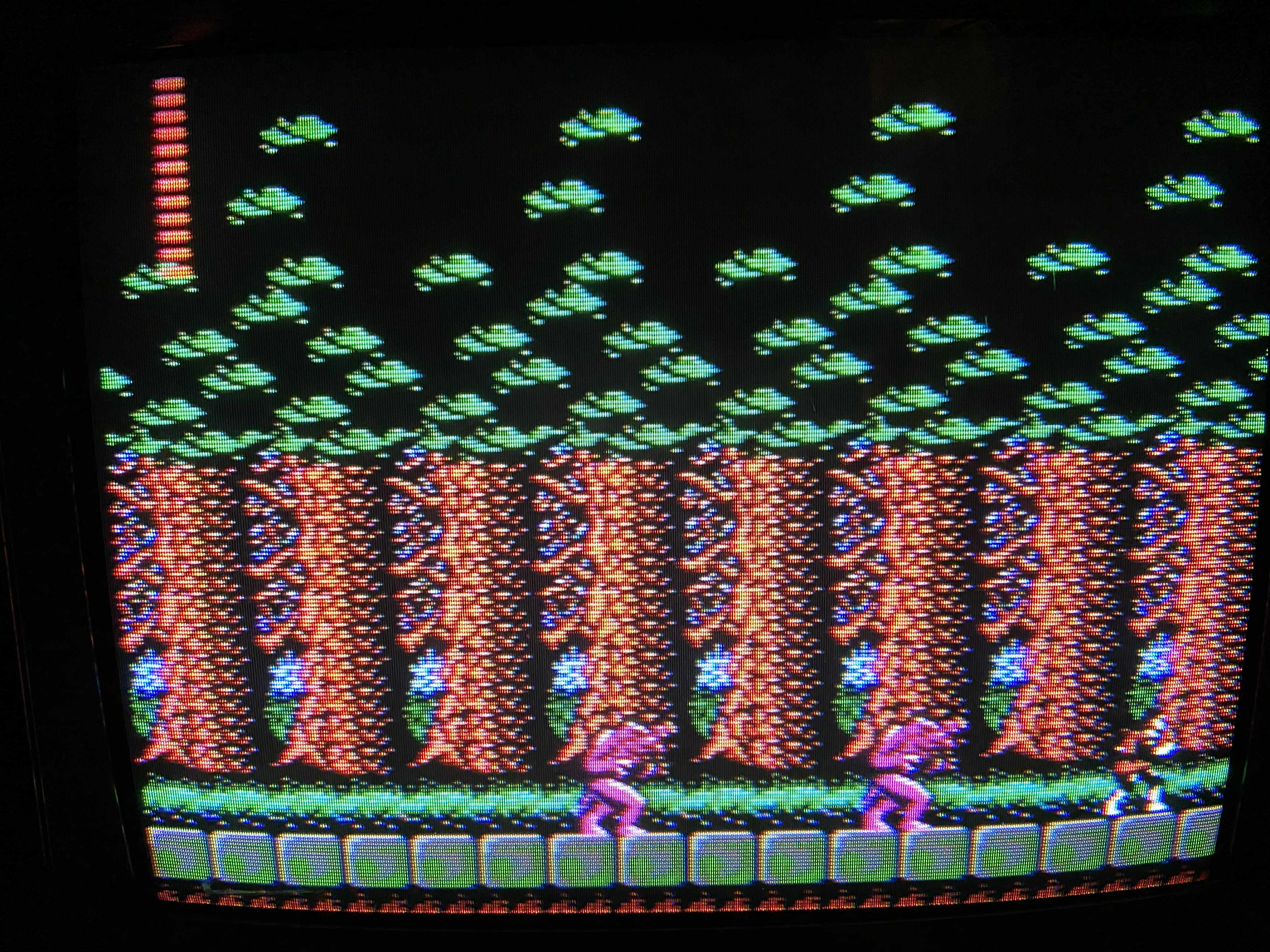

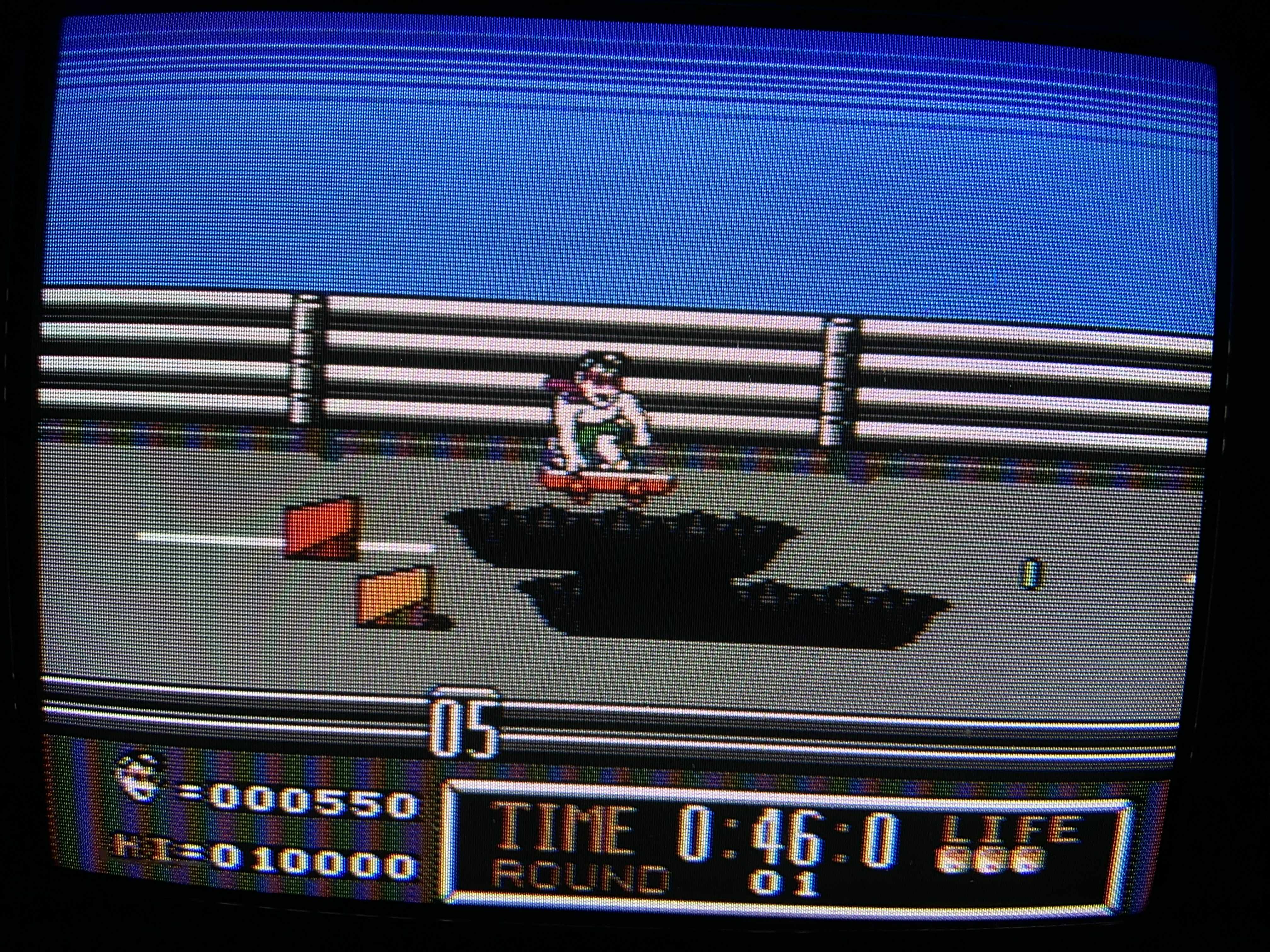

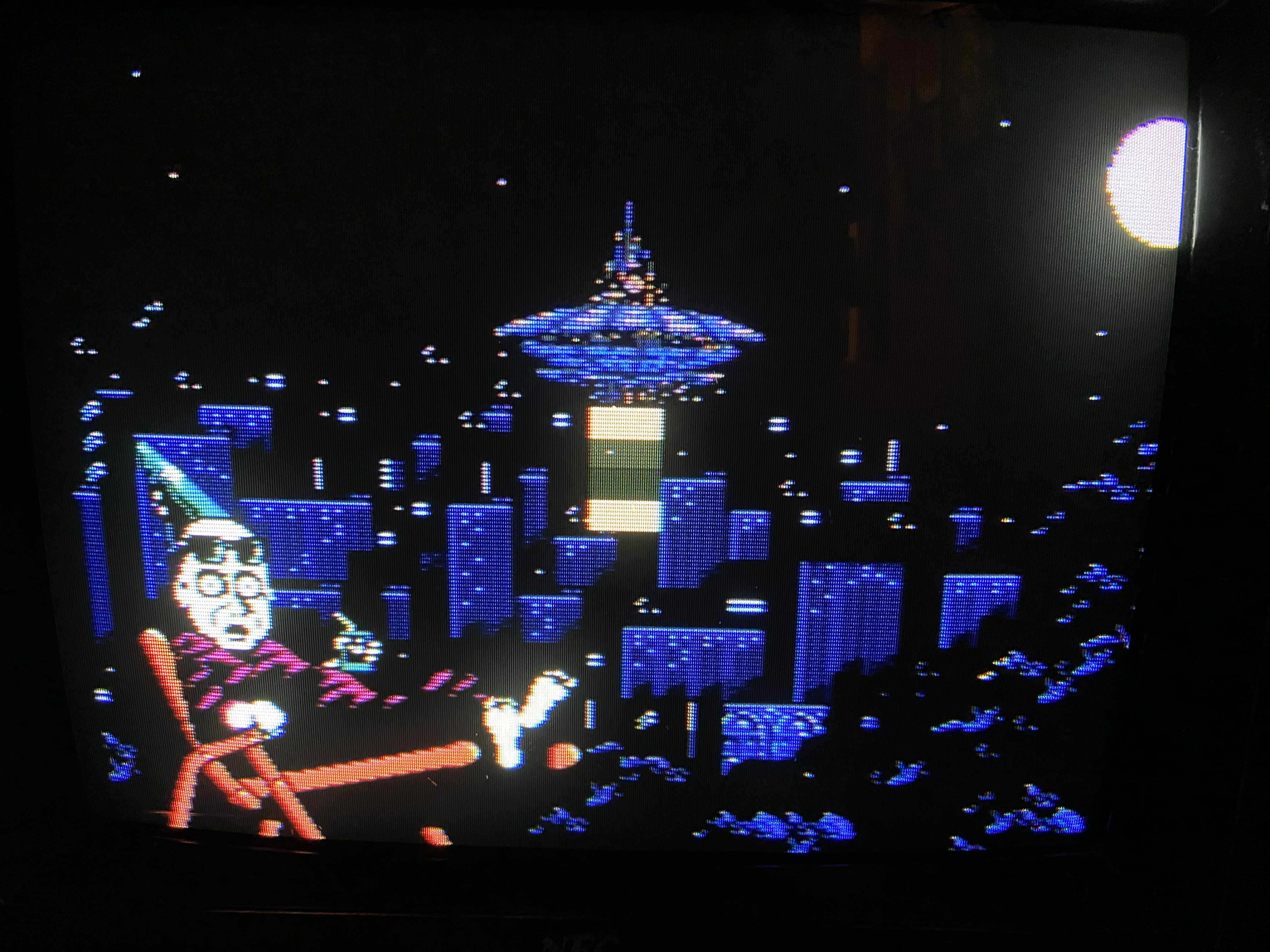

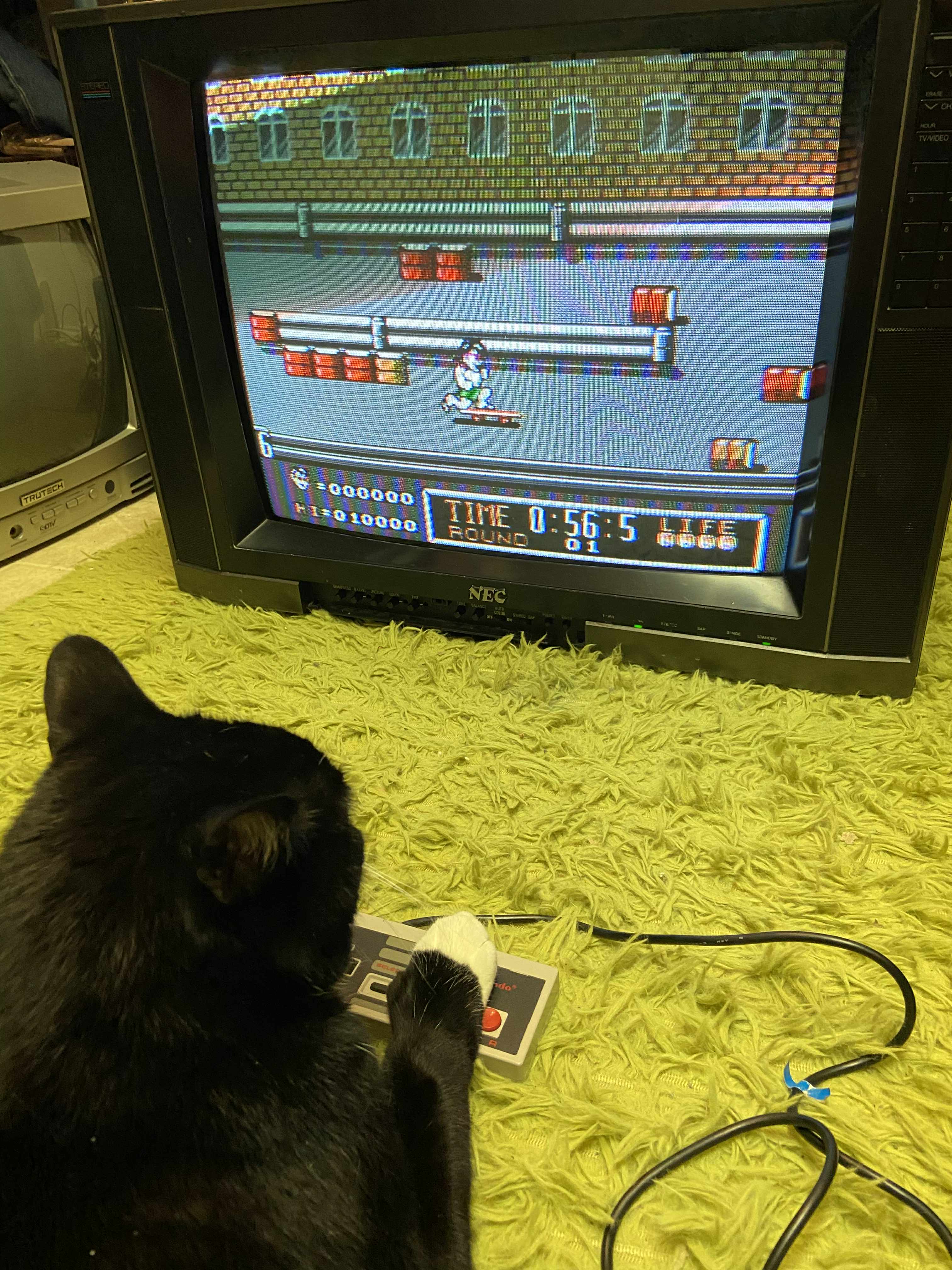

Gallery
| Specifications | |
|---|---|
| Brand: | NEC |
| Manufacturer: | NEC |
| Model: | CT-2015A |
| Series: | Auto Color |
| Viewable Size: | 20" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

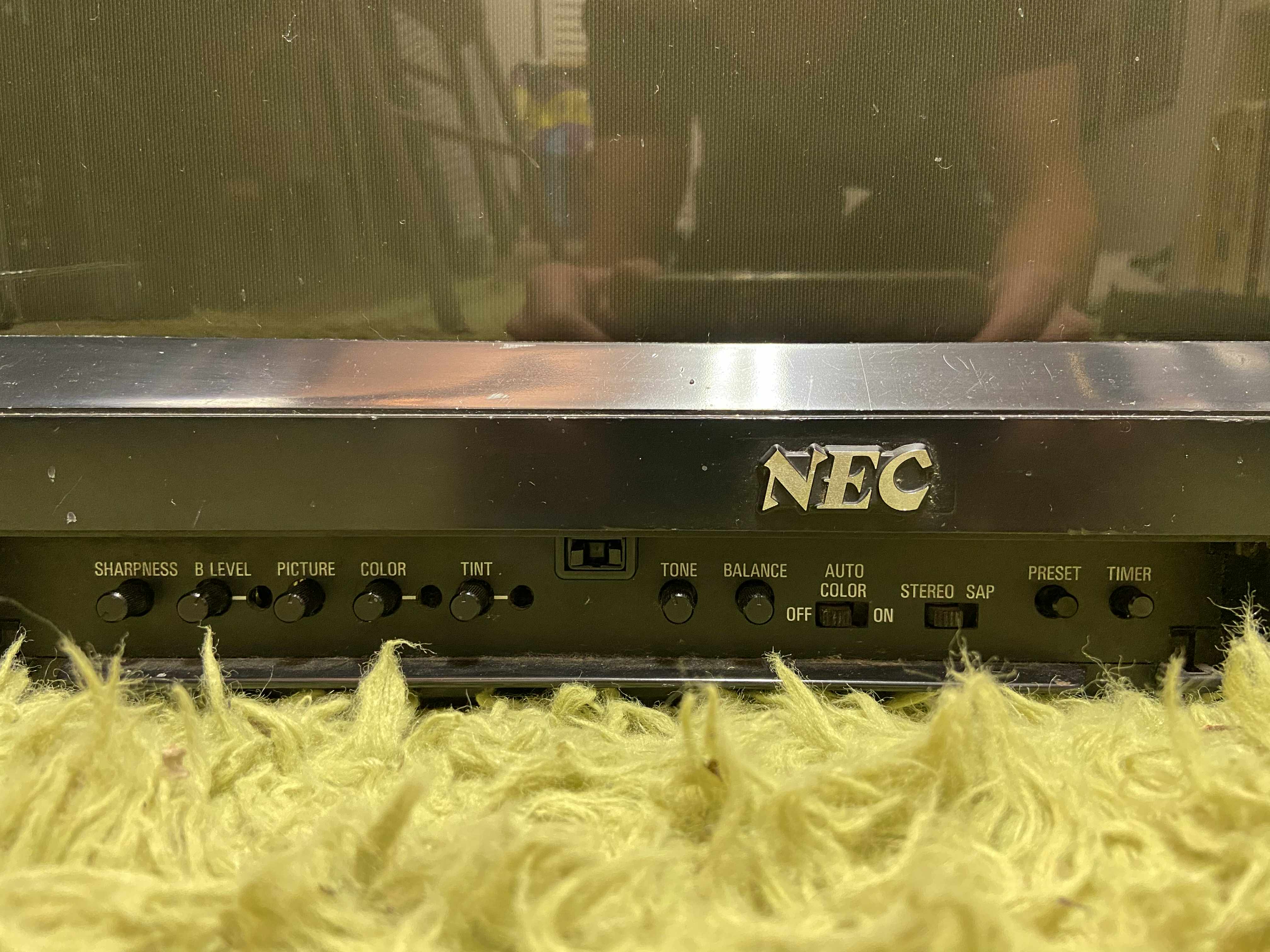

| Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |
| Jungle: | Toshiba, TA7777N, NTE1790, NTE |
| Comb Filtering: | Glass |
| Focus Type: | Single |
| Tube: | RCA |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |

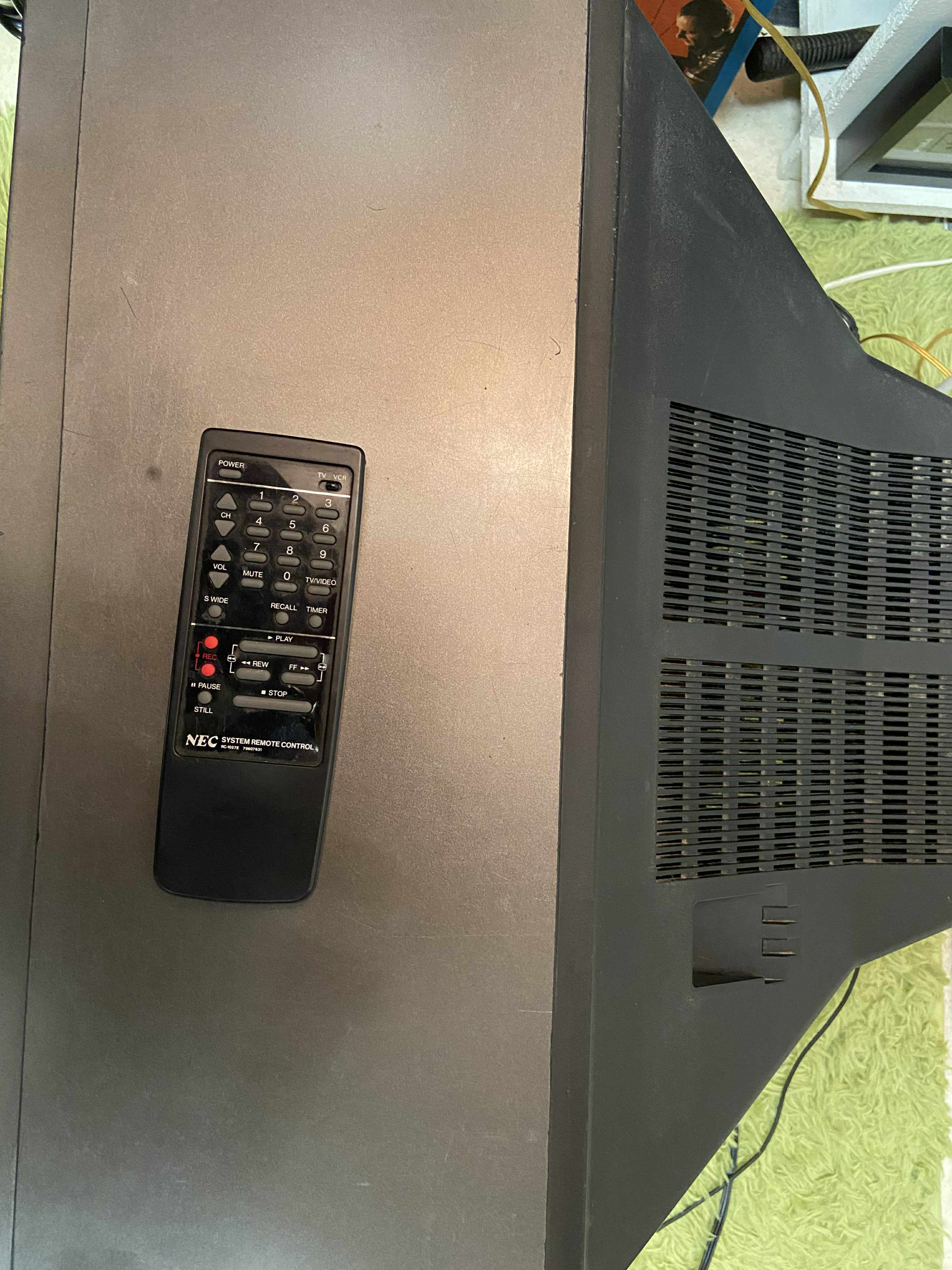

| Remote: | RC-1027E |
| Weight: | 48.5 lbs (22 kg) |
| Dimensions (W/H/D): |
609.6 x 450.1 x 467.4 mm
(24 x 17.7 x 18.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1987 |
| MSRP: | 599 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
