NEC CT-2060A
SegaSaturn94, Eli Krause
November 5, 2024, 6:59 pm
October 18, 2025, 7:46 pm
November 5, 2024, 6:59 pm
October 18, 2025, 7:46 pm
Summary
Stereo set with red LED indicator lights and a 90° FST tube made in Japan.
Manuals
Media & Promo Materials
- Billboard New Video Products 1986
- Newspaper Ad 1987, $499
- Stereo Review Presents Video Buyers Guide 1988
Notes
There are many unlabelled potentiometers and switches internally. S401 adjusts vertical position, and S501 adjusts horizontal position. This set can likely be S-Video modded.
Repair Notes
One speaker was blown, and both had their foam completely disintegrated. At least six electrolytic capacitors had gone open by 2024, including C660.

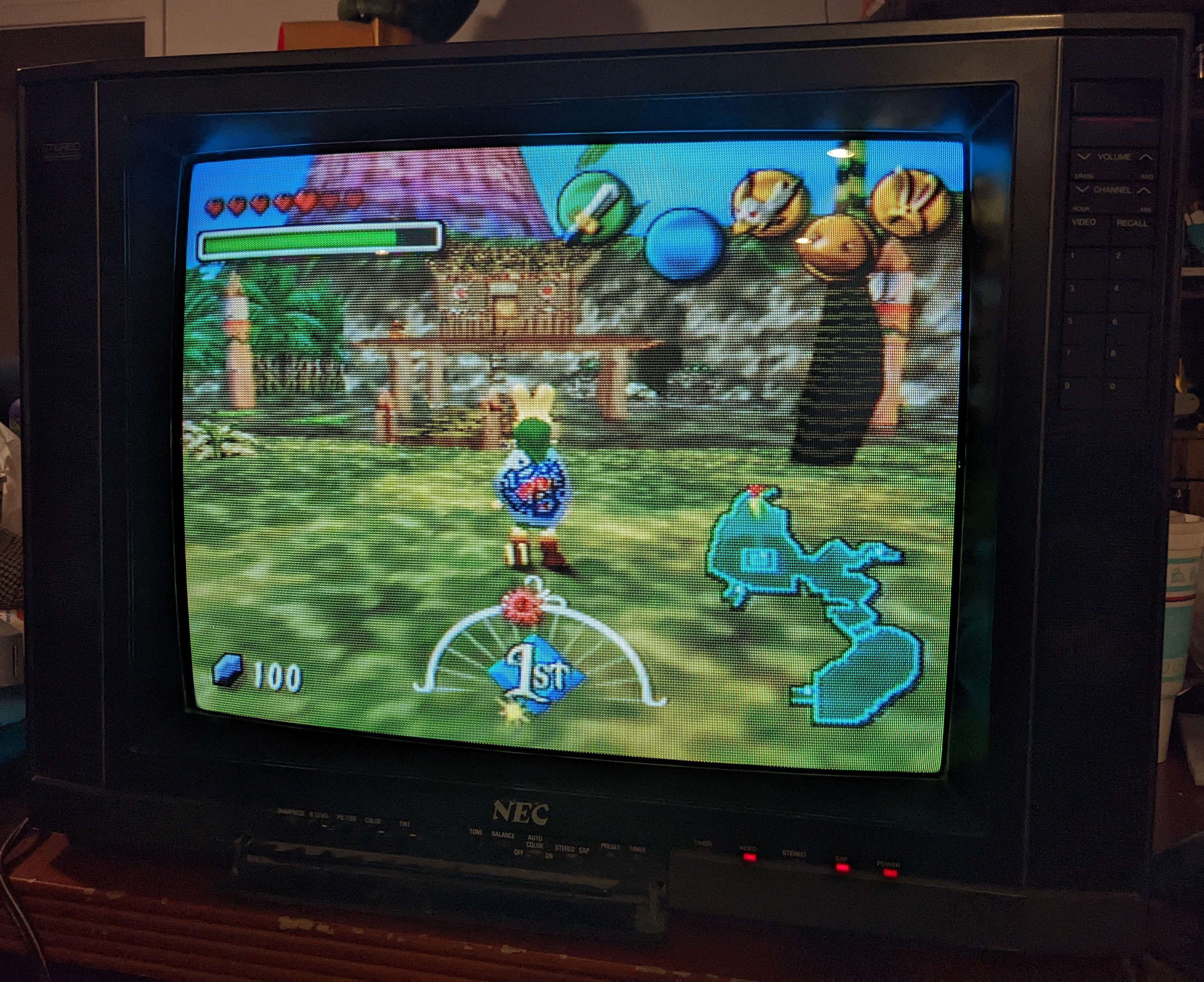

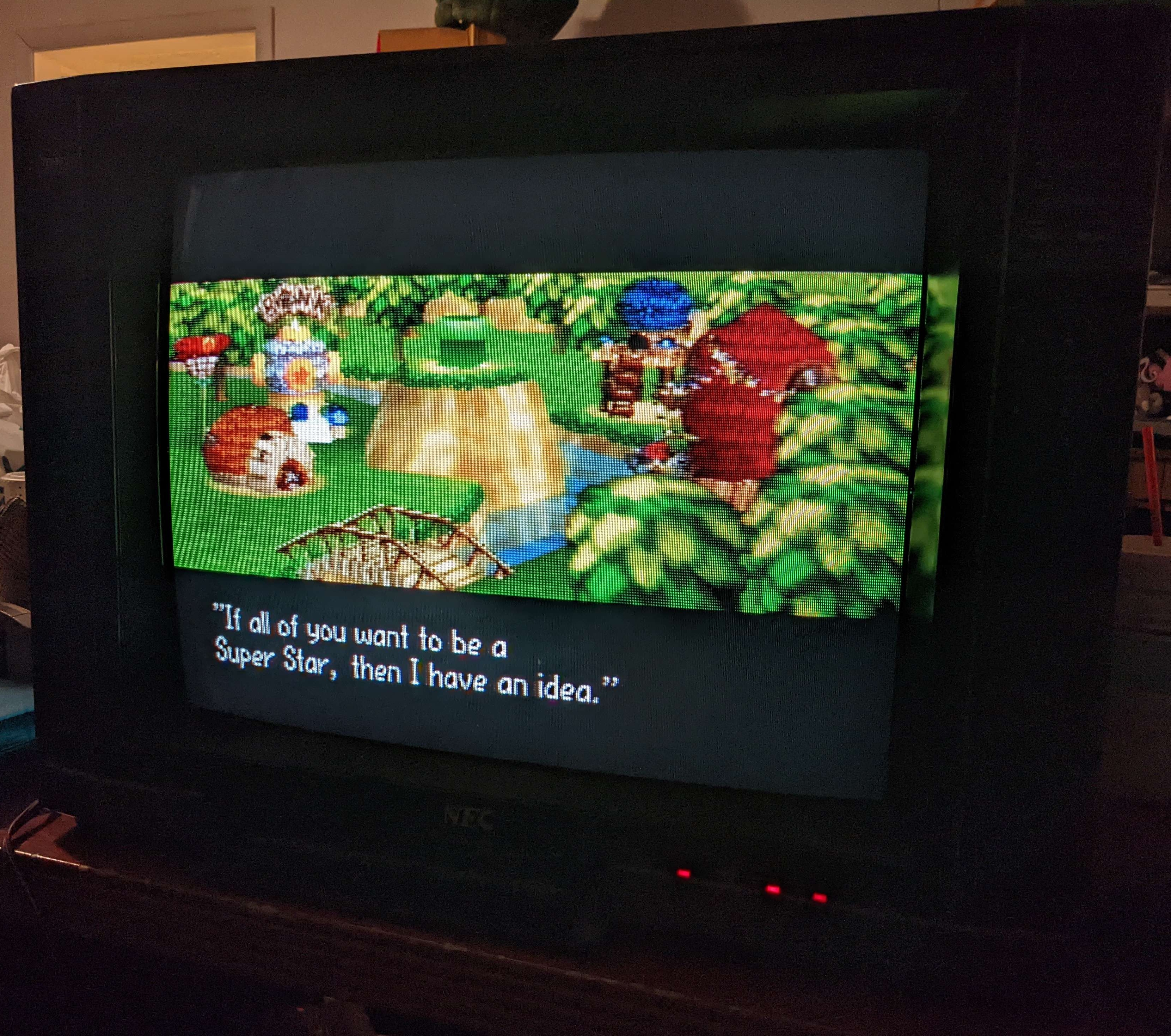

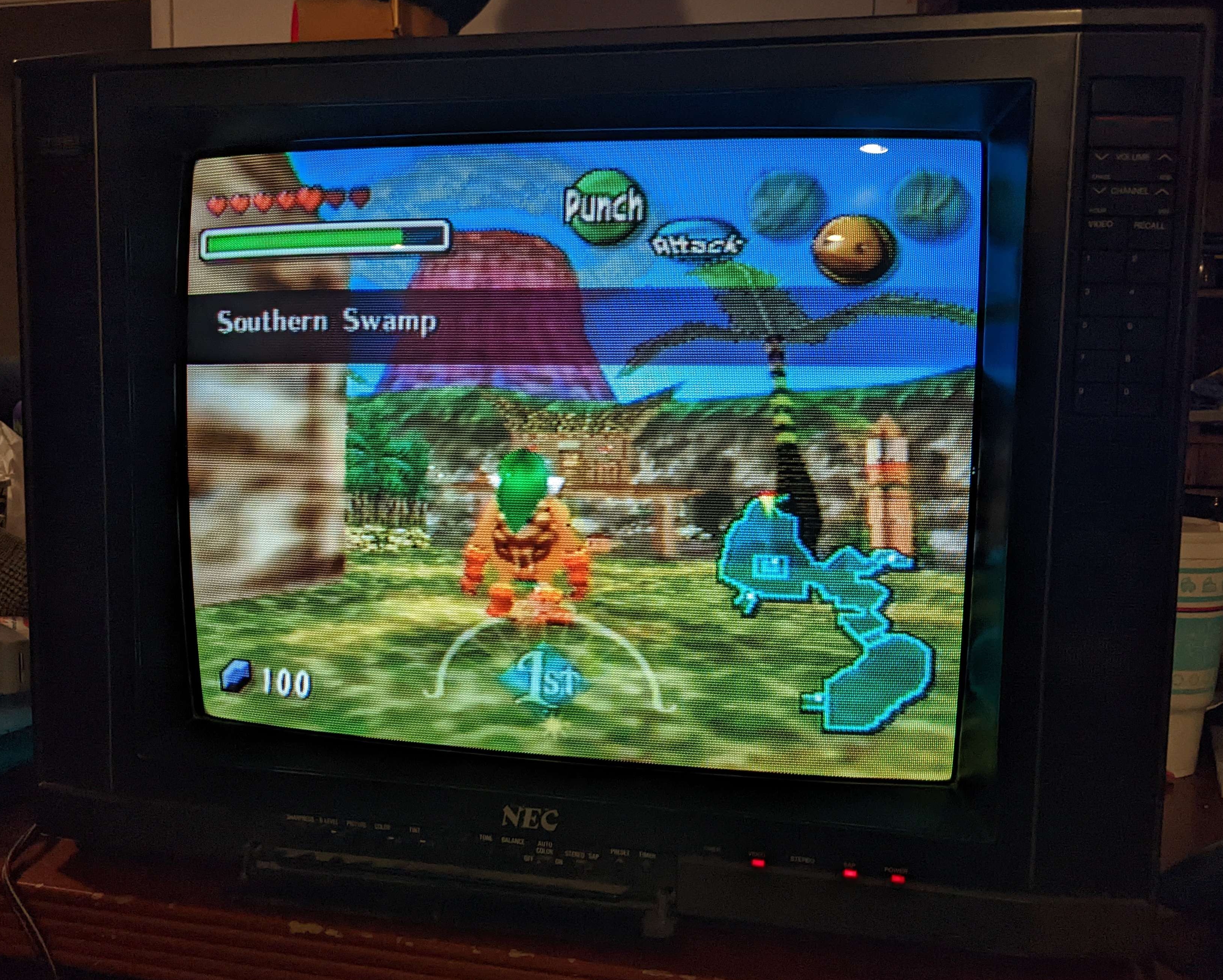

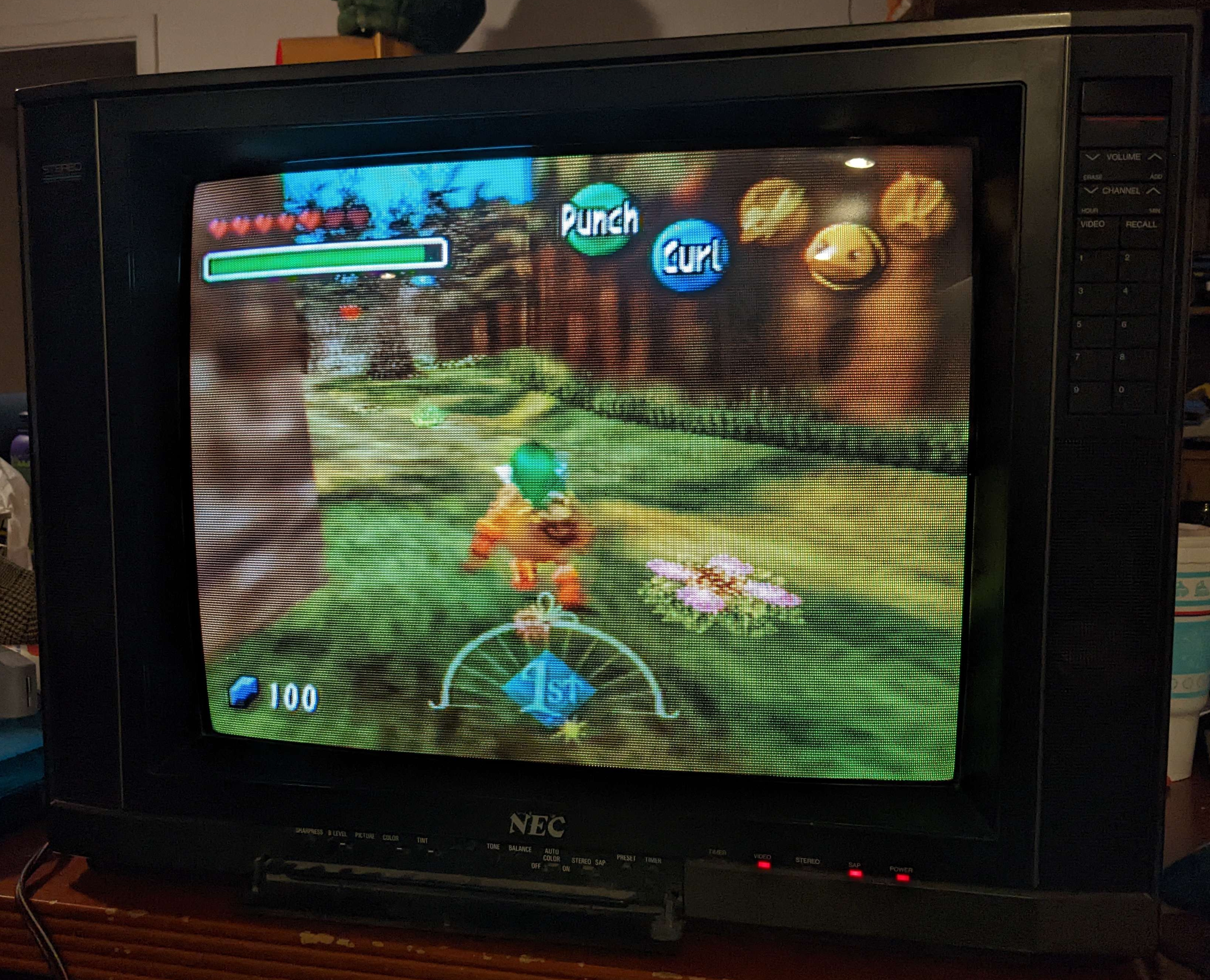

Gallery
| Specifications | |
|---|---|
| Brand: | NEC |
| Manufacturer: | NEC |
| Model: | CT-2060A |
| Series: | CT |
| Viewable Size: | 20" |
| Inputs: | Composite, RF |
| Sync: | Sync over Composite |
| Native Resolutions: | 240p, 480i |
| Linecount: | 380 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle IC: | TA7777N, NTE1790 |
| Comb Filtering: | Glass |
| Tube: | A51JPE90X , FST |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Pitch: | .81 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 48007287 |
| Yoke Horz. Resistance: | 3.0 ohm |
| Yoke Vert. Resistance: | 10.2 ohm |
| Speakers: | Stereo |
| Chassis: | 24370 |
| Weight: | 48.5 lbs (22 kg) |
| Dimensions (W/H/D): |
609.6 x 450.1 x 467.4 mm
(24 x 17.7 x 18.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1986 |
| MSRP: | 600 USD |
| Country of Manufacture: | USA |
| Mods: | S-Video |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Repair Log |
