Summary

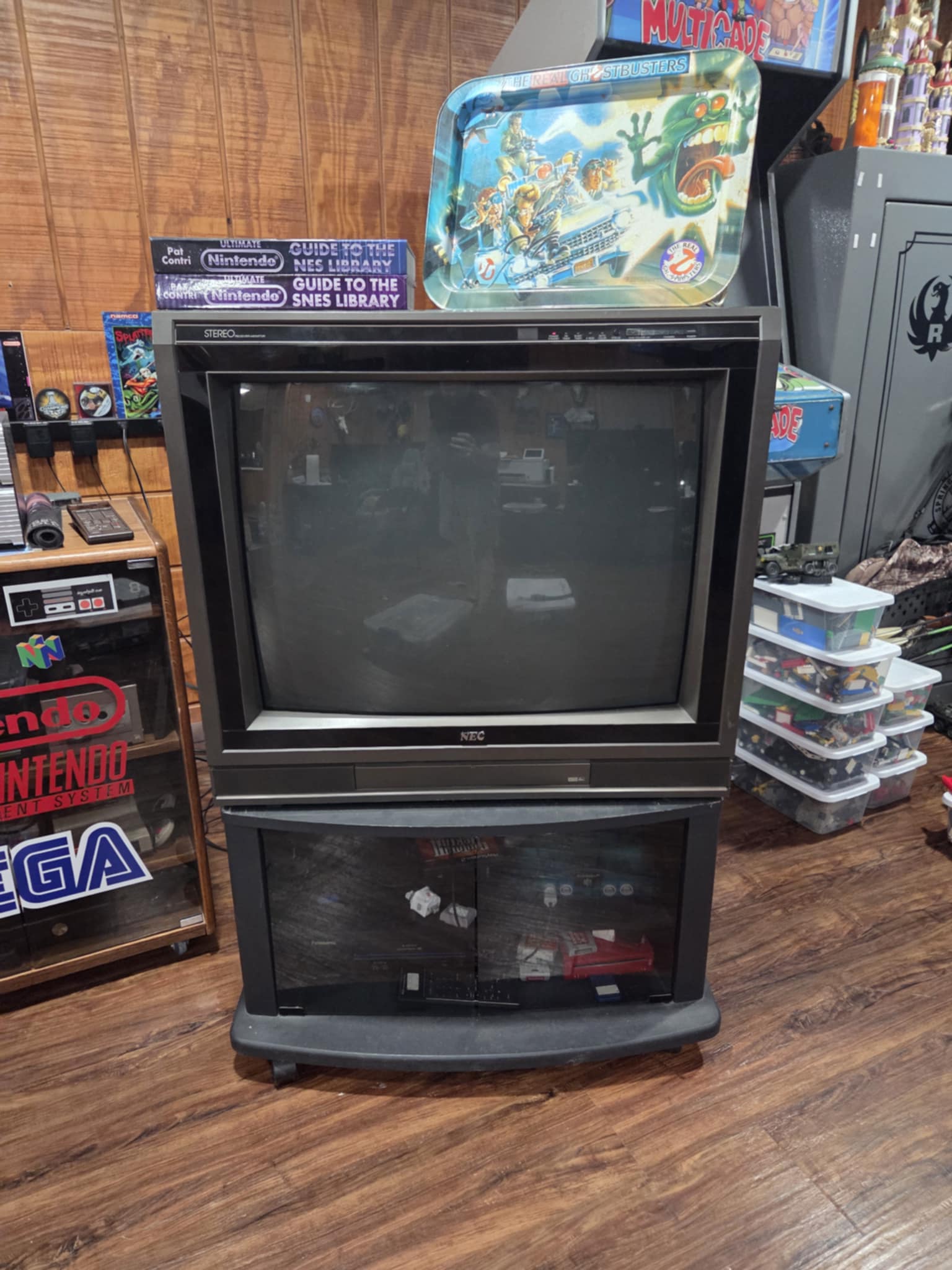

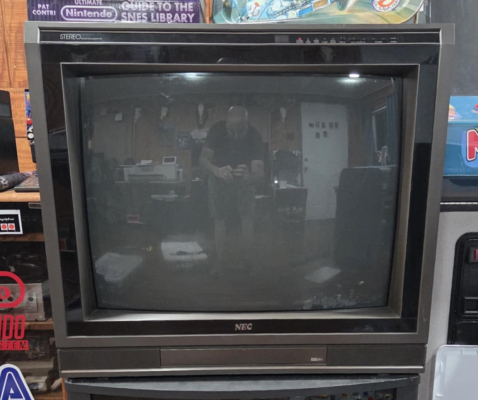

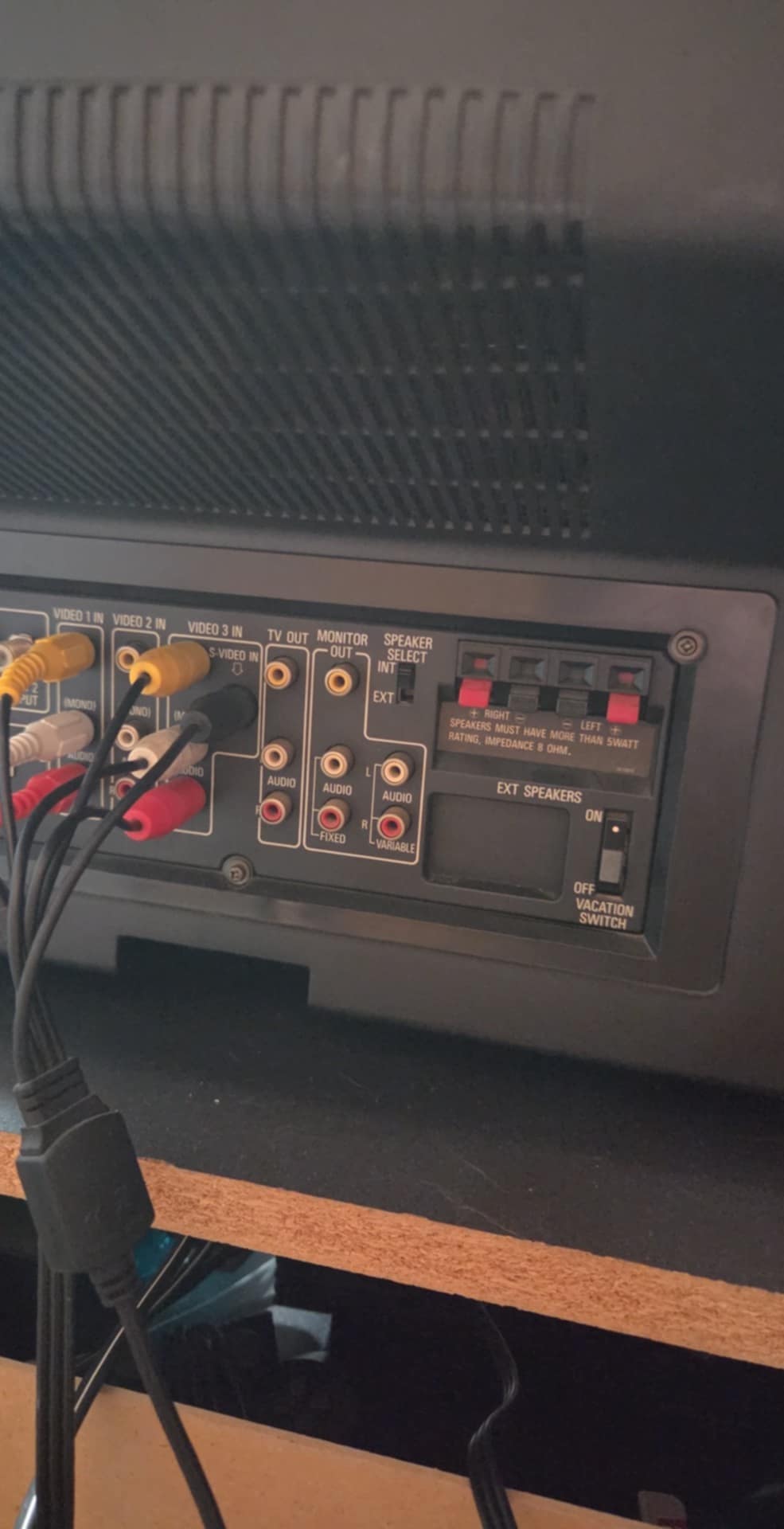

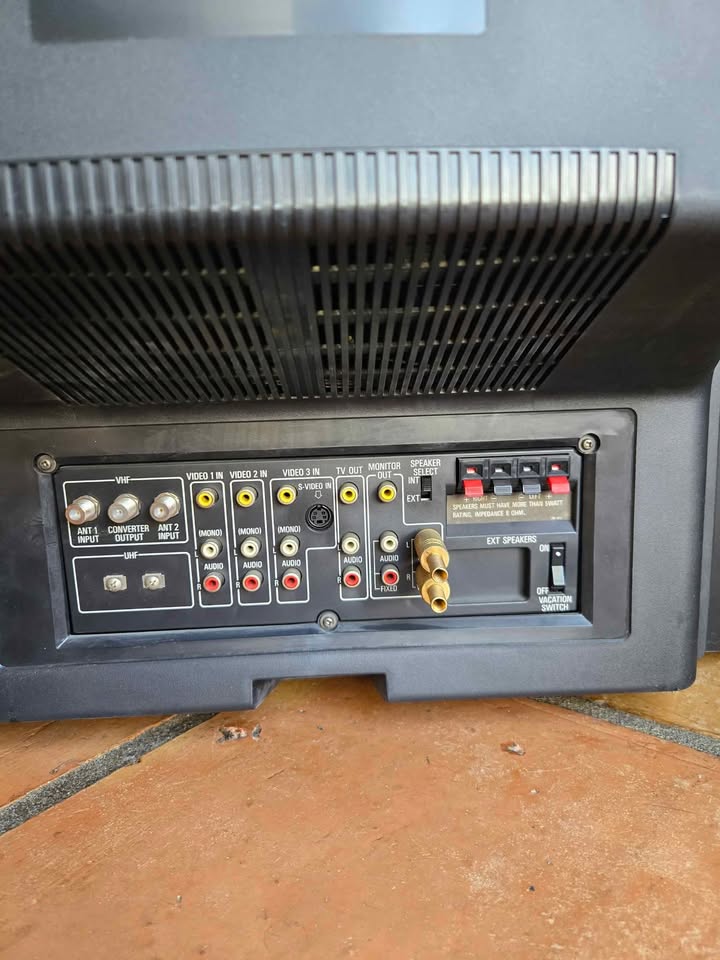

High-end 30" CRT by NEC. External speaker outputs are rated for at least 5w and 8ohm resistance. Has the then-new "SVHS" input for separate luma-chroma video. Uses a 30" Toshiba FST-Magnum tube (later FST SuperTube) with an invar shadow mask. Made in the USA in 1987.
(Special thanks to Dave DeBoard for the pics!)
Manuals
No documentation is available online at this time.
Notes

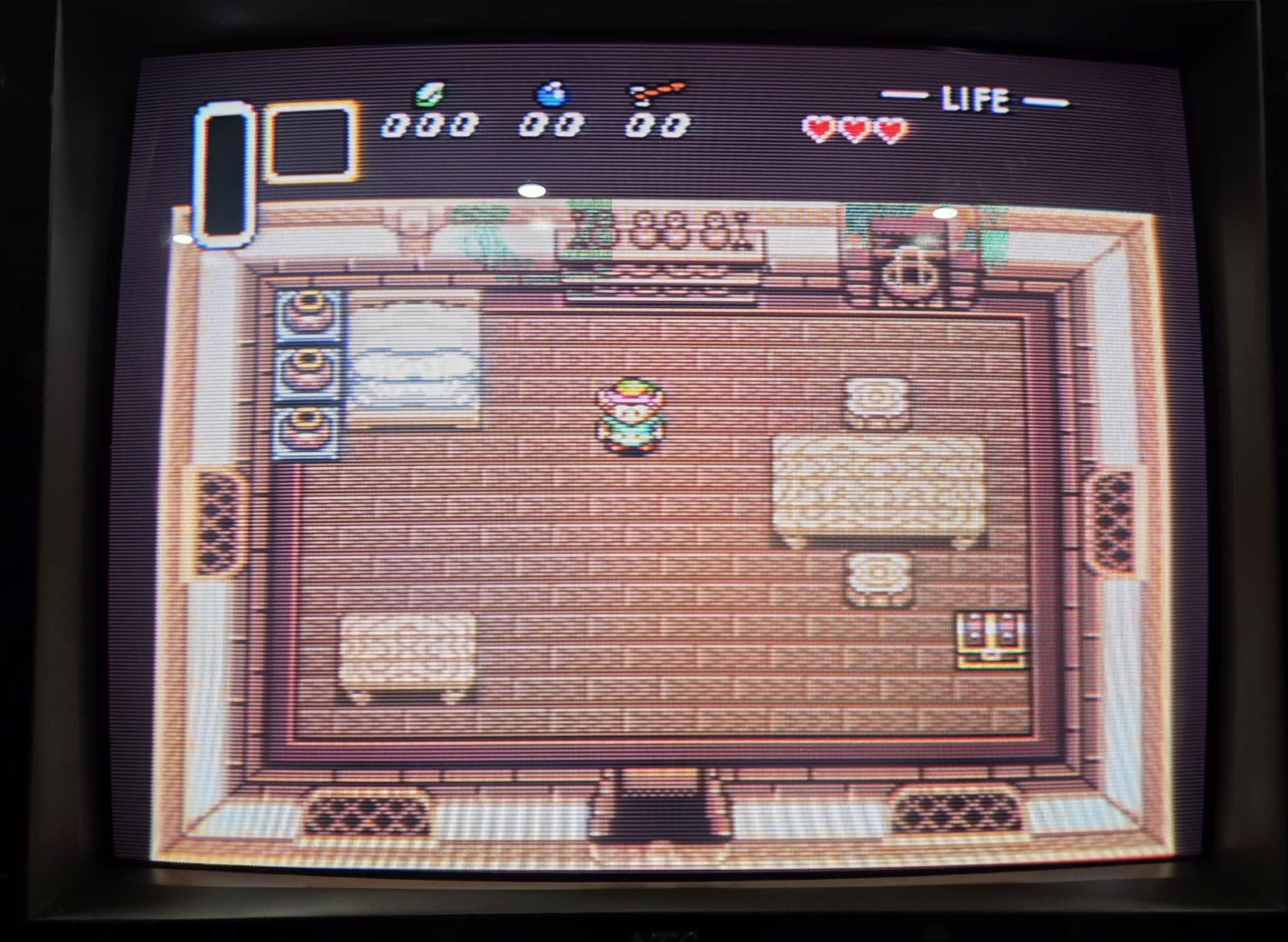

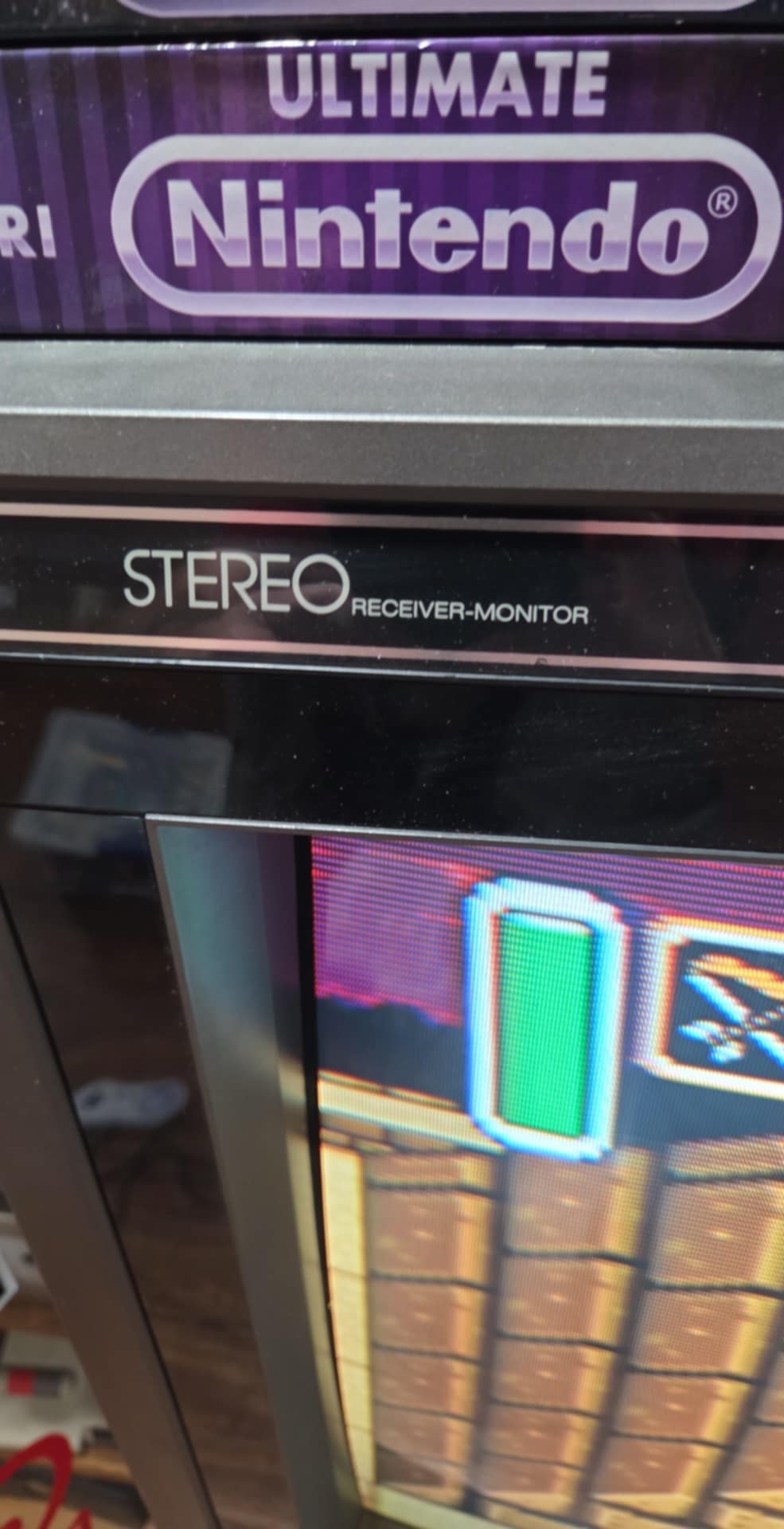

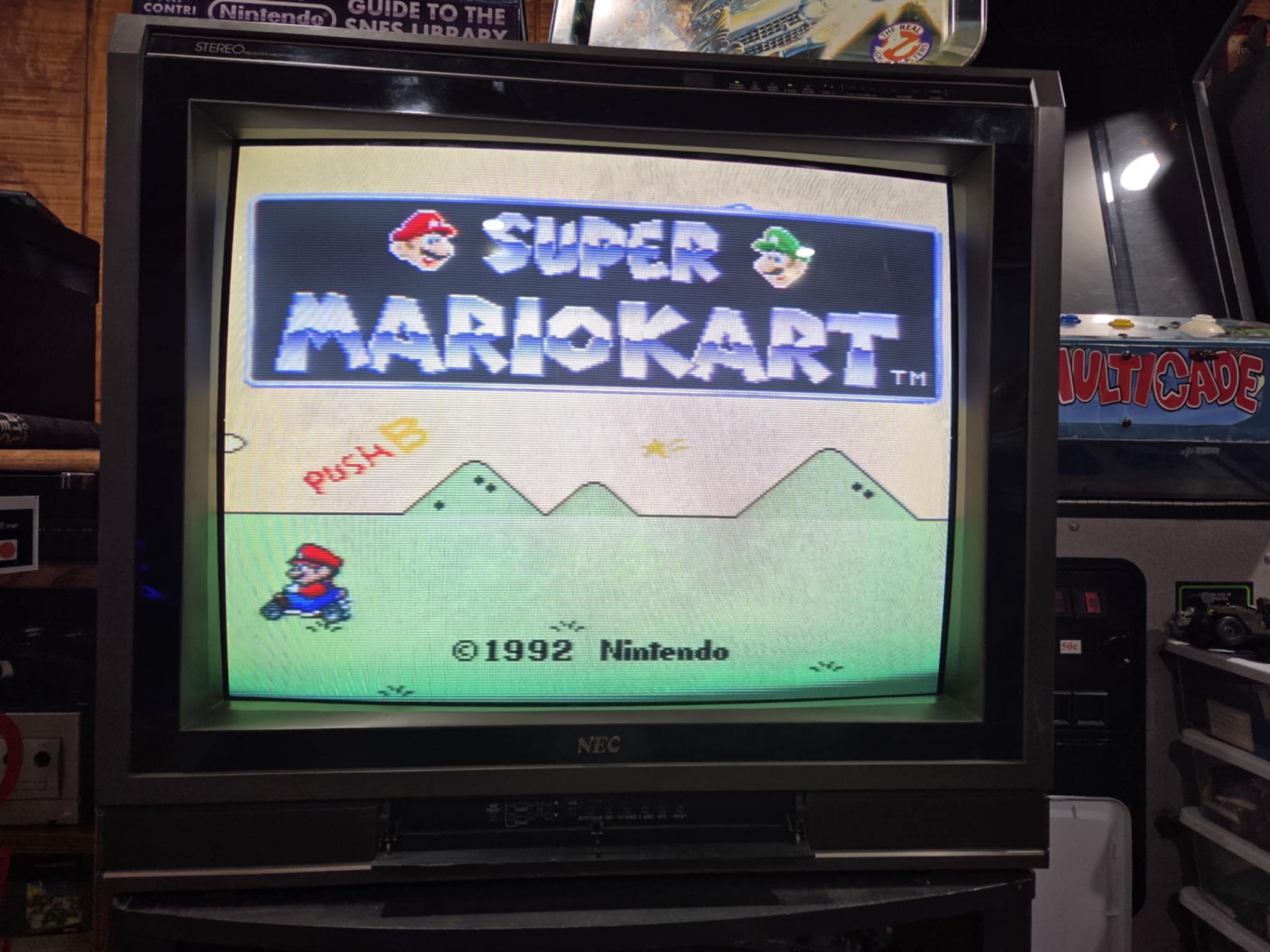

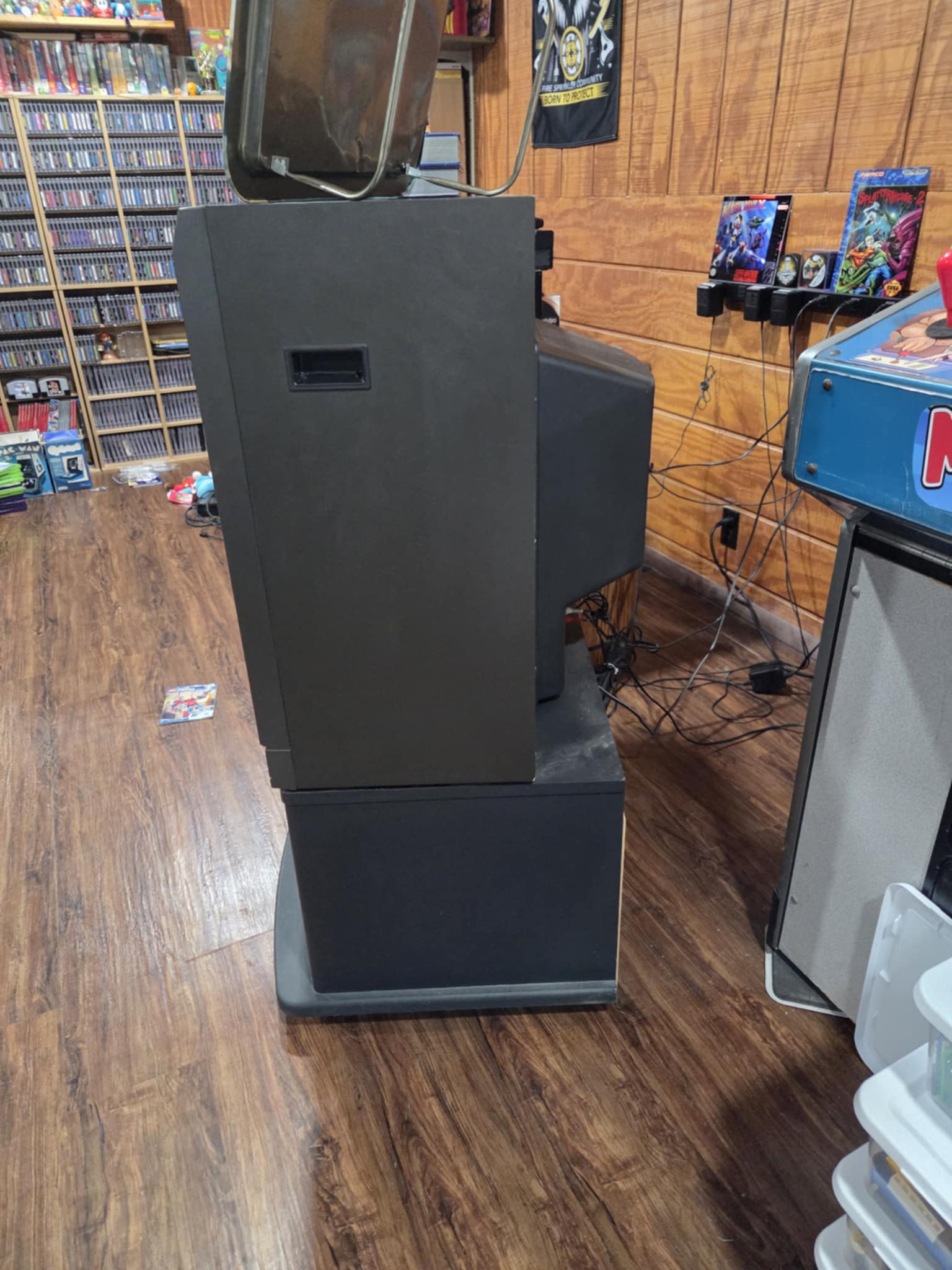

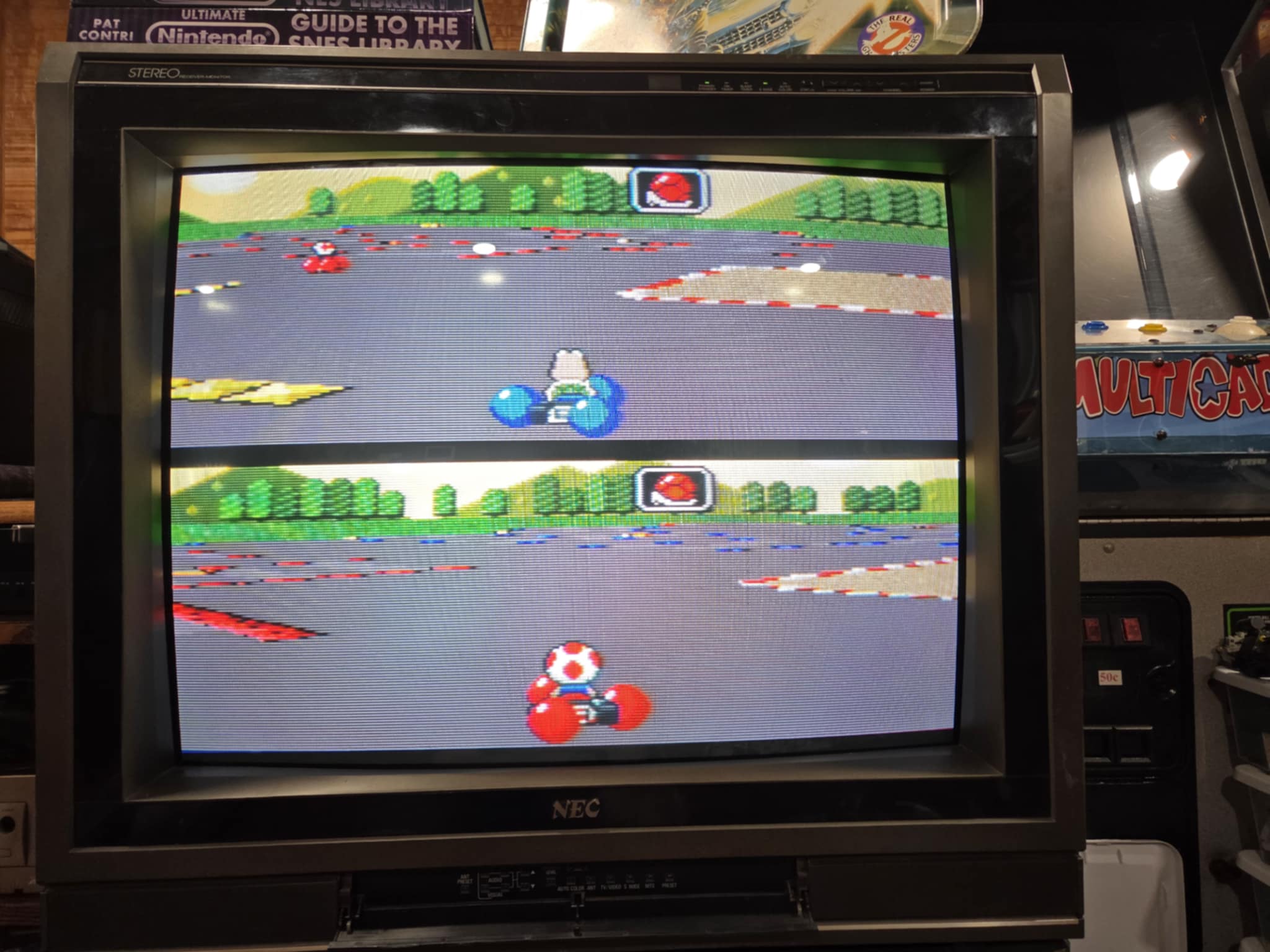

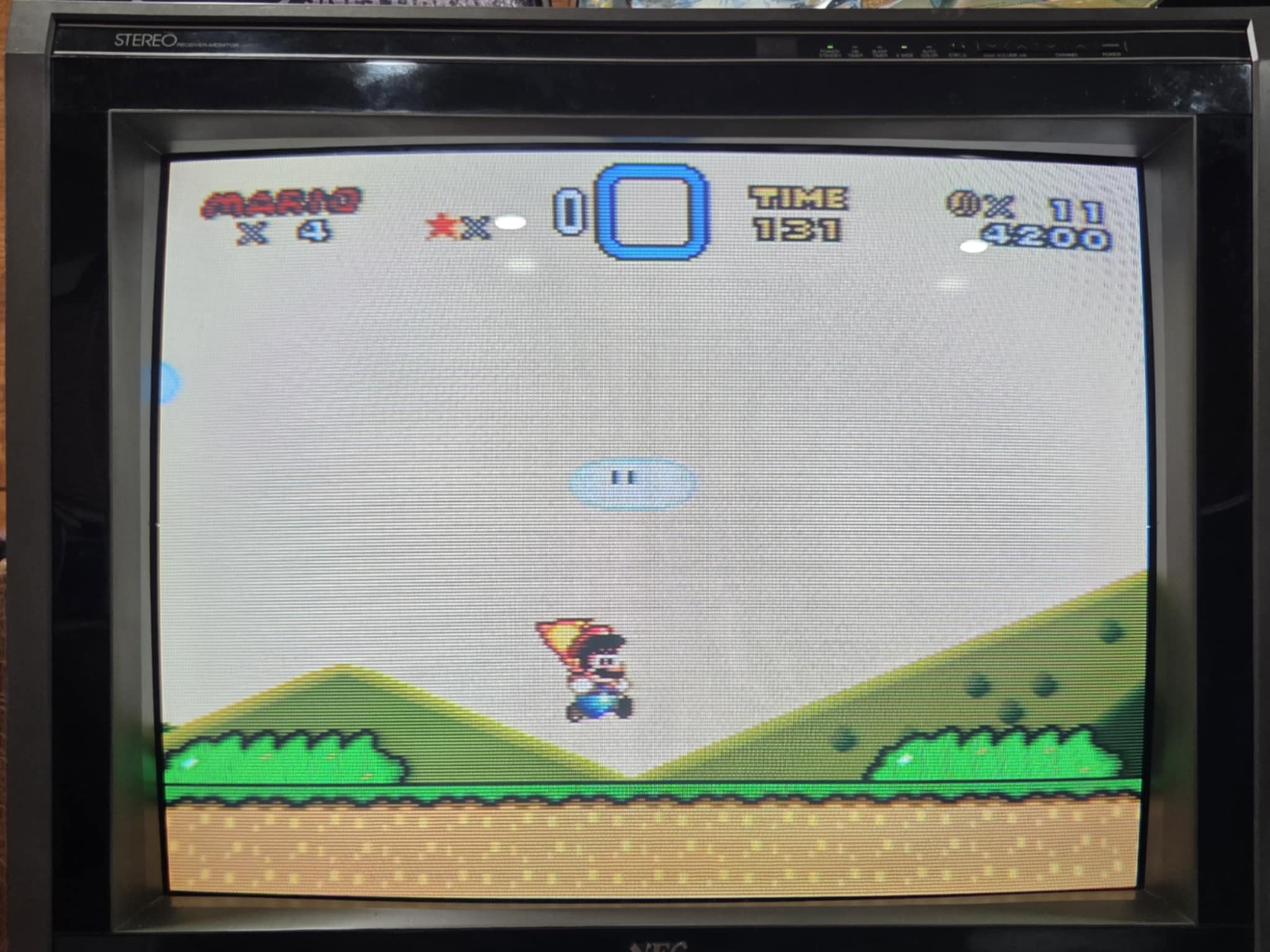

Gallery
| Specifications | |
|---|---|
| Brand: | NEC |
| Manufacturer: | NEC |
| Model: | CT-3000S |
| Series: | S |
| Viewable Size: | 30" |

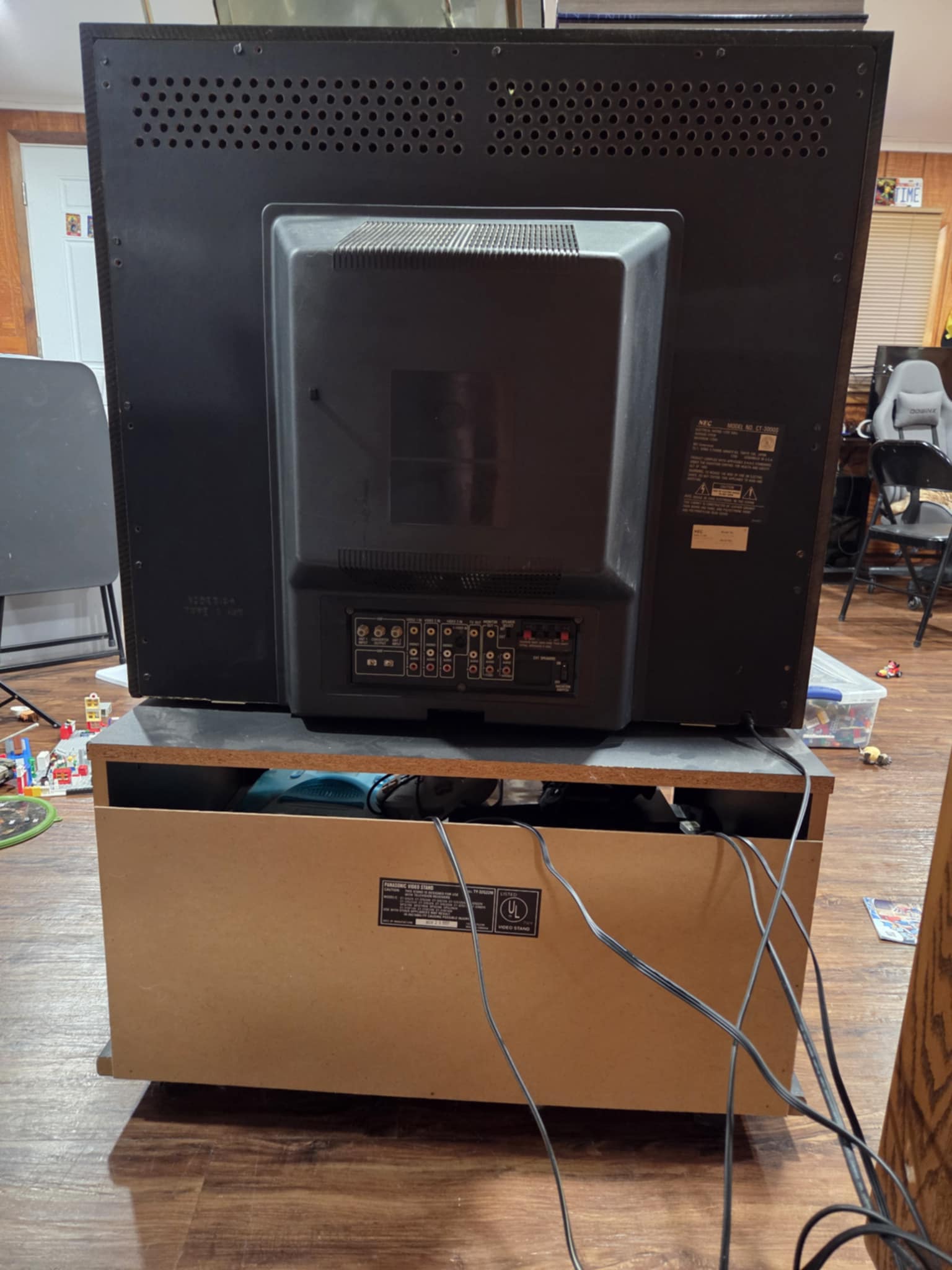

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Linecount: | 500 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |
| Comb Filtering: | 2-Line Digital |
| Focus Type: | Single |

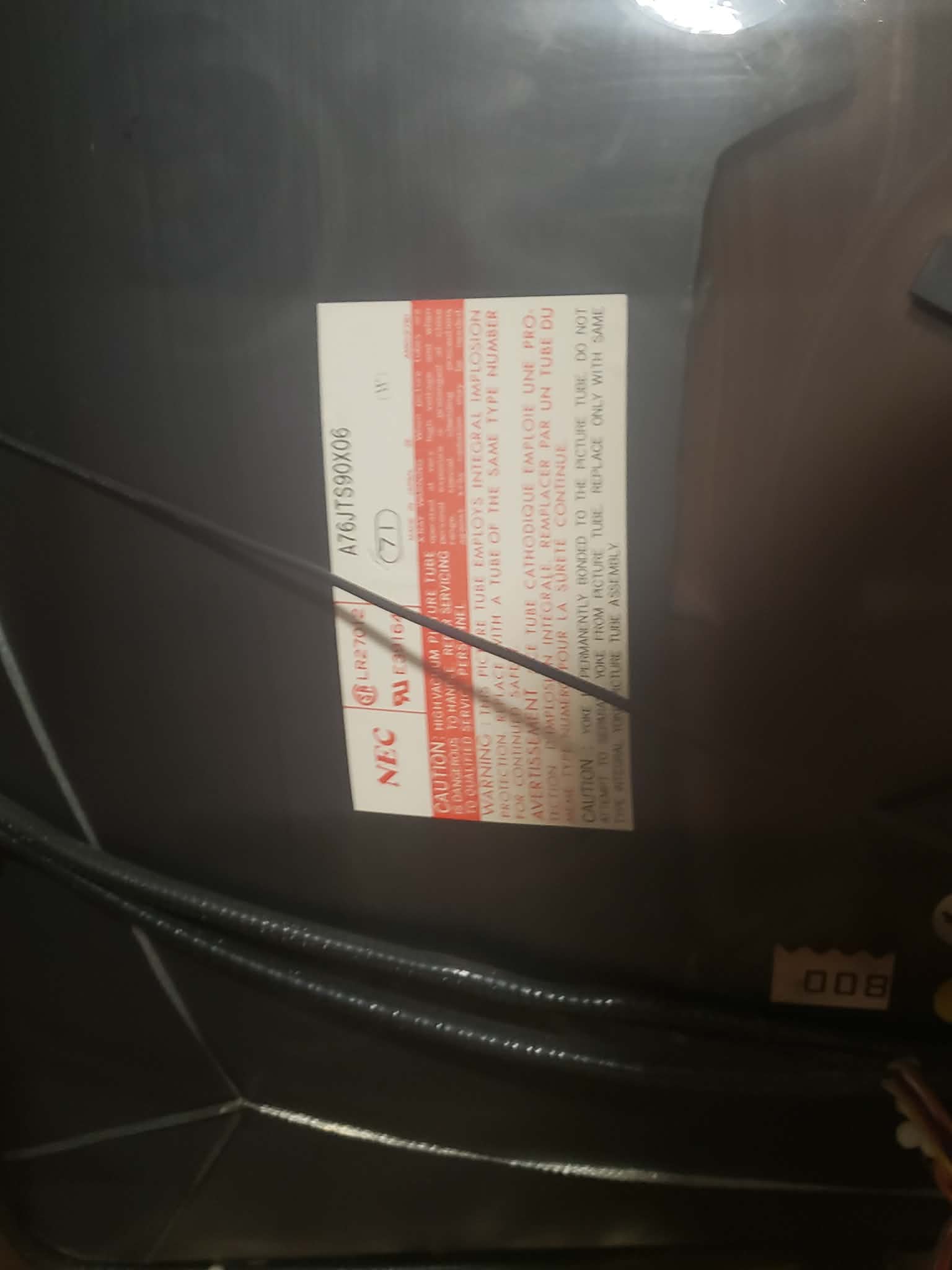

| Tube: | Toshiba , A76JTS90X , A76JTS90X06 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, Amplifier |

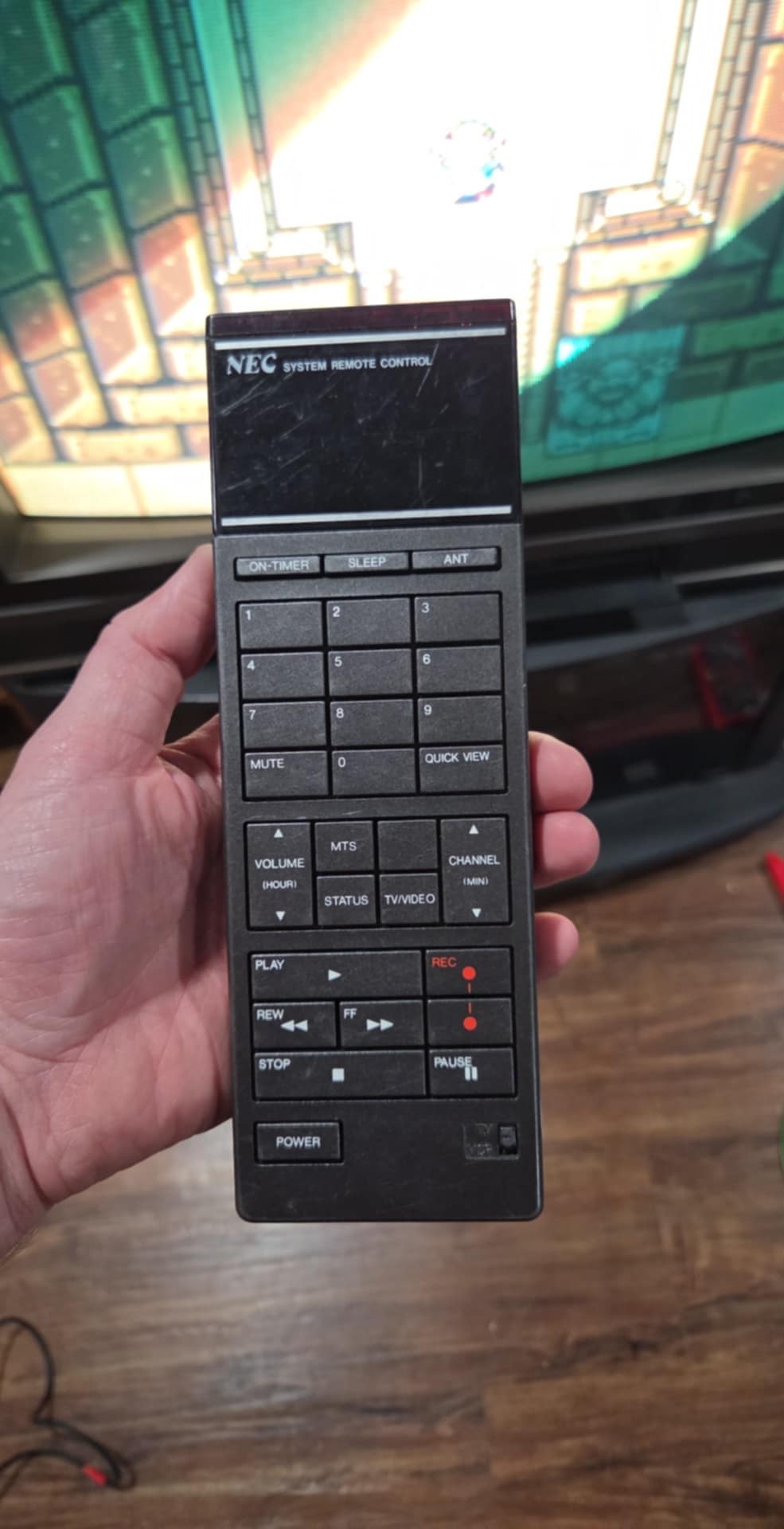

| Remote: | CT3000S |
| Application: | Consumer |
| Cabinet Material: | Wood |
| Launched: | 1987 |
| MSRP: | 2199 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |

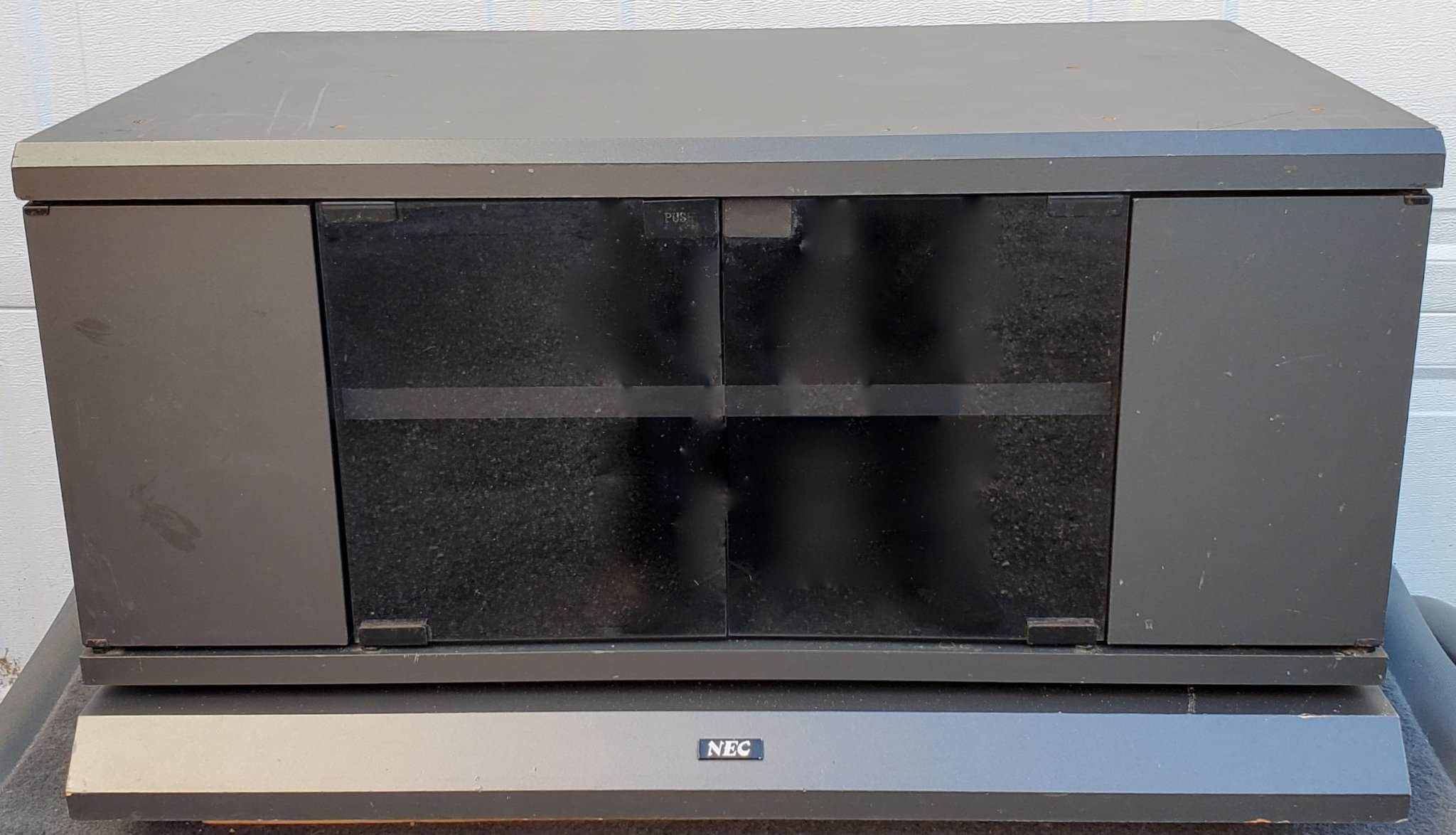

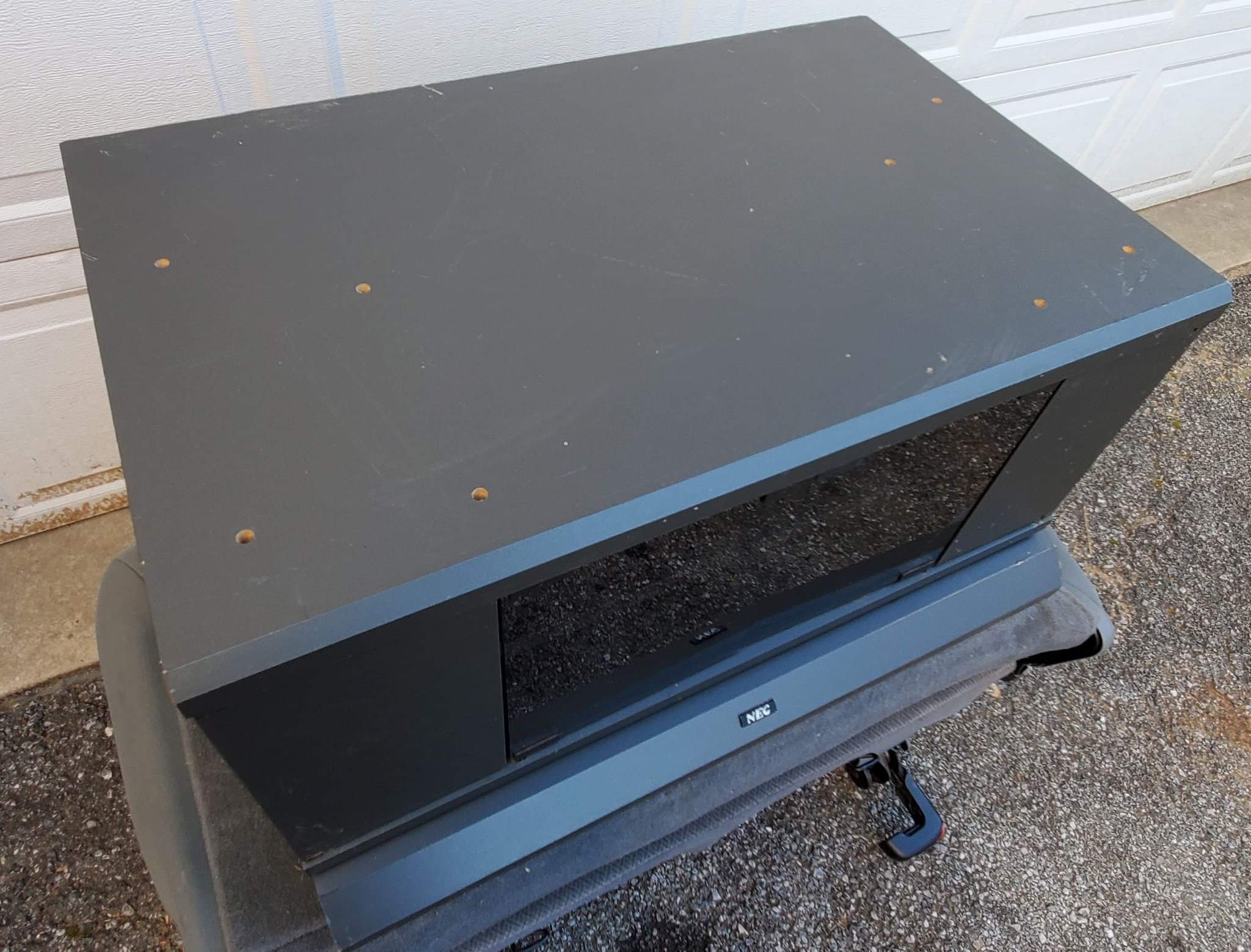

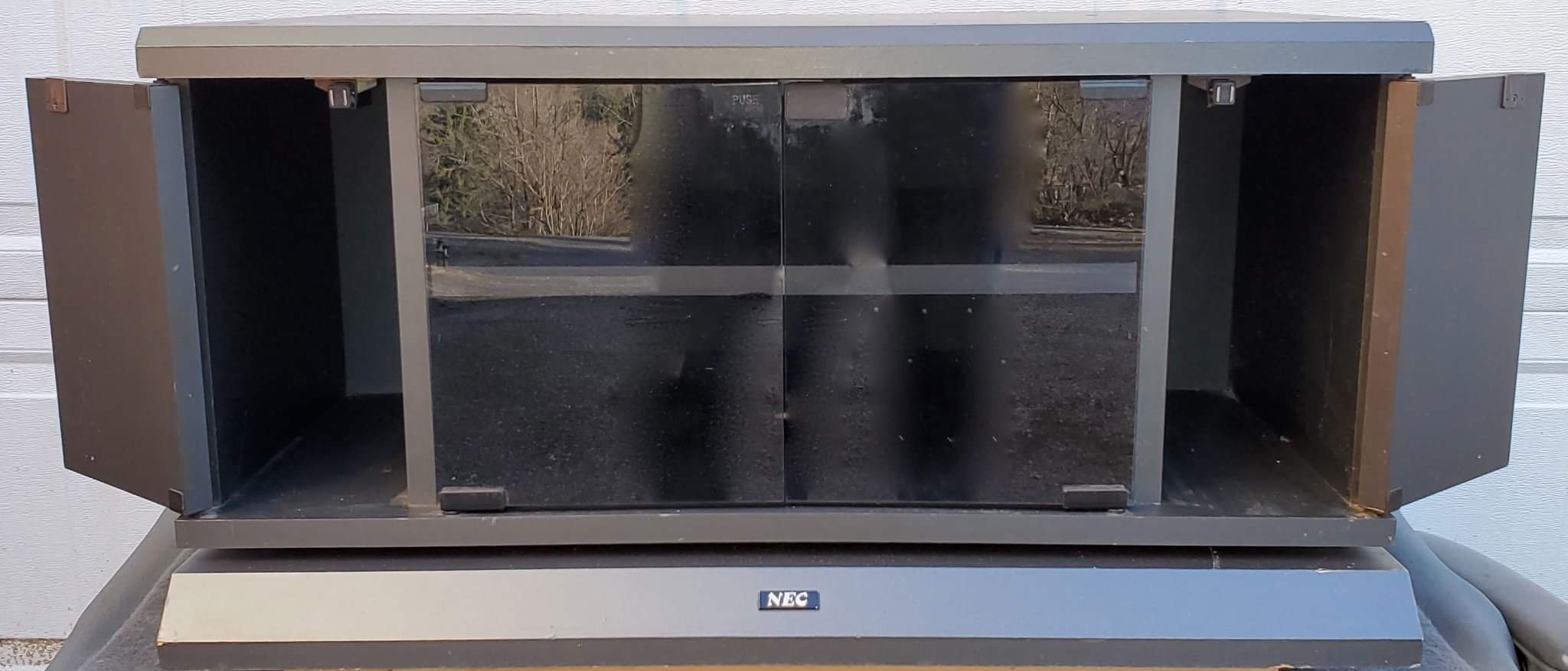

| Mounting: | Desk Stand, OEM Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
