Summary

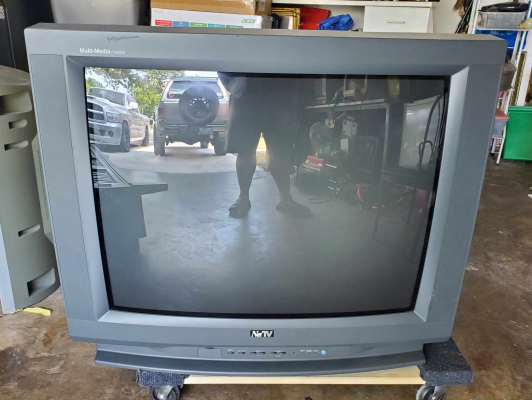

32" presentation monitor by NetTV, introduced in 1999. Originally manufactured by Sampo in Taiwan. Has composite, s-video, and VGA input with bassy stereo speakers. Intended for institutional and professional environments.
(Special thanks to Dominick Torres for some of the pics!)
Manuals
Despite using a different chassis, it is effectively the same as the DTV34X:
- SME-23DL3 User Manual (Closest equivalent)
- SME-23DL3 and SME-72DL3 Spec Sheet (Closest equivalent)
- NetTV DTV34X Spec Sheet (Closest equivalent)
- SME-23DL3 Service Manual (Closest equivalent)
Notes
Chassis can be modified for RGB. You can follow a guide on Michael J. Moffitt's website HERE

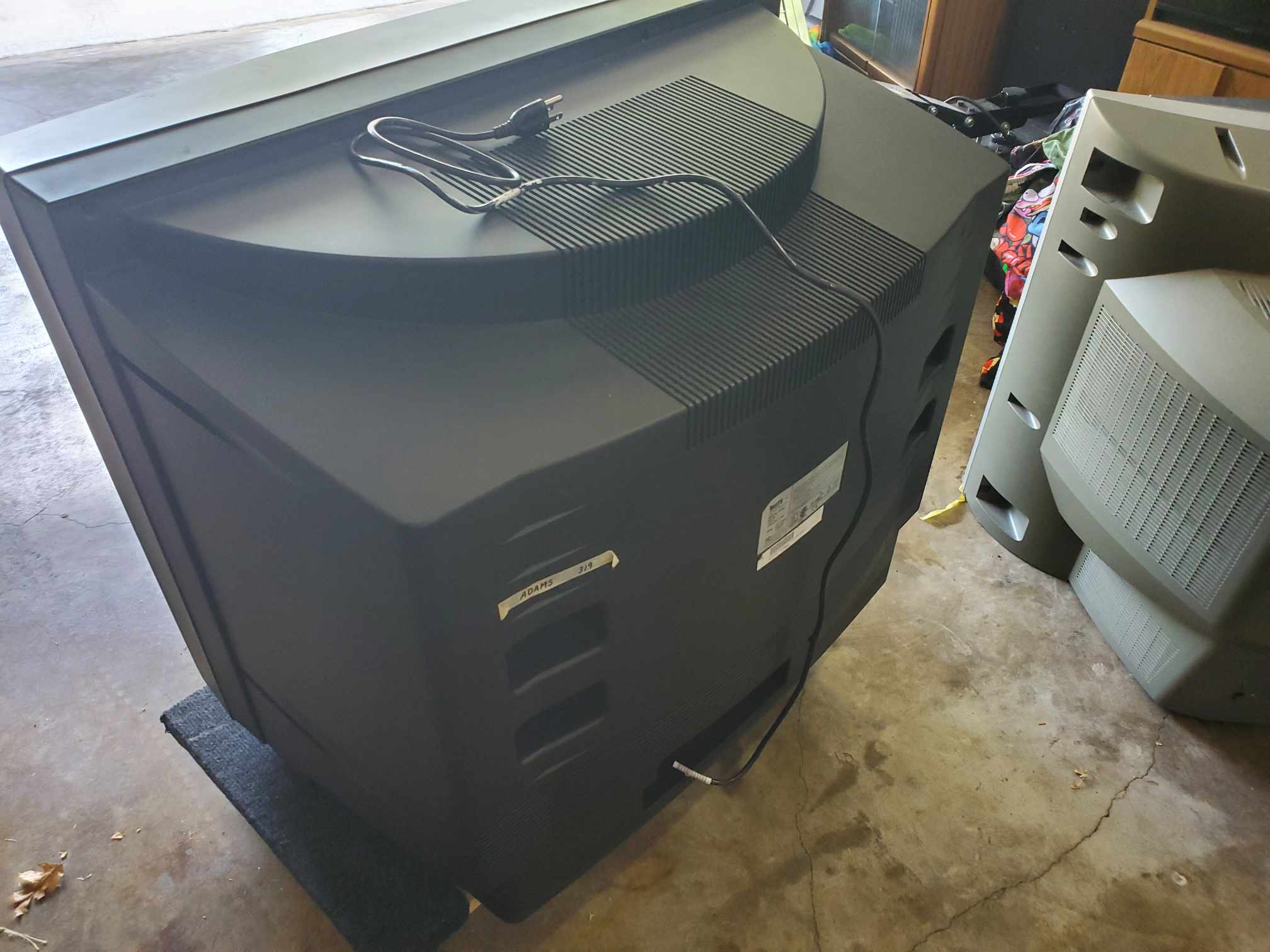

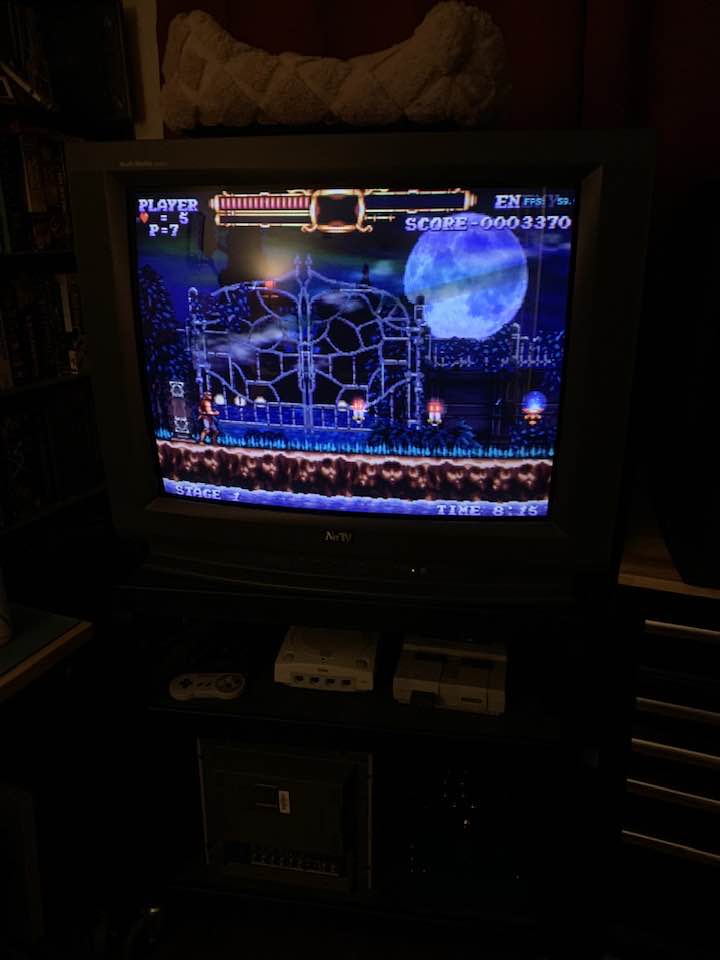

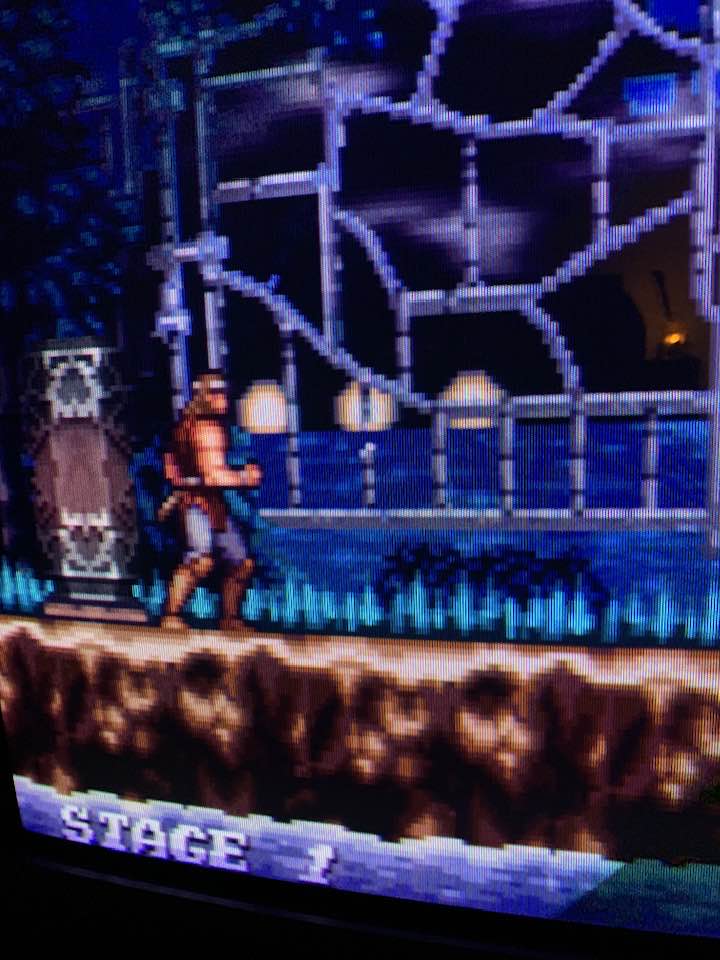

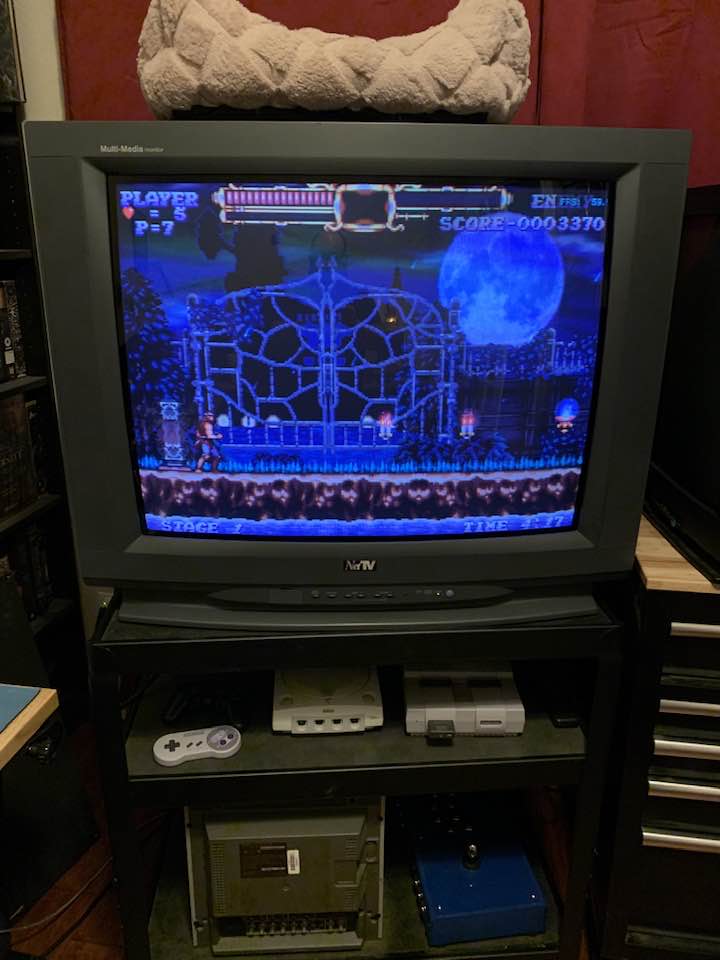

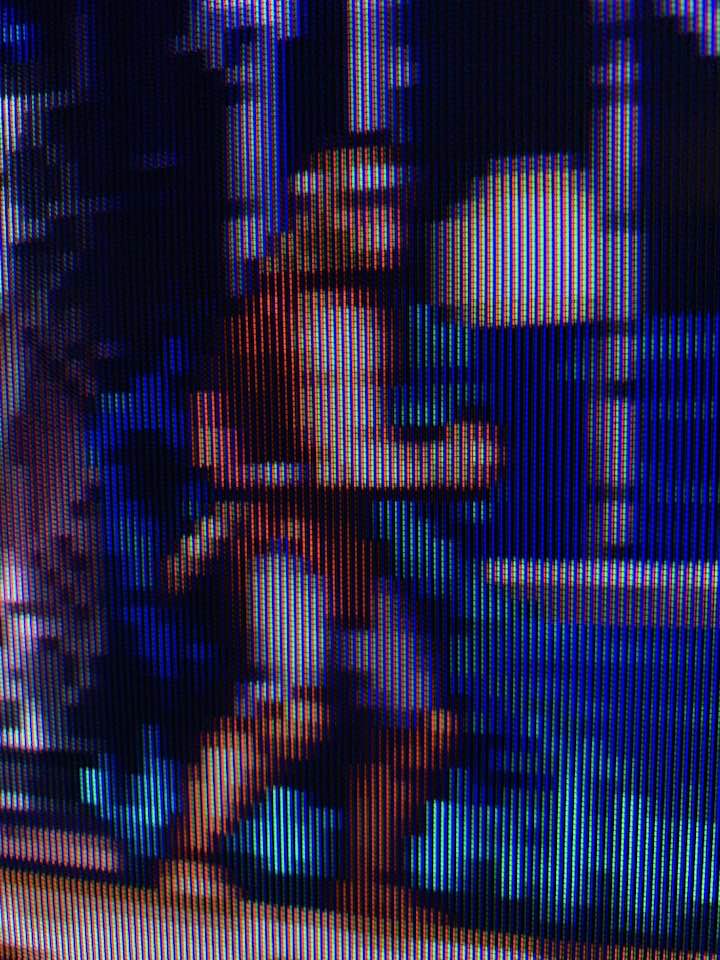

Gallery
| Specifications | |
|---|---|
| Brand: | NetTV |
| Manufacturer: | Sampo |
| Model: | SV3403 |
| Series: | SV |
| Viewable Size: | 32" |

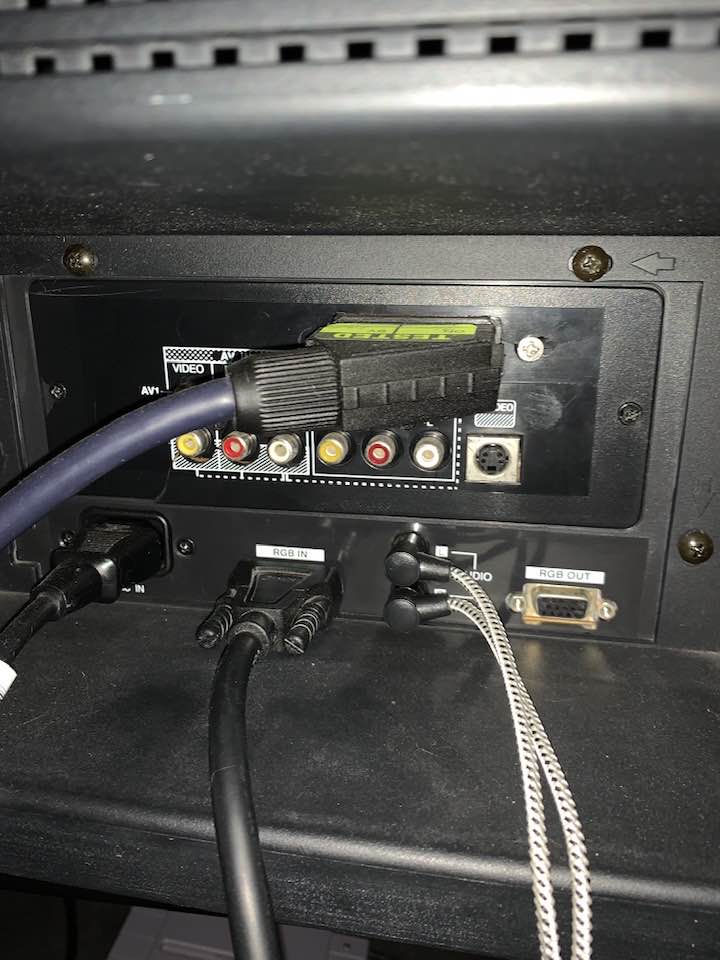

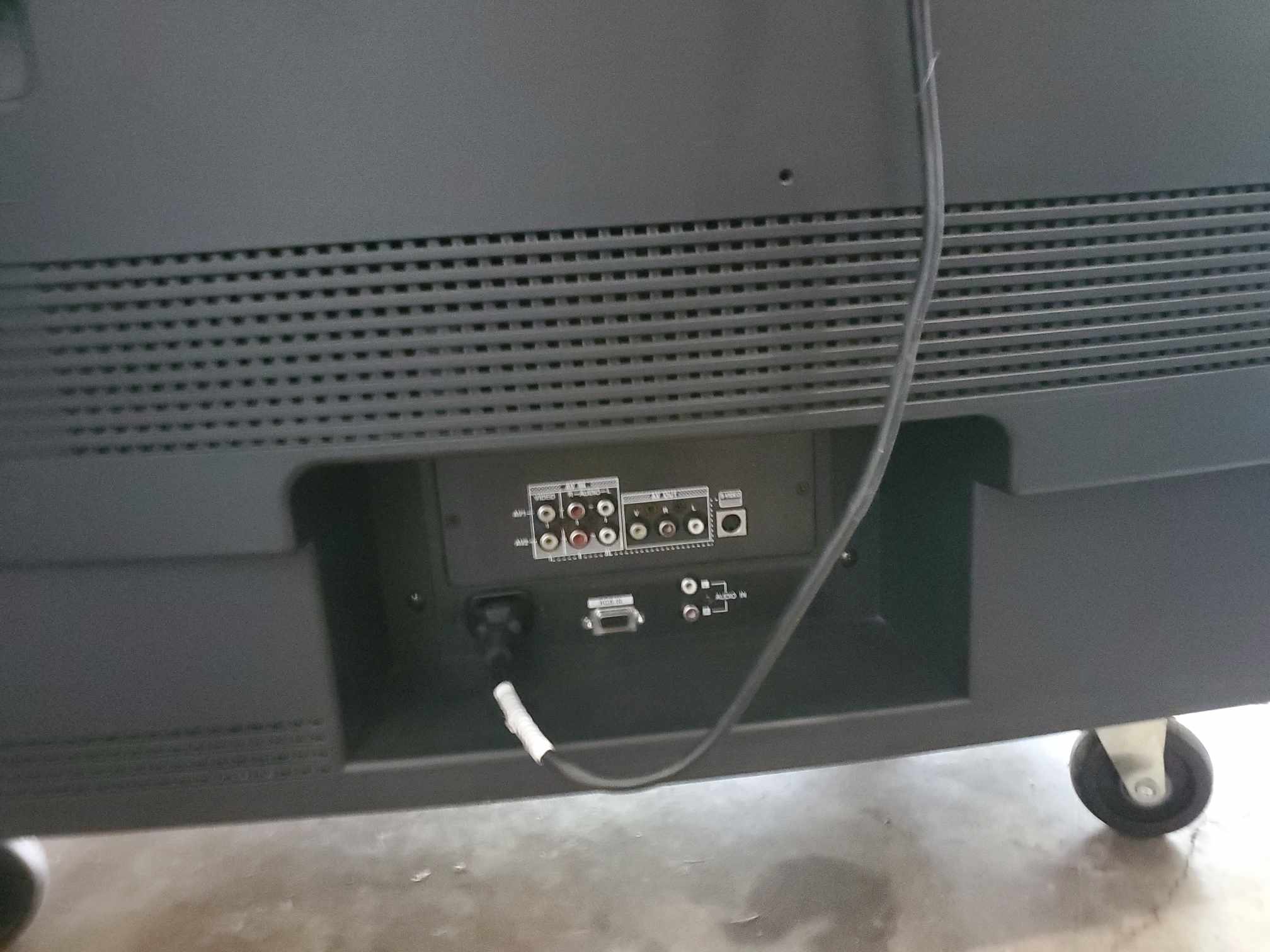

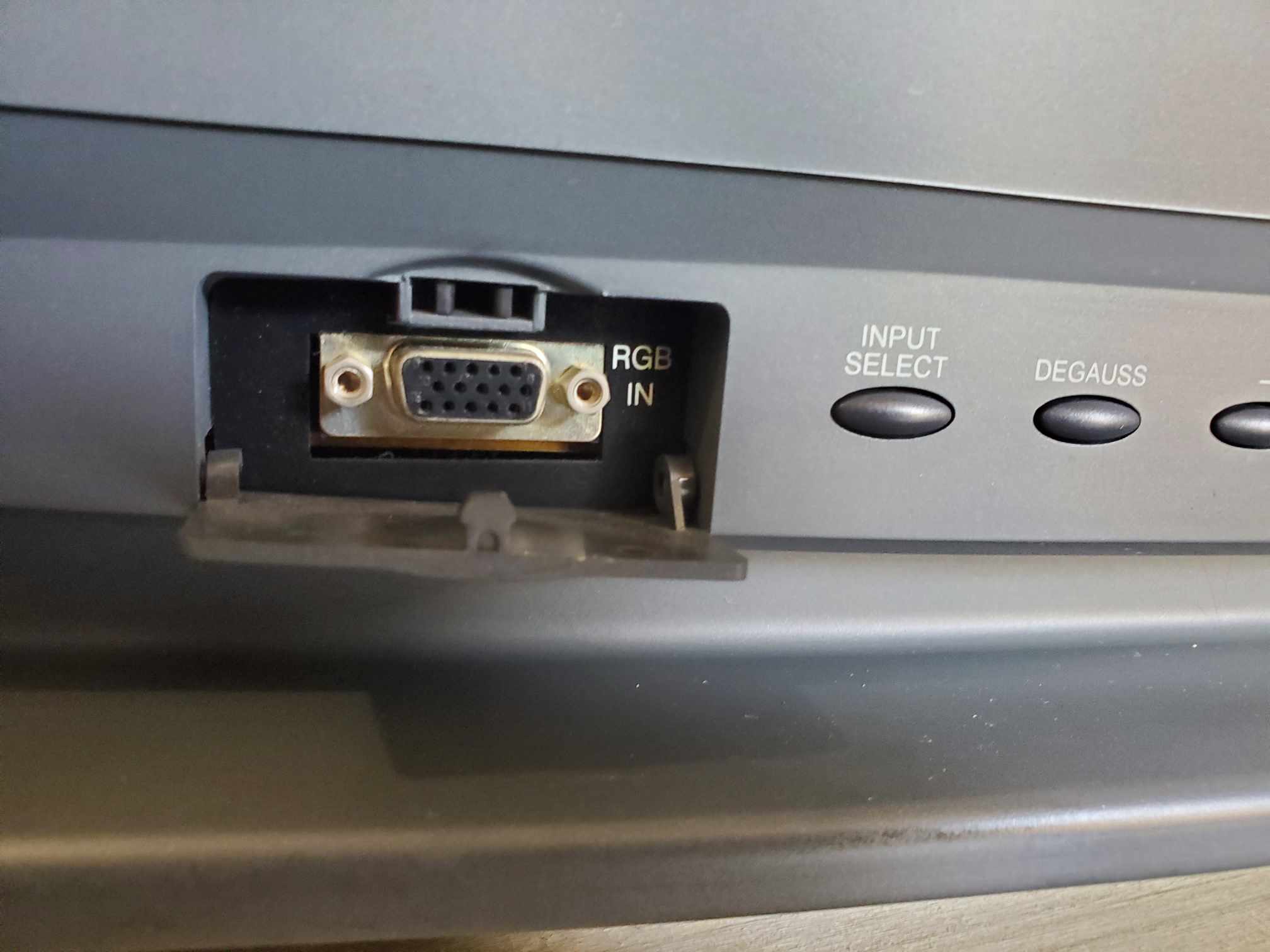

| Inputs: | VGA, Composite, S-Video |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, 240p, 480i, 1080i, 720p, 480p, MAC |
| Horizontal Scan Range: | 15 kHz, 31 kHz, 52 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Formats: | NTSC, PAL, SECAM |
| Aspect: | 4:3 |

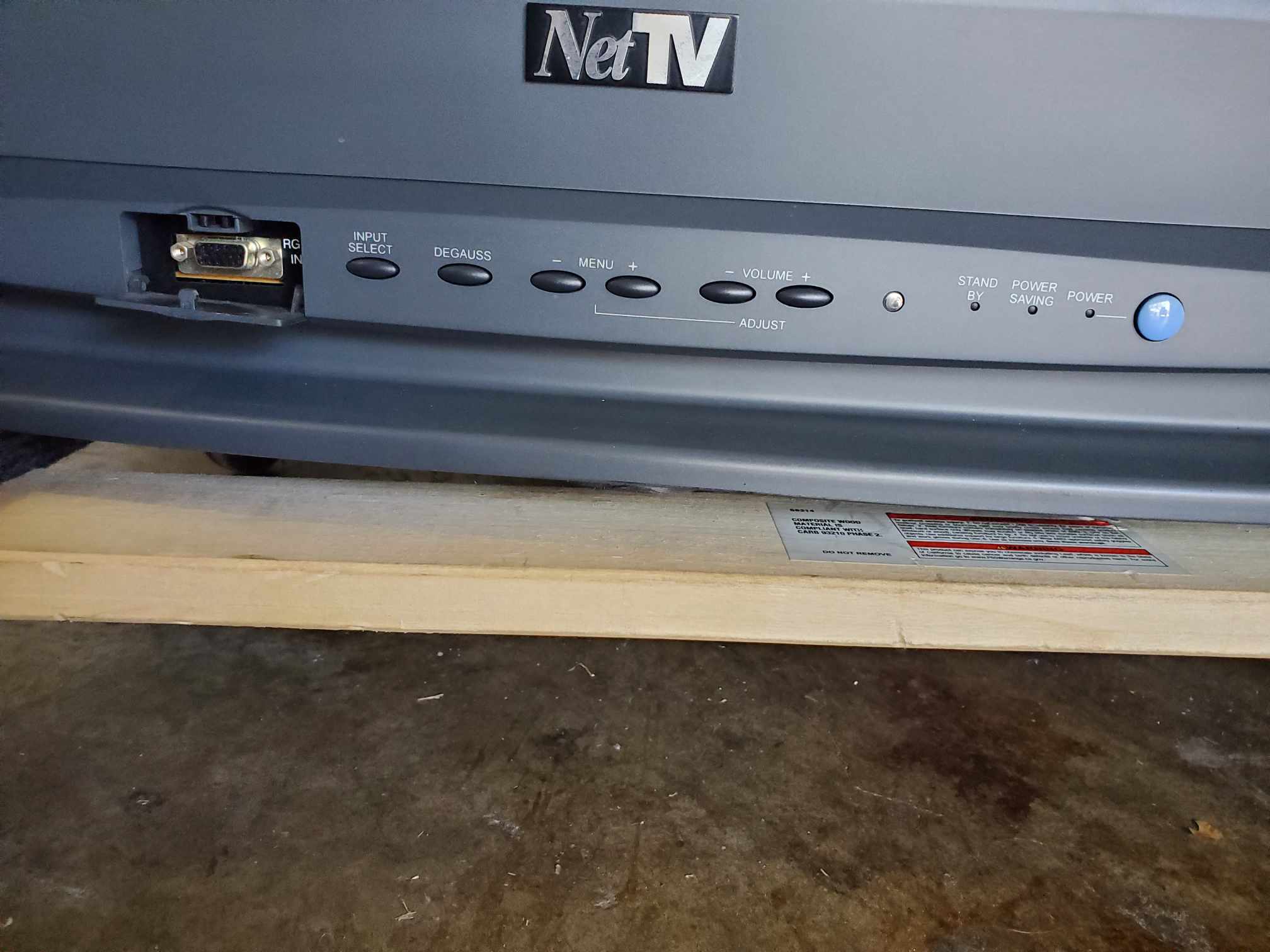

| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Toshiba, TB1227, TB1227BN |
| Focus Type: | Dual |
| Tube: | Toshiba , M81AHM50X |
| Heater Voltage: | 6.3v |

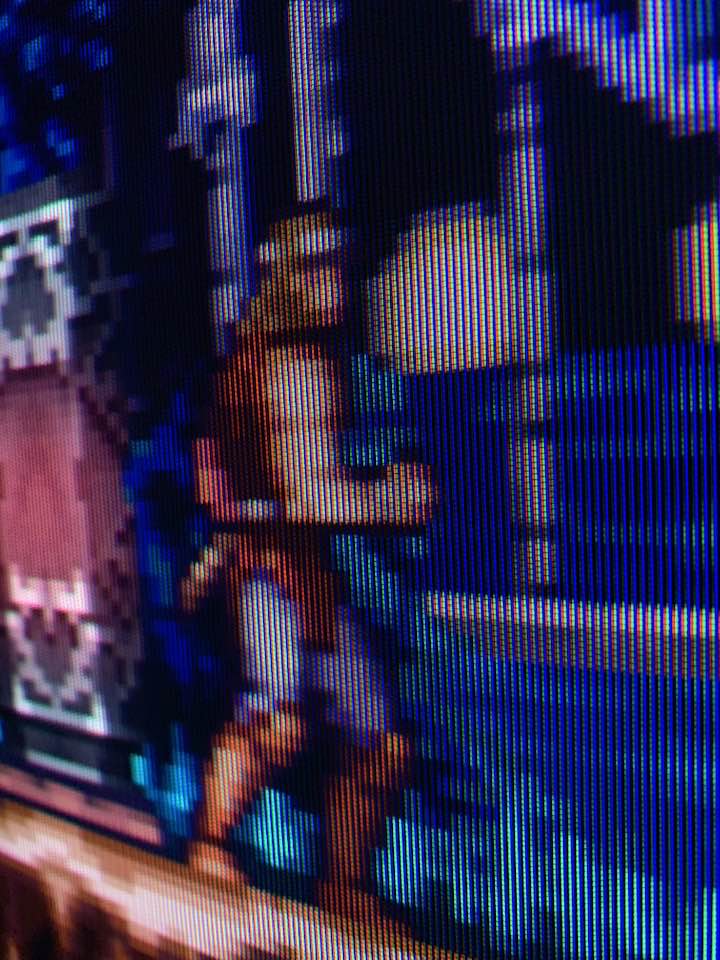

| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 12W x 2, Subwoofer |
| Chassis: | C-34D |
| Weight: | 156 lbs (70.8 kg) |
| Application: | Professional |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | Taiwan |
| Market: | Worldwide |
| Power Standard: | Universal |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
