Summary

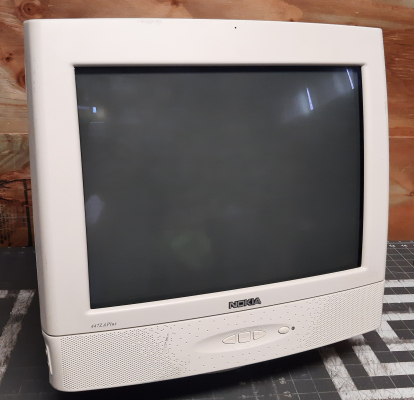

17" computer monitor with built in speakers and microphone. Relatively high spec for its size, with a horizontal scan rate of 86 kHz.
Literature
Notes
This monitor will accept composite sync over the H Sync pin.
This model has a completely uncapped vertical frame rate. It's capable of displaying up to 310 FPS at very low resolutions, although pushing it that high may not be safe over the long term.

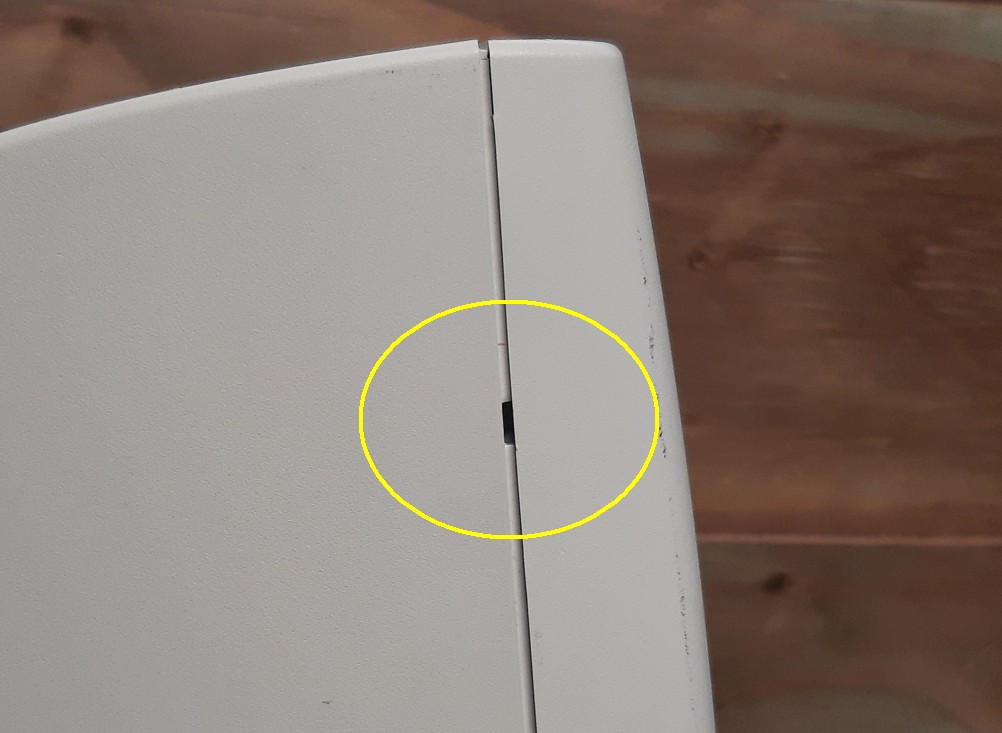

The top half of the case is secured by a pair of plastic clips, one on each side of the monitor near the top. To remove it, first unscrew the two screws on the bottom. Insert a small flat tool into slots on the sides to disengage the clips.
Gallery
Specifications | |
---|---|
Brand: | Nokia |
Manufacturer: | Nokia |
Model: | 447ZA Plus |
Series: | Multigraph |
Viewable Size: | 16" |
Inputs: | VGA |
Sync: | HV Sync, CSYNC |
Resolutions: | VGA, SVGA, XGA, SXGA, UXGA |
Horizontal Scan Range: | 29 kHz, 86 kHz |
Vertical Scan Range: | 43 Hz, 310 Hz |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Vertical Output IC: | TDA9309 |
Flyback: | Y265429, FM0649, FM0651, HR47033 |
Tube: | Philips , M41EHN323X130 , M41EHN323X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: | Shadow |
Pitch: | 0.27 mm |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | AT1742/2130F04 |
Speakers: | Stereo |
Chassis: | 447O |
Weight: | 41.8 lbs (19 kg) |
Application: | Computer Monitor |
Launched: | 1999 |
Country of Manufacture: | Finland |
Mounting: | Desk Stand |
Degaussing: | Automatic on Power-on, Manual |
