Optelec 20/20 Plus
SegaSaturn94
June 1, 2025, 2:18 pm
June 1, 2025, 6:48 pm
June 1, 2025, 2:18 pm
June 1, 2025, 6:48 pm
Summary

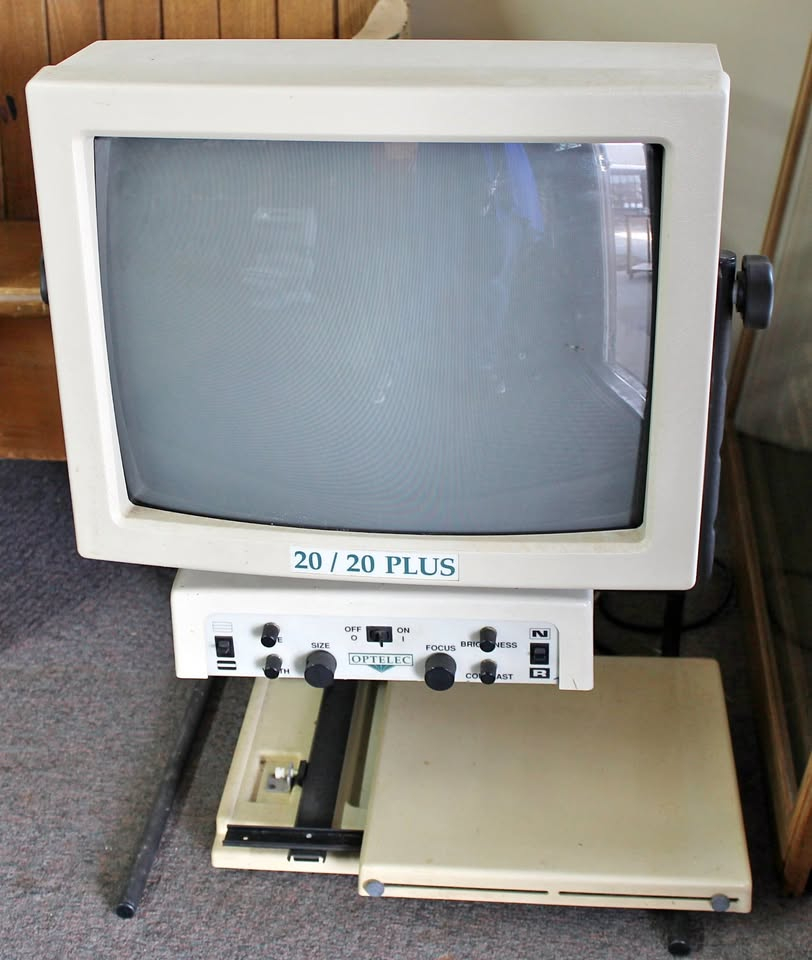

19" 15Khz monitor by Optelec. Intended to be the accompanying display for their ClearView magnification terminals. Uses a Wells Gardner K7203 arcade chassis made in the USA and assembled with Optelec's case and magnification devices.
Special thanks to Justin H. for the pictures!
Manuals
(None at this time)
Notes

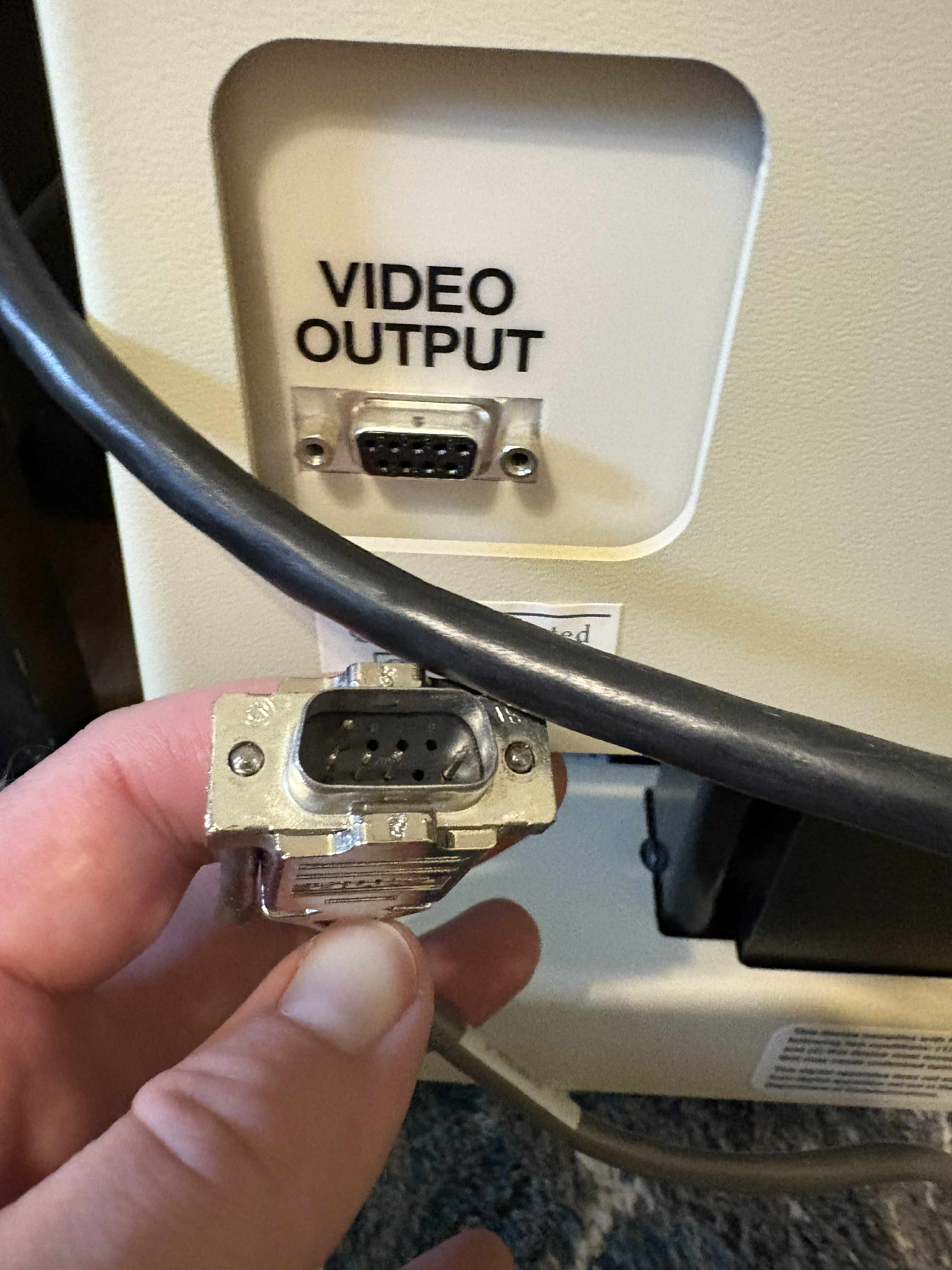

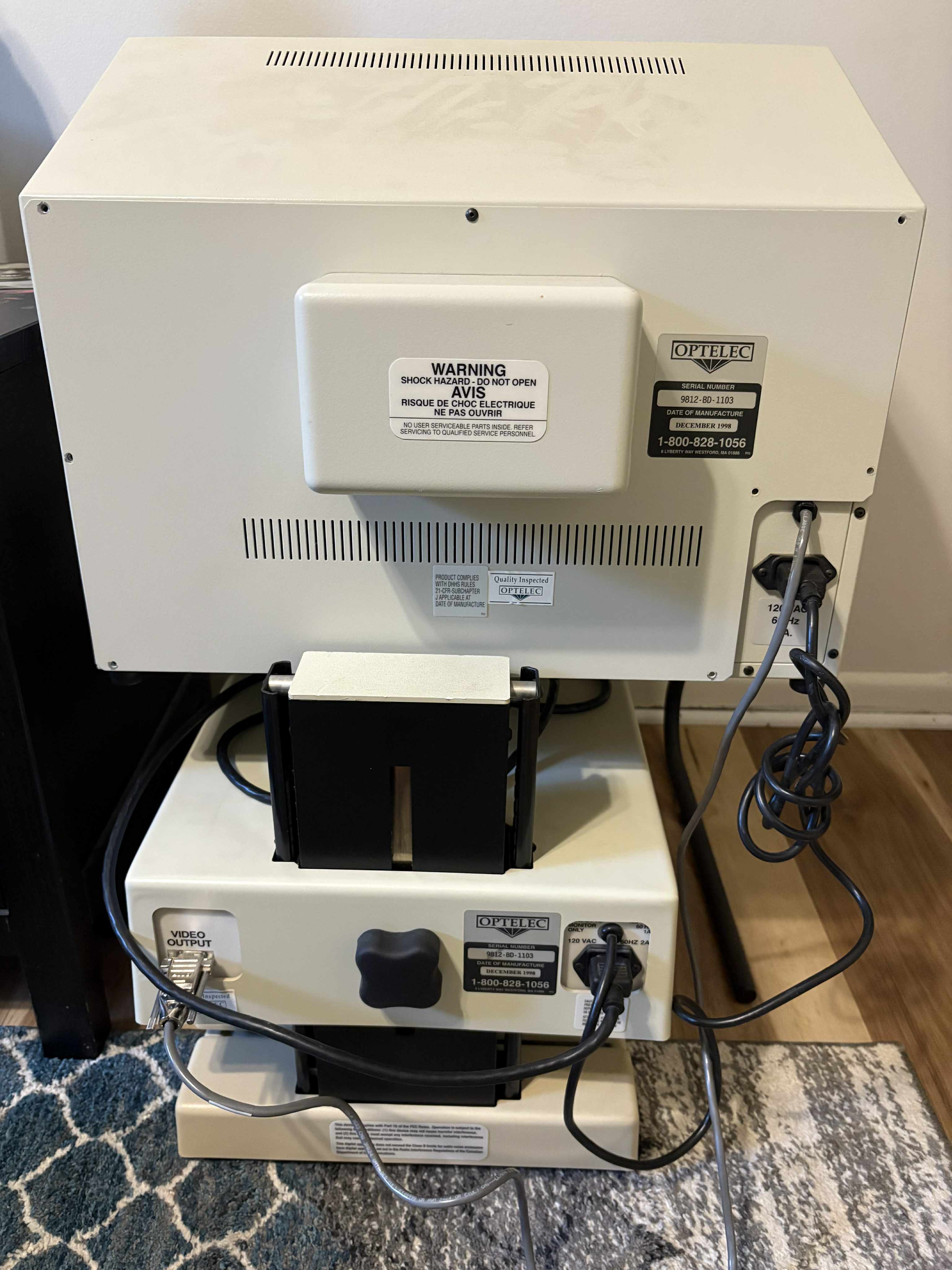

RGB is over a DE-9 connection and is HV Sync.
Gallery








Specifications | |
---|---|
Brand: | Optelec |
Manufacturer: | Wells Gardner |
Model: | 20/20 Plus |
Series: | Plus |
Viewable Size: | 19" |
Inputs: | RGB |
Sync: | HV Sync |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |

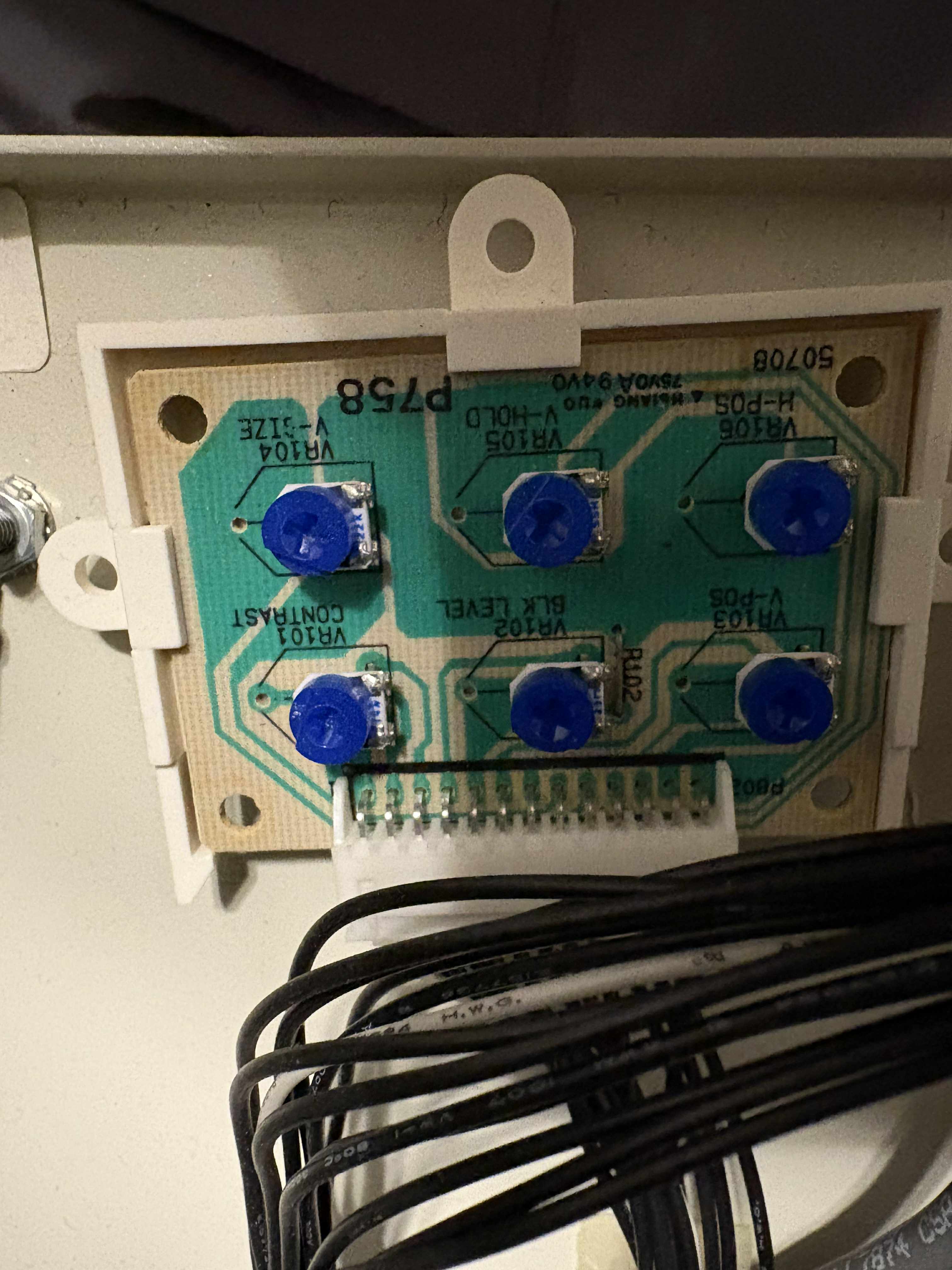

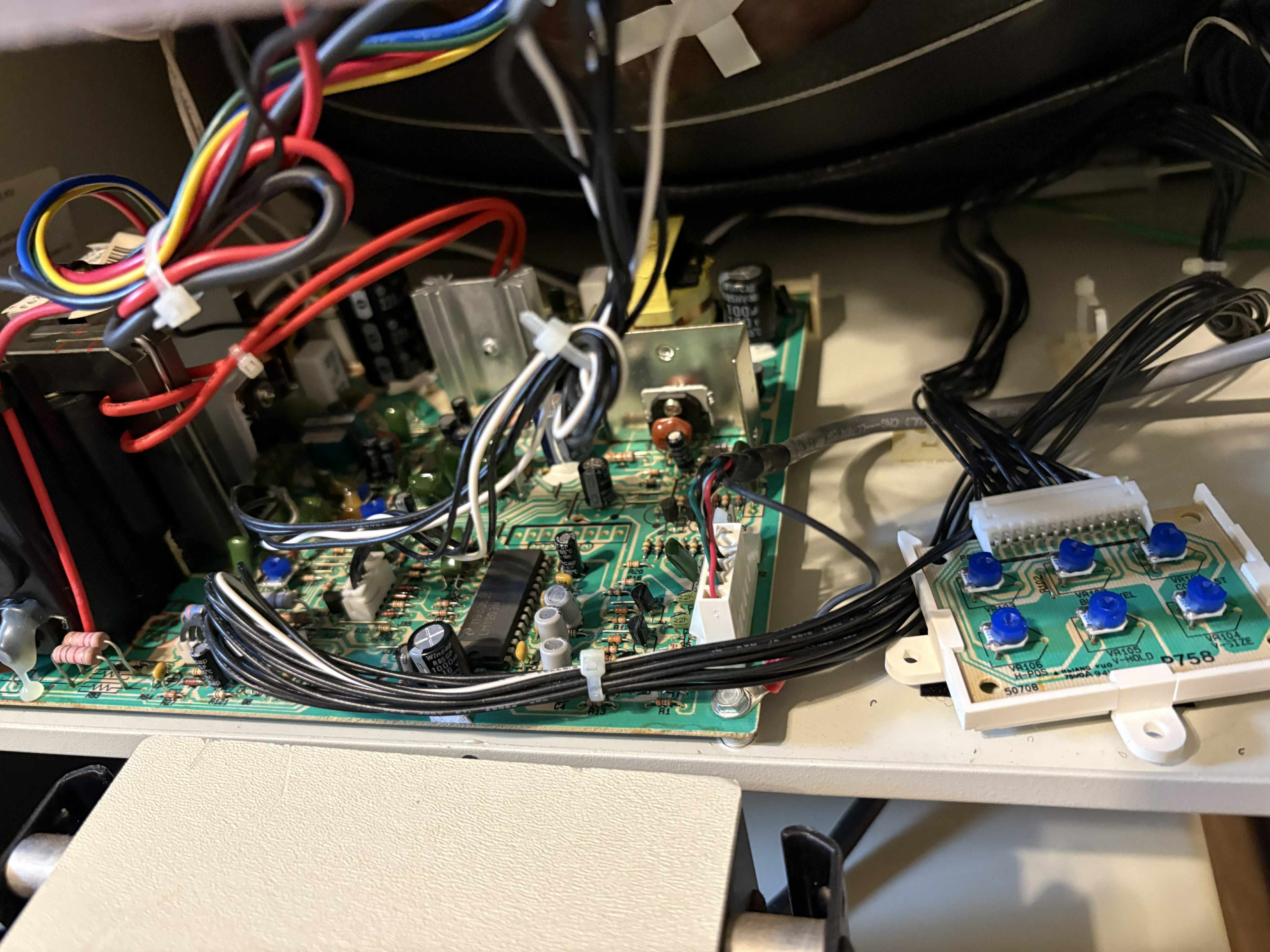

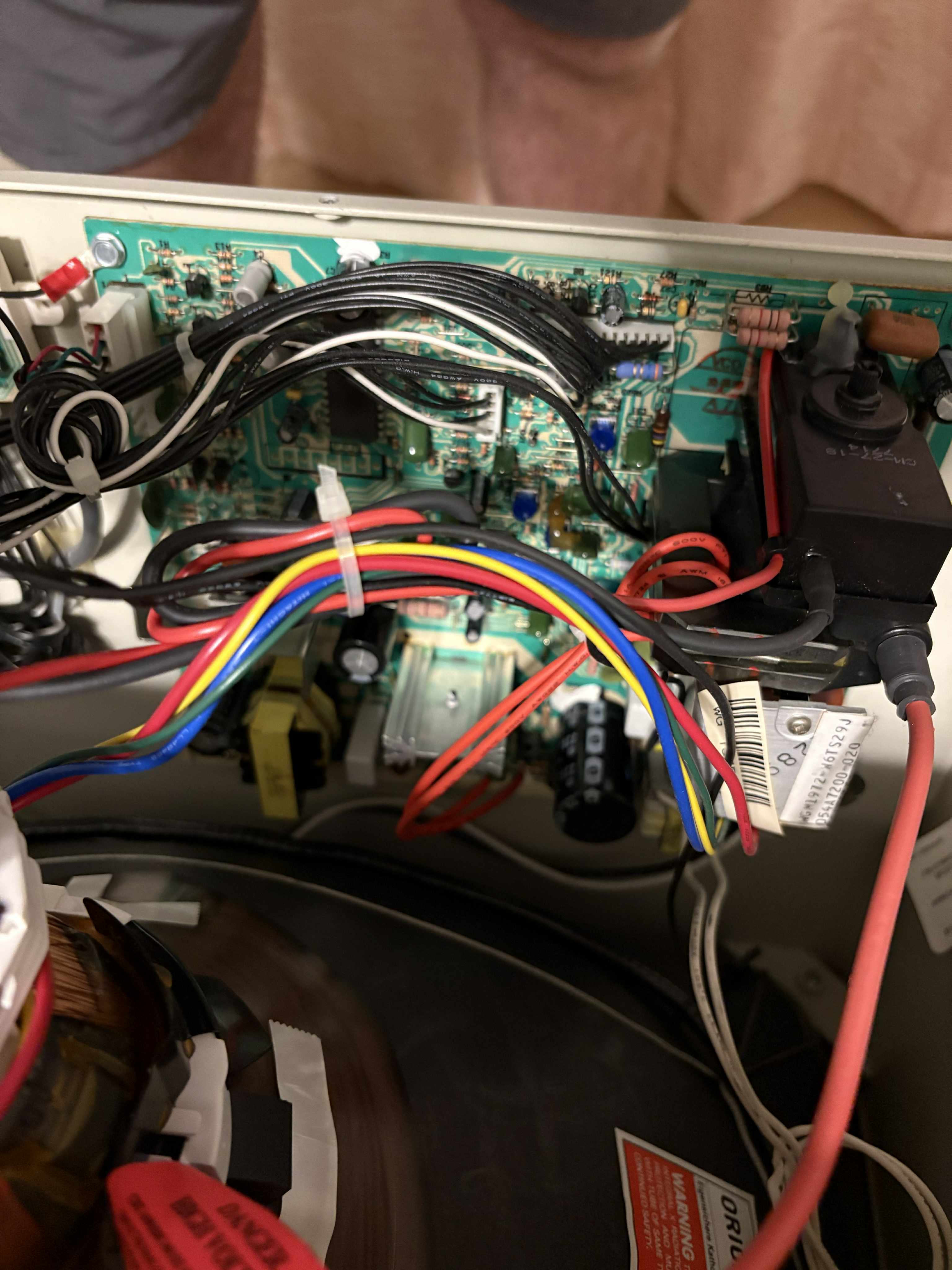

Adjustments: | Internal Potentiometers, External Potentiometers |
Flyback: | CM-27-18-7714 |
Focus Type: | Single |

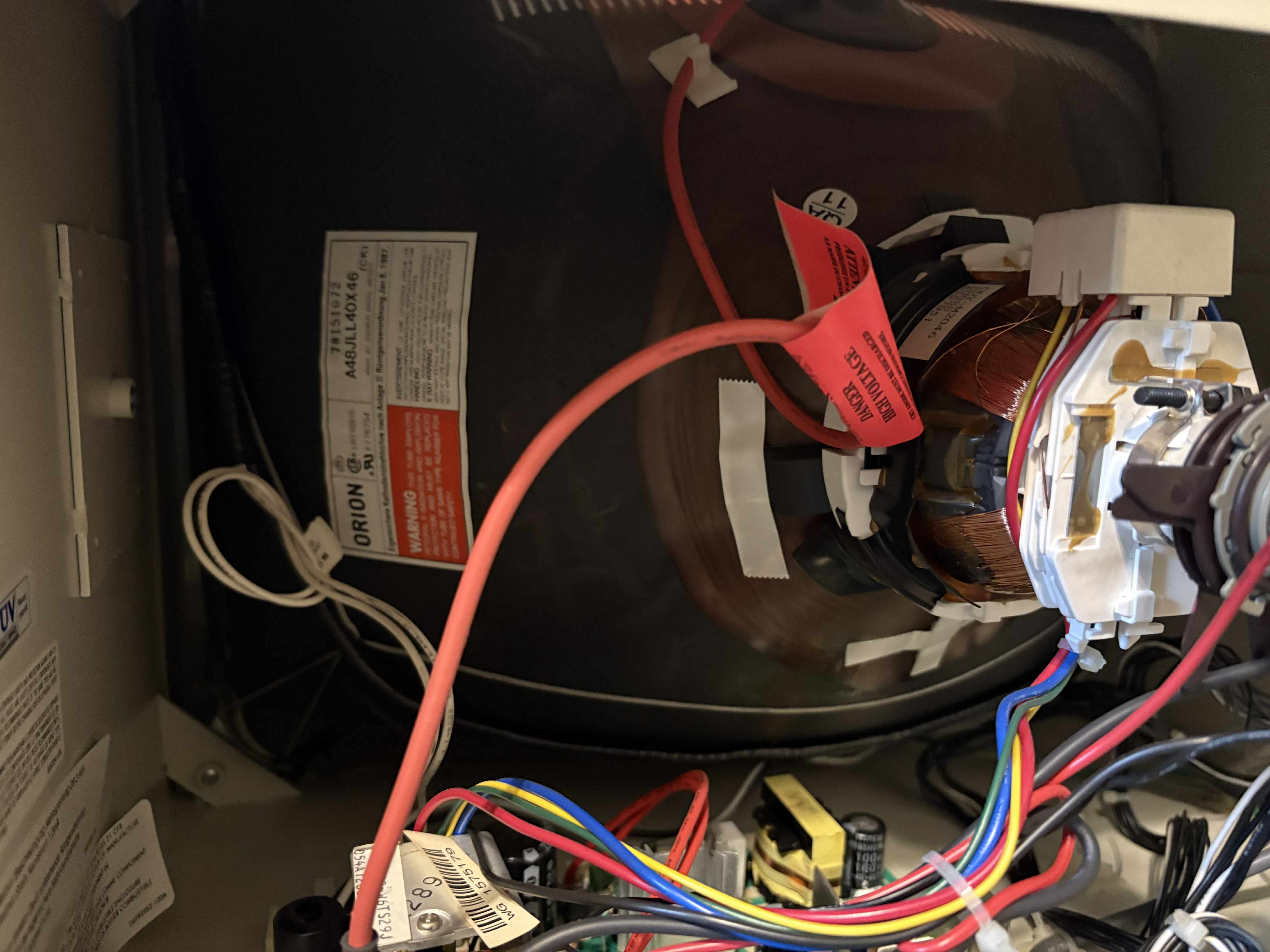

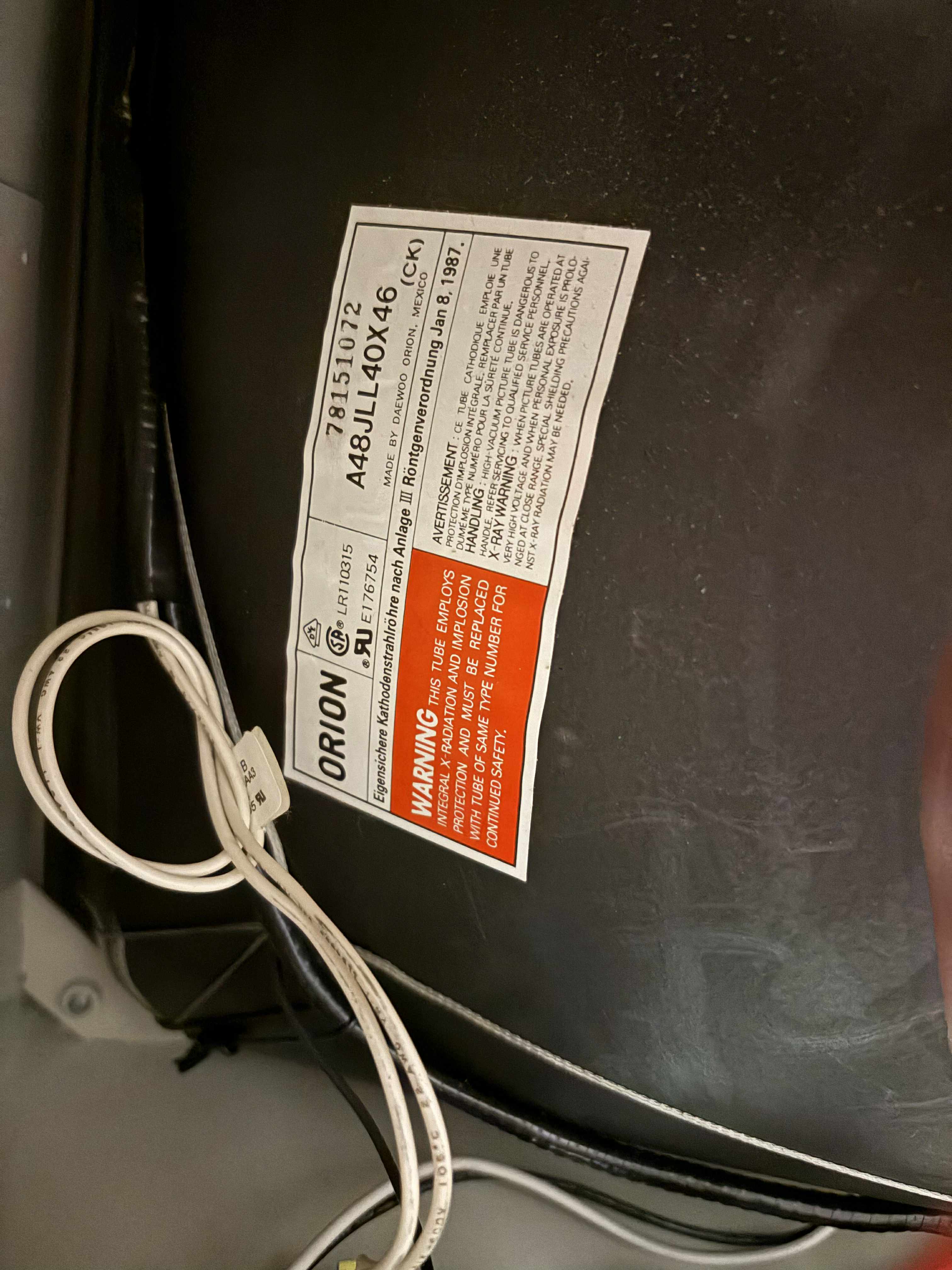

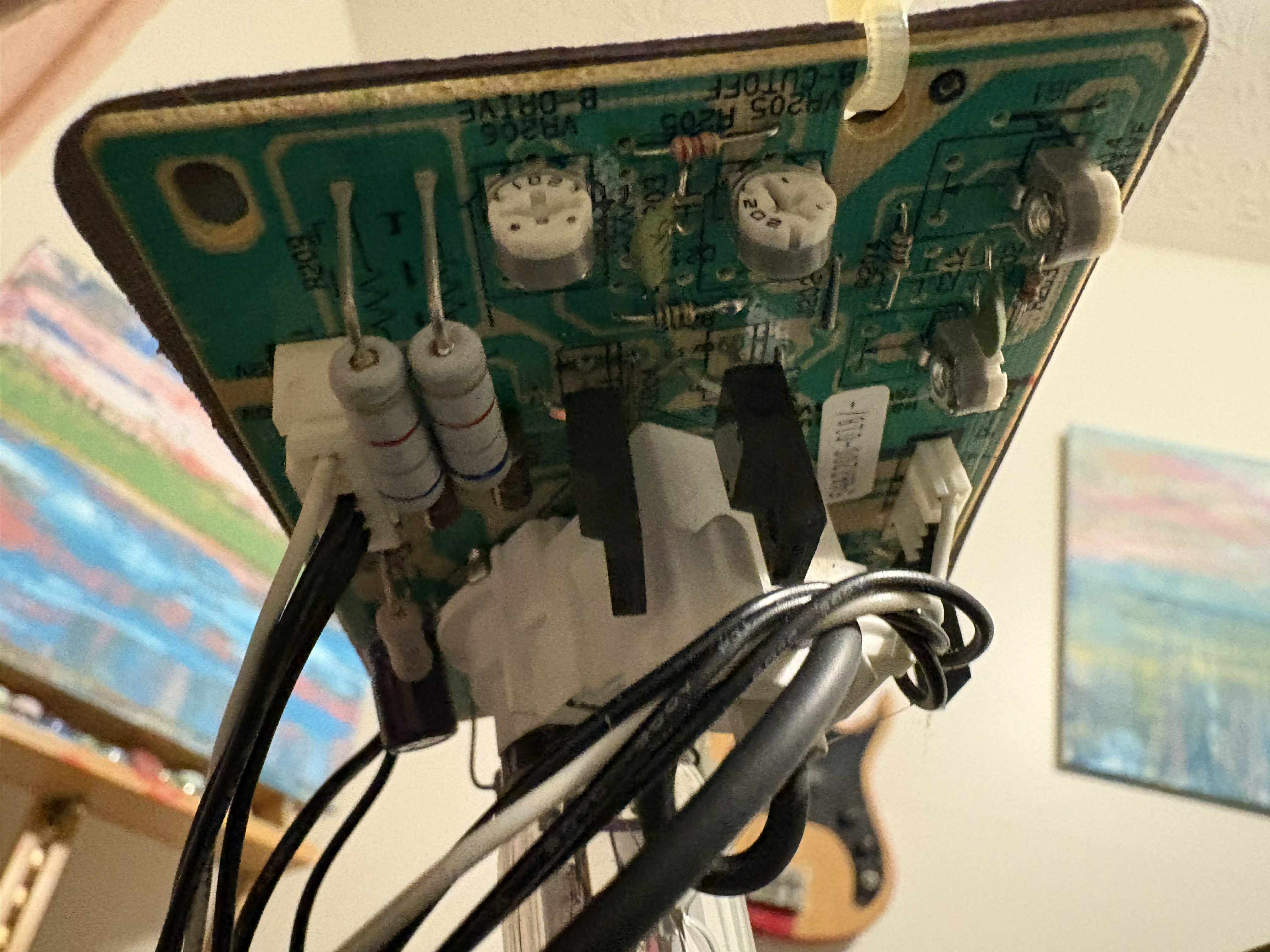

Tube: | Daewoo-Orion , A48JLL40X , A48JLL40X46 |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | OTTY-M2046 |
Speakers: | None |
Chassis: | K7203 |
Application: | Professional |
Cabinet Material: | Plastic |
Launched: | 1994 |
Country of Manufacture: | USA |
Market: | Worldwide |
Power Standard: | Universal |
Mounting: | Desk Stand |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual, Magnification Display |
