Summary
16" 15Khz monitor by Optelec. Intended to be the accompanying display for their ClearView magnification terminals. Originally manufactured in Taiwan by an unknown company in 2002. (There are other variants of the same model made in other countries such as China or Korea.)
Special thanks to Justin H. for the pictures!
Manuals
(None at this time)
Notes

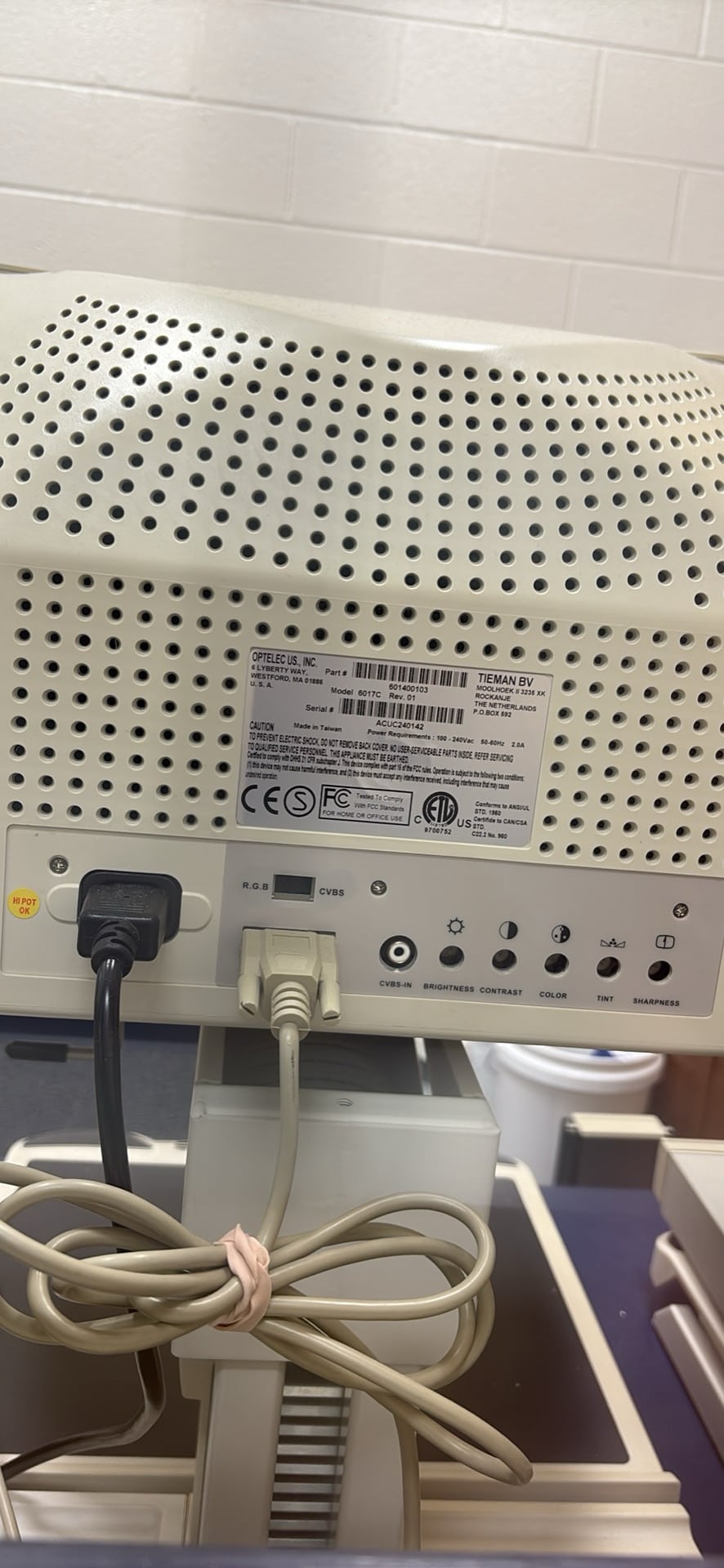

RGB is over a DE-9 connection and is HV Sync.

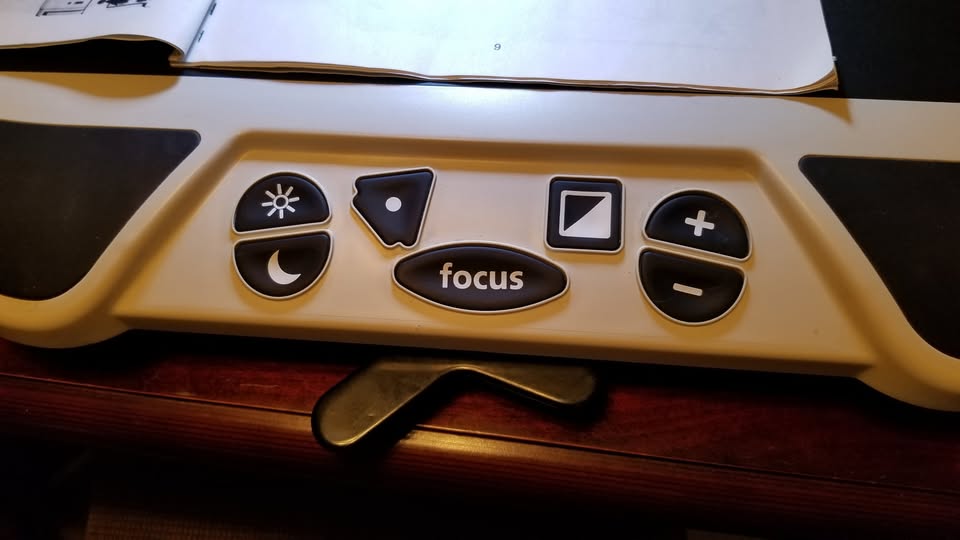

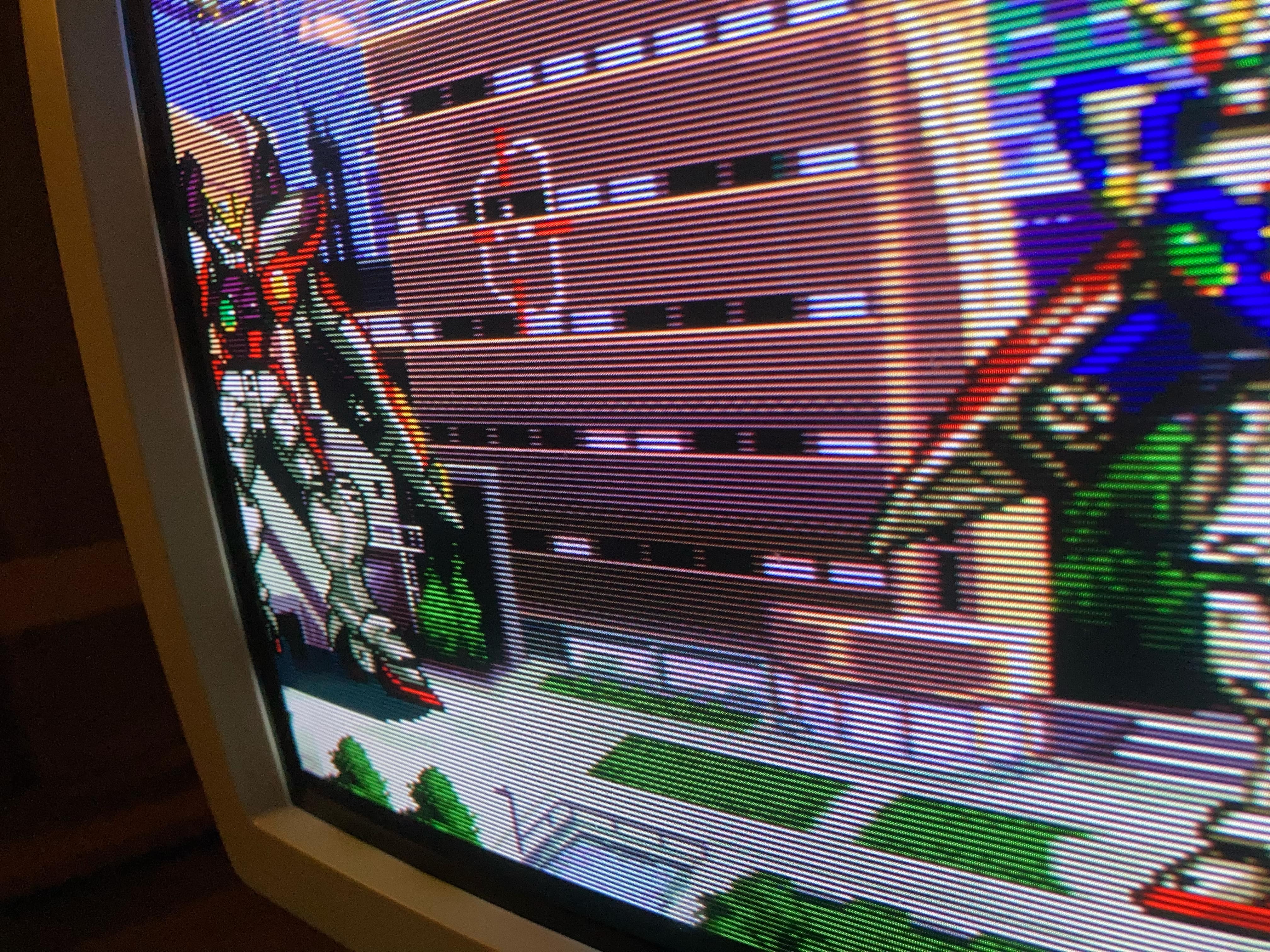

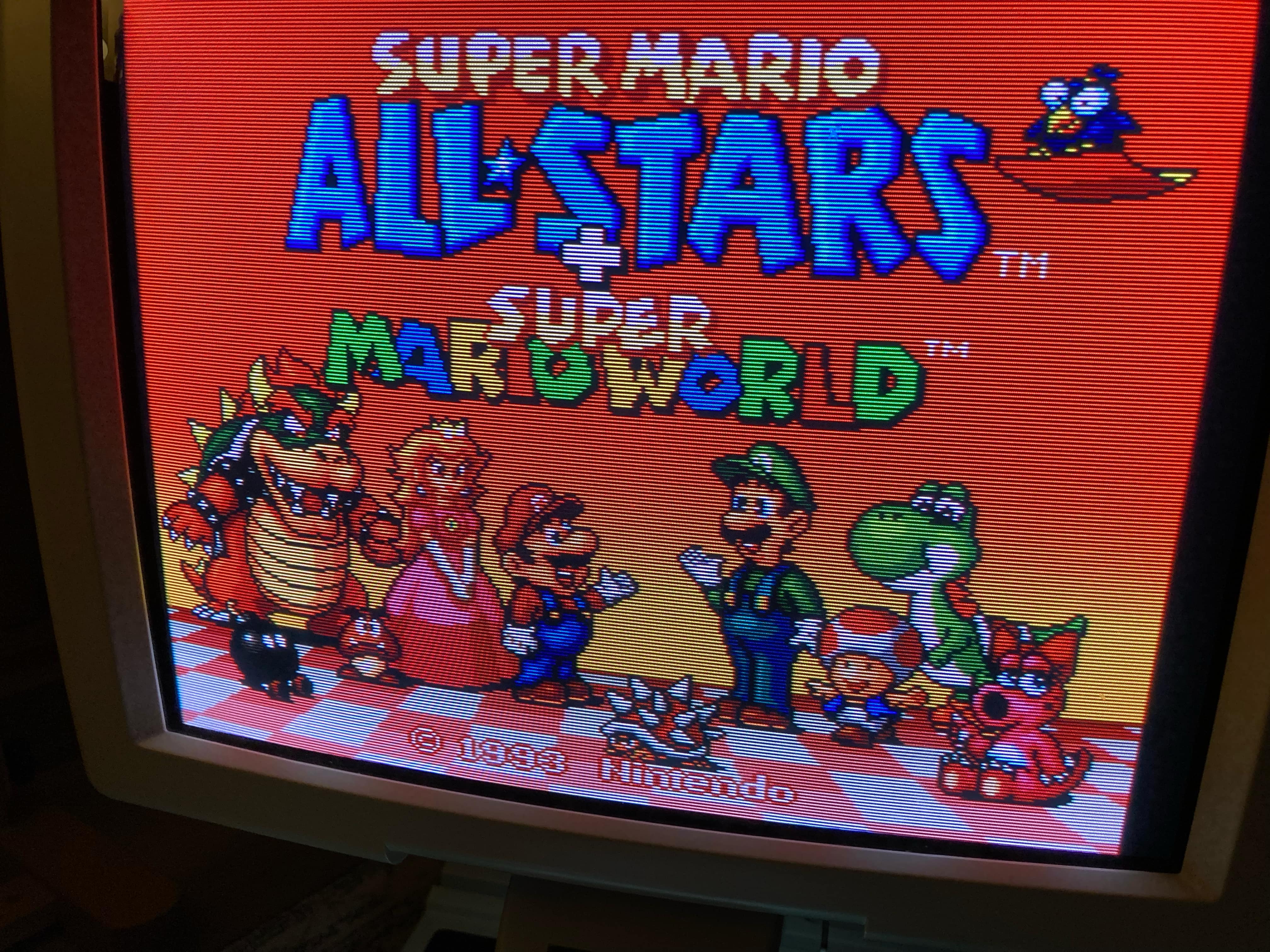

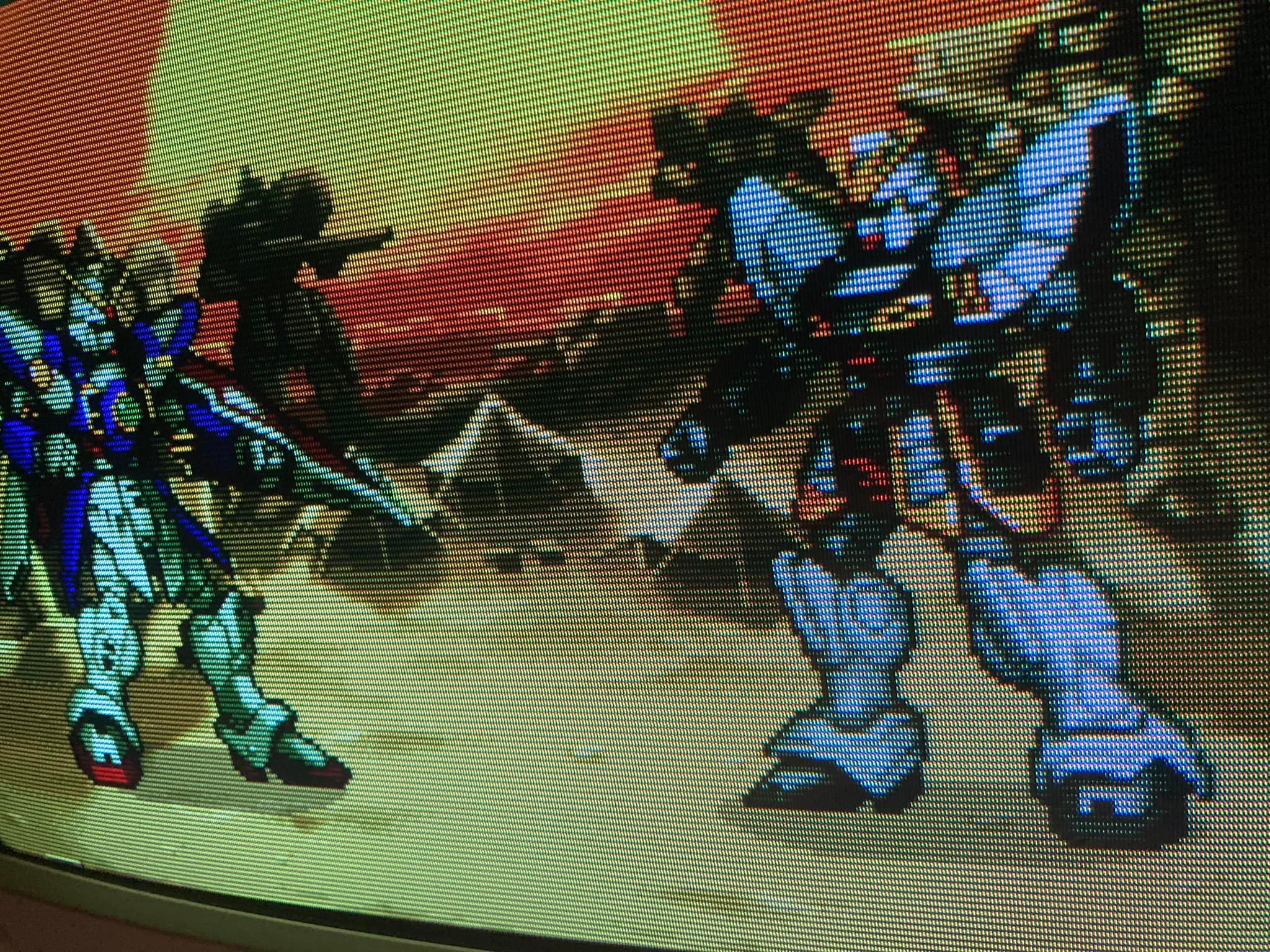

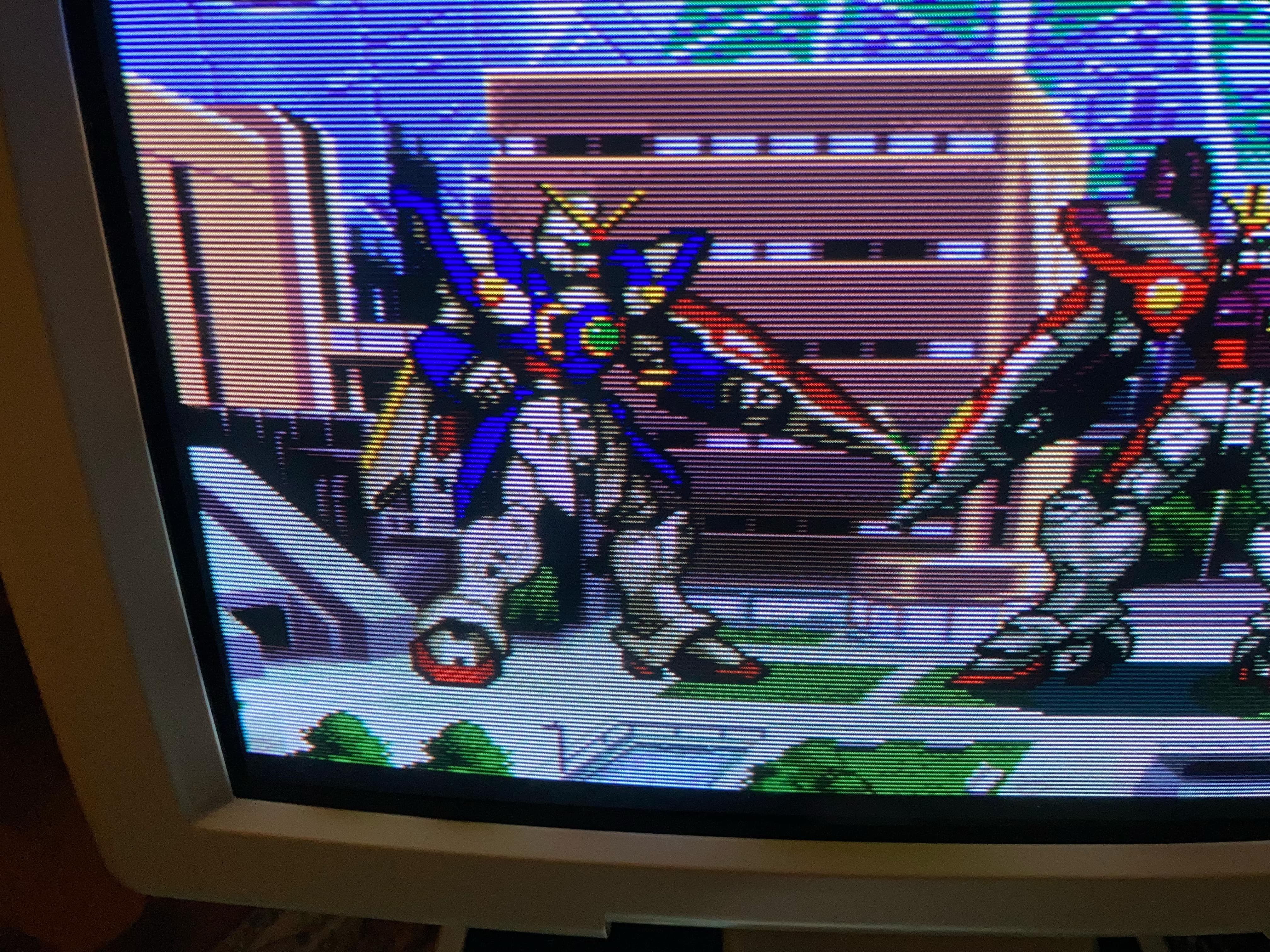

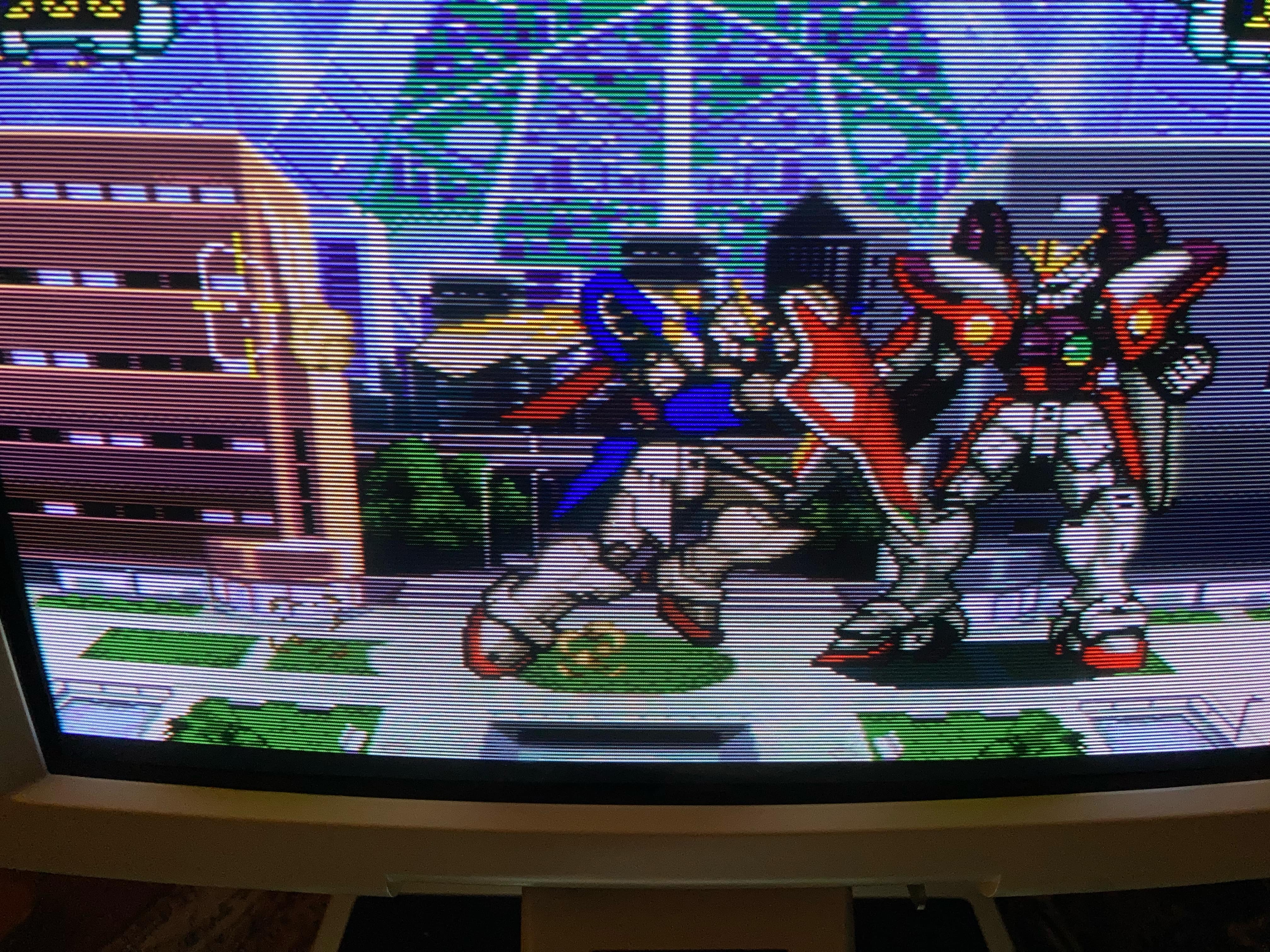

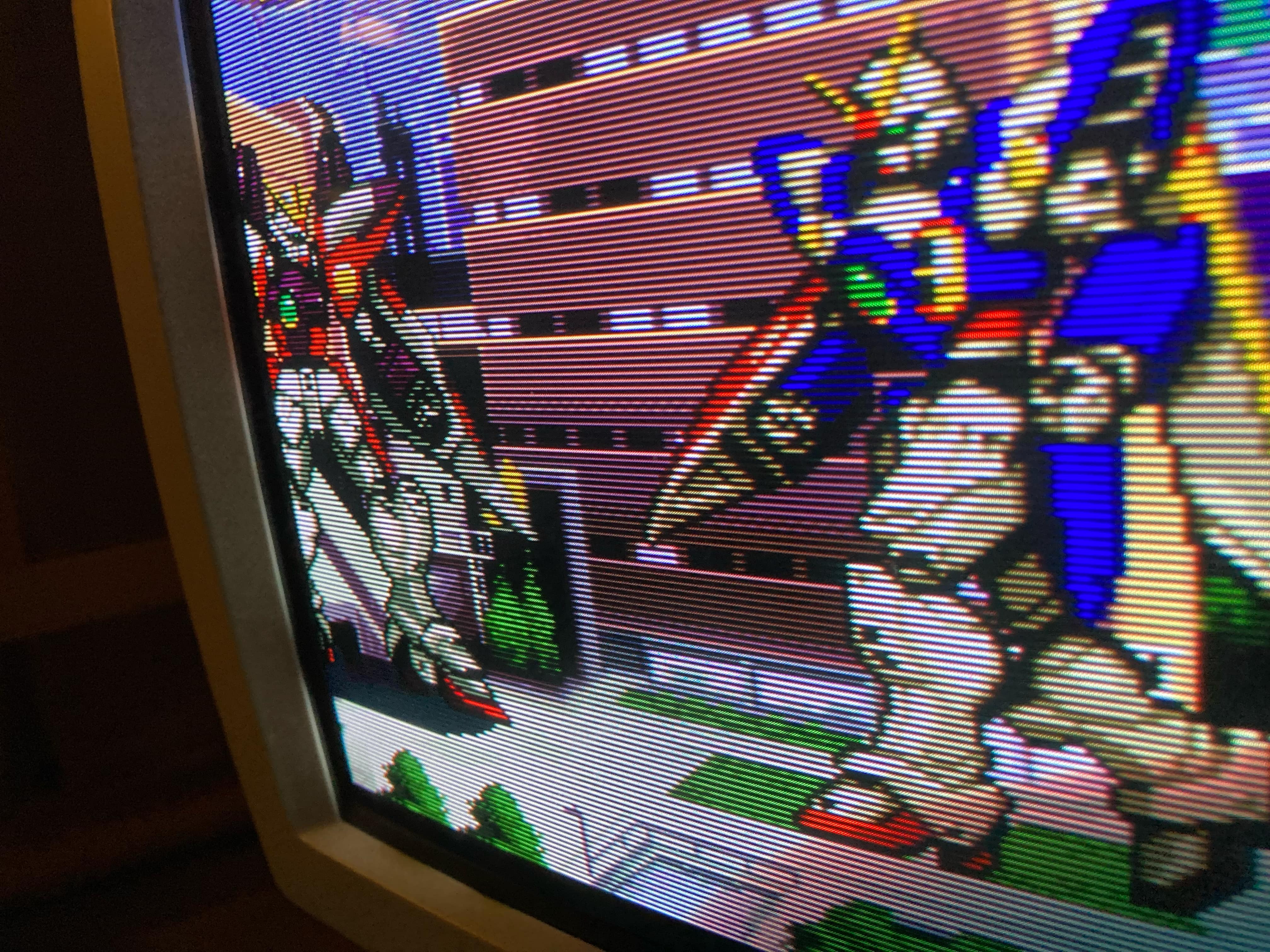

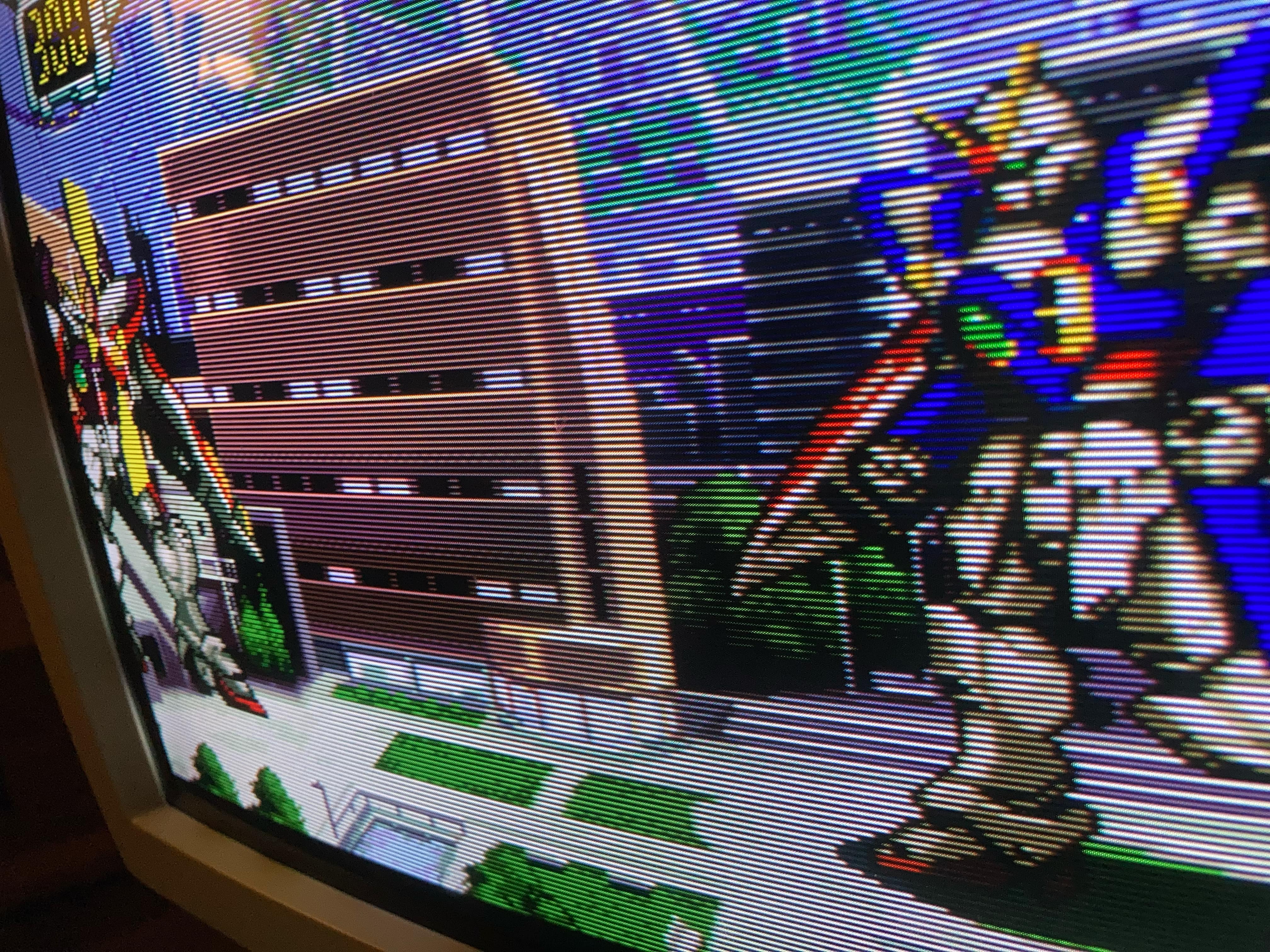

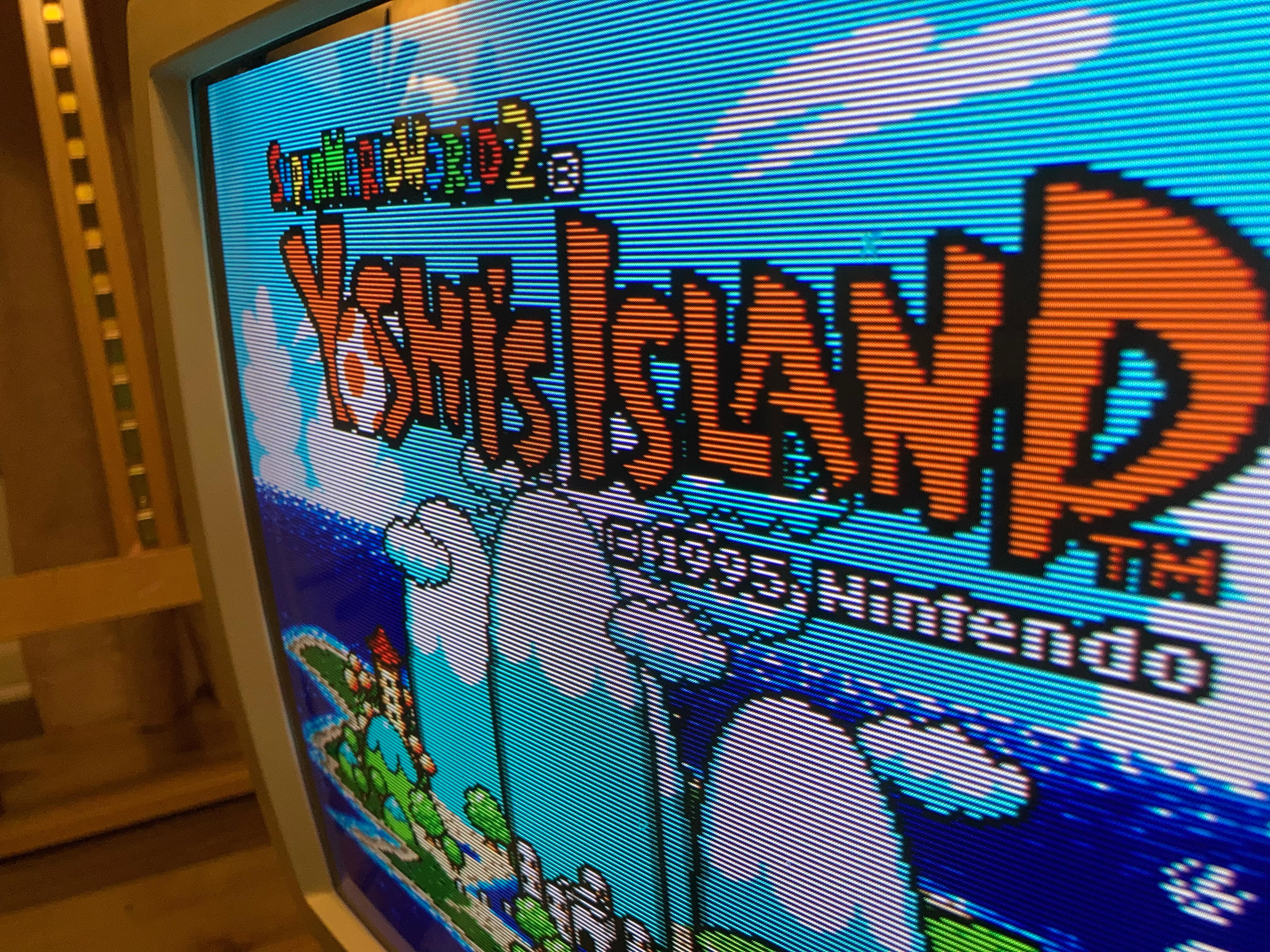

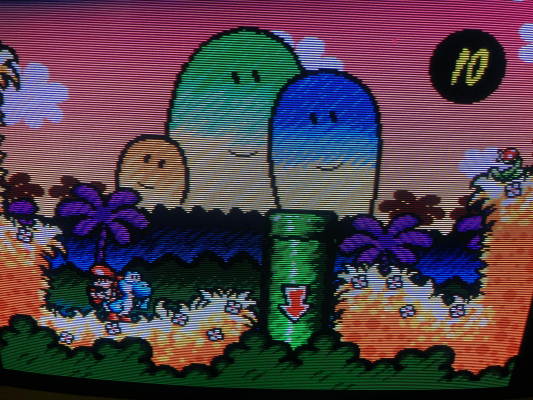

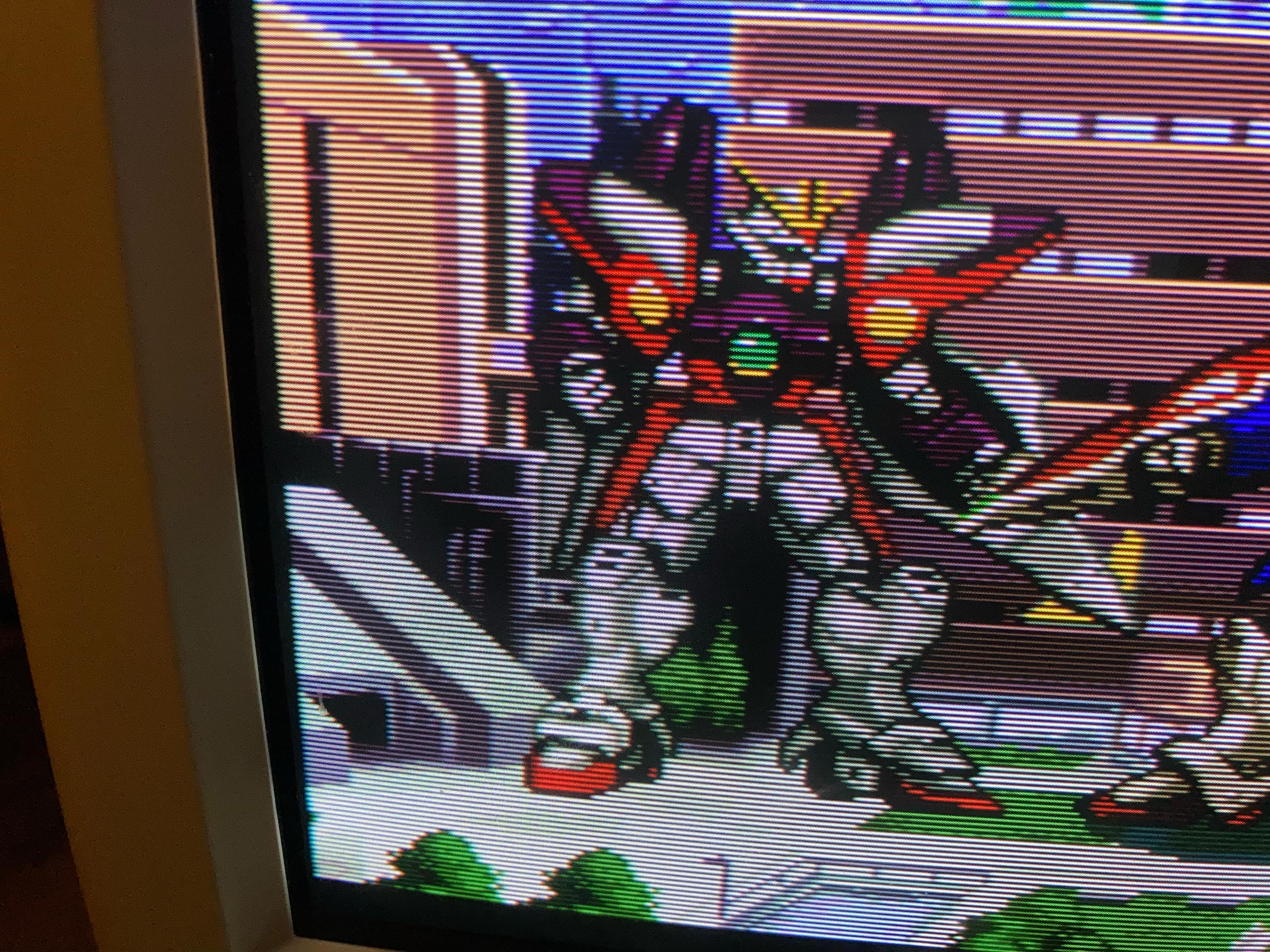

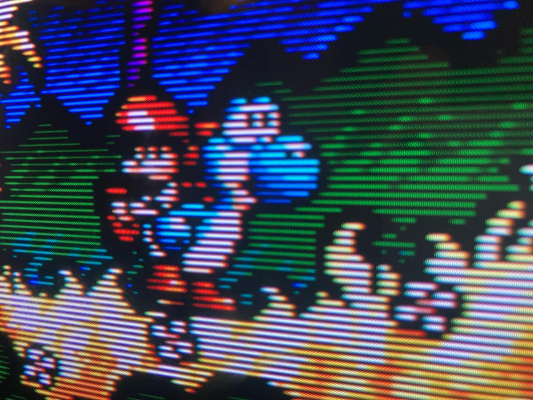

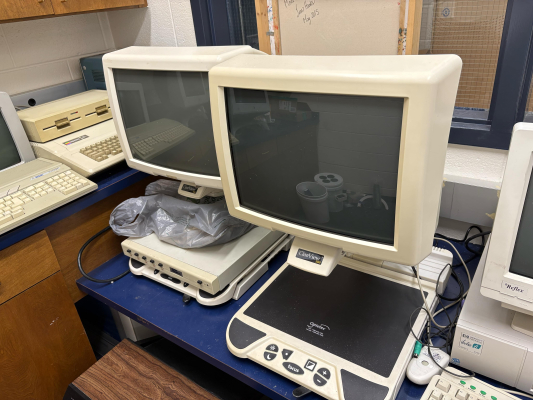

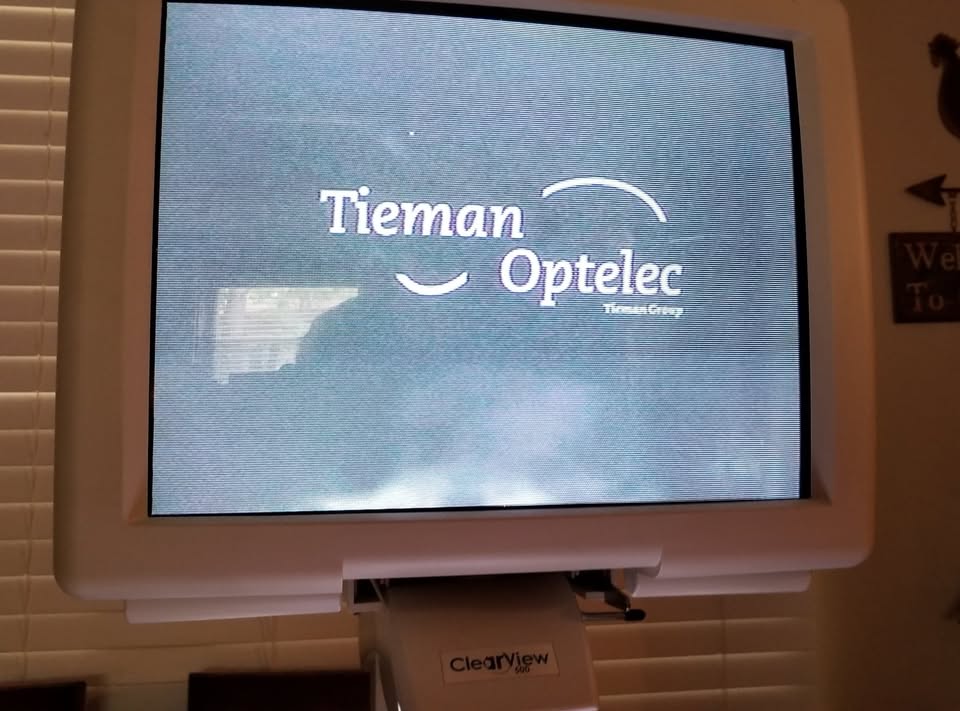

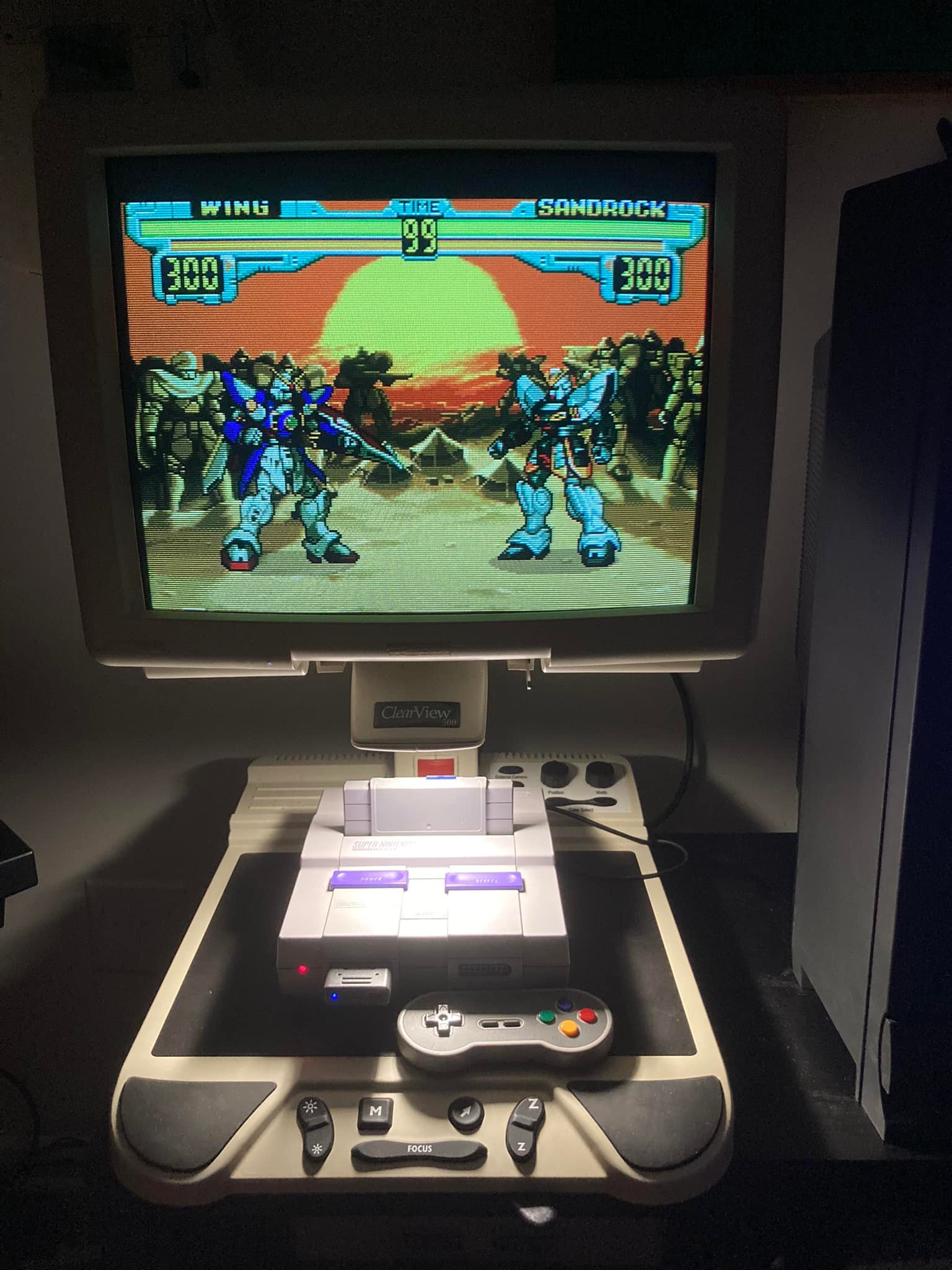

Gallery
















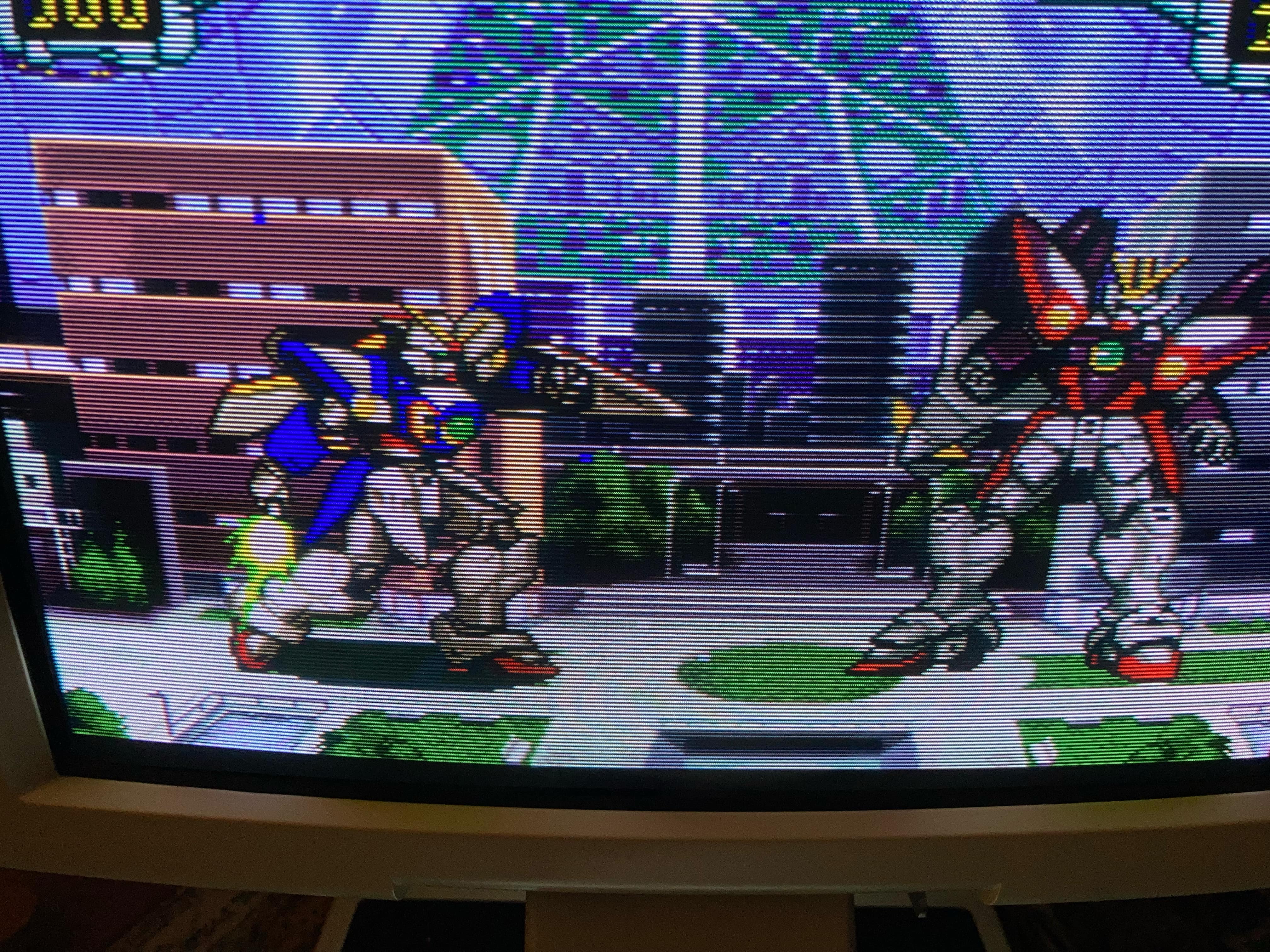

Specifications | |
---|---|
Brand: | Optelec |
Manufacturer: | Optelec |
Model: | 6017C |
Series: | C |
Viewable Size: | 16" |
Inputs: | Composite, RGB |
Sync: | HV Sync |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers |
Jungle: | Philips, TDA8361 |
Focus Type: | Single |
Tube: | Chunghwa , Philips , M41AGE13X , M41AGE13X46 , A41EFN40X , A41EFN40X01 |
Mask: |
Shadow
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | JLY-7701C1 |
Speakers: | None |
Application: | Magnification Display |
Cabinet Material: | Plastic |
Launched: | 2002 |
Country of Manufacture: | Taiwan |
Market: | Worldwide |
Power Standard: | Universal |
Mounting: | Desk Stand |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Service Manual |
