Summary
Basic, low end TV from Orion. It has one composite input and a single 1 amp speaker that's mounted on the bottom of the TV. This and similar TVs were sold under a number of different brands, most notably Toshiba.
Manuals
No documentation is available online at this time.
Notes
You can change the inputs using the front panel buttons - just navigate lower than Channel 1.

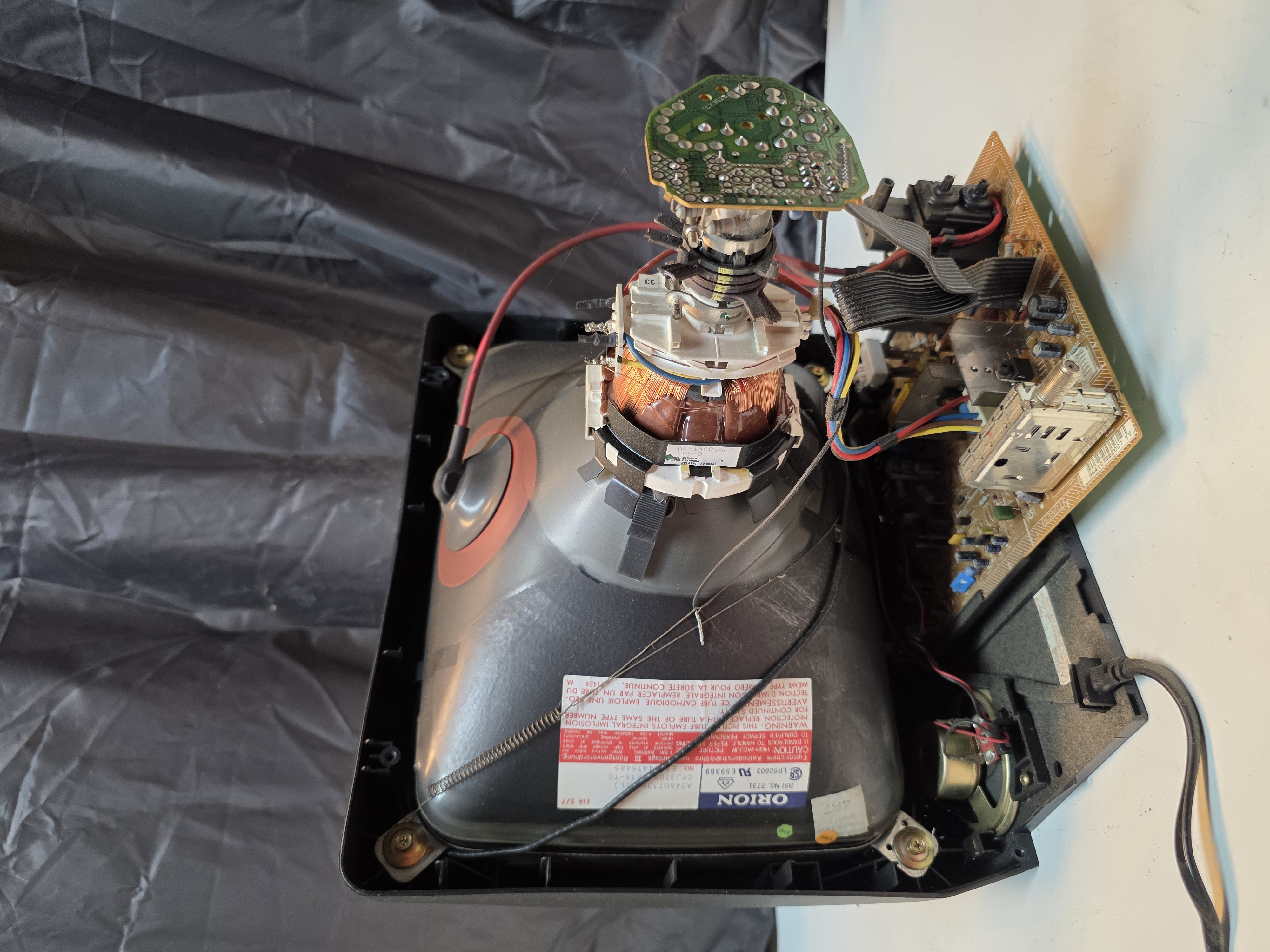

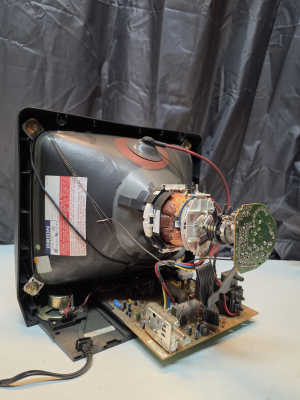

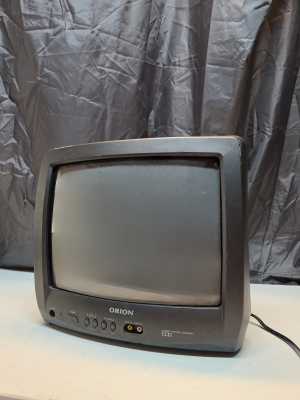

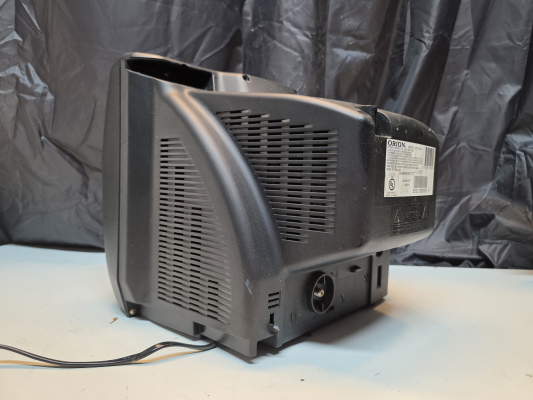

Gallery
| Specifications | |
|---|---|
| Brand: | Orion (Japan) |
| Manufacturer: | Orion |

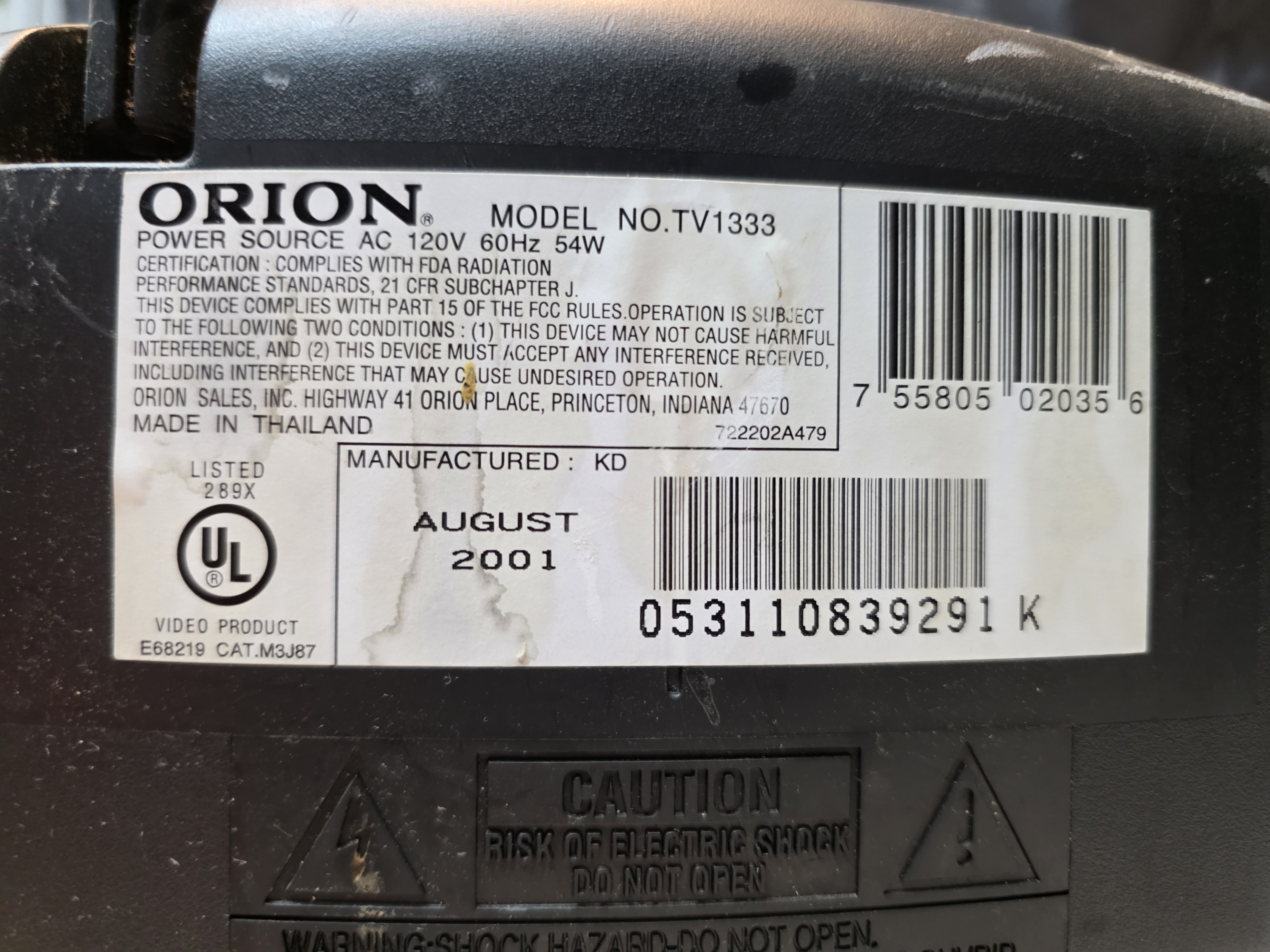

| Model: | TV1333 |
| Series: | TV |
| Viewable Size: | 13" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Focus Type: | Single |

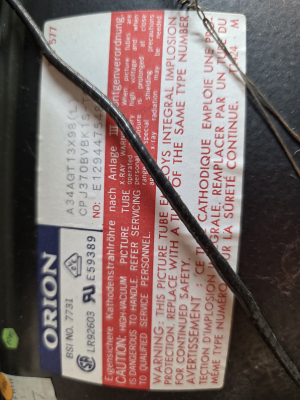

| Tube: | A34AGT13X98 |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Mono |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
