| Specifications | |
|---|---|
| Brand: | Orion (Japan) |
| Manufacturer: | Orion |

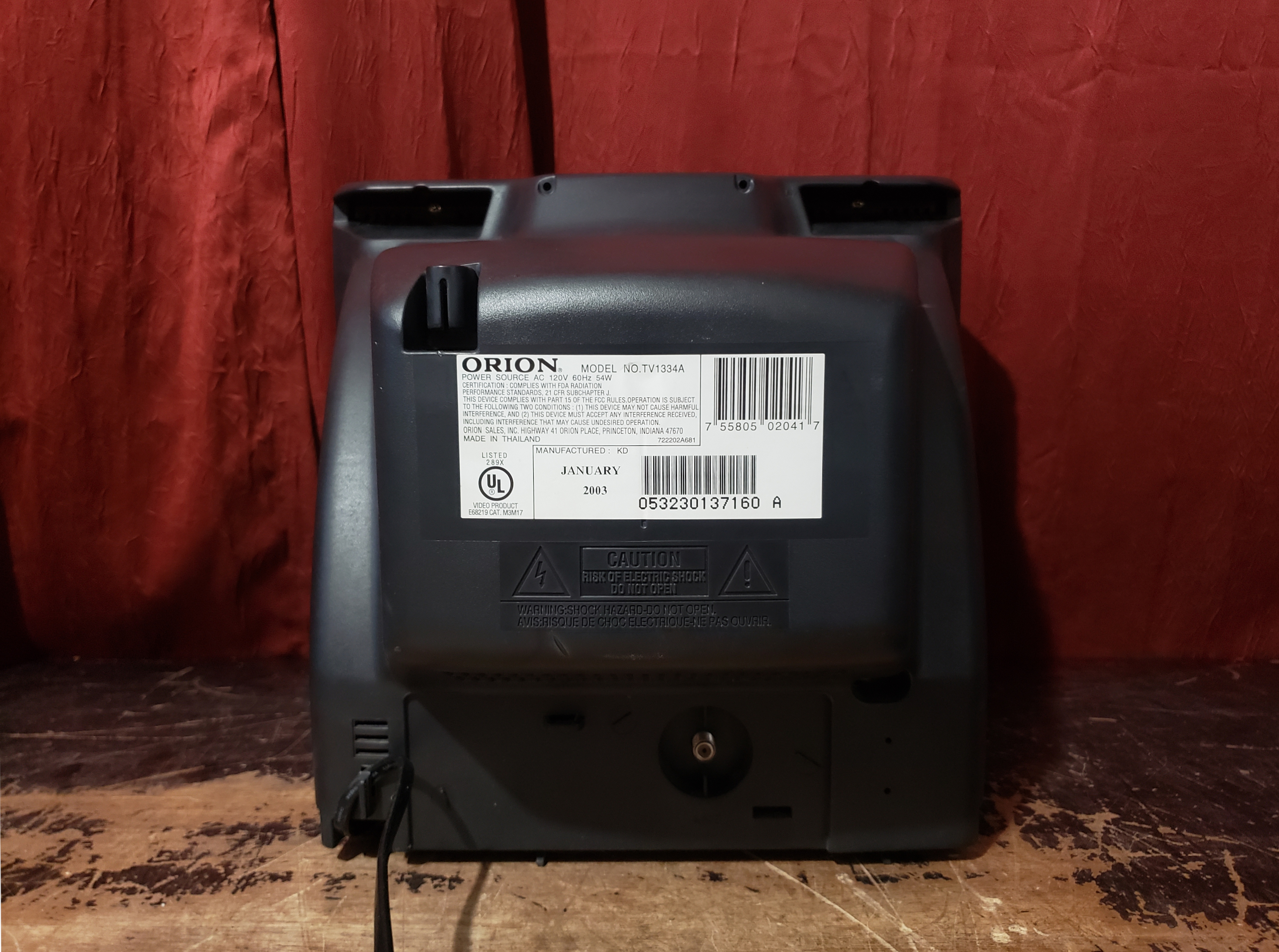

| Model: | TV1334A |
| Series: | TV |
| Viewable Size: | 13" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | Notch |
| Focus Type: | Single |

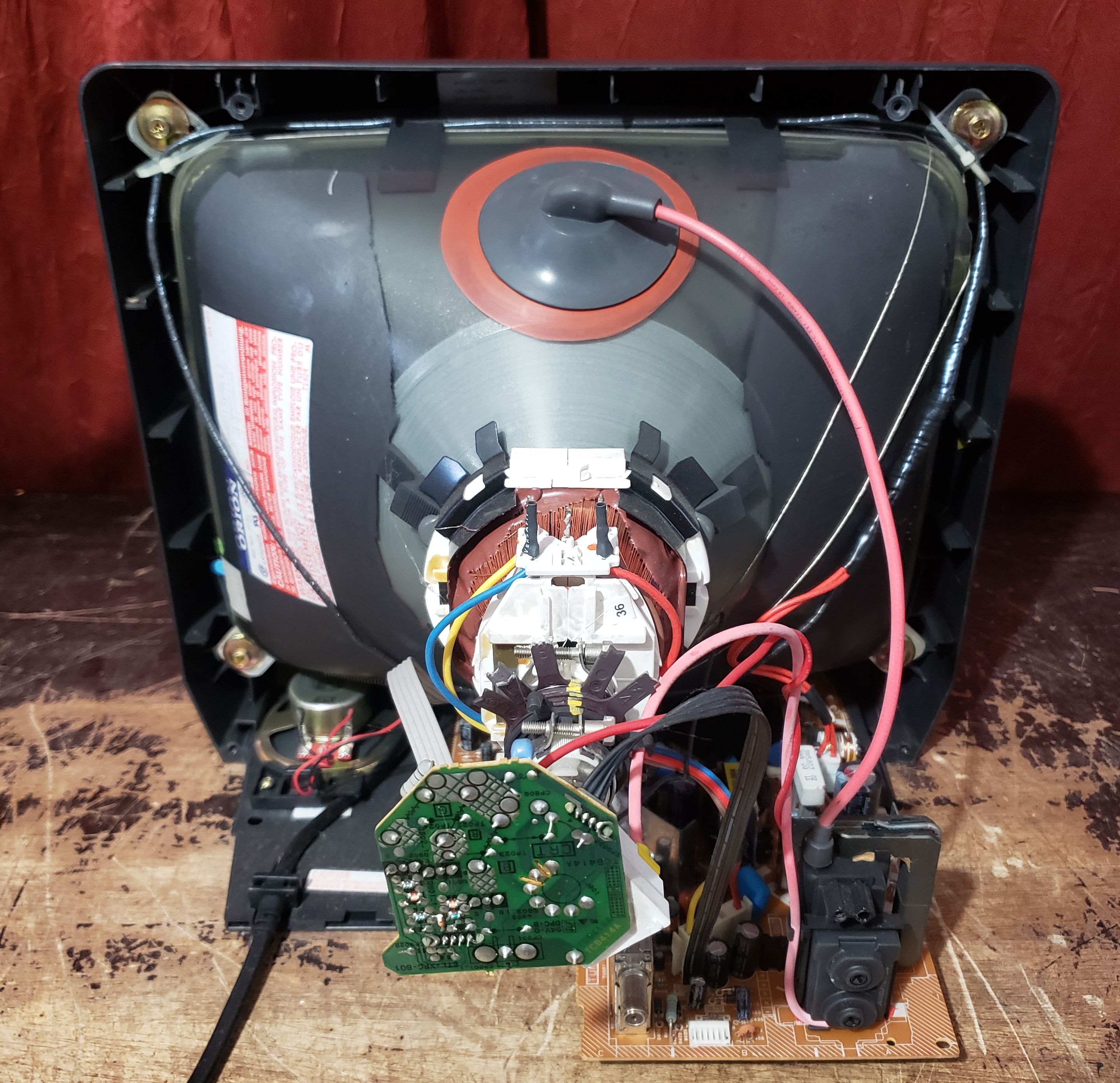

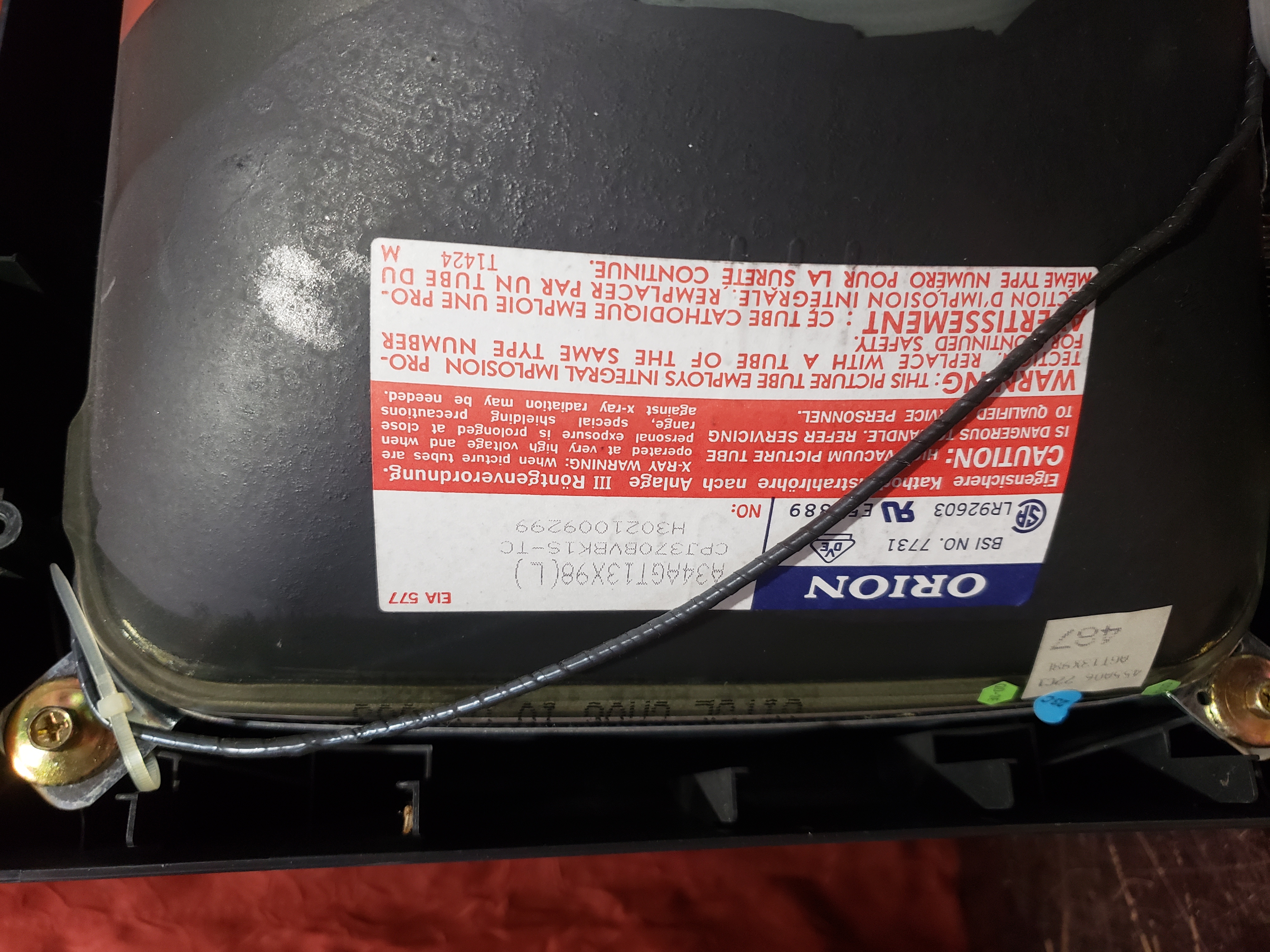

| Tube: | A34AGT13X98 , A34AGT13X , Chunghwa |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

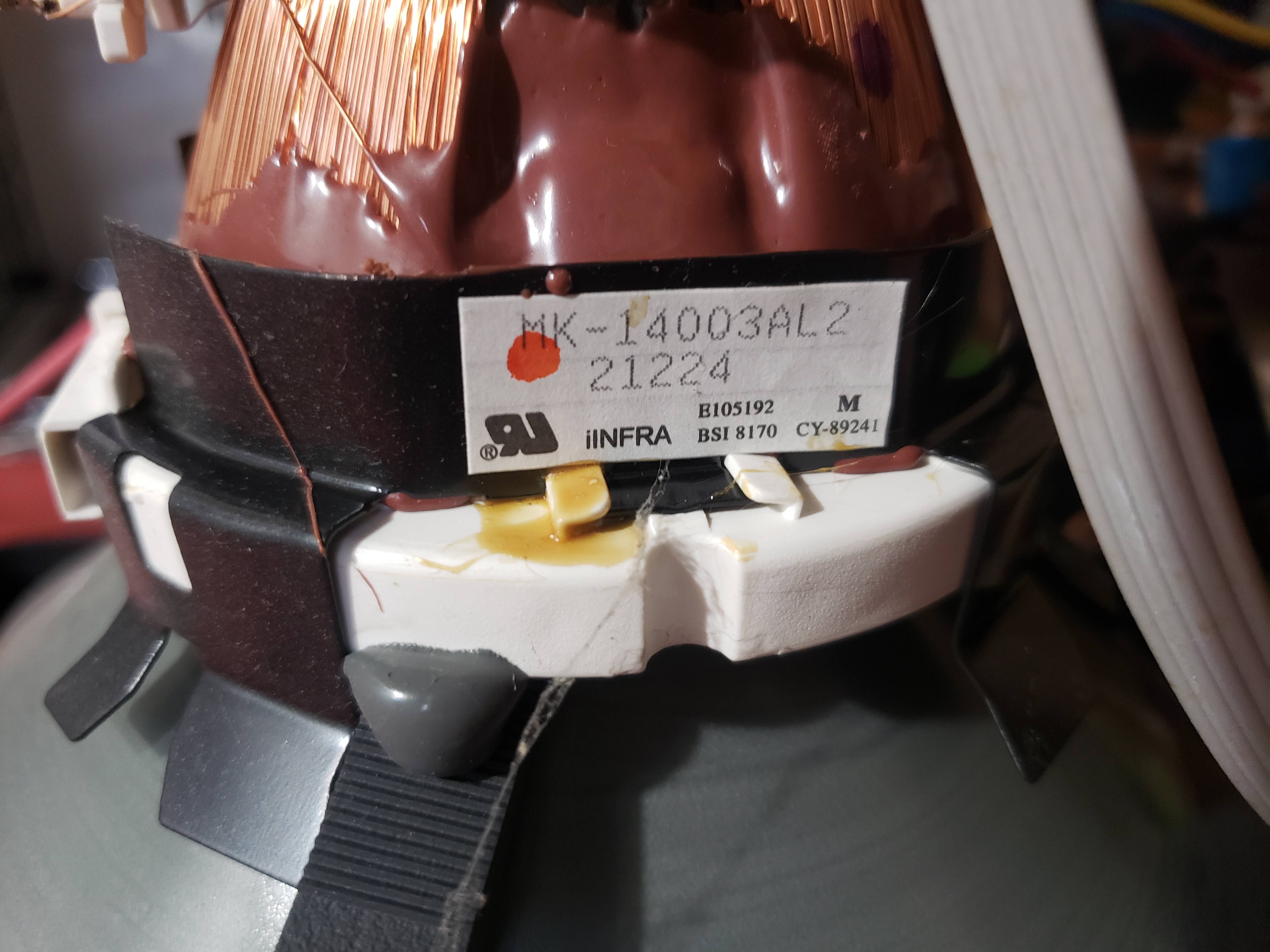

| Yoke: | MK-14003AL2 |
| Yoke Horz. Inductance: | 1.493 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 27.48 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 1.893 ohm |
| Yoke Vert. Resistance: | 15.39 ohm |
| Speakers: | Mono |
| Remote: | 076N0DW010 |
| Chassis: | M3M17 |
| Weight: | 18.6 lbs (8.4 kg) |

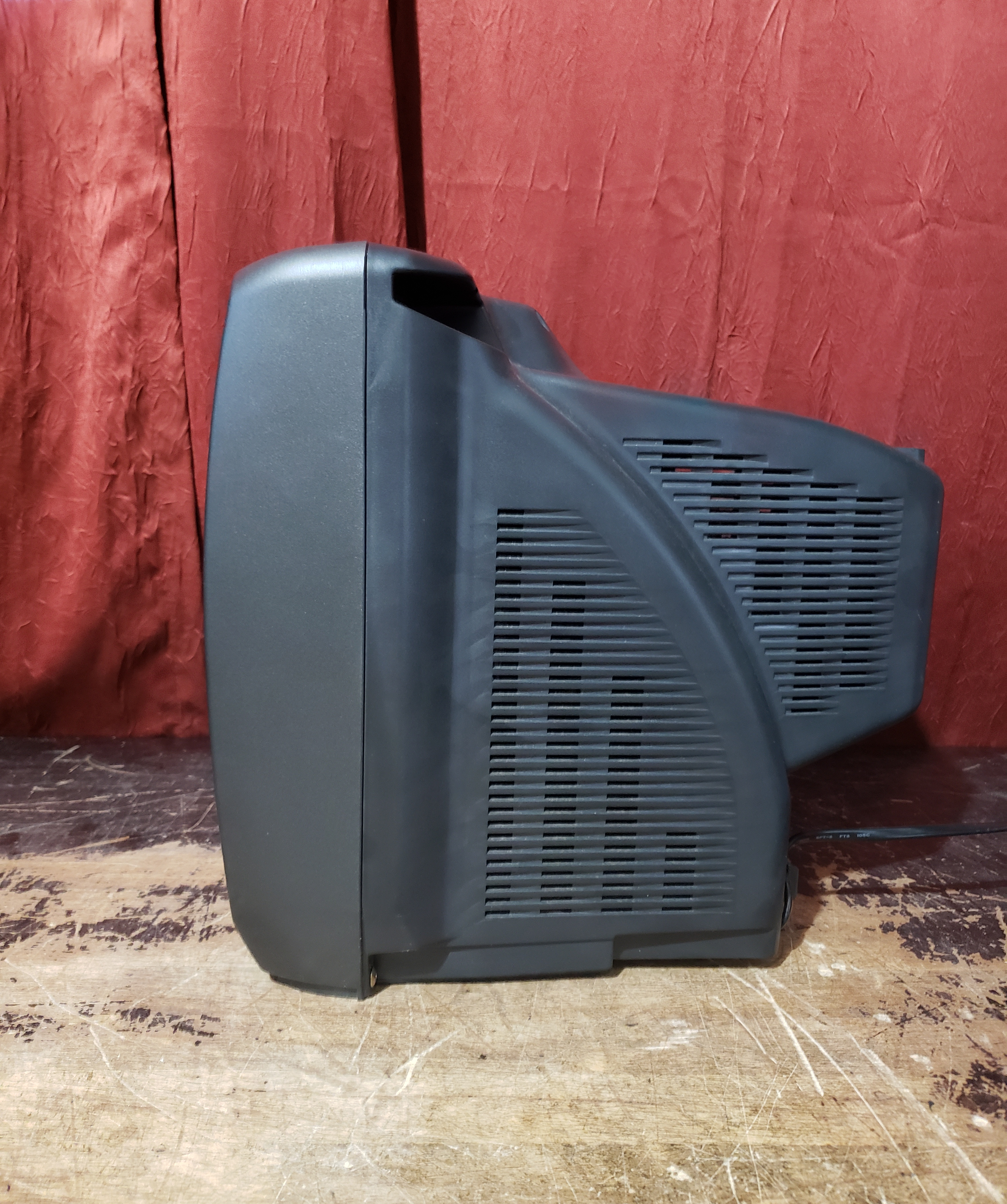

| Dimensions (W/H/D): |
362 x 360 x 321 mm
(14.2 x 14.1 x 12.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs IC Info |
