Orion TV1927
SegaSaturn94
March 27, 2026, 9:47 pm
March 28, 2026, 1:52 am
March 27, 2026, 9:47 pm
March 28, 2026, 1:52 am
Summary

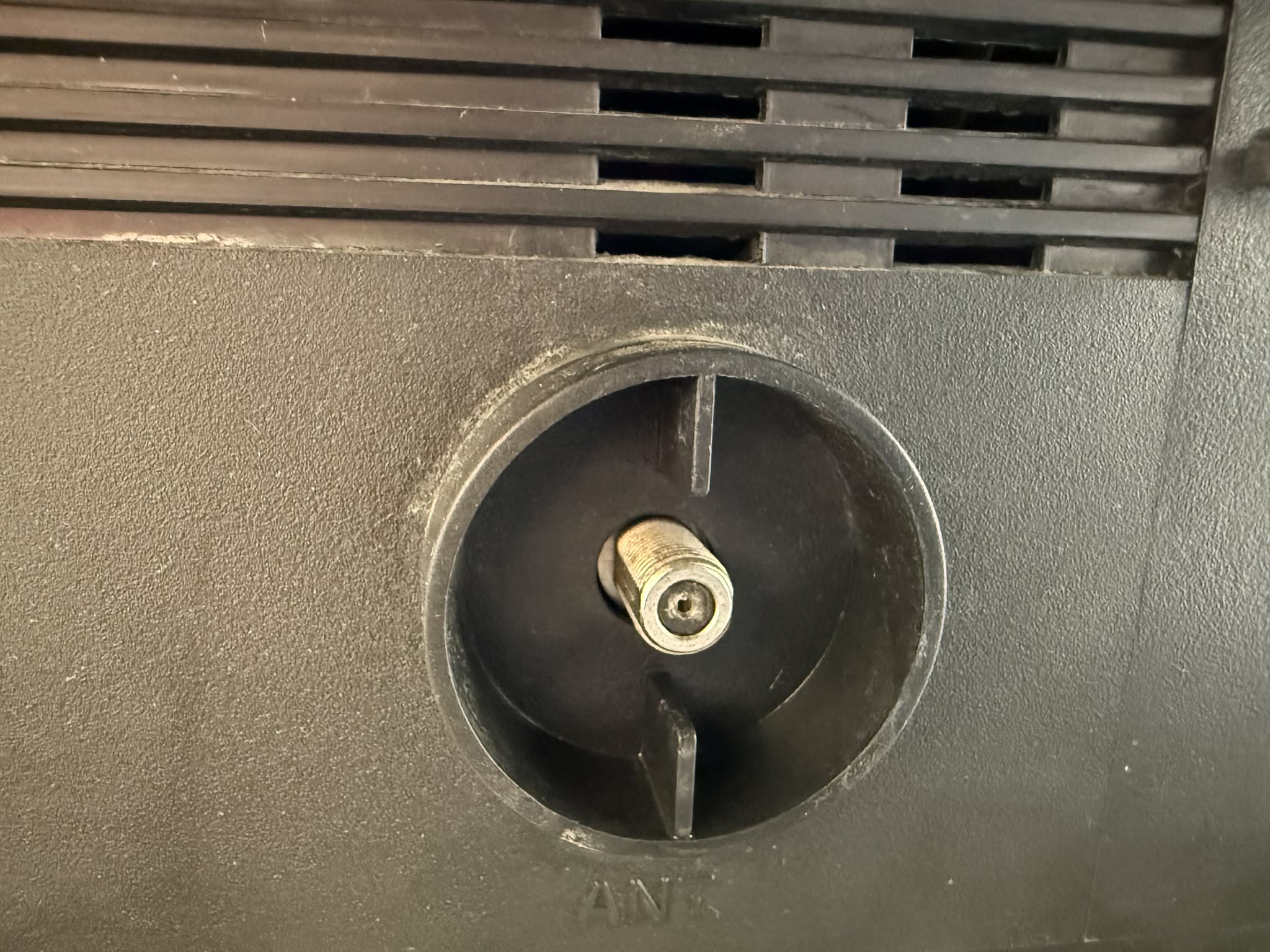

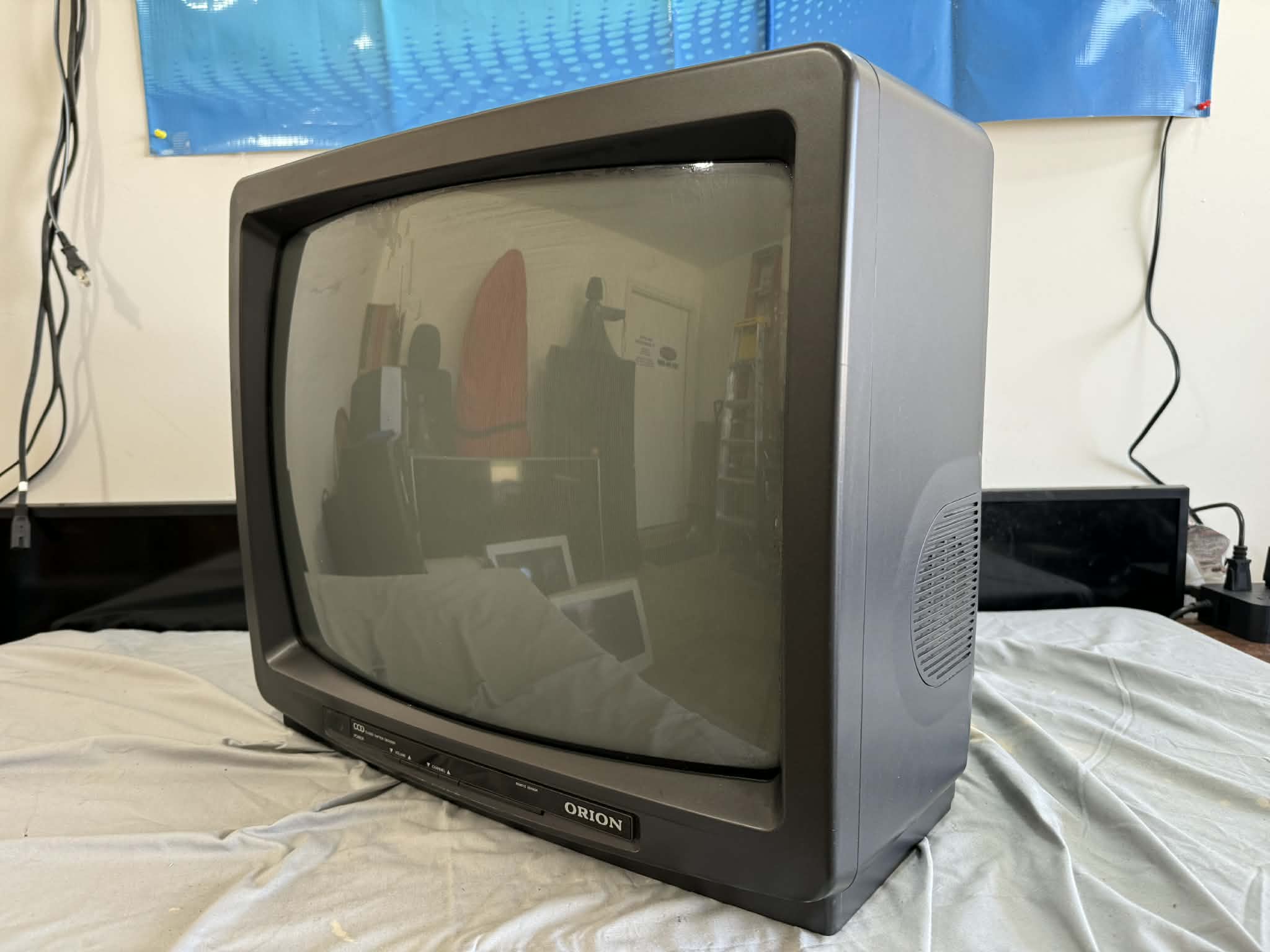

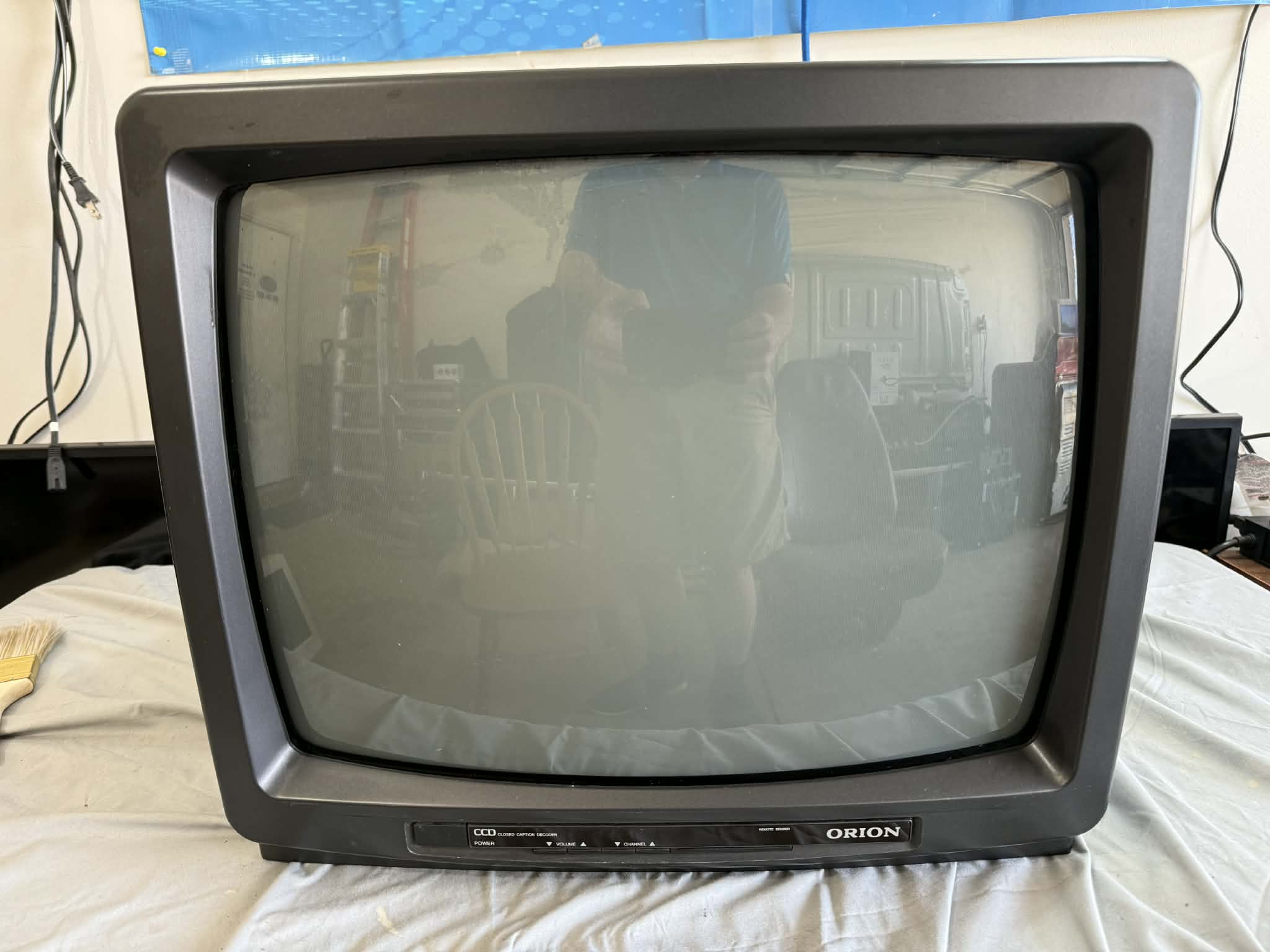

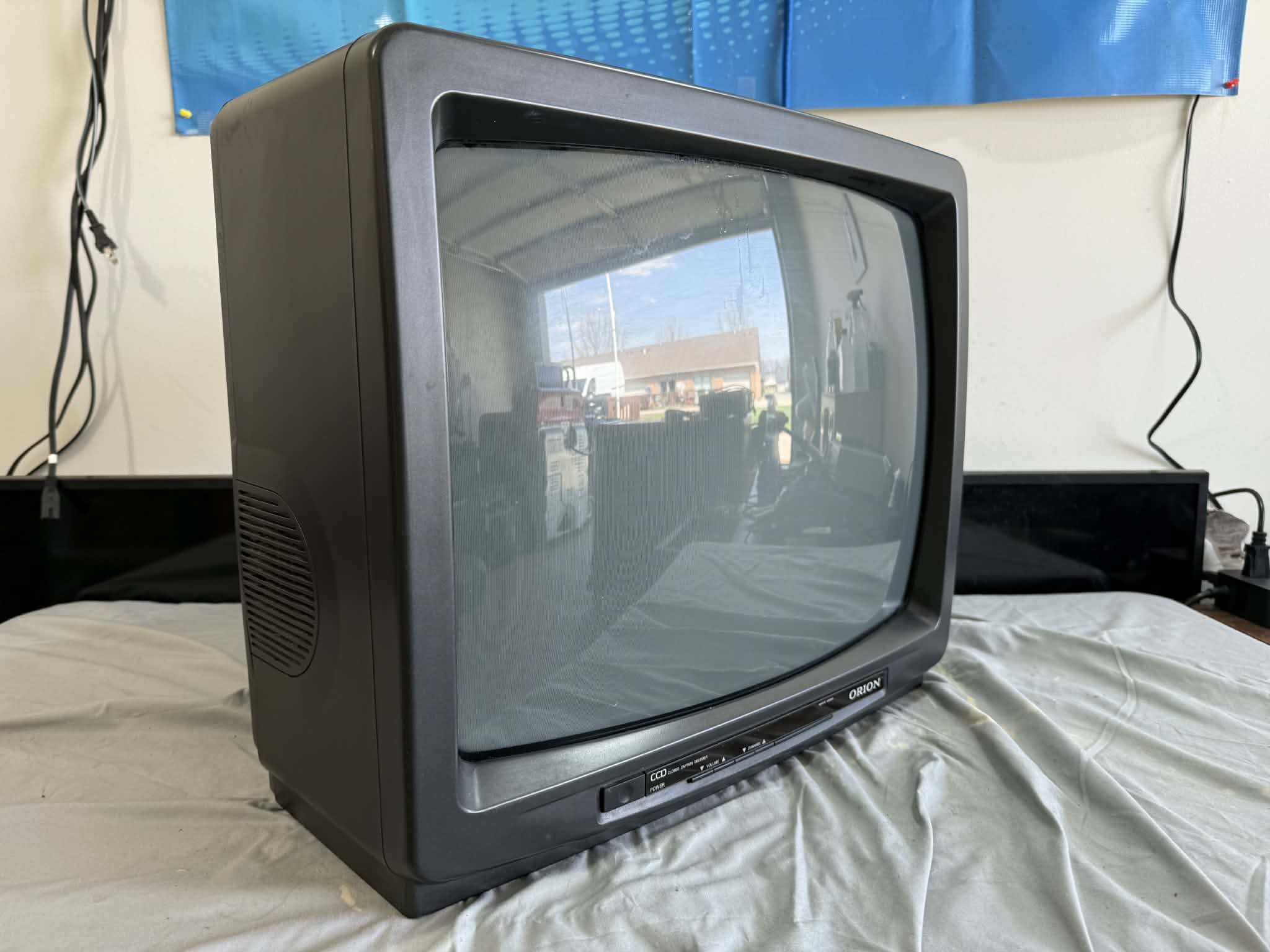

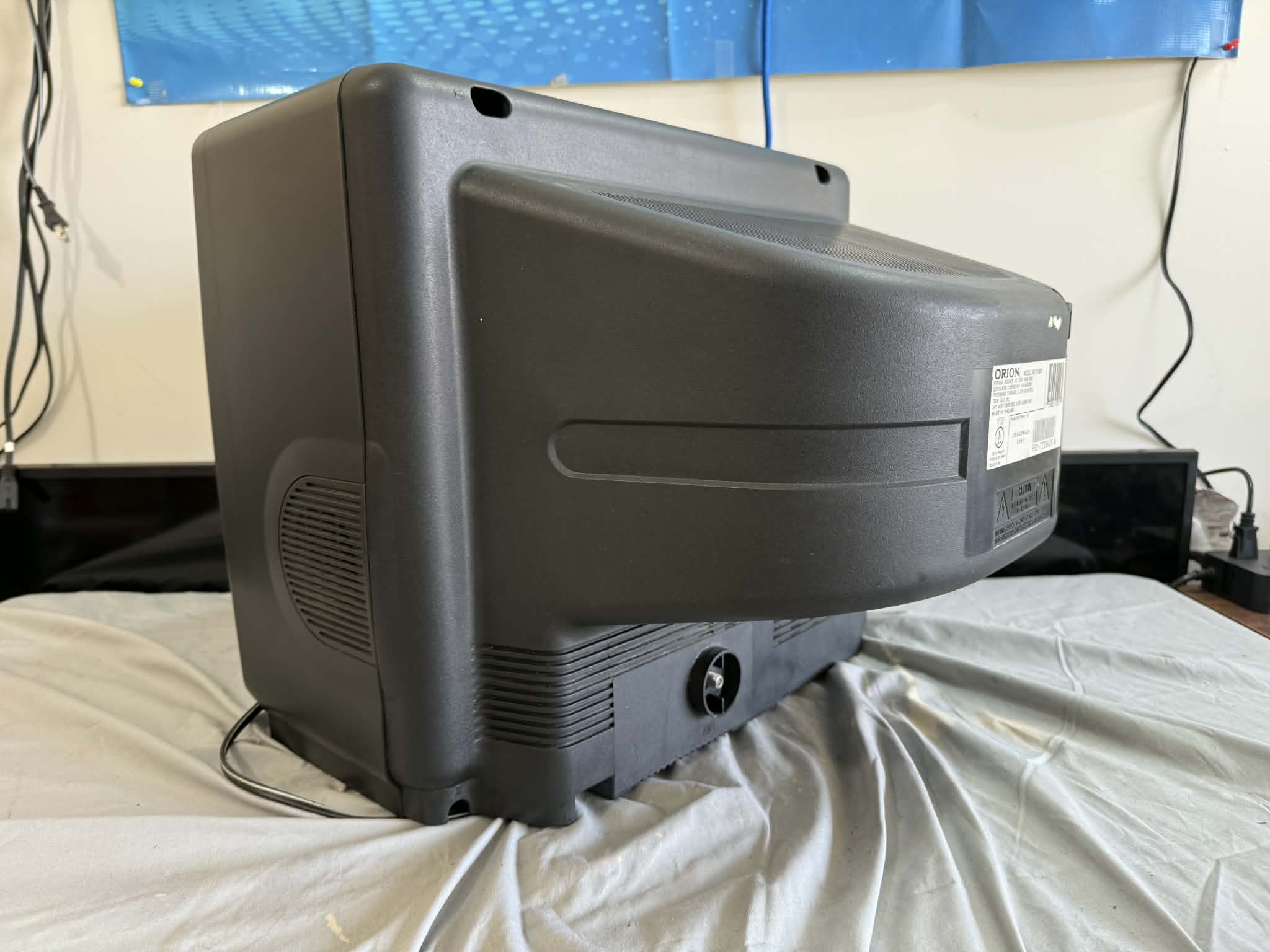

19" RF-only TV from Orion, made in Thailand in 1998. Has Rf input with mono sound.
(Special thanks to Rhett Dziech for the pics!)
Manuals
No documentation is available online at this time.
Notes

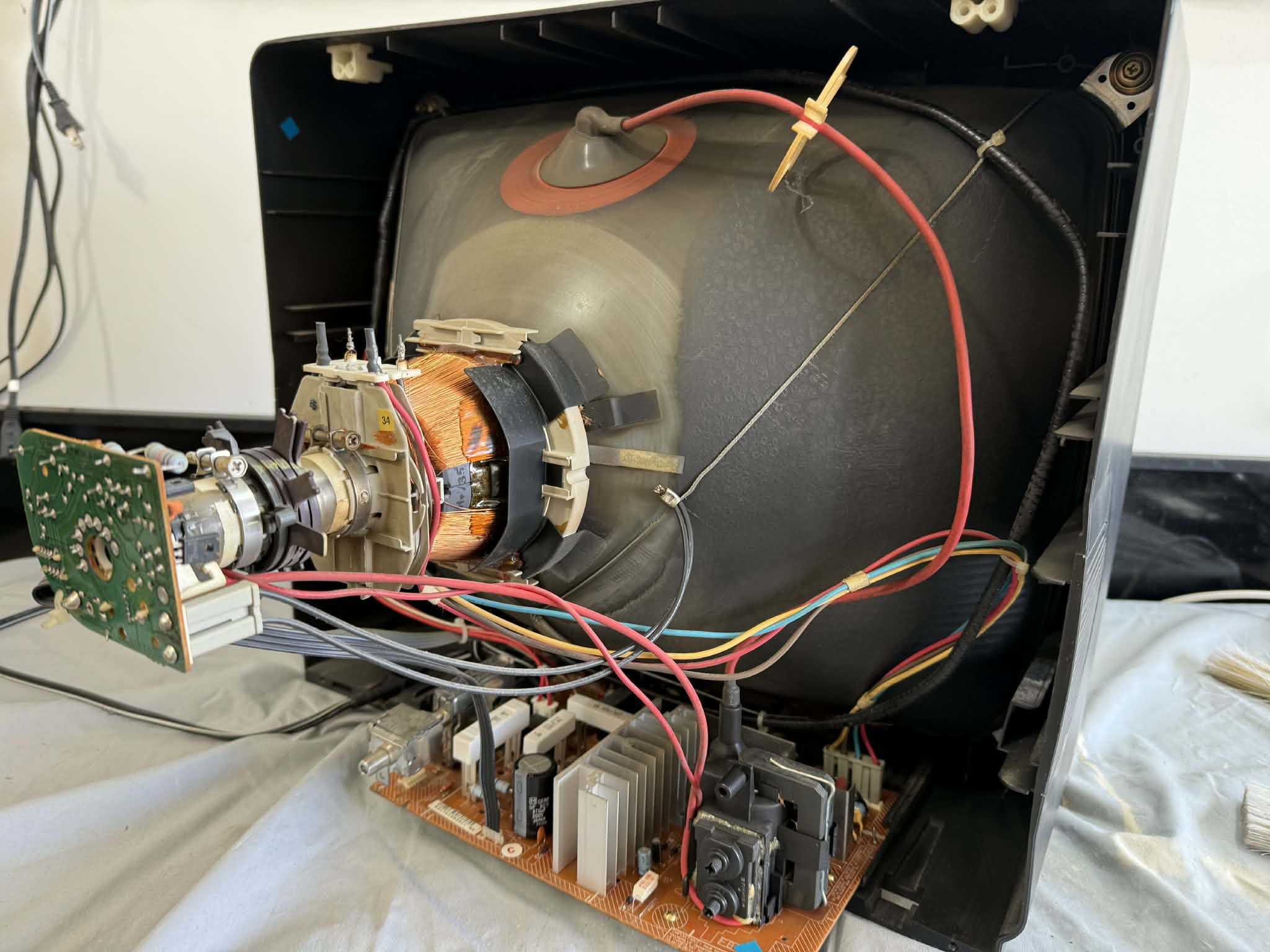

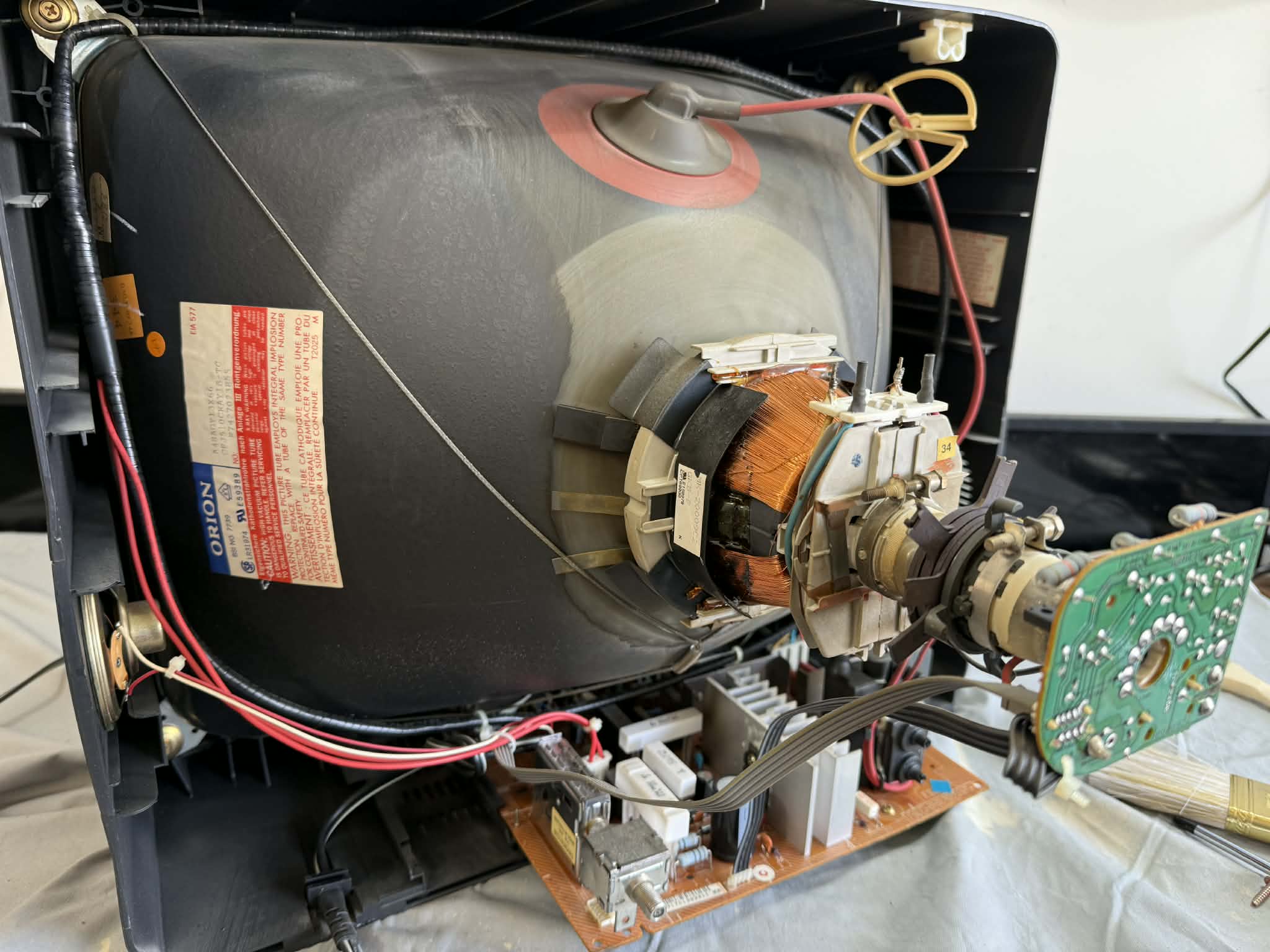

This TV uses a genuine 19" tube, which makes it useful as a potential donor for arcade monitors. This TV has a hot chassis design and should not be modified for additional inputs.
Gallery
| Specifications | |
|---|---|
| Brand: | Orion (Japan) |
| Manufacturer: | Orion |
| Model: | TV1927 |
| Series: | TV |
| Viewable Size: | 19" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Focus Type: | Single |

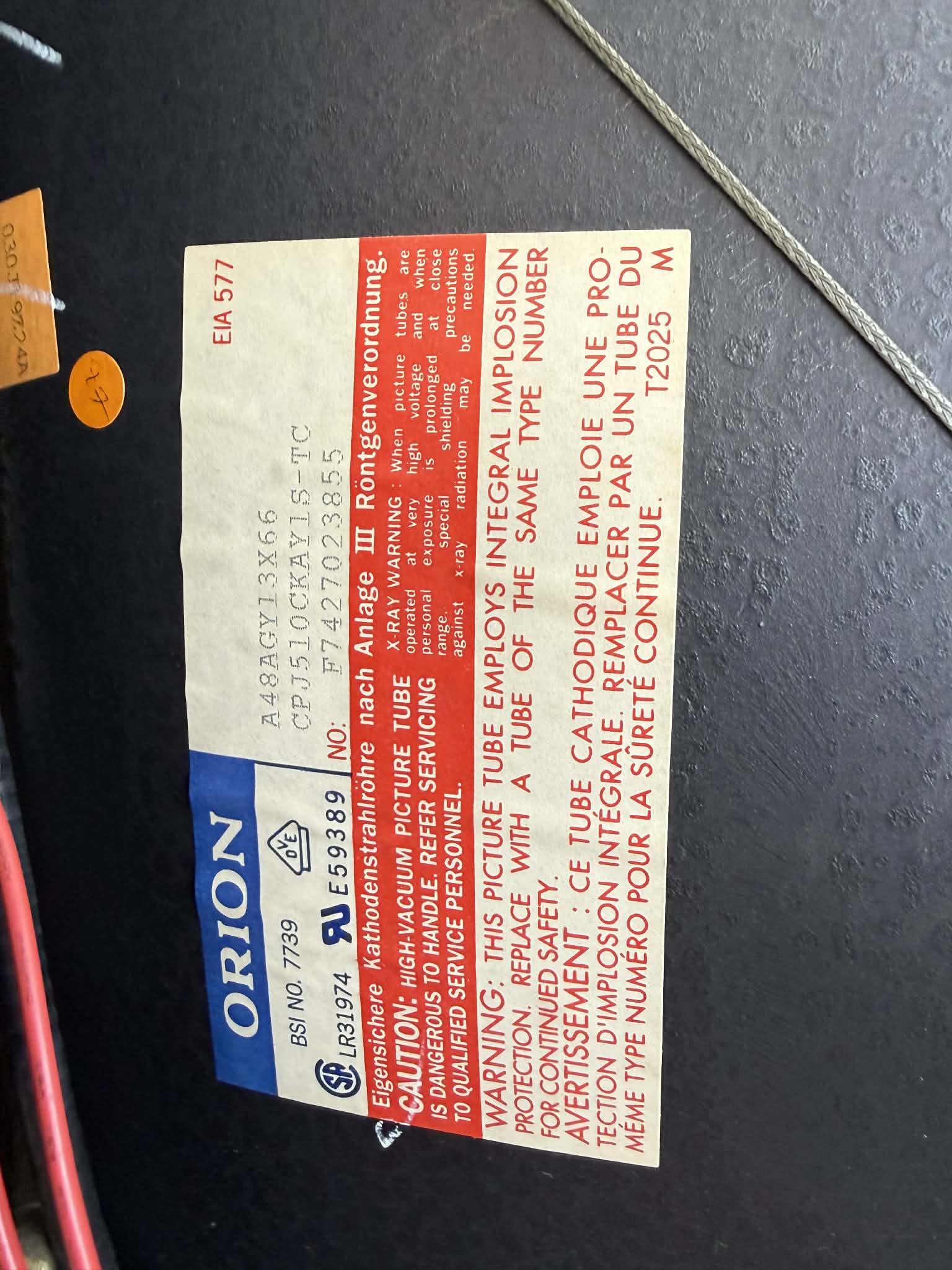

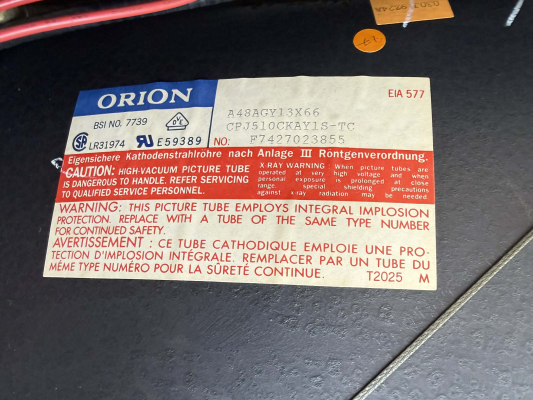

| Tube: | Chunghwa , A48AGY13X , A48AGY13X66 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Mono |

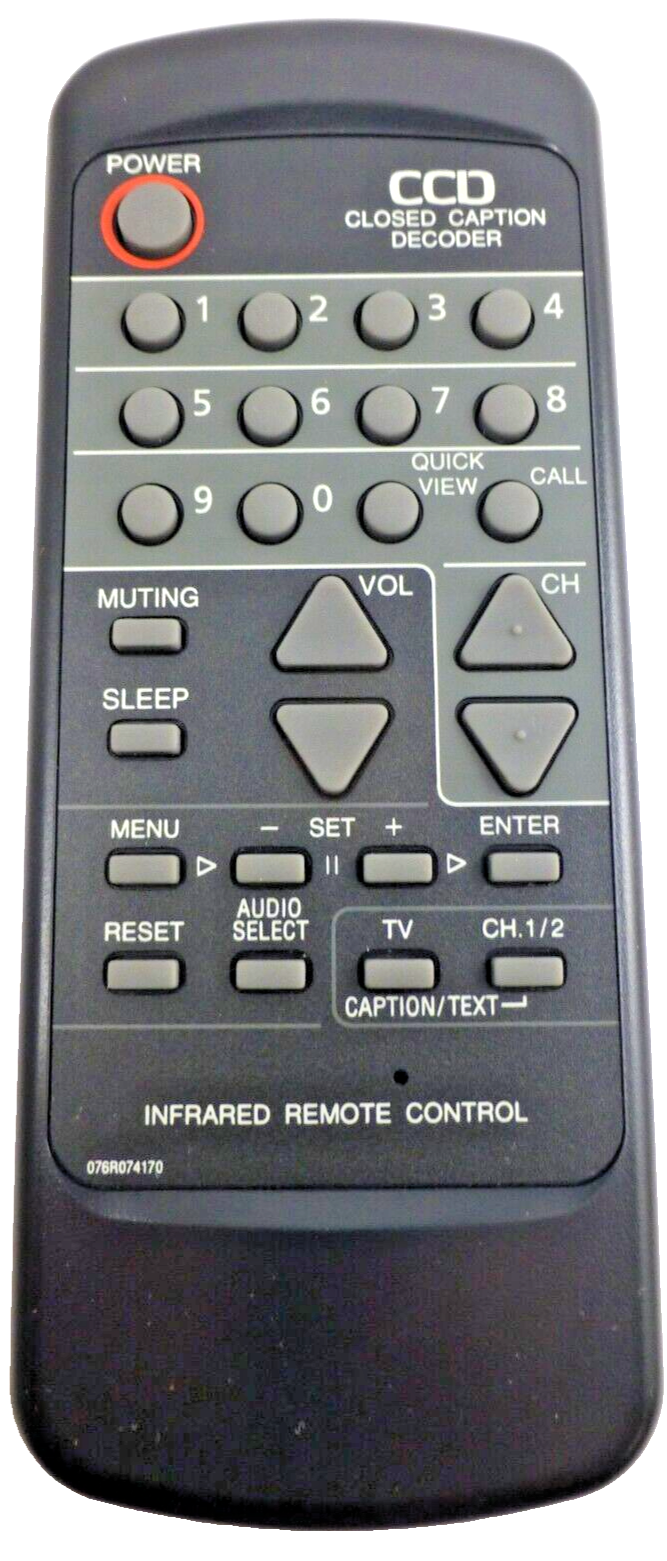

| Remote: | 076R074170 |
| Chassis: | M3C0 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| MSRP: | 149 USD |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
