Summary

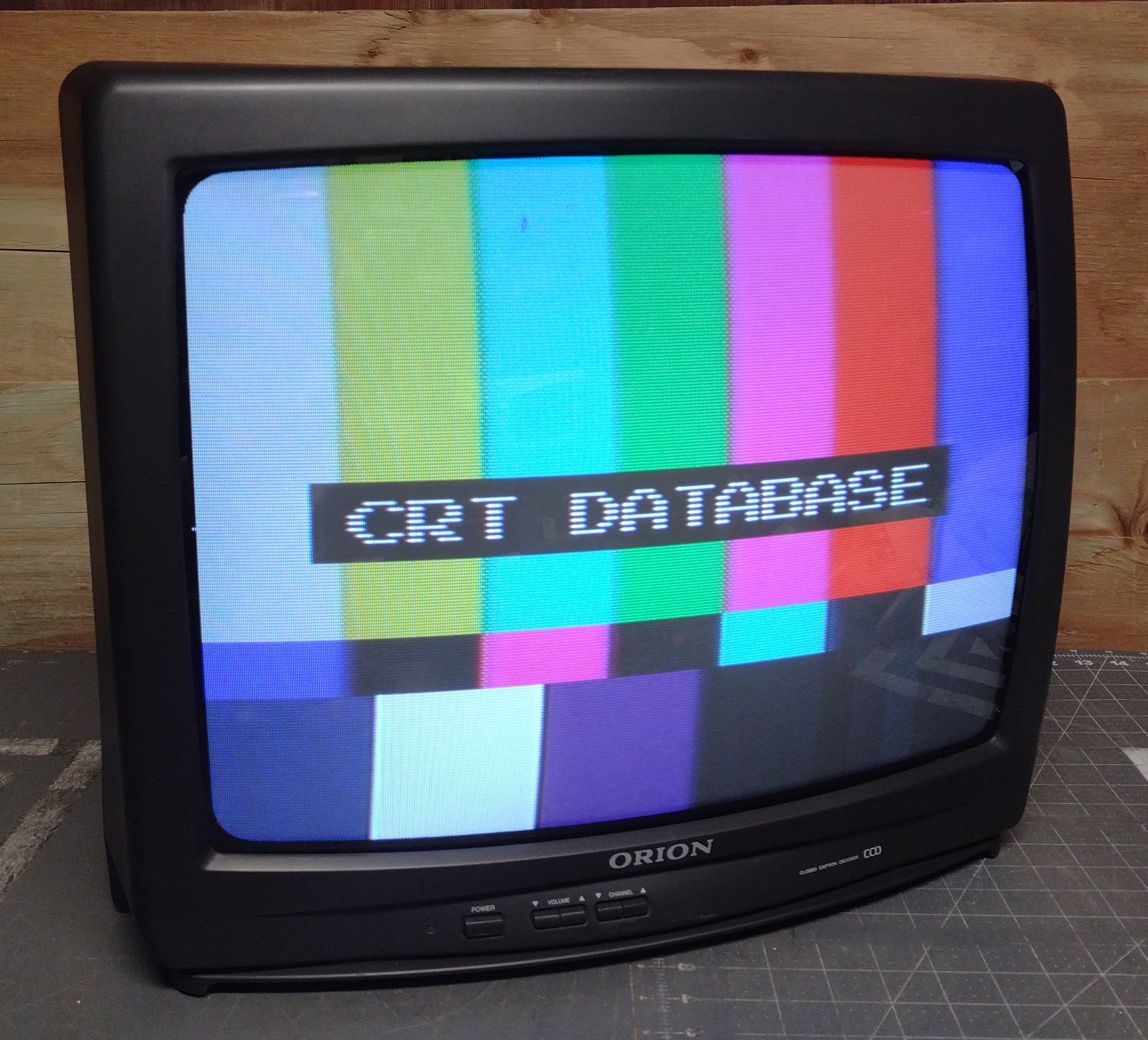

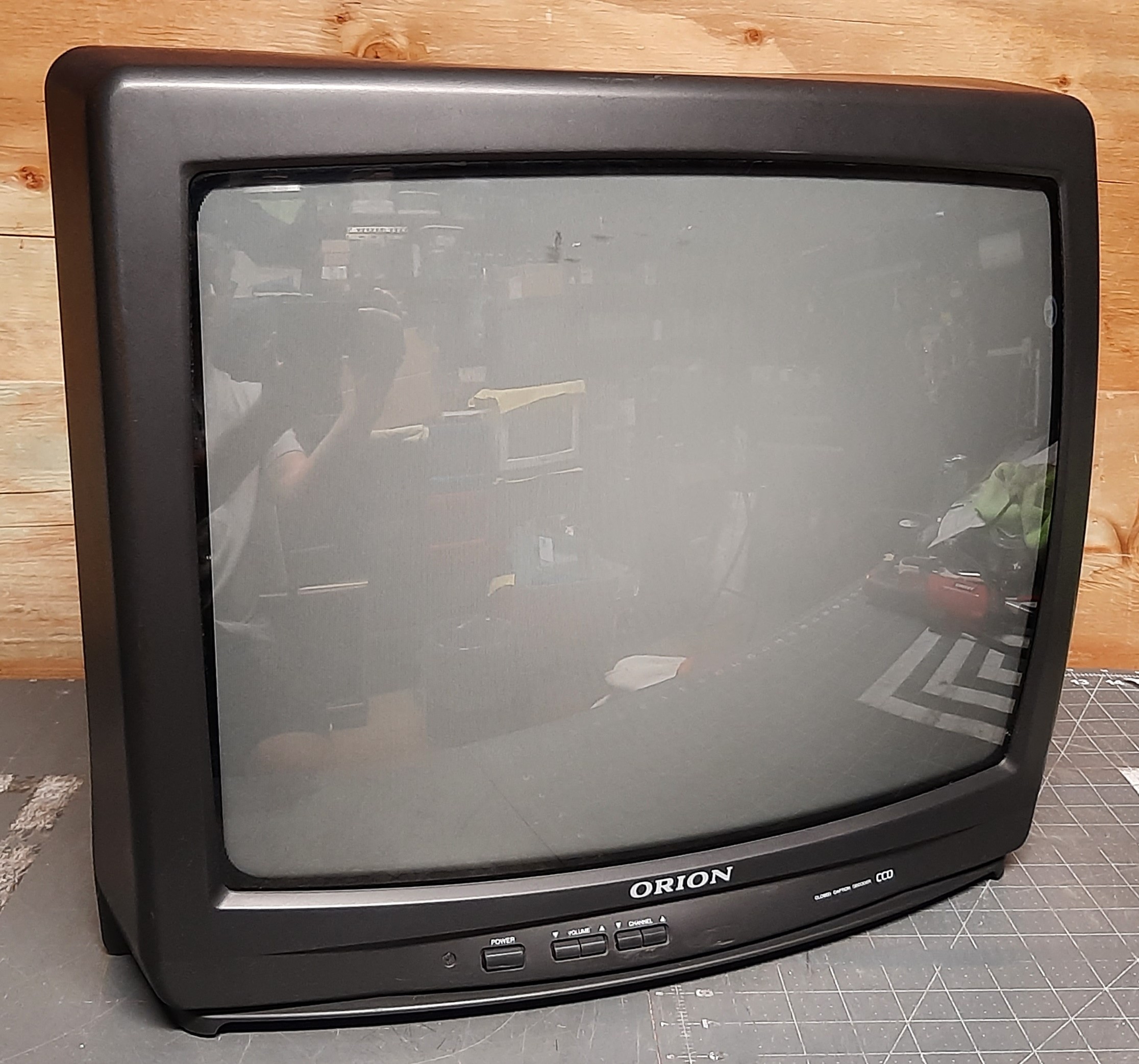

19" RF-only TV from Orion. This model was likely also sold under other brand names.
Manuals
No documentation is available online at this time.
Notes

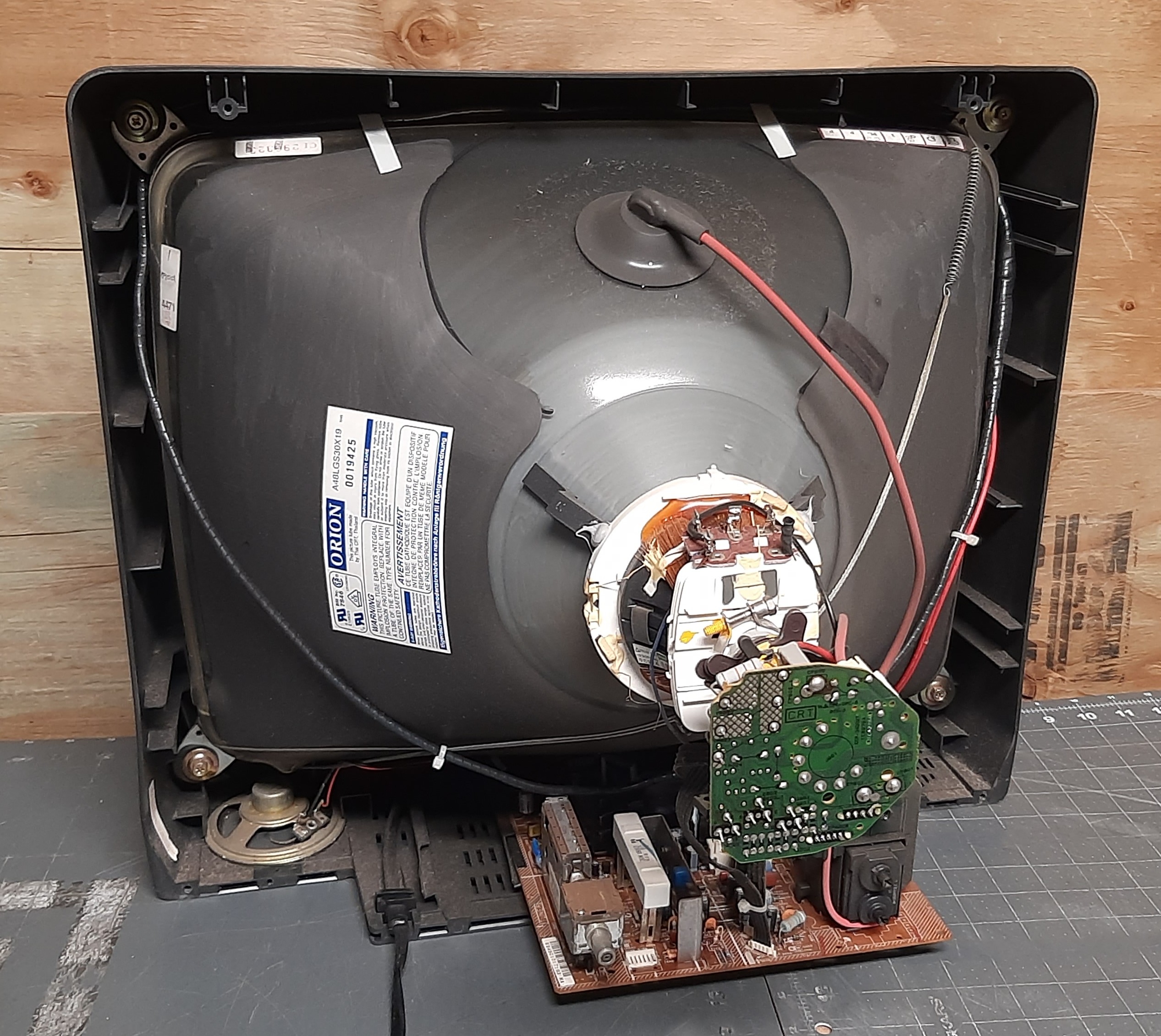

This TV uses a genuine 19" tube, which makes it useful as a potential donor for arcade monitors.
This TV has a hot chassis design and should not be modified for additional inputs.

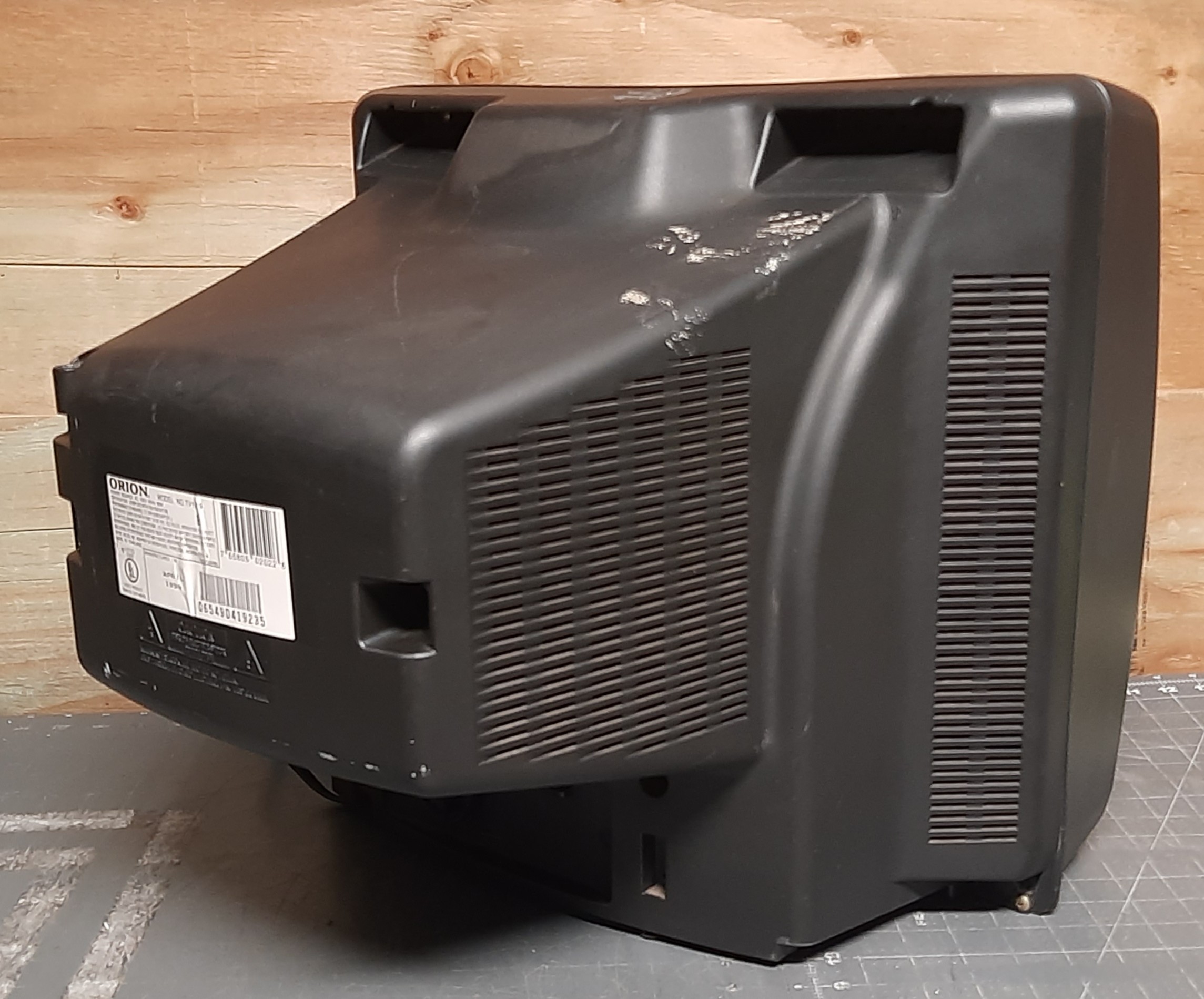

Gallery
| Specifications | |
|---|---|

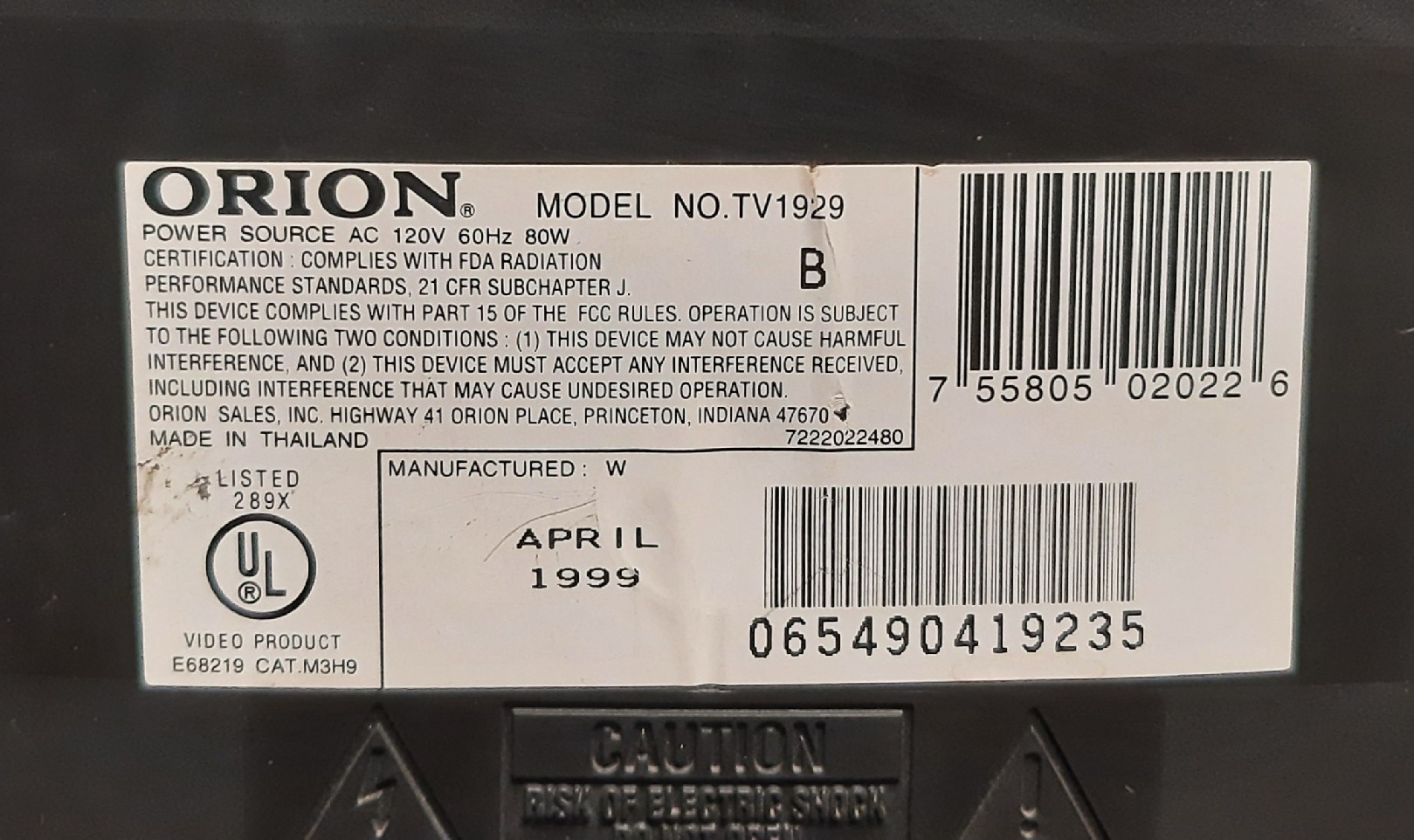

| Brand: | Orion (Japan) |
| Manufacturer: | Orion |
| Model: | TV1929 |
| Series: | TV |
| Viewable Size: | 19" |

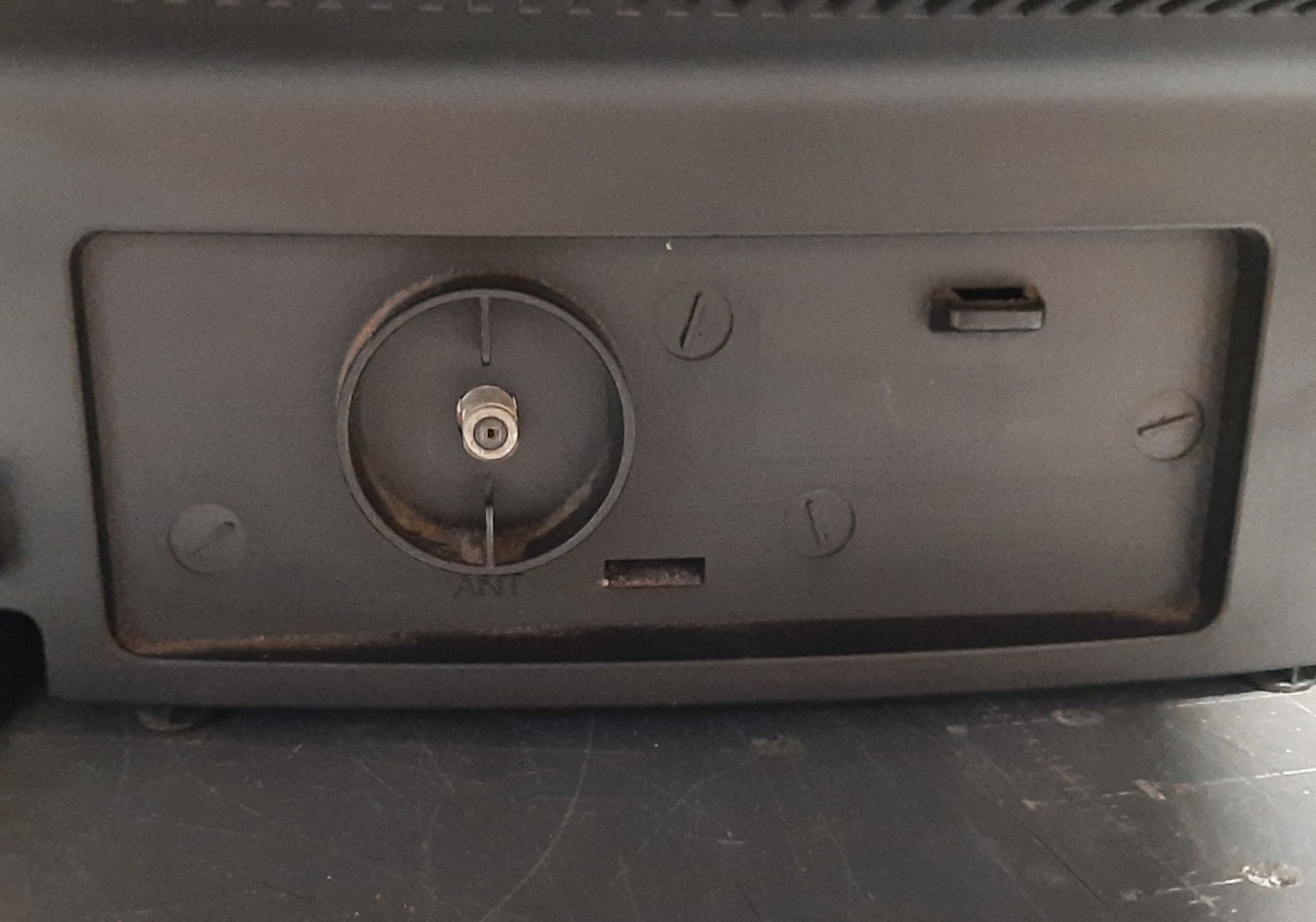

| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD2499 |
| Vertical Output IC: | LA7840 |
| Jungle IC: | LA76814 |
| Comb Filtering: | None |
| Flyback: | FSV-20B018 |
| Focus Type: | Single |
| Tube: | Thai CRT Co. , A48LGS30X , A48LGS30X19 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 330P510 |
| Yoke Horz. Inductance: | 3.258 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 26.52 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.97 ohm |
| Yoke Vert. Resistance: | 13.43 ohm |
| Speakers: | Mono |
| Weight: | 36.2 lbs (16.4 kg) |
| Dimensions (W/H/D): |
488 x 465 x 416 mm
(19.2 x 18.3 x 16.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
