Summary
Basic TV from Orion that has one composite input and a single 1 amp speaker that's mounted on the bottom of the TV.
Manuals
No documentation is available online at this time.
Media & Promo Materials
Notes
Unlike some Orion TVs, all of its functions can be accessed without the remote. The A/V inputs can be selected using the channel up/down buttons, and the menu can be opened by pressing volume up & down at the same time.
This TV uses a genuine 19" tube, which makes it useful as a potential donor for arcade monitors.

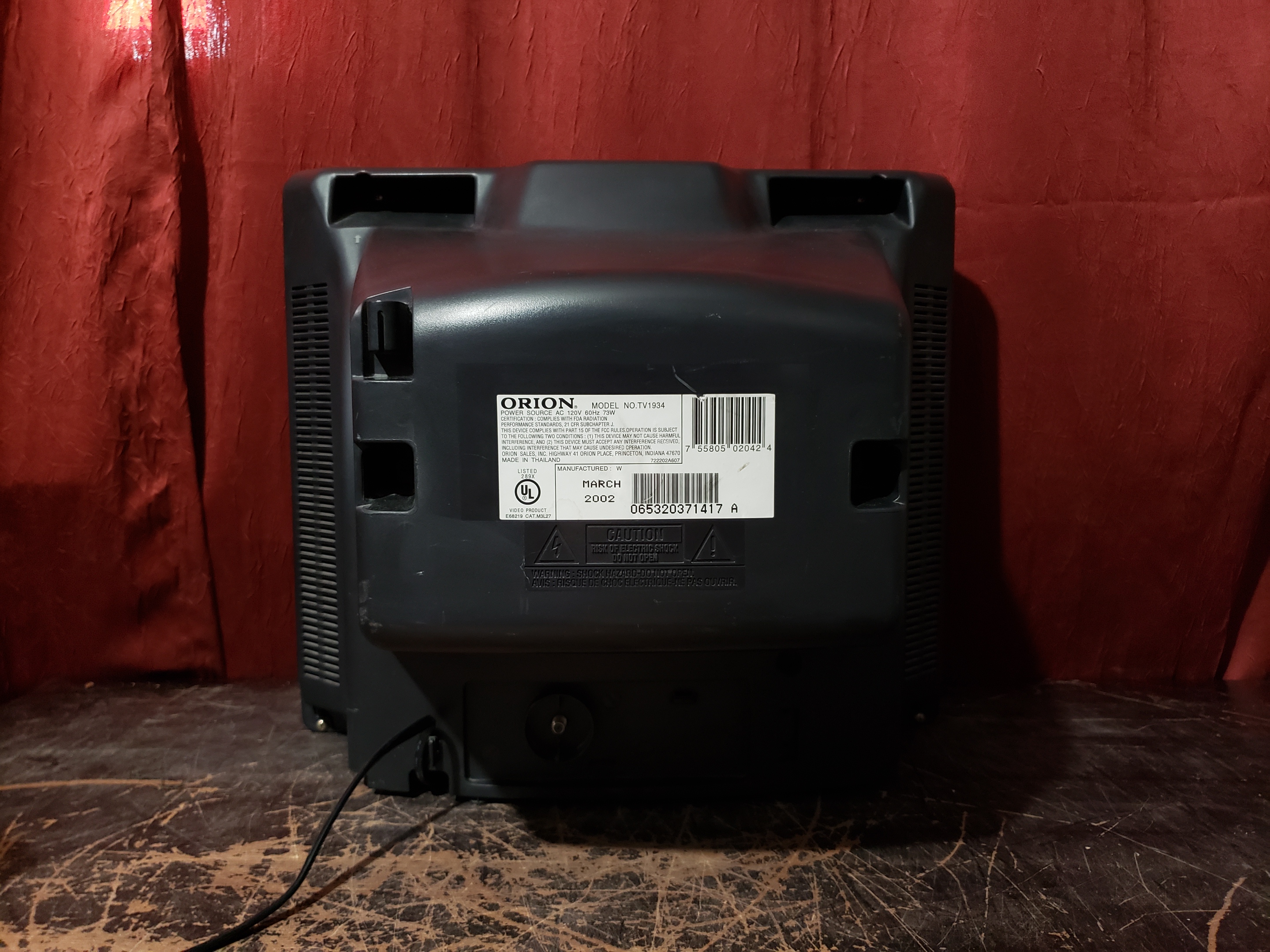

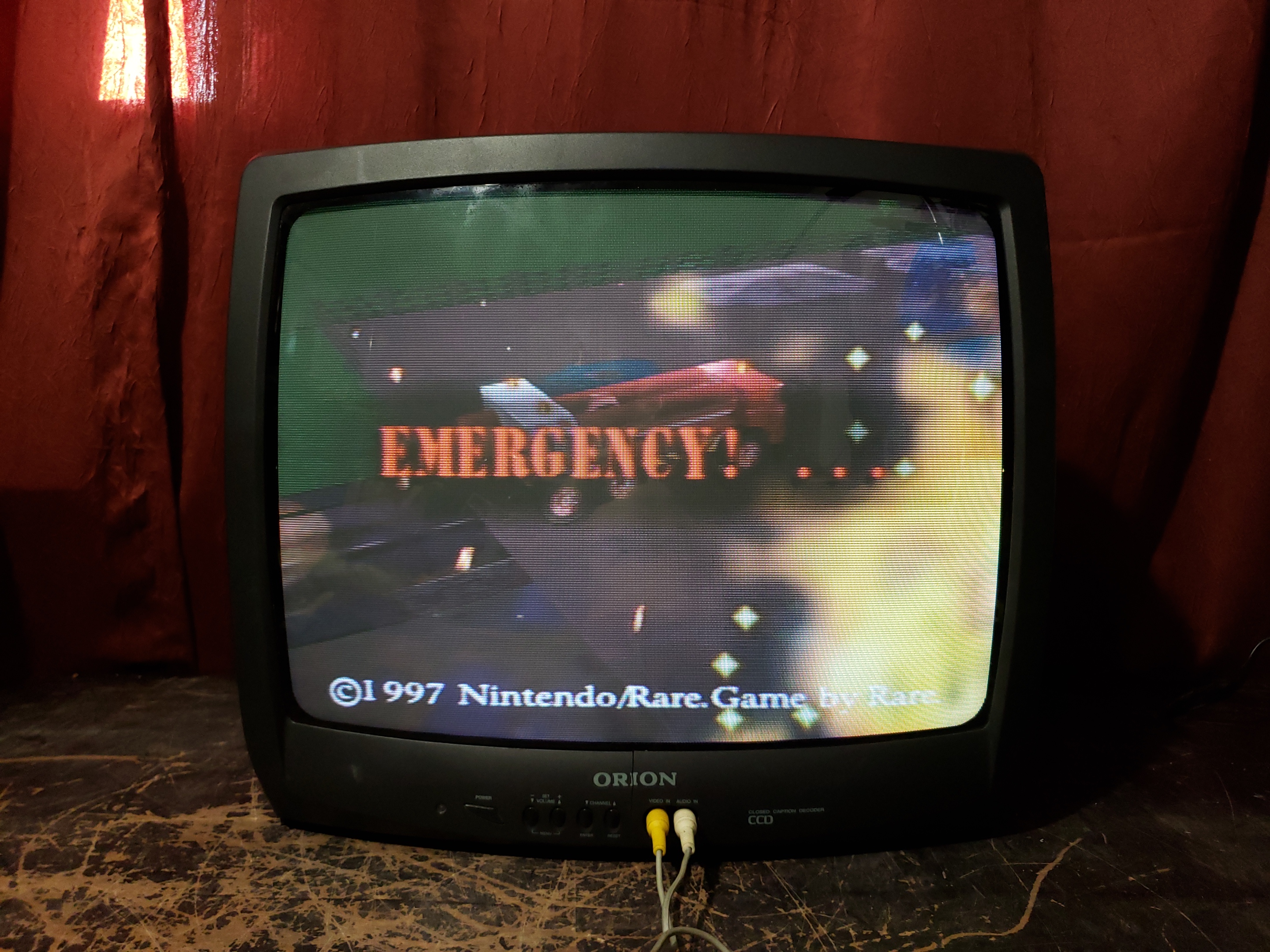

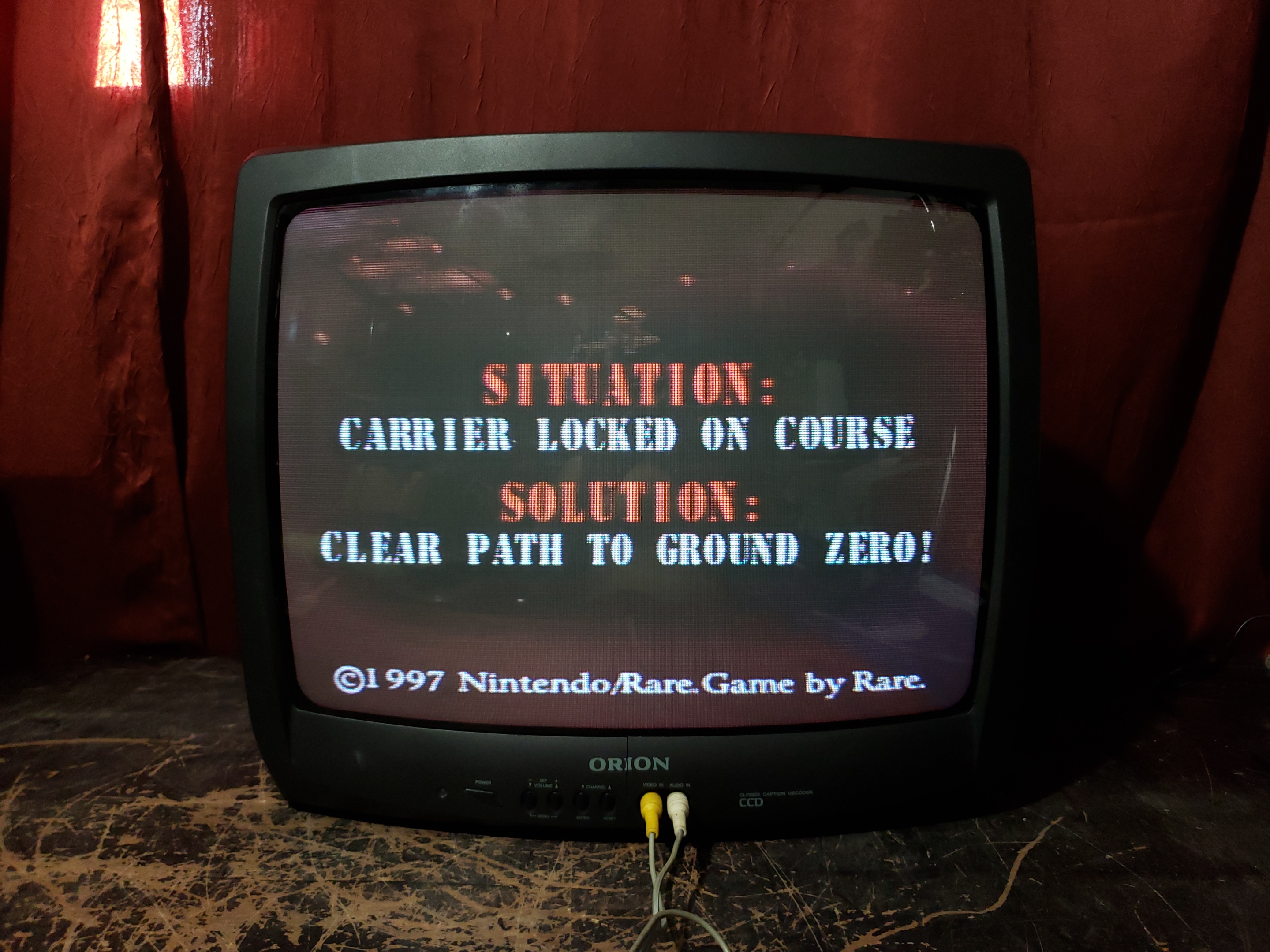

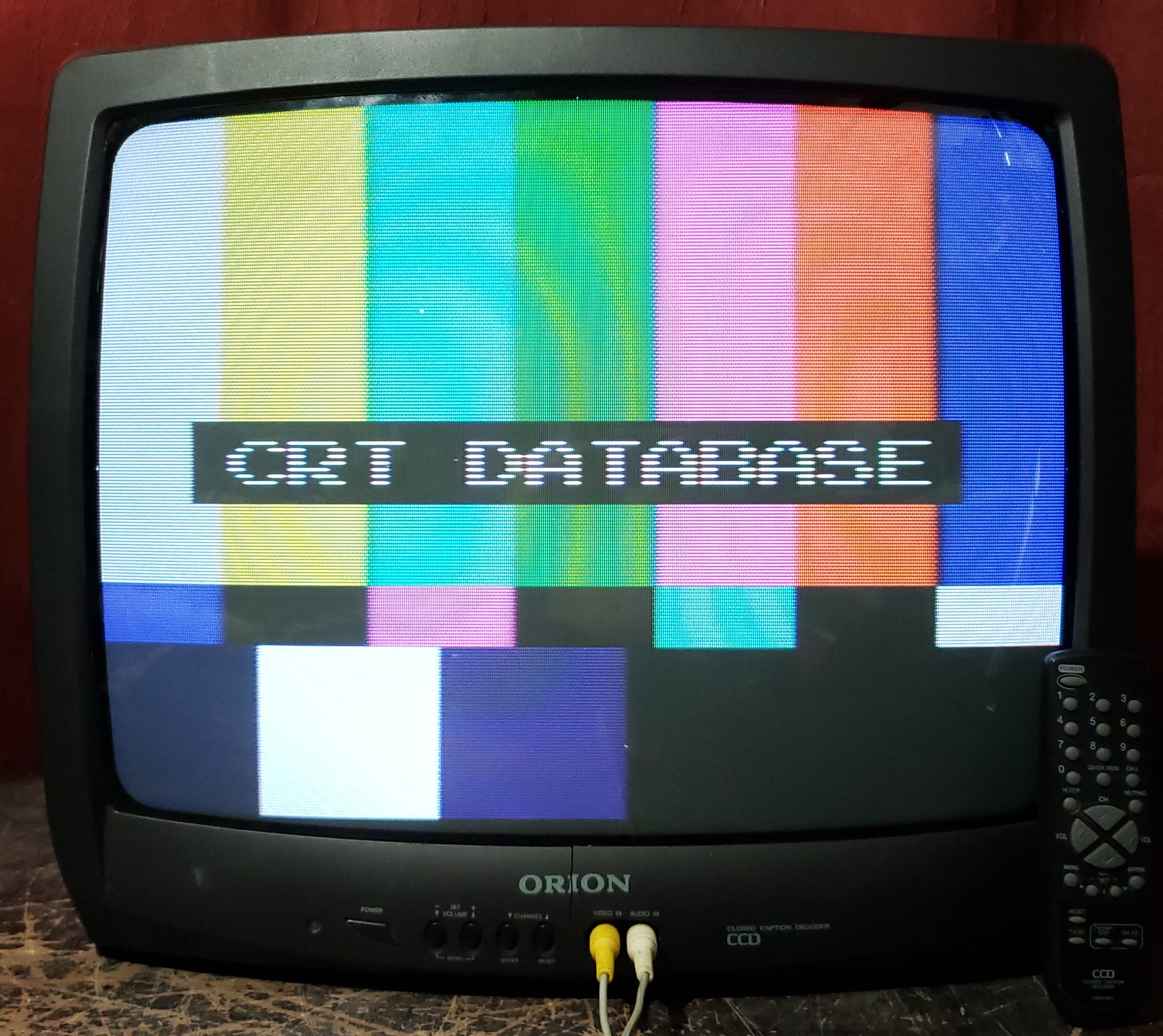

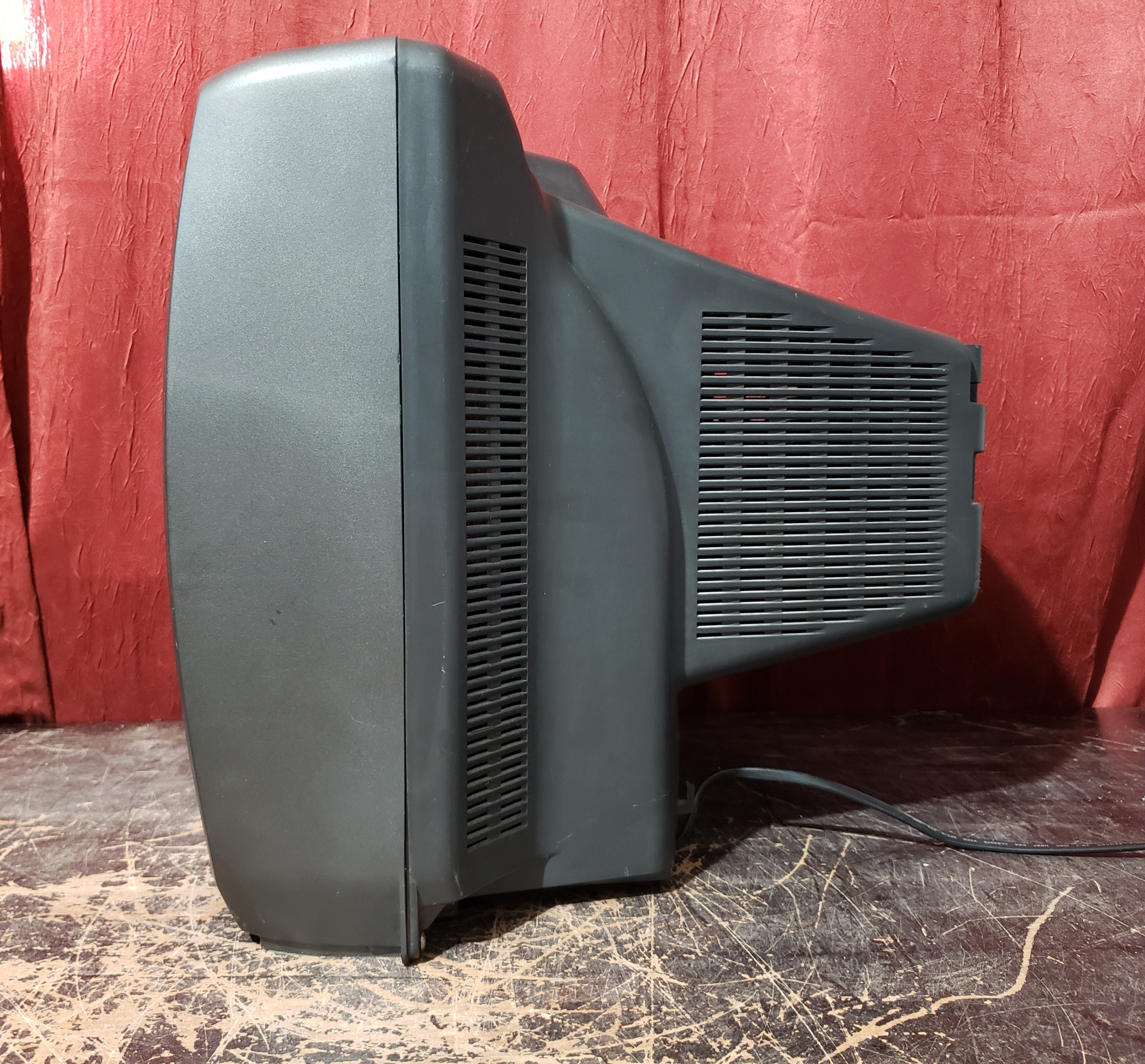

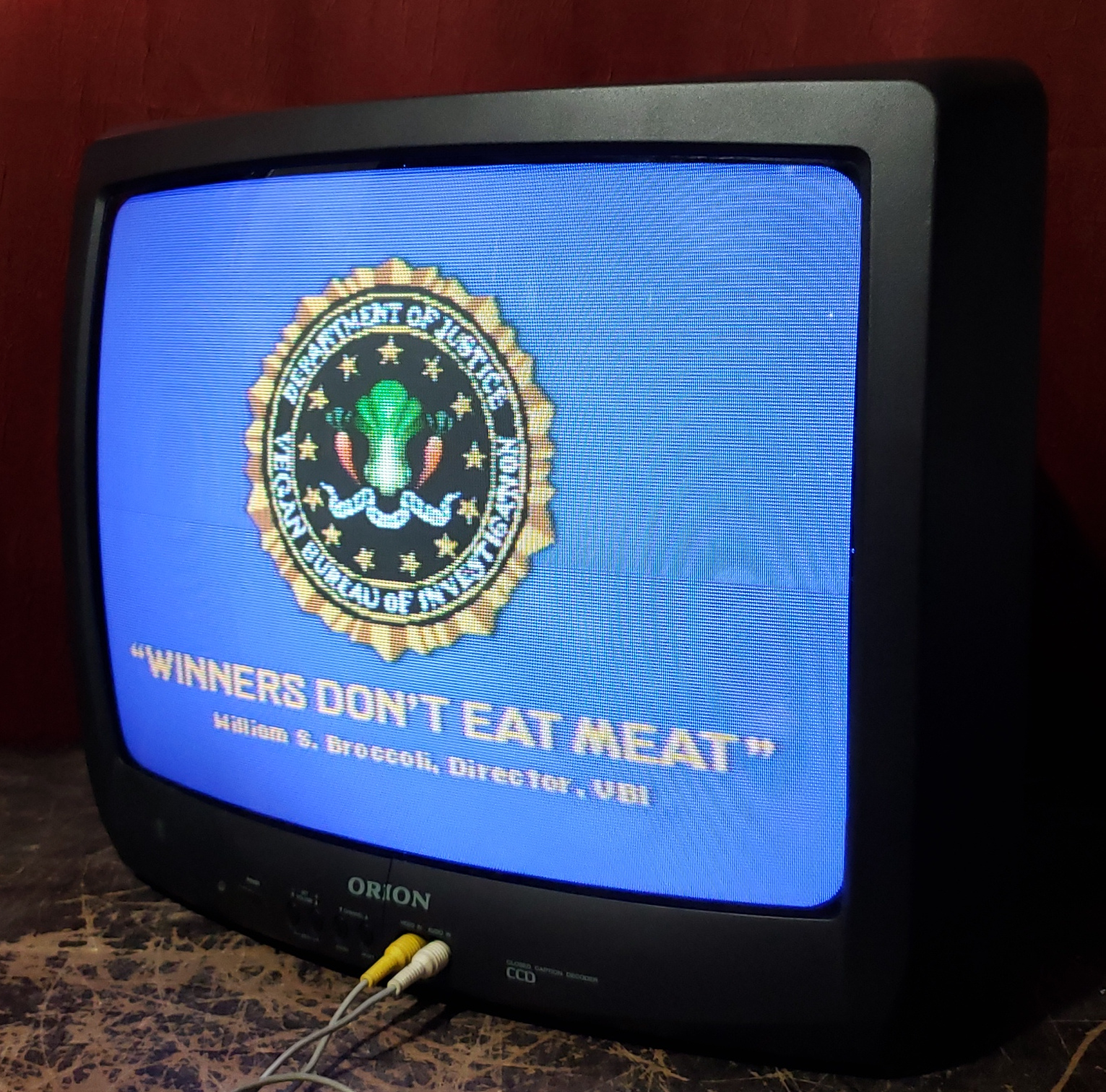

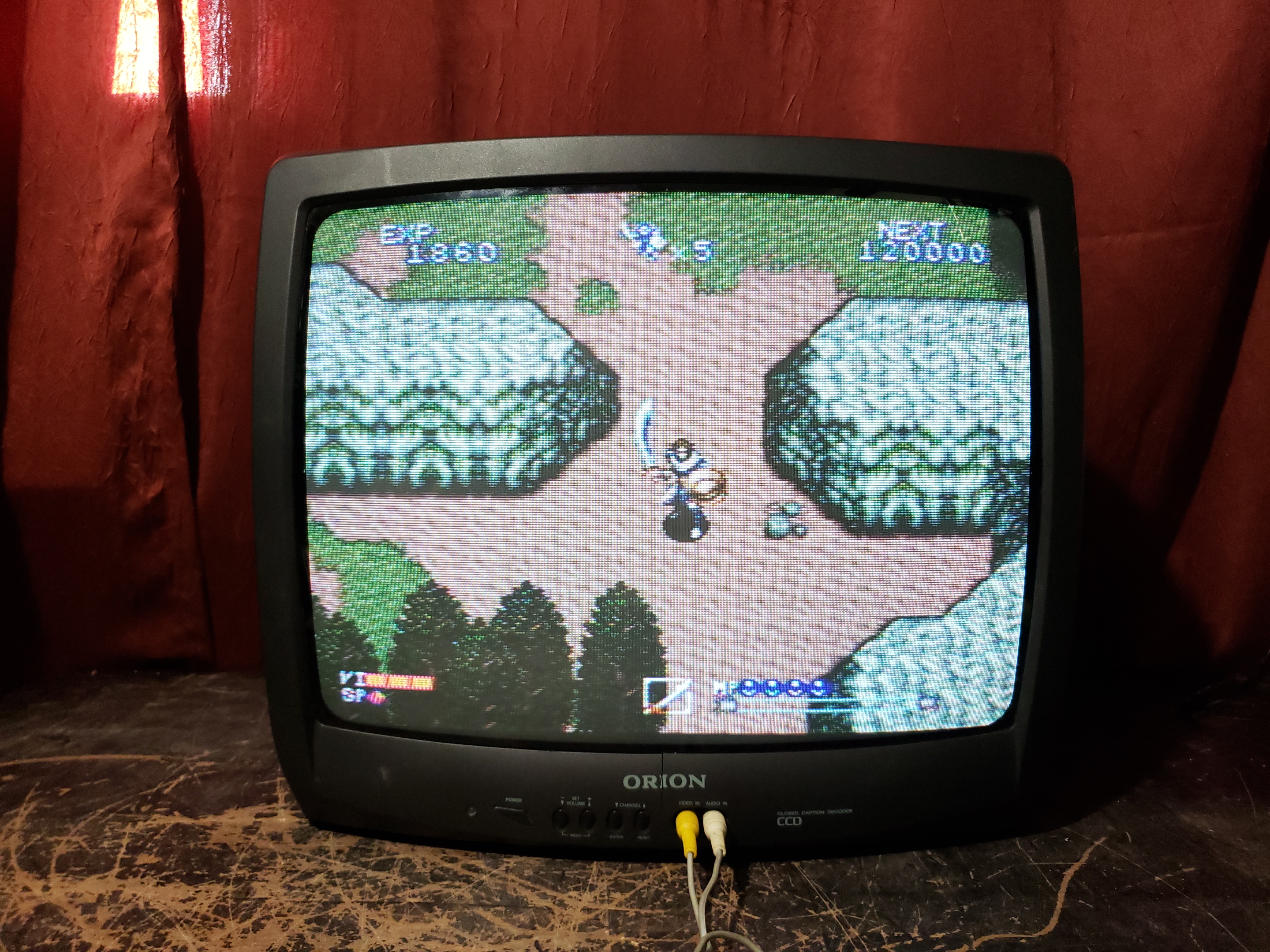

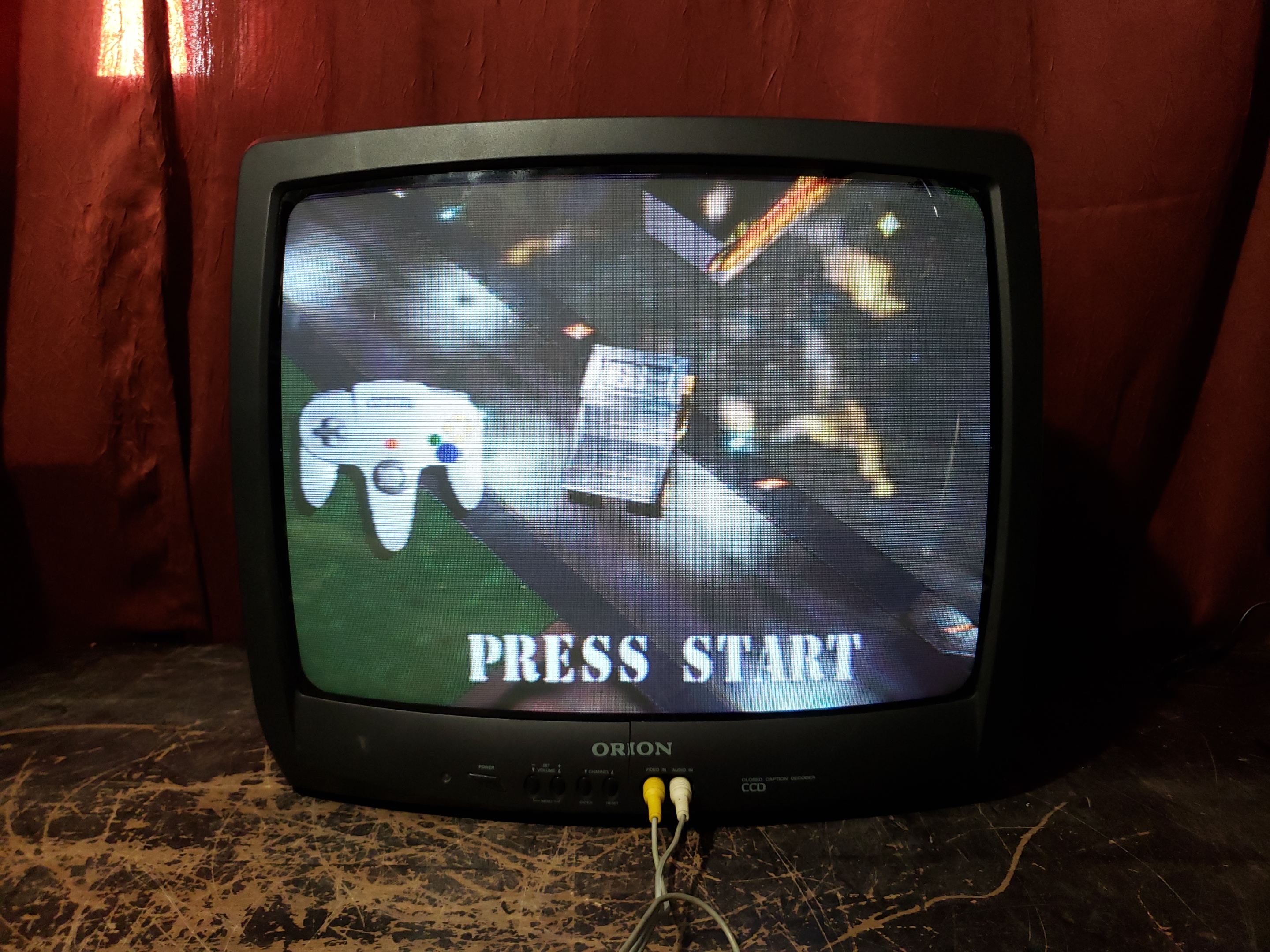

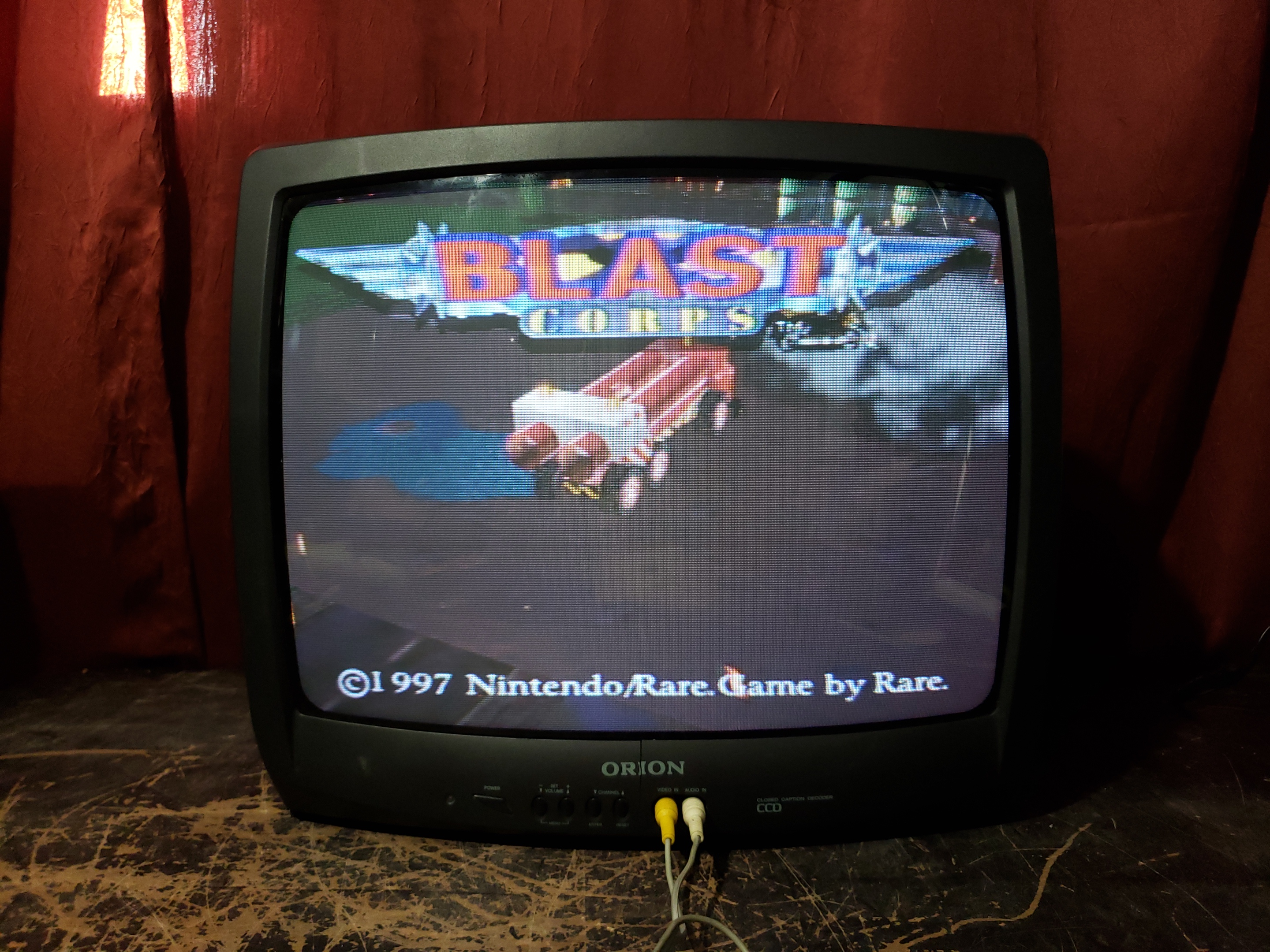

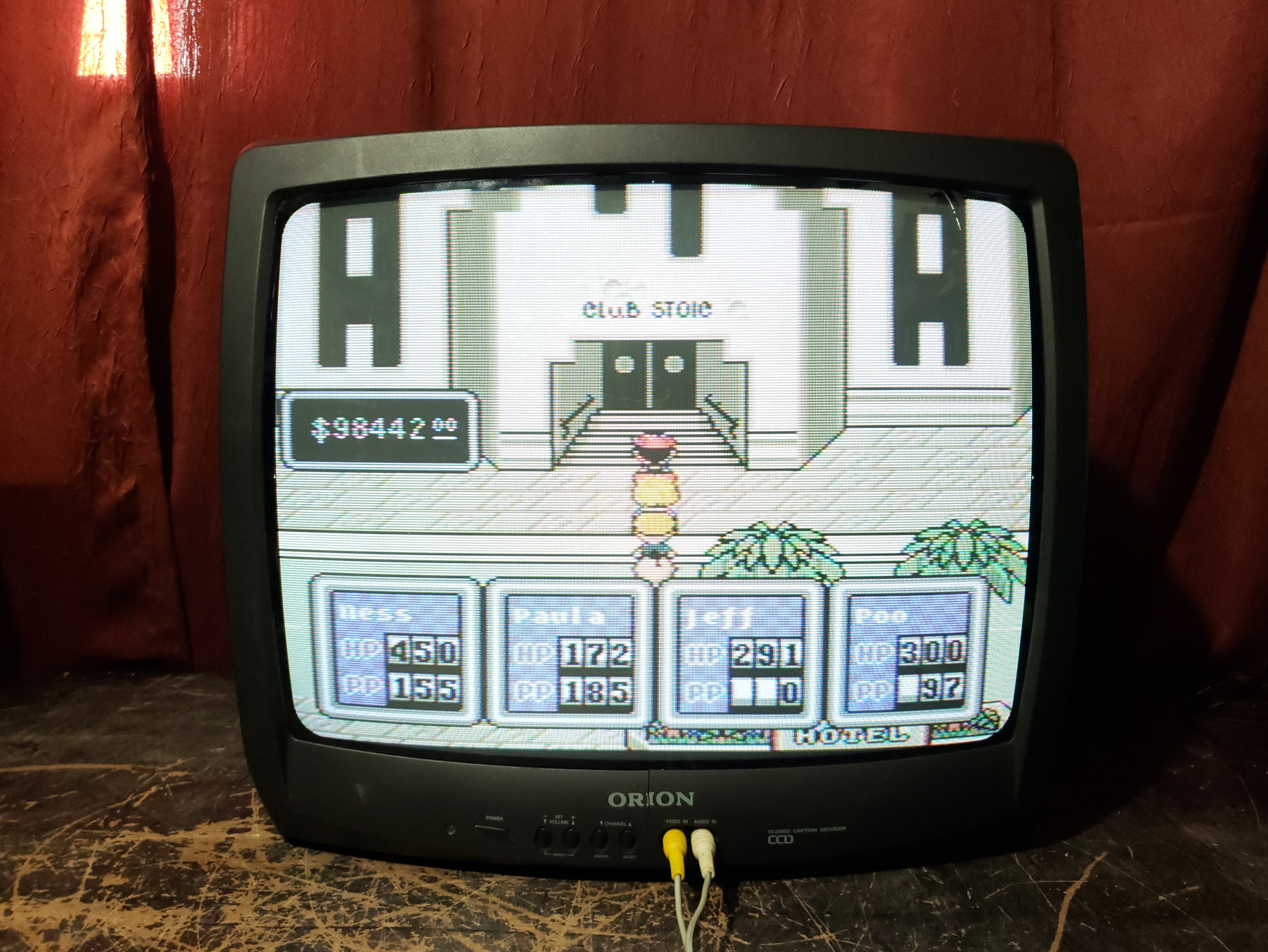

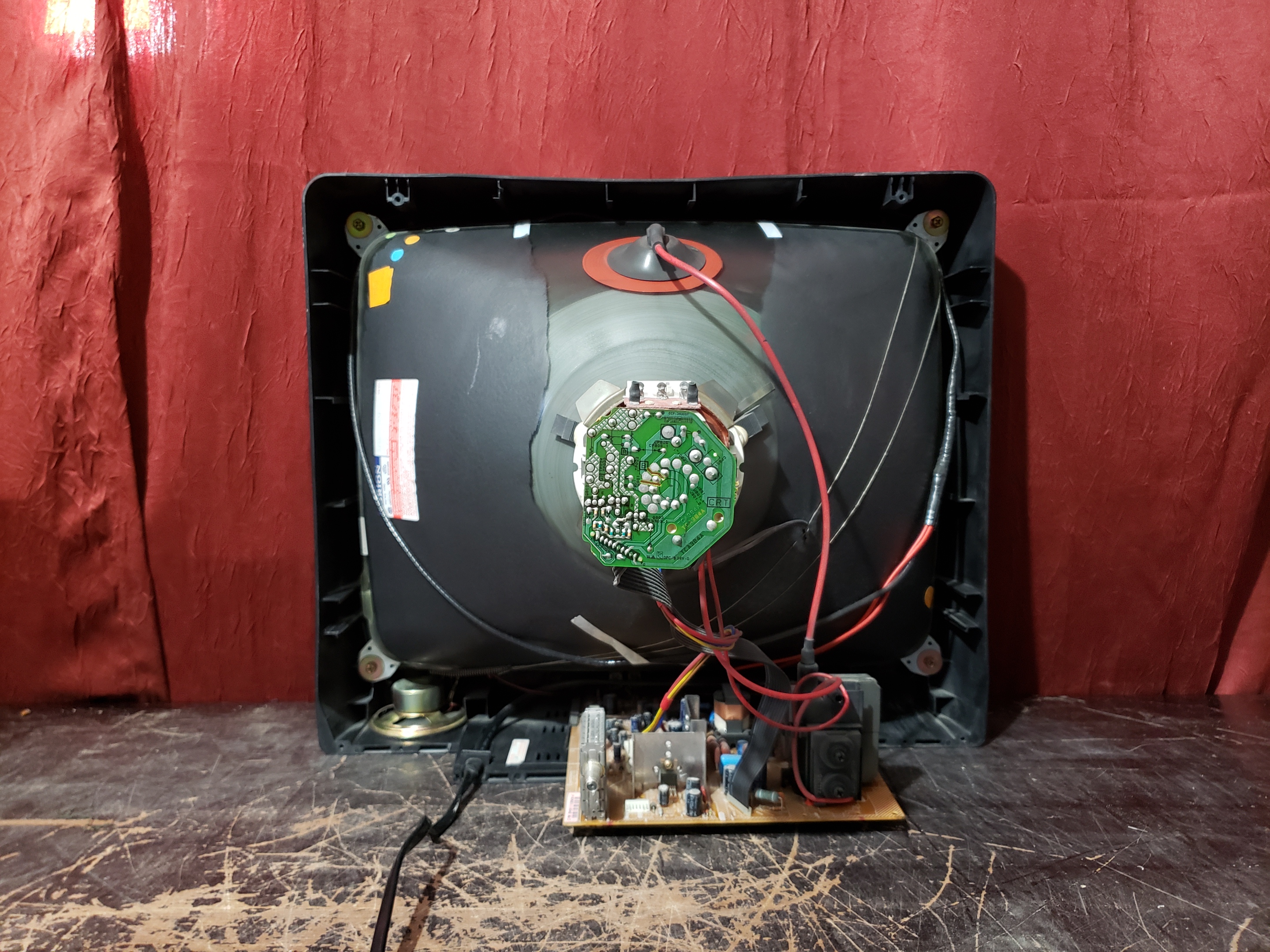

Gallery
| Specifications | |
|---|---|
| Brand: | Orion (Japan) |
| Manufacturer: | Orion |

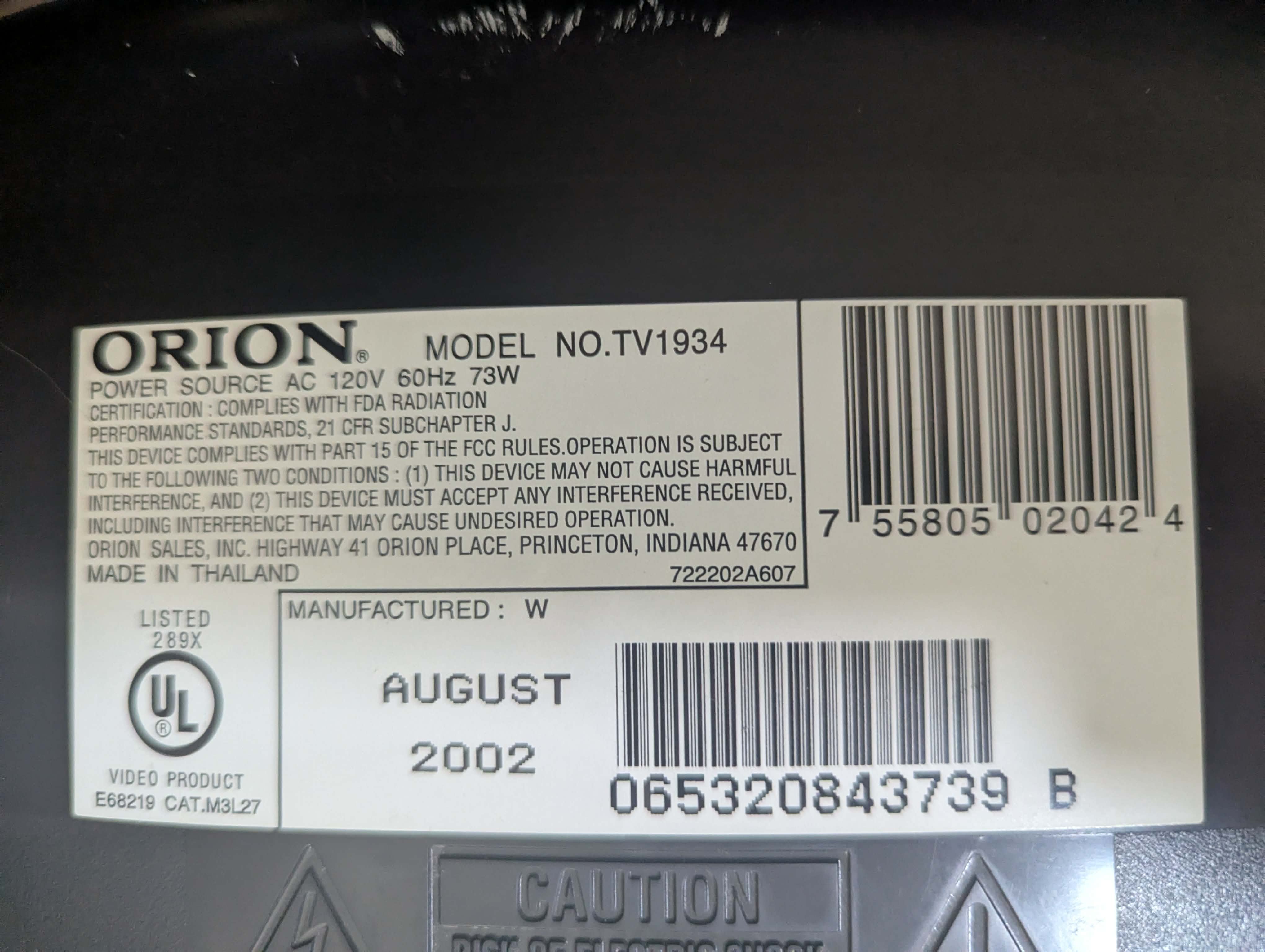

| Model: | TV1934 |
| Series: | TV |
| Viewable Size: | 19" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | D2627 |
| Vertical Output IC: | AN5522 |
| Jungle IC: | M61250FP |
| Comb Filtering: | None |

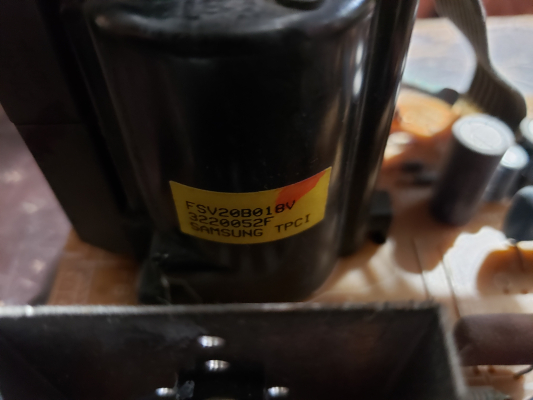

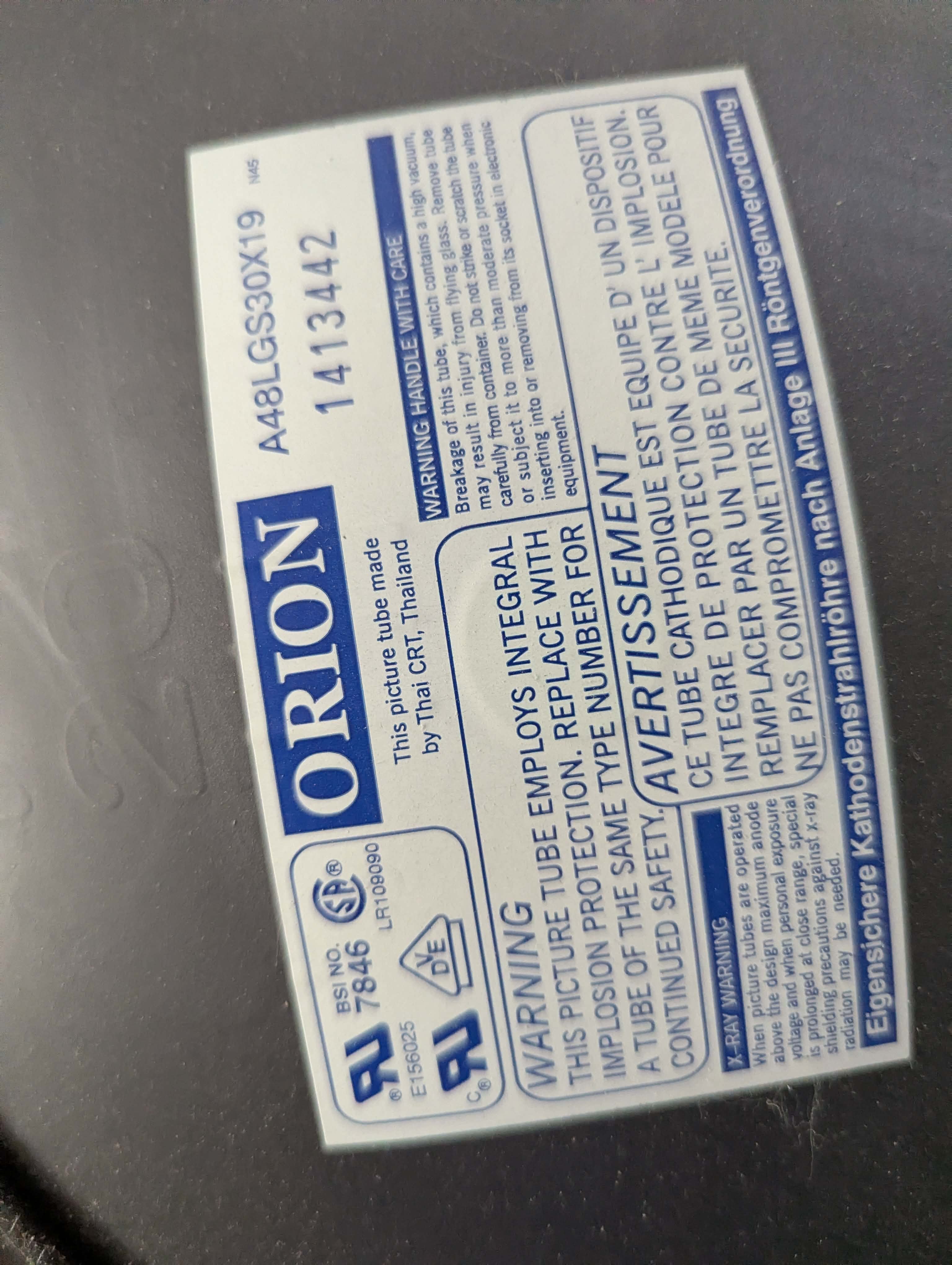

| Flyback: | FSV20B018V |
| Focus Type: | Single |
| Tube: | A48AKH13X , A48AKH13X04 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

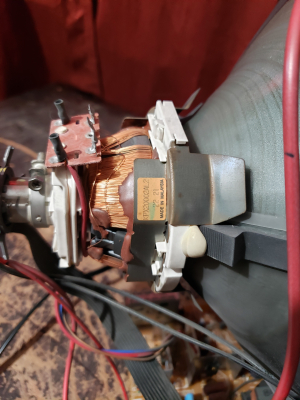

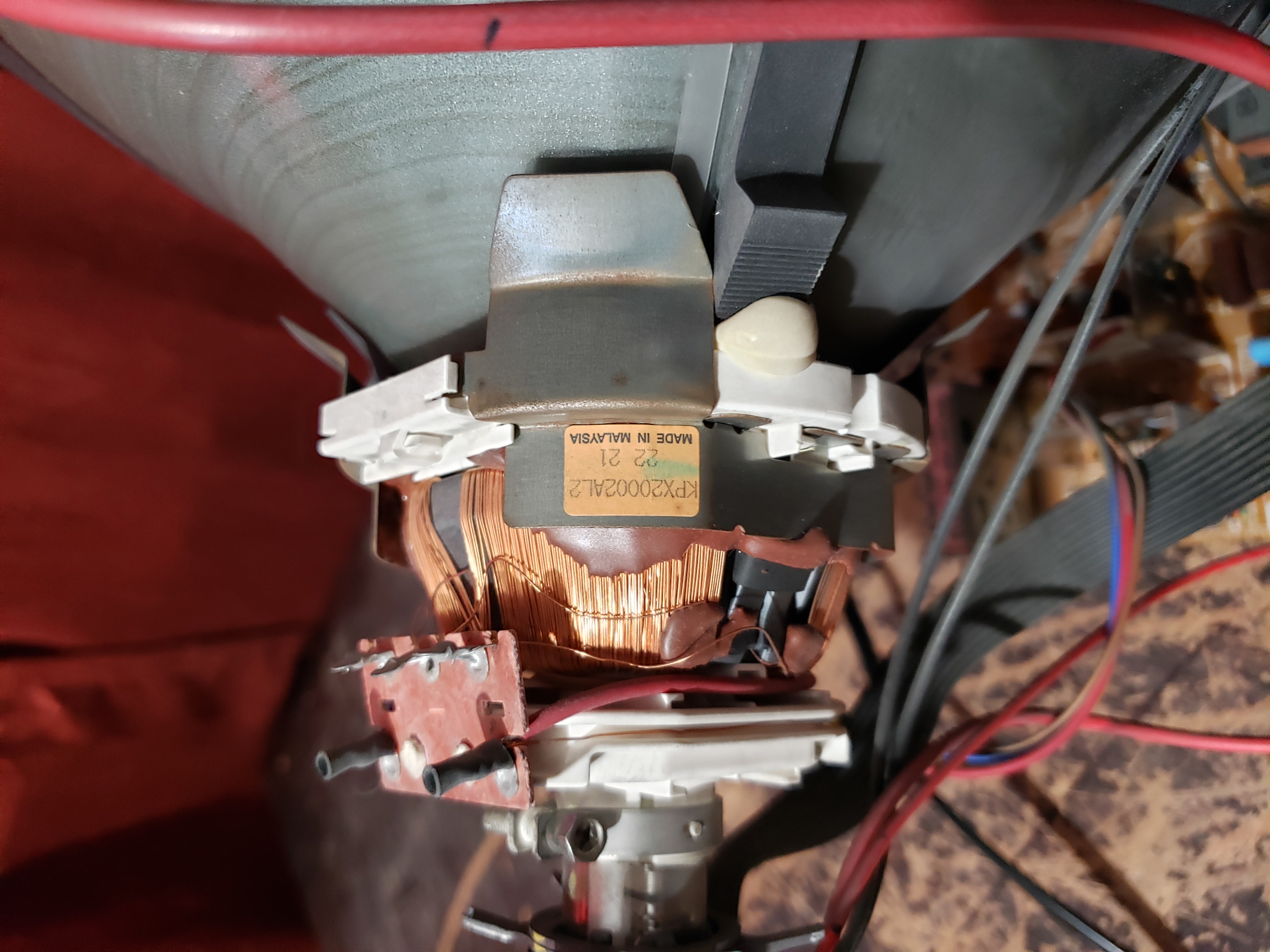

| Yoke: | KPX20002AL2 |
| Yoke Horz. Inductance: | 2.822 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 29.21 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 4.1 ohm |
| Yoke Vert. Resistance: | 15.7 ohm |
| Speakers: | Mono |
| Remote: | 076N0DW010 |
| Chassis: | M3L27 |
| Weight: | 36.6 lbs (16.6 kg) |
| Dimensions (W/H/D): |
488 x 465 x 416 mm
(19.2 x 18.3 x 16.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| Country of Manufacture: | Thailand |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Carrying Handle |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
