Panasonic BT-D1910Y
September 4, 2024, 2:14 am
October 20, 2024, 3:57 am
Summary

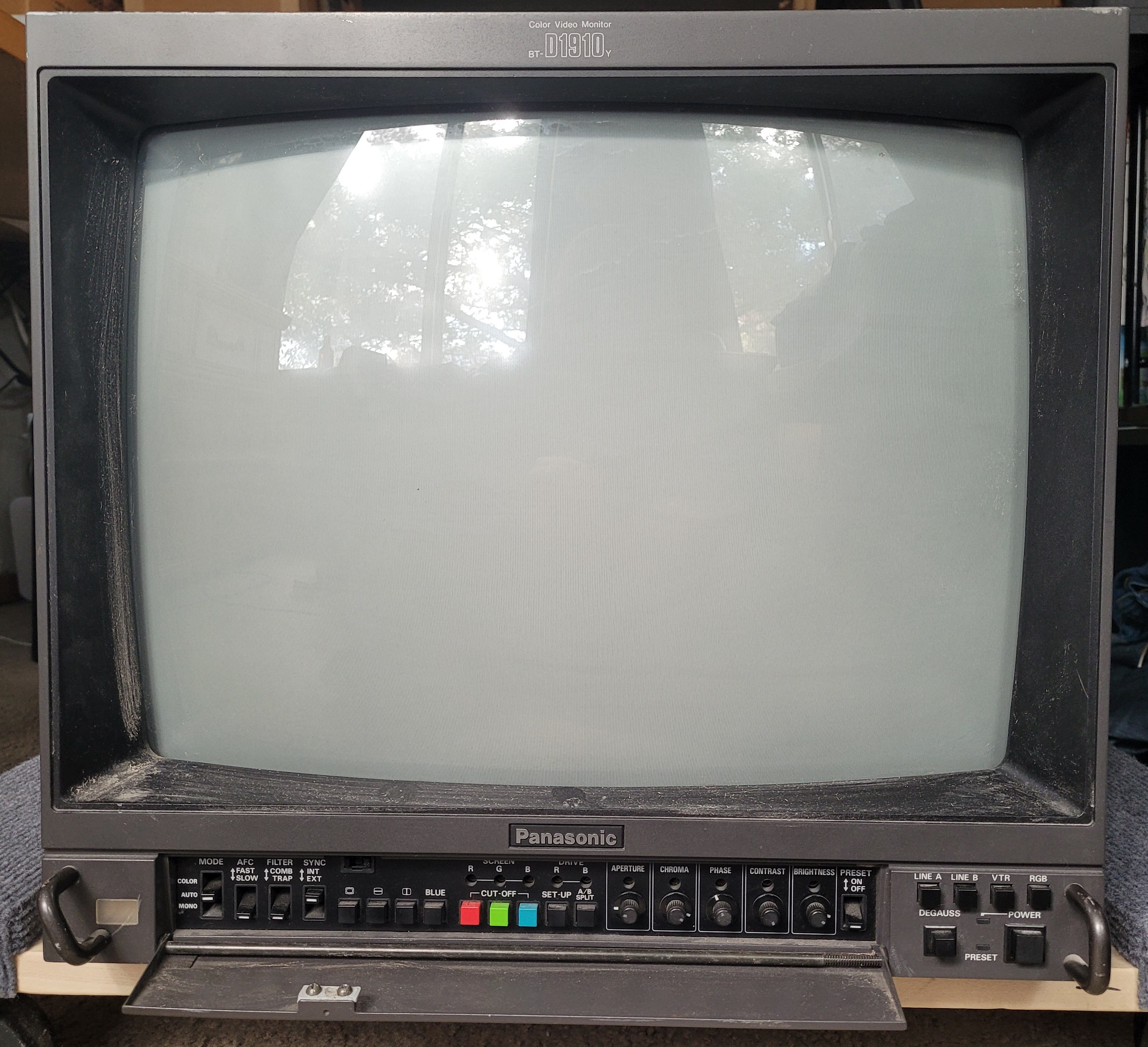

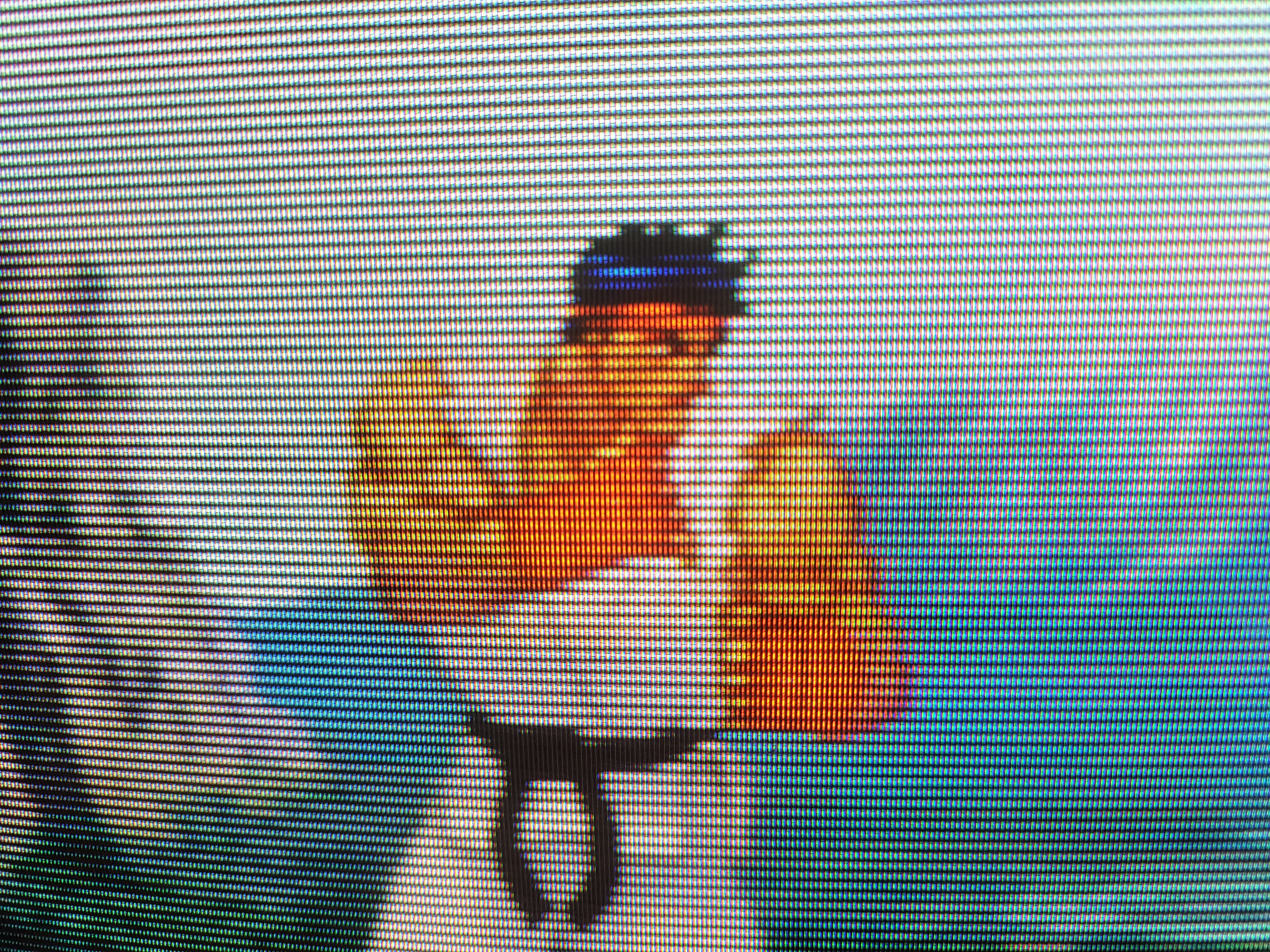

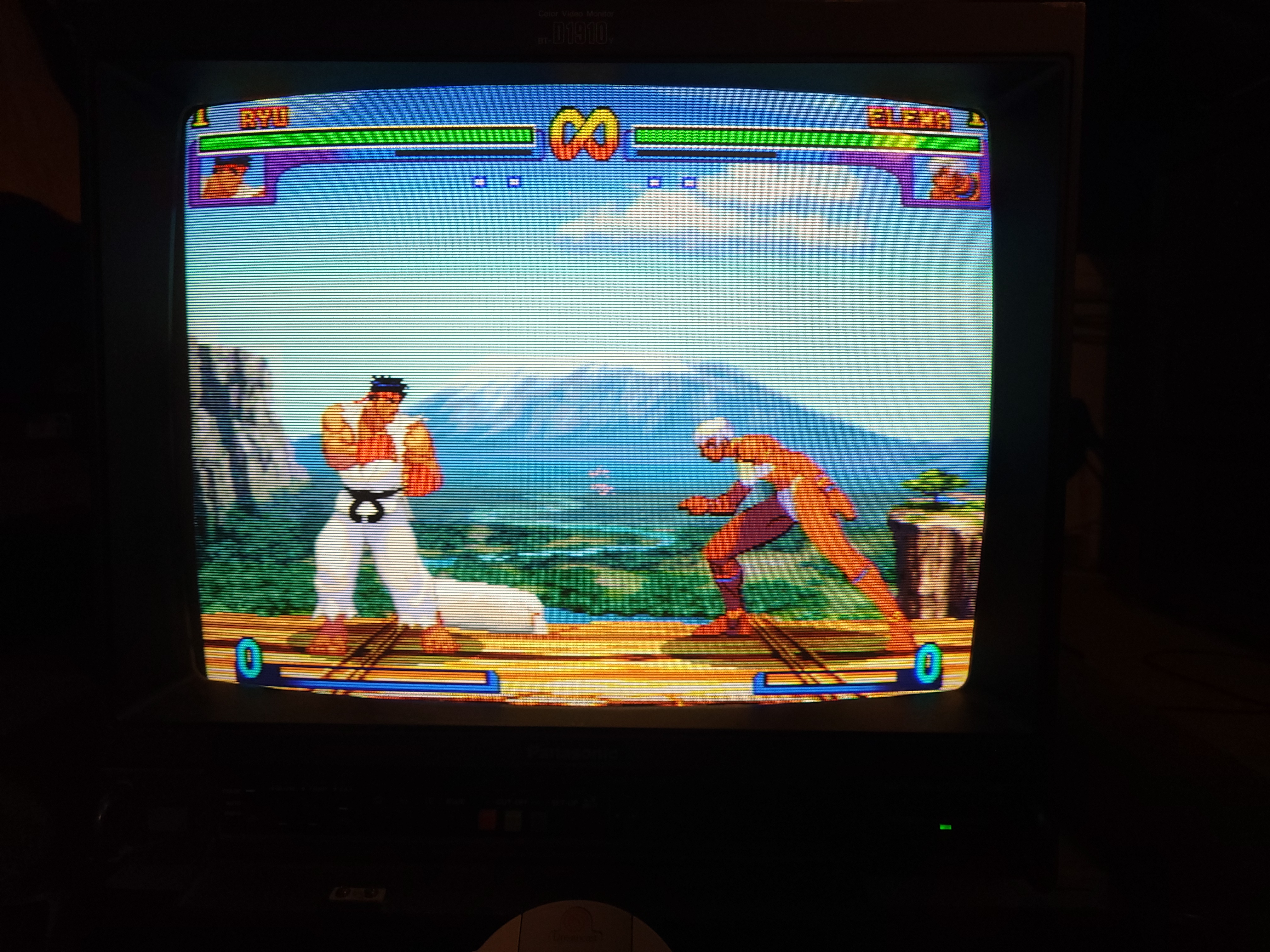

This is an earlier 20" broadcast monitor from Panasonic that uses one of their lower-resolution M48 slot mask tubes. The scanline gaps are still prominent and it has a nice "softer" arcade look if you're into that. The tube is a classic bubble curve like older arcade tubes and provides excellent geometry in the corners.
Literature
Notes

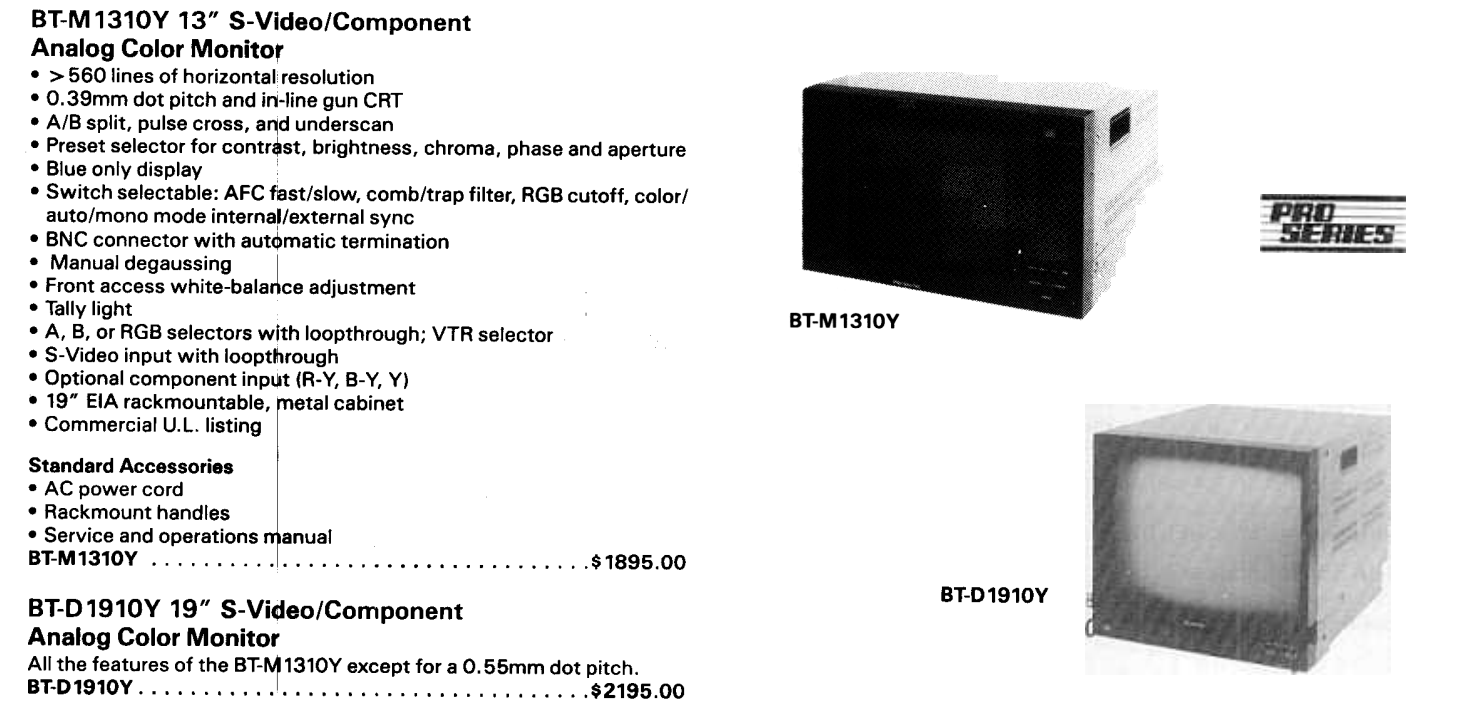

This monitor does not support component video. The best I can tell as to where this misinformation came from is there is some marketing material that mentions "optional component input" for the BT-M1310Y, the smaller 13" brother of this monitor. But the service manual diagrams make it very clear that this monitor does NOT support component. The entire B board would need to have been swapped by the dealer for one wired to be component video... if that was even something they did.
Gallery
Specifications | |
---|---|
Brand: | Panasonic |
Manufacturer: | Panasonic |
Model: | D1910Y |
Series: | BT |
Viewable Size: | 20" |

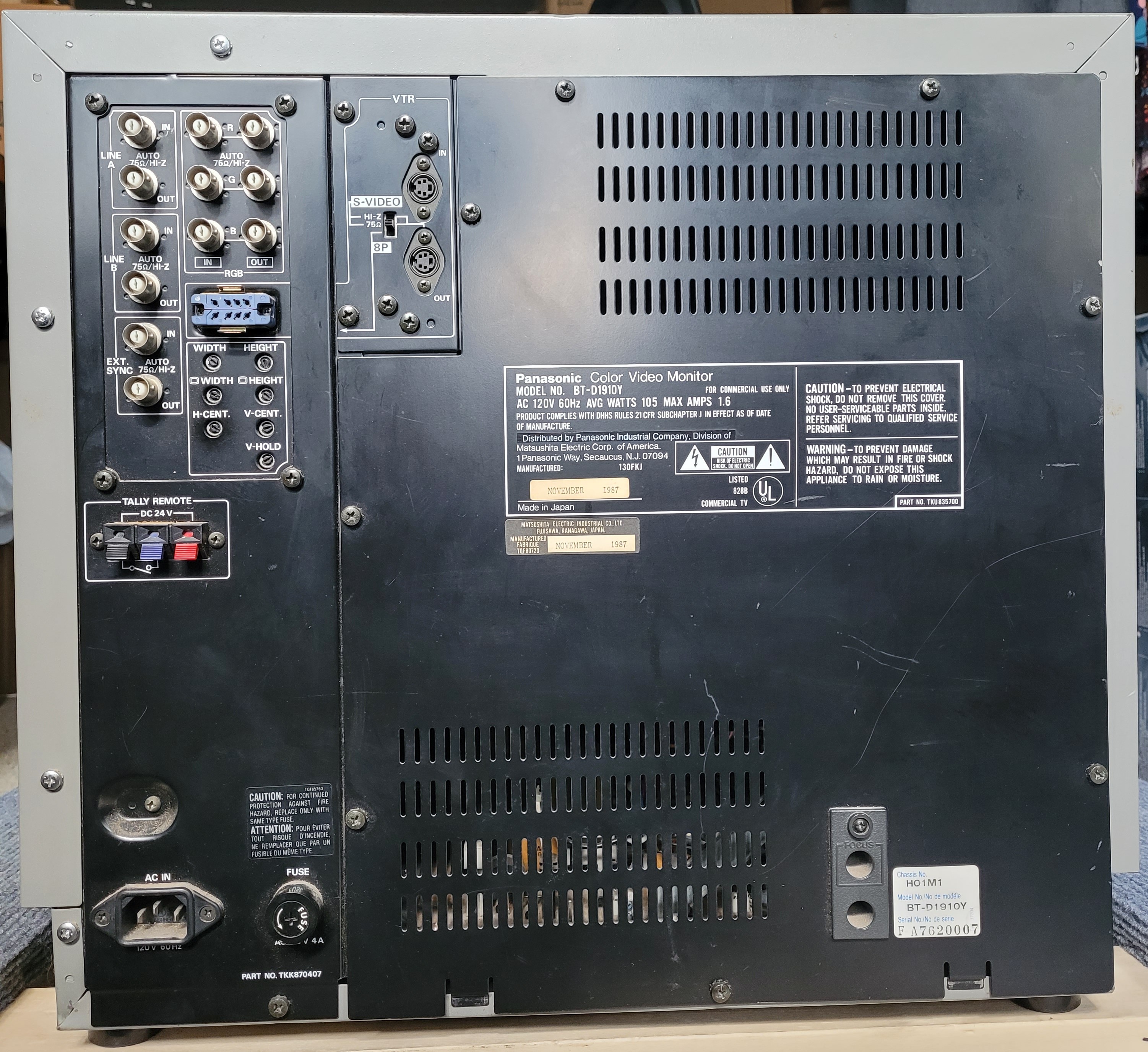

Inputs: | Composite, S-Video, RGB, VTR |
Sync: | CSYNC |
Resolutions: | 240p, 480i |
Linecount: | 550 TVL |
Formats: | NTSC, NTSC4.43 |
Aspect: | 4:3 |

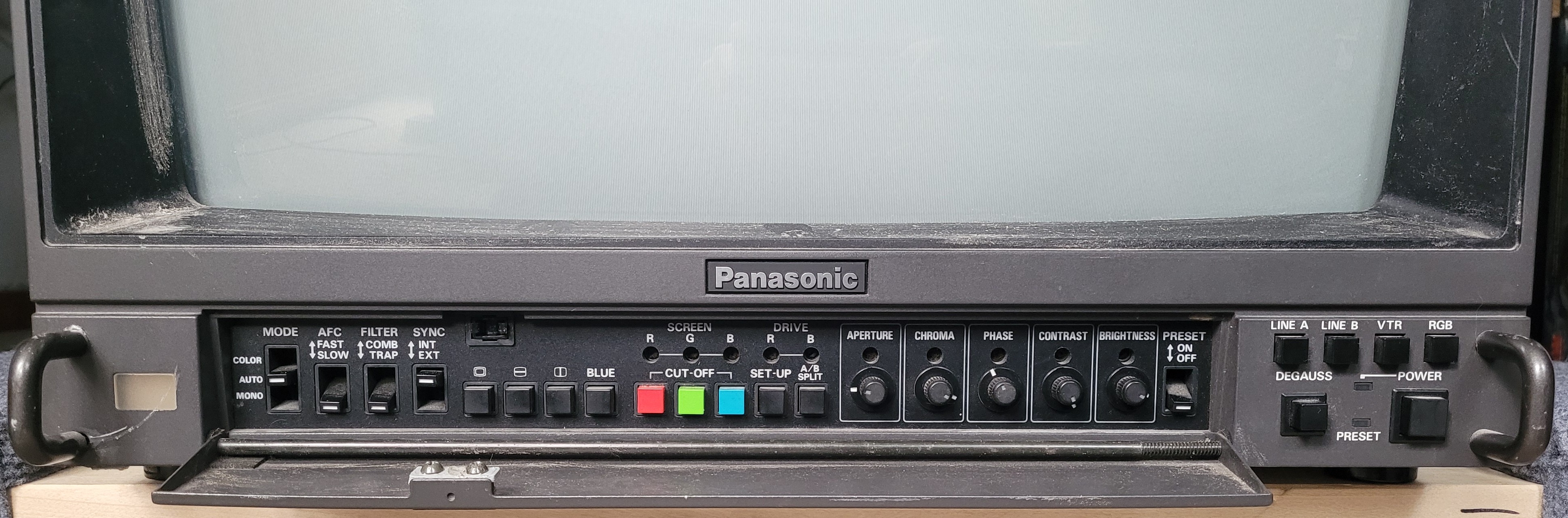

Adjustments: | Internal Potentiometers, External Potentiometers |

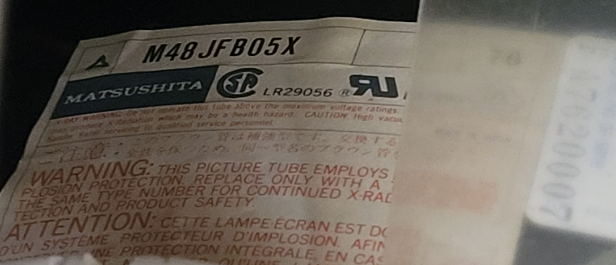

Tube: | Panasonic , M48JFB05X |
Deflection: | 90° |
Mask: | Slot |
Pitch: | 0.55 mm |
Tint: | Light |
Removable Glare Film: | No |
Speakers: | None |
Chassis: | H01M1 |
Weight: | 64 lbs (29 kg) |
Application: | Professional |
Launched: | 1987 |
Country of Manufacture: | Japan |
Mounting: | Rackable |
Degaussing: | Automatic on Power-on, Manual |
