Summary
High resolution 13" broadcast monitor. Panasonic rebrand of the JVC BM-H1300SU.
This monitor has beam current monitoring and supports all important types (RGB, Component, S-Video, Composite, and even SDI) as well as both NTSC and PAL.

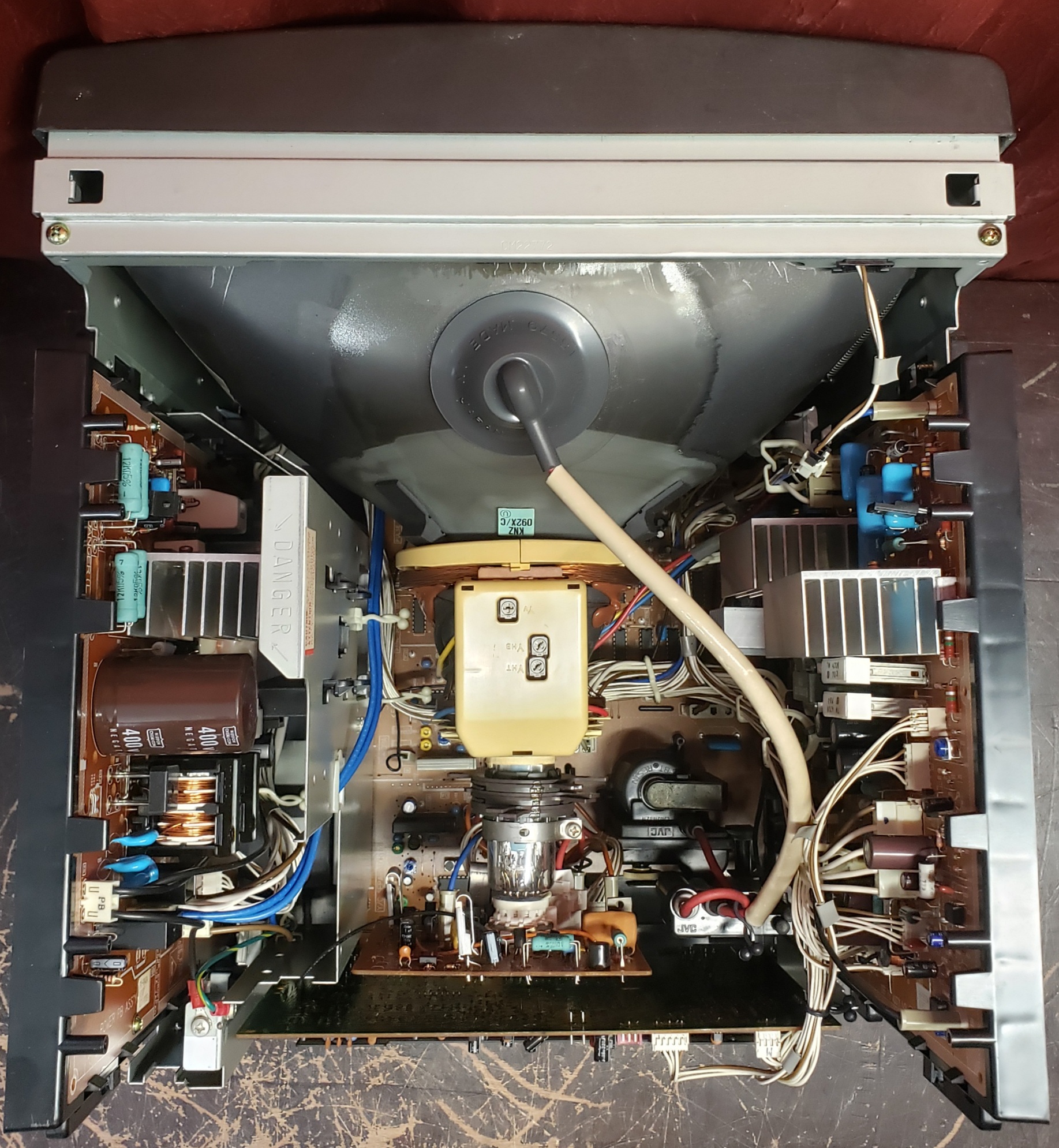

The Panasonic tube inside is a 750 TVL shadowmask; a compatible tube was later produced by Chunghwa for the BM-H1310SU.

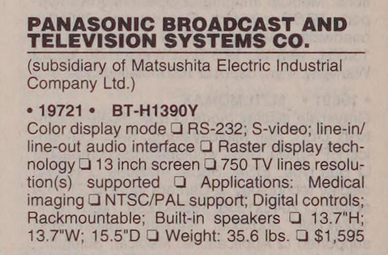

Literature
Notes

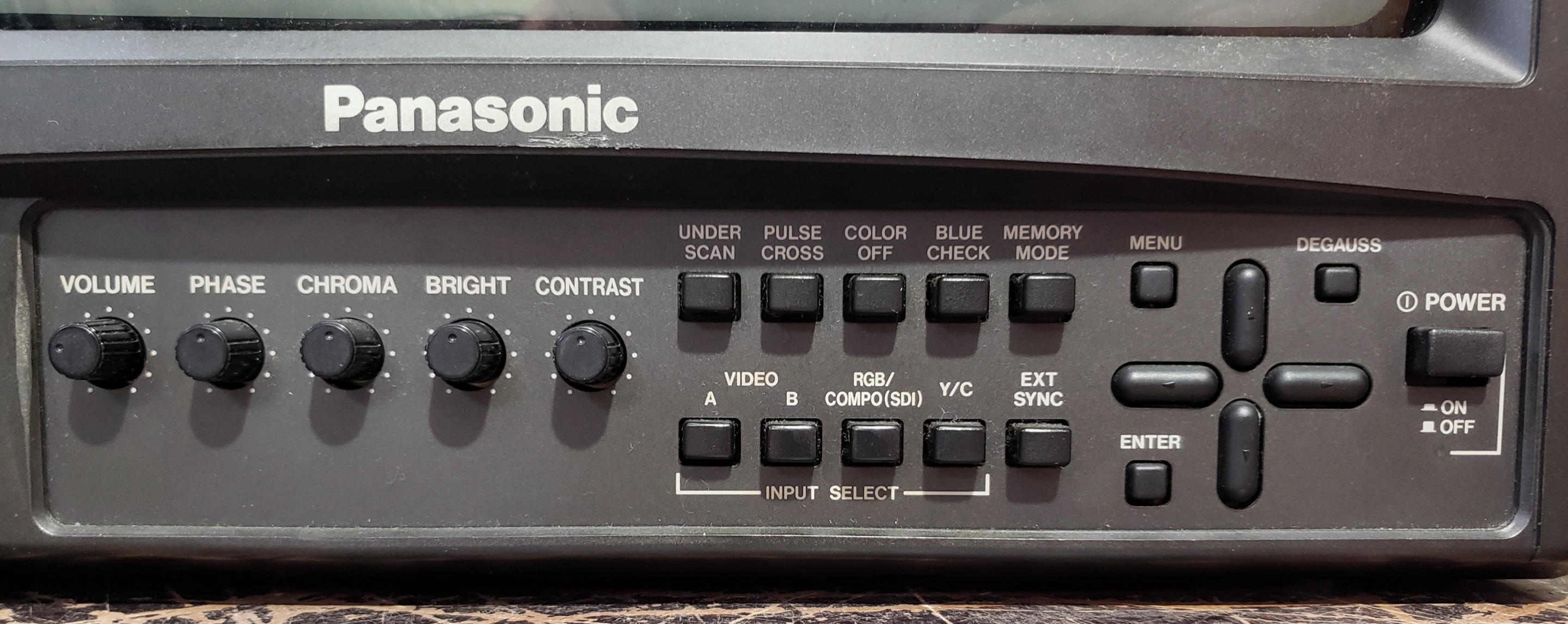

The service menu can be accessed by pressing Menu and Enter at the same time. The service menu has adjustments for H/V size and H/V position, as well as white balance adjustment.

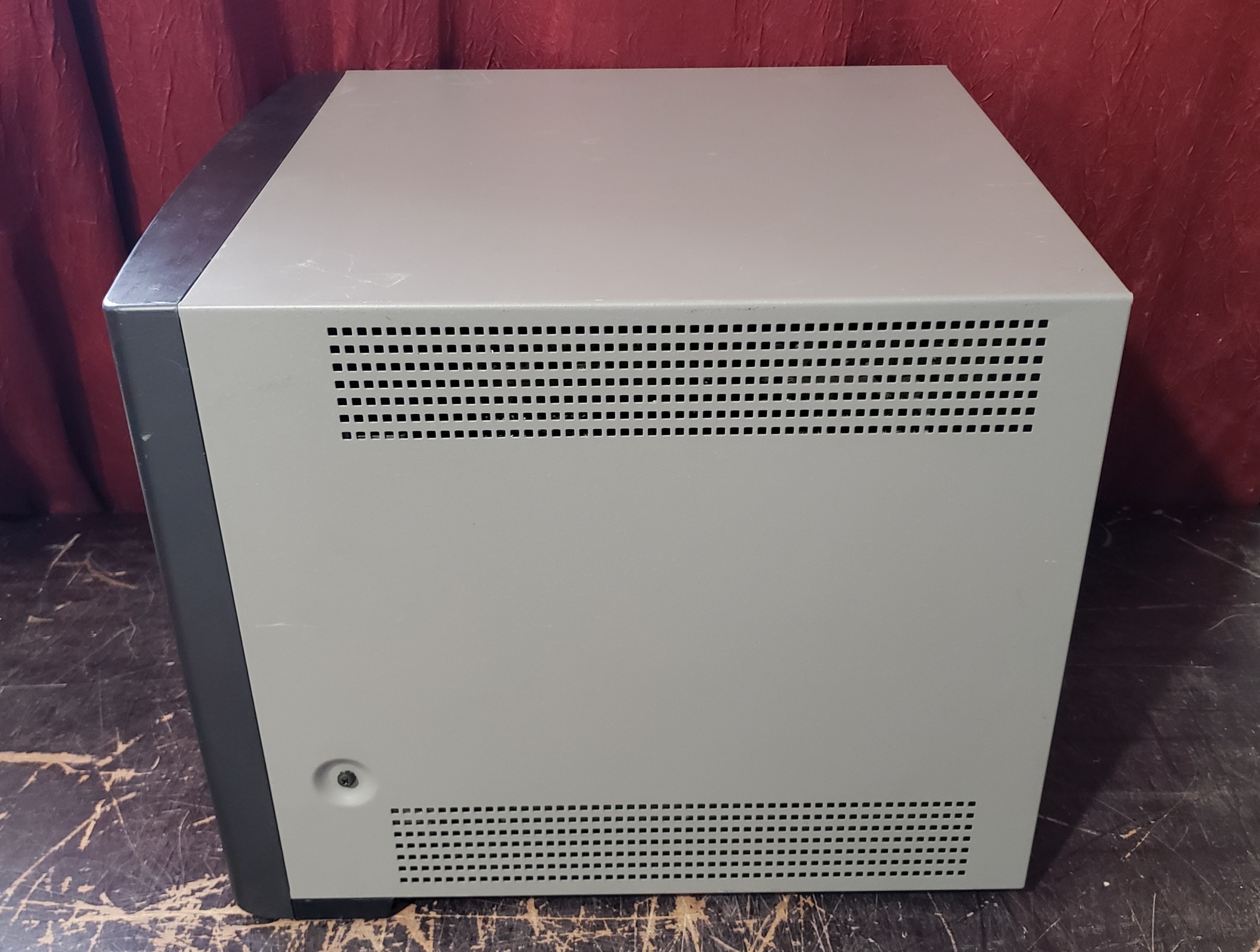

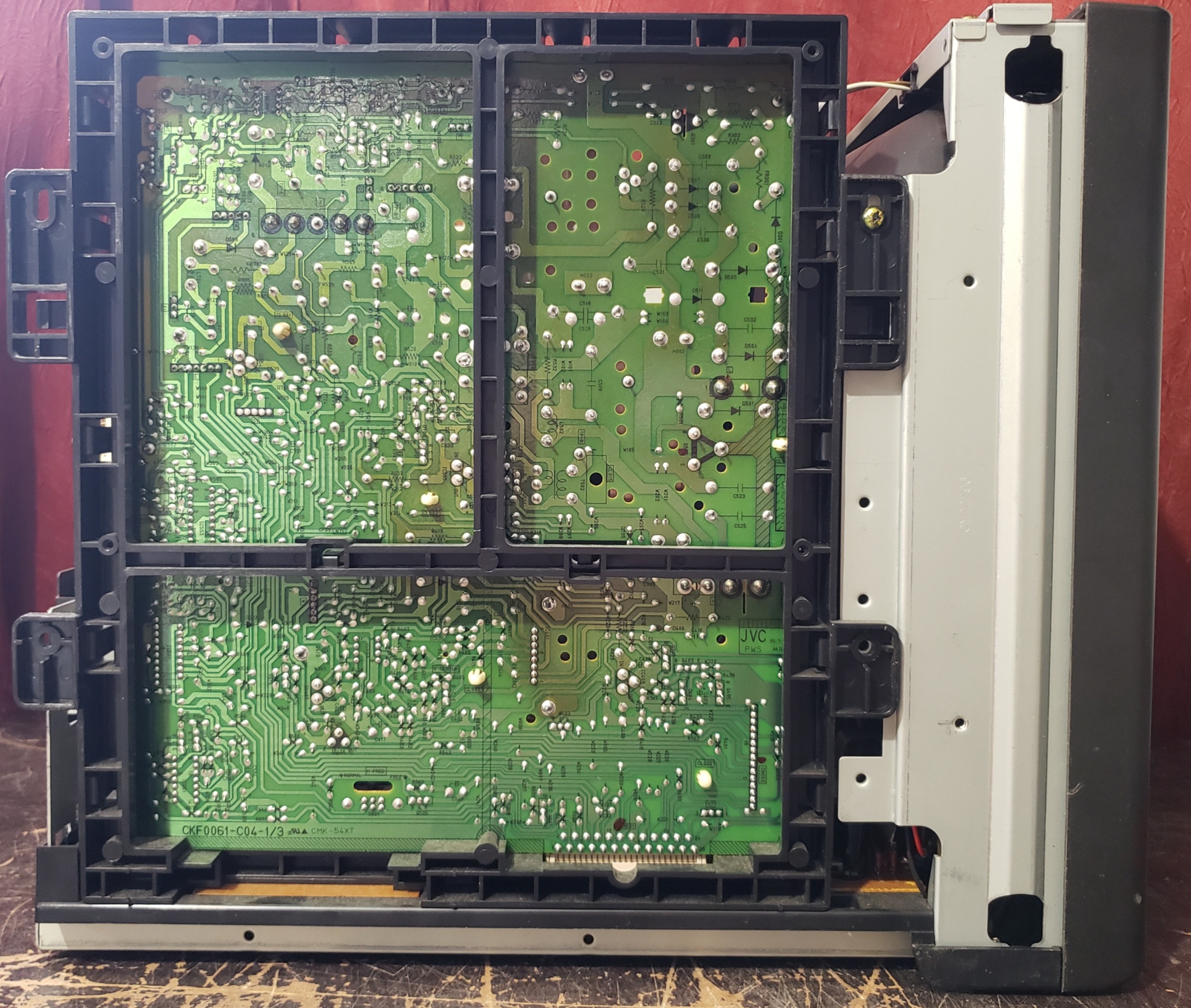

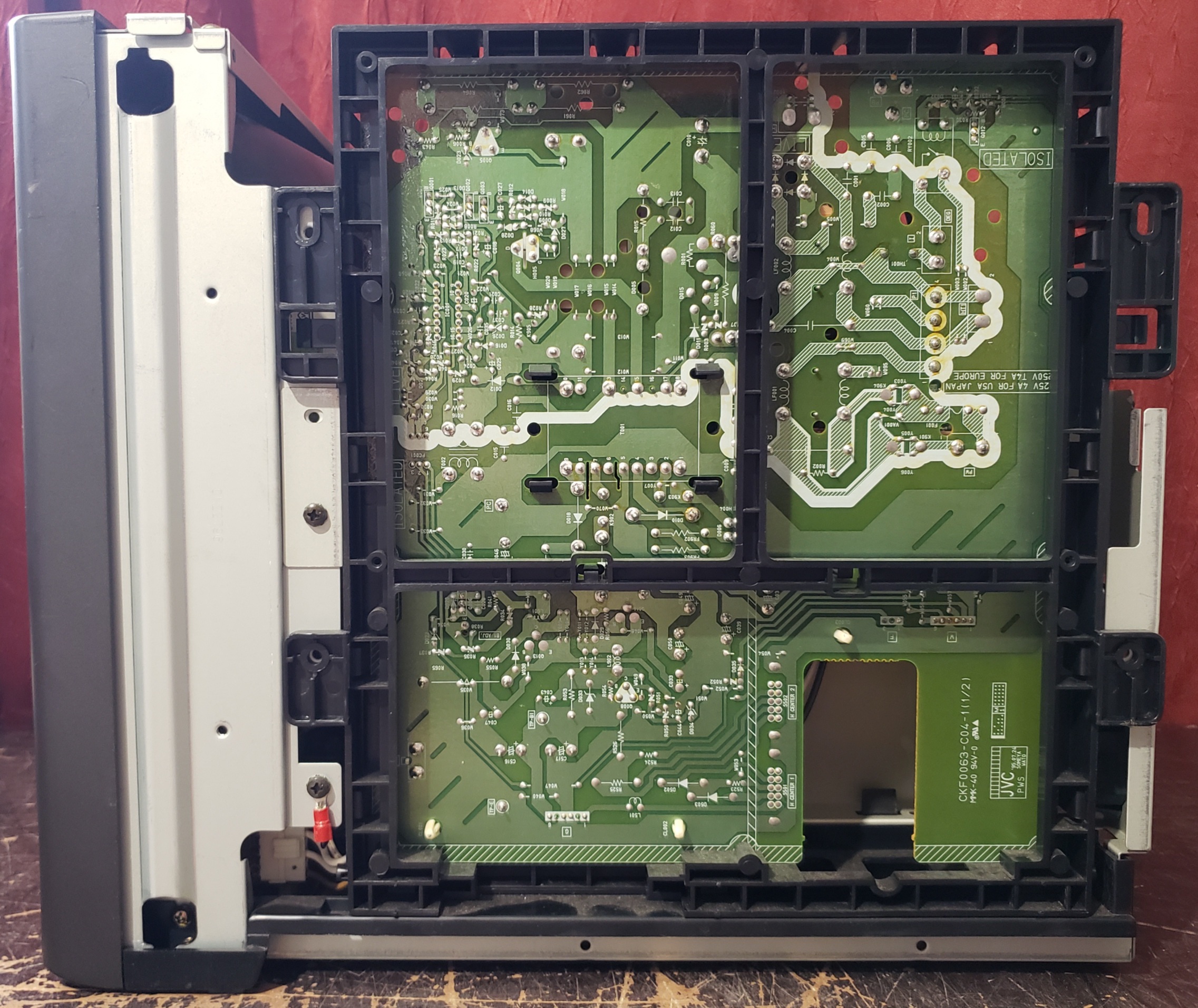

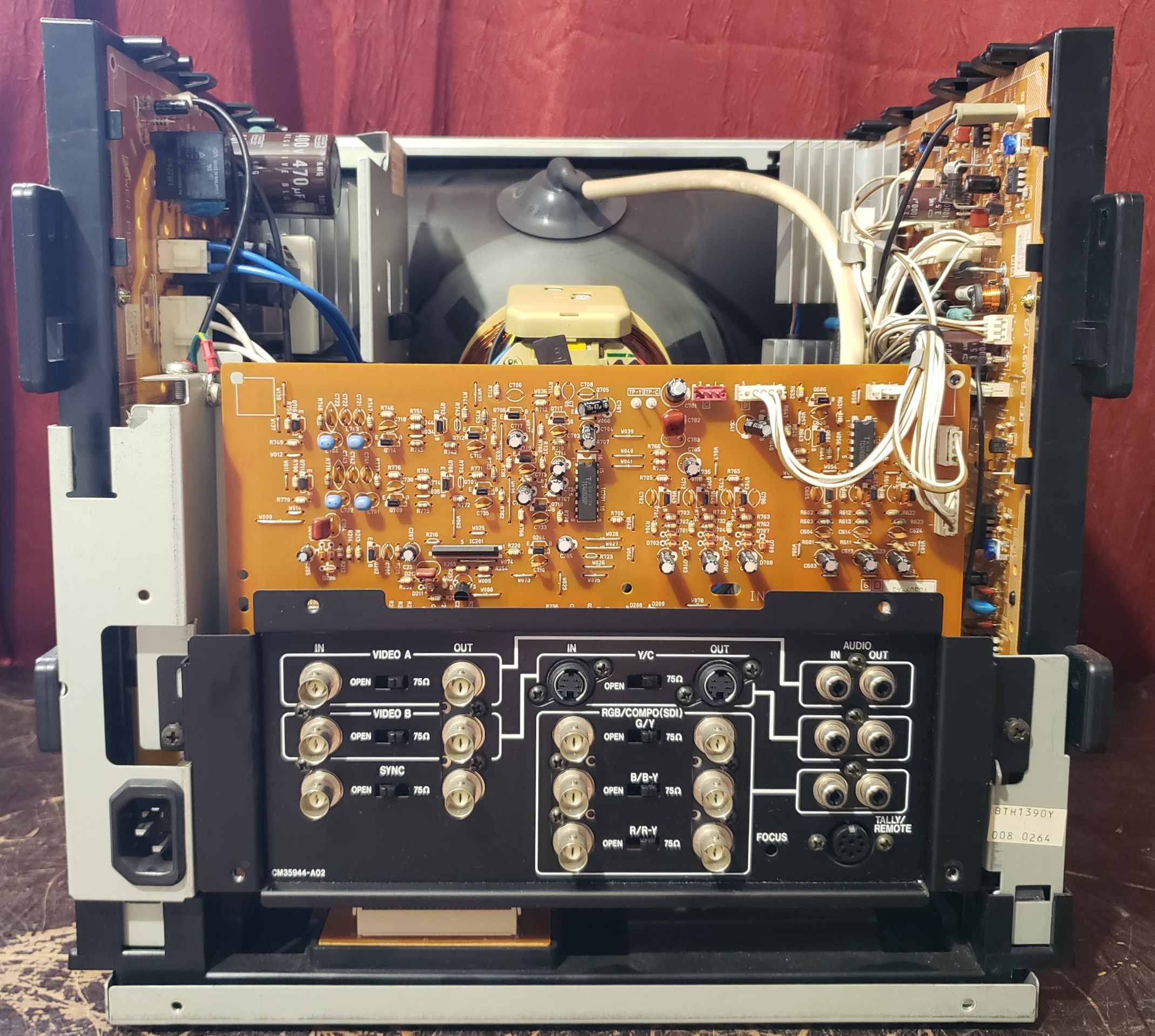

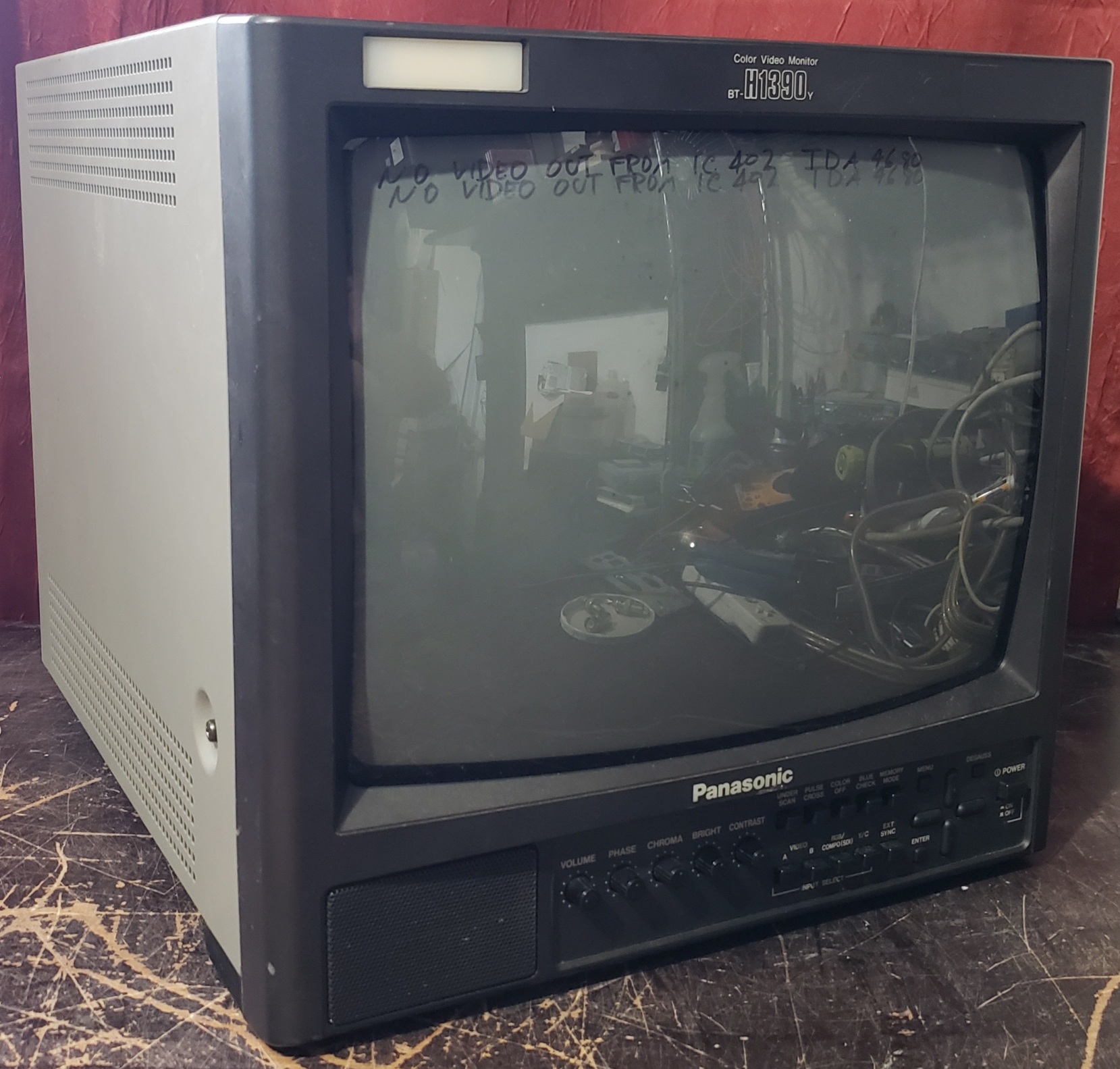

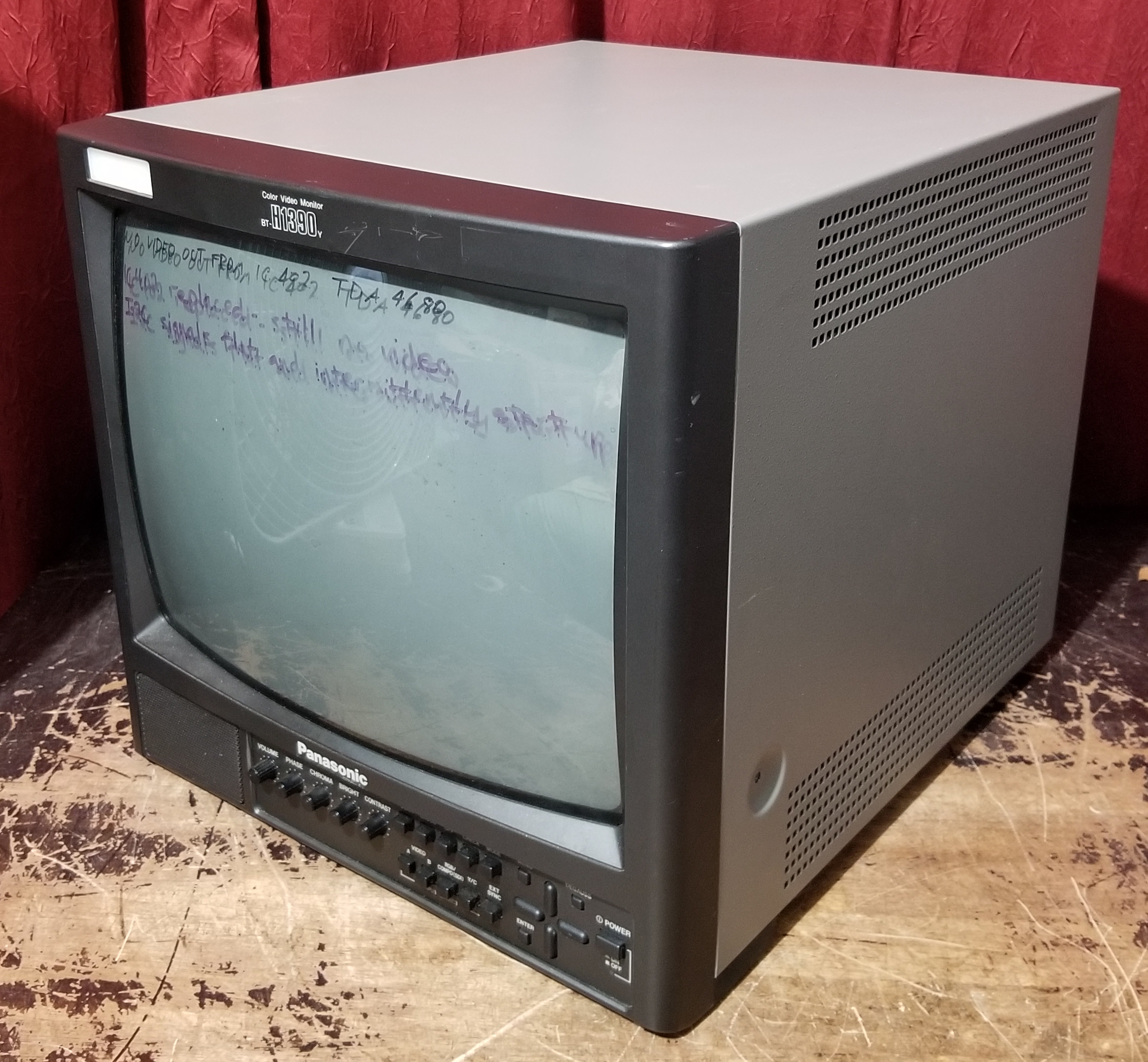

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | JVC |
| Model: | BT-H1390Y |
| Series: | BT |
| Viewable Size: | 13" |

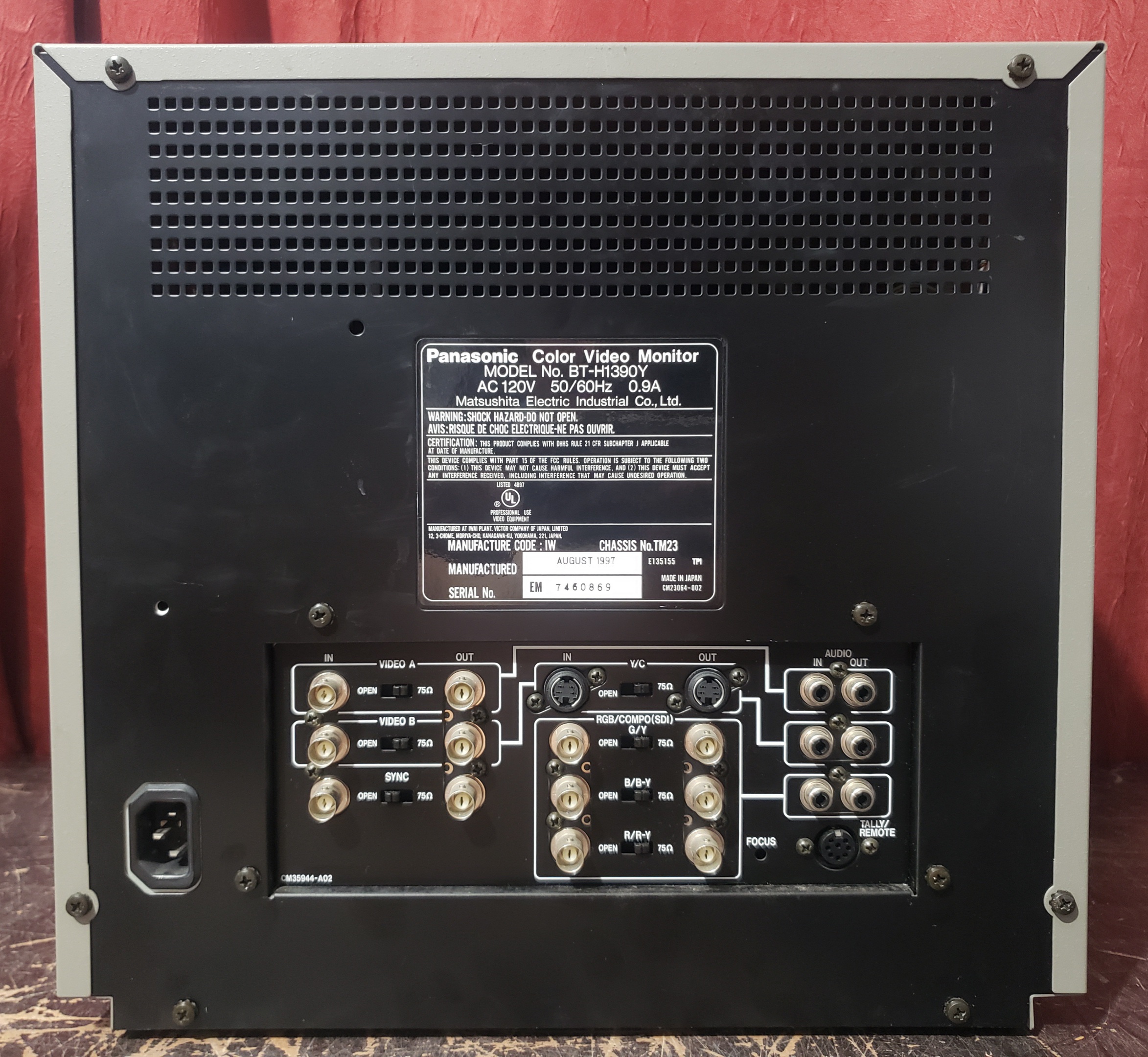

| Inputs: | Composite, S-Video, Component YPbPr, RGB |
| Sync: | CSYNC, Sync over Composite, Sync on Luma |
| Native Resolutions: | 240p, 480i |
| Linecount: | 750 TVL |
| Horizontal Scan Range: | 15 kHz |
| Formats: | NTSC, PAL, NTSC4.43 |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls, OSD Service Menu |

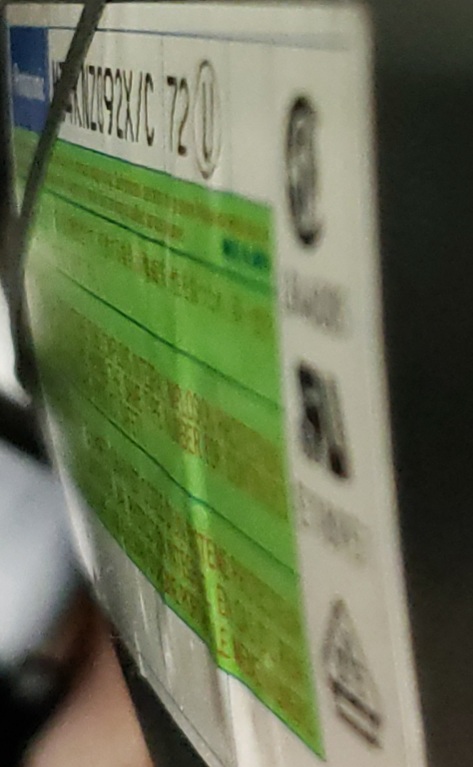

| Tube: | Panasonic , M34KNZ092X/C , M34KNZ092X |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.28 mm, .28 mm |
| Speakers: | Mono |
| Chassis: | TM23 |
| Weight: | 35 lbs (15.9 kg) |
| Application: | Professional |
| Cabinet Material: | Metal |
| Launched: | 1996 |
| MSRP: | 1595 USD |
| Country of Manufacture: | Japan |
| Mounting: | Rackable |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Pictures, Needs Measurements |
