Panasonic BT-S901Y
Eli Krause
June 20, 2025, 2:35 am
September 16, 2025, 4:31 pm
June 20, 2025, 2:35 am
September 16, 2025, 4:31 pm
Summary

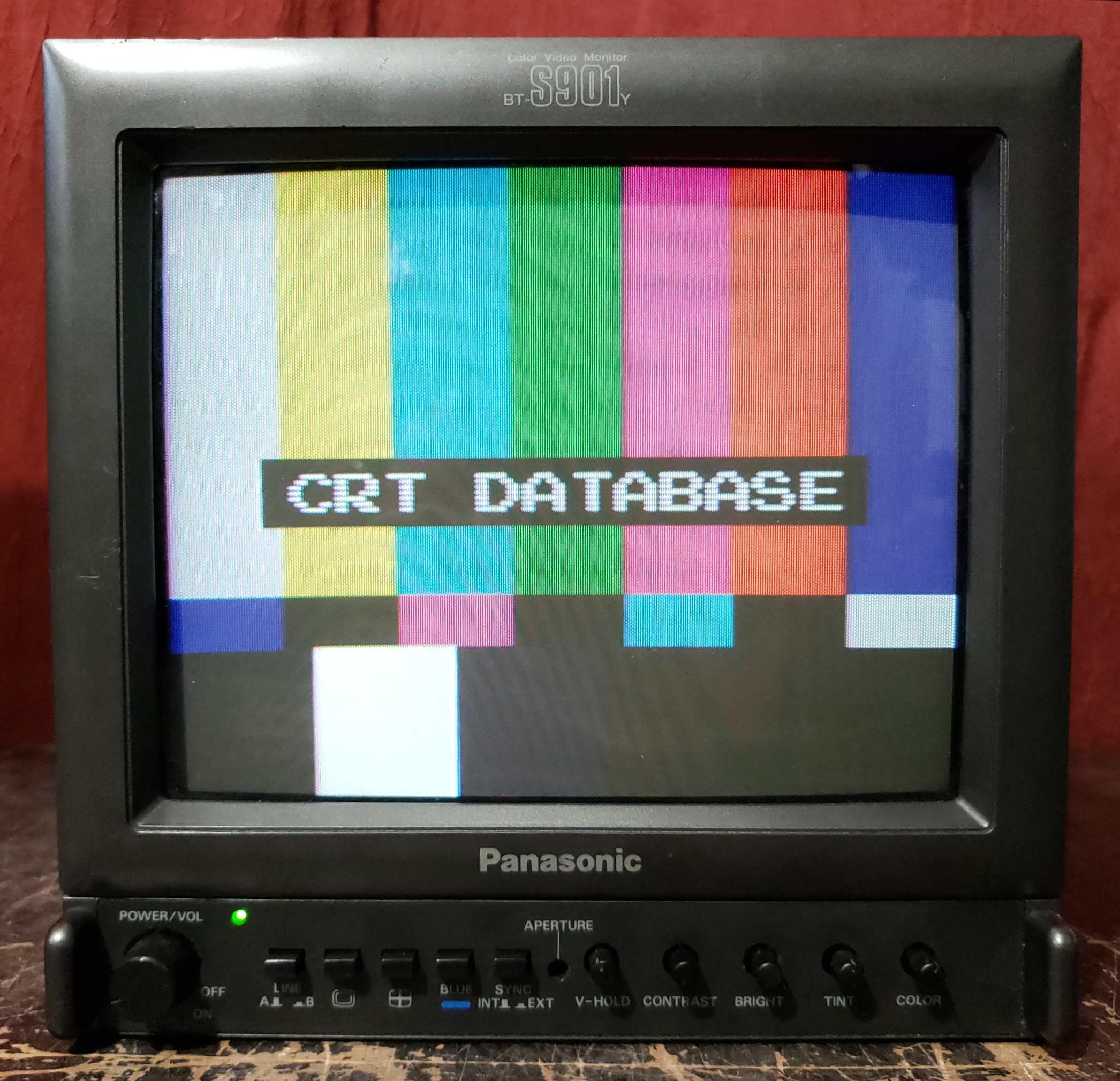

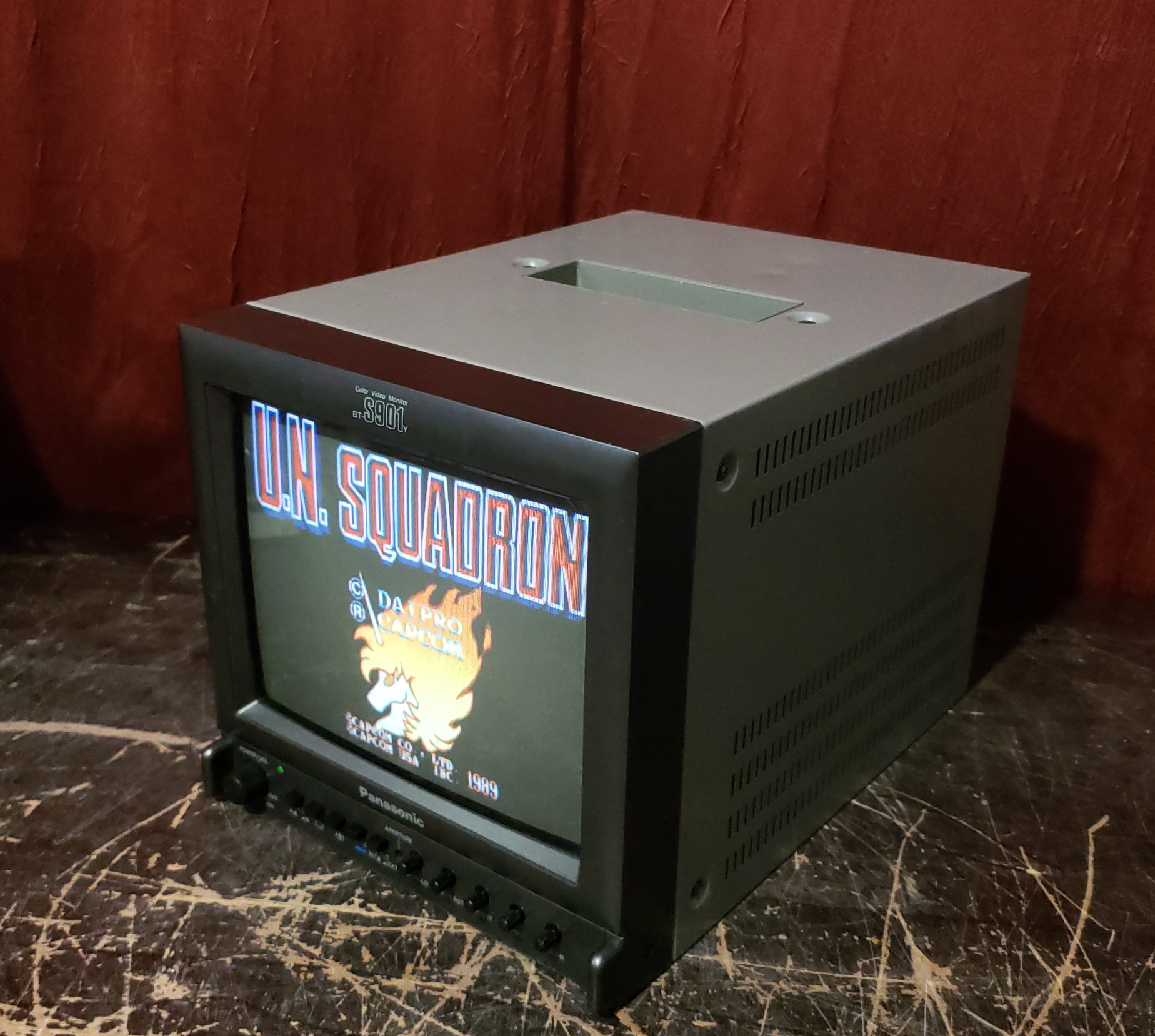

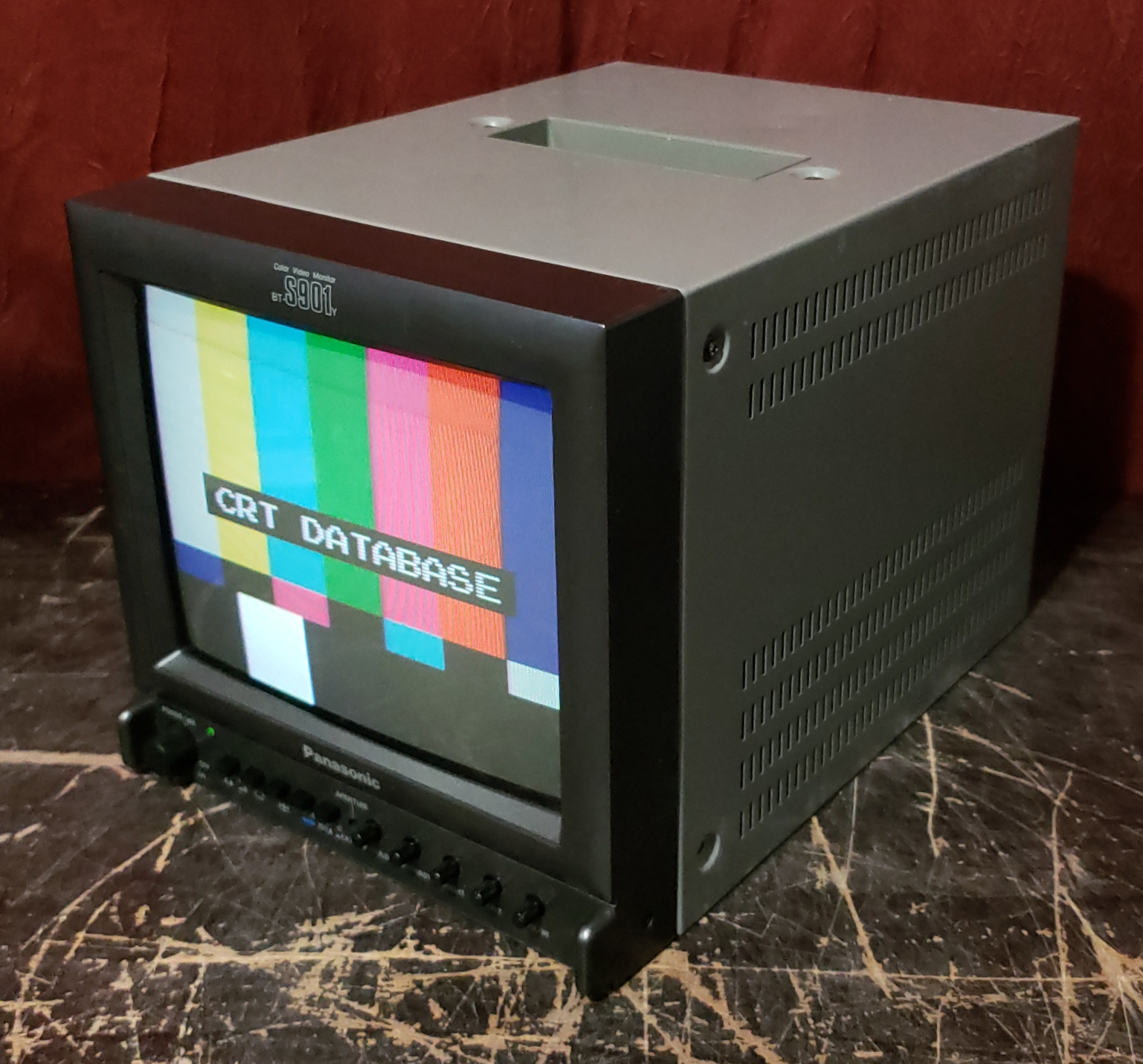

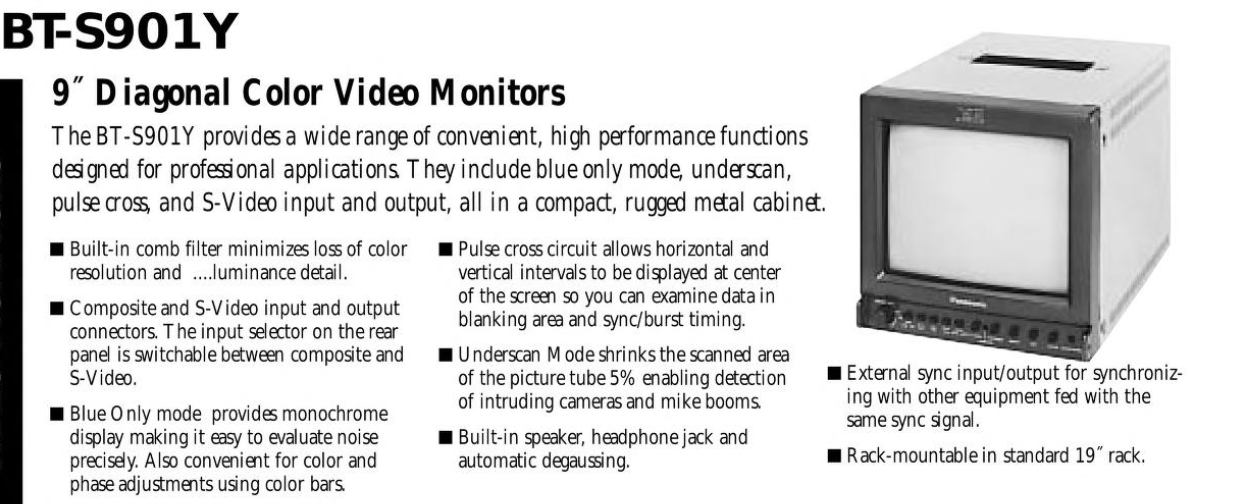

The BT-S901Y provides a wide range of convenient, high performance functions designed for professional applications. They include blue only mode underscan, pulse cross, and S-Video input and output, all in a compact, rugged metal cabinet.
Manuals
Repair Notes
- Partial vertical collapse, vertical foldover, and poor vertical linearity fixed by replacing high ESR capacitors C407, C408, C410, and C412. If C410 is leaking DC then this will also cause vertical foldover.
- Right side of screen darker than left side fixed by replacing C521 3.3uF 250V which had gone open.
- While the service manual lists C407 as 10uF 25V, on multiple units a 10uF 50V was present instead from the factory.

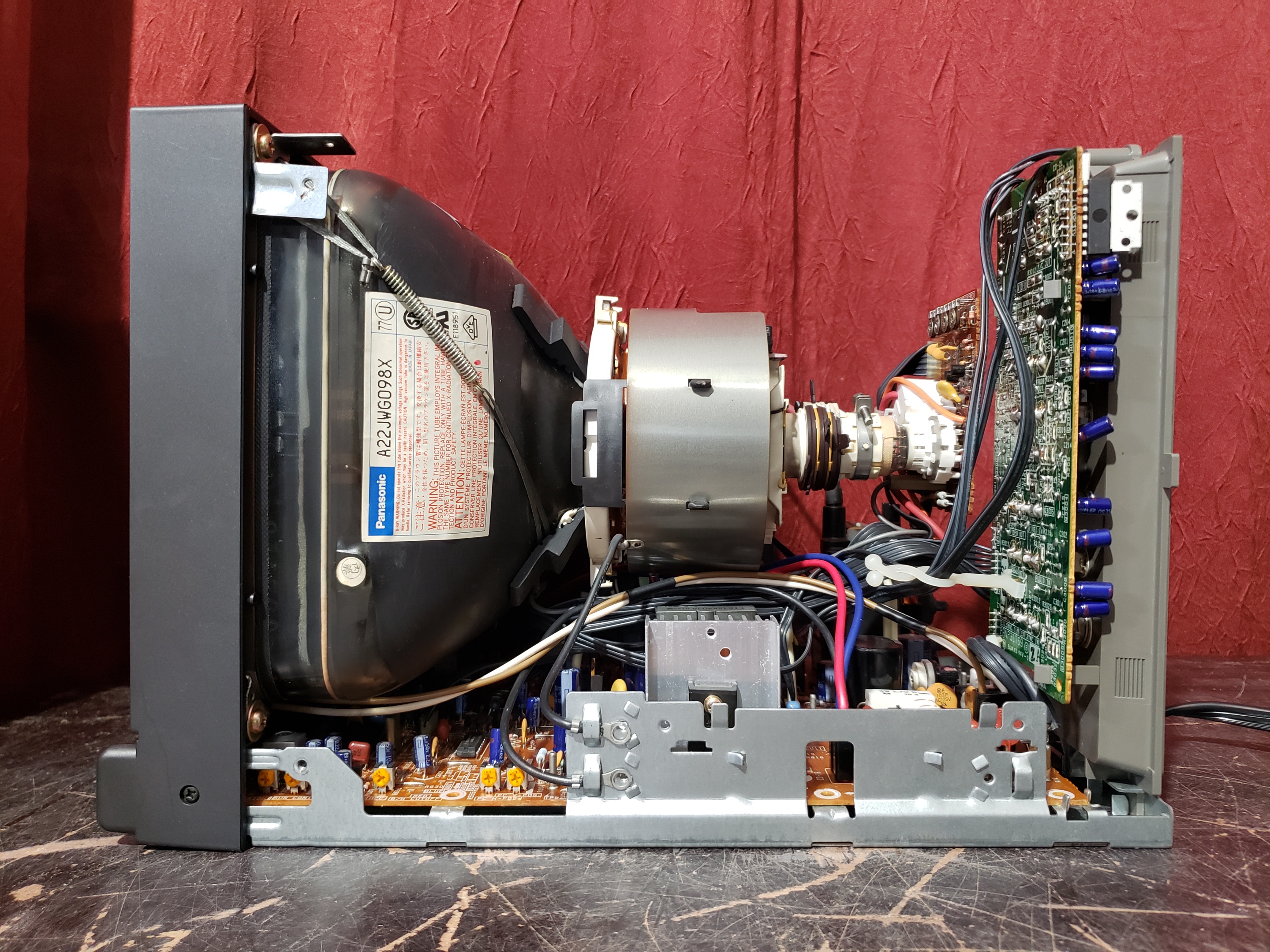

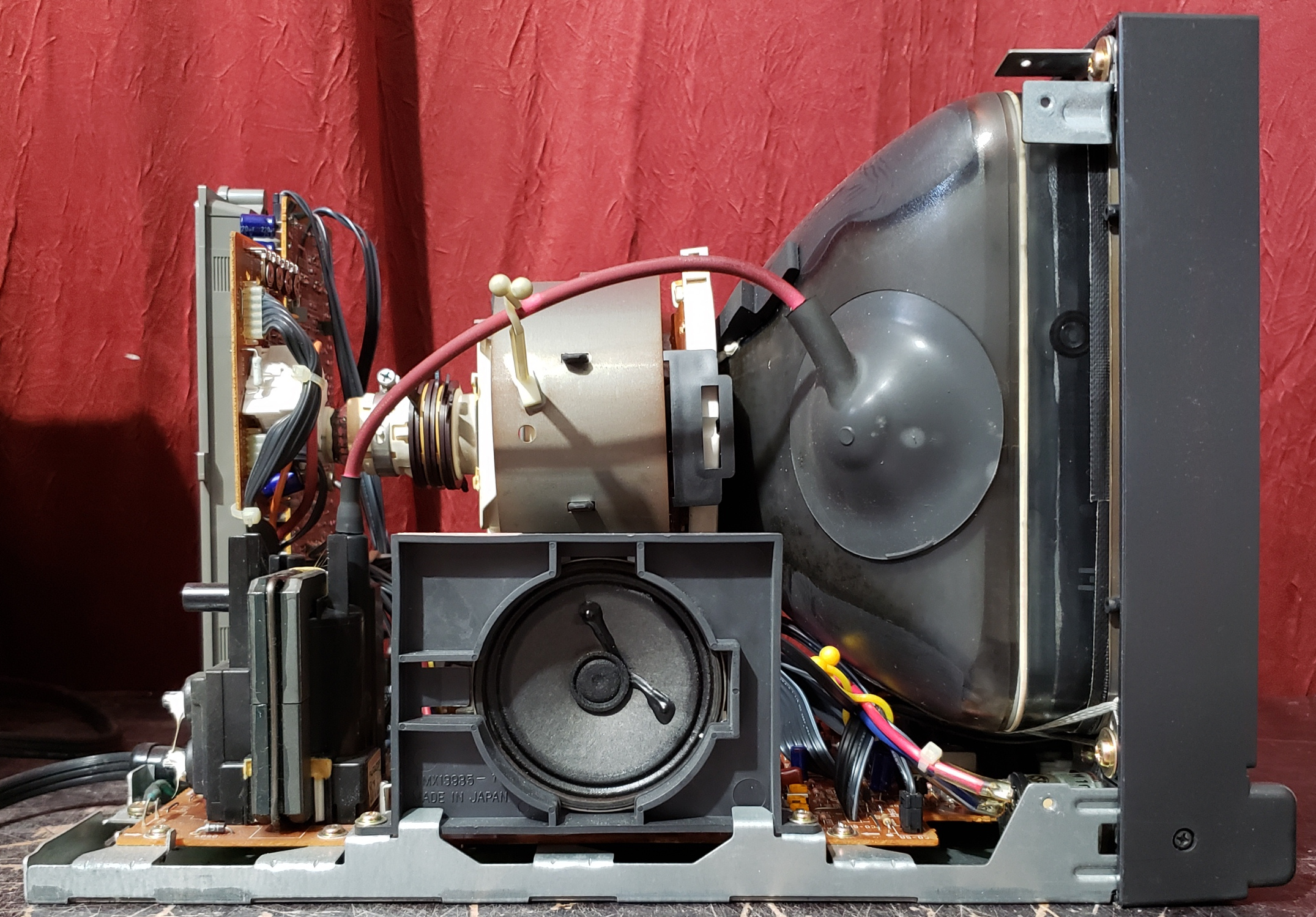

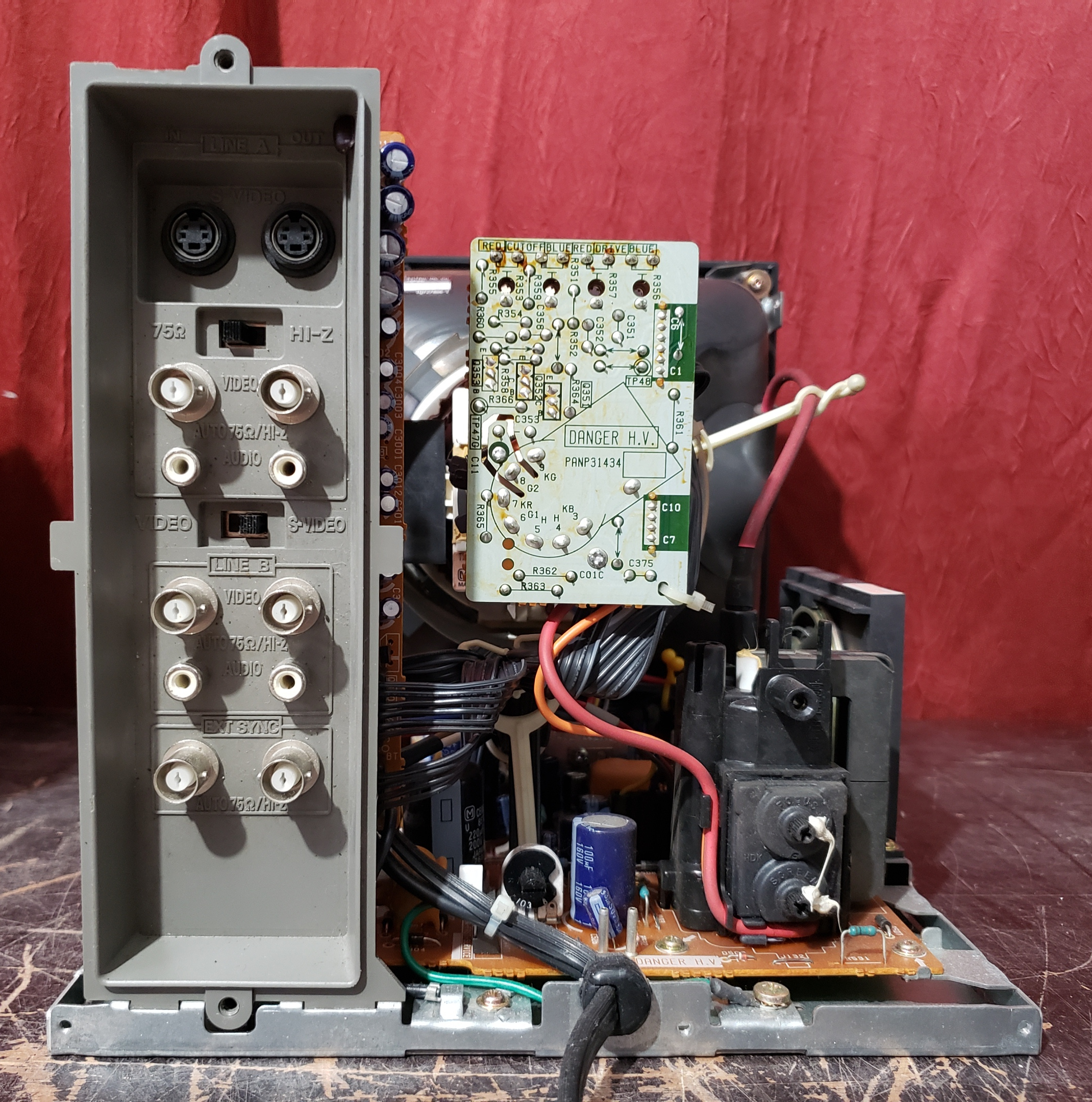

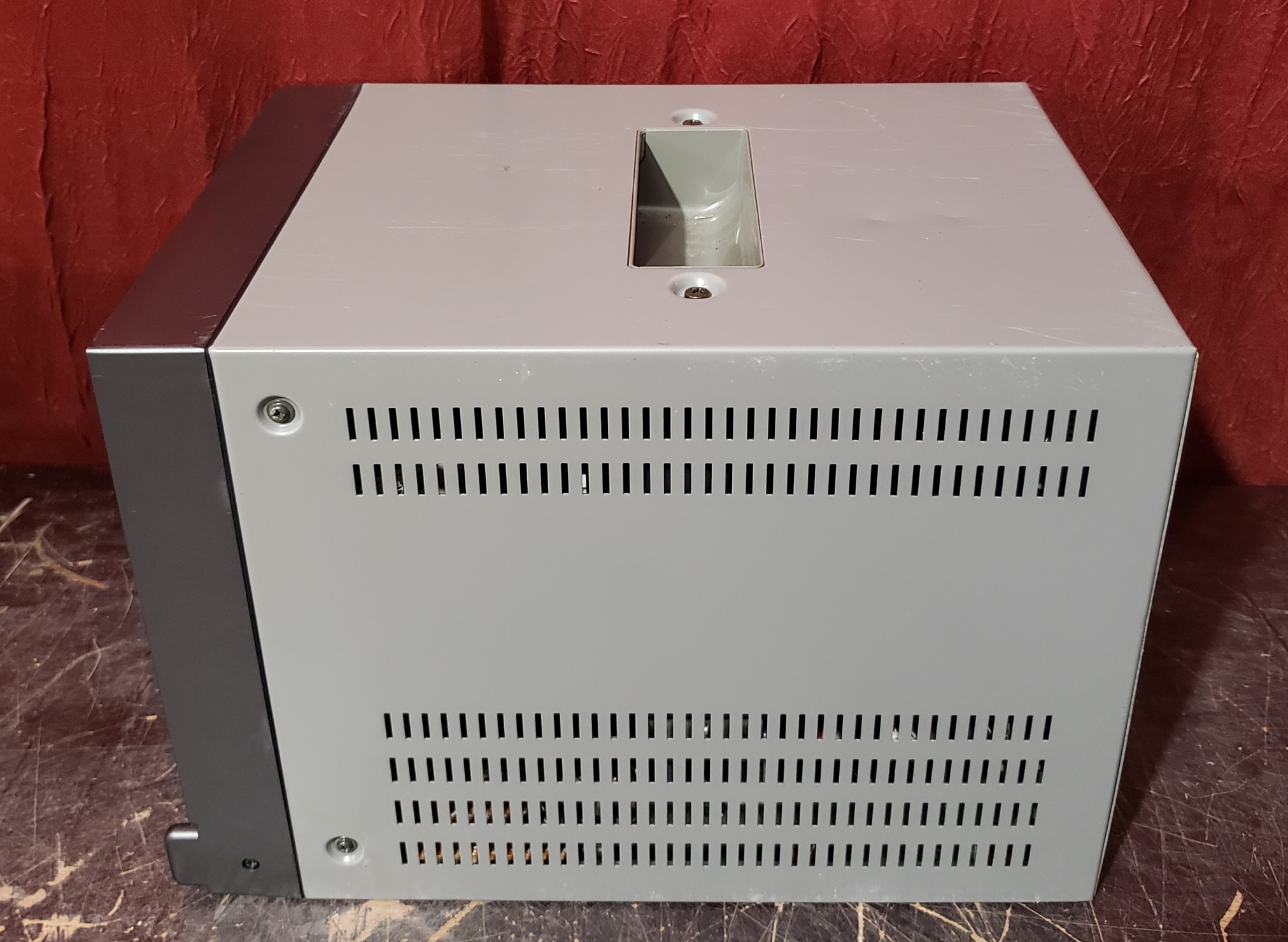

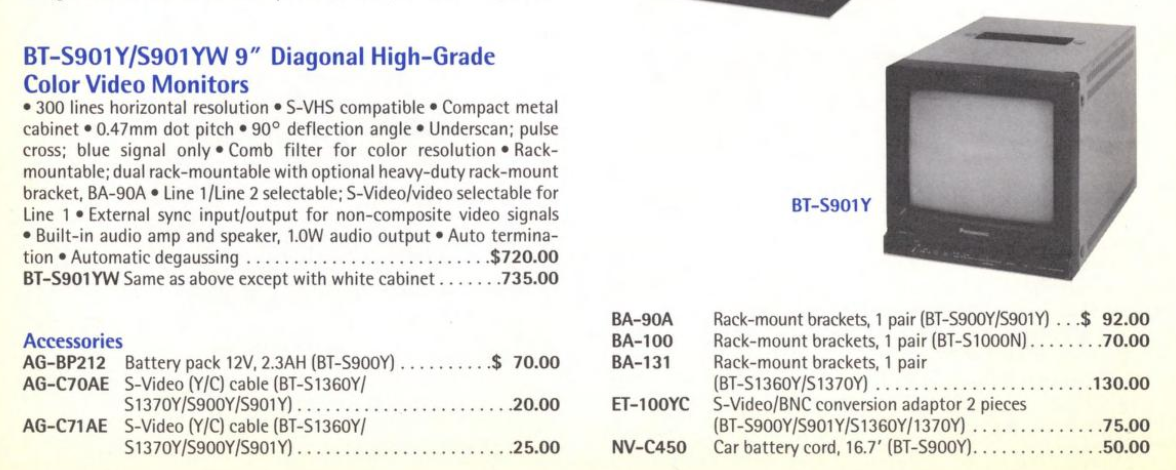

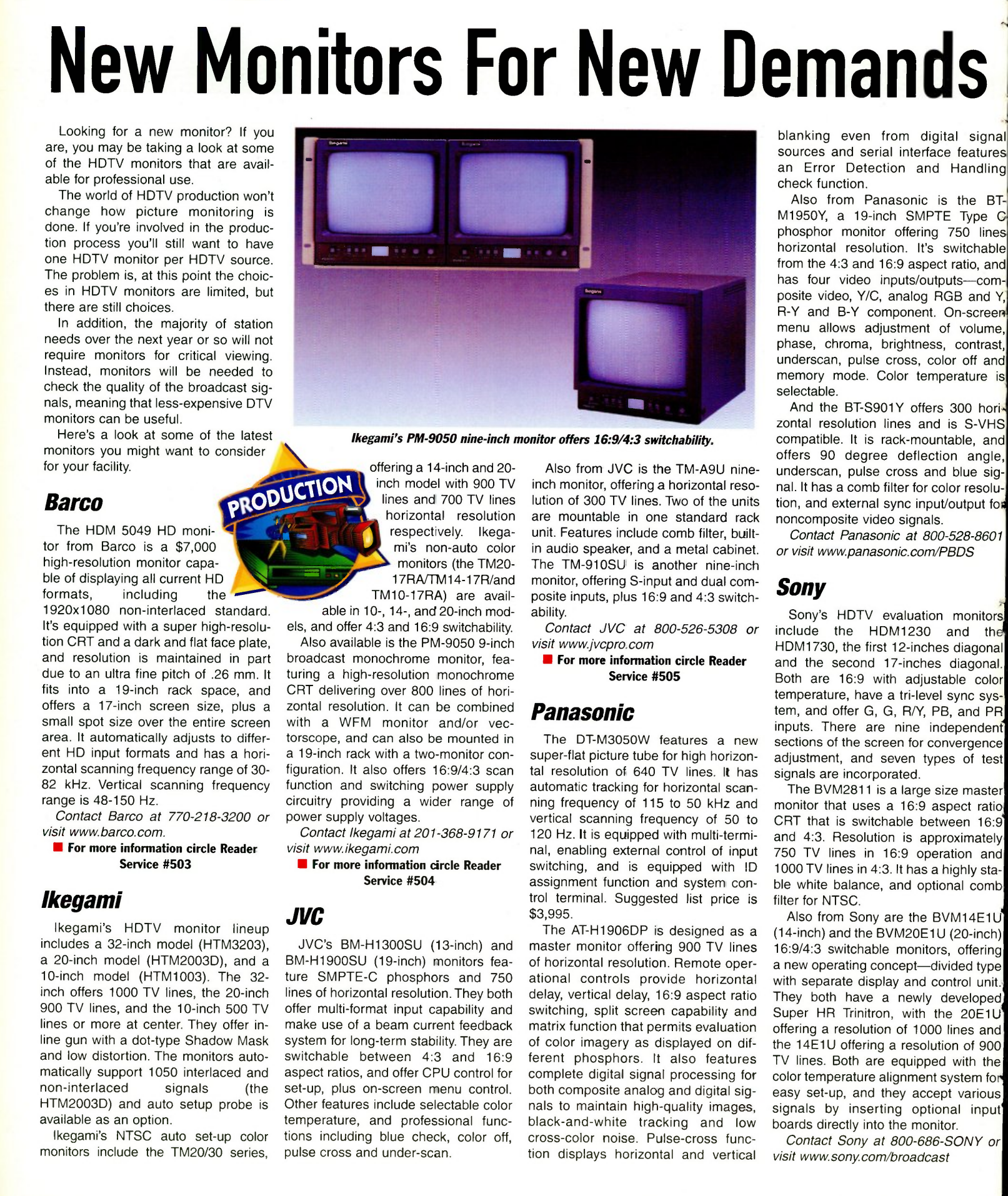

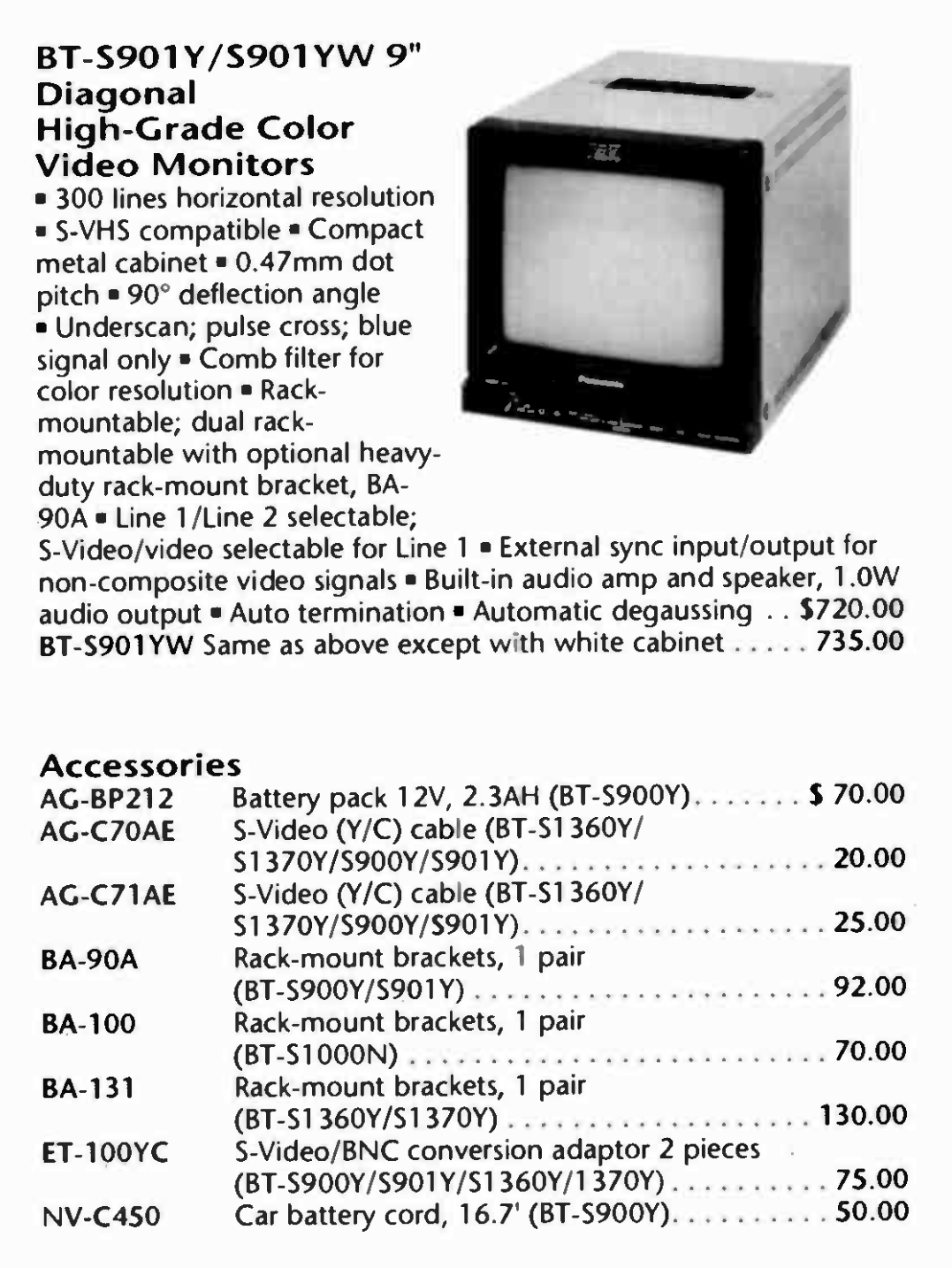

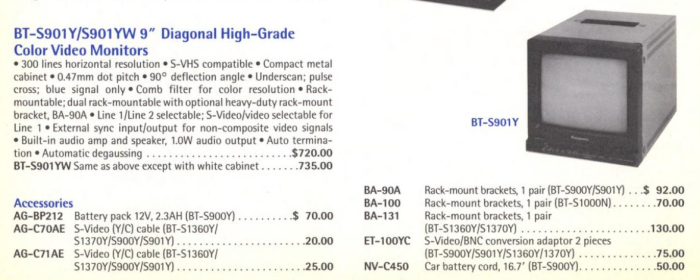

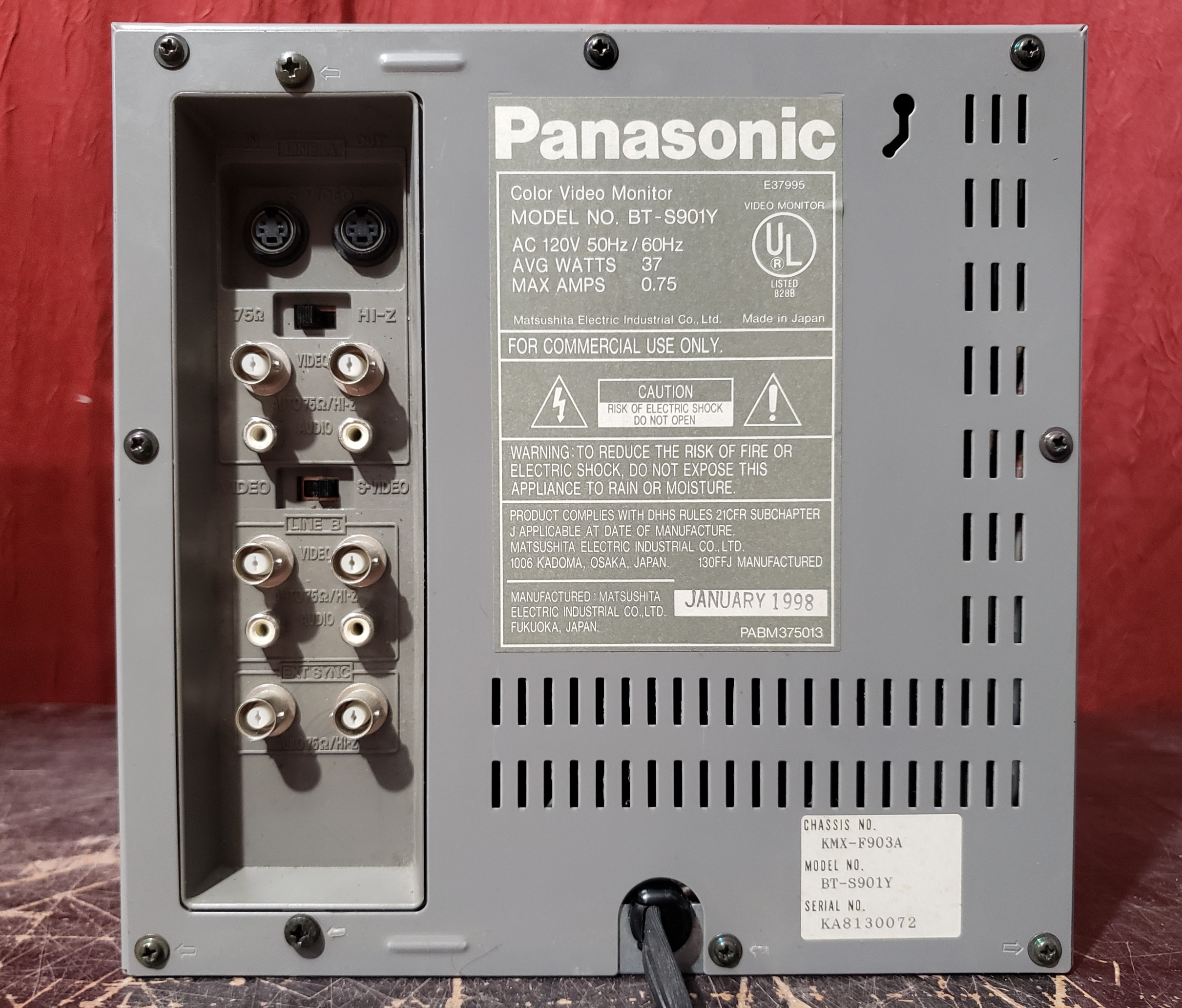

Gallery
















Specifications | |
---|---|
Brand: | Panasonic |
Manufacturer: | Panasonic |
Model: | BT-S901Y |
Series: | BT |
Viewable Size: | 9" |
Inputs: | Composite, S-Video |
Native Resolutions: | 240p, 480i |
Linecount: | 300 TVL |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers |
Jungle IC: | AN5316N |
Comb Filtering: | Glass |
Flyback: | PALF34709F |
Focus Type: | Single |
Tube: | Panasonic , A22JWG098X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Pitch: | 0.47 mm |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | TXALY85375FA |
Yoke Horz. Resistance: | 6.7 ohm |
Yoke Vert. Resistance: | 17.0 ohm |
Speakers: | Mono |
Chassis: | KMX-F903A |
Weight: | 15.5 lbs (7 kg) |
Dimensions (W/H/D): |
223 x 228.5 x 321.5 mm
(8.8 x 9 x 12.6") |
Application: | Professional |
Cabinet Material: | Metal |
Launched: | 1993 |
MSRP: | 720 USD |
Country of Manufacture: | Japan |
Power Standard: | 120v |
Mounting: | Carrying Handle, Rackable |
Degaussing: | Automatic on Power-on |
