Panasonic CT-10R11S
Eli Krause
November 19, 2025, 1:42 am
November 19, 2025, 2:41 pm
November 19, 2025, 1:42 am
November 19, 2025, 2:41 pm
Summary

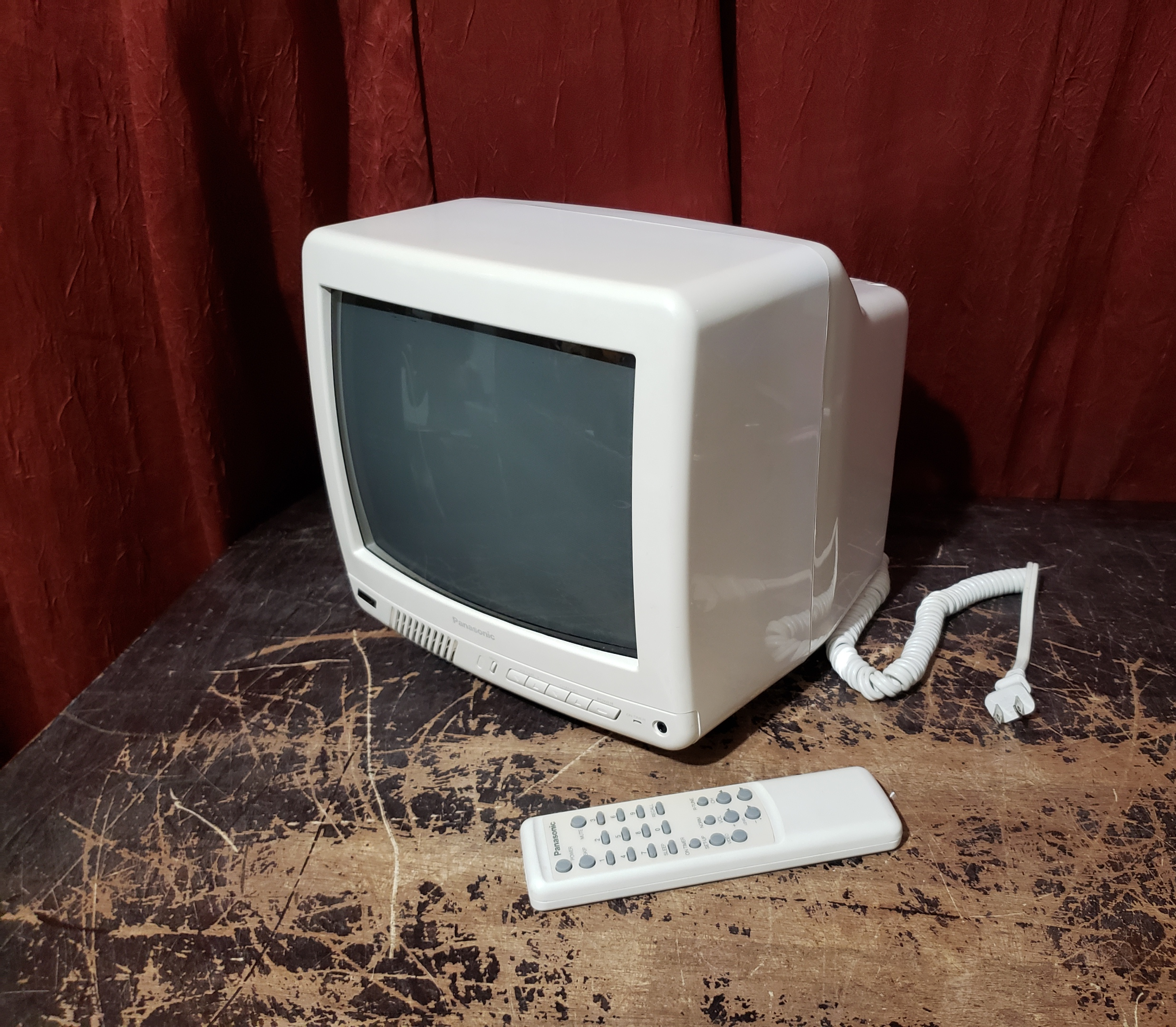

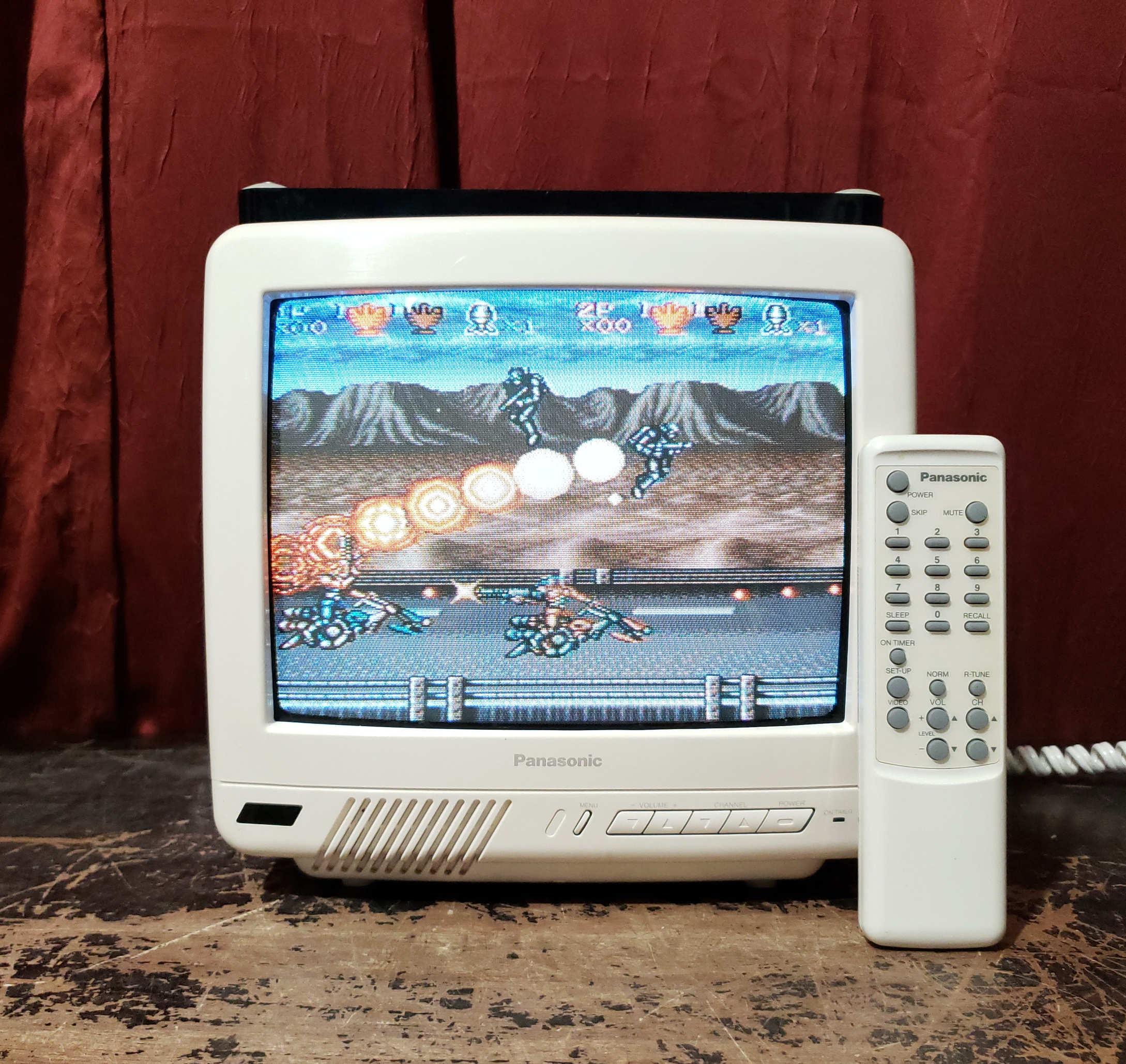

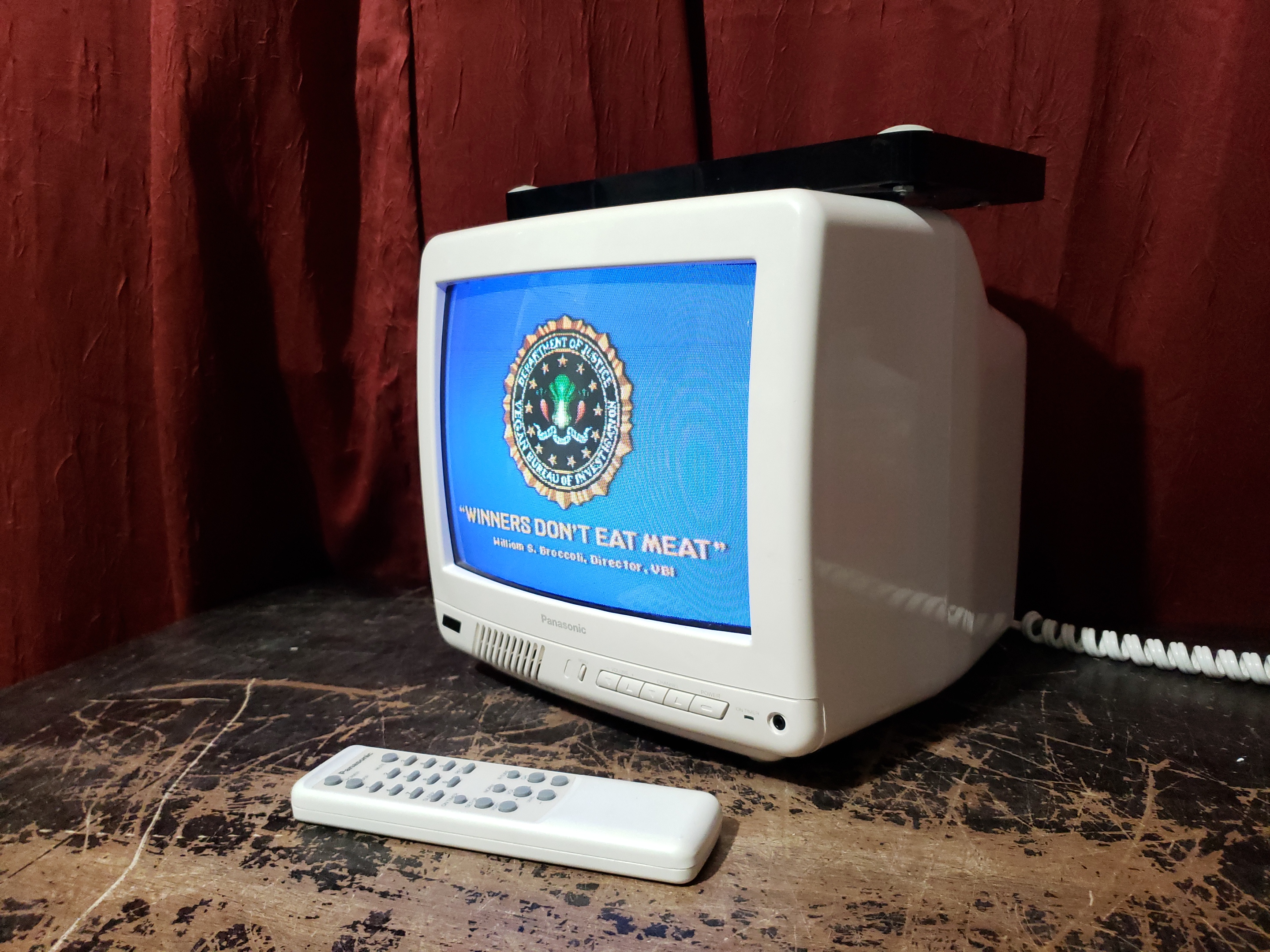

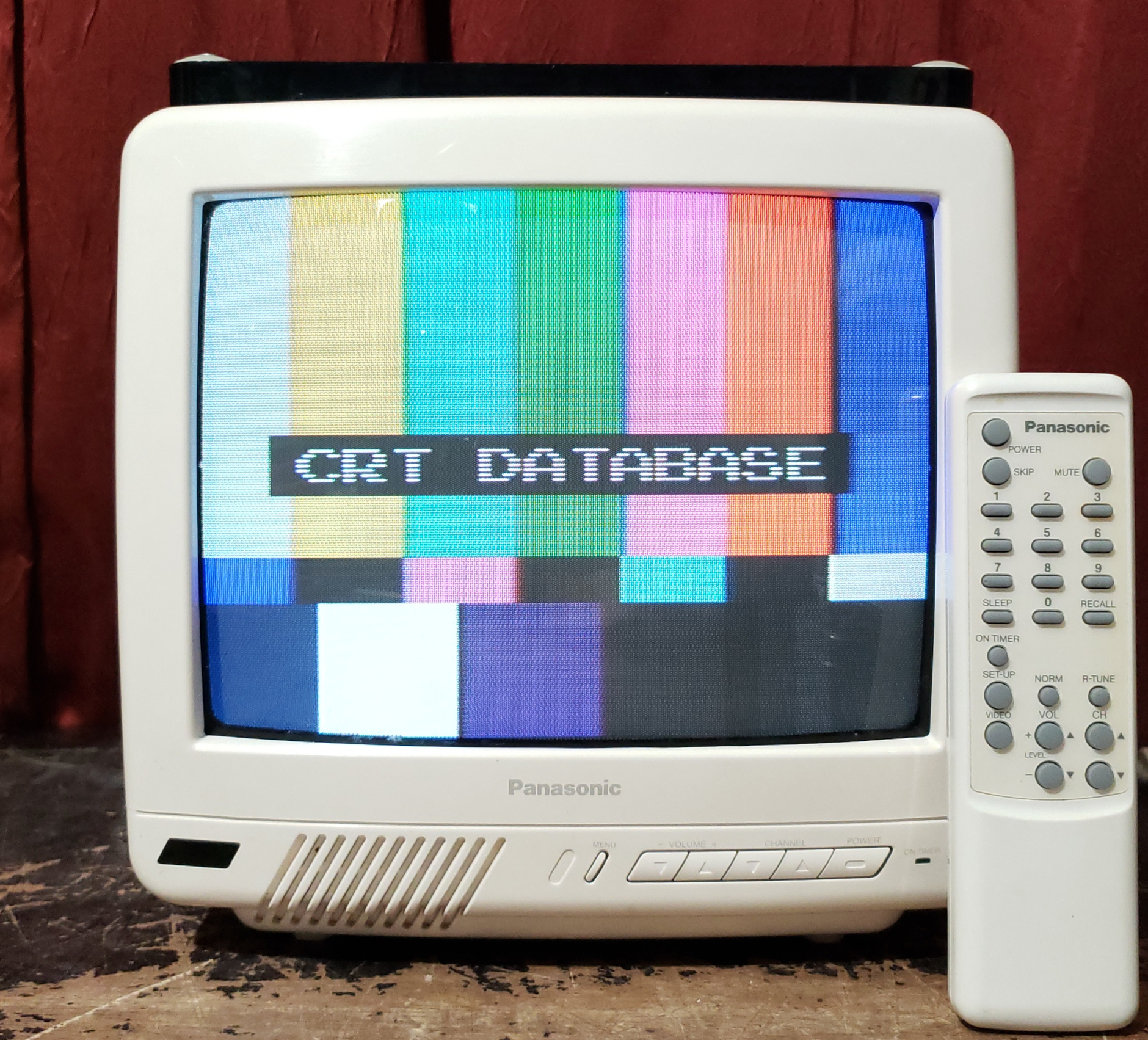

10" kitchen TV with RF input and under-cabinet swivel mount.
Manuals
Mods and Repair Guides

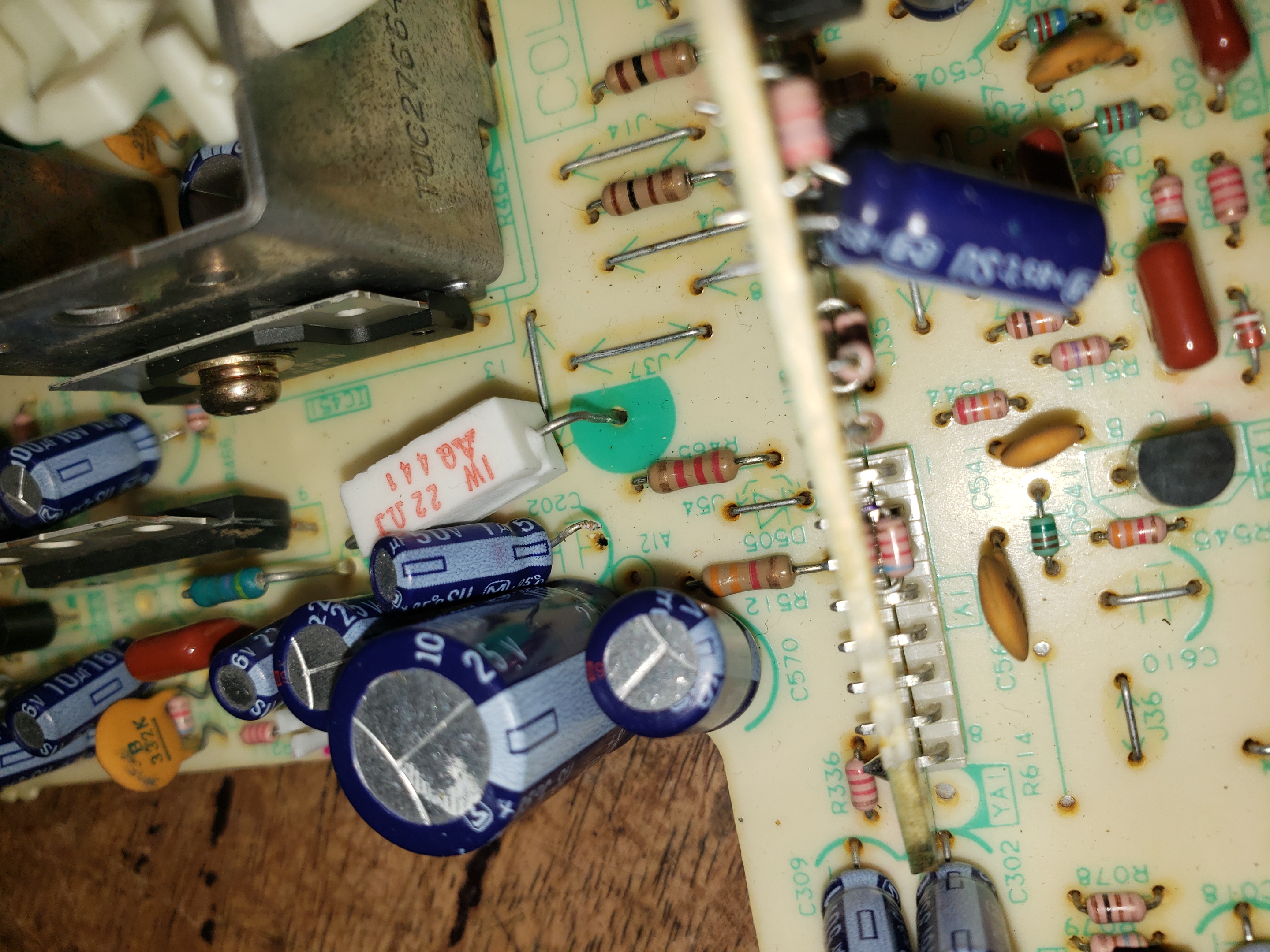

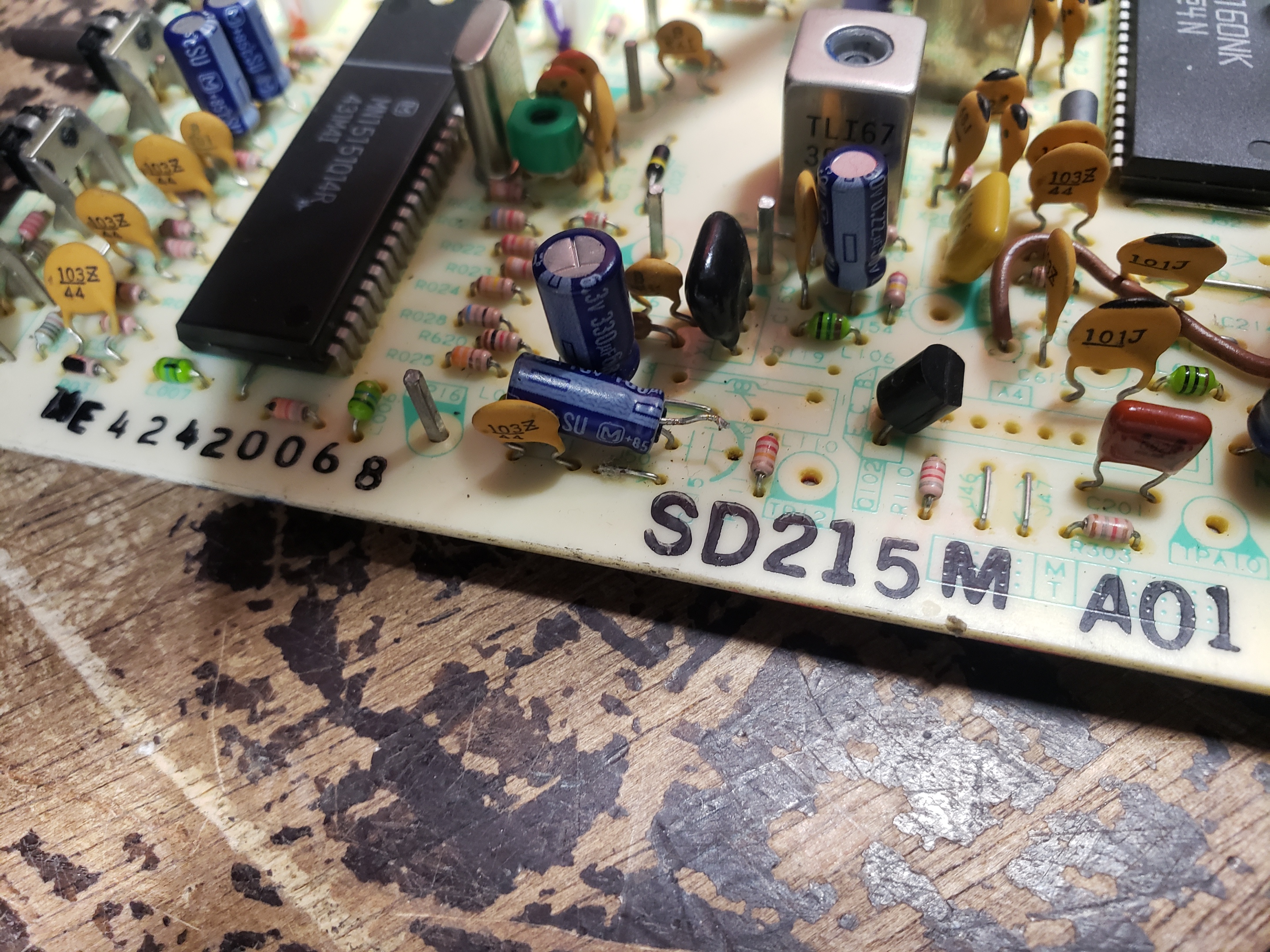

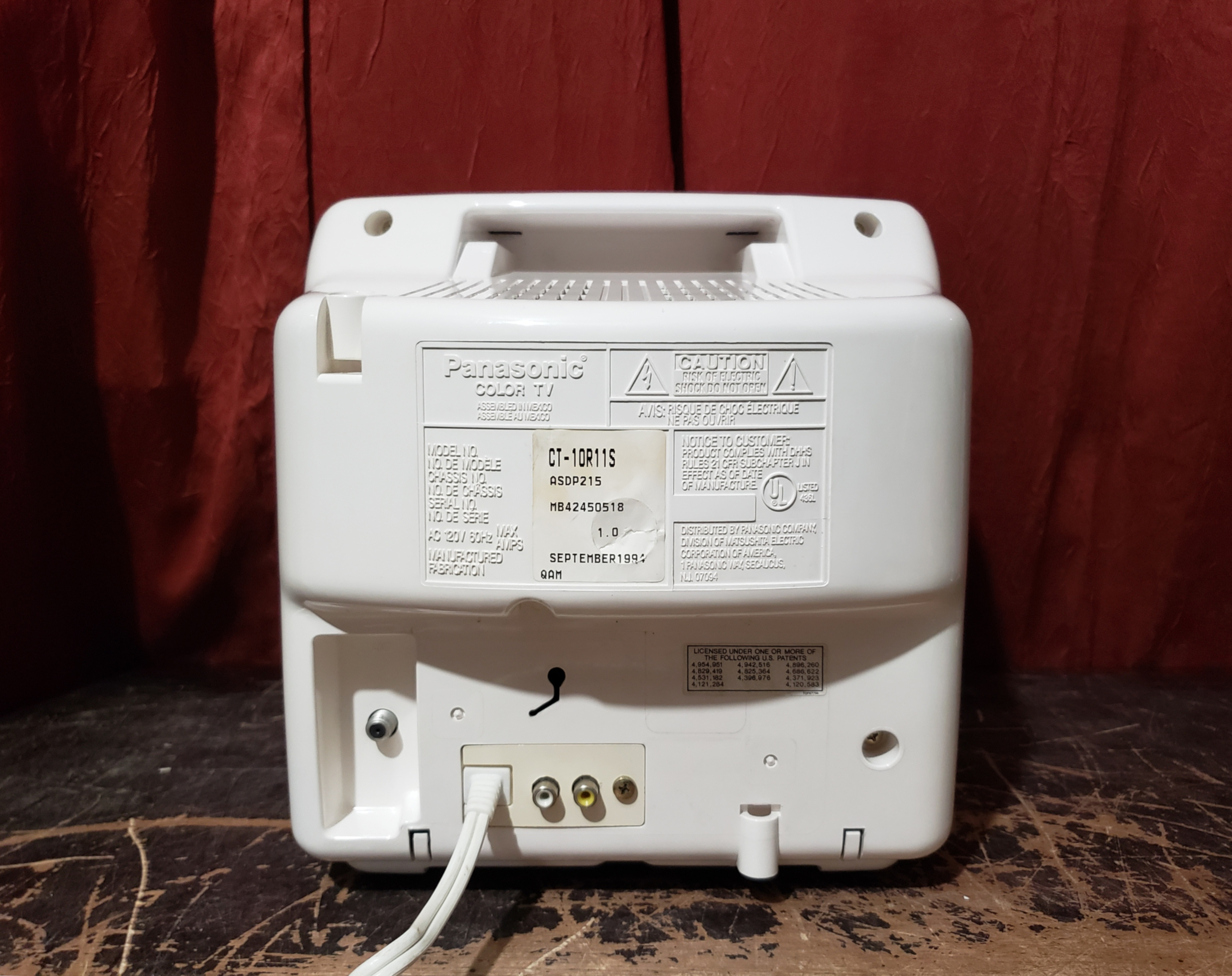

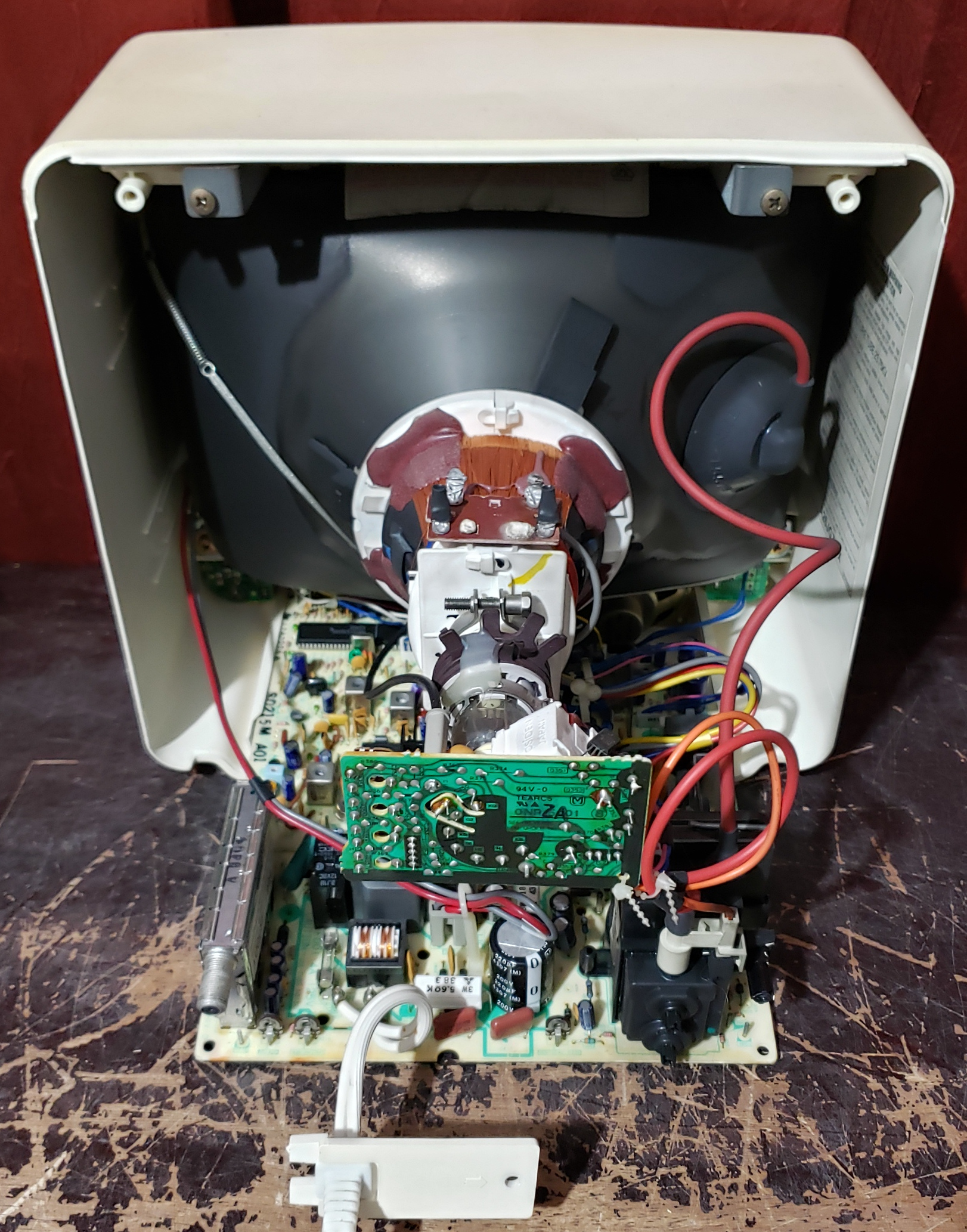

I composite modded the unit pictured by injecting 75 ohm terminated video into the lifted leg of the cathode side of C115, and audio into the lifted leg of the cathode side of C202. Pictures of these specific capacitors are in the gallery below.
Gallery

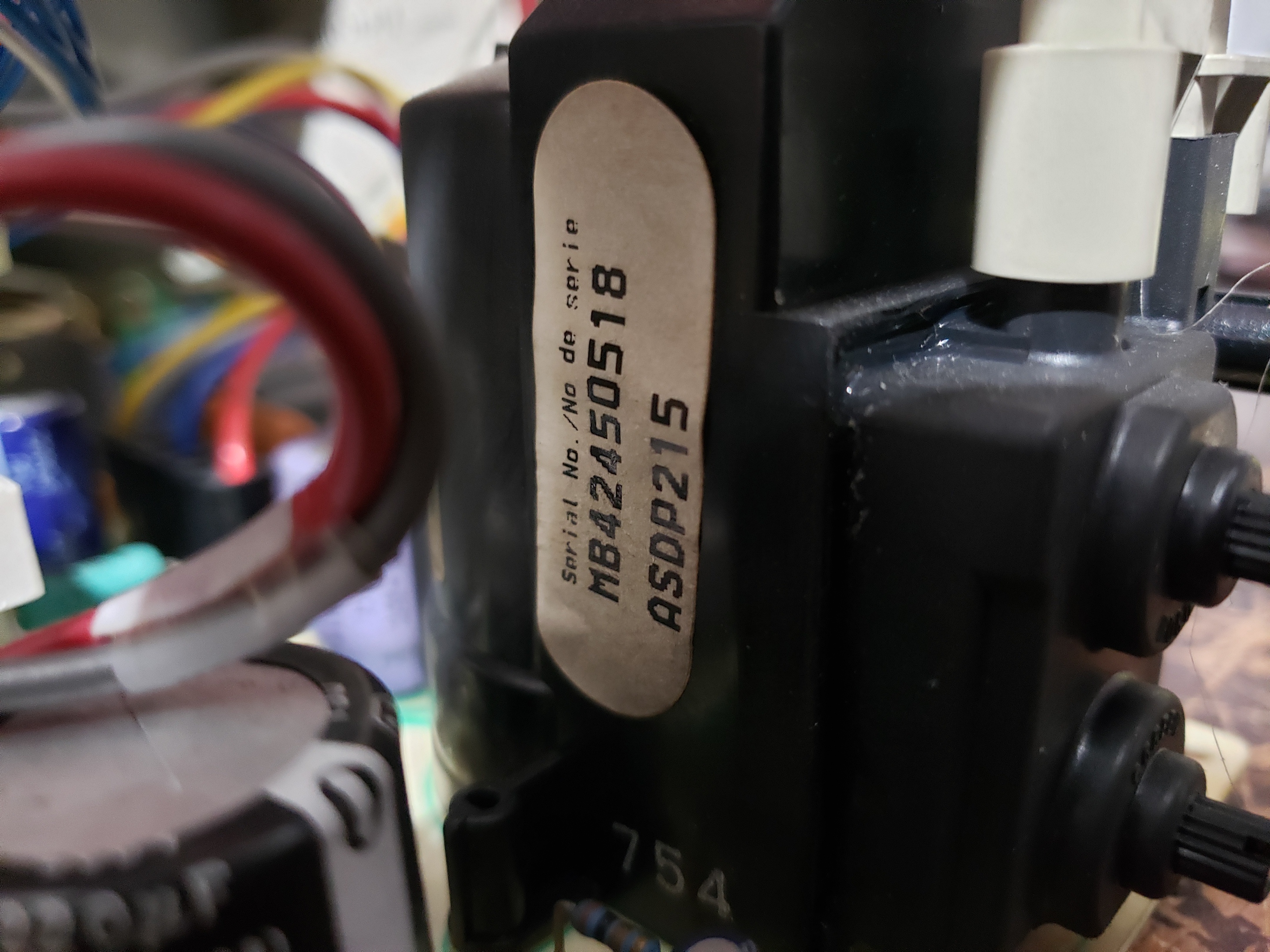

| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CT-10R11S |
| Series: | CT |
| Viewable Size: | 10" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls, Front Mounted Buttons |
| Horz. Output Transistor: | 2SC1573A |
| Vertical Output IC: | LA7835 |
| Jungle IC: | AN5160NK |
| Comb Filtering: | None |
| Flyback: | ASDP215 |

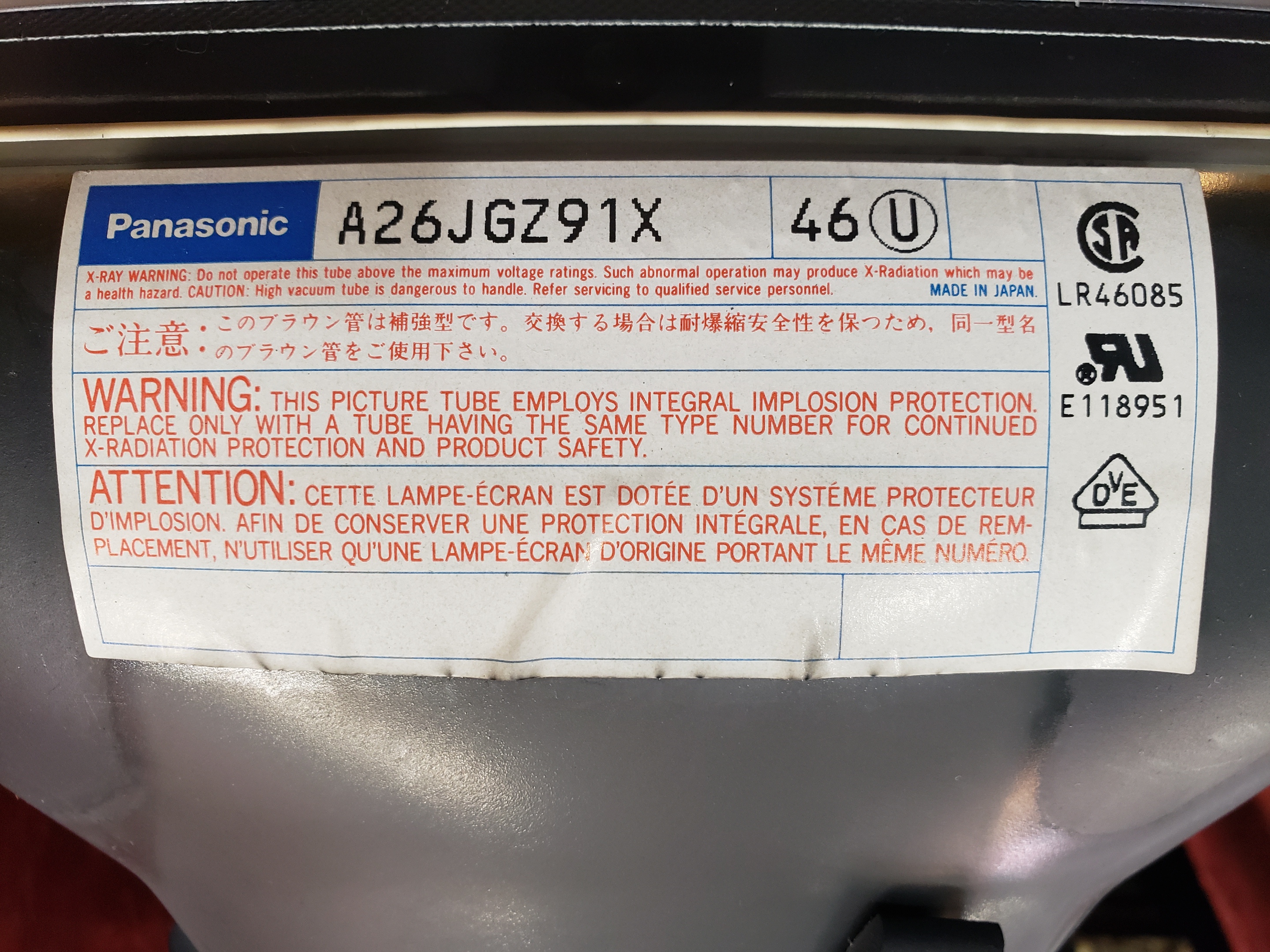

| Tube: | Panasonic , A26JGZ91X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

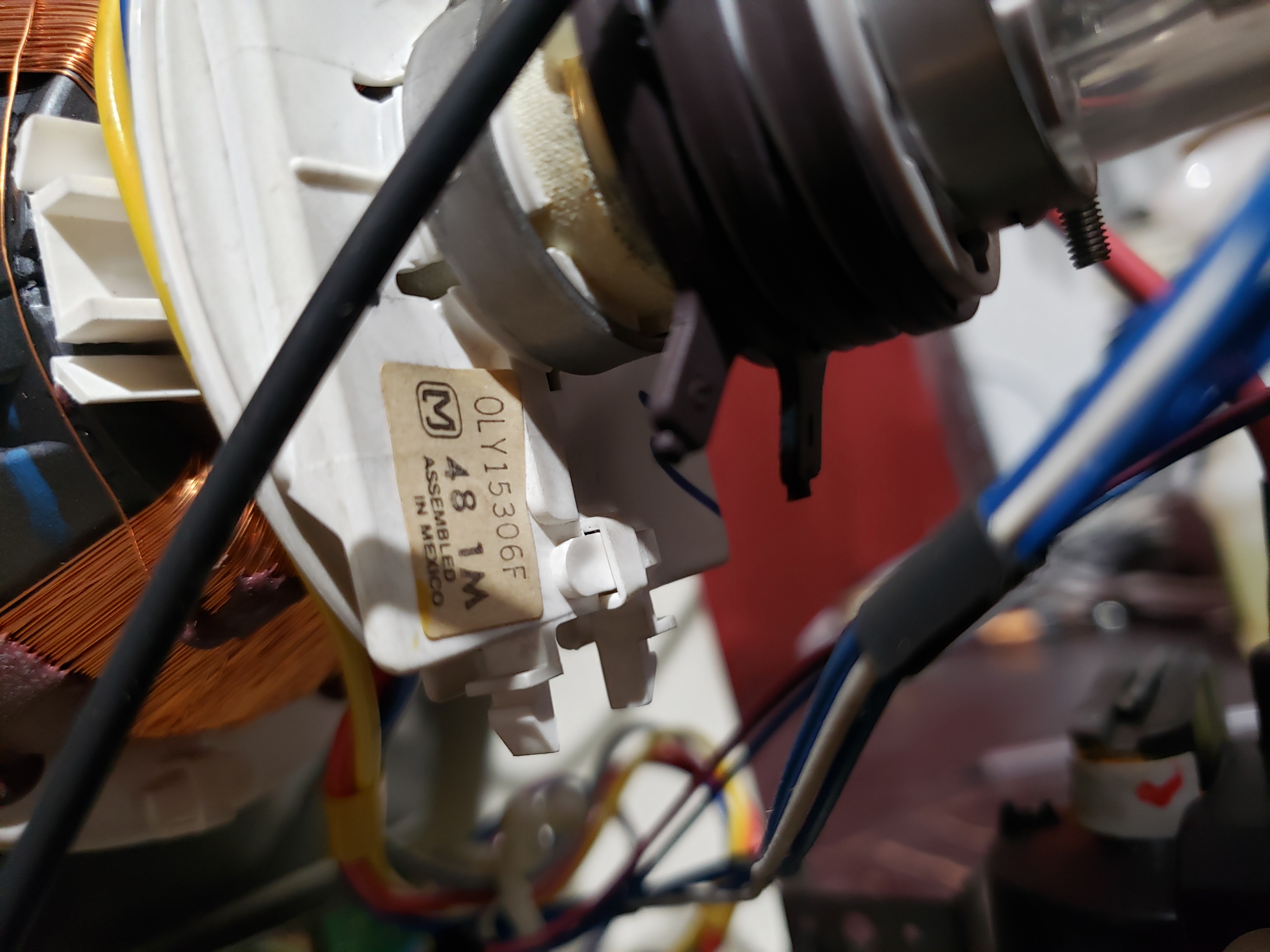

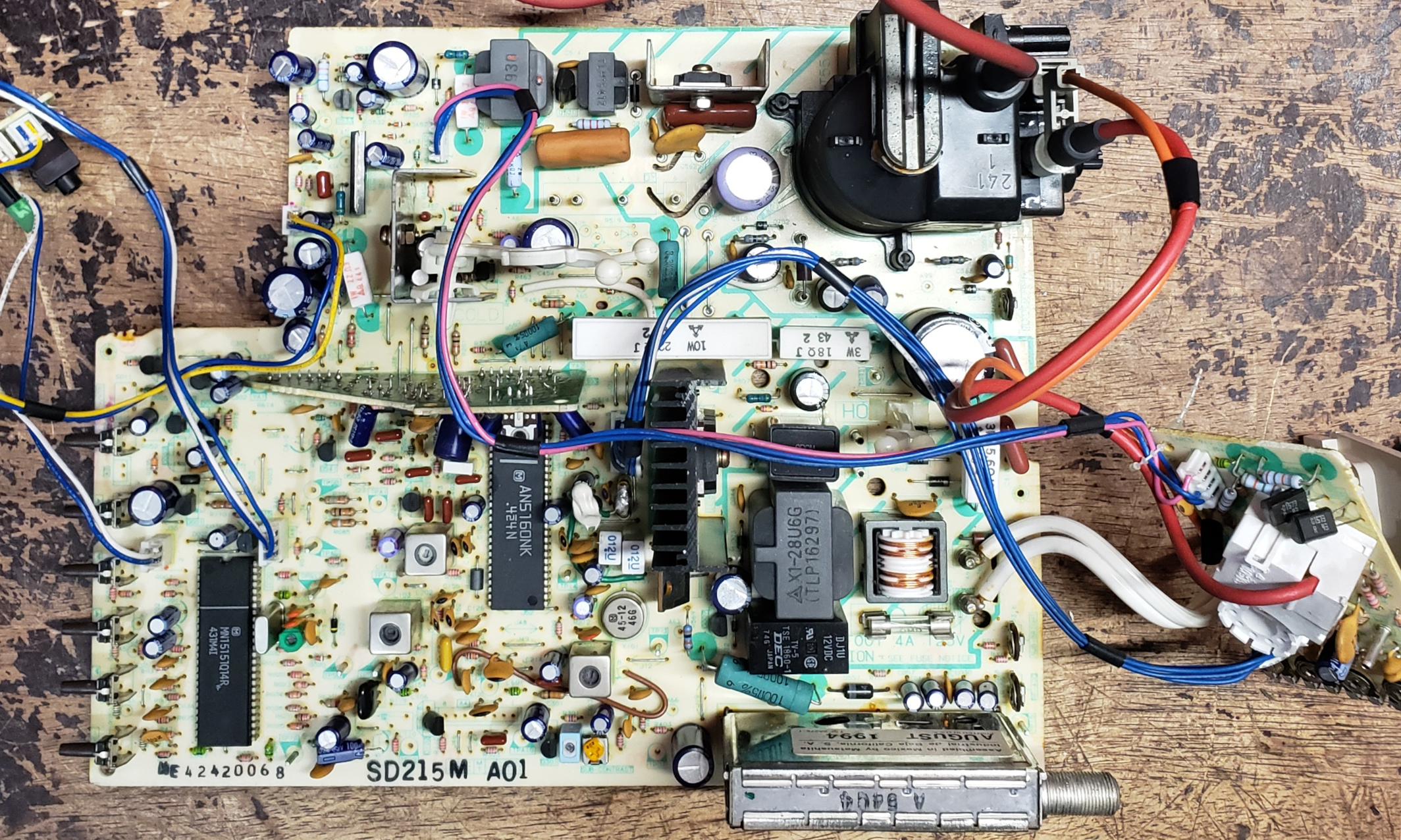

| Yoke: | OLY15306F |
| Speakers: | Mono, 1.25W |
| Chassis: | ASDP215 |
| Weight: | 15.5 lbs (7 kg) |
| Dimensions (W/H/D): |
262 x 269 x 330 mm
(10.3 x 10.6 x 13") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1994 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |

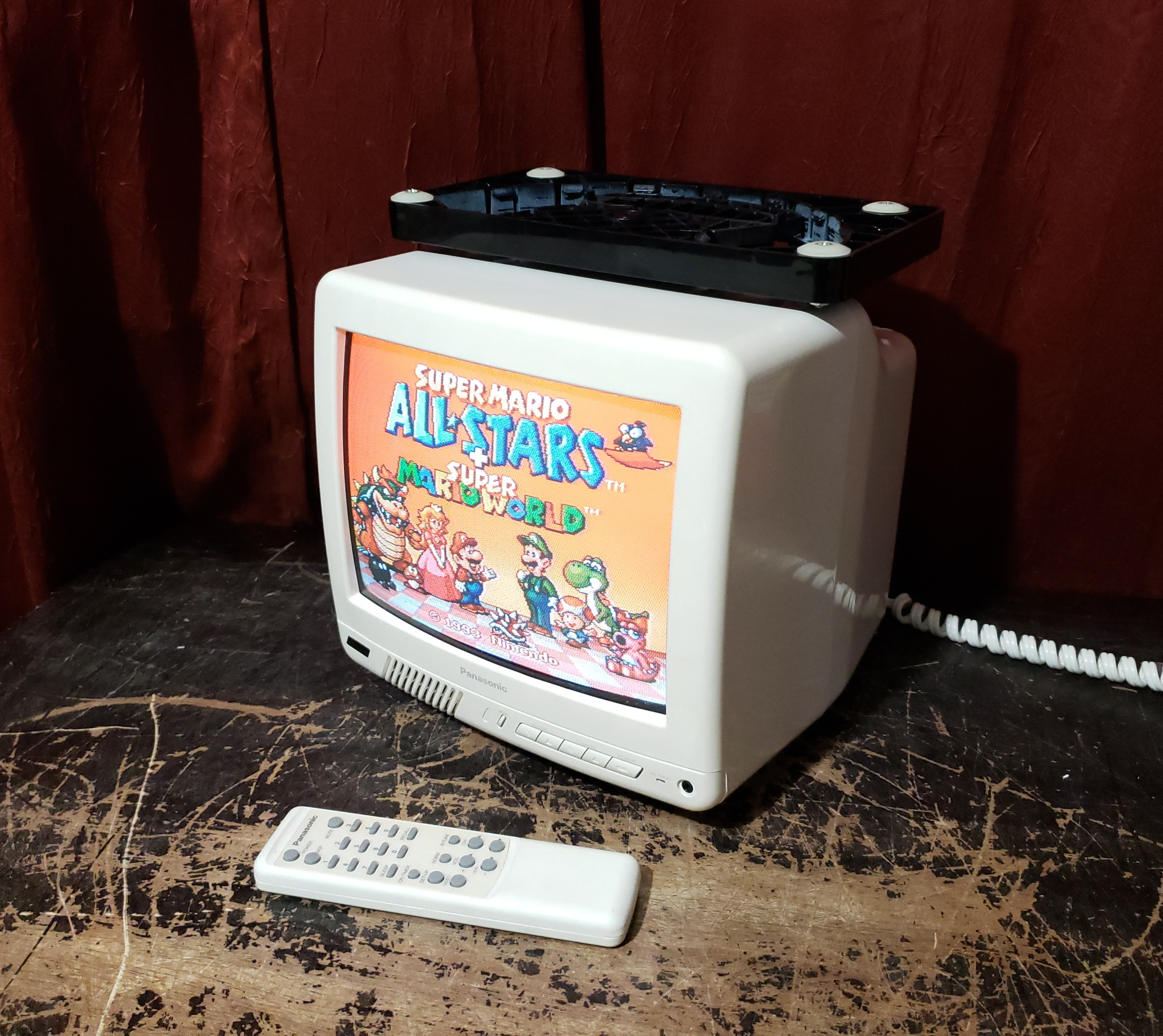

| Mounting: | Carrying Handle, Turntable, Under-Cabinet Mount |
| Mods: | S-Video, Composite |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Yoke Info |
