Summary

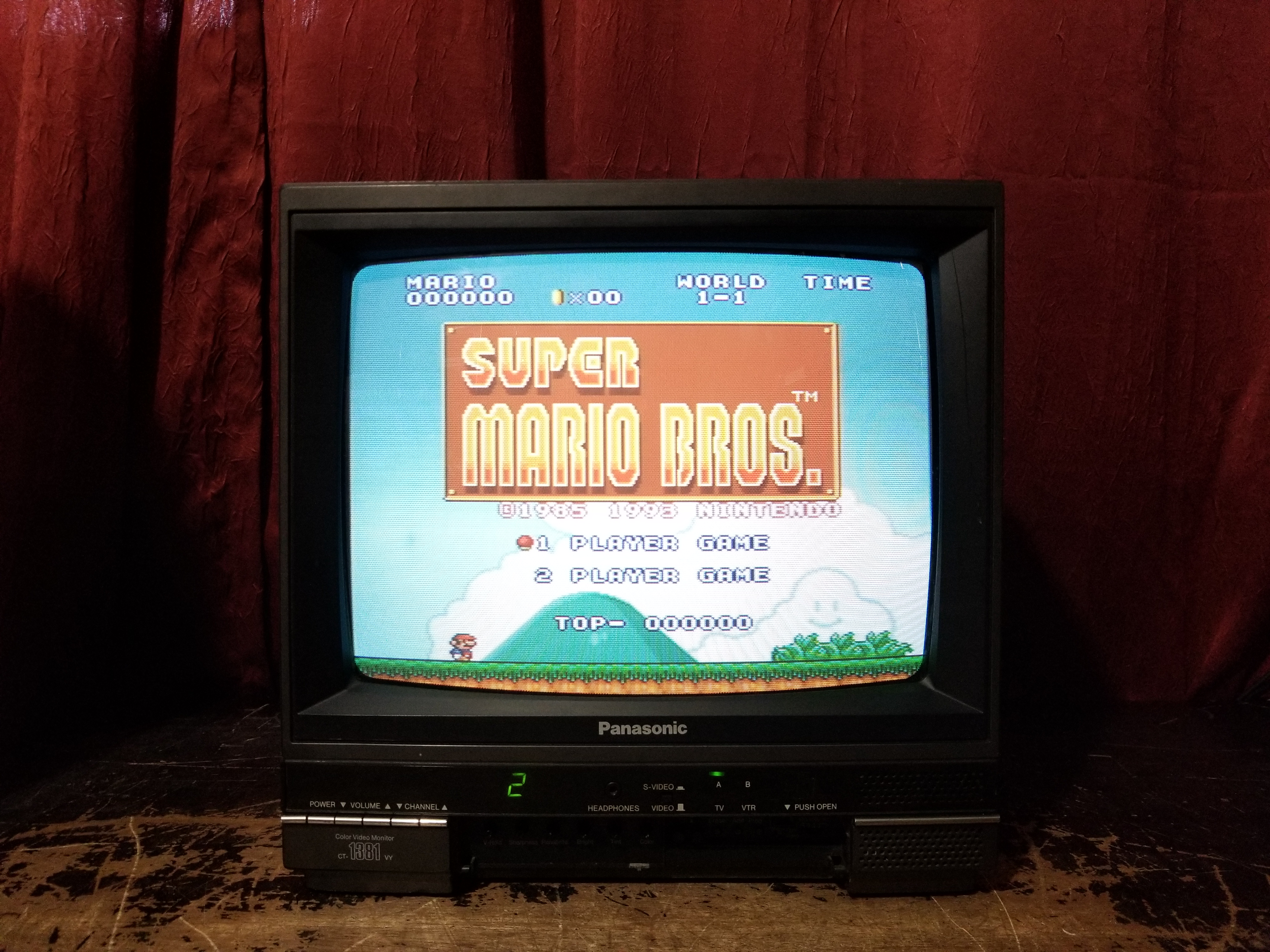

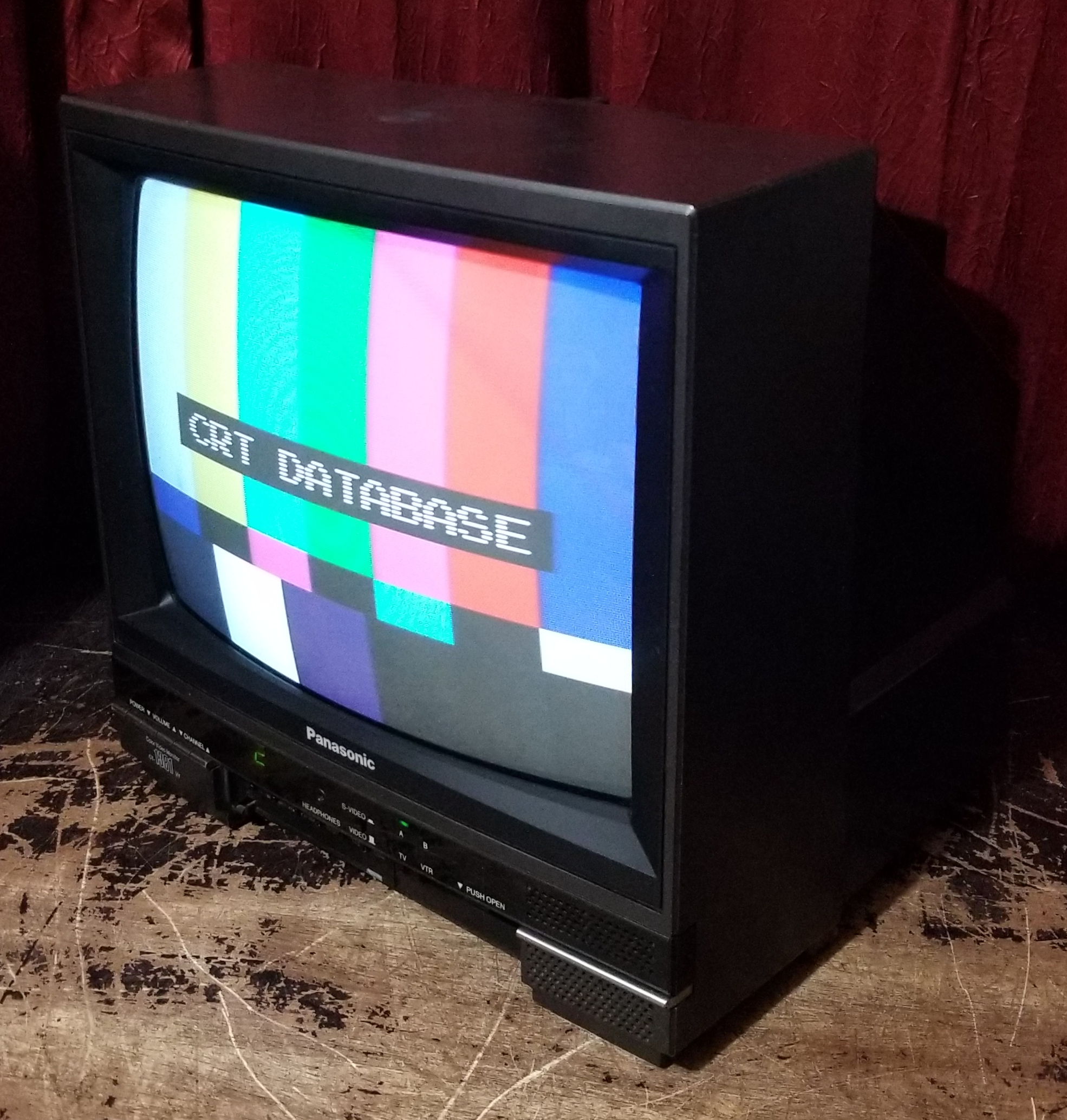

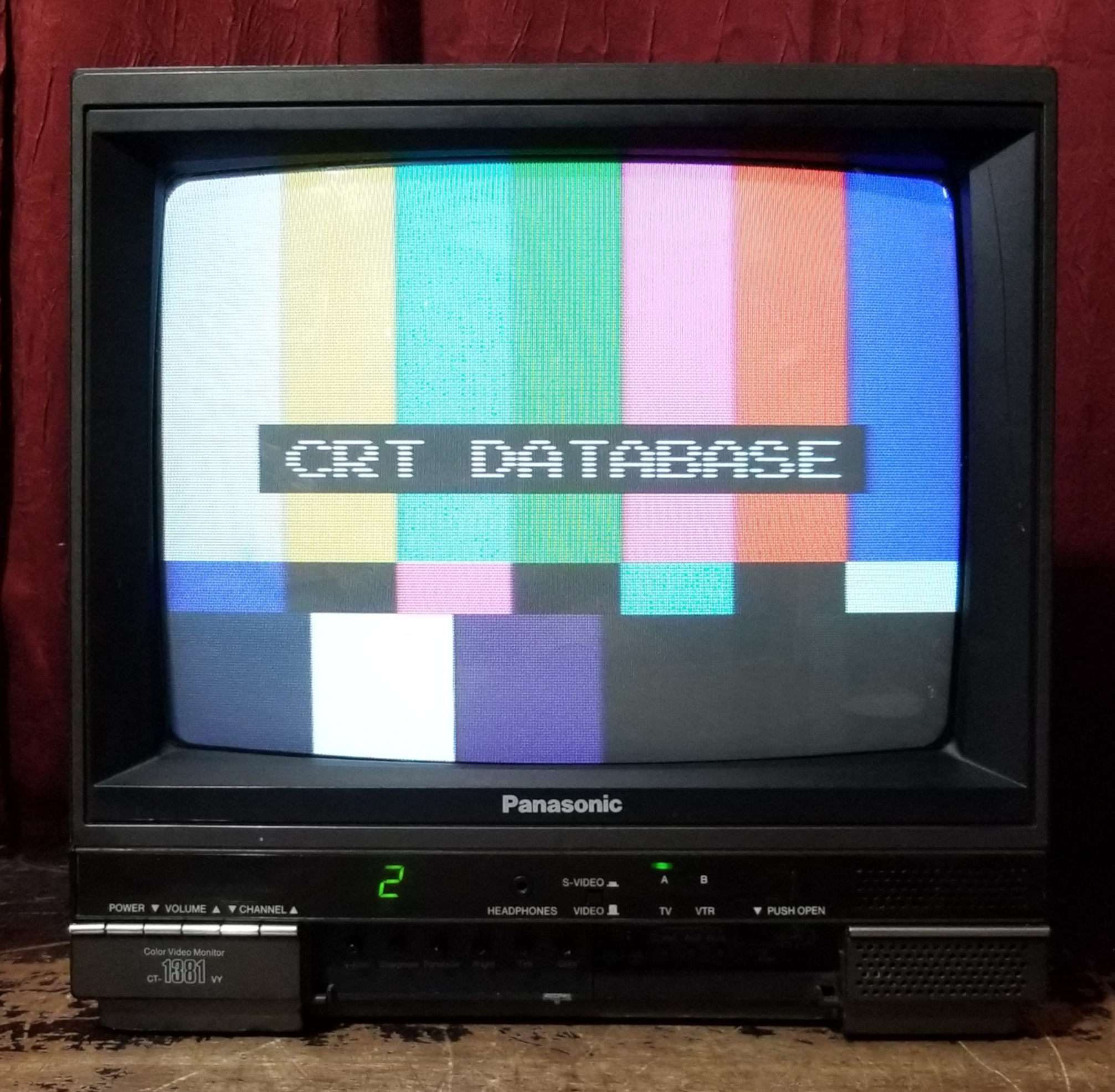

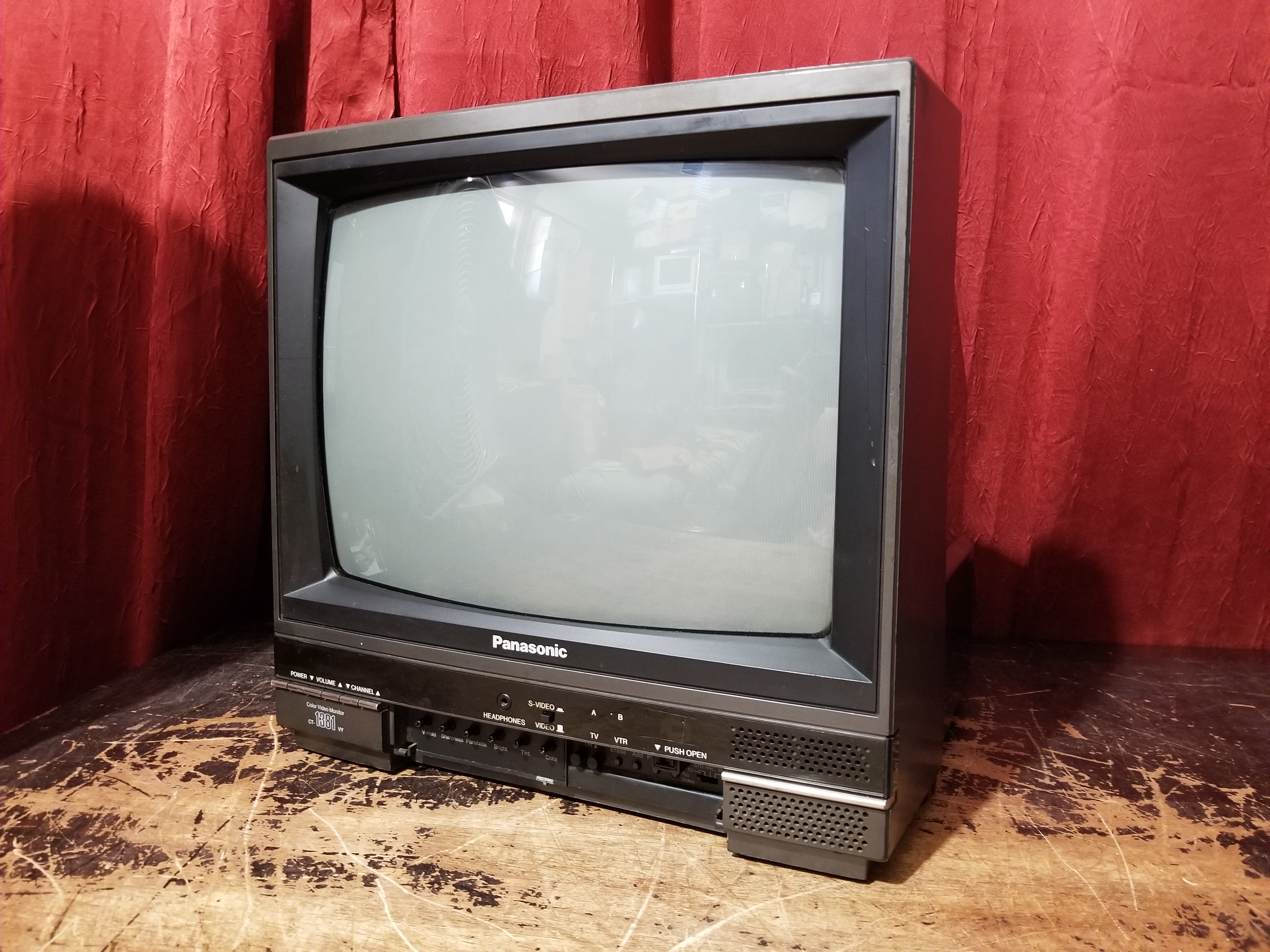

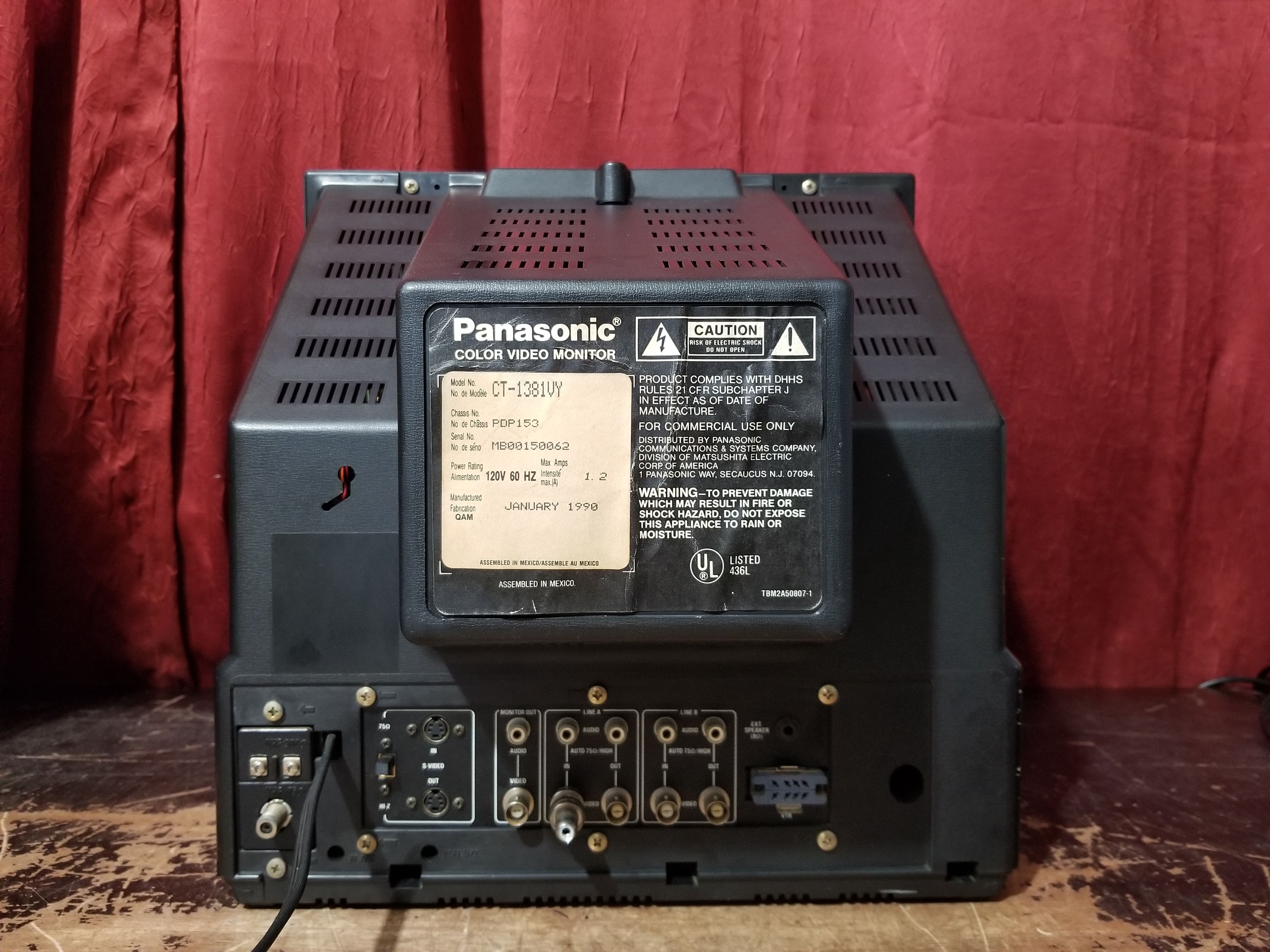

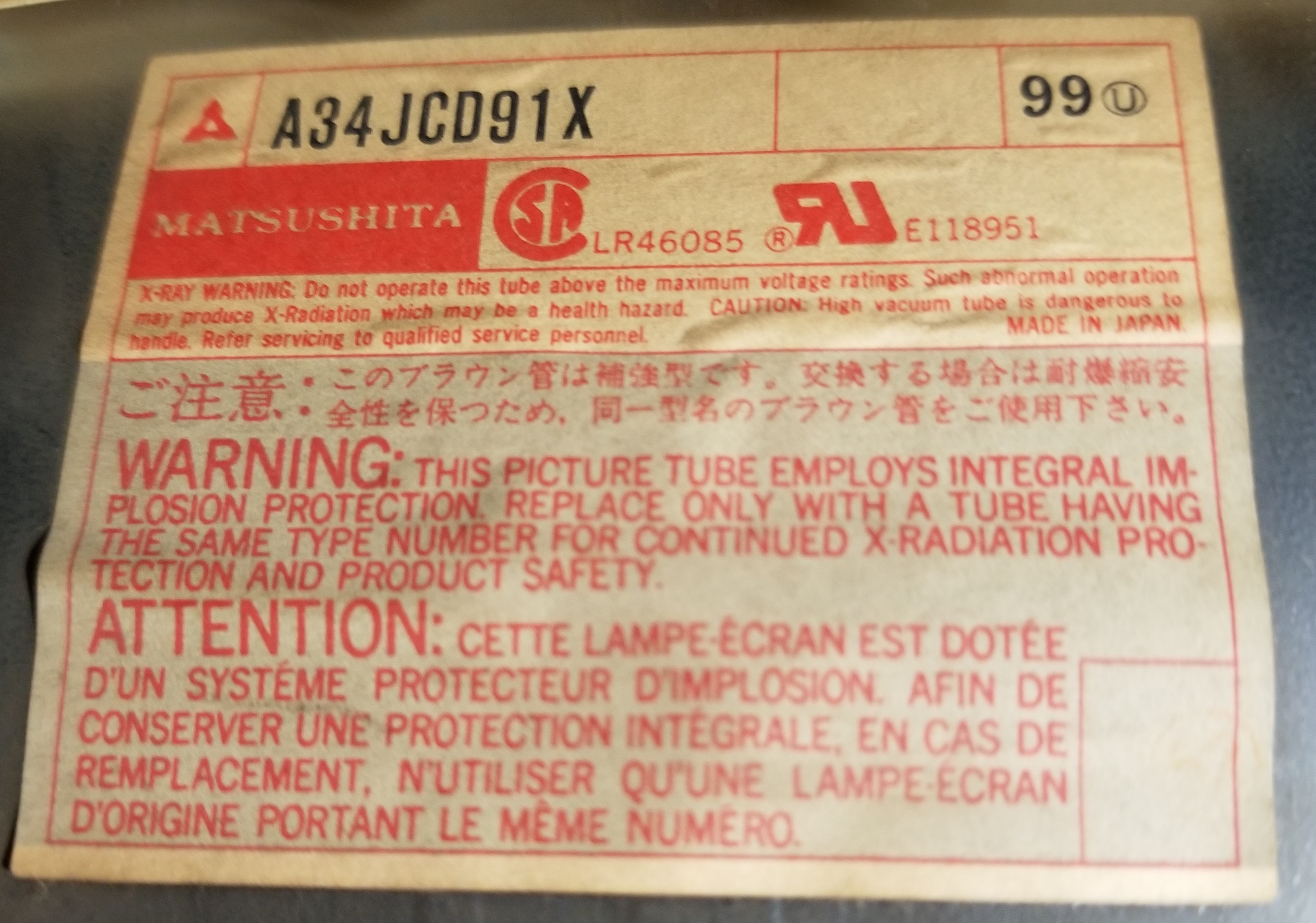

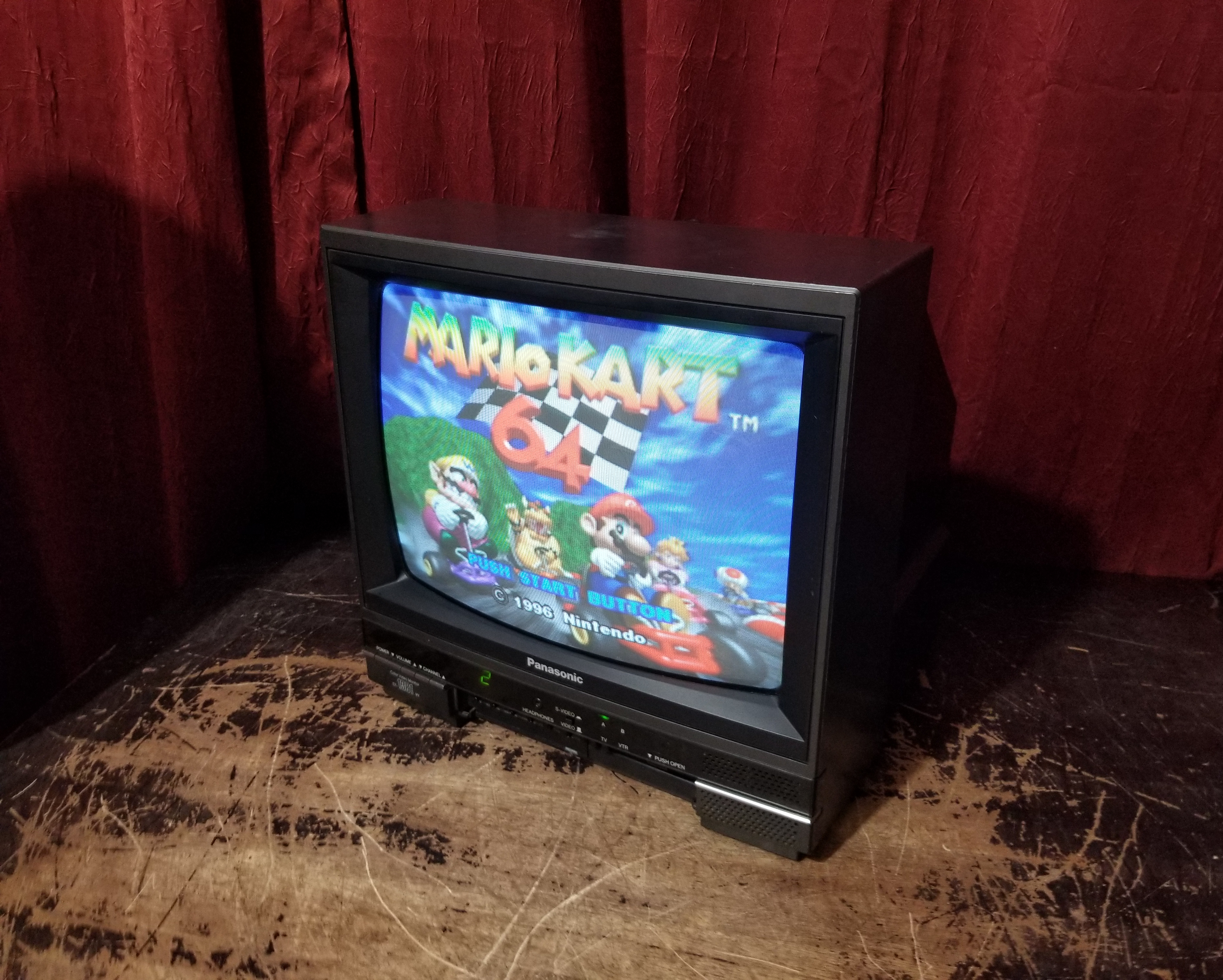

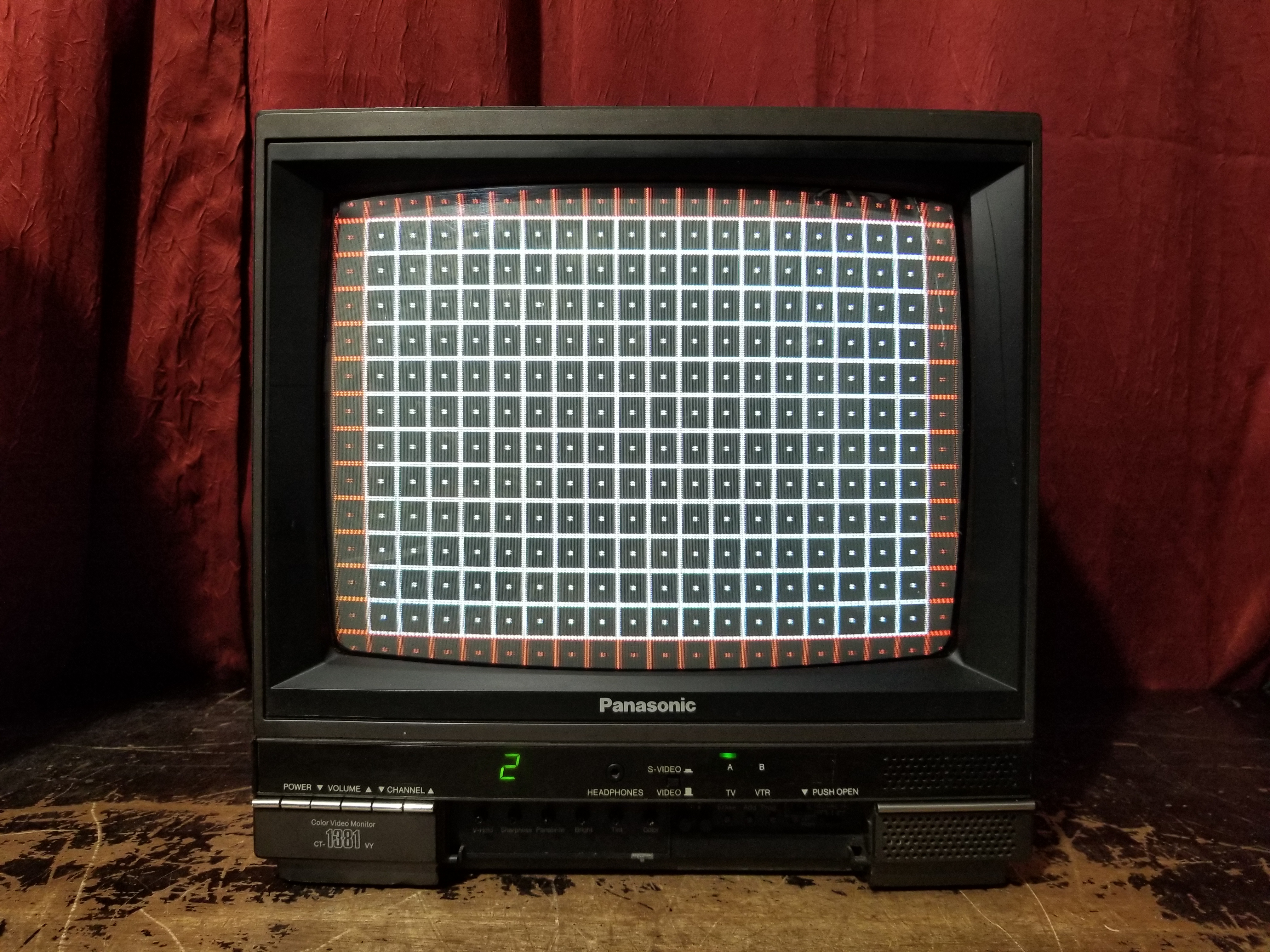

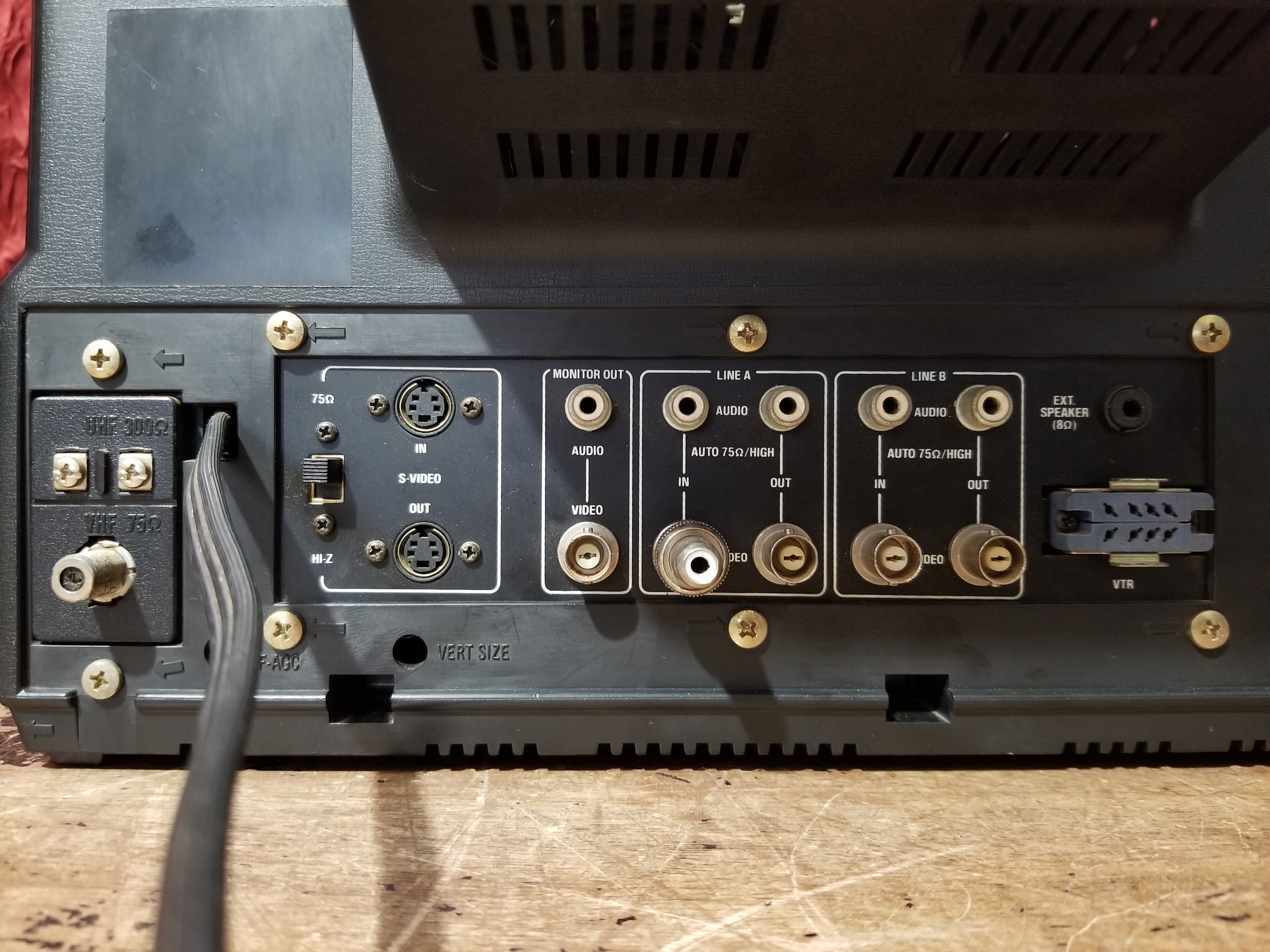

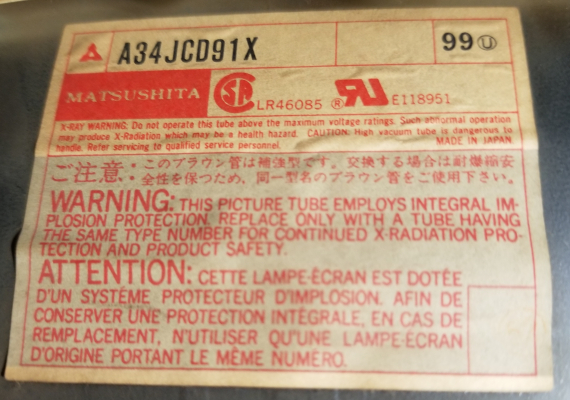

13" Diagonal Color Video Monitor. 90° deflection picture tube. S-video in/out terminals. 420-line resolution. Plus tuner.

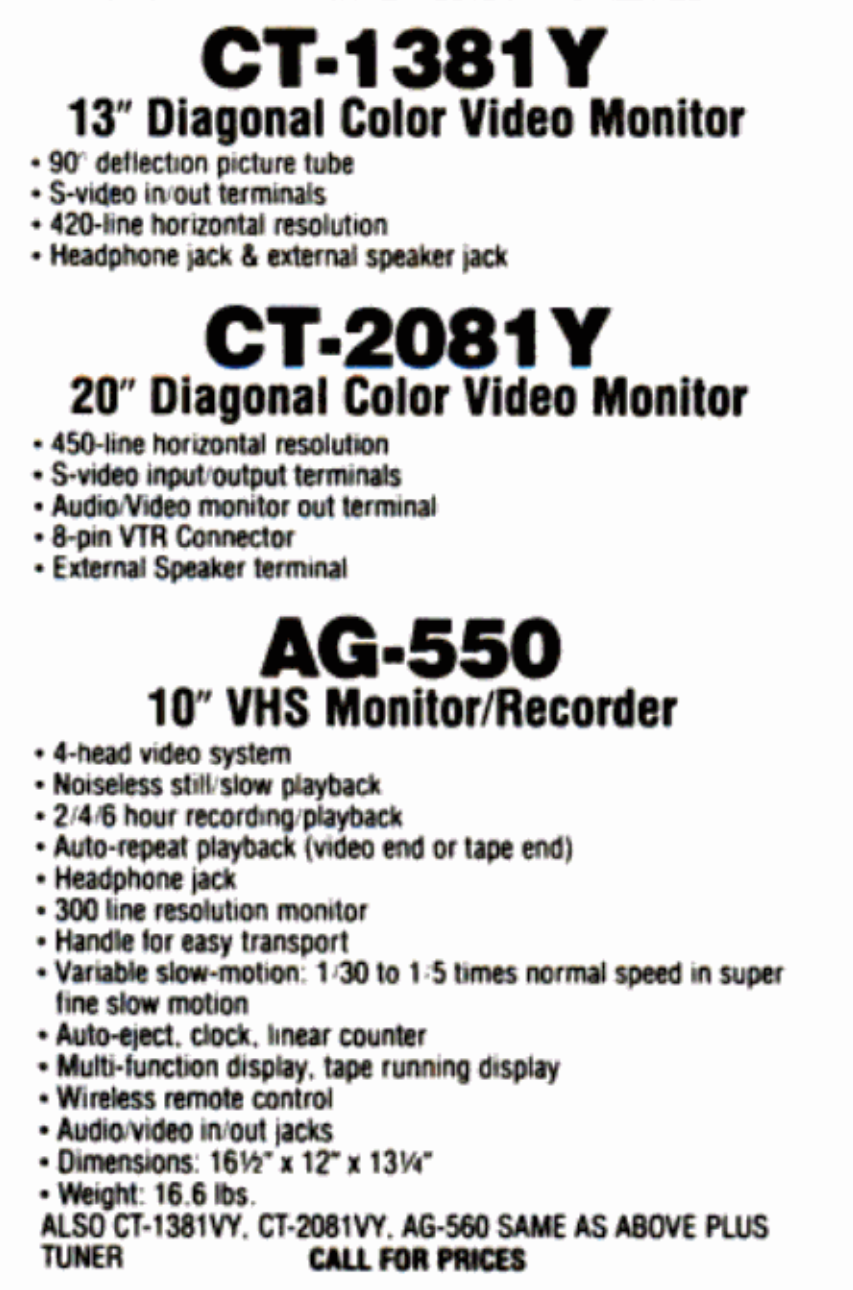

Commercial video monitor differentiated from the CT-1381Y by including a tuner.

Manuals

None freely available.

Media & Promo Materials

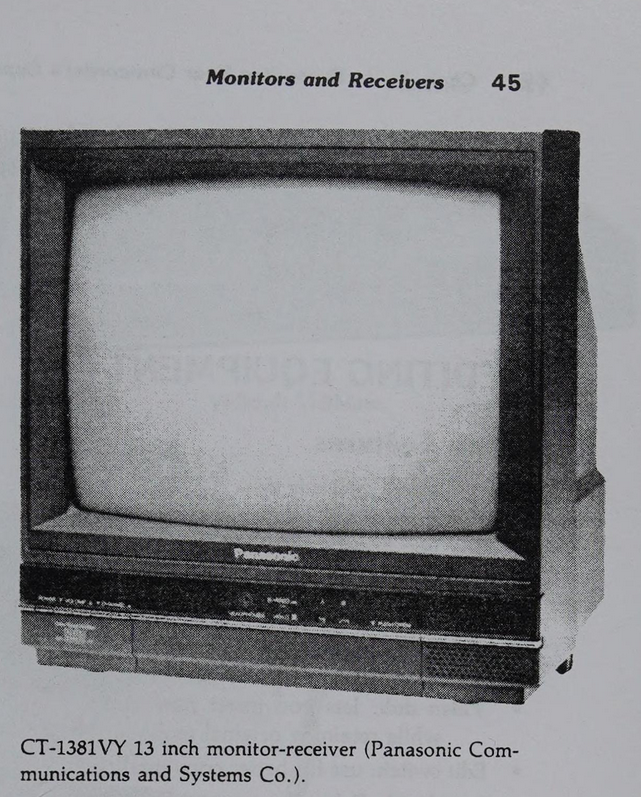

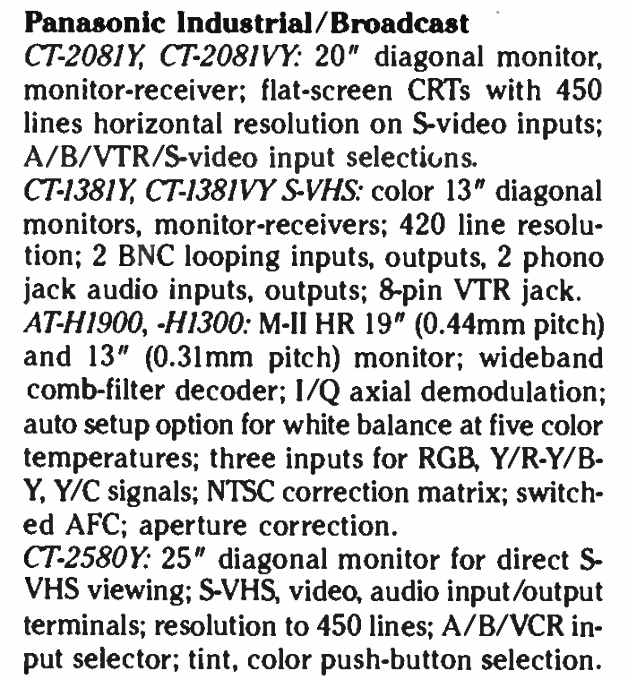

• Reviewed in "AV Video" magazine May 1989 (issue not freely available)

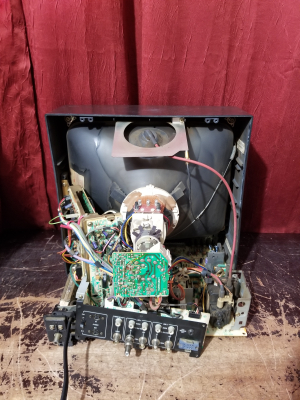

Repair Notes

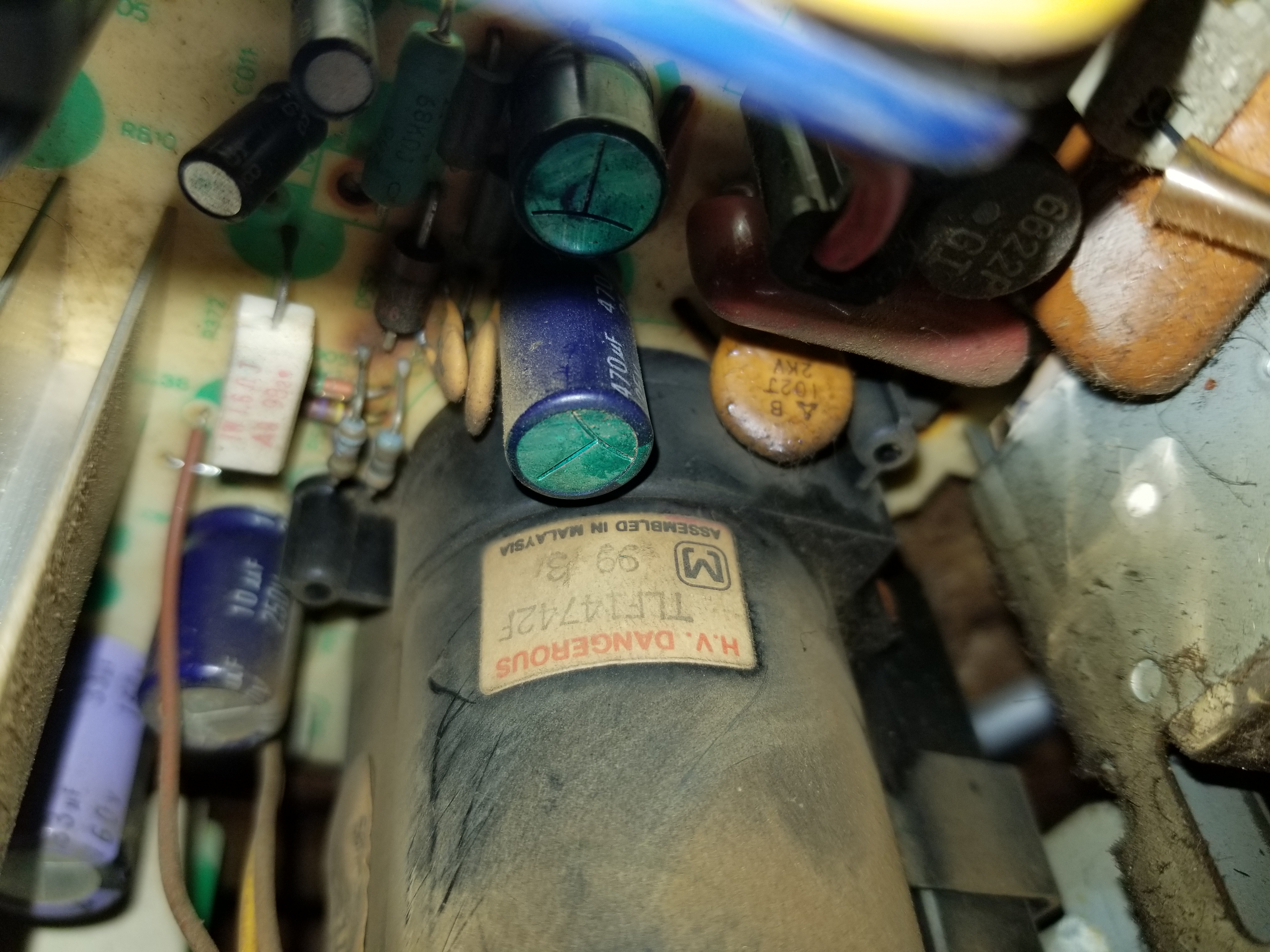

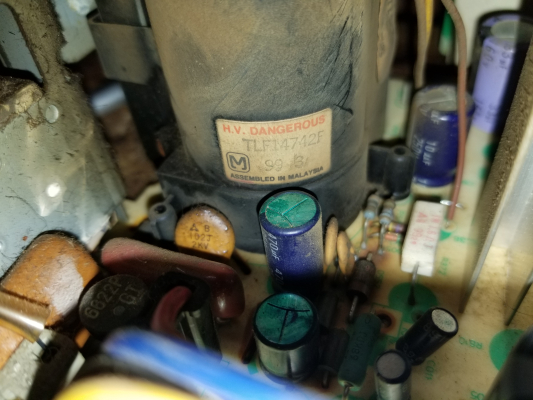

• One unit exhibited partial vertical collapse. All of the electrolytics tested fine around the vertical IC, so I just replaced them all and then the issue was fixed. C401, C405, C406, C416, & C417.
• Occasionally the whole raster would flicker out and come back for an instant, particularly when there were sudden changes to the brightness in the content being shown. After making a number of adjustments including to the sub-brightness and horizontal hold the issue no longer presented.
