Panasonic CT-20G8G
Andy King
September 12, 2024, 10:39 pm
May 23, 2025, 7:54 am
September 12, 2024, 10:39 pm
May 23, 2025, 7:54 am
Summary

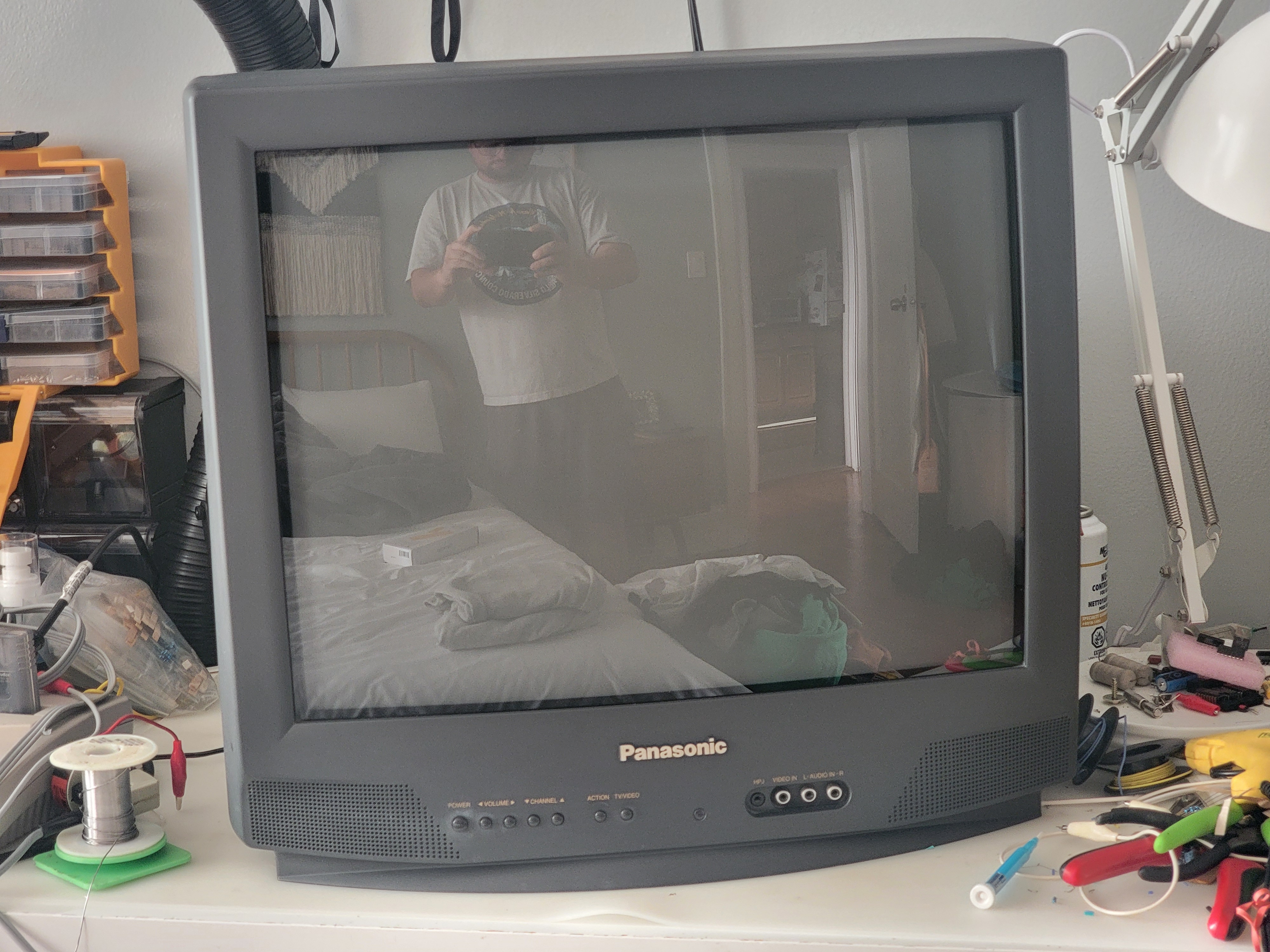

Basic 20" curved screen TV from Panasonic, with RF, composite and S-Video input.
Literature
Notes
Panasonic produced numerous variants of these 20" TVs during the late '90s and early 2000s. They are very similar, with slight variations in the model number. Later models have a 1-chip chassis design rather then separate jungle/micon ICs. This is a 1-chip model.

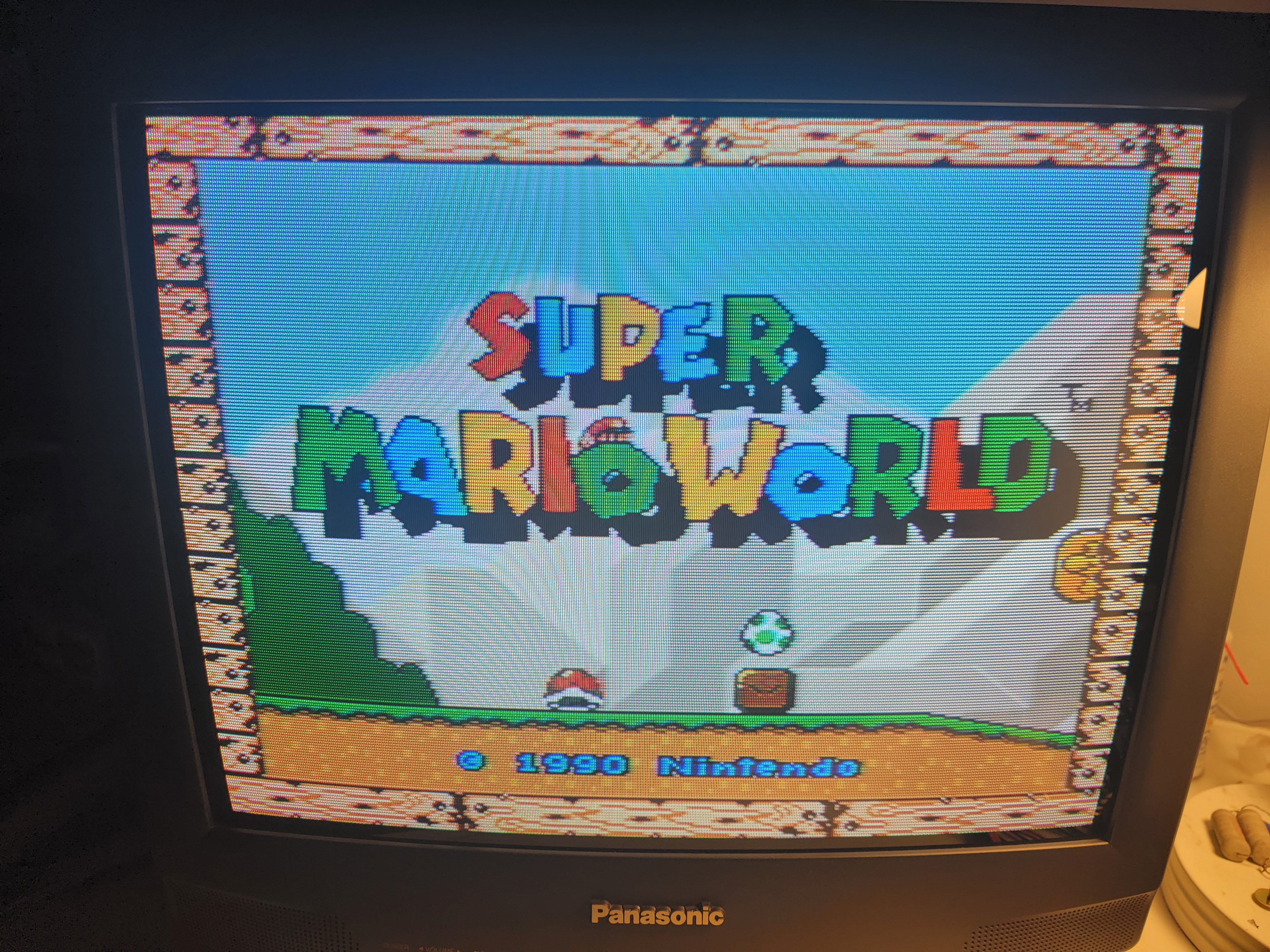

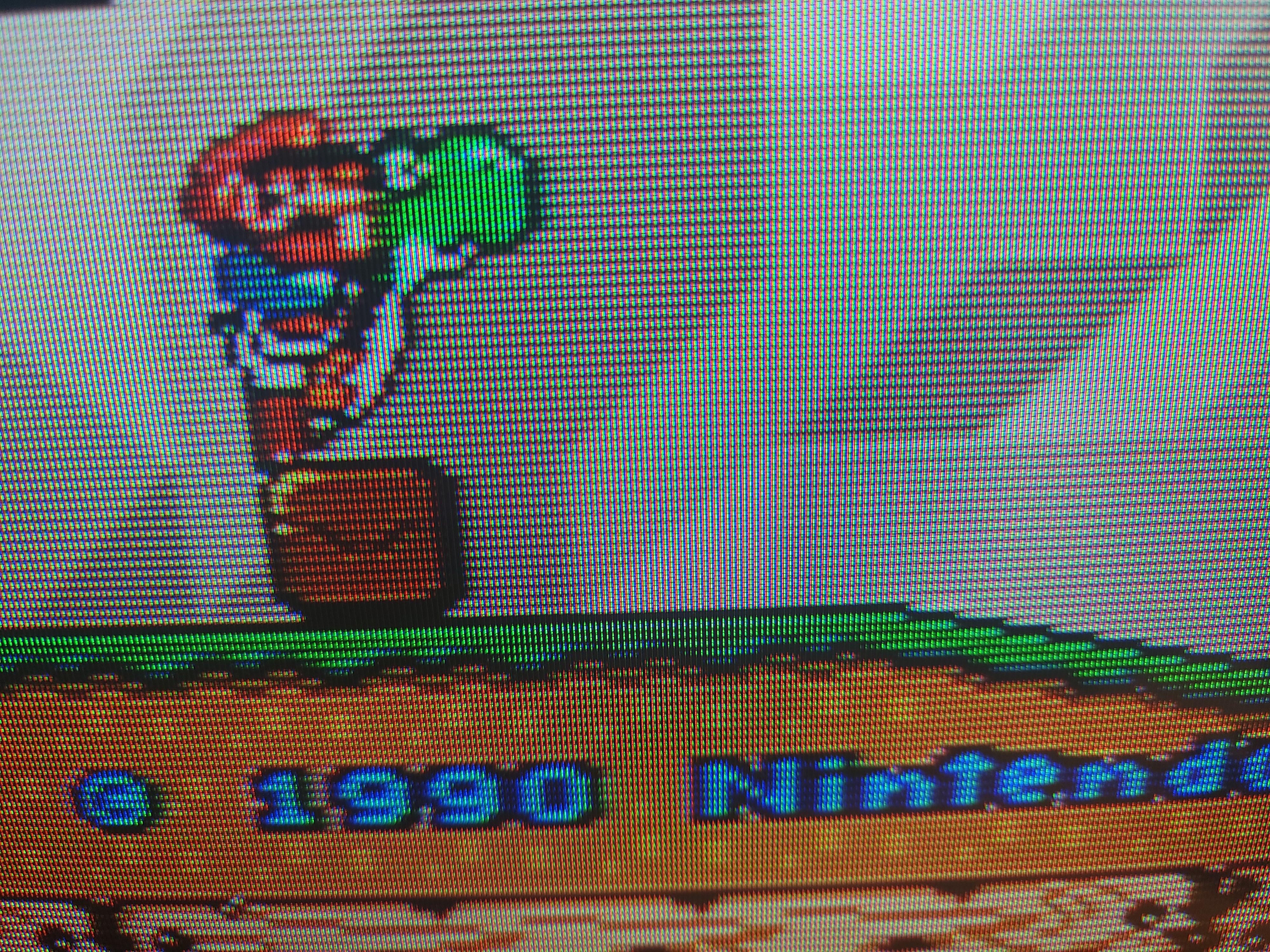

The color processing on this model is not very impressive - there is a lot of smearing/color overlap even when using S-Video.
Service menu has adjustments for drive, cutoff, h-pos, v-pos, v-size (V-S), v-lin (V-C)
Gallery







Specifications | |
---|---|
Brand: | Panasonic |
Manufacturer: | Panasonic |
Model: | CT-20G8G |
Series: | CT |
Viewable Size: | 20" |
Inputs: | Composite, S-Video, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | Panasonic, MN101E03GTB3 |
Focus Type: | Single |

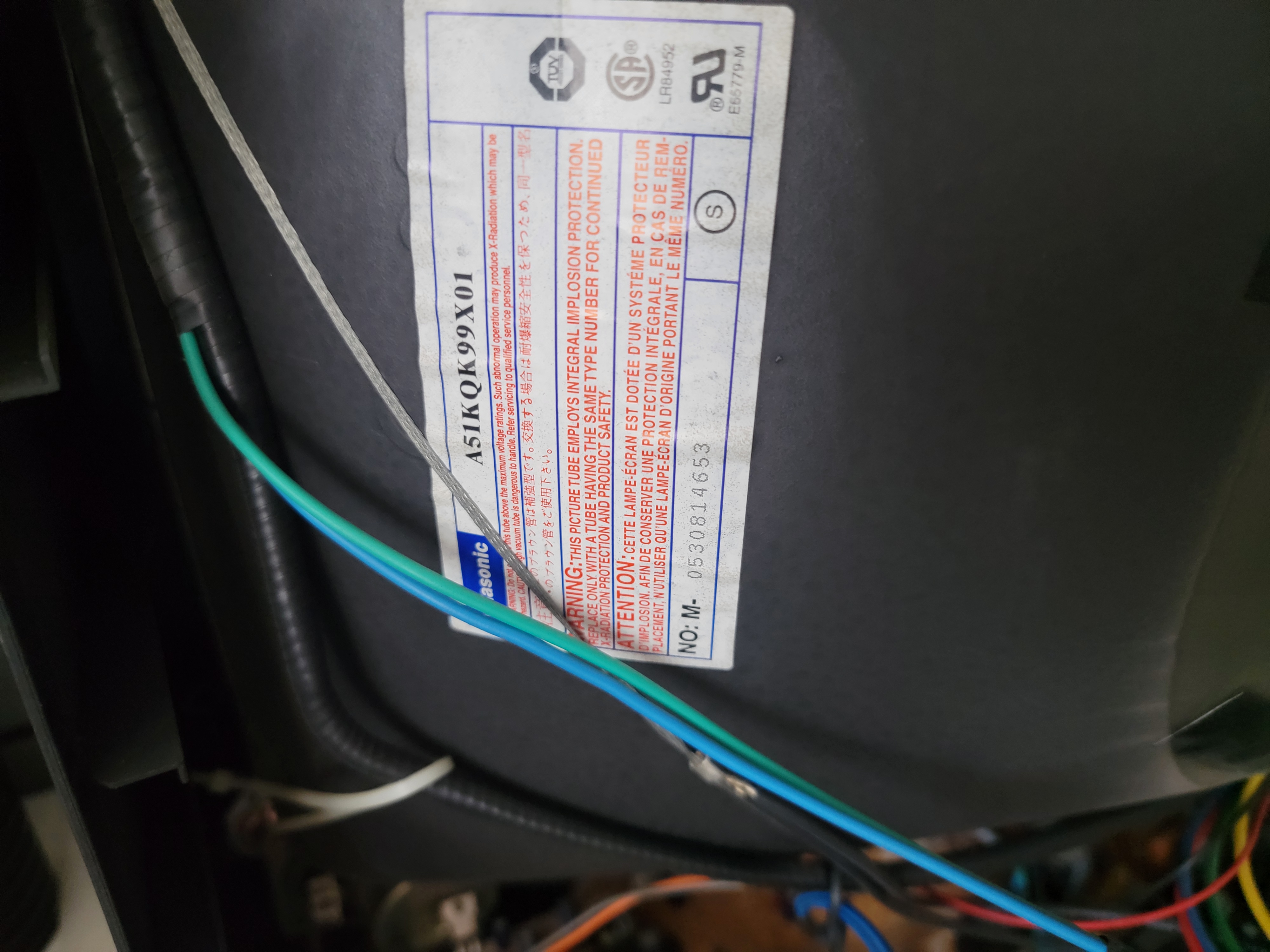

Tube: | Panasonic , A51KQK99X01 , A51KQK99X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |

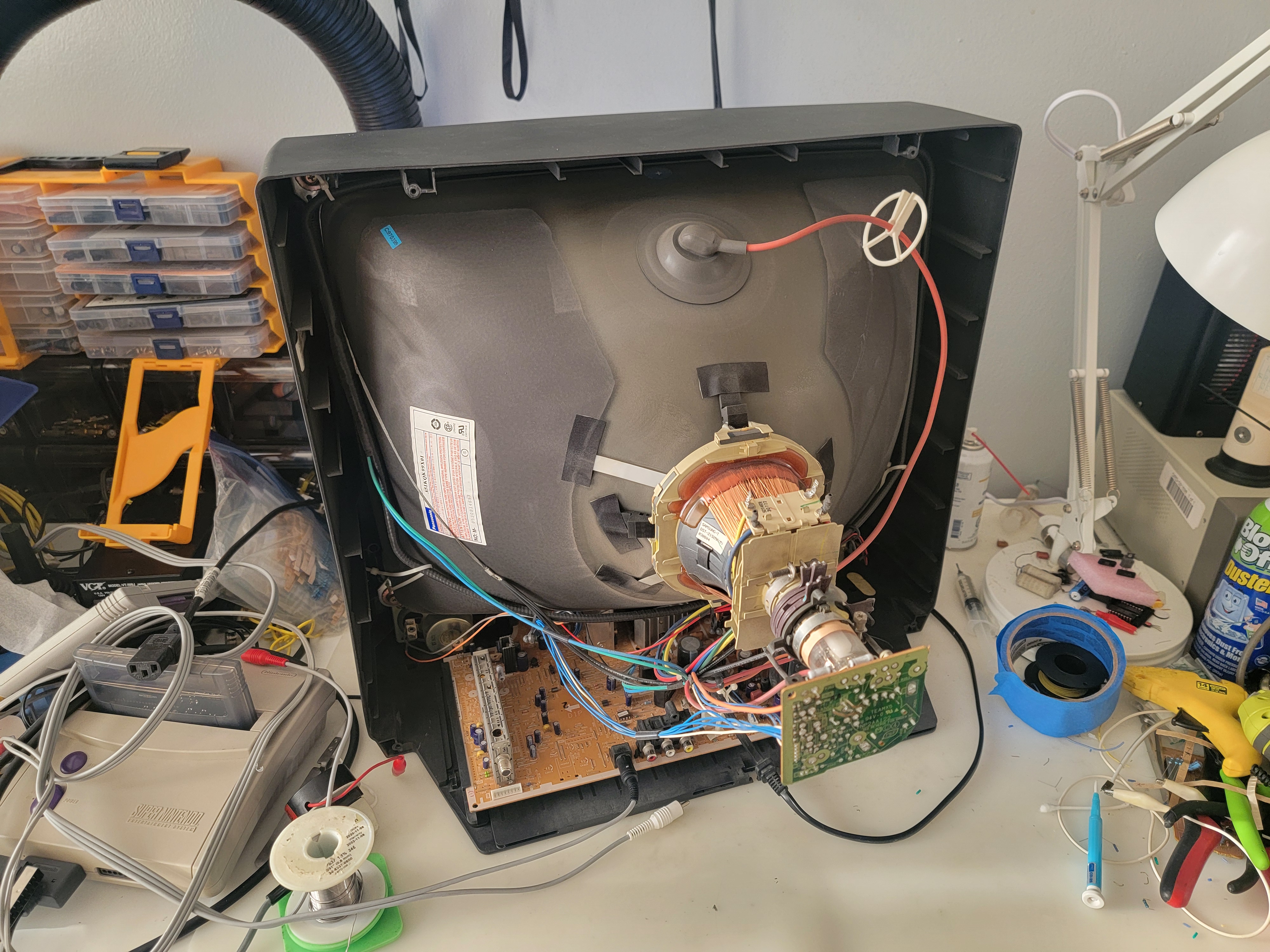

Yoke: | Samsung, DST-2192MA(M) |
Yoke Horz. Inductance: | 2.219 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 17.297 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 3.02 ohm |
Yoke Vert. Resistance: | 7.84 ohm |
Speakers: | Stereo |
Remote: | EUR7713010 |
Chassis: | NA10, AP398 |
Weight: | 46.2 lbs (21 kg) |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2003 |
Country of Manufacture: | Mexico |
Degaussing: | Automatic on Power-on |
Tag: | Needs Measurements |
