Summary

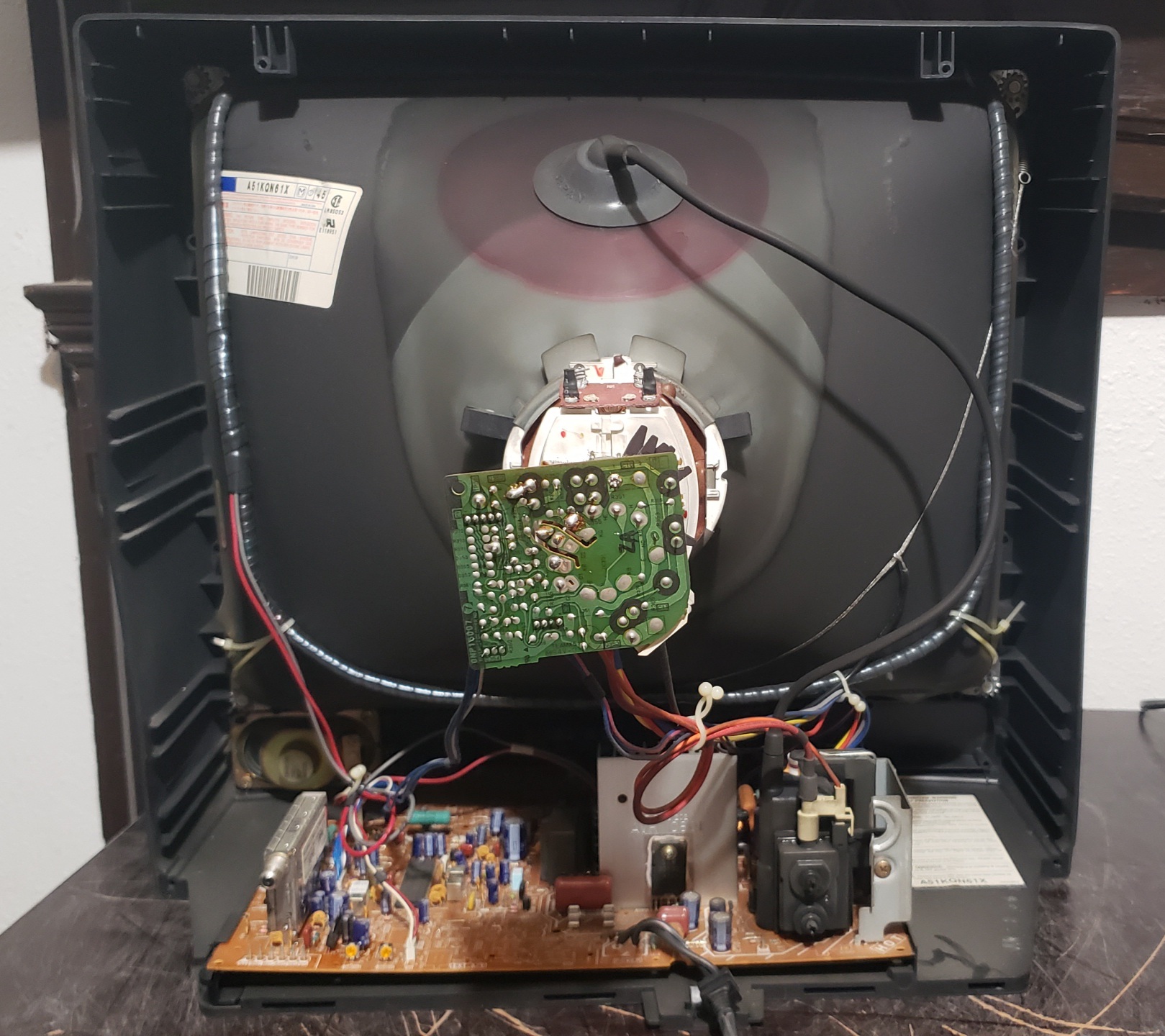

20" RF set, with a cold side of the chassis making video mods more accessible.

Literature

No documentation is available online at this time.

Notes

There is an internal potentiometer for vertical size. Vertical deflection issues may be caused by C457 going open, .1uF 50V. See other sets with this jungle chip for ideas on video input mods. The main pwb already has unpopulated spots for composite.
