Panasonic CT-20SL13G
Matt Ross
September 4, 2024, 3:06 am
October 2, 2024, 5:49 pm
September 4, 2024, 3:06 am
October 2, 2024, 5:49 pm
Summary
Panasonic's Tau line was their entry into the world of flat CRTs. This is a standard 20" model and is similar in design and specifications to Sony's Wega and JVC's I'Art series. Includes composite, S-Video, and component video inputs.
Literature
Notes

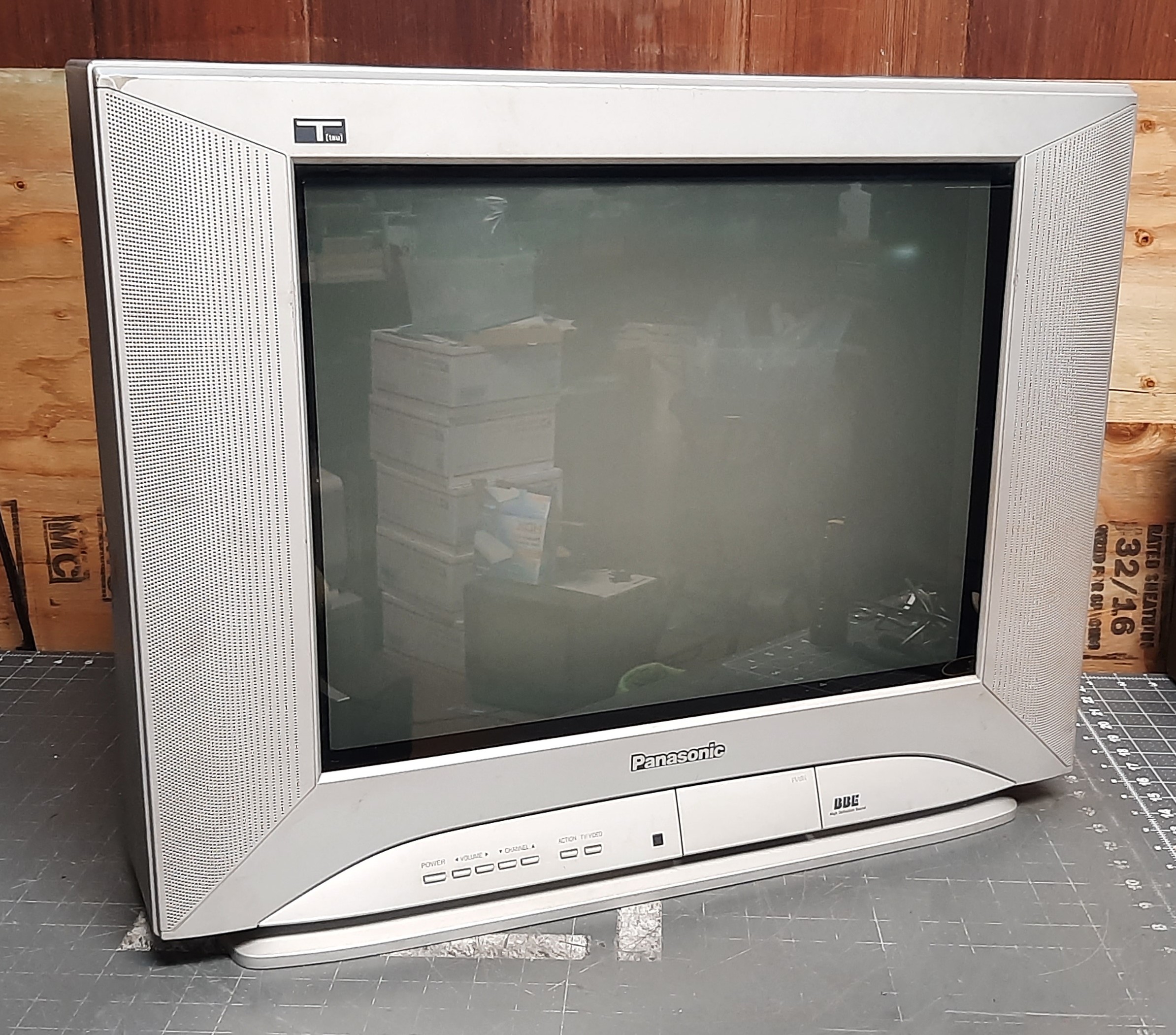

The CT-20SL13G can be differentiated from the CT-20SL14J (produced the following year in 2004) by the BBE logo in the bottom right corner.
This TV has a 1 chip design and cannot be modified for RGB.
The speakers on these (and other Panasonic TVs from the early 2000s) are prone to foam rot. Equivalent replacements can still be found as of 2024.

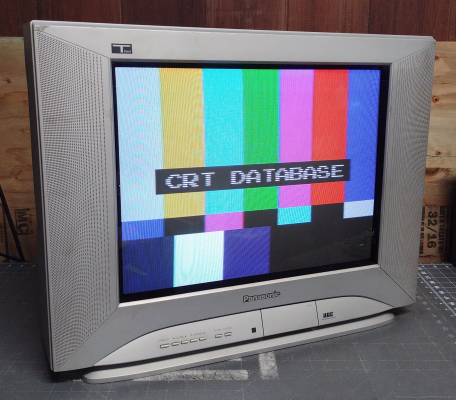

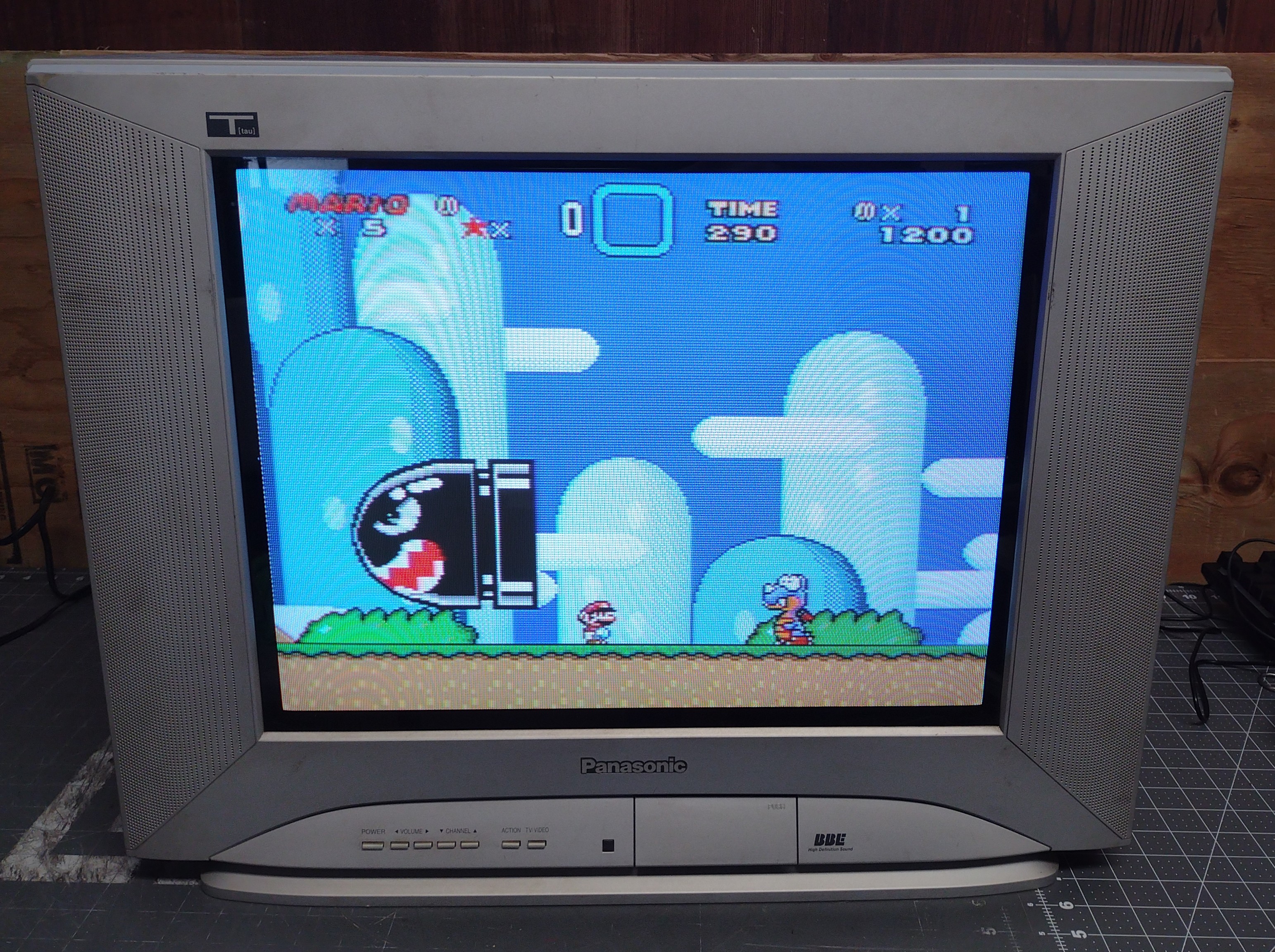

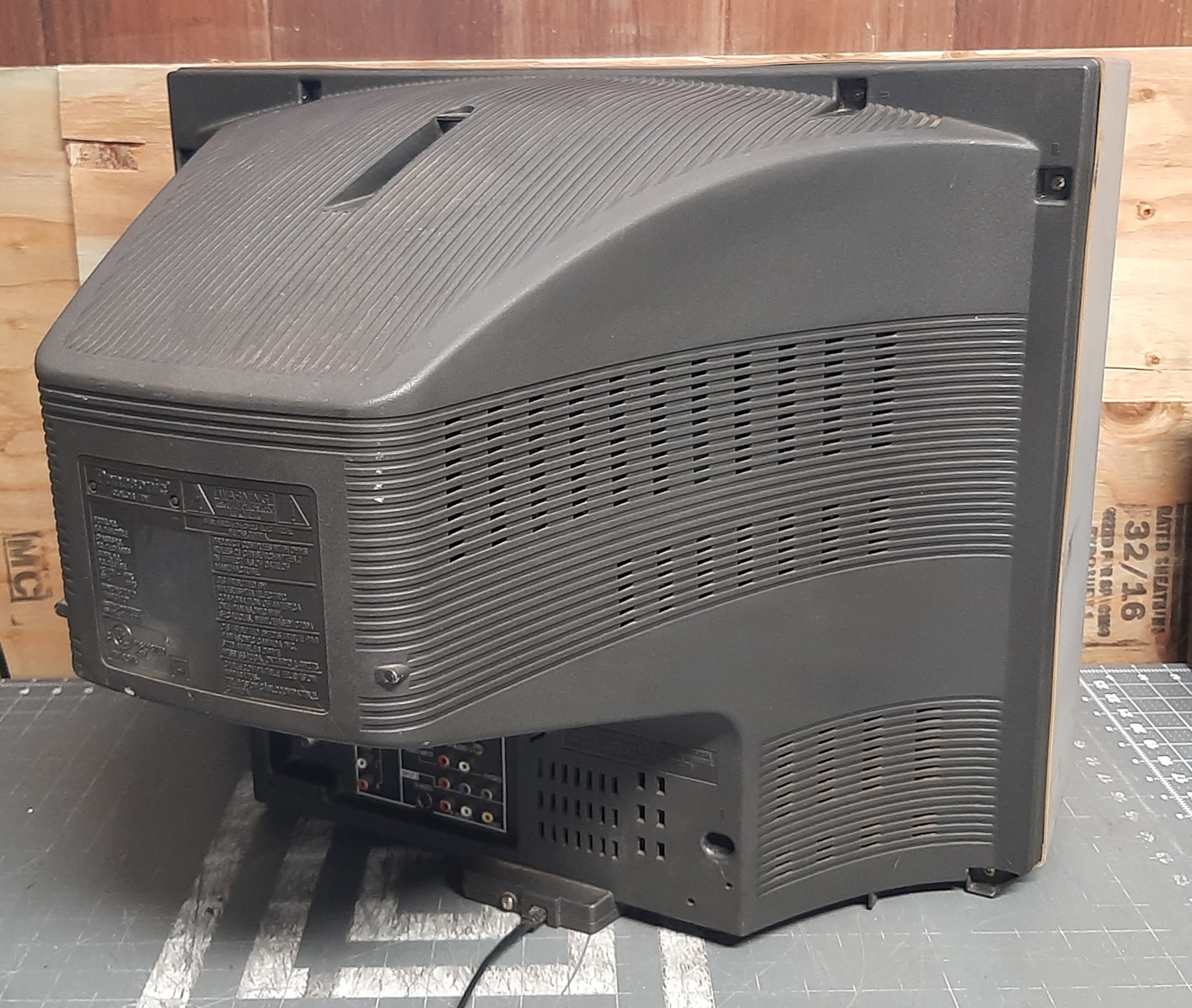

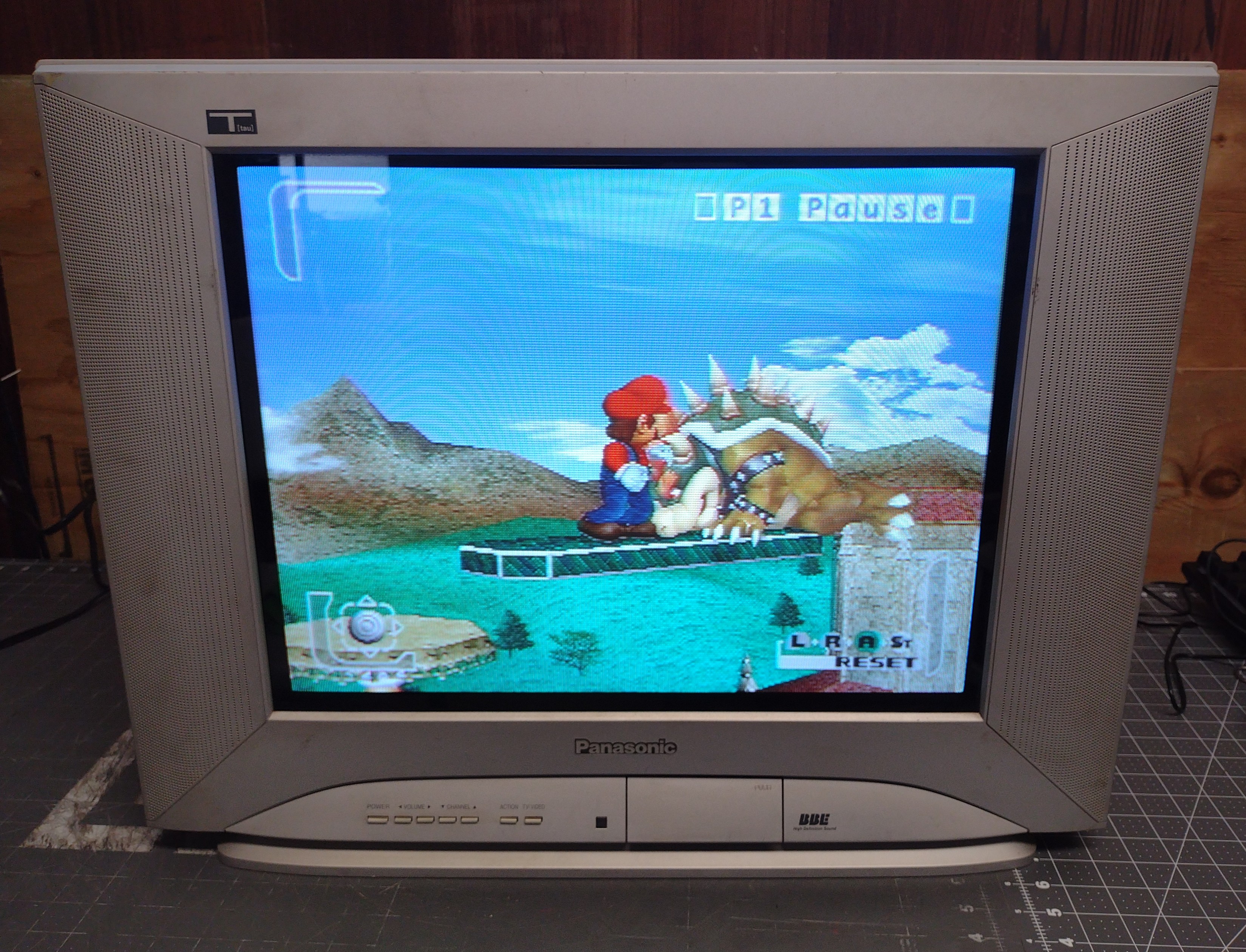

Gallery
Specifications | |
---|---|
Brand: | Panasonic |
Manufacturer: | Panasonic |
Model: | CT-20SL13G |
Series: | Tau |
Viewable Size: | 20" |

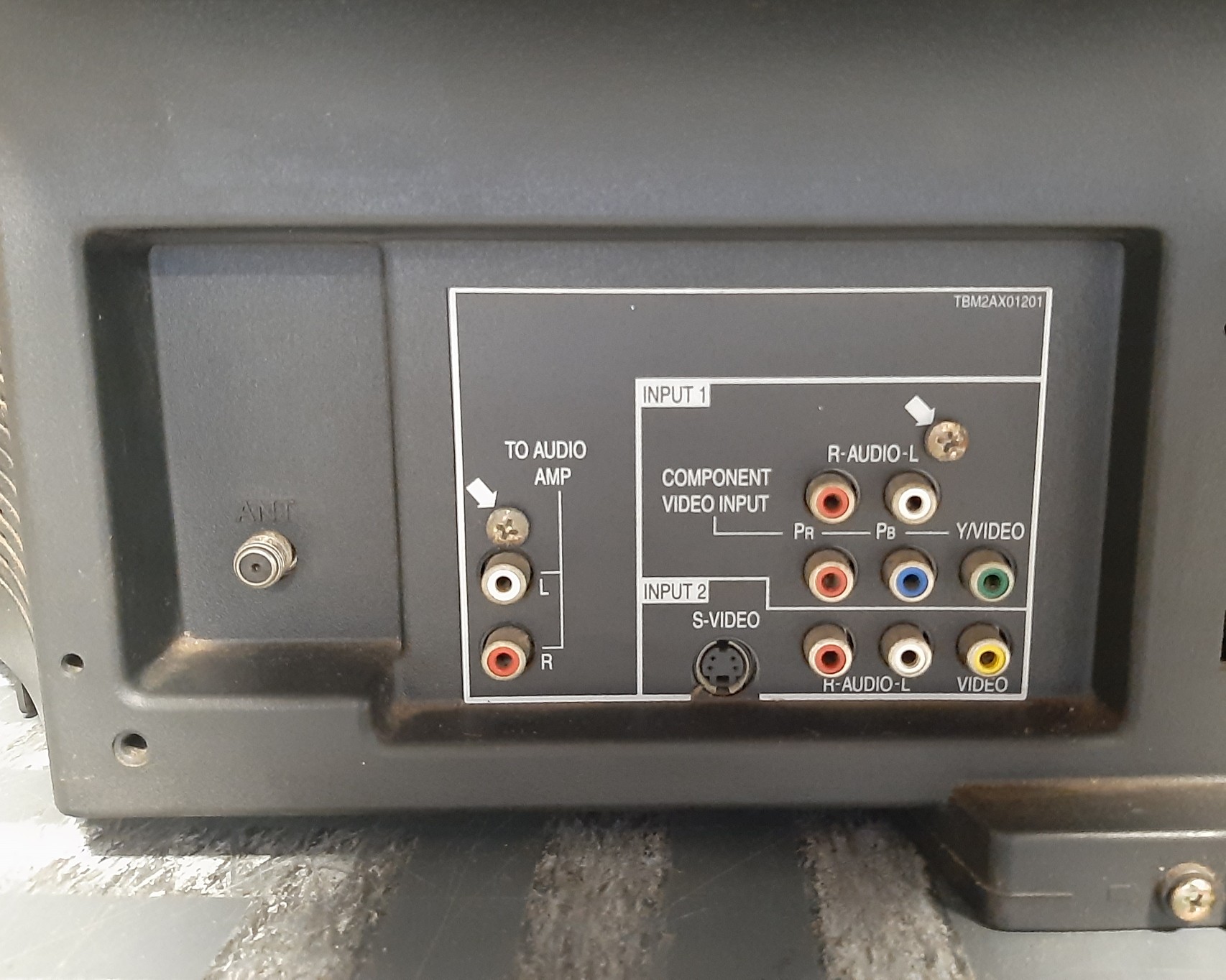

Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC, PAL |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | C5622 |
Vertical Output IC: | AN15525 |
Jungle: | MN101E03GTB5 |
Flyback: | KFT3AA341F |
Tube: | A51QDX992X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: | Slot |
Tint: | Dark |
Removable Glare Film: | No |

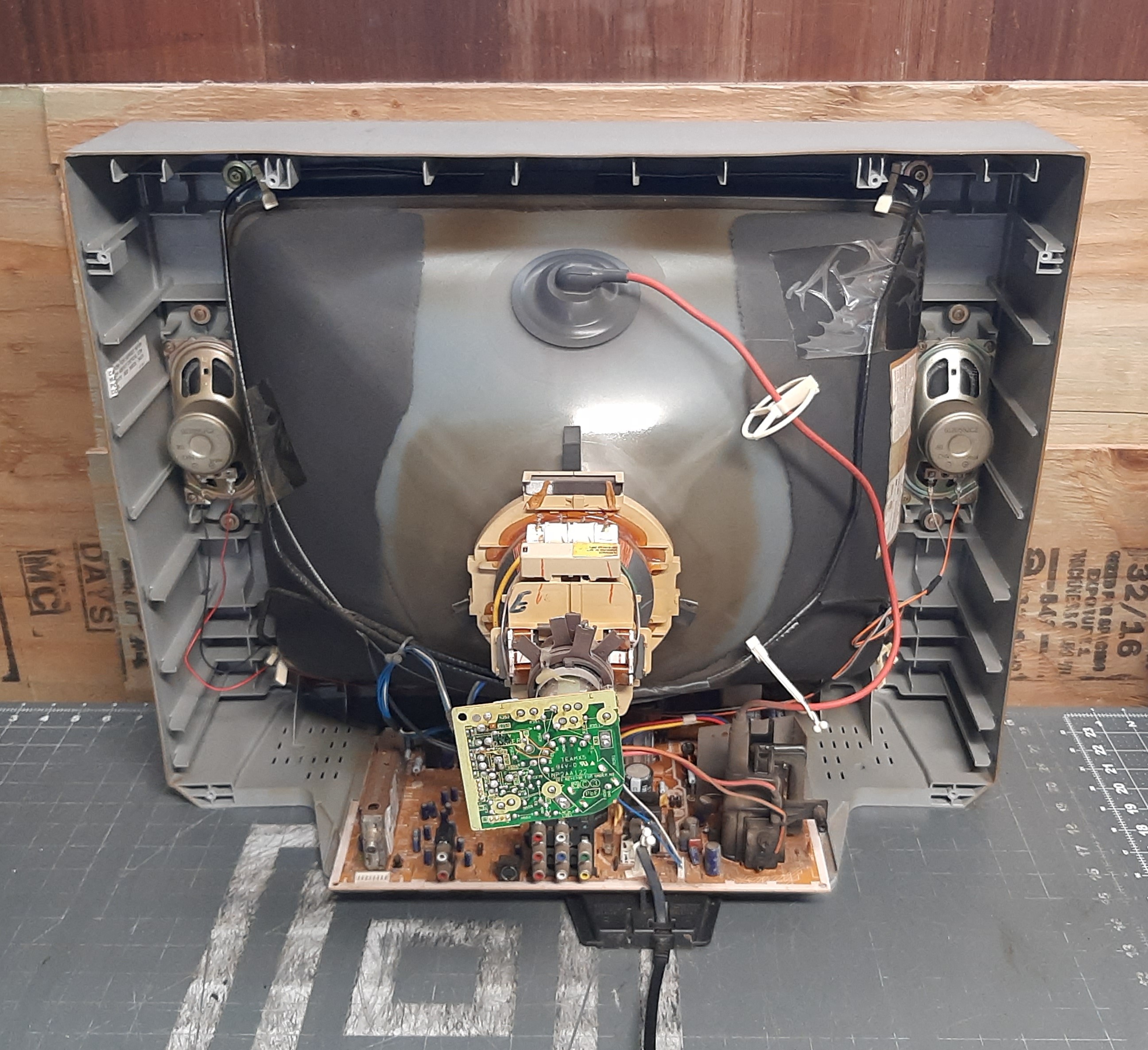

Yoke: | TLY2AA028 |
Yoke Horz. Inductance: | 2.246 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 17.832 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 4.547 ohm |
Yoke Vert. Resistance: | 11.15 ohm |
Speakers: | Stereo |
Remote: | EUR7613Z6 |
Application: | Consumer |
Launched: | 2003 |
Country of Manufacture: | Mexico |
Degaussing: | Automatic on Power-on |
