Summary

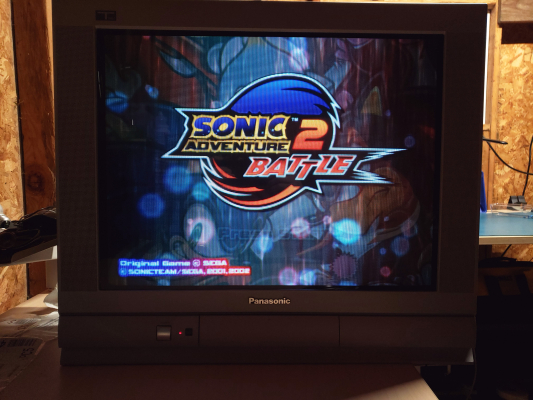

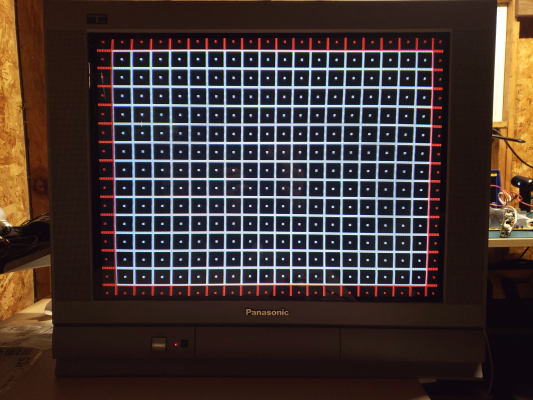

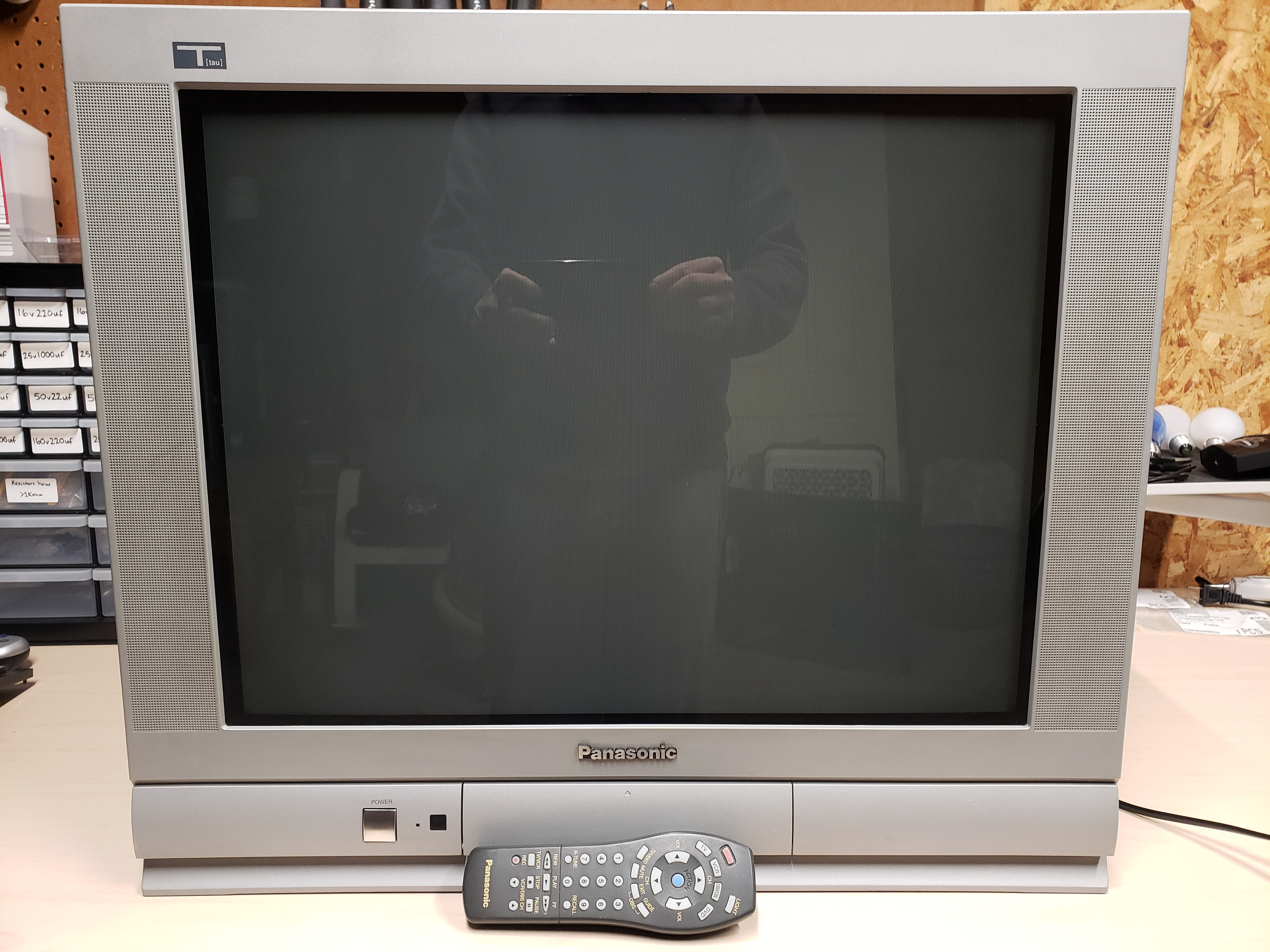

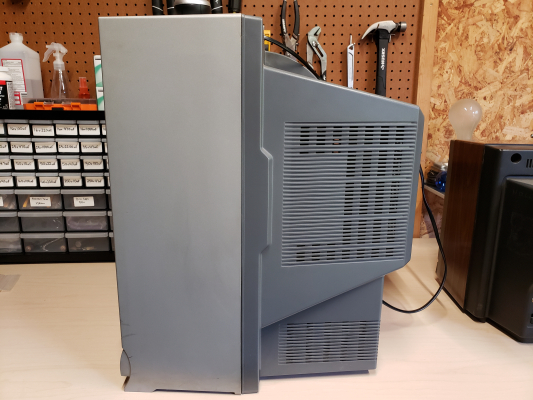

24" flatscreen CRT TV by Panasonic—among their very first SD Tau models— introduced in 2000. Has RF, composite, s-video and component inputs with stereo sound. Originally manufactured in Mexico.
(Special thanks to Alvin Wilson for the pics!)
Manuals
Media & Promo Materials
Notes

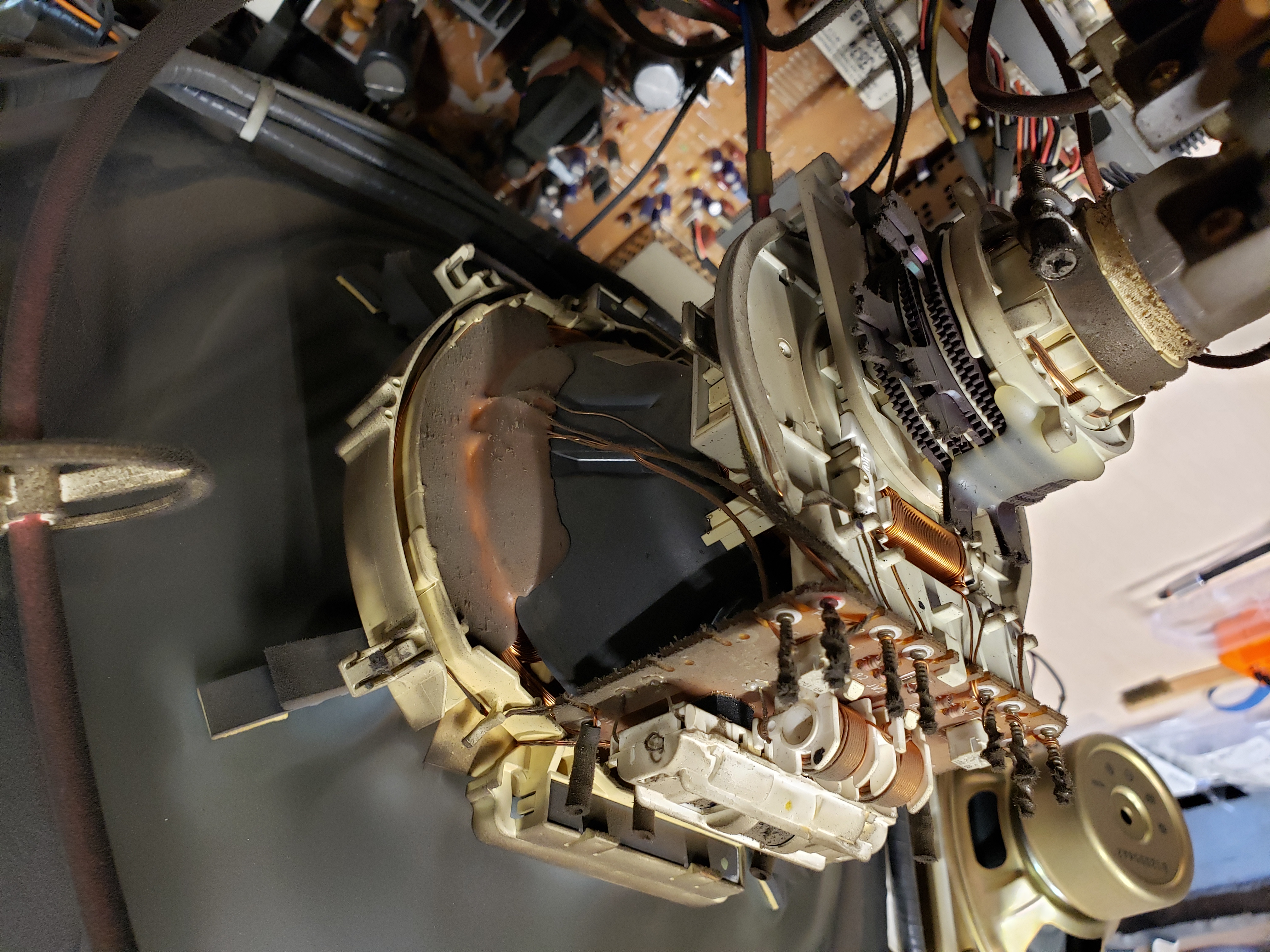

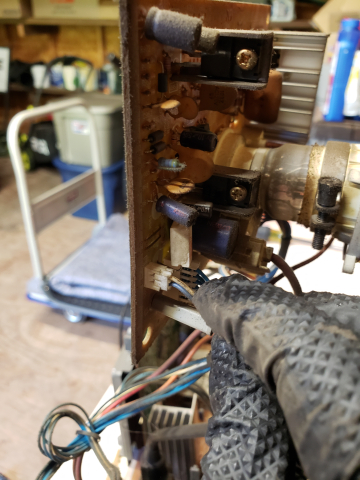

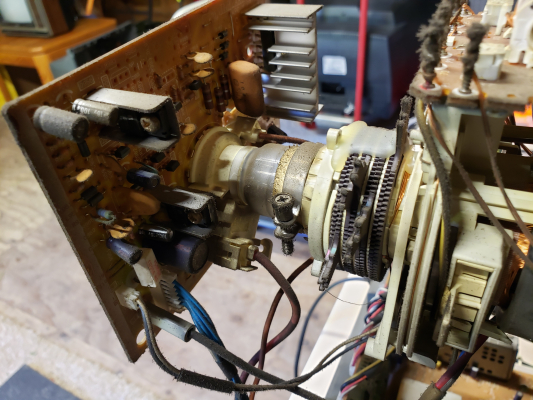

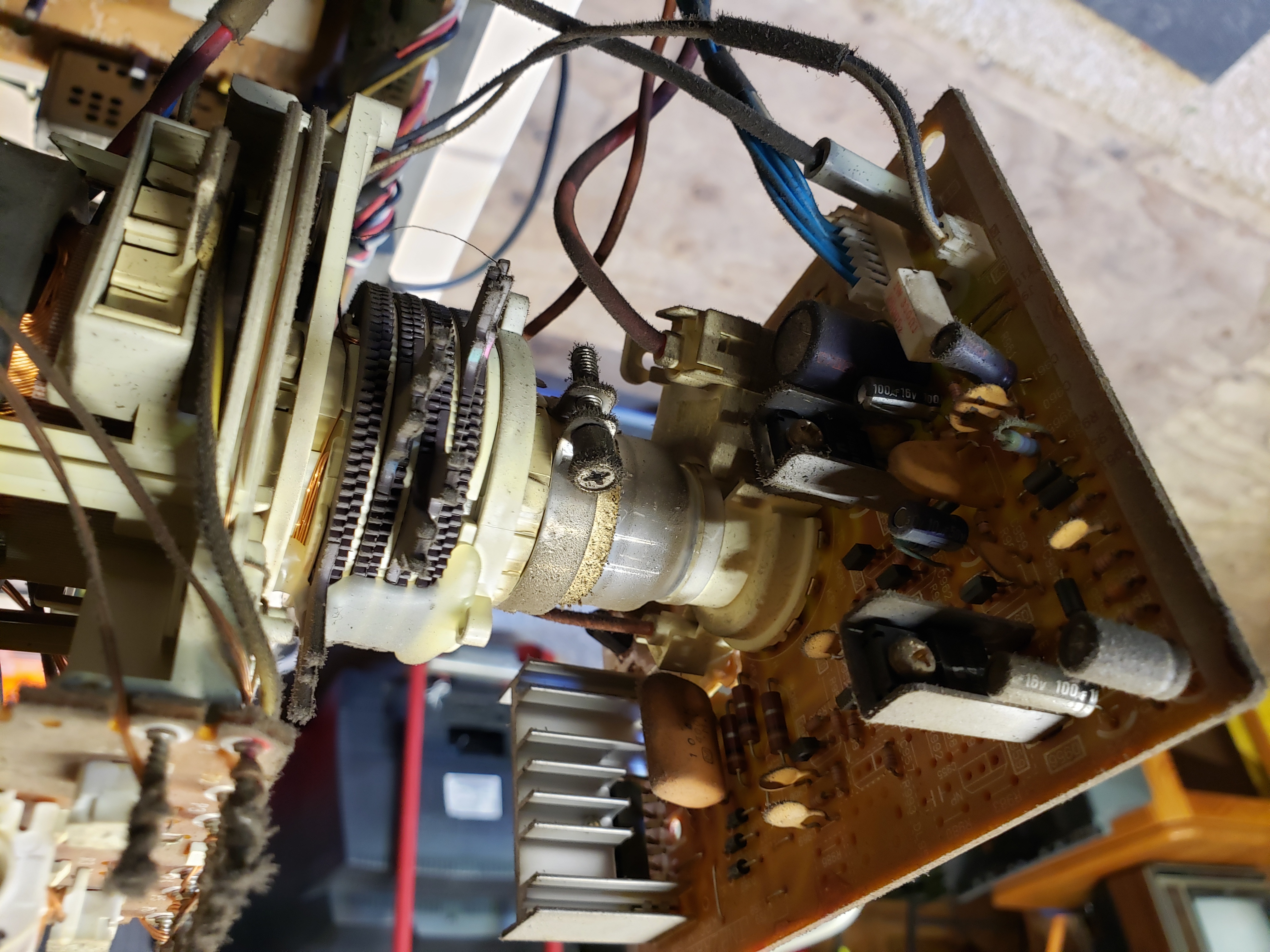

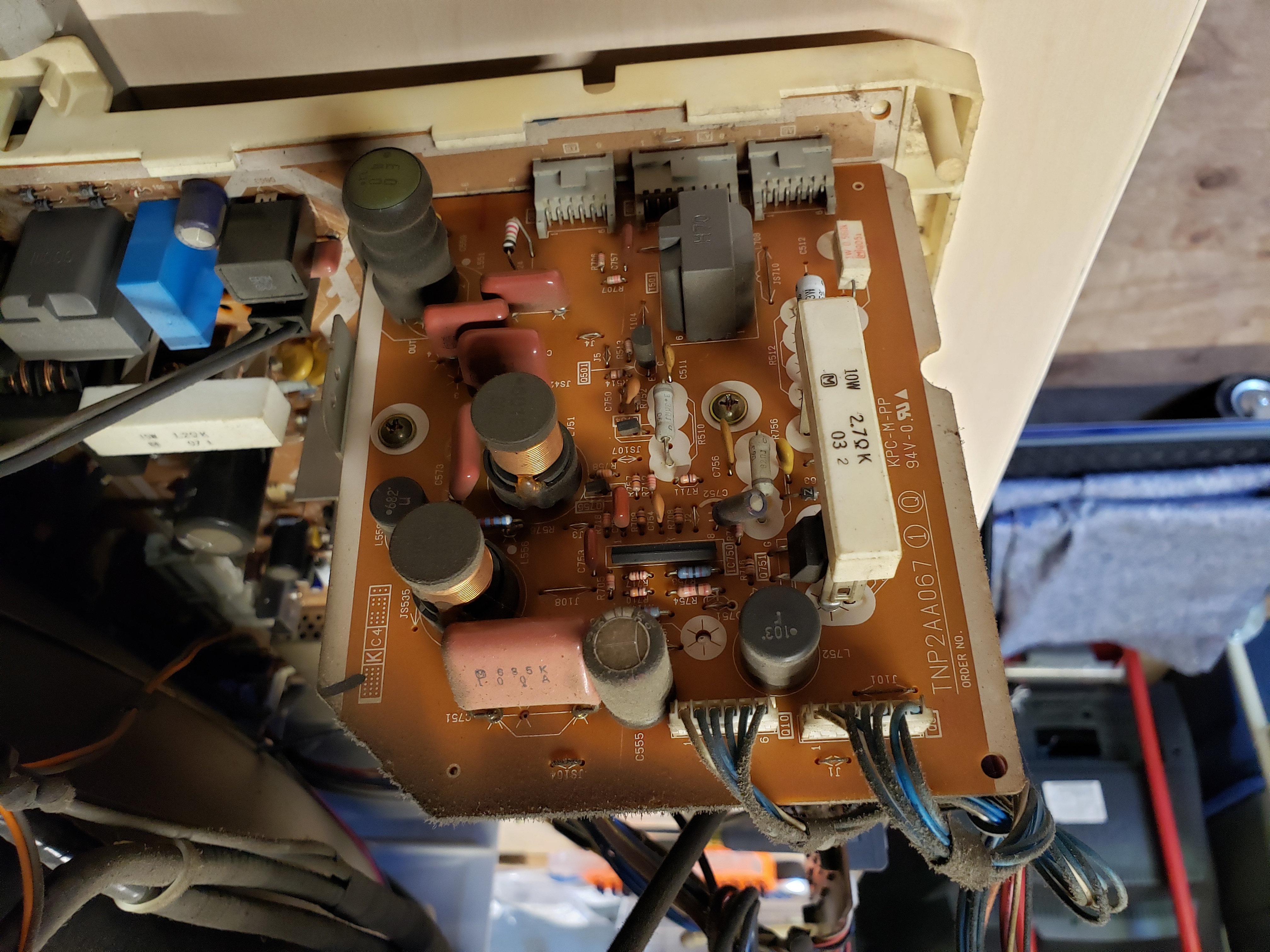

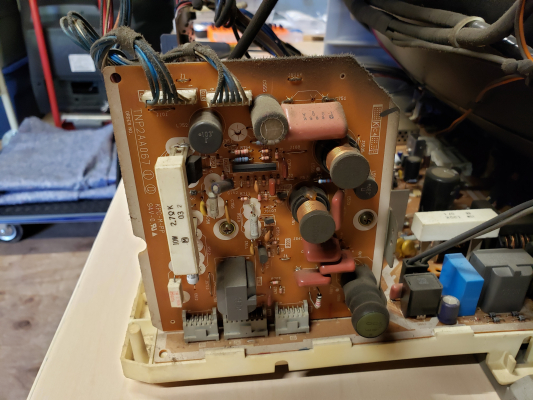

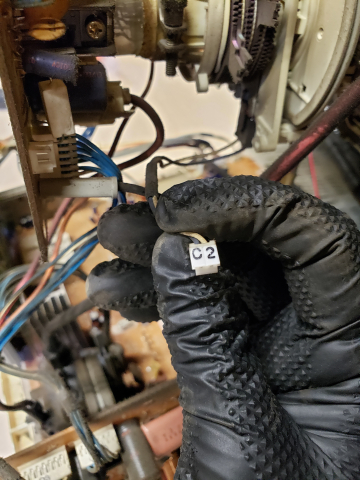

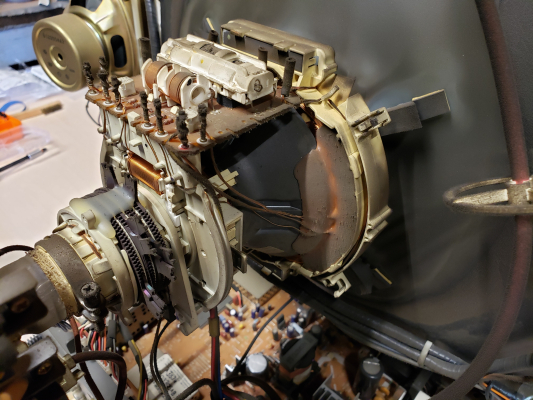

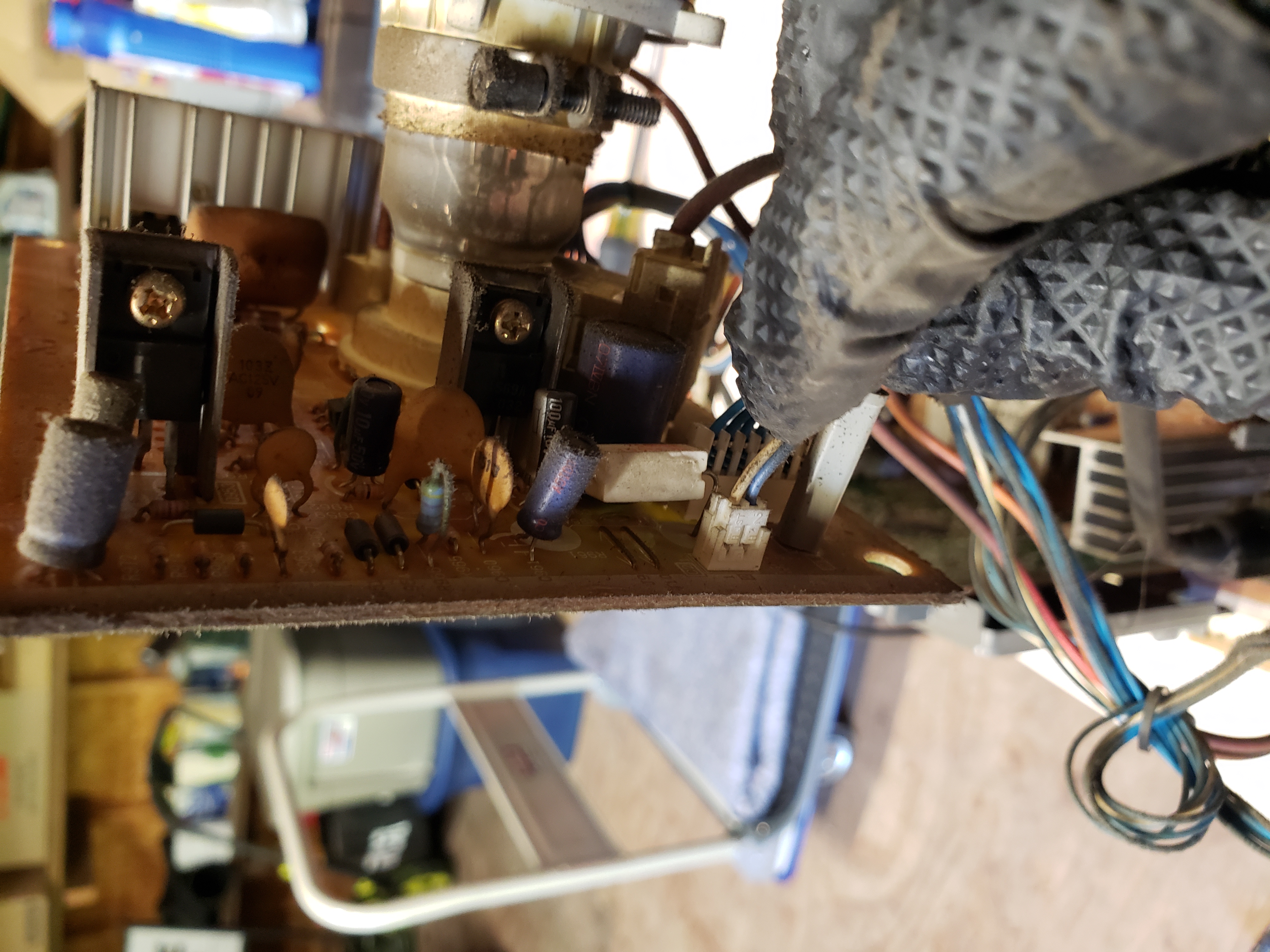

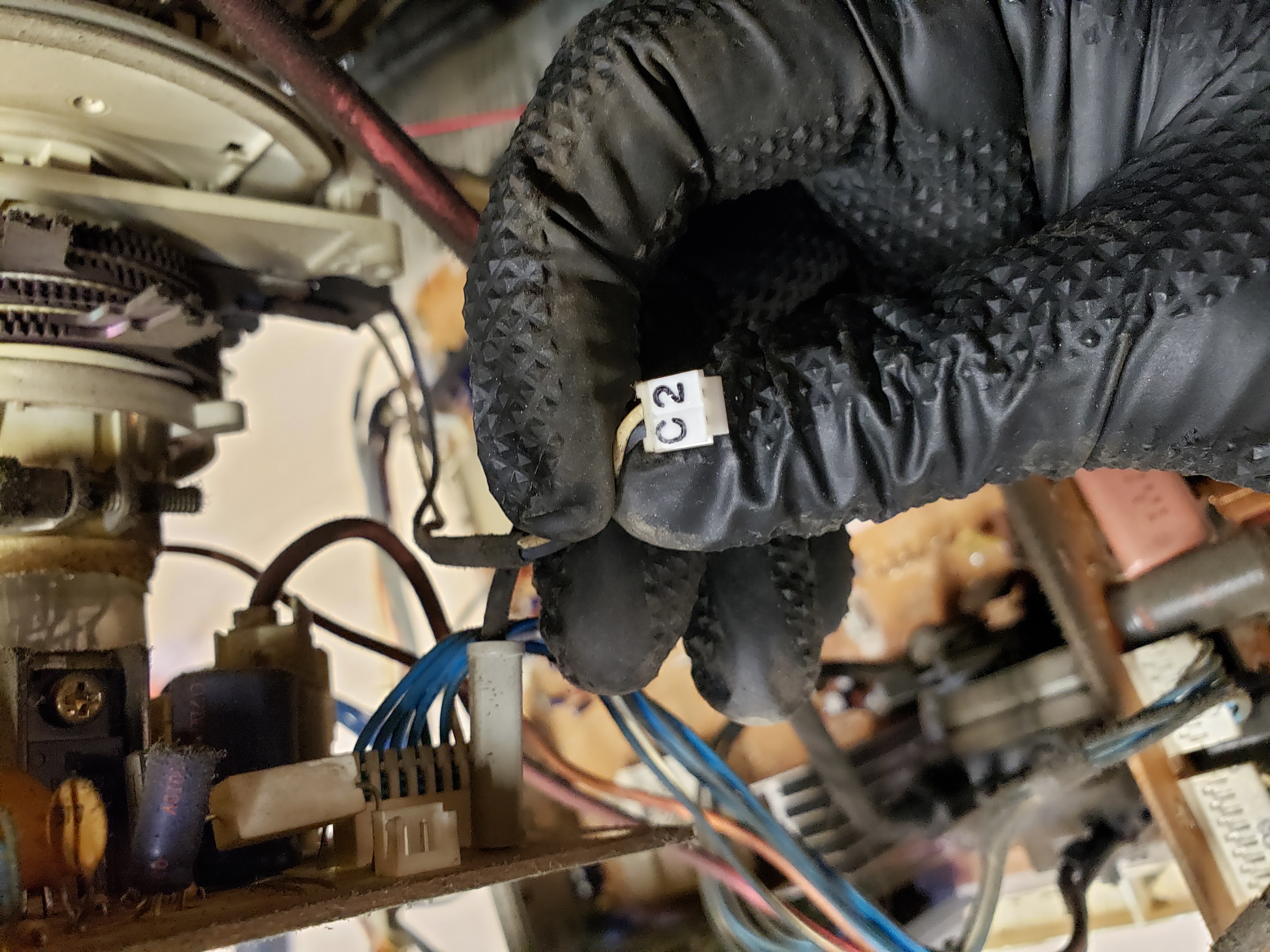

This set has Velocity Modulation. To disable it, unplug the jumper connecting the yoke to the neckboard:
Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CT-24SX10 |
| Series: | Tau |
| Viewable Size: | 24" |

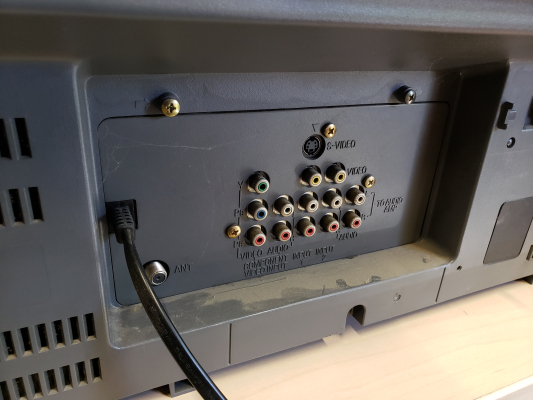

| Input Signals: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Toshiba, TA1310, TA1310BN |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | Toshiba, TC90A53N |
| Flyback: | ZTFN05003A |
| Focus Type: | Single |

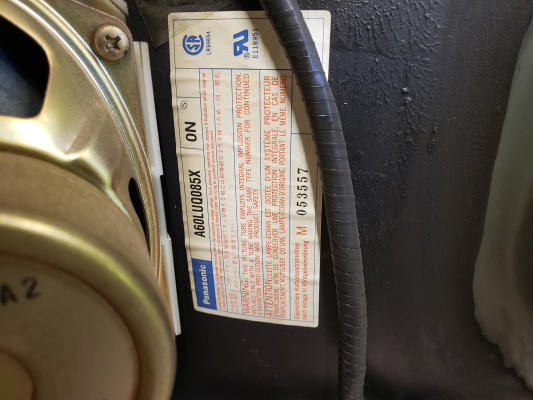

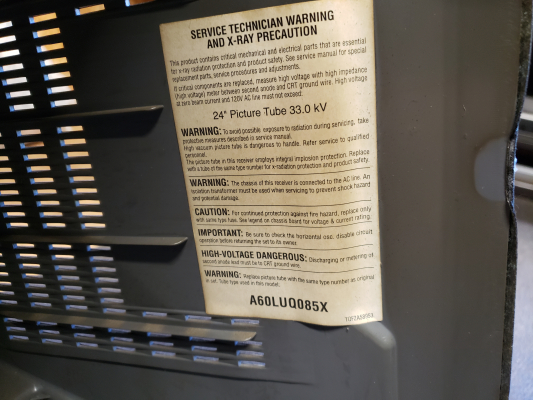

| Tube: | Panasonic , A60LUQ085X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

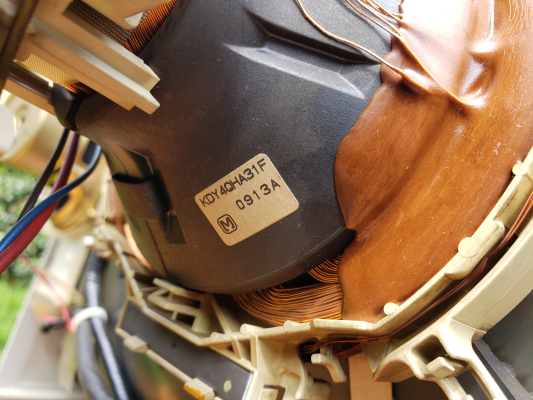

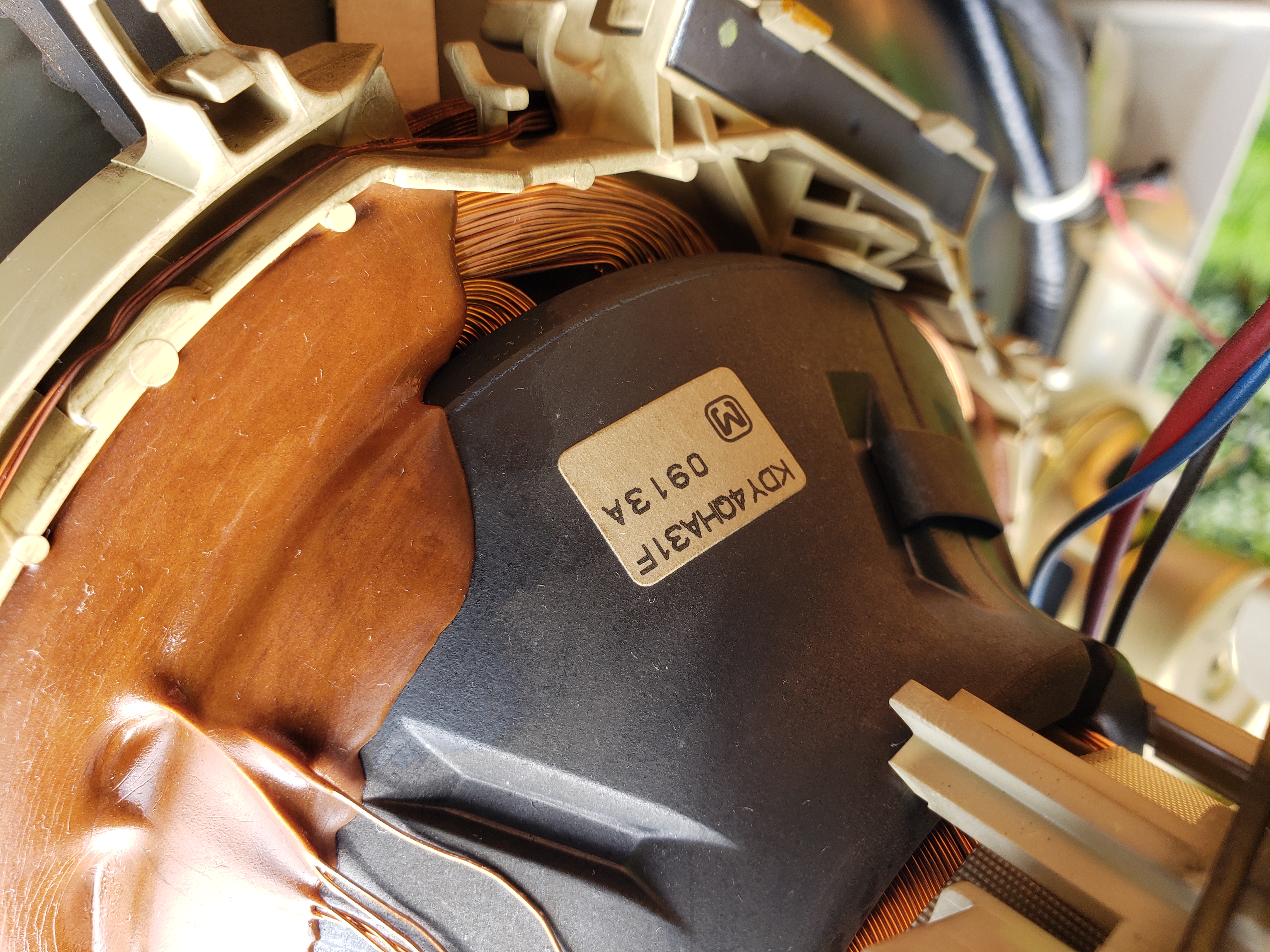

| Yoke: | KDY4QHA31F |
| Speakers: | Stereo, 7W x 2 |
| Remote: | EUR511502 |

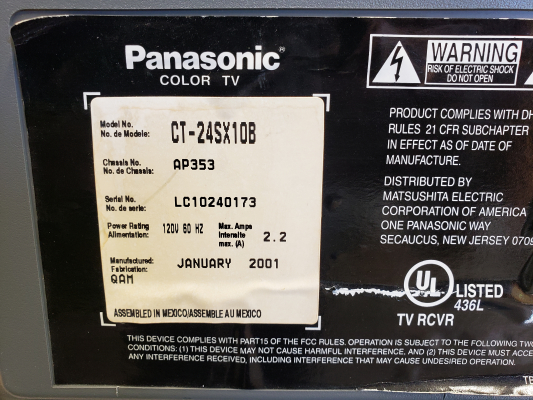

| Chassis: | AP353, MJ4M |
| Weight: | 79.4 lbs (36 kg) |
| Dimensions (W/H/D): |
720 x 636 x 573 mm
(28.3 x 25 x 22.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2000 |
| MSRP: | 549 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
