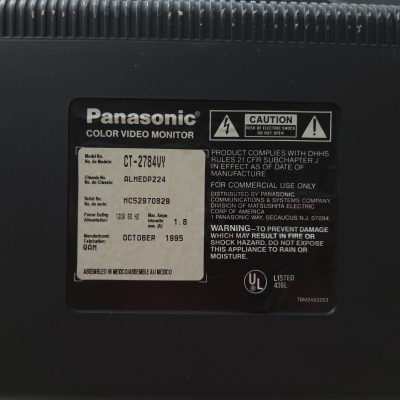

Summary

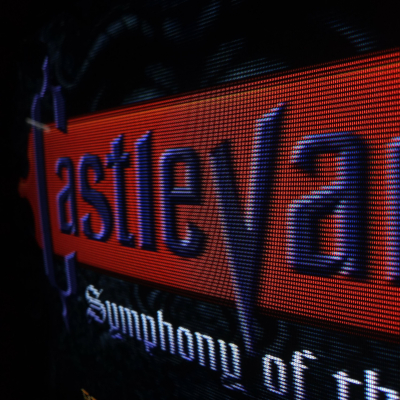

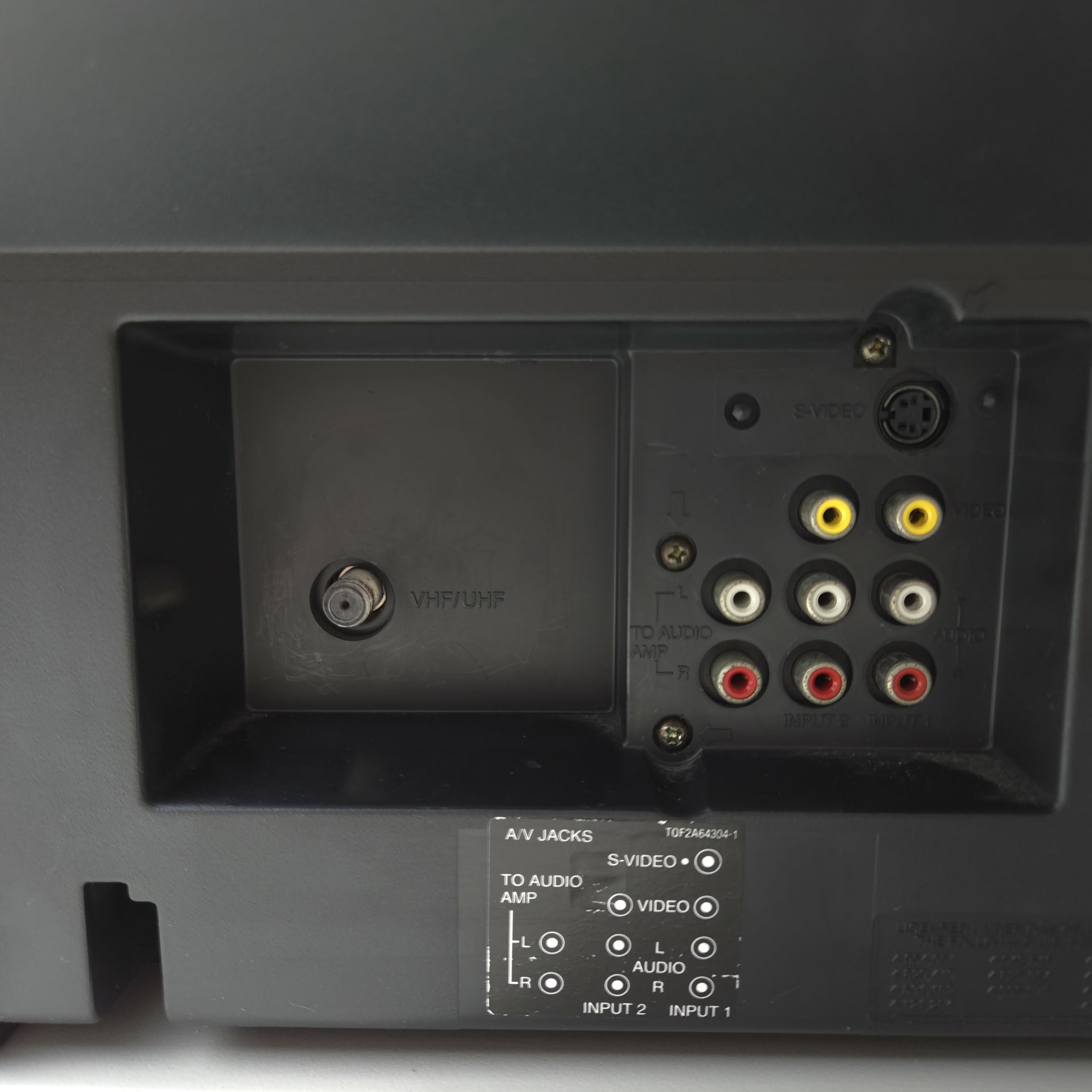

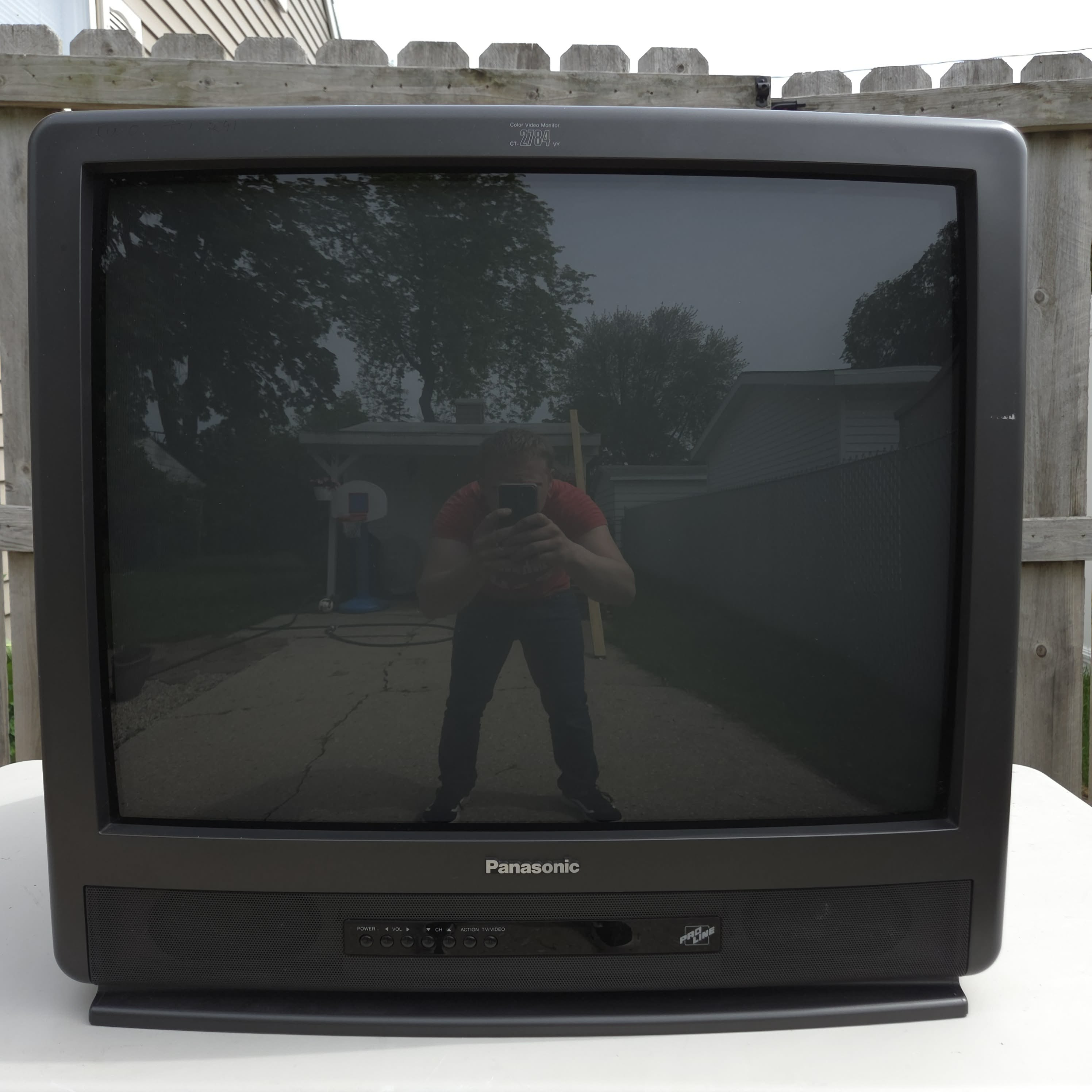

27" color institutional TV intended for use in schools and government buildings. Has RF, composite, and s-video input with stereo sound. Manufactured in Mexico in 1994.
This set is essentially a rebadged CT-27S18S, but lacking any special features like sound enhancement and Velocity Modulation. Despite being called "Pro Line," it is not a professional monitor like a PVM.
(Special thanks to Matt K. for the pics!)
Manuals
Service Menu

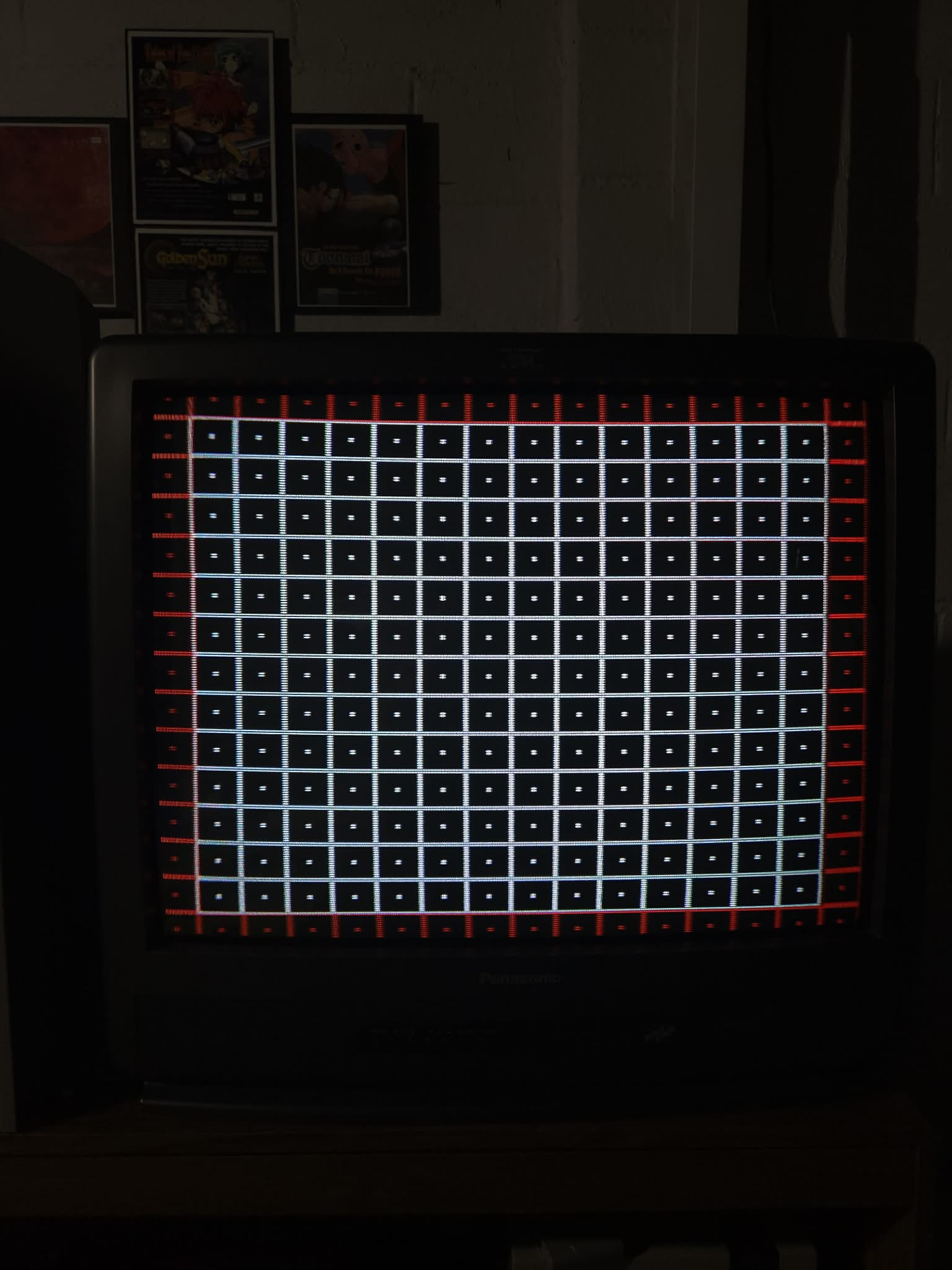

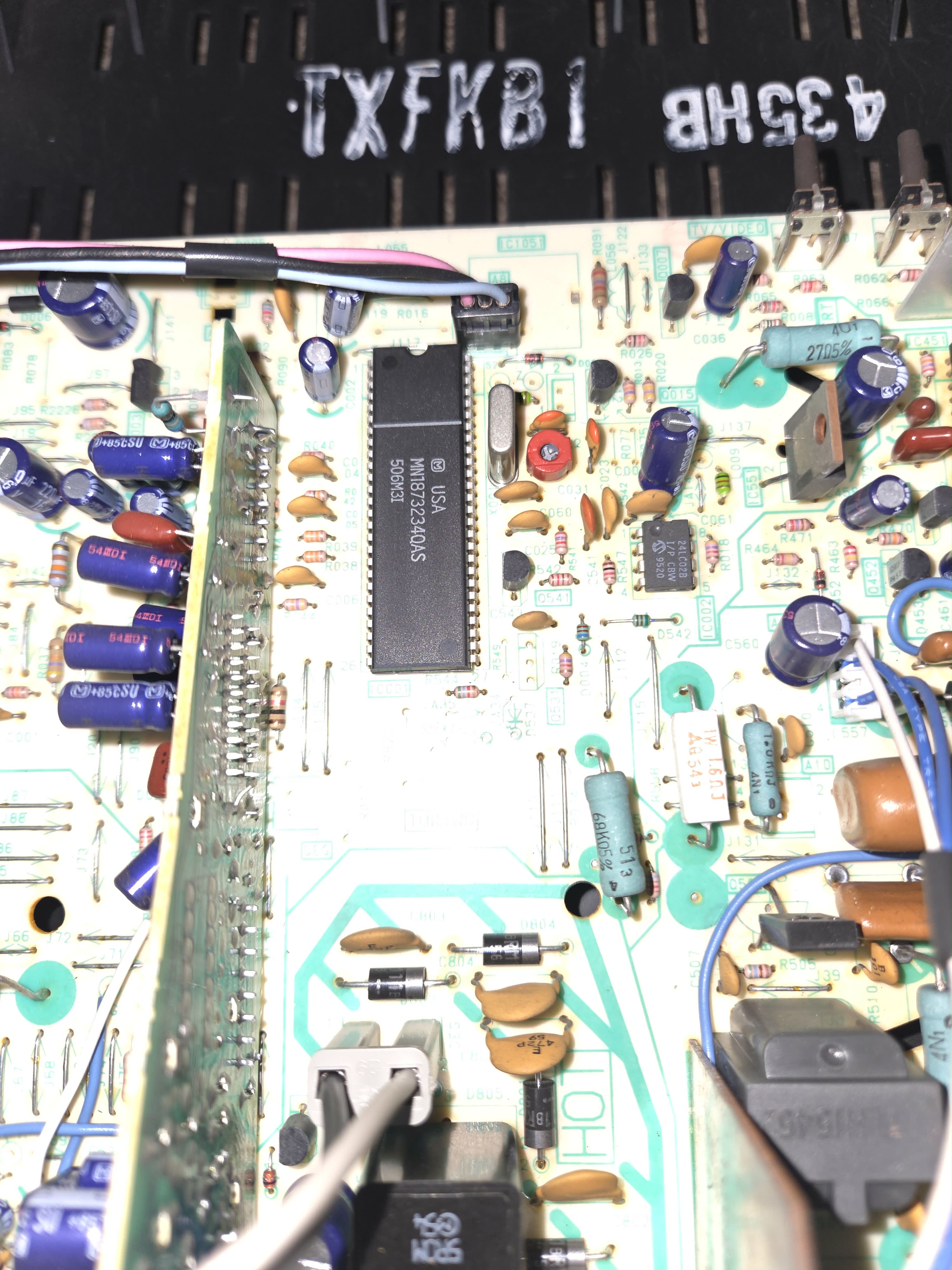

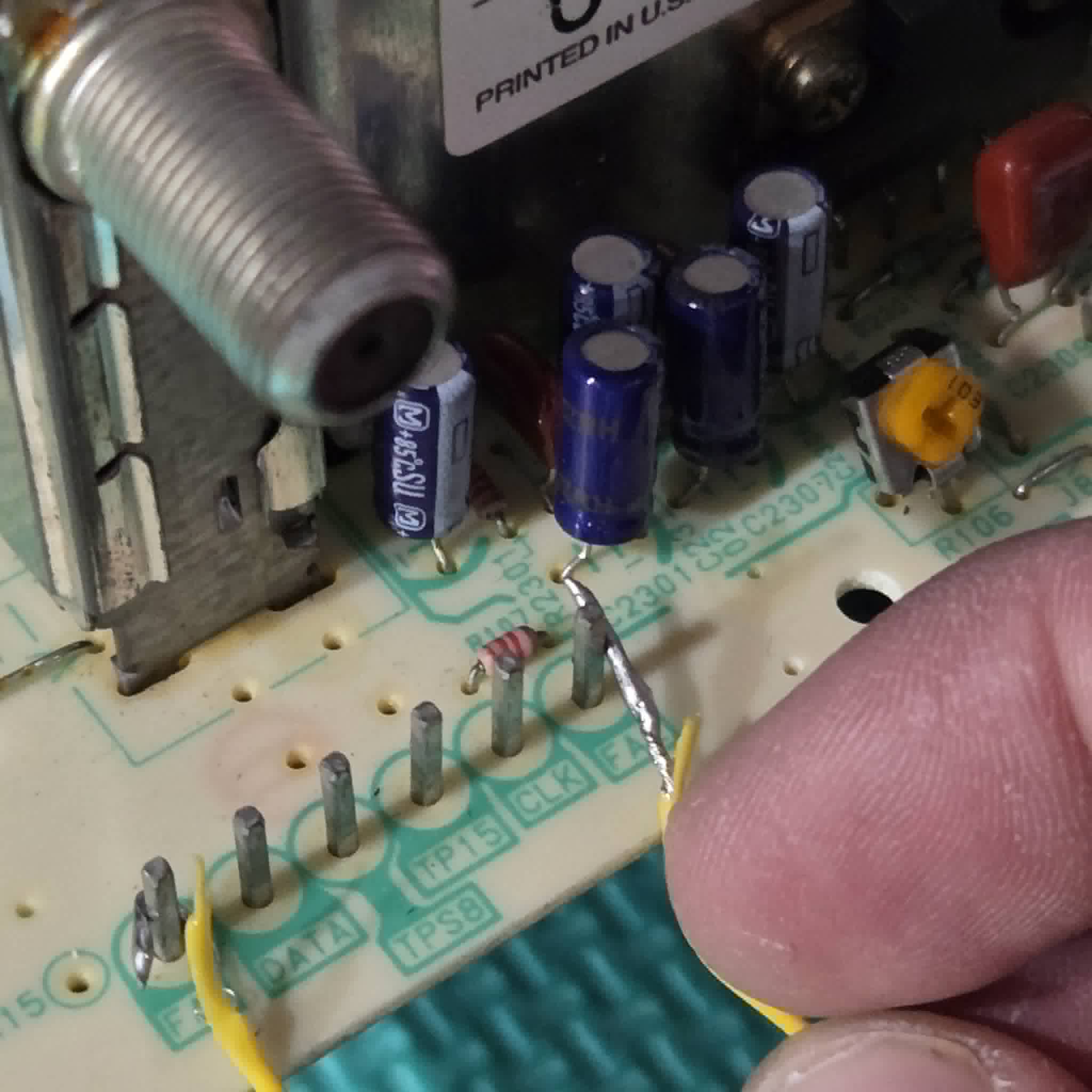

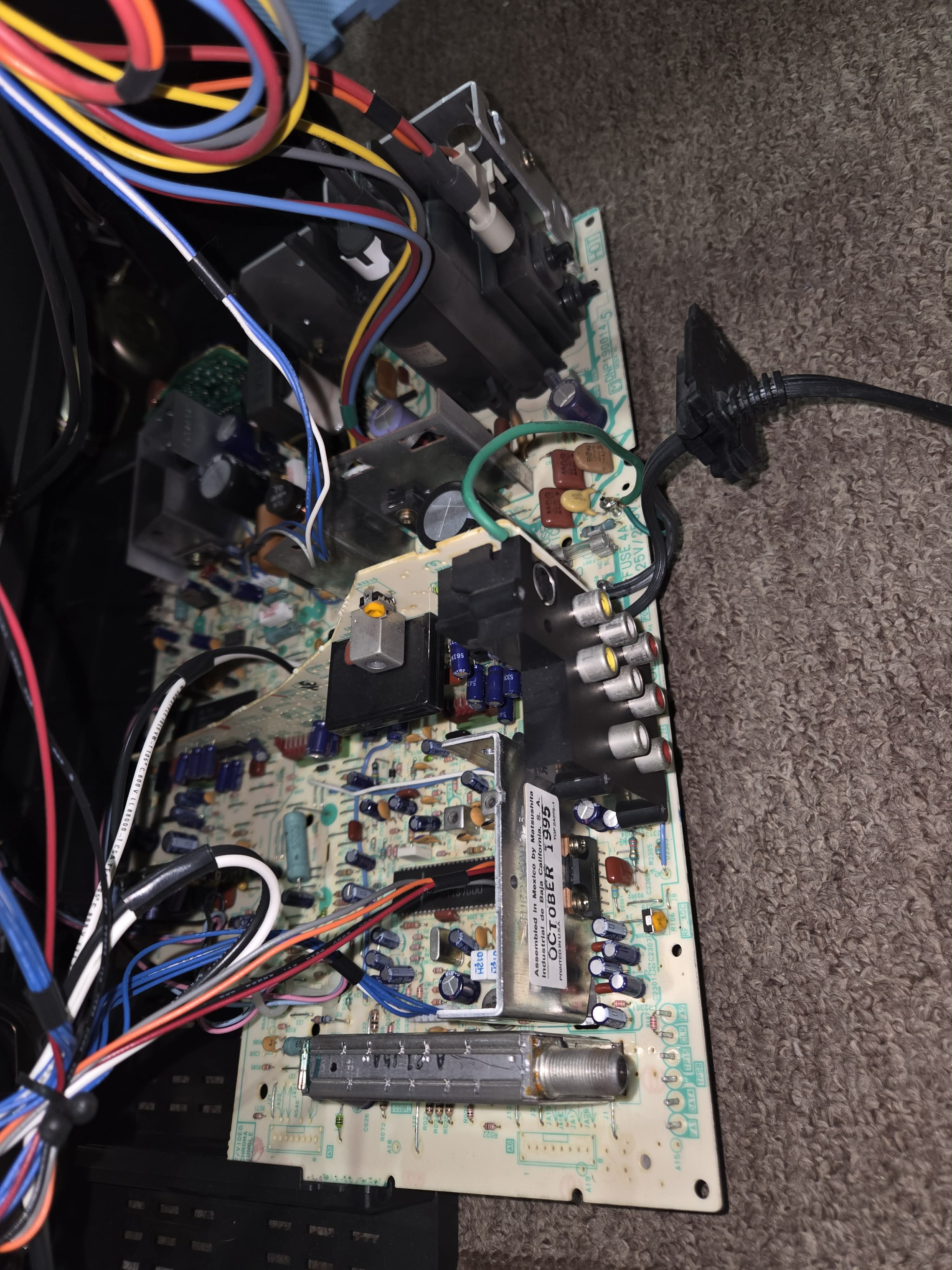

Getting into the service menu on this set is kind of tricky. On the edge of the main board, you must short pins FA1 and FA2 to ground like so:

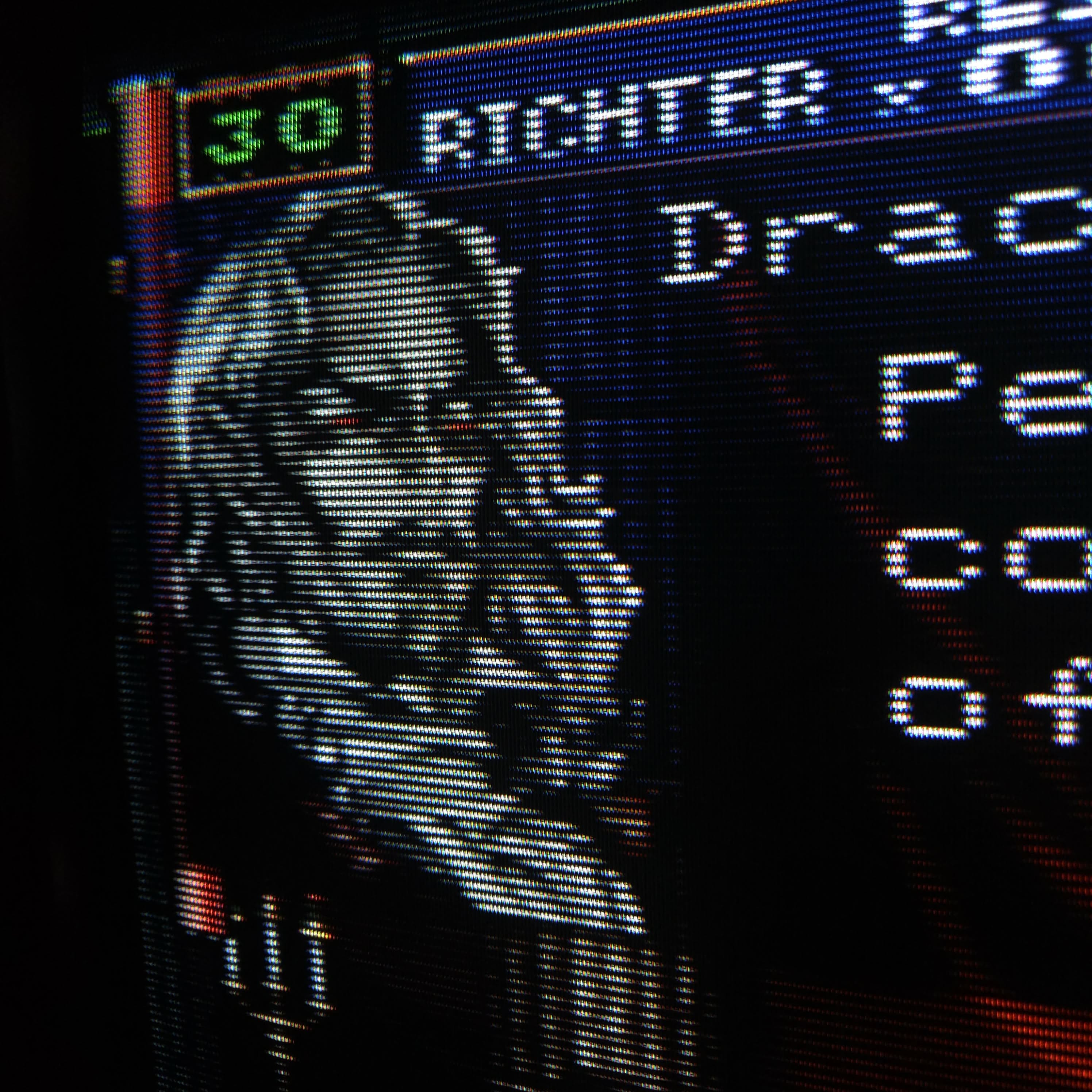

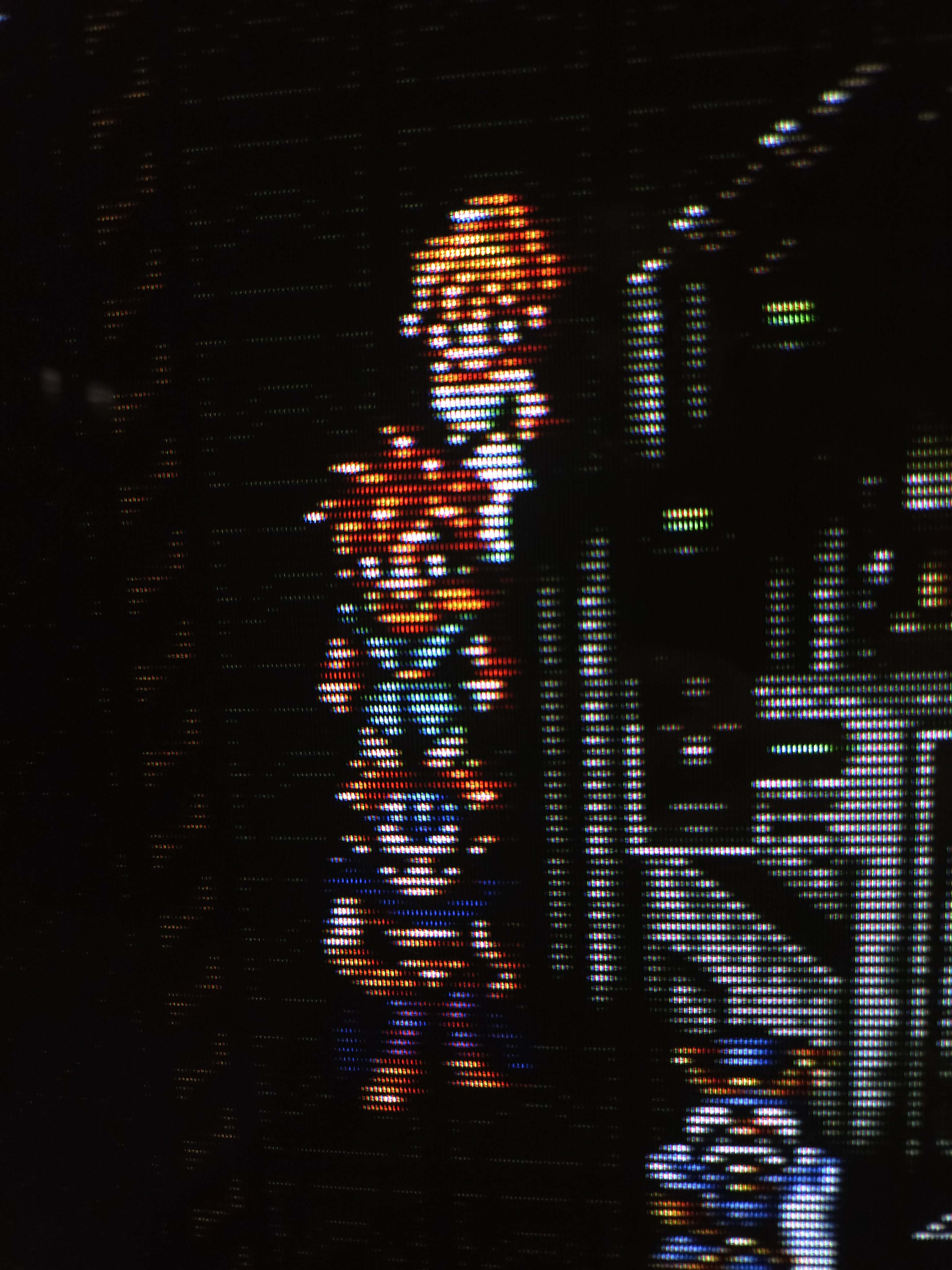

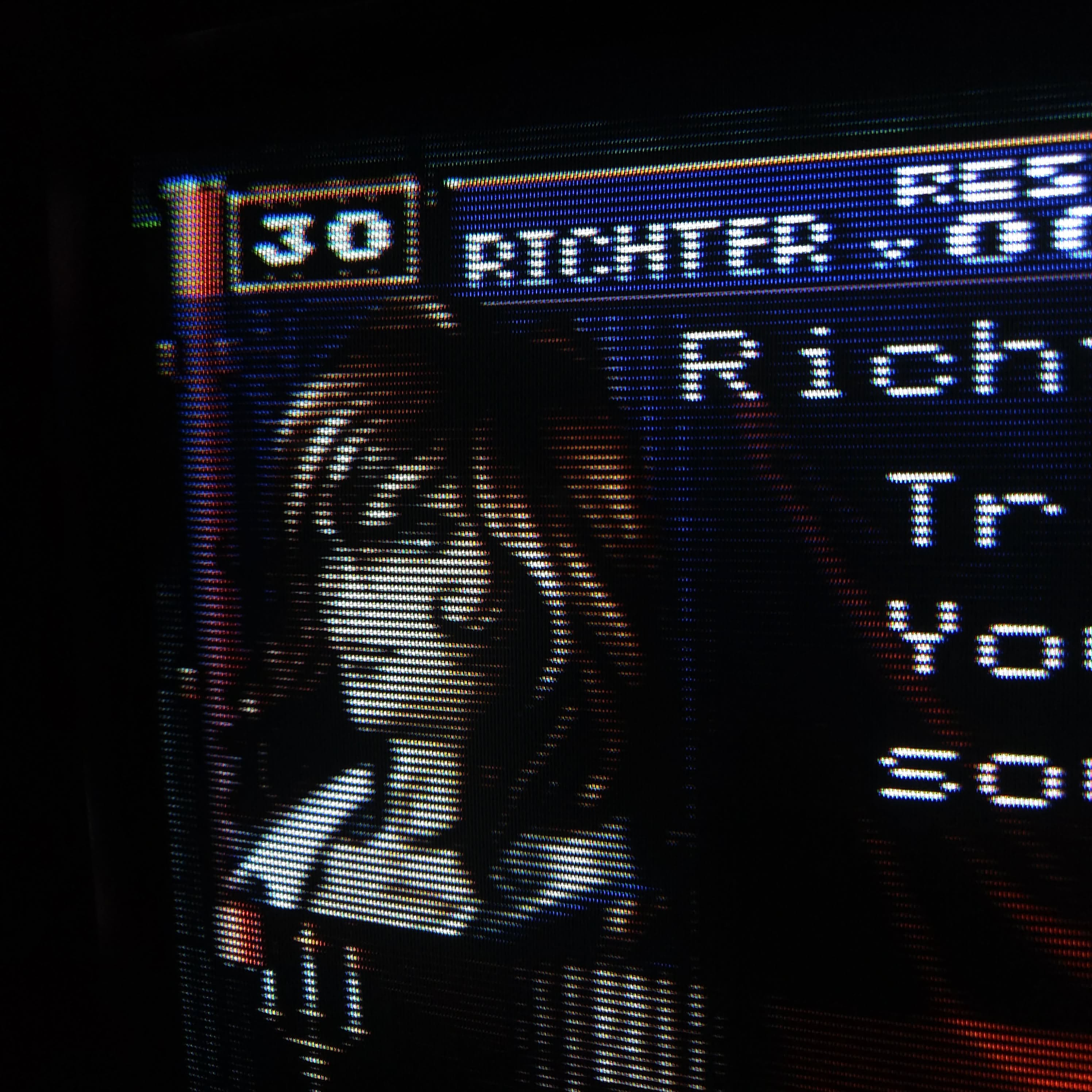

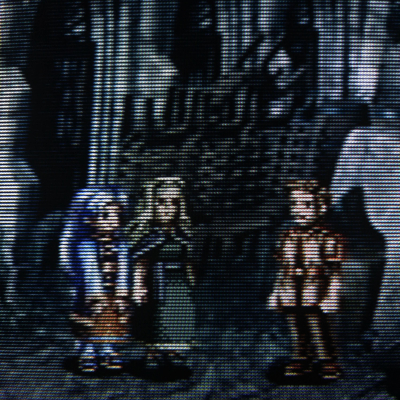

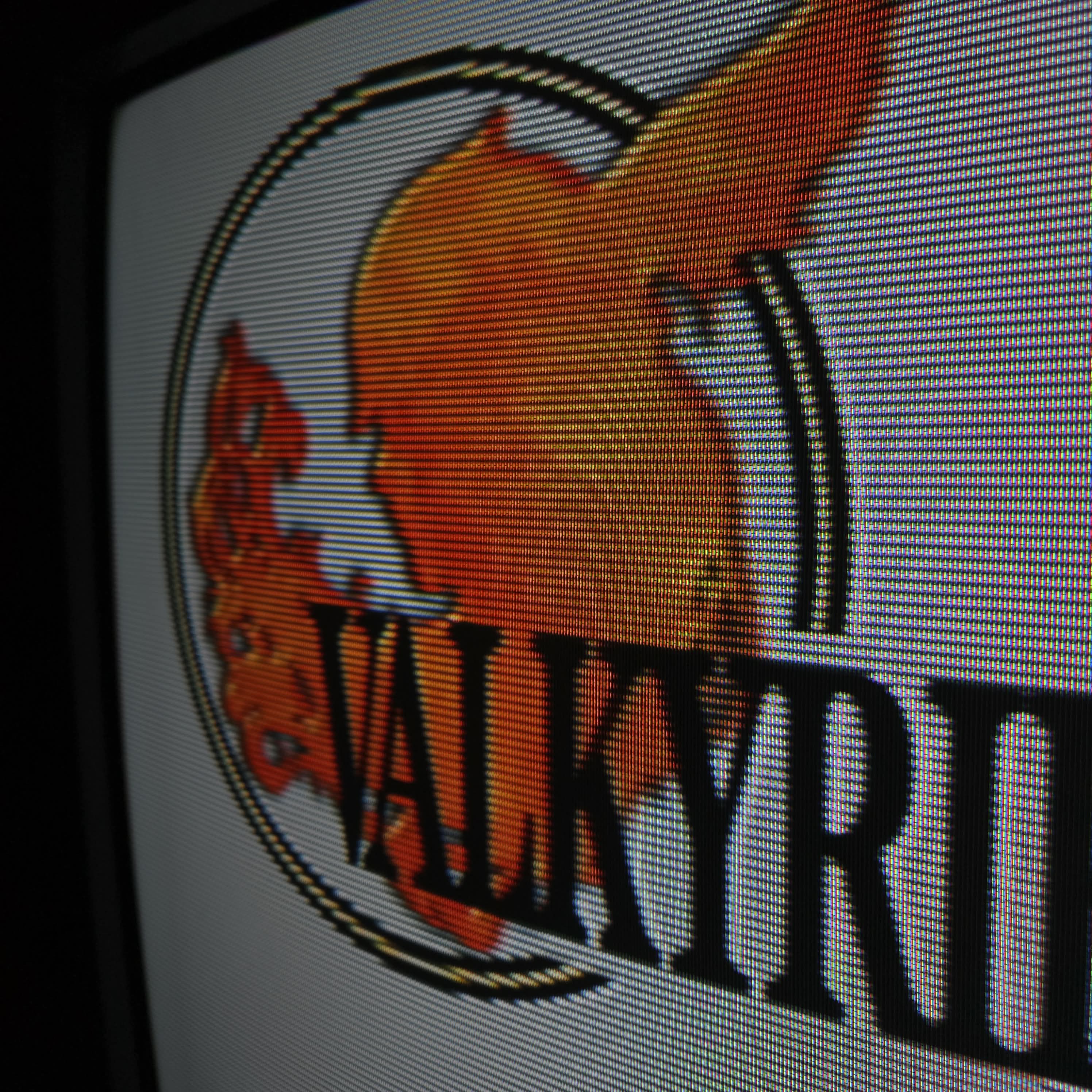

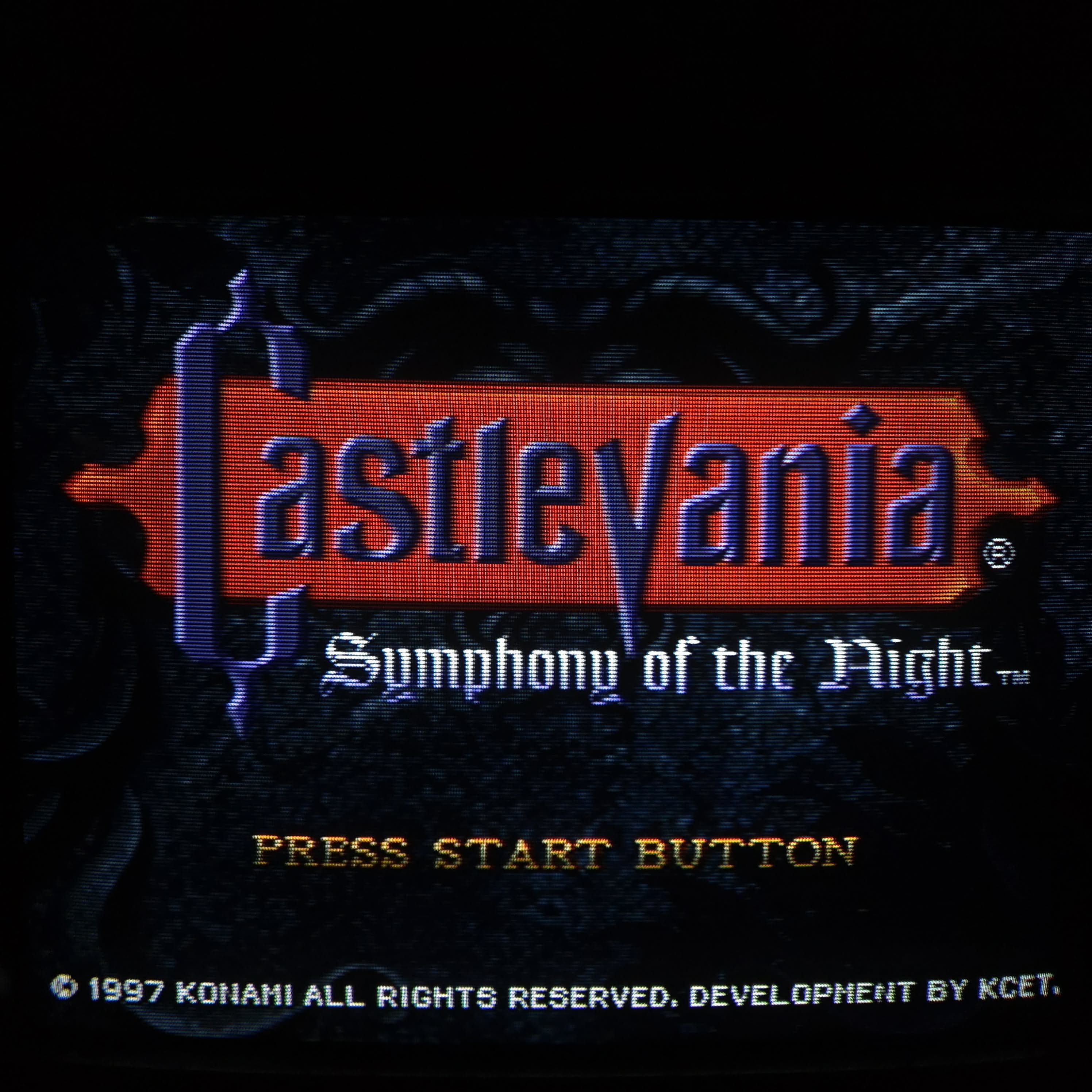

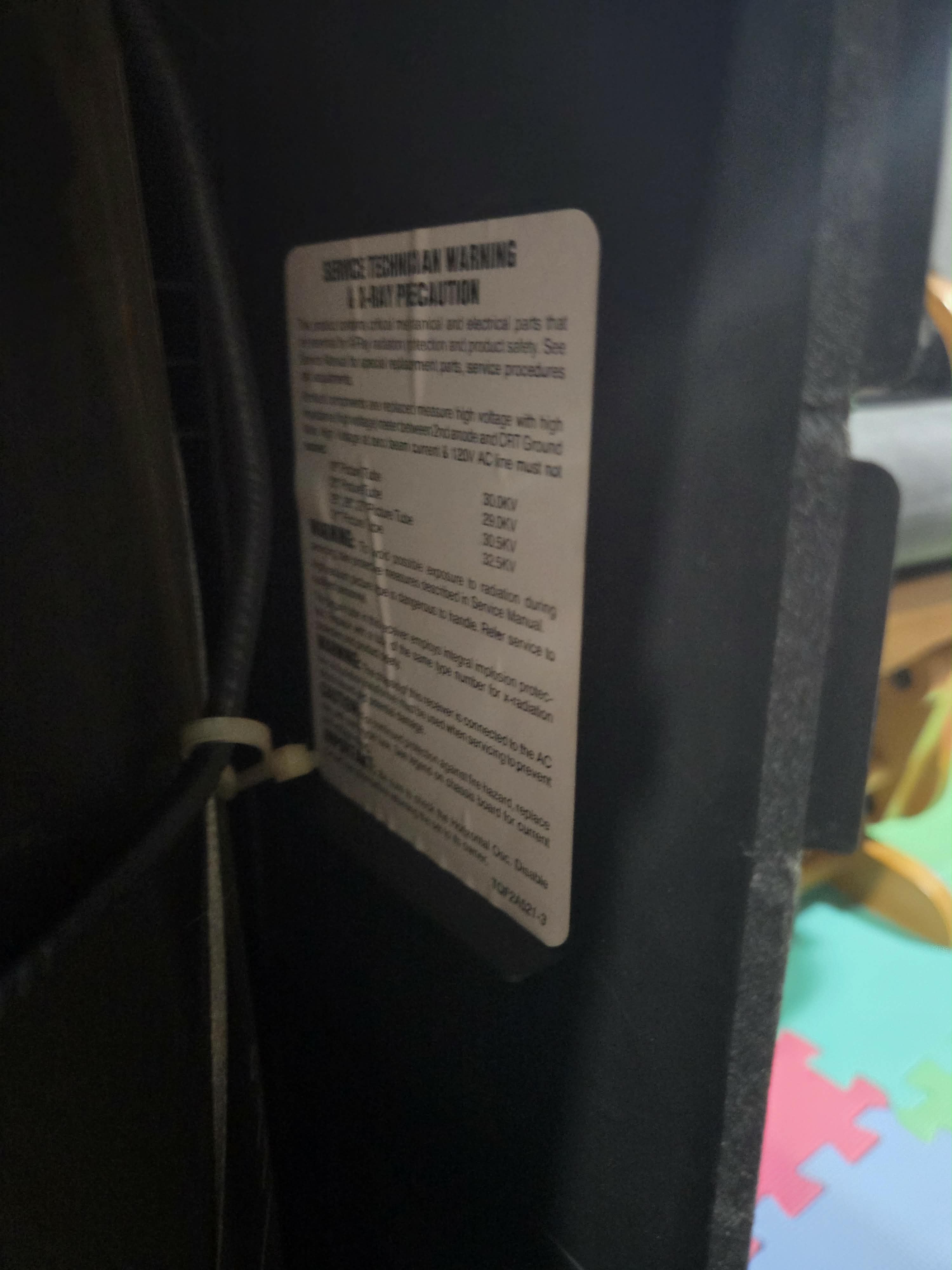

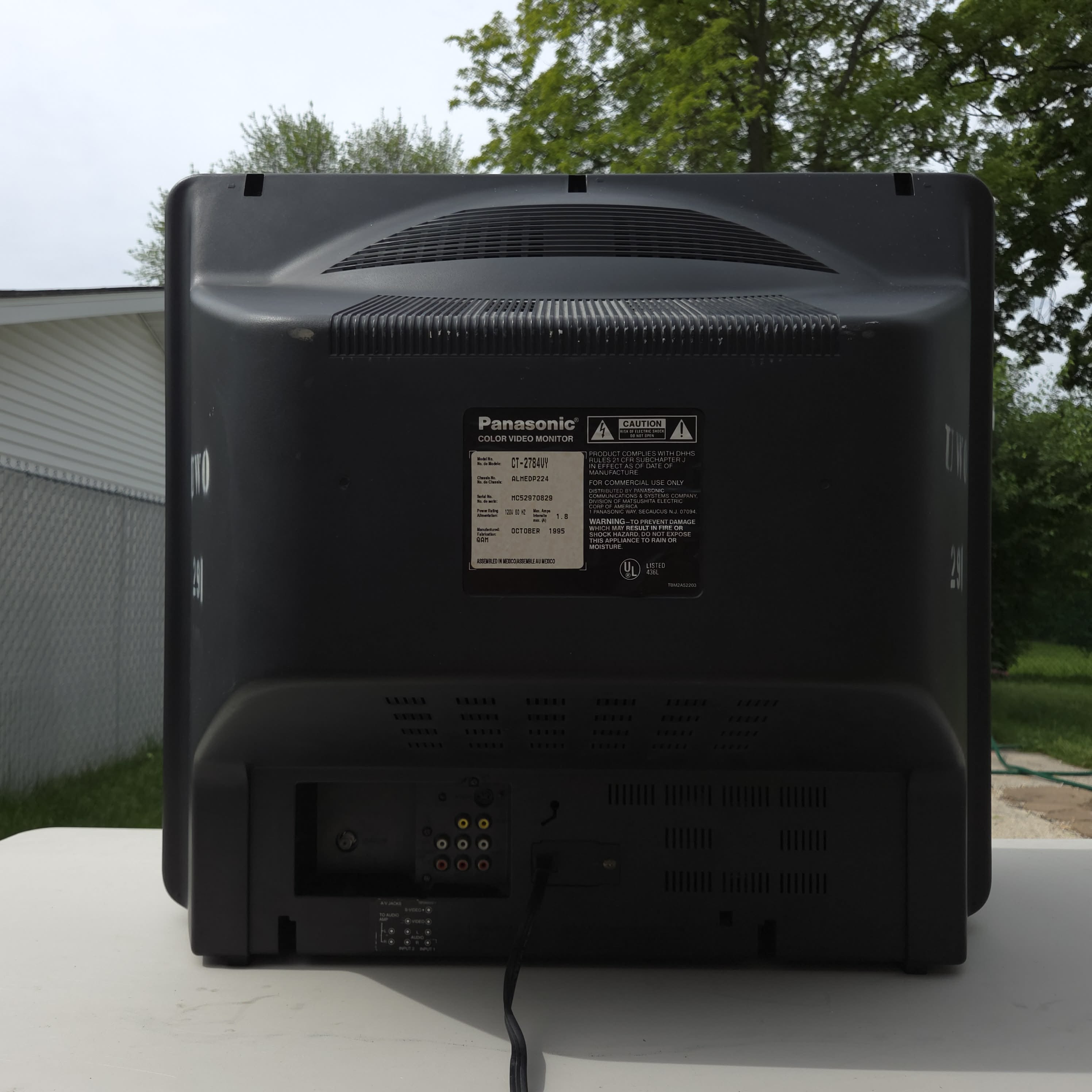

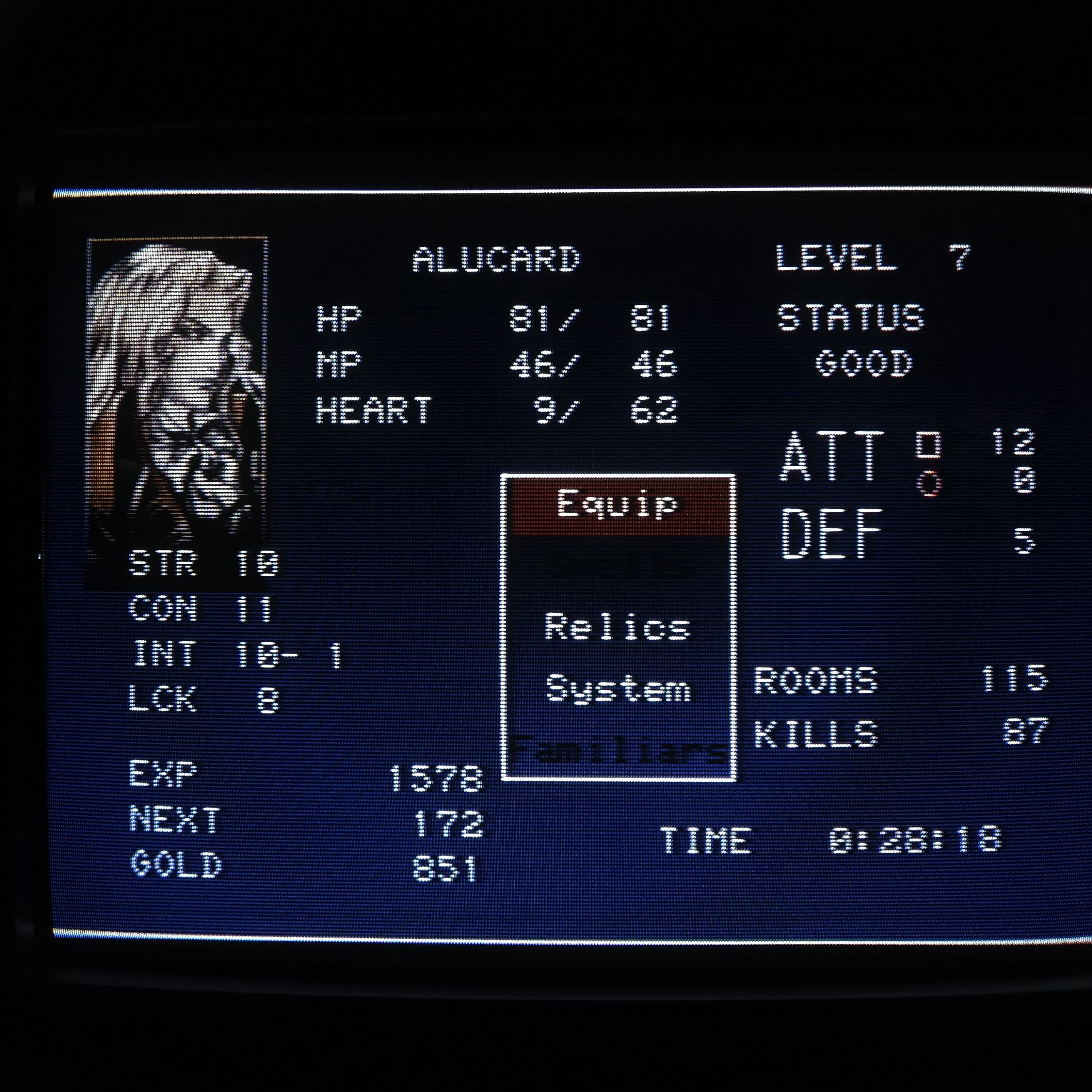

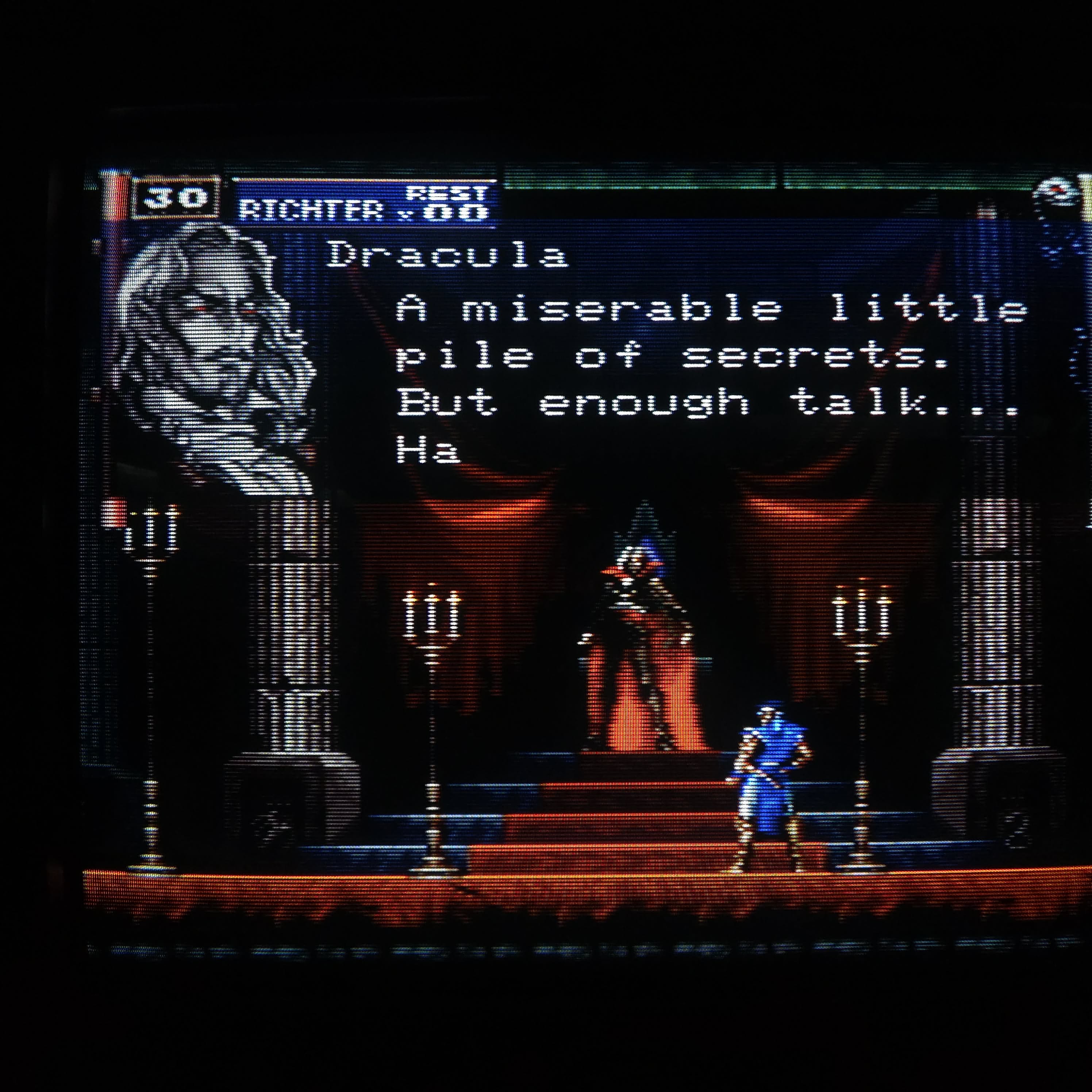

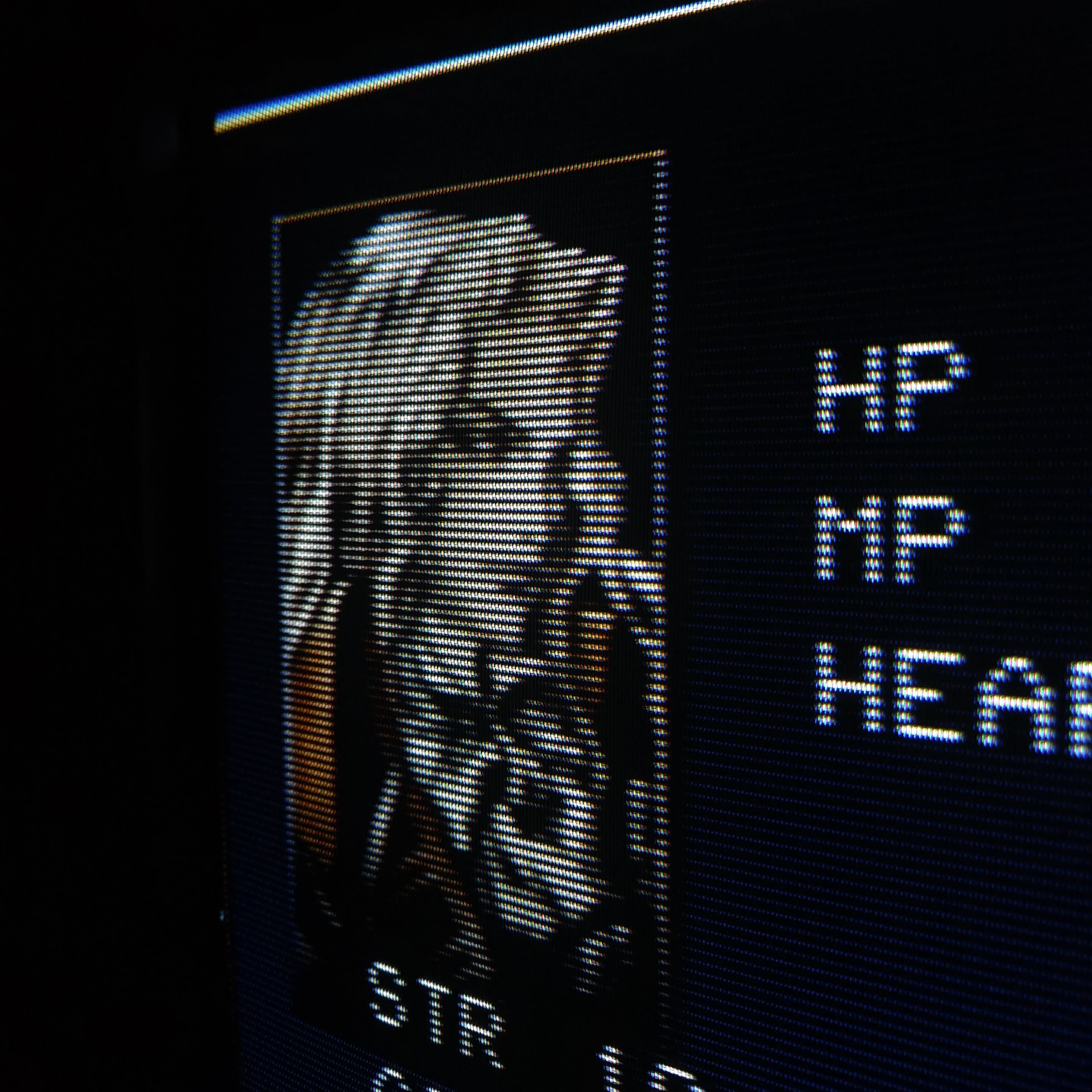

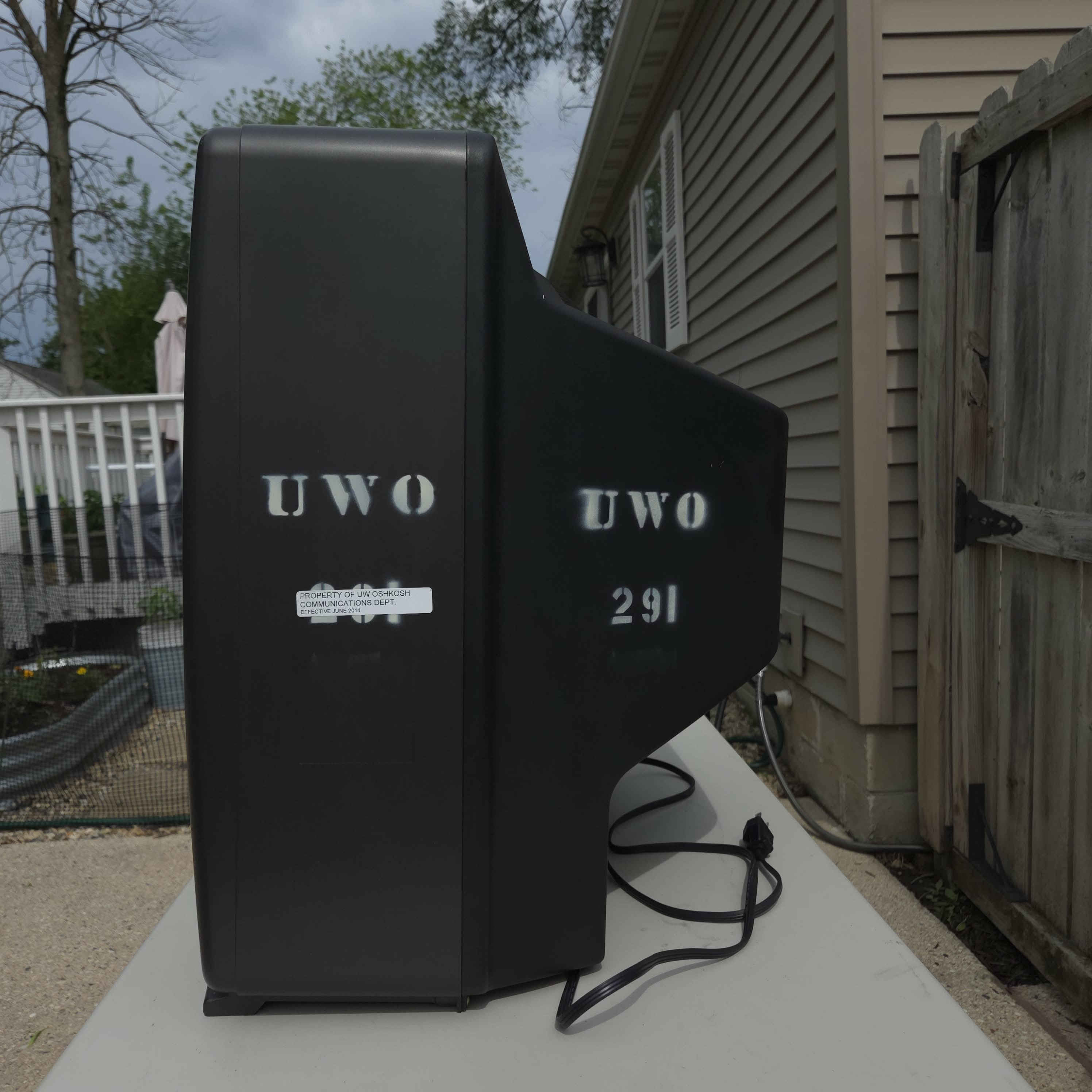

Gallery

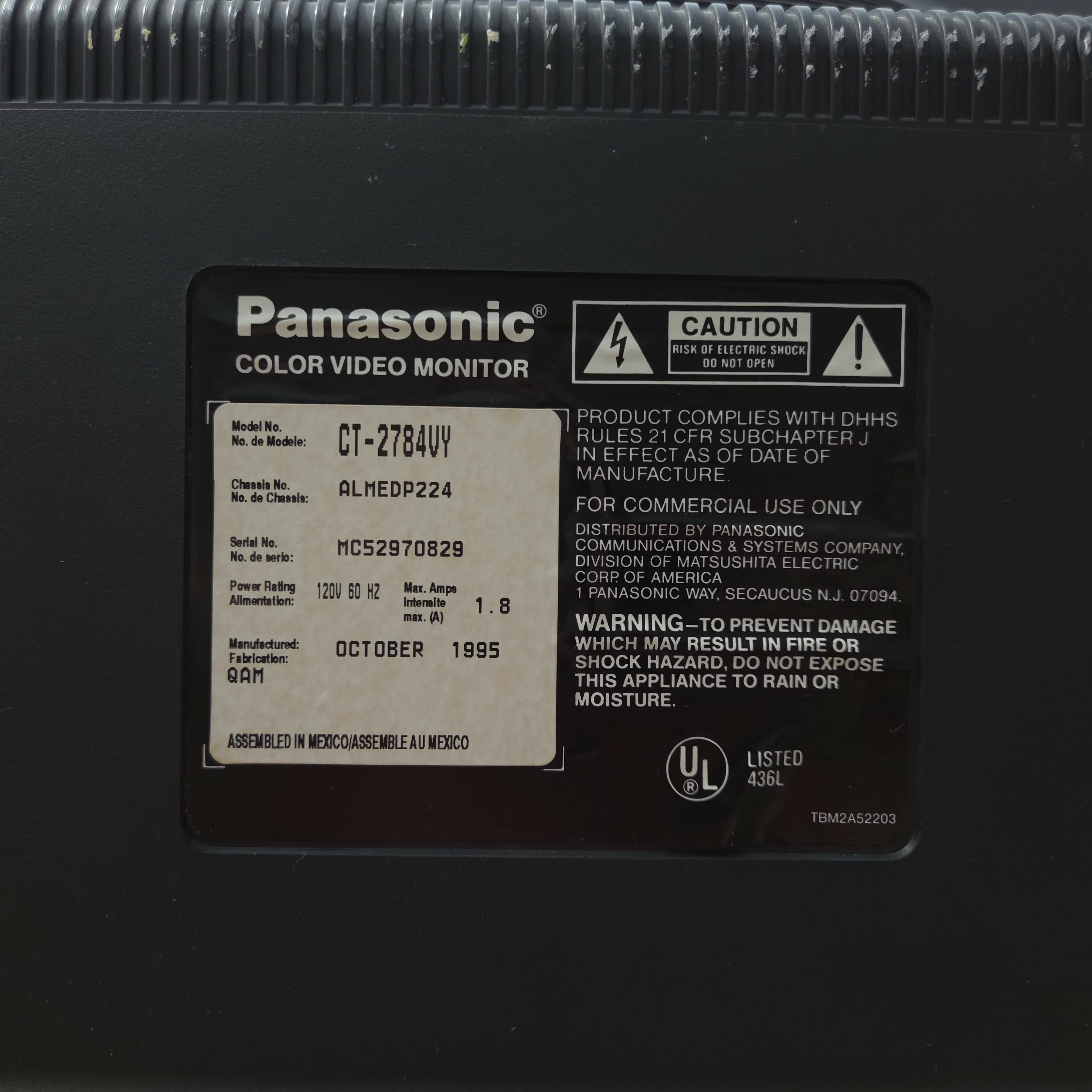

| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CT-2784VY |
| Series: | Pro Line |
| Viewable Size: | 27" |
| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls, OSD Service Menu |

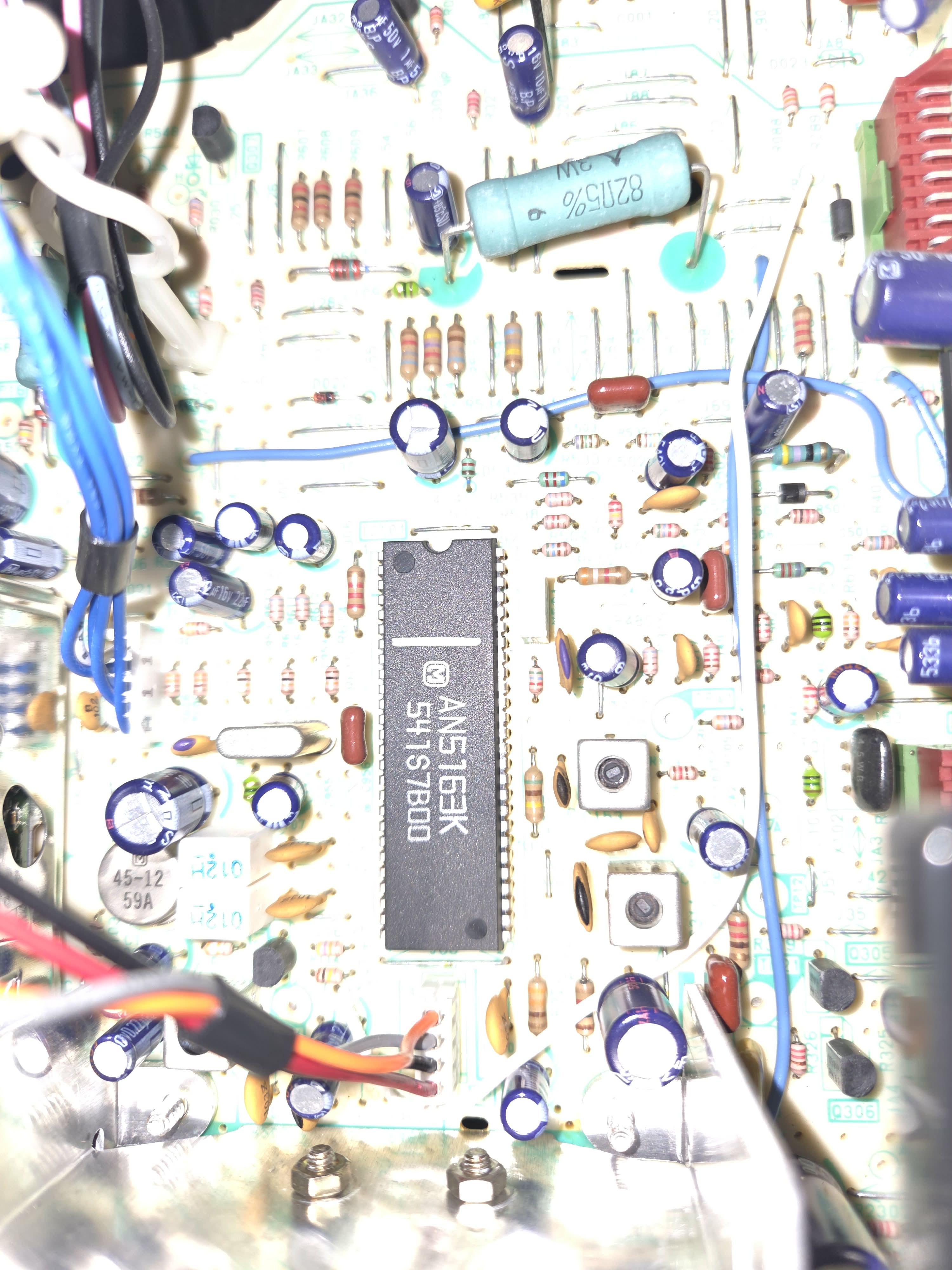

| Jungle IC: | Panasonic, AN5163K |

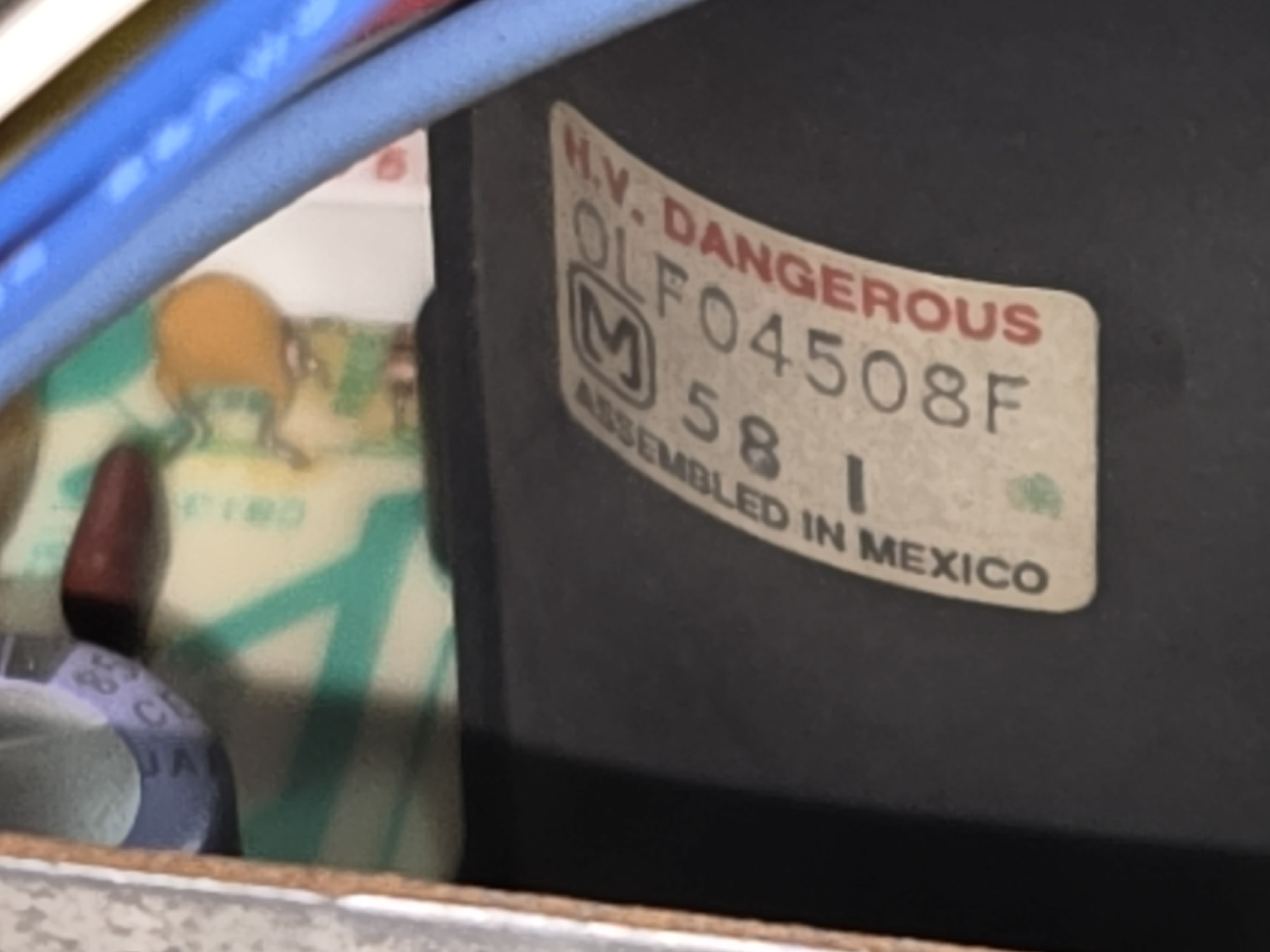

| Flyback: | OLF04508F |
| Focus Type: | Single |

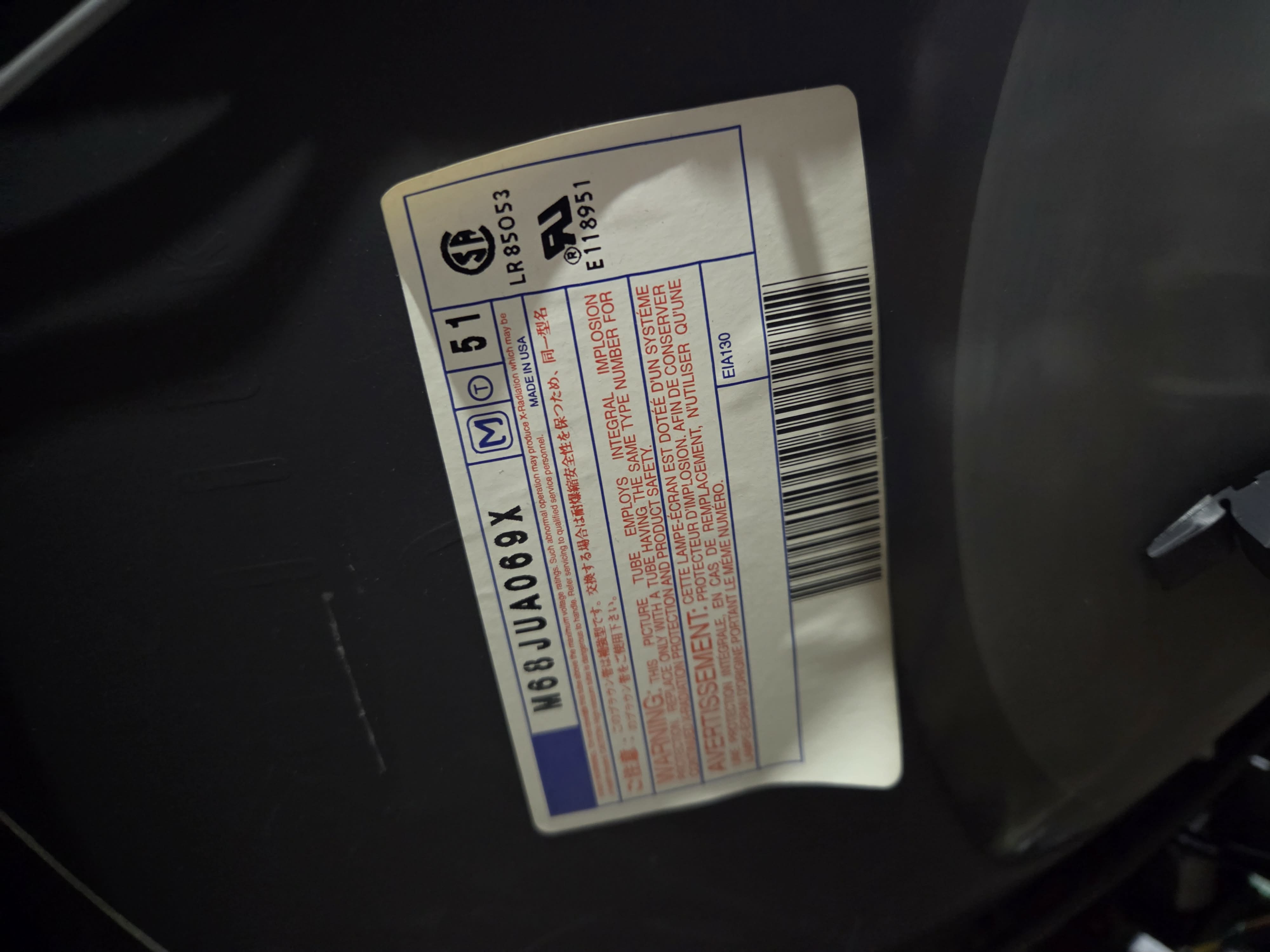

| Tube: | Panasonic , M68JUA069X , M68JUA069X51 |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |

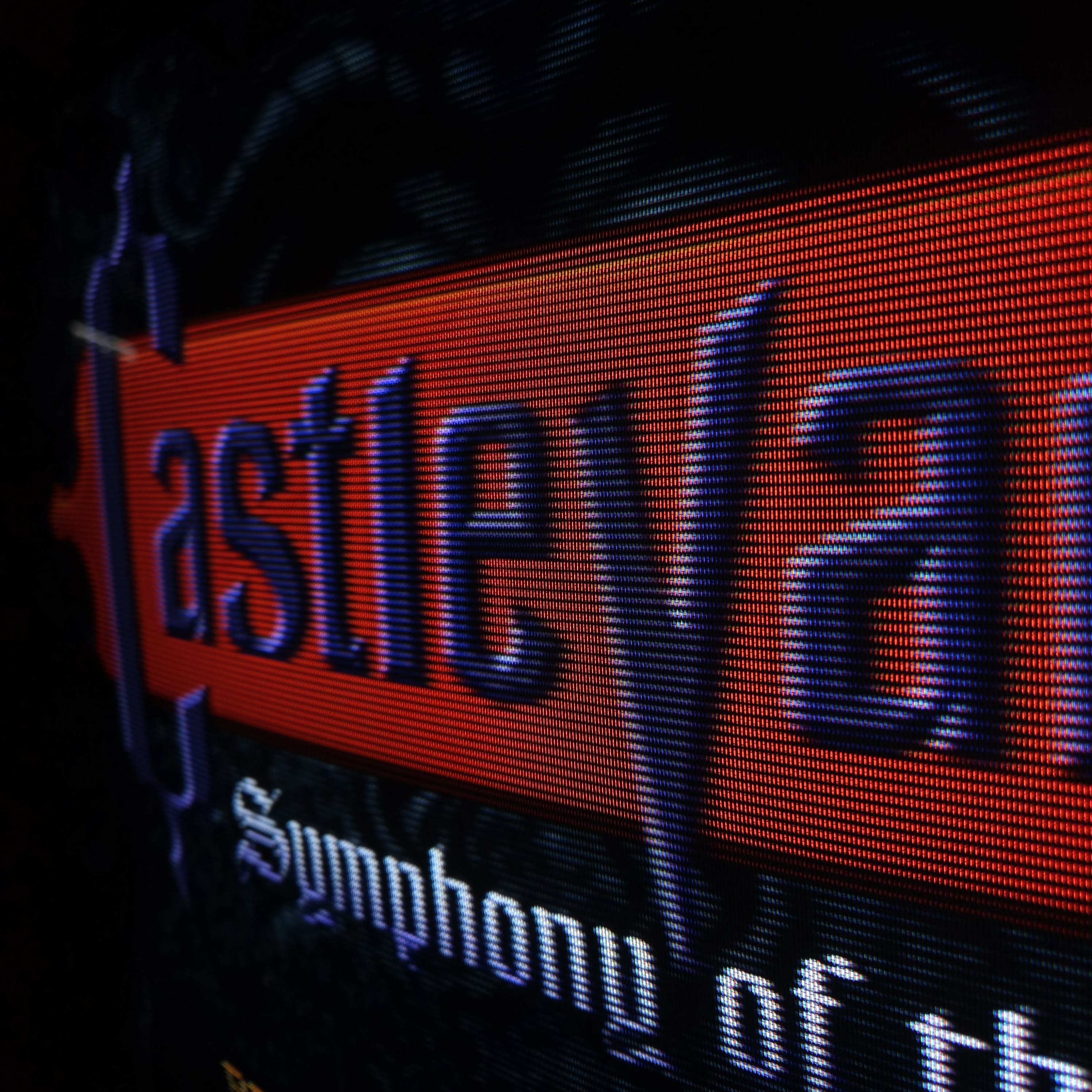

Slot
|

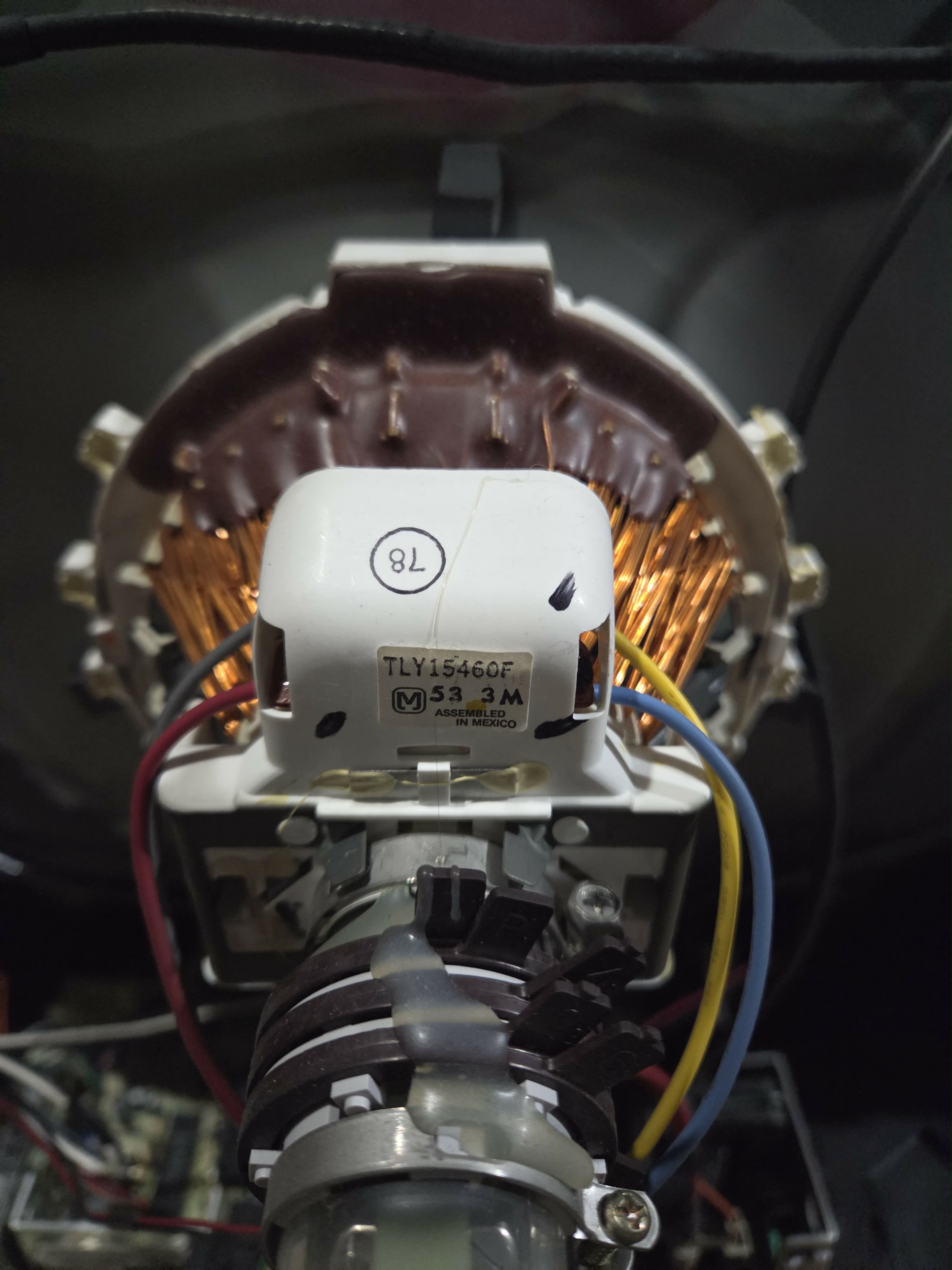

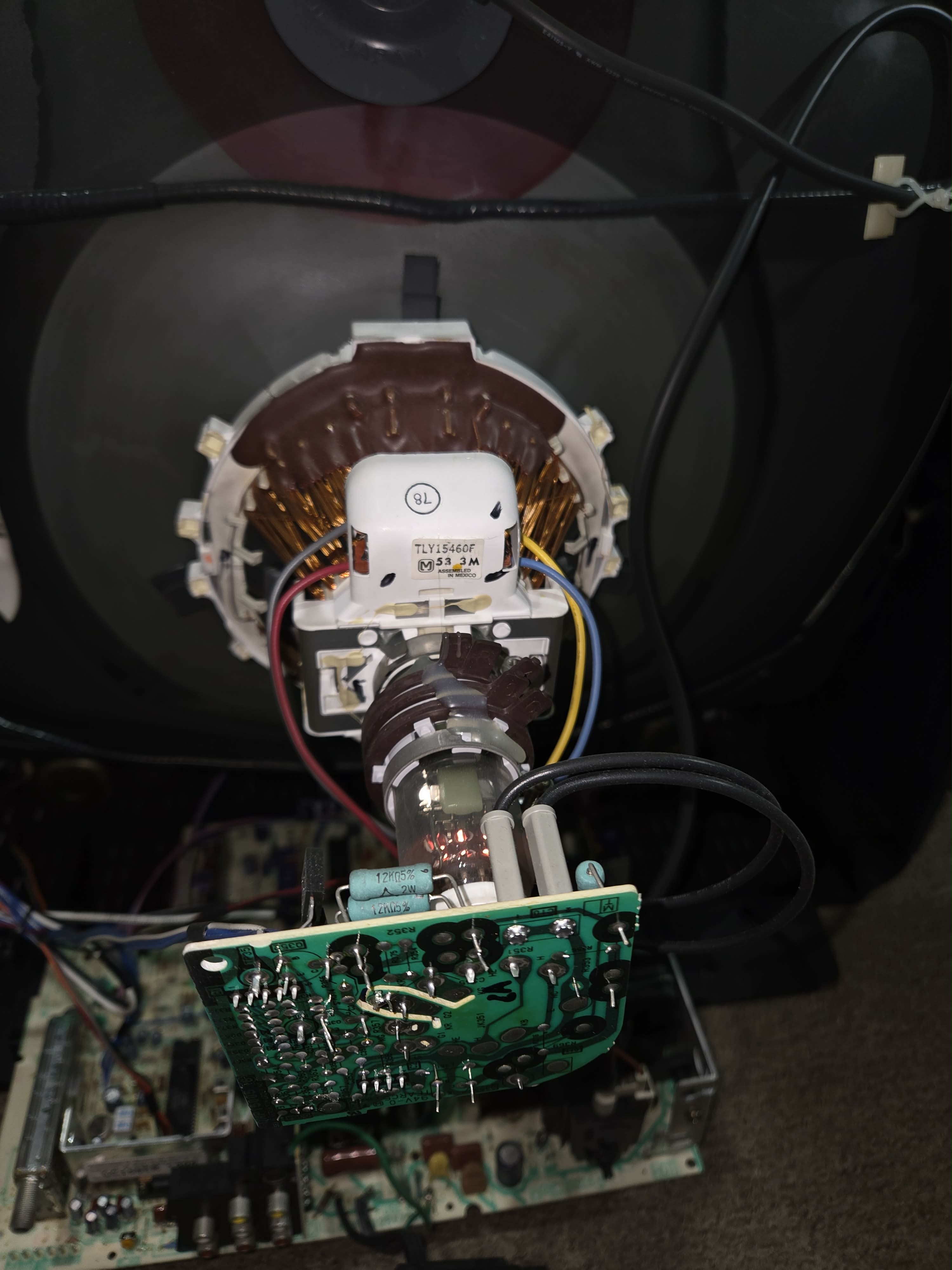

| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | TLY15460F |

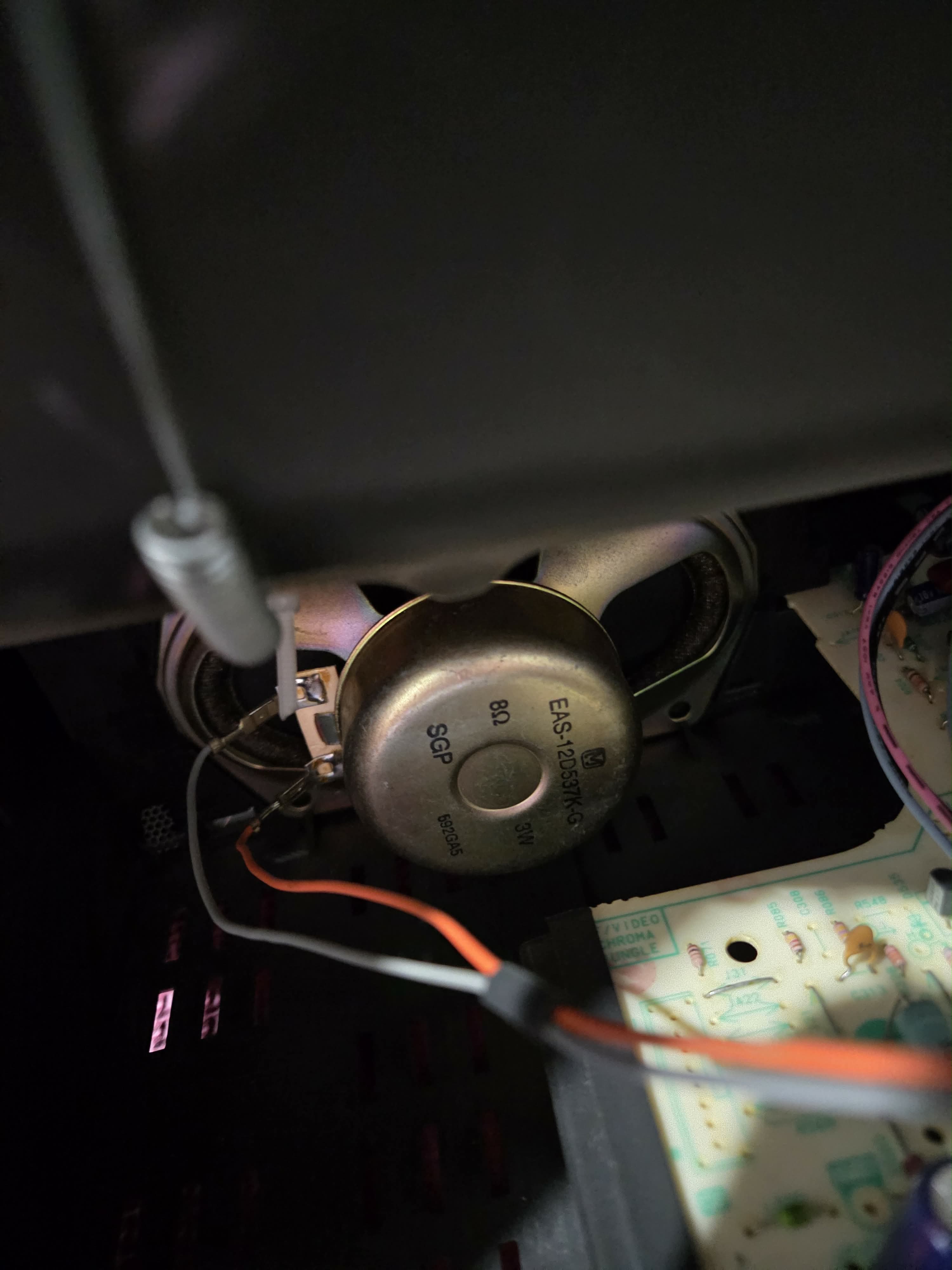

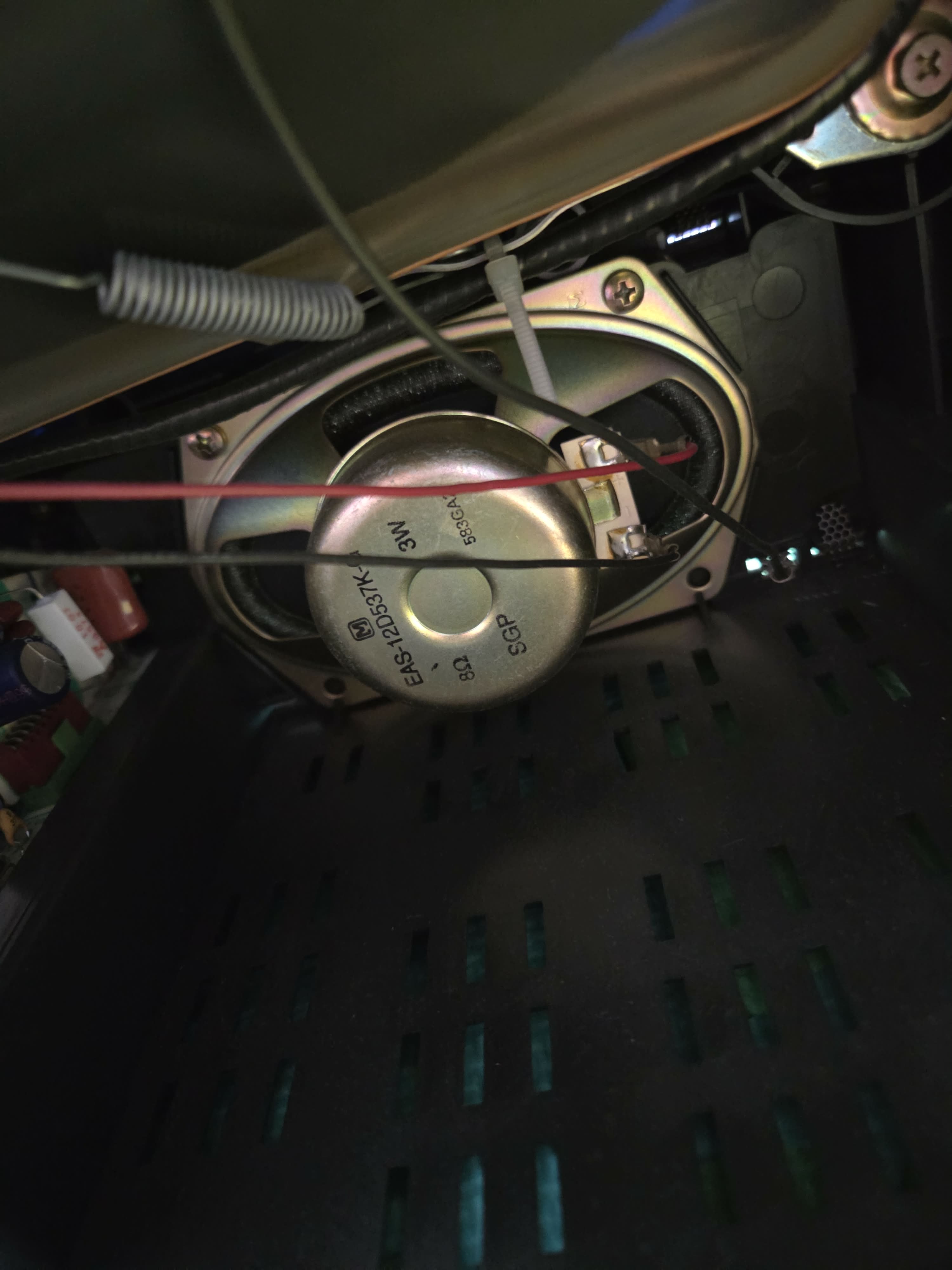

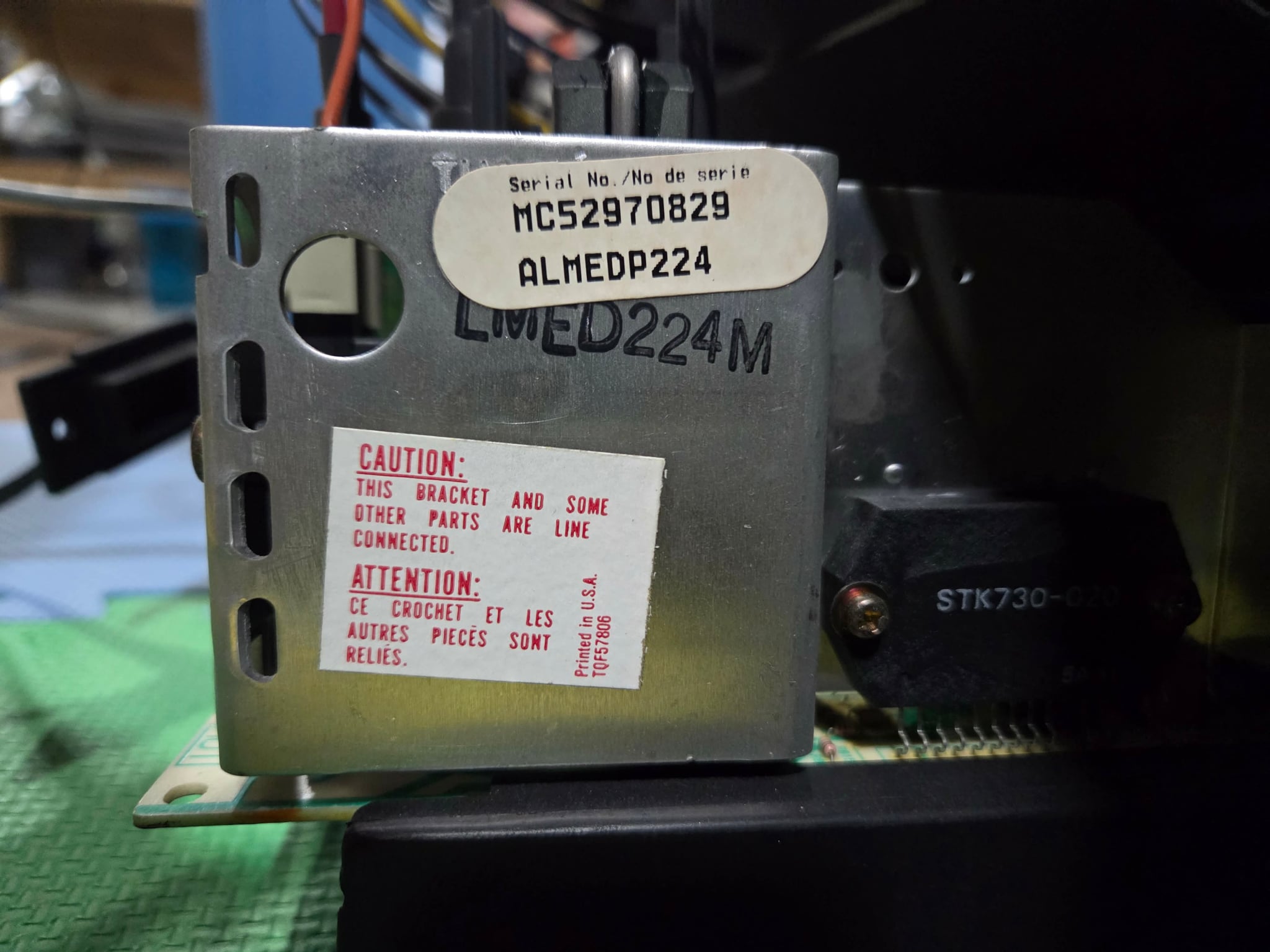

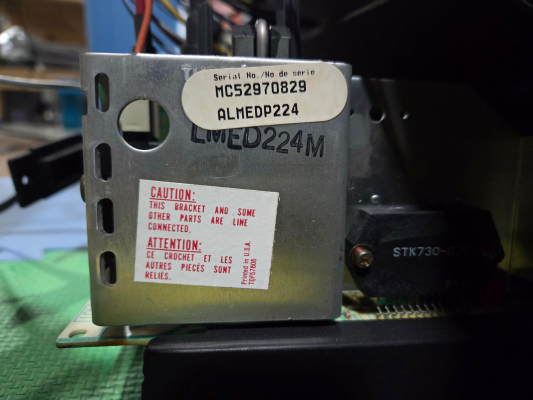

| Speakers: | Stereo, 3W x 2 |
| Remote: | EUR501222 |
| Chassis: | ALMEDP224, NA3 |
| Weight: | 81.5 lbs (37 kg) |
| Dimensions (W/H/D): |
660 x 600 x 483 mm
(25.9 x 23.6 x 19") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1994 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
